Transcriptome Comparison of Defense Responses in the Rice Variety ‘Jao Hom Nin’ Regarding Two Blast Resistant Genes, Pish and Pik

by
Athipat Ngernmuen
1,
Worrawit Suktrakul
1,
Sureeporn Kate-Ngam
2 and
Chatchawan Jantasuriyarat
1,3,4,*
1
Department of Genetics, Faculty of Science, Kasetsart University, Bangkhen Campus, Ladyao, Chatuchak, Bangkok 10900, Thailand
2
Department of Agronomy, Faculty of Agriculture, Ubon Ratchathani University, Warinchamrap, Ubon Ratchathani 34190, Thailand
3
Center for Advanced Studies in Tropical Natural Resources, National Research University-Kasetsart University (CASTNAR, NRU-KU), Kasetsart University, Bangkok 10900, Thailand
4
Omics Center for Agriculture, Bioresources, Food and Health, Kasetsart University (OmiKU), Kasetsart University, Bangkok 10900, Thailand
*
Author to whom correspondence should be addressed.
Plants 2020, 9(6), 694; https://doi.org/10.3390/plants9060694
Submission received: 11 April 2020 / Revised: 21 May 2020 / Accepted: 27 May 2020 / Published: 29 May 2020
(This article belongs to the Section Plant Genetics, Genomics and Biotechnology)
Browse Figures
Versions Notes

Abstract

:
Jao Hom Nin (JHN) is a Thai rice variety with broad-spectrum resistant against rice blast fungus. JHN contains two rice blast resistant genes, Pish and Pik, located on chromosome 1 and on chromosome 11, respectively. To understand the blast resistance in JHN, the study of the defense mechanism related to the Pish and Pik genes is crucial. This study aimed to dissect defense response genes between the Pish and Pik genes using the RNA-seq technique. Differentially expressed genes (DEGs) of Pish and Pik backcross inbred lines were identified between 0 and 24 h after inoculation with rice blast spore suspension. The results showed that 1248 and 858 DEGs were unique to the Pish and Pik lines, respectively. The wall-associated kinase gene was unique to the Pish line and the zinc-finger-containing protein gene was unique to the Pik line. Pathogenicity-related proteins PR-4 and PR-10 were commonly found in both Pish and Pik lines. Moreover, DEGs functionally categorized in brassinosteriod, jasmonic acid, and salicylic acid pathways were detected in both Pish and Pik lines. These unique and shared genes in the Pish and Pik rice blast defense responses will help to dissect the mechanisms of plant defense and facilitate rice blast breeding programs.

1. Introduction

Rice, Oryza sativa L., is an important cereal crop and serves as a major source of energy for more than half of the global population. In the past decade, the total global rice production each year was more than 700 million tons, which was mainly produced in Asian countries, such as Thailand, India, Vietnam, and China [1,2]. Currently, a challenge in rice production is the declining rice productivity due to both abiotic and biotic stresses, which include insect pests, bacteria, and fungi [3]. Rice blast disease, caused by an ascomycete fungus Magnaporthe oryzae, is one of the most destructive diseases in rice production worldwide. All above-ground rice plants can be infected by this fungus. This disease frequently occurs in temperate rice growing regions. An outbreak of the rice blast disease results in rice yield loss. The rice blast disease is responsible for 30% global rice production losses and results in an increase of costs to control this disease [4,5]. One of the potential methods to control this disease is using rice-blast-resistant cultivars [6]. The resistance capability of the resistant cultivars is explained by a gene-for-gene interaction, which is an interaction between resistance proteins (R proteins) in plants and avirulence proteins (Avr proteins) in pathogens. The resistant cultivars contain R proteins that correspond with Avr proteins, which trigger a plant defense response, leading to plant resistance [7,8]. Plant defense against pathogen initiates with pathogen recognition. After this, a signal transduction is mediated by several actions, including a phosphorylation–dephosphorylation cascade. The outcomes of plant defense response are a hypersensitive response (HR), a programmed cell death, and an expression of defense-related genes to inhibit the pathogen growth [9,10]. To date, there are more than 100 R genes mapped in the rice genome [11]. Some cloned genes have been molecularly characterized. Most cloned blast R genes encode proteins, encoding a nucleotide binding site (NBS) and leucine-rich repeats (LRR) [12,13]. For example, the Pish and Pik genes have been cloned and characterized as the NBS-LRR genes [14,15]. The Pish gene shows partial resistance to rice blast isolates, allowing some pathogen growth [14,16]. On the other hand, the Pik gene shows complete resistance to rice blast isolates [15,16]. The improvement of the resistant rice cultivars by an introgression of the desirable resistance genes into susceptible cultivars provides the best way to protect rice from this disease. Marker-assisted selection (MAS), the breeding procedure that integrates the DNA marker detection and selection into a traditional breeding program, is used to produce the resistant rice cultivars [17,18]. Graphical genotype, the display of the proportion of donor and recurrent genomes in the subsequent backcross generations, allows the selection of the desirable lines with the resistance-related genes and resistant phenotypes [19]. These selected lines can be used to investigate the gene expression that reflects how the resistant cultivars were able to overcome the pathogen.
A transcriptome is a whole set of transcribed RNAs from a specific tissue or cell type at a developmental stage or under certain conditions [20]. Several transcriptomic studies related to the rice blast resistance using various rice varieties and blast isolates have been previously reported [21,22,23,24,25]. The RNA-seq was used to dissect the molecular defense mechanism in the early response at 24 h after blast inoculation in Gigante Vercelli (a durable and broad resistant rice variety) and Vialone Nano (a highly susceptible rice variety) [26]. The resistant cultivar showed upregulation of defense-response-related genes encoding diterpene phytoalexin biosynthetic enzymes, flavin-containing monooxygenase, class I chitinase, and glycosyl hydrolase17. The genes related to the early steps of defense perception signaling, including chitin oligosaccharides sensing factors, wall associated kinases, MAPK cascades, and WRKY transcription factors, were also detected [26].
The Thai rice variety named Jao Hom Nin (JHN) is a non-glutinous rice variety with resistance to leaf and neck blast diseases under natural conditions [27]. JHN demonstrates a broad-spectrum resistance against various rice blast isolates in Thailand. A previous report showed that JHN contains two rice blast resistance quantitative trait loci (QTLs), located on chromosome 1 and on chromosome 11 [28]. These two QTLs were introgressed into a Thai glutinous rice cultivar RD6, a rice-blast-susceptible cultivar [29]. Later, the two resistance genes in JHN were cloned and revealed to be the Pish gene on chromosome 1 and the Pik gene on chromosome 11 [30]. In this study, we obtained nine backcross inbred lines from a cross between RD6 (the recurrent parent) and JHN (the donor parent). These inbred lines were classified into three groups: three lines containing QTL on chromosome 1 of JHN (labelled as qBL1), three lines containing QTL on chromosome 11 of JHN (qBL11), and three lines containing both QTLs on chromosome 1 and 11 (qBL1 and 11). Polymorphic DNA markers between RD6 and JHN were used to construct a graphical genotype to examine the genetic makeup of all nine inbred lines in order to select the representative lines for the transcriptomic analysis. RNA-seq technique was used to identify the defense response transcripts in rice containing the Pish and Pik genes. The data generated from this transcriptomic study revealed the common and unique defense response pathways of the two different rice blast resistance genes and will lead to understanding the mechanism of rice blast resistance in the JHN rice cultivar.

2. Results

2.1. Graphical Genotyping of RD6 Backcross Inbred Lines

A total of 363 selected rice DNA markers consisting of 133 InDel markers (Table S1) obtained from a previous report of rice InDel marker development [31] and 230 SSR markers (Table S2) from GRAMENE database were used to determine the polymorphism between JHN rice cultivar (resistant variety) and RD6 (susceptible variety). In total, 94 out of 363 markers (24.7%) showed polymorphism between JHN and RD6, including 18 InDel markers and 76 SSR markers. The number of the polymorphic markers between JHN and RD6 in each chromosome ranged from 5 to 13 markers. Chromosomes 1, 2, 3, 4, 6, 9, 10, 11, and 12 contain both InDel and SSR markers, but chromosomes 5, 7, and 8 only contain SSR markers (Table S3). These 94 polymorphic markers were consequently used for the graphical genotype construction of nine backcross inbred lines (BILs).
The graphical genotype of nine backcross inbred lines was constructed by GGT 2.0: Graphical GenoTyping. The graphical genotyping-illustrated RD6 genetic background ranged from 92.55 to 96.81 percent (Table S4). Chromosomes 2, 3, 6, 7, 8, 10, and 12 had the entire RD6 genetic background, while chromosomes 1, 4, 5, 9, and 11 had the introgression fragments from JHN (Figure 1). To select the representatives of BILs for subsequent transcriptomic study, BILs with the highest percentage of RD6 background with a sufficient amount of seeds were selected, including the qBL1 (3) line, representing the BIL line containing the Pish gene; and the qBL11 (3) line, representing the BIL line containing the Pik gene. These lines were designated as Q1 and Q11, respectively, in transcriptomic analysis.

2.2. Transcriptome Sequencing Data of Rice Containing Pish and Pik Genes upon Rice Blast Infection

Two replications of 21-day-old seeding of JHN, RD6, Q1 (the selected rice line containing the Pish gene), and Q11 (the selected rice containing the Pik gene) were inoculated with rice blast isolate THL84. The leaf samples were collected at 0 and 24 h after inoculation. After 7 days of inoculation, the disease reaction was observed. RD6 and Q1 plants showed rice blast disease symptoms, while JHN and Q11 were resistant to rice blast isolate THL84. KDML105, a Thai rice cultivar, was used as the susceptible control (Figure 2). RNA was extracted from leaf samples and used for the RNA-seq experiment. The RNA-seq results showed that each sample had total reads ranging between 11,724,286 and 15,418,460 reads, while the total mapped reads ranged between 92.7% and 93.5%. The reads with multiple alignments represented approximately 6% of the total (Table S5). The data have been deposited with links to BioProject accession number PRJNA634330 in the DDBJ BioProject database.

2.3. Identification of Differently Expressed Genes (DEGs) between 0 and 24 H After Innoculation in the Pish-Containing Rice (Q1) and the Pik-Containing Rice (Q11)

Leaf samples of the Pish-containing rice line Q1 collected at 0 and 24 h after inoculation (hai) were named Q1-0 and Q1-24, respectively; and leaf samples of the Pik-containing rice line Q11 collected at 0 and 24 hai were named Q11-0 and Q11-24, respectively. Moreover, leaf samples of the RD6 rice variety, the negative control, collected at 0 and 24 hai were named R-0 and R-24, respectively. Cuffdiff was used to determine the number of differentially expressed genes (DEGs). There were 5584 DEGs, including 2721 upregulated genes and 2863 downregulated genes. There were 155 upregulated and 1093 downregulated DEGs unique to the Pish gene that were only presented in Q1. There were 237 upregulated and 631 downregulated DEGs unique to the Pik gene that were only presented in Q11. There were 222 upregulated and 1162 downregulated DEGs that were commonly found in both Q1 and Q11 (Figure 3). Principal component analysis (PCA) showed that gene expression profiles of the samples at 0 hai were clustered together, while those of the samples at 24 hai were scattered. Moreover, the results indicated that the expression profiles between 0 and 24 hai were highly different, suggesting the different responses of RD6, Q1, and Q11 lines to rice blast infection (Figure S4).
The top 20 upregulated DEGs unique to Q1 or Q11 are listed in Table 1, while those DEGs that were common between Q1 and Q11 are listed in Table 2. Some of these genes were hypothetical genes and unknown function proteins. The genes encoding the late embryogenesis abundant (LEA) protein, germin-like protein, pathogenesis-related transcriptional factor, wall-associated kinase, metallothionein-like protein type 1, dehydrin RAB 16D, lipase, GA 2-oxidase3, auxin influx carrier protein, and ATCNGC15 protein were unique to Q1. Additionally, the genes encoding guanine nucleotide exchange factors for Rop, zinc-finger-containing protein, atypical basic helix–loop–helix protein, similar P-type R2R3 Myb protein, MADS box transcription factor, alpha/beta hydrolase fold-3 domain, chitinase III C10150, GAST, bifunctional inhibitor protein, esterase, and lipase were unique to Q11 (Table 2).
Moreover, 27 upregulated DEGs between R-0 and Q1-0 were identified. These genes encode for Myb/SANT-like domain containing protein, a beta subunit of polygalacturonase 1 and peroxidase. Another 32 upregulated DEGs between R-0 and Q11-0 were also identified. These genes encode for isoflavone reductase homolog IRL, mitochondrial chaperonin-60, and cytosolic pyruvate orthophosphate dikinase (Table S6).

2.4. Identification of Gene Ontology Using agriGO

To examine the function of differentially expressed genes in the Pish-containing rice line (Q1-0 vs. Q1-24), the Pik-containing rice line (Q11-0 vs. Q11-24), and RD6 rice variety (R-0 vs. R-24), the gene ontologies were classified by GO terms into three groups based on their biological process, molecular function, and cellular components, using GO Analysis toolkit and database for agricultural communities, or agriGO v2.0. The major GO term in terms of biological function was the carbohydrate metabolic process (GO:0005975). The major GO term in terms of molecular function was the protein tyrosine kinase activity (GO:0004713). The major GO term in terms of the cellular component was the part (GO:0044464) (Figures S1 and S2). Interestingly, several DEGs were classified in the defense response group, including biotic stimulus (GO:0009607), defense response (GO:0006952), and defense response to fungus (GO:0050832). The examples of these DEGs were pathogenesis-related protein PR-10a, pathogenesis-related protein PR-4b, Tify-domain-containing protein, root specific PR-10, pathogen resistance protein PBZ1, and the pathogenesis-related protein PR-10b (Figure 4).

2.5. Identification of Biological Pathway Using Plant Reactome

The differentially expressed genes were categorized based on their function by Plant Reactome (Tables S7 and S8). The categorized functions in Plant Reactome database were hormone, biosynthesis, signaling and transport. The results showed that some differentially expressed genes were related to brassinosteriods, jasmonic acid, and salicylic acid.
Twelve DEGs were classified into the brassinosteriod related group, which includes the genes in brassinosteriod biosynthesis and genes in brassinosteriod signaling. Based on their expression pattern, seven genes were upregulated at 24 hai and five genes were downregulated at 24 hai. Seven upregulated genes were 3-oxo-5-alpha-steroid 4-dehydrogenase, G-box factor 14-3-3b protein, brassinazole-resistant 1 protein, helix–loop–helix DNA-binding domain, DNA-binding WRKY domain containing protein and basic helix–loop–helix protein 102. Five downregulated genes were BRI1 kinase inhibitor 1, CTV.2-like protein, cytochrome P450 family protein, transcriptional co-repressor, brassinosteriod signaling kinase 2, and protein phosphatase 2A (Figure 5).
Thirty-two DEGs were classified into the jasmonic-acid-related gene group. These genes were involved in a jasmonic acid biosynthesis and in a jasmonic acid signaling. Based on their expression pattern, thirteen genes were upregulated at 24 hai and 19 genes were downregulated at 24 hai. These upregulated genes encode for lipoxygenases isoform 1, lipoxygenases isoform 2, ethylene-responsive transcription factor 2, Tify domain containing proteins, pathogenesis-related transcriptional factor, DNA-binding WRKY domain containing protein, WRKY transcription factor 72, WRKY transcription factor 26, WRKY transcription factor 24, VQ-domain-containing protein, and Cp-thionin. The downregulated genes encode for allene oxide synthase, 12-oxophytodienoate reductase, VQ-domain-containing protein, and jasmonate ZIM domain protein (Figure 6).
Twenty-six DEGs were classified in salicylic acid signaling. Based on their expression patterns, nine genes were upregulated at 24 hai. These genes encode for transcription factor HBP-1b proteins, allergen V5/Tpx-1 related family proteins, WRKY transcription factor 62, calmodulin binding protein, phenylalanine ammonia lyases, and WRKY13 transcription factor (Figure 7).

2.6. Validation of RNA-Seq Results by a Quantitative Real-Time PCR (qRT-PCR)

To validate the RNA-seq gene expression results, ten DEGs with log2FC values higher than 3 were chosen for a quantitative real-time PCR analysis. The three upregulated genes that were common among Q1, Q11, and RD6 (Os10G0549000, Os07G0529000, and Os08G01576000), two upregulated that were common between Q1 and Q11 (Os09G0319800 and Os11G0701500), two upregulated genes that were unique to Q1 (Os06G0573500 and Os10G0180800), and three upregulated genes that were unique to Q11 (Os02G0514150, Os11G0701400, and Os11G0134950) were examined. The comparison between the RNA-seq and qRT-PCR results showed that the expression profiles of nine out of ten genes were correlated between the qRT-PCR and RNA-seq (Table S10). The results of linear regression analysis indicated a correlation (r2 = 0.66) between the RNA-seq and qRT-PCR data (Figure S3).

3. Discussion

A total of 94 out of 363 markers showed polymorphism between JHN and RD6 (28.4%), which was lower than the polymorphism between IR64 and KDML105 (35.71%) from previous reports [32]. IR64 was developed by the International Rice Research Institute (IRRI), the Philippines, but KDML105 was developed by the Rice Department, Thailand. In this study, both JHN and RD6 are Thai rice varieties, therefore they may share a genetic background and show low levels of polymorphic markers. A higher polymorphic rate was found between rice from two subspecies, Indica and Japonica [33]. The 133 InDel markers used in this study were developed by the comparison between genome sequences of two different rice subspecies, Indica and Japonica. When applied to JHN and RD6, which are Indica rice, a low percentage (13.5%) of polymorphism was found [31].
Ninety-four polymorphic markers between JHN and RD6 were consequently used for graphical genotype construction of nine backcross inbred lines. The graphical genotyping illustrated that the genetic background of RD6 ranged from 92.55% to 96.81%. This result was fit with the expected percentage of the recurrent parent RD6 after 4 generations of backcrossing, with a hypothetical percentage of 96.875%. The RD0114 marker, a marker linked to a rice blast resistance QTL on chromosome 1, revealed a JHN background in all three qBL1 lines and all three qBL1&11 lines, but showed an RD6 background in all three qBL11 lines. This result indicated the successful introgression of the rice blast resistance QTL on chromosome 1. Similar to the three DNA markers (RM1233, RM224, and RM144) linked to a rice blast resistance QTL on chromosome 11 [27], all three markers revealed a JHN genetic background in all qBL1 lines and qBL1&11 lines, indicating the successful introgression of this QTL.
From the pathogenicity assay, JHN and Q11 were resistant to a rice blast fungus THL84 isolate, but showed blast symptom with RD6 that was more severe than with Q1 (Figure 2). Our result was consistent with the previous report, showing that the Pish-containing rice line was partially resistant to the rice blast isolate THL84, while RD6 was susceptible to THL84. Moreover, the Pik-containing rice line and JHN showed resistance to the rice blast isolate THL84 [27].
Differentially expressed genes (DEGs) in the Pish and Pik backcross inbred lines and their gene function were identified and categorized into unique and shared sets. Identified DEGs uniquely present in the Pish rice line in this study were previously reported, including the wall-associated kinase gene involved in pathogen response [34], late embryogenesis abundant genes involved in desiccation and defense responses [35], and metallothionein-like protein regulation responses to stress stimuli and microbial challenge [36]. The identified DEGs uniquely present in the Pik rice line in this study were also previously reported, including zinc-finger-containing protein genes related to the regulation of resistance mechanisms for various biotic stress [37]; Myb transcription factor genes involved in controlling various processes, such as responses to biotic and abiotic stresses, development, differentiation, metabolism, and defense [38]; and chitinase genes involved in defense against fungal pathogens [39]. Finally, identified DEGs commonly present in both Pish and Pik rice lines were also previously reported, for example chitinase and substilin, which are associated with pathogen resistance [39,40].
Several identified DEGs were characterized based on their biotic stimulus (GO:0009607), defense response (GO:0006952), and defense response to fungus (GO:0050832). These defense response genes were highly expressed at 24 hai when compared with 0 hai. Pathogenesis-related protein class 10 (PR-10) plays a role as a ribonuclease. PR-10 was reported in several biotic stresses, including fungal pathogens [41]. Pathogenesis-related protein class 4 (PR-4) plays a role in mobilizing compounds during the senescence program and plays a protective role by degrading DNA or RNA of foreign invading pathogens [42]. PBZ1, another protein in the PR-10 family, was highly responsive to rice blast fungus infection and the reported RNase activity inside the cell [43]. Overall, our results showed that the Pish and Pik resistance genes share common signal transduction and defense response pathways in rice blast defense mechanisms, with few exceptions for specific genes in each case.
The pathway analysis using Plant Reactome showed that brassinosteroids (BRs) are a class of steroid phytohormones regulating many aspects of plant growth and development. BRs are also reported to be involved in pathogen defense response [44]. In the brassinosteroid pathway, BKI1 (BRI1 kinase inhibitor1) is a negative regulator of brassinosteroid signaling [45]. Interestingly, brassinazole-resistant 1 protein (BZR1) showed high expression in both Pish and Pik rice lines at 24 hai. BZR1 is a nuclear component of the BR signal transduction pathway. BZR1 is a positive regulator of the BR signaling pathway, which mediates the downstream BR response and regulates BR biosynthesis [46]. Therefore, the resistance in the Pish and Pik rice lines may relate to the brassinosteroid signaling pathway. The higher expression level of the BZR1 gene in the Pik rice line may correspond with the pathogenicity assay showing more resistance of the Pik rice line than the Pish rice line. Jasmonic acid (JA) signaling plays a role in plant defenses against pathogens [47]. The Pik rice line in our study showed high expression level of JA signaling genes CM-LOX1 and LOX2 lipoxygenase at 24 hai [48]. Moreover, Tify-domain-containing protein [49] and WRKY transcription factor genes [50], both of which are the JA signaling genes, were upregulated in the Pik rice line. Salicylic acid (SA) also plays an important role to induce plant defense against a variety of biotic and abiotic stresses [51]. In this study, pathogenesis-related protein PRB1-2 [52], BZIP transcription factor [53], allergen V5/Tpx-1-related family protein [54] and pathogenesis-related 1a protein genes were upregulated. PR-1 is a dominant protein group reported to be induced by pathogens [55]. The validation of RNA-seq results using real-time PCR showed that the expression levels in nine out of ten selected genes were consistent with expression levels assessed by the RNA-seq. Many studies have used a real-time PCR to validate the gene expression profiles generated from the RNA-seq [22,56,57]. Our study also showed that the gene expression data from the RNA-seq could be validated by the real-time PCR, and the RNA-seq could indicate the reliability of the results of the gene expression levels.

4. Materials and Methods

4.1. Rice Materials

Jao Hom Nin (JHN) is a non-glutinous rice variety that resists both leaf and neck blast diseases under natural conditions. RD6 is a commercial glutinous rice grown in the northeast region of Thailand, which is susceptible to various insect pests and diseases, including rice blast [27]. The development of RD6 backcross inbred lines introgressed by the rice-blast-resistant QTLs from JHN cultivar by marker-assisted selection was conducted at the Rice Science Center and Rice Gene Discovery Unit, Kasetsart University, Kamphaengsaen campus. The backcross inbred lines (BILs) containing a QTL from JHN were selected by markers linked to QTLs on chromosome 1 and 11. Nine BILs were obtained and classified into three groups, which consisted of three BILs with introgression of a rice blast resistance QTL on chromosome 1 of JHN (qBL1), three BILs with a rice blast resistance QTL on chromosome 11 of JHN (qBL11), and three BILs with both of these QTLs of JHN (qBL1&11). The rice line names were based on the group names, with the number of lines given in parentheses: qBL1 (1), qBL1 (2), qBL1(3), qBLl1 (1), qBLL11(2), qBL11(3), qBL1&11 (1), qBL1&11 (2), and qBL1&11 (3). KDML105 was used as a susceptible control in the pathogenicity assay.

4.2. Screening of Polymorphic Markers in JHN and RD6

To find polymorphic markers in JHN and RD6, InDel and simple sequence repeat (SSR) markers were used. Genomic DNA samples of JHN and RD6 rice cultivars were used for a PCR reaction to screen for polymorphic markers. Each PCR reaction component was filled in the 96-well plates. Then, 50 ng/μL DNA solution of each rice cultivar was used as the DNA template. The PCR reaction was prepared by mixing 2 μL of 50 ng/μL DNA, 0.5 μL of forward primer, 0.5 μL of reverse primer, 1 µL of 2.5 mM dNTP, 1 μL of 10× Buffer A, 0.5 μL of 50mM MgCl2, 0.15 μL of Taq DNA polymerase (Vivantis, CA, USA), and 4.35 μL of dH2O per 1 reaction. The PCR reaction was conducted by PCR machine (Eppendorf, Hamburg, Germany). The conditions for each step were as follows: 94 °C for 3 min for the predenaturation step, 94 °C for 45 s for the denaturation, 55 °C for 45 s for the annealing step, 72 °C for 1 min for the extension step, and 10 °C for 10 min for the postextension step. The denaturation to extension step was conducted over 35 cycles.
The primer pairs of 133 InDel markers [26] were used as primers to amplify DNA targets from DNA templates of JHN and RD6. The primer sequence information of InDel markers is shown in Table S1. The PCR products were visualized using 1.5% agarose gel electrophoresis. The 100 bp DNA ladder (Vivantis, CA, USA) was used to determine the sizes of PCR products in base pair units. For SSR markers, the primer pairs of 230 SSR markers were selected to study the polymorphism between JHN and RD6 rice cultivars. The primer sequence information of SSR markers is shown in Table S2. The PCR products were visualized by polyacrylamide gel electrophoresis.

4.3. Graphical Genotyping

The polymorphic screening data generated from InDel and SSR markers of JHN, RD6, and nine BILs was used to construct the graphical genotype using GGT 2.0: Graphical GenoTyping [58]. In each marker, the PCR products of the same size as JHN were determined as the JHN genetic background, while the PCR products of the same size as RD6 were determined as the RD6 background.

4.4. Rice Blast Fungus Inoculation

The filter paper rice mycelium stock was used as the culture in the Petri dishes, containing rice flour agar (20 g rice flour, 28 g agar, and 2 g yeast extract in 1 L of dH2O) in an incubator at 28 °C for 7 days. The cultured fungus was recultured by cutting the 1 × 1 cm2 mycelial mat and transferring it to a Petri disc containing new rice flour agar for 7 days. The fungus was then scraped using a spreader and kept in a dry condition with black light exposure to induce conidia induction. The conidia suspension was prepared by washing the conidia in the Petri dishes using distilled water and preparing the 15 mL spore suspension. A hemocytometer was used to measure the conidia concentration. The conidia concentration was adjusted to 2 × 105 conidia/mL by mixing with 0.01% Tween20. The spore suspension was sprayed onto 21-day-old rice seedlings. Rice plants were kept at 24 °C in high humidity (95–100% humidity) and dark conditions for 24 h. Rice leaf samples were collected at 0 and 24 h after inoculation for the transcriptomic study, while several rice plants were kept in the greenhouse for disease severity observation at 7 days post inoculation. The disease severity used a severity score ranging from 0 (resistance) to 6 (susceptibility), which measured the performance by lesion per unit area and lesion size [59].

4.5. Transcriptome Experiment and Data Analysis and Validation of Gene Expression Profiling

Three rice lines, namely RD6, a susceptible rice variety; Q1 BIL line with the Pish gene in RD6 genomic background; and Q11 BIL line with the Pik gene in RD6 genomic background, were used in the transcriptome experiment. A completely randomized design with two replications was used. The 21-day-old rice seedlings were grown in clay–loam soil in a cultivation tray. Each individual pot contained five plants, which were pooled and determined as one sample. The rice seedlings were inoculated by THL84, which can infect RD6, but this isolate cannot infect JHN, a resistant rice variety containing rice blast resistance genes Pish and Pik [30]. The pooled leaf samples of RD6, Q1, and Q11 lines were collected right before the inoculation. These samples were labelled as R-0, Q1-0, and Q11-0, respectively; and the leaves samples of RD6, Q1, and Q11 lines at 24 h after inoculation were collected and labelled as R-24, Q1-24, and Q11-24, respectively. The total RNA in each sample was isolated by GF-1 Total RNA Extraction Kit (Vivantis, CA, USA). Then, 5 μg of total RNA was subjected to library preparation using the True Standard mRNA Library. The quality and concentration of the RNA and library were assayed on a bioanalyzer (Agilent, CA, USA). The RNA integrity number (RIN) scores ranged from 8.00 to 8.60, which were sufficient quality for RNA-seq experiments (Table S9). Libraries were single-end sequenced by NextSeq 500/550 High-Output V2 Kit (Illumina, CA, USA).
After obtaining RNA-seq raw data, the sequencing data in FASTQ format were evaluated for quality using FASTQC. Low-quality bases were trimmed by Trimmomatic. High-quality single-end reads from each sample were aligned to the International Rice Genome Sequencing Project-1.0 (IRGSP-1.0) as the rice reference genome by using TopHat version 1.4.1 and assembled with Cufflinks. The cufflinks assemblies were merged together by Cuffmerge. Cuffdiff was used for identification of differentially expressed genes (DEGs), with false discovery rates (FDR) less than 0.05 between two samples and the expression level indicated by fragments per kilobase of transcript per million fragments (FPKM) value [60]. The expression levels were compared between RD6 and Q1, and between RD6 and Q11. Log2FC (binary logarithm of fold change) was calculated using the binary logarithm of the FPKM in 24 hai samples divided by the FPKM in 0 hai sample. The DEGs with Log2FC > 1 were determined as upregulated genes and with Log2FC < 1 were determined as downregulated genes. GO terms analysis of rice DEGs as enriched by agriGO v2.0 using the Rice Gramene locus as reference. The FDR significance level was 0.05 for GO enrichments using the hypergeometric method as the statistical test method and Yekutieli’s method (FDR under dependency) as the multitest adjustment method. A Venn diagram was built using Venny version 2.1. A heat map was displayed using heatmaply package in Rstudio software, using Z-scores that were transformed from FPKM values in each gene. The two different principal component analysis (PCA) plots were generated using the ggfortify package [61] in R studio, using FPKM values of ten randomly selected genes to analyze the association between samples and between biological replications to verify the correctness of sampling (Figure S4).
Quantitative RT-PCR was conducted using a one-step real-time PCR system and 100 ng of total RNA per reaction. Primers were designed using Primer3. The rice actin constitutively expressed gene was used as the reference gene. PCR amplification was performed in 10 µL of final contacting volumes of 2× QuantiFast SYBR Green Master Mix (Qiagen, Hilden, Germany). Three technical replicates for each of the two biological replicates were performed at 0 and 24 h after inoculation. Relative gene expression was calculated using the 2−ΔΔCt method.

5. Conclusions

Ninety-four polymorphic DNA markers between JHN and RD6 were used to construct the graphical genotypes of BC4F2 rice-blast-resistant Q1 and Q11 backcross inbred lines (BILs). The selected BILs with the highest percentage of RD6 genetic background, except for the QTLs on chromosome 1 and 11, were used for transcriptome analysis. RNA-seq results revealed 6466 and 6030 differentially expressed genes (DEGs) upon rice blast infection in the Pish and Pik rice lines, respectively. DEG analysis showed that rice blast resistance genes Pish and Pik have both unique and shared genes and pathways in defense response. Genes involved in recognition, signal transduction, and defense response were reported. Unique genes in the Pish rice line include wall-associated kinase gene and late embryogenesis abundant genes. Unique genes in the Pik rice line included chitinase gene and guanine nucleotide exchange factors for Rop gene. PR-4 and PR-10 protein genes were shared defense response genes in the Pish and Pik rice lines. Moreover, genes in brassinosteroid, jasmonic acid, and salicylic acid pathways were involved in defense response in the Pish and Pik rice lines. This study revealed that there are both unique and shared defense response genes involved in rice blast resistance of the Pish and Pik rice lines. The information obtained from this study will help to dissect and understand the defense response pathways in plants and will benefit rice-blast-resistant breeding programs worldwide.

Supplementary Materials

The following are available online at https://www.mdpi.com/2223-7747/9/6/694/s1, Table S1: Details of 133 rice InDel markers for screening of polymorphism between Jao Hom Nin (JHN) rice cultivar and RD6. Table S2: Details of 230 rice SSR markers for screening of polymorphism between Jao Hom Nin (JHN) rice cultivar and RD6. Table S3: List of 94 polymorphic markers between JHN and RD6. Table S4: Percentage of markers indicating JHN and RD6 genetic backgrounds in each rice backcross inbred line. Table S5: RNA-seq sample quality measured by bioanalyzer (Agilent 2100 Bioanalyzer system). TableS6: The list of upregulated DEGs in R-0 vs. Q1-0, and R-0 vs. Q11-0. Table S7: The number of upregulated genes grouped in each pathway by Plant Reactome database. Table S8: The number of downregulated genes grouped in each pathway by Plant Reactome database. Table S9: RNA integrity number (RIN) scores of twelve RNA samples in transcriptome analysis experiments. Table S10: The comparison of the Log2FC of expression values between RNA-seq and quantitative real-time PCR. Figure S1: Gene Ontology analysis indicated the top five GO terms of upregulated genes in Q1, Q11, and RD6 groups, based on the number of genes in each GO term. Figure S2: Gene Ontology analysis indicated the top five GO terms of downregulated genes in Q1, Q11, and RD6 groups, based on the number of genes in each GO term. Figure S3: Linear regression analysis indicated a correlation between the log2 (fold change) values from RNA-seq and qRT-PCR. Figure S4: PCA plot of twelve RNA-seq data sets according to gene expression (FPKM) level.

Author Contributions

Conceptualization, C.J.; methodology, C.J. and A.N.; software, A.N. and S.K.-N.; validation, A.N. and W.S.; formal analysis, A.N. and C.J.; investigation, A.N. and C.J.; resources, S.K.-N. and C.J.; data curation, A.N. and W.S.; writing—original draft preparation, A.N.; writing—review and editing, A.N. and C.J.; visualization, A.N., W.S., and C.J.; supervision, C.J.; project administration, C.J.; funding acquisition, A.N., S.K.-N. and C.J. All authors have read and agreed to the published version of the manuscript.

Funding

This research was supported from graduate scholarship provided by the National Research Council of Thailand (NRCT) as of fiscal year 2018, Faculty of Science, Kasetsart University; and Omics Center for Agriculture, Bioresources, Food, and Health, Kasetsart University and Ubon Ratchathani University.

Acknowledgments

The authors would like to thank Robert Harman II for critically and grammatically reviewing the manuscript. The first author was financially supported by the fellowship from the Development and Science Achievement Scholarship of Thailand (SAST). The authors would like to thank the Rice Science Center and Rice Gene Discovery Unit, Kasetsart University, Kampaensaen campus, for providing rice materials.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Lin, H.C.; Fukushima, Y. Rice cultivation methods and their sustainability aspects: Organic and conventional rice production in industrialized tropical monsoon Asia with a dual cropping system. Sustainability 2015, 8, 529. [Google Scholar] [CrossRef] [Green Version]
  2. Zibaee, A. Rice: Importance and Future. J. Rice Res. 2013, 1. [Google Scholar] [CrossRef] [Green Version]
  3. Ansari, M.U.R.; Shaheen, T.; Bukhari, S.A.; Husnain, T. Genetic improvement of rice for biotic and abiotic stress tolerance. Turk. J. Bot. 2015, 39, 911–919. [Google Scholar] [CrossRef]
  4. Khush, G.S.; Jena, K.K. Current Status and Future Prospects for Research on Blast Resistance in Rice (Oryza sativa L.). In Advances in Genetics, Genomics and Control of Rice Blast Disease; Wang, G.L., Valent, B., Eds.; Springer: Berlin, Germany, 2009; pp. 1–11. [Google Scholar]
  5. Nalley, L.; Tsiboe, F.; Durand-Morat, A.; Shew, A.; Thoma, G. Economic and environmental impact of rice blast pathogen (Magnaporthe oryzae) alleviation in the United States. PLoS ONE 2016, 11, e0167295. [Google Scholar] [CrossRef]
  6. Miah, G.; Rafii, M.Y.; Ismail, M.R.; Puteh, A.B.; Rahim, H.A.; Islam, K.N.; Latif, M.A. A review of microsatellite markers and their applications in rice breeding programs to improve blast disease resistance. Int. J. Mol. 2013, 14, 22499–22528. [Google Scholar] [CrossRef] [Green Version]
  7. Grennan, A.K. Plant response to bacterial pathogens. Overlap between innate and Gene-for-Gene defense response. Plant Physiol. 2006, 142, 809–811. [Google Scholar] [CrossRef] [Green Version]
  8. Gururani, M.A.; Venkatesh, J.; Upadhayaya, C.P.; Nookaraju, A.; Pandey, S.K.; Park, S.W. Plant disease resistance genes: Current status and future directions. Physiol. Mol. Plant Pathol. 2012, 78, 51–65. [Google Scholar] [CrossRef]
  9. Prell, H.H.; Day, P. Plant-Fungal Pathogen Interaction: A Classical and Molecular View; Springer: Berlin/Heidelberg, Germany, 2001. [Google Scholar]
  10. Gachomo, E.W.; Shonukan, O.O.; Kotchoni, S.O. The molecular initiation and subsequent acquisition of disease resistance in plants. Afr. J. Biotechnol. 2003, 2, 26–32. [Google Scholar]
  11. Tanweer, F.A.; Rafii, M.Y.; Sijam, K.; Rahim, H.A.; Ahmed, F.; Latif, M.A. Current advance methods for the identification of blast resistance genes in rice. Comptes Rendus Biol. 2015, 338, 321–334. [Google Scholar] [CrossRef]
  12. Wang, X.; Lee, S.; Wang, J.; Ma, J.; Bianco, T.; Jia, Y. Current Advances on Genetic Resistance to Rice Blast Disease. In Rice-Germplasm, Genetics and Improvement; Yan, W.G., Ed.; IntechOpen: London, UK, 2014; pp. 195–217. [Google Scholar]
  13. Li, W.; Chern, M.; Yin, J.; Wang, J.; Chen, X. Recent advances in broad-spectrum resistance to the rice blast disease. Curr. Opin. Plant Biol. 2019, 50, 114–120. [Google Scholar] [CrossRef]
  14. Takahashi, A.; Hayashi, N.; Miyao, A.; Hirochika, H. Unique features of the rice blast resistance Pish locus revealed by large scale retrotransposon-tagging. BMC Plant Biol. 2010, 10, 175. [Google Scholar] [CrossRef] [Green Version]
  15. Kanzaki, H.; Yoshida, K.; Saitoh, H.; Fujidaki, K.; Hirabuchi, A.; Alaux, L.; Fournier, E.; Tharreau, D.; Terauchi, R. Arms race co-evolution of Magnaporthe oryzae AVR-Pik and rice Pik genes driven by their physical interactions. Plant J. 2012, 72, 894–907. [Google Scholar] [CrossRef]
  16. Corwin, J.A.; Kliebenstein, D.J. Quantitative Resistance: More than Just Perception of a Pathogen. Plant Cell. 2017, 29, 655–665. [Google Scholar] [CrossRef] [Green Version]
  17. Jiang, G.L. Molecular Markers and Marker-Assisted Breeding in Plants. In Plant Breeding from Laboratories to Fields; Andersen, S.B., Ed.; IntechOpen: London, UK, 2013; pp. 45–83. [Google Scholar]
  18. Lema, M. Marker assisted selection in comparison to conventional plant breeding: Review article. Agric. Res. Technol. Open Access J. 2018, 14, 1–10. [Google Scholar] [CrossRef] [Green Version]
  19. van Eck, H.J.; Vos, P.G.; Valkonen, J.P.T.; Uitdewilligen, J.G.A.M.L.; Lensing, H.; de Vetten, N.; Visser, R.G.F. Graphical genotyping as a method to map Ny (o,n)sto and Gpa5 using a reference panel of tetraploid potato cultivars. Theor. Appl. Genet. 2017, 130, 515–528. [Google Scholar] [CrossRef] [Green Version]
  20. Dong, Z.C.; Yan, C. Transcriptomics: Advance and Approaches. Sci. China Life Sci. 2013, 56, 960–967. [Google Scholar] [CrossRef] [Green Version]
  21. Manthioni, S.M.; Beló, A.; Rizzo, C.J.; Dean, R.A.; Donofrio, N.M. Transcriptome profiling of the rice blast fungus during invasive plant infection and in vitro stress. BMC Genom. 2011, 12, 49. [Google Scholar]
  22. Wang, Y.; Kwon, S.J.; Wu, J.; Choi, J.; Lee, Y.H.; Agrawal, G.K.; Tamogami, S.; Rakwal, R.; Park, S.R.; Kim, B.G.; et al. Transcriptome analysis of early responsive genes in rice during Magnaporthe oryzae infection. Plant Pathol. J. 2014, 30, 343–354. [Google Scholar] [CrossRef] [Green Version]
  23. Gupta, S.K.; Rai, A.K.; Kanwar, S.S.; Chand, D.; Singh, N.K.; Sharma, T.R. The single functional blast resistance gene Pi54 activate a complex defence mechanism in rice. J. Exp. Bot. 2011, 63, 757–772. [Google Scholar] [CrossRef] [Green Version]
  24. Wolf, J.B.W. Principles of transcriptome analysis and gene expression quantification: An RNA-seq tutorial. Mol. Ecol. Resour. 2013, 13, 559–572. [Google Scholar] [CrossRef]
  25. Nagalakshmi, U.; Waern, K.; Snyder, M. RNA-Seq: A method for comprehensive transcriptome analysis. Curr. Protoc. Mol. Biol. 2010, 89, 4–11. [Google Scholar]
  26. Bagnaresi, P.; Biselli, C.; Orru, L.; Urso, S.; Crispino, L.; Abbruscato, P.; Piffanelli, P.; Lupotto, E.; Cattivelli, L.; Vale, G. Comparative transcriptome profiling of the early response to Magnaporthe oryzae in durable resistant vs susceptible rice (Oryza sativa L.) genotypes. PLoS ONE 2012, 7, e51609. [Google Scholar] [CrossRef] [Green Version]
  27. Noenplab, A.; Vanavichit, A.; Toojinda, T.; Sirithunya, P.; Tragoonrung, S.; Sriprakkhon, S.; Vongsaprom, C. QTL mapping for leaf and neck blast resistance in Khao Dawk Mali105 and Jao Hom Nin recombinant inbred lines. Sci. Asia 2006, 32, 133–142. [Google Scholar] [CrossRef]
  28. Sreewongchai, T.; Toojinda, T.; Thanintorn, N.; Kosawang, C.; Vanavichit, A.; Tharreau, D.; Sirithunya, P. Development of elite indica rice lines with wide spectrum of resistance to Thai blast isolates by pyramiding multiple resistance QTLs. Plant Breed. 2010, 129, 176–180. [Google Scholar] [CrossRef]
  29. Wongsaprom, C.; Sirithunya, P.; Vanavichit, A.; Pantuwan, G.; Jongdee, B.; Sidhiwong, N.; Lanceras-Siangliw, J.; Toojinda, T. Two introgressed quantitative trait loci confer a broad-spectrum resistance to blast disease in the genetic background of the cultivar RD6 a Thai glutinous jasmine rice. Field Crops Res. 2010, 199, 245–251. [Google Scholar] [CrossRef]
  30. Chaipanya, C.; Telebanco-Yanoria, M.J.; Quime, B.; Longya, A.; Korinsak, S.; Korinsak, S.; Toojinda, T.; Vanavichit, A.; Jantasuriyarat, C.; Zhou, B. Dissection of broad-spectrum resistance of the Thai rice variety Jao Hom Nin conferred by two resistance genes against rice blast. Rice 2017, 10, 18. [Google Scholar] [CrossRef]
  31. Wu, D.H.; Wu, H.P.; Wang, C.S.; Tseng, H.Y.; Hwu, K.K. Genome-wide InDel marker system for application in rice breeding and mapping studies. Euphytica 2013, 192, 131–143. [Google Scholar]
  32. Tongnun, P.; Prasongmaneerut, T.; Sriwongchai, T.; Jantasuriyarat, C. Graphical genotype of KDML105xIR64 backcross lines exhibited rice blast resistance. Chiang Mai J. Sci. 2017, 44, 1322–1333. [Google Scholar]
  33. Zhao, K.; Wright, M.; Kimball, J.; Eizenga, G.; McClung, A.; Kovach, M.; Tyagi, W.; Ali, M.L.; Tung, C.W.; Reynolds, A.; et al. Genomic Diversity and Introgression in O. sativa Reveal the Impact of Domestication and Breeding on the Rice Genome. PLoS ONE 2010, 5, e10780. [Google Scholar]
  34. Kohorn, B.D.; Kohorn, S.L. The cell wall-associated kinases, WAKs, as pectin receptors. Front. Plant Sci. 2012, 3, 88. [Google Scholar]
  35. Magwanga, R.O.; Lu, P.; Kirungu, J.N.; Lu, H.; Wang, X.; Cai, X.; Zhou, Z.; Zhang, Z.; Salih, H.; Wang, K.; et al. Characterization of the late embryogenesis abundant (LEA) proteins family and their role in drought stress tolerance in upland cotton. BMC Genet. 2018, 19, 6. [Google Scholar]
  36. Vignesh, K.S.; Deepe, G.S., Jr. Metallothioneins: Emerging modulators in immunity and infection. Int. J. Mol. Sci. 2017, 18, 2197. [Google Scholar]
  37. Gupta, S.K.; Rai, A.K.; Kanwar, S.S.; Sharma, T.R. Comparative analysis of zinc finger proteins involved in plant disease resistance. PLoS ONE 2012, 7, e42578. [Google Scholar] [CrossRef] [Green Version]
  38. Ambawat, S.; Sharma, P.; Yadav, N.R.; Yadav, R.C. MYB transcription factor genes as regulators for plant responses: An overview. Physiol. Mol. Biol. Plants 2013, 19, 307–321. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  39. Punja, Z.K.; Zhang, Y.Y. Plant chitinases and their roles in resistance to fungal disease. J. Nematol. 1993, 25, 526–540. [Google Scholar]
  40. Figueiredo, J.; Silva, M.S.; Figueiredo, A. Substilisin-like proteases in plant defense: The past, the present and beyond. Mol. Plant Pathol. 2018, 19, 1017–1028. [Google Scholar]
  41. Jain, S.; Kumar, A. The pathogenesis related class 10 proteins in plant defense against biotic and abiotic stresses. APAR 2015, 2, 1–11. [Google Scholar] [CrossRef]
  42. Guevara-Morato, M.A.; de Lacoba, M.G.; Garcia-Luque, I.; Serra, M.T. Characterization of a pathogenesis-related protein 4 (PR-4) induced in Capsicum chinense L3 plants with dual RNase and DNase activities. J. Exp. Bot. 2010, 61, 3259–3271. [Google Scholar]
  43. Kim, S.G.; Kim, S.T.; Wang, Y.; Yu, S.; Choi, I.S.; Kim, Y.C.; Kim, W.T.; Agrawal, G.K.; Rakwal, R.; Kang, K.Y. The RNase activity of rice probenazole-induced protein1 (PBZ1) plays a key role in cell death in plants. Mol. Cells 2011, 31, 25–31. [Google Scholar] [CrossRef]
  44. Deng, X.G.; Zhu, T.; Peng, X.J.; Xi, D.H.; Guo, H.; Yin, Y.; Zhang, D.W.; Lin, H.H. Role of brassinosteroids signaling in modulating Tobacco mosaic virus resistance in Nicotiana benthamiana. Sci. Rep. 2015, 6, 20579. [Google Scholar]
  45. Wang, X.; Chory, J. Brassinosteroids regulate dissociation of BKI1, a negative regulator of BRI1 signaling, from the plasma membrane. Science 2006, 313, 1118–1122. [Google Scholar] [CrossRef] [PubMed]
  46. Vidhyasekaran, P. Brassinosteroids Signaling in Plant Immune System. In Plant Hormone Signaling Systems in Plant Innate Immunity; Vidhyasekaran, P., Ed.; Springer: Dordrecht, The Netherlands, 2014; pp. 403–444. [Google Scholar]
  47. Carvalhais, L.C.; Schenk, P.M.; Dennis, P.G. Jasmonic acid signaling and the plant halobiont. Curr. Opin. Microbiol. 2013, 37, 42–47. [Google Scholar] [CrossRef] [PubMed]
  48. Kolomiets, M.V.; Hannapel, D.J.; Chen, H.; Tymeson, M.; Gladon, R.J. Lipoxygenase is involved in the control of potato tuber development. Plant Cell 2000, 13, 613–626. [Google Scholar] [CrossRef] [PubMed]
  49. Saha, G.; Park, J.I.; Kayum, M.A.; Nou, I.S. A genome-wide analysis reveals stress and hormone responsive patterns of TIFY family genes in Brassica rapa. Front. Plant Sci. 2016, 7, 936. [Google Scholar] [CrossRef] [Green Version]
  50. Phukan, U.J.; Jeena, G.S.; Shukla, R.K. WRKY transcription factors: Molecular regulation and stress responses in plants. Front. Plant Sci. 2016, 7, 760. [Google Scholar] [CrossRef] [Green Version]
  51. War, A.R.; Paulraj, M.G.; War, M.Y.; Ignacimuthu, S. Role of salicylic acid in induction of plant defense system in chickpea (Cicer arietinum L.). Plant Signal Behav. 2011, 6, 1787–1792. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  52. Mouradov, A.; Mouradova, E.; Scott, K.J. Gene family encoding basic pathogenesis-related 1 proteins in barley. Plant Mol. Biol. 1994, 26, 503–507. [Google Scholar] [CrossRef] [PubMed]
  53. Llorca, C.M.; Potschin, M.; Zentgraf, U. bZIPs and WRKYs: Two large transcription factor families executing two different functional strategies. Front. Plant Sci. 2014, 5, 169. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  54. Gong, M.L.; Zhang, Y.H.; Meng, Q.L.; Shi, F.M.; Liu, J.; Li, Y.C.; Wang, Z.Y. Cloning and function analysis of pathogenesis related protein gene HaPR1 from sunflower (Helianthus annuus). AAS 2015, 41, 1819–1827. [Google Scholar]
  55. Miche, L.; Battistomni, F.; Gemmer, S.; Belghazi, M.; Hurek, B.R. Upregulation of jasmonate-inducible defense proteins and differential colonization of roots of Oryza sativa cultivars with the endophyte Azoarcus sp. Mol. Plant Microbe Interact. 2006, 19, 502–511. [Google Scholar] [CrossRef] [Green Version]
  56. Kawahara, Y.; Oono, Y.; Kanamori, H.; Matsumoto, T.; Itoh, T.; Minami, E. Simultaneous RNA-seq analysis of a mixed transcriptome of rice and blast fungus interaction. PLoS ONE 2012, 7, e49423. [Google Scholar]
  57. Zhang, Y.; Zhao, J.; Li, Y.; Yuan, Z.; He, H.; Yang, H.; Qu, H.; Ma, C.; Qu, S. Transcriptome analysis highlights defense and signaling pathways mediated by rice pi21 gene with partial resistance to Magnaporthe oryzae. Front. Plant Sci. 2016, 7, 1834. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  58. van Berloo, R. Computer note. GGT: Software for the display of graphical genotypes. J. Hered 1999, 90, 328–329. [Google Scholar] [CrossRef] [Green Version]
  59. Roumen, E.; Levy, M.; Notteghem, J.L. Characterisation of the european pathogen population of Magnaporthe grisea by DNA fingerprinting and pathotype analysis. Eur. J. Plant Pathol. 1997, 103, 363–371. [Google Scholar] [CrossRef]
  60. Trapnell, C.; Roberts, A.; Goff, L.; Pertea, G.; Kim, D.; Kelley, D.R.; Pimentel, H.; Salzberg, S.L.; Rinn, J.L.; Pachter, L. Differential Gene and Transcript Expression Analysis of RNA-seq Experiments with TopHat and Cufflinks. Nat. Protoc. 2012, 7, 562–578. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  61. Son, K.; Yu, S.; Shin, W.; Han, K.; Kang, K. A Simple Guideline to Assess the Characteristics of RNA-Seq Data. Hindawi 2018, 2018, 2906292. [Google Scholar]
Plants 09 00694 g001 550

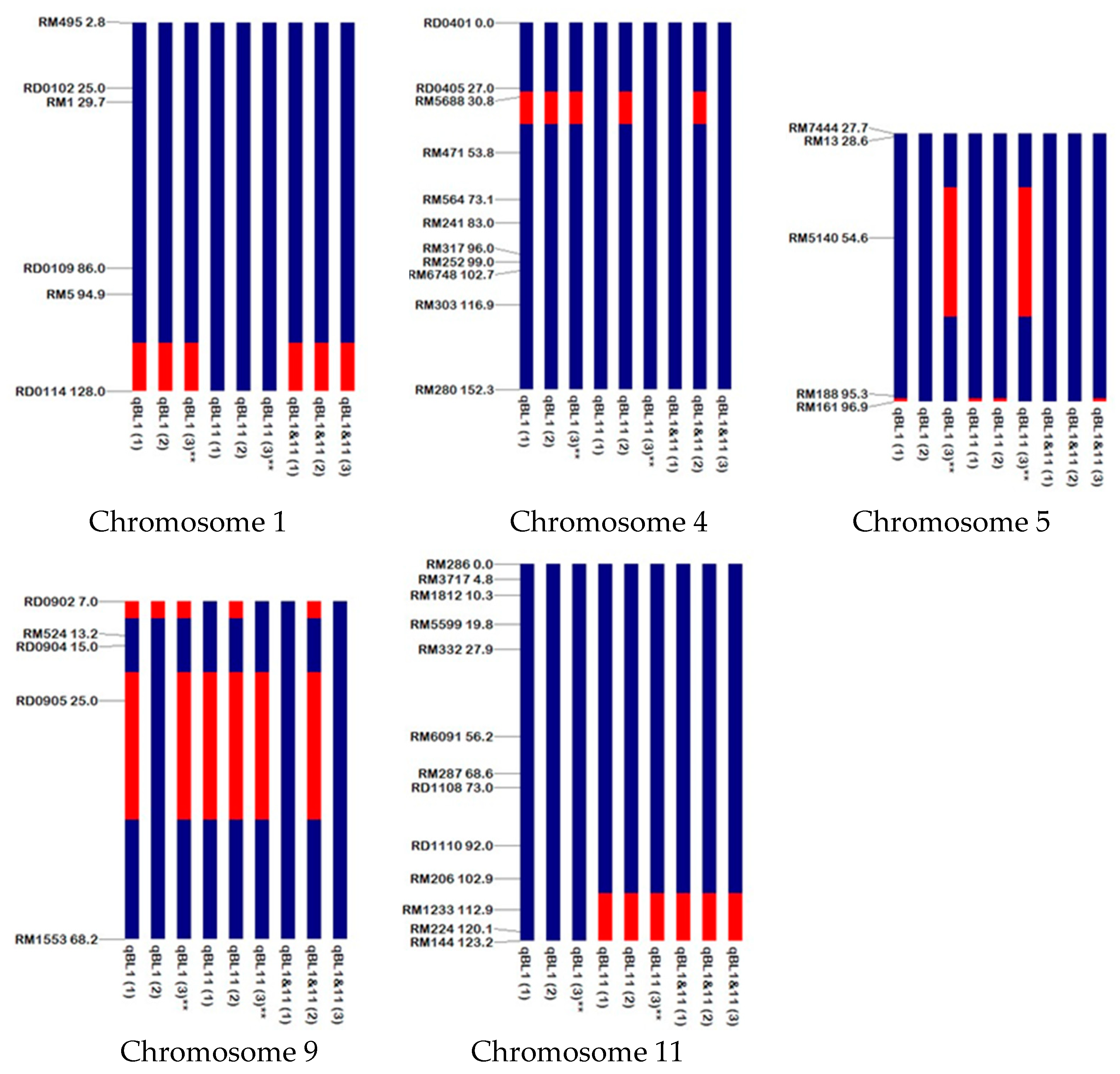

Figure 1. Graphical genotype of nine backcross inbred lines (BILs) showing the genetic backgrounds of Jao Hom Nin (JHN) (red) and RD6 (blue), which were constructed by GGT 2.0: Graphical GenoTyping. Note: line names ending with double asterisk indicate the selected lines in the subsequent transcriptome analysis.
Figure 1. Graphical genotype of nine backcross inbred lines (BILs) showing the genetic backgrounds of Jao Hom Nin (JHN) (red) and RD6 (blue), which were constructed by GGT 2.0: Graphical GenoTyping. Note: line names ending with double asterisk indicate the selected lines in the subsequent transcriptome analysis.
Plants 09 00694 g001
Plants 09 00694 g002 550
Figure 2. Pathogenicity of rice varieties and BIL lines inoculated with rice blast isolate THL84. Q1 and Q11 are BIL containing the Pish and Pik genes in the RD6 background, respectively.
Figure 2. Pathogenicity of rice varieties and BIL lines inoculated with rice blast isolate THL84. Q1 and Q11 are BIL containing the Pish and Pik genes in the RD6 background, respectively.
Plants 09 00694 g002
Plants 09 00694 g003 550
Figure 3. Venn diagram showing numbers of up- or downregulated genes in RD6, Q1, and Q11 rice lines at 0 and 24 h after inoculation with rice blast fungus isolate THL84: (a) upregulated genes and (b) downregulated genes. This Venn diagram was constructed by Venny version 2.1.0.
Figure 3. Venn diagram showing numbers of up- or downregulated genes in RD6, Q1, and Q11 rice lines at 0 and 24 h after inoculation with rice blast fungus isolate THL84: (a) upregulated genes and (b) downregulated genes. This Venn diagram was constructed by Venny version 2.1.0.
Plants 09 00694 g003
Plants 09 00694 g004 550

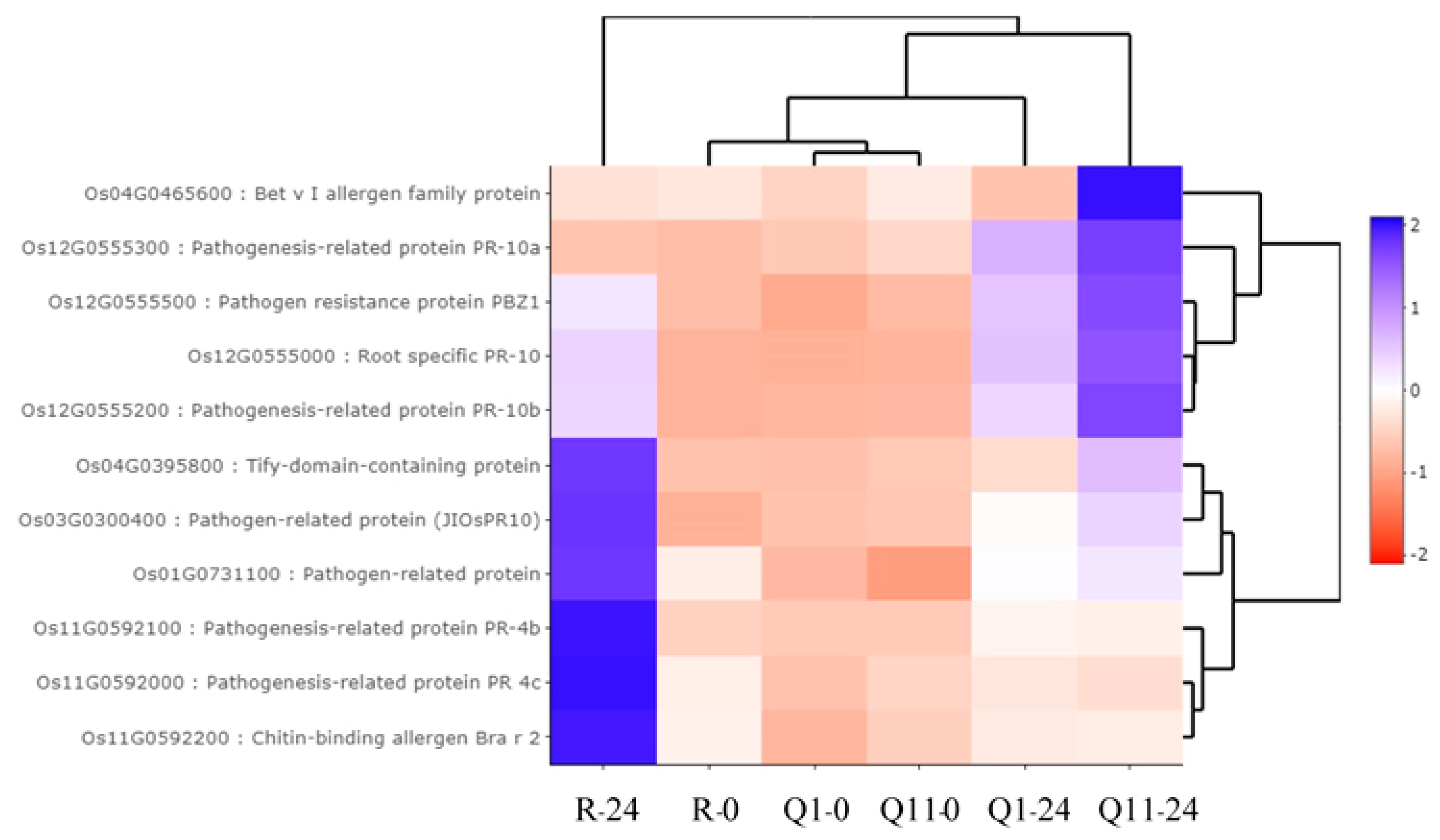

Figure 4. Heat map analysis, indicating expression patterns of 11 DEGs in the defense response group. Note: R-0, Q1-0, and Q11-0 indicate RD6, Q1, and Q11 lines at 0 h after inoculation; and R-24, Q1-24, and Q11-24 indicate RD6, Q1, and Q11 lines at 24 h after inoculation.
Figure 4. Heat map analysis, indicating expression patterns of 11 DEGs in the defense response group. Note: R-0, Q1-0, and Q11-0 indicate RD6, Q1, and Q11 lines at 0 h after inoculation; and R-24, Q1-24, and Q11-24 indicate RD6, Q1, and Q11 lines at 24 h after inoculation.
Plants 09 00694 g004
Plants 09 00694 g005 550

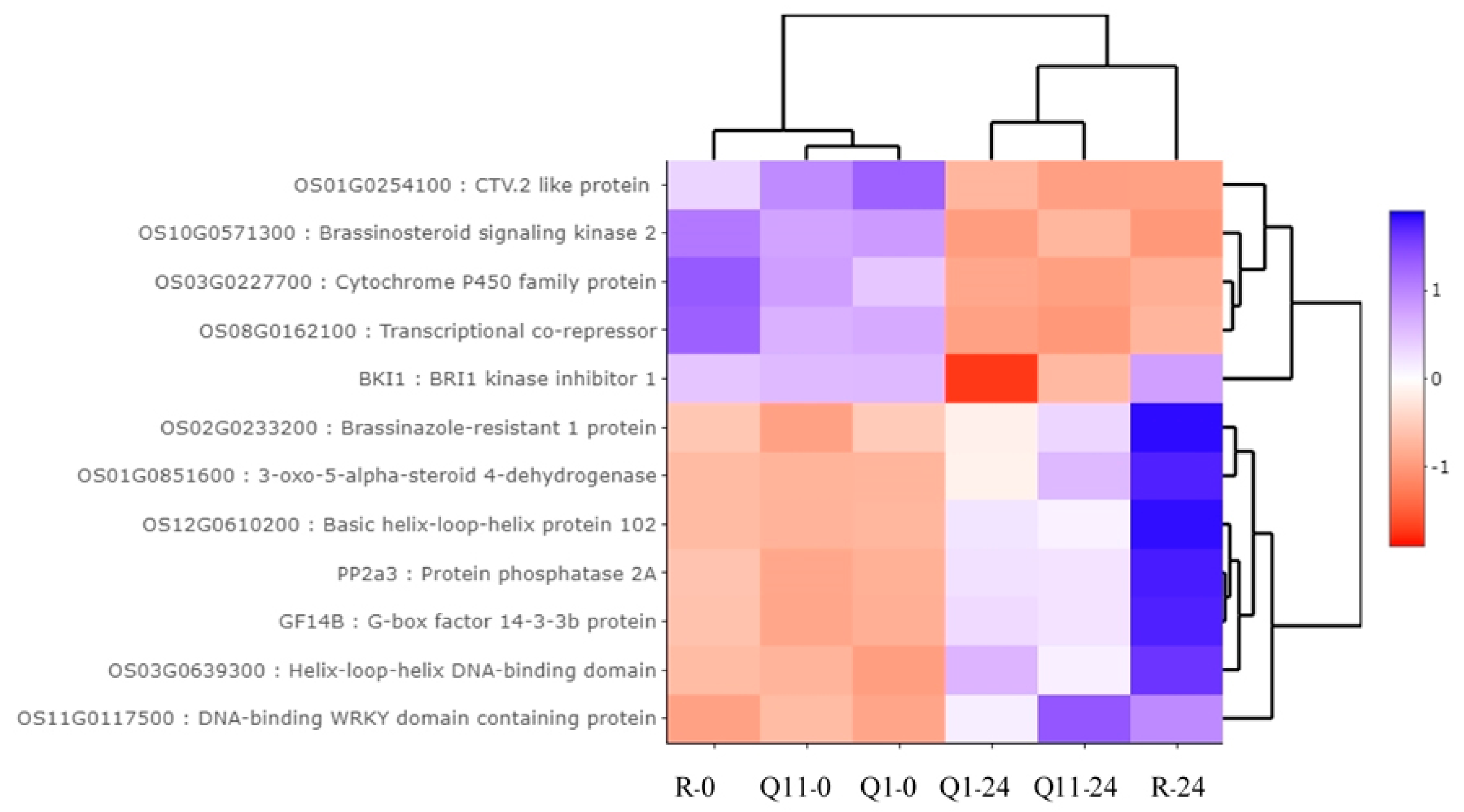

Figure 5. Heat map analysis indicating expression pattern of 12 differentially expressed genes in brassinosteriod-related genes by Plant Reactome database. Note: R-0, Q1-0, and Q11-0 indicate RD6, Q1, and Q11 lines at 0 h after inoculation; and R-24, Q1-24, and Q11-24 indicate RD6, Q1, and Q11 lines at 24 h after inoculation.
Figure 5. Heat map analysis indicating expression pattern of 12 differentially expressed genes in brassinosteriod-related genes by Plant Reactome database. Note: R-0, Q1-0, and Q11-0 indicate RD6, Q1, and Q11 lines at 0 h after inoculation; and R-24, Q1-24, and Q11-24 indicate RD6, Q1, and Q11 lines at 24 h after inoculation.
Plants 09 00694 g005
Plants 09 00694 g006 550

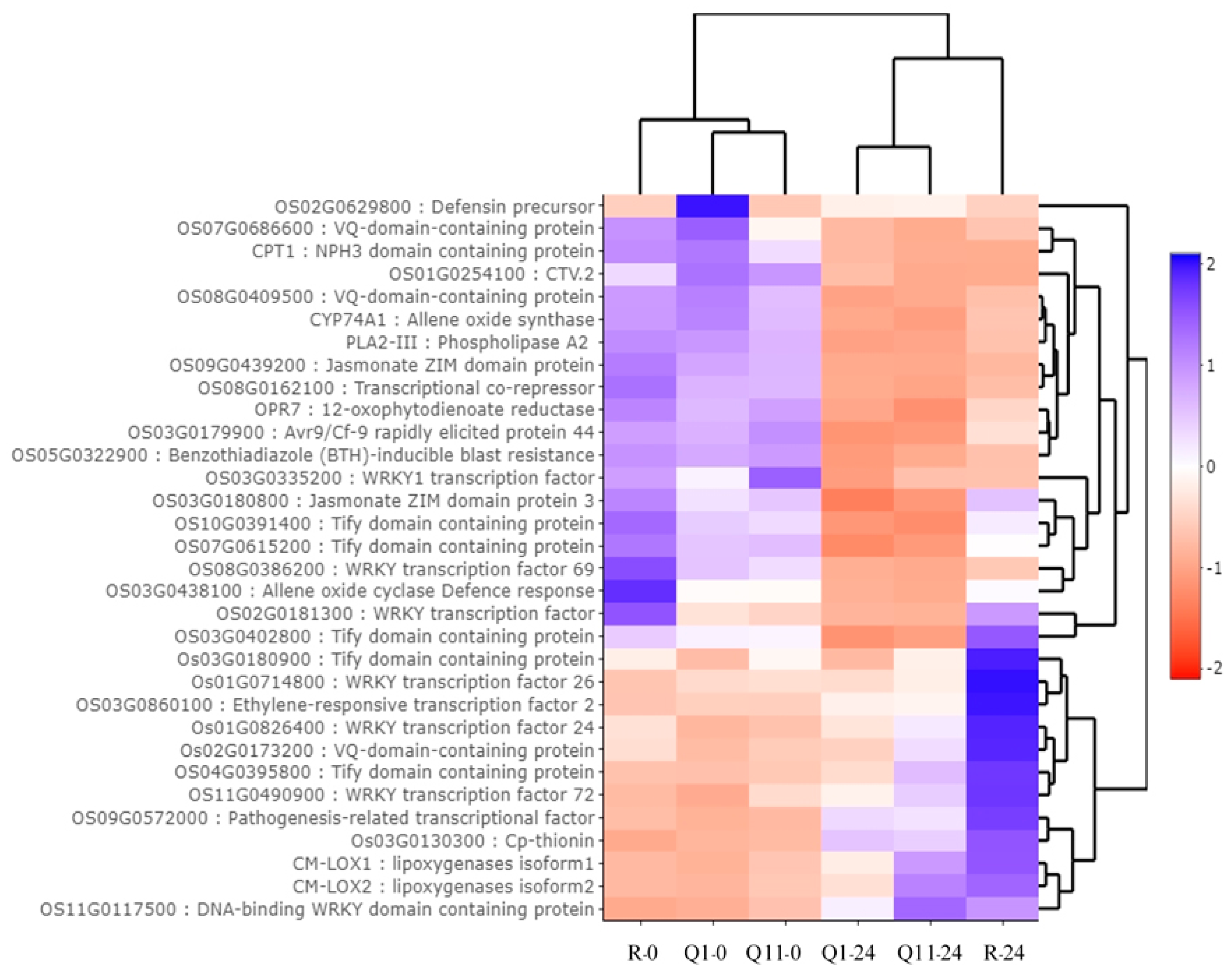

Figure 6. Heat map analysis indicating expression pattern of 32 differently expressed genes in jasmonic-acid-related genes by Plant Reactome database. Note: R-0, Q1-0, and Q11-0 indicate RD6, Q1, and Q11 lines at 0 h after inoculation; and R-24, Q1-24, and Q11-24 indicate RD6, Q1, and Q11 lines at 24 h after inoculation.
Figure 6. Heat map analysis indicating expression pattern of 32 differently expressed genes in jasmonic-acid-related genes by Plant Reactome database. Note: R-0, Q1-0, and Q11-0 indicate RD6, Q1, and Q11 lines at 0 h after inoculation; and R-24, Q1-24, and Q11-24 indicate RD6, Q1, and Q11 lines at 24 h after inoculation.
Plants 09 00694 g006
Plants 09 00694 g007 550

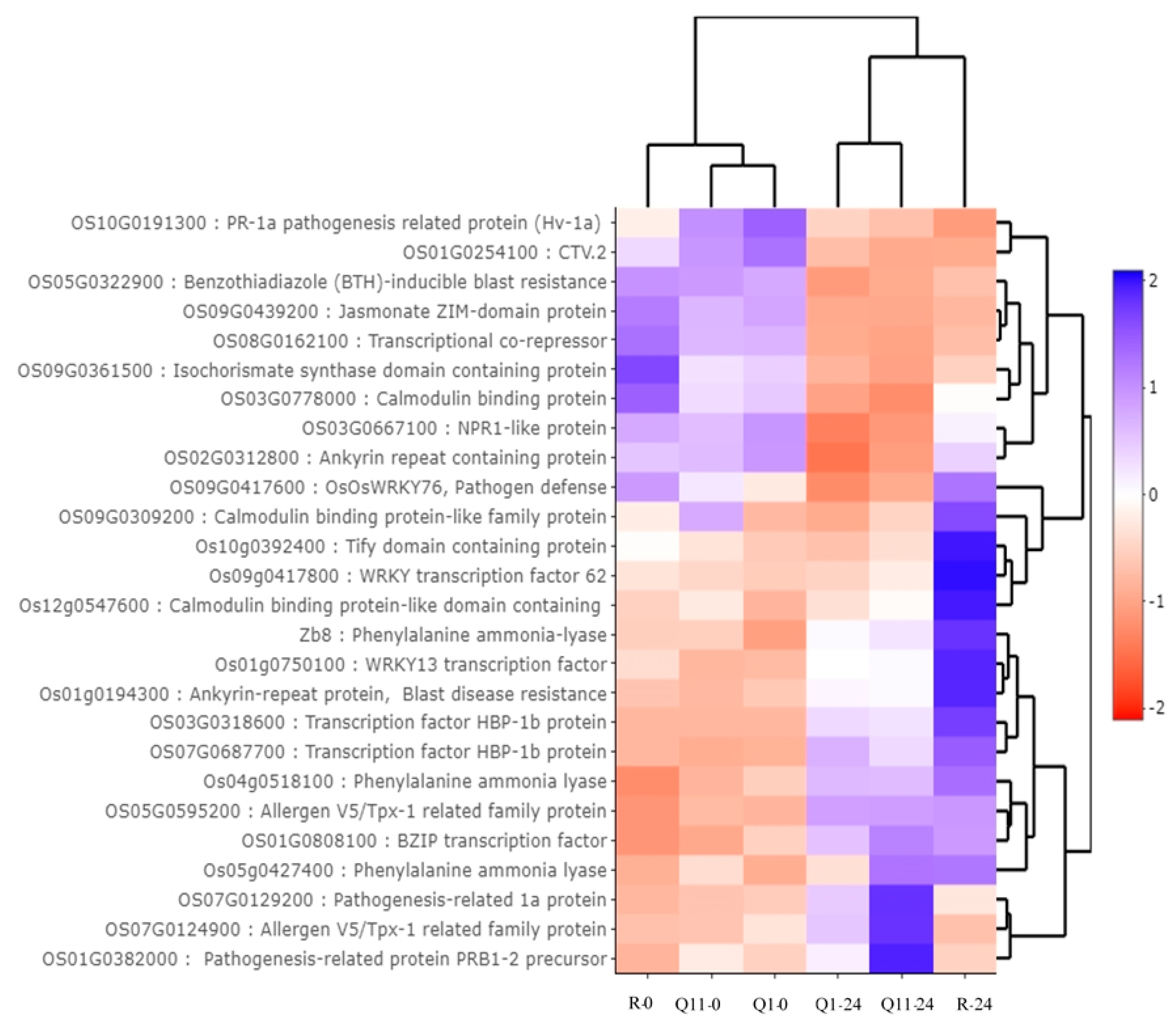

Figure 7. Heat map analysis indicating expression patterns of 26 differentially expressed genes in salicylic acid signaling by Plant Reactome database. Note: R-0, Q1-0, and Q11-0 indicate RD6, Q1, and Q11 lines at 0 h after inoculation; and R-24, Q1-24, and Q11-24 indicate RD6, Q1, and Q11 lines at 24 h after inoculation.
Figure 7. Heat map analysis indicating expression patterns of 26 differentially expressed genes in salicylic acid signaling by Plant Reactome database. Note: R-0, Q1-0, and Q11-0 indicate RD6, Q1, and Q11 lines at 0 h after inoculation; and R-24, Q1-24, and Q11-24 indicate RD6, Q1, and Q11 lines at 24 h after inoculation.
Plants 09 00694 g007
Table
Table 1. Log2 (fold change of Fragments Per Kilobase Million value; FPKM value) of top 20 unique upregulated differentially expressed genes in Q1 and Q11.
Table 1. Log2 (fold change of Fragments Per Kilobase Million value; FPKM value) of top 20 unique upregulated differentially expressed genes in Q1 and Q11.
Unique to Q1
No.Gene IDGene DescriptionLog2(FC)
1OS06G0573500Hypothetical conserved gene6.439
2OS11G0440866Non-protein coding transcript5.958
3LEA3Late embryogenesis abundant (LEA) protein5.354
4OS03G0573750Conserved hypothetical protein5.141
5OS08G0190100Germin-like protein 8-11, disease resistance 5.043
6OS01G0899800Pathogenesis-related transcriptional factor 4.965
7OS09G0109600Conserved hypothetical protein4.552
8OS04G0617900Similar to germin-like protein subfamily 14.445
9OS10G0180800Wall-associated kinase4.400
10OS12G0571000Metallothionein-like protein type 14.150
11RAB16DDehydrin RAB 16D3.984
12OS12G0623400Conserved hypothetical protein3.839
13OS03G0575500Conserved hypothetical protein3.826
14OS01G0223000Lipase3.764
15OS10G0418900Hypothetical conserved gene3.666
16OS03G0223301Hypothetical gene3.490
17OS01G0757200GA 2-oxidase3, GA metabolism3.482
18OS10G0147400Similar to Auxin influx carrier protein3.300
19OS02G0269650Hypothetical gene3.238
20OS02G0627700Similar to ATCNGC153.168
Unique to Q11
No.Gene IDGene DescriptionLog2(FC)
1OS05G0454200Guanine nucleotide exchange factors for Rop6.649
2OS09G0240200Zinc finger, B-box domain containing protein5.339
3OS02G0514150Hypothetical conserved gene5.186
4OS05G0261001Non-protein coding transcript4.767
5EPlOSAG00000006021n.a.4.695
6OS08G0335600Protein of unknown function DUF5684.681
7OS02G0747900Atypical basic helix–loop–helix protein4.495
8OS08G0486300Similar to P-type R2R3 Myb protein4.407
9MADS5MADS-box transcription factor4.323
10OS07G0600000Conserved hypothetical protein4.185
11OS11G0134950Hypothetical protein4.090
12OS02G0572000Hypothetical protein4.087
13OS11G0701400Chitinase (EC 3.2.1.14) III C10150-rice4.069
14OS04G0465300A member of the GAST (gibberellin (GA)-Stimulated Transcript)3.980
15OS01G0725400Uncharacterized protein family UPF04973.952
16OS10G0107866Non-protein coding transcript3.926
17OS06G0711900Bifunctional inhibitor/plant lipid transfer protein3.911
18OS12G0157066Hypothetical protein3.809
19OS10G0463200Esterase, SGNH hydrolase-type domain containing protein. 3.764
20OS01G0728100Lipase, GDSL-domain-containing protein. 3.714
Table
Table 2. Log2 (fold change of Fragments Per Kilobase Million value; FPKM value) of top 10 upregulated differentially expressed genes common between Q1 and Q11.
Table 2. Log2 (fold change of Fragments Per Kilobase Million value; FPKM value) of top 10 upregulated differentially expressed genes common between Q1 and Q11.
Top 10 Upregulated DEGs of Q1
No.Gene IDGene DescriptionLog2FC
Q1Q11
1OS10G0150800Protein of unknown function DUF1210 family protein6.7386.007
2OS02G0185900Hypothetical conserved gene6.5326.011
3OS10G0150700Protein of unknown function DUF1210 family protein. 6.3106.179
4OS05G0375466Non-protein coding transcript6.1527.593
5OS08G0189850Germin-like protein 8-9, disease resistance 5.8745.836
6OS09G0319800Terpene synthase-like domain containing protein5.8428.216
7OS04G0664900Similar to H1005F08.5 protein5.5967.617
8OS10G0150400Protein of unknown function DUF1210 family protein5.5154.796
9OS02G0827400Similar to predicted protein5.4283.844
10OS09G0315000Similar to mpv17/PMP22 family protein5.3634.639
Top 10 Upregulated DEGs of Q11
No.Gene IDGene DescriptionLog2FC
Q1Q11
1OS09G0319800Terpene synthase-like domain containing protein5.8428.216
2OS11G0701500Similar to class III chitinase homologue (OsChib3H-g)3.7397.891
3OS04G0664900Similar to H1005F08.5 protein5.5967.617
4OS05G0375466Non-protein coding transcript6.1527.593
5OS10G0150700Protein of unknown function DUF1210 family protein6.316.179
6OS02G0185900Hypothetical conserved gene6.5326.011
7OS10G0150800Protein of unknown function DUF1210 family protein6.7386.007
8OS08G0189850Germin-like protein 8-9, disease resistance5.8745.836
9OS07G0124900Allergen V5/Tpx-1-related family protein1.6465.750
10OS03G0291200Protein of unknown function DUF231, plant-domain-containing protein3.4855.408

Share and Cite

MDPI and ACS Style

Ngernmuen, A.; Suktrakul, W.; Kate-Ngam, S.; Jantasuriyarat, C. Transcriptome Comparison of Defense Responses in the Rice Variety ‘Jao Hom Nin’ Regarding Two Blast Resistant Genes, Pish and Pik. Plants 2020, 9, 694. https://doi.org/10.3390/plants9060694

AMA Style

Ngernmuen A, Suktrakul W, Kate-Ngam S, Jantasuriyarat C. Transcriptome Comparison of Defense Responses in the Rice Variety ‘Jao Hom Nin’ Regarding Two Blast Resistant Genes, Pish and Pik. Plants. 2020; 9(6):694. https://doi.org/10.3390/plants9060694

Chicago/Turabian Style

Ngernmuen, Athipat, Worrawit Suktrakul, Sureeporn Kate-Ngam, and Chatchawan Jantasuriyarat. 2020. "Transcriptome Comparison of Defense Responses in the Rice Variety ‘Jao Hom Nin’ Regarding Two Blast Resistant Genes, Pish and Pik" Plants 9, no. 6: 694. https://doi.org/10.3390/plants9060694

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
