Article

Mapping of a Novel Quantitative Trait Locus Conferring Bacterial Blight Resistance in the Indigenous Upland Rice Variety ULR207 Using the QTL–Seq Approach

1
Department of Agronomy, Faculty of Agriculture, Khon Kaen University, Khon Kaen 40002, Thailand
2
National Center for Genetic Engineering and Biotechnology (BIOTEC), National Science and Technology, Development Agency (NSTDA), Khlong Luang, Pathum Thani 12120, Thailand
3
School of Plant, Environmental and Soil Sciences, Louisiana State University Agricultural Center, Baton Rouge, LA 70803, USA
*
Author to whom correspondence should be addressed.
Plants 2025, 14(14), 2113; https://doi.org/10.3390/plants14142113
Submission received: 21 April 2025 / Revised: 27 June 2025 / Accepted: 3 July 2025 / Published: 9 July 2025
(This article belongs to the Special Issue Rice Genetics and Molecular Design Breeding)

Abstract

Bacterial blight (BB) disease is a serious stress that affects up to 80% of rice yield. Utilizing an elite resistant variety was previously thought to be an alternative way to control disease outbreaks. The indigenous upland rice variety ULR207 is a high-potential donor for the BB resistance breeding program. However, the quantitative trait loci (QTLs) associated with bacterial blight resistance in this variety have not yet been discovered. Therefore, QTLs associated with BB resistance need to be identified. In this study, we identified the QTLs associated with BB resistance in the F2:3 population crossed between the BB resistance variety ULR207 and Maled Phai, as well as a susceptible variety, via QTL-seq analysis and bulk-segregant analysis. We found a new QTL-associated BB resistance locus (qBBchr8) mapped on chromosome 8. Five positions were candidates, including Os08g0110700, Os08g0115200, Os08g0131300, Os08g0139500, and Os08g0163900. Afterwards, Kompetitive Allele-Specific PCR (KASP) markers specific to the SNP variant and the position of each gene were designed. These markers, associated with the disease lesion length phenotype, were validated with another 178 individual plants of the F2 population via single-marker analysis. This analysis revealed that the position Os08g0110700 was the strongest locus, with a PVE of 15.00%. The results suggest that this KASP SNP marker could be used to improve elite rice for BB resistance.

1. Introduction

Rice (Oryza sativa L.) is a staple cereal crop consumed as a carbohydrate source by more than 50% of the people worldwide, and 90% of the total rice in the world is produced by Asian countries [1,2]. However, rice production and yield are affected by epidemic bacterial blight (BB) disease. BB, which is caused by Xanthomonas oryzae pv. oryzae (Xoo), is a severe and destructive rice disease worldwide which causes a yield loss of more than 50% under Xoo-preference climates [3]. Chemical application is an effective means to control the disease, but, it is neither environmentally friendly nor cost-effective. Thus, developing BB-resistant varieties is the most appropriate and economical approach to controlling the disease [4,5].
Several BB resistant varieties have been reported, such as WC1263, IRBB5, Minh-Soc, Ganga Sagar, IRBB21, P8, IR73571-3B-11-3-K3, O. glaberrima IRGC102600B, and Mutant H120, and all these varieties carry a single R gene [6,7,8,9,10,11]. However, these BB-resistant varieties carrying a single R gene could lose their resistance ability due to pathogen adaptation [12]. Breeding rice varieties with multiple R genes is a better approach to coping with this problem [13,14,15]. Breeding lines have been developed for broad-spectrum resistance through pyramiding R genes in different combinations, such as Xa4 + xa5 + Xa21, xa5 + xa13 + Xa21, xa5 + Xa21, Xa21 + Xa33, and Xa23 with other genes, and Xa4 + xa5 + Xa7 + xa13 + Xa21, providing more effective resistance to Xoo than individual resistance genes [16,17,18,19,20,21,22]. Identifying new sources of bacterial blight resistance is urgently needed for breeding varieties with durable resistance.
More than 40 genes associated with BB resistance have been reported so far [23,24]. Some of these resistance genes have been transferred from rice germplasms to develop rice cultivars with durable resistance by gene pyramiding [25,26]. Despite numerous resistance genes being identified and used for breeding, there are many resistance genes that remain unexplored and have not been used as resistance sources [5]. Five indigenous lowland rice varieties in Thailand were found to be resistant against Xoo and have preferable agronomic traits [27]. Also, Chumpol et al. [28] reported Thai indigenous upland rice varieties with bacterial blight resistance to Thai Xoo isolates. The results showed that the indigenous upland rice variety ULR207 exhibits strong broad-spectrum BB resistance and possesses a non-analogous gene with resistant check varieties [29], suggesting that this might be a novel gene. However, the gene associated with BB resistance in this variety has not been discovered. Thus, further study to identify QTLs associated with resistance is needed.
The QTL-seq method is known to be a rapid way to identify the QTLs related to traits of interest in plants [30]. A mapping population is constructed based on a target phenotype of two varieties, which show the extreme phenotype. Then, two DNA bulks from the individual progenies with the extreme phenotype (e.g., resistant and susceptible pools) in the population are sequenced [30]. Bulk segregant analysis (BSA) with whole-genome sequencing can show differences in the patterns of single-nucleotide polymorphism (SNP) indices between two bulk populations, which can be used to identify the QTLs in each chromosome [20]. Numerous QTLs have been reported in rice using the QTL-seq method for traits such as seed vigor and blast resistance [5,30], cold tolerance in wild rice (Oryza rufipogon) [31], grain length and weight [32], low phosphorus tolerance [33], and grain elongation [34]. In this study, we endeavored to employ QTL-seq together with BSA for the identification of BB resistance QTLs in the indigenous upland rice variety ULR207, which will facilitate molecular rice breeding for bacterial blight resistance.

2. Results

2.1. Evaluation of BB Resistance and Bulk Population Construction

The F2 mapping population and parental lines were evaluated for BB resistance at the seedling stage via a clipping method against SP1-1 isolate. The result showed that the recipient parent, Maled Phai (P1), was disease-susceptible, with an average lesion length of 15.82 ± 2.30 cm, while the donor parent, ULR207 (P2), was resistant, with an average lesion length of 1.21 ± 0.82 cm. This indicates that the susceptible variety Maled Phai and resistant variety ULR207 exhibited extremely contrasting reactions, while the F1 population was susceptible, with an average lesion length of 13.30 ± 3.16 cm, demonstrating recessive control of BB resistance. In the F2 population, the disease lesion length ranged between 0.1 and 21.5 cm. The resistance bulk had a range of disease lesion lengths from 0.1 to 5.0 cm, while susceptible bulk had a range from 12.6 to 21.5 cm (Figure 1). The resistant and susceptible bulks showed contrasting disease reactions, thus validating their suitability for QTL-seq analysis.

2.2. Whole Genome Resequencing and Read Mapping

DNA libraries of BB-resistant bulk, BB-susceptible bulk, and the two parental lines were used for whole-genome resequencing on an Illumina HiSeq. 2500 platform. Approximately 97 million reads each for the BRB, BSB, and donor parent (ULR207) and 92 million reads for the recurrent parent (Maled Phai) were generated, yielding 16.4 Gb, 16.3 Gb, 16.5 Gb, and 15.8 Gb for the BRB, BSB, donor parent, and recipient parent, respectively. The average sequencing depths of the BRB, BSB, recipient parent, and donor parent were 36.46, 36.16, 36.93, and 34.89, respectively. The alignment of the reads from both the BRB and BSB, along with the parents, to the reference genome of Nipponbare was 98.47%, 98.35%, 95.99% and 96.48% for reads mapped in the BRB, BSB, ULR207, and Maled Phai, respectively, corresponding to 97.90%, 97.76%, 95.99%, and 96.48% of rice genome coverage (Table 1). The high-quality reads of Maled Phai were used to generate its reference sequence. Mapping against the reference sequence of Maled Phai was performed to identify the common SNPs in the BRB and BSB. A total of 740,253 SNPs were identified between the two parents, supported by at least 29 reads, of which 522,983 SNPs supported by at least 3 reads were obtained in two bulks, the BRB and BSB. The SNPs between the bulks were selected for further calculation of the SNP index and ∆(SNP index) (Table 2).

2.3. Candidate Genomic Region for BB Resistance

Based on the ∆SNP index plot, which was high and above the threshold (confidence intervals > 95%), a genomic region on chromosome 8, namely qBBchr8, was identified by QTL-seq as the candidate QTL associated with BB resistance in ULR207 (Figure 2). The results showed that the BRB mostly contained the ULR207 type genome at this QTL, while the BSB mostly had the Maled Phai type genome.
The qtlBBchr8 was mapped to a 5.0 Mb interval (between 0 and 5.0 Mb) that contained 523 annotated genes. Of these, 339 genes in the 4 Mb region encompassing qtlBBchr8 contained nonsynonymous SNPs. From these, only five genes (Figure 3)—Os08g0110700, encoding phosphatidic acid-preferring phospholipase A1; Os08g0115200, encoding microtubule-localized IQ-domain containing protein (OsNAC029); Os08g0131300 (GPAT domain-containing protein); Os08g0139500, coding for a low-density lipoprotein receptor-related protein; and Os08g0163900, encoding a protein of unknown function, DUF569 domain-containing protein—that had high value of ∆(SNP index) were selected as the candidate genes in the qBBchr8 region involved in the plant disease-resistance mechanism.

2.4. Validation and Confirmation of the Identified QTL on Chromosome 8

Primers for KASP assay were designed for the five candidate genes for BB disease resistance (Os08g0110700, Os08g0115200, Os08g0131300, Os08g0139500, and Os08g0163900 (Figure 3), based on the sequences of each gene. The 178 F2 plants were genotyped using KASP assay, and validation of markers’ associations with disease lesion length was performed via single-marker analysis. The four markers, including Os08g0110700, Os08g0131300, Os08g0139500, and Os08g0163900 showed an additive effect in the negative direction, indicating that the presence of these genes caused a decrease in disease lesion length, while Os08g0115200 exhibited an additive effect in the opposite direction. Also, the five markers explained 1.93–15.00% of the phenotypic variance. The marker linked to Os08g0110700 had 15.00% phenotypic variance explained (PVE), with an LOD score of 6.32; the Os08g0115200 marker had 14.60% PVE, with an LOD score of 6.13; the Os08g0163900 marker explained 4.37%, with an LOD score of 1.73; the Os08g0131300 marker explained 2.77%, with an LOD score of 1.09; and the Os08g0139500 marker explained 1.93%, with an LOD score of 0.75 (Table 3). The results demonstrate that both the Os08g0110700 and Os08g0115200 genes, with high PVE percentages, have a major effect on bacterial blight resistance, while other loci exhibit minor effects on the trait.

3. Discussion

QTL-seq has been used successfully to identify QTLs in various crops, such as rice [5,26,35], foxtail millet [36], squash [37], pigeon pea [38], cucumber [39], and groundnut [40]. This study identified five genes associated with disease lesion length linked to qtlBBchr8 located on chromosome 8. These genes are located near chromosomal positions known for their role in defense against plant diseases. Validation of the KASP markers by single-marker analysis showed that Os08g0110700 and Os08g0115200 had a strong associations with BB resistance, with PVE values of 15.00% and 14.60%, respectively. These two are suggested as major genes for BB resistance in ULR207.
BB resistance genes in rice have been reported and classified into four groups: (1) the receptor-like kinase (RLK) gene (Xa3/Xa26, Xa4, and Xa21), involved in PAMP-Triggered Immunity (PTI) [41,42,43]; (2) the sugar and are eventually exported as a transporter (SWEET) gene (Xa13, Xa25, and Xa41); (3) executor proteins (Xa10, Xa23, and Xa27); and (4) other types (Xa1 and xa5) [11]. In the present study, we identified Os08g0110700 and Os08g0115200 as significant genes with high PVE percentages. Os08g0110700 was involved in encoding the phosphatidic acid pathway, which is related to leaf cell death in Arabidopsis [44] and could induce reactive oxygen species (ROS) generation in Arabidopsis [45], rice [46], tobacco, and potato [47]. ROS generation in response to pathogen infestation transduces signaling to plant defense mechanisms such as hypersensitive response (HR) [48]. HR is a form of rapid cell death at the point of pathogen infection induced by several pathogens, such as fungi, oomycetes, viruses, and bacteria [49]. BB resistance in rice has been reported to involve HR due to the activation of the salicylic acid (SA) metabolic pathway [50]. We hypothesize that the phosphatidic acid pathway might be involved in the HR-mediated disease defense mechanism in the indigenous rice variety ULR207. However, the other three genes, Os08g0131300, Os08g00139500, and Os08g0163900, have been identified as minor genes with low PVE percentages, and they also have another interpretation option, that is, that the minor effects of the three genes are caused by the linkage effect of the main locus Os08g0110700. Our results report a novel QTL (qBBchr8) on chromosome 8, which could benefit future rice BB resistance breeding programs.
KASP markers have been developed for QTLs identified by QTL-seq analysis, and have consequently been utilized for marker-assisted selection in numerous crops, such as blast disease resistance in rice [5], cooked-grain elongation in rice [34], bacterial blight resistance (gene xa5) and bacterial leaf streak resistance in rice (Oryza sativa L.) [51], Phytophthora crown rot resistance in squash [37], and rust and late-leaf spot resistance in groundnut (Arachis hypogaea L.) [40]. In this study, validation of the KASP marker for Os08g0110700, linked to the QTL on chromosome 8, showed an association with resistance to Xoo isolates. This promising marker could be utilized to support rice breeding programs by decreasing the time consumption of breeding through cost-effective marker-assisted selection.

4. Materials and Methods

4.1. Construction of Mapping Populations

The bi-parental mapping (F2:3) population was developed from the varieties Maled Phai (MP) and ULR207. The female parent, Maled Phai, is susceptible to bacterial blight disease, whereas the donor parent, ULR207, is resistant. These varieties were kindly provided by the Rice Project, Khon Kaen University, Khon Kaen, Thailand. To develop the mapping population, an F1 plant from the Maled Phai/ULR207 cross was self-pollinated to generate F2 seeds. Individual F2 plants (F2 individual line) were grown for BB resistance evaluation. These individual F2 plants, which were identified as resistant and susceptible lines, were then self-pollinated to obtain F3 seeds. F3 individual plants were grown to develop resistant and susceptible bulk for QTL-seq analysis (Figure 4).

4.2. Evaluation of Bacterial Blight Resistance

Two hundred seeds of the F2 individual (lines), together with their parental lines, were evaluated for bacterial blight resistance against the SP1-1 Xoo isolate via the clipping method [52]. In the preliminary experiment, the SP1-1 isolate (Suphan buri 1-1) was chosen, due to it having a significantly different disease reaction from the parental line (Table S1) [29]; detailed information regarding the isolate’s characteristics is provided in the Supplementary Materials (Table S2). The seeds were soaked for two days, then grown in 72-hole trays inside a greenhouse maintained at a relative humidity of ~85–93% and a temperature of ~35 °C for 21 days after planting or until the 3rd leaf stage. The Xoo SP1-1 isolate was used to inoculate the plants. Twenty-one days after planting the seedlings, the leaf blade was cut at 2–3 cm from the leaf tip using sterile scissors and then dipped in the bacterial suspension, which was adjusted to a concentration of 109 CFU/mL (OD = 0.3 at 600 nm) [53]. The disease lesion length of the individual plant was measured after 10 days of inoculation (DAI) (Figure 5). The classification of disease reaction was adapted from the standard evaluation system of IRRI [54]: a BB lesion length of less than 5 cm was classified as resistant, while a lesion length of more than 5 cm was identified as susceptible [55,56].

4.3. Construction of Bulks, DNA Extraction, and Whole-Genome Resequencing

Two-hundred individual F2 plants, obtained by crossing the BB-susceptible variety Maled Phai and the BB-resistant variety ULR207, were selected based on disease reaction data, and then the F2:3 population was generated. The individual plants of the F2:3 population were selected based on disease reaction, as mentioned above. The resistant and susceptible bulks consisted of 18 resistant individual F2:3 plants and 18 susceptible individual F2:3 plants, respectively. Young leaves of individual F2:3 plants were extracted to obtain DNA using the GeneJET Plant Genomic DNA Purification MiniKit (Thermo Scientific™, Waltham, MA, USA). The individual DNA samples from the 18 BB-resistant and 18 BB-susceptible plants were pooled to create resistant bulk (BRB) samples and susceptible bulk (BSB) samples, respectively. The two bulked DNA and two parental DNA samples were used to prepare whole-genome DNA-seq libraries, which were sequenced using the Illumina HiSeq 2500 platform (Illumina, Inc., Hayward, CA, USA).

4.4. QTL-Seq Analysis

The QTL–seq pipeline was used for QTL-seq analysis as described by Takagi [30]. To obtain high-quality reads, raw reads were trimmed for low-quality and adapter-containing sequences. The BWA aligner was used to align the clean reads of two bulk samples and the high-quality reads of Maled Phai to the reference genome of Nipponbare (IRGSP1.0) [57]. Afterward, substitution of the Nipponbare reference genome with the variants representing Maled Phai was used to generate a Maled Phai reference genome. The identification of DNA variants calling for SNPs (single nucleotide polymorphisms) and Indel (small insertion/deletion) in the BRB and BSB was performed by aligning the BAM files containing high-quality reads of both bulks onto the Maled Phai reference genome using Samtools [58]. SNP indices at each SNP position for the BRB and BSB were calculated following the methods described by Takagi et al. [30] and Abe et al. [59]. SNPs with an SNP index < 0.3 in both bulks were excluded, and the remaining SNPs (SNP index ≥ 0.3 in either bulk) were considered as the real SNPs. The ∆ SNP index was calculated by subtracting the SNP index of the BSB from that of the BRB. The ∆(SNP index) and average SNP index were estimated for a given genomic region using a sliding window size of 2 Mb with 10 kb increments to generate SNP index plots for all rice chromosomes. Plots comparing the average SNP index and ∆(SNP index) between the two bulks were visualized using Circos [60]. A QTL associated with BB resistance in ULR207 was determined as a peak or valley in the an SNP index plot which showed an average ∆(SNP index) higher than the statistical confidence intervals under the null hypothesis of no QTL (p-value < 0.05) [30].

4.5. Annotation of Candidate QTLs Associated with BB Resistance

The variance effect predictor (VEP: https://plants.ensembl.org/oryza_sativa/Tools/VEP) (accessed on 24 November 2024) was used to determine the effect of the SNPs in each locus. Loci with nonsynonymous SNPs and other SNPs called from the comparison of the resequencing data of the two parental lines Maled Phai and ULR207 that were related to plant disease defense mechanisms were selected as candidate genes [5,43].

4.6. Marker Development and Marker–Trait Association Analysis

The QTL on chromosome 8 related to the BB-resistant phenotype was validated in 178 individual F2 plants using five Kompetitive Allele-Specific PCR (KASP) markers developed for nonsynonymous SNPs in Os08g013950 (T/C at 2,002,338 bp), Os08g016390 (C/T at 3,755,220 bp), Os08g0115200 (C/T at 810,658 bp), Os08g0110700 (A/G at 559,558 bp), and Os08g0131300 (A/T at 1,756,543 bp, Genotyping with KASP markers was performed using the method described earlier [43]) (Tables S3–S6). Single-marker analysis was performed using the KASP genotypic data and the phenotypic data of the 178 individual F2 lines. A simple regression analysis was performed to determine the phenotypic variance explained by each QTL [43].

5. Conclusions

This study successfully identified a new QTL (qBBchr8) on chromosome 8 associated with BB resistance in the indigenous upland rice variety ULR207. Five genes, Os08g0110700, Os08g0115200, Os08g0131300, Os08g0139500, and Os08g0163900, were considered as candidate genes. Os08g0110700, which was found to have high PVE for BB resistance, was considered to be the best candidate gene. The KASP marker developed for this gene could be helpful in further rice breeding programs.

Supplementary Materials

The following supporting information can be downloaded at https://www.mdpi.com/article/10.3390/plants14142113/s1: Table S1: Disease lesion length of 17 rice varieties at 17 DAI against 10 Xoo isolates under greenhouse conditions; Table S2: Isolation of the origin pathogen, genome sequencing information, and population structure of Xanthomonas oryzae pv. oryzae (Xoo) strain; Table S3: Information about KASP primer assay for QTL-seq validation; Table S4: Information about sequencing reads of P1, P2, resistant bulk, and susceptible bulk; Table S5: Alignment data of P1, P2, resistant bulk, and susceptible bulk; Table S6: Information of RAD gene annotation for P1, P2, resistant bulk, and susceptible bulk.

Author Contributions

Conceptualization, S.C. and J.S.; methodology, T.W., S.C., J.S., N.B., and M.S.; validation, T.W. and T.M.; data curation, T.W. and T.M.; writing—original draft preparation, T.W. and S.C.; writing—review and editing, T.M., S.C., and N.B.; supervision, J.S.; project administration, J.S.; funding acquisition, T.W. and J.S. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Thailand Research Fund through the Royal Golden Jubilee (RGJ) Ph.D. Program [grant no. PHD/0200/2559].

Data Availability Statement

The data are contained within this article and are available upon request.

Acknowledgments

We express our thanks to the Plant Breeding Research Centre for Sustainable Agriculture, Khon Kaen University, for providing plant materials and research facilities.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Fairhurst, T.; Dobermann, A. Rice in the Global Food Supply. Better Crops Int. 2002, 16, 1–6. Available online: https://www.researchgate.net/publication/255623930_Rice_in_the_Global_Food_Supply (accessed on 10 January 2023).
  2. Fukagawa, N.K.; Ziska, L.H. Rice: Importance for global nutrition. J. Nutr. Sci. Vitaminol. 2019, 65, 2–3. [Google Scholar] [CrossRef]
  3. Chen, Y.H.; Francis, J.A.; Miller, J.R. Surface temperature of the arctic: Comparison of TOVS satellite retrievals with surface observations. J. Clim. 2002, 15, 3698–3708. [Google Scholar] [CrossRef]
  4. Wu, Y.Y.; Xiao, N.; Yu, L.; Pan, C.H.; Li, Y.H.; Zhang, X.X.; Liu, G.Q.; Dai, Z.Y.; Pan, X.B.; Li, A.H. Combination patterns of major R genes determine the level of resistance to the M. oryzae in rice (Oryza sativa L.). PLoS ONE 2015, 10, e0126130. [Google Scholar] [CrossRef]
  5. Netpakdee, C.; Mathasiripakorn, S.; Sribunrueang, A.; Chankaew, S.; Monkham, T.; Arikit, S.; Sanitchon, J. QTL-Seq Approach Identified Pi63 Conferring Blast Resistance at the Seedling and Tillering Stages of Thai Indigenous Rice Variety “Phaladum”. J. Agric. Sci. 2022, 12, 1166. [Google Scholar] [CrossRef]
  6. Lee, K.S.; Rasabandith, S.; Angeles, E.R.; Khush, G.S. Inheritance of resistance to bacterial blight in 21 cultivars of rice. Phytopathology 2003, 93, 147–152. [Google Scholar] [CrossRef]
  7. Fiyaz, R.A.; Shivani, D.; Chaithanya, K.; Mounika, K.; Chiranjeevi, M.; Laha, G.S.; Viraktamath, B.C.; Rao, L.S.; Sundaram, R.M. Genetic improvement of rice for bacterial blight resistance: Present status and future prospects. Rice Sci. 2022, 29, 118–132. [Google Scholar] [CrossRef]
  8. Kim, S.M.; Reinke, R.F. A novel resistance gene for bacterial blight in rice, Xa43(t) identified by GWAS, confirmed by QTL mapping using a bi-parental population. PLoS ONE 2019, 14, e0211775. [Google Scholar] [CrossRef]
  9. Kim, S.M. Identification of novel recessive gene xa44(t) conferring resistance to bacterial blight races in rice by QTL linkage analysis using an SNP chip. Theor. Appl. Genet. 2018, 131, 2733–2743. [Google Scholar] [CrossRef]
  10. Neelam, K.; Mahajan, R.; Gupta, V.; Bhatia, D.; Kaur, B.G.; Komal, R.; Lore, J.S.; Mangat, G.S.; Singh, K. High-resolution genetic mapping of a novel bacterial blight resistance gene xa-45(t) identified from Oryza glaberrima and transferred to Oryza sativa. Theor. Appl. Genet. 2020, 133, 689–705. [Google Scholar] [CrossRef]
  11. Chen, S.; Wang, C.Y.; Yang, J.Y.; Chen, B.; Wang, W.J.; Su, J.; Feng, A.Q.; Zeng, L.X.; Zhu, X.Y. Identification of the novel bacterial blight resistance gene Xa46(t) by mapping and expression analysis of the rice mutant H120. Sci. Rep. 2020, 10, 12642. [Google Scholar] [CrossRef]
  12. Xiao, N.; Wu, Y.; Li, A. Strategy for use of rice blast resistance genes in rice molecular breeding. Rice Sci. 2020, 27, 263–277. [Google Scholar] [CrossRef]
  13. Maruthasalam, S.; Kalpana, K.; Kumar, K.K.; Loganathan, M.; Poovannan, K.; Raja, J.A.J.; Kokiladevi, E.; Samiyappan, R.; Sudhakar, D.; Balasubramanian, P. Pyramiding transgenic resistance in elite indica rice cultivars against the sheath blight and bacterial blight. Plant Cell Rep. 2007, 26, 791–804. [Google Scholar] [CrossRef]
  14. Vasudevan, K.; Casiana, M.V.C.; Wilhelm, G.; Navreet, K.B. Large scale germplasm screening for identification of novel rice blast resistance sources. Front. Plant Sci. 2014, 5, 505. [Google Scholar] [CrossRef]
  15. Jiang, N.; Yan, J.; Liang, Y.; Shi, Y.; He, Z.; Wu, Y.; Zeng, Q.; Liu, X.; Peng, J. Resistance Genes and their Interactions with Bacterial Blight/Leaf Streak Pathogens (Xanthomonas oryzae) in Rice (Oryza sativa L.)—An Updated Review. Rice 2020, 13, 3. [Google Scholar] [CrossRef] [PubMed]
  16. Suh, J.P.; Jeung, J.U.; Noh, T.H.; Cho, Y.C.; Park, S.H.; Park, H.S.; Shin, M.S.; Kim, C.K.; Jena, K.K. Development of breeding lines with three pyramided resistance genes that confer broad-spectrum bacterial blight resistance and their molecular analysis in rice. Rice 2013, 6, 5. [Google Scholar] [CrossRef]
  17. Pradhan, S.K.; Nayak, D.K.; Mohanty, S.; Mohanty, S.; Behera, L.; Barik, S.R.; Pandit, E.; Lenka, S.; Anandan, A. Pyramiding of three bacterial blight resistance genes for broad-spectrum resistance in deepwater rice variety, Jalmagna. Rice 2015, 8, 19. [Google Scholar] [CrossRef] [PubMed]
  18. Ramalingam, J.; Savitha, P.; Alagarasan, G.; Saraswathi, R.; Chandrababu, R. Functional marker assisted improvement of stable cytoplasmic male sterile lines of rice for bacterial blight resistance. Front. Plant Sci. 2017, 8, 1131. [Google Scholar] [CrossRef]
  19. Gao, L.; Fang, Z.; Zhou, J.; Li, J.; Lu, L.; Li, L.; Li, T.; Chen, L.; Zhang, W.; Zhai, W.; et al. Transcriptional insights into the pyramided resistance to rice bacterial blight. Sci. Rep. 2018, 8, 12358. [Google Scholar] [CrossRef]
  20. Balachiranjeevi, C.H.; Bhaskar, N.S.; Abhilash, K.V.; Harika, G.; Mahadev, S.H.K.; Hajira, S.K.; Dilip, K.T.; Anila, M.; Kale, R.R.; Yugender, A.; et al. Marker-assisted pyramiding of two major, broad-spectrum bacterial blight resistance genes, Xa21 and Xa33 into an elite maintainer line of rice, DRR17B. PLoS ONE 2018, 13, e0201271. [Google Scholar] [CrossRef]
  21. Wang, S.; Liu, W.; Lu, D.; Lu, Z.; Wang, X.; Xue, J.; He, X. Distribution of bacterial blight resistance genes in the main cultivars and application of Xa23 in rice breeding. Front. Plant Sci. 2020, 11, 555228. [Google Scholar] [CrossRef]
  22. Hsu, Y.C.; Chiu, C.H.; Yap, R.; Tseng, Y.C.; Wu, Y.P. Pyramiding bacterial blight resistance genes in tainung82 for broad-spectrum resistance using marker-assisted selection. Int. J. Mol. Sci. 2020, 21, 1281. [Google Scholar] [CrossRef]
  23. Khush, G.S. What it will take to feed 5.0 billion rice consumers in 2030. Plant Mol. Biol. 2005, 59, 1–6. [Google Scholar] [CrossRef]
  24. Wing, R.A.; Purugganan, M.D.; Zhang, Q. The rice genome revolution: From an ancient grain to Green Super Rice. Nat. Rev. Genet. 2018, 19, 505–517. [Google Scholar] [CrossRef] [PubMed]
  25. Kumar, A.; Kumar, R.; Sengupta, D.; Das, S.N.; Pandey, M.K.; Bohra, A.; Naveen, K.S.; Sinha Pragya, S.; Hajira, S.; Ahmad, G.I.; et al. Deployment of genetic and genomic tools toward gaining a better understanding of rice Xanthomonas oryzae pv. oryzae interactions for development of durable bacterial blight resistant rice. Front. Plant Sci. 2020, 11, 1152. [Google Scholar] [CrossRef]
  26. Zhao, C.; Yin, F.; Chen, L.; Li, D.; Xiao, S.; Zhong, Q.; Wang, B.; Ke, X.; Fu, J.; Li, X.; et al. Identification of bacterial blight resistance genes in rice landraces from Yunnan Province, China. Australas. Plant Pathol. 2022, 51, 59–69. [Google Scholar] [CrossRef]
  27. Kwanwah, M.R.; Wongsa, T.; Monkham, T.; Chankaew, S.; Falab, S.; Sanitchon, J. Thai Indigenous Lowland Rice Germplasms: Sources of Bacterial Blight Disease Resistance and Agronomic Attributes. Agrivita 2020, 42, 367–380. [Google Scholar] [CrossRef]
  28. Chumpol, A.; Monkham, T.; Saepaisan, S.; Sanitchon, J.; Falab, S.; Chankaew, S. Phenotypic broad spectrum of bacterial blight disease resistance from Thai indigenous upland rice germplasm implies novel genetic resource for breeding program. Agronomy 2022, 12, 1930. [Google Scholar] [CrossRef]
  29. Wongsa, T.; Chankaew, S.; Monkham, T.; Sanitchon, J. Broad-spectrum resistance and monogenic inheritance of bacterial blight resistance in an indigenous upland rice germplasm ULR207. Agronomy 2024, 14, 898. [Google Scholar] [CrossRef]
  30. Takagi, H.; Abe, A.; Yoshida, K.; Kosugi, S.; Natsume, S.; Mitsuoka, C.; Uemura, A.; Utsushi, H.; Tamiru, M.; Takuno, S. QTL-seq: Rapid mapping of quantitative trait loci in rice by whole-genome resequencing of DNA from two bulked populations. Plant J. 2013, 74, 174–183. [Google Scholar] [CrossRef]
  31. Luo, X.D.; Liu, J.; Zhao, J.; Dai, L.F.; Chen, Y.L.; Zhang, L.; Zhang, F.; Hu, B.L.; Xie, J.K. Rapid mapping of candidate genes for cold tolerance in Oryza rufipogon Griff. by QTL-seq of seedlings. J. Integr. Agric. 2018, 17, 265–275. [Google Scholar] [CrossRef]
  32. Qin, Y.; Peng, C.; Yichen, C.; Feng, Y.; Huang, T.; Song, X.; Ying, J. QTL-Seq identified a major QTL for grain length and weight in rice using near isogenic F2 population. Rice Sci. 2018, 25, 121–131. [Google Scholar] [CrossRef]
  33. Nishida, S.; Dissanayaka, D.M.S.B.; Honda, S.; Tateishi, Y.; Chuba, M.; Maruyama, H.; Tawaraya, K.; Wasaki, J. Identification of genomic regions associated with low phosphorus tolerance in japonica rice (Oryza sativa L.) by QTL-Seq. Soil. Sci. Plant Nutr. 2017, 64, 278–281. [Google Scholar] [CrossRef]
  34. Arikit, S.; Wanchana, S.; Khanthong, S.; Saensuk, C.; Thianthavon, T.; Vanavichit, A.; Toojinda, T. QTL-seq identifies cooked grain elongation QTLs near soluble starch synthase and starch branching enzymes in rice (Oryza sativa L.). Sci. Rep. 2019, 9, 8328. [Google Scholar] [CrossRef]
  35. Deng, Y.; Liu, H.B.; Zhou, Y.; Zhang, Q.L.; Li, X.H.; Wang, S.P. Exploring the mechanism and efficient use of a durable gene-mediated resistance to bacterial blight disease in rice. Mol. Breed. 2018, 38, 18. [Google Scholar] [CrossRef]
  36. Nubankoh, P.; Samart, W.; Chatree, S.; Vinitchan, R.; Sulaiman, C.; Apichart, V.; Theerayut, T.; Chanate, M.; Siwaret, A. QTL-seq reveals genomic regions associated with spikelet fertility in response to a high temperature in rice (Oryza sativa L.). Plant Cell. Rep. 2020, 39, 149–162. [Google Scholar] [CrossRef]
  37. Yoshitsu, Y.; Masato, T.; Akira, A.; Hiroki, T.; Aiko, U.; Hiroki, Y.; Ryohei, T.; Yoshihito, T.; Katsunori, H.; Shuji, Y. QTL-seq analysis identifies two genomic regions determining the heading date of foxtail millet, Setaria italica (L.) P. Beauv. Breed. Sci. 2017, 67, 518–527. [Google Scholar] [CrossRef]
  38. Ramos, A.; Yuqing, F.; Vincent, M.; Geoffrey, M. QTL-seq for identification of loci associated with resistance to Phytophthora crown rot in squash. Sci. Rep. 2020, 10, 5326. [Google Scholar] [CrossRef]
  39. Singh, V.; Pallavi, S.; Jimmy, O.; Aamir, W.K.; Annapurna, C.; Rachit, K.S.; Rajeev, K.V. QTL-seq for the identification of candidate genes for days to flowering and leaf shape in pigeon pea. Heredity 2022, 128, 411–419. [Google Scholar] [CrossRef]
  40. Pandey, M.K.; Khan, A.W.; Singh, V.K.; Vishwakarma, M.K.; Shasidhar, Y.; Kumar, V.; Garg, V.; Bhat, R.S.; Chitikineni, A.; Janila, P.; et al. QTL-seq approach identified genomic regions and diagnostic markers for rust and late leaf spot resistance in groundnut (A rachis hypogaea L.). Plant Biotechnol. J. 2017, 15, 927–941. [Google Scholar] [CrossRef]
  41. Song, W.-Y.; Wang, G.-L.; Chen, L.-L.; Kim, H.-S.; Pi, L.-Y.; Holsten, T.; Gardner, J.; Wang, B.; Zhai, W.-X.; Zhu, L.-H.; et al. A Receptor Kinase-Like Protein Encoded by the Rice Disease Resistance Gene, Xa21. Science 1995, 270, 1804–1806. [Google Scholar] [CrossRef]
  42. Xiang, Y.; Cao, Y.; Xu, C.; Li, X.; Wang, S. Xa3, conferring resistance for rice bacterial blight and encoding a receptor kinase-like protein, is the same as Xa26. Theor. Appl. Genet. 2006, 113, 1347–1355. [Google Scholar] [CrossRef] [PubMed]
  43. Hu, K.M.; Cao, J.B.; Zhang, J.; Xia, F.; Ke, Y.G.; Zhang, H.T.; Xie, W.Y.; Liu, H.B.; Cui, Y.; Cao, Y.L.; et al. Improvement of multiple agronomic traits by a disease resistance gene via cell wall reinforcement. Nat. Plants 2017, 3, 7009. [Google Scholar] [CrossRef]
  44. Park, J.; Ying, G.; Yuree, L.; Zhenbiao, Y.; Youngsook, L. Phosphatidic acid induces leaf cell death in Arabidopsis by activating the Rho-related small G protein GTPase-mediated pathway of reactive oxygen species generation. Plant Physiol. 2004, 134, 129–136. [Google Scholar] [CrossRef] [PubMed]
  45. Sang, Y.; Cui, D.; Wang, X. Phospholipase D and phosphatidic acid-mediated generation of superoxide in Arabidopsis. Plant Physiol. 2001, 126, 1449–1458. [Google Scholar] [CrossRef] [PubMed]
  46. Yamaguchi, T.; Minami, E.; Shibuya, N. Activation of phospholipases by N-acetylchitooligosaccharide elicitor in suspension-cultured rice cells mediates reactive oxygen generation. Physiol. Plant 2003, 118, 361–370. [Google Scholar] [CrossRef]
  47. Doke, N. Involvement of superoxide anion generation in the hypersensitive response of potato tuber tissues to infection with an incompatible race of Phytophthora infestans and to the hyphal wall components. Physiol. Mol. Plant Pathol. 1983, 23, 345–357. [Google Scholar] [CrossRef]
  48. Matias, D.Z.; Néstor, C.; Mohammad-Reza, H. ROS signaling in the hypersensitive response When, where and what for? Plant Signal. Behav. 2010, 5, 393–396. [Google Scholar] [CrossRef]
  49. Balint-Kurti, P. The plant hypersensitive response: Concepts, control and consequences. Mol. Plant Pathol. 2019, 20, 1163–1178. [Google Scholar] [CrossRef]
  50. Zhang, X.B.; Feng, B.H.; Wang, H.M.; Xu, X.; Shi, Y.F.; He, Y.; Chen, Z.; Sathe, A.P.; Shi, L.; Wu, J.L. A substitution mutation in OsPELOTA confers bacterial blight resistance by activating the salicylic acid pathway. J. Integr. Plant Biol. 2018, 60, 160–172. [Google Scholar] [CrossRef]
  51. Thianthavon, T.; Aesomnuk, W.; Pitaloka, M.K.; Sattayachiti, W.; Sonsom, Y.; Nubankoh, P.; Malichan, S.; Riangwong, K.; Ruanjaichon, V.; Toojinda, T.; et al. Identification and validation of a qtl for bacterial leaf streak resistance in rice (Oryza sativa L.) against Thai Xoc strains. Genes 2021, 12, 1587. [Google Scholar] [CrossRef] [PubMed]
  52. Kauffman, H.E.; Reddy, A.P.K.; Hsieh, S.P.Y.; Merca, S.D. An improved technique for evaluating resistance of rice varieties to Xanthomonas oryzae. Plant Dis. 1973, 57, 537–541. Available online: https://eurekamag.com/research/000/019/000019488.php (accessed on 10 January 2023).
  53. Sribunrueang, A.; Chankaew, S.; Thummabenjapone, P.; Sanitchon, J. Stability of four new sources of bacterial leaf blight resistance in Thailand obtained from indigenous rice varieties. Agrivita 2017, 39, 128–136. [Google Scholar] [CrossRef]
  54. IRRI. Standard Evaluation System for Rice; International Rice Research Institute: Los Banos, Philippines, 1996; pp. 1–45. Available online: http://books.irri.org/971104188X_content.pdf (accessed on 25 February 2025).
  55. Wongkhamchan, A.; Chankaew, S.; Monkham, T.; Saksirirat, W.; Sanitchon, J. Broad resistance of RD6 introgression lines with xa5 gene from IR62266 rice variety to bacterial leaf blight disease for rice production in Northeastern Thailand. Agric. Nat. Resour. 2018, 52, 21–245. [Google Scholar] [CrossRef]
  56. Chen, S.; Lin, X.H.; Xu, C.G.; Zhang, Q. Improvement of bacterial blight resistance of ‘Minghui 63,’ an elite restorer line of hybrid rice, by molecular marker-assisted selection. Crop Sci. 2000, 40, 239–244. [Google Scholar] [CrossRef]
  57. Li, H.; Handsaker, B.; Wysoker, A.; Fennell, T.; Ruan, J.; Homer, N.; Marth, G.; Abecasis, G.; Durbin, R. The sequence alignment/Map format and SAMtools. Bioinformatics 2009, 25, 2078–2079. [Google Scholar] [CrossRef]
  58. Li, H.; Durbin, R. Fast and accurate short read alignment with burrows-wheeler transform. Bioinformatics 2009, 25, 1754–1760. [Google Scholar] [CrossRef]
  59. Abe, A.; Kosugi, S.; Yoshida, K.; Natsume, S.; Takagi, H.; Kanzaki, H.; Matsumura, H.; Yoshida, K.; Mitsuoka, C.; Tamiru, M. Genome sequencing reveals agronomically important loci in rice using MutMap. Nat. Biotechnol. 2012, 30, 174–178. [Google Scholar] [CrossRef]
  60. Krzywinski, M.; Schein, J.; Birol, I.; Connors, J.; Gascoyne, R.; Horsman, D.; Jones, S.J.; Marra, M.A. Circos: An information aesthetic for comparative genomics. Genome Res. 2009, 19, 1639–1645. [Google Scholar] [CrossRef]

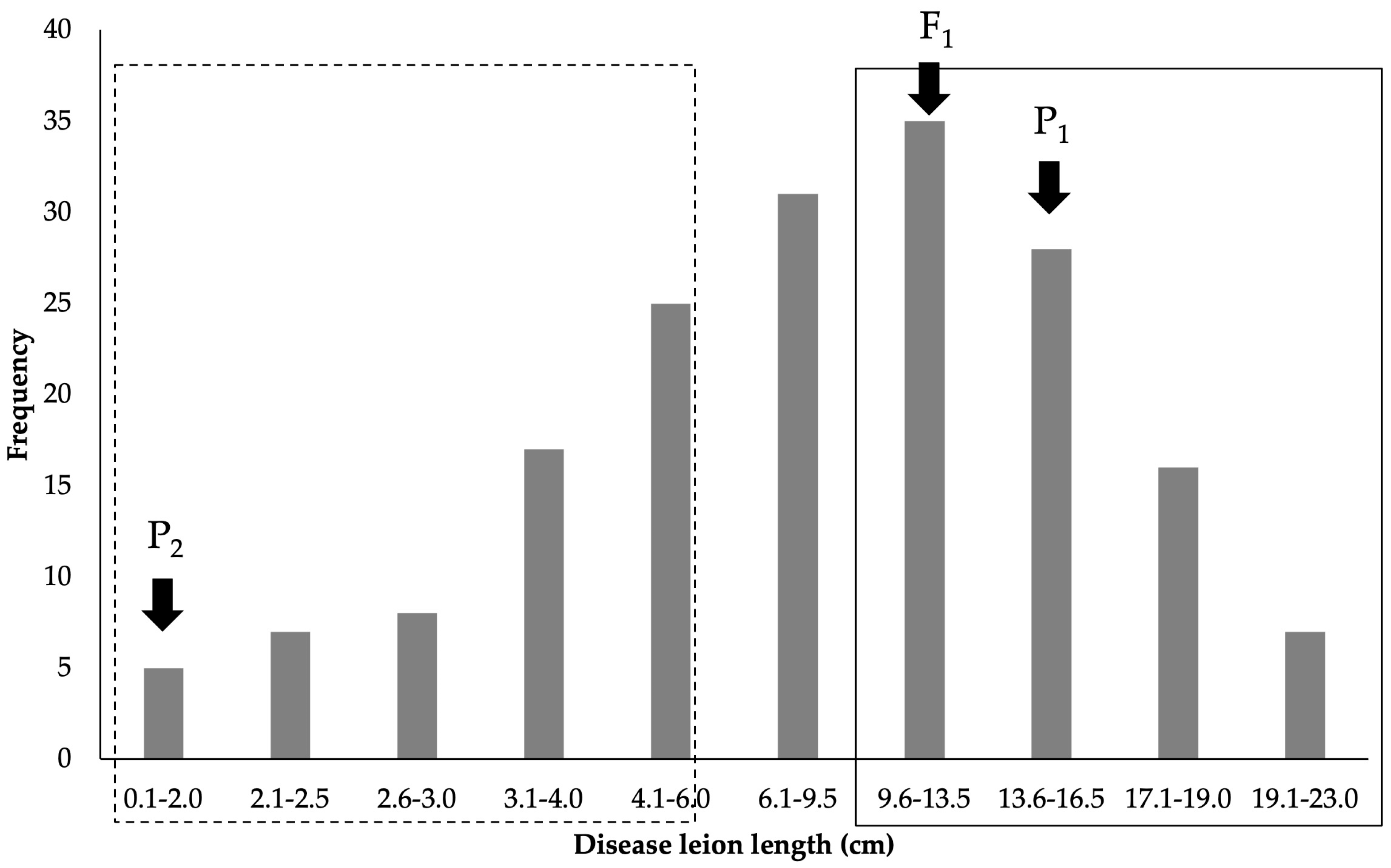

Figure 1. The frequency distribution of BB disease reaction in the F2 population and two parental lines, obtained via the leaf clipping method. BRB: BB-resistant bulk (dotted-line rectangle); BSB: BB-susceptible bulk (solid-line rectangle).
Figure 1. The frequency distribution of BB disease reaction in the F2 population and two parental lines, obtained via the leaf clipping method. BRB: BB-resistant bulk (dotted-line rectangle); BSB: BB-susceptible bulk (solid-line rectangle).
Plants 14 02113 g001

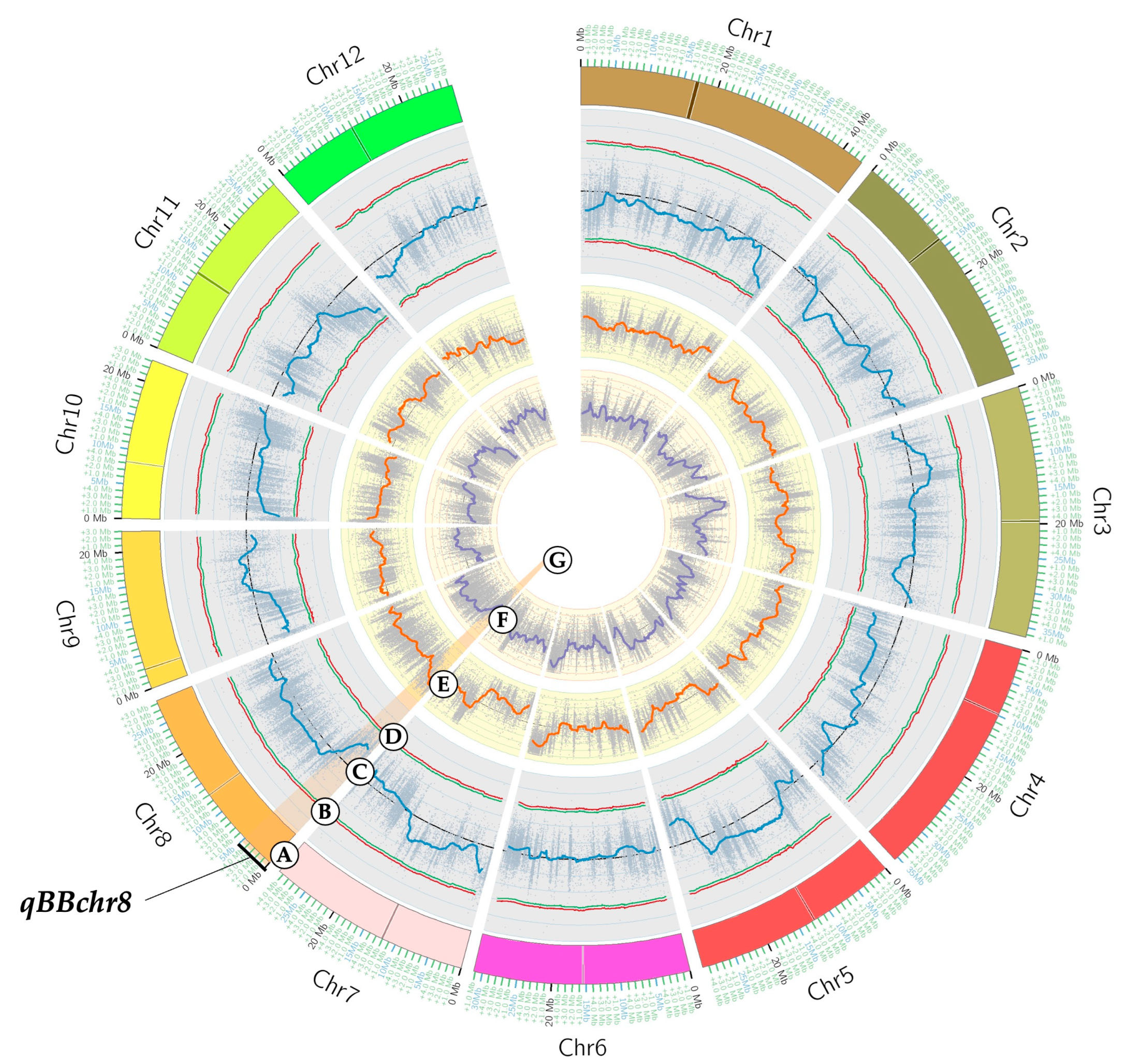

Figure 2. Circos plot of BRB and BSB based on SNP index plots obtained by subtracting between them. (A) Psuedomolecules of Nipponbare reference genome (IRGSP 1.0); (B,D) probability values at 95% (green line) and 99% confidence (red line); (C) average SNP index in each plot with 2 Mb window size and 10 kb increment; (E) SNP index plots of BRB with 2 Mb window size and 10 kb increment; (F) SNP index plots of BSB with 2 Mb window size and 10 kb increment; and (G) candidate genomic regions containing QTLs for BB resistance.
Figure 2. Circos plot of BRB and BSB based on SNP index plots obtained by subtracting between them. (A) Psuedomolecules of Nipponbare reference genome (IRGSP 1.0); (B,D) probability values at 95% (green line) and 99% confidence (red line); (C) average SNP index in each plot with 2 Mb window size and 10 kb increment; (E) SNP index plots of BRB with 2 Mb window size and 10 kb increment; (F) SNP index plots of BSB with 2 Mb window size and 10 kb increment; and (G) candidate genomic regions containing QTLs for BB resistance.
Plants 14 02113 g002

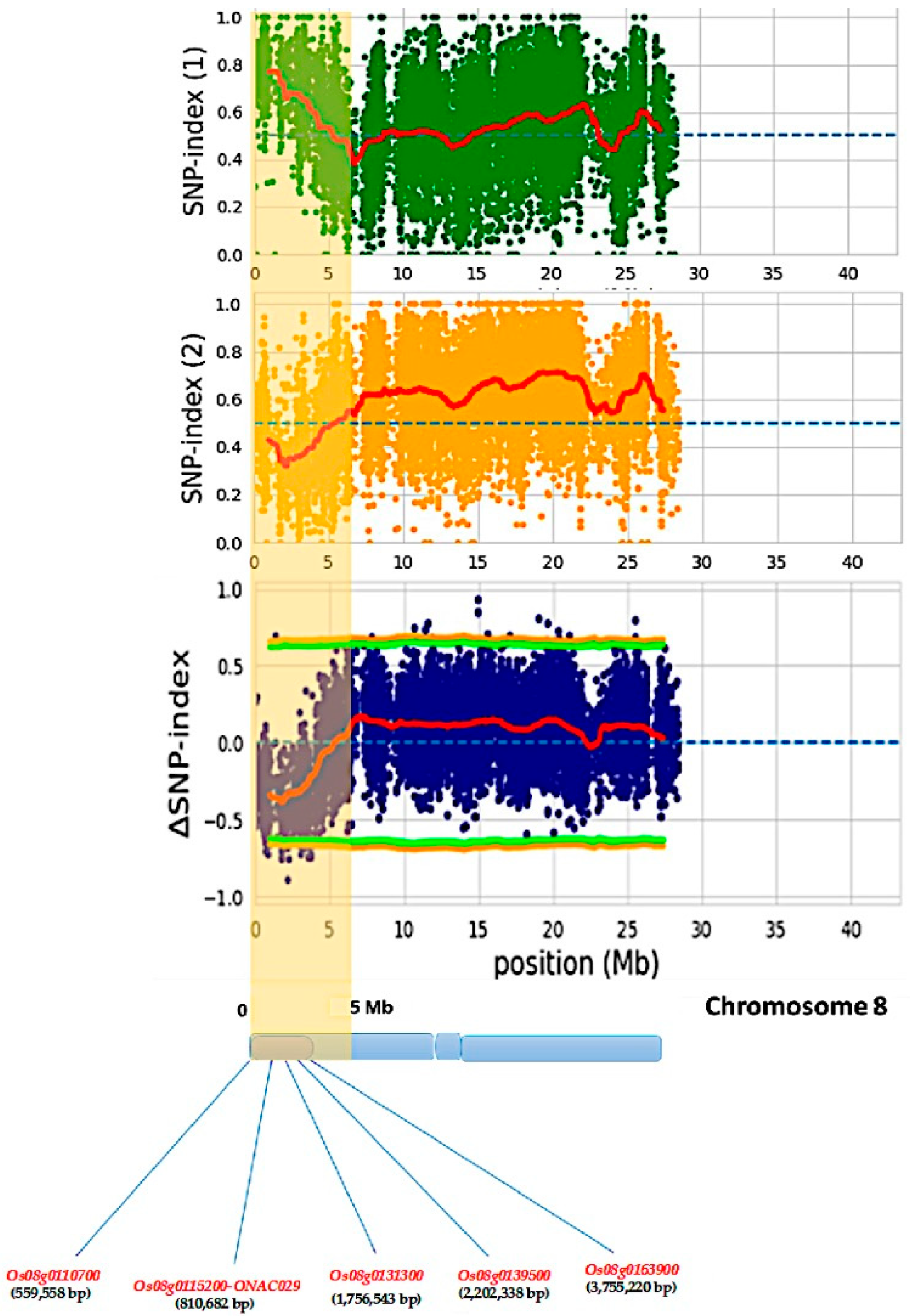

Figure 3. SNP index plots of the resistant bulk (top, BRB) and susceptible bulk (middle, BSB), and ∆(SNP index) plot (bottom) for chromosome 8. The light-yellow color highlights the detected QTL regions with distinguishing SNP indexes in the two bulks. The green and orange lines are the threshold, while the red line is the average of SNP index of the two bulks.
Figure 3. SNP index plots of the resistant bulk (top, BRB) and susceptible bulk (middle, BSB), and ∆(SNP index) plot (bottom) for chromosome 8. The light-yellow color highlights the detected QTL regions with distinguishing SNP indexes in the two bulks. The green and orange lines are the threshold, while the red line is the average of SNP index of the two bulks.
Plants 14 02113 g003

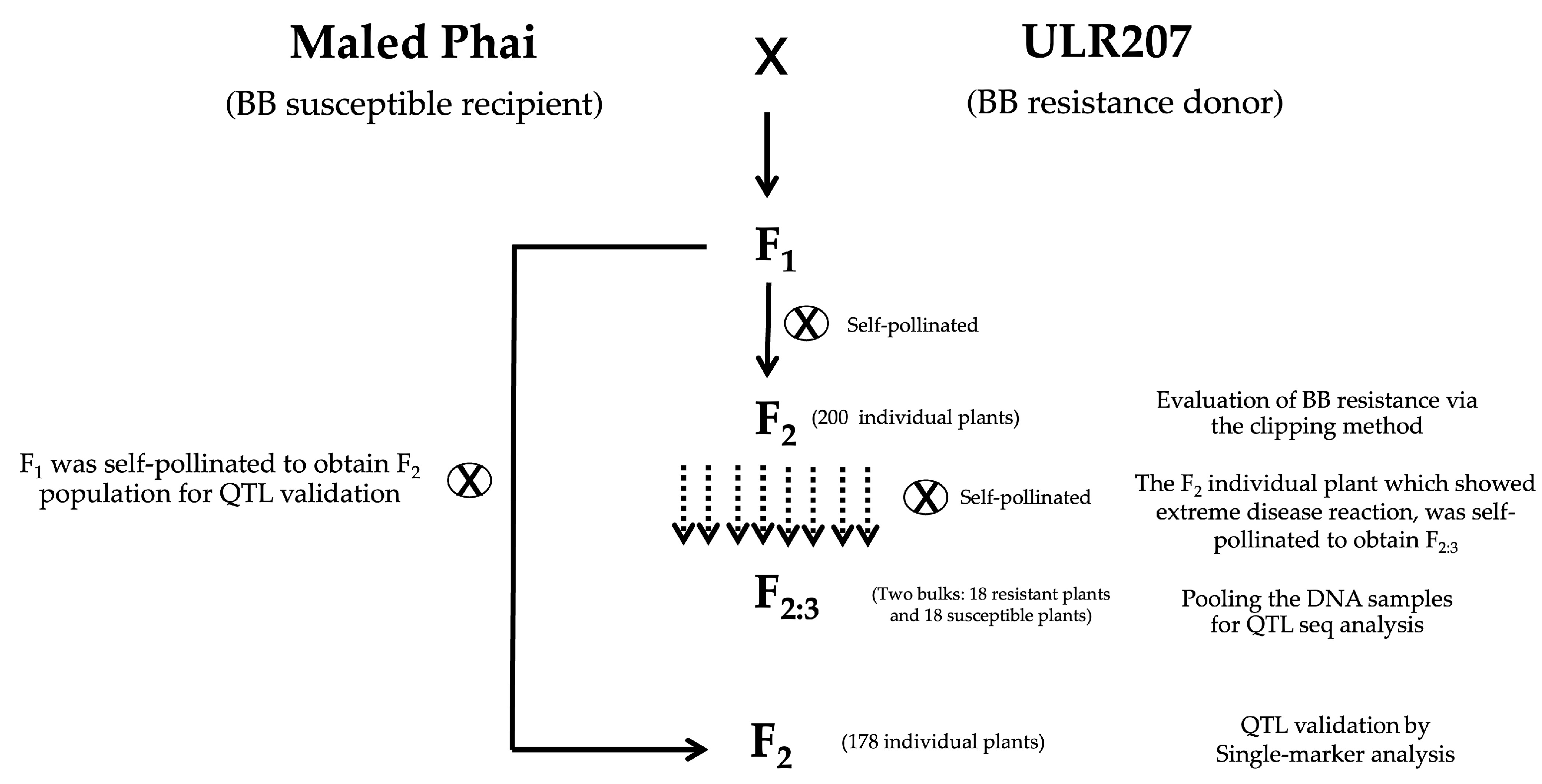

Figure 4. Construction of the mapping population from a cross between Maled Phai and ULR207.
Figure 4. Construction of the mapping population from a cross between Maled Phai and ULR207.
Plants 14 02113 g004
Figure 5. The overall process of Xoo inoculation and evaluation of BB disease resistance under the greenhouse conditions: (a) rice seedlings under the greenhouse conditions; (b) the sterile scissors dipped into the bacterial suspension; (c) inoculation of Xoo by the clipping method; (d) the measurement of disease lesion length at 10 DAI; (e) the BB disease symptoms of the susceptible (red arrow) and resistant varieties (yellow arrow).
Figure 5. The overall process of Xoo inoculation and evaluation of BB disease resistance under the greenhouse conditions: (a) rice seedlings under the greenhouse conditions; (b) the sterile scissors dipped into the bacterial suspension; (c) inoculation of Xoo by the clipping method; (d) the measurement of disease lesion length at 10 DAI; (e) the BB disease symptoms of the susceptible (red arrow) and resistant varieties (yellow arrow).
Plants 14 02113 g005
Table 1. Summary of Illumina sequencing data of resistant bulk, susceptible bulk, and parental lines.
Table 1. Summary of Illumina sequencing data of resistant bulk, susceptible bulk, and parental lines.
SamplesClean ReadsClean Data (Gb)Read Alignment (%)Genome Coverage (%)Average Depth
BRB97,295,28013,965,515,76098.47%97.90%36.46
BSB96,870,31113,870,606,50398.36%97.76%36.16
ULR20798,220,50614,103,458,88598.66%96.49%36.93
MP93,419,25813,401,558,27998.23%95.99%34.89
BRB = BB-resistant bulk, BSB = BB-susceptible bulk, MP = Maled Phai.
Table 2. Chromosome-wise distribution of single-nucleotide polymorphisms (SNPs) between the two bulks: BRB and BSB.
Table 2. Chromosome-wise distribution of single-nucleotide polymorphisms (SNPs) between the two bulks: BRB and BSB.
ChromosomesLength
(bp)
Number of SNPs
143,270,92359,553
235,937,25040,447
336,413,81938,670
435,502,69445,999
529,958,43440,303
631,248,78745,331
729,697,62132,174
828,443,02256,841
923,012,72028,260
1023,207,28745,270
1129,021,10649,445
1227,531,85640,690
Total373,245,519522,983
Table 3. Single-marker analysis of five KASP markers associated with disease lesion length of F2 population.
Table 3. Single-marker analysis of five KASP markers associated with disease lesion length of F2 population.
MarkersChromosomeLODPVE (%)Additive EffectDominant Effect
Os08g011070086.3215.00−1.20−0.20
Os08g011520086.1314.601.10−0.52
Os08g013130081.092.77−0.48−0.23
Os08g013950080.751.93−0.45−0.31
Os08g016390081.734.37−0.660.01
LOD = logarithm of odds, and PVE = phenotypic variance explained.
