Karyotypes and Physical Mapping of Ribosomal DNA with Oligo-Probes in Eranthis sect. Eranthis (Ranunculaceae)

by
Elizaveta Yu. Mitrenina
1,2,
Svetlana S. Alekseeva
1,
Ekaterina D. Badaeva
3,
Lorenzo Peruzzi
4,
Gleb N. Artemov
1,
Denis A. Krivenko
2,5,
Lorenzo Pinzani
4,
Zeki Aytaç
6,
Ömer Çeçen
7,
Shukherdorj Baasanmunkh
8,
Hyeok Jae Choi
8,
Attila Mesterházy
9,
Alexander N. Tashev
10,
Svetlana Bancheva
11,12,
Lian Lian
13,14,
Kunli Xiang
13,14,
Wei Wang
13,14 and
Andrey S. Erst
2,*
1
Department of Genetics and Cell Biology, Biological Institute, National Research Tomsk State University, 634050 Tomsk, Russia
2
Central Siberian Botanical Garden, Siberian Branch of the Russian Academy of Sciences, 630090 Novosibirsk, Russia
3
Vavilov Institute of General Genetics, Russian Academy of Sciences, 119333 Moscow, Russia
4
PLANTSEED Lab, Department of Biology, University of Pisa, 56126 Pisa, Italy
5
Siberian Institute of Plant Physiology and Biochemistry, Siberian Branch of the Russian Academy of Sciences, 664033 Irkutsk, Russia
6
Biology Department, Faculty of Science, Gazi University, Ankara 06500, Turkey
7
Department of Plant and Animal Production, Technical Sciences Vocational School, Karamanoğlu Mehmetbey University, Karaman 70100, Turkey
8
Department of Biology and Chemistry, Changwon National University, Changwon 51140, Republic of Korea
9
Independent Researcher, H-9500 Celldömölk, Hungary
10
Department of Dendrology, University of Forestry, 1756 Sofia, Bulgaria
11
Botanical Garden, Bulgarian Academy of Sciences, 1616 Sofia, Bulgaria
12
Institute of Biodiversity and Ecosystem Research, Bulgarian Academy of Sciences, G. Bonchev, Bl.23, 1113 Sofia, Bulgaria
13
State Key Laboratory of Systematic and Evolutionary Botany, Institute of Botany, Chinese Academy of Sciences, Beijing 100093, China
14
College of Life Sciences, University of Chinese Academy of Sciences, Beijing 100049, China

add Show full affiliation list

remove Hide full affiliation list
*
Author to whom correspondence should be addressed.
Plants 2024, 13(1), 47; https://doi.org/10.3390/plants13010047
Submission received: 23 November 2023 / Revised: 13 December 2023 / Accepted: 18 December 2023 / Published: 22 December 2023
(This article belongs to the Special Issue Plant Molecular Cytogenetics)
Browse Figures
Review Reports Versions Notes

Abstract

:
A comparative karyotype analysis of four species of yellow-flowered Eranthis sect. Eranthis, i.e., E. bulgarica, E. cilicica, E. hyemalis, and E. longistipitata from different areas, has been carried out for the first time. All the studied specimens had somatic chromosome number 2n = 16 with basic chromosome number x = 8. Karyotypes of the investigated plants included five pairs of metacentric chromosomes and three pairs of submetacentric/subtelocentric chromosomes. The chromosome sets of the investigated species differ mainly in the ratio of submetacentric/subtelocentric chromosomes, their relative lengths, and arm ratios. A new oligonucleotide probe was developed and tested to detect 45S rDNA clusters. Using this probe and an oligonucleotide probe to 5S rDNA, 45S and 5S rDNA clusters were localized for the first time on chromosomes of E. cilicica, E. hyemalis, and E. longistipitata. Major 45S rDNA clusters were identified on satellite chromosomes in all the species; in E. cilicica, minor clusters were also identified in the terminal regions of one metacentric chromosome pair. The number and distribution of 5S rDNA clusters is more specific. In E. cilicica, two major clusters were identified in the pericentromeric region of a pair of metacentric chromosomes. Two major clusters in the pericentromeric region of a pair of submetacentric chromosomes and two major clusters in the interstitial region of a pair of metacentric chromosomes were observed in E. longistipitata. E. hyemalis has many clusters of different sizes, localized mainly in the pericentromeric regions. Summarizing new data on the karyotype structure of E. sect. Eranthis and previously obtained data on E. sect. Shibateranthis allowed conclusions to be formed about the clear interspecific karyological differences of the genus Eranthis.

1. Introduction

The genus Eranthis Salisb. (winter aconite) belongs to Ranunculaceae Juss., tribe Cimicifugeae Torr. & A. Grey [1]. This genus consists of 10 to 14 early flowering herbaceous perennial species that are distributed across Southern Europe and Western, Central, and temperate Asia [2,3]. Most species of the genus have a limited distribution [4,5]. According to morphological data, the genus has been divided into two sections: E. sect. Eranthis and E. sect. Shibateranthis (Nakai) Tamura [6]. The type section Eranthis is characterized by plants with tubers, yellow sepals, and emarginate or slightly bilobate upper petal margins without pseudonectaries [7]. Eranthis sect. Eranthis in Europe includes E. bulgarica (Stef.) Stef. and E. hyemalis (L.) Salisb., whereas in Southwest and West Asia, it includes E. cilicica Schott & Kotschy, E. iranica Rukšāns & Zetterl., E. kurdica Rukšāns, and E. longistipitata Regel [8,9,10]. Eranthis hyemalis is often associated with estate woodlands. However, though present in many European countries, it is probably only truly native to the south, France, and Italy. In the wild, E. cilicica and E. hyemalis can be readily separated [11]. However, Stace’s comments would certainly be true for some plants in cultivation and some naturalized populations in Britain and Ireland [12]. Plants with intermediate characters can be found, and these can perhaps be referred to the hybrid Eranthis × tubergenii Bowles. Eranthis longistipitata is a plant of mountain woodlands and part-shaded rocky habitats, occasionally venturing onto grassy slopes and screes, found in Afghanistan, Kazakhstan, Tajikistan, Turkmenistan, and Uzbekistan. Its distribution does not overlap with any other species of Eranthis [11]. Eranthis longistipitata and E. cilicica grow in places that are reasonably humid during the growing season. After the plants die down, their growing places become very dry, and that is exactly what this magnificent plant appreciates in the garden [13]. The more orange-colored plants described as E. iranica are common in Iran and at the border of Turkmenistan [9]. Eranthis kurdica was described recently [10]. This species was initially classified as E. cilicica or E. hyemalis, yet it differs in the presence of daughter tubers on a mother tuber, similar to E. iranica and E. longistipitata. This species is common in eastern Turkey, Iran, and Iraq [14].
Eranthis sect. Shibateranthis has long-lived tubers, white sepals, and bilobate or forked petal margins with pseudonectaries [7,15]. Species of this section have a natural geographic range in temperate North and East Asia, i.e., Eranthis albiflora Franch., E. byunsanensis B.Y. Sun, E. lobulata W.T. Wang, E. pinnatifida Maxim., E. pungdoensis B.U. Oh, E. sibirica DC., E. stellata Maxim., and E. tanhoensis Erst [2,4,5].
Chromosomal analysis is extensively used to study the systematics and evolution of plants from different taxonomic groups [5,16,17,18]. In Ranunculaceae, the karyotype structure has been studied for representatives of numerous genera, particularly those with large chromosomes, such as Adonis L. [19], Anemone L. [20], Caltha L. [21,22], Cimicifuga Wernisch. [21,22], Halerpestes Greene [23], Helleborus L. [22], Ranunculus L. [24], Trollius L. [21], etc. However, molecular cytogenetic studies, an integral part of chromosomal analysis, were conducted only for some taxa of this family. Similar studies on the localization of conserved ribosomal DNA sequences are known for Anemone [19], Hepatica Mill. [25], Pulsatilla Mill. [26,27], and Ranunculus [28].
In our previous study, we described the chromosome sets of six species of Eranthis sect. Shibateranthis and revealed clear karyotypical differences in E. byunsanensis, E. lobulata, E. pinnatifida, E. sibirica, E. stellata, and E. tanhoensis associated with their evolution. The studied species differ in the number and morphology of chromosomes [29]. For the species of E. sect. Eranthis, only the karyotype of E. hyemalis was described [30,31,32]. The purpose of our current study was to perform comparative analysis of karyotype structure and physical mapping of 45S and 5S ribosomal DNA (rDNA) sequences on chromosomes by fluorescence in situ hybridization (FISH) in four species Eranthis sect. Eranthis, i.e., E. bulgarica, E. cilicica, E. hyemalis, and E. longistipitata (Figure 1). Highly conserved rDNA sequences are widely used for comparative molecular cytogenetic analysis of different taxa to study the evolution of chromosome sets [33,34].

2. Results

2.1. Karyotypes of Eranthis sect. Eranthis

Comparative karyological analysis was performed for Eranthis bulgarica, E. cilicica, E. hyemalis, and E. longistipitata from 18 populations from different areas (Table 1). The investigated accessions showed predominantly large and medium-sized chromosomes that belong to the Ranunculus-type according to Langlet [35]. The basic and somatic chromosome numbers were x = 8 and 2n = 16, respectively (Figure 2). Their karyotypes included five pairs of large metacentric chromosomes and three pairs of smaller submetacentric and subtelocentric chromosomes in different ratios. Karyotype formulas for accessions from 13 populations are summarized in Table 2. The results of a detailed karyomorphometric analysis and haploid idiograms for accessions from four populations (one for each species) are presented in Table 3 and Figure 3, respectively.

2.1.1. Eranthis bulgarica

Metacentric chromosomes in this species formed a homogeneous group that gradually decreased in length and had similar arm ratios (Figure 2A,B and Figure 3; Table 3). The relative lengths of individual metacentric chromosomes in this species varied within a range from 6.20 to 7.75%. The other chromosomes included three submetacentric and three subtelocentric ones. The longest chromosome pair was submetacentric (mean relative length of 5.41%) and the shortest chromosome pair was subtelocentric (mean relative length of 4.45%) with small satellites in the terminal region of the short arm. Typically, one satellite chromosome and less often two satellite chromosomes could be identified on metaphase plates. The third pair of non-metacentric chromosomes in accessions from pop. 1 was of intermediate size; it was heteromorphic and was represented by submetacentric and subtelocentric chromosomes of a similar length. In accessions from pop. 2, this chromosome pair differed not only in the arm ratio, but also in length, i.e., the mean relative length of the submetacentric chromosome was 2.92%, and the mean relative length of the subtelocentric chromosome was 5.19% (Figure 2B). The karyotype formula of E. bulgarica was 2n = 2x = 16 = 10m + 3sm + 1st + 2stsat.

2.1.2. Eranthis cilicica

We studied the karyotype structure of accessions from two populations growing in Turkey (Figure 2C). The karyotype formulas were similar for both populations—2n = 2x = 16 = 10m + 4sm + 2stsat. A more detailed karyomorphometric analysis was carried out for pop. 3 from Kahramanmaraş Province (Figure 3; Table 3). Five pairs of metacentric chromosomes differed slightly in the arm ratios and lengths (mean relative length of 6.35 to 7.60%). Two other pairs were submetacentric chromosomes and one pair was subtelocentric chromosomes with small satellites in short arms. The length of one pair of submetacentric chromosomes was very close to the length of subtelocentric chromosomes, whereas the second pair of submetacentric chromosomes was significantly shorter (mean relative lengths of the two pairs of submetacentric chromosomes were 5.49 and 3.40%).

2.1.3. Eranthis hyemalis

We studied chromosome sets of accessions from six populations growing in Italy, Germany, and Hungary (Figure 2D–F; Table 2). The karyotype formulas were similar for all the studied plants, i.e., 2n = 2x = 16 = 10m + 2sm + 2st + 2stsat. A detailed karyomorphological analysis was carried out for the population from Via di Roncrio, Bologna, Italy (Figure 3; Table 3). Similar to other species, five pairs of metacentric chromosomes were the largest in the set; the arm ratios and chromosome lengths varied (mean relative length of 6.46 to 7.90%). The other pairs of chromosomes had similar lengths (mean relative length of 4.51 to 4.84%), but differed in the arm ratios. A more asymmetrical subtelocentric pair carried small satellites in the terminal regions of the short arms.

2.1.4. Eranthis longistipitata

We studied the karyotype structure of accession from three populations growing in Kazakhstan, Tajikistan, and Uzbekistan (Figure 2G–I; Table 2). The karyotype formula for E. longistipitata was 2n = 2x = 16 = 10m + 2sm + 2st + 2stsat. A detailed karyomorphological analysis was carried out for the accession from Kazakhstan (Table 3). The arm ratios and lengths varied in five pairs of metacentric chromosomes (mean relative lengths of 6.61 to 8.27%). The shortest heterobrachial chromosome pair was submetacentric, and its average relative length attained 3.52%. Two pairs of subtelocentric chromosomes differed in lengths (mean relative lengths of 4.79 and 4.12%), but their arm ratios were similar (Table 3). A pair of shorter subtelocentric chromosomes had small satellites in the terminal regions of the short arms.

2.1.5. Comparative Karyomorphometric Analysis

The exploratory PCA (cumulative variance explained by the first two axes: 90.34%) highlighted four non-overlapping groups (Figure 4). This was further confirmed by univariate analyses: THL values (ANOVA, F = 71.66, df = 3, p << 0.01) differed among all species pairs with p << 0.01 (Tukey HSD test), with the exception of the pair E. bulgarica vs. E. longistipitata, which did not show significant differences (p = 0.71). CVCL values (F = 61.13, df = 3, p << 0.01) differed among all species pairs with p << 0.01, with the exception of the pair E. cilicica vs. E. hyemalis (p = 0.98). MCA values (F = 4.96, df = 3, p << 0.01) differed only between E. bulgarica and E. hyemalis with p << 0.01. Finally, CVCI values (F = 27.59, df = 3, p << 0.01) differed among all species pairs with p << 0.01, with the exception of the pair E. cilicica vs. E. longistipitata (p = 0.99). Consequently, the highest values of THL and CVCI were shown by E. hyemalis, the highest values of CVCL by E. longistipitata (and the lowest by E. bulgarica), while E. cilicica showed intermediate values concerning all features (Table 3). The overall results were fully supported by LDA, that correctly attributed object (accessions) to the four species in 100% of cases (jackknifed).

2.2. Distribution of rDNA Sites along the Chromosomes of Eranthis cilicica, E. hyemalis, and E. longistipitata

FISH mapping of 45S and 5S rDNA clusters on chromosomes of the Eranthis species was performed for the first time. We studied E. cilicica (pop. 3), E. hyemalis (pop. 10), and E. longistipitata (pop. 17) (Figure 5) and revealed that all the species had two major clusters of 45S rDNA (NORs) at the terminal regions of short arms of subtelocentric satellite chromosomes. In E. cilicica, 1–2 pairs of minor clusters of 45S rDNA were identified in the terminal regions of metacentric chromosomes.
The studied species showed differences in the number of 5S rDNA clusters. In E. cilicica, only two major clusters of 5S rDNA were identified in subcentromeric regions of the shortest metacentric chromosomes (Figure 5A). Eranthis longistipitata had four major clusters of 5S rDNA—in the interstitial regions of a pair of metacentric chromosomes and in the pericentromeric regions of a pair of small submetacentric chromosomes (Figure 5C). Eranthis hyemalis had up to 16 5S rDNA clusters of various sizes in 14 chromosomes (Figure 5B). They were mainly localized in the pericentromeric regions, but a pair of submetacentric chromosomes without satellites had two clusters each—in the pericentromeric and interstitial regions.

3. Discussion

Karyotype Structure in Eranthis sect. Eranthis

Our current and previous karyological studies on Eranthis showed that the genus was predominantly characterized by a basic chromosome number x = 8 and diploid cytotypes with 2n = 16. The exceptions included records of triploid E. hyemalis with 2n = 24 [36], and two species from Siberia that belonged to E. sect. Shibateranthis, namely E. tanhoensis with 2n = 14 and E. sibirica with 2n = 42 [5,29]. The karyotype structure of the studied species—E. bulgarica, E. cilicica, E. hyemalis, and E. longistipitata—showed common features within this group and shared with some species of E. sect. Shibateranthis, namely E. byunsanensis, E. lobulata, and E. stellata. The chromosome sets of these species included five pairs of large metacentric chromosomes and three pairs of smaller chromosomes with unequal arms of different morphology. The chromosome set of each of the species included a pair of satellite submetacentric or subtelocentric chromosomes with a secondary constriction on the short arm. This type of localization of the nucleolar organizer (in the subterminal region of the short arm) is characteristic of karyotypes of most plants [37]. We identified a different localization of the secondary constriction for E. sibirica and E. tanhoensis—in the interstitial region of one of the arms of metacentric chromosomes [29]. It is known that the secondary constrictions represent only the expression of rRNA genes, which were active during the preceding interphase, and other functional sites may not form secondary constrictions, especially if located too close to the terminal region of the chromosomes. The 45S rDNA clusters, which do not form secondary constrictions, can be identified using the FISH technique [33]. Despite similarities in karyotype, each of the studied Eranthis species showed its own species-specific features. For example, unlike E. hyemalis and E. bulgarica, the karyotype of E. cilicica and E. longistipitata included a pair of very short submetacentric chromosomes (pair 8). In turn, the karyotypes of E. cilicica and E. longistipitata differed in the morphology of chromosomes with unequal arms. Compared to the three studied species, a distinctive feature of E. hyemalis was the presence of the largest chromosomes. Despite the fact that lengths of chromosomes were affected by the method of plant material pretreating and the degree of chromosome condensation [38], it was obvious that E. hyemalis and E. longistipitata, having similar karyotype formulas, showed apparent differences in the total length of haploid chromosome set.
Confusion surrounds the circumscription of Eranthis hyemalis and E. cilicica—should they be considered as a single species or two? Checking regional flora and other accounts, these two taxa were treated in different ways by different authors, but close study revealed the prime elements involved were very different, not only in their morphology but also in their geography and preferred habitats [11]. The flowers of E. cilicica are more golden and the leaves are more finely pinnate. When they start to grow, the leaves also acquire a more bronze color, which fades during leaf unfolding. The tuber of E. cilicica is round and smooth, whereas the tuber of E. hyemalis is knobby and uneven. In most cases, it flowers later than E. hyemalis [13]. The hybrid between the two species (Eranthis × tubergenii) bears intermediate characteristics but is generally more vigorous and substantial, possessing a high degree of sterility, which is a further indication that E. cilicica and E. hyemalis are specifically distinct [11].
However, the population of winter aconite at peak Vraška Čuka (on the border between Bulgaria and Serbia) was subsequently identified as E. bulgarica Stef. [39,40], which grows on karst and lithosol, in the xerothermal belt of oak forests [41]. This enigmatic species shows minor morphological differences from populations growing in Italy (the locus classicus for E. hyemalis) and requires further studies using an integrative taxonomical approach, including cytogenetic methods. In this study, we clearly showed that E. bulgarica and E. hyemalis differed in the karyotype structure. Eranthis bulgarica showed a heteromorphic chromosome pair, which consisted of submetacentric and subtelocentric chromosomes. We previously observed a similar feature in the karyotype of E. byunsanensis [29]. However, we could not assert that such karyotype structures were characteristic of this species throughout its entire range since we examined the karyotype from a single locality. A similar length of the heteromorphic chromosomes in E. bulgarica (pop. 1) suggests the presence of a pericentric inversion that changed the morphology of one of the chromosome pairs. However, a difference in their lengths in one of the accessions (pop. 2) suggests a more complex chromosomal rearrangement, presumably translocation. A similar translocation was observed in Adonis apennina L. (indicated as A. sibirica (Patrin ex DC.) Spach) from one of the Siberian populations [42] and in Adonis vernalis from one of the populations in the Altai Territory (Russia) [43].
We studied the karyotypes of E. bulgarica, E. cilicica, and E. longistipitata for the first time, whereas data on the karyotype of E. hyemalis were previously reported by Tak and Wafai [30], Gömürgen [31], and Caparelli, Aquaro, and Peruzzi [32]. According to [30], the chromosome set of this species was 2n = 16 = 10m + 6st and the karyotype structure, namely the ratio of metacentric/non-metacentric chromosomes, was close to that reported in our study. According to [31], the karyotype formula for E. hyemalis is 2n = 16 = 12m + 4sm, which differs from our data. Differences in karyotype formulas were not due to differences in chromosome nomenclature, since the author followed the same classification coined by Levan et al. [44].
We examined karyotypes of E. hyemalis from six localities, including four localities in Italy, which was the locus classicus for this species [45]. All the investigated plants shared a similar karyotype with clearly identifiable three pairs of submetacentric and subtelocentric chromosomes. The karyotype formula of the Eranthis accession from Turkey (Afyon region) studied by Gömürgen [31] differed from the karyotype formula of E. cilicica from Turkey included in the current study. Apparently, the material investigated by Gömürgen belonged to taxon other than E. hyemalis or E. cilicica since new taxa are still being reported [9,10], including those from this region (Turkey) [14]. In another study [32] conducted for E. hyemalis from Italy, the karyotype formula was determined as 2n = 16 = 8m + 4sm + 2st + 2tsat.
The karyotype structures of E. bulgarica, E. cilicica, E. hyemalis, and E. longistipitata were also similar in the intrachromosomal asymmetry calculated by mean centromeric asymmetry (MCA) [46]. However, the values of the coefficient of variation in chromosome length (CVCL) [47], which indicated the levels of interchromosomal asymmetry, varied in a greater degree within the group (Table 3). The differences between E. bulgarica and E. longistipitata were noticeable; the latter species showed a more asymmetric karyotype.
The results obtained in the current and our previous study [29] showed that E. sect. Eranthis was karyologically more homogeneous than E. sect. Shibateranthis. The latter clearly showed two subgroups of species according to the basic number of chromosomes, and structure and asymmetry of karyotypes. The karyotype structure and asymmetry are the features that change during evolution. The metacentric and submetacentric chromosomes of the symmetrical karyotype are approximately equal in size. Changes towards an asymmetric karyotype can arise by shifts in centromere position (intrachromosomal asymmetry) and/or by the addition or deletion of chromatin from some but not all chromosomes, leading to differences in size between the largest and smallest chromosomes (interchromosomal asymmetry) [17]. Most genera of herbaceous angiosperms displayed interspecific differences in chromosome size and symmetry, if not number [48]. The karyotypes in Ranunculaceae are generally considered to have evolved towards increasing asymmetry, as was reported by Lewitsky [49] based on his cytological study of the tribe Helleboreae s.l. He believed that, in this and other groups, chromosomes became more asymmetrical as evolution progressed. Evolution can demonstrate the opposite process, namely, an increase in the karyotype symmetry due to Robertsonian chromosome fusions and other rearrangements [50]. Thus, classical karyotyping methods are not sufficient to establish the direction of changes; it requires an integrative approach to the study of karyotype evolution, including molecular phylogenetic and molecular cytogenetic analyses [24,33,34,51,52,53,54].
For a more detailed comparison of the Eranthis karyotypes, we conducted a classical molecular cytogenetic study on the localization of conserved ribosomal gene sequences. We tested a new oligonucleotide probe to identify tandem repeats of 45S rDNA, which obviously can be used for further studies on other taxa. We reported the location of 45S and 5S rDNA on the chromosomes of E. cilicica, E. hyemalis, and E. longistipitata, which confirm our results on the species-specific chromosomal organization of their genomes. The number of ribosomal DNA clusters and their distribution along chromosomes varied in related species such as E. cilicica and E. hyemalis. The genomes of E. cilicica and E. longistipitata contain one and two pairs of 5S rDNA clusters, respectively; the repeats in E. hyemalis were dispersed throughout the genome and could be found in almost all chromosomes of the set, except for a satellite pair of chromosomes. This shows that the genomes have undergone relevant changes in their evolution.

4. Materials and Methods

4.1. Plant Samples

Plant materials (seeds and tubers) of Eranthis bulgarica, E. cilicica, E. hyemalis, and E. longistipitata were collected during field investigations in Bulgaria, Turkey, Italy, Germany, Hungary, Kazakhstan, Uzbekistan, and Tajikistan during 2017–2021. The list of the samples examined is presented in Table 1. Herbarium specimens were deposited in the TK and NS herbaria (herbarium acronyms according to Thiers 2023, continuously updated).

4.2. Karyotype Analysis

Chromosome counts were conducted for 18 populations, while the karyotype analysis was conducted for 12 populations of E. bulgarica, E. cilicica, E. hyemalis, and E. longistipitata (Table 1 and Table 2). Somatic chromosomes of Eranthis were prepared from root meristems. Tubers and seeds were germinated at ~5 °C for 1–3 months. Newly formed 1–2 cm long roots were excised and pretreated in 0.5% colchicine solution for 3–4 h. Roots were fixed in a mixture of 96% ethanol and glacial acetic acid (3:1). Chromosomes stained with 1% aceto-hematoxylin were used for morphometric analyses. Staining and karyotyping were performed according to standard protocols [29,55]. Mitotic metaphase chromosome plates were studied using an Axio Star microscope (Carl Zeiss, Munich, Germany) and photographed using an Axio Imager A.1 microscope (Carl Zeiss, Munich, Germany) equipped with AxioCam MRc5 CCD-camera (Carl Zeiss, Munich, Germany) at 1000× magnification using AxioVision 4.7 software (Carl Zeiss, Munich, Germany) in the Laboratory for Ecology, Genetics and Environmental Protection (National Research Tomsk State University, Tomsk, Russia). KaryoType 2.0 software [56] was used for karyotyping, and Adobe Photoshop CS5 (Adobe Systems, San Jose, CA, USA) and Inkscape 0.92 (Boston, MA, USA) were used for image editing.
The measurements were performed on 5–9 metaphase plates per population. The symbols used to describe the karyotypes corresponded to those coined by Levan et al. (1964): m = median centromeric chromosome with arm ratio (r) of 1.0–1.7 (metacentric chromosome); sm = submedian centromeric chromosome with arm ratio of 1.7–3.0 (submetacentric chromosome); st = subterminal centromeric chromosome with arm ratio of 3.0–7.0 (subtelocentric chromosome); t = terminal centromeric chromosome with arm ratio of 7.0 and more (acrocentric chromosome); T = chromosome without obvious short arm (telocentric chromosome). Mean values of arm ratio (r), centromeric indices (CI), and relative chromosome length (RL) for each chromosome pair and total haploid length (THL) were determined. In addition, we calculated the coefficient of variation in chromosome length (CVCL) [47], coefficient of variation in centromeric index (CVCI) [47], and mean centromeric asymmetry (MCA) [46].
Given that the chromosome number (2n) and the basic chromosome number (x) were constant in the studied species, we slightly modified the approach proposed by Peruzzi and Altınordu [57] by directly considering only THL, CVCL, MCA, and CVCI as variables in an exploratory principal component analysis (PCA). A linear discriminant analysis (LDA) was carried out to test the karyomorphometric diagnosability of the four species, considering them as a priori groups. Each variable was also subjected to univariate analysis (ANOVA followed by Tukey HSD test for multiple comparisons). All the analyses were carried out with the software PAST 4.14. [58,59], freely available online.

4.3. Oligonucleotide Probes

For the 5S rDNA localization we used the oligonucleotide DNA probe Oligo-5S rDNA (5′-TCA GAA CTC CGA AGT TAA GCG TGC TTG GGC GAG AGT AC-3′) based on the sequence of pTa794 probe of wheat (Triticum aestivum L.) [60]. The oligo-probe was labeled with the fluorescein amidite (FAM) from the 5′ end. For the 45S rDNA localization in Ranunculaceae, we developed and tested a new oligo-probe. To obtain a universal DNA sequence appropriate for the development of an oligonucleotide DNA probe, rDNA sequences of several plants were analyzed. Sequences of Adonis amurensis Regel & Radde (LC540384.1), A. shikokuensis Nishikawa & Koji Ito (LC540399.1), Anemone cernua var. koreana Y. Yabe ex Nakai (GU732647.1), Coptis chinensis Franch. (KC815158.1), Pulsatilla turczaninovii Krylov & Serg. (GU732649.1), and Trollius chinensis Bunge (AH006943.2), were chosen and downloaded from GenBank. Sequence alignment was performed using UGENE v38.1 (Unipro, Novosibirsk, Russia) with the ClustalW tool. A 121-nucleotide long consensus sequence corresponding to the 5.8S rRNA gene was identified, and its universality among flowering plants was confirmed with the NCBI BLAST analysis (https://blast.ncbi.nlm.nih.gov, accessed on 20 April 2021). The uniqueness of the identified sequence was verified by BLAST alignment against the Arabidopsis thaliana (L.) Heynh. genome. The analysis showed homology with the beta-glucosidase gene for the fragment from 63 to 82 nucleotides; therefore, a specific fragment from 13 to 62 nucleotides with a total length of 50 nucleotides was chosen for the DNA probe (designated as Oligo-5.8S rDNA-Ran). Probe nucleotide sequence: 5′-ACGGATATCTCGGCTCTTGCATCGATGAAGAACGTAGCGAAATGCGATAC-3′. This probe was labeled with tetramethylrhodamine (TAMRA) from the 5′ end. The oligonucleotide probes used in the study were synthesized in the “Evrogen” (Russia, Moscow).

4.4. Chromosome Preparation and Fluorescence In Situ Hybridization (FISH)

Newly formed 1–2 cm long roots were excised and pretreated in 0.5% colchicine solution for 3–4 h. Roots were fixed in a mixture of 96% ethanol and glacial acetic acid (3:1). Before squashing, the roots were transferred into 1% acetocarmine in 45% acetic acid for 15–30 min. The cover slips were removed after freezing in liquid nitrogen. The slides were dehydrated in 96% ethanol and then air dried.
Fluorescence in situ hybridization with oligo-probes was carried out according to the protocol published by Badaeva et al. [61]. Prior to hybridization, slides were treated with RNAse A (Sigma, Livonia, MI, USA) solution in moist chamber at 37 °C for 1 h. Chromosomes were stained with 2 ng/μL DAPI (4′,6-diamidino-2-2phenylindole) in antifade medium Vectashield (Vector Laboratories, Burlingame, CA, USA).
Chromosomal preparations were examined and the selected mitotic metaphase plates were photographed using an AxioImager Z.1 (Carl Zeiss, Germany) epifluorescent microscope with AxioVision 4.8 software (Carl Zeiss, Germany) and AxioCam MRm CCD-camera (Carl Zeiss, Germany) at 1000× magnification in the Laboratory for Ecology, Genetics and Environmental Protection (National Research Tomsk State University, Tomsk, Russia). Adobe Photoshop CS5 (Adobe Systems, San Jose, CA, USA) and Inkscape 0.92 (Boston, MA, USA) software were used for image editing.

5. Conclusions

Comparative karyotype analysis of four species of yellow-flowered Eranthis sect. Eranthis, i.e., E. bulgarica, E. cilicica, E. hyemalis, and E. longistipitata from different areas, was carried out. Despite the fact that some authors consider that E. bulgarica is a synonym of E. hyemalis, cytogenetic analysis showed clear differences between these taxa suggesting that they are two distinct species. Not all the species in the type section were included in the analysis. For further studies, it is planned to investigate the karyotypes of E. iranica, E. kurdica, and E. × tubergenii and compare them with E. bulgarica, E. cilicica, E. hyemalis, and E. longistipitata. In addition, the taxonomy and phylogenetic relationships of the recently described species (E. bulgarica, E. iranica, and E. kurdica) need to be verified by integrating morphological, molecular phylogenetic, and cytogenetic approaches.

Author Contributions

Conceptualization, E.Y.M., A.S.E. and L.P. (Lorenzo Peruzzi); formal analysis, E.Y.M., S.S.A. and L.P. (Lorenzo Peruzzi); investigation, E.Y.M. and A.S.E.; methodology, E.Y.M., E.D.B., G.N.A., L.P. (Lorenzo Pinzani) and S.S.A.; resources, A.S.E., D.A.K., L.P. (Lorenzo Pinzani), Z.A., Ö.Ç., A.M., S.B. (Shukherdorj Baasanmunkh), A.N.T. and S.B. (Svetlana Bancheva); supervision, E.D.B., L.P. (Lorenzo Peruzzi), W.W. and L.P. (Lorenzo Peruzzi); visualization, E.Y.M. and S.S.A.; funding acquisition, A.S.E., W.W. and H.J.C.; verification, L.L. and K.X.; software, L.L. and K.X.; project administration, A.S.E.; writing—original draft, A.S.E., E.Y.M. and L.P. (Lorenzo Peruzzi); writing—review and editing, all coauthors; All authors have read and agreed to the published version of the manuscript.

Funding

Most of the co-authors, who are not co-researchers on the RSF project No. 23-14-00230, carried out work on data analysis and revision of the text (5% of the effort in this study) within the framework of the state task for NSF 32011530072 and Korea Basic Science Institute (National Research Facilities and Equipment Center) grant funded by the Ministry of Education (Grant No. 2023R1A6C101B022). Collection materials, all work on the data and writing the manuscript (95% of the effort in this study) were funded by the Russian Science Foundation project Scientific Foundation No. 23-14-00230, https://rscf.ru/project/23-14-00230/ (accessed on 20 April 2021) (for its participants who are co-authors of this study).

Data Availability Statement

All data generated or analysed during this study are included in this article.

Acknowledgments

The authors are grateful to Roman V. Annenkov for compiling Figure 2, Figure 3 and Figure 5.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Wang, W.; Lu, A.M.; Ren, Y.; Endress, M.E.; Chen, Z.D. Phylogeny and classification of Ranunculales: Evidence from four molecular loci and morphological data. Perspect. Plant Ecol. Evol. Syst. 2009, 11, 81–110. [Google Scholar] [CrossRef]
  2. Park, S.Y.; Jeon, M.J.; Ma, S.H.; Wahlsteen, E.; Amundsen, K.; Kim, J.H.; Suh, J.K.; Chang, J.S.; Joung, Y.H. Phylogeny and genetic variation in the genus Eranthis using nrITS and cpIS single nucleotide polymorphisms. Hortic. Environ. Biotechnol. 2019, 60, 239–252. [Google Scholar] [CrossRef]
  3. Oh, A.; Oh, B.U. The speciation history of northern- and southern-sourced Eranthis (Ranunculaceae) species on the Korean peninsula and surrounding areas. Ecol. Evol. 2019, 9, 2907–2919. [Google Scholar] [CrossRef] [PubMed]
  4. Sun, B.Y.; Kim, C.H.; Kim, T.J. A new species of Eranthis (Ranunculaceae). Korean J. Plant Tax. 1993, 2, 321–326. [Google Scholar]
  5. Erst, A.S.; Sukhorukov, A.P.; Mitrenina, E.Y.; Skaptsov, M.V.; Kostikova, V.A.; Chernisheva, O.A.; Troshkina, V.; Kushunina, M.; Krivenko, D.A.; Ikeda, H.; et al. An integrative taxonomic approach reveals a new species of Eranthis (Ranunculaceae) in North Asia. PhytoKeys 2020, 140, 75–100. [Google Scholar] [CrossRef] [PubMed]
  6. Tamura, M. Eranthis and Shibateranthis. Acta Phytotax. Geobot. 1987, 38, 96–97. [Google Scholar]
  7. Tamura, M. Eranthis. In Die Natürlichen Pflanzenfamilien; Duncker und Humblot: Berlin, Germany, 1995; Volume 17, pp. 253–255. [Google Scholar]
  8. Stefanoff, B. Dopolnitelni materiali varhu florata na Blgaria. Izv. Bot. Inst. [Mitteilungen Bot. Inst.] 1943, 11, 155. [Google Scholar]
  9. Rukšāns, J.; Zetterlund, H. Eranthis iranica (Ranunculaceae) Rukšāns & Zetterlund new species of winter aconite from Iran. Intern. Rock Gard. 2018, 108, 2–19. [Google Scholar]
  10. Rukšāns, J. Eranthis kurdica (Ranunculaceae) Rukšāns—A new species of winter aconite (Eranthis, Ranunculaceae) from Iran. Intern. Rock Gard. 2022, 151, 2–18. [Google Scholar]
  11. Grey-Wilson, C. The winter aconite, a taxonomic dilemma. Plant Rev. 2019, 1, 53–56. [Google Scholar]
  12. Stace, C.A. New Flora of the British Isles, 4th ed.; C&M Floristics: Cambridge, UK, 2019; 1300p. [Google Scholar]
  13. Boens, W. The genus Eranthis, heralds of the end of winter. Int. Rock Gard. 2014, 49, 1–24. [Google Scholar]
  14. Firat, M. An addition to flora of Turkey: Eranthis kurdica (Ranunculaceae), with contributions to its taxonomy. Acta Biol. Turc. 2023, 36, 1–11. [Google Scholar]
  15. Huang, Z.; Zhang, X. Floral nectaries and pseudonectaries in Eranthis (Ranunculaceae): Petal development, micromorphology, structure and ultrastructure. Protoplasma 2022, 259, 1283–1300. [Google Scholar] [CrossRef] [PubMed]
  16. Ilnicki, T. Plant biosystematics with the help of cytology and cytogenetics. Caryologia 2014, 67, 199–208. [Google Scholar] [CrossRef]
  17. Peruzzi, L.; Carta, A.; Altınordu, F. Chromosome diversity and evolution in Allium (Allioideae, Amaryllidaceae). Plant Biosyst. 2017, 151, 212–220. [Google Scholar] [CrossRef]
  18. Mráz, P.; Filipas, L.; Bărbos, M.I.; Kadlecová, J.; Paštová, L.; Belyayev, A.; Fehrer, J. An unexpected new diploid Hieracium from Europe: Integrative taxonomic approach with a phylogeny of diploid Hieracium taxa. Taxon 2019, 68, 1258–1277. [Google Scholar] [CrossRef]
  19. Volkova, S.A.; Gorovoy, P.G.; Pshennikova, L.M. Karyotypes of Adonis amurensis (Ranunculaceae) in the Primorsky Territory and in Sakhalin. Turczaninowia 2020, 23, 39–48. [Google Scholar]
  20. Mlinarec, J.; Šatović, Z.; Mihelj, D.; Malenica, N.; Besendorfer, V. Cytogenetic and phylogenetic studies of diploid and polyploid members of tribe Anemoninae (Ranunculaceae). Plant Biol. 2012, 14, 525–536. [Google Scholar] [CrossRef]
  21. Yang, Q.-E. Cytology of the tribe Trollieae and of the tribe Cimicifugeae in the Ranunculaceae: A comparative study. Acta Phytotaxon. Sin. 2002, 40, 52–65. [Google Scholar]
  22. Yuan, Q.; Yang, Q.-E. Tribal relationships of Beesia, Eranthis and seven other genera of Ranunculaceae: Evidence from cytological characters. Bot. J. Linn. Soc. 2006, 150, 267–289. [Google Scholar] [CrossRef]
  23. Páez, V.; Andrada, A. Análisis cariotípicos en dos especies de Halerpestes (Ranunculaceae) del Noroeste Argentino. Lilloa 2019, 56, 59–66. [Google Scholar] [CrossRef]
  24. Baltisberger, M.; Hörandl, E. Karyotype evolution supports the molecular phylogeny in the genus Ranunculus (Ranunculaceae). Perspect. Plant Ecol. Evol. Syst. 2016, 18, 1–14. [Google Scholar] [CrossRef]
  25. Weiss-Schneeweiss, H.; Schneeweiss, G.M.; Stuessy, T.F.; Mabuchi, T.; Park, J.M.; Jang, C.G.; Sun, B.Y. Chromosomal stasis in diploids contrasts with genome restructuring in auto-and allopolyploid taxa of Hepatica (Ranunculaceae). New Phytol. 2007, 174, 669–682. [Google Scholar] [CrossRef] [PubMed]
  26. Lee, W.K.; Choi, H.W.; Kim, S.Y.; Bang, J.W. Molecular cytogenetics of five Pulsatilla species to the 5S, 45S rDNA genes by fluorescence in situ hybridization. Genes Genom. 2005, 27, 179–185. [Google Scholar]
  27. Sramkó, G.; Laczkó, L.; Volkova, P.A.; Bateman, R.M.; Mlinarec, J. Evolutionary history of the Pasque-flowers (Pulsatilla, Ranunculaceae): Molecular phylogenetics, systematics and rDNA evolution. Mol. Phylogenet. Evol. 2019, 135, 45–61. [Google Scholar] [CrossRef] [PubMed]
  28. Takahashi, C. Physical mapping of rDNA sequences in four karyotypes of Ranunculus silerifolius (Ranunculaceae). J. Plant Res. 2003, 116, 331–336. [Google Scholar] [CrossRef] [PubMed]
  29. Mitrenina, E.Y.; Erst, A.S.; Peruzzi, L.; Skaptsov, M.V.; Ikeda, H.; Nikulin, V.Y.; Wang, W. Karyotype and genome size variation in white-flowered Eranthis sect. Shibateranthis (Ranunculaceae). PhytoKeys 2021, 187, 207–227. [Google Scholar] [CrossRef]
  30. Tak, M.A.; Wafai, B.A. Somatic chromosome structure and nucleolar organization in Anemone coronaria L., Ranunculus asiaticus L. and Eranthis hyemalis Salisb. (Ranunculaceae). Phytomorphology 1996, 46, 377–385. [Google Scholar]
  31. Gömürgen, A.N. Chromosome Numbers and Karyotype Analysis of Eranthis hyemalis (L.) Salisb. In Progress in Botanical Research: Proceedings of the 1st Balkan Botanical Congress; Springer: Dordrecht, The Netherlands, 1997; pp. 489–492. [Google Scholar]
  32. Caparelli, K.F.; Aquaro, G.; Peruzzi, L. Numeri cromosomici per la flora Italiana: 1460–1463. Inform. Bot. Ital. 2007, 39, 233–235. [Google Scholar]
  33. Roa, F.; Guerra, M. Distribution of 45S rDNA sites in chromosomes of plants: Structural and evolutionary implications. BMC Evol. Biol. 2012, 12, 225. [Google Scholar] [CrossRef]
  34. Rosselló, J.A.; Maravilla, A.J.; Rosato, M. The nuclear 35S rDNA world in plant systematics and evolution: A primer of cautions and common misconceptions in cytogenetic studies. Front. Plant Sci. 2022, 13, 788911. [Google Scholar] [CrossRef]
  35. Langlet, O. Über Chromosomenverhältnisse und Systematik der Ranunculaceae. Sven. Bot. Tidskr. 1932, 26, 381–400. [Google Scholar]
  36. Colasante, M.; Ricci, S. Forme diploidi e triploidi di Eranthis hyemalis Salisb.: Omologie e differenze nel corredo cromosomico. Ann. Bot. 1974, 33, 139–150. [Google Scholar]
  37. Lima-de-Faria, A. The chromosome field I. Prediction of the location of ribosomal cistrons. Hereditas 1976, 83, 1–22. [Google Scholar] [CrossRef]
  38. Mártonfiová, L. A method of standardization of chromosome length measurement. Caryologia 2013, 66, 304–312. [Google Scholar] [CrossRef]
  39. Petrova, A.; Vladimirov, V. Red List of Bulgarian vascular plants. Phytol. Balc. 2009, 15, 63–94. [Google Scholar]
  40. Vladimirov, V. Eranthis bulgaricus. In Red Data Book of the Republic of Bulgaria: Vol. 1. Plants and Fungi; Peev, D., Petrova, A.S., Anchev, M., Temniskova, D., Denchev, C.M., Ganeva, A., Gussev, C., Vladimirov, V., Eds.; BAS & MoEW: Sofia, Bulgaria, 2015; p. 237. [Google Scholar]
  41. Trakić, S.; Čelebičić, M.; Bakić, V.; Sarač-Mehić, E.; Đug, S. Predictive distribution modeling for Eranthis hyemalis (Ranunculaceae)—A species of special conservation interest in Bosnia and Herzegovina. Phytol. Balc. 2023, 29, 45–52. [Google Scholar] [CrossRef]
  42. Shrager, L.N.; Malakhova, L.A. Karyotypical studies of Adonis sibirica Patr. in Tomsk region. Cytologia 1978, 20, 592–596. [Google Scholar]
  43. Mitrenina, E.Y.; Erst, A.S.; Skaptsov, M.V.; Smirnov, S.V.; Zolotov, D.V.; Leonova, T.V.; Tashev, A.N.; Bancheva, S.T.; Wang, W. Karyotype and genome size in Adonis vernalis and Adonis volgensis. Turczaninowia 2022, 25, 5–15. [Google Scholar] [CrossRef]
  44. Levan, A.; Fredga, K.; Sandberg, A. Nomenclature for centrometric position of chromosomes. Hereditas 1964, 52, 201–220. [Google Scholar] [CrossRef]
  45. Peruzzi, L.; Galasso, G.; Domina, G.; Bartolucci, F.; Santangelo, A.; Alessandrini, A.; Astuti, G.; D’Antraccoli, M.; Roma-Marzio, F.; Ardenghi, N.M.G.; et al. An inventory of the names of native, non-endemic vascular plants described from Italy, their loci classici and types. Phytotaxa 2019, 410, 1–215. [Google Scholar] [CrossRef]
  46. Peruzzi, L.; Eroğlu, H.E. Karyotype asymmetry: Again, how to measure and what to measure? Comp. Cytogenet. 2013, 7, 1–9. [Google Scholar] [CrossRef] [PubMed]
  47. Paszko, A. A critical review and a new proposal of karyotype asymmetry indices. Plant Syst. Evol. 2006, 258, 39–48. [Google Scholar] [CrossRef]
  48. Levin, D.A. The Role of Chromosomal Change in Plant Evolution; Oxford University Press: New York, NY, USA, 2002; 240p. [Google Scholar]
  49. Lewitsky, G.A. The ‘karyotype’ in systematics, on the base of karyology of the subfamily Helleboreae. Bull. Appl. Bot. Genet. Plant-Breed. 1931, 27, 187–240. [Google Scholar]
  50. Jones, K. Robertsonian fusion and centric fission in karyotype evolution of higher plants. Bot. Rev. 1998, 64, 273–289. [Google Scholar] [CrossRef]
  51. Wang, M.Z.; Fan, X.K.; Zhang, Y.H.; Wu, J.; Mao, L.M.; Zhang, S.L.; Cai, M.Q.; Li, M.H.; Zhu, Z.; Zhao, M.S.; et al. Phylogenomics and integrative taxonomy reveal two new species of Amana (Liliaceae). Plant Divers. 2023, 45, 54–68. [Google Scholar] [CrossRef] [PubMed]
  52. Jang, T.S.; McCann, J.; Parker, J.S.; Takayama, K.; Hong, S.P.; Schneeweiss, G.M.; Weiss-Schneeweiss, H. rDNA loci evolution in the genus Glechoma (Lamiaceae). PLoS ONE 2016, 11, e0167177. [Google Scholar] [CrossRef]
  53. Jiang, C.; Liu, X.; Yang, Z.; Li, G. Chromosome rearrangement in Elymus dahuricus revealed by ND-FISH and oligo-FISH painting. Plants 2023, 12, 3268. [Google Scholar] [CrossRef]
  54. Yurkevich, O.Y.; Samatadze, T.E.; Selyutina, I.Y.; Romashkina, S.I.; Zoshchuk, S.A.; Amosova, A.V.; Muravenko, O.V. Molecular cytogenetics of Eurasian species of the genus Hedysarum L.(Fabaceae). Plants 2021, 10, 89. [Google Scholar] [CrossRef]
  55. Smirnov, Y.A. Uskorennyi metod issledovaniya somaticheskykh khromosom plodovykh [Accelerated method for studying somatic chromosomes in fruit trees]. Tsitologia 1968, 10, 1601–1602. [Google Scholar]
  56. Altınordu, F.; Peruzzi, L.; Yu, Y.; He, X. A tool for the analysis of chromosomes: KaryoType. Taxon 2016, 65, 586–592. [Google Scholar] [CrossRef]
  57. Peruzzi, L.; Altınordu, F. A proposal for a multivariate quantitative approach to infer karyological relationships among taxa. Comp. Cytogenet. 2014, 8, 337–349. [Google Scholar] [CrossRef] [PubMed]
  58. Hammer, O.; Harper, D.A.T.; Ryan, P.D. PAST: Paleontological Statistics software package for education and data analysis. Palaeontol. Electron. 2001, 4, 1–9. [Google Scholar]
  59. Hammer, O. PAST 4.14. 2023. Available online: https://www.nhm.uio.no/english/research/resources/past/ (accessed on 31 October 2023).
  60. Yu, Z.; Wang, H.; Xu, Y.; Li, Y.; Lang, T.; Yang, Z.; Li, G. Characterization of chromosomal rearrangement in new wheat—Thinopyrum intermedium addition lines carrying Thinopyrum—Specific grain hardness genes. Agronomy 2019, 9, 18. [Google Scholar] [CrossRef]
  61. Badaeva, E.D.; Ruban, A.S.; Aliyeva-Schnorr, L.; Municio, C.; Hesse, S.; Houben, A. In situ hybridization to plant chromosomes. In Fluorescence In Situ Hybridization (FISH) Application Guide; Liehr, T., Ed.; Springer: Berlin, Germany, 2017; pp. 477–494. [Google Scholar]
Plants 13 00047 g001
Figure 1. The studied species of yellow-flowered Eranthis sect. Eranthis (A) E. bulgarica, (B) E. cilicica, (C) E. hyemalis, (D) E. longistipitata.
Figure 1. The studied species of yellow-flowered Eranthis sect. Eranthis (A) E. bulgarica, (B) E. cilicica, (C) E. hyemalis, (D) E. longistipitata.
Plants 13 00047 g001
Plants 13 00047 g002
Figure 2. Mitotic metaphase chromosome plates of yellow-flowered Eranthis sect. Eranthis. (A)—E. bulgarica (pop. 1), 2n = 16; (B)—E. bulgarica (pop. 2), 2n = 16; (C)—E. cilicica (pop. 3), 2n = 16; (D)—E. hyemalis (pop. 9), 2n = 16; (E)—E. hyemalis (pop. 11), 2n = 16; (F)—E. hyemalis (pop. 12), 2n = 16; (G)—E. longistipitata (pop. 14), 2n = 16; (H)—E. longistipitata (pop. 15), 2n = 16; (I)—E. longistipitata (pop. 17), 2n = 16. Arrows point at heteromorphic chromosome pair. Scale bars = 10 µm.
Figure 2. Mitotic metaphase chromosome plates of yellow-flowered Eranthis sect. Eranthis. (A)—E. bulgarica (pop. 1), 2n = 16; (B)—E. bulgarica (pop. 2), 2n = 16; (C)—E. cilicica (pop. 3), 2n = 16; (D)—E. hyemalis (pop. 9), 2n = 16; (E)—E. hyemalis (pop. 11), 2n = 16; (F)—E. hyemalis (pop. 12), 2n = 16; (G)—E. longistipitata (pop. 14), 2n = 16; (H)—E. longistipitata (pop. 15), 2n = 16; (I)—E. longistipitata (pop. 17), 2n = 16. Arrows point at heteromorphic chromosome pair. Scale bars = 10 µm.
Plants 13 00047 g002
Plants 13 00047 g003

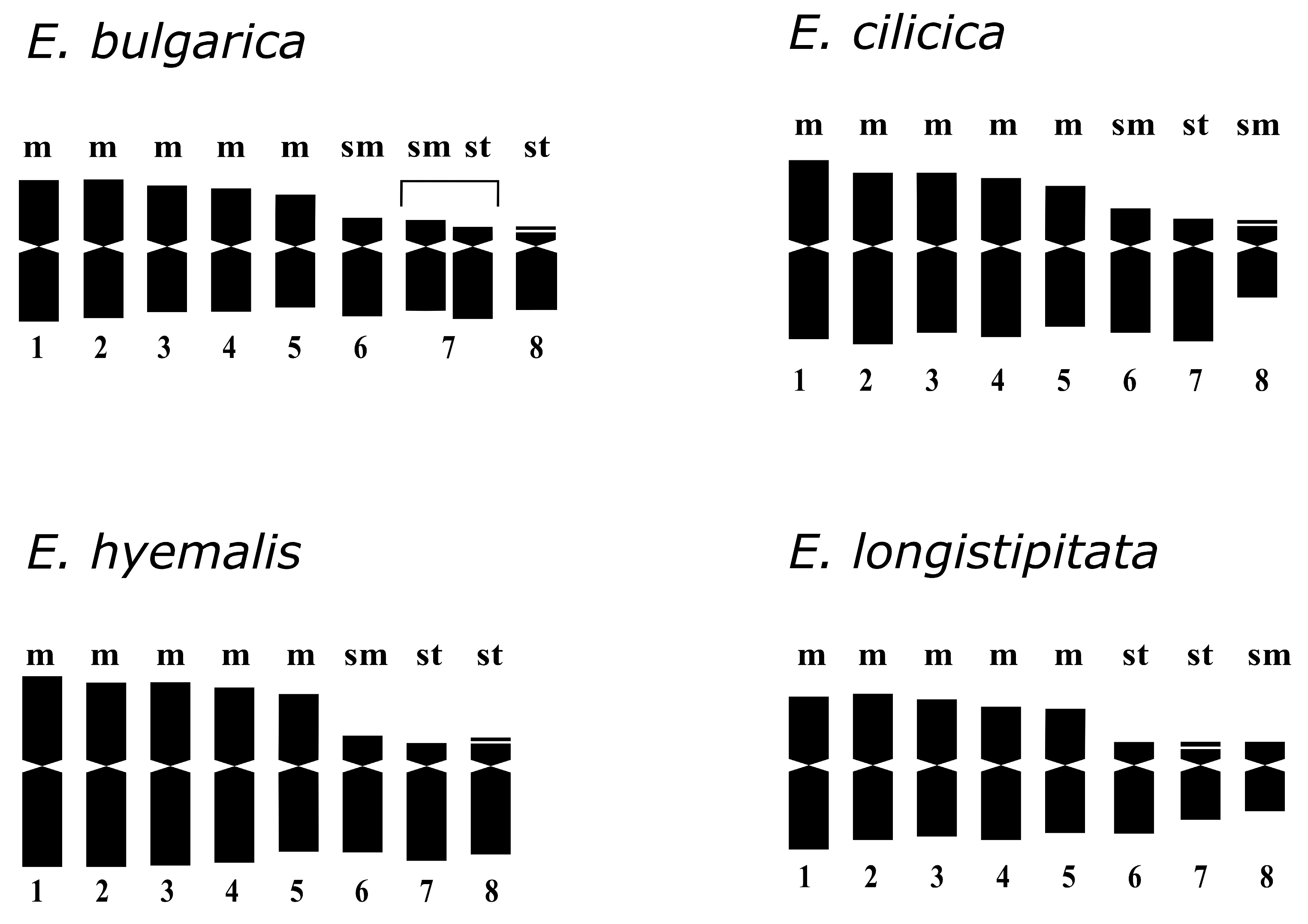

Figure 3. Haploid idiograms of yellow-flowered Eranthis sect. Eranthis species. m—metacentric chromosome; sm—submetacentric chromosome; st—subtelocentric chromosome; 1–8—chromosome pairs.
Figure 3. Haploid idiograms of yellow-flowered Eranthis sect. Eranthis species. m—metacentric chromosome; sm—submetacentric chromosome; st—subtelocentric chromosome; 1–8—chromosome pairs.
Plants 13 00047 g003
Plants 13 00047 g004

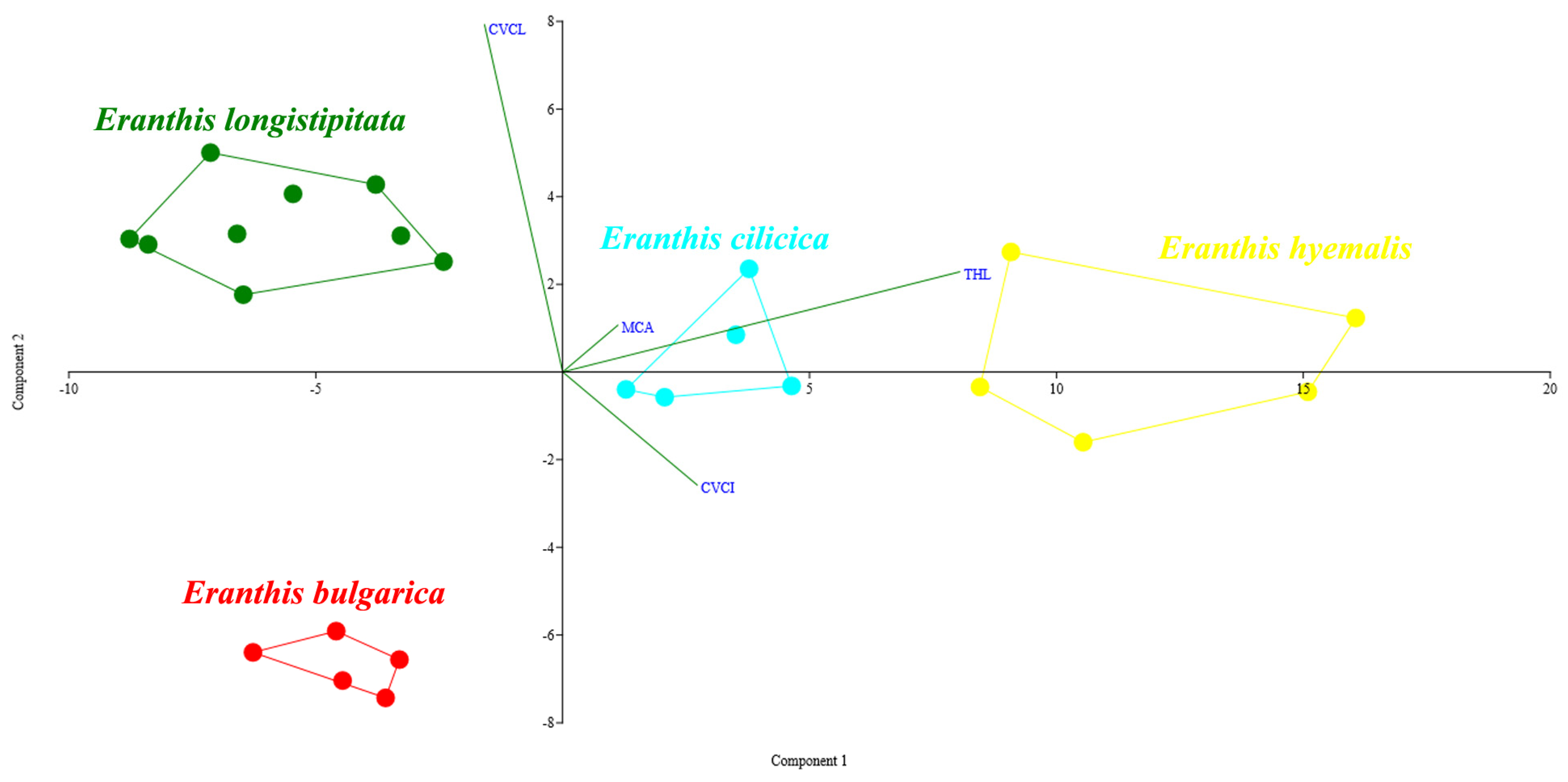

Figure 4. PCA biplot based on the four karyological parameters (THL, CVCL, MCA, CVCI) of yellow-flowered Eranthis sect. Eranthis species. The accessions (metaphasic plates) of each species are represented with different colors. Green lines length is proportional to the relative contribution of each of the four karyological parameters in displacing the accessions in the bidimensional space.
Figure 4. PCA biplot based on the four karyological parameters (THL, CVCL, MCA, CVCI) of yellow-flowered Eranthis sect. Eranthis species. The accessions (metaphasic plates) of each species are represented with different colors. Green lines length is proportional to the relative contribution of each of the four karyological parameters in displacing the accessions in the bidimensional space.
Plants 13 00047 g004
Plants 13 00047 g005
Figure 5. The 45S (red, TAMRA) and 5S (green, FAM) ribosomal DNA distribution on metaphase chromosomes of Eranthis cilicica, pop. 3, 2n = 16 (A), E. hyemalis, pop. 10, 2n = 16 (B), and E. longistipitata, pop. 17, 2n = 16 (C). DAPI chromosome staining—blue. Scale bars = 10 µm.
Figure 5. The 45S (red, TAMRA) and 5S (green, FAM) ribosomal DNA distribution on metaphase chromosomes of Eranthis cilicica, pop. 3, 2n = 16 (A), E. hyemalis, pop. 10, 2n = 16 (B), and E. longistipitata, pop. 17, 2n = 16 (C). DAPI chromosome staining—blue. Scale bars = 10 µm.
Plants 13 00047 g005
Table 1. Chromosome number in yellow-flowered Eranthis sect. Eranthis from different localities.
Table 1. Chromosome number in yellow-flowered Eranthis sect. Eranthis from different localities.
Pop.SpeciesVoucher InformationCN, 2n
1E. bulgaricaBulgaria, Vidin District, Vrashka Chuka Peak, xerothermal belt of oak forests, 632 m, 43°50′14.2″ N 22°22′30.3″ E, 12.03.2019, A.N. Tashev, BU2019-216
2E. bulgaricaBulgaria, Vidin District, Vrashka Chuka Peak, xerothermal belt of oak forests, 678 m, 43°49′54.8″ N 22°17′0.2″ E, 16.03.2021, A.N. Tashev, S. Bancheva, BU2021-5.316
3E. cilicicaTurkey, Kahramanmaraş Province, Göksun District, Delihöbek Dagi, mountain steppe, 2115 m, 37°53′ N 36°41′ E, 29.04.2019, T. Ertuğrul, TU2019-116
4E. cilicicaTurkey, Konya Province, between Taşkent–Başyayla, after Feslikan Plateau, high mountain steppe with Ornithoghalum lanceolatum, Anemone blanda, Tulipa armena, Ranunculus sp., 1726 m, 36°50′45″ N 32°33′36″ E, 2021, A.S. Erst, T.V. Erst, O. Çeçen, Z. Aytac, TU2021-416
5E. cilicicaTurkey, Karaman Province, between Taşkent–Başyayla, 10 km from Basuala, high mountain steppe with Ornithoghalum lanceolatum, Tulipa cinnaborina, Acantholimon venestum, Corydalis erdelii, Fritillaria pinardii, Anemone blanda, 1807 m, 36°47′20″ N 32°37′54″ E, 2021, A.S. Erst, T.V. Erst, O. Çeçen, Z. Aytac, TU2021-516
6E. cilicicaTurkey, Mersin Province, Anamur District, Tamtır Plateau, high mountain stony steppe with Corydalis sp., Anemone blanda, Fritillaria pinardi, Ornithogalum platyphyllum, 1889 m, 36°19′36″ N 32°43′16″ E, 2021, A.S. Erst, T.V. Erst, O. Çeçen, Z. Aytac, TU2021-1116
7E. hyemalisItaly, Impruneta, Villa Le Rose (Firenze), olive grove, 107 m, 43°43′15.5″ N 11°13′36.2″ E, 15.02.2020, A.S. Erst, T.V. Erst, L. Pinzani, IT2020-116
8E. hyemalisItaly, Pontassieve, Villa di Grignano (Firenze), olive grove along the street, 300 m, 43°48′23.7″ N 11°27′32.1″ E, 15.02.2020, A.S. Erst, T.V. Erst, L. Pinzani, IT2020-416
9E. hyemalisItaly, Via di Roncrio, Bologna, mixed deciduous wood near road, 123 m, 44°27′42.1″ N 11°20′12.9″ E, 16.02.2020, A.S. Erst, T.V. Erst, L. Pinzani, IT2020-516
10E. hyemalisItaly, Franzone La Ponte, Lombardia, Goldferenzo (Pavia), along the road, 238 m, 44°58′11.4″ N 9°17′31.1″ E, 17.02.2020, A.S. Erst, T.V. Erst, L. Pinzani, IT2020-816
11E. hyemalisGermany, Rheinland-Pfalz, Dörrmoschel, cemetery along the street, 362 m, 49°37′07.9″ N 7°45′07.1″ E, 12.02.2020, I. Vogler, C. Rosche, GE2020-316
12E. hyemalisHungary, Nagykapornak, park with remain Quercus–Carpinus forest, 163 m, 46°49′13″ N 16°59′33″ E, 15.02.2020, A. Mesterházy, HU2020-116
13E. hyemalisHungary, Aszófő, Quercus–Carpinus forest in the valley, 150 m, 46°56′18″ N 17°49′31″ E, 18.02.2020, A. Mesterházy, HU2020-216
14E. longistipitataKazakhstan, western part of the Kirghizsky Ridge, Botamoynak Mountains, near Taraz City, 900 m, 42°54′26″ N 71°32′09″ E, 24.03.2017, V. Kolbinzev, KAZ2017-116
15E. longistipitataTajikistan, Khatlon Oblast, Muminobod district, Hazrati-Shoh pass, Childukhtaron mountain, blackwood, 38°18′11.5″ N 70°09′57.7″ E, 10.04.2020, M.T. Boboev, S.B. Yoqubov, TJ2020-116
16E. longistipitataUzbekistan, Andijan region, Khojaabad region, east-southeastern part of the Fergana Valley, Kyrtashtau mountains, near Imamat village, mossy stony slope, 910 m, 40°32′27″ N, 72°36′28″ E, 12.03.2020, T.Kh. Makhkamov, D.A. Krivenko, O.T. Turginov, O.A. Chernysheva, UZB2020-116
17E. longistipitataUzbekistan, Tashkent region, Bostanlyk district, Western Tan-Shan, north-western part of the Chatkal ridge, foot of the Big Chimgan mountain, between Galvasay and Mramornaya rivers, on the road from Uchterek tract to Chimgan tract, bushy slope, 1690 m, 41°31′05″ N 69°59′15″ E, 16.03.2020, D.A. Krivenko, O.A. Chernysheva, T.Kh. Makhkamov, UZB2020-916
18E. longistipitataUzbekistan, Jizzakh region, Zaamin district, Western Pamiro-Alai, Gissar-Alai, northern macroslope of the Turkestan ridge, Zaamin forestry enterprise, Usman tract, mountain slope, 1450 m, 39°43′26.1″ N 68°27′54.0″ E, 20.03.2020, T.Kh. Makhkamov, UZB2020-1016
Notes: Pop.—population number; CN—chromosome number.
Table 2. Karyotype formulas in yellow-flowered Eranthis sect. Eranthis.
Table 2. Karyotype formulas in yellow-flowered Eranthis sect. Eranthis.
SpeciesPopulation
Number/Voucher		Karyotype Formula
E. bulgaricaPop. 1, BU2019-210m + 3sm + 1st + 2stsat
Pop. 2, BU2021-5.310m + 3sm + 1st + 2stsat
E. cilicicaPop. 3, TU2019-110m + 4sm + 2stsat
Pop. 4, TU2021-410m + 4sm + 2stsat
E. hyemalisPop. 7, IT2020-110m + 2sm + 2st + 2stsat
Pop. 8, IT2020-410m + 2sm + 2st + 2stsat
Pop. 9, IT2020-510m + 2sm + 2st + 2stsat
Pop. 10, IT2020-810m + 2sm + 2st + 2stsat
Pop. 11, GE2020-310m + 2sm + 2st + 2stsat
Pop. 12, HU2020-110m + 2sm + 2st + 2stsat
E. longistipitataPop. 14, KAZ2017-110m + 2sm + 2st + 2stsat
Pop. 15, TAJ 2020-110m + 2sm + 2st + 2stsat
Pop. 17, UZB2020-910m + 2sm + 2st + 2stsat
Notes: m—metacentric chromosome; sm—submetacentric chromosome; st—subtelocentric chromosome; sat—satellite chromosome.
Table 3. Karyomorphological parameters in yellow-flowered Eranthis sect. Eranthis.
Table 3. Karyomorphological parameters in yellow-flowered Eranthis sect. Eranthis.
SpeciesPairCL, µmrCI, %RL, %TypeTHLMCACVCLCVCI
E. bulgarica
(Pop. 1)		16.99 ± 0.231.14 ± 0.0646.677.75m45.12 ± 0.9621.13 ± 0.6718.57 ± 0.6327.76 ± 0.83
26.71 ± 0.291.07 ± 0.0548.497.44m
36.27 ± 0.171.07 ± 0.0448.266.95m
46.14 ± 0.211.12 ± 0.0647.296.80m
55.59 ± 0.271.13 ± 0.0546.936.20m
64.88 ± 0.232.48 ± 0.1328.765.41sm
74.42 ± 0.04
4.59 ± 0.11		2.40 ± 0.18
3.58 ± 0.31		29.44
21.97		4.90
5.10		sm
st
84.02 ± 0.153.28 ± 0.1323.424.45stsat
E. cilicica
(Pop. 3)		18.35 ± 0.421.06 ± 0.0348.487.60m54.90 ± 1.9122.86 ± 0.9822.11 ± 1.0524.19 ± 1.69
28.26 ± 0.281.23 ± 0.0744.967.52m
37.86 ± 0.231.13 ± 0.0647.097.16m
47.69 ± 0.261.36 ± 0.0942.537.00m
56.97 ± 0.451.36 ± 0.0742.426.35m
66.02 ± 0.362.39 ± 0.3229.825.49sm
76.02 ± 0.383.51 ± 0.4322.375.48stsat
83.73 ± 0.162.25 ± 0.2430.973.40sm
E. hyemalis
(Pop. 9)		19.75 ± 0.441.07 ± 0.0348.347.90m61.71 ± 2.7224.10 ± 1.5522.40 ± 1.6431.87 ± 2.31
29.24 ± 0.471.19 ± 0.0845.827.48m
39.13 ± 0.401.08 ± 0.0548.087.39m
48.49 ± 0.391.24 ± 0.1044.806.88m
57.98 ± 0.581.13 ± 0.0946.976.46m
65.97 ± 0.332.48 ± 0.1628.724.84sm
75.59 ± 0.284.58 ± 0.8318.284.53stsat
85.57 ± 0.443.59 ± 0.4521.834.51st
E. longistipitata
(Pop. 15)		17.68 ± 0.541.23 ± 0.0744.968.27m46.44 ± 2.2422.31 ± 1.1427.93 ± 1.2124.45 ± 0.93
27.35 ± 0.301.08 ± 0.0448.167.91m
36.95 ± 0.311.16 ± 0.0746.287.48m
46.78 ± 0.411.30 ± 0.0843.587.30m
56.14 ± 0.431.18 ± 0.0846.046.61m
64.45 ± 0.363.16 ± 0.1924.414.79st
73.82 ± 0.223.14 ± 0.1424.404.12stsat
83.27 ± 0.312.05 ± 0.1933.003.52sm
Notes: Pair—chromosome pair; CL—chromosome length (M ± SD); r—arm ratio (M ± SD); CI—centromeric index; RL—relative chromosome length; m—metacentric chromosome; sm—submetacentric chromosome; st—subtelocentric chromosome; sat—satellite chromosome; Type—morphological chromosome type; THL—total length of haploid chromosome set; MCA—mean centromeric asymmetry (M ± SD); CVCL—coefficient of variation in chromosome length (M ± SD); CVCI—coefficient of variation in centromeric index (M ± SD).
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Mitrenina, E.Y.; Alekseeva, S.S.; Badaeva, E.D.; Peruzzi, L.; Artemov, G.N.; Krivenko, D.A.; Pinzani, L.; Aytaç, Z.; Çeçen, Ö.; Baasanmunkh, S.; et al. Karyotypes and Physical Mapping of Ribosomal DNA with Oligo-Probes in Eranthis sect. Eranthis (Ranunculaceae). Plants 2024, 13, 47. https://doi.org/10.3390/plants13010047

AMA Style

Mitrenina EY, Alekseeva SS, Badaeva ED, Peruzzi L, Artemov GN, Krivenko DA, Pinzani L, Aytaç Z, Çeçen Ö, Baasanmunkh S, et al. Karyotypes and Physical Mapping of Ribosomal DNA with Oligo-Probes in Eranthis sect. Eranthis (Ranunculaceae). Plants. 2024; 13(1):47. https://doi.org/10.3390/plants13010047

Chicago/Turabian Style

Mitrenina, Elizaveta Yu., Svetlana S. Alekseeva, Ekaterina D. Badaeva, Lorenzo Peruzzi, Gleb N. Artemov, Denis A. Krivenko, Lorenzo Pinzani, Zeki Aytaç, Ömer Çeçen, Shukherdorj Baasanmunkh, and et al. 2024. "Karyotypes and Physical Mapping of Ribosomal DNA with Oligo-Probes in Eranthis sect. Eranthis (Ranunculaceae)" Plants 13, no. 1: 47. https://doi.org/10.3390/plants13010047

APA Style

Mitrenina, E. Y., Alekseeva, S. S., Badaeva, E. D., Peruzzi, L., Artemov, G. N., Krivenko, D. A., Pinzani, L., Aytaç, Z., Çeçen, Ö., Baasanmunkh, S., Choi, H. J., Mesterházy, A., Tashev, A. N., Bancheva, S., Lian, L., Xiang, K., Wang, W., & Erst, A. S. (2024). Karyotypes and Physical Mapping of Ribosomal DNA with Oligo-Probes in Eranthis sect. Eranthis (Ranunculaceae). Plants, 13(1), 47. https://doi.org/10.3390/plants13010047

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
