Article

Colletotrichum echinochloae: A Potential Bioherbicide Agent for Control of Barnyardgrass (Echinochloa crus-galli (L.) Beauv.)

Key Laboratory of Integrated Pest Management on Crops in Central China, Ministry of Agriculture and Rural Affairs/Hubei Key Laboratory of Crop Disease, Insect Pests and Weeds Control/Institute of Plant Protection and Soil Fertilizer, Hubei Academy of Agricultural Sciences, Wuhan 430064, China
*
Author to whom correspondence should be addressed.
Plants 2023, 12(3), 421; https://doi.org/10.3390/plants12030421
Submission received: 26 October 2022 / Revised: 7 January 2023 / Accepted: 9 January 2023 / Published: 17 January 2023
(This article belongs to the Special Issue Bioherbicide Development for Weed Control)

Abstract

:
Barnyardgrass (Echinochloa crus-galli (L.) Beauv.) is one of the most troublesome weeds in transplanted and direct-seeded rice worldwide. To develop a strategy for the biocontrol of barnyardgrass, fungal isolates were recovered from barnyardgrass plants that exhibited signs of necrosis and wilt. An isolate B-48 with a high level of pathogenicity to barnyardgrass was identified after pathogenicity tests. From cultural and DNA sequence data, this strain was identified as Colletotrichum echinochloae. The inoculation of the barnyardgrass plant with C. echinochloae caused a significant reduction in fresh weight. The isolate B-48 was highly pathogenic to barnyardgrass at the three- to four-leaf stages. When inoculated at a concentration of 1 × 107 spores/mL, barnyardgrass could achieve a reduction in fresh weight of more than 50%. This strain was safe for rice and most plant species. The results of this study indicated that this strain could be a potential mycoherbicide for barnyardgrass control in paddy fields in the future.

1. Introduction

Echinochloa crus-galli (L.) P. Beauv., commonly known as barnyardgrass, is an annual summer plant found in a variety of different soils and climates [1,2,3]. It is a widely distributed weed species and is recognized as the world’s most serious weed of rice, affecting up to 36 types of crops in 61 countries [1,4]. It can proliferate in temperate, tropical, and subtropical regions, and a single barnyardgrass plant can produce up to 39,000 seeds [5,6]. Due to its wide ecological tolerance, high adaptability, rapid germination, abundant seed production, and strong competitive ability, economic losses from its proliferation continue to mount [7,8,9,10]. This noxious weed can cause yield losses between 21 and 79% in rice, depending on the cropping system and management [11].
In agriculture, weed control is achieved mainly through herbicides because of their effectiveness against most weeds. Unfortunately, synthetic chemicals may have adverse effects on humans as well as on soil, aquatic, and terrestrial fauna and flora; they pollute the environment and contribute to the emergence of new problematic weeds [12,13,14,15]. Furthermore, the repeated use of herbicides has led to the evolution of herbicide-resistant weed populations [16,17]. Echinochloa spp. are weedy plants that have evolved resistance to several herbicide classes [18,19,20,21]. To minimize the use and risk of herbicides, reducing herbicide doses in chemical weed control has been extensively investigated in recent years and has provided sufficient weed control and desirable yield [22].
In parallel, biological control has become a promising alternative for application in agriculture in recent years [23]. Due to its specificity, longevity and ability to overcome weed resistance to chemical herbicides, this control method has the benefit of being completely compatible with the environment [24]. Among these, one of the most promising branches of biological control is mycoherbicides, and at least 15 products are currently commercialized worldwide [25]. Examples include BioMal, a formulation of Colletotrichum gloeosporioides f.sp. malvae, introduced for the control of round leaf mallow (Malva pusilla) [26,27], and C. gloeosporioides f.sp. aeschynomene, which was released for the control of northern jointvetch (Aeschynomene virginica) in the United States in 1982 as Collego and again in 2006 as LockDown (EPA Registration Number 82681-1) [28].
Several other species within the genus Colletotrichum have been investigated as potential mycoherbicide agents [29,30]. Additional examples include Coltru, as the principal biocontrol agent in C. truncatum, which was investigated to control hemp sesbania (Sesbania exaltata) [31]. C. orbiculare was investigated for its potential to control spiny cocklebur (Xanthium spinosum) [32,33]. C. gloeosporioides f. sp. cuscutae was investigated as the commercial product Lubao, which was investigated to control Cuscuta spp. [34]. Hatatak is a formulation of C. gloeosporioides which was developed to control Hakea sericea [35]. Genome mining of two Colletotrichum species of C. gloeosporioides and C. orbiculare found that both species contained several pathogenesis genes which were important for pathogen infection [36]. There is also evidence that both Colletotrichum species have the ability to produce the plant hormone indole acetic acid, which is a well-established herbicide template [37]. Evidence suggests that this genus has a high potential for developing new mycoherbicides.
Wetness duration, dew period temperature, plant growth stage, pathogen concentration, and adjuvants are the major factors associated with bioherbicide efficacy [38,39,40,41]. A sufficient source of infection is the first step to causing an infection of the target host, so the appropriate concentration of the pathogen is essential for the pathogen to colonize the host. An appropriate duration of wetness (humidity) and temperature of the dew period are the prerequisites for the germination and establishment of the bioherbicide agent in weeds [42], while a long duration of wetness is essential for infection on the aerial surfaces of the target host [43]. Often, inoculation at the early stage of weed growth will result in the control of weed infestations; usually, the old leaves of the plant have more lignin, which makes the pathogen more difficult to colonize on the host. Liquid formulations of mycoherbicides are the best for weed control and are used primarily to incite leaf and stem diseases [44]. A study conducted by Shabana showed that an Alternaria eichhorniae spore formulation based on vegetable oil (cotton seed oil and sunflower oil) to control water hyacinth significantly increased the disease severity compared with the untreated control [45]. Similarly, Boyette et al. proposed that the use of the inverted oil emulsions could be used to check moisture loss, and this tactic improved C. truncatum’s 100% efficacy for the control of S. exaltata [46].
Here, we demonstrated the potential mycoherbicide agent derived from an isolate of Colletotrichum echinochloae, identified from barnyardgrass weeds in Hubei Province, China and evaluated the biocontrol efficacy of the fungus for barnyardgrass in controlled conditions.

2. Results

2.1. Isolation and Identification of Fungal Pathogens for the Control of Barnyardgrass

The isolate of C. echinochloae B-48 was obtained from diseased barnyardgrass plants in a paddy field in Hubei Province, China (32°7′49″ N, 112°20′35″ E, 91 m above sea level) in 2018. This strain was isolated through single-spore isolation, and its pathogenicity on barnyardgrass was confirmed by the Koch’s postulates.
Unlike most C. echinochloae strains, isolate B-48 produced pink mycelium in PSA medium (Figure 1b). PDA colonies of C. echinochloae are hyaline and usually form black acervuli (Figure 1a). After inoculation of strain B-48 for 14 days, black irregular-shaped sclerotia formed and were visible on the surface of the PSA medium. The sclerotia’s range was 0.3–8.5 × 0.5–9.5 μm (avg. 3.5 × 5.7 μm). The conidia of strain B-48 harvested from PSA were oval, often guttulate, with a size of 10.7–14.3 × 3.8–5.5 μm (avg. 12.3 × 4.7 μm, 300 conidia) (Figure 1c). The conidia harvested from the host plant were falcate, their apices acute or sharply acute, usually guttulate, with a size of 14.7–17.2 × 3.6–5.2 μm (avg. 15.8 × 4.8 μm, 300 conidia). The hyphae were colorless, septate, usually guttulate, with a size of 1.0–5.8 μm. The appressoria were globose to perprolate, ovoid, obovoid, or clavate, smooth, lobate, or multilobate, their apices cylindrical or obtuse, their edges entire, with a size of 8.2–14.8 × 7.5–12.3 μm, (avg. 12.2 × 11.7 μm, 300 appressoria). The setae were dark brown, septate, rounded at the base, their apices acute, with a size of 6.2–8.7 × 63.7–114.0μm (Figure 1d). These morphological features were similar to the reference C. echinochloae [47,48].
For the molecular identification of strain B-48, genomic DNA was isolated with the fungal genomic DNA extraction kit (Solarbio, Beijing, China). The internal transcribed spacer region (ITS), superoxide dismutase 2 (Sod2), DNA lyase gene (Apn2), and mating type protein (Mat1) were amplified, respectively. Based on the combined ITS, Sod2, Apn2, and Mat1 sequences, B-48 belonged to the same clade as the reference isolates of C. echinochloae (Figure 2).

2.2. Host-Range Studies

Both plant phylogeny and the economic importance of nontarget crops in Hubei Province were considered when determining the host range. Important field crops such as rice, corn, and wheat, economic crops such as cotton and tobacco, and vegetables such as chili and leek were examined for the host range (Table 1). In our experiment, the strain B-48 of C. echinochloae was safe for large-acreage field crops, economic crops, and vegetables grown in Hubei Province, China. However, strain B-48 caused a hypersensitive reaction on two rice cultivars, which showed necrotic specks (1 mm in diameter) 4 to 5 days after inoculation. However, the expansion was restricted to a slight enlargement or coalescence even after three weeks postinoculation. The reisolation of the strain could not be pursued.
Aside from barnyardgrass, which has a higher virulence, 25 other weedy plants were tested for the host range. All the plant species tested, except Cyperus rotundus L., were immune to this fungus, with no symptoms observed three weeks after inoculation (Table 2). Plant vigor and fresh weight were similar to the corresponding controls.
Based on the result of this experiment, C. echinochloae B-48 has a very limited range of hosts and only causes severe infections on barnyardgrass. However, it should be applied considerably in rice fields.

2.3. Effect of Different Temperatures on C. echinochloae Conidial Germination, Appressorial Formation, and Mycelial Growth

In the present study, the effects of temperature on conidial germination, appressorial formation, and mycelial growth were examined. The optimum temperature for conidial germination was between 25 and 30 °C (Figure 3a). The highest germination rate was observed at 30 °C. The conidia did not germinate below 5 °C. The appressorial formation showed a similar trend to the conidial germination (Figure 3a). The appressorial formation was consistently lower below 15 °C, but the highest appressorial formation rate was observed at 30 °C. In general, 30 °C may be the best temperature for conidial germination and appressorial formation.
Mycelial growth for strain B-48 of C. echinochloae was also examined at different temperatures (Figure 3b). The optimal temperature range for growth was 15–30 °C. Mycelial growth was the fastest at 30 °C, relatively fast at 15–25 °C, but slower at 10 °C or less and at 35 °C or more.
These results suggest that the best temperature for conidial germination, appressorial formation, and mycelial growth was between 25 and 30 °C, which suggests that infection may occur throughout the barnyardgrass growth stage.

2.4. Effect of C. echinochloae Conidia Concentration on Weed Control

To induce maximum disease destruction on the weed, we applied varying inoculum concentrations of the C. echinochloae isolate B-48 on barnyardgrass. The severity of the disease in barnyardgrass resulted in significant differences. At a concentration of 1 × 104 and 105 spores/mL, the fungus caused few sporadic lesions; the severity of the disease was only 8% and 27%, and the fresh weight of the plant was not affected. When plants were inoculated with spore concentrations greater than 106 spores/mL, plants achieved a reduction in fresh weight of more than 50%. The LD50 value was also standardized and found to be 106 spores/mL. In comparison, efficacies increased most dramatically when inoculated with spore concentrations of 107–108 spores/mL. At 107 and 108 spores/mL, the plant fresh weight inhibition rate could reach 78% and 84% (Table 3).

2.5. Effect of Weed Growth Stage on Biocontrol Efficacy

Different stages of barnyardgrass growth were tested for biocontrol efficacy. The result showed that the seedlings were more sensitive to C. echinochloae (Figure 4). Disease symptoms appeared 72 h after inoculation in plants in the 3–4-leaf stage. After 7 days postinoculation, symptoms began as light-dark to dark brown lesions and then progressed to water-soaked areas on stems and foliage, and finally to necrosis of all tissues. The plants collapsed with few of the new leaves’ recovery. The inhibition rate of three- to four-leaf stage plant was 79% at 3 weeks after inoculation. The efficacy was comparable to the five- and six-leaf stages. The plants showed disease symptoms 72 h after inoculation, and the inhibition rates were 57% and 56% at 3 weeks after inoculation. The effectiveness was noticeably lower in plants at the seven-, eight-, and nine-leaf stages, especially with fresh weight reduction. The plants at the seven-, eight-, and nine-leaf stages treated with the strain B-48 all had remaining live leaves, and all the plants recovered. The inhibition rates for the seven-, eight-, and nine-leaf stage plants were less than 30%, which indicates that C. echinochloae B-48 is not a supervirulent strain in barnyardgrass (Table 4).

2.6. Effect of Dew Period on Biocontrol Efficacy

The infection of barnyardgrass by C. echinochloae B-48 was significantly influenced by the dew period. In general, disease severity increased dramatically in response to the duration of leaf wetness, especially during the first 10 h after inoculation. The pathogen established only a light infection with a 6 to 8 h dew period. When the dew period was less than 6 h, no symptoms were observed. The infection increased most rapidly with leaf wetness from 12 h, resulting in an increase in the severity of the disease to 82% and a reduction in the fresh weight of the plant to approximately 68% (Table 5).

3. Discussion

Many species in the genus Colletotrichum have been reported to be effective biocontrol agents against weeds [49]. These included C. gloeosporioides f. sp. Malvae (effective against Malva pusilla and Malva parviflora) [26,27], C. gloeosporioides f. sp. aeschynomene (effective against Aeschynomene virginica, A. indica, and Sesbania exaltata) [31], C. coccodes (effective against Abutilon theophrasti) [50,51], C. dematium (effective against Parthenium hysterophorus) [52], C. orbiculare (effective against Xanthium spinosum) [32,33], C. truncatum (effective against Sesbania exaltata) [53], etc. Among these species, only Collego (LockDown), BioMal, Velgo, and Lubao1 have been successfully commercialized. This genus of fungi has been reported to control various weeds around the world and has excellent potential to develop into a commercial mycoherbicide [54]. Here, in this study, we demonstrated that C. echinochloae had the potential to be developed as a mycoherbicide for the management of barnyardgrass (Echinochloa crus-galli (L.) Beauv.).
Our studies showed that the inoculation of the barnyardgrass plant with C. echinochloae strain B-48 caused a significant reduction in the fresh weight of barnyardgrass. After 1–3 weeks postinoculation, C. echinochloae isolate B-48 effectively controlled barnyardgrass with 60–80% disease incidence, and the fresh weight inhibition rate could reach 80%. The laboratory experiment revealed that C. echinochloae had a narrow host range. It showed no pathogenicity against other economically important crops in Hubei, including field crops, economic crops, and vegetables. The fungus only caused an HR response in two rice cultivars. To provide a more accurate assessment of pathogenicity, additional research on this fungus in a wider variety of rice cultivars may be required.
In previous study, fungal taxa recorded solely on one host does not imply that they are host-specific. Phylogenies for the falcate-spored graminicolous Colletotrichum revealed a close link between morphological groupings. C. echinochloae is originated from the same host plant as C. jacksonii, and while the two species are clearly sister taxa. However, the type strains of C. echinochloae and C. jacksonii fall into two distinct phylogenetic lineages [55]. In our experiment, C. echinochloae was pathogenic to E. crus-galli, producing leaf blight and grayish-white lesions with brown surroundings in the leaves. It did not cause necrotic lesions in Z. mays. C. graminicola infects only Z. mays and never infects E. utilis [56]. These comparable results were reported previously [56]. The morphological characteristics were not enough for differentiating B-48 from C. echinochloae and C. jacksonii. According to other studies, using phylogenetic analysis is better to understand species delimitation. Crouch et al. [47] stated that phylogenetic species delimitation in of the falcate-spored graminicolous Colletotrichum should be based on the combined ITS, Sod2, Apn2, and Mat1 gene regions. So, using both morphological and combined phylogenetic analysis, B-48 was finally identified as C. echinochloae.
Bioherbicidal activity depends on fungal attachment, germination, and penetration of the host to initiate symptoms. C. echinochloae infection begins with conidia attachment to the leaf surface, followed by germ tubes that germinate and quickly differentiate into melanized appressoria as with many other Colletotrichum. The melanized appressoria accumulate significant turgor pressure and help the pathogen penetrate the host plant cell wall. Following penetration, biotrophic primary hyphae and necrotrophic secondary hyphae colonize the host cells [57]. Temperature and relative humidity are the key factors for conidial germination, appressorial formation, and infection. In our study, the temperature range of 5 to 30 °C observed for conidial germination and appressorial formation was similar. This was similar to other pathogens in which the optimum temperature for appressorial formation coincides with conidial germination [58]. For example, the optimum temperature for C. gloeosporioides conidial germination and appressorial formation was similar after 24 h of incubation [59]. Furthermore, the optimal temperature range (15–30 °C) for conidial germination and appressorial formation of C. echinochloae suggests that infection may occur throughout the growth stage of the barnyardgrass. And what’s more, our experiment showed that increased duration of dew period resulted in increased incidence of infection. This interaction of temperature and wetness duration is common among foliar-applied mycoherbicide agents [60]. In summary, the best time for the application of C. echinochloae for the biocontrol of barnyardgrass would be in the summer and with high humidity conditions.
The requirement for a relatively high inoculum concentration is a key factor in infection [61]. Conidia are considered the most infectious of fungal propagules [62] and, therefore, the most suitable form for bioherbicide formulations. In this study, we applied C. echinochloae with a conidial suspension in Tween-80 and corn oil. Tween and oil could help increase the fungal attachment and relative humidity. When applied with concentrations close to 107 spores/mL, the plants reached an 80% fresh weight inhibition. However, the disease incidence and fresh weight inhibition rate of inoculation with 107 and 108 spores/mL were similar. This may be for two reasons: one is that C. echinochloae is not a supervirulent strain on barnyardgrass. The other is that C. echinochloae has two forms of conidia; falcate conidia have been reported to be more efficient on host leaves than oval conidia [63]. For this reason, it may be prudent to continue searching for C. echinochloae variants with a higher virulence or screen the best medium for harvesting higher-virulence falcate-shaped conidia. Our findings suggest that the fungal dose is critical to the effectiveness of controlling barnyardgrass, and this notion fits the general pattern of infection by plant pathogens [64]. The effective dose range identified is similar to those reported with other foliar bioherbicide agents [65,66,67], and the requirement for high inoculum doses may represent a potential economic limitation for weed control in the field.
The C. echinochloae strain B-48 succeeded in killing the three to four true leaf seedlings, and very few of them had a remaining live leaf. On plants at the four-leaf stage or younger, the pathogen caused a disease severity greater than 80% and more than 79% fresh weight reduction compared to the respective controls in each growth stage. For barnyardgrass at the five-leaf stage and six-leaf stage, plants were also severely damaged after inoculation, but few of the plants recovered. For plants over the seven-leaf stage, especially large plants, lesions on emerging young leaves expanded slowly, rarely coalesced, and rarely caused complete plant mortality. The lower efficacy on older plants was likely due to significantly less disease on the youngest leaf that continued to support weed regrowth, which diminished the fresh weight reduction originating from the damage on the lower leaves. The low disease severity of pathogen to old plants is common among foliar-applied mycoherbicide agents [60].
In conclusion, our findings suggest that C. echinochloae isolate B-48 has mycoherbicidal potential for barnyardgrass. Further research is therefore needed and should focus on inoculum and formulation performance for practical use and enhancing weed suppressive activity through integration with feasible and cost-effective weed control practices.

4. Materials and Methods

4.1. Isolation, Identification, and Characterization of C. echinochloae B-48

C. echinochloae isolate B-48 was obtained from diseased barnyardgrass plants in a paddy field in Hubei Province, China (32° 7′ 49″ N, 112° 20′ 35″ E, 91 m above sea level) in 2018. Its pathogenicity on barnyardgrass was confirmed by the Koch’s postulates. The isolate was reinoculated on barnyardgrass and reisolated from leaf lesions on the host. The isolate was stored on potato dextrose agar (PDA) at 4 °C at the China Center for Type Culture Collection (CCTCC) with M2020689. The original identification of the fungus was based on the disease symptoms and fungal morphology.
For molecular identification, total genomic DNA was isolated from mycelia collected from 7-day-old colonies of B-48 using the fungal genomic DNA extraction kit (Solarbio, Beijing, China). As previously described [47,48,68,69], the internal transcribed spacer region (ITS), superoxide dismutase 2 (Sod2), DNA lyase gene (Apn2), and mating type protein (Mat1) were amplified by pairs ITS1/4, SOD625F/R, Apn1W1F/Apn1W1R, Mat1M72F/Mat1M72R, respectively. The sequence results were analyzed using the web-based blasting program, the basic local alignment search tool (BLAST), and the data were compared with the GenBank database at the National Center for Biotechnology Information (NCBI) nucleotide sequence database. A maximum parsimony analysis was performed on the multilocus alignment (ITS, Sod2, Apn2, Mat1-2) with PAUP (Phylogenetic Analysis Using Parsimony) v. 4.0 b10 [70] using the heuristic search option with 100 random sequence additions. The evolutionary history was deduced using the neighbor-joining method with a bootstrap test of 1000 replicates to determine the percentage of related taxa clustered together. The maximum composite likelihood method was used to calculate the evolutionary distances, which were used to infer the phylogenetic tree.

4.2. Plant Preparation, Pathogen Inoculum Preparation, and Plant Inoculation

The mature barnyardgrass seeds were harvested from our lab. In a 10 cm plastic container, about 15 seeds were placed in the growing medium. After being hydrated, seeded pots were placed in the greenhouse at 28 °C with a 16 h photoperiod. The barnyardgrass plants were grown within about three weeks until they had three to four leaves. For host-range studies, 5 to 15 seedlings were seeded in the growing medium and grown under identical experimental conditions for 3 to 5 weeks until the plants passed the three-leaf growth stage.
For the inoculum preparation, fungal cultures were transferred to a potato sucrose broth (PSB) medium and shaken at 220 rpm at 28 °C in dark conditions for approximately 7 days to achieve sporulation. The conidia suspension was filtered through four layers of cheesecloth to remove large fragments of mycelium. Concentrations of spore suspensions were estimated with a hemacytometer and adjusted for relative concentration.
The spore suspension was evenly sprayed onto barnyardgrass plants, crop plants, and weeds for plant inoculation. The inoculated plants were placed in a dark dew chamber at 28 °C for 24 h with almost 100% relative humidity and then transferred to a growth chamber at 25 °C with a photoperiod of 16 h. Lesion formation was examined after 7 days of incubation. All of these experiments were replicated three times.

4.3. Disease Assessment

The disease severity on all leaves was used primarily to evaluate the treatment’s effectiveness. The severity of disease symptoms was recorded using an index ranging from 1 (healthy leaf), 2 (chlorosis), 3 (small lesions < 2 cm), 4 (several lesions per leaf), 5 (big lesions > 2 cm) to 6 (dead leaf). In host-range studies and the biological assessment of C. echinochloae, the plant’s fresh weight was also used to determine the treatment effect. All plants in a pot were cut and weighed. The fresh weight inhibition rate (FWIR) was calculated using the following formula: FWIR (%) = (average FW of controls—average FW of pathogen-inoculated replicate)/average FW of controls ×100. Disease severity was assessed 7 days after inoculation, and fresh weight ratings were determined 21 days (3 weeks) after inoculation unless otherwise specified.

4.4. Host-Range Studies

The conidial suspensions of C. echinochloae B-48 at a concentration of 1 × 106 spores/mL were prepared using the same application method as in the previous experiment. Under laboratory conditions, the pathogenicity assay was carried out on common cultivars of three cereal crops (wheat, rice, and corn), other vegetables, and crops grown widely in Hubei Province, China. Conidial suspensions of 1 × 106 spores/mL in sterile distilled water were placed on test leaves, then incubated at 28 °C for 7 days under a high-humidity condition. Disease severity was measured 1 week after inoculation to assess the treatment effect.
To verify the host range of the isolate on other weeds, the inoculation of C. echinochloae was carried out on weedy plants of common summer species found in Hubei Province, China, including Amaranthaceae, Chenopod, Convolvulaceae, Malvaceae, Polygonaceae, Portulacaceae, Rubiaceae, Scrophulariaceae, Solanaceae, Violaceae, Asteraceae, Commelinaceae, Cyperaceae, and Gramineae. Ten leaves of each plant species were inoculated by the 1 × 106 spores/mL suspension and were kept in a humid chamber at 28 °C with 100% relative humidity. Disease severity was measured 1 week after inoculation to assess the treatment effect.

4.5. Effect of Temperature on C. echinochloae Conidial Germination, Appressorial Formation, and Mycelial Growth

For conidia collection, strains were grown on PSB medium at 25 °C in dark conditions for 7 days. The conidia were harvested and suspended in sterile distilled water by centrifuging at 5000 rpm for 5 min and counted with a hemocytometer under a light microscope. For conidial germination and appressorial formation, 10 μL conidial suspensions at a concentration of 1 × 105 spores/mL in sterile distilled water were placed on plastic coverslips and incubated at 5, 10, 15, 20, 25, and 30 °C for 48 h. Conidial germination and appressorial formation were observed and counted under the microscope. The percentages of conidial germination and appressorial formation were determined by microscopic examination of at least 300 conidia or appressoria. Mycelial growth was assessed by measuring colony diameter in plate cultures of C. echinochloae grown on PSA at 5, 10, 15, 20, 25, 30, 35, 40, and 45 °C for 7 days.

4.6. Effect of C. echinochloae Conidial Concentration on Weed Control

The liquid formulation was prepared by mixing corn oil, the fungal spore suspension (1:9, v/v), and 0.1% of Tween 80 [71]. The mixture was then adjusted to relative spore concentration and emulsified using a magnetic agitator for 3 min at low speed. Barnyardgrass plants in the three-leaf stage were inoculated with C. echinochloae B-48 formulation at spore concentrations of 104, 105, 106, 107, and 108 spores/mL [65]. Four replicated pots were sprayed until runoff with suspensions of a relative concentration. Control plants were sprayed with water plus surfactant and oil at the same concentration. Disease severity and plant fresh weight were measured for the assessment of treatment effect.

4.7. Effect of Weed Growth Stage on Weed Biocontrol Efficacy

Barnyardgrass plants ranging from 3-to-9-leaf growth stages were tested for biocontrol efficacy. All the plants were inoculated with conidial suspensions of C. echinochloae B-48 at a concentration of 1 × 107 spores/mL. The same application method was used as in the previous experiment. The control plants of each growth stage were sprayed with water plus surfactant and oil at the same concentration. The efficacy of weed control on plants of different growth stages was determined by comparing the disease severity and fresh weight of inoculated plants with their respective controls.

4.8. Effect of the Dew Period on Weed Biocontrol Efficacy

Conidial suspensions of C. echinochloae B-48 were prepared as previously described. The mixture was then adjusted to a concentration of 1 × 107 spores/mL. Barnyardgrass plants at the three-leaf stage were inoculated and incubated in a humid chamber at 28 °C with 100% relative humidity for 0, 6, 8, 10, 12, and 24 h. Four replicated pots were sprayed until runoff with spore suspensions. Control plants were sprayed with water plus surfactant and oil at the same concentration. Disease severity and plant fresh weight were measured for the assessment of treatment effect.

4.9. Data Analysis

All experiments were carried out with three replicates per treatment and repeated twice in a completely randomized design. In inhibition rate assays, a log transformation of the inhibition rate data was used to normalize the distribution for further statistical analysis. Data were subjected to an analysis of variance (ANOVA), and when significant treatment differences were found (p < 0.05, or p < 0.01), means were compared using the least significant difference test (LSD).

5. Patents

This strain was submitted for a China invention patent and the application number is 202210802861.6.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/plants12030421/s1, Table S1: GenBank accession numbers for the fungal isolates used in the phylogenetic analysis.

Author Contributions

Conceptualization, Q.G., S.C. and R.L.; methodology, Q.G. and R.L.; validation, Q.G., Q.H., A.C. and L.L.; formal analysis, Q.G. and Q.H.; investigation, Q.G. and Q.H.; resources, Q.G.; data curation, Q.G.; writing—original draft preparation, Q.G.; writing—review and editing, Q.G., S.C. and R.L.; supervision, S.C. and R.L.; funding acquisition, Q.G. and R.L. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by National Natural Science Foundation of China (no. 31901903), the Youth Science Foundation of Hubei Academy of Agricultural Sciences (no. 2020NKYJJ09), the Hubei Provincial Innovation Center for Agricultural Sciences and Technologies (2021-620-000-001-013) and Open Fund from Key Laboratory of Integrated Pests Management on Crops in Central China (2021ZTSJJ3).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Bajwa, A.A.; Jabran, K.; Shahid, M.; Ali, H.H.; Chauhan, B.S. Eco-biology and management of Echinochloa crus-galli. Crop Prot. 2015, 75, 151–162. [Google Scholar] [CrossRef]
  2. Chauhan, B.S.; Johnson, D.E. Ecological studies on Echinochloa crus-galli and the implications for weed management in direct-seeded rice. Crop Prot. 2011, 30, 1385–1391. [Google Scholar] [CrossRef]
  3. Maun, M.A.; Barrett, S.C.H. The biology of Canadian weeds: 77. Echinochloa crus-galli (L.) Beauv. Can. J. Plant Sci. 1986, 66, 739–759. [Google Scholar] [CrossRef]
  4. Zhang, Z.; Cao, J.; Gu, T.; Yang, X.; Peng, Q.; Bai, L.; Li, Y. Co-planted barnyardgrass reduces rice yield by inhibiting plant above-and belowground-growth during post-heading stages. Crop J. 2021, 9, 1198–1207. [Google Scholar] [CrossRef]
  5. Selig, C.; de Mol, F.; Westerman, P.R.; Gerowitt, B. Quantifying seed and establishment limitation to seedling recruitment of arable weeds: An example of barnyardgrass (Echinochloa crus-galli). Weed Sci. 2022, 70, 87–94. [Google Scholar] [CrossRef]
  6. Netto, A.G.; Christoffoleti, P.; VanGessel, M.; Carvalho, S.J.; Nicolai, M.; Brunharo, C. Seed Production, Dissemination, and Weed Seedbanks. In Persistence Strategy of Weeds; John Wiley & Sons, Inc.: Hoboken, USA, 2022; pp. 19–42. [Google Scholar]
  7. Heap, I. Global perspective of herbicide-resistant weeds. Pest Manag. Sci. 2014, 70, 1306–1315. [Google Scholar] [CrossRef]
  8. Bajwa, A.A.; Mahajan, G.; Chauhan, B.S. Nonconventional weed management strategies for modern agriculture. Weed Sci. 2015, 63, 723–747. [Google Scholar] [CrossRef]
  9. Mennan, H.; Ngouajio, M.; Sahin, M.; Isk, D.; Altop, E.K. Competitiveness of rice (Oryza sativa L.) cultivars against Echinochloa crus-galli (L.) Beauv. in water-seeded production systems. Crop Prot. 2012, 41, 1–9. [Google Scholar] [CrossRef]
  10. Kacan, K.; Tursun, N.; Ullah, H.; Datta, A. Barnyardgrass (Echinochloa crus-galli (L.) P. Beauv.) resistance to acetolactate synthase-inhibiting and other herbicides in rice in Turkey. Plant Soil Environ. 2020, 66, 357–365. [Google Scholar] [CrossRef]
  11. Wang, X.L.; Zhang, Z.Y.; Xu, X.M.; Li, G. The density of barnyard grass affects photosynthesis and physiological characteristics of rice. Photosynthetica 2019, 57, 705–711. [Google Scholar] [CrossRef]
  12. Hashimi, M.H.; Hashimi, R.; Ryan, Q. Toxic effects of pesticides on humans, plants, animals, pollinators and beneficial organisms. APRJ 2020, 5, 37–47. [Google Scholar] [CrossRef]
  13. Hasanuzzaman, M.; Mohsin, S.M.; Bhuyan, M.B.; Bhuiyan, T.F.; Anee, T.I.; Masud, A.A.C.; Nahar, K. Phytotoxicity, environmental and health hazards of herbicides: Challenges and ways forward. In Agrochemicals Detection Treatment and Remediation; Butterworth-Heinemann: Oxford, UK, 2020; pp. 55–99. [Google Scholar]
  14. Rashid, B.; Husnain, T.; Riazuddin, S. Herbicides and pesticides as potential pollutants: A global problem. In Plant Adaptation and Phytoremediation; Springer: Dordrecht, The Netherlands, 2010; pp. 427–447. [Google Scholar]
  15. Cerdeira, A.L.; Duke, S.O. The current status and environmental impacts of glyphosate-resistant crops: A review. J. Environ. Qual. 2006, 35, 1633–1658. [Google Scholar] [CrossRef] [PubMed]
  16. Mithila, J.; Hall, J.C.; Johnson, W.G.; Kelley, K.B.; Riechers, D.E. Evolution of resistance to auxinic herbicides: Historical perspectives, mechanisms of resistance, and implications for broadleaf weed management in agronomic crops. Weed Sci. 2011, 59, 445–457. [Google Scholar] [CrossRef]
  17. Heap, I. Herbicide resistant weeds. In Integrated Pest Management; Springer: Dordrecht, The Netherlands, 2014; pp. 281–301. [Google Scholar]
  18. Cai, X.; Chen, J.; Wang, X.; Gao, H.; Xiang, B.; Dong, L. Mefenacet resistance in multiple herbicide-resistant Echinochloa crus-galli L. populations. Pestic. Biochem. Physiol. 2022, 182, 105038. [Google Scholar] [CrossRef] [PubMed]
  19. Hwang, J.I.; Norsworthy, J.K.; González-Torralva, F.; Priess, G.L.; Barber, L.T.; Butts, T.R. Non-target-site resistance mechanism of barnyardgrass [Echinochloa crus-galli (L.) P. Beauv.] to florpyrauxifen-benzyl. Pest Manag. Sci. 2022, 78, 287–295. [Google Scholar] [CrossRef] [PubMed]
  20. Wang, H.; Li, Y.; Wang, L.; Liu, W.; Wang, J. Baseline sensitivity of Echinochloa crus-galli (L.) P. Beauv. to tripyrasulfone a new HPPD-inhibiting herbicide, in China. Crop Prot. 2022, 158, 105993. [Google Scholar] [CrossRef]
  21. Iwakami, S.; Hashimoto, M.; Matsushima, K.I.; Watanabe, H.; Hamamura, K.; Uchino, A. Multiple-herbicide resistance in Echinochloa crus-galli var. formosensis an allohexaploid weed species, in dry-seeded rice. Pestic. Biochem. Physiol. 2015, 119, 1–8. [Google Scholar] [CrossRef]
  22. Steingrímsdóttir, M.M.; Petersen, A.; Fantke, P. A screening framework for pesticide substitution in agriculture. J. Clean. Prod. 2018, 192, 306–315. [Google Scholar] [CrossRef]
  23. Morin, L. Progress in biological control of weeds with plant pathogens. Annu. Rev. Phytopathol. 2020, 58, 201–223. [Google Scholar] [CrossRef]
  24. Hinz, H.L.; Winston, R.L.; Schwarzländer, M. How safe is weed biological control? A global review of direct nontarget attack. Q. Rev. Biol. 2019, 94, 1–27. [Google Scholar] [CrossRef]
  25. Kumar, V.I.K.A.S.; Singh, M.A.N.O.J.; Sehrawat, N.I.R.M.A.L.A.; Atri, N.I.D.H.I.; Singh, R.; Upadhyay, S.K.; Yadav, M.U.K.E.S.H. Mycoherbicide control strategy: Concept, constraints, and advancements. Biopestic. Int. 2021, 17, 29–40. [Google Scholar]
  26. Goodwin, P.H. A molecular weed-mycoherbicide interaction: Colletotrichum gloeosporioides f. sp. malvae and round-leaved mallow, Malva pusilla. Can. J. Plant Pathol. 2001, 23, 28–35. [Google Scholar]
  27. Kirkpatrick, T.L.; Templeton, G.E.; TeBeest, D.O.; Smith, R.J., Jr. Potential of Colletotrichum malvarum for biological control of prickly sida. Plant Dis. 1983, 66, 323–325. [Google Scholar] [CrossRef]
  28. Bowers, R.C. Commercialization of Collego™–An Industrialist’s View. Weed Sci. 1986, 34, 24–25. [Google Scholar]
  29. Chakraborty, A.; Ray, P. Mycoherbicides for the Noxious Meddlesome: Can Colletotrichum be a Budding Candidate? Front. Microbiol. 2021, 12, 754048. [Google Scholar] [CrossRef]
  30. Jayawardena, R.S.; Li, X.H.; Liu, M.; Zhang, W.; Yan, J.Y. Mycosphere essay 16: Colletotrichum: Biological control, biocatalyst, secondary metabolites and toxins. Mycosphere 2016, 7, 1164–1176. [Google Scholar] [CrossRef]
  31. Boyette, C.D.; Gealy, D.; Hoagland, R.E.; Vaughn, K.C.; Bowling, A.J. Hemp sesbania (Sesbania exaltata) control in rice (Oryza sativa) with the bioherbicidal fungus Colletotrichum gloeosporioides f. sp. aeschynomene formulated in an invert emulsion. Biocontrol. Sci. Technol. 2011, 21, 1399–1407. [Google Scholar] [CrossRef]
  32. Auld, B.A.; Say, M.M.; Ridings, H.I.; Andrews, J. Field applications of Colletotrichum orbiculare to control Xanthium spinosum. Agr. Ecosyst. Environ. 1990, 32, 315–323. [Google Scholar] [CrossRef]
  33. Auld, B.A.; McRae, C.F.; Say, M.M. Potential for Xanthium spinosum control by Colletotrichum orbiculare as a mycoherbicide. In Proceedings VII Symposium of the Biological Control of Weeds; Delfosse, E.S., Ed.; Istituto Sperimentale Patologia Vegetale MAF: Rome, Italy, 1989; pp. 435–443. [Google Scholar]
  34. Li, J.; Li, M.; GAO, X.X.; Fang, F.; DONG, L.H. Biological characteristics of Lubao No. 1 biological control agent (Colletotrichum gloeosporioides) and construction of a T-DNA insertional mutant library. Acta Prataculturae Sin. 2017, 26, 142. [Google Scholar]
  35. Morris, M.J. A method for controlling Hakea sericea Schrad. seedlings using the fungus Colletotrichum gloeosporioides (Penz.) Sacc. Weed Res. 1989, 29, 449–454. [Google Scholar] [CrossRef]
  36. Gan, P.; Ikeda, K.; Irieda, H.; Narusaka, M.; O’Connell, R.J.; Narusaka, Y.; Shirasu, K. Comparative genomic and transcriptomic analyses reveal the hemibiotrophic stage shift of Colletotrichum fungi. New Phytol. 2013, 197, 1236–1249. [Google Scholar] [CrossRef] [PubMed]
  37. Grossmann, K. Auxin herbicides: Current status of mechanism and mode of action. Pest Manag Sci. 2010, 66, 113–120. [Google Scholar] [CrossRef] [PubMed]
  38. Mathur, M.; Gehlot, P. Recruit the Plant Pathogen for Weed Management: Bioherbicide–A Sustainable Strategy. In Fungi and Their Role in Sustainable Development: Current Perspectives; Springer: Singapore, 2018; pp. 159–181. [Google Scholar]
  39. Hasan, M.; Ahmad-Hamdani, M.S.; Rosli, A.M.; Hamdan, H. Bioherbicides: An eco-friendly tool for sustainable weed management. Plants 2021, 10, 1212. [Google Scholar] [CrossRef] [PubMed]
  40. Auld, B.A.; Hetherington, S.D.; Smith, H.E. Advances in bioherbicide formulation. Weed Biol. Manag. 2003, 3, 61–67. [Google Scholar] [CrossRef]
  41. Kremer, R.J. The role of bioherbicides in Weed Management. Biopestic. Int. 2005, 1, 127–141. [Google Scholar]
  42. Rosskopf, E.N.; Yandoc, C.B.; Charudattan, R.; DeValerio, J.T. Influence of epidemiological factors on the bioherbicidal efficacy of Phomopsis amaranthicola on Amaranthus hybridus. Plant Dis. 2005, 89, 1295–1300. [Google Scholar] [CrossRef]
  43. Makowski, R.M.D. Effect of inoculum concentration, temperature, dew period, and plant growth stage on disease of round-leaved mallow and velvetleaf by Colletotrichum gloeosporioides f. sp. malvae. Phytopathology 1993, 83, 1229–1234. [Google Scholar] [CrossRef]
  44. Bradley, D.J.; Gilbert, G.S.; Parker, I.M. Susceptibility of clover species to fungal infection: The interaction of leaf surface traits and environment. Am. J. Bot. 2003, 90, 857–864. [Google Scholar] [CrossRef]
  45. Shabana, Y.M. The use of oil emulsions for improvising the efficacy of Alternaria eichhorniae as a mycoherbicide for water hyacinth (Eichhornia crassipes). Biol. Control. 2005, 32, 78–89. [Google Scholar] [CrossRef]
  46. Boyette, C.D.; Hoagland, R.E. Adjuvant and refined corn oil formulation effects on conidial germination, appressorial formation and virulence of the bioherbicide, Colletotrichum truncatum. Plant Pathol. J. 2013, 12, 50–60. [Google Scholar] [CrossRef]
  47. Crouch, J.A.; Clarke, B.B.; White, J.F., Jr.; Hillman, B.I. Systematic analysis of the falcate-spored graminicolous Colletotrichum and a description of six new species from warm-season grasses. Mycologia 2009, 101, 717–732. [Google Scholar] [CrossRef] [PubMed]
  48. Crouch, J.A.; Clarke, B.B.; Hillman, B.I. What is the value of ITS sequence data in Colletotrichum systematics and species diagnosis? A case study using the falcate-spored graminicolous Colletotrichum group. Mycologia 2009, 101, 648–656. [Google Scholar] [CrossRef] [PubMed]
  49. Templeton, G.E. Use of Colletotrichum strains as mycoherbicides. In Colletotrichum: Biology, Pathology and Control; CAB International: Wallingford, UK, 1992; pp. 358–380. [Google Scholar]
  50. Di Tommaso, A.; Watson, A.K.; Hallett, S.G. Infection by the fungal pathogen Colletotrichum coccodes affects velvetleaf (Abutilon theophrasti)-soybean competition in the field. Weed Sci. 1996, 44, 924–933. [Google Scholar] [CrossRef]
  51. Wymore, L.A.; Watson, A.K.; Gotlieb, A.R. Interaction between Colletotrichum coccodes and thidiazuron for control of velvetleaf (Abutilon theophrasti). Weed Sci. 1987, 35, 377–383. [Google Scholar] [CrossRef]
  52. Singh, J.; Quereshi, S.; Banerjee, N.; Pandey, A.K. Production and extraction of phytotoxins from Colletotrichum dematium FGCC# 20 effective against Parthenium hysterophorus L. Braz Arch Biol Technol. 2010, 53, 669–678. [Google Scholar]
  53. Vieira, B.S.; Dias, L.V.S.A.; Langoni, V.D.; Lopes, E.A. Liquid fermentation of Colletotrichum truncatum UFU 280, a potential mycoherbicide for beggartick. Australas Plant Pathol. 2018, 47, 277–283. [Google Scholar] [CrossRef]
  54. Roberts, J.; Florentine, S.; Fernando, W.D.; Tennakoon, K.U. Achievements, developments and future challenges in the field of bioherbicides for weed control: A global review. Plants 2022, 11, 2242. [Google Scholar] [CrossRef]
  55. Hyde, K.D.; Cai, L.; Cannon, P.F.; Crouch, J.A.; Crous, P.W.; Damm, U.; Tan, Y.P. Colletotrichum—Names in current use. Fungal Divers. 2009, 39, 147–182. [Google Scholar]
  56. Moriwaki, J.; Tsukiboshi, T. Colletotrichum echinochloae, a new species on Japanese barnyard millet (Echinochloa utilis). Mycoscience 2009, 50, 273–280. [Google Scholar] [CrossRef]
  57. Crouch, J.A.; Beirn, L.A. Anthracnose of cereals and grasses. Fungal Divers. 2009, 39, 19. [Google Scholar]
  58. Obanor, F.O.; Walter, M.; Jones, E.E.; Jaspers, M.V. Effect of temperature, relative humidity, leaf wetness and leaf age on Spilocaea oleagina conidium germination on olive leaves. Eur. J. Plant Pathol. 2008, 120, 211–222. [Google Scholar] [CrossRef]
  59. Denner, F.D.N.; Kotzé, J.M.; Putterill, J.F. The effect of temperature on spore germination, growth and appressorium formation of Colletotrichum gloeosporioides and Dothiorella aromatica. South Arican Avocado Grow. Assoc. Yearb. 1986, 9, 19–22. [Google Scholar]
  60. Boyetchko, S.; Peng, G. Challenges and strategies for development of mycoherbicides. Fungal Biotechnol. Agric. Food Environ. Appl. 2004, 21, 111–121. [Google Scholar]
  61. Hong, J.K.; Hwang, B.K. Influence of inoculum density, wetness duration, plant age, inoculation method, and cultivar resistance on infection of pepper plants by Colletotrichum coccodes. Plant Dis. 1998, 82, 1079–1083. [Google Scholar] [CrossRef]
  62. Jackson, M.A. Optimizing nutritional conditions for the liquid culture production of effective fungal biological control agents. J. Ind. Microbiol. Biotechnol. 1997, 19, 180–187. [Google Scholar] [CrossRef]
  63. Nordzieke, D.E.; Sanken, A.; Antelo, L.; Raschke, A.; Deising, H.B.; Pöggeler, S. Specialized infection strategies of falcate and oval conidia of Colletotrichum graminicola. Fungal Genet Biol. 2019, 133, 103276. [Google Scholar] [CrossRef] [PubMed]
  64. Babu, R.M.; Sajeena, A.; Seetharaman, K. Bioassay of the potentiality of Alternaria alternata (Fr.) keissler as a bioherbicide to control water hyacinth and other aquatic weeds. Crop Prot. 2003, 22, 1005–1013. [Google Scholar] [CrossRef]
  65. Peng, G.; Bailey, K.L.; Hinz, H.L.; Byer, K.N. Colletotrichum sp: A potential candidate for biocontrol of scentless chamomile (Matricaria perforata) in western Canada. Biocontrol. Sci. Technol. 2005, 15, 497–511. [Google Scholar] [CrossRef]
  66. Peng, G.; Byer, K.N.; Bailey, K.L. Pyricularia setariae: A potential bioherbicide agent for control of green foxtail (Setaria viridis). Weed Sci. 2004, 52, 105–114. [Google Scholar] [CrossRef]
  67. Figliola, S.S.; Camper, N.D.; Ridings, W.H. Potential biological control agents for goosegrass (Eleusine indica). Weed Sci. 1988, 36, 830–835. [Google Scholar] [CrossRef]
  68. Cannon, P.F.; Damm, U.; Johnston, P.R.; Weir, B.S. Colletotrichum–current status and future directions. Stud. Mycol. 2007, 59, 129–145. [Google Scholar] [CrossRef] [PubMed]
  69. Weir, B.S.; Johnston, P.R.; Damm, U. The Colletotrichum gloeosporioides species complex. Stud. Mycol. 2012, 73, 115–180. [Google Scholar] [CrossRef] [PubMed]
  70. Swofford, D.L. PAUP*: Phylogenetic Analysis Using Parsimony (* and Other Methods); Sinauer & Associates: Sunderland, MA, USA, 2000. [Google Scholar]
  71. Abdessemed, N.; Bahet, Y.A.; Zermane, N. Mycoherbicide potential of Alternaria alternata (Fries.) Kiessler and its formulations on the host weed Xanthium strumarium L. Biocontrol. Sci. Technol. 2020, 30, 1300–1315. [Google Scholar] [CrossRef]
Figure 1. Morphology of C. echinochloae strain B-48. (a,b) Colony morphology cultured on potato dextrose agar (PDA) medium, potato sucrose agar (PSA) medium. (c) Morphology of conidia produced by PSA; bar scale: 10 µm. (d) Morphology of setae on barnyardgrass leaves; bar scale: 10 µm.
Figure 1. Morphology of C. echinochloae strain B-48. (a,b) Colony morphology cultured on potato dextrose agar (PDA) medium, potato sucrose agar (PSA) medium. (c) Morphology of conidia produced by PSA; bar scale: 10 µm. (d) Morphology of setae on barnyardgrass leaves; bar scale: 10 µm.
Plants 12 00421 g001

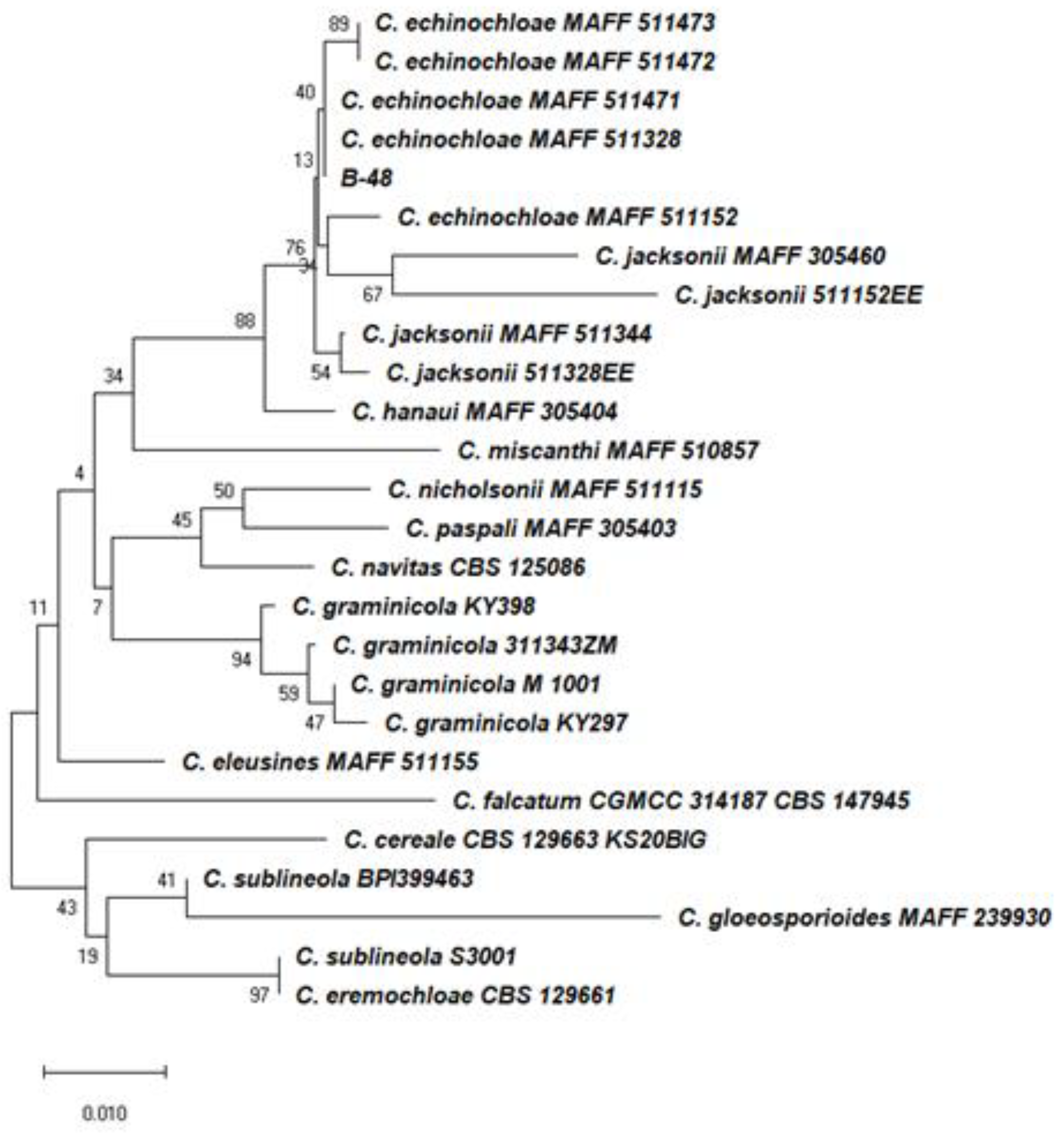

Figure 2. Phylogenetic tree showing the phylogenetic position of strain B-48 using the neighbor-joining (NJ) method based on concatenated ITS, Sod2, Mat1, and Apn2 gene sequence. The numbers at the nodes indicate the levels of the bootstrap support percentages based on the neighbor-joining of 1000 replicates. The scale bar represents a 0.01 sequence difference. The GenBank accession numbers for the fungal isolates used in the analysis are provided (Table S1).
Figure 2. Phylogenetic tree showing the phylogenetic position of strain B-48 using the neighbor-joining (NJ) method based on concatenated ITS, Sod2, Mat1, and Apn2 gene sequence. The numbers at the nodes indicate the levels of the bootstrap support percentages based on the neighbor-joining of 1000 replicates. The scale bar represents a 0.01 sequence difference. The GenBank accession numbers for the fungal isolates used in the analysis are provided (Table S1).
Plants 12 00421 g002

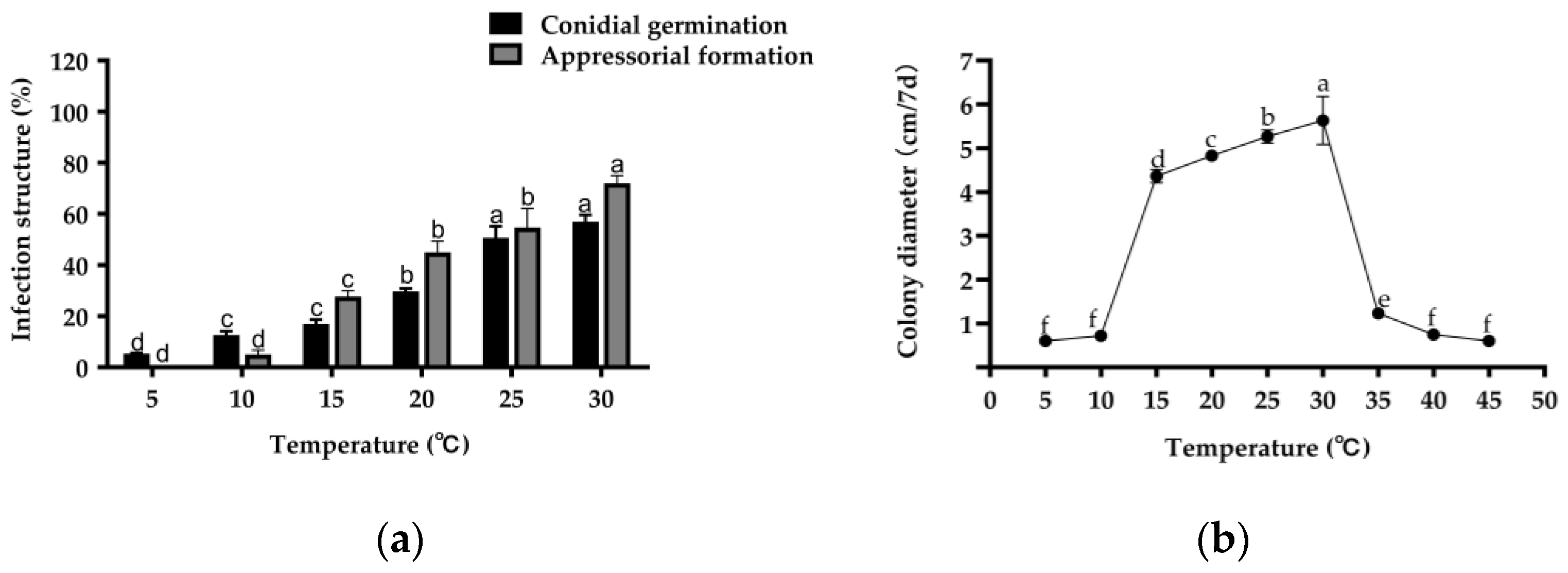

Figure 3. Effect of different temperatures on conidial germination of C. echinochloae, appressorial formation, and mycelial growth. (a) Effect of temperature on C. echinochloae B-48 conidial germination and appressorial formation. (b) Effect of temperature on C. echinochloae B-48 mycelial growth. The lower-case letter represents significant difference at p < 0.05.
Figure 3. Effect of different temperatures on conidial germination of C. echinochloae, appressorial formation, and mycelial growth. (a) Effect of temperature on C. echinochloae B-48 conidial germination and appressorial formation. (b) Effect of temperature on C. echinochloae B-48 mycelial growth. The lower-case letter represents significant difference at p < 0.05.
Plants 12 00421 g003
Figure 4. Effect of C. echinochloae B-48 on different weed growth stages.
Figure 4. Effect of C. echinochloae B-48 on different weed growth stages.
Plants 12 00421 g004
Table 1. Host susceptibility of Colletotrichum echinochloae in major summer crops and plants in Hubei Province.
Table 1. Host susceptibility of Colletotrichum echinochloae in major summer crops and plants in Hubei Province.
FamilySpecies TreatedPlant Reaction
GramineaeMaizeI
RiceHR
WheatI
MalvaceaeCottonI
SolanaceaeTobaccoI
ChiliI
LiliaceaeLeekI
DioscoreaceaeChinese yamI
FabaceaeCowpeaI
I, plants are immune and showed no visible symptoms; HR, highly resistant and sometimes with hypersensitive reactions to infections.
Table 2. Host susceptibility of Colletotrichum echinochloae in major weedy plants in Hubei Province.
Table 2. Host susceptibility of Colletotrichum echinochloae in major weedy plants in Hubei Province.
FamilyPlant SpeciesPlant Reaction
AmaranthaceaeCelosia argentea L.I
Alternanthera philoxeroides (Mart.) Griseb.I
Achyranthes bidentata BlumeI
ChenopodChenopodium ficifolium Sm.I
ConvolvulaceaeConvolvulus arvensis L.I
MalvaceaeAbutilon theophrasti MedikusI
PolygonaceaePersicaria hydropiper (L.) SpachI
PortulacaceaePortulaca oleracea L. I
RubiaceaeScleromitrion diffusum (Willd.) R.J. WangI
ScrophulariaceaeLindernia crustacea (L.) F. Muell.I
SolanaceaeSolanum nigrum L.I
ViolaceaeViola japonica Langsd. ex DC.I
AsteraceaeEclipta prostrata (L.) L.I
Bidens Pilosa L.I
Bidens frondose L.I
Erigeron canadensis L.I
Symphyotrichum subulatum (Michx.) G. L. NesomI
CommelinaceaeCommelina communis L.I
Commelina benghalensis L.I
CyperaceaeCyperus rotundus L.HR
GramineaeDigitaria sanguinalis (L.) Scop.I
Eleusine indica (L.) Gaertn.I
Leptochloa chinensis (L.) NeesI
Setaria viridis (L.) P. Beauv.I
Leptochloa panicea (Retz.) OhwiI
I, plants are immune and showed no visible symptoms; HR, highly resistant and sometimes with hypersensitive reactions to infections.
Table 3. Effect of the concentration of the C. echinochloae B-48 inoculum on weed control.
Table 3. Effect of the concentration of the C. echinochloae B-48 inoculum on weed control.
Conidial ConcentrationFresh Weight Inhibition Rate (%) Disease Severity (%)
00 ± 0 d0 ± 0 e
10410.07 ± 5.79 c8.58 ± 0.09 d
10523.96 ± 0.59 b27.99 ± 0.11 c
10634.43 ± 1.71 b62.50 ± 0.05 b
10778.34 ± 3.78 a73.87 ± 0.04 ab
10884.33 ± 6.50 a78.96 ± 0.02 a
The lower-case letter represents significant difference at p < 0.05.
Table 4. Efficacy of C. echinochloae B-48 in controlling barnyardgrass at different growth stages.
Table 4. Efficacy of C. echinochloae B-48 in controlling barnyardgrass at different growth stages.
Leaf StageFresh Weight Inhibition Rate (%) Disease Severity (%)
479.89 ± 2.66 a89.67 ± 0.88 a
556.34 ± 3.69 b83.66 ± 3.17 a
657.80 ± 2.37 ab66.34 ± 4.25 b
728.91 ± 3.89 c64.67 ± 3.48 b
827.69 ± 2.10 c36.16 ± 2.60 c
924.71 ± 4.47 c15.32 ± 4.25 d
The lower-case letter represents significant difference at p < 0.05.
Table 5. Efficacy of C. echinochloae B-48 in controlling barnyardgrass at different wetness periods.
Table 5. Efficacy of C. echinochloae B-48 in controlling barnyardgrass at different wetness periods.
Wetness Period (h)Fresh Weight Inhibition Rate (%) Disease Severity (%)
01.27 ± 1.07 d0 ± 0 d
610.51 ± 7.17 c11.67 ± 3.51 c
821.93 ± 13.09 c32.38 ± 4.73 b
1048.34 ± 6.73 b78.33 ± 4.04 a
1268.54 ± 5.09 a82.67 ± 4.16 a
2479.50 ± 3.01 a84.32 ± 4.72 a
The lower-case letter represents significant difference at p < 0.05.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Gu, Q.; Chu, S.; Huang, Q.; Chen, A.; Li, L.; Li, R. Colletotrichum echinochloae: A Potential Bioherbicide Agent for Control of Barnyardgrass (Echinochloa crus-galli (L.) Beauv.). Plants 2023, 12, 421. https://doi.org/10.3390/plants12030421

AMA Style

Gu Q, Chu S, Huang Q, Chen A, Li L, Li R. Colletotrichum echinochloae: A Potential Bioherbicide Agent for Control of Barnyardgrass (Echinochloa crus-galli (L.) Beauv.). Plants. 2023; 12(3):421. https://doi.org/10.3390/plants12030421

Chicago/Turabian Style

Gu, Qiongnan, Shihai Chu, Qichao Huang, Anan Chen, Lin Li, and Ruhai Li. 2023. "Colletotrichum echinochloae: A Potential Bioherbicide Agent for Control of Barnyardgrass (Echinochloa crus-galli (L.) Beauv.)" Plants 12, no. 3: 421. https://doi.org/10.3390/plants12030421

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
