Annotation of the Turnera subulata (Passifloraceae) Draft Genome Reveals the S-Locus Evolved after the Divergence of Turneroideae from Passifloroideae in a Stepwise Manner

School of Biological Sciences, Washington State University, Pullman, WA 99164-4236, USA
Center for Genomic Science Innovation, University of Wisconsin Madison, 425 Henry Mall, Madison, WI 53706-1577, USA
Department of Biology, York University, 4700 Keele Street, Toronto, ON M3J 1P3, Canada
Author to whom correspondence should be addressed.
These authors contributed equally to this work.
Plants 2023, 12(2), 286;
Submission received: 29 November 2022 / Revised: 27 December 2022 / Accepted: 3 January 2023 / Published: 7 January 2023
(This article belongs to the Special Issue Plant Molecular Phylogenetics and Evolutionary Genomics III)


A majority of Turnera species (Passifloraceae) exhibit distyly, a reproductive system involving both self-incompatibility and reciprocal herkogamy. This system differs from self-incompatibility in Passiflora species. The genetic basis of distyly in Turnera is a supergene, restricted to the S-morph, and containing three S-genes. How supergenes and distyly evolved in Turnera, and the other Angiosperm families exhibiting distyly remain largely unknown. Unraveling the evolutionary origins in Turnera requires the generation of genomic resources and extensive phylogenetic analyses. Here, we present the annotated draft genome of the S-morph of distylous Turnera subulata. Our annotation allowed for phylogenetic analyses of the three S-genes’ families across 56 plant species ranging from non-seed plants to eudicots. In addition to the phylogenetic analysis, we identified the three S-genes’ closest paralogs in two species of Passiflora. Our analyses suggest that the S-locus evolved after the divergence of Passiflora and Turnera. Finally, to provide insights into the neofunctionalization of the S-genes, we compared expression patterns of the S-genes with close paralogs in Arabidopsis and Populus trichocarpa. The annotation of the T. subulata genome will provide a useful resource for future comparative work. Additionally, this work has provided insights into the convergent nature of distyly and the origin of supergenes.

1. Introduction

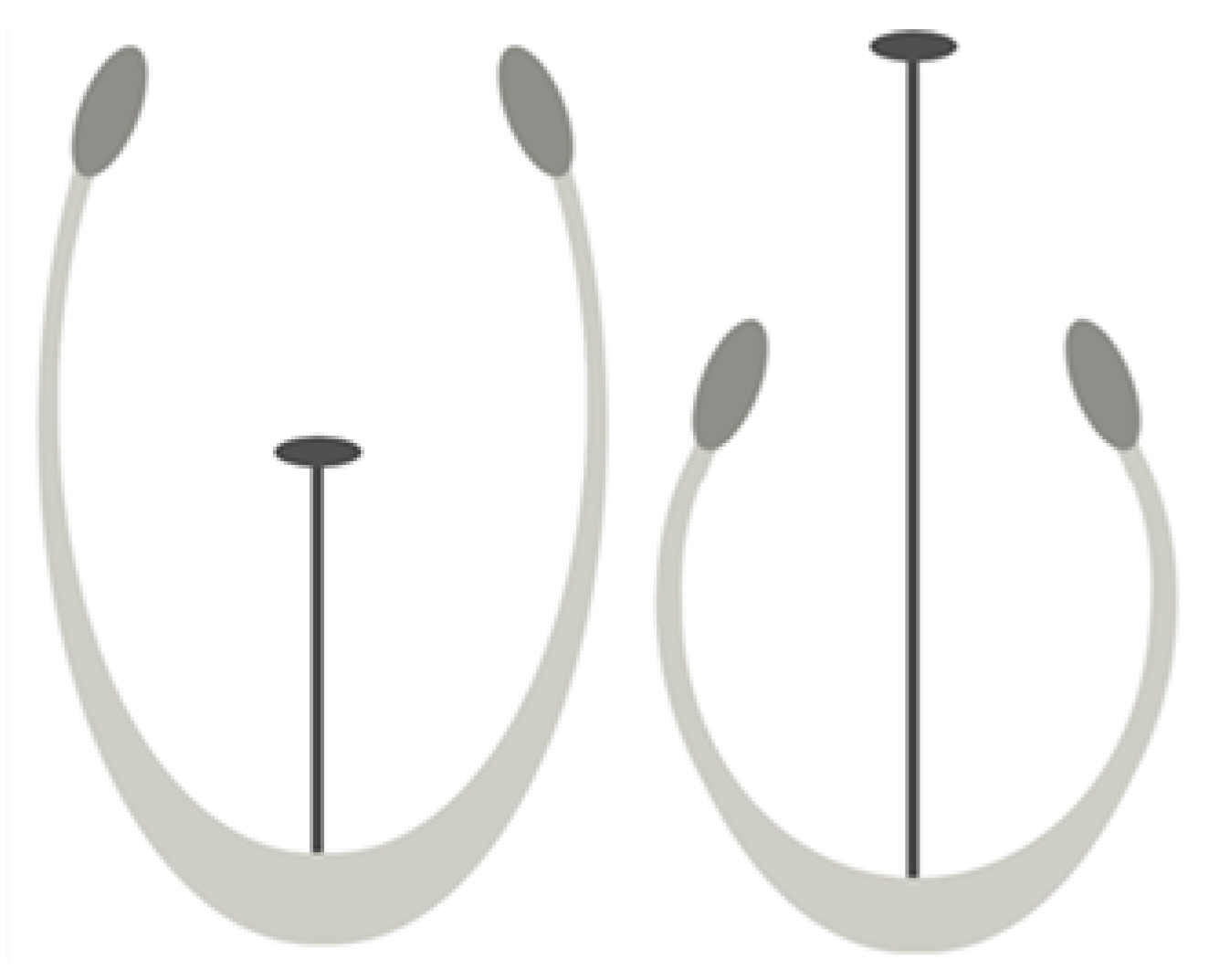

Distyly, a form of heteromorphic self-incompatibility, is a reproductive system found in 28 genera of angiosperms [1]. Distylous populations contain two floral morphs, the S-morph and L-morph, showing morphological differences (Figure 1) accompanied by self- (and intra-morph) incompatibility (SI). The genetic basis of these characteristics is a supergene called the S-locus; the S-morph is hemizygous for the S-locus in Primula [2], Turnera [3], Linum [4], and likely in Fagopyrum [5]. Despite its complex phenotype, distyly has evolved across 28 genera with extreme phenotypic consistency [1], making it a remarkable example of convergent evolution.
The S-locus has been characterized in Primula [2,6,7,8], Turnera [3], and Linum [4]. The S-locus in Primula contains five S-genes [2], two of which have been characterized. GLO is involved in elongation of the corolla below the stamen, leading to differential anther positioning between morphs [8]. CYP734A50 determines style length and female mating type via inactivation of brassinosteroids (BR) [9,10]. Recent phylogenetic analyses of Primula’s five S-genes suggest that four arose via independent duplication events followed by translocation to the pre-S-locus [11].
In Linum, the S-locus contains nine hypothetical S-genes, five with unknown functions, a homolog of AtVUP1 named TSS1, WDR-44, a tetratricopeptide repeat-containing protein, and a gene likely involved in pollen development [4]. Only five of the genes are expressed, suggesting that the others may be nonfunctional. TSS1 is likely involved in style length dimorphism [4,12]. Positioning of the hypothetical S-genes’ paralogs within the Linum genome suggests, similar to Primula, that the genes were acquired in several independent duplication events.
In Turnera, the S-locus is composed of three S-genes, BAHD, SPH1, and YUC6 [3]. BAHD, a member of the BAHD acyltransferase family, determines style length and female mating-type via inactivation of BR [13,14]. SPH1, a member of the S-protein homolog family, likely controls filament length [3]. YUC6, a member of the YUCCA flavin monooxygenase family, controls male mating-type [15] likely via alterations of auxin concentration in the S-morph relative to the L-morph [16]. Currently, it is unknown how the S-locus evolved in Turnera.
Analysis of S-loci across heterostylous genera has revealed similarities at the metabolic and genetic levels. The basis of style length and female mating type in both Primula and Turnera is inactivation of BR. Indirect alterations to the Phytochrome Interacting Factor (PIF) signaling hubs via inactivation of BR or direct alteration of PIF signaling hub-related genes may be the basis of repression of style elongation in Fagopyrum, Primula, and Turnera [16], a hypothesis that has been computationally supported [11]. Auxin appears to play a role in stamen elongation in Fagopyrum [11], potentially similar to filament elongation in Turnera, as suggested by computational analysis [16]. The commonality in the evolution of the S-locus in Linum and Primula suggests a further convergent nature at the genomic level. In other systems displaying convergent evolution, there is often a convergent genetic basis in addition to the convergent phenotype [17,18,19]. Therefore, one might predict mechanistic convergence at the genomic level in distylous species via hemizygosity, as appears to be emerging from studies of Primula and Linum.
To further understand the convergent nature of distyly, evolution of supergenes, and neofunctionalization of the S-genes, genomic and phylogenetic analyses of different genera exhibiting distyly is necessary. Here we present an annotation of the Turnera subulata (2x) genome [3]. Using this genomic resource, we identified the closest paralogs of the three S-genes. The genomic locations of these paralogs suggest that the three S-genes underwent independent duplication events. We used phylogenetic analyses to estimate when the S-genes underwent their individual duplications to the pre-S-locus. Our analyses suggest that these duplication events occurred after the divergence of the subfamily Turneroideae from Passifloroideae. These results support the previously proposed hypotheses that the convergent nature of distyly does not just occur at the phenotypic and metabolic level, but also at the molecular level, involving independent acquisition of the S-genes to the hemizygous S-locus.

2. Results

2.1. Genome Assembly and Annotation

The genome assembly consists of 7877 scaffolds. After filtering and manual curation, a total of 30,992 genes were annotated. It was predicted that 979 genes encode tRNAs and 29,943 encode proteins. BUSCO (v.5.4.3) [20] was used to assess the genome assembly and annotation. We detected 96.6% of the core eukaryotic genes in the gDNA assembly and 87.9% in the annotated CDS (based on homology to A. thaliana). We had also previously sequenced bacterial artificial chromosome clone contigs of the S-locus haplotypes [3]. Our final protein-coding gene count (29,976) is similar to that of Ricinus communis (28,584 v0.1) [21] and Theobroma cacao (27,379 v2.1) [22], but smaller than Manihot esculenta (32,858 v8.1) [23] and Populus trichocarpa (34,699 v4.1) [24]. Interestingly, this final count is greater than both Passiflora edulis (23,171) and Passiflora organensis (25,327), members of the same family.

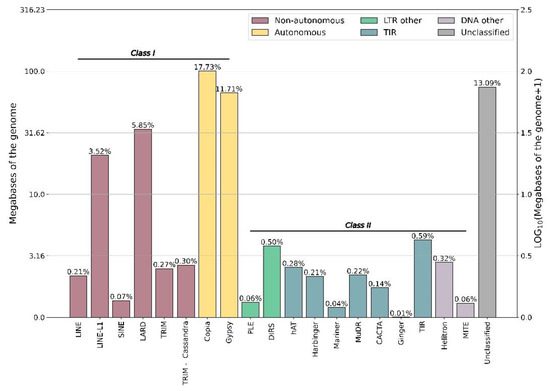

Our analysis revealed that 53.63% of the T. subulata genome is composed of repetitive elements (Figure 2); this is somewhat less than Passiflora. The P. organensis genome is composed of 58.55% repetitive elements [25], P. cincinnata (60.49%) and P. quadrangularis (73.42%) [26]. We also analyzed the repetitive element composition of the S-locus haplotypes using EDTA [27] (Supplementary Figure S1). The “recessive” s-haplotype is 324,544 bp in length, containing 122 repetitive elements (69 Class I; 53 Class II) that comprise 25.06% of the length of the haplotype. In stark contrast, the considerably longer “dominant” S-haplotype is 1,560,574 bp in length, containing 1040 repetitive elements (843 Class I; 197 Class II) that comprise 57.35% of the sequence. The dominant haplotype also contains a number of helitron elements (26) that are absent from the recessive, as well as unclassified LTR elements.
The rearrangements of the dominant haplotype are expected to lead to recombination suppression in the regions flanking the S-locus (Supplementary Figure S1). The accumulation of repetitive elements and synonymous mutations are expected in regions of suppressed recombination. We estimated synonymous substitution rates (Ks) of the genes flanking the S-locus between haplotypes to test this expectation. Genes within the “rearranged/inverted” region should have higher Ks than those outside of the inversions (Supplementary Figure S2). The full extent of rearrangement of the dominant vs. the recessive haplotypes are not known with certainty, particularly at the upstream end (AP2 gene).
We found that substitution rates varied across the haplotypes, ranging from 0.004 at CYCLIN D (CYCD) to 0.140 at AP2. Collinearity of the two haplotypes is exhibited downstream (genes CYCD, ADPRF, and EB1C), where we might expect recombination to occur. A comparison of Ks for genes anticipated to be undergoing recombination vs. the suppressed genes gives genes CYCD-EB1 mean Ks = 0.012 vs. genes AP2SUMO Ks = 0.061 (t19 = 2.50, p < 0.02), providing evidence for recombination suppression for genes within the rearranged portion of the haplotypes.

2.2. Comparison of Orthologous Groups between Members of Malpighiales

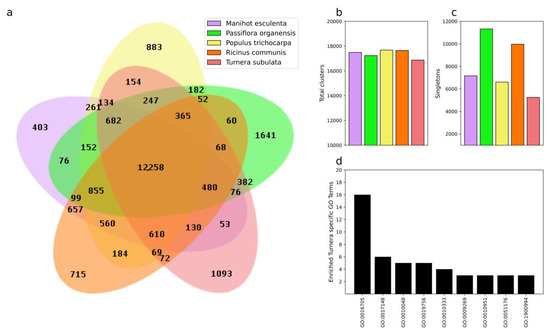

OrthoVenn2 was used to identify orthologous groups among T. subulata and P. organesis (Supplementary Figure S3) and other members of Malpighiales (Figure 3). Identification of orthologous groups helped confirm the quality of annotation while simultaneously identifying potential neofunctionalization and enriched GO terms specific to a species. In our Turneroideae and Passifloroideae comparison, we identified 1285 orthologous groups specific to Turnera with 16 enriched GO terms (Supplementary Figure S3a,b). Turnera has fewer “singletons” (5759) or genes without paralogous/orthologous groups than P. organensis (7543) but more than P. edulis (Supplementary Figure S3c). Two of the highest enriched GO terms associated with Turnera were GO:0016705 “oxidoreductase activity acting on paired donors with incorporation or reduction of molecular oxygen” and GO:0006952 “defense response” (Supplementary Figure S3d). Interestingly, four groups were enriched for GO:0060320 “rejection of self-pollen”.
In our comparison of the Malpighiales, we observed a reduction in T. subulata-specific paralogous groups (from 1285 to 1093, a decrease of 192); approximately the same reduction was observed in P. organensis (from 1832 to 1641, a decrease of 191) (Figure 3a). Additionally, we also observed a drop in GO terms (16 to 9). Interestingly, GO:0016705 remained the top enriched GO term (Figure 3b,d), suggesting that genes found in these groups are potentially important for a unique feature of T. subulata. T. subulata showed the smallest number of singletons (5759 to 5245) (Figure 3c). TsYUC6 does not fall into an orthologous group and is labeled as a singleton, TsBAHD falls into an orthologous group with eight other proteins associated with alkaloid metabolism, and TsSPH1 falls into a paralogous group related to rejection of self-pollen (Supplementary Table S3).

2.3. Identification of the BAHD Acyltransferase (BAHD) Gene Family

A total of 1741 BAHD family members were used in this analysis (Supplementary Figures S4 and S5). The numbers of retained BAHD members in Arabidopsis thaliana and Populus trichocarpa were similar to previous results [28,29], suggesting that our filtering stringency was conservative but appropriate. Some species included in this analysis had a lower number of BAHD family members than expected, possibly due to annotation issues.

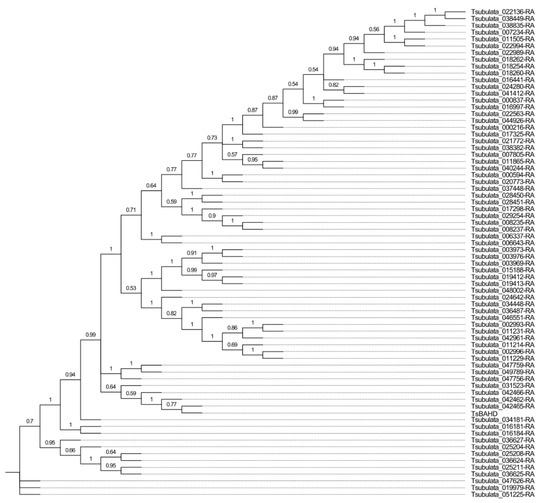

We identified 72 putative BAHD family members in Turnera (Figure 4 and Supplementary Figure S6). The total number of BAHDs and assignment to the subclades were similar to P. trichocarpa (Figure 5a,b). TsBAHD falls into subclade IIIA.

2.4. Identification of the S-Protein Homolog (SPH) Gene Family

A total of 1552 SPH family members were used in this analysis (Supplementary Figures S4 and S7). Surprisingly, SPHs were identified in non-seed plants and “primitive” flowering plants Amborella trichopoda and Nelumbo nucifera but had apparently not been identified in monocots. Overall, the SPH tree had a large number of weakly supported branches comparable to the results of previous analyses and likely due to sequence divergence and/or the small size of the gene limiting phylogenetically informative sites [32,33].

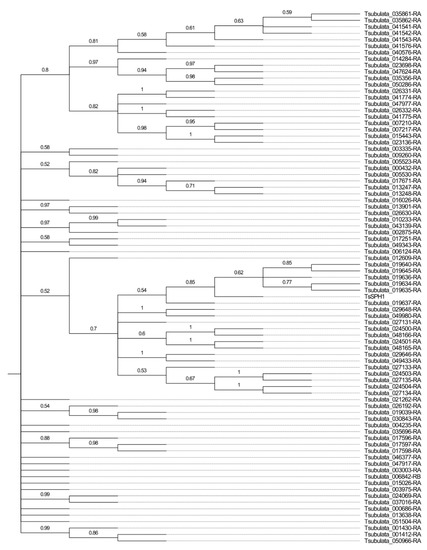

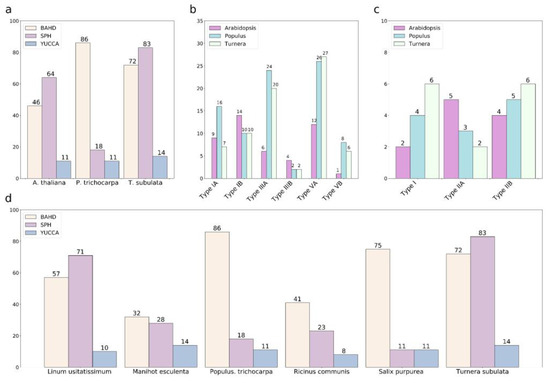

We identified 83 putative SPH family members in Turnera (Figure 6 and Supplementary Figure S8). There have likely been several genome-specific duplication events, as is evident from the phylogenetic tree (Supplementary Figure S7). The number of SPH genes identified in T. subulata was similar to that of Linum usitatissimum (Figure 5c), which may suggest the expansion and/or contraction of the gene family in various lineages.
Interestingly, TsSPH1′s paralogs all reside on the same scaffold adjacent to one another (scaffold 850_149123). To determine if this region containing the SPHs evolved independently in Turnera, we used tBLASTn to identify SPH family members in P. organensis. We identified a region of a scaffold of P. organensis, scaffold4_size11498481 (GenBank JAEPBF010000262.1), that likely contains nine neighboring SPH family members. Once we had established the seven T. subulata SPHs that represented the family on scaffold 850_149123, we created a phylogeny using these genes from T. subulata and P. organensis (Supplementary Figure S9).
This analysis revealed that the region likely expanded in each species separately, as the SPHs form species-specific clades. Our results potentially suggest that the region, or the ancestral gene, is prone to tandem duplication events.
Previous studies [32] have suggested that monocots do not have SPH family members, despite the occurrence of SPH in some “primitive” angiosperms and non-seed plants (above). To determine if monocots truly lack the SPH gene family, we compared the Arabidopsis thaliana SPH family members to all monocot data in GenBank using tBLASTn searches, and also conducted some searches on CoGe. While we did not include SPH family members from any of the monocot genomes in our analyses above, we have now identified SPH family members in four monocot genomes, including Elaeis guineensis (Arecaceae), Asparagus officinalis (Asparagaceae), Dioscorea cayenesis (Dioscoreaceae), and Eichhornia paniculata (Pontederiaceae). The number of SPH genes for each species requires further investigation in these and other monocots. To determine if the homologs identified in E. guineensis (GenBank XM_010911761.2), A. officinalis (male genome GenBank XM_020420489.1 and female genome CoGe (ID35894)), D. cayenesis (GenBank XM_039285132.1), and E. paniculata (CoGe ID64302: Location: 5470690-5471133, Chromosome: PGA_scaffold6_pilon, Strand: 1) are truly SPH family members, we looked for the structural characteristics specific to SPH proteins/genes. All of these monocot SPHs appear to represent true SPH family members. SPHs may have been lost from several monocot lineages, but further investigation into the occurrence of this gene family is warranted.

2.5. Identification of the YUCCA (YUC) Gene Family

A total of 581 YUCCA family members were used in this analysis (Supplementary Figures S4 and S10). Previous analysis of the family in A. thaliana identified 11 family members [34], all of which were maintained after filtering. Previous analysis of the family in P. trichocarpa identified 12 family members [31], 11 of which were maintained after filtering.

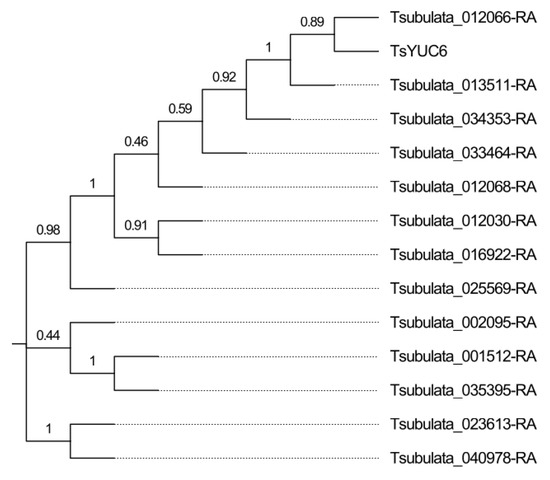

This analysis identified 14 putative members of the YUCCA family in Turnera subulata (Figure 7 and Supplementary Figure S11). TsYUC6 fell into the IIb clade. In Arabidopsis, the IIB clade is heavily involved in different aspects of floral development [34]. The closest Arabidopsis ortholog was AtYUC6 (AT5G25620). There appears to be a Turnera-specific expansion of the family (Figure 5c).
In previous DEG analysis [16], Tsubulata_034353-RA, a homolog of AtYUC2, was identified as being depleted in the young stamen. This analysis strongly supports that AtYUC2 (AT4G13260) is the closest homolog to Tsubulata_034353-RA. Tsubulata_034353-RA is of interest, as AtYUC2 and AtYUC6 are functionally redundant in Arabidopsis [34,35].

2.6. Possible Origin of the S-Genes

If the S-genes evolved after the splitting of Passifloroideae and Turneroideae, we would anticipate that the S-genes and their closest paralogs would share an ortholog in species of Passiflora. We searched for the S-genes’ closest paralogs in P. organensis and P. edulis (Supplementary Table S8). We also searched for the S-genes’ closest paralog in the two genomes. Our analysis revealed that all three S-genes and at least one of their paralogs shared a single ortholog in both Passiflora genomes. Our results suggest that the S-genes arose after the splitting of Turneroideae and Passifloroideae.
To determine if the S-genes arose sequentially, we located the S-genes’ closest paralogs in T. subulata. None of the S-genes’ closest paralogs reside on the same scaffold (Supplementary Table S4). Therefore, it is likely that the S-genes were duplicated independently in T. subulata. In an attempt to determine the order of acquisition, we calculated the synonymous substitution rates (Ks) of the three S-genes and their closest paralogs (Supplementary Figure S12) following the methods of Gutiérrez-Valencia et al. [4]. TsYUC6 in T. subulata has the greatest substitution rate (KS = 0.628 ± 0.076), followed by TsSPH1 (KS = 0.589 ± −0.128) and finally TsBAHD (KS = 0.511 ± 0.057). Limited data were available from the transcriptome of T. joelii where TjYUC6 had KS = 0.668 ± 0.08, comparable to that of T. subulata. We caution that this is an extremely preliminary analysis and would require further genome resources (e.g., well-assembled genome sequences for several distylous Turnera species) to mirror the more rigorous analysis carried out in Primula [11].

2.7. Expression Patterns of the BAHD and YUCCA Family

The expression patterns of YUCCA family members are generally organelle and tissue-specific [36,37], likely due to the number of critical roles that auxin plays. Previous analysis of the YUCCA family’s expression in Arabidopsis, maize, and rice suggests that ortholog expression differs between eudicots and monocots, but is similar between closely related species [38]. While the analysis by Matthes et al. [38] was not quantitative, such analyses can still provide meaningful insights into how expression patterns differ across species and aid in the formation of hypotheses regarding how gene families evolve within genomes [38]. Using similar methods, we wanted to determine if there were similarities in expression patterns of members of BAHD subclade IIIA and the YUCCA family in the floral tissues of Populus and Turnera compared to Arabidopsis. The SPH family was excluded, as the closest homologs of TsSPH are not expressed in floral tissues [16].
Several subgroups formed within BAHD subclade IIIA, each seeming to differ in expression pattern compared to other subgroups (Supplementary Figure S13). The group containing TsBAHD and BIA1 (AT4G15400) showed a range of expression patterns within the floral tissues, with many of the genes showing higher expression patterns in the younger pistil.
Our analysis of the YUCCA family suggests that there has been conservation of expression, and likely function, of subclades I and IIB, but not IIA (Supplementary Figure S14). There was strong conservation in expression patterns of subclades IIB between all three species and strong conservation of subclade I between Turnera and Populus. Most of the Turnera and Populus genes assigned to subclade I are not expressed in the stamen or pistil. Subclade Class I of the YUCCA family is involved with shoot development and embryogenesis in Arabidopsis [39], while subclade IIB is involved in floral development [34].
In Class IIB, Turnera and Populus homologs of AtYUC2 (AT5G25620) and AtYUC6 (AT5G25620) showed a tendency towards higher expression in the stamen, while homologs of AtYUC1 (AT4G32540) and AtYUC4 (AT5G11320) showed a tendency towards higher expression in the pistil.

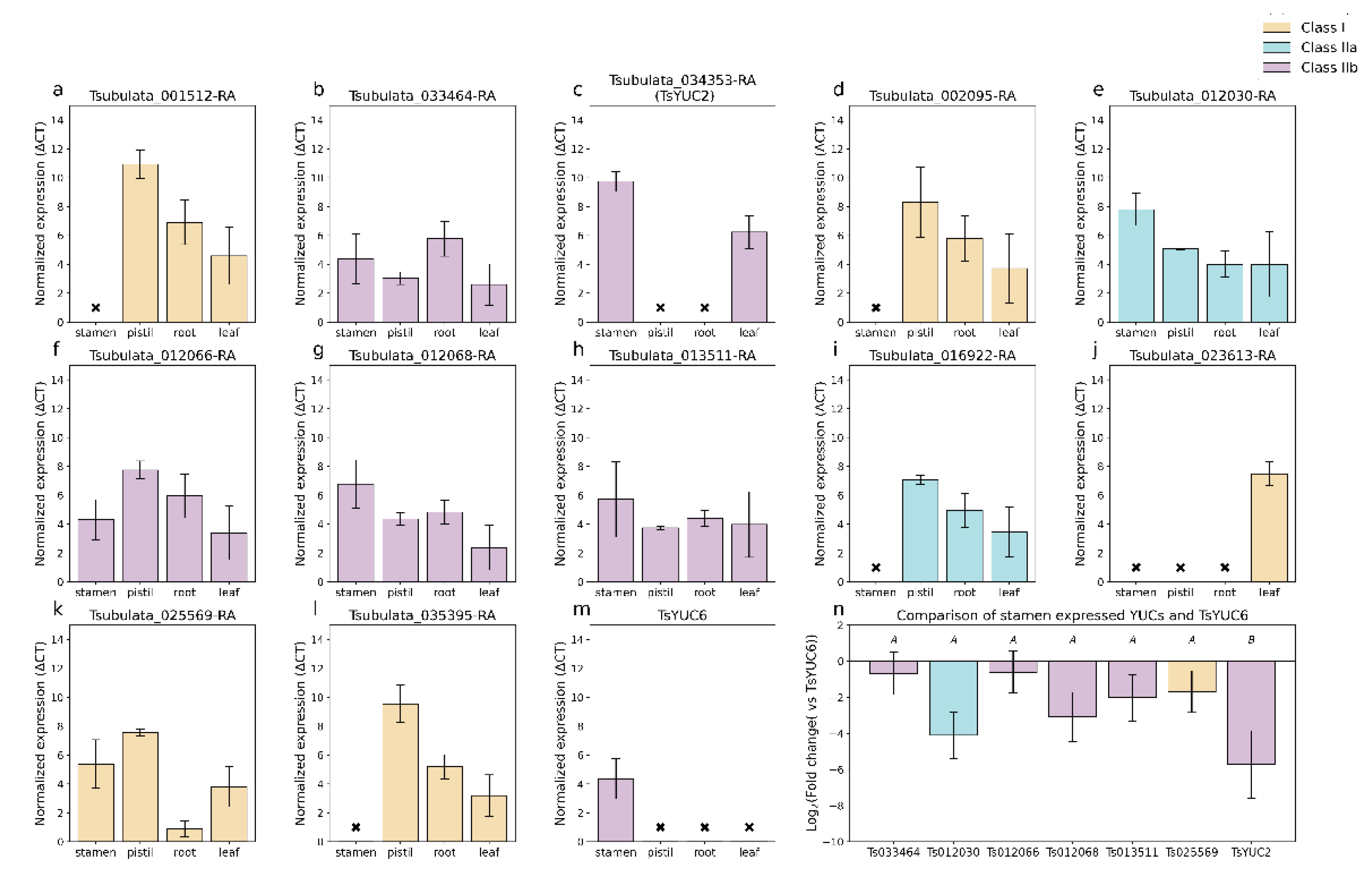

We used RT-qPCR to test hypotheses generated from previous analyses (Figure 8). For this analysis, we compared results with the tissue type that showed the highest expression level; our analysis was restricted to young leaves, apical roots, young pistils, and young stamens of the S-morph. Analysis was limited to the S-morph as the S-morph is hemizygous for the S-genes [3]. We opted to show averaged ΔCT values (i.e., normalized values) for Figure 8a–m, as we felt a comparison of expression of each gene across tissues did not accurately convey expression values. Note that ΔCT values are the inverse of expression levels (i.e., a high ΔCT value represents low expression).
Interestingly, many genes showed the highest expression in leaves (Figure 8a–j,l); this may suggest retention of the ancestral state as Class I and Class IIB in Arabidopsis are both involved in shoot development [39,40]. As we were particularly interested in TsYUC6, we compared expression values of the other stamen expressed genes with that of TsYUC6 (Figure 8n). While Tsubulata_012066-RA shows peak expression in the leaves, its expression level in the stamen is approximately the same as TsYUC6. Tsubulata_013511-RA shows greater divergence in expression patterns, with the highest expression in the leaves and the lowest in the stamen.
Expression of YUCCA family member Tsubulata_40978-RA was not evaluated as specific primers could not be designed. RT-qPCR analysis was attempted for close paralogs of the S-genes TsBAHD and TsSPH, but we could not confidently amplify these genes specifically due to high levels of homology with other gene family members.

2.8. Identifying Hypothetical Neofunctionalization of the S-Genes

OrthoVenn2 identifies orthologous groups shared between species based on sequence homology [41]. Hypothetically, genes that group with one another should share a similar function. Once orthologous groups have been identified, the program identifies paralogous groups from the remaining genes. Any gene that does not fall into a paralogous group is denoted as a singleton and hypothetically has a unique function. As this analysis is used to determine hypothetical deviation in function from other homologs, and changes in expression are generally perceived as the first step in neofunctionalization [42], i.e., the evolution of a novel function, one may conclude that conservation in function suggests a more recent duplication event.
Of the three S-genes, TsYUC6 and its closest paralog, Tsubulata_012066-RA, were both classified as singletons, while another close paralog, Tsubulata_013511-RA, falls into an orthologous group with the other five species (Supplementary Table S1). These results, in addition to our RT-qPCR and YUCCA gene phylogeny, may allude to complete neofunctionalization of Tsubulata_012066-RA and TsYUC6, i.e., in addition to altered expression, both may have developed an entirely new function. Furthermore, our results may suggest that Tsubulata_013511-RA has maintained the ancestral function of its AtYUC6 ortholog, i.e., general male fertility.
TsSPH1 formed a paralogous group with its five closest paralogs. Those TsSPH1 paralogs all neighbor one another on the same scaffold; thus, they likely evolved via tandem duplication events. Turnera and Passiflora SPHs are in separate “orthologous” groups, and our OrthoVenn2 results suggest the potential neofunctionalization of the Turneroideae group, either by changes in expression pattern, signaling tag, or in function.
TsBAHD is part of an orthologous group with Tsubulata_042462-RA and homologs from the five species studied, though the R. communis homologs (29929.m004719 and 29929.m004743) are severely truncated and one P. trichocarpa member (POPTR_010G056400v3) is missing a BAHD family conserved motif [43], suggesting that these latter three genes may be nonfunctional. RNA-seq data showed that Tsubulata_042462-RA is also expressed in floral tissues, though it shows a tendency towards expression during early development and is expressed in both stamens and pistils. Tsubulata_042465-RA was classified as a singleton and is not expressed in floral tissues. The expression patterns of Tsubulata_042465-RA and the OrthoVenn2 results suggest that TsBAHD has undergone complete neofunctionalization (i.e., change in expression pattern in addition to change in general function). TsBAHD’s expression profile, its synonymous substitution rate, and OrthoVenn2 results suggest that the gene is more similar to Tsubulata_042462-RA and that its neofunctionalization likely relies solely on changes in gene expression.
We used a series of bioinformatic tools to explore how the expression of TsBAHD may differ from Tsubulata_042462-RA. To predict subcellular localization based on Arabidopsis homology, we used WoLF PSORT [44]. Both TsBAHD and Tsubulata_042462-RA may localize to the nucleus or cytoplasm, though Tsubulata_042462-RA has a lower score and is apparently more promiscuous in terms of localization (Table 1). To investigate the potential effect of differences in cis-regulatory elements on the expression of TsBAHD and Tsubulata_042462-RA, we compared 1kb upstream regions of the two genes using PlantCARE [45]. We found tremendous differences between the upstream regions of the two genes (Figure 9, Supplementary Table S5).

3. Discussion

3.1. Repetitive Elements in the Turnera subulata Genome

Transposable elements (TE) are one of the driving forces of evolution, altering gene expression patterns [46,47,48], chromatin accessibility [45,49,50], and gene duplication and evolution [26,47]. It has been proposed that TEs may be the main driving force for genome evolution in several species, including Moso bamboo [51], Pinus tabuliformis [52], and Allium fistulosum [53]. The general importance of TE in the evolution of novel structures, such as fiber cells in cotton [46], flavor in onion [53], and self-compatibility in species of Capsella [54], may suggest they should be of interest in studies related to the evolution of the S-genes of distylous species. This is especially true considering that the S-loci of Primula [6], Turnera [3], and Linum [4] accumulate TEs.
Passiflora exhibits a wide range of genome size variation driven by the differential proliferation of Ty3/Gypsy (Ty3/gypsy-Tekay and Ty1/copia-Angela retrotransposons [26]. T. subulata has a genome size of 674.8 Mb, about twice the size of the smallest Passiflora genome (P. organensis 259 Mb) but considerably smaller than that of larger P. quadrangularis (2621 Mb) [26,55]. Interestingly, the repetitive sequence content of T. subulata is greater than other distylous species including Primula veris (46.07%) [11] and Linum tenue (49.36%) [4], a species with a comparable genome size of 702 Mb.
Class I repetitive elements were the most abundant (56.44%) in T. subulata, with COPIA elements making up 99.52 Mb or 17.73% of the genome. Similarly, 58.55% of repetitive elements fell into Class I in P. organensis; however, the majority fell into the subfamily GYPSY [25]. In both Primula veris and Linum tenue, Class I sequences were the most abundant, the majority of which were labeled as unclassified [4,11]. The large occurrence of GYPSY- and COPIA-type elements in Turnera and Passiflora is interesting, as these elements are potentially important for genome expansion [50]. Finally, a comparison of the S-locus haplotypes revealed a remarkable excess of TEs in the dominant vs. recessive haplotypes, consistent with expectations for TE element accumulation in non-recombining regions of genomes.

3.2. The S-Protein Homolog Gene Family Is Present in some Monocots

Previously, it was proposed by Rajaseker et al. that the SPH family may have been lost completely in monocots [33]. Our analysis of the SPH family initially identified SPH members only in non-seed plants, “primitive” angiosperms, and eudicots, but not monocots. It is possible that SPH homologs do occur in monocots but have diverged considerably in sequence and have gone unrecognized in annotations. It is documented that signaling peptides are under-annotated in model genomes, including Arabidopsis thaliana [56], Zea mays [57], and Vitis vinifera [58], and this is especially true for those with little sequence conservation [57]. As computational programs have difficulties annotating signaling peptides, and the SPH family has perhaps not been of particular interest outside of Papaver or Turnera, the family may be under-annotated in the species included in this analysis. This possibility is supported by the fact that in Arabidopsis, phylogenetic analysis has suggested that there are potentially 92 [33] to 100+ [59] SPH family members, but only 71 were annotated in the A. thaliana genome at the time of this analysis (Araport11 genome cDNA BLASTset 07-11-2019 release), suggesting that a significant number were missed in the process of annotation.
To determine if monocots have lost the SPH family, or if our analysis was biased by annotation issues in monocot genomes, we searched for family members across the monocot database on GenBank and CoGe. We identified four monocots, Elaeis guineensis, Asparagus officinalis, Dioscorea cayenesis (rotundata), and Eichhornia paniculata, that contain at least one SPH family member. These results suggest that the gene family may be present in other monocot families, and more detailed searches are required to verify the number of SPH genes in these and other monocot species. We found no evidence of SPH in the species of the Poales, suggesting that the gene family may have been lost from that lineage, though perhaps more rigorous searches are warranted.

3.3. The S-Locus Likely Evolved in Turneroideae via a Step-By-Step Manner Similar to the S-Loci from Primula and Linum

Kappel et al. [60] proposed two methods for how S-genes in distylous taxa are recruited to the pre-S-locus; sequentially via independent duplication events or via a segmental duplication event involving multiple (or all) S-genes. To determine if the S-locus arose by individual duplication events or a segmental duplication event, we identified the location of their closest paralogs in the T. subulata genome. The closest paralogs of all three S-genes reside on different scaffolds, suggesting that the S-genes must have arisen via three independent duplication events.
With the recent release of two Passiflora genomes [25,61], we were able to identify the location of the S-genes’ and their paralogs’ closest Passiflora orthologs. TsBAHD and its two closest homologs all shared a homolog in both species of Passiflora and TsYUC6 and its closest homolog shared a homolog in both species of Passiflora.
As the SPH family likely underwent several Turnera-specific duplication events, we examined six paralogs of SPH1, all of which neighbor one another on a scaffold; interestingly, while SPH1 shared the same P. organensis ortholog with three of its paralogs, it only shared a P. edulis ortholog with one of its paralogs, and this may be due to low conservation in sequence or perhaps gene loss. P. organensis apparently also has a region of its genome that contains the Turnera orthologs. Interestingly, phylogenetic analysis of these two regions suggests they evolved independently in Passiflora and Turnera, potentially suggesting that the region is prone to duplication events of SPH.
Our results suggest all three S-genes underwent duplication events after the divergence of Turneroideae and Passifloroideae, approximately 39.8–65.5 million years ago [62,63]. Additional genomic resources will be required to estimate the time of the duplication events.
To further test this hypothesis, we compared synonymous substitution rates between the three S-genes and their closest paralogs (for SPH and BAHD, the closest paralog was determined by calculating the synonymous substitution rate between the S-gene and all potential paralogs, the paralog with the smallest substitution rate was determined to be the closest paralog). We found varying rates across the three S-genes; TsYUC6 showed the highest rate of synonymous substitution while TsBAHD showed the smallest. We also calculated synonymous substitution rates for a Turnera joelii S-gene and its respective paralog. Unfortunately, because only RNA-seq data from floral tissue are available, we could not perform this analysis for TjBAHD or TjSPH1, as the closest paralog to TjBAHD was artificially truncated and the closest paralogs to TjSPH1 are not expressed in floral tissues. TjYUC6 did show synonymous substitution rates similar to TsYUC6 in T. subulata, supporting the analysis for the YUC6 paralogs. We caution that this is an extremely preliminary analysis and additional genome resources would be required (e.g., well-assembled genomes for several distylous Turnera species) to mirror the more rigorous analysis carried out in Primula [11].

3.4. TsBAHD and TsSPH1 Likely Retained Their Ancestral Function, While TsYUC6 Likely Has Undergone Alteration of Function

The three S-genes likely arose via proximal, transposition, or dispersion duplication as they do not reside next to their closest paralogs; hence, it is likely that they have differences in, or entirely different, promoters than their closest paralogs, which would result in alterations of their expression patterns [42]. As such, deviation from their ancestral expression patterns is anticipated, but a complete change in function is not required for these genes to gain functionality in heterostyly.
Comparison of the S-genes’ expression patterns with their closest paralogs or orthologs may provide insight into their evolutionary history. Comparison of orthologous and paralogous groups may also provide insights into whether the S-genes may have hypothetically diverged from their ancestral function(s).
Our OrthoVenn2 results coupled with expression patterns suggest that TsYUC6 and Tsubulata_012066-RA may have evolved new functions; however, it is likely that TsYUC6 and Tsubulata_012066-RA, biochemically, are both still involved in the tryptophan-dependent auxin biosynthesis pathway. Knocking down TjYUC6 in distylous Turnera joelii alters the expression of auxin-related genes [15], as expected for a gene involved in auxin metabolism. In addition, to our knowledge, all YUCCA family members characterized to date are enzymatically involved in the tryptophan-dependent auxin biosynthesis pathway. Hence, the results presented here suggest that additional research is warranted to fully characterize the enzymatic and biochemical properties of TsYUC6 and Tsubulata_012066-RA.
TsSPH1 and its paralogs formed a paralogous group, suggesting a shared function of the group that differs from the other analyzed species. It is not surprising that the paralogs may share a function, as they likely evolved via tandem duplication events based on their genomic locations [42]; this is not the case for TsSPH1, as it resides on a different genomic scaffold. TsSPH1’s new genomic location may have altered its expression pattern, i.e., filament expression, as close paralogs are not expressed in the stamen or pistils of T. subulata or T. joelii [16]. This suggests that its role in distyly is likely a result of alteration in expression profile rather than in biochemical function.
TsBAHD formed an orthologous group composed of proteins from all of the analyzed species. This suggests a much smaller degree of divergence than observed in the other S-genes, supporting the hypothetical order of origin of the S-genes. Our results suggest that the origin of TsBAHD is similar to that of TsSPH1, i.e., TsBAHD has retained its ancestral biochemical function and the alteration of expression pattern is responsible for neofunctionalization of this gene. This is supported by the heterologous expression of TsBAHD and TkBAHD, an ortholog from distylous Turnera krapovickasii. Heterologous expression of these genes in Arabidopsis thaliana resulted in a dwarf phenotype and alteration in the expression of BR-responsive genes [13,14], similar to its Arabidopsis homolog BIA1 [64].
These findings suggest that the ancestral role of AtBIA1, TsBAHD, and close paralogs was to regulate or respond to BR levels, perhaps in floral tissues. Two close paralogs, AT5G47980 [65,66] and AT3G26040 [67], are likely regulated by cytokinin (CK). Changes in expression in response to CK are of interest as there is considerable cross-talk between BR and CK, typically involving the two phytohormones working in conjunction [68]. Additionally, one member of this group, AT5G23970, is a flower-specific gene [69].

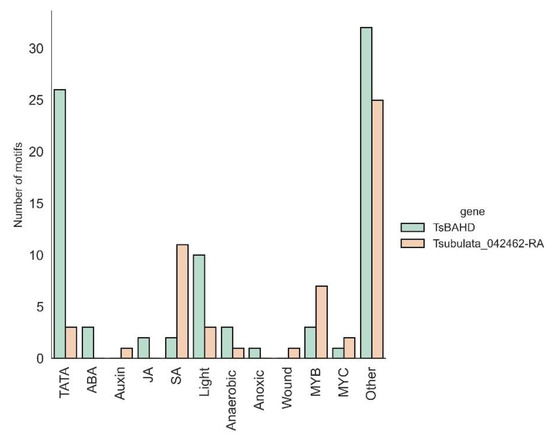

As TsBAHD and Tsubulata_042462-RA are both expressed in the pistil throughout development, neofunctionalization of TsBAHD may rely heavily on subcellular-localized expression or differences in the promoter. While both enzymes are anticipated to localize to the nucleus and cytosol, though Tsubulata_042462-RA to a lower extent, we did identify several differences in the 1 kb upstream regions of the two genes. The abundance of salicylic acid (SA)-related motifs in Tsubulata_042462-RA may suggest that its expression is heavily regulated by SA, potentially suggesting that Tsubulata_042462-RA is involved in stress tolerance or pathogen defense, as SA is known to regulate genes related to stress and pathogen response [70]. As other members of the BAHD family are involved in plant immunity [71], it would not be farfetched to hypothesize that Tsubulata_042462-RA is involved in pathogen defense. If this is the case, it would suggest that BAHD’s SI response/self-recognition may have evolved from a pathogen recognition system, though this is highly speculative. Interestingly, many light-responsive motifs were identified in BAHD’s promoter region. This is of particular interest, as it has been proposed that PIF signaling hubs, which initiate growth in response to light, are repressed in the style of the S-morph, potentially due to inactivation of BR by BAHD [16].

4. Materials and Methods

4.1. Genome Assembly

gDNA of T. subulata (plant F60SS;3) was isolated from nuclei to minimize organellar DNA contamination [72] as follows: Young leaves were ground directly in liquid nitrogen. Ground plant material was resuspended in nuclei isolation buffer and filtered with a Miracloth (Millipore). Triton X-100 was added to lyse any organelles. Samples were then centrifuged to pellet nuclei. Finally, gDNA was extracted using the previously described CTAB extraction protocol [73].
Three libraries were constructed: a PCR-free Illumina shotgun library (average insert size of ~450 bp) sequenced with Illumina HiSeq Rapid PE250 and two Nextera mate pair libraries (insert size ~5 kb), the first of which was sequenced with Illumina HiSeq Rapid PE250, and the second using Illumina HiSeq 2500 PE125 (Supplementary Table S6).
Default parameters were used for all software, including those used in annotation, unless otherwise noted. De novo assembly of reads from the PCR-free Illumina shotgun library was carried out using DISCOVAR de novo (v.2013) [74]. The resulting contigs were then scaffolded using the mate pair reads which were first filtered with NextCLIP [75]. Scaffolding was performed using SSPACE [76] (minimum links = 3, maximum link ratio = 0.85), and gaps were then filled using GapCloser (v.1.12) [77] (max read length = 155 bp). An additional round of scaffolding was finally performed.

4.2. Genome Annotation

Only scaffolds 10 kb or greater in size were annotated, as smaller ones rarely contained genes. We used portions of the pipelines of both Funannotate (v1.7.4) [78] and MAKER (v.2.31.8) [79] for genome annotation (Supplementary Figure S15) as described below.
A Turnera subulata-specific repeat library was generated using RepeatModeler (v.1.0.9) [80]. This library was combined with a library of plant-specific repeat elements [81] before being used as input to RepeatMasker (v.4.0.7) [82] for scaffold masking.
The Funannotate pipeline was used to generate a genome-guided RNA-seq assembly (PASA v2.4.1; Trinity v2.8.5) [83,84] using the RNA-seq reads from all the previously published T. subulata S-morph samples (PRJNA589060). A total of 320,484,056 trimmed read pairs were normalized (yielding 13,442,338 read pairs) and used in a genome-guided transcriptome assembly.
Next, we trained two in silico gene predictors, Snap and AUGUSTUS. Snap (v. 2006-07-28) [85] was trained using PASA gene models in Funannotate. BRAKER (v.2.1.4) [86] was used to train AUGUSTUS (v3.3.3) parameters [87] using eight iterations to optimize AUGUSTUS parameters.
MAKER (v.2.31.8) [88] was used for gene prediction with the option to use tRNAscan-SE [89] for tRNA gene annotation. In addition to the earlier generated items (see above and Supplementary Figure S15), we provided a protein database composed of all protein sequences from the Arabidopsis thaliana TAIR10 collection (v.2019-97-11) [90], Populus trichocarpa (UP000006729) and Vitis vinifera (UP000009183). These represent proteins from three well-annotated genomes with both P. trichocarpa and Vitis vinifera from the same order (Malpighiales) as Turnera.
We examined genes/proteins predicted by MAKER [89] and used InterProScan (v.5.40-77.0) [91] to identify Pfam domains in the predicted proteins and SignalP to identify signaling peptides (v.4.1) [92]. We filtered the proteins, inspecting both their Annotation Edit Distance scores (AED) and whether they possessed a Pfam domain. AED estimates the quality of prediction [88]; an AED score of 0 indicates a perfect fit, while 1 indicates a lack of fit. Genes with AED scores of 1.0 were removed, unless they possessed a Pfam domain, following the recommendation in Campbell et al. 2014 (basic protocol 5).
Despite our efforts to repeat-mask the genome, some predicted proteins/genes possessed Pfam domains, indicating they were likely TEs. We removed those proteins/genes from the final annotation. The remaining set of genes/proteins and tRNAs were then formatted for input to Funannotate, for final preparation of the annotation.
We used the annotate command of Funannotate, and input the filtered genes/proteins and tRNAs from MAKER, InterProScan results, and annotation information from EggNOG (v5.0) [93]. We ran the command line program tbl2asn (NCBI) to flag any errors in the annotation format prior to genome submission. Genes flagged were further edited as necessary, using BLAST and FGENESH+ [94] to infer intron/exon splice sites.
We used the PiRATE pipeline [95] to detect, classify, and enumerate various kinds of transposable elements in the genome.

4.3. Putative BAHD, SPH, and YUCCA Identification in Turnera subulata

Predicted BAHD acyltransferase, Self-incompatibility Protein Homolog (SPH), and YUCCA family members were pulled from the annotated T. subulata genome (PRJNA626617). To confirm that the putative BAHD and YUCCA are part of their respective predicted families, FIMO (version 5.3.3) of the MEME suite [96] was used with default settings to identify the previously described BAHD [43] and YUCCA family [97] motifs. Proteins whose predicted motifs had a p-value of < 0.05 were considered for further analysis.
As the conserved region of the SPH family is ambiguous [33], potential members of the SPH family were confirmed using sequence homology with A. thaliana genes labeled as SPH (Araport11 genome cDNA blastset 07-11-2019 release). For further confirmation, peptide sequences were examined for typical structural features of the SPH family [33]. Secondary structures of the putative SPH members were predicted using NetSurfP-2.0 on default settings [98] to identify β-strands.

4.4. Data retrieval, Alignment, and Phylogenetic Analysis

All sequences annotated as members of the BAHD, SPH, or YUCCA families were downloaded from Phytozome (V. 12.1.6) [99]; this included 56 plant species ranging from nonvascular plants to eudicots (Supplementary Figure S4). Sequences were aligned using Muscle (version 3.8.31) [100]. Problematic sequences (those that appeared to be partial, containing potential but ambiguous introns, did not align well, or were missing the family motifs) were removed from further analyses. As the aspartic acid residue of the DFGWG motif is predicted to be involved in proper formation of the solvent channel of BAHD [101], any protein whose DFGWG domain had non-conserved amino acid substitutions was removed from further analysis.
Maximum likelihood gene family trees were generated using RAxML [102] on the CIPRES Science Gateway server. A total of 100 bootstrap replicates were used for all trees. T. subulata-specific gene trees were generated using MEGA X [103]. The peptide sequences for each gene were first aligned using MUSCLE. A maximum likelihood tree was then generated using the bootstrap method (1000 replicates); all other settings used were left on default.
To identify potential duplication events prior to the divergence of Turnera and Passiflora, CoGE:Blast [104] was used to identify the location of the S-genes’ closest homologs in the recently published Passiflora edulis [60] and P. organensis [25] genomes.
OrthoVenn2 was used to identify orthologous clusters shared between P. edulis [60], P. organensis [25], Populus trichocarpa, Manihot esculenta, and Ricinus communis. Both Passiflora datasets were downloaded from CoGE:Blast; R. communis [21] was downloaded from Phytozome. P. trichocarpa and M. esculenta datasets are currently available in OrthoVenn2. Identification of orthologous clusters provides information on the quality of annotation and can aid in the identification of GO terms important for species of interest.
Synonymous substitution rates were determined using methods outlined in Gutiérrez-Valencia et al. 2022 with slight modifications. Codons were aligned using Clustal and substitution rates were calculated using the Nei–Gojobori method with 1000 bootstrap replicates using MEGA11 [30]. Standard errors are based on the 1000 replicates.

4.5. Expression Comparison across Turnera, Populus, and Arabidopsis

Expression data from T. subulata (PRJNA589060) [16], A. thaliana [105], and P. trichocarpa were downloaded from Phytozome. Expression ratios were determined by summing expression data for a given gene and assigning percentage values.

4.6. RT-qPCR Analysis of Putative YUCCA Family Members

Turnera subulata (4x) was grown in greenhouse conditions (Pullman, WA, USA). Three biological replicates of stamen and pistils from immature buds (3 mm), immature leaves (10 mm), and root apex were collected. RNA isolation, cDNA synthesis, and RT-qPCR were performed as previously described [16]. RT-qPCR results were normalized using the housekeeping genes UEV1D and β-Tubulin. Primers and RT-qPCR conditions can be found in Supplementary Tables S7 and S8.

5. Conclusions

Here, we present the annotation of the draft genome of Turnera subulata, a valuable resource for future comparative studies. Additionally, we present the first phylogenetic analysis of the BAHD, SPH, and YUCCA gene families in T. subulata. Our analyses support and refine the placement of the S-genes in their respective gene families, clarifying paralog relationships. These results support the function of TsBAHD as an acyltransferase involved in BR degradation [13,14], similar to its Arabidopsis homolog BIA1 [63]; TsSPH1 as a cysteine-rich signaling peptide; and TsYUC6 as a flavin-containing monooxygenase, similar to its Arabidopsis homolog YUC6 [106].
Our analyses suggest that the three S-genes were acquired independently via three separate duplication events after the divergence of Turneroideae and Passifloroideae, as the S-genes and their respective paralog(s) share a single homolog in two Passiflora genomes. Identification of the S-gene paralogs suggests that the S-locus evolved in a step-by-step manner, similar to that of Primula and Linum. Analysis of orthologs and expression patterns suggests that TsYUC6 is the only S-gene to have possibly evolved a new function; the neofunctionalization of TsSPH1 and TsBAHD likely relies solely on alterations in expression patterns. Further sequencing and chromosome-level assembly of other related genomes will be necessary to characterize the origin of the S-locus with greater confidence in Turnera.

Supplementary Materials

The following supporting information can be downloaded at:, Table S1: OrthoVenn2 generated clusters containing S-genes; Table S2: Updated nomenclature for previously identified differentially expressed genes; Table S3: CoGE:BLAST identified paralogs in Passiflora organensis and Passiflora edulis; Table S4: Members of the BAHD, SPH, and YUCCA families residing on the same scaffold; Table S5: Cis-regulatory Element Motifs in the 1 kb upstream region of TsBAHD and Tsubulata_042462-RA; Table S6: Information regarding library construction; Table S7: ABI conditions for RT-qPCR; Table S8: Primers used in RT-qPCR; Figure S1: Synteny of the region flanking the S-locus with closely related species; Figure S2: Distribution of synonymous substation rates of genes flanking the S-locus; Figure S3: OrthoVenn2 results of the Turneroideae and Passifloroideae comparison; Figure S4: Common tree of species used across phylogenetic analyses; Figure S5: Phylogenetic tree of the BAHD family across species downloaded from Phytozome; Figure S6: Phylogenetic relationship and motif annotations of putative BAHD family members in Turnera subulata; Figure S7: Phylogenetic tree of the SPH family across species downloaded from Phytozome; Figure S8: Phylogenetic relationship and predicted secondary structure annotations of putative SPH family members in Turnera subulata; Figure S9: Phylogeny of the SPHs in Passiflora and Turnera; Figure S10: Phylogenetic tree of the YUCCA family across species downloaded from Phytozome; Figure S11: Phylogenetic relationship and motif annotations of putative YUCCA family members in Turnera subulata; Figure S12: Synonymous substitution rates (Ks) for the three S-genes relative to their closest paralogs; Figure S13: Comparative analysis of the expression of the IIIA subclade of the BAHD family across Arabidopsis thaliana, Populus trichocarpa, and Turnera subulata; Figure S14: Comparative analysis of the expression of the Yucca family across Arabidopsis thaliana, Populus trichocarpa, and Turnera subulata; Figure S15: Pipeline used for genome annotation. References [107, 108] are references in the supplemental material.

Author Contributions

Conceptualization, J.S.S. and P.M.H.; methodology, J.S.S., E.H.R., W.M. and P.M.H.; software, J.S.S., E.H.R., W.M. and P.M.H.; data curation J.S.S. and P.M.H.; validation P.M.H.; visualization, P.M.H.; original draft preparation, P.M.H.; review and editing A.G.M. and J.S.S.; supervision, A.G.M. and J.S.S. All authors have read and agreed to the published version of the manuscript.


This work was supported by a Discovery Grant from the Natural Sciences and Engineering Research Council of Canada to J.S.S.

Data Availability Statement

The annotated genome of Turnera subulata has been uploaded to NCBI’s GenBank (PRJNA626617).


We thank greenhouse managers Chuck Cody and Amanda Linskey for the maintenance of plants at WSU.

Conflicts of Interest

The authors declare no conflict of interest.
