Article

The Impact of Nitrogen on the Yield Formation of Artemisia dubia Wall: Efficiency and Assessment of Energy Parameters

by
Gintaras Šiaudinis
1,*,
Algirdas Jasinskas
2,
Danutė Karčauskienė
1,
Regina Skuodienė
1 and
Regina Repšienė
1
1
Vėžaičiai Branch of the Lithuanian Research Centre for Agriculture and Forestry, Gargždų 29, LT-96216 Vėžaičiai, Lithuania
2
Department of Agricultural Engineering and Safety, Faculty of Engineering, Agriculture Academy, Vytautas Magnus University, Studentu Street 15A, LT-53362 Akademija, Lithuania
*
Author to whom correspondence should be addressed.
Plants 2023, 12(13), 2441; https://doi.org/10.3390/plants12132441
Submission received: 31 May 2023 / Revised: 19 June 2023 / Accepted: 20 June 2023 / Published: 25 June 2023

Abstract

:
With the increasing importance of energy crops, research on potential energy crops is carried out to identify plant species with high productivity and energy value. The field experiment with the new promising energy crop, Artemisia dubia (wormwood), was executed at the Vėžaičiai Branch of the LAMMC. The soil site was naturally acidic Retisol (pH 4.2–4.4). The species was investigated as an energy crop through the evaluation of its biomass productivity and some energetical qualities. According to the three investigation years, DM yield significantly varied depending on the growing season, cutting time and nitrogen rate. The highest average DM yield was observed in 2020—10.58 t ha−1. On average, the DM yield varied from 6.49 t ha−1 (first cutting) to 11.82 t ha−1 (third cutting). The DM yield was positively correlated with stem height and the mass of one stem. Nitrogen use efficiency (NUE) depended on the growing season, cutting time and nitrogen rate. Both N90 and N180 rates should be used for A. dubia fertilization. Energy growing analysis (including direct and indirect expenses) revealed that the highest share of energy expenses are due to indirect energy expenses (particularly nitrogen application). EUE (energy utilization efficiency) tends to decrease as a result of increasing nitrogen fertilization. Overall, A. dubia granules are characterized by a high calorific value.

1. Introduction

To mitigate climate change and reduce the importance of fossil fuels, the role of plant biomass in overall energy production is increasing every year. In 2018, EU leaders have set a goal to achieve the share of energy from renewable sources making up 32% of the final energy consumption of the European Union by 2030 [1]. In the long term, the successful propagation of energy crops should ensure species diversity, save non-renewable resources, additional jobs and income, sustainability and energy security [2,3]. Energy crop studies are being conducted at research institutions in various countries to identify and evaluate plant species suitable for different types of biofuels, focusing on local and non-native species, and their ability to produce high annual biomass yields with their high energetic value [4,5].
At the Lithuanian Research Centre for Agriculture and Forestry (LAMMC), research on different local and introduced energy crop species has been conducted over a period of two decades. Artemisia dubia Wall. (wormwood) is among the plant species studied. Plants of the Artemisia genus are classified within published US and British sources as plants of the future due to their wide application in the food industry and medicine [6,7]. A. dubia L. (wormwood) as a species is naturally being grown in countries such as China, Nepal and Pakistan [8]. The widespread application of these plants is due to the constituents of essential oils found within them, which have rare insecticidal, antimicrobial and antiparasitic properties [9,10]. The species was studied as an allelopathic plant, and its biomass feedstock for the food industry, phytochemistry or pharmacology. Fibrous materials are also found in biomass [11,12,13]. In Lithuania, A. dubia began to be studied as an energy crop relatively recently. Here, some agronomic and energetic issues were evaluated.
Nitrogen, as a vital nutrient element, on plant productivity has been studied in numerous studies [14,15]. In this respect, the influence of mineral (particularly nitrogen) and organic fertilizers on A. dubia productivity was studied at two different locations in Lithuania. The obtained results show that the influence of nitrogen fertilizers on A. dubia productivity varies greatly and depends on the soil characteristics of the studied area. A. dubia productivity is also influenced by the year of growth and the climatic regime [16,17]. Nevertheless, the obtained results show that A. dubia is a high-yielding species and its productivity is comparable to that of other coarse plants, such as Sida hermaphrodita and Miscanthus giganteus [18,19]. Recently, field experiments with A. dubia also began in western Lithuania (LAMMC Vėžaičiai Branch). However, we did not find any data on whether A. dubia was grown and studied as an energy crop in other countries.
From a different perspective, to not compete with traditional food crops, alternative non-food crops or energy crops might be grown on the so-called “marginal land”, which is less suitable or unprofitable for the traditional farming land [20,21]. Despite there being different soil types in western Lithuania, natural acid soils are prevailing in this region. Due to the high natural acidity of such a type of soil, the cultivation of many traditional agricultural crops is not profitable. As such, the acidic soils must be periodically limed or fertilized by organic substances [22]. Alongside that, some land plots may be designated for energy crop cultivation. According to the above-mentioned scientific sources, A. dubia is a high-yielding species. No data were found on how to successfully grow A. dubia and what their productivity is when growing them in acidic soil. When initiating these studies, we wanted to find out how A. dubia tolerates an acidic soil environment and what A. dubia biomass productivity is like when cultivating in Retisol.
Since A. dubia was studied as an energy crop, the second task of this work was to evaluate the energy analysis of cultivation, and assess the chemical analysis, as well as the calorific value of the biomass.

2. Results

2.1. Meteorological Conditions

In 2019, there was less rain in June and August, while in July and September, the amount of precipitation was appr. twice as high (Figure 1). The amount of precipitation per vegetation was350 mm and ATS (active temperature sums higher than 10 °C) 2419 °C. In 2020, the beginning of the growing season (April–May) was quite cool. The rainfall was also low, with the highest amount falling in June. In the following months, the quantity of rainfall decreased somewhat. The total amount of precipitation was similar to the amount of the previous year, i.e., 328 mm, and the ATS 2250 °C. In 2021, the cool period in April–May and very warm period in June–July can be distinguished. It did not rain much, but since the middle of August, it rained heavily. As for the 2021 vegetation, the annual amount of precipitation was 410 mm and the ATC was 2317 °C.
The soil moisture reserves in the soil varied greatly depending on the year. However, there was not a single year in which there was no periodic moisture deficiency in the topsoil (compared to the optimum for plant growth at a 17% topsoil moisture level). Usually, the most noticeable decrease in the moisture content was during intensive growth in the first half of vegetations. Characteristically, moisture reserves in the soil were the lowest in June. The greatest lack of moisture was observed during the 2021 vegetation period.

2.2. Artemisia dubia Yield Parameters, DM Yield and NUE

The data of Fisher’s criterion mean squares reveal that the stem height positively depended on factors such as growing year (Factor A), cutting time (Factor B), nitrogen fertilization (Factor C) and the interaction of the year × nitrogen rate (A × C) (p ≤ 0.01) (Table 1). However, the number of stems was not affected by any of the investigated factors at any level of significance. All three factors, as well as year x number of cutting time (A × B) and year × nitrogen rate (A × C) interactions, had a significant and positive impact on the mass of one stem and the DM yield (all at p ≤ 0.01). As a parameter, the nitrogen utilization efficiency (NUE) was significantly influenced by the year (Factor A), nitrogen fertilization (Factor B) and their mutual interaction; the remaining factors had no significant impact on the parameter. It can also be noticed that the cutting time x nitrogen application rate (B × C) interaction, as well as the interaction of all three factors (A × B × C), was not significant.
As seen from the results in Figure 2, stem height as a parameter was highly variable. In 2019, i.e., the first harvestable year, Artemisia dubia stem height averaged 160 cm. However, the average stem height gradually decreased during the second two growing seasons down to 142 and 136 cm, respectively, in 2020 and 2021. Concerning the time of cutting, the stem height significantly increased from 103 to 176 cm. The highest stems were observed at the beginning of vegetation (first week of October). This means that A. dubia plants do not produce inflorescences and their stems grow throughout the whole vegetation. All differences are significant at the 95% probability level. The application of N90 was the optimal rate for stem height. Thus, the additional use of the N90 rate after the first cutting (applying N180 annual nitrogen rate) had no significant impact on the stem height.
If we look at the data of other authors, the cutting time and nitrogen increase the stem height just slightly [19].
The year the Artemisia dubia was planted (in 2018), it did not form any lateral stems. Contrastingly, during the second growing year (i.e., in 2019), due to the extremely rapid spreading ability into space with the help of rhizomes, A. dubia reached a high number of stems which was not significantly changed during the next growing season (Figure 3). Thus, the average number of stems per m2 varied between 85.56 and 87.78. By delaying the time of cutting, an interesting trend appears, whereby the number of stems had a decreasing tension from 90.07 to 82.59. This indicates that due to competition among adjacent growing stems, their number tends to decrease gradually. The use of nitrogen fertilizers also had a positive impact on the stem density. However, the increase was not significant at the 95% probability level.
Research held at the Vokė Branch of the LAMMC also indicates that irrespective of the nitrogen fertilization rates, the branching ability of A. dubia increased during the second growing season. The species produced 75–113 stems m−2 stems, on average. At the end of the third growing season, the number of stems reached 107–131 stems m−2. However, the effect of mineral nitrogen fertilization on stem density was insufficient [16].
After reaching the maximum DM yield (10.58 t ha−1) increase (in 2020), the yield of A. dubia decreased sharply during the following year, down to 7.52 t ha−1 (in 2021) (Figure 4). The differences in the total DM yield between experimental years are statistically reliable at a 95% probability level. Overall, in 2020, meteorological conditions (especially the moisture content in soil) were favorable for biomass formation and its accumulation. A. dubia does not form florets. Consequently, DM accumulation (particularly stem growth) occurs evenly throughout the whole vegetation period. Despite higher temperatures during the 2021 growing season, the growing conditions were less favorable for the crops growing and biomass accumulation because of the serious moisture lack within the topsoil layer. Biomass accumulation was mostly slowed down by a very low soil moisture in July and the first two week of August (during intense growth). The results indicate that the DM increment highly varied in the dependence on cutting time (end of June (first cutting), middle of August (second cutting) or beginning of October (third cutting)). Naturally, the lowest DM yield was fixed at the first cutting, at 6.49 t ha−1 on average. When A. dubia biomass yield was cut at the end of the growing season (i.e., beginning of October), the average DM yield increased almost twice, i.e., up to 11.82 t ha−1. In comparison with unfertilized plots, the N90 annual application rate caused an increase in the DM yield up to 9.02 t ha−1 (by 23%) and that of N180 up to 10.64 t ha−1 (by 45%).
The DM yield positively correlated with stem height, with +0.67, and the mass of one stem, with +0.87. There was no mutual correlation between the yield and stem density.
The high variation between seasonal A. dubia biomass yield was also observed in central Lithuania (soil—sandy Endocalcari-Epihypogleyic Cambisol (CMg-p-w-can)), grown on an Endocalcari-Epihypogleyic Cambisol (CMg-p-w-can) soil (pHKCl~6.56). Similar to our experiment, the highest A. dubia productivity was recorded during the second growing season, at 22.4 to 27.0 t ha−1. However, the DM yield sharply decreased during the third growing year, down to 14.9–16.5 t ha−1 [23]. Additionally, the highest biomass yield was reached in A. dubia swards with a nitrogen fertilization rate of N170 kg [19].
In contrast, data from an experiment held in eastern Lithuania (soil—sandy loam Haplic Luvisols (pHKCl 5.6–5.7)) show that when using a N90P60K90 fertilization rate, the DM yield varied from 10.15 (second growing year) to 11.13 t ha−1 (third growing year) [16].
The NUE (nitrogen utilization efficiency) was the lowest during the first growing year, at 3.01 (Figure 5). This can be explained by the fact that there was still a sufficient reserve of nitrogen as a nutrient in the experimental upper soil layer. In this respect, the nitrogen efficiency during the first year of growth was not very significant. The influence of nitrogen fertilizers increased significantly in the following 2 years, up to 26.35 (in 2020) and 32.25 (in 2021). Since A. dubia stems grow throughout the whole vegetation period, the time of harvest had a very important influence on the NUE indicator (significant at the 95% probability level). In this way, at the end of the growing season (third cutting), the NUE values were the highest (significant at the 95% probability level), at 24.16 on average. The application of both nitrogen rates (N90 and N180) had a very similar impact of 18.71 and 18.35, respectively. This means that even in the case of the highest nitrogen application (N180), the increase in above-ground biomass (DM t ha−1) yield growth did not show a decreasing trend.
The obtained results indicate that both fertilization rates (N90 and N180) could be used for A. dubia fertilization.

2.3. Cultivation Technology Energetical Analysis

An indirect energy input consists of energy embodied in fertilizers and herbicides. Energy equivalents are used to express the input of energy related to the manufacture of fertilizers, considering the initial energy costs [24]. The indirect energy costs (or energy input) are presented in Table 2. The share of pesticides (herbicides) is low; they constitute just 864 MJ ha−1. The share of mineral fertilizers is much higher. Depending on the nitrogen fertilization level (N0, N90 or N180), indirect energy inputs varied from 2384 to 10,862 MJ ha−1, respectively. In other words, the share of energy embedded in nitrogen fertilizers was 0, 70.1 and 87.5%. Since there are a lot of energy equivalents we can find in scientific publications, the energy equivalents of the mineral N have a tendency to decreased over the years.
By calculating the direct energy expenses of A. dubia growth technology, we included the energy costs of agricultural tillage operations during the experiment setup, maintenance, biomass harvesting and harvesting. The following agricultural operations were used during the establishment of the experiment: experimental plot application by herbicide Roundup and the following ploughing (in autumn 2017). The next spring, the following field operations were performed: combined tillage (cultivation with arrowing (in April 2018)), seedling planting (at the beginning of June), interrow cultivation (once in the middle of July), fertilizer spreading (not at the experiment establishment year, but during the following three years), cutting biomass and transporting it to the storage place, as well as the machinery energy expenses for these operations (Table 3). The direct energy expenses in the first year of installation of the experiment are not high. They are substantial during the harvestable years. The share of human work expenses is negligible. When evaluating the technologies from a qualitative point of view, the yield loss can reach 10–15% [25,26]. The energy equivalent for 1 litre of diesel is 36 MJ ha−1.
To set up the experiment, the total energy expenses constituted 2816 MJ ha−1. On average per one harvestable year, the energy inputs were significantly higher and varied from 7015 to 16,939 MJ ha−1. All the differences in the energy input are due to indirect energy costs (nitrogen fertilization).
The energy input (or energetical expenses), depending on the treatment, varied from 9.83 to 19.76 GJ ha−1 (Table 4). Mineral fertilizers (particularly nitrogen) increased the share of the energy input from 24.25% (without nitrogen application) to 54.98% (with N180 application).
The energy output was calculated by multiplying the calorific value (GJ ha−1) by the average three-year DM (t ha−1) yield. The application of N180 caused an increase in the energy output up to 193.71 (GJ ha−1) (or by 43.79% compared with unfertilized plants). Nevertheless, the EUE (energy use efficiency) decreased because of nitrogen fertilization, from 13.70 (N0) down to 9.80 (N180). Usually, the EUE is higher on bigger farms. Energy efficiency is an important factor concerning the sustainable or economic use of energy [27].

2.4. Energy Value and Elemental Content

As seen, the A. dubia biomass calorific value (MJ kg−1) was statistically unchanged, irrespective of the cutting time (Table 5). As the result of nitrogen (N180) application to A. dubia, the calorific value (both lower and higher) (MJ kg−1) was slightly lower. Naturally, as the result of nitrogen application, the nitrogen content in biomass was somewhat higher than that of A. dubia biomass obtained from unfertilized plots. It seems that there is an inverse correlation between the nitrogen content and calorific value. This trend is specific for all treatments, irrespective of the cutting time. Other authors indicated that A. dubia has a high caloric value; however, nitrogen application has no significant impact on its calorific value [17]. The variation in the carbon (C) and hydrogen (H) content within biomass was negligible and statistically non-significant.

3. Materials and Methods

The field experiment with the energy crop Artemisia dubia Wall. (wormwood) was conducted at the Vėžaičiai Branch of Institute of Agriculture, Lithuanian Research Centre for Agriculture and Forestry in 2018–2021. The research area is locating in western Lithuania, on the eastern edge of the seaside lowland (55°430 N, 21°270 E), 70 m above sea level. The study area is naturally an acid moraine loam, Bathygleyic Dystric Glossic Retisol [28], with a clay content (<0.002 mm) of 15.0%. According to local meteorological data, the average annual amount of precipitation is about 915 mm.
The topsoil characteristics prior to establishing the experiment (0–30 cm soil layer) were as follows: pHKCl 4.21–4.90, total N 0.06–0.08%, organic C 1.17–1.57%, humus 2.28–3.34%.
A. dubia seedlings were planted in 2018. A field experiment was established according to two factorial designs. The first factor was the time of harvesting. A. dubia stems were harvested 3 times per vegetation: the (a) end of June; (b) middle of August and (c) beginning of October. The harvestable area (netto) of all treatments was 3.3 m2.
The second factor was nitrogen rates. The seedlings had 3 nitrogen levels applied (0 kg ha−1, 90 kg ha−1 and 180 kg ha−1 (N0, N90 and N180)). Nitrogen fertilizers (as an NPK fertilizer 6–18–34, amophos (NP 12–52) and ammonium nitrate) were applied each year, just after the beginning of plant regrowth (in April). The highest nitrogen rate (N180) was split and applied two times (N90 and N90) in April and right away after the harvesting of the first yield (at the end of June). All three N treatments were randomly allocated throughout the experiment. The number of replications of the experiment was 3.
The rate of phosphorus (applied as an NPK complex 6–18–34) and partially as amophos (NP 12–52) was 60 kg ha−1. The rate of potassium (K2O) (applied as the complex 6–18–34 fertilizer) was 60 kg ha−1.
After three years (i.e., 2019–2021), the following parameters were evaluated in the experiment: stem height (cm), number of stems per m2 and the mass of one stem (g). The mass of stems and DM yield were evaluated using a weighting method. The dry matter (DM) yield (t ha−1) and nitrogen utilization efficiency (NUE) were evaluated for the 2019–2021 growing seasons. The nitrogen utilization efficiency (NUE) was calculated according to the following equation: ((DM yield with applied fertilizer N rate) − (DM yield in zero-N))/N rate, where N is the amount of N in kg ha−1 [29].
The energy assessment of A. dubia growing technology was performed according to the methodology elaborated at Vytautas Magnus University Agricultural Academy. The following parameters were evaluated: direct, indirect, machinery and human labour energy expenses.
A calorimeter C 2000 (IKA, Staufen, Germany) was used as an instrument to measure the calorific value (MJ kg−1). The analysis was carried out using special methodology [30].
When calculating the energy costs, the following fertilizer energy equivalents were included: nitrogen—47.1; phosphorus—15.8; and potassium—9.53. The energy equivalent for herbicide is 288 MJ ha−1 [31].
The C (carbon), N (nitrogen) and H (hydrogen) elemental compositions of pellets were determined at the Lithuanian Energy Institute using special equipment, according to standard methodology [25,26].
The total energy yield from 1 ha was calculated by multiplying the energy value of plants by the SM yield. Energy efficiency was calculated according to the formula: EE = Eout/Ein, where: EE—energy efficiency; Eout—energy yield (GJ ha−1); and Ein—energy consumption in GJ ha−1 [27].
Statistical analysis. The data of the parameters, including stems height, number of stems, the average stem weight, dry mass (DM) yield and nitrogen utilization efficiency (NUE), were statistically processed using an analysis of variance (ANOVA) as a three-factorial randomized block variant to determine the significant differences between the means and the least significant difference (LSD05), and Fisher‘s criterion (p < 0.05) at a 95% probability level and standard deviation (±) (for chemical parameters) were used [32].

4. Discussion

The present Artemisia dubia investigation at the Vėžaičiai Branch of the LAMMC revealed that its biomass tends to increase throughout its vegetation. This means that there were significant differences between the cutting times. For this reason, when using biomass for the production of solid biofuel (e.g., pellets), the biomass should be harvested as late as possible; in our case, it would be carried out in October. As the climate changes, the following phenomenon has been observed in western Lithuania over the recent decades: when a very small amount of precipitation falls during the first half of the growing season, the moisture reserves in the upper soil layer remain very low. A lack of moisture is often associated with a high air temperature. As a result, the plants grew and developed slowly, and the already-synthesized organic materials were broken down by the plants’ more intensive respiration. Because the A. dubia root system is shallow, weather conditions significantly influence the growth of the above-ground biomass during the vegetation period.
Currently, investigations with A. dubia as an energy crop were held at three locations in Lithuania (three LAMMC branches), using similar rates of mineral nitrogen fertilizers. The highest biomass yield was obtained at the Agricultural Institute of the LAMMC, with the prevailing Cambisol, which is characterized as the most productive soil in Lithuania. But from the practical point of view, such soils should hardly be designed for energy crop cultivation, since fertile soils are more appropriate for food or feed crops. Western Lithuania’s Retisols are relatively poor; therefore, the yield of A. dubia productivity was noticeably lower and approximately equal to the yield of the A. dubia grown at the Vokė Branch of the LAMMC (the reference mentioned in the Results section). However, besides nitrogen application, there are other traditional agricultural means to improve crop productivity in acid soils like liming or the application of organic matter [22,33]. In this direction, research with A. dubia is continued further.
The Artemisia genus species have good biofuel properties. According to the results of our other long-term experiments, we can conclude that A. dubia productivity exceeds the yield of another related crop, e.g., Artemisia vulgaris, by far. We have observed the significant biomass productivity advantage of A. dubia compared to A. vulgaris in adjacent field studies [34]. Similar results have been presented by other authors [35]. Alongside that, we can conclude that A. dubia may also be cultivated as an alternative crop in some less productive soils, which are less suitable for the cultivation of food crops. If compared with other perennial tall coarse species (particularly Miscanthus giganteus L. and Cannabis sativa L.), the A. dubia biomass calorific value is high [16,35]. Its biomass may also be used for energetical purposes, since the greenhouse emission balance is almost equal to 0 [36]. Nonetheless, research on A. dubia as a promising energy plant species is at the initial stage, so more detailed research on its biomass energy parameters must be carried out. Moreover, the investigation of A. dubia biomass different energetical parameters are also at their initial stage [23,36].
The obtained results indicate that to produce the largest possible seasonal biomass yield and prepare the largest possible amount of solid fuel, A. dubia stems should be cut as late as possible; under Lithuanian conditions, this would be in the first half of October. In our experiment, both N90 and N180 rates demonstrated similar results (biomass increment). The amount of nitrogen fertilizer that could be applied for A. dubia plants also depends on the price of the fertilizer itself and the current market demand for plant biomass as the raw source of biofuels. Again, when drought prevails during growth, fertilizing with a high rate of nitrogen fertilizers does not really pay off.
Investigations of A. dubia are in progress and articles on various agronomic aspects of A.dubia cultivation and utilization for individual types of biofuels will be published in the near future.

Author Contributions

Conceptualization, G.Š., A.J., R.R. and D.K.; methodology, G.Š., A.J., D.K., R.S.; validation, G.Š. and A.J.; formal analysis, G.Š., A.J., D.K. and R.R.; investigation, G.Š., A.J., D.K. and R.S.; data curation, G.Š. and A.J.; writing—original draft preparation, G.Š., A.J., R.R. and R.S.; writing—review and editing, G.Š. and A.J.; supervision, G.Š. and A.J; funding acquisition, G.Š. and A.J. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Data Availability Statement

Not applicable.

Acknowledgments

The study was conducted in compliance with the long-term program “Plant biopotential and quality for multifunctional practice”.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Vaughan, A. EU Raises Renewable Energy Targets to 32% by 2030. The Guardian, 14 June 2018. [Google Scholar]
  2. Fernando, A.N.; Duarte, M.P.; Almeida, J.; Boléo, S.; Mendes, B. Environmental impact assessment of energy crops cultivation in Europe. Biofuels Bioprod. Bioref. 2010, 4, 594–604. [Google Scholar] [CrossRef]
  3. Fernando, A.L.; Duarte, M.P.; Vatsanidou, A.; Alexopoulou, E. Environmental aspects of fiber crops cultivation and use. Ind. Crops Prod. 2015, 68, 105–115. [Google Scholar] [CrossRef]
  4. McKendry, P. Energy production from biomass Part, I. Overview of biomass. Bioresour. Technol. 2002, 83, 37–46. [Google Scholar] [CrossRef]
  5. Jasiulewicz, M. Possibility of Liquid Bio-Fuels, Electric and Heat Energy Production from Biomass in Polish Agriculture. Pol. J. Environ. Stud. 2010, 19, 479–483. [Google Scholar]
  6. Huxley, A. The New RHS Dictionary of Gardening; Macmillan Press: London, UK, 1992; p. 3000. [Google Scholar]
  7. Ashraf, M.; Hayat, M.Q.; Jabeen, S.; Shaheen, N.; Khan, M.A.; Yasmin, G. Artemisia L. species recognized by the local community of the northern areas of Pakistan as folk therapeutic plants. J. Med. Plants Res. 2010, 4, 112–119. [Google Scholar]
  8. Huang, Z.S.; Pei, Y.H.; Liu, C.M.; Lin, S.; Tang, J.; Huang, D.S.; Zhang, W.D. Highly oxygenated guaianolides from Artemisia dubia. Planta Med. 2010, 76, 1710–1716. [Google Scholar] [CrossRef]
  9. Liang, J.Y.; Guo, S.S.; Zhang, W.J.; Geng, Z.F.; Deng, Z.W.; Du, S.S.; Zhang, J. Fumigant and repellent activities of essential oil extracted from Artemisia dubia and its main compounds against two stored product pests. Nat. Prod. Res. 2018, 32, 1234–1238. [Google Scholar] [CrossRef]
  10. Qasem, J.R.; Foy, C.L. Weed allelopathy, its ecological impacts and future prospects: A review. J. Crop Prod. 2001, 4, 43–119. [Google Scholar] [CrossRef]
  11. Singh, A.P.; Bista, M.S. Flowering Plants of Nepal: (Phanerogams); Ministry of Forests & Soil Conservation, Department of Plant Resources, Botanical Society of Nepal: Kathmandu, Nepal, 2001; p. 3999.
  12. Mallik, B.B.D.; Acharya, B.D.; Saquib, M.; Chettri, M.K. Allelopathic effect of Artemisia dubia extracts on seed germination and seedling growth of some weeds and winter crops. Int. J. Ecol. 2014, 21, 23–30. [Google Scholar] [CrossRef] [Green Version]
  13. Moraes-Cerdeira, R.M.; Krans, J.V.; McChesney, J.D.; Pereira, A.M.; Franca, S.C. Cotton fiber as a substitute for agar support in tissue culture. Hort. Sci. 1995, 30, 1082–1083. [Google Scholar] [CrossRef] [Green Version]
  14. Cumplido-Marin, L.; Graves, A.R.; Burgess, P.J.; Morhart, C.; Paris, P.; Jablonowski, N.D.; Facciotto, G.; Bury, M.; Martens, R.; Nahm, M. Two novel energy crops: Sida hermaphrodita (L.) Rusby and Silphium perfoliatum L.—State of knowledge. Agronomy 2020, 10, 928. [Google Scholar] [CrossRef]
  15. Gojon, A. Nitrogen nutrition in plants: Rapid progress and new challenges. J. Exp. Bot. 2017, 68, 2457–2462. [Google Scholar] [CrossRef] [Green Version]
  16. Titova, J.; Bakšienė, E. The influence of sewage sludge compost on the growth of energy plants mugwort (Artemisia dubia Wall.) and Virginia fanpetals (Sida hermaphrodita (L.) Rusby). Agric. Sci. 2015, 22, 155–162. (In Lithuanian) [Google Scholar]
  17. Kadžiulienė, Ž; Tilvikienė, V.; Liaudanskienė, I.; Pociene, L.; Černiauskienė, Ž.; Zvicevicius, E.; Raila, A. Artemisia dubia growth, yield and biomass characteristics for combustion. Zemdirb.-Agric. 2017, 104, 99–106. [Google Scholar] [CrossRef] [Green Version]
  18. Slepetys, J.; Kadziuliene, Z.; Sarunaite, L.; Tilvikiene, V.; Kryzeviciene, A. Biomass potential of plants grown for bioenergy production. In Growing and Processing Technologies of Energy Crops, Proceedings of the International Scientific Conference Renewable Energy and Energy Efficiency, Jelgava, Latvia, 28–30 May 2012; Latvia Agricultural University: Jelgava, Latvia, 28–30 May 2012. [Google Scholar]
  19. Tilvikiene, V.; Kadziuliene, Z.; Raila, A.; Zvicevicius, E.; Liaudanskiene, I.; Volkaviciute, Z.; Pociene, L. Artemisia dubia Wall.–A Novel Energy Crop for Temperate Climate Zone in Europe. In Proceedings of the 23rd European Biomass Conference and Exhibition, Vienna, Austria, 1–4 June 2015. [Google Scholar]
  20. Shortall, O.K. “Marginal land” for energy crops: Exploring definitions and embedded assumptions. Energy Policy 2013, 62, 19–27. [Google Scholar] [CrossRef]
  21. Cronin, J.; Zabel, F.; Dessens, O.; Anandarajah, G. Land suitability for energy crops under scenarios of climate change and land-use. GCB Bioenergy 2020, 12, 648–665. [Google Scholar] [CrossRef]
  22. Karcauskiene, D.; Repsiene, R. Long-term manuring and liming effect on moraine loam soil fertility. Agron. Res. 2009, 7, 300–304. [Google Scholar]
  23. Zvicevičius, E.; Raila, A.; Čiplienė, A.; Černiauskienė, Ž.; Kadžiulienė, Ž.; Tilvikienė, V. Effects of moisture and pressure on densification process of raw material from Artemisia dubia Wall. Renew. Energ. 2018, 119, 185–192. [Google Scholar] [CrossRef]
  24. Hülsbergen, K.J.; Feil, B.; Biermann, S.; Rathke, G.W.; Kalk, W.D.; Diepenbrock, W. A method of energy balancing in crop production and its application in a long-term fertilizer trial. Agric. Ecosyst. Environ. 2001, 86, 303–321. [Google Scholar] [CrossRef]
  25. Jasinskas, A.; Scholz, V. Evaluation of Technologies of Plant Biomass Harvesting and Preparation for Fuel: Coursebook; Raudondvaris, Lithuania, 2008; p. 74. (In Lithuanian) [Google Scholar]
  26. Jasinskas, A.; Streikus, D.; Vonžodas, T. Fibrous hemp (Felina 32, USO 31, Finola) and fibrous nettle processing and usage of pressed biofuel for energy purposes. Renew. Energ. 2020, 149, 11–21. [Google Scholar] [CrossRef]
  27. Shahin, S.; Jafari, A.; Mobli, H.; Rafiee, S.; Karimi, M. Effect of farm size on energy ratio for wheat production: A case study from Ardabil province of Iran. Am.-Eurasian J. Agric. Environ. Sci. 2008, 3, 604–608. [Google Scholar]
  28. WRB. World Reference Base for Soil Resources; World Soil Resources Reports No. 106; FAO: Rome, Italy, 2014; pp. 187–189. [Google Scholar]
  29. Gan, Y.; Malhi, S.S.; Brandt, S.; Katepa-Mupondwa, F.; Stevenson, C. Nitrogen use efficiency and nitrogen uptake of juncea canola under diverse environments. Agron. J. 2008, 100, 285–295. [Google Scholar] [CrossRef]
  30. Vares, V.; Kask, U.; Muiste, P.; Pihu, T.; Soosaar, S. Manual for Biofuel Users; Tallinn University of Technology: Tallinn, Estonia, 2005; p. 178. [Google Scholar]
  31. Green, M.B. Energy in pesticide manufacture, distribution and use. Energy World Agric. 1987, 2, 165–177. [Google Scholar]
  32. Raudonius, S. Application of statistics in plant and crop research: Important issues. Zemdirbyste 2017, 104, 377–382. [Google Scholar] [CrossRef] [Green Version]
  33. Mockeviciene, I.; Repsiene, R.; Amaleviciute-Volunge, K.; Karcauskiene, D.; Slepetiene, A.; Lepane, V. Effect of long-term application of organic fertilizers on improving organic matter quality in acid soil. Arch. Agron. Soil Sci. 2022, 68, 1192–1204. [Google Scholar] [CrossRef]
  34. Šiaudinis, G.; Skuodienė, R.; Repšienė, R. The investigation of three potential energy crops: Common mugwort, cup plant and Virginia mallow on Western Lithuania’s Albeluvisol. Appl. Ecol. Environ. Res. 2017, 15, 611–620. [Google Scholar] [CrossRef]
  35. Kryževičienė, A.; Šarūnaitė, L.; Stukonis, V.; Dabkevičius, Z.; Kadžiulienė, Ž. Daugiamečių kiečių (Artemisia vulgaris L. ir Artemisia dubia Wall.) potencialo biokuro gamybai įvertinimas (Assessment of perennial mugwort (Artemisia vulgaris L. and Artemisia dubia Wall.) potential for biofuel production). Agric. Sci. 2010, 17, 32–40. (In Lithuanian) [Google Scholar]
  36. Černiauskienė, Ž.; Raila, A.J.; Zvicevičius, E.; Tilvikienė, V.; Jankauskienė, Z. Comparative Research of Thermochemical Conversion Properties of Coarse-Energy Crops. Energies 2021, 14, 6380. [Google Scholar] [CrossRef]

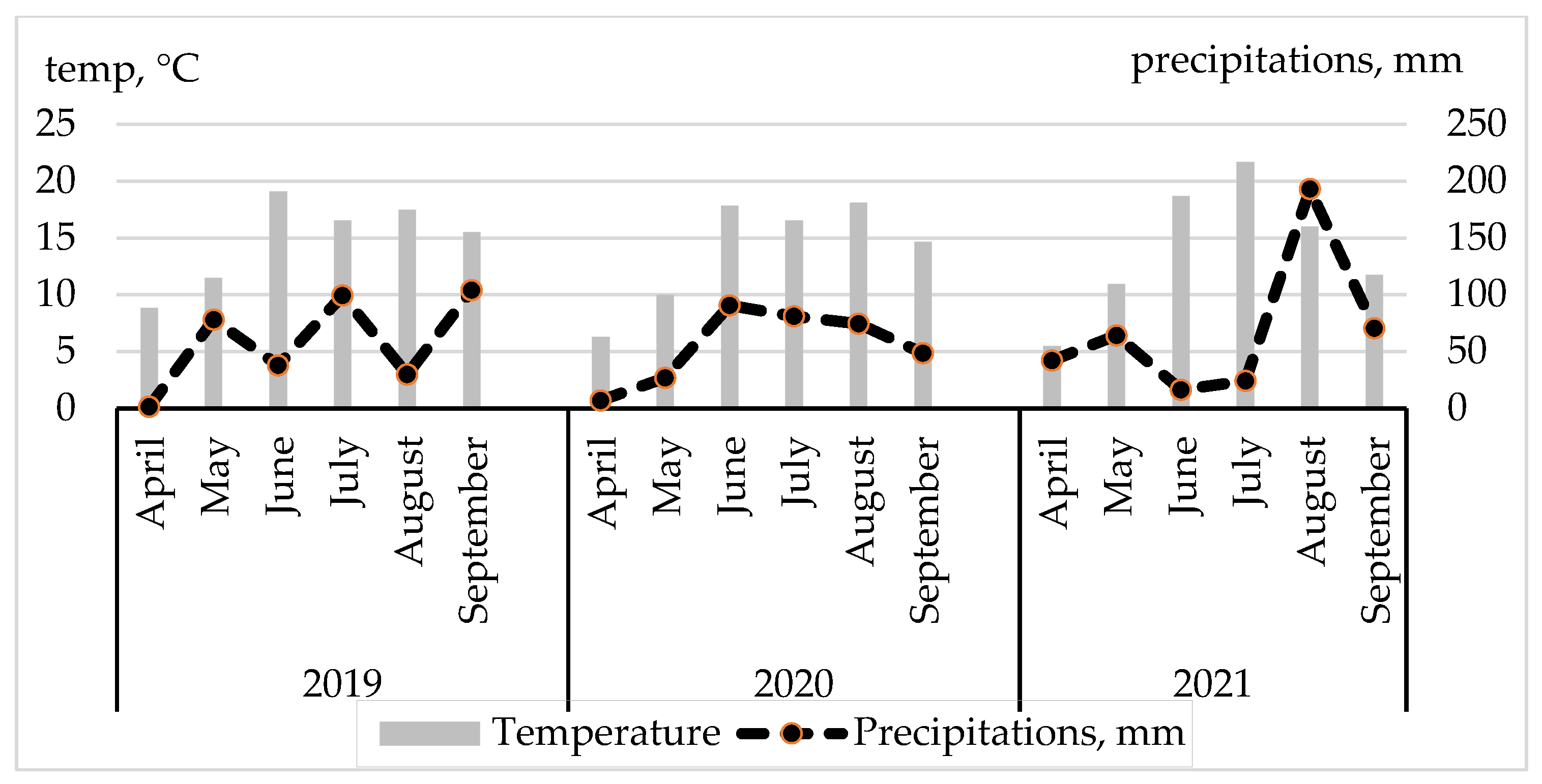

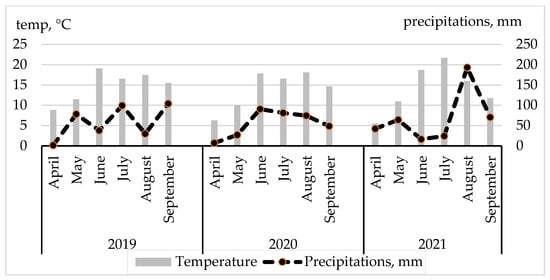

Figure 1. Temperature and precipitation regimes during 2019–2021 vegetations.
Figure 1. Temperature and precipitation regimes during 2019–2021 vegetations.
Plants 12 02441 g001

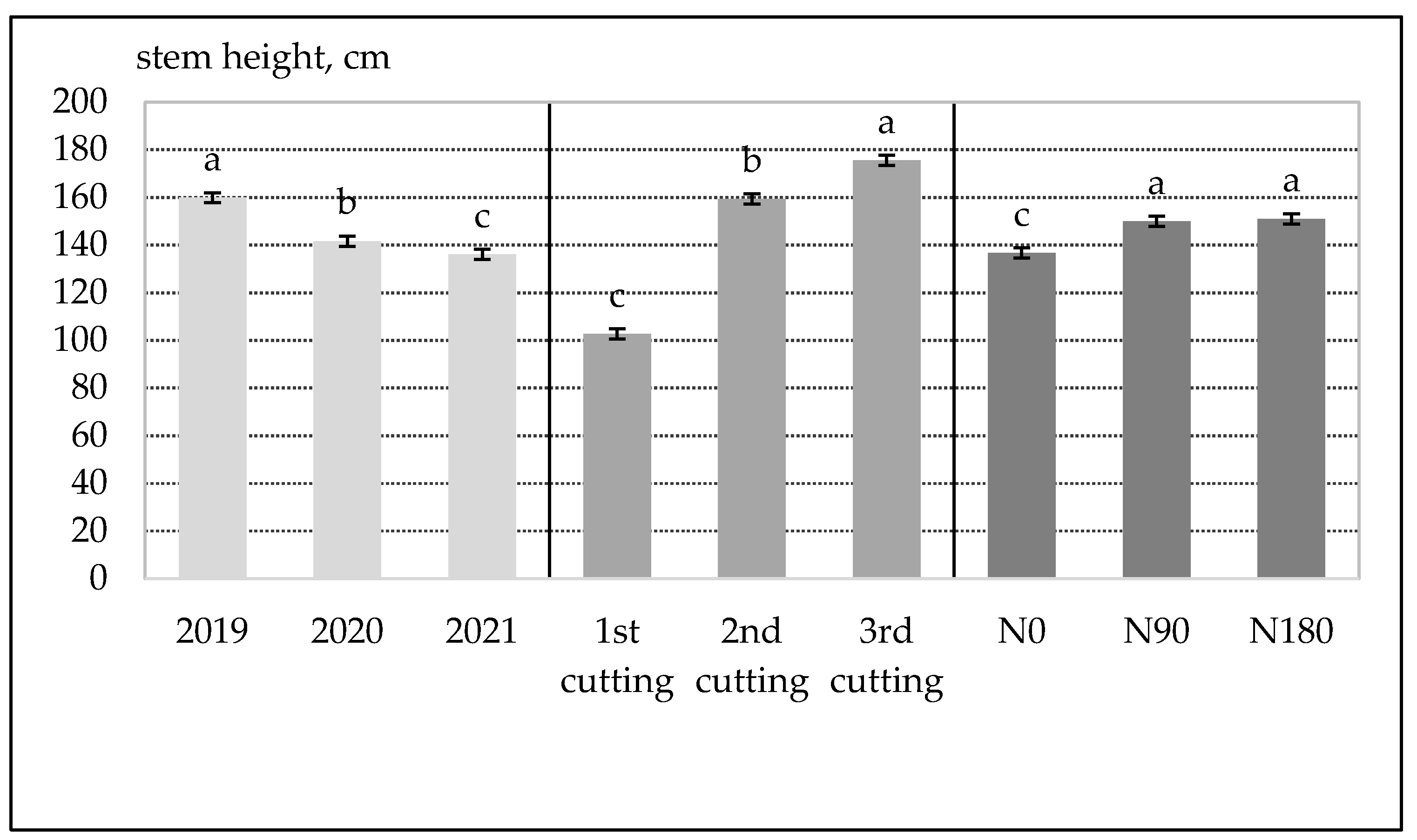

Figure 2. The average values of Artemisia dubia stem height (cm) and its dependence on the year, harvesting time (end of June, middle of August, beginning of October) and nitrogen fertilization rate (N0, N90 and N180). The bars in the columns on top correspond to the LSD05 values.
Figure 2. The average values of Artemisia dubia stem height (cm) and its dependence on the year, harvesting time (end of June, middle of August, beginning of October) and nitrogen fertilization rate (N0, N90 and N180). The bars in the columns on top correspond to the LSD05 values.
Plants 12 02441 g002

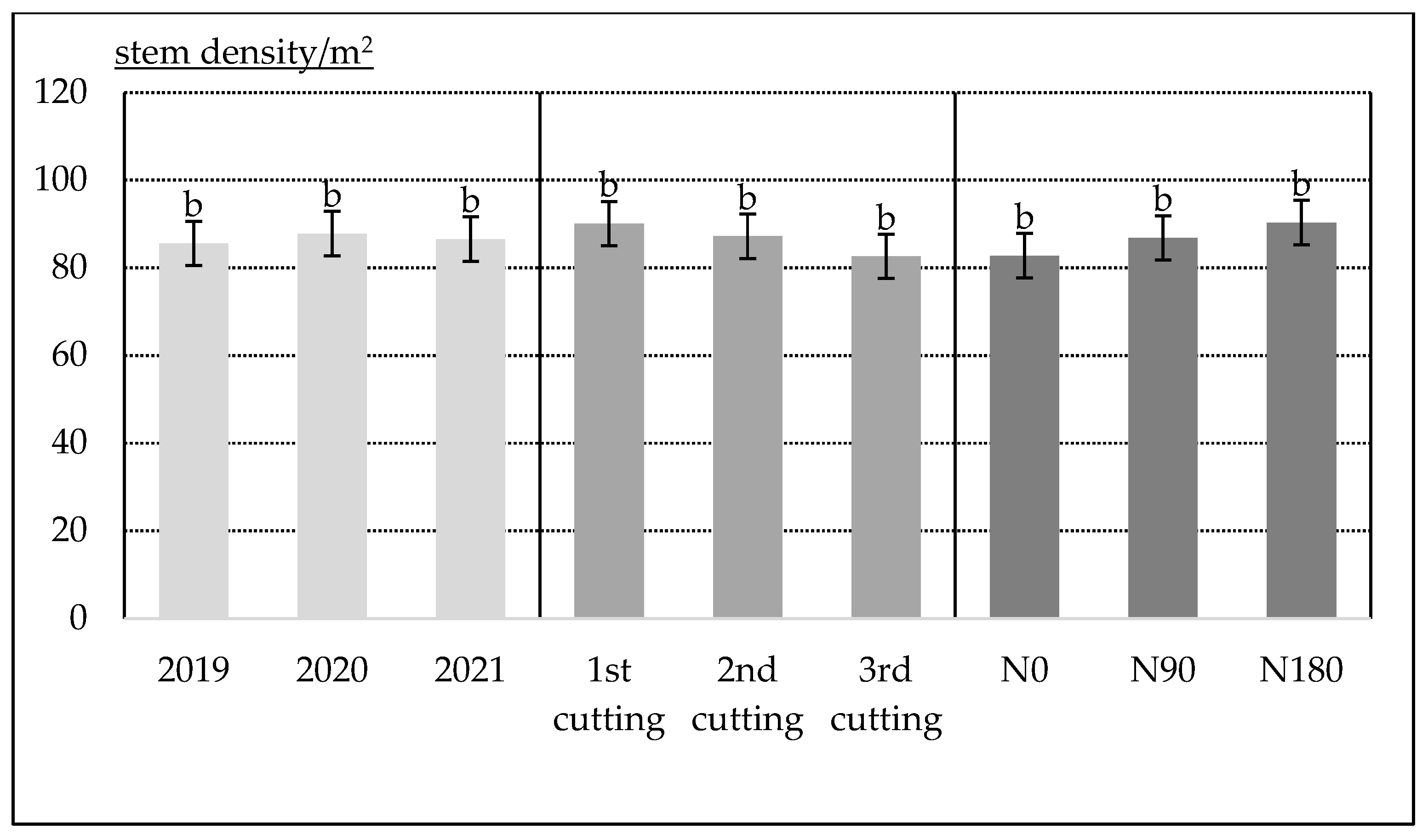

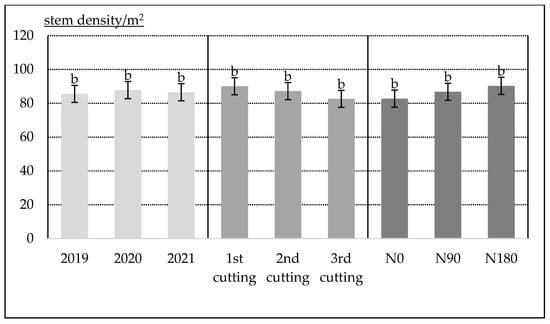

Figure 3. Artemisia dubia stem density (per m2) and its dependence on the year, harvesting time (end of June, middle of August, beginning of October) and nitrogen fertilization rate (N0, N90 and N180). The bars on the top of the columns correspond to the LSD05 values.
Figure 3. Artemisia dubia stem density (per m2) and its dependence on the year, harvesting time (end of June, middle of August, beginning of October) and nitrogen fertilization rate (N0, N90 and N180). The bars on the top of the columns correspond to the LSD05 values.
Plants 12 02441 g003

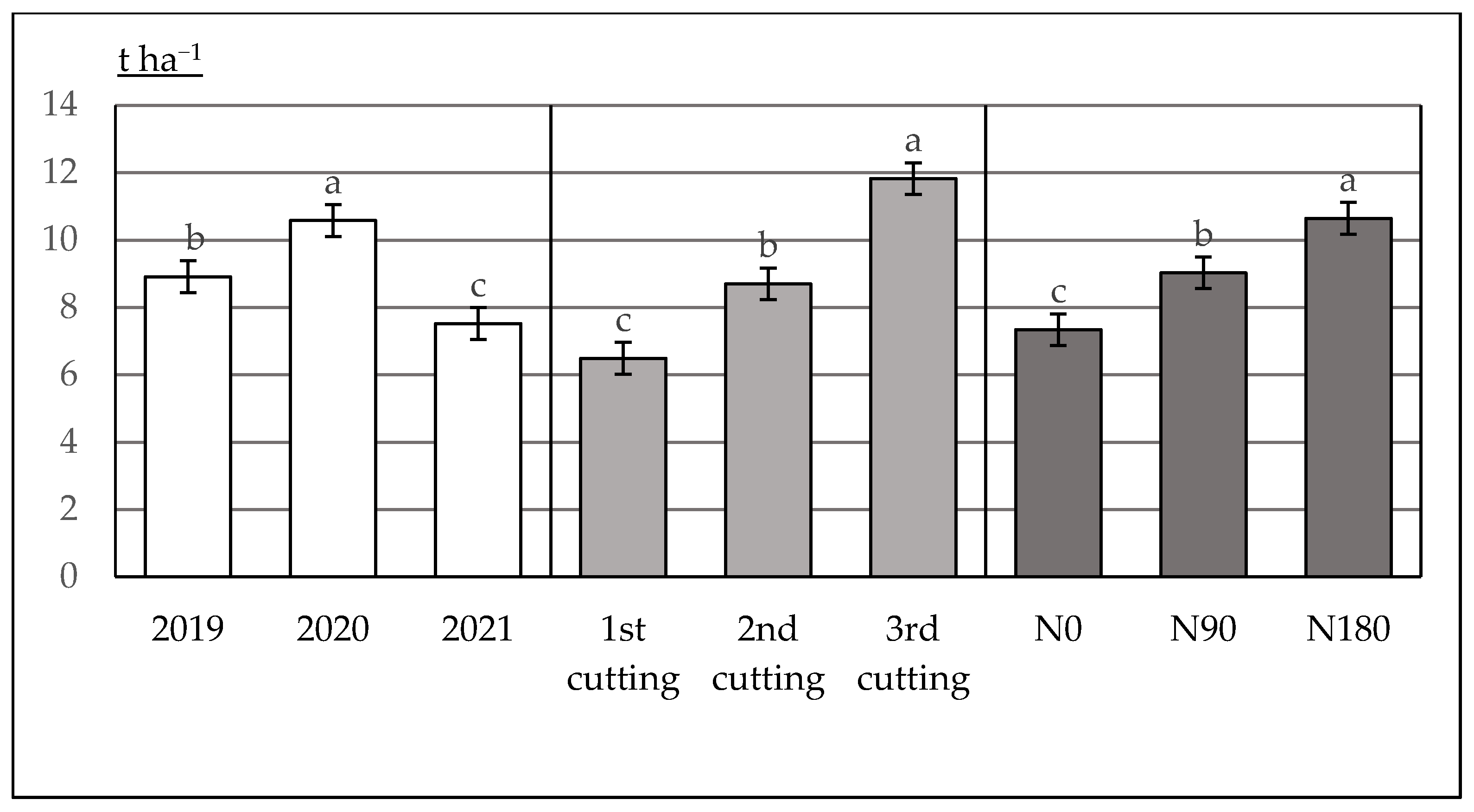

Figure 4. The average data of Artemisia dubia productivity (t ha−1) and its dependence on the year, end of June, middle of August, beginning of October and nitrogen fertilization rate (0, N90 and N180). The bars on top of the columns correspond to the LSD05 values.
Figure 4. The average data of Artemisia dubia productivity (t ha−1) and its dependence on the year, end of June, middle of August, beginning of October and nitrogen fertilization rate (0, N90 and N180). The bars on top of the columns correspond to the LSD05 values.
Plants 12 02441 g004

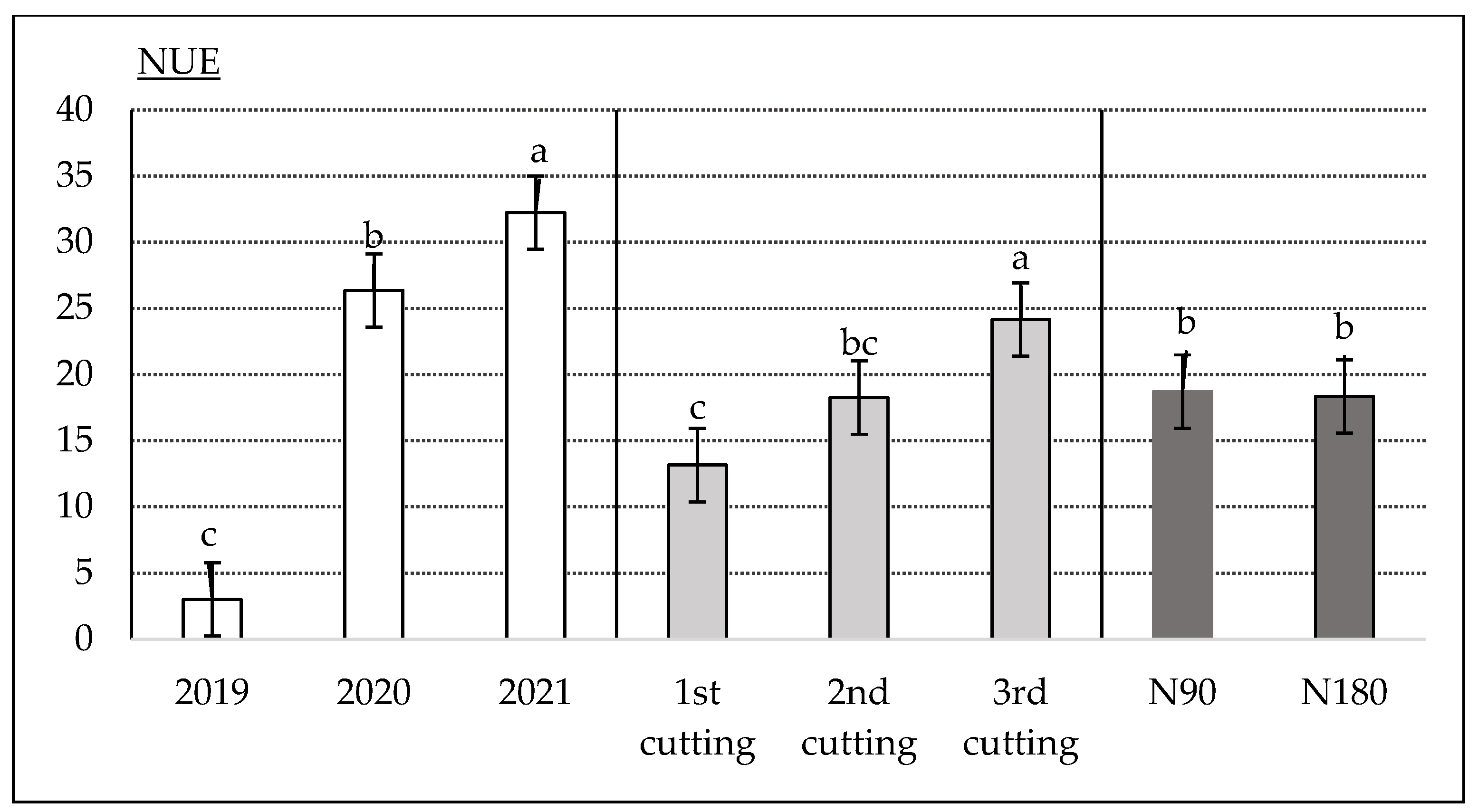

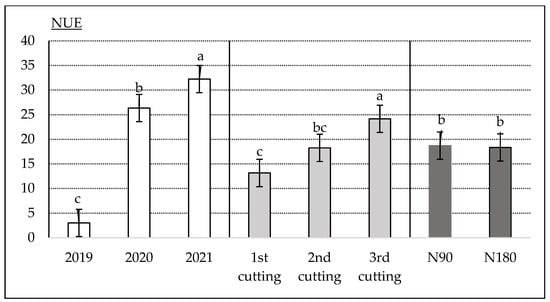

Figure 5. The average data of the NUE (nitrogen utilization efficiency) (kg kg−1) and their dependence on the cultivation year, time of harvesting and nitrogen rate. The bars on top of the columns correspond to the LSD05 values.
Figure 5. The average data of the NUE (nitrogen utilization efficiency) (kg kg−1) and their dependence on the cultivation year, time of harvesting and nitrogen rate. The bars on top of the columns correspond to the LSD05 values.
Plants 12 02441 g005
Table 1. Fisher criterion mean squares for Artemisia dubia stem height, number of stems, dry matter yield (DM) and nitrogen efficiency (NUE) (for the 2019–2021 growing seasons).
Table 1. Fisher criterion mean squares for Artemisia dubia stem height, number of stems, dry matter yield (DM) and nitrogen efficiency (NUE) (for the 2019–2021 growing seasons).
VariableStem Height, cmNumber of Stems per m2Mass of one Stem, gDM
t ha−1
NUE
kg kg−1
Factor A*ns***
Factor B*ns**ns
Factor C*ns***
Interaction A × Bnsns**ns
Interaction A × C*ns***
Interaction B × Cnsnsnsnsns
Interaction A × B × Cnsnsnsnsns
Note: DM—dry mater; NUE—nitrogen utilization efficiency; Factor A—year; Factor B—harvesting time; Factor C—nitrogen fertilization. * significant at p ≤ 0.05 level; ns—not significant.
Table 2. The amounts of energy embodied in fertilizers and herbicides.
Table 2. The amounts of energy embodied in fertilizers and herbicides.
Herbicides, FertilizersThe Amount Consumed for ha−1Energy Equivalent
MJ kg−1
Energy Value
MJ ha−1
Agil1.0 kg288288
Roundup2.0 kg288576
N90 kg
180 kg
47.14239
8478
P2O560 kg15.8948
K2O60 kg9.53572
Total 2384—10,862
Table 3. Energy expenses of growth technology.
Table 3. Energy expenses of growth technology.
Indicator Energy Input, MJ ha−1 Energy Input,
MJ ha 1
Experiment SetupHarvestable Year
Direct energy expenses 1516 4695–6096 6211–7612
Indirect energy expenses 864 1520–9998 2384–10,862
Machinery energy consumption 431 786–830 1217–1261
Human labour expenses 5.2 13.9–14.7 19.1–19.9
Total energy expenses 2816 7015–16,939 9831–19,755
Table 4. Energy evaluation of A. dubia growth technology, on average.
Table 4. Energy evaluation of A. dubia growth technology, on average.
TreatmentEnergy Input GJ ha−1% Share of FertilizersEnergy Output
GJ ha−1
EUE GJ ha−1
Without nitrogen9.8324.25134.7213.70
N9014.8044.77164.0811.08
N18019.7654.98193.719.80
Table 5. Biomass energetical parameters.
Table 5. Biomass energetical parameters.
ParameterFirst Cutting N0First Cutting N180Third Cutting N0Third Cutting
N180
Higher calorific value, MJ kg−119.12 ± 1.0118.99 ± 0.3019.40 ± 0.2818.71 ± 0.25
Lower calorific value, MJ kg−117.92 ± 1.0117.72 ± 0.3018.14 ± 0.2817.46 ± 0.25
C, %48.67 ± 0.2047.34 ± 0.1248.73 ± 0.1149.36 ± 0.01
N, %1.22 ± 0.091.41 ± 0.130.68 ± 0.020.90 ± 0.01
H, %5.51 ± 0.015.79 ± 0.065.76 ± 0.025.73 ± 0.05
