Tissue-Specific Profiling of Biflavonoids in Ginkgo (Ginkgo biloba L.)

by
Marija Kovač Tomas
,
Iva Jurčević
and
Dunja Šamec
*
Department of Food Technology, University North, Trg Dr. Žarka Dolinara 1, 48000 Koprivnica, Croatia
*
Author to whom correspondence should be addressed.
Plants 2023, 12(1), 147; https://doi.org/10.3390/plants12010147
Submission received: 10 December 2022 / Revised: 20 December 2022 / Accepted: 22 December 2022 / Published: 28 December 2022
(This article belongs to the Special Issue Extraction Technologies, Isolation, Separation, and Application of Phytochemicals)
Browse Figures
Versions Notes

Abstract

:
Biflavonoids are flavonoid dimers that are much less studied than monomeric flavonoids. Their precise distribution among plants and their role in plants is still unknown. Here, we have developed a HPLC-DAD method that allows us to separate and simultaneously determine the five major biflavonoids (amentoflavone, bilobetin, ginkgetin, isoginkgetin, and sciadopitysin) in ginkgo (Ginkgo biloba L.). We performed tissue-specific profiling of biflavonoids in ten different plant parts: tree bark, twigs bark, twigs without bark, buds, leaf petioles, leaf blades, seed stalks, sarcotesta, nutshells, and kernels. We did not detect biflavonoids in plant parts not in direct contact with the environment (twigs without bark, nutshells, and kernels). We found the highest total biflavonoids content in leaves, where sciadopitysin was predominant. In contrast, in the bark, amentoflavone was the predominant biflavonoid, suggesting that more methylated biflavonoids accumulate in leaves and seeds. This is probably related to their biological function, which remains to be determined.

1. Introduction

Flavonoids are a large, and to date, most studied group of plant metabolites [1]. Flavonoids have a 15 carbon- atom flavone skeleton, C6-C3-C6, with two benzene rings (A and B) joined by a trinuclear pyran ring (C). The position of the B catechol ring on the C pyran ring, as well as the number and position of hydroxyl groups on the catechol group of the B ring, have a major influence on the chemical properties and biological activity of flavonoids [1,2,3]. In addition, flavonoids can be conjugated, glycosylated, or methylated, which also affects their biological properties and function in plants [1]. Flavonoid dimers, known as biflavonoids, consist of two monomeric flavonoids via a direct link or a linear linker. According to He et al. [4], nearly 600 different biflavonoids are known in angiosperms, ferns, gymnosperms, and bryophytes. Most of them are found in plants used in traditional medicine and are considered important factors in the health benefits of these plants [3,5,6]. However, the role of biflavonoids in plants is poorly studied. Based on their biological activity and localization in leaves [7,8], there are indications that they may be involved in protecting plants from pests and predators and in photosynthesis regulation [9].
A plant in which various biflavonoids have been detected is the ginkgo (Ginkgo biloba L.), also called maidenhair tree [3,10]. It is a deciduous gymnosperm tree (family Ginkgoaceae) native to China and has been planted in Chinese and Japanese temple gardens since ancient times, but is now found as an ornamental tree in many parts of the world [11]. Its use in traditional Chinese medicine is well known, but today its extracts are widely used worldwide for the treatment of cognitive complaints [12]. Various specialized metabolites have been detected in ginkgo plant samples and extracts, including 110 different flavonoids, 13 of which are biflavonoids [3,10]. Although the presence of other biflavonoids has also been reported, the most commonly reported biflavonoids include amentoflavone, bilobetin, ginkgetin, isoginkgetin, and sciadopitysin [3]. These are all 3′, 8″- biflavones whose basic structure is shown in Figure 1.
The flavonoids in ginkgo are being researched by many scientists. However, most studies focus on monomeric flavonoids and biflavonoids are often neglected [13,14,15], e.g., in the review article by Liu et al. [16], which focuses on the advances in chemical analysis and quality control of flavonoids in ginkgo, the presence of biflavonoids is hardly mentioned. To fill this gap in our knowledge of ginkgo flavonoids, the aim of the present study was to establish a tissue-specific profile of biflavonoids in ginkgo. To this end, we developed the HPLC-DAD method that allowed us to simultaneously determine five biflavonoids, amentoflavone, bilobetin, ginkgetin, isoginkgetin, and sciadopitysin. We determined their content in ten different ginkgo plant parts and discussed their presence in relation to possible physiological functions.

2. Results

2.1. Chemical Differences and Method for Biflavonoids Analysis

All five biflavonoids analyzed (Figure 2) belong to the amentoflavone type, in which two monomeric units are joined at positions 3′, 8″ (Figure 1). Amentoflavone consists of two apigenin monomers and other biflavonoids in ginkgo are considered derivatives of amentoflavone.
Bilobetin has a methoxy group at the C-4′ position. Isoginkgetin and ginkgetin have two methoxy groups–isoginkgetin at the C-4′ and C-4‴ positions and ginkgetin at C-7 and C-4′. Sciadopitysin has three methoxy groups at C atom positions C-7, C-4′ and C-4‴. The presence of methoxy groups affects the chemical properties of the analyzed compounds and their polarity, which allows us to separate the compounds using reverse phase C 18 HPLC silica columns (Figure 3).
Under the proposed instrumental conditions, the biflavonoids eluted at 19.6 min (amentoflavone), at 20.8 min (bilobetin), at 23.0 min (ginkgetin), at 23.3 min (isoginkgetin), and at 28.7 min (sciadopitysin), as shown in Figure 3 and Table 1. Identification of each compound was performed by comparing the retention times and UV spectra of the analytes with those of the standard solution. According to the criteria of Commission Decision (EC) No. 657/2002 on the performance of analytical methods [17], the relative retention time of the determined compound in the sample solution had to be equal to that in the standard solution with a tolerance of ±2.5%. Quantification was performed using an external standard calibration and the amount of biflavonoids in the plant samples was expressed in µg/g dry weight (dw).
The limit of detection (LOD) and limit of quantification (LOQ) were estimated using the signal-to-noise (S/N) approach, calculated for the sample extract at the targeted level of 0.3 µg/mL for LOD and 1.0 µg/mL for LOQ, for each compound. The obtained S/N values were regarded as acceptable if ≥3 and ≥10, respectively. The achieved R2 of all calibration curves was greater than 0.99, and the targeted LOD and LOQ values for all five compounds (0.3 µg/mL and 1.0 µg/mL, respectively) were evaluated as acceptable, as satisfying the requirements of sufficient S/N ratios (Table 2).

2.2. Tissue-Specific Biflavonoids Profiling

To establish a tissue-specific biflavone profile, we separated the different ginkgo plant parts as shown in Figure 4. Various names have been used for the ginkgo seeds, which are sometimes called fruits, although the ginkgo belongs to the gymnosperms and produces seeds. The fleshy part is the seed coat or sarcotesta.
We can divide the analyzed plant parts into parts that are in direct contact with the environment, such as leaves (petiole and leaf blade), bark, twig bark, bud, seed petiole and sarcotesta, and parts that are not in direct contact with the environment, such as twig without bark, nutshell, and kernel. We did not detect biflavonoids in the parts that are not in direct contact with the environment.
Figure 5 shows the biflavonoid profile of tree and twig barks and buds. In tree bark, we find only amentoflavone at a concentration of 63.30 ± 4.60 µg/g dw. Amentoflavone was also the most abundant biflavonoid in twig bark and buds with a concentration of 75.70 ± 6.80 µg/g dw and 38.82 ± 1.55 µg/g dw, respectively. Other biflavonoids were also present in the twig bark: bilobetin in concentration 32.53 ± 2.30 µg/g dw, ginkgetin 33.79 ± 2.80 µg/g dw, isoginkgetin 29.49 ± 3.23 µg/g dw and sciadopitysin 41.57 ± 4.64 µg/g dw. In buds, we could not detect bilobetin, and ginketin, isoginkgetin, and sciadopitysin were found at concentrations of 13.79 ± 1.00 µg/g dw, 5.47 ± 1.03 µg/g dw, and 10.96 ± 3.43 µg/g dw, respectively.
We found the highest content of biflavonoids in the leaf petioles and blades (Figure 6). In contrast to the barks, amentoflavones were the least abundant biflavonoids in the leaves (183.57 ± 1.18 µg/g dw in petioles and 86.00 ± 0.74 µg/g dw in leaf blades). In petioles, the most abundant biflavonoid was bilobetin (984.48 ± 6.42 µg/g dw), followed by isoginkgetin (883.83 ± 5.41 µg/g dw), sciadopitysin (727.14 ± 2.98 µg/g dw), and ginkgetin (627.22 ± 3.21 µg/g dw). In leaf blades, the most abundant biflavonoid was sciadopitysin (2398.59 ± 6.11 µg/g dw), followed by isoginkgetin (1896.02 ± 11.92 µg/g dw) and bilobetin and ginkgetin, whose contents were similar and were 1378.34 ± 11.22 µg/g dw and 1331.17 ± 5.85 µg/g dw, respectively.
We analyzed seed petioles, sarcotesta, nutshells, and kernels separately and detected biflavonoids only in seed petioles and sarcotesta (Figure 7). In seed petioles, the most abundant biflavonoid was isoginkgetin (380.41 ± 26.98 µg/g dw), while the least abundant biflavonoid was amentoflavone (34.01 ± 2.51 µg/g dw). Other biflavonoids were present in the following concentrations: ginkgetin 146.62 ± 9.37 µg/g dw, bilobetin 249.29 ± 19.23 µg/g dw and sciadopitysin 289.32 ± 19.19 µg/g dw. In a sarcotesta, the biflavonoids were present in similar proportions. The largest abundant was isoginkgetin (311.67 ± 16.92 µg/g), followed by sciadopitysin (224.32 ± 4.44 µg/g dw), bilobetin (138.34 ± 49.19 µg/g dw), and ginkgetin (116.53 ± 6.58 µg/g dw). The least abundant biflavonoid in sarcotesta was amentoflavone with a concentration of 17.52 ± 2.77 µg/g dw.
The total content of biflavonoids in different parts of the ginkgo plant is shown in Figure 8. As you can see, the biflavonoid content is highest in the leaves, followed by the seeds, while the other parts have much lower biflavonoid content.

3. Discussion

In the past, separation and especially identification of biflavonoids was a difficult task due to lack of modern analytical equipment and commercially available standards. Many of the early reported methyl biflavones had to be corrected for structure, as structural elucidation in the 1960s and 1970s depended on co-chromatography with isolated authentic compounds, which in turn could be misidentified [18]. Biflavonoids have a strong signal at 330 nm, making the DAD detector in combination with standards a compelling and rapid method for detecting biflavonoids in ginkgo. One of the earliest HPLC-DAD methods for separating biflavonoids from ginkgo leaves was developed by Briancon-Scheid et al. [19], the HPLC-DAD method for the simultaneous determination of four (bilobetin, ginkgetin, isoginkgetin, sciadopitysin) biflavonoids. Kaur et al. [20] developed a method for the simultaneous determination of three biflavonoids (bilobetin, sciadopitysin, and ginkgetin) from ginkgo leaves, and recently Lei et al. [21] focused on four biflavonoids (bilobetin, ginkgetin, isoginkgetin, sciadopitysin), as did Wang et al. [22]. Pandey et al. [23] reported only two biflavonoids (amentoflavone and sciadopitysin) in a crude extract of ginkgo leaves. Beck and Stengel [7] like us, reported five biflavonoids in ginkgo leaves but were unable to separate ginkgetin from isoginkgetin. To determine the content of biflavonoids in different plant parts (tissues) of ginkgo, we have developed the HPLC-DAD method for the separation and simultaneous quantification of the five major biflavonoids in ginkgo [3], which allows us to profile different tissue types.
We analyzed ten plant parts and could not detect any of the analyzed biflavonoids in three parts (twigs without bark, nutshells, and seeds). Chen et al. [24] also failed to detect biflavonoids in seeds or embryoids, as they called this the seed part. We detected biflavonoids in all parts studied that are in contact with the environment, which may indicate a biological role for biflavonoids in the context of plant-environment interactions. This is consistent with literature data that biflavonoids are localized in the outer part of the leaves of G. biloba [7] and above the ground rhizome of Psilotum nudum [8] according to MALDI imaging data.
We found the highest total biflavonoid content and the presence of all five biflavonoids in the leaf blades, followed by the petioles. In the leaf blades, the most abundant biflavonoid was sciadopitysin, which is consistent with the report of Wang et al. [22] who also described sciadopitysin as the most abundant biflavonoid in yellow ginkgo leaves. In leaf parts, we detected a much lower amount of amentoflavone compared with other biflavonoids, suggesting that more methylated biflavonoids are present in leaves. A similar high amount of sciadopitysin compared to amentoflavone in leaves was reported by Pandey et al. [23] in ginkgo trees of different ages. The low content of amentoflavone is probably the reason why this biflavonoid was generally not detected in leaves in other studies [19,21,22]. Amentoflavone was also the least abundant biflavonoid in the seed parts where biflavonoids were detected in seed petioles and sarcotesta, according to our data. Chen et al. [24] reported only isoginkgetin in ginkgo sarcotesta at concentrations ranging from 179.78 to 424.42 µg/g dry weight, which is comparable to our results where isoginkgetin was the most abundant biflavonoid (380.41 ± 26.98 µg/g dw). Shen et al. [25] reported bilobetin, isoginkgetin, and ginkgetin in sarcotesta and developed a method for large-scale targeted isolation of these biflavonoids from the exocarp (sarcotesta), which is an industrial waste.
In contrast to the leaves and seeds, in which methylated biflavonoids dominate, the most abundant biflavonoid in the bark and buds of trees and twigs was amentoflavone. In the bark, we could detect only amentoflavone and at the same time, other biflavonoids were below the detection limit. In the bark of the twig, we also detected other biflavonoids, but the amentoflavone content was twice as high as in other parts. Pandey et al. [23] reported the presence of amentoflavone and sciadopitysin in ginkgo stems, but the authors did not specify which type of stems they analyzed. The presence of amentoflavone has also been reported in the bark of other plants such as Calophyllum pinetorum [26], Ochna schweinfurthiana [27] and Anacolosa poilanei [28]. If we consider the strong antimicrobial [29,30] and antiparasitic [31,32,33] activity of amentoflavone, this could indicate its role in protection against biotic stress, but further studies should test this hypothesis.

4. Materials and Methods

4.1. Materials and Plant Samples

Ultrapure water was prepared using the Purelab flex system (ELGA LabWater, Wycombe, UK) and all solvents used were of HPLC grade. Certified analytical standards of biflavonoids, including amentoflavone (CAS 1617-53-4), bilobetin (CAS 521-32-4), ginkgetin (CAS 481-46-9), isoginkgetin (CAS 548-19-6), and sciadopitysin (CAS 521-34-6), were purchased from Phytolab (Vestenbergsgreuth, Germany). Plants of Ginkgo biloba L. were collected in Koprivnica, Croatia, in late October 2022. Leaves, seeds and bark samples were collected and then separated to obtain different tissues (Figure 4). Fresh material was quickly frozen and freeze-dried using a laboratory freeze dryer (LIO-5PLT, KAMBIČ, Ljubljana, Slovenia). The dry plant material was pulverized using a bead mill (Bead Ruptor 12, Omni International, USA), sealed under vacuum and stored at room temperature for further experiments.

4.2. Preparation of Standard Solutions

Standard stock solutions of five biflavonoids (amentoflavone, bilobetin, sciadopitysin, ginkgetin and isoginkgetin) were prepared individually in DMSO in a concentration of 1000 µg/mL. An appropriate amount of each standard stock solution was diluted with 80% methanol to obtain seven working standard solutions (concentrations 1.0, 2.0, 5.0, 10, 20, 50 and 100 µg/mL) for constructing the relevant calibration curves. The standard stock solution, along with the working solutions, was kept in dark at −20 °C until use.

4.3. Biflavonoids Extraction

Powdered samples of various G. biloba L. plant parts were accurately weighed (30 mg) and sonicated for 10 min at room temperature in the presence of extraction solvent (1 mL of 80% methanol), followed by a 45 min rotation in a mechanical shaker (Bio RS-24, Biosan, Latvia) and 5 min centrifugation (LMC-4200R, Biosan, Latvia) at 4000× g. Prior to the instrumental analysis, the obtained sample extracts were filtered through a 45 µm pore size polytetrafluoroethylene syringe filter. Each plant sample type was prepared in triplicates after which the average result value was expressed for each biflavonoid compound.

4.4. HPLC-DAD Analysis

The instrumental analysis was performed using an Agilent 1260 Infinity II HPLC system (Agilent, Santa Clara, CA, USA), equipped with a quaternary pump system, autosampler, column department and diode array detector (DAD). The acquisition and data processing was conducted using Agilent OpenLAB CDS software (v. 2.6, Agilent, Santa Clara, CA, USA). Chromatographic separation was attained using Zorbax 300Extend-C18 column, 150 × 4.6, 3.5 µm (Agilent, Santa Clara, CA, USA) maintained at 30 °C, and 0.1% formic acid in water (mobile phase A) and acetonitrile (mobile phase B) at a constant flow rate of 1.0 mL/min during 42 min of the analysis. The used multistep linear solvent gradient for the analyte’s elution was as follows: 0 min 98% A, 5 min 90% A, 15 min 70% A, 20 min 50% A, 25 min 50% A, 30 min 20% A, 32 min 2% A, 40 min 98% A. The injection volume was 10 µL for both standards and samples. UV/Vis spectra were recorded in the range of 190–400 nm, and the chromatograms were acquired at 330 nm.

4.5. Statistical Analysis

For analysis, we collected samples from six different plants, three of which were female from which we took seeds. We all collected material pulled together and for analysis, we performed three separate extractions and analyzed them on HPLC-DAD. Statistical analyses were performed using the free software PAST [34]. One-way ANOVA and post hoc multiple means comparison (Tukey’s HSD test) were performed and differences between measurements were considered significant at p < 0.05.

5. Conclusions

In the present study, we developed a method for the simultaneous determination of five biflavonoids (amentoflavone, bilobetin, ginkgetin, isoginkgetin, and sciadopitysin) and performed tissue-specific profiling in ten different parts of ginkgo plants. We did not detect biflavonoids in three plant parts (twigs without bark, nutshells, and kernels) that were not in direct contact with the environment. In the other plant parts studied, biflavonoids were most abundant in leaves, followed by seeds. In bark samples and buds, the predominant biflavonoid was amentoflavone, which, in contrast, was least abundant in leaves and seeds, where methylated biflavonoids dominated. In petioles and leaf blades, the most abundant biflavonoid was sciadopitysin, and in petioles and the sarcotesta of seeds, isoginkgetin. The accumulation of biflavonoids in the parts in direct contact with the environment probably indicates their role in plant-environment interaction. However, the different accumulation of each biflavonoid might be related to their chemical structure and different biological functions. Further studies should focus on elucidating the role of biflavonoids in plants, with emphasis on the structural functional differences.

Author Contributions

Conceptualization, D.Š. and M.K.T.; methodology, M.K.T., D.Š. and I.J.; validation, M.K.T.; investigation, M.K.T., D.Š. and I.J.; formal analysis, M.K.T.; resources, I.J. and D.Š.; writing—original draft preparation, D.Š. and M.K.T.; writing—review and editing, D.Š., M.K.T. and I.J.; visualization, D.Š.; supervision, D.Š.; project administration, D.Š.; funding acquisition, D.Š. All authors have read and agreed to the published version of the manuscript.

Funding

This work has been supported by Croatian Science Foundation project “Biflavonoids role in plants: Ginkgo biloba L. as a model system” under project no. UIP-2019-04-1018.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Šamec, D.; Karalija, E.; Šola, I.; Vujčić Bok, V.; Salopek-Sondi, B. The Role of Polyphenols in Abiotic Stress Response: The Influence of Molecular Structure. Plants 2021, 10, 118. [Google Scholar] [CrossRef]
  2. Jurinjak Tušek, A.; Šamec, D.; Šalić, A. Modern Techniques for Flavonoid Extraction—To Optimize or Not to Optimize? Appl. Sci. 2022, 12, 11865. [Google Scholar] [CrossRef]
  3. Šamec, D.; Karalija, E.; Dahija, S.; Hassan, S.T.S. Biflavonoids: Important Contributions to the Health Benefits of Ginkgo (Ginkgo Biloba L.). Plants 2022, 11, 1381. [Google Scholar] [CrossRef]
  4. He, X.; Yang, F.; Huang, X. Proceedings of Chemistry, Pharmacology, Pharmacokinetics and Synthesis of Biflavonoids. Molecules 2021, 26, 6088. [Google Scholar] [CrossRef] [PubMed]
  5. Zou, Z.-X.; Zhang, S.; Tan, J.-B.; Chen, D.-K.; Xu, Y.-R.; Xu, K.-P.; Tan, G.-S. Two New Biflavonoids from Selaginella Doederleinii. Phytochem. Lett. 2020, 40, 126–129. [Google Scholar] [CrossRef]
  6. Berghöfer, R.; Hölzl, J. Biflavonoids in Hypericum Perforatum 1; Part 1. Isolation of I3, II8-Biapigenin. Planta Med. 1987, 53, 216–217. [Google Scholar] [CrossRef] [PubMed]
  7. Beck, S.; Stengel, J. Mass Spectrometric Imaging of Flavonoid Glycosides and Biflavonoids in Ginkgo Biloba L. Phytochemistry 2016, 130, 201–206. [Google Scholar] [CrossRef] [PubMed]
  8. Šamec, D.; Pierz, V.; Srividya, N.; Wüst, M.; Lange, B.M. Assessing Chemical Diversity in (Psilotum Nudum L.) Beauv., a Pantropical Whisk Fern That Has Lost Many of Its Fern-Like Characters. Front. Plant Sci. 2019, 10, 868. [Google Scholar] [CrossRef]
  9. Aguilar, M.I.; Romero, M.G.; Chávez, M.I.; King-Díaz, B.; Lotina-Hennsen, B. Biflavonoids Isolated from Selaginella Lepidophylla Inhibit Photosynthesis in Spinach Chloroplasts. J. Agric. Food Chem. 2008, 56, 6994–7000. [Google Scholar] [CrossRef]
  10. Liu, L.; Wang, Y.; Zhang, J.; Wang, S. Advances in the Chemical Constituents and Chemical Analysis of Ginkgo Biloba Leaf, Extract, and Phytopharmaceuticals. J. Pharm. Biomed. Anal. 2021, 193, 113704. [Google Scholar] [CrossRef]
  11. Barker, C.S.; Elston, D.M. Botanical Briefs: Ginkgo (Ginkgo Biloba). Cutis 2022, 110, 30–33. [Google Scholar] [CrossRef]
  12. Ude, C.; Schubert-Zsilavecz, M.; Wurglics, M. Ginkgo Biloba Extracts: A Review of the Pharmacokinetics of the Active Ingredients. Clin. Pharmacokinet. 2013, 52, 727–749. [Google Scholar] [CrossRef] [PubMed]
  13. Petrov, L.; Alexandrova, A.; Argirova, M.; Tomova, T.; Georgieva, A.; Tsvetanova, E.; Mileva, M. Chromatographic Profile and Redox-Modulating Capacity of Methanol Extract from Seeds of Ginkgo Biloba L. Originating from Plovdiv Region in Bulgaria. Life 2022, 12, 878. [Google Scholar] [CrossRef]
  14. Zhang, L.; Zhu, C.; Liu, X.; Su, E.; Cao, F.; Zhao, L. Study on Synergistic Antioxidant Effect of Typical Functional Components of Hydroethanolic Leaf Extract from Ginkgo Biloba In Vitro. Molecules 2022, 27, 439. [Google Scholar] [CrossRef] [PubMed]
  15. Xu, N.; Liu, S.; Lu, Z.; Pang, S.; Wang, L.; Wang, L.; Li, W. Gene Expression Profiles and Flavonoid Accumulation during Salt Stress in Ginkgo Biloba Seedlings. Plants 2020, 9, 1162. [Google Scholar] [CrossRef] [PubMed]
  16. Liu, X.-G.; Wu, S.-Q.; Li, P.; Yang, H. Advancement in the Chemical Analysis and Quality Control of Flavonoid in Ginkgo Biloba. J. Pharm. Biomed. Anal. 2015, 113, 212–225. [Google Scholar] [CrossRef]
  17. Official Journal of the European Union. (Notified under Document Number C (2007) 1547); Official Journal of the European Union: Luxembourg, 2017; Volume 66, pp. 1–44. [Google Scholar]
  18. Moawad, A.; Amir, D. Ginkgetin or Isoginkgetin: The Dimethylamentoflavone of Dioon Edule Lindl. Leaves. Eur. J. Med. Plants 2016, 16, 1–7. [Google Scholar] [CrossRef]
  19. Briançon-Scheid, F.; Lobstein-Guth, A.; Anton, R. HPLC Separation and Quantitative Determination of Biflavones in Leaves from Ginkgo Biloba. Planta Med. 1983, 49, 204–207. [Google Scholar] [CrossRef] [PubMed]
  20. Kaur, P.; Chaudhary, A.; Singh, B. Gopichand Simultaneous Quantification of Flavonoids and Biflavonoids in Ginkgo Biloba Using RP-HPTLC Densitometry Method. J. Planar Chromatogr. Mod. TLC 2011, 24, 507–512. [Google Scholar] [CrossRef]
  21. Lei, J.; Jiang, Y.; Luo, X.; Zheng, Y.; Zhu, L.; Sun, C.; Linghu, L.; Qin, C.; Gang, W. Ultrasonic-Assisted Ionic Liquid Extraction of Four Biflavonoids from Ginkgo Biloba L. Chem. Sel. 2021, 6, 3297–3307. [Google Scholar] [CrossRef]
  22. Wang, L.-T.; Fan, X.-H.; Jian, Y.; Dong, M.-Z.; Yang, Q.; Meng, D.; Fu, Y.-J. A Sensitive and Selective Multiple Reaction Monitoring Mass Spectrometry Method for Simultaneous Quantification of Flavonol Glycoside, Terpene Lactones, and Biflavonoids in Ginkgo Biloba Leaves. J. Pharm. Biomed. Anal. 2019, 170, 335–340. [Google Scholar] [CrossRef] [PubMed]
  23. Pandey, R.; Chandra, P.; Arya, K.R.; Kumar, B. Development and Validation of an Ultra High Performance Liquid Chromatography Electrospray Ionization Tandem Mass Spectrometry Method for the Simultaneous Determination of Selected Flavonoids in Ginkgo Biloba. J. Sep. Sci. 2014, 37, 3610–3618. [Google Scholar] [CrossRef]
  24. Chen, X.; Zhong, W.; Shu, C.; Yang, H.; Li, E. Comparative Analysis of Chemical Constituents and Bioactivities of the Extracts from Leaves, Seed Coats and Embryoids of Ginkgo Biloba L. Nat. Prod. Res. 2021, 35, 5498–5501. [Google Scholar] [CrossRef] [PubMed]
  25. Shen, N.; Liu, Y.; Cui, Y.; Xin, H. Large-Scale Targetedly Isolation of Biflavonoids with High Purity from Industrial Waste Ginkgo Biloba Exocarp Using Two-Dimensional Chromatography Coupled with Macroporous Adsorption Resin Enrichment. Ind. Crops Prod. 2022, 175, 114264. [Google Scholar] [CrossRef]
  26. Alarcón, A.B.; Cuesta-Rubio, O.; Pérez, J.C.; Piccinelli, A.L.; Rastrelli, L. Constituents of the Cuban Endemic Species Calophyllum Pinetorum. J. Nat. Prod. 2008, 71, 1283–1286. [Google Scholar] [CrossRef] [PubMed]
  27. Ndongo, J.T.; Issa, M.E.; Messi, A.N.; Ngo Mbing, J.; Cuendet, M.; Pegnyemb, D.E.; Bochet, C.G. Cytotoxic Flavonoids and Other Constituents from the Stem Bark of Ochna Schweinfurthiana. Nat. Prod. Res. 2015, 29, 1684–1687. [Google Scholar] [CrossRef]
  28. Doan, T.T.A.; Nguyen, T.L.; Litaudon, M.; Phi, T.D.; Le, H.T.; Doan, T.M.H.; Pham, V.C. Three New D:A Friedo-Oleanane Triterpenes from the Stem Bark of Anacolosa Poilanei and Their Cytotoxic Activities. Phytochem. Lett. 2022, 47, 125–129. [Google Scholar] [CrossRef]
  29. Hwang, J.H.; Choi, H.; Woo, E.R.; Lee, D.G. Antibacterial Effect of Amentoflavone and Its Synergistic Effect with Antibiotics. J. Microbiol. Biotechnol. 2013, 23, 953–958. [Google Scholar] [CrossRef] [Green Version]
  30. Shen, X.; Niu, X.; Li, G.; Deng, X.; Wang, J. Amentoflavone Ameliorates Streptococcus Suis-Induced Infection In Vitro and In Vivo. Appl. Environ. Microbiol. 2018, 84, e01804-18. [Google Scholar] [CrossRef] [Green Version]
  31. Tasdemir, D.; Kaiser, M.; Brun, R.; Yardley, V.; Schmidt, T.J.; Tosun, F.; Rüedi, P. Antitrypanosomal and Antileishmanial Activities of Flavonoids and Their Analogues: In Vitro, In Vivo, Structure-Activity Relationship, and Quantitative Structure-Activity Relationship Studies. Antimicrob. Agents Chemother. 2006, 50, 1352–1364. [Google Scholar] [CrossRef]
  32. Rizk, Y.S.; Santos-Pereira, S.; Gervazoni, L.; Hardoim, D.D.; Cardoso, F.D.; de Souza, C.D.; Pelajo-Machado, M.; Carollo, C.A.; de Arruda, C.C.P.; Almeida-Amaral, E.E.; et al. Amentoflavone as an Ally in the Treatment of Cutaneous Leishmaniasis: Analysis of Its Antioxidant/Prooxidant Mechanisms. Front. Cell. Infect. Microbiol. 2021, 11, 615814. [Google Scholar] [CrossRef] [PubMed]
  33. Rizk, Y.S.; Hardoim, D.D.; Santos, K.B.A.; Zaverucha-do-Valle, T.; Taniwaki, N.N.; Almeida-Souza, F.; Carollo, C.A.; Vannier-Santos, M.A.; de Arruda, C.C.; da Silva Calabrese, K. Amentoflavone Isolated from Selaginella Sellowii Hieron Induces Mitochondrial Dysfunction in Leishmania Amazonensis Promastigotes. Parasitol. Int. 2022, 86, 102458. [Google Scholar] [CrossRef] [PubMed]
  34. Hammer, O.; Harper, A.A.T.; David, A.T.; Ryan, P.D. PAST: Paleontological statistics software package for education and data analysis. Palaeontol. Electron. 2001, 4, 1–9. [Google Scholar]
Plants 12 00147 g001 550

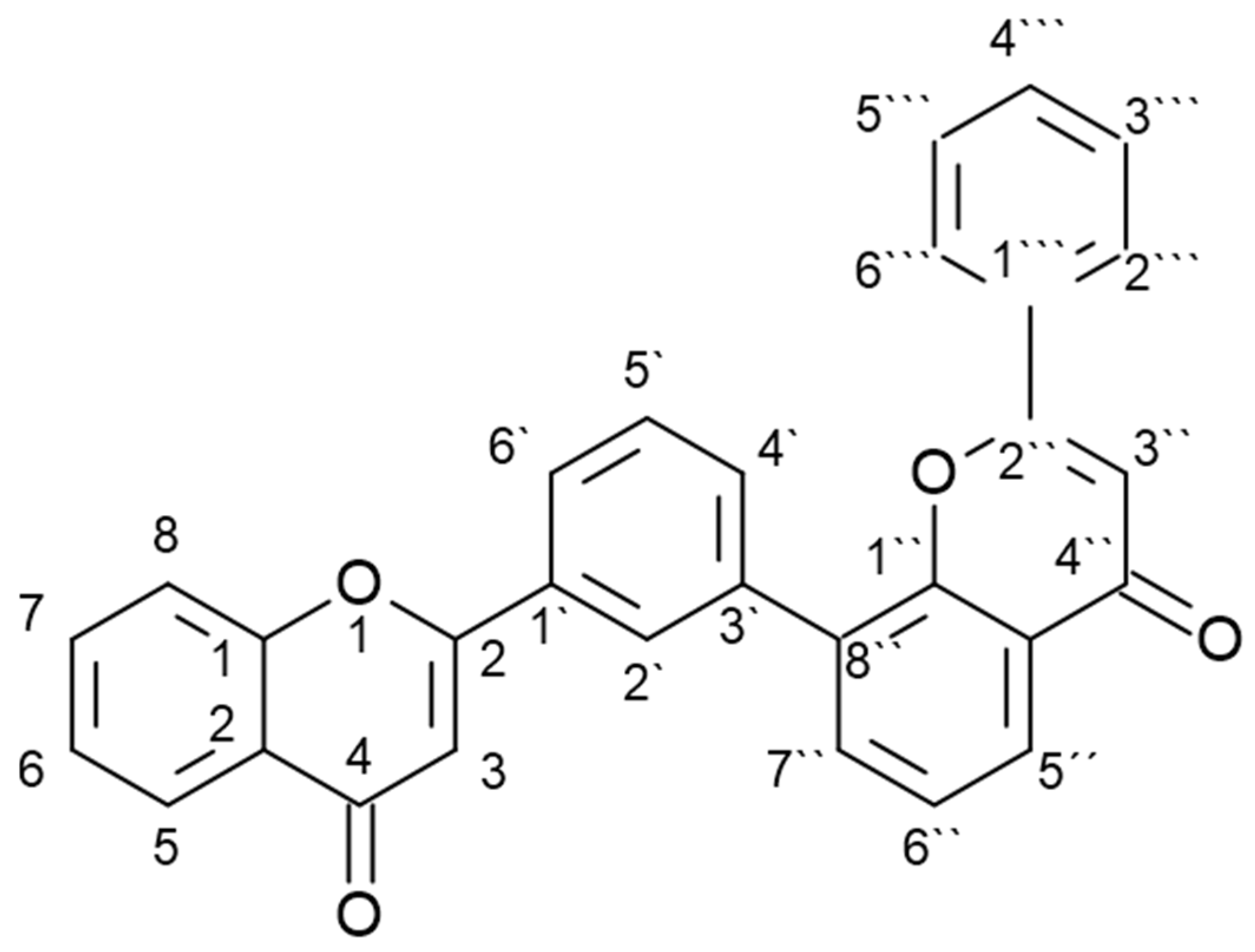

Figure 1. Basic structure of 3′, 8″- biflavones.
Figure 1. Basic structure of 3′, 8″- biflavones.
Plants 12 00147 g001
Plants 12 00147 g002 550

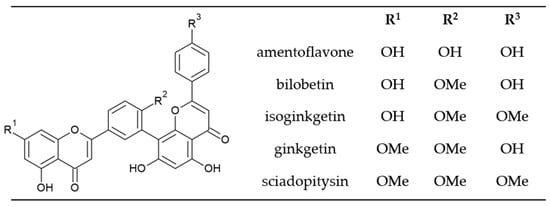

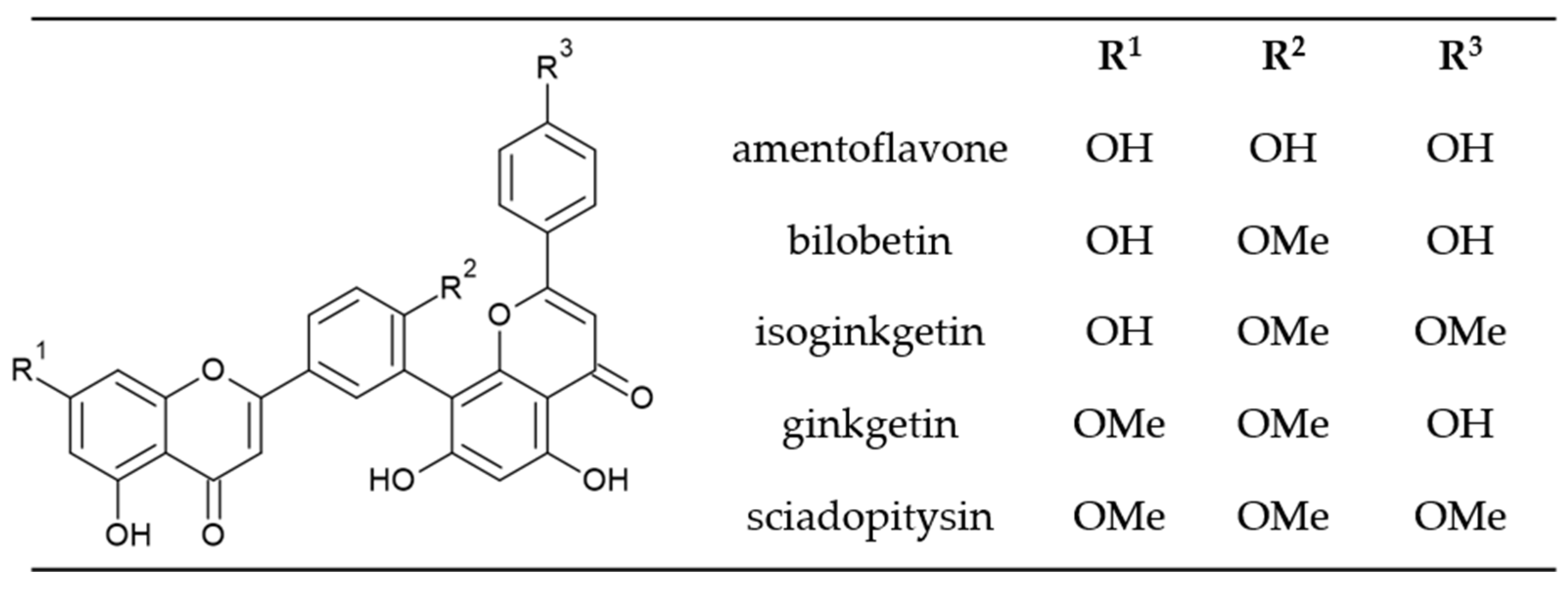

Figure 2. Chemical structure of main biflavonoids in ginkgo.
Figure 2. Chemical structure of main biflavonoids in ginkgo.
Plants 12 00147 g002
Plants 12 00147 g003 550

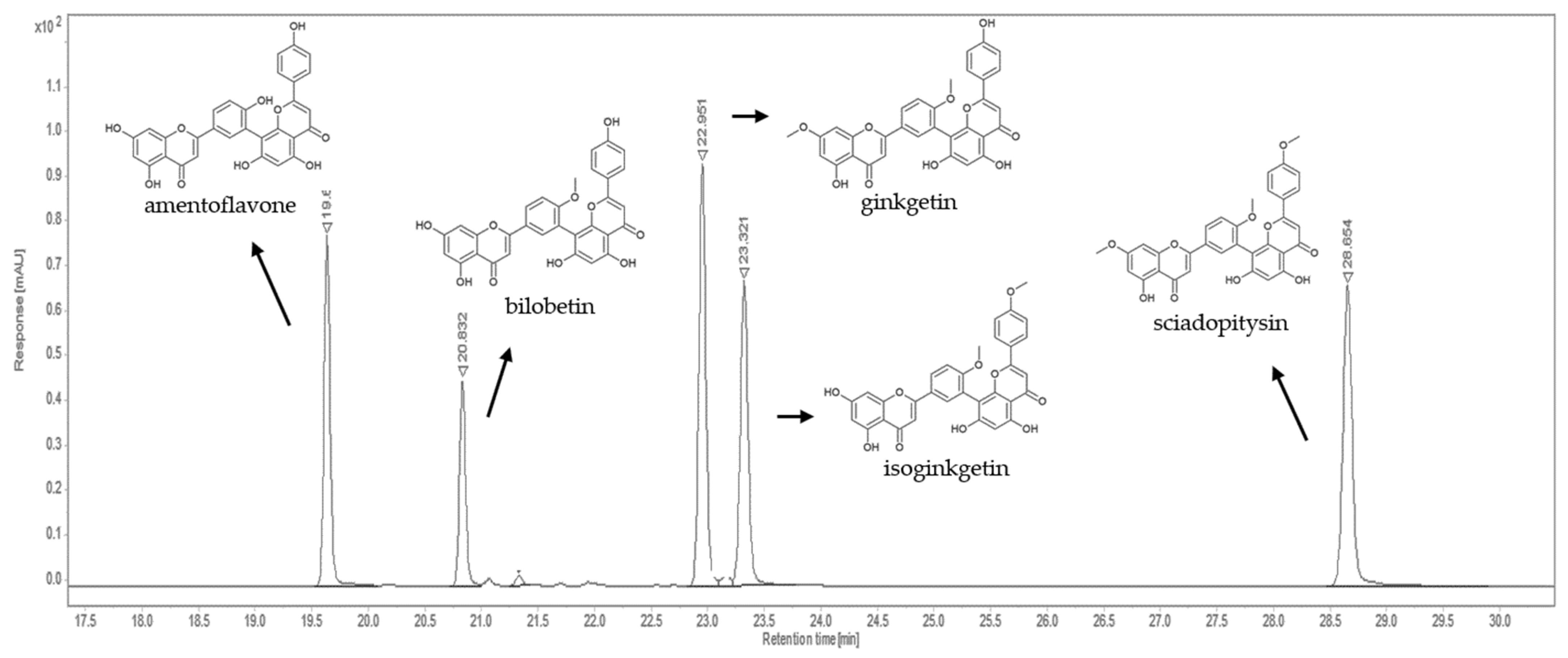

Figure 3. Representative chromatogram of five biflavones recorded at 330 nm.
Figure 3. Representative chromatogram of five biflavones recorded at 330 nm.
Plants 12 00147 g003
Plants 12 00147 g004 550
Figure 4. Ginkgo plant parts. Analyzed parts are bold and underlined.
Figure 4. Ginkgo plant parts. Analyzed parts are bold and underlined.
Plants 12 00147 g004
Plants 12 00147 g005 550

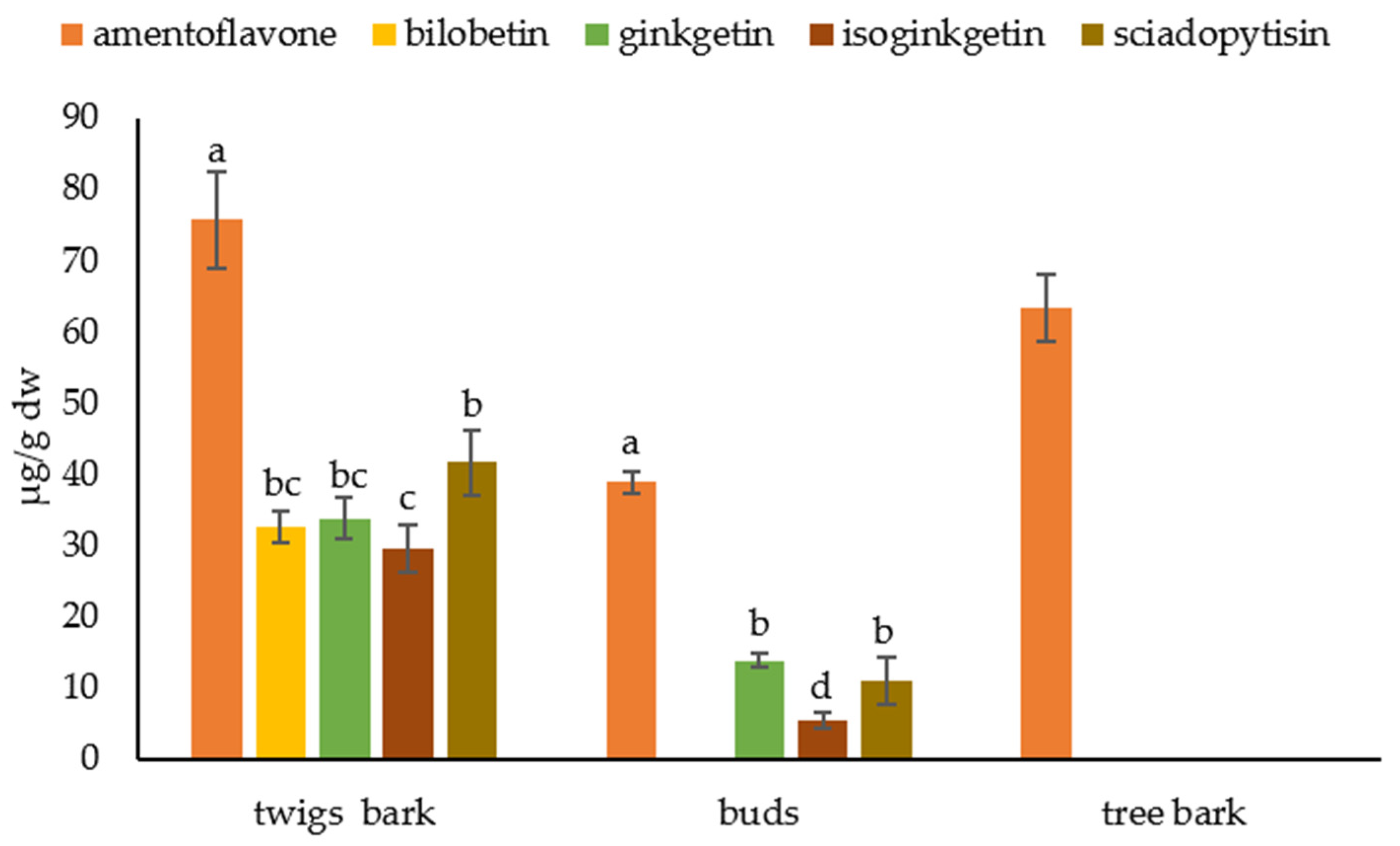

Figure 5. Biflavonoid profile in tree and twig bark and buds. Biflavonoid levels labeled with different letters differ significantly at p < 0.05 within the plant part.
Figure 5. Biflavonoid profile in tree and twig bark and buds. Biflavonoid levels labeled with different letters differ significantly at p < 0.05 within the plant part.
Plants 12 00147 g005
Plants 12 00147 g006 550

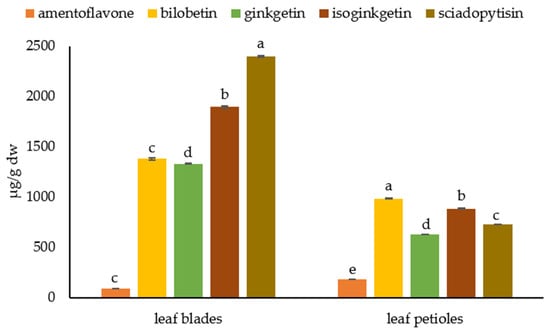

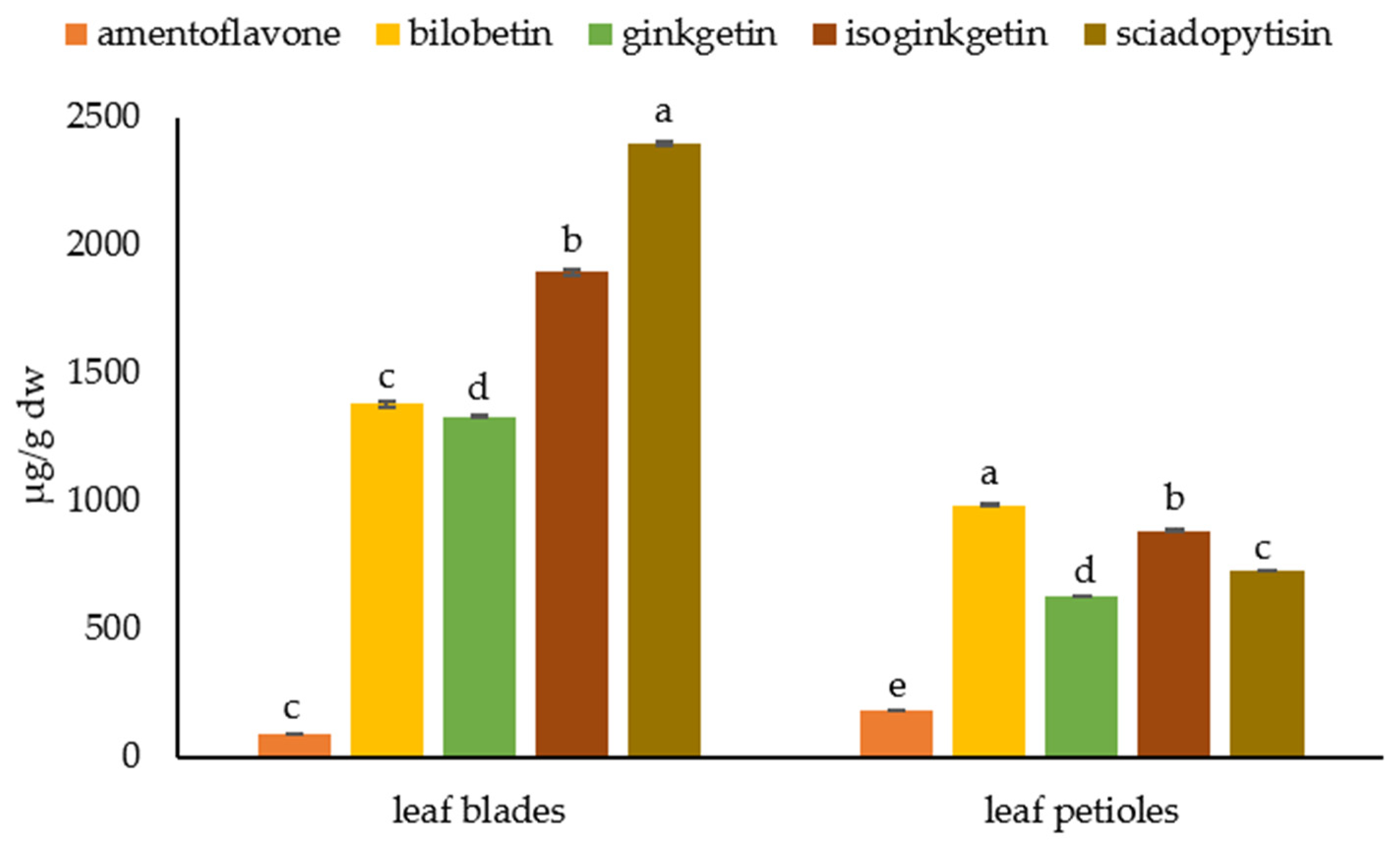

Figure 6. Biflavonoid profile in leaf parts- leaf blade and petiole. Biflavonoid levels labeled with different letters differ significantly at p < 0.05 within the plant part.
Figure 6. Biflavonoid profile in leaf parts- leaf blade and petiole. Biflavonoid levels labeled with different letters differ significantly at p < 0.05 within the plant part.
Plants 12 00147 g006
Plants 12 00147 g007 550

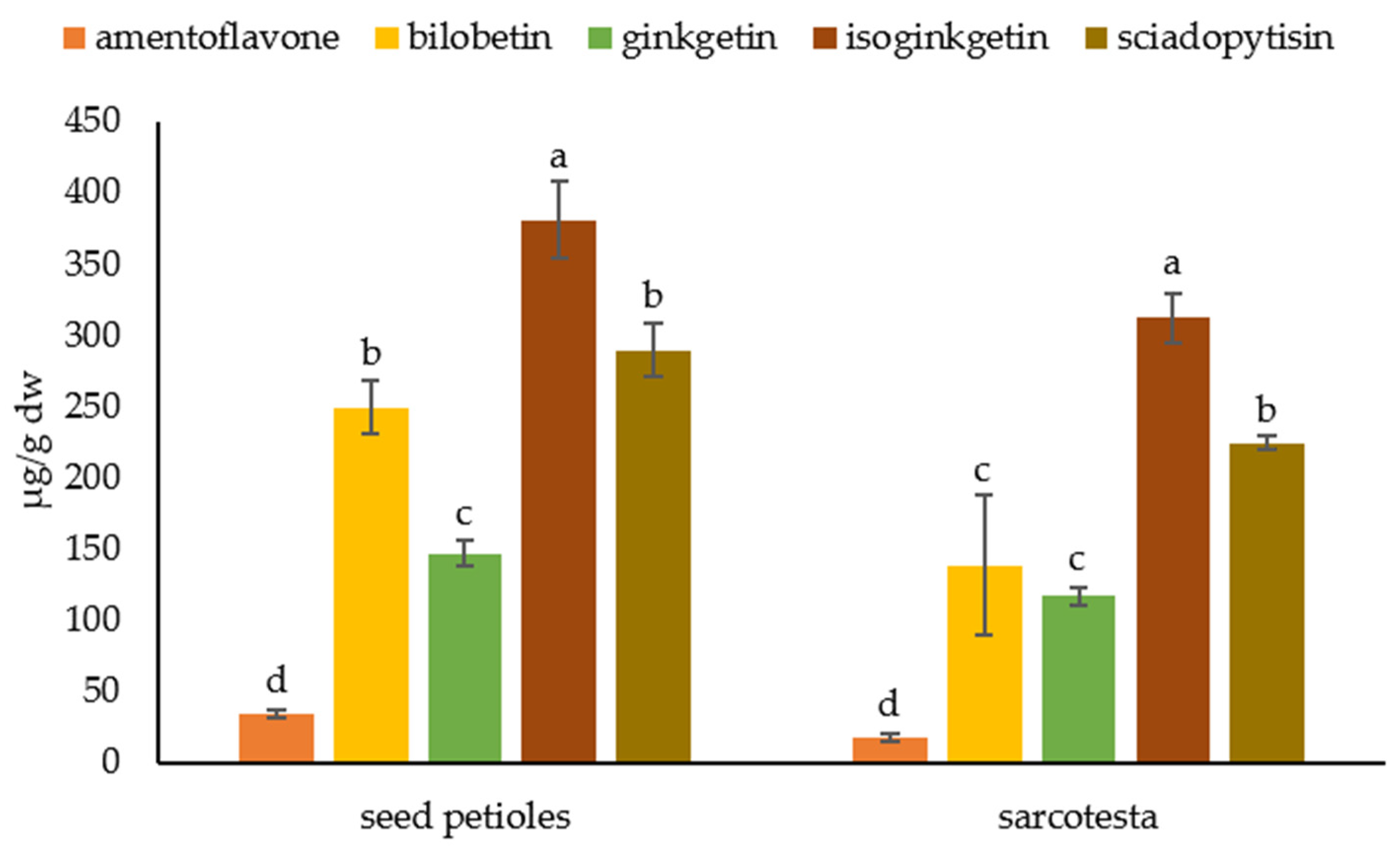

Figure 7. Biflavonoid profile of the seed parts. Biflavonoid levels labeled with different letters differ significantly at p < 0.05 within the plant part.
Figure 7. Biflavonoid profile of the seed parts. Biflavonoid levels labeled with different letters differ significantly at p < 0.05 within the plant part.
Plants 12 00147 g007
Plants 12 00147 g008 550

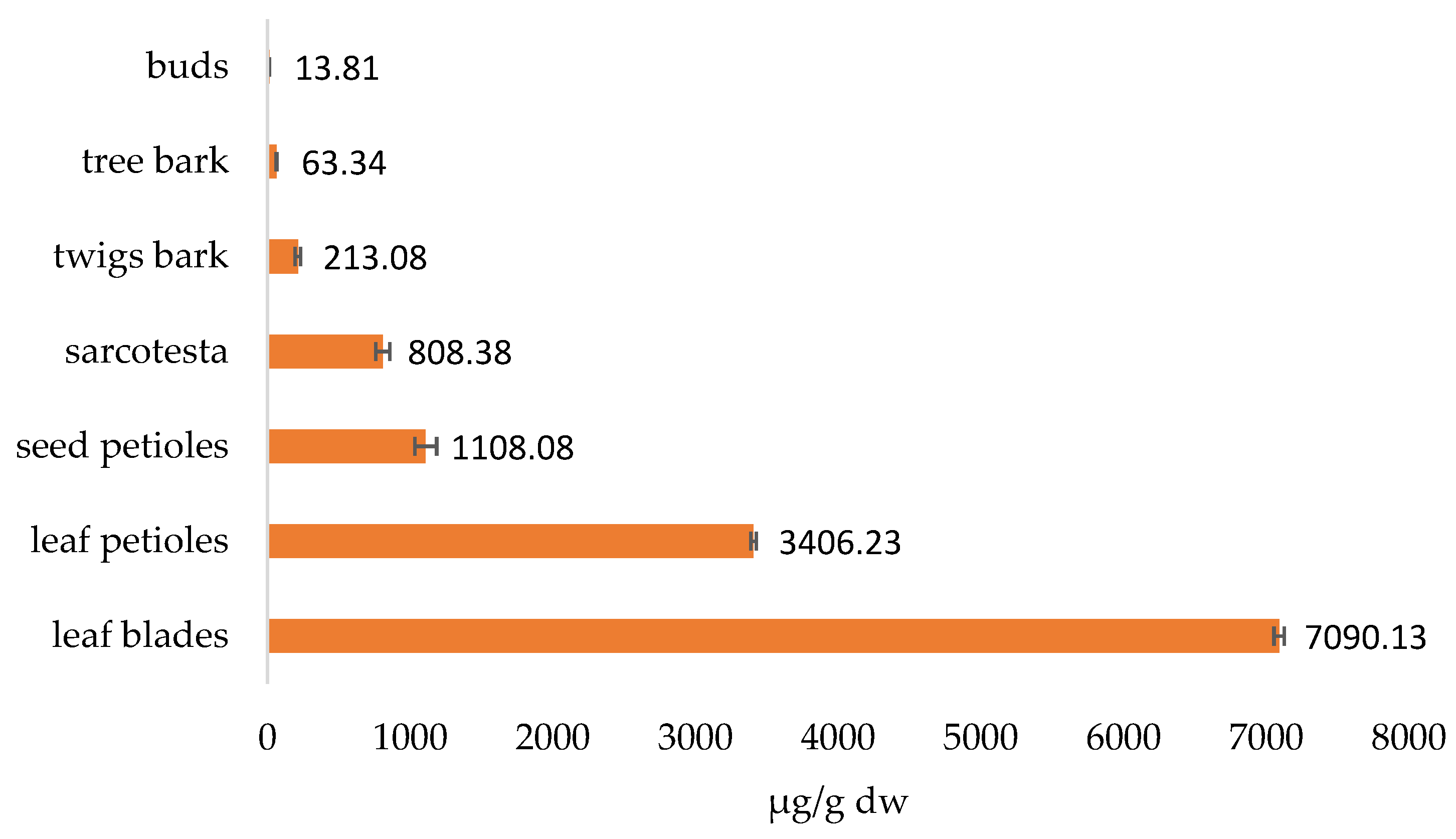

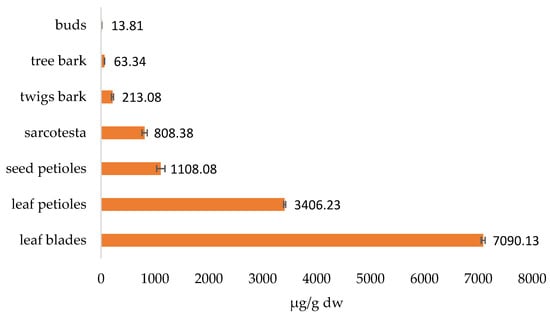

Figure 8. Total biflavonoid content in analyzed ginkgo parts.
Figure 8. Total biflavonoid content in analyzed ginkgo parts.
Plants 12 00147 g008
Table
Table 1. Retention times and UV spectrum data for analyzed biflavonoids.
Table 1. Retention times and UV spectrum data for analyzed biflavonoids.
CompoundRetention Time
(min)		Characteristic UV SpectrumMaximum UV Apsorption (nm)
Amentoflavone19.634Plants 12 00147 i001196, 226, 268, 336
Bilobetin20.832Plants 12 00147 i002196, 230, 270, 334
Ginkgetin22.951Plants 12 00147 i003196, 228, 270, 332
Isoginkgetin23.321Plants 12 00147 i004196, 228, 270, 330
Sciadopitysin28.654Plants 12 00147 i005194, 232, 270, 330
Table
Table 2. Curve equation, R2, LOD and LOQ for analyzed biflavonoids.
Table 2. Curve equation, R2, LOD and LOQ for analyzed biflavonoids.
AnalyteWavelength
nm		Curve EquationR2LOD
µg/mL		LOQ
µg/mL
Amentoflavone330y = 36.7275x − 51.06790.995040.301.0
Bilobetin330y = 23.2259x − 33.0330.997580.301.0
Ginkgetin330y = 54.6868x − 74.77670.997650.301.0
Isoginkgetin330y = 44.1283x − 51.42030.997750.301.0
Sciadopitysin330y = 49.3575x − 59.07100.998060.301.0
