Article

The Poplar (Populus trichocarpa) Dehydrin Gene PtrDHN-3 Enhances Tolerance to Salt Stress in Arabidopsis

by
Meiqi Zhou
,
Nafei Peng
,
Chuanping Yang
and
Chao Wang
*
State Key Laboratory of Tree Genetics and Breeding, Northeast Forestry University, Harbin 150040, China
*
Author to whom correspondence should be addressed.
Plants 2022, 11(20), 2700; https://doi.org/10.3390/plants11202700
Submission received: 31 August 2022 / Revised: 5 October 2022 / Accepted: 7 October 2022 / Published: 13 October 2022
(This article belongs to the Section Plant Response to Abiotic Stress and Climate Change)
Browse Figures
Review Reports Versions Notes

Abstract

:
Dehydrin (DHN), a member of the late embryogenesis abundant protein (LEA) family, was recently found to play a role in physiological responses to salt and drought stress. In this study, we identified and cloned the PtrDHN-3 gene from Populus trichocarpa. The PtrDHN-3 protein encoded 226 amino acids, having a molecular weight of 25.78 KDa and an isoelectric point of 5.18. It was identified as a SKn-type DHN and was clustered with other resistance-related DHN proteins. Real-time fluorescent quantitative PCR showed that transcription levels of PtrDHN-3 were induced by mannitol stress, and more significantly by salt stress. Meanwhile, in a yeast transgenic assay, salt tolerance increased in the PtrDHN-3 transgenic yeast, while the germination rate, fresh weight and chlorophyll content increased in PtrDHN-3-overexpressing transgenic Arabidopsis plants (OE) under salt stress. Significant increases in expression levels of six antioxidant enzymes genes, and SOD and POD enzyme activity was also observed in the OE lines, resulting in a decrease in O2- and H2O2 accumulation. The proline content also increased significantly compared with the wild-type, along with expression of proline synthesis-related genes P5CS1 and P5CS2. These findings suggest that PtrDHN-3 plays an important role in salt resistance in plants.

1. Introduction

Extremely harsh environmental conditions, such as high and low temperatures, saline-alkali conditions and drought, have a severe effect on plant growth and development, and are the main causes of plant mortality worldwide [1]. To survive adversity, plants have therefore evolved a series of mechanisms aimed at resisting stress. For example, salinity, high and low temperatures, drought, and other abiotic stresses cause water stress within the plant, in turn inducing a series of physiological reactions, such as increases in the contents of proline, soluble protein, carbohydrates, and organic acids, and a loss of lipid membranes [2]. These reactions are also thought to alter or induce the production of additional proteins, and all of these metabolic changes are regulated by gene expression [3,4]. Identification of the genes related to abiotic stress is therefore an important focus of research into the molecular mechanisms of plant stress resistance.
Dehydrins (DHNs) are members of the late embryogenesis abundant protein (LEA) family [5] which accumulate in the late stages of embryogenesis when water content in seeds declines, or in response to various stressors. DHN is clustered into the group II of highly hydrophilic proteins and has been discovered in a large number of plant species [6,7]. DHN usually contains a highly conserved N-terminal Y segment [T/V]D[E/Q]YGNP), a C-terminal K segment (EKKGIMDKIKEKLPG), and a central S segment (serine-track) [8,9]. Studies indicate that the K segments are the functional core parts of DHNs that mediate cellular stress tolerance or maintain enzyme activity [10]. S segments are generally thought to affect the localization or function of DHNs by phosphorylation [11], while the Y-segment is composed of aromatic conserved tyrosine residues the function of which remains unclear [12,13]. According to the number and position of these conserved domains, they can be divided into five different types: Kn, KnS, YnKn, SKn, and YnSKn. Kn dehydrogenase is induced by low temperatures, drought, and abscisic acid [14]; SKn-type DHN is induced by various abiotic stresses [15,16,17]; and the K-fragment of KnS-type DHN is induced by low temperatures and drought [18].
DHN is widely involved in the physiological responses to abiotic stress, playing an important role in improving resistance. Numerous in vitro studies have provided evidence for the potential role of different DHNs in plants. Among the various biochemical activities proposed for these proteins, many suggest a function as membrane or protein stabilizers [19], as radical scavengers protecting lipids against peroxidation, or as chaperones preventing stress-induced aggregation of enzymes or proteins [20]. In plum (Prunus mume), DHN gene expression was induced by ABA (abscisic acid), SA (salicylic acid), high and low temperatures, PEG (polyethylene glycol), and Salt. Meanwhile, in recombinant Escherichia coli, overexpression of PmLEA10, PmLEA19, PmLEA20, and PmLEA29 were found to improve permeability and resistance to freezing [21]. Furthermore, compared with wild-type wheat, transgenic plants containing the YnSKn-type DHN gene WZY2 had a lower water content and higher malondialdehyde (MDA) content [22]. Tomato (Solanum lycopersicum L.) plants transformed with the yacon DHN gene SiDHN also showed increases in chlorophyll a and b, relative water, and carotenoid contents, and a significant decrease in H2O2 and O2- [23]. In Arabidopsis, the KS-type DHN AtHIRD11 inhibited the production of hydrogen peroxide and hydroxyl free radicals in the copper ascorbate system [24], while knock-out of DHN genes Gh_A05G1554 (GhDHN_03) and Gh_D05G1729 (GhDHN_04) reduced the ability of cotton plants to tolerate osmotic pressure and salt stress [25]. Furthermore, mutant plants obtained via knock-out of PpDHNA, a DHN gene isolated from the moss Physcomitrella patens, expressed severely impaired growth under salt and osmotic stress [26]. The important protective role of DHN during cell dehydration has also been shown.
In this study, we identified and cloned the PtrDHN-3 gene from Populus trichocarpa in order to clarify its role in abiotic stress responses. In doing so, its function, and related physiological and molecular pathways under salt tolerance were determined in transgenic yeast and Arabidopsis assays. The results provide a foundation for future research into the functions of DHN in plant stress resistance.

2. Results

2.1. Phylogenetic Tree Analysis of PtrDHN-3

The full-length CDS of PtrDHN-3 was successfully cloned from P. trichocarpa. The PtrDHN-3 protein encoded 226 amino acids, with a molecular weight of 25.78KDa and an isoelectric point of 5.18. A phylogenetic tree was then constructed with other proteins of known function within different DHN subfamilies from other species (Figure 1A). PtrDHN-3 was homologous with DHN proteins possessing stress-resistance functions and was closest with IpDHN [27]. Furthermore, multiple sequence analysis of DHN proteins (OesDHN, StDHN and IpDHN) clustered with PtrDHN-3 revealed that the PtrDHN-3 protein contains three K segments and one S segment, representing a SK3 DHN belonging to the SKn-type subfamily (Figure 1B).

2.2. Characterization of Cis Elements in the PtrDHN-3 Gene Promoter

The 1500-bp upstream sequence of the initiator codon ATG in the PtrDHN-3 gene was selected for analysis of cis-acting elements in the gene promoter. Prediction analysis showed a number of cis-acting elements related to stress responses (Figure 2), such as an MYB binding site (MBS), ABA response element (ABRE), MYC recognition site, DRE recognition site, and general transcription factor binding sites such as TATA box.

2.3. Analysis of PtrDHN-3 Expression under Abiotic Stress

To determine the response of PtrDHN-3 to abiotic stress, qRT-PCR analysis was used to obtain expression profiles under respective treatment with 100 mM NaCl and 200 mM mannitol. Under mannitol stress (Figure 3A), the transcripts of PtrDHN-3 were first induced in the roots at 6 h followed by the stems and leaves at 12 h, with a peaking at 12 h in all tissues. Peak transcription levels in the leaves were 14 times greater than those of the control. These results indicate that PtrDHN-3 plays a role in the response to mannitol-induced drought stress. Meanwhile, treatment with NaCl caused a rapid increase in transcription levels of PtrDHN-3 in the roots, stems and leaves, with a notable increase in the leaves. Levels were highest at 24 h, at 41 times that of the control (Figure 3B). Since the response to salt stress was greater than that to drought, subsequent analyses focused on the function of PtrDHN-3 in salt stress.

2.4. PtrDHN-3 Improves Salt Tolerance in Yeast

To verify the potential function of PtrDHN-3 in salt stress, pYES2-PtrDHN-3 recombinant plasmids were transferred into the INVSC1 yeast strain. An empty pYES2 vector was used as a control. Under control conditions, there were no obvious differences in growth between the control and PtrDHN-3 transgenic cells. Meanwhile, under NaCl stress, growth of the PtrDHN-3 transgenic yeast was greater than that of the control at each dilution (10, 100, and 1000). Notably, the survival rate of transgenic yeast cells diluted 100-fold was much greater than that of control (Figure 4).

2.5. Overexpression of PtrDHN-3 Increases Salt Tolerance in Arabidopsis

To confirm the role of PtrDHN-3 in salt tolerance, PtrDHN-3-overexpressing Arabidopsis plants (OE) were constructed. Agrobacterium-mediated transformation of PtrDHN-3 in ten Arabidopsis lines was confirmed by PCR (Figure S1). Two T3 homozygous lines (OE-8 and OE-10) were then randomly selected for analysis of salt tolerance. When grown on 1/2 MS medium, no obvious differences in germination rates were observed between the transgenic and WT lines. However, on 1/2 MS medium containing 100 mM NaCl, germination rates were about three times greater in the transgenic lines than the WT (Figure 5A,B). Fresh weights were also significantly greater in the OE lines compared to the WT under salt stress (Figure 5C). Under control conditions, no significant differences in growth phenotypes were observed between the transgenic and WT plants; however, under salt stress, growth was better in the transgenic compared to the WT plants, and rosette leaves were healthier looking (Figure 5D). Chlorophyll contents decreased under salt stress in both the OE and WT plants; however, the decrease was greater in the WT.

2.6. PtrDHN-3 Scavenges ROS

Under normal growth conditions, Diaminobenzene (DAB) and Nitrotetrazolium Blue chloride (NBT) staining revealed similar accumulation of H2O2 and O2·- between the transgenic and WT Arabidopsis plants (Figure 6A). However, under salt stress conditions, accumulation of H2O2 and O2- decreased in the transgenic compared with WT plants, especially at 12 h, and blue and brown staining were detected in the leaves.
Analysis of antioxidant enzymes activity showed that SOD and POD activities were significantly higher in the transgenic compared to WT plants under salt stress (Figure 6B,C). Meanwhile, qRT-PCR analysis of SOD and POD gene expression revealed no significant differences between the OE and WT plants under non-stress conditions (Figure 6D), but a significant increase under salt stress in the transgenic plants (Figure 6E).

2.7. PtrDHN-3 Improves Biosynthesis of Proline under Salt Stress

Studies have shown that proline content can be used to measure salt tolerance in plants [28]. To determine whether PtrDHN-3 induces proline biosynthesis, proline contents were measured in the transgenic and WT Arabidopsis. Under non-stress conditions, proline contents were similar between the transgenic and WT plants; however, under salt stress, contents increased significantly in the transgenic plants (Figure 7A). Expression of proline biosynthesis-related genes P5CS1 and P5CS2 has also been studied in relation to salt stress [29]. In this study, no obvious differences were observed between the transgenic and WT lines under normal conditions; however, under salt stress, transcript levels of both genes increased in the transgenic plants (Figure 7B).

3. Discussion

Considerable research has been carried out into the role of DHN genes in cold stress resistance [20]. Meanwhile, in more recent years, DHN has also been found to play a role in drought resistance and salt tolerance [23,25]. However, few studies have examined the role of this gene in trees. A previous study in poplar (Populus trichocarp) revealed that PtrDHN genes are related to abiotic stress responses [30]. Therefore, in this study, the function of PtrDHN3 in response to stress was investigated further.
Phylogenetic tree analysis showed that PtrDHN-3 is clustered with a number of stress-resistant genes including IpDHN, OesDHN, StDHN and CcDHN (Figure 1A), the functions of which in relation to abiotic stress have been previously identified [31,32,33]. Meanwhile, multiple sequence alignment revealed that PtrDHN-3 is a SKn-type DHN protein (Figure 1B). The functions of different types of DHN proteins differ, together with their responses to stress. For example, studies have shown that SKn-type DHNs are a type of acid DHN that are induced by multiple stresses [15,16,17]. In this study, analysis of the promoter region of the PtrDHN-3 gene revealed a variety of elements related to stress, such as an MYB binding site (MBS), ABA response element (ABRE), MYC recognition site and DRE recognition site (Figure 2). These sequence characteristics therefore suggest that PtrDHN-3 is involved in abiotic stress responses in poplar.
In general, genes related to abiotic stress resistance are induced under stress conditions. In order to verify whether this is the case with PtrDHN-3, responses to salt and drought stress were examined. Transcript levels of PtrDHN-3 were induced under both mannitol and NaCl treatment; however, the response was greater under salt stress, especially in the leaves (Figure 3), suggesting an important role in salt stress tolerance. This was subsequently confirmed via histochemical staining, and analyses of SOD activity, POD activity, and chlorophyll and proline contents.
Yeast is an important tool for screening genes involved in abiotic stress resistance. For example, transference of ThvhAC1 gene from Tamarix hispida into yeast cells improved tolerance and survival of transgenic yeast under abiotic stress [34], while overexpression of TdSHN1 (Durum wheat gene) improved tolerance to Cd, Cu, and Zn stress in transgenic yeast [35]. In this study, PtrDHN-3 improved tolerance to salt stress in the transformed yeast cells (Figure 4), although there was no obvious difference under mannitol-induced drought stress (data not shown).
To verify the function of PtrDHN-3 in salt tolerance, PtrDHN-3 overexpression was induced in Arabidopsis. Analysis showed that under NaCl stress conditions, the transgenic Arabidopsis plants had a greater germination rate, fresh weight and chlorophyll content than the WT. Various germination tests and phenotype analyses can be used to show the role of resistance genes in salt tolerance [36]. The present results suggest that PtrDHN-3 functions in salt tolerance by improving germination and reducing tissue dehydration and photosynthetic damage under stress conditions (Figure 5).
When subjected to abiotic stress, plants produce a large amount of ROS, thereby inducing oxidative harm. Wheat DHN was found to improve salt tolerance in transgenic Arabidopsis thaliana by eliminating ROS [37], while cellular accumulation of IpDHN was found to improve salt tolerance in transgenic Arabidopsis, possibly by activating the oxygen-scavenging system [27]. DAB and NBT staining are commonly used to determine the contents of H2O2 and O2- [38], and in this study, were used to identify the function of PtrDHN3 in ROS scavenging (Figure 6A). The results showed that overexpression of PtrDHN3 reduced the accumulation of both H2O2 and O2- under salt stress conditions, suggesting that PtrDHN3 improves salt tolerance by reducing ROS accumulation. Plants possess an antioxidant enzyme system that protects cells from oxidative damage by scavenging ROS. SOD and POD play an important role in ROS detoxification and are therefore crucial factors in abiotic stress resistance. In this study, a significant increase in SOD and POD activity were observed under salt stress in the PtrDHN-3 transgenic plants (Figure 6B,C), thereby functioning to reduce ROS accumulation. Expression levels of SOD and POD genes were also examined, revealing a significant increase in the transgenic component compared to WT plants under salt stress (Figure 6E). Consistent with this, previous knock-outs of CaDHN4 and CaDHN5 inhibited expression of manganese superoxide dismutase (MnSOD) and peroxidase (POD) genes, causing an increase in severe wilting and ROS accumulation in the leaves of Arabidopsis [39,40]. Taken together, these results suggest that PtrDHN-3 enhances salt tolerance in the transgenic plants by inducing the expression of SOD and POD, improving the activities of SOD and POD, and thereby reducing ROS accumulation.
Plants often accumulate proline under abiotic stress conditions, and proline is therefore thought to play an important role in plant cell adaptation to osmotic stress [41]. We therefore determined the expression of two important proline synthesis-related genes, P5CS1 and P5CS2, as well as the content of proline in transgenic Arabidopsis (Figure 7). Under salt stress conditions, PtrDHN-3 induced an increase in the expression of P5CS1 and P5CS2, and improved proline biosynthesis in the transgenic compared to WT plants. These findings suggest that overexpression of PtrDHN-3 improves tolerance to salt stress by inducing the synthesis of proline. Consistent with this, the role of DHN in regulating proline synthesis to confer salt tolerance has also been shown in Australian wild rice [42].

4. Materials and Methods

4.1. Populus Trichocarpa Cultivation and Stress Treatment

Four-week-old tissue culture seedlings of P. trichocarpa were transplanted into pots and cultivated in a greenhouse for two months under 14 h light/10 h dark, 70–75% relative humidity, and an indoor temperature of 25 °C. Two-month-old seedlings were then treated with 100 mM NaCl or 200 mM mannitol for 6, 12, 36, 24, 48, or 72 h. Well-watered seedlings were used as a control. Root, stem, and leaf samples from at least three seedlings per treatment were then harvested and pooled for real-time quantitative RT-PCR (qRT-PCR) analysis.

4.2. Cloning and Sequence Analysis of PtrDHN-3

Nucleic acid and amino acid sequences of PtrDHN-3 were retrieved from the poplar genome database (https://phytozome.jgi.doe.gov/ (accessed on 15 November 2019)). Using P. trichocarpa cDNA as a template, the CDS sequence of PtrDHN-3 was then amplified according to the full-length PtrDHN-3 ORF sequence (GenBank accession no.: XM_002307732.1/Potri.005G248100.1) using forward and reverse primers 5′-ATGGCTGAGGAAAACAAGAGC-3′ and 5′-CTACTGGGAAGCACTCTCCT-3′, respectively. A phylogenetic tree was constructed using MEGA5 software [43], protein sequences were aligned using ClustalW2 (http://www.ebi.ac.uk/Tools/msa/clustalw2/ (accessed on 15 November 2019)), and the -1.5-kb upstream promoter sequence of the PtrDHN-3 gene was searched using the phytozome database. plantCARE software (http://bioinformatics.psb.ugent.be/webtools/plantcare/html/ (accessed on 15 November 2019)) was used to analyze the cis-acting element in the promoter sequence of PtrDHN-3 [44].

4.3. RNA Isolation and qRT-PCR

PtrDHN-3 RNA was isolated using pBIOZOL Plant Total RNA extraction reagent (Bioflux, Beijing, China). cDNA was then synthesized from the total RNA using a Reverse Transcription Kit (Takara Japan, Osaka, Japan).
Resistance-related gene sequences in Arabidopsis (SOD1 (NM_100757), SOD2 (NM_101123), SOD3 (NM_128379), POD1 (NM_102257), POD2 (NM_127371), POD3 (NM_127372), P5CS1 (NM_129539) and P5CS2 (NM_115419)) were download from https://www.arabidopsis.org/ (accessed on 15 November 2020). PtrActin (Potri.001G453600) and AtActin (At5G09810) were used as internal controls in P. trichocarpa and Arabidopsis, respectively. All primers used for qRT-PCR are shown in Supplementary Table S1.
Takara quantitative PCR enzyme (Takara Japan) was used for the qRT-PCR reactions, all of which were performed in triplicate as follows: 94 °C for 30 s followed by 45 cycles of 94 °C for 12 s, 58 °C for 30 s and 72 °C for 45 s. Detection was carried out using the Roche LightCycler 480 II (Jena q Tower 3G, Jena, Germany), and relative abundance was determined based on the 2−ΔΔCT method [45]. All experiments were conducted with three biological replicates.

4.4. Salt Stress Tolerance Assays in Yeast

Analysis of salt tolerance in yeast was carried out using a yeast expression vector. PCR primers were designed based on the CDS sequence of the PtrDHN-3 gene as follows: forward primer 5’-ACTCACTATAGGGAATATTA ATGGCTGAGGAAAACAAGAGC-3’ and reverse primer 5’-TAATTACATGATGCGGCCCTCTACTGGGAAGCACTCTCCT-3’. The PtrDHN-3 gene was transferred into the yeast expression vector pYES2 (Carlsbad, CA, USA) using the Infusion enzyme (Zhongmei Taihe, c5891-50, Taihe, China). The constructed expression vector pYES2-PtrDHN-3 was then transformed into INVSC1 yeast cells, with an empty pYES2 plasmid used as a control. The transformed cells were cultivated on an SC-U medium containing 2% glucose in an incubator at 30 °C for three days. Positive clones were then identified by PCR detection. Single-clone cells containing the recombinant DNA (pYES2-PtrDHN-3) and control vector cells were then incubated in an SC-U medium with shaking until an OD of 0.6 was reached. Yeast cells were then diluted 10-, 100- and 1000-fold and spotted on an SC-U medium. For the salt tolerance assay, yeast cells were re-suspended in 3 M NaCl for 24 h then spread on an an SC-U medium and inverted in an incubator at 30 °C for three days. Images were then obtained (Canon EOS 7D MARKII, Japan). As a control, the cultured yeast cells were spotted on an SC-U medium without NaCl treatment.

4.5. Construction of Transgenic Arabidopsis

Arabidopsis seeds (Col-0) were grown in grass carbon soil: vermiculite: perlite at a volume: volume ratio of 5: 3: 2, then placed in a cultivation room at 22~24 ℃ under a light/dark photoperiod of 16 h/8 h, and a light intensity of 80~120 μmol∙m−2∙s−1. The CDS sequence of PtrDHN-3 was constructed in a pROKII vector (35S:: PtrDHN-3) [46] using PCR with forward primer 5’- CTCTAGAGGATCCCATGGCTGAGGAAAACAAGAGC -3’ and reverse primer 5’- TCGAGCTCGGTACCCCTACTGGGAAGCACTCTCCT -3’. The constructed 35S: PtrDHN-3 plasmid was then transformed into Agrobacterium strain EHA105 for Arabidopsis infiltration. Transgenic lines were developed using the floral dipping method and screened in 1/2 MS selection medium with 50 mg/L kanamycin. PCR analysis was then carried out using forward primer 5’-AGACGTTCCAACCACGTCTT-3’ and reverse primer 5’-CCAGTGAATTCCCGATCTAG-3’. T3-generation homozygous PtrDHN-3 transgenic lines were used for further experiments.

4.6. Salt Stress Tolerance Assays in Arabidopsis

For analysis of salt stress tolerance, seeds of two transgenic Arabidopsis lines (OE-8, OE-10) and wild-type (WT) plants were sown on a 1/2 MS solid medium containing 100 mM NaCl. The germination rate was then observed after 10–14 days. Seeds of over-expressing T3 homozygous and control Arabidopsis lines were then sown on fresh 1/2 MS medium and observed for five days for germination. They were then transferred to 1/2 MS medium plates with or without (control) 100 mM NaCl and cultured at 22℃ with a photoperiod of 16 h light and a photon flux of 80–120 μmol∙m−2∙s−1. After 7-day continuous cultivation, fresh weights were then measured. Seedlings of 4-week-old T3 transgenic and WT Arabidopsis lines grown in pots were also treated with 100 mM NaCl solution for 10 days. Well-watered seedlings were used as a control. The planting method, nutrient substrate and cultivation environment were as described in Section 4.5. The phenotypes of the seedlings were then photographed with Canon EOS 7D MARKII, and contents of chlorophyll and proline in the leaves were determined. Chlorophyll contents was determined according to the description of Lightenthaler (1987) [47]. The samples were fully ground with liquid nitrogen and treated with acetone. The optical densities of supernate at wavelengths of 663 nm, 645 nm, 652 nm and 470 nm were measured. For proline assay, the ground samples were assayed by a colorimetric assay kit based on the ninhydrin reaction (Jiancheng Bio. Co., Nanjing, China) and the reaction product was quantified by its absorbance at 520 nm, calibrated with proline standards).

4.7. Histochemical Detection of Reactive Oxygen Species (ROS)

Leaves of 4-week-old T3 transgenic and WT Arabidopsis lines were sampled at 0, 3, 6 and 12 h after salt treatment. They were then stained with NBT (Nitrotetrazolium Blue chloride) for detection of H2O2 and with DAB (Diaminobenzene) for detection of superoxide (O2˙−) [48].

4.8. Analysis of Antioxidant Enzyme Activity

Leaves of 4-week-old T3 transgenic and WT Arabidopsis lines were sampled after 12 h salt treatment. Stress-treated samples were collected for analysis of antioxidant enzyme activity. Superoxide dismutase (SOD) and peroxidase (POD) activities were determined using corresponding kits based on the manufacturers’ instructions (Nanjing Jiancheng, Nanjing, China). Samples were obtained from at least nine seedlings per line, and all experiments were repeated three times.

4.9. Statistical Analyses

Statistical analyses were carried out using SPSS software version 20.0. Mean ± standard deviations (SD) were obtained from the average of three biological replicates. Data were compared using Student’s t test, and differences were considered significant at p < 0.05.

5. Conclusions

The DHN gene PtrDHN-3 was successfully cloned from P. trichocarpa. Expression of PtrDHN-3 was subsequently found to be induced by NaCl, suggesting a role in the response to salt stress. PtrDHN-3 also improved tolerance to NaCl stress in transgenic yeast, as well as improving SOD and POD activity and reducing the accumulation of H2O2 and O2− in transgenic Arabidopsis, preventing ROS oxidative harm and promoting osmotic regulation via accumulation of proline. Taken together, these findings suggest that PtrDHN-3 plays an important physiological role in resistance to salt stress in plants, providing a foundation for future research into the functions of DHN in stress resistance.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/plants11202700/s1, Supplementary Figure S1: PtrDHN-3 in Arabidopsis lines was confirmed by PCR; Supplementary Table S1: qRT-PCR primer sequence.

Author Contributions

M.Z. wrote the manuscript and performed some of the assays. N.P. provided the materials. C.Y. provided the gene (PtrDHN-3). C.W. provided funds for the current study, designed the study and revised the manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the National Key Research and Development Program of China (2016YFD0600106), the Heilongjiang Touyan Innovation Team Program (Tree Genetics and Breeding Innovation Team), and the Overseas Expertise Introduction Project for Discipline Innovation (B16010), “the Fundamental Research Funds for the Central Universities” (2572016DA01).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Date is contained within the article or Supplementary Material.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Boyer, J.S. Plant Productivity and Environment. Science 1982, 218, 443–448. [Google Scholar] [CrossRef] [PubMed]
  2. Blum, A. Drought resistance, water-use efficiency, and yield potential—Are they compatible, dissonant, or mutually exclusive? Crop Pasture Sci. 2005, 56, 1159–1168. [Google Scholar] [CrossRef] [Green Version]
  3. Landi, S.; De Lillo, A.; Nurcato, R.; Grillo, S.; Esposito, S. In field study on traditional Italian tomato landraces: The constitutive activation of the ROS scavenging machinery reduces effects of drought stress. Plant Physiol. Biochem. 2017, 118, 150–160. [Google Scholar] [CrossRef] [PubMed]
  4. Liu, N.Q.; Shen, Y.X.; Huang, B.R. Osmoregulants Involved in Osmotic Adjustment for Differential Drought Tolerance in Different Bentgrass Genotypes. J. Am. Soc. Hortic. Sci. 2015, 140, 605–613. [Google Scholar] [CrossRef] [Green Version]
  5. Dure, L., 3rd; Greenway, S.C.; Galau, G.A. Developmental biochemistry of cottonseed embryogenesis and germination: Changing messenger ribonucleic acid populations as shown by in vitro and in vivo protein synthesis. Biochemistry 1981, 20, 4162–4168. [Google Scholar] [CrossRef] [PubMed]
  6. Battaglia, M.; Olvera-Carrillo, Y.; Garciarrubio, A.; Campos, F.; Covarrubias, A.A. The enigmatic LEA proteins and other hydrophilins. Plant Physiol. 2008, 148, 6–24. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  7. Hand, S.C.; Menze, M.A.; Toner, M.; Boswell, L.; Moore, D. LEA proteins during water stress: Not just for plants anymore. Annu. Rev. Physiol. 2011, 73, 115–134. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  8. Allagulova, C.R.; Gimalov, F.R.; Shakirova, F.M.; Vakhitov, V.A. The plant dehydrins: Structure and putative functions. Biochemistry 2003, 68, 945–951. [Google Scholar] [CrossRef] [PubMed]
  9. Tunnacliffe, A.; Wise, M.J. The continuing conundrum of the LEA proteins. Naturwissenschaften 2007, 94, 791–812. [Google Scholar] [CrossRef]
  10. Drira, M.; Saibi, W.; Brini, F.; Gargouri, A.; Masmoudi, K.; Hanin, M. The K-segments of the wheat dehydrin DHN-5 are essential for the protection of lactate dehydrogenase and β-glucosidase activities in vitro. Mol. Biotechnol. 2013, 54, 643–650. [Google Scholar] [CrossRef]
  11. Malik, A.A.; Veltri, M.; Boddington, K.F.; Singh, K.K.; Graether, S.P. Genome analysis of conserved dehydrin motifs in vascular plants. Front. Plant Sci. 2017, 8, 709. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  12. Riera, M.; Figueras, M.; Lopez, C.; Goday, A.; Pages, M. Protein kinase CK2 modulates developmental functions of the abscisic acid responsive protein Rab17 from maize. Proc. Natl. Acad. Sci. USA 2004, 101, 9879–9884. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  13. Boddington, K.F.; Graether, S.P. Binding of a Vitis riparia dehydrin to DNA. Plant Sci. 2019, 287, 110172. [Google Scholar] [CrossRef]
  14. Close, T.J. Dehydrins: A commonality in the response of plants to dehydration and low temperature. Physiol. Plant 1997, 100, 291–296. [Google Scholar] [CrossRef]
  15. Hill, W.; Jin, X.L.; Zhang, X.H. Expression of an arctic chickweed dehydrin, CarDHN, enhances tolerance to abiotic stress in tobacco plants. Plant Growth Regul. 2016, 80, 323–334. [Google Scholar] [CrossRef]
  16. Bao, F.; Du, D.; An, Y.; Yang, W.; Wang, J.; Cheng, T. Overexpression of Prunus mume dehydrin genes in tobacco enhances tolerance to cold and drought. Plant Sci. 2017, 8, 151. [Google Scholar] [CrossRef] [Green Version]
  17. Liu, H.; Yu, C.; Li, H.; Ouyang, B.; Wang, T.; Zhang, J.; Wang, X.; Ye, Z. Overexpression of ShDHN, a dehydrin gene from Solanum habrochaites enhances tolerance to multiple abiotic stresses in tomato. Plant Sci. 2015, 231, 198–211. [Google Scholar] [CrossRef]
  18. Fernandez, M.; Valenzuela Águila, S.; Arora, R.; Chen, K. Isolation and characterization of three cold acclimation-responsive dehydrin genes from eucalyptus globulus. Tree Genet. Genomes 2012, 8, 149–162. [Google Scholar] [CrossRef]
  19. Celik Altunoglu, Y.; Baloglu, M.C.; Baloglu, P.; Yer, E.N.; Kara, S. Genome-wide identification and comparative expression analysis of LEA genes in watermelon and melon genomes. Physiol. Mol. Biol. Plants 2017, 23, 5–21. [Google Scholar] [CrossRef] [Green Version]
  20. Rorat, T.; Szabala, B.M.; Grygorowicz, W.J.; Wojtowicz, B.; Yin, Z.; Rey, P. Expression of SK3-type dehydrin in transporting organs is associated with cold acclimation in Solanum species. Planta 2006, 224, 205–221. [Google Scholar] [CrossRef]
  21. Ding, A.; Bao, F.; Zhang, T.; Yang, W.; Wang, J.; Cheng, T.; Zhang, Q. Screening of optimal reference genes for qRT-PCR and preliminary exploration of cold resistance mechanisms in Prunus mume and Prunus sibirica varieties. Mol. Biol. Rep. 2020, 47, 6635–6647. [Google Scholar] [CrossRef] [PubMed]
  22. Yu, Z.; Wang, X.; Mu, X.; Zhang, L. RNAi mediated silencing of dehydrin gene WZY2 confers osmotic stress intolerance in transgenic wheat. Funct. Plant Biol. 2019, 46, 877–884. [Google Scholar] [CrossRef] [PubMed]
  23. Guo, X.; Zhang, L.; Wang, X.; Zhang, M.; Xi, Y.; Wang, A.; Zhu, J. Overexpression of Saussurea involucrata dehydrin gene SiDHN promotes cold and drought tolerance in transgenic tomato plants. PLoS ONE 2019, 18, e0225090. [Google Scholar] [CrossRef] [PubMed]
  24. Nachbar, M.; Maul, J.; Stein, M.; Wätzig, H. Analysis of AtHIRD11 Intrinsic Disorder and Binding Towards Metal Ions by Capillary Gel Electrophoresis and Affinity Capillary Electrophoresis. J. Vis. Exp. 2018, 22, 57749. [Google Scholar] [CrossRef] [Green Version]
  25. Kirungu, J.N.; Magwanga, R.O.; Pu, L.; Cai, X.; Xu, Y.; Hou, Y.; Zhou, Y.; Cai, Y.; Hao, F.; Zhou, Z.; et al. Knockdown of Gh_A05G1554 (GhDHN_03) and Gh_D05G1729 (GhDHN_04) Dehydrin genes, Reveals their potential role in enhancing osmotic and salt tolerance in cotton. Genomics 2020, 112, 1902–1915. [Google Scholar] [CrossRef]
  26. Li, Q.; Zhang, X.; Lv, Q.; Zhu, D.; Qiu, T.; Xu, Y.; Bao, F.; He, Y.; Hu, Y. Corrigendum: Physcomitrella Patens Dehydrins (PpDHNA and PpDHNC) Confer Salinity and Drought Tolerance to Transgenic Arabidopsis Plants. Front. Plant Sci. 2018, 919. [Google Scholar] [CrossRef]
  27. Zhang, H.; Zheng, J.; Su, H.; Xia, K.; Jian, S.; Zhang, M. Molecular Cloning and Functional Characterization of the Dehydrin (IpDHN) Gene From Ipomoea pes-caprae. Front. Plant Sci. 2018, 11, 1454. [Google Scholar] [CrossRef]
  28. Szepesi, Á. Plant Metabolites and Regulation under Environmental Stress. Plants 2021, 25, 2013. [Google Scholar] [CrossRef]
  29. Székely, G.; Ábrahám, E.; Cséplő, Á.; Rigó, G.; Zsigmond, L.; Csiszár, J.; Ayaydin, F.; Strizhov, N.; Jásik, J.; Schmelzer, E.; et al. Duplicated P5CS genes of Arabidopsis play distinct roles in stress regulation and developmental control of proline biosynthesis. Plant J. 2008, 53, 11–28. [Google Scholar] [CrossRef] [Green Version]
  30. Liu, C.; Li, C.; Liu, B.; Ge, S.; Dong, X.; Li, W.; Zhu, H.; Wang, B.; Yang, C. Genome-wide Identification and Characterization of a Dehydrin Gene Family in Poplar (Populus trichocarpa). Plant Mol. Biol. Rep. 2012, 30, 848–859. [Google Scholar] [CrossRef]
  31. Chiappetta, A.; Muto, A.; Bruno, L.; Woloszynska, M.; Van Lijsebettens, M.; Bitonti, M.B. A dehydrin gene isolated from feral olive enhances drought tolerance in Arabidopsis transgenic plants. Front. Plant Sci. 2015, 30, 392. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  32. Hinniger, C.; Caillet, V.; Michoux, F.; Ben Amor, M.; Tanksley, S.; Lin, C.; McCarthy, J. Isolation and characterization of cDNA encoding three dehydrins expressed during Coffea canephora (Robusta) grain development. Ann. Bot. 2006, 97, 755–765. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  33. Kirch, H.H.; van Berkel, J.; Glaczinski, H.; Salamini, F.; Gebhardt, C. Structural organization, expression and promoter activity of a cold-stress-inducible gene of potato (Solanum tuberosum L.). Plant Mol. Biol. 1997, 33, 897–909. [Google Scholar] [CrossRef]
  34. Wang, P.; Guo, Y.; Wang, Y.; Gao, C. Vacuolar membrane H+-ATPase c‘‘ subunit gene (ThVHAc‘‘1) from Tamarix hispida Willd improves salt stress tolerance. Plant Physiol. Biochem. 2020, 157, 370–378. [Google Scholar] [CrossRef]
  35. Djemal, R.; Khoudi, H. The ethylene-responsive transcription factor of durum wheat, TdSHN1, confers cadmium, copper, and zinc tolerance to yeast and transgenic tobacco plants. Protoplasma 2022, 259, 19–31. [Google Scholar] [CrossRef] [PubMed]
  36. Zang, D.; Wang, J.; Zhang, X.; Liu, Z.; Wang, Y. Arabidopsis heat shock transcription factor HSFA7b positively mediates salt stress tolerance by binding to an E-box-like motif to regulate gene expression. J. Exp. Bot. 2019, 15, 5355–5374. [Google Scholar] [CrossRef] [PubMed]
  37. Habib, I.; Shahzad, K.; Rauf, M.; Ahmad, M.; Alsamadany, H.; Fahad, S.; Saeed, N.A. Dehydrin responsive HVA1 driven inducible gene expression enhanced salt and drought tolerance in wheat. Plant Physiol. Biochem. 2022, 1, 124–133. [Google Scholar] [CrossRef] [PubMed]
  38. Gill, S.S.; Tuteja, N. Reactive oxygen species and antioxidant machinery in abiotic stress tolerance in crop plants. Plant Physiol. Biochem. 2010, 48, 909–930. [Google Scholar] [CrossRef]
  39. Zhang, H.F.; Liu, S.Y.; Ma, J.H.; Wang, X.K.; Haq, S.U.; Meng, Y.C.; Zhang, Y.M.; Chen, R.G. CaDHN4, a Salt and Cold Stress-Responsive Dehydrin Gene from Pepper Decreases Abscisic Acid Sensitivity in Arabidopsis. Int. J. Mol. Sci. 2019, 9, 26. [Google Scholar] [CrossRef] [Green Version]
  40. Luo, D.; Hou, X.; Zhang, Y.; Meng, Y.; Zhang, H.; Liu, S.; Wang, X.; Chen, R. CaDHN5, a Dehydrin Gene from Pepper, Plays an Important Role in Salt and Osmotic Stress Responses. Int. J. Mol. Sci. 2019, 23, 1989. [Google Scholar] [CrossRef]
  41. Kavi, K.P.B.; Sreenivasulu, N. Is proline accumulation per se correlated with stress tolerance or is proline homeostasis a more critical issue? Plant Cell Environ. 2013, 37, 300–311. [Google Scholar] [CrossRef] [PubMed]
  42. Nguyen, H.T.T.; Das Bhowmik, S.; Long, H.; Cheng, Y.; Mundree, S.; Hoang, L.T.M. Rapid Accumulation of Proline Enhances Salinity Tolerance in Australian Wild Rice Oryza australiensis Domin. Plants 2021, 28, 2044. [Google Scholar] [CrossRef] [PubMed]
  43. Tamura, K.; Peterson, D.; Peterson, N.; Stecher, G.; Nei, M.; Kumar, S. MEGA5: Molecular evolutionary genetics analysis using maximum likelihood, evolutionary distance, and maximum parsimony methods. Mol. Biol. Evol. 2011, 28, 2731–2739. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  44. Lescot, M.; Déhais, P.; Thijs, G.; Marchal, K.; Moreau, Y.; Van de Peer, Y. PlantCARE, a database of plant cis-acting regulatory elements and a portal to tools for in silico analysis of promoter sequences. Nucleic Acids Res. 2002, 30, 325–327. [Google Scholar] [CrossRef]
  45. Livak, K.J.; Schmittgen, T.D. Analysis of relative gene expression data using real- time quantitative PCR and the 2-ΔΔCT method. Methods 2001, 25, 402–408. [Google Scholar] [CrossRef]
  46. Hilder, V.A.; Gatehouse, A.M.; Sheerman, S.E.; Barker, R.F.; Boulter, D. A novel mechanism of insect resistance engineered into tobacco. Nature 1987, 330, 160–163. [Google Scholar] [CrossRef]
  47. Lightenthaler, H. Chlorophylls and carotenoids: Pigments of photo synthetic biomembranes. Methods Enzymol. 1987, 148, 350–382. [Google Scholar]
  48. Fryer, M.J.; Oxborough, K.; Mullineaux, P.M.; Baker, N.R. Imaging of photo-oxidative stress responses in leaves. J. Exp. Bot. 2002, 53, 1249–1254. [Google Scholar]
Plants 11 02700 g001 550

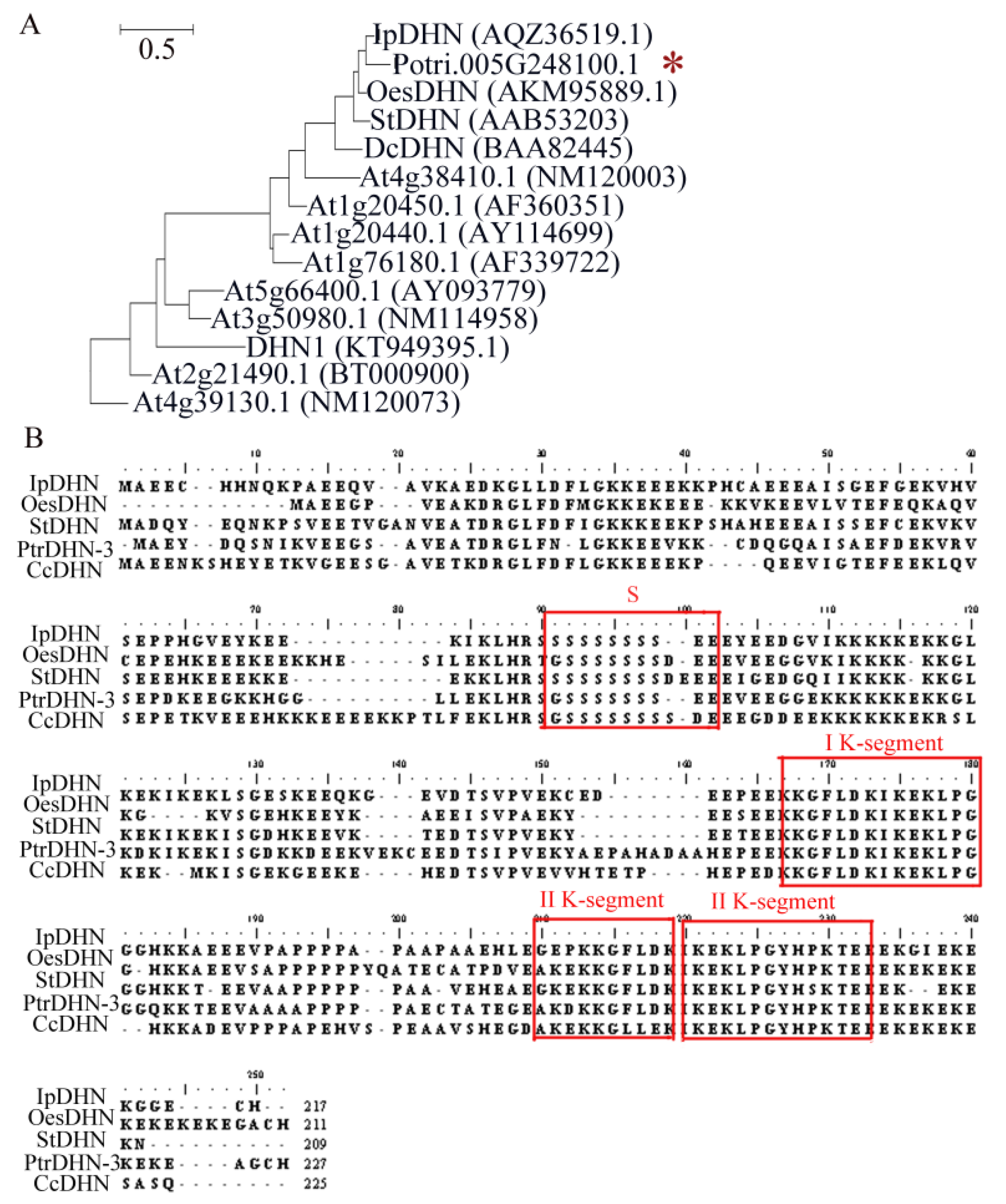

Figure 1. (A) Phylogenetic relationships between the PtrDHN-3 (Potri.005G248100.1) protein and dehydrins (DHNs) from other plant species. The molecular phylogeny was constructed from complete protein sequence alignment using the neighbor-joining method with ClustalW. The scale bar indicates the average number of amino acid substitutions per site. “*” Indicates the position of PtrDHN-3 in the phylogenetic tree. (B) Sequence analysis of the PtrDHN-3 protein. Multiple sequence alignment of the PtrDHN-3 protein with IpDHN (Ipomoea pes-caprae L. AQZ36519.1), OesDHN (Olea europaea L. subsp. europaea, var. Sylvestris, AKM95889.1), StDHN (Solanum tuberosum L. AAB53203), CcDHN (Coffea canephora Pierre ex Forehn. ABC68275) and DcDHN (Daucus carota L. BAA82445). Red squares indicate conserved amino acid sequences of S-and K-segment motifs. K segments include ⅠK segment: EKKGIMDIKEKLPG and ⅡK segment: (Q/E)K(P/A)G(M/L)LDKIK(A/Q)(K/M)(I/L)PG motif.
Figure 1. (A) Phylogenetic relationships between the PtrDHN-3 (Potri.005G248100.1) protein and dehydrins (DHNs) from other plant species. The molecular phylogeny was constructed from complete protein sequence alignment using the neighbor-joining method with ClustalW. The scale bar indicates the average number of amino acid substitutions per site. “*” Indicates the position of PtrDHN-3 in the phylogenetic tree. (B) Sequence analysis of the PtrDHN-3 protein. Multiple sequence alignment of the PtrDHN-3 protein with IpDHN (Ipomoea pes-caprae L. AQZ36519.1), OesDHN (Olea europaea L. subsp. europaea, var. Sylvestris, AKM95889.1), StDHN (Solanum tuberosum L. AAB53203), CcDHN (Coffea canephora Pierre ex Forehn. ABC68275) and DcDHN (Daucus carota L. BAA82445). Red squares indicate conserved amino acid sequences of S-and K-segment motifs. K segments include ⅠK segment: EKKGIMDIKEKLPG and ⅡK segment: (Q/E)K(P/A)G(M/L)LDKIK(A/Q)(K/M)(I/L)PG motif.
Plants 11 02700 g001
Plants 11 02700 g002 550

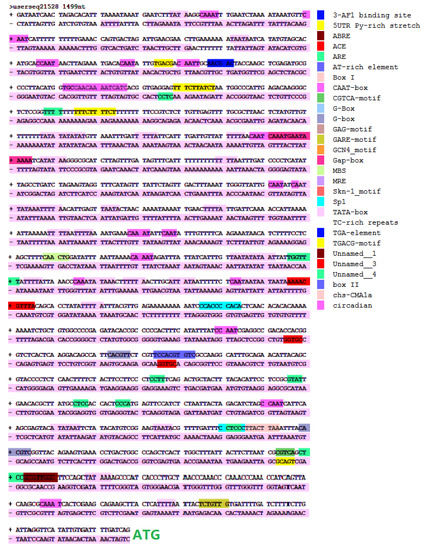

Figure 2. Nucleotide sequence of the PtrDHN-3 promoter (1500 bp). Abiotic stress-related cis-regulatory elements are boxed and labeled with colors.
Figure 2. Nucleotide sequence of the PtrDHN-3 promoter (1500 bp). Abiotic stress-related cis-regulatory elements are boxed and labeled with colors.
Plants 11 02700 g002
Plants 11 02700 g003 550

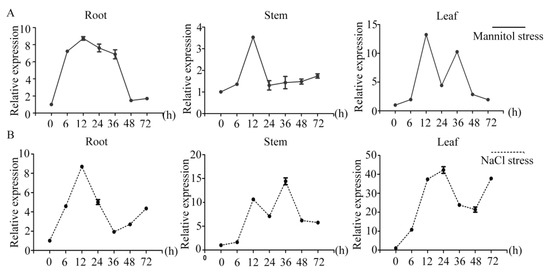

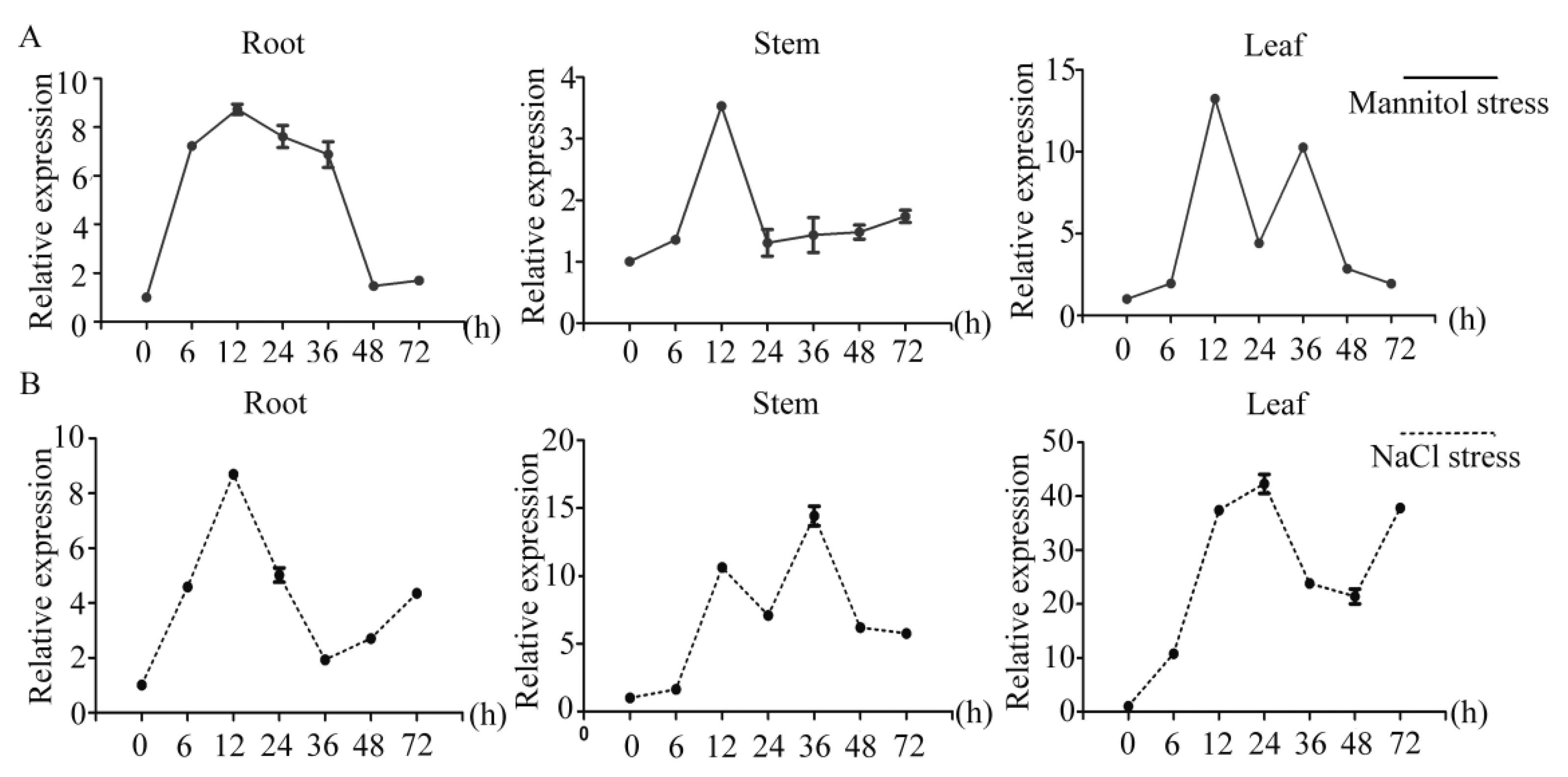

Figure 3. Expression patterns of the PtrDHN-3 gene in root, stem and leaf samples from P. trichocarpa sampled at 0, 6, 12, 24, 48, and 72 h. Time-course expression patterns of PtrDHN-3 in response to (A) mannitol stress. (B) NaCl stress. Expression under control conditions was assigned a value of 1, and then expression under stress treatment was normalized to this level. Error bars indicate ± SD, and each data point represents the mean of three replicate experiments.
Figure 3. Expression patterns of the PtrDHN-3 gene in root, stem and leaf samples from P. trichocarpa sampled at 0, 6, 12, 24, 48, and 72 h. Time-course expression patterns of PtrDHN-3 in response to (A) mannitol stress. (B) NaCl stress. Expression under control conditions was assigned a value of 1, and then expression under stress treatment was normalized to this level. Error bars indicate ± SD, and each data point represents the mean of three replicate experiments.
Plants 11 02700 g003
Plants 11 02700 g004 550
Figure 4. Analysis of salt tolerance in PtrDHN-3-overexpressing and control (transformed with an empty pYES2 vector) yeast cells. Yeast cultures were grown in SC-ura liquid medium containing 2% (w/v) galactose for 1 d at 30 °C. Concentrations of PtrDHN-3-overexpressing and control yeast cells were adjusted to the same level then identical numbers of cells were resuspended in 3 M NaCl for 2 d. Yeast clones diluted 0, 10, 100, and 1000 times were then spotted onto SC-ura agar plates and incubated at 30 °C for 3 d.
Figure 4. Analysis of salt tolerance in PtrDHN-3-overexpressing and control (transformed with an empty pYES2 vector) yeast cells. Yeast cultures were grown in SC-ura liquid medium containing 2% (w/v) galactose for 1 d at 30 °C. Concentrations of PtrDHN-3-overexpressing and control yeast cells were adjusted to the same level then identical numbers of cells were resuspended in 3 M NaCl for 2 d. Yeast clones diluted 0, 10, 100, and 1000 times were then spotted onto SC-ura agar plates and incubated at 30 °C for 3 d.
Plants 11 02700 g004
Plants 11 02700 g005 550

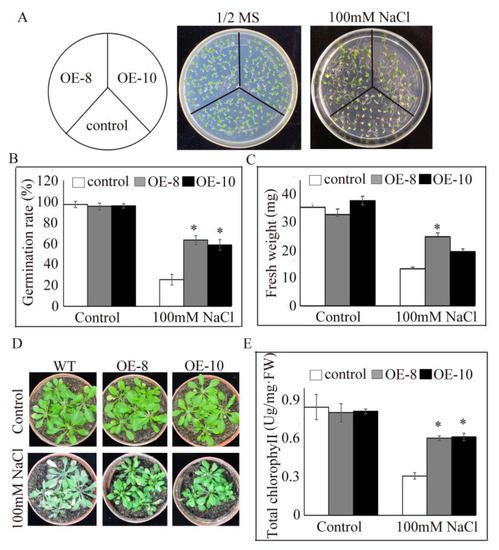

Figure 5. Analysis of salt tolerance in PtrDHN-3-overexpressing Arabidopsis plants. (A) Seed germination in the transformed and wild-type (WT) lines under control (1/2 MS) and salt stress (100 mM NaCl) conditions. (B) Seed germination rates, and analyses of (C) fresh weights, (D) growth phenotypes, and (E) chlorophyll contents. WT and OE Plants were grown on 1/2 MS medium (control) or 1/2 MS medium plus 100 mM NaCl for two weeks for analysis of seed germination rates. For analysis of fresh weights, WT and OE plants germinated on 1/2 MS medium plates for five days were transferred to 1/2 MS medium plates with or without 100 mM NaCl. Measurements were obtained after continuous cultivation for seven days. For observations of growth phenotypes, 4-week-old T3 transgenic and WT Arabidopsis seedlings grown in pots were treated with 100 mM NaCl solution for 10 days then their phenotypes were photographed. The chlorophyll content of leaves was measured. Asterisks indicate a significant difference compared with the WT plants at p < 0.05.
Figure 5. Analysis of salt tolerance in PtrDHN-3-overexpressing Arabidopsis plants. (A) Seed germination in the transformed and wild-type (WT) lines under control (1/2 MS) and salt stress (100 mM NaCl) conditions. (B) Seed germination rates, and analyses of (C) fresh weights, (D) growth phenotypes, and (E) chlorophyll contents. WT and OE Plants were grown on 1/2 MS medium (control) or 1/2 MS medium plus 100 mM NaCl for two weeks for analysis of seed germination rates. For analysis of fresh weights, WT and OE plants germinated on 1/2 MS medium plates for five days were transferred to 1/2 MS medium plates with or without 100 mM NaCl. Measurements were obtained after continuous cultivation for seven days. For observations of growth phenotypes, 4-week-old T3 transgenic and WT Arabidopsis seedlings grown in pots were treated with 100 mM NaCl solution for 10 days then their phenotypes were photographed. The chlorophyll content of leaves was measured. Asterisks indicate a significant difference compared with the WT plants at p < 0.05.
Plants 11 02700 g005
Plants 11 02700 g006 550

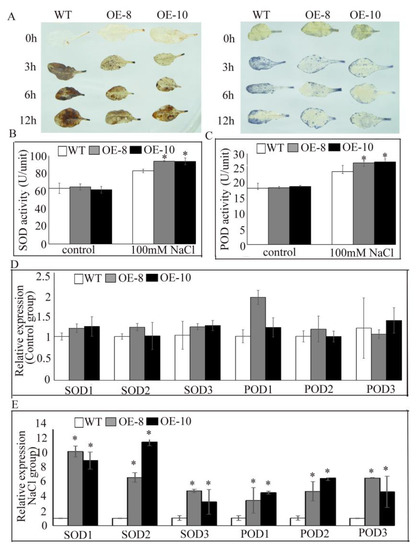

Figure 6. Analysis of ROS scavenging in PtrDHN-3-overexpressing Arabidopsis plants. (A) DAB and NBT staining were carried out in young leaves of WT and overexpressing plants treated with and without 100 mM NaCl for 0, 3, 6 and 12 h. WT and overexpressing plants were also evaluated for SOD (B) and POD (C) activity, and for SOD (D) and POD (E) gene expression. In the expression analysis, results were normalized to those of the Con plants (0 h), then data were log2 transformed. Genbank numbers of the SODs and PODs are shown in Supplementary Table S1. Three independent biological repeats were performed per treatment, and each experiment consisted of at least 9 transformed seedlings. * Indicates a significant difference according to Student’s t test at p < 0.05 compared with the WT plants.
Figure 6. Analysis of ROS scavenging in PtrDHN-3-overexpressing Arabidopsis plants. (A) DAB and NBT staining were carried out in young leaves of WT and overexpressing plants treated with and without 100 mM NaCl for 0, 3, 6 and 12 h. WT and overexpressing plants were also evaluated for SOD (B) and POD (C) activity, and for SOD (D) and POD (E) gene expression. In the expression analysis, results were normalized to those of the Con plants (0 h), then data were log2 transformed. Genbank numbers of the SODs and PODs are shown in Supplementary Table S1. Three independent biological repeats were performed per treatment, and each experiment consisted of at least 9 transformed seedlings. * Indicates a significant difference according to Student’s t test at p < 0.05 compared with the WT plants.
Plants 11 02700 g006
Plants 11 02700 g007 550

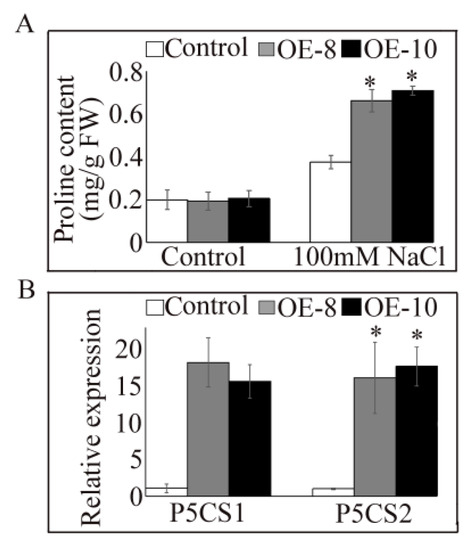

Figure 7. Levels of proline in PtrDHN-3-overexpressing Arabidopsis plants. Wild-type (WT) and overexpressing plants were grown in 1/2 MS medium with or without 100 mM NaCl for 48 h and then analyzed. (A) Proline contents (B) expression of proline biosynthesis-related genes under salt stress. Asterisks indicate a significant difference compared to the control plants at p < 0.05.
Figure 7. Levels of proline in PtrDHN-3-overexpressing Arabidopsis plants. Wild-type (WT) and overexpressing plants were grown in 1/2 MS medium with or without 100 mM NaCl for 48 h and then analyzed. (A) Proline contents (B) expression of proline biosynthesis-related genes under salt stress. Asterisks indicate a significant difference compared to the control plants at p < 0.05.
Plants 11 02700 g007
