Communication

Searching for a Needle in a Haystack: Cas9-Targeted Nanopore Sequencing and DNA Methylation Profiling of Full-Length Glutenin Genes in a Big Cereal Genome

1
Laboratory of Marker-Assisted and Genomic Selection of Plants, All-Russia Research Institute of Agricultural Biotechnology, Timiryazevskaya Str. 42, 127550 Moscow, Russia
2
Kurchatov Genomics Center of ARRIAB, All-Russia Research Institute of Agricultural Biotechnology, Timiryazevskaya Str. 42, 127550 Moscow, Russia
3
N.V. Tsitsin Main Botanical Garden of the Russian Academy of Sciences, Botanicheskaya Str. 4, 127276 Moscow, Russia
*
Author to whom correspondence should be addressed.
Academic Editors: Yin Li, Guangxiao Yang, Yongfang Wan, Jian Zeng and Yaqiong Wang
Received: 25 November 2021 / Revised: 16 December 2021 / Accepted: 16 December 2021 / Published: 21 December 2021
(This article belongs to the Topic Plant Functional Genomics and Crop Genetic Improvement)

Abstract

Sequencing and epigenetic profiling of target genes in plants are important tasks with various applications ranging from marker design for plant breeding to the study of gene expression regulation. This is particularly interesting for plants with big genome size for which whole-genome sequencing can be time-consuming and costly. In this study, we asked whether recently proposed Cas9-targeted nanopore sequencing (nCATS) is efficient for target gene sequencing for plant species with big genome size. We applied nCATS to sequence the full-length glutenin genes (Glu-1Ax, Glu-1Bx and Glu-1By) and their promoters in hexaploid triticale (X Triticosecale, AABBRR, genome size is 24 Gb). We showed that while the target gene enrichment per se was quite high for the three glutenin genes (up to 645×), the sequencing depth that was achieved from two MinION flowcells was relatively low (5–17×). However, this sequencing depth was sufficient for various tasks including detection of InDels and single-nucleotide variations (SNPs), read phasing and methylation profiling. Using nCATS, we uncovered SNP and InDel variation of full-length glutenin genes providing useful information for marker design and deciphering of variation of individual Glu-1By alleles. Moreover, we demonstrated that glutenin genes possess a ‘gene-body’ methylation epigenetic profile with hypermethylated CDS part and hypomethylated promoter region. The obtained information raised an interesting question on the role of gene-body methylation in glutenin gene expression regulation. Taken together, our work disclosures the potential of the nCATS approach for sequencing of target genes in plants with big genome size.
Keywords: nanopore sequencing; Cas9-enrichment; triticale; glutenin genes; DNA methylation nanopore sequencing; Cas9-enrichment; triticale; glutenin genes; DNA methylation

1. Introduction

Target gene sequencing (TGSeq) is a set of different approaches for sequencing of specific genes without the application of whole-genome sequencing (WGS) which is an expensive alternative. It is worth noting that for species with big genome size including wheat, onion and triticale TGSeq is an optimal method because of the high price of whole-genome sequencing and difficulties in genome assembly. Yet (allo)polyploidy adds another layer of complexity for sequencing individual genes and interpreting the results.
Several approaches have been used for TGSeq including Sanger sequencing, target gene enrichment strategies with subsequent short-read sequencing and long-read sequencing. Sanger sequencing of target genes is a method of choice for end-to-end sequencing of short genes (below 1 Kb) while sequencing of longer genes requires amplification of a set of overlapping fragments. Direct Sanger sequencing of PCR products amplified from a gene can be challenging if multiple alleles are present after PCR. Several short-read based techniques have been developed and successfully used for TGSeq (reviewed by [1]). However, short-read sequencing suffers from mapping issues to repeating and low complexity regions as well as assembly errors if de novo gene assembly is used.
To deal with the main disadvantages of short-read data long-read sequencing combined with enrichment steps were developed. Very recently Xdrop method was proposed to carry out enrichment of DNA samples by target genomic fragments followed by long-read or short-read sequencing [2]. Xdrop is a very promising technology, but it needs special equipment, and it relies on DNA amplification steps that can introduce some biases and artefacts. Another long-read based approach for TGSeq called CATCH (Cas9-assisted targeting of chromosome segments) was introduced by Gabrieli et al. [3]. CATCH implements Cas9-mediated cleavage of target genome region with subsequent purification and amplification of cleaved fragments and nanopore sequencing. By this method, authors sequenced 200 Kb genomic region with 80 Kb BRCA1 gene. CATCH and a similar method, CISMR [4], involve pulse-gel electrophoresis step which makes these methods labour and time-consuming. Yet, because of the amplification step, the listed methods of TGSeq do not allow simultaneous sequencing and profiling of methyl-cytosine bases, a key player in gene transcription regulation.
Recently, a new method called nCATS for target sequencing of native DNA molecules has been proposed. With no PCR amplification step nCATS can generate data suitable for both sequencing and profiling of DNA methylation of target genes [5]. The method is based on the selective Oxford Nanopore sequencing of DNA fragments released after Cas9-mediated cleavage of total genomic DNA. In contrast to CATCH, in nCATS no gel-electrophoresis is required to separate Cas9-cleaved fragments from non-target genomic fragments. Instead, to deplete non-target DNA nCATS uses calf intestinal alkaline phosphate (CIP) enzyme. CIP performs 5′ dephosphorylation of genomic DNA fragments before Cas9 digestion step making DNA ends unsuitable for ligation of sequencing adapters. In turn, subsequent Cas9/sgRNA treatment introduces double-strand breaks that together with dA-tailing make DNA ends suitable for adapter ligation. Thus, adapters are mostly ligated to the Cas9-cleaved DNA fragments resulted in higher chances for target regions to be sequenced by nanopore. By nCATS authors were able to rich up to 400× coverage of 18 Kb target region using MinION sequencer which was sufficient for identification of single nucleotide changes, structural variation and evaluating DNA methylation in human [5].
It is worth noting that nCATS does not include PCR-amplification therefore obtained raw signal nanopore data is suited for cytosine methylation identification using one of the available algorithms [6]. Methylation profiling of targeted genes followed by nCATS have been carried out for mammals [5,7]. An algorithm for methylation-calling from raw-signal nanopore data with plant-specific trained models has recently been released providing the foundation for the application of nCATS-based methylation profiling in plants [8]. An effort to apply nCATS for the sequencing of plant genes was made [9]. Using 4 sgRNAs authors sequenced ~7.8 Kb MYB10 locus of apple (Malus × domestica) achieving > 100× target coverage and performed haplotype phasing. It should be noted that, the apple genome is smaller (730.10 Mb/1 C for Malus × domestica [10]) than many other agronomical important species including grasses (Poaceae) for which genome size varies from 276 Mb/1 C to 20,825 Mb/1 C (https://cvalues.science.kew.org/, accessed on 2 November 2021). For example, the genome sizes of wheat (Triticum aestivum) and rye (Secale cereale) are 16,954 and 8624 Mb/1 C [11], respectively. Therefore, a question raised is whether nCATS is efficient for target gene sequencing for plant species with big genome size. In addition, whether the nCATS is applicable to sequence several plant genes (multiplexing) in one run. Finally, gene methylation profiling using nCATS data has not been exploited so far in plants. Here, we aimed to address these questions by sequencing of full-length glutenin genes (Glu-Ax, Glu-1Bx and Glu-1By) and their promoters in hexaploid triticale (X Triticosecale, AABBRR, genome size is 24 Gb [12]), a human-made crop obtained from hybridization of wheat and rye. A choice of target genes is not random as the glutenin genes are important for triticale improvement [13]. Yet, these genes are difficult to assemble from short reads because of ~90% of the gene sequence contains low-complexity, repetitive elements [14].
Here, we demonstrated that nCATS can be used as a potential tool for TGSeq in plants with a big genome. The obtained low sequencing depth was sufficient for various tasks including detection of InDels and single-nucleotide variations (SNPs), read phasing and methylation profiling. Using nCATS data, we demonstrated that glutenin genes possess gene-body methylation with hypermethylated CDS part and hypomethylated promoter regions. While further improvement is needed, our proof-of-concept work shows the potential of nCATS approach for sequencing of target genes in plants with big genome size.

2. Results

For nCATS sequencing of Glu-1Ax, Glu-1Bx and Glu-1By glutenin genes we designed two pairs of sgRNAs for each gene (Figure 1A). Because the glutenin genes are not correctly assembled in the wheat genome, for sgRNA design we used publicly available sequences of these genes from BAC clones while wheat and rye genome sequences were involved in ‘off-target’ site prediction (see Section 4). The target regions included the coding sequence of Glu genes and promoter regions. The expected sequence lengths for the target regions were 3.4 Kb, 5.1 Kb and 3.6 Kb for Glu-1Ax, Glu-1Bx and Glu-1By, respectively. We performed two runs of nCATS on MinION sequencer with a mixture of all 12 sgRNAs. For further analysis, the reads from these two runs were merged into one fastq file. In total, we obtained 120,681 high-quality (Qscore > 8, N50 = 3.1 Kb) nanopore reads. We calculated the number of on-target reads by similarity search of read sequences against reference glutenin genes and found 7, 8 and 17 reads for Glu-1Ax, Glu-1Bx and Glu-1By loci, respectively. Consequently, ~0.03% obtained nanopore reads were on-target reads. Although the overall number of on-target reads were quite low, the enrichment rate for the three target genes varied from ~200× to ~645× (Table 1) based on the triticale genome size (24 Gb, [12]) and total length of the obtained Nanopore reads (~547 Mb, 0.02× triticale genome coverage).
Most of the obtained reads covered full-length gene sequence (Figure 1) providing useful information for structural variation identification of the glutenin gene variants of the triticale line used for sequencing (L8665). Indeed, we were able to easily uncover two insertions present in the Glu-1Bx gene. One insertion of ~180 bp was located in the promoter region while the second insertion of 12bp was located in the coding region of Glu-1Bx (Figure 1B). To validate these results, we designed primer pairs and performed PCR with genomic DNA of L8665 triticale line and wheat cv. Chinese Spring. The PCR results and Sanger sequencing also proved the presence of the insertions in Glu-1Bx variants in L8665 line (Supplementary Figure S1). Comparing the sequence of L8665 Glu-1Bx variant with the previously sequenced glutenin genes showed that our triticale line carries Glu-1Bx14 allele. These results demonstrate that even low (5×) coverage of the target gene by nanopore reads allows sophisticated identification of InDels and PCR marker design.
We next tested SNP identification which was possible for the Glu-1By gene having the highest sequencing depth (~15×). Overall, we identified 222 SNPs distinguishing the Glu-1By gene variant of L8665 from the reference and then applied WhatsHap to assign reads to haplotypes based on SNPs detected in nanopore data. Using these SNPs we successfully phased the reads (Figure 2). We generated an individual haplotype sequence of Glu-1By and performed a similarity search using BLAST followed by phylogenetic analysis restricted to a unique part of glutenin CDS (~300 bp). This analysis revealed that HP1 and HP2 alleles are clustered with known Glu-1By genes of wheat (Supplementary Figure S2) but they are not fully similar to the known Glu-1By alleles suggesting that they may be new variants of the Glu-1By gene.
Nanopore data provides unique information on DNA methylation and we were interested to explore cytosine methylation (meC) of the full-length glutenin genes. For this, we performed methylation calling from raw nanopore reads using a recently published algorithm (DeepSignal-plant). Unfortunately, there are no direct ways to represent read-level methylation plots for DeepSignal-plant data therefore we designed the custom script, DeepS2bam_converter, to add MM tag to each unique alignment in the bam file. This allowed us to display methylation information from nanopore sequencing in per-read mode (Figure 3A). While the read depth for Glu-1Ax and Glu-1By is low we were able to compare the methylation profiles for the three glutenin genes using per-read methylation display (Supplementary Figure S3). In general, the methylation profile was similar between the three genes with low methylated promoter region and highly methylated coding sequence. These results show that glutenin genes have a strong pattern of gene-body methylation. We further analyzed the methylation profile of the Glu-1By gene as it has higher read coverage. The two alleles of the Glu1-By gene have a similar distribution of meC marks (Figure 3A).
Because glutenin genes have a long low-complexity region in the protein-coding part we asked whether this region may interfere with the methylation identification. To check this assumption, we identified this region in the Glu-1By gene using a dot plot (Figure 3B) and focused on a part of the glutenin coding sequence upstream of the low complexity region. We revealed that this ‘unique’ region of Glu-1By is consistently methylated across the reads (Figure 3B). Analysis of CpG distribution revealed one CpG island with >200 bp length located in the unique part of the glutenin coding sequence. This region exhibits strong methylation across all nanopore reads (Figure 3C). Taken together, our results showed that in leaf tissue glutenin genes possess gene-body methylation marks with heavily methylated CpG islands in a non-repetitive part of the coding region.

3. Discussion

Simultaneous sequencing and epigenetic profiling of plant genes and their promoters are attractive because the obtained data can be used to investigate the variation of genes and their regulatory sequences on genetic and epigenetic levels. In turn, it may provide a foundation for the study of epigenetic control of spatiotemporal gene expression patterns, a poorly studied field especially in plants with big and complex genomes such as wheat and triticale. The previously developed method, nCATS, was efficient for target sequencing in human [5] and plants with relatively small genomes [9,15]. But in triticale and wheat, a target gene occupies only a millionth part of a genome (e.g., 5 Kb gene is 1/4,800,000 part of the triticale genome). Therefore, the application of nCATS for these species resembles ‘searching for a needle in a haystack. Here, using triticale and glutenin genes as targets we demonstrated that nCATS is a useful method although low sequencing depth should be expected, and more flow cells are required. Previously, we applied Cas9-targeted sequencing for Arabidopsis thaliana, a plant with a tiny genome (157 Mb/1 C, [16]) and achieved 40× coverage of target sequence after 4 h of MinION sequencing [15]. Also, sequencing of ~7.8 Kb MYB10 locus of apple (730.10 Mb/1 C for Malus × domestica [10]) by nCATS resulted in >100× target coverage. Based on this, we suppose that the relatively low efficiency of nCATS in triticale is a direct consequence of the big genome (genome size is 24 Gb/1 C [12]). To make nCATS more cost-effective for plants with big genome size in the future, a combination of multiple sgRNAs and a higher number of genes can be applied. Indeed, during nanopore sequencing of nCATS DNA library, only a few percent of pores are sequencing (up to 5% in our hands) and including more target genes and sgRNAs may increase the sequencing efficiency [5]. Another option is to perform enrichment of target DNA fragments by, for example, purification from the gel as it was originally proposed in the CATCH method [3]. In addition, the improvement of high-molecular-weight DNA isolation and size-selection protocols is a simple but crucial strategy toward increasing nCATS output.
The results of our work provide new biological insights into the glutenin gene organization. It was known that transcription regulation of prolamins is achieved by binding transcription factors to the motifs of the promoter [17,18]. Also, it was shown that DNA methylation may play a key role in the expression of gluten proteins [19,20]. Methylation of the promoter region of glutenin genes established by bisulfite sequencing showed an increased meC level in flag leaves compared to the developing grain [20]. However, the methylation profile of the coding region of glutenin genes has not been studied so far. Here, taking advantage of direct DNA nanopore sequencing we showed that the promoter of glutenin genes is much lower methylated than the coding region. This methylation distribution along transcribed part of glutenin genes resembles ‘gene body’ methylation (gbM). GbM is often an attribute of housekeeping, constitutively expressed and conserved genes [21]. However, glutenin genes do not fit these characteristics as they have endosperm-specific expression patterns and demonstrate high variability. The latter is also supported by our SNP analysis of Glu-1By gene alleles which revealed >100 SNPs differentiated two alleles. It should be noted that the analysis of the DNA methylation profile of the genes with the endosperm-preferred expression revealed that these genes are prone to have increased gbM in rice [22] which is in concordance with our results. While we have not analyzed the differences in methylation profile between leaves and developing seeds it would be interesting to do in the future to assess the role of gbM in the regulation of the transcription program of glutenin genes.
In summary, our work demonstrates the potential of the nCATS approach for sequencing of target genes in plants with big genome size and provides novel information on the methylation profile of glutenin genes in triticale.

4. Materials and Methods

4.1. Plant Material and DNA Isolation

For this study, the spring triticale line “L8665” obtained from the Department of Genetics, Russian State Agrarian University, was used. Seeds of this line were germinated at room temperature on wet filter paper disks. High molecular weight DNA was isolated from 200–500 mg material that was homogenized in liquid nitrogen. DNA isolation was done according to the published protocol (https://www.protocols.io/view/plant-dna-extraction-and-preparation-for389-ont-seque-bcvyiw7w, accessed on 4 September 2021). Isolated DNA was used for size-selection of the large DNA fragments by SRE or XL Short Read Eliminator Kits (Circulomics, Baltimore, MD, USA) according to the manufacturer’s instructions. The concentration and quality of the isolated DNA were assessed by NanoDrop One UV-Vis Spectrophotometer (Thermo Scientific, Waltham, MA, USA) and Quantus Fluorometer (Promega, Madison, WA, USA) using a DNA QuantiFluor ONE dsDNA System (Promega, Madison, WA, USA). For sequencing, DNA with A260/A280 ~1.8 and A260/A230 ~2.0 according to NanoDrop and with equal concentrations according to Nanodrop and Quantus was used.

4.2. gRNA Design and In Vitro Transcription

gRNAs were designed on BAC clone sequences of the three glutenin genes: DQ537335.1 (NCBI accession number) for Glu-1Ax and DQ537336.1 for Glu-1Bx and Glu-1By. gRNAs were designed by CRISPRdirect (https://crispr.dbcls.jp/, accessed on 3 September 2021 [23]) and FlashFry [24]. Additionally, we aligned the known glutenin alleles from NCBI and selected gRNAs with the maximum number of potential target alleles. Four gRNAs (2 forward and 2 reverse) were designed for each gene. SgRNAs for nCATS were produced by in vitro transcription from DNA templates containing T7 promoter according to [15]. The templates were assembled from two oligos, gRNA—specific (Table 2, GGATCCTAATACGACTCACTATAGGxxxxxxxxxxxxxxxxxxxGTTTTAGAGCTAGAA, where xxx is gRNA sequence) and universal (CRISPR_R: AAAAAAGCACCGACTCGGTGCCACTTTTTCAAGTTGATAACGGACTAGCCTTATTTTAACTTGCTATTTCTAGCTCT). All oligonucleotides were ordered in Evrogen (Moscow, Russia).
The sgRNA synthesis was carried out according to the previous protocol [15]. The concentration and quality of prepared sgRNAs were estimated by Nanodrop (Thermo Scientific, Waltham, MA, USA), Qubit (Thermo Scientific, Waltham, MA, USA) and gel electrophoresis in 2% agarose gel. (Table 2).

4.3. nCATS Library Preparation

nCATS library preparation for nanopore sequencing was carried out according to the previously published protocols [5,15] and using SQK-LSK109 (Oxford Nanopore Technologies, Oxford, UK). Briefly, RNP assembly was carried out using 200 ng of each sgRNA and 8 pmol Cas9 protein (Biolabmix, Novosibirsk, Russia). ~3 µg of genomic DNA was cleaved by the RNP complexes for each library. After cleavage, dA-tailing and adapter ligation the samples were diluted by 1 volume of TE buffer, purified by 0.3 volume of AMPure XP Beads (Beckman Coulter, catalogue no. A63881, Brea, CA, USA) and washed twice by SFB buffer (Oxford Nanopore Technologies, catalogue no. SQK-LSK109).

4.4. Nanopore Sequencing and Basecalling

Sequencing was performed by MinION equipped with R9.4.1 flow cell. The sequencing process was operated by MinKNOW software v19.12.5 (Oxford Nanopore Technologies, Oxford, UK). Basecalling was carried out by Guppy v5.0.14 5 (Oxford Nanopore Technologies, Oxford, UK).

4.5. SNP Calling and Phasing

The obtained nanopore reads were aligned to the full-length sequences of BAC clones with target sequences using minimap2 software [25] with the following parameters: -ax map-ont-t 100. The obtained sam file was converted to bam format, sorted and indexed using SAMtools [26]. For SNP calling and read phasing Nanocaller pipeline was exploited [27] with--enable_whatshap-keep_bam flags to allow the bam file modification. To reconstruct sequences of Glu-1By alleles ‘bcftools consensus’ command from bcftools [28] was applied. Phasing was performed by WhatsHap [29] as a part of the NanoCaller pipeline.

4.6. Methylation Calling and Visualization

Methylation calling using nanopore raw read data was done by DeepSignal-plant [8] software. For this, reads were basecalled by Guppy (v5.0.14) and converter to single fast5 files by multi_to_single_fast5 command from ont_fast5_api package (https://github.com/nanoporetech/ont_fast5_api, accessed on 2 September 2021). Then reads and fast5 files were preprocessed by tombo preprocess (default parameters) and tombo resquiggle (default parameters) commands. After this, deepsignal_plant call_mods command was applied to call methylation using model model.dp2.CNN.arabnrice2-1_120m_R9.4plus_tem.bn13_sn16.both_bilstm.epoch6.ckpt. For per-read methylation visualization, the bam file was modified (MM tag was added) using custom made script DeepS2bam_converter (https://github.com/Kirovez/DeepS2bam_converter, accessed on 12 September 2021). Then the read alignments and methylated cytosine were visualized by JBrowse2 [30] using colouring by modifications option.

4.7. PCR Validation of the Insertion in Glu-1Bx Gene

To validate 2 InDels (180 bp and 12 bp) located in the Glu-1Bx gene and identified by nCATS, the primers listed in Table 3 were used. PCR was performed with Encyclo DNA polymerase (Evrogen, Moscow, Russia) according to the manufacture’s instruction. The PCR conditions were 94 °C for 1 min; 35 cycles of 94 °C for 1 min, 60 °C for 1 min, and 72 °C for 1 min; and a final elongation of 72 °C for 3 min.

4.8. Phylogenetic Tree Construction

To construct the phylogenetic tree with the known glutenin genes and two Glu-1By alleles (HP1 and HP2 alleles) reconstructed from our data, we performed a similarity search using BLAST. For this, only the non-repetitive part of Glu-1By CDS (~300 bp) was exploited. The sequences with >80% similarity were extracted from BLAST search results using the ‘Download aligned sequences’ function. The obtained sequences were imported to the NGPhylogeny.fr online tool (https://ngphylogeny.fr/, accessed on 5 October 2021 [31]) and the phylogenetic tree was constructed using the default mode.

4.9. Visualization and Data Analysis

The read alignments were visualized in JBrowse2 [30]. The dot plot was constructed by YASS [32] (https://bioinfo.lifl.fr/cgi-bin/yass/, accessed on 5 October 2021).

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/plants11010005/s1, Figure S1: PCR results with primer pairs flanking the InDels of Glu-1Bx variant, Figure S2: Neighbor-joining phylogenetic tree constructed after multiple alignment of unique parts of CDS region of HP1 and HP2 alleles of Glu-1By gene, Figure S3: Per-read methylation distribution of the three glutenin genes obtained after DeepSignal-plant methylation calling.

Author Contributions

Conceptualization, I.K. and A.S.; methodology, I.K., P.M.; formal analysis, E.P., M.D., A.V.; investigation, E.P., M.D., A.V.; resources, A.S. and G.K.; writing—original draft preparation, I.K.; writing—review and editing, I.K., P.M., A.S., G.K.; visualization, I.K. and P.M.; supervision, I.K.; project administration, A.S.; funding acquisition, A.S. and G.K. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Ministry of Education and Science of the Russian Federation (Goszadanie No 0431-2019-0005).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Nanopore data produced for this study are available in Sequence Read Archive (SRA) NCBI under Bioproject Accession PRJNA783195.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Kozarewa, I.; Armisen, J.; Gardner, A.F.; Slatko, B.E.; Hendrickson, C.L. Overview of target enrichment strategies. Curr. Protoc. Mol. Biol. 2015, 112, 7.21.21–27.21.23. [Google Scholar] [CrossRef]
  2. Madsen, E.B.; Höijer, I.; Kvist, T.; Ameur, A.; Mikkelsen, M.J. Xdrop: Targeted sequencing of long DNA molecules from low input samples using droplet sorting. Hum. Mutat. 2020, 41, 1671–1679. [Google Scholar] [CrossRef]
  3. Gabrieli, T.; Sharim, H.; Fridman, D.; Arbib, N.; Michaeli, Y.; Ebenstein, Y. Selective nanopore sequencing of human BRCA1 by Cas9-assisted targeting of chromosome segments (CATCH). Nucleic Acids Acids Res. 2018, 46, e87. [Google Scholar] [CrossRef][Green Version]
  4. Bennett-Baker, P.E.; Mueller, J.L. CRISPR-mediated isolation of specific megabase segments of genomic DNA. Nucleic Acids Res. 2017, 45, e165. [Google Scholar] [CrossRef][Green Version]
  5. Gilpatrick, T.; Lee, I.; Graham, J.E.; Raimondeau, E.; Bowen, R.; Heron, A.; Downs, B.; Sukumar, S.; Sedlazeck, F.J.; Timp, W. Targeted nanopore sequencing with Cas9-guided adapter ligation. Nat. Biotechnol. 2020, 38, 433–438. [Google Scholar] [CrossRef]
  6. Yuen, Z.W.-S.; Srivastava, A.; Daniel, R.; McNevin, D.; Jack, C.; Eyras, E. Systematic benchmarking of tools for CpG methylation detection from nanopore sequencing. Nat. Commun. 2021, 12, 3438. [Google Scholar] [CrossRef] [PubMed]
  7. Giesselmann, P.; Brändl, B.; Raimondeau, E.; Bowen, R.; Rohrandt, C.; Tandon, R.; Kretzmer, H.; Assum, G.; Galonska, C.; Siebert, R.; et al. Analysis of short tandem repeat expansions and their methylation state with nanopore sequencing. Nat. Biotechnol. 2019, 37, 1478–1481. [Google Scholar] [CrossRef] [PubMed][Green Version]
  8. Ni, P.; Huang, N.; Nie, F.; Zhang, J.; Zhang, Z.; Wu, B.; Bai, L.; Liu, W.; Xiao, C.-L.; Luo, F.; et al. Genome-wide detection of cytosine methylations in plant from Nanopore data using deep learning. Nat. Commun. 2021, 12, 5976. [Google Scholar] [CrossRef] [PubMed]
  9. López-Girona, E.; Davy, M.W.; Albert, N.W.; Hilario, E.; Smart, M.E.M.; Kirk, C.; Thomson, S.J.; Chagné, D. CRISPR-Cas9 enrichment and long read sequencing for fine mapping in plants. Plant Methods 2020, 16, 121. [Google Scholar] [CrossRef]
  10. Kron, P.; Husband, B.C.H.C. Hybridization and the reproductive pathways mediating gene flow between native Malus coronaria and domestic apple, M. domestica. Botany 2009, 87, 864–874. [Google Scholar] [CrossRef]
  11. Bennett, M.D.; Smith, J.B.; Riley, R. Nuclear DNA amounts in angiosperms. Philos. Trans. R. Soc. Lond. B Biol. Sci. 1976, 274, 227–274. [Google Scholar] [CrossRef]
  12. Hülgenhof, E.; Weidhase, R.A.; Schlegel, R.; Tewes, A. Flow cytometric determination of DNA content in isolated nuclei of cereals. Genome 1988, 30, 565–569. [Google Scholar] [CrossRef]
  13. Mergoum, M.; Singh, P.K.; Peña, R.J.; Lozano-del Río, A.J.; Cooper, K.V.; Salmon, D.F.; Gómez Macpherson, H. Triticale: A “New” crop with old challenges. In Cereals; Carena, M.J., Ed.; Springer US: New York, NY, USA, 2009; pp. 267–287. [Google Scholar]
  14. Clavijo, B.J.; Venturini, L.; Schudoma, C.; Accinelli, G.G.; Kaithakottil, G.; Wright, J.; Borrill, P.; Kettleborough, G.; Heavens, D.; Chapman, H.J.G.r. An improved assembly and annotation of the allohexaploid wheat genome identifies complete families of agronomic genes and provides genomic evidence for chromosomal translocations. Genome Res. 2017, 27, 885–896. [Google Scholar] [CrossRef][Green Version]
  15. Kirov, I.; Merkulov, P.; Gvaramiya, S.; Komakhin, R.; Omarov, M.; Dudnikov, M.; Kocheshkova, A.; Soloviev, A.; Karlov, G.; Divashuk, M. Illuminating the transposon insertion landscape in plants using Cas9-targeted Nanopore sequencing and a novel pipeline. bioRxiv 2021, 10, 1101. [Google Scholar] [CrossRef]
  16. Bennet, M.D.; Leitch, I.J.; Price, H.J.; Johnston, J.S. Comparisons with Caenorhabditis (∼100 Mb) and Drosophila (∼175 Mb) Using Flow Cytometry Show Genome Size in Arabidopsis to be ∼157 Mb and thus ∼25% Larger than the Arabidopsis Genome Initiative Estimate of ∼125 Mb. Ann. Bot. 2003, 91, 547–557. [Google Scholar] [CrossRef]
  17. Shewry, P.R.; Halford, N.G. Cereal seed storage proteins: Structures, properties and role in grain utilization. J. Exp. Bot. 2002, 53, 947–958. [Google Scholar] [CrossRef][Green Version]
  18. Ravel, C.; Fiquet, S.; Boudet, J.; Dardevet, M.; Vincent, J.; Merlino, M.; Michard, R.; Martre, P. Conserved cis-regulatory modules in promoters of genes encoding wheat high-molecular-weight glutenin subunits. Front. Plant Sci. 2014, 5, 621. [Google Scholar] [CrossRef][Green Version]
  19. Zhu, J.; Fang, L.; Yu, J.; Zhao, Y.; Chen, F.; Xia, G. 5-Azacytidine treatment and TaPBF-D over-expression increases glutenin accumulation within the wheat grain by hypomethylating the Glu-1 promoters. Theor. Appl. Genet. 2018, 131, 735–746. [Google Scholar] [CrossRef]
  20. Zhou, Z.; Liu, C.; Qin, M.; Li, W.; Hou, J.; Shi, X.; Dai, Z.; Yao, W.; Tian, B.; Lei, Z.; et al. Promoter DNA hypermethylation of TaGli-γ-2.1 positively regulates gluten strength in bread wheat. J. Adv. Res. 2021. in press. [Google Scholar] [CrossRef]
  21. Bewick, A.J.; Schmitz, R.J. Gene body DNA methylation in plants. Curr. Opin. Plant Biol. 2017, 36, 103–110. [Google Scholar] [CrossRef][Green Version]
  22. Zemach, A.; Kim, M.Y.; Silva, P.; Rodrigues, J.A.; Dotson, B.; Brooks, M.D.; Zilberman, D. Local DNA hypomethylation activates genes in rice endosperm. Proc. Natl. Acad. Sci. USA 2010, 107, 18729–18734. [Google Scholar] [CrossRef][Green Version]
  23. Naito, Y.; Hino, K.; Bono, H.; Ui-Tei, K. CRISPRdirect: Software for designing CRISPR/Cas guide RNA with reduced off-target sites. Bioinformatics 2014, 31, 1120–1123. [Google Scholar] [CrossRef] [PubMed]
  24. McKenna, A.; Shendure, J. FlashFry: A fast and flexible tool for large-scale CRISPR target design. BMC Biol. 2018, 16, 74. [Google Scholar] [CrossRef] [PubMed][Green Version]
  25. Li, H. Minimap2: Pairwise alignment for nucleotide sequences. Bioinformatics 2018, 34, 3094–3100. [Google Scholar] [CrossRef]
  26. Li, H.; Handsaker, B.; Wysoker, A.; Fennell, T.; Ruan, J.; Homer, N.; Marth, G.; Abecasis, G.; Durbin, R.; Subgroup, G.P.D.P. The Sequence Alignment/Map format and SAMtools. Bioinformatics 2009, 25, 2078–2079. [Google Scholar] [CrossRef] [PubMed][Green Version]
  27. Ahsan, M.U.; Liu, Q.; Fang, L.; Wang, K. NanoCaller for accurate detection of SNPs and indels in difficult-to-map regions from long-read sequencing by haplotype-aware deep neural networks. Genome Biol. 2021, 22, 261. [Google Scholar] [CrossRef]
  28. Danecek, P.; McCarthy, S.A. BCFtools/csq: Haplotype-aware variant consequences. Bioinformatics 2017, 33, 2037–2039. [Google Scholar] [CrossRef] [PubMed]
  29. WhatsHap: Weighted haplotype assembly for future-generation sequencing reads. J. Comput. Biol. 2015, 22, 498–509. [CrossRef]
  30. Buels, R.; Yao, E.; Diesh, C.M.; Hayes, R.D.; Munoz-Torres, M.; Helt, G.; Goodstein, D.M.; Elsik, C.G.; Lewis, S.E.; Stein, L.; et al. JBrowse: A dynamic web platform for genome visualization and analysis. Genome Biol. 2016, 17, 66. [Google Scholar] [CrossRef][Green Version]
  31. Lemoine, F.; Correia, D.; Lefort, V.; Doppelt-Azeroual, O.; Mareuil, F.; Cohen-Boulakia, S.; Gascuel, O. NGPhylogeny.fr: New generation phylogenetic services for non-specialists. Nucleic Acids Res. 2019, 47, W260–W265. [Google Scholar] [CrossRef][Green Version]
  32. Noé, L.; Kucherov, G. YASS: Enhancing the sensitivity of DNA similarity search. Nucleic Acids Res. 2005, 33, W540–W543. [Google Scholar] [CrossRef] [PubMed][Green Version]

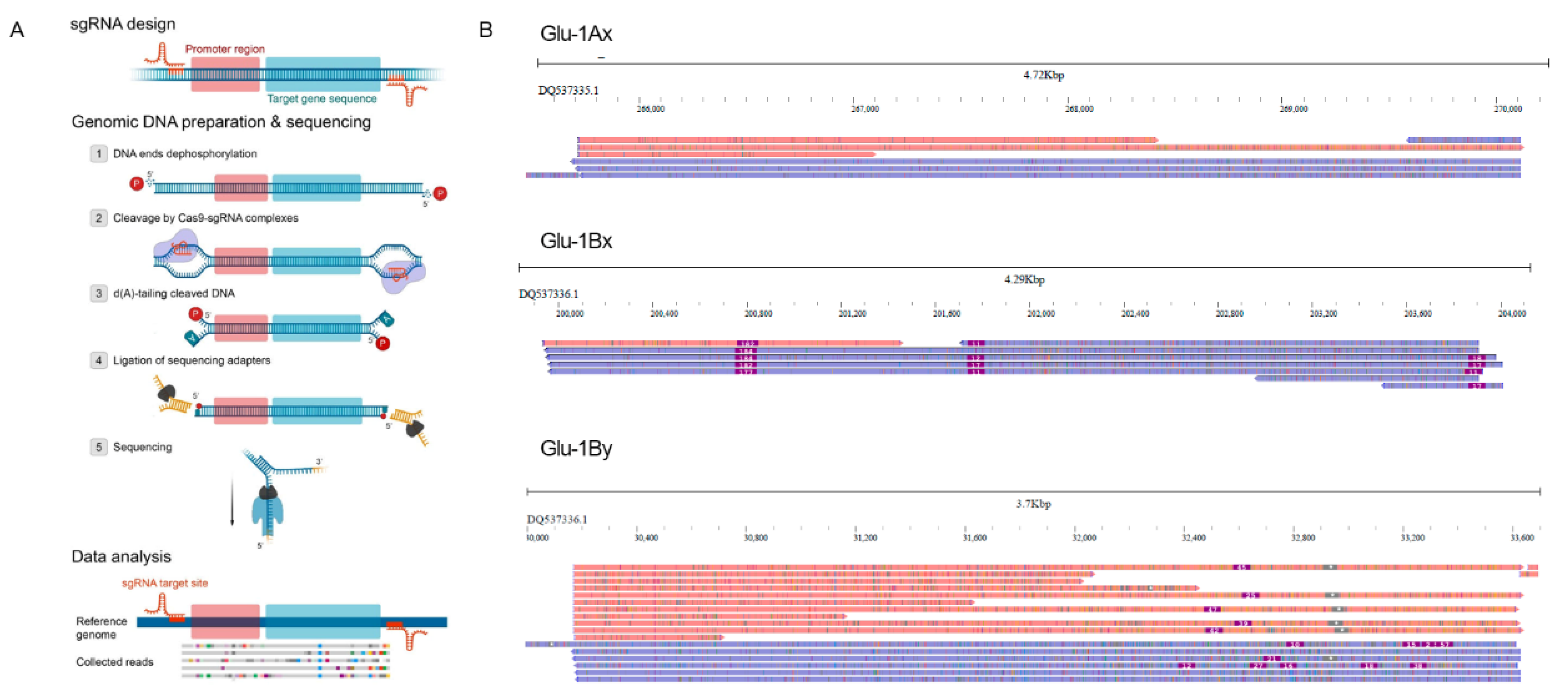

Figure 1. (A) A schematic view of nCATS pipeline used in this study. (B) The jbrowse2 snapshots showing the alignment of the reads to the target sequences. Blue and red colors correspond to the reads mapped on positive and negative strands, respectively.
Figure 1. (A) A schematic view of nCATS pipeline used in this study. (B) The jbrowse2 snapshots showing the alignment of the reads to the target sequences. Blue and red colors correspond to the reads mapped on positive and negative strands, respectively.
Plants 11 00005 g001

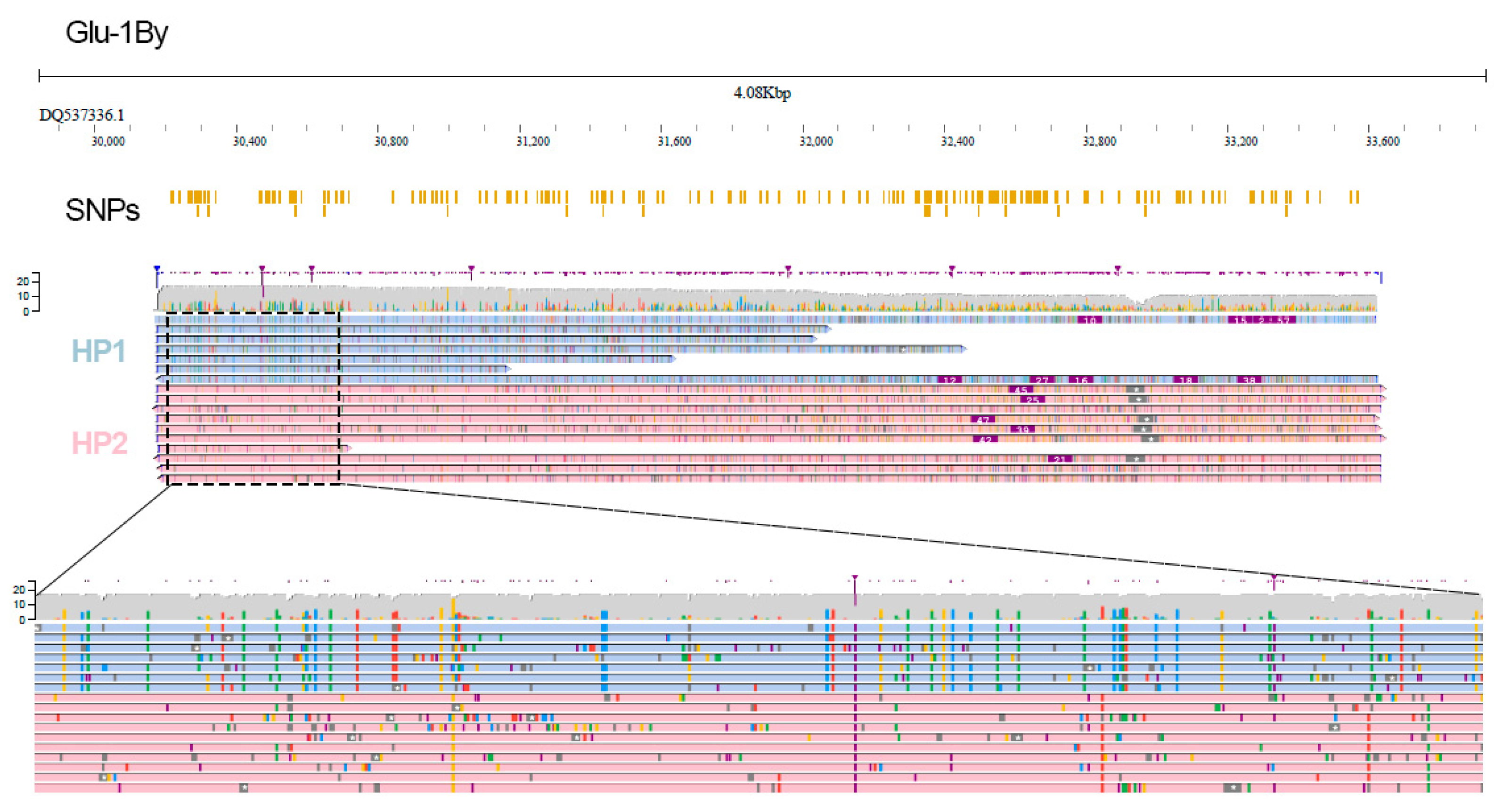

Figure 2. Visual representation of high-confidence SNP variants detected by NanoCaller pipeline in the nanopore data and read phasing into parental alleles of Glu-1By gene (light blue and pink reads correspond to HP1 and HP2 alleles, respectively) established by WhatsHap. SNPs track shows all high-confidence SNPs detected by NanoCaller.
Figure 2. Visual representation of high-confidence SNP variants detected by NanoCaller pipeline in the nanopore data and read phasing into parental alleles of Glu-1By gene (light blue and pink reads correspond to HP1 and HP2 alleles, respectively) established by WhatsHap. SNPs track shows all high-confidence SNPs detected by NanoCaller.
Plants 11 00005 g002

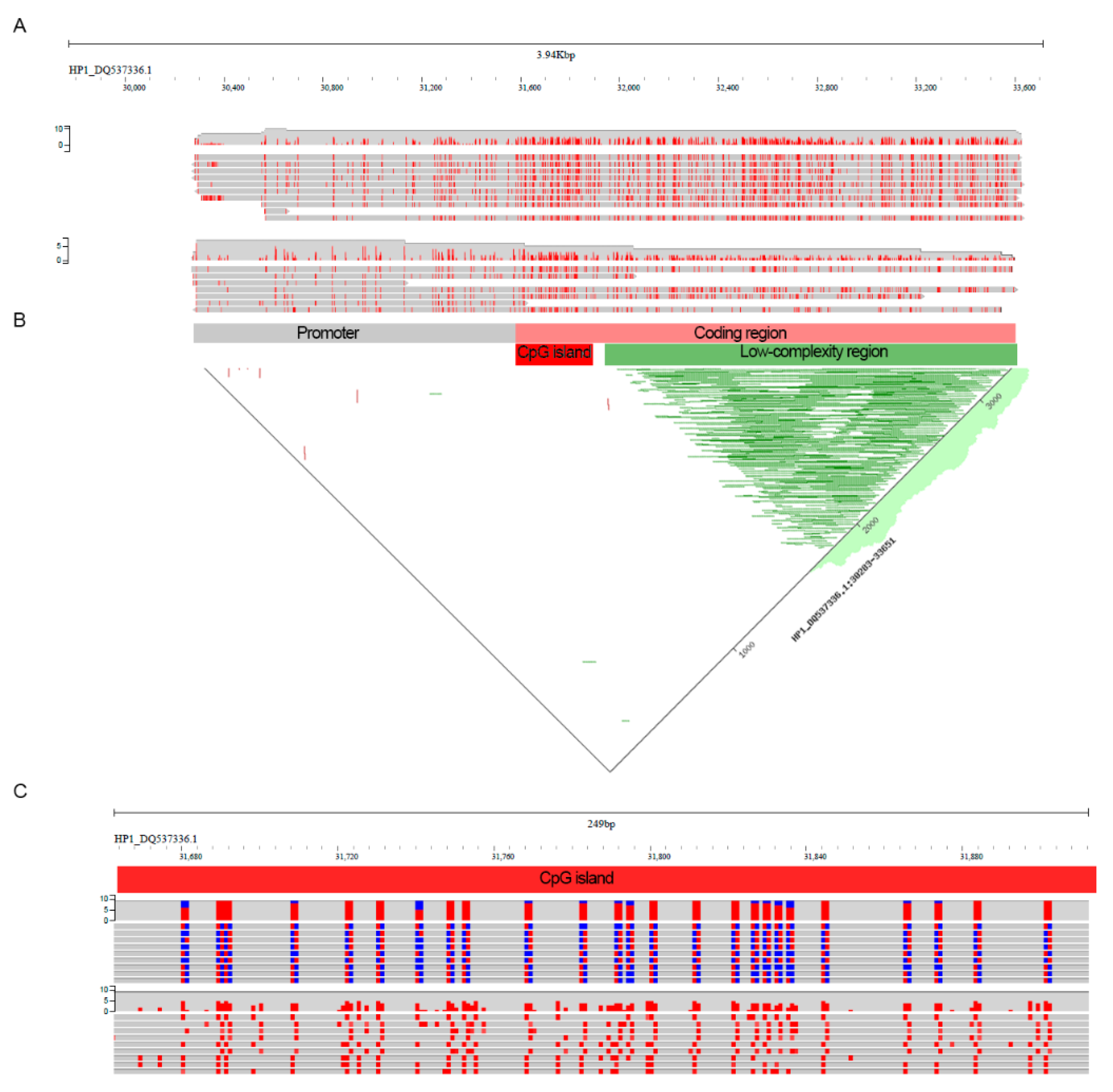

Figure 3. Methylation profile of the Glu-1By gene. (A) Per-read methylation distribution of the Glu-1By gene obtained after DeepSignal-plant methylation calling. For visualization, the MM tag was added to alignments in the bam file using DeepS2bam_converter. The visualization was performed in jbrowse2 installed on the local server. (B) A dot plot showing repetitive parts of the Glu-1By gene (green lines). (C) Zoomed-in part of the Glu-1By gene with long CpG island. Methylated (red) and unmethylated (blue) cytosine of the CpG context are shown on the top panel. All and only methylated cytosines are shown on the bottom panel.
Figure 3. Methylation profile of the Glu-1By gene. (A) Per-read methylation distribution of the Glu-1By gene obtained after DeepSignal-plant methylation calling. For visualization, the MM tag was added to alignments in the bam file using DeepS2bam_converter. The visualization was performed in jbrowse2 installed on the local server. (B) A dot plot showing repetitive parts of the Glu-1By gene (green lines). (C) Zoomed-in part of the Glu-1By gene with long CpG island. Methylated (red) and unmethylated (blue) cytosine of the CpG context are shown on the top panel. All and only methylated cytosines are shown on the bottom panel.
Plants 11 00005 g003
Table 1. General information on nCATS sequencing results.
Table 1. General information on nCATS sequencing results.
LocusNumber of On Target ReadsEnrichment Rate
Glu-1Bx DQ537336.1:199,854..204,1468~200×
Glu-1By DQ537336.1:29,265..35,05417~645×
Glu-1Ax DQ537335.1:265,694..270,2437~200×
Table 2. gRNAs designed for each target gene.
Table 2. gRNAs designed for each target gene.
LocusgRNA Sequence
Glu-1Bx
DQ537336.1:199,854..204,146
F1: AAAACGTCCATGCATAAGTA;
F2: ATTACATGTAGCCACCGACA;
R1: TCACGTTTATTGTATAGCTA;
R2: CAGAGAGTTCTATCACTGCC
Glu-1By
DQ537336.1:29,265..35,054
F1: GGGCCCTGTGCGGTTCGCAC;
F2: CCTGGATTATGTTGGACGAT;
R1: CCCTCCATCCGACACATTAT;
R2: TGCTCTGTGTTAACATGGTA
Glu-1Ax
DQ537335.1:265,694..270,243
F1: GCAACGATTATGGGGCTGCA;
F2: CTCCCTCATGAGTTGTATGC;
R1: ATGCGTCGCCGCCCTCTAGC;
R2: TGCTCCGCGCTAACATGGTA
Table 3. Primers used for InDel validations in the Glu-1Bx sequence.
Table 3. Primers used for InDel validations in the Glu-1Bx sequence.
Primer IdPrimer SequencesInsertion Name
Glu_x_prom FcaaccatgcatagaagaaagctcInsertion 180
Glu_x_prom Rccttcttggggtttggcaga
BxUnique1_350FccctgctgcgaagaagttacInsertion 12
BxUnique1_350Rtggcctggatagtatgacccctg
