An F2 Barley Population as a Tool for Teaching Mendelian Genetics

by
Estela Giménez
1,*,
Elena Benavente
1,
Laura Pascual
1,
Andrés García-Sampedro
2,
Matilde López-Fernández
1,
José Francisco Vázquez
1 and
Patricia Giraldo
1,*
1
Department of Biotechnology-Plant Biology, School of Agricultural, Food and Biosystems Engineering, Universidad Politécnica de Madrid, 28040 Madrid, Spain
2
Institute for Liver & Digestive Health, University College London, Hampstead, London NW3 2QG, UK
*
Authors to whom correspondence should be addressed.
Plants 2021, 10(4), 694; https://doi.org/10.3390/plants10040694
Submission received: 17 February 2021 / Revised: 29 March 2021 / Accepted: 1 April 2021 / Published: 3 April 2021
(This article belongs to the Special Issue Selected Papers from the 1st International Electronic Conference on Plant Science)
Browse Figures
Versions Notes

Abstract

:
In the context of a general genetics course, mathematical descriptions of Mendelian inheritance and population genetics are sometimes discouraging and students often have serious misconceptions. Innovative strategies in expositive classes can clearly encourage student’s motivation and participation, but laboratories and practical classes are generally the students’ favourite academic activities. The design of lab practices focused on learning abstract concepts such as genetic interaction, genetic linkage, genetic recombination, gene mapping, or molecular markers is a complex task that requires suitable segregant materials. The optimal population for pedagogical purposes is an F2 population, which is extremely useful not only in explaining different key concepts of genetics (as dominance, epistasis, and linkage) but also in introducing additional curricular tools, particularly concerning statistical analysis. Among various model organisms available, barley possesses several unique features for demonstrating genetic principles. Therefore, we generated a barley F2 population from the parental lines of the Oregon Wolfe Barley collection. The objective of this work is to present this F2 population as a model to teach Mendelian genetics in a medium–high-level genetics course. We provide an exhaustive phenotypic and genotypic description of this plant material that, together with a description of the specific methodologies and practical exercises, can be helpful for transferring our fruitful experience to anyone interested in implementing this educational resource in his/her teaching.

1. Introduction

Given the undoubted importance of genetics in relevant aspects of human lives and activities (medicine or agriculture, among others), an enhanced understanding of its fundamental pillars is necessary to prepare the next generation of scientists and to ensure that life-science students acquire solid knowledge of basic genetic concepts. That is needed for a mindful interpretation of continuous advances in this field and for the appropriate use of genetic applications [1]. Education based on memorization of facts and methods is insufficient in a society and economy based on knowledge. Moreover, several evidences indicate that the information itself is insufficient as an educational objective, and current society requires the use of alternative learning pathways to understand complex concepts and to able to work through and generate new theories, ideas, and products [2].
There are several difficulties in genetics education. Besides the abstract nature of the subject and the specific terminology, the mathematical descriptions of Mendelian inheritance and population genetics are sometimes discouraging, which may lead to the acquisition of misconceptions [3,4]. Improvement strategies in expositive classes can encourage student participation and motivation, but presentation of concepts only through lectures gives many students a superficial understanding of the subject [5]. Following Dopico and co-workers, research in real contexts and environments is a highly motivating and educationally responsible resource for students in modern education [6]. Laboratories, where hands-on experiments can be performed, are not only one of the preferred academic activities for students but also a fruitful learning environment that can be used beyond text-books and lectures as a teaching element of methodological change and educational innovation [7,8,9].
Genetic practices are usually employed with the aim to teach experimental methods such as polymerase chain reaction (PCR and RT-PCR), nucleic acids and protein analysis, etc. However, the inclusion of complex concepts that are common in basic and applied research (i.e., genetic interaction, quantitative inheritance, genetic linkage, statistic for inheritance studies, molecular markers, etc.) is a hard task, and a suitable segregant population is required to address and strengthen those concepts. Several types of plant populations can be used: F2, backcross (BC), recombinant inbred lines (RILs), doubled haploid (DH), etc. In a general course on genetics, the optimal population to carry out a genetic study is an F2 progeny. In addition to nicely exemplifying Mendel’s original experimental approach, this type of segregant population is extremely useful in explaining different key concepts of genetics (as dominance and epistasis) to students and in teaching additional aspects, particularly concerning statistical analysis (i.e., [9]). However, such a goal makes it necessary to develop an F2 consisting of a large number of individuals (150–200 plants), which might require a huge space, either in a greenhouse or in the field. It would also imply having the plants ready to be examined by the students at the right time as the theory classes are developed. This can be especially hard to fit into the academic calendar in addition to requiring a high endowment of materials and human resources. To be able to solve all these problems, a cereal species is the most viable option, as the dry ears can be stored and maintained for successive student generations, allowing for phenotypic studies without the need to cultivate the lines yearly. In this sense, some interesting resources have been developed in maize for teaching purposes [10].
Among cereals, barley possesses several unique features for demonstrating genetic principles: (i) it is a diploid species (2n = 14), with a small genome that is easy to handle [11]; (ii) the barley genome sequence was made available a long time ago [12], and numerous genetic maps and genomic resources are accessible [13]; (iii) it possesses a wide range of phenotypic variation for various traits, particularly grain and spike traits, that are easily scored on dry material; and (iv) it is easy to cross and grow in a green house or field. There is a well-known barley collection, the Oregon Wolfe Barleys (OWB) (https://barleyworld.org/owb; accessed on 17 February 2021), developed several years ago as a teaching resource for understanding the importance and uses of genetic diversity in plants. It was launched at Oregon State University by Dr. Bob Wolfe, who developed the parental lines by systematically crossing recessive alleles into one parent and dominant alleles into the other parent [14,15]. From these parental lines, two different OWB doubled-haploid populations were developed [16,17]. These barley lines provide a highly segregant resource for the construction of genetic maps [18,19,20] and a unique genetic background for mapping of complex traits [21,22]. The OWB populations have been extensively used for teaching aims, and several lesson plans are available at https://barleyworld.org/main/education (accessed on 17 February 2021). We enlarged the pedagogical toolbox by generating an F2 population from the cross of the parental lines. The objective of this paper is to present this population as an impeccable model to teach Mendelian genetics. We aim to transfer our experiences with the exhaustive description of the material as well as the specific methodologies and practical exercises carried out in genetics courses at the Universidad Politécnica de Madrid (UPM) to anyone interested in implementing this resource in his/her teaching.

2. Results and Discussion

2.1. Segregation of Morphological Traits in the Barley F2 Population

2.1.1. Qualitative Traits

The segregation analysis of morphological qualitative traits selected for this study (see the Materials and Methods section) is presented in Table 1. Among them, type of spike, number of rows, type and length of awns, and type of grain were scored in dry spikes that had been stored when the F2 plants reached maturity (Figure 1), while leaf variegation and stem pubescence were directly scored when F2 plants were grown in the green house. Some individuals were missed for the stem pubescence phenotype, but a sample size of 256 is still large enough for statistically soundness.
The traits controlled by Vrs1, Nud, Zeo, Wst, and Hsh behave as expected for a Mendelian monogenic dominant inheritance, segregating in a 3:1 ratio in the population. However, the traits controlled by Lks2 and Kap (length and type of awn) do not follow the expected 3:1 segregation, with the fitting of the type of awn (hooded versus normal) to a 9:7 segregation suggesting more complex genetic control. These two traits, related to the awn morphology, provide an excellent example to introduce the students to non-Mendelian segregations. It is known that the hooded barley phenotype is caused by a mutation in the Hvknox3 gene (in chromosome 4H), involved in floral evocation [24], but there are epistatic effects involving other genes such as Lks2 (7H) that code for a transcription factor of the Short Internodes (SHI) family that regulates awn elongation and pistil morphology [25]. In the case of Lks2, the classification of awns as long or short can only be made in normal awned spikes (kapkap). Hence, an analysis of the character “type of awn” must be re-done with both characteristics (type and length), which classifies the spikes in three phenotypic classes: hooded, normal short, and normal long. This analysis allows us to confirm the segregation 9:3:4 corresponding to a recessive epistasis (Table 2).

2.1.2. Quantitative Traits

Plant height and spike length of the F2 plants were measured by the teacher’s team in the green house in 2016 and are provided to students every year since then. The analysis of both traits is presented in Table 3 and Figure 2.
Plant height showed a right-skewed distribution (Figure 2a), while spike length showed a bimodal curve (Figure 2b). The latter can be taken as a representative example of quantitative inheritance when a major locus is involved in trait variation. The coincidence of the barley Zeo gene controlling spike compactness, with quantitative trait loci (QTLs) for plant height and spike length, has been reported [16]. In agreement with that, a basic Student’s t test demonstrates that mean values are significantly different between F2 individuals expressing the dominant and recessive Zeo alleles, with the latter being associated with taller plants and longer spikes (for plant height: 87.11 versus 123.80 cm, t = 11.28, d.f. = 104, p < 0.0001; for spike length: 54.16 versus 111.95 mm, t = 25.86, d.f. = 98, p < 0.0001). Mean differences are, however, not obtained when the dominant and recessive phenotypes for the other qualitative traits are contrasted (results not shown).

2.2. Barley F2 Genotypic Description

The segregation analysis of the molecular markers selected for this study (see the Materials and Methods section) is presented in Table 4. Among the simple sequence repeat (SSR) markers, Bmag 0211 and HVM40 behaved as expected for a Mendelian codominant inheritance while Bmac 0310 showed a slight deviation from the expected for a codominant marker. The Knox-dup marker showed a 3:1 segregation, in agreement with the expected for a dominant marker.
As the Knox-dup marker is completely linked to the Kap gene, dissection of the genetic interaction can be attempted by the classification of F2 individuals not only as hooded, short, or long, but also as dominant or recessive for this gene. The combined analysis is presented in Table 5.
F2 individuals carrying the epistatic recessive allele in homozygosis, lks2lks2, always develop a short-type awn with independence of the Kap genotype. Individuals with homozygous recessive kapkap carrying a dominant allele Lks2 develop a long-type awn. The individuals carrying one dominant allele in each locus develop mostly a hooded awn, but a small proportion (10 out of 179) develop a normal long awn. This suggests that some additional loci can be modulating this complex phenotype (Table 5).

2.3. Linkage Analysis

With all the data for qualitative traits and molecular markers, we performed linkage analyses. The Kap morphological marker could not be included due to epistasis, but its molecular counterpart, the dominant Knox-dup marker, was used instead. Lks2 was analysed according to the genetic model previously stablished (Table 5); that is to say, individuals with hooded and normal long awns, assumed to bear the dominant Lks allele, composed the dominant phenotype class while individuals with normal short awns represented the recessive lks phenotype. The chi-square values for independence are presented in Table 6. All tests including a codominant marker are based upon the 2 × 3 linkage contingency tables instead of the typical 2 × 2 contingency tables used for pairs of dominant traits.
The analyses revealed three cases of genetic linkage between morphological markers. The best way to calculate the genetic distance (r) between two linked markers in the coupling phase, as is the case in an F2 population, is by using the following equation:
r = 1 − √x
where x can be estimated from the second-grade equation:
Nx2 + (−a1 + 2a2 + 2a3 + a4)X − 2a4
in which the a1, a2, a3, and a4 values stands for the number of individuals that correspond to the four phenotypic categories of the 2 × 2 F2 contingency table, i.e., dominant for both markers (a1), dominant for one marker and recessive for the other marker (a2 and a3), and recessive for both markers (a4). These estimations gave a value of r = 0.398 between Vrs1 and Zeo loci and of r = 0.251 between Zeo and Wst loci. In this population, no linkage was detected between Wst and Vrs1, which points to Zeo as the central locus (Figure 3). A close linkage between Lks2 and Nud (r = 0.10) was also detected.
Regarding the molecular markers, r can be estimated between the marker pairs HVM40 and Knox-dup (r = 0.329) and between Knox-dup and Bmac 0310 (r = 0.375). To calculate these r values, codominant molecular markers can be converted into a dominant marker; thus, the students can use the same equation for all the traits. No linkage could be detected between HVM40 and Bmac 0310, which, following the same reasoning as before, indicates that Knox-dup is the central locus (Figure 3). Our data support genetic linkage between Knox-dup and the Hsh locus, with an r value of 0.403. Although these two loci are actually in chromosome 4H, their linkage was unexpected because Bmac 0310, which is located between them, segregates as not linked with Hsh. This result could be related to the segregation distortion detected for Bmac 0310 (Table 6). However, there is also an unexpected linkage relationship between Knox-dup (4H) and Lks2 (7H), which might be derived from the existence of some additional loci modulating awn morphology, as already discussed. It should be noted that all unexpected linkage results involve the Knox-dup marker.

2.4. Teaching Experience

This section describes one type of practical exercise that can be developed from the material and data described in this manuscript. It is designed for students of a “genetics” general course at a BSc level but can be adapted for other courses and levels. The exercise must be scheduled once the topics of transmission genetics and molecular markers needed for completing the assignment were covered in the course.
The exercise was organized in groups of around 20 students that attend 4 sessions of 2–3 h each. The practice guideline followed by students can be found as Supplementary Materials.
Session 1: Phenotyping (2 h). This session can be easily set up in a regular classroom. First, the professor explains in detail the characteristics to be scored in the plant material (dry spikes and grains) by the students. The collection of spikes is split in subsets so that the data for the whole F2 population are obtained by combining all the subsets’ data. The characteristics recorded by the students are number of rows (2 vs. 6), type of grain (covered vs. naked), type of spike (dense vs. lax), and type of awn (hooded vs. normal). The students, in pairs, must characterise the phenotypes of the F2 spikes assigned (in our case, 40–50 F2 individuals) and must record the observations in an Excel datasheet. At the end of session 1, the professor obtains a file with the phenotype records of the complete collection.
Session 2: Genetic analysis (3 h). In this session, which must be held in a computer room, the professor guides the students in genetic analysis. This training is essential for successful completion of the final report. Several points are covered and discussed:
  • Data acquisition: the phenotype profiles recorded by the students are compared with that recorded by the teaching team (“official phenotyping”).
  • Segregation analysis of single traits: for this and further analyses, the professor provides the data for the two additional qualitative traits measured in grown plants (stem pubescence and leaf variegation). The students check if the traits behave as expected assuming a model of genetic control by one locus with two alleles and complete dominance. They must employ Excel for data management and χ2 analysis. There is only one trait, type of awn, that does not behave as expected (Table 1). All of the groups discuss what can be happening with this trait. The professor leads the students to understand and to conclude that its genetic control may be an epistasis and provides the data for the length of the spike. At this moment, it can be useful to give again the spikes to the student so they can see that the “normal awn” phenotype can be subclassified as long awn and short awn. This trait is not easy to score in F2 plants; therefore, in our experience, it is more convenient to give the data to the students. With the combined data, the students must check if the segregation observed really corresponds with an epistasis.
  • Linkage analysis: students, in pairs, perform the linkage analysis for all combinations of two of the seven traits, estimate the recombination fraction, and create a genetic map. The professor leads the students to understand that, despite no linkage detected between Wst and Vrs1 genes, both show linkages with Zeo1 (Table 6), which indicates that these three genes are placed in the same linkage group. In this case, students can calculate not only the recombination fraction but also interference and coincidence coefficients. Likewise, it is important to discuss why they cannot estimate r with the Kap gene, even if they detect genetic linkages with other genes. Students’ conclusions can be used also to contrast with those based on official phenotyping, which is especially useful if phenotyping errors may have resulted in misleading outcomes.
Session 3: Molecular markers I (2 h). This session must be performed in a laboratory. The students amplify two molecular markers, Knox-dup and Bmac 0310, using PCR. First, the professor explains the fundamentals of PCR and how the reaction works. Then, each pair of students is provided with DNA from 6 F2 individuals and from the parental lines, and all the reagents and materials needed for the experiment. In order to promote autonomous work, the students must design the experiment, including the calculation of the reagents’ volumes in the PCR mix, and must perform it on their own.
Session 4: Molecular markers II (3 h). The students analyse the results of the PCR by agarose gel electrophoresis. The inclusion of a dominant and a codominant marker allow them to discuss the differences in the results. Genotyping data must be included in the Excel datasheet. At the end of session 4, the professor obtains a file with the genotype data for all the collections and make it available to all the students. For a more complete analysis, the genotypic profile of the F2 individuals for two additional SSR markers (HVM40 and Bmag 0211) could be included in the datasheet.
Results report (3 h personal work). Once the sessions are completed, the students, in pairs, must fill out a report. In this document, they must present: 1. the study of individual segregation of the four molecular markers, 2. the linkage analysis in pairs for the four molecular markers, 3. the linkage analysis in pairs between the morphological traits and the molecular markers, and 4. a conclusion of the analyses. It is worth noting that the analyses requested in item 3 are not based on students’ recorded data but on the official phenotypic and genotypic data provided by the professor.
Extra session: Class discussion (1 h). Once all the reports have been submitted and reviewed, the professor may schedule an extra session in which the more common troubles faced by the students can be discussed.
Additional exercises can be carried out with the F2 population in order to study the quantitative traits.

2.5. Learning Experience

During the past 5 years, about 500 students have completed this practical activity. Student accuracy in phenotyping is low, with 70–80% of the raw forms needing correction. On the contrary, molecular marker practices and genotyping are usually easier than phenotyping for students. Most of the students carry out the PCRs adequately, without contamination or false-negative results.
Personalized discussion with each student during the first practical session helps to reduce the error rate. The number of rows is the easiest trait to be assessed by students, with the lowest rate of mistakes. The type of grain and the type of awn usually show more errors; however, the mistakes are generally small and do not affect the results obtained in segregation and linkage analyses. The type of spike (dense or lax) is the most difficult trait to be scored for students in F2 individuals because, in some plants with dense spikes, the phenotype is not as extreme as in the homozygous OWB-D parent (see OWB-F2-85 in Figure 1). Thus, the number of mistakes can be large enough to significantly modify the results of the genetic analyses. This point allows to discuss with the students the importance of finely performing the phenotypic studies.
With the aim to know the profile of students who perform the practices, their opinion about practice exercises in general, and genetics practices in particular, 73 students were surveyed during the 2019–2020 course. The age range of the students surveyed varied between 18 and 55 years, although the majority were 19 or 20 years old since they were in their second course of the degree (Figure S1). These students belonged to the biotechnology degree (55), or agrarian sciences and bioeconomy degree (18) (Figure S1); in both, the genetic course was placed in the second course. Most of students were females (46 vs. 27) and claimed that they have prior knowledge of genetics and that they liked genetics and practical exercises (Figure S1).
According to the survey (see supplementary Table S1), less than half of the students really understood the importance of using a cereal to perform this practice exercise. In agreement with that, more than half of the students thought that this practices could be carried out with some type of horticultural plant, without understanding that fresh fruits from horticultural cannot be conserved and would not allow us to schedule and to perform the practice satisfactorily in the same conditions.
In addition, near 90% of students claimed to understand the benefits of using a F2 population in the practices. However, near 22% of them thought that an F1 population or test cross would be just as suitable as F2 and 27.4% of students thought that an F1 population and test cross could be used in these practices. This result evidences that many students do not understand that the complete study described in this project can only be carried out with an F2 population (Table S1).
When the students were asked about practice exercises in general, the majority of them thought that bachelor’s practices allow them to become familiar with the experimental techniques (almost 90% mostly or completely agree) and facilitates their understanding of the related subject (around 80% mostly or completely agree). A similar percentage of students claimed that genetics practices make understanding concepts of genetics easier, although only 45% believed that genetics practices are useful to pass the subject (Table S1). This last point was also evidenced when the students were asked about which lecture topics were implicated in this practice exercise, and only 22 out of 55 biotechnology students and 4 out of 18 students of agrarian sciences and bioeconomy answered correctly. The lack of connection between practices and theory perceived by some students is very common. Therefore, professors must continue to put in huge efforts to connect both kinds of teaching so that students understand that the practices exercises are based on real projects designed according to theoretical concepts of genetics that are studied in theoretical classes.

3. Materials and Methods

3.1. Barley F2 Generation

3.1.1. The Plant Material

A Hordeum vulgare L. F2 population was generated from the cross of the recessive (OWB-R) and dominant (OWB-D) spring barley stocks (Figure 1) previously described [14,15]. One spike from two OWB-R plants were hand emasculated and pollinated with the pollen of OWB-D plants. Crosses were made in May 2014, and the seven F1 seeds obtained were sown in November 2014 in a greenhouse (1 seed/pot) at the School of Agricultural, Food, and Biosystems Engineering of UPM. After self-pollination of the F1 plants, more than 500 F2 seeds were obtained. From autumn 2015 to summer 2016, 303 F2 plants were grown in the greenhouse with a manually controlled window system to avoid extreme indoor temperatures. Flag leaf samples were taken for DNA extraction, which was carried out by professors using the cetyl trimethylammonium bromide (CTAB) method, and 6–8 mature spikes of each plant were collected and stored in labelled plastic bags, which also contained a few harvested grains of the corresponding F2 plant. The remaining F2 seeds are kept in a dry environment at 4 °C and will replace the actual set when needed.

3.1.2. Phenotyping of Morphological Traits

As mentioned before, the OWB-D and OWB-R lines differ from each other for many morphological characteristics whose segregation can be easily monitored in a segregant population. In this type of exercise, it is very important to use a coherent set of traits easy to handle by the students. Therefore, from all the possible traits, we selected the nine that are described in Table 7. Five traits (type of spike, number of rows, type and length of awns, and type of grain) can be directly scored in dry spikes by students, while the remaining four (leaf variegation, stem pubescence, plant height, and spike length) must be scored in growing plants.
The phenotypes for the traits that had to be assessed in growing plants were recorded in the greenhouse during the academic year 2015–16 by the team involved in the development of this teaching resource. In the following courses, these data are given to the students to complete the data set for further analyses.

3.1.3. Genotyping of Barley F2 Population

There is a lot of information about simple sequence repeats (SSR) and single-nucleotide polymorphisms (SNPs) markers in the OWB population (https://barleyworld.org/owb/data; accessed on 17 February 2021). For didactic purposes, three SSR markers selected from the literature and one PCR-based dominant marker were chosen. This latter, the Knox-dup marker, was developed in house for allelic discrimination of the Hvknox3 gene that is located on the short arm of barley chromosome 4 [24]. The dominant allele (Kap) of this gene is responsible for the hooded phenotype and differs from the recessive allele (kap) in a tandem duplication of 305 bp located in intron IV of this allele. The oligonucleotides design is shown in Figure 4.
The inclusion of a dominant marker is useful in explaining the differences in the analysis of both types of molecular markers (dominant and codominant) and helps the student understand the advantages and disadvantages of their use (Figure 5). Three out of the four markers employed were mapped in chromosome 4H (Table 8), which is relevant for linkage analysis and genetic dissection of the epitasis.

4. Conclusions

In this study, an F2 population of barley was generated from the two parental lines of the OWB collection. An F2 is the most suitable and complete population to perform the study of complex genetic concepts, such as dominance, epistasis, and linkage, and to carry out segregation, linkage, and genetic interaction analyses. Many educational institutions maintain Drosophila melanogaster mutant stocks to develop F2 populations for genetics practical teaching [26,27]. In our view, utilizing a cereal species as the working organism has several advantages, including the possibility to isolate DNA for genotyping of the F2 individuals during the plant growing cycle. Dry material can be kept during long periods of time, traits easily be phenotyped in dry ears, and grains can be selected in order to design the experiments to be performed by students. Among cereals, barley is the best candidate because it has a diploid genome and numerous genetic resources are available. The generation of the barley F2 population presented here has allowed for implementation of the practical exercise described here for several years (see Supplementary Materials for a detailed guideline). Furthermore, a collection of images of the stored spikes and grains of each F2 individual has recently served as an online phenotyping resource for a group of students that had to follow sessions 1 and 2 from home because of the COVID-19 pandemic.
With accomplishment of the full exercise, the students achieved the following goals: (i) acquire the methodologies for data collection, treatment, and analysis to study the genetic control of qualitative traits and to analyse the existence of genetic linkage between two loci; (ii) acquire the basic knowledge to analyse molecular markers in the laboratory (amplification and electrophoretic analysis of DNA sequences); and (iii) understand the different types of molecular markers and their uses in genetic linkage analysis.
The development of this practice exercise, placed in a context similar to a real research project, aimed to improve learning of complex genetic concepts by students. However, a survey of the students that followed the practice in 2019–2020 indicated that some of them neither understood the importance of using an F2 population nor were able to successfully associate the exercise performed with some concepts that are studied in theoretical classes of genetics. Clearly, professors must continue making educational efforts to connect both types of teaching.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/plants10040694/s1, Appendix A: Practice guideline followed by students to perform this teaching experience, Figure S1: Students’ profile, Table S1: Opinion of students about genetics practices.

Author Contributions

Conceptualization, E.B., P.G. and J.F.V.; formal analysis, E.G., E.B., L.P., A.G.-S., M.L.-F. and P.G.; methodology, E.G., L.P., A.G.-S. and P.G.; writing—original draft, E.G. and P.G.; writing—review and editing, E.G., E.B., L.P. and P.G. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Universidad Politécnica de Madrid.

Informed Consent Statement

Not applicable.

Data Availability Statement

The full set of phenotype and genotype data of the F2 population described here will be provided upon request.

Acknowledgments

The authors would like to thank Oregon State University for providing the OWB collection and Maria Martin del Puerto for technical assistance with plant management.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Haga, S.B. Teaching resources for genetics. Nat. Rev. Genet. 2006, 7, 223–229. [Google Scholar] [CrossRef] [PubMed]
  2. Hodson, D. Time for action: Science education for an alternative future. Int. J. Sci. Educ. 2003, 25, 645–670. [Google Scholar] [CrossRef]
  3. Christensen, A.C. Cats as an aid to teaching genetics. Genet 2000, 155, 999–1004. Available online: https://www.genetics.org/content/155/3/999 (accessed on 17 February 2021).
  4. Knippels, M.C.P.J. Identification and exploration of learning and teaching problems in genetics. In Book Coping with the Abstract and Complex Nature of Genetics in Biology Education: The Yo-Yo Teaching and Learning Strategy; CD-β series on research in science education; Lijnse, P.L., Treffers, A., de Vos, W., Waarlo, A.J., Eds.; CD-β Press: Utrecht, The Netherlands, 2002; Available online: http://dspace.library.uu.nl/bitstream/handle/1874/219/full.pdf?sequence=2&isAllowed=y (accessed on 17 February 2021).
  5. Kontra, C.; Lyons, D.J.; Fischer, S.M.; Beilock, S.L. Physical Experience Enhances Science Learning. Psychol. Sci. 2015, 26, 737–749. [Google Scholar] [CrossRef] [Green Version]
  6. Dopico, E.; Linde, A.R.; Garcia-Vazquez, E. Learning gains in lab practices: Teach science doing science. J. Biol. Educ. 2013, 48, 46–52. [Google Scholar] [CrossRef]
  7. Wyatt, S.; Ballard, H.E. Arabidopsis Ecotypes: A Model for Course Projects in Organismal Plant Biology & Evolution. Am. Biol. Teach. 2007, 69, 477–481. [Google Scholar] [CrossRef]
  8. Zheng, Z.-L. Use of the gl1 Mutant & the CA-rop2 Transgenic Plants of Arabidopsis thaliana in the Biology Laboratory Course. Am. Biol. Teach. 2006, 68, e148–e153. [Google Scholar]
  9. Price, C.G.; Knee, E.M.; Miller, J.A.; Shin, D.; Mann, J.; Crist, D.K.; Grotewold, E.; Brkljacic, J. Following Phenotypes: An Exploration of Mendelian Genetics Using Arabidopsis Plants. Am. Biol. Teach. 2018, 80, 291–300. [Google Scholar] [CrossRef]
  10. Hossain, F.; Bhat, S.R.; Mohapatra, T.; Singh, A.K. Genetics on a maize cob: A teaching tool for schools. Indian J. Genet. 2019, 79 (Suppl. 340), 366. [Google Scholar] [CrossRef] [Green Version]
  11. Bennett, M.D.; Smith, J.B. The Nuclear DNA Content of the Egg, the Zygote and Young Proembryo Cells inHordeum. Caryologia 1976, 29, 435–446. [Google Scholar] [CrossRef]
  12. International Barley Genome Sequencing Consortium. A physical, genetic and functional sequence assembly of the barley genome. Nature 2012, 491, 711–716. [Google Scholar] [CrossRef]
  13. Sato, K. History and future perspectives of barley genomics. DNA Res. 2020, 27. [Google Scholar] [CrossRef]
  14. Wolfe, R.I.; Franckowiak, J.D. Multiple dominant and recessive genetic marker stocks in spring barley. Barley Genet. Newsl. 1991, 20, 117–121. Available online: https://wheat.pw.usda.gov/ggpages/bgn/20/s20-01.html (accessed on 17 February 2021).
  15. Wolfe, R.I. A multiple stock in Brandon, Canada. Barley Genet. Newsl. 1972, 2, 170. Available online: https://wheat.pw.usda.gov/ggpages/bgn/2/2p170a.html (accessed on 17 February 2021).
  16. Cistué, L.; Cuesta-Marcos, A.; Chao, S.; Echavarri, B.; Chutimanitsakun, Y.; Corey, A.; Filichkina, T.; Garcia-Mariño, N.; Romagosa, I.; Hayes, P.M. Comparative mapping of the Oregon Wolfe Barley using doubled haploid lines derived from female and male gametes. Theor. Appl. Genet. 2011, 122, 1399–1410. [Google Scholar] [CrossRef] [Green Version]
  17. Chutimanitsakun, Y.; Nipper, R.W.; Cuesta-Marcos, A.; Cistué, L.; Corey, A.; Filichkina, T.; Johnson, E.A.; Hayes, P.M. Construction and application for QTL analysis of a Restriction Site Associated DNA (RAD) linkage map in barley. BMC Genom. 2011, 12, 4. Available online: http://hdl.handle.net/10261/32049 (accessed on 17 February 2021). [CrossRef] [Green Version]
  18. Costa, J.M.; Corey, A.; Hayes, P.M.; Jobet, C.; Kleinhofs, A.; Kopisch-Obusch, A.; Kramer, S.F.; Kudrna, D.; Li, M.; Riera-Lizarazu, O.; et al. Molecular mapping of the Oregon Wolfe Barleys: A phenotypically polymorphic doubled-haploid population. Theor. Appl. Genet. 2001, 103, 415–424. [Google Scholar] [CrossRef]
  19. Rostoks, N.; Mudie, S.; Cardle, L.; Russell, J.; Ramsay, L.; Booth, A.; Svensson, J.T.; Wanamaker, S.I.; Walia, H.; Rodriguez, E.M.; et al. Genome-wide SNP discovery and linkage analysis in barley based on genes responsive to abiotic stress. Mol. Genet. Genom. 2005, 274, 515–527. [Google Scholar] [CrossRef]
  20. Stein, N.; Prasad, M.; Scholz, U.; Thiel, T.; Zhang, H.; Wolf, M.; Kota, R.; Varshney, R.K.; Perovic, D.; Grosse, I.; et al. A 1,000-loci transcript map of the barley genome: New anchoring points for integrative grass genomics. Theor. Appl. Genet. 2007, 114, 823–839. [Google Scholar] [CrossRef] [Green Version]
  21. Börner, A.; Buck-Sorlin, G.H.; Hayes, P.M.; Malyshev, S.; Korzun, V. Molecular mapping of major genes and quantitative trait loci determining flowering time in response to photoperiod in barley. Plant Breed. 2002, 121, 129–132. [Google Scholar] [CrossRef]
  22. Jafary, H.; Albertazzi, G.; Marcel, T.C.; Niks, R.E. High Diversity of Genes for Nonhost Resistance of Barley to Heterologous Rust Fungi. Genetics 2008, 178, 2327–2339. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  23. Franckowiak, J.D.; Lundqvist, U.; Konishi, T. New and revised names for barley genes. Barley Genet. Newsl. 1997, 26, 4. Available online: https://wheat.pw.usda.gov/ggpages/bgn/26/text261a.html#4 (accessed on 17 February 2021).
  24. Müller, K.J.; Romano, N.; Gerstner, O.; Garcia-Marotot, F.; Pozzi, C.; Salamini, F.; Rohde, W. The barley Hooded mutation caused by a duplication in a homeobox gene intron. Natature 1995, 374, 727–730. [Google Scholar] [CrossRef] [PubMed]
  25. Yuo, T.; Yamashita, Y.; Kanamori, H.; Matsumoto, T.; Lundqvist, U.; Sato, K.; Ichii, M.; Jobling, S.A.; Taketa, S. A SHORT INTERNODES (SHI) family transcription factor gene regulates awn elongation and pistil morphology in barley. J. Exp. Bot. 2012, 63, 5223–5232. [Google Scholar] [CrossRef] [Green Version]
  26. Sofer, W.; Tompkins, L. Drosophila Genetics in the Classroom. Genetics 1994, 136, 417–422. Available online: https://pubmed.ncbi.nlm.nih.gov/8138175/ (accessed on 17 February 2021).
  27. Ranganath, H.A. Teaching and Learning Genetics with Drosophila. 5. Lessons from the Experiments with Curly and Bristle Mutant Stocks. Reson 2020, 25, 1127–1139. [Google Scholar] [CrossRef]
Plants 10 00694 g001 550

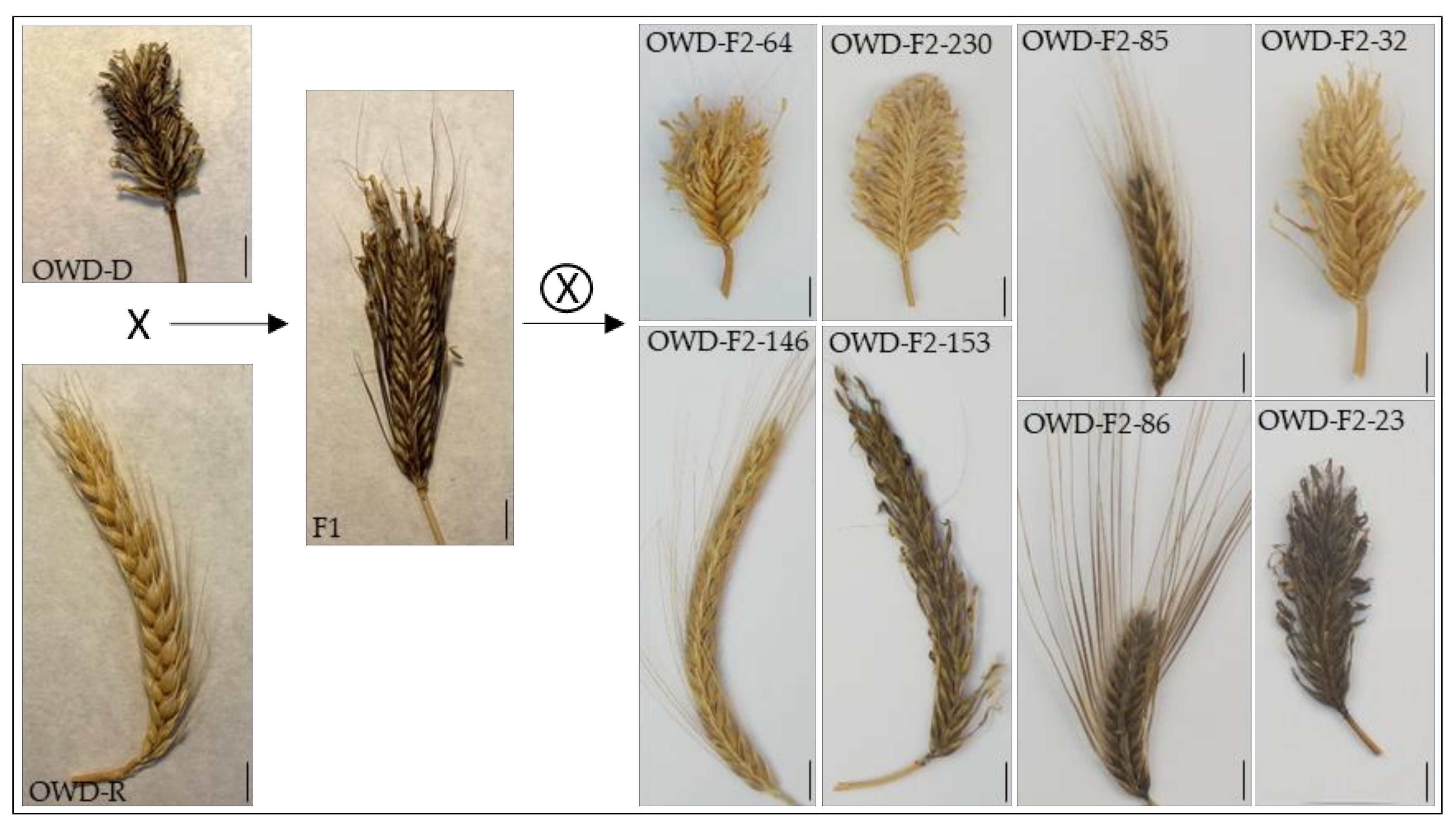

Figure 1. Parental lines (Oregon Wolfe Barleys (OWB)-D and OWB-R), F1, and some F2 individuals showing the wide range of variability in this population. The scale bars represent 1 cm.
Figure 1. Parental lines (Oregon Wolfe Barleys (OWB)-D and OWB-R), F1, and some F2 individuals showing the wide range of variability in this population. The scale bars represent 1 cm.
Plants 10 00694 g001
Plants 10 00694 g002 550

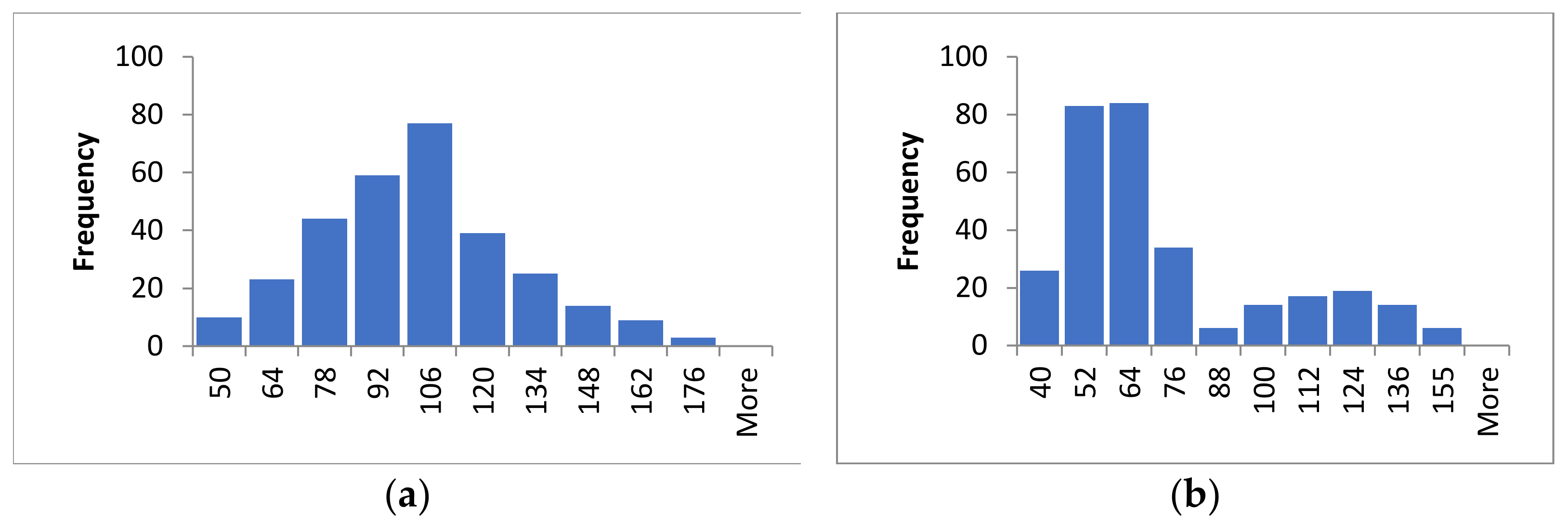

Figure 2. Distribution observed for (a) plant height (cm) and (b) spike length (mm) in the F2 barley population.
Figure 2. Distribution observed for (a) plant height (cm) and (b) spike length (mm) in the F2 barley population.
Plants 10 00694 g002
Plants 10 00694 g003 550

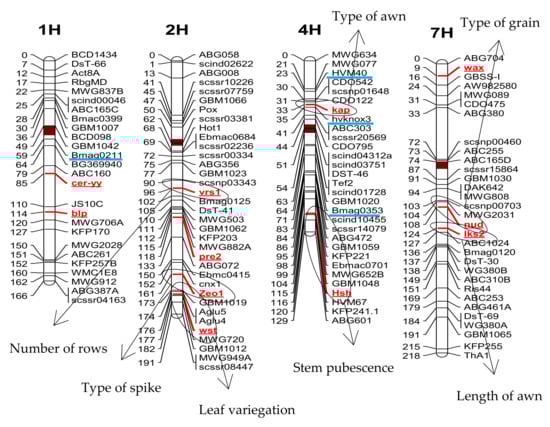

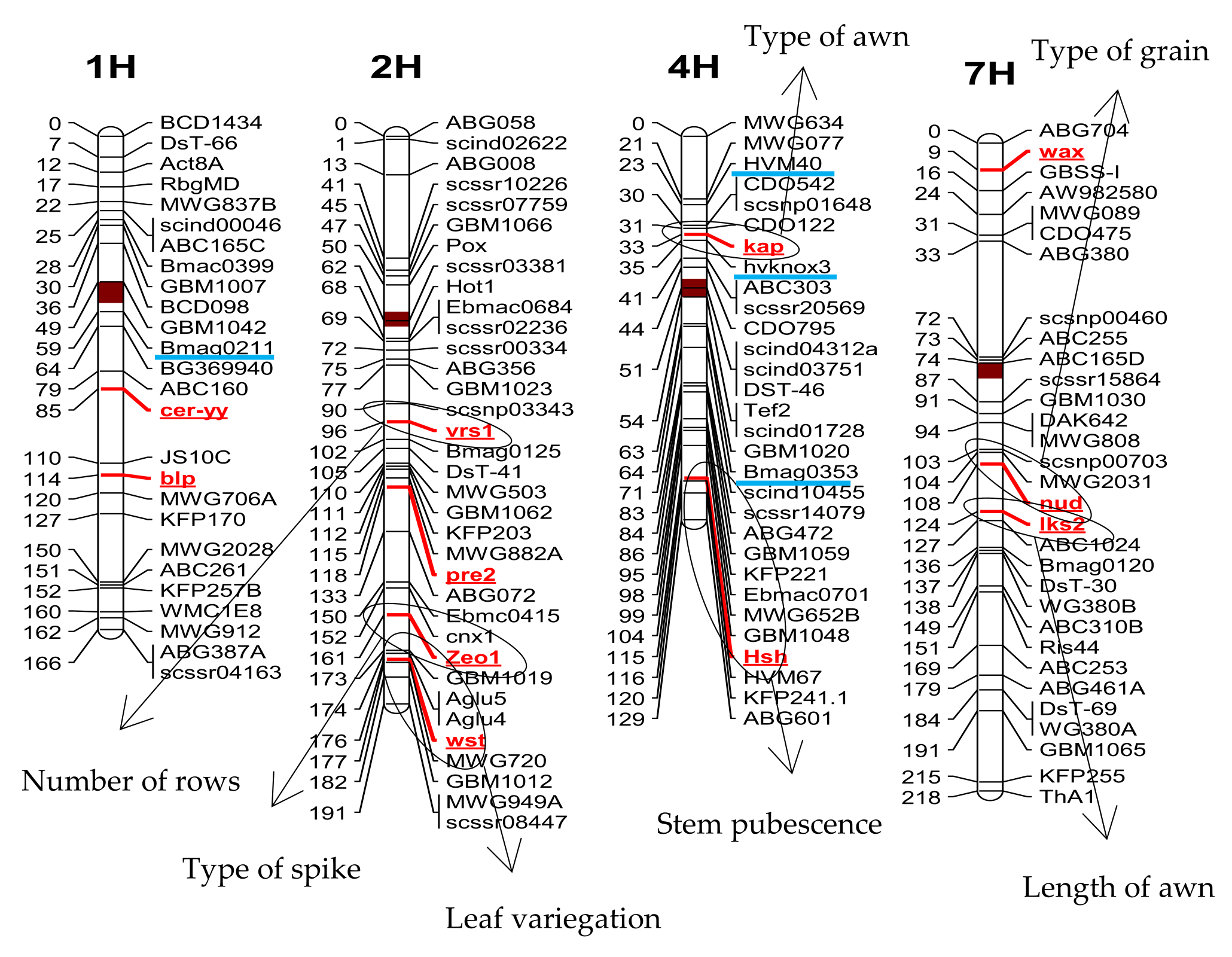

Figure 3. Location of the molecular markers (underlined in blue) and genes controlling the phenotypic traits used in this work on the genetic map of the Oregon Wolfe Barley population available at https://barleyworld.org/owb (accessed on 17 February 2021). In chromosome 4H, HvKnox3 stands for the Knox-dup molecular marker and Bmag0353 points the map location of Bmac 0310.
Figure 3. Location of the molecular markers (underlined in blue) and genes controlling the phenotypic traits used in this work on the genetic map of the Oregon Wolfe Barley population available at https://barleyworld.org/owb (accessed on 17 February 2021). In chromosome 4H, HvKnox3 stands for the Knox-dup molecular marker and Bmag0353 points the map location of Bmac 0310.
Plants 10 00694 g003
Plants 10 00694 g004 550

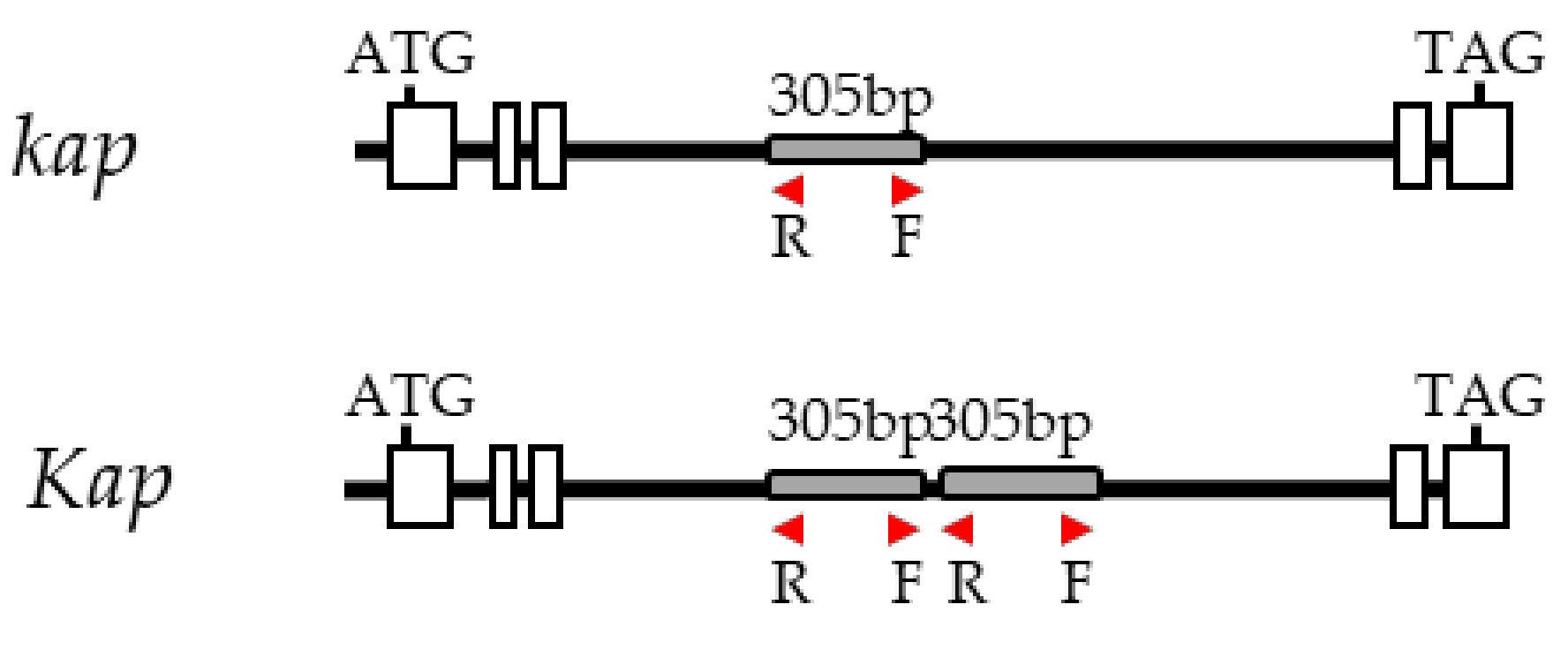

Figure 4. Schematic representation of the dominant marker Knox-dup. R: reverse primer, F: forward primer, black lines: introns, white boxes: exons, grey boxes: the 305 bp polymorphic fragment present in intron 4.
Figure 4. Schematic representation of the dominant marker Knox-dup. R: reverse primer, F: forward primer, black lines: introns, white boxes: exons, grey boxes: the 305 bp polymorphic fragment present in intron 4.
Plants 10 00694 g004
Plants 10 00694 g005 550

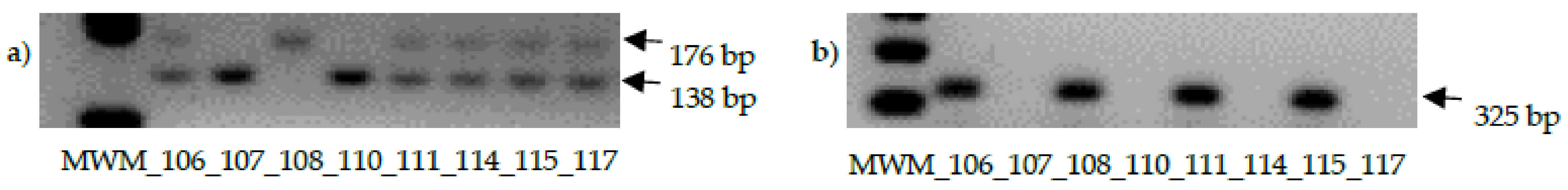

Figure 5. Electrophoresis gel for analysing PCR products from codominant marker Bmac0310 (a) and dominant marker Knox-dup (b) in eight individuals of the F2 population. MWM: molecular weight marker.
Figure 5. Electrophoresis gel for analysing PCR products from codominant marker Bmac0310 (a) and dominant marker Knox-dup (b) in eight individuals of the F2 population. MWM: molecular weight marker.
Plants 10 00694 g005
Table
Table 1. Segregation of morphological traits in the barley F2 population. The morphological markers are designated following the nomenclature for barley genes described by Francowiak [23].
Table 1. Segregation of morphological traits in the barley F2 population. The morphological markers are designated following the nomenclature for barley genes described by Francowiak [23].
TraitGeneDominantRecessiveNχ2 3:1pχ2 9:7p
Type of spikeZeo229743030.05n.s.
Number of rowsVrs1230733030.13n.s.
Type of awnKap16913330258.39***0.01n.s.
Length of awnLks2567713376.75***
Type of grainNud237653021.95n.s.
Leaf variegationWst237663031.67n.s.
Stem pubescenceHsh186702560.75n.s.
***: p < 0.001, n.s. (non-significant): p > 0.05, N: total number of individuals. The specific phenotypes (dominant and recessive) for each trait are indicated in the Materials and Methods section.
Table
Table 2. Segregation by type of awn in the barley F2 population.
Table 2. Segregation by type of awn in the barley F2 population.
Kap/Lks2
PhenotypeHooded AwnNormal, Long AwnNormal, Short AwnNχ2 9:3:4
Individuals16956773020.14n.s.
n.s. (non-significant): p > 0.05; N: total number of individuals.
Table
Table 3. Summary of the quantitative traits in barley F2 population.
Table 3. Summary of the quantitative traits in barley F2 population.
TraitMeanSESDRangeMinimumMaximumN
Plant Height (cm)96.111.5326.5713536171303
Spike length (mm)68.271.6428.5412728155303
SE: standard error, SD: standard deviation, N: number of individuals.
Table
Table 4. Segregation of select molecular markers in the barley F2 population.
Table 4. Segregation of select molecular markers in the barley F2 population.
Marker Homozygous OWB-D AlleleHeterozygousHomozygous OWB-R AlleleNExpected Ratioχ2p
Bmac 031057167763001:2:16.26*
Bmag 021180130882981:2:15.28n.s.
HVM4063160783011:2:12.69n.s.
Knox-dup230733033:10.13n.s.
*: p < 0.05, n.s. (non-significant): p > 0.05; N: total number of individuals.
Table
Table 5. Segregation of awn phenotypes combined with molecular marker Knox-dup.
Table 5. Segregation of awn phenotypes combined with molecular marker Knox-dup.
GenotypeKap_ Lks2_kapkapLks2_Kap_lks2lks2kapkaplks2lks2Nχ2 9:3:3:1
Awn phenotype Hooded/NormalNormal
LongShortShort
Individuals169 + 10 #4650273026.76n.s.
# See the text. n.s.: nonsignificant, N: total number of individuals.
Table
Table 6. Linkage analysis of the molecular and morphological markers in the barley F2 population.
Table 6. Linkage analysis of the molecular and morphological markers in the barley F2 population.
Gene/MarkerLks2NudZeoWstHshKnox-dupBmac 0310Bmag 0211HVM40
Vrs1n.s.n.s.6.53 *an.s.n.s.n.s.n.s.n.s.n.s.
Lks2 162.93 ***an.s.n.s.n.s.6.69 *an.s.n.s.n.s.
Nud n.s.n.s.n.s.n.s.n.s.n.s.n.s.
Zeo 50.25 ***an.s.n.s.n.s.n.s.n.s.
Wst n.s.n.s.n.s.n.s.n.s.
Hsh 5.42 *an.s.n.s.n.s.
Knox-dup 15.47 ***bn.s.21.92 ***b
Bmac 0310 n.s.n.s.
Bmag 0211 n.s.
Chi-square test indicating significant differences with the expected values assuming independent inheritance are marked in bold. *: p < 0.05, ***: p < 0.001, n.s. (non-significant): p > 0.05; a: 1 degree of freedom, b: 2 degrees of freedom.
Table
Table 7. Phenotypic characteristics of the F2 parental homozygous lines, OWB-D and OWB-R, for the qualitative and quantitative barley traits selected to be analysed. The morphological markers are designated following the nomenclature for barley genes described by Francowiak [23]. For plant height and spike length, the ranges of values recorded in 5 seasons are given.
Table 7. Phenotypic characteristics of the F2 parental homozygous lines, OWB-D and OWB-R, for the qualitative and quantitative barley traits selected to be analysed. The morphological markers are designated following the nomenclature for barley genes described by Francowiak [23]. For plant height and spike length, the ranges of values recorded in 5 seasons are given.
Material Trait OWB-D PhenotypeOWB-R Phenotype
Dry spikesType of spikeZeo = dense spikezeo = lax spike
Number of rowsVrs1 = two-rowed spikevrs1 = six-rowed spike
Type of awnKap = hooded awnkap = normal awn
Length of awnLks2 = long awnlks2 = short awn
Type of grainNud = covered caryopsisnud = naked caryopsis
Growing plantsLeaf variegationWst = non variegated leafwst = variegated leaf
Stem pubescenceHsh = hairy leaf sheathhsh = non hairy leaf sheath
Plant height49–96 cm67–122 cm
Spike length35–45 mm91–116 mm
Table
Table 8. Molecular markers selected for genotyping of the barley F2 population.
Table 8. Molecular markers selected for genotyping of the barley F2 population.
MarkerClassOligo ForwardOligo ReverseTmD AlleleR AlleleChr
Bmac 0310SSRCTACCTCTGAGATATCATGCCATCTAGTGTGTGTTGCTTCCT55 °C176 pb138 pb4
Bmag 0211SSRATTCATCGATCTTGTATTAGTCCACATCATGTCGATCAAAGC55 °C187 pb198 pb1
HVM40SSRCGATTCCCCTTTTCCCACATTCTCCGCCGTCCACTC55 °C175 pb146 pb4
Knox-dupPCRCCATGTTGCTGTATTTTGCG ACTGCACTGCAACTGGTCAG 60 °C325 pb-4
Chr: chromosome, D allele: allele presents in the OWB-D parental line, R allele: allele presents in the OWB-R parental line.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Giménez, E.; Benavente, E.; Pascual, L.; García-Sampedro, A.; López-Fernández, M.; Vázquez, J.F.; Giraldo, P. An F2 Barley Population as a Tool for Teaching Mendelian Genetics. Plants 2021, 10, 694. https://doi.org/10.3390/plants10040694

AMA Style

Giménez E, Benavente E, Pascual L, García-Sampedro A, López-Fernández M, Vázquez JF, Giraldo P. An F2 Barley Population as a Tool for Teaching Mendelian Genetics. Plants. 2021; 10(4):694. https://doi.org/10.3390/plants10040694

Chicago/Turabian Style

Giménez, Estela, Elena Benavente, Laura Pascual, Andrés García-Sampedro, Matilde López-Fernández, José Francisco Vázquez, and Patricia Giraldo. 2021. "An F2 Barley Population as a Tool for Teaching Mendelian Genetics" Plants 10, no. 4: 694. https://doi.org/10.3390/plants10040694

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
