Patterning of the Vertebrate Head in Time and Space by BMP Signaling

Abstract

How head patterning is regulated in vertebrates is yet to be understood. In this study, we show that frog embryos injected with Noggin at different blastula and gastrula stages had their head development sequentially arrested at different positions. When timed BMP inhibition was applied to BMP-overexpressing embryos, the expression of five genes: xcg-1 (a marker of the cement gland, which is the front-most structure in the frog embryo), six3 (a forebrain marker), otx2 (a forebrain and mid-brain marker), gbx2 (an anterior hindbrain marker), and hoxd1 (a posterior hindbrain marker) were sequentially fixed. These results suggest that the vertebrate head is patterned from anterior to posterior in a progressive fashion and may involve timed actions of the BMP signaling.

1. Introduction

During early development, the vertebrate embryo is patterned from anterior to posterior in a temporally progressive manner [1,2,3,4,5]: anterior tissues are specified early, and more posterior tissues are determined progressively later. Whereas coordination between temporal and spatial control of anterior-posterior (A–P) patterning is evident, a thorough understanding of the underlying mechanisms is still lacking in vertebrates.

In frogs, a BMP/anti-BMP dependent time-space translation mechanism has been proposed for trunk-tail patterning by Hox genes [6,7]. In this mechanism, Hox genes are sequentially activated in a high BMP region of the mesoderm (non-organizer mesoderm) [8], where their expression is dynamic and unstable. As the mesoderm involutes during gastrulation, Hox expressing cells are successively exposed to signals from the Spemann organizer, resulting in the Hox sequence being fixed at different points along the forming axis. In this way, the timing information encoded by Hox genes is translated into a spatial pattern. The putative organizer signals that stabilize Hox codes are BMP antagonists, e.g., Noggin [9] and Chordin [10], because these mimic the function of the organizer in dorsalizing the embryo [11,12], inducing a secondary axis [10,13,14], and rescuing A–P axes in ventralized embryos [7,10]. Notably, timed Noggin treatments in ventralized embryos not only rescue the A–P axis, but also the spatial pattern of Hox gene expression [7]. This conclusion is further supported by a recent study in chicks, which reported the fixation of Hox codes in the explanted posterior primitive streak (containing high BMP mesoderm) by Noggin treatments [15]. Together, these findings suggest that BMP signaling is involved in patterning the trunk-tail part of the axis by (directly or indirectly) regulating Hox gene expression.

In the rescue experiments mentioned above [7,10], Noggin and Chordin treatments can also rescue the head part of the axis, suggesting that BMP signaling may also be involved in patterning the head. Using heat-shock inducible chordin transgenic lines (Tg (hsp70:chd)), Hashiguchi et al. have shown in zebrafish that the expression of six3 (a forebrain marker) [16], otx2 (a forebrain and mid-brain marker) [17,18], gbx1 (the counterpart of Xenopus gbx2; a rostral hindbrain marker) [19], and hoxb1b (a caudal hindbrain marker) [20], are sequentially expanded by timed anti-BMP treatments from mid-blastula to early gastrula stages [21]. This is consistent with the observations that timed Noggin injections in ventralized embryos rescued different portions of the A–P axis in frog [7], and that progressively later anti-BMP treatments resulted in progressively more posterior axis defects in zebrafish [22]. These findings raise an interesting question: is BMP signaling involved in progressively patterning the head (brain)?

In the deuterostome embryo, the front-most portion of the A–P axis is not the head, but the extreme anterior domain (EAD), a region wherein ectoderm and endoderm directly juxtapose [23]. In frogs, this region gives rise to three organs, the cement gland (CG), the primary mouth, and the anterior pituitary [24]. Among them, the cement gland is an ectodermal organ that lies anterior to any neural tissue [25]. The formation of CG can be affected by perturbations of the development of the dorsal mesoderm (the Spemann organizer) [26,27], suggesting a requirement for organizer signals in the formation of this anterior-most structure. It would therefore be interesting to see if CG formation is also regulated by BMP signaling.

To test the role of BMP signaling in head patterning, we performed timed anti-BMP treatments in both wild-type (WT) and ventralized frog embryos. This resulted in sequential arrest (in WT embryos) or rescue (in ventralized embryos) of head patterning at different values, suggesting that a timing mechanism, which is BMP dependent and can be converted into spatial patterns by anti-BMP signals, may be involved in patterning the vertebrate head.

2. Materials and Methods

2.1. Microinjection

Frog embryos were harvested from naturally mated females and staged according to Nieuwkoop and Faber [28]. For timed anti-BMP treatment in wild-type embryos, 200 nL of 0.1 µg/µL human noggin protein (Sigma-Aldrich, H6416, Zwijndrecht, The Netherlands) was injected into the blastocoel of embryos at stage 8, 9,10, 10.5 and 11, respectively. The embryos were then cultured to stage 28 for taking pictures. A similar approach has been used by others [7,29]. These experiments were repeated at least three times and more than 80 embryos were used for each time point. mRNA for injection was transcribed with mMessage mMachine Kit (Ambion, Life technologies, AM1340, Carlsbad, CA, USA) from the following plasmids after linearization at the appropriate restriction sites: pSP64T-BMP4 (for BMP4 RNA) [30], and pCS2-hSmad6GR (for smad6GR RNA) [31]. To induce full ventralization, about 2 ng of BMP4 RNA was injected to each embryo at 2-cell or 4-cell stage and cultured to stage 26. Timed anti-BMP treatment in BMP-ventralized embryos was achieved by using a combined injection of 2ng BMP4 RNA and 2ng smad6GR RNA at the 2-cell or 4-cell stage. The embryos were then treated with 10 µM dexamethasone for 2 h at the desired stages and cultured to stage 26. For induction of dosalization, 2 ng of smad6GR RNA was injected at the 2-cell or 4-cell stage and the injected embryos were treated with 10 µM dexamethasone for 2 h at stage 7. These experiments were repeated at least three times and >40 embryos were used for each condition.

2.2. Whole Mount In Situ Hybridization

When the desired stages were reached, embryos were fixed overnight in MEMFA at 4 °C. After dehydration in 100% methanol, they were stored in methanol at −20 °C until use. Whole mount in situ hybridization (WISH) was performed as previously described [7]. The probes for in situ hybridization were synthesized from the following plasmids after linearization: pVZ1-xcg1 (for xcg-1 probe) [32], pBSSK-Six3 (for six3 probe) [33], pBluescript-KS-xotx2 (for otx2 probe) [34], pXgbx-2 (for gbx-2 probe) [35], and pBluescript SK-xHoxLab1 (for hoxd1 probe) [36].

3. Results

3.1. Timed Anti-BMP Treatment Arrests Head Patterning at Different Positions

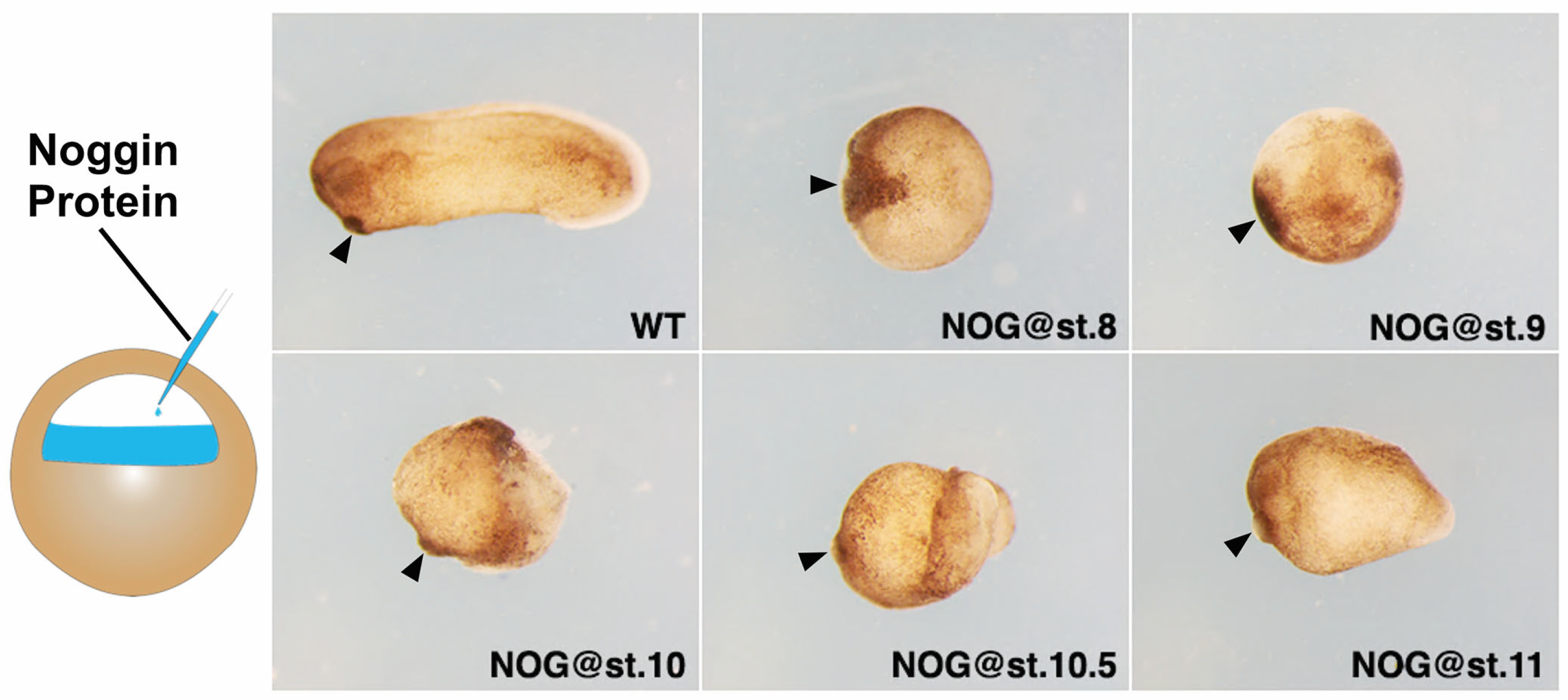

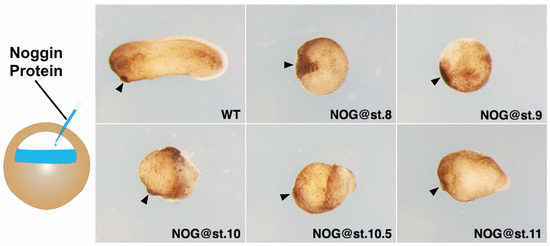

To examine the role of BMP signaling in head formation, we injected Noggin protein, an antagonist of BMP [9,37], to the blastocoel of the embryo at stage 8, 9, 10, 10.5 and 11 (from blastula to gastrula stage) and cultured them to stage 26 (Figure 1). From stage 8 to 10, the injected Noggin protein mainly affects the ectoderm and the future neurectoderm. At stage 10.5 and 11, the anterior tip of the involuting mesoderm will also be affected. Embryos injected with Noggin at stage 8 formed a ball of tissue with a large cement gland. Embryos injected at stage 9 also showed a blob of tissue, but the cement gland was much smaller. When Noggin was injected at st.10, a visible, short head (half head) was formed in the embryo. Morphologically, injection of Noggin at st.10.5 and 11 resulted in progressive formation of more posterior structures.

3.2. Timed Anti-BMP Treatment in Ventralized Embryos Rescued Different Portions of the Head

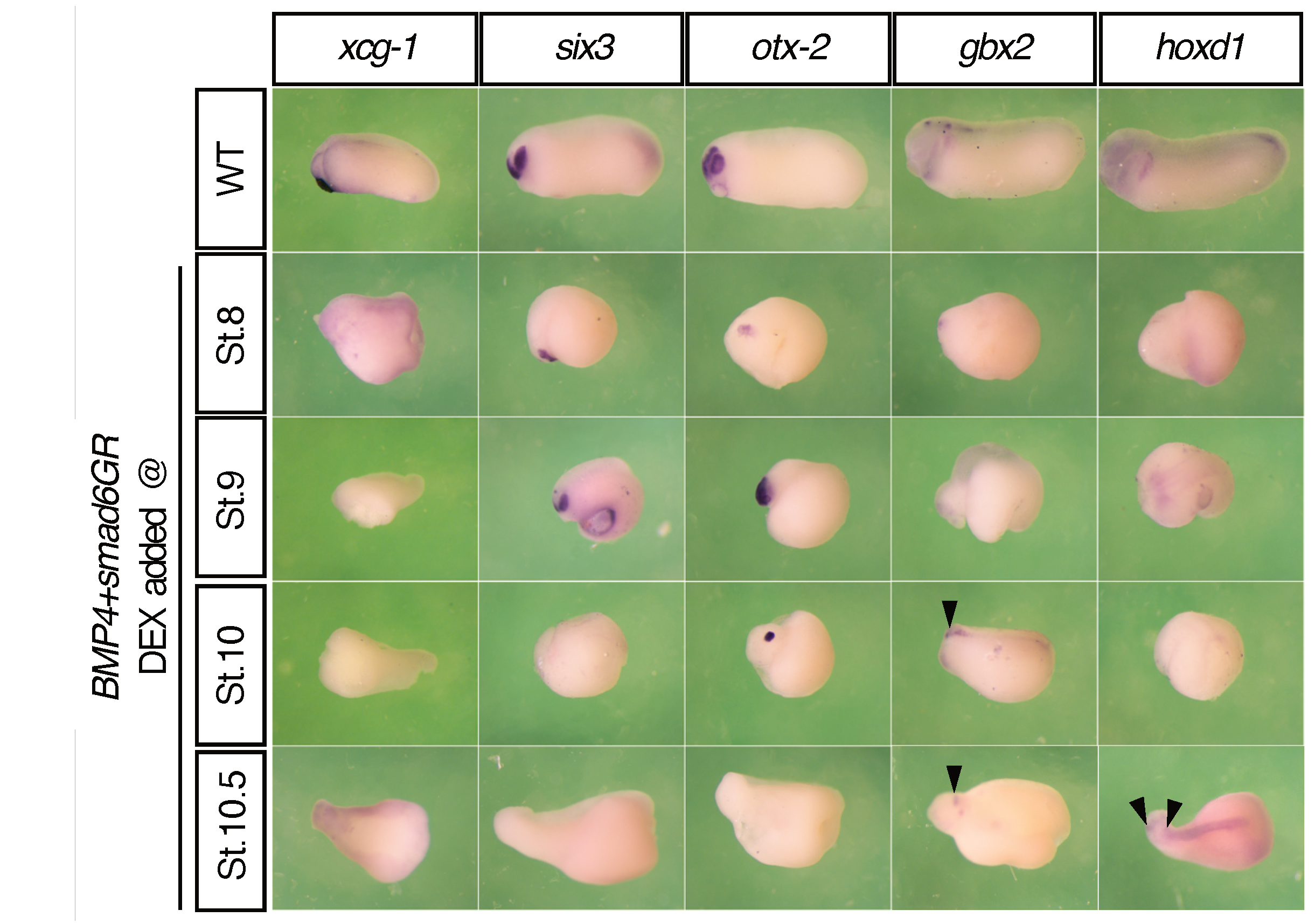

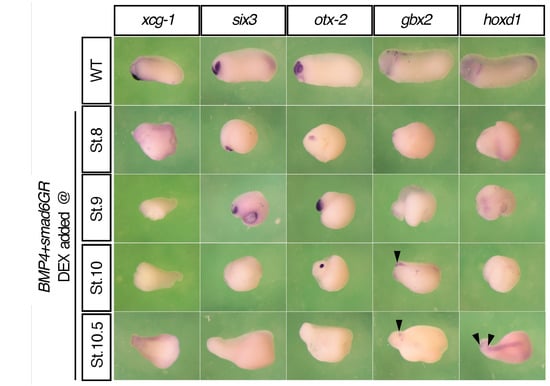

The above observations are supported by gene expression analysis. In zebrafish, timed Chordin treatments from mid-blastula to mid-gastrula stages sequentially expanded the expression domains of six3, otx2, gbx1, and hoxb1b [21], suggesting that timing is involved in head patterning and is likely to do with BMP signaling. We therefore postulate that the “head timer” is BMP-dependent and can be sequentially fixed by BMP inhibition, resulting in positional values being sequentially specified. To test this hypothesis, we conducted timed anti-BMP treatments in ventralized frog embryos (high BMP) (Figure 2).

In Xenopus, ventralization can be achieved by BMP overexpression [38,39,40,41], while dorsalization can be achieved by BMP inhibition [11,42]. In our experiments, injection of the frog embryo with 2ng bmp4 resulted in complete ventralization, showing a blob of tissue that had no axis (Figure S1). When the embryo was injected with the same amount of smad6, an inhibitory Smad that can interfere with BMP pathway [43,44,45], however, it displayed a dorsalized phenotype (Figure S1). We then did anti-BMP treatments in BMP4-ventralized embryos at different stages using a Smad6GR construct [31], which is inducible by dexamethasone. Timed Smad6 inductions fixed five anterior markers sequentially: it strongly fixed xcg-1 at stage 8, six3 at stage 8 and 9, otx2 at stage 9 and 10, gbx2 at stage 10 and 10.5, and hoxd1 at stage 10.5 (Figure 3).

3.3. The Timing of A–P Markers Is Disrupted in smad6-Injected Embryos

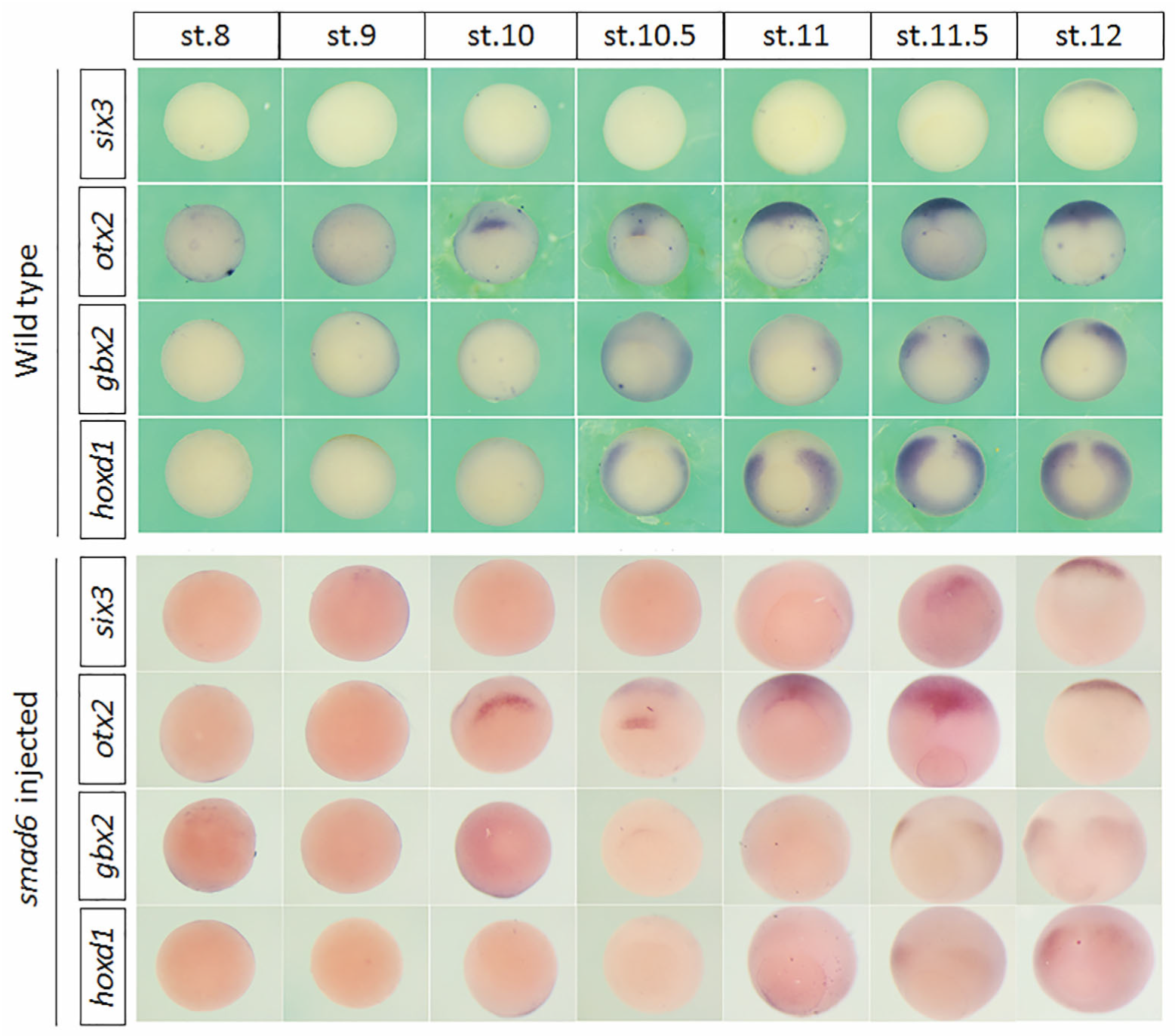

During trunk patterning, collinearity causes Hox genes to be expressed in a 3′ to 5′ order, and that more 3′ genes are expressed earlier and more anteriorly than/to more 5′ ones [46,47,48]. The temporally collinear expression of Hox genes has been proposed to serve as a timer, which can be interpreted and translated into spatial patterns [7]. Since the anterior genes are sequentially fixed earlier than Hox genes by anti-BMP treatment (Figure 2), it is thus interesting to see if these genes are also expressed in a temporal sequence which can complement the Hox sequence to constitute an integrative timer. Therefore, we next examined the endogenous expression of these anterior genes at different stages in wild-type embryos (Figure 3). Although these genes showed a spatial sequence of expression along the A–P axis (Figure S2), their activation did not strictly follow this spatial arrangement. For example, six-3 demarcates the most anterior border of the developing neural plate [49], but it was expressed at the end of gastrulation, much later than the other genes. The expression domain of gbx2 is directly anterior to that of hoxd1 but they were expressed at similar times. Moreover, unlike Hox genes, which are expressed in ventral and lateral mesoderm during gastrulation, the earliest expression of six3 and otx2 was located on the dorsal side of the embryo. The expression kinetics of these genes make some of them less likely to be “timer genes” themselves. Even so, however, the timing of their expression was disrupted by smad6 injection (Figure 3). For example, the expression of six3 in smad6-injected embryos was advanced to stage 11.5 from stage 12. Expression of gbx2 and hoxd1 was significantly reduced and only detectable from stage 11.5, whereas their expression in WT embryos was observed earlier (at stage 10.5). Although the time of otx2 expression was not affected, its expression domain was slightly expanded at stage 10.

4. Discussion

During animal development, the patterning of the trunk-tail part of the axis has been known to be regulated by Hox genes [48,50,51]. The regulation is likely to involve timed interactions between BMP and anti-BMP during gastrulation [6,7]. In this study, we show that BMP and anti-BMP may also be involved in regulating head patterning in the developing frog embryo.

When the inhibitor of the BMP pathway, Noggin protein, was applied to the frog embryo from the mid-blastula to mid-gastrula stage, the patterning of the head was arrested at different positional values, i.e., cement gland, forebrain, mid-brain, hindbrain, and neck (Figure 1). Sequentially, later Noggin treatments arrested head formation at more and more posterior positions, suggesting that the EAD and head are patterned gradually in a timed fashion. Similar effects of BMP intervention have also been observed during trunk-tail patterning. In zebrafish, sequential BMP inhibition at later stages results in axial defects at progressively posterior positions, i.e., in the trunk and tail [22]. Together, these results imply that the process involved in head-tail patterning can be stopped sequentially by timed BMP inhibition.

The timing observed In Figure 1 fits well with a recent finding in zebrafish, Ich showed sequential expansion of head markers (six3, otx2, gbx2, and hoxb1b) by timed Chordin treatments [21]. We extended this study by performing timed anti-BMP treatments in bmp4-overexpressing embryos (Figure 2). This sequentially rescued the expression of xcg-1, six3, otx2, gbx2 and hoxd1, suggesting that the patterning of the EAD and head involves timed BMP/anti-BMP interactions. Alternatively, the gradual rescue of these anterior marker genes could possibly be explained by the distance of different head structures to the source of BMP or anti-BMP signals. However, since there is no evidence so far showing a BMP gradient running from anterior to posterior in the head, it is more likely that a temporal component is involved.

It is worth noting that, Ioth in Hashiguchi’s study and in this study, the last and most posterior component of the head gene sequence is hox1:hoxb1 and hoxd1, respectively. Since hox1 is the most anterior component of a previously elucidated Hox time-space sequence, the spatial arrangement of these early induced head genes is clearly complementary to and continuous with the later, more posterior Hox gene sequence. There is also evidence that timed Noggin treatments in ventralized embryos at different gastrula stages sequentially fixes Hox gene expression [7], suggesting that similar mechanisms may be involved in patterning the expression of Hox genes and genes expressed more anteriorly. However, unlike Hox genes, only a subset of these anterior head genes was expressed sequentially, i.e., otx2, gbx2 and hoxd1 (Figure 3). Though, a finer time scale may be needed to separate the expression of gbx2 and hoxd1. Other gene like Six3 are less likely to regulate timing by itself. It is more likely to be regulated by an upstream BMP-dependent timer gene. Nevertheless, the expression of all the examined genes was disrupted in BMP-inhibited embryos (Figure 3), suggesting that they can respond to BMP interventions. Moreover, the time at which some of these genes are expressed is also of crucial importance to embryo development. For example, Gbx2 shows a significant effect on head development when ectopically expressed at stage 9 and 10. The effect gets less drastic when it is expressed at later stages, e.g., stage 12 and 13 [52]. Together, these results further emphasize the importance of BMP signaling in regulating head patterning.

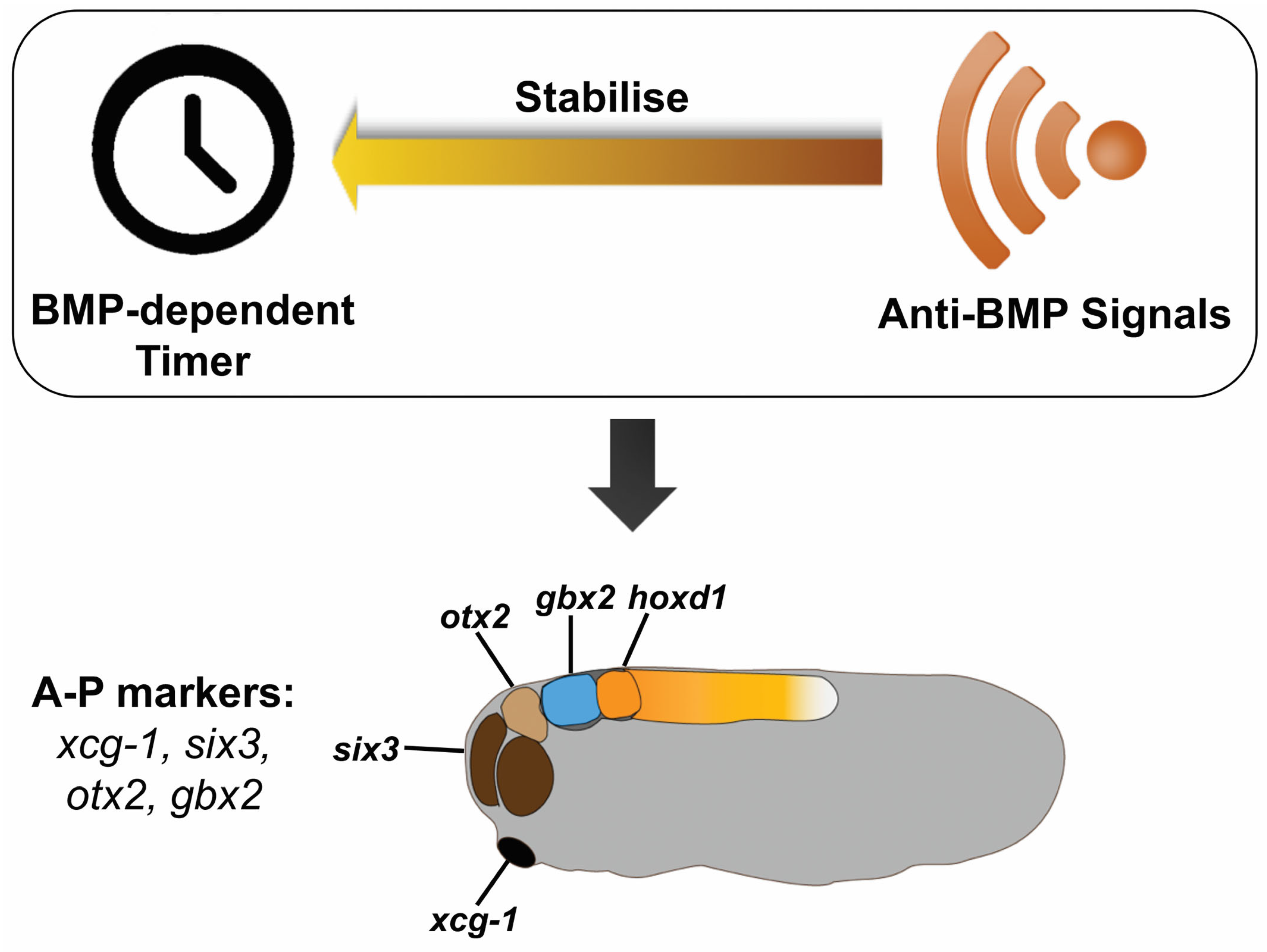

Although the mechanism by which head patterning is regulated by BMP signaling still needs to be elucidated, the results in this study suggest two aspects of head patterning. First, the vertebrate head is patterned in a temporally progressive manner: the EAD is patterned first, followed by patterning of the forebrain, midbrain, hindbrain, and the neck. Second, BMP signaling is involved in patterning the head in time and space, which can be seen from the progressive arrest of head formation by timed anti-BMP treatments (Figure 1) and from sequential fixation of anterior marker genes (xcg-1, six3, otx2, gbx2, and hoxd1) by anti-BMP (Smad6 induction) in BMP-injected embryos (Figure 2). Based on these results, here we hypothesize that a similar mechanism to that patterns the trunk-tail part of the axis may also operate during head patterning [6,7] (Figure 4). A key component of this mechanism is a BMP dependent timer, which is a temporal gene sequence. The expression of the (putative) “timer genes” occurs in a high BMP environment in a transient, come-and-go manner. Once the cells are exposed to anti-BMP signals during morphological cell movement, the “timer genes” will be fixed, meaning that the cells will keep the “timer genes” expressed at that moment and prevent the expression of later “timer genes”. Therefore, in BMP-injected embryos, timed BMP inhibition (by Smad6) only stabilizes a subset of positional markers that correspond to specific head regions. For example, induction of Smad6 at stage 8 mainly stabilized xcg-1 (EAD), and six3 (forebrain), and slightly otx2 (midbrain); induction at stage 9 stabilized six3 (forebrain) and otx2 (midbrain), but not xcg-1; and induction at stage 10 stabilized otx2 (midbrain) and gbx2 (hindbrain), but not xcg-1 and six3 (Figure 2). This suggests that “the timer” still runs in BMP-embryos, but due to lack of stabilization by anti-BMP signals, the “timer genes” are only expressed in a transient manner. Timed anti-BMP treatments stabilize/fix genes expressed at the corresponding time points and stop the timer from running further, leading to the formation of specific regions, manifested by the expression of specific marker genes. In WT, however, both the timer (BMP dependent) and the stabilizer (anti-BMP signals) are present in the embryo. The ticking of the timer and the stabilization occur concomitantly. Therefore, BMP inhibition will fix the timer and lead to the formation of structures up to the fixation point rather than structures only at the fixation point. The essence of the timer that regulates head patterning is yet to be elucidated but may involve a subset of genes examined in this study, i.e., otx2, gbx2 and hoxd1. Further studies are needed to test our hypothesis further and to uncover how the head patterning process is regulated by BMP signaling. This study, as the basis and first step of our hypothesis, argues that the vertebrate head is progressively patterned, and the patterning process is likely to be regulated by BMP signaling.
