Zebrafish Slit2 and Slit3 Act Together to Regulate Retinal Axon Crossing at the Midline

Abstract

Slit-Robo signaling regulates midline crossing of commissural axons in different systems. In zebrafish, all retinofugal axons cross at the optic chiasm to innervate the contralateral tectum. Here, the mutant for the Robo2 receptor presents severe axon guidance defects, which were not completely reproduced in a Slit2 ligand null mutant. Since slit3 is also expressed around this area at the stage of axon crossing, we decided to analyze the possibility that it collaborates with Slit2 in this process. We found that the disruption of slit3 expression by sgRNA-Cas9 injection caused similar, albeit slightly milder, defects than those of the slit2 mutant, while the same treatment in the slit2−/−^mz background caused much more severe defects, comparable to those observed in robo2 mutants. Tracking analysis of in vivo time-lapse experiments indicated differential but complementary functions of these secreted factors in the correction of axon turn errors around the optic chiasm. Interestingly, RT-qPCR analysis showed a mild increase in slit2 expression in slit3-deficient embryos, but not the opposite. Our observations support the previously proposed “repulsive channel” model for Slit-Robo action at the optic chiasm, with both Slits acting in different manners, most probably relating to their different spatial expression patterns.

1. Introduction

Retinal ganglion cells (RGCs) are the projection neurons of the retina, extending their axons from the eye to the dorsal midbrain. During RGC differentiation, axons exit the eye at the optic nerve head and form the optic nerve, which transverses the ventral diencephalon toward the midline. In the zebrafish, the two nerves cross over each other to form the optic chiasm. After crossing, the optic axons form the optic tracts and continue through the diencephalon until they reach their targets in the optic tectum [1]. In certain species with binocular vision, a subset of axons does not cross at the chiasm but instead turns ipsilaterally, as is the case, for example, for mammals. When comparing different mammalian species, a correlation is found between the fraction of ipsilateral RGC projections and the degree of binocular vision: the mouse has few, while primates have many [2]. In the zebrafish, on the other hand, all RGCs project contralaterally [1].

Axon crossing at the optic chiasm is a finely regulated process, which relies on the interplay of a wide range of signaling molecules, including Slits, Ephrins and Semaphorins. Slit molecules constitute a family of secreted glycoproteins of ≈200 kDa, with various forms present across animals with bilateral symmetry [3]. In the zebrafish, four genes have been identified (Slit1a, 1b, 2 and 3) [4,5]. Although Slit ligands are secreted, their diffusion is limited due to their strong association with extracellular matrix components [6,7,8]. These ligands act through the Robo family of proteins, which are encoded by four genes in vertebrates, including the zebrafish (Robo1–4; [9,10,11]). In addition, increasing evidence suggests that Slits can bind to other molecules, receptors or co-receptors, such as heparan sulfate proteoglycan (HSPG) [12] or PlexinA1, a Semaphorin receptor [13].

The Slit-Robo signaling pathway has been proven instrumental for commissural axon crossing at the midline [14]. Slit2 is the most studied in this regard, and was shown to be essential in guiding axons in a wide variety of neuronal types, including RGCs [15,16]. In the zebrafish, we previously showed that loss of slit2 causes defects in axon organization at the optic nerve, optic chiasm and the proximal portion of the optic tract, as well as minor guidance defects and a reduction in growth cone velocity around the midline [17]. However, this can be considered a relatively “mild” phenotype when compared to that observed in astray embryos, mutant for the putative receptor expressed in RGCs, Robo2 [18]. This suggests the presence of other Slits regulating the midline crossing of retinal axons. A strong candidate for this is Slit3, whose mRNA is expressed around the optic chiasm at the same time as that of Slit2, albeit with a different spatial distribution [19]. Even though the role of Slit3, acting either by itself or together with Slit2, has been previously analyzed in zebrafish commissural axons, such as those of the supraoptic tract (SOT; [20]) or the postoptic commissure (POC; [21]), the functional interaction of these two ligands at the optic chiasm remains unexplored.

In this work, we analyzed the hypothesis that both Slit2 and Slit3 might cooperate to organize retinal axons at the optic chiasm by generating zebrafish embryos deficient for these factors using CRISPR/Cas9 technology. Interestingly, we were able to partially reproduce the phenotype of Robo2-deficient embryos when disrupting slit2 and slit3 simultaneously. This was evidenced as the appearance of severe axon guidance errors around the chiasm, including invasion of extra-optic regions or misdirections in the optic pathway, and innervation of the ipsilateral optic tectum with the formation of a secondary commissure. Time-lapse imaging of growing axons also revealed some apparent functional differences of slit2 and slit3 in regulating RGC axon crossing at the midline. The milder defects seen in the single-deficient embryos could be partly due to these functional differences, probably based on their different expression patterns, as mentioned above [17,19], and partly to a modest but significant compensation of slit3 deficiency by an increase in slit2 expression. Altogether, our observations support the “repulsive channel” model for the action of Slits at the brain commissures [22], and suggest that both Slit2 and Slit3 could be acting through the Robo2 receptor to guide retinal axons at the optic chiasm.

2. Materials and Methods

2.1. Fish Breeding and Care

Zebrafish were maintained and bred in a stand-alone system (Tecniplast, Buguggiate, Italy), with controlled temperature (28 °C), conductivity (500 μS/cm²) and pH (7.5), under live and pellet dietary regime. Embryos were raised at temperatures ranging from 28.5 to 32 °C and staged in hours post-fertilization (hpf) according to Kimmel and collaborators [23]. Fish lines used: wild-type (Tab5), Tg(atoh7:gap43-EGFP)^cu1 [24], robo2 mutant astray^ti272z [25] and the CRISPR-generated mutant line NM_131753.1:g.30_39del, or slit2−/−^ipm1 [17]. Since the homozygotes are viable in this mutant line, for the present report we have used only maternal-zygotic mutants, hereafter referred to as slit2−/−^mz.

2.2. Embryo Microinjection

We designed four single-guide RNAs (sgRNA) against the slit3 gene using the CRISPRscan tool [26] and injected them together with mRNA for the zfCas9 flanked by two nuclear localization signal sequences (“nCas9n”), previously reported as highly efficient [27]. We first tried each sgRNA individually to assess their toxicity and efficiency. We recognized one sgRNA complementary to a sequence in the second exon of the slit3 gene (slit3 206, indicating the position of its binding site in the coding sequence; Table S1) as having no toxic effects and being highly efficient based both on microscopic inspection of the phenotype and genotyping of the expected mutation site in 72 hpf embryos (as described below). We injected one-cell stage Tab5 or slit2−/−^mz embryos with this sgRNA, together with nCas9n mRNA. Alternatively, we co-injected the slit3 sgRNA together with a slit2 sgRNA previously reported by us (slit2 71; Table S1 [17]). For mosaic transgenic labeling, 2.5 pg of DNA coding for atoh7:EGFP-CAAX [28] were injected, together with 6 pg of Tol2 transposase mRNA.

2.3. Embryo Genotyping

For genotyping, genomic DNA from single embryos was extracted at 72 hpf. Individual embryos were placed in tubes and 20 μL of 50 mM NaOH was added. After a 15 min incubation at 95 °C, the tubes were put on ice and briefly homogenized using a P-20 micropipette. Finally, 2 μL of 1 M Tris-HCl (pH 8) were added, followed by a 1 min centrifugation at 20,000× g. The resulting supernatant was used for the PCR reaction (2.5 μL per 10 μL reaction), with the specific primers listed in Table S2, flanking the target sequence of the slit3 206 sgRNA. PCR conditions were as follows: initial denaturation step at 95 °C for 2 min, followed by 30 cycles at 95 °C for 30 s, 60 °C for 30 s and 72 °C for 2 min, and a final extension at 72 °C for 7 min. The PCR products obtained were analyzed through electrophoresis on either 3% agarose or 8% polyacrylamide gels.

2.4. RNA Isolation and Real-Time Quantitative RT-PCR

Total RNA was extracted from the cephalic region of 30 and 48 hpf embryos. For each stage, four conditions were analyzed: non-injected wild-type, slit2−/−^mz, slit3 crispants, and slit2−/−^mz;slit3 crispant embryos. 40 embryos (coming from at least three different crosses) corresponding to each condition were dissected, lysed and the heads were stored in Trizol at −80 °C. Total RNA was isolated using the Direct-zol RNA MiniPrep kit (Zymo Research, Irvine, CA, USA), following the manufacturer’s protocol. cDNA was synthesized from normalized RNA amounts using the RevertAid First Strand cDNA Synthesis kit (Thermo Fisher Scientific, Waltham, MA, USA), with a mixture of oligo dT and random primers. Quantitative PCR was performed using the SensiFAST Sybr Low Rox kit (Meridian Bioscience, Cincinnati, OH, USA) with specific primers listed in Table S2. The qPCR was done in a 7500 Real-Time PCR System (Thermo Fisher Scientific, Waltham, MA, USA), and the conditions were as follows: initial denaturation step at 95 °C for 2 min, followed by 40 cycles at 95 °C for 10 s, 60 °C for 15 s and 72 °C for 30 s.

Two biological samples and two technical replicas were used. Expression fold-changes between groups were calculated relative to internal control expression (eif1a), according to Pfaffl et al. [29]. Statistical significance was determined using a permutation-based procedure, the non-parametric pairwise fixed reallocation randomization test, implemented in the Relative Expression Software Tool (REST, v. 2; Pfaffl and Horgan, Munich, Germany). p value < 0.05 was considered statistically significant.

2.5. Whole-Mount Immunofluorescence

Embryos were grown in 0.003% phenylthiourea (Sigma, St. Louis, MO, USA) from 10 hpf onwards to delay pigmentation, and fixed overnight at 4 °C, by immersion in 4% paraformaldehyde in phosphate-buffered saline, pH 7.4 (PFA-PBS). For whole-mount immunostaining all subsequent washes were performed in PBS containing 1% Triton X-100. Further permeability was achieved by incubating the embryos in 0.25% trypsin-EDTA for 10–15 min at 0 °C. Blocking was for 30 min in 0.1% bovine serum albumin (BSA), 1% Triton X-100 in PBS. The primary antibody zn8 (ZIRC, Eugene, OR, USA), recognizing the adhesion molecule neurolin/DM-grasp, was used 1/100 in blocking solution. The secondary antibody used was anti-mouse IgG-Alexa 488 (Thermo Fisher Scientific, Waltham, MA, USA), 1/1000 in blocking solution. Nuclei were fluorescently stained with methyl green [30]. All antibody incubations were performed overnight at 4 °C. Embryos were mounted in 1.5% agarose-50% glycerol in 20 mM Tris buffer (pH 8.0) and stored at 4 °C or −20 °C. Observation of whole embryos was performed using an LSM 880 laser confocal microscope (Zeiss, Oberkochen, Germany), with a 25 × 0.8 NA glycerol immersion objective.

2.6. Lipophilic Dye Labeling

Phenylthiourea-treated embryos were fixed at 48 hpf or 5 dpf as described above. They were then immobilized on glass slides using 2% agarose and injected with 1,1′-dioctadecyl-3,3,3′,3′-tetramethylindocarbocyanine perchlorate (DiI; Thermo Fisher Scientific, Waltham, MA, USA) or 3,3′-dioctadecyloxacarbocyanine perchlorate (DiO; Thermo Fisher Scientific, Waltham, MA, USA) dissolved in chloroform. For optic chiasm observation in 48 hpf embryos, DiI was injected into the vitreous chamber of one eye, whereas DiO was injected into the contralateral eye. For optic tectum observation in 5 dpf larvae, DiI was injected into the vitreous chamber of one eye. In all of the cases, after the injection the embryos or larvae were incubated for 48 h at room temperature and the dissected brains were mounted in 1.5% agarose-50% glycerol in 20 mM Tris buffer (pH 8.0) and stored at 4 °C or −20 °C. Observation was performed using a Zeiss LSM 880 laser confocal microscope, with a 25 × 0.8 NA glycerol immersion objective.

2.7. Time-Lapse Imaging

Embryos were selected around 30 hpf, anesthetized using 0.04 mg/mL MS222 (Sigma, St. Louis, MO, USA) and mounted in 1% low-melting point agarose (Sigma, St. Louis, MO, USA) over glass bottom dishes. After agarose gelification and during image acquisition, embryos were kept in Ringer’s solution (116 mM NaCl, 2.9 mM KCl, 1.8 mM CaCl₂, 5 mM HEPES, pH 7.2) with 0.04 mg/mL MS222. Live acquisitions were made using a Zeiss LSM 880 laser confocal microscope, with a 40×, 1.2 NA silicone oil immersion objective. Stacks around 40 µm-thick were acquired in bidirectional scanning mode, at 1 µm spacing and 512 × 512 pixel resolution every 15 min, for 2.5–16.5 h. The acquisition time per embryo was approximately 1 min, and up to 8 embryos were imaged in each experiment. The embryos were fixed in 4% PFA immediately after the end of the time-lapse, and processed for further confocal microscopy, labeling nuclei with methyl green.

2.8. Microscopy Data Analysis

Images were analyzed using Fiji [31]. Tracking of axons to obtain distance and velocity measurements was performed with the Manual Tracking plugin, using the site of pioneer axon crossing at the midline as a reference point. For all these analyses, the embryo midline was set as 0 in “x” (the medio-lateral dimension) and the ventral surface of the diencephalon as 0 in “y” (the ventro-dorsal dimension). The instantaneous velocity of the growth cone was determined for each point and expressed in μm/min, and the turn angle (difference between consecutive axon growth direction angles with respect to the “x” axis) was calculated and expressed in degrees (°). In order to better compare between these angles, we applied a correction for the curvature based on the averaged angles in the control embryos (subtracting 0.5° to each value). To visualize and quantify the eventual “axon turn errors”, we used the absolute values of the turn angles, and only analyzed those values that were larger than the mean value in control embryos (10.4°).

Statistical analysis was performed using GraphPad Prism software, v. 8.0.2 (Graphpad Software, Inc., San Diego, CA, USA). As a routine, the data sets were checked for normality using Kolmogorov–Smirnoff normality test. For multiple sets of data, in the case of normal distributions we used either uncorrected one-way ANOVA or Brown-Forsythe and Welch test, for equal or unequal SD values, respectively, or the Kruskal–Wallis test for non-normal distributions. For the comparison of proportions, we used the Fisher’s exact test.

3. Results

3.1. Simultaneous Loss of Slit2 and Slit3 Causes Retinal Axon Misprojections at the Optic Chiasm Comparable to Those Observed upon Robo2 Loss

To determine if slit3 has a role in retinal axon guidance at the midline, we set out to generate F0 mosaic mutants using the CRISPR/Cas9 system (crispants). We identified an sgRNA (slit3 sgRNA 206; Table S1) complementary to a sequence in the second exon of the slit3 gene which caused indels in the target genomic sequence with high efficiency, as evidenced by the appearance of diffuse or extra bands in the electrophoresis analysis of PCR products (Figure S1). The injection of slit3 sgRNA/nCas9n in wild-type embryos resulted in a phenotype characterized by the appearance of some cases of bifurcation of one optic nerve around the other at the optic chiasm, as evidenced through zn8 immunostaining of RGCs (Figure 1A and Video S1). A similar phenotype was observed in non-injected slit2−/−^mz mutant embryos (Figure 1A and Video S1), as previously described [17]. In both slit3 crispants and in slit2−/−^mz mutants, this phenotype appeared with a similar penetrance of around 25% (Figure 1B). Moreover, we found that the two branches resulting from nerve bifurcation could be symmetrical or asymmetrical, depending on the proportion of axons going into each branch, with an apparently equal occurrence of thinner branches on the anterior or posterior side (Figure S2). There were no significant differences in the proportion of symmetrical/asymmetrical bifurcations between slit2−/−^mz and slit3 crispants (Figure S2). Surprisingly, when we injected slit3 sgRNA/nCas9n in slit2−/−^mz embryos, we observed a relatively high frequency of new, more severe, defects at the optic chiasm, together with a marked reduction in the penetrance of the nerve bifurcation phenotype to around 10% (Figure 1A–C). These new defects largely consisted of anterior misprojections of retinal axons at the optic chiasm, similar to what is observed in astray/robo2 mutant embryos, and that were never detected in slit2−/−^mz mutant or slit3 crispant embryos (Figure 1A,C,D and Video S1).

astray/robo2 mutants also presented misguided RGC axons growing into the contralateral optic nerve, and even reaching the contralateral retina, as evidenced in mosaically labeled embryos displaying unilateral atoh7:EGFP-CAAX expression (Figure 1E). To better characterize the axon navigation errors observed upon slit2 and/or slit3 expression disruption, we differentially labeled the optic nerves using the lipophilic dyes DiI and DiO. As described for zn8 labeling, we found clear evidence of a proportion of embryos with a bifurcated optic nerve in slit2−/−^mz, clearly contrasting with the complete segregation of the two optic nerves at the chiasm in wild-type embryos (Figure 2A,B and Video S2). This phenotype was also present in a similar proportion of slit3 crispants (Figure 2C and Video S2). On the other hand, slit2−/−^mz;slit3 crispants showed a severe alteration of axon organization at the chiasm. In some cases, one of the optic nerves split around the contralateral nerve, but the branches were not observed to re-connect at the optic tract (Figure 2E and Video S2). Furthermore, misprojections of retinal axons were observed, both into the ipsilateral optic tract and into the contralateral optic nerve (Figure 2D,E and Video S2). These observations are summarized in Figure 2F.

3.2. RGCs in slit2/slit3 Double Crispants Partially Project to the Ipsilateral Optic Tectum

To assess whether the ipsilateral retinal projections we observed at the optic chiasm of slit2, slit3 and slit2 + slit3 deficient embryos reach the optic tectum, we decided to follow axon trajectories using lipophilic dye tracing. For this, we injected DiI into the right eye of fixed whole-mount 5 dpf atoh7:Gap-EGFP transgenic larvae, in which RGC axons from both eyes are labeled with membrane-tagged EGFP (Enhanced Green Fluorescent Protein). After eye removal, axonal projections to the contralateral and ipsilateral optic tecta were analyzed in dorsal view (Figure 3). We observed no DiI-labeled axons at the ipsilateral optic tectum of wild-type, slit2 or slit3 crispant larvae (Figure 3A–C). However, in slit2 + slit3 crispants, even though most DiI-positive axons innervated the contralateral tectum, a small proportion of them extended into the ipsilateral midbrain (Figure 3D,d’ and Video S3). This phenotype was observed in 62.5% of these double-deficient larvae (n = 10/16). In all ipsilateral innervation cases there were axons ending at the pretectal arborization field 9 (AF-9), while in most (n = 8/10) there were also some axons innervating the ipsilateral optic tectum. Interestingly, some of the ipsilateral-innervating axons seemed to cross the midline at a site different from the optic chiasm, which localized slightly posterior to it (Figure 3D).

3.3. slit2 Expression Is Upregulated in slit3 Crispants at Early Stages

In order to determine whether a mutual genetic compensation between slit2 and slit3 might contribute to the milder effects observed in the single-deficient embryos, we performed quantitative RT-PCR analyses for slit2 and slit3 expression in non-injected wild-type, slit2−/−^mz, slit3 crispant and slit2−/−^mz;slit3 crispant embryos, at both 30 and 48 hpf. Fold-change in gene expression for each condition and developmental stage are shown in

Table 1. Quantitative RT-PCR analysis of gene expression for slit2 and slit3 in zebrafish embryo heads. Comparison is expressed as the fold-change between the test and the wild-type conditions. Values were calculated using REST, and p < 0.05 was considered statistically significant. Significant increase is shown in bold, and decrease in italics.

		30 hpf		48 hpf
Gene	Test	Fold-Change	p	Fold-Change	p
slit2	slit2−/−mz	0.450	0.001	0.337	0.001
	slit3crispant	1.357	0.001	1.050	0.277
	slit2−/−mz;slit3crispant	0.452	0.001	0.525	0.008
slit3	slit2−/−mz	0.915	0.394	1.002	0.950
	slit3crispant	0.932	0.646	0.727	0.016
	slit2−/−mz;slit3crispant	0.656	0.003	0.652	0.008

. Although no change in slit3 expression was detected in slit2 mutants, a significant up-regulation of slit2 was evident in slit3 crispants at 30 hpf, indicating a genetic compensation phenomenon. This increase in gene expression was no longer detected at 48 hpf, when the optic chiasm has already formed.

Although the indels generated by CRISPR/Cas9 using a single sgRNA directed to the protein-coding sequence are not expected to affect mRNA transcription of the mutated gene, we also analyzed the expression of each gene in their respective deficient situation. We previously showed that the mutation in slit2−/−^mz embryos caused a marked reduction in the amount of mRNA detected by RT-PCR [17]. This effect is actually not unusual, and is most likely mediated by the cellular mechanism known as nonsense-mediated mRNA decay [32]. Here, we again detected a significant slit2 mRNA decrease by RT-qPCR at 30 and 48 hpf in the slit2−/−^mz mutants, both non-injected and injected with the slit3 sgRNA (Table 1). In the case of slit3 expression in slit3 crispants, a smaller but significant decrease was also evident at 48 hpf, both in the wild-type and slit2−/−^mz background (Table 1). At 30 hpf, however, collected data appeared more variable among the analyzed samples, resulting in a significant reduction of slit3 expression in slit2−/−^mz;slit3 crispant embryos, but not in slit3 crispants.

3.4. Slit2 and Slit3 Deficiency Increase Minor Axon Guidance Defects in RGC Axons Crossing the Optic Chiasm

With the aim of better understanding the growth dynamics of retinal axon crossing in embryos deficient for slit2 and/or slit3, we decided to follow the growth of axons across the optic chiasm by time-lapse microscopy. We performed these experiments by injecting slit2 and slit3 sgRNA/nCas9n, either individually or together, in atoh7:Gap-EGFP transgenic embryos (Figure 4 and Videos S4–S8). In non-injected controls, axons usually extended quickly from the optic nerve through the chiasm, showing very little deviation from a relatively smooth curve (Figure 4A). On the other hand, axons from slit2, slit3 and slit2 + slit3 crispants showed more sinuous pathways, together with several axon guidance defects (Figure 4B–D). In all three conditions, we observed ipsilateral turns and axon defasciculation, both of which occurred before and after the growth cone had crossed the midline. We quantified the proportion of embryos in which defects were observed, and we found that, even though these were present in slit2, slit3 and slit2 + slit3 crispants, the frequency was slightly higher in slit2 + slit3 crispant embryos (

Table 2. Quantification of axon guidance defects. The analysis was performed on the time-lapse experiments used for axon growth cone tracking. Pathfinding errors were classified into four categories, and representative examples of each category are shown in Figure 4. The frequency of these errors was quantified considering both pioneer and follower axons. Asterisks indicate a proportion significantly different to that of non-injected wild-type embryos (*: p < 0.05; **: p < 0.01), according to the Fisher’s exact test.

	Non-Injected WT (n = 13)	slit2 Crispants (n = 14)	slit3 Crispants (n = 16)	slit2 + slit3 Crispants (n = 12)
Projections to ipsilateral tract (%)	7.7	14.3	12.5	33.3
Projections to contralateral nerve (%)	0.0	0.0	0.0	8.3
Fasciculation defects (%)	0.0	42.9 *	25.0	58.3 **
Minor pathfinding errors (%)	0.0	21.4	12.5	41.6 *
No defects (%)	92.3	42.9 *	62.5	33.3 **

). It is important to note that this quantification was performed on both pioneer and follower axons.

3.5. Axon Trajectory and Instantaneous Velocities Are Differentially Affected upon Slit2 and Slit3 Expression Disruption

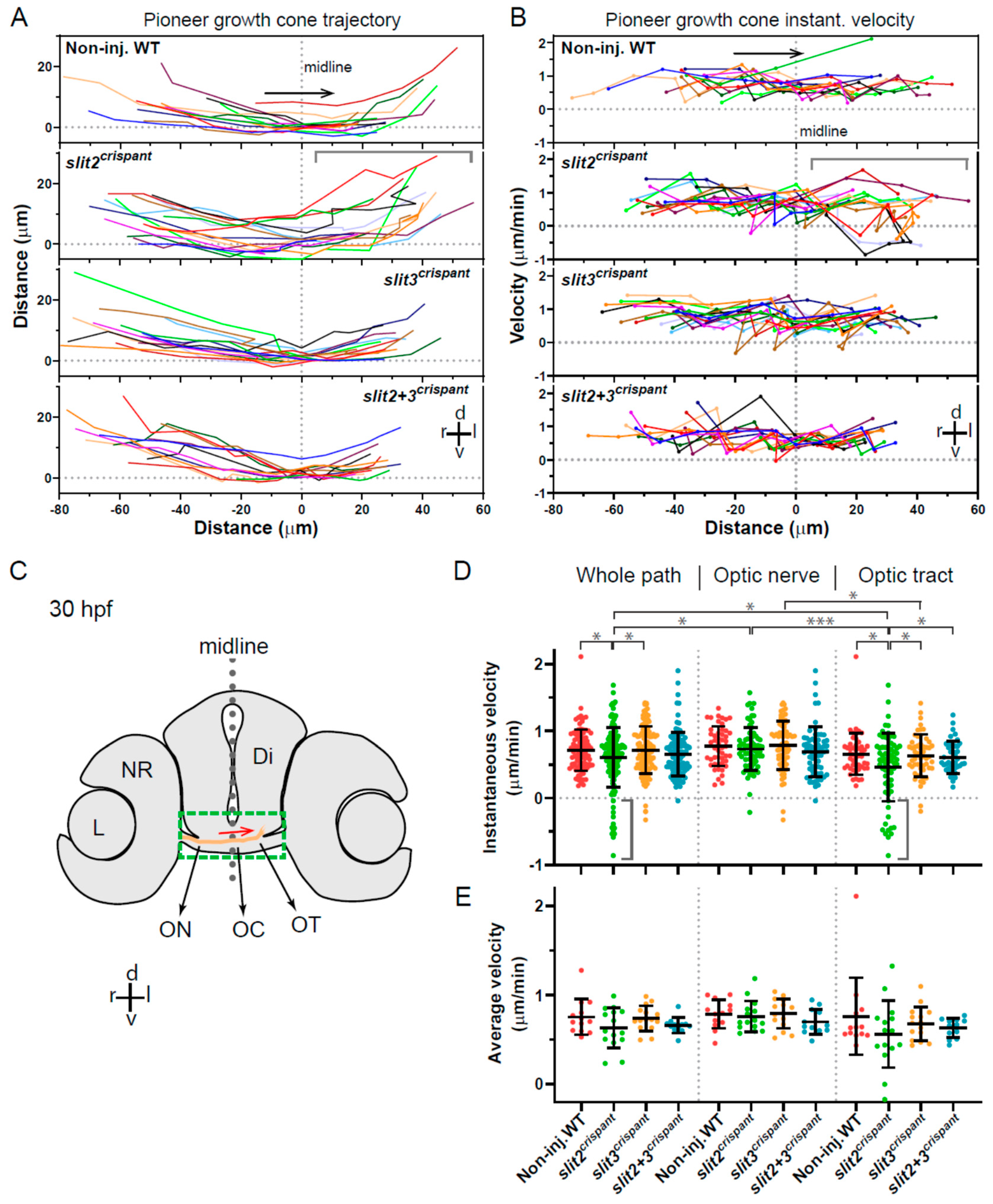

We then decided to further analyze the described defects on axon growth by digitally tracking the path of only pioneer axon growth cones, which would not be affected by axon-axon fasciculation signaling (Figure 5). When axon trajectories are compared in this way, in addition to an important variability between individual axons/embryos, some qualitative differences are evident between the different experimental situations. The most remarkable deviations from the control situation were observed in the slit2 crispant embryos, at the level of the proximal optic tract. Here, axon trajectories appeared more disperse in general, and several axon turn errors were evident as sudden changes in direction (Figure 5A). The slit3 and the double crispants did not present such an evident difference to the wild-type condition, although the double crispants surprisingly showed reduced errors and dispersion in the optic tract area when compared with the slit2 crispants (Figure 5A).

An analysis of instantaneous velocities along the horizontal trajectory (reflecting the transitions between optic nerve, chiasm and proximal tract), showed some relevant differences between the crispant and non-injected embryos (Figure 5B). For example, in the slit2 crispants, again a greater dispersion in velocities was observed in the optic tract area, when compared to the optic nerve. In addition, both individual crispants presented some negative instantaneous velocity values accompanying sudden changes in velocity, indicative of axon misorientation events, something that was not evident in control embryos and only detected once in the double crispants (Figure 5B). When all instant velocity data were analyzed together (Figure 5D), a statistically significant reduction in velocity was observed in slit2 crispants compared to non-injected control, confirming our previous observations. Interestingly, no difference to control embryos was detected for the slit3 or the slit2 + slit3 crispants (Figure 5D). In addition, an important dispersion towards negative velocities was evident particularly in slit2 crispants (Figure 5D).

Since the point-by-point velocity analysis shown in Figure 5B indicated the occurrence of regional differences along the registered path, we separated the analysis of the pooled data in the two main regions, the optic nerve and the optic tract, and compared the regional distribution of velocities with those obtained for the whole path (Figure 5D). The most remarkable observation in this regional analysis is that the main component of the observed overall instantaneous velocity reduction in slit2 crispants is concentrated in the optic tract. In the optic nerve, there is no significant difference between the instantaneous velocities in these embryos compared to controls (Figure 5D). In none of the cases did slit3 or slit2 + slit3 crispants show a significant difference to non-injected embryos. In this experimental set up, there was no significant difference for the instantaneous velocities averaged per embryo when comparing all these situations, although the same tendency towards lower velocities was again observed in the case of slit2 crispants, both in the whole path and in the optic tract (Figure 5E).

3.6. Slit2 and Slit3 Differentially Affect the Occurrence of Axon Turn Errors around the Optic Chiasm

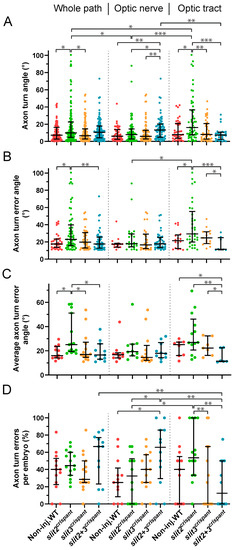

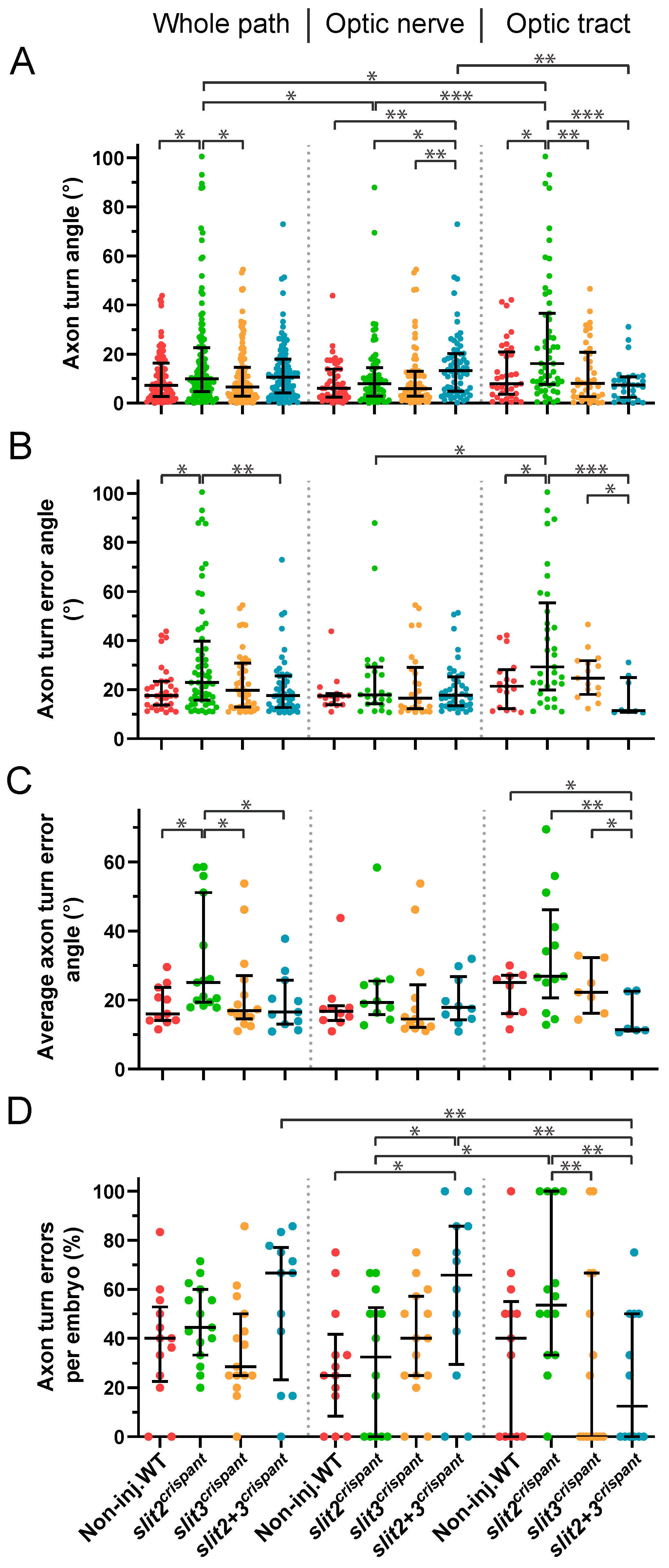

In order to better understand the axon misorientation events mentioned above, we calculated the changes in trajectory angle with respect to the horizontal axis between timepoints for each axon (which we call “axon turns”). In the general analysis, all axon turns averaged in a value close to 0°, with a slight positive deviation of 0.5° in the control embryos that can be explained by the anatomical curvature of the optic pathway at this level (Figure S3). A much greater angle dispersion was observed in the slit2 crispants, in accordance with the observed increase in misorientation events (Figure S3). We then switched to an analysis of the absolute values of angle change, corrected by curvature, both in the whole recorded path and separating it into the optic nerve and optic tract portions (Figure 6). When the distribution of all data points for each condition was analyzed in this way, several interesting statistically significant differences were evident, some of which we highlight here: a- turn angles were larger in slit2 crispants than in controls and slit3 crispants, both in the general analysis and in the optic tract; b- angles in slit3 crispants were never larger than in non-injected embryos; c- angles significantly larger than those of controls were observed in double crispants only in the optic nerve; d- angles in slit2 + slit3 crispants were smaller in the optic tract than in the optic nerve, or even the whole path, and, unexpectedly, they were much smaller than those in slit2 crispants in the optic tract (Figure 6A).

We then proceeded to analyze the “axon turn errors”, which we defined here as points in which the turn angle was larger than the mean absolute value in control embryos (10.4°), hence excluding small misguidance events that could be frequent in all situations (Figure 6B). In the analysis of all angle errors, either along the whole recorded path or at each region, we found very similar differences between the experimental situations as those observed in the general angle analysis shown in Figure 6A. Interestingly, while slit2 crispant angles were again larger, an even more marked reduction in the erroneous angle median was evident for the slit2-slit3 double crispants specifically at the optic tract. These differences remained largely unchanged when averaging the erroneous angles in each embryo (Figure 6C).

In this analysis, we were also able to determine that axons in control embryos make proportionally the same number of errors along the whole tracked path as axons in embryos deficient for slit2 and/or slit3 (Figure 6D). These homogeneous results were dramatically changed, however, when analyzing each portion of the path separately. In the optic nerve, the slit2 + slit3 crispants displayed significantly more errors than controls, in accordance with a non-significant but higher median observed in the whole-path analysis (Figure 6D). In the optic tract, on the other hand, a higher value was only evident in slit2 crispants. Interestingly, in this region the phenotype was again significantly more severe in slit2 single crispants than in double crispants, which presented significantly fewer errors in the optic tract than in the optic nerve or even the whole path (Figure 6D).

4. Discussion

We report a cooperative mechanism involving a simultaneous action of Slit2 and Slit3 around the optic chiasm in the zebrafish. Redundancy and complementarity of genetic pathways are expected to be widespread mechanisms in developmental processes, since they would ensure robustness [33]. An example of this is axon growth and guidance along the optic pathway, which depends on the interplay of a number of signals, including the Slit-Robo pathway. Differentiating RGCs only express Robo2 [18], but their axons traverse a long path, in which they might encounter different, if not all, Slit secreted molecules, which in turn may also act through other receptor types. Arborization of retinal axons at the zebrafish optic tectum, for example, requires Slit1a acting both in a Robo2-dependent and -independent manner [34]. At the level of the optic chiasm, where axon crossing is finely regulated, a cooperation between Slit1 and Slit2 was described in mice [35].

Our previous observations indicated an important function of Slit2 in this region, but surprisingly, the slit2 null mutant phenotype appeared much less severe regarding RGC axon guidance defects than the robo2 mutant phenotype [18,25]. In situ hybridization studies have demonstrated that two slit genes are expressed in the area immediately surrounding the optic chiasm in the zebrafish: slit2 and slit3. Two previous reports have shown slit2 mRNA expression very tightly surrounding the optic nerve and chiasm area [17,19], while slit3 was shown by Chalasani et al. [19] to be highly expressed in a restricted area just caudal to the optic chiasm, with some lower expression anterior to the optic pathway (summarized in Figure 7A). Hence, it could be possible that Slit3 is either complementing the function of Slit2 (i.e.: also having a function in this process in physiological conditions) or compensating for the lack of Slit2 (i.e.: increasing its expression in response to slit2 gene deficiency). The quantitative mRNA expression results we presented here indicate that there are no evident changes in the expression of slit3 in response to the null mutation of slit2, ruling out the compensation hypothesis. Remarkably, however, there is a small but significant increase in the expression of slit2 in slit3 crispant embryos. Therefore, Slit3 would not compensate for a lack of Slit2, but Slit2 could at least partially compensate for the loss of Slit3. Interestingly, this change was detected at 30 hpf, the initial stage of optic chiasm formation, and not at 48 hpf, when the process is largely completed.

A role for Slit3 in axon guidance at the zebrafish forebrain midline, both acting by itself and together with Slit2, has been previously demonstrated for other forebrain commissures. In the zebrafish supraoptic tract (SOT), for example, Slit3, and to a lesser extent Slit2, promote ipsilateral axon growth downstream of Wnt activation [20]. Moreover, knockdown of slit2, slit3, and slit2/slit3 together resulted in defasciculation of the postoptic commissure (POC; [21]), suggesting a channeling mechanism similar to the one we later proposed for slit2 at the optic chiasm [17]. In the research presented here, we observed that slit3 expression disruption through the generation of mutations by the co-injection of a specific sgRNA and nCas9n, caused by itself a phenotype comparable to that of slit2 null mutation, with the appearance of a similar proportion of cases of nerve bifurcation at the optic chiasm. In addition, slit3 crispants displayed very minor guidance (“turn angle”) defects along the pathway, only detectable by time-lapse analysis, as was the case for slit2 crispants. Interestingly, this increase in axon turn errors was more conspicuous in these embryos, along with a reduction in instantaneous velocity particularly in the proximal optic tract. This observation was consistent with our previous report of a severe disruption in axon segregation in this region for the slit2 null mutant line [17].

The gross phenotype we observed in slit2/slit3 double-deficient embryos included retinal axons projecting towards the ipsilateral optic tract and anteriorly into the telencephalon. Moreover, some axons appeared to follow the path of the contralateral optic nerve. Similar defects were reported for the astray/robo2 mutant [18,22], which we reproduced in this work. Interestingly, turn angle errors made by RGC axons were equally frequent in all situations, including the wild-type embryos, while ipsilateral turns (in the direction opposite to normal growth, and evidenced here as negative instant velocity values), were present in slit2, slit3 and slit2 + slit3 crispants, but virtually absent in wild-types. A similar phenomenon was described by Hutson and Chien [22] when comparing the trajectory of RGC axons at the chiasm in wild-type and astray/robo2 mutants by time-lapse microscopy. In addition, by following axon trajectories through lipophilic dye tracing we found ipsilateral optic tectum innervation only in slit2 + slit3 crispants, indicating that most, if not all, errors were corrected in the slit2 or slit3 deficient embryos. Projections to the ipsilateral optic tectum are also a hallmark of astray/robo2 mutants [18,25]. Finally, many retinal axons in astray/robo2 mutants were observed to reach the ipsilateral tectum via the posterior commissure instead of the optic tract [18], which could correspond to an ectopic crossing site we observed for a number of axons in slit2 + slit3 crispants, slightly posterior to the optic chiasm. Although these correlations point to the possibility of a combined action of Slit2 and Slit3 on Robo2 receptors, we cannot exclude an action on other receptors or the occurrence of more complex interactions. These could include the eventual modulation by other pathways, such as was demonstrated for SDF1-CRXR4b [19].

In addition to a collaborative role of Slit2 and Slit3 in assembling axon organization at the optic chiasm during the early stages of its development, our results indicate some differences in their individual functions. There are two main pieces of evidence to support this: first, there is a differential distribution of minor axon turn errors along the analyzed area (evidenced both in the spatial organization and in the dispersion of instantaneous velocity values), with errors appearing more frequently in the optic tract portion for slit2 crispants and in the optic nerve for slit2/3 double crispants; second, some specific phenotypic defects in the single crispants appeared to be corrected in the double deficient embryos, like the distal turn errors in slit2 crispants. The different expression patterns for these two genes could at least partly explain these differences (see Figure 7A). Since retinal axons are known to respond differently to guidance cues depending on their position, it would be interesting to determine whether the observed differential defects are related to actions on specific axon populations. A role like this was proposed for HSPGs in regulating dorso-ventral sorting in the zebrafish optic tract through selective axon degeneration [36]. Similarly, Slit molecules could be regulating naso-temporal axon segregation at the optic chiasm and proximal tract, like we described for slit2 morphants [17], albeit most probably through error correction.

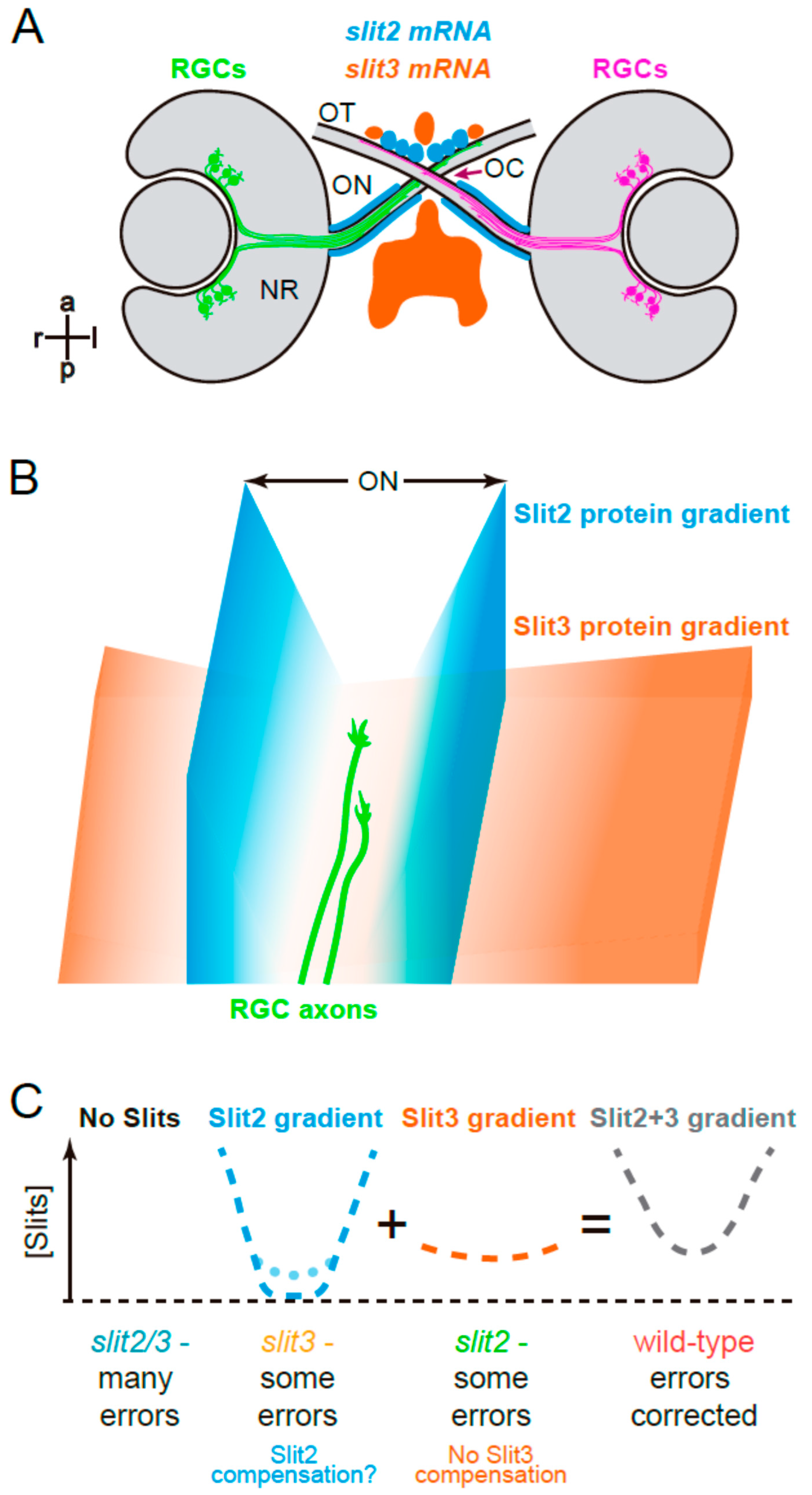

Based on these previous data and our present observations, we suggest a hypothetical model by which Slit2 would have a “channeling” role, as proposed by Chi-Bin Chien and colleagues several years ago [1,22], with steep gradients surrounding the path of optic axons before, across and just after the optic chiasm. Slit3, on the other hand, would generate a smoother and wider gradient, eventually preventing the axons from entering into the brain as they cross at the optic chiasm, and nevertheless collaborating with Slit2 in preventing axon turn errors at the midline (see a diagram in Figure 7B). Together, they would generate a “U” shaped Slit gradient to keep retinal axons on track. Loss of Slit2 would only leave the shallow Slit3 gradient, leading to relatively important defects in axon organization particularly in the proximal optic tract; loss of Slit3 would, in turn, leave the marked Slit2 gradient intact, with the possibility of an increased local expression due to genetic compensation, and leading to milder defects overall; the simultaneous loss of Slit2 and Slit3 would lead to a Robo2-like phenotype, due to a complete absence of Slits in the area surrounding the optic chiasm (schematic representation in Figure 7C).

It is interesting to note that Slit2 and Slit3 in the zebrafish could be acting in ways comparable to those described for Slit1 and Slit2, respectively, in mice [35], as in this species Slit1 is expressed in a pattern tightly surrounding the optic pathway proximal to the chiasm, and Slit2 is expressed in a larger area located in the anterior midline, at some distance [37]. In mice, like in most mammalian species, there is some degree of binocular vision, and some retinal axons do not cross at the optic chiasm, but project ipsilaterally. It is tempting to speculate that the use of different Slit factors, with differential expression patterns, all acting on Robo2, could be part of an evolutionary mechanism for adaptation to different degrees of binocular or non-binocular vision, which appears more related to the particular vertebrate species habits than to phylogenetic constraints.
