# Numerical Simulation and FRAP Experiments Show That the Plasma Membrane Binding Protein PH-EFA6 Does Not Exhibit Anomalous Subdiffusion in Cells

## Abstract

**:**

## 1. Introduction

- “Rafts” model where lipid/lipid phase separation drives the lateral partitioning of transmembrane proteins [7].

## 2. Results

#### 2.1. Anomalous Subdiffusion Modeling

#### 2.2. Validating Numerical Simulation and Analytical Models

#### 2.3. Challenging Analytical Models to Identify Numerically Simulated Anomalous Diffusion Fluorescence Recoveries

- Anomalous diffusion motion (aDm): see Equation (8) in Section 2.1,
- Free Brownian motion (Bm):$${I}_{R}\left(t\right)=\sum _{1}^{\infty}\frac{{(-K)}^{n}}{n!}\frac{1}{1+n+\frac{8nDt}{{R}^{2}}},$$
- Restricted Brownian motion (rBm):$${I}_{R}\left(t\right)=(1-M)\frac{1-{e}^{-K}}{K}+M\sum _{1}^{\infty}\frac{{(-K)}^{n}}{n!}\frac{1}{1+n+\frac{8nDt}{{R}^{2}}},$$

#### 2.4. Single Spot Fluorescence Recovery After Photobleaching Does Not Allow for Identifying the Nature of PH-EFA6 Diffusion in Cells

#### 2.5. Variable Radii Fluorescence Recovery After Photobleaching Allows Correct Estimation of the Anomalous Sub-Diffusion Exponent $\alpha $

#### 2.6. Continuous Time Random Walk Anomalous Subdiffusion Does Not Explain PH-EFA6 Motions in the Plasma Membrane of BHK Cells

## 3. Discussion

## 4. Materials and Methods

#### 4.1. Monte Carlo Simulation

#### 4.2. Cell Culture and Transfection

#### 4.3. Fluorescence Recovery After Photobleaching Experiments

## 5. Conclusions

## Funding

## Acknowledgments

## Conflicts of Interest

## Appendix A. Examples of Numerically Generated Fluorescence Recovery Curves

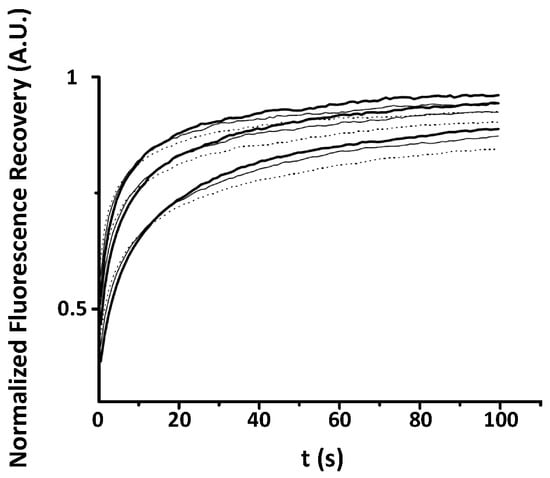

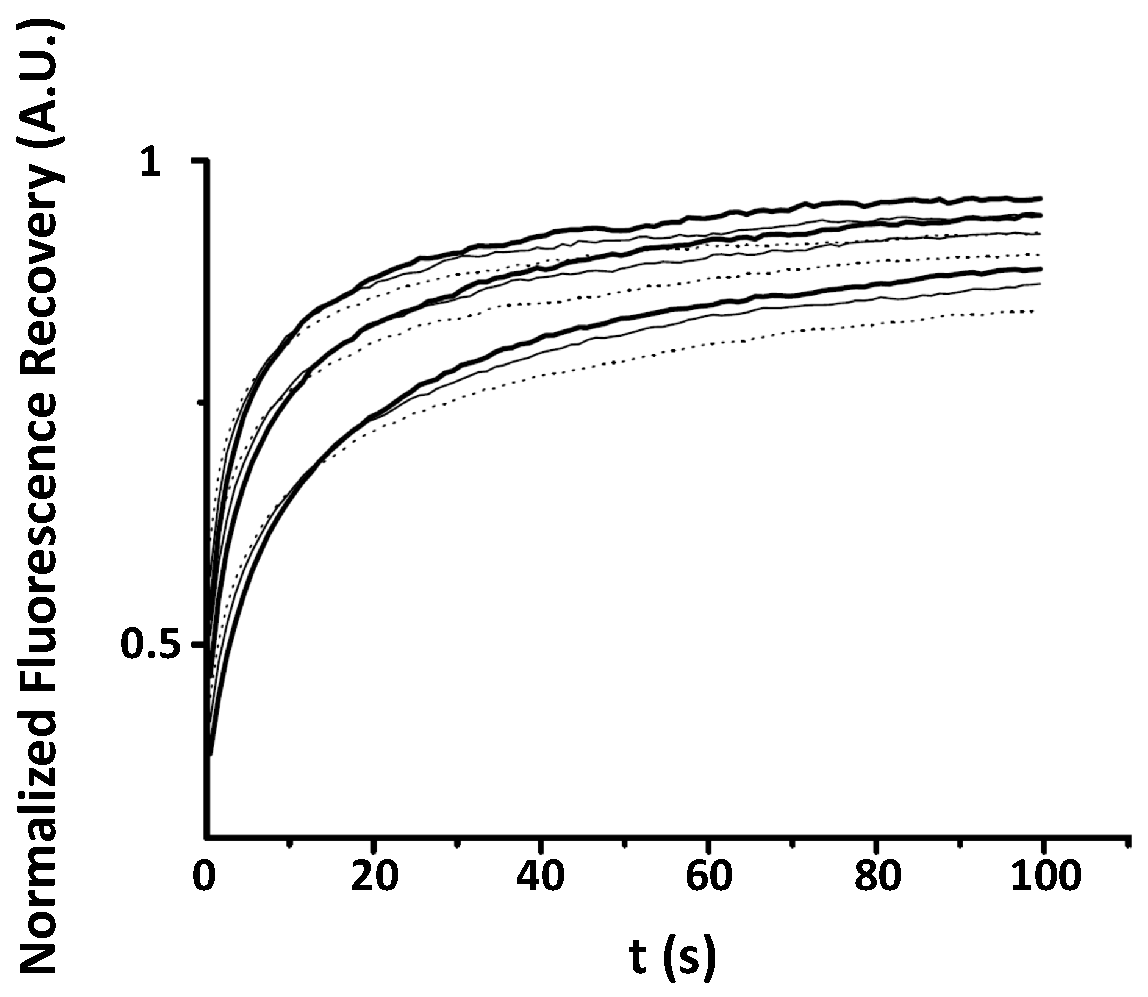

**Figure A1.**Monte Carlo simulation of normalized fluorescence recoveries in the case of CTRW anomalous subdiffusion. Different values of D and $\alpha $ have been tested in the simulations. Here, values of $D=0.5;1;1.5$ are represented from bottom to top with different $\alpha $ in each case: 0.6 (dots); 0.7 (thin line); 0.8 (thick line). The Monte Carlo simulation has been constructed with ${10}^{7}$ individual trajectories.

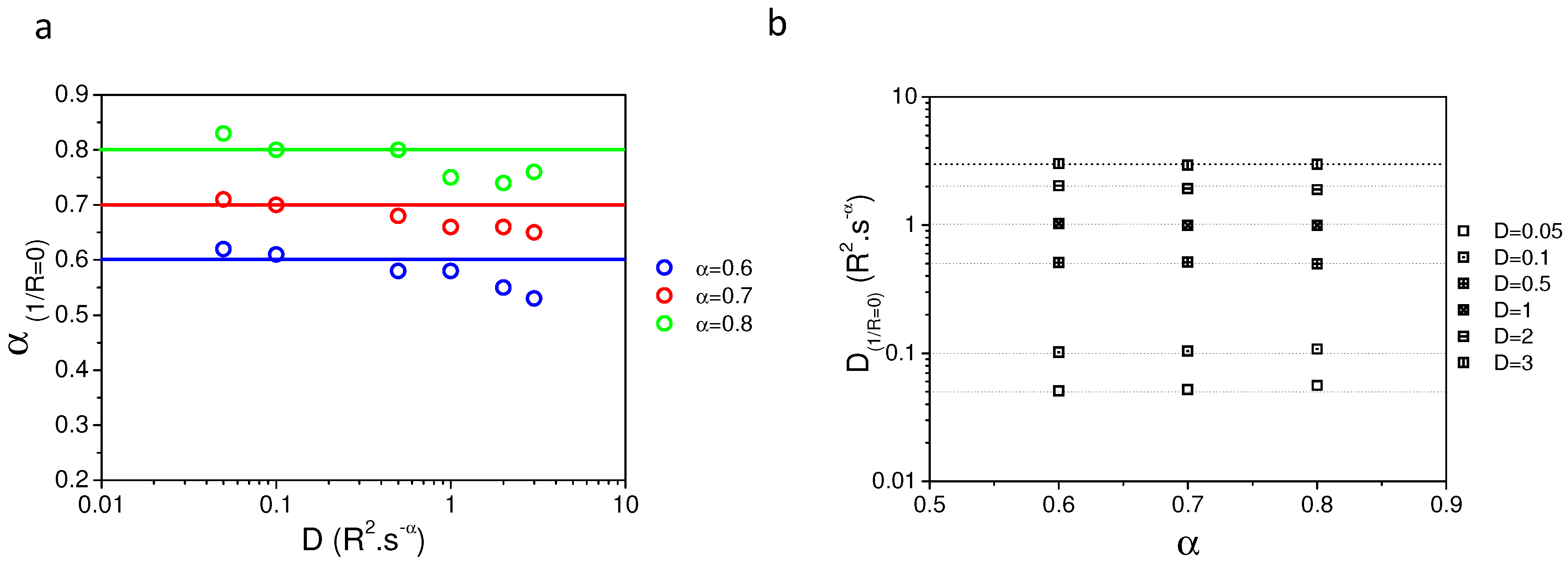

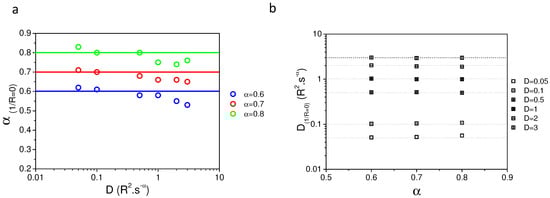

## Appendix B. Comparison of Input and Fitted D and α at Variable Radii

## References

- Singer, S.J.; Nicolson, G.L. The Fluid Mosaic Model of the Structure of Cell Membranes. Science
**1972**, 175, 720–731. [Google Scholar] [CrossRef] [PubMed] - Favard, C.; Wenger, J.; Lenne, P.F.; Rigneault, H. FCS diffusion laws in two-phase lipid membranes: Determination of domain mean size by experiments and Monte Carlo simulations. Biophys. J.
**2011**, 100, 1242–1251. [Google Scholar] [CrossRef] [PubMed] - Hac, A.E.; Seeger, H.M.; Fidorra, M.; Heimburg, T. Diffusion in two-component lipid membranes—A fluorescence correlation spectroscopy and monte carlo simulation study. Biophys. J.
**2005**, 88, 317–333. [Google Scholar] [CrossRef] [PubMed] - Edidin, M.; Kuo, S.C.; Sheetz, M.P. Lateral movements of membrane glycoproteins restricted by dynamic cytoplasmic barriers. Science
**1991**, 254, 1379–1382. [Google Scholar] [CrossRef] [PubMed] - Salomé, L.; Cazeils, J.L.; Lopez, A.; Tocanne, J.F. Characterization of membrane domains by frap experiments at variable observation areas. Eur. Biophys. J.
**1998**, 27, 391–402. [Google Scholar] [CrossRef] [PubMed] - Yechiel, E.; Edidin, M. Micrometer-scale domains in fibroblast plasma membranes. J. Cell Biol.
**1987**, 105, 755–760. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Lingwood, D.; Simons, K. Lipid rafts as a membrane-organizing principle. Science
**2010**, 327, 46–50. [Google Scholar] [CrossRef] [PubMed] - Kusumi, A.; Sako, Y.; Yamamoto, M. Confined lateral diffusion of membrane receptors as studied by single particle tracking (nanovid microscopy). Effects of calcium-induced differentiation in cultured epithelial cells. Biophys. J.
**1993**, 65, 2021–2040. [Google Scholar] [CrossRef] [Green Version] - Sako, Y.; Kusumi, A. Compartmentalized structure of the plasma membrane for receptor movements as revealed by a nanometer-level motion analysis. J. Cell Biol.
**1994**, 125, 1251–1264. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Wawrezinieck, L.; Rigneault, H.; Marguet, D.; Lenne, P.F. Fluorescence correlation spectroscopy diffusion laws to probe the submicron cell membrane organization. Biophys. J.
**2005**, 89, 4029–4042. [Google Scholar] [CrossRef] [PubMed] - Lenne, P.F.; Wawrezinieck, L.; Conchonaud, F.; Wurtz, O.; Boned, A.; Guo, X.J.; Rigneault, H.; He, H.T.; Marguet, D. Dynamic molecular confinement in the plasma membrane by microdomains and the cytoskeleton meshwork. EMBO J.
**2006**, 25, 3245–3256. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Eggeling, C.; Ringemann, C.; Medda, R.; Schwarzmann, G.; Sandhoff, K.; Polyakova, S.; Belov, V.N.; Hein, B.; von Middendorff, C.; Schönle, A.; et al. Direct observation of the nanoscale dynamics of membrane lipids in a living cell. Nature
**2009**, 457, 1159–1162. [Google Scholar] [CrossRef] [PubMed] - Axelrod, D.; Koppel, D.E.; Schlessinger, J.; Elson, E.; Webb, W.W. Mobility measurement by analysis of fluorescence photobleaching recovery kinetics. Biophys. J.
**1976**, 16, 1055–1069. [Google Scholar] [CrossRef] [Green Version] - Soumpasis, D.M. Theoretical analysis of fluorescence photobleaching recovery experiments. Biophys. J.
**1983**, 41, 95–97. [Google Scholar] [CrossRef] [Green Version] - Feder, T.J.; Brust-Mascher, I.; Slattery, J.P.; Baird, B.; Webb, W.W. Constrained diffusion or immobile fraction on cell surfaces: A new interpretation. Biophys. J.
**1996**, 70, 2767–2773. [Google Scholar] [CrossRef] - Bouchaud, J.P.; Georges, A. Anomalous diffusion in disordered media: Statistical mechanisms, models and physical applications. Phys. Rep.
**1990**, 195, 127–293. [Google Scholar] [CrossRef] - Hoefling, F.; Franosch, T. Anomalous transport in the crowded world of biological cells. Rep. Prog. Phys.
**2013**, 76, 046602. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Saxton, M.J. Anomalous diffusion due to obstacles: A Monte Carlo study. Biophys. J.
**1994**, 66, 394–401. [Google Scholar] [CrossRef] - Saxton, M.J. Anomalous diffusion due to binding: A Monte Carlo study. Biophys. J.
**1996**, 70, 1250–1262. [Google Scholar] [CrossRef] - Saxton, M.J. Anomalous Subdiffusion in Fluorescence Photobleaching Recovery: A Monte Carlo Study. Biophys. J.
**2001**, 81, 2226–2240. [Google Scholar] [CrossRef] [Green Version] - Hyvönen, M.; Macias, M.J.; Nilges, M.; Oschkinat, H.; Saraste, M.; Wilmanns, M. Structure of the binding site for inositol phosphates in a PH domain. EMBO J.
**1995**, 14, 4676–4685. [Google Scholar] [CrossRef] [PubMed] - Franco, M.; Peters, P.J.; Boretto, J.; van Donselaar, E.; Neri, A.; D’Souza-Schorey, C.; Chavrier, P. EFA6, a sec7 domain-containing exchange factor for ARF6, coordinates membrane recycling and actin cytoskeleton organization. EMBO J.
**1999**, 18, 1480–1491. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Macia, E.; Partisani, M.; Favard, C.; Mortier, E.; Zimmermann, P.; Carlier, M.F.; Gounon, P.; Luton, F.; Franco, M. The pleckstrin homology domain of the Arf6-specific exchange factor EFA6 localizes to the plasma membrane by interacting with phosphatidylinositol 4,5-bisphosphate and F-actin. J. Biol. Chem.
**2008**, 283, 19836–19844. [Google Scholar] [CrossRef] [PubMed] - Nagle, J.F. Long tail kinetics in biophysics? Biophys. J.
**1992**, 63, 366–370. [Google Scholar] [CrossRef] [Green Version] - Schram, V.; Tocanne, J.F.; Lopez, A. Influence of obstacles on lipid lateral diffusion: computer simulation of FRAP experiments and application to proteoliposomes and biomembranes. Eur. Biophys. J.
**1994**, 23, 337–348. [Google Scholar] [CrossRef] [PubMed] - Waharte, F.; Brown, C.M.; Coscoy, S.; Coudrier, E.; Amblard, F. A two-photon FRAP analysis of the cytoskeleton dynamics in the microvilli of intestinal cells. Biophys. J.
**2005**, 88, 1467–1478. [Google Scholar] [CrossRef] [PubMed] - Smith, P.R.; Morrison, I.E.; Wilson, K.M.; Fernández, N.; Cherry, R.J. Anomalous diffusion of major histocompatibility complex class I molecules on HeLa cells determined by single particle tracking. Biophys. J.
**1999**, 76, 3331–3344. [Google Scholar] [CrossRef] - Weigel, A.V.; Simon, B.; Tamkun, M.M.; Krapf, D. Ergodic and nonergodic processes coexist in the plasma membrane as observed by single-molecule tracking. Proc. Natl. Acad. Sci. USA
**2011**, 108, 6438–6443. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Vrljic, M.; Nishimura, S.Y.; Brasselet, S.; Moerner, W.E.; McConnell, H.M. Translational diffusion of individual class II MHC membrane proteins in cells. Biophys. J.
**2002**, 83, 2681–2692. [Google Scholar] [CrossRef] - Crane, J.M.; Verkman, A.S. Long-range nonanomalous diffusion of quantum dot-labeled aquaporin-1 water channels in the cell plasma membrane. Biophys. J.
**2008**, 94, 702–713. [Google Scholar] [CrossRef] [PubMed] - Baker, A.M.; Saulière, A.; Gaibelet, G.; Lagane, B.; Mazères, S.; Fourage, M.; Bachelerie, F.; Salomé, L.; Lopez, A.; Dumas, F. CD4 interacts constitutively with multiple CCR5 at the plasma membrane of living cells. A fluorescence recovery after photobleaching at variable radii approach. J. Biol. Chem.
**2007**, 282, 35163–35168. [Google Scholar] [CrossRef] [PubMed] - Morone, N.; Fujiwara, T.; Murase, K.; Kasai, R.S.; Ike, H.; Yuasa, S.; Usukura, J.; Kusumi, A. Three-dimensional reconstruction of the membrane skeleton at the plasma membrane interface by electron tomography. J. Cell Biol.
**2006**, 174, 851–862. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Andrade, D.M.; Clausen, M.P.; Keller, J.; Mueller, V.; Wu, C.; Bear, J.E.; Hell, S.W.; Lagerholm, B.C.; Eggeling, C. Cortical actin networks induce spatio-temporal confinement of phospholipids in the plasma membrane—A minimally invasive investigation by STED-FCS. Sci. Rep.
**2015**, 5, 11454. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Sadegh, S.; Higgins, J.L.; Mannion, P.C.; Tamkun, M.M.; Krapf, D. Plasma Membrane is Compartmentalized by a Self-Similar Cortical Actin Meshwork. Phys. Rev. X
**2017**, 7, 011031. [Google Scholar] [CrossRef] [PubMed] - Schneider, M.B.; Webb, W.W. Measurement of submicron laser beam radii. Appl. Opt.
**1981**, 20, 1382–1388. [Google Scholar] [CrossRef] [PubMed]

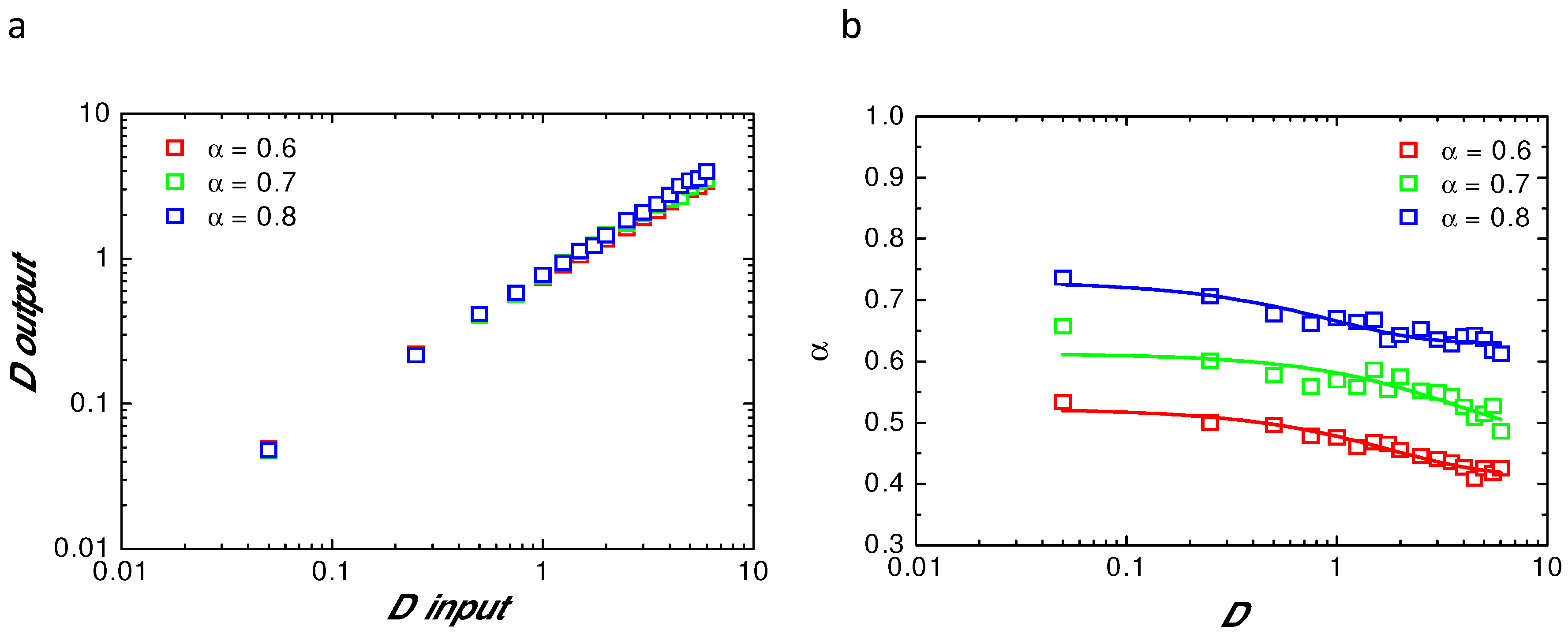

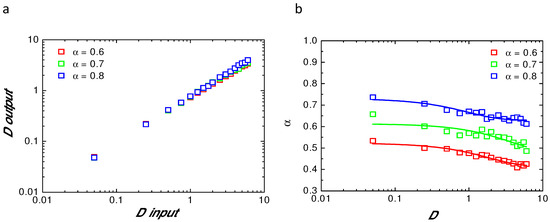

**Figure 1.**Values of the parameters($D,\alpha $) obtained from the fit of the simulated recoveries; (

**a**)—D values obtained after fit of the fluorescence recovery with Equation (8) (${D}_{output}$) as a function of D values used in the numerical simulation (${D}_{input}$) for different $\alpha $. Note that the slope is always less than 1; (

**b**)—values of $\alpha $ obtained after fit of the simulated curves with Equation (8) for different $\alpha $ used in the simulation and as a function of the D values used in the simulation. Note that the original $\alpha $ value used in the simulation is never reached by fitting of the simulated recoveries.

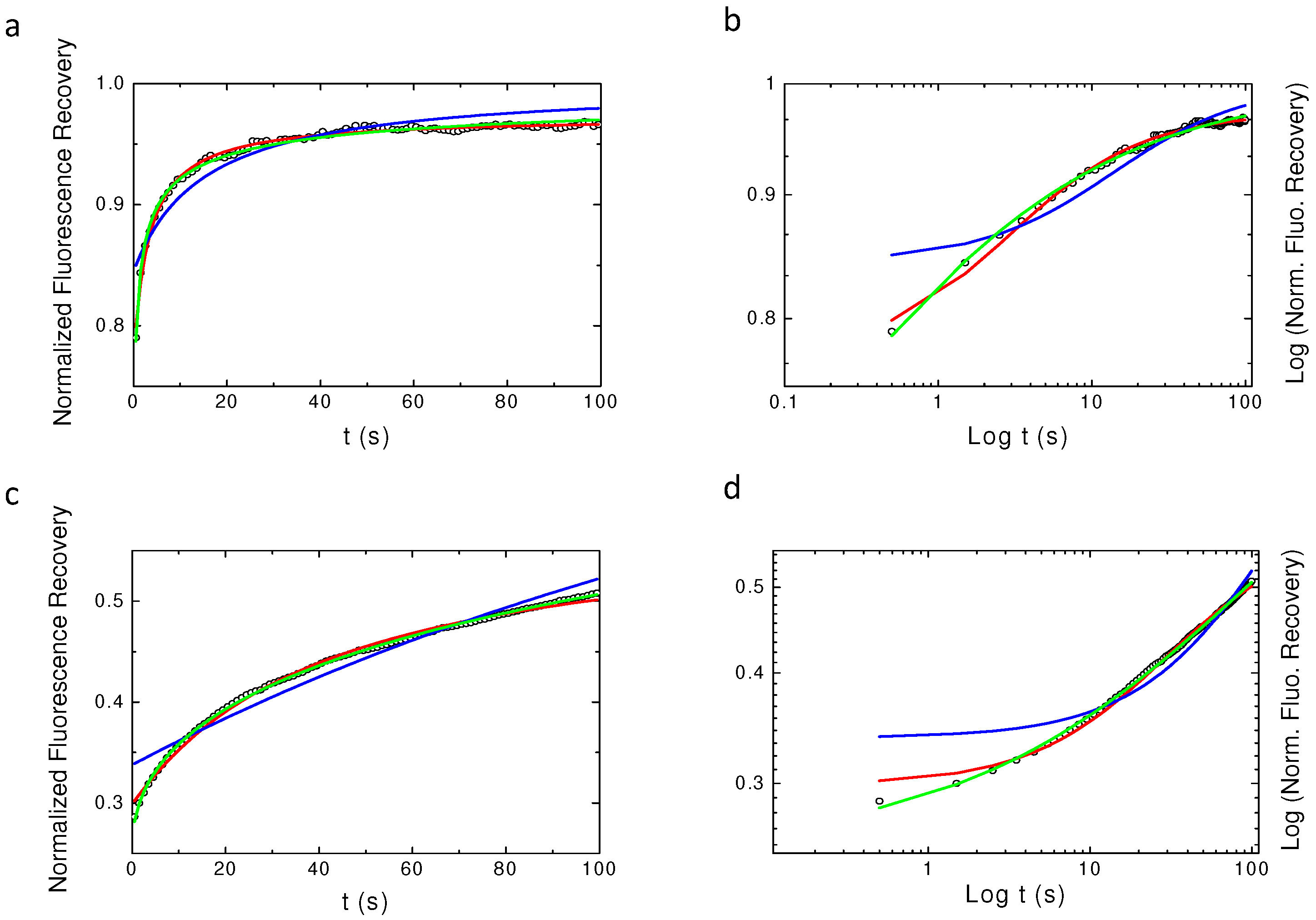

**Figure 2.**Best fits using the different models of normal and log–log plots of simulated continuous time random walk CTRW anomalous sub-diffusion recoveries. $\alpha =0.6$ is the value used for the simulation in the four plots. In blue, the free Brownian motion Bm model (Equation (9)), in red restricted Brownian motion rBm model (Equation (10)) and in green anomalous diffusion motion (aDm) (Equation (8)) fits. In (

**a**,

**b**), D = 2 and, in (

**c**,

**d**), D = 0.1. (

**a**,

**c**) Are the normal plots while (

**b**,

**d**) are the log–log plots. From these graphs, it can be seen that one can hardly distinguish between the rBm model (red) and the aDm model (green) fits of the simulated recovery.

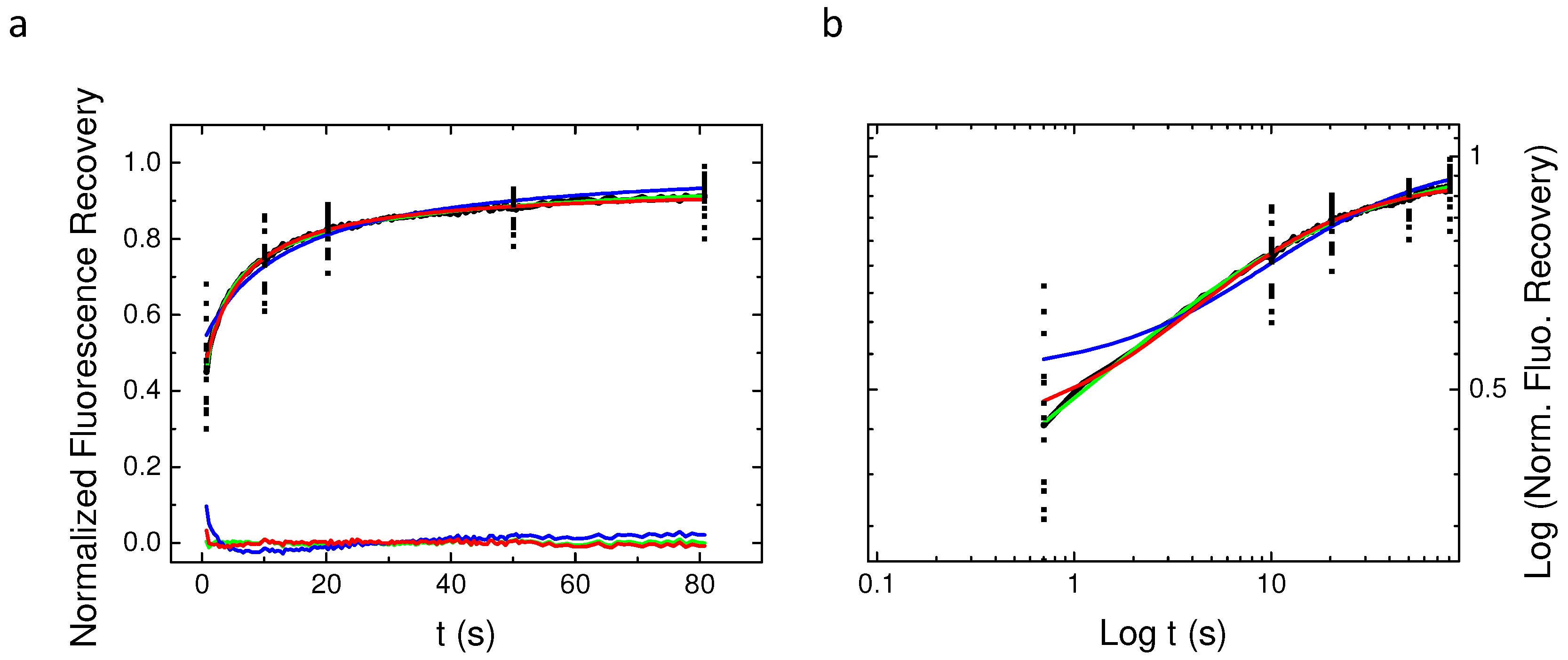

**Figure 3.**Average The three models Bm, rBm and aDm) were used to fit the average recovery curve obtained from 45 different experiments. The normal (

**a**) plot shows the residual from the fit of the different models. Note that only the Bm model fit is inaccurate. The log–log plot (

**b**) illustrates again the difficulty to discriminate between the aDm and the rBm model in the goodness of the fit.

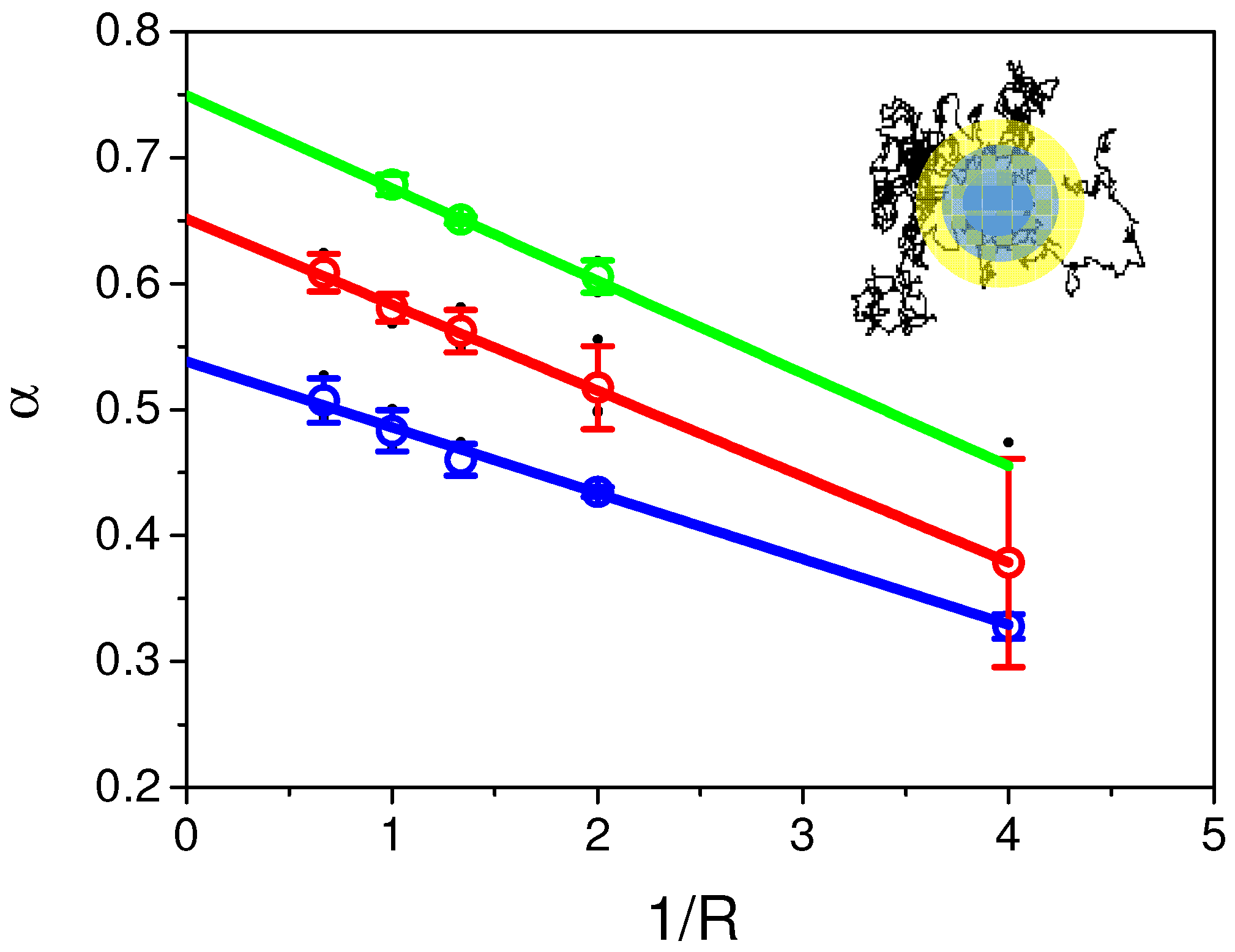

**Figure 4.**Values of $\alpha $ obtained from the fit of Continuous Time Random Walk model simulated recoveries as a function of 1/R. Values of $\alpha $ introduced in the fit were respectively 0.6 (in blue), 0.7 (in red) and 0.8 (in green). Dots represent the mean ± s.d. values of $\alpha $ obtained with the fit using Equation (8) of simulated recoveries for a set of D values (0.01, 0.05, 0.1, 0.5, 1, 2, 3, black dots in the graph). Extrapolation at 1/R = 0of the linear fit of the different $\alpha $ obtained from the fits of recoveries at different radii gives $\alpha $ values close to the one used for the simulations.

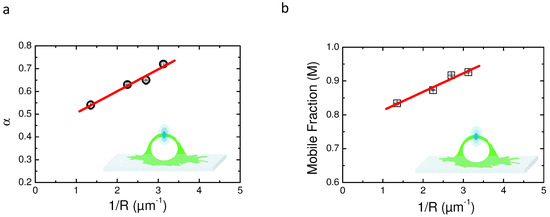

**Figure 5.**Comparison of the two models aDm and rBm using variable radii FRAP (vr-FRAP) in the case of PH-EFA6 diffusion in the plasma membrane of BHK cells. (

**a**) plot of $\alpha $ values obtained by fitting the experimental recoveries with Equation (8) as a function of 1/R. The plot exhibit a positive slot in opposite to the one observed in Figure 4, suggesting an absence of a CTRW anomalous subdiffusion in the motion of PH-EFA6; (

**b**) plot of M value obtained by fitting the experimental recoveries with Equation (10) as a function of 1/R. The plot exhibits a positive slope as observed in [5,25], suggesting a diffusion with trapping in spatial domains.

**Table 1.**Parameter values obtained by the fit of the average experimental recovery with the different analytical models.

Model | D ($\mathsf{\mu}\mathbf{m}\xb7{\mathbf{s}}^{-1}$) ${}^{1}$ | M | $\mathit{\alpha}$ | ${\mathit{D}}_{\mathit{\alpha}}$ ($\mathsf{\mu}\mathbf{m}\xb7{\mathbf{s}}^{-\mathit{\alpha}}$) ${}^{2}$ | ${\mathit{\chi}}^{2}$${}^{3}$ |
---|---|---|---|---|---|

Bm ${}^{4}$ | 0.12 ± 0.06 | 1 | - | - | 5.7 ± 0.5 |

rBm ${}^{5}$ | 0.22 ± 0.01 | 0.92 ± 0.01 | - | - | 3.8 ± 1.6 |

aDm ${}^{6}$ | - | - | 0.65 ± 0.02 | 1.48 ± 0.05 | 2.9 ± 1.6 |

Objective | R ($\mathsf{\mu}\mathbf{m}$) | ΔR ($\mathsf{\mu}\mathbf{m}$) | Laser Waist (nm) |
---|---|---|---|

16× (NA ${}^{1}$ = 1.0) | 0.74 | 0.04 | 370 |

40× (NA = 1.3) | 0.44 | 0.03 | 222 |

63× (NA = 1.4) | 0.37 | 0.01 | 185 |

100× (NA = 1.4) | 0.32 | 0.01 | 160 |
