Article

Force-Regulated Calcium Signaling of Lymphoid Cell RPMI 8226 Mediated by Integrin α4β7/MAdCAM-1 in Flow

by
Dongshan Sun
1,2,
Zhiqing Luo
1,
Ying Kong
1,
Ruiting Huang
1 and
Quhuan Li
1,2,*
1
Institute of Biomechanics, School of Bioscience and Bioengineering, South China University of Technology, Guangzhou 510006, China
2
Guangdong Provincial Engineering and Technology Research Center of Biopharmaceuticals, South China University of Technology, Guangzhou 510006, China
*
Author to whom correspondence should be addressed.
Biomolecules 2023, 13(4), 587; https://doi.org/10.3390/biom13040587
Submission received: 17 January 2023 / Revised: 19 March 2023 / Accepted: 22 March 2023 / Published: 24 March 2023
(This article belongs to the Special Issue Regulation of Cytokine Signaling in Health and Disease)
Browse Figures
Versions Notes

Abstract

:
MAdCAM-1 binds to integrin α4β7, which mediates the rolling and arrest of circulating lymphocytes upon the vascular endothelia during lymphocytic homing. The calcium response by adhered lymphocytes is a critical event for lymphocyte activation and subsequent arrest and migration under flow. However, whether the interaction of integrin α4β7 /MAdCAM-1 can effectively trigger the calcium response of lymphocytes remains unclear, as well as whether the fluid force affects the calcium response. In this study, we explore the mechanical regulation of integrin α4β7-induced calcium signaling under flow. Flou-4 AM was used to examine the calcium response under real-time fluorescence microscopy when cells were firmly adhered to a parallel plate flow chamber. The interaction between integrin α4β7 and MAdCAM-1 was found to effectively trigger calcium signaling in firmly adhered RPMI 8226 cells. Meanwhile, increasing fluid shear stress accelerated the cytosolic calcium response and enhanced signaling intensity. Additionally, the calcium signaling of RPMI 8226 activated by integrin α4β7 originated from extracellular calcium influx instead of cytoplasmic calcium release, and the signaling transduction of integrin α4β7 was involved in Kindlin-3. These findings shed new light on the mechano-chemical mechanism of calcium signaling in RPMI 8226 cells induced by integrin α4β7.

1. Introduction

Lymphocyte homing plays an important role in adaptive immunity [1]. The high specificity of homing is accomplished by lymphocyte adherence to the vascular endothelium at target locations [1,2]. Lymphocyte homing is a multistep process comprising tethering, slow rolling, activation, arrest, and transmigration events that are controlled by homing molecules [3]. In this process, lymphocyte activation is of great importance to the functionality and development of lymphocytes [4].
Integrin α4β7, a homing receptor molecule, can mediate circulating lymphocytes to roll and arrest on the vascular endothelia of mucosal tissues by interacting with mucosal vascular address in cell adhesion molecule-1 (MAdCAM-1) [4,5,6,7]. During this process, intracellular calcium signals are generated [8]. Calcium signaling regulates several lymphocyte processes, including lymphocyte development, T cell and B cell activation, allergy, gene transcription, and effector functions [9,10]. The activation of immunoreceptors, including T cell, B cell, and Fc receptors, as well as chemokine and co-stimulatory receptors, results in an increase in intracellular Ca2+ levels [10]. Although integrin α4β7 is crucial for the adhesion and migration of circulating lymphocytes, the calcium response of lymphocytes resulting from the engagement of integrin α4β7 remains unclear [4].
Lymphocyte adhesion mediated by the interaction between integrin α4β7 and MAdCAM-1 is regulated by fluid force in the blood environment. Chemical interactions, as well as mechanical elements, can contribute to the regulation of the immune functions of leukocytes [11,12]. The activation of integrin α4β7 via the G-protein coupled receptor pathway is dependent on fluid shear stress [13], and the subsequent calcium signaling event is affected by flow force, such as the calcium response of T lymphocytes via the TCR/MHC-peptide [14] and the calcium bursting of leukocytes mediated by LFA-1/ICAM-1 [15,16]. Therefore, it is unclear whether the external force can regulate the calcium response triggered by integrin α4β7/MAdCAM-1.
Intracellular calcium release and extracellular calcium influx are the two primary mechanisms that increase intracellular Ca2+ levels in lymphocytes [9]. Calcium signaling triggered by integrin LFA-1 binding with ICAM-1 occurs due to the influx of calcium in neutrophils and HL-60 cells [15]. However, the identification of the pathway by which the cytoplasmic Ca2+ concentration is upregulated, and that which is involved in the calcium response mediated by integrin α4β7 remains unknown, as well as the key molecule that participates in this signaling pathway. To date, a number of adaptor proteins that serve as scaffolds for protein–protein interactions have been implicated in integrin outside-in signaling [17]. Kindlin family members are FERM domain-containing proteins that interact with the integrin β tails. Kindlin-3, a member of the Kindlin family specifically expressed in leukocytes, contributes to inside-out and outside-in signaling [18,19]. Kindlin-3 has been demonstrated to interact with LFA-1 to support the calcium response under flow; however, the activation of integrin α4β7 simulated by chemokine CCL25 combines with the dissociation of Kindlin-3 from the β tail of integrin α4β7 [13,15]. Thus, further study is required to clarify the role of Kindlin-3 in calcium signaling mediated by integrin α4β7.
In this study, we investigated the intercellular calcium response of RPMI 8226 cells, a lymphocyte model [20], mediated by integrin α4β7 using a system combining fluorescence microscopy and a parallel-plate flow chamber. The calcium signaling events triggered by the binding of integrin α4β7 to MAdCAM-1 under different flow shear stresses were described by the delay time, peak time, and peak calcium intensity. The results showed that calcium signaling in RPMI 8226 cells firmly adhered to integrin α4β7-MAdCAM-1 and was effectively activated and positively regulated by the concentration of immobilized MAdCAM-1 and fluid shear stress. Additionally, the extracellular calcium influx was associated with integrin α4β7-induced calcium signaling instead of intracellular calcium release. Moreover, Kindlin-3 was shown to be involved in the calcium signaling pathway produced by integrin α4β7. In conclusion, these findings provide new perspectives on cellular physiological processes at the molecular level.

2. Materials and Methods

2.1. Proteins and Cells

The recombinant human MAdCAM-1-Fc chimera (R&D Systems, Minneapolis, MN, USA), referred to as MAdCAM-1, is a disulfide-linked homodimer that contains the extracellular domain of human MAdCAM-1 and the Fc moiety of human IgG. The human plasmacytoma cell line RPMI 8226, which constitutively expresses integrin α4β7 as a receptor for MAdCAM-1, was obtained from the China Center for Type Culture Collection (CCTCC) (Wuhan, China). These cell lines were cultured in RPMI 1640 medium (Procell, Wuhan, China) supplemented with 10% fetal bovine serum (FBS) (Bioexplorer, Boulder, CO, USA) and antibiotics (Procell). Cells were grown in a 5% CO2 cell culture incubator (Thermo Fisher Scientific, Shanghai, China) at 37 °C.

2.2. Cell Transfection

The stable knockdown of Kindlin-3 was achieved using short hairpin RNA (shRNA). Kindlin-3 shRNA (5′-CCGAAUUGUACACGAGUAU-3′) was constructed using the pLKO.1-EGFP-puro vector containing anti-puromycin and EGFP labels (Tsingke, Beijing, China) [21]. Cells were seeded on the cell culture plate 1 d in advance and transfected with the plasmid at a cell confluence degree of 60–80% using the transfection reagent (Zeta-life, CA, USA) in accordance with the manufacturer’s guidelines. The cells were then screened with puromycin (Beyotime, Shanghai, China) (1 μg/mL) for approximately 3 weeks. After the screening, the cells were verified by flow cytometry combined with Western blotting to evaluate the effects of knockdown.

2.3. Measurement with Flow Cytometry and Western Blotting

To determine the fraction of Kindlin-3-silenced RPMI 8226 cells cultured in stably transfected cell lines, 5 × 105 cells were harvested and washed twice in prechilled PBS (Gibco, Shanghai, China). The cells were resuspended in 2% BSA (w/v) (Sigma, Burlington, MA, USA) and incubated for 30 min. After centrifugation at 1000 rpm for 3 min, the cells were resuspended in PBS. Based on the EGFP coding sequence in the silencing plasmid, the cells were examined by flow cytometry (Bio-Rad, Hercules, CA, USA) to determine the proportion of Kindlin-3-silenced cells. Non-transfected cells were used as the negative controls.
The harvested cells were lysed in RIPA buffer (Sigma, Burlington, MA, USA), and the protein concentration was determined according to the bicinchoninic acid method using the BCA protein assay kit (Thermo Fisher Scientific, Rockford, IL, USA). Briefly, 100 μg of protein was separated by 8% SDS-PAGE gels per lane and transferred to nitrocellulose (NC) membranes (Yeasen, Shanghai, China). The membrane was blocked for 1 h with 5% skim milk before being incubated overnight at 4 °C with the primary antibodies against anti-Kindlin-3 (1:500; Solarbio, Beijing, China) or anti-β-actin (1:1000; CST, Danvers, MA, USA). The membrane was then incubated with secondary antibodies (1:3000; CST) conjugated with HRP (horse radish peroxidase) for 1 h at 25 °C, and the signal strength of the protein bands was detected using an enhanced chemiluminescence reagent (Thermo Fisher Scientific) and the gel documentation system (Clinx, Shanghai, China).

2.4. Functionalization of Flow Chamber Substrates

The flow chamber (working space: length × width × height = 2 × 0.5 × 0.0254 cm3) was functionalized using the method outlined in previous studies [11,22,23]. Initially, a coating zone (25 mm2) covered with clean silicon rubber was designated at the center of each cover slide (Thermo Fisher Scientific, Shanghai, China). Thereafter, MAdCAM-1 was diluted in 40 μL of solution, immediately added to the coating zone of the slide, and then incubated for 12 h in a refrigerator at 4 °C. After removing the MAdCAM-1, the slides were treated with HBSS containing 2% BSA (w/v) at 25 °C for 1 h to block non-specific adhesion. After more than 1 h of treatment with 2% BSA, the slides were equipped to the flow chamber for subsequent experiments, and the functionalization of the flow chamber was finalized. A variety of MAdCAM-1 concentrations were used and selected under different experimental conditions.

2.5. Loading with Calcium-Sensitive Dye and Treatment with Inhibitors

The procedure for loading calcium-sensitive dye into the cells was performed as previously reported, with some modifications [11,12,23]. The sensitive dye Fluo-4 AM ester (Invitrogen Life Technologies, Grand Island, NY, USA) was used to quantify the relative cellular calcium levels. Cells under good growth conditions were harvested and washed twice with HBSS. Loading buffer (2% BSA (w/v), 20 mmol/L glucose (Sigma, Burlington, MA, USA), and 20 mmol/L HEPES (Procell, Wuhan, China) in PBS) was used to resuspend the cells, which were then diluted to a density of 1 × 106/mL. After incubating and gently vibrating the cells (106/mL) for 30 min at 37 °C, Fluo-4 AM (2 μmol/L) was loaded into RPMI 8226 cells. After 3 min of centrifugation at 1000 rpm, the cells were then completely de-esterified from their intracellular AM ester by resuspending the cells in a loading buffer without dye at the same volume for 30 min more at 37 °C.
Additionally, to block the calcium release from the endoplasmic reticulum or calcium influx via the membrane calcium channel, the IP3 inhibitor 2-APB (100 μmol/L) was applied to RPMI 8226 cells for 8 min. Similarly, the membrane calcium channel inhibitor LaCl3 (μmol/L) was applied for 30 min. Alternatively, 0.1% DMSO (w/v) was applied as vehicle control.

2.6. Flow Chamber and Calcium Signaling Assays

RPMI 8226 cells at a density of 106 µg/mL labeled with Fluo-4 AM were resuspended in imaging buffer containing 2% BSA (w/v), 10 mmol/L glucose, 10 mmol/L KCl (Damao, Tianjin, China), 1.5 mmol/L CaCl2 (Damao, Tianjin, China), 10 mmol/L MgCl2 (Damao, Tianjin, China), 30 mmol/L HEPES, and 110 mmol/L NaCl (Damao, Tianjin, China) at pH 7.35. Using a syringe pump (Harvard PHD22/2000; Harvard Apparatus, Holliston, MA, USA), the RPMI 8226 cells were perfused into a parallel-plate flow chamber to adhere to MAdCAM-1 substrate at different wall shear stresses.
For the specific adhesion assay, a CMOS camera (Nikon) (Nikon Corporation, Tokyo, Japan) was used to record the adhesion behavior at a frame frequency of 50 fps and an objective magnification of 10× (Figure 1). A firmly adhering cell was defined as a cell in which the travel displacement during 1 min was less than 10 μm. The number of firmly adhering cells within 7 min was estimated using Image-Pro Plus (version 6.0).
For the measurement of the calcium signaling of the cells, the fluorescence value of the firmly adhered cells was recorded using a CMOS camera and the software NIS-Elements AR 5.01.00 (Nikon) at a frame frequency of 20 fps, an exposure time of 50 ms, and an objective magnification of 40× (Figure 1). At least 15 typical calcium signaling events of the firmly adhering cells were collected among three repeat experiments for each group. Sequences were analyzed with the software NIS-Elements Analysis (version 6.0), and Microsoft Excel 2019 was used to extract time parameters and fluorescence intensity: FIN = (FIC − FIB)/FIB, which was used to normalize the fluorescence intensity of a firmly adherent cell, where FIN, FIC, and FIB are the normalized cell fluorescence intensity, mean cell fluorescence intensity, and background fluorescence intensity, respectively, which is the mean of four fluorescence intensities from four equidistant round domains (36π µm2) around the cell at a distance of 24 µm [12].
The following three characteristics were used to describe calcium signaling in RPMI 8226 cells: the delay time, peak time, and peak calcium intensity of cell calcium bursting. The calcium bursting delay time was defined as the time interval between the onset of firm cellular adhesion at t = 0 and the subsequent sharp increase in cell fluorescence intensity. The peak time was defined as the duration of the rapid increase in cell fluorescence to the peak value after the plateau. The ratio of the normalized peak fluorescence intensity to the normalized plateau fluorescence intensity was used to calculate peak calcium intensity.

2.7. Statistical Methods

Statistical significance was determined using GraphPad Prism (version 7). Student’s t-test was used to confirm the statistical significance of the data in the two groups. Alternatively, one-way analysis of variance (ANOVA) was performed among various groups combined with Tukey’s test for multiple comparisons when the number of experimental groups was more than two.

3. Results

3.1. Calcium Bursting of RPMI 8226 Cells Adhered to MAdCAM-1 under Flow

To investigate calcium signaling mediated by integrin α4β7 in RPMI 8226 cells under flow conditions, we evaluate the firm adhesion and calcium response of RPMI 8226 cells. Using a parallel plate flow chamber combined with a fluorescence detection system (Figure 1), the cells were found to adhere to the substrate coated with MAdCAM-1 at a wall shear stress of 0.3 dyn/cm2. Compared with those occurring on the blank substrates, firm adhesion events occurring on the substrates treated with 2% BSA were reduced significantly, suggesting that treatment with 2% BSA could block non-specific adhesion (Figure 2A, Movie S1). Moreover, the number of firmly adhering cells on the substrates coated with MAdCAM-1 plus 2% BSA increased and was positively correlated with the concentration (Figure 2A). To further demonstrate the specificity of α4β7 mediating cell adhesion, integrin α4 antibody (MAB1354) and integrin β7 antibody (MAB13544669) were incubated with the cells, and MAdCAM-1 antibody (F-6) was added to the substrate. As a result, a marked reduction in the number of firm adhesion cells was observed (Figure S1). These results indicate that the adhesion of RPMI 8226 cells to MAdCAM-1-coating substrates was specifically mediated by the interaction between MAdCAM-1 and its receptor integrin α4β7 expressed on RPMI 8226 cells.
To quantify the dynamic calcium signaling process, typical real-time normalized intensity curves were generated for the two RPMI 8226 cells (Figure 2B, Movie S2). When the cells were firmly adhered on 20 μg/mL MAdCAM-1 substrate, no significant change in the fluorescence intensity of the calcium response was observed during firm adhesion for non-activated cells, whereas a significant peak of the fluorescence intensity was observed in activated cells. The fluorescence intensity was initially maintained at a lower level for a duration of time, which then increased swiftly to its peak before gradually falling to its original level (Figure 2B,C, Movie S2). The calcium response of a firmly arresting cell occurred after a latent phase or delay time (TD), which represents the time gap between becoming firmly arrested and the calcium response. Meanwhile, the fluorescence intensity reached its maximum after increasing for a period of time (TP). The ratio of the highest fluorescence intensity to the average fluorescence intensity during the delay period was used to define the peak calcium intensity (IP), which represents the complete release of cytosolic calcium ions. The amount of cytosolic calcium released increased with peak calcium intensity. Five representative fluorescence images of activated and non-activated cells are shown in Figure 2C.

3.2. Concentration Dependence of Calcium Signaling of RPMI 8226 Cells

Next, we evaluated the calcium response of RPMI 8226 cells that adhered to MAdCAM-1-coated substrates (2 and 20 μg/mL). The typical time course of calcium signaling showed that the concentration differences of MAdCAM-1 had a significant effect on the production of cellular calcium signaling (Figure 3A). As the density of immobilized MAdCAM-1 increased, the delay time for calcium signaling in RPMI 8226 cells decreased rapidly, indicating that enhanced interaction between integrin α4β7 and MAdCAM-1 hastened the cytosolic calcium release of RPMI 8226 cells (Figure 3B). Although no significant difference in peak time and peak intensity of calcium signaling was observed when the density of immobilized MAdCAM-1 increased, the peak time (Figure 3D) was shortened, and the peak intensity (Figure 3C) was increased to some extent. Taken together, firm arrest via the binding of integrin α4β7 and MAdCAM-1 was found to specifically trigger calcium signaling in RPMI 8226 cells, and the excitation rate of calcium signaling was dependent on the concentration of MAdCAM-1.

3.3. Shear Stresses Quickened and Enhanced Calcium Signaling of RPMI 8226 Cells

Previous studies have found that an external force is required for calcium signaling in neutrophil activation by integrin LFA-1. However, uncertainty remains regarding whether mechanical control can induce calcium signaling in lymphocytes by integrin α4β7 [16]. In this study, we evaluated the calcium response of RPMI 8226 cells that adhered to the 10 g/mL MAdCAM-1-coated bottoms under wall shear stresses of 0.15, 0.30, and 0.60 dyn/cm2. From the typical time courses of the calcium response, we found that shear stress enhanced the calcium bursting of RPMI 8226 induced by the binding of integrin α4β7 and MAdCAM-1 (Figure 4A). The delay in calcium signaling was reduced by increasing the wall shear stress (Figure 4B). Likewise, the peak time of calcium signaling decreased as the wall shear stress increased (Figure 4C). In contrast, the peak intensity, which was the highest amount of calcium signaling, increased with wall shear stress (Figure 4D). These results indicated that the calcium signaling of RPMI 8226 triggered by the interplay of integrin α4β7 and MAdCAM-1 was positively regulated by wall shear stress, in which the external force could accelerate the bursting speed of calcium signaling and enhance the strength of calcium signaling.

3.4. Integrin α4β7 Induced Calcium Influx Rather than Release into the Cytoplasm of RPMI 8226 Cells

To determine whether calcium bursting was caused by cytosolic calcium release or extracellular calcium influx, 2-APB and LaCl3 were used to treat RPMI 8226 cells, respectively. Subsequently, the cells treated with different inhibitors were perfused into the flow chamber at a wall shear stress of 0.30 dyn/cm2. The cells were observed and recorded using fluorescence microscopy when they adhered to substrates coated with 10 μg/mL MAdCAM-1. The typical time courses showed that treatment with various inhibitors caused significant differences in the activation of calcium signaling (Figure 5A). Treatment with 2-APB had no significant influence on the delay time, peak time, or peak intensity, suggesting that calcium signaling in RPMI 8226 cells was unaffected by blocking the calcium channel on the endoplasmic reticulum with 2-APB (Figure 5B–D). However, treatment with LaCl3 significantly increased the delay and peak times and weakened the peak intensity (Figure 5B–D). In other words, calcium bursting in RPMI 8226 cells triggered by integrin α4β7 may be weakened and slowed down by inhibiting the calcium channel on the cellular membrane using LaCl3. These results indicate that calcium signaling induced by the interaction of integrin α4β7 and MAdCAM-1 mainly depends on the activation of calcium channels on the cellular membrane but does not require calcium release.

3.5. Kindlin-3 Was Involved in Calcium Signaling of RPMI 8226 Cells Triggered by the Integrin α4β7 in Flow

Kindlin-3 is an important adaptor in integrin signal transduction. However, the mechanism by which Kindlin-3 assists integrin α4β7 to activate cytosolic calcium bursting remains unclear. To determine whether Kindlin-3 participates in the process of calcium signaling activated by integrin α4β7, we knocked down the expression of Kindlin-3 in RPMI 8226 and examined the calcium signaling induced by the interaction of integrin α4β7 and MAdCAM-1 under flow. The positive fraction of RPMI 8226 cells silenced by Kindlin-3 shRNA in the stably transfected cell lines was found to be >90%, as detected by flow cytometry after screening with puromycin (Figure 6A,B). At the same time, the immunoblotting of total lysates of RPMI 8226 cells with stable transfection of Kindlin-3 shRNA revealed a lower expression of Kindlin-3 compared with non-transfected RPMI 8226 cells (Figure 6C). The typical time course of Kindlin-3 knockdown cells showed a significant weakening of calcium signaling (Figure 6D). When compared to the control group, the knockdown of Kindlin-3 significantly lengthened the delay and peak times while weakening the peak intensity of calcium signaling in RPMI 8226 cells (Figure 6E–G), suggesting that the blockage of Kindlin-3 could disturb calcium bursting triggered by the interaction of integrin α4β7 and MAdCAM-1. Taken together, these results indicate that Kindlin-3 is involved in calcium signaling induced by the interaction between integrin α4β7 and MAdCAM-1.

4. Discussion

Integrin α4β7 facilitates the rolling, arrest, and subsequent activation of lymphocytes during the homing of circulating lymphocytes by interacting with MAdCAM-1 [3,4]. Previous studies have demonstrated that several integrins can induce calcium bursting in leukocytes [8]. For example, LFA-1 can activate calcium signaling after binding to ICAM-1 and activating the PLC-γ downstream signal pathway [24]. In addition, the interaction between integrin αIIbβ3 and vWF can promote persistent calcium oscillations to maintain irreversible adhesion [25]. Likewise, calcium signaling in rat osteoclasts is activated by integrin αvβ3 stimulated by its RGD (Arg-Gly-Asp) ligands, which are involved in osteoclast function [26]. However, the mechanism underlying the regulation of integrin-induced calcium signaling in lymphocytes remains unknown. In the present study, we evaluated the calcium bursting of lymphocytes mediated by integrin α4β7 binding with MAdCAM-1 under flow conditions. A parallel plate flow chamber, together with a fluorescent detection system, was used to perform the adhesion experiment. Furthermore, as a pattern cell of circulating lymphocytes, RPMI 8226 cells expressing integrin α4β7 were derived from a patient with plasmacytoma to simulate circulating lymphocytes functionally, which have been widely used in immunology research [20]. As such, our results using RPMI 8226 cells may reflect the physiological activity of human primary lymphocytes mediated by integrin α4β7 and MAdCAM-1. However, integrin α4β7 coupling with MAdCAM-1 to trigger the calcium response of RPMI 8226 cells in a process may be similar to calcium bursting triggered by P-selectin in neutrophils or HL-60 cells [11,12]. The fluorescence intensity of signaling activation has a typical plateau, a rising stage, and then a decreasing phase in firmly adhered cells. Nevertheless, there is a longer delay and peak time in integrin α4β7-mediated calcium signaling in RPMI 8226 cells than in the process of P-selectin. We speculated that the binding of integrin α4β7 to MAdCAM-1 triggered outside-in signaling and induced the global activation of integrin α4β7 in cells, triggering calcium signaling downstream [17,27]. This could be attributed to the longer delay time and peak time in calcium bursting of RPMI 8226 cells mediated by integrin α4β7.
The external force existing in the cellular microenvironment is crucial for the interaction of most biomacromolecules and cellular signal transduction [28]. Several mechanical techniques have been applied to investigate the effects of forces at the cellular and molecular levels, including parallel-plate flow chambers, atomic force microscopes, biomembrane force probes, and molecular dynamics simulations [29,30,31,32,33]. Using molecular dynamics simulations, the interaction of integrin αvβ3 with its RGD ligands in a force-dependent process was demonstrated [33]. Similarly, the cleavage of vWF by ADAMTS-13 requires force-induced A2 unfolding during the process of hemostasis [34]. Previous studies have shown that HL-60 cells roll over E-selectin under the control of force-dependent bond dissociation. Therefore, the ideal shear threshold would ensure that the rolling is the most stable and regular [22]. These studies indicate that force is of great importance in the interaction of protein molecules. As for the mechanical regulation of cellular calcium signaling, the effect of external force on the calcium bursting of T cells is induced by the TCR-pMHC complex [14]. Similarly, Ca2+ entry through cation channels of megakaryocytic cells and human platelets is mediated by shear stress [35]. In addition, calcium signaling mediated by integrin LFA-1 binding to ICAM-1 is triggered and regulated by wall shear stress [15]. Importantly, Chateau et al. demonstrated that wall shear stress plays a key role in the cellular Ca2+-dependent rolling and Mg2+-dependent stable adhesion via integrin α4β7/MAdCAM-1 [36]. Recently, we found that shear stress firstly strengthened, then weakened, the tethering and rolling behaviors via integrin α4β7/MAdCAM-1 at a lower threshold of shear stress (also known as the “catch bond mechanism”). Based on these previous findings, herein, we further explored the effect of the external shear stress force on the integrin α4β7-mediated calcium response. Through quantitative measurements of peak time, delay time, and peak intensity, our results suggest that force may accelerate and intensify calcium signaling. This may be related to the catch bond mechanism, which regulates flow-enhanced roll and adhesion by reinforcing the engagement of integrin α4β7 with MAdCAM-1. This is similar to the activation of calcium signaling by the TCR/MHC interaction with force-governed affinity on T cells [14]. As a result, the integrin α4β7/MAdCAM-1 complex, as a force sensor, may trigger subsequent cytoplasmic signaling molecules and generate calcium signaling in RPMI 8226 cells.
Interestingly, we first demonstrated that calcium signaling mediated by integrin α4β7 was relevant to extracellular calcium influx but not intracellular calcium release. Thereafter, we observed that it was involved with Kindlin-3, the adaptor molecule binding directly to the cytoplasmic tail of the integrin β subunit. When lymphocytes are recruited to inflammatory regions, cytoplasmic Ca2+ acts as a signaling molecule to facilitate the transformation of the cell state from rolling to arrest to achieve functional activation [9]. During this process, the GPCR or P-selectin receptors of leukocytes first receive activated signals, and intracellular Ca2+ ions are released by activating the ER-related inositol 1,4,5-trisphosphate [10,12], known as “intracellular calcium release”. In addition, extracellular Ca2+ influx through the membrane calcium channel has been demonstrated to occur during leukocyte activation via the binding of integrin LFA-1 with ICAM-1 [15,16]. Similarly, we demonstrated that integrin α4β7-mediated calcium signaling is associated with extracellular Ca2+ influx, indicating that similar pathways are involved in the activation of calcium bursting through integrin α4β7. Additionally, Kindlin-3 in calcium signaling mediated by LFA-1 serves as a link in the formation of a focal adhesion complex combined with LFA-1 and receptor for activated C kinase 1 (RACK1), which is associated with the activation of ORAI-1, the main membrane calcium channel [16]. In addition to assisting the LFA-1-induced calcium signal, Kindlin-3 is required for the induction of the high-affinity conformation of LFA-1 through the engagement of PSGL-1 or CXCR2, which results in neutrophil arrest [37,38]. Compared with the assisting role of Kindlin-3 in LFA-1-mediated calcium signaling, Kindlin-3 may play a similar role in integrin α4β7-mediated calcium signaling. Unfortunately, Sun et al. suggest that Kindlin-3 dissociates from the tail of the β subunit in the CCL25-induction of the high affinity of integrin α4β7 induced by chemokine CCL25 [13]. These results indicate that Kindlin-3 may have different effects on the inside-out and outside-in pathways of integrin α4β7, similar to the negative role of Kindlin-3 in regulating the release of neutrophil extracellular traps [13,39].
To summarize, we found that integrin α4β7 binding of MAdCAM-1 led to force-dependent calcium signaling in tightly adherent RPMI 8226 cells in flow via a pathway that required Kindlin-3 (Figure 7). These findings provide new insights into the mechano-chemical regulation mechanism for adhesion molecule-mediated intracellular signaling pathways, providing a basis for the development of novel concepts in risk assessment, clinical diagnosis, and the effectiveness of inflammatory disease and cancer treatment.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/biom13040587/s1, Figure S1: Specific adhesion experiment; Figure S2: Adhesion probability of cells using different metal ion solutions; Figure S3: Adhesion frequency of integrin α4β7 specifically binding to MAdCAM-1 measured by AFM (atomic force microscope); Movie S1: Adhesion of RPMI 8226 cells to 20 μg/mL MAdCAM-1-coated substrate in flow chamber at a shear stress of 0.3 dyn/cm2; Movie S2: Calcium signaling of RPMI 8226 cells adhering to 20 μg/mL MAdCAM-1-coated substrate in flow chamber at a shear stress of 0.3 dyn/cm2.

Author Contributions

Conceptualization, D.S. and Q.L.; methodology, D.S. and Q.L.; investigation, D.S., Z.L., Y.K. and R.H.; data curation, D.S.; writing—original draft preparation, D.S.; writing—review and editing, Q.L.; supervision, Q.L.; and funding acquisition, Q.L. All authors have read and agreed to the published version of the manuscript.

Funding

This work was funded by the National Natural Science Foundation of China (grant numbers 31870928 and 32271360), the Natural Science Foundation of Guangdong Province, China (grant numbers 2021A1515010040 and 2023A1515010829), and the Overseas Master Project of Science and Technology Department of Guangdong Province (grant number x2swB2210620).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

We are grateful to Jianhua Wu and Hefeng Wang, Biomechanics Center, South China University of Technology, for their technical guidance.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Geremia, A.; Biancheri, P.; Allan, P.; Corazza, G.R.; Di Sabatino, A. Innate and adaptive immunity in inflammatory bowel disease. Autoimmun. Rev. 2014, 13, 3–10. [Google Scholar] [CrossRef] [PubMed]
  2. McCully, M.L.; Kouzeli, A.; Moser, B. Peripheral tissue chemokines: Homeostatic control of immune surveillance T cells. Trends Immunol. 2018, 39, 734–747. [Google Scholar] [CrossRef] [PubMed]
  3. Zundler, S.; Becker, E.; Schulze, L.L.; Neurath, M.F. Immune cell trafficking and retention in inflammatory bowel disease: Mechanistic insights and therapeutic advances. Gut 2019, 68, 1688–1700. [Google Scholar] [CrossRef] [PubMed]
  4. Lamb, C.A.; O’Byrne, S.; Keir, M.E.; Butcher, E.C. Gut-selective integrin-targeted therapies for inflammatory bowel disease. J. Crohns. Colitis. 2018, 12, S653–S668. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  5. Bargatze, R.F.; Jutila, M.A.; Butcher, E.C. Distinct roles of L-selectin and integrins alpha 4 beta 7 and LFA-1 in lymphocyte homing to Peyer’s patch-HEV in situ: The multistep model confirmed and refined. Immunity 1995, 3, 99–108. [Google Scholar] [CrossRef] [Green Version]
  6. Shyjan, A.M.; Bertagnolli, M.; Kenney, C.J.; Briskin, M.J. Human mucosal addressin cell adhesion molecule-1 (MAdCAM-1) demonstrates structural and functional similarities to the alpha 4 beta 7-integrin binding domains of murine MAdCAM-1, but extreme divergence of mucin-like sequences. J. Immunol. 1996, 156, 2851–2857. [Google Scholar] [CrossRef]
  7. Berlin, C.; Berg, E.L.; Briskin, M.J.; Andrew, D.P.; Kilshaw, P.J.; Holzmann, B.; Weissman, I.L.; Hamann, A.; Butcher, E.C. Alpha 4 beta 7 integrin mediates lymphocyte binding to the mucosal vascular addressin MAdCAM-1. Cell 1993, 74, 185–195. [Google Scholar] [CrossRef]
  8. Sjaastad, M.D.; Nelson, W.J. Integrin-mediated calcium signaling and regulation of cell adhesion by intracellular calcium. Bioessays 1997, 19, 47–55. [Google Scholar] [CrossRef]
  9. Trebak, M.; Kinet, J.P. Calcium signalling in T cells. Nat. Rev. Immunol. 2019, 19, 154–169. [Google Scholar] [CrossRef]
  10. Feske, S. Calcium signalling in lymphocyte activation and disease. Nat. Rev. Immunol. 2007, 7, 690–702. [Google Scholar] [CrossRef]
  11. Huang, B.; Ling, Y.; Lin, J.; Fang, Y.; Wu, J. Mechanical regulation of calcium signaling of HL-60 on P-selectin under flow. Biomed. Eng. Online 2016, 15, 153. [Google Scholar] [CrossRef] [Green Version]
  12. Huang, B.; Ling, Y.; Lin, J.; Du, X.; Fang, Y.; Wu, J. Force-dependent calcium signaling and its pathway of human neutrophils on P-selectin in flow. Protein Cell 2017, 8, 103–113. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  13. Sun, H.; Liu, J.; Zheng, Y.; Pan, Y.; Zhang, K.; Chen, J. Distinct chemokine signaling regulates integrin ligand specificity to dictate tissue-specific lymphocyte homing. Dev. Cell 2014, 30, 61–70. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  14. Liu, B.; Chen, W.; Evavold, B.D.; Zhu, C. Accumulation of dynamic catch bonds between TCR and agonist peptide-MHC triggers T cell signaling. Cell 2014, 157, 357–368. [Google Scholar] [CrossRef] [Green Version]
  15. Dixit, N.; Kim, M.H.; Rossaint, J.; Yamayoshi, I.; Zarbock, A.; Simon, S.I. Leukocyte function antigen-1, kindlin-3, and calcium flux orchestrate neutrophil recruitment during inflammation. J. Immunol. 2012, 189, 5954–5964. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  16. Morikis, V.A.; Masadeh, E.; Simon, S.I. Tensile force transmitted through LFA-1 bonds mechanoregulate neutrophil inflammatory response. J. Leukoc. Biol. 2020, 108, 1815–1828. [Google Scholar] [CrossRef]
  17. Abram, C.L.; Lowell, C.A. The ins and outs of leukocyte integrin signaling. Annu. Rev. Immunol. 2009, 27, 339–362. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  18. Rognoni, E.; Ruppert, R.; Fassler, R. The kindlin family: Functions, signaling properties and implications for human disease. J. Cell Sci. 2016, 129, 17–27. [Google Scholar] [CrossRef] [Green Version]
  19. Malinin, N.L.; Plow, E.F.; Byzova, T.V. Kindlins in FERM adhesion. Blood 2010, 115, 4011–4017. [Google Scholar] [CrossRef]
  20. Moore, G.E.; Kitamura, H. Cell line derived from patient with myeloma. N. Y. State J. Med. 1968, 68, 2054–2060. [Google Scholar] [PubMed]
  21. Lu, L.; Lin, C.; Yan, Z.; Wang, S.; Zhang, Y.; Wang, S.; Wang, J.; Liu, C.; Chen, J. Kindlin-3 is essential for the resting alpha4beta1 integrin-mediated firm cell adhesion under shear flow conditions. J. Biol. Chem. 2016, 291, 10363–10371. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  22. Li, Q.; Fang, Y.; Ding, X.; Wu, J. Force-dependent bond dissociation govern rolling of HL-60 cells through E-selectin. Exp. Cell Res. 2012, 318, 1649–1658. [Google Scholar] [CrossRef]
  23. Sun, X.; Huang, B.; Pan, Y.; Fang, J.; Wang, H.; Ji, Y.; Ling, Y.; Guo, P.; Lin, J.; Li, Q.; et al. Spatiotemporal characteristics of P-selectin-induced β2 integrin activation of human neutrophils under flow. Front. Immunol. 2022, 13, 1023865. [Google Scholar] [CrossRef]
  24. Kanner, S.B.; Grosmaire, L.S.; Ledbetter, J.A.; Damle, N.K. Beta 2-integrin LFA-1 signaling through phospholipase C-gamma 1 activation. Proc. Natl. Acad. Sci. USA 1993, 90, 7099–7103. [Google Scholar] [CrossRef] [Green Version]
  25. Nesbitt, W.S.; Kulkarni, S.; Giuliano, S.; Goncalves, I.; Dopheide, S.M.; Yap, C.L.; Harper, I.S.; Salem, H.H.; Jackson, S.P. Distinct glycoprotein Ib/V/IX and integrin alpha IIbbeta 3-dependent calcium signals cooperatively regulate platelet adhesion under flow. J. Biol. Chem. 2002, 277, 2965–2972. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  26. Zimolo, Z.; Wesolowski, G.; Tanaka, H.; Hyman, J.L.; Hoyer, J.R.; Rodan, G.A. Soluble alpha v beta 3-integrin ligands raise [Ca2+]i in rat osteoclasts and mouse-derived osteoclast-like cells. Am. J. Physiol. 1994, 266, C376–C381. [Google Scholar] [CrossRef]
  27. Dixit, N.; Simon, S.I. Chemokines, selectins and intracellular calcium flux: Temporal and spatial cues for leukocyte arrest. Front. Immunol. 2012, 3, 188. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  28. McEver, R.P.; Zhu, C. Rolling cell adhesion. Annu. Rev. Cell Dev. Biol. 2010, 26, 363–396. [Google Scholar] [CrossRef]
  29. Long, M.; Sato, M.; Lim, C.T.; Wu, J.H.; Adachi, T.; Inoue, Y. Advances in experiments and modeling in micro- and nano-biomechanics: A mini review. Cell Mol. Bioeng. 2011, 4, 327–339. [Google Scholar] [CrossRef] [Green Version]
  30. Huang, H.; Dai, C.; Shen, H.; Gu, M.; Wang, Y.; Liu, J.; Chen, L.; Sun, L. Recent advances on the model, measurement technique, and application of single cell mechanics. Int. J. Mol. Sci. 2020, 21, 6248. [Google Scholar] [CrossRef]
  31. Yu, X.; Qiu, S.; Sun, D.; Guo, P.; Li, Q. Comparison of intermolecular interactions of irreversible and reversible inhibitors with Bruton’s tyrosine kinase via molecular dynamics simulations. Molecules 2022, 27, 7451. [Google Scholar] [CrossRef] [PubMed]
  32. Qiu, S.; Liu, Y.; Li, Q. A mechanism for localized dynamics-driven activation in Bruton’s tyrosine kinase. R. Soc. Open Sci. 2021, 8, 210066. [Google Scholar] [CrossRef] [PubMed]
  33. Li, N.; Qiu, S.; Fang, Y.; Wu, J.; Li, Q. Comparison of linear vs. cyclic RGD pentapeptide interactions with integrin alpha(v)beta(3) by molecular dynamics simulations. Biology 2021, 10, 688. [Google Scholar] [CrossRef] [PubMed]
  34. Wu, T.; Lin, J.; Cruz, M.A.; Dong, J.F.; Zhu, C. Force-induced cleavage of single VWFA1A2A3 tridomains by ADAMTS-13. Blood 2010, 115, 370–378. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  35. Ilkan, Z.; Wright, J.R.; Goodall, A.H.; Gibbins, J.M.; Jones, C.I.; Mahaut-Smith, M.P. Evidence for shear-mediated Ca(2+) entry through mechanosensitive cation channels in human platelets and a megakaryocytic cell line. J. Biol. Chem. 2017, 292, 9204–9217. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  36. de Chateau, M.; Chen, S.; Salas, A.; Springer, T.A. Kinetic and mechanical basis of rolling through an integrin and novel Ca2+-dependent rolling and Mg2+-dependent firm adhesion modalities for the alpha 4 beta 7-MAdCAM-1 interaction. Biochemistry 2001, 40, 13972–13979. [Google Scholar] [CrossRef]
  37. Moser, M.; Bauer, M.; Schmid, S.; Ruppert, R.; Schmidt, S.; Sixt, M.; Wang, H.V.; Sperandio, M.; Fassler, R. Kindlin-3 is required for beta2 integrin-mediated leukocyte adhesion to endothelial cells. Nat. Med. 2009, 15, 300–305. [Google Scholar] [CrossRef]
  38. Lefort, C.T.; Rossaint, J.; Moser, M.; Petrich, B.G.; Zarbock, A.; Monkley, S.J.; Critchley, D.R.; Ginsberg, M.H.; Fassler, R.; Ley, K. Distinct roles for talin-1 and kindlin-3 in LFA-1 extension and affinity regulation. Blood 2012, 119, 4275–4282. [Google Scholar] [CrossRef]
  39. Xu, Z.; Ni, B.; Cao, Z.; Zielonka, J.; Gao, J.; Chen, F.; Kalyanaraman, B.; White, G.C.; Ma, Y.Q. Kindlin-3 negatively regulates the release of neutrophil extracellular traps. J. Leukoc. Biol. 2018, 104, 597–602. [Google Scholar] [CrossRef]
Biomolecules 13 00587 g001 550

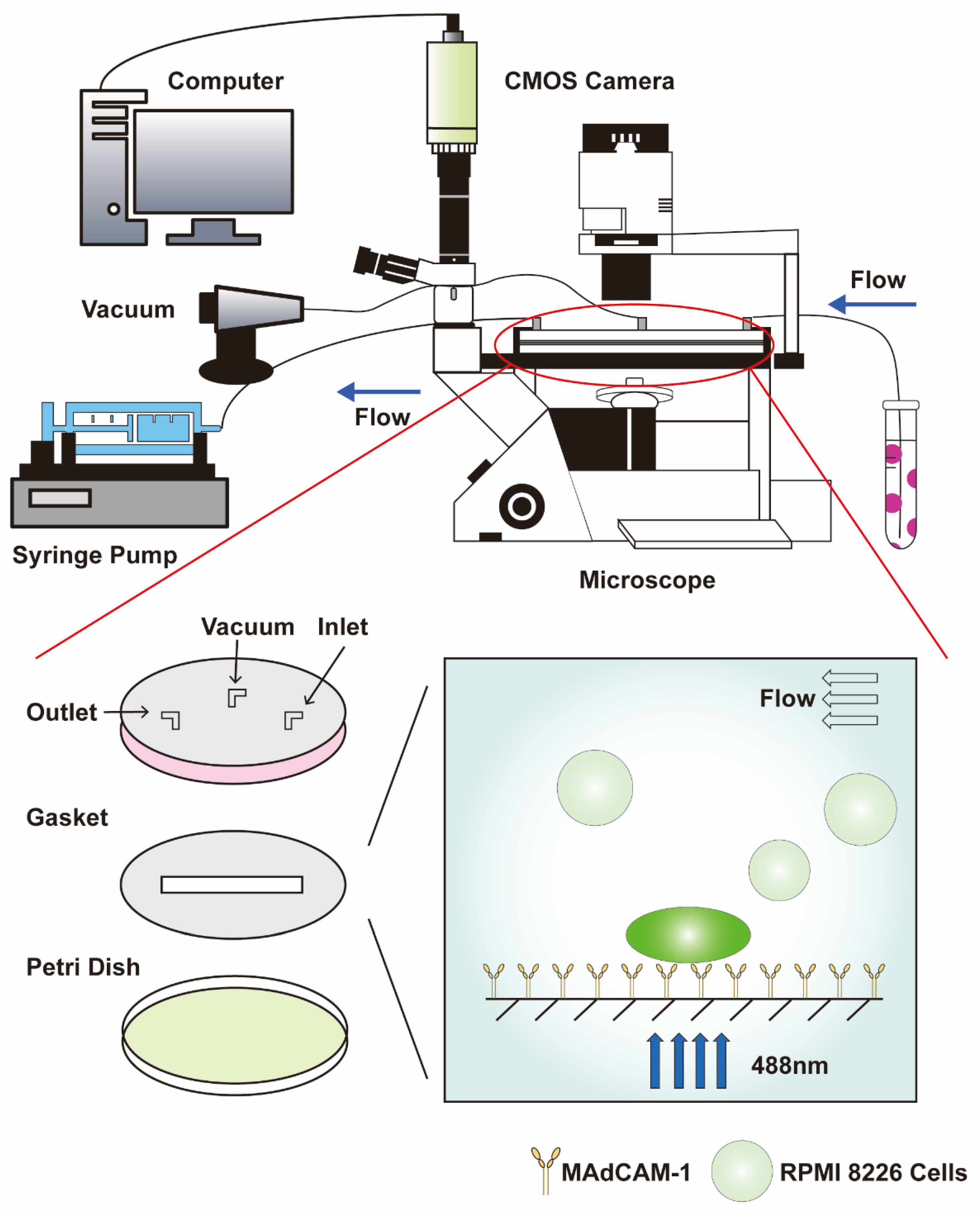

Figure 1. Schematic diagram of parallel plate flow chamber combined with a fluorescence detection system. The dark green cell represents RPMI 8226 cells that adhere stably to the substrate of MAdCAM-1, whose calcium signaling is activated. The light green cell only slides across the surface of the substrate and comprises the background of calcium signaling. CMOS: complementary metal oxide semiconductor.
Figure 1. Schematic diagram of parallel plate flow chamber combined with a fluorescence detection system. The dark green cell represents RPMI 8226 cells that adhere stably to the substrate of MAdCAM-1, whose calcium signaling is activated. The light green cell only slides across the surface of the substrate and comprises the background of calcium signaling. CMOS: complementary metal oxide semiconductor.
Biomolecules 13 00587 g001
Biomolecules 13 00587 g002 550

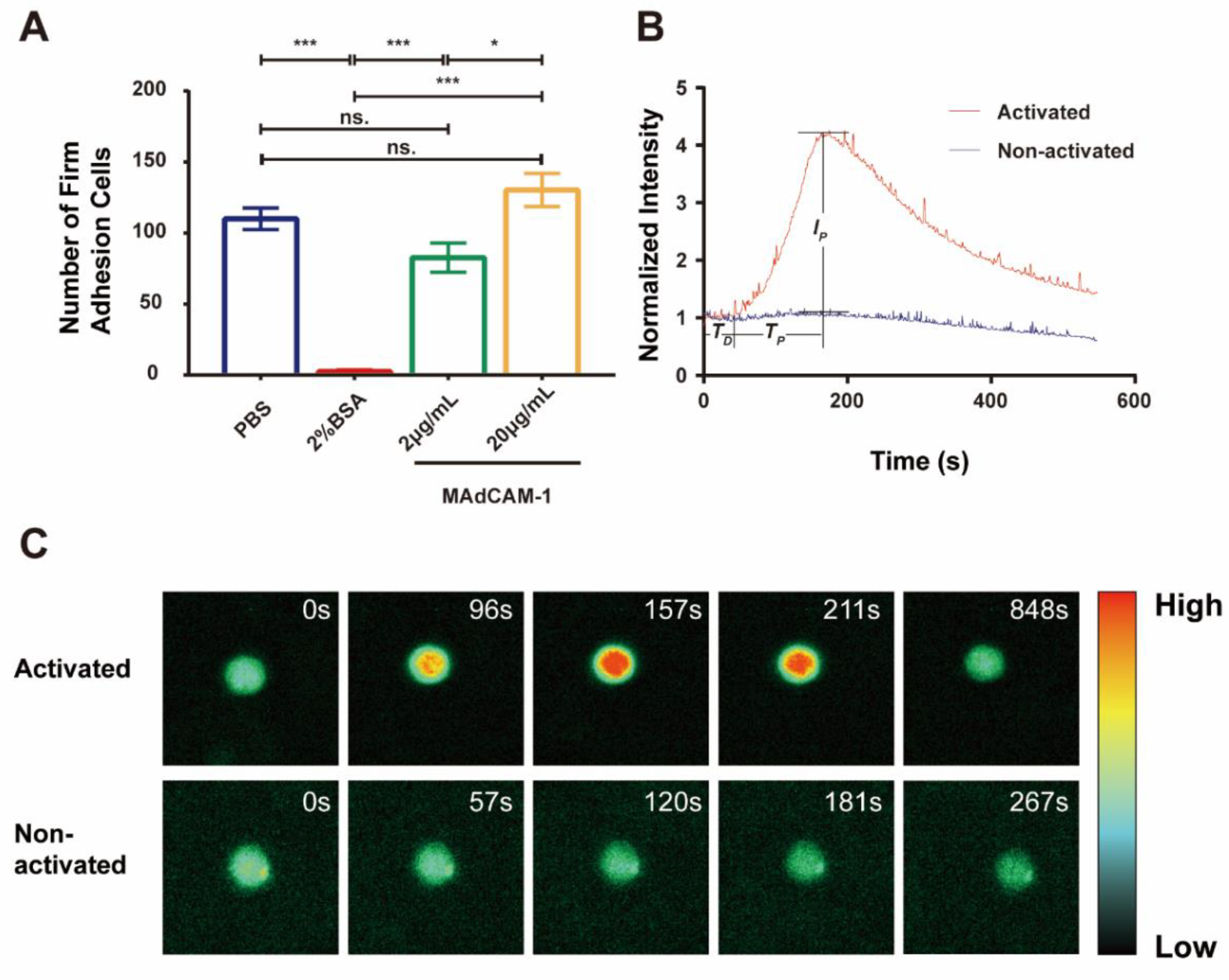

Figure 2. Calcium bursting of firmly adhered RPMI 8226 cells on MAdCAM-1 substrate under flow. (A) Number of firmly adhered RPMI 8226 cells on substrates coated with PBS, 2% BSA only, or plus MAdCAM-1 (2 and 20 μg/mL) under shear stress of 0.3 dyn/cm2. The data represent the mean ± standard error of the mean (SEM) from three independent experiments. The significance of the difference is shown by p-value, with ns. for p > 0.05, * for p < 0.05, and *** for p < 0.001. (B) The time course of the normalized fluorescence intensity of activated (red) or non-activated (blue) calcium signaling cells on the 20 μg/mL MAdCAM-1 substrate over the observation time. TD, delay time; TP, peak time; IP, normalized peak intensity. (C) Two series of fluorescence pseudo-color images are shown to illustrate the activated calcium signaling of firmly adhered RPMI 8226 cells and the non-activated one on 20 μg/mL MAdCAM-1 at different time points.
Figure 2. Calcium bursting of firmly adhered RPMI 8226 cells on MAdCAM-1 substrate under flow. (A) Number of firmly adhered RPMI 8226 cells on substrates coated with PBS, 2% BSA only, or plus MAdCAM-1 (2 and 20 μg/mL) under shear stress of 0.3 dyn/cm2. The data represent the mean ± standard error of the mean (SEM) from three independent experiments. The significance of the difference is shown by p-value, with ns. for p > 0.05, * for p < 0.05, and *** for p < 0.001. (B) The time course of the normalized fluorescence intensity of activated (red) or non-activated (blue) calcium signaling cells on the 20 μg/mL MAdCAM-1 substrate over the observation time. TD, delay time; TP, peak time; IP, normalized peak intensity. (C) Two series of fluorescence pseudo-color images are shown to illustrate the activated calcium signaling of firmly adhered RPMI 8226 cells and the non-activated one on 20 μg/mL MAdCAM-1 at different time points.
Biomolecules 13 00587 g002
Biomolecules 13 00587 g003 550

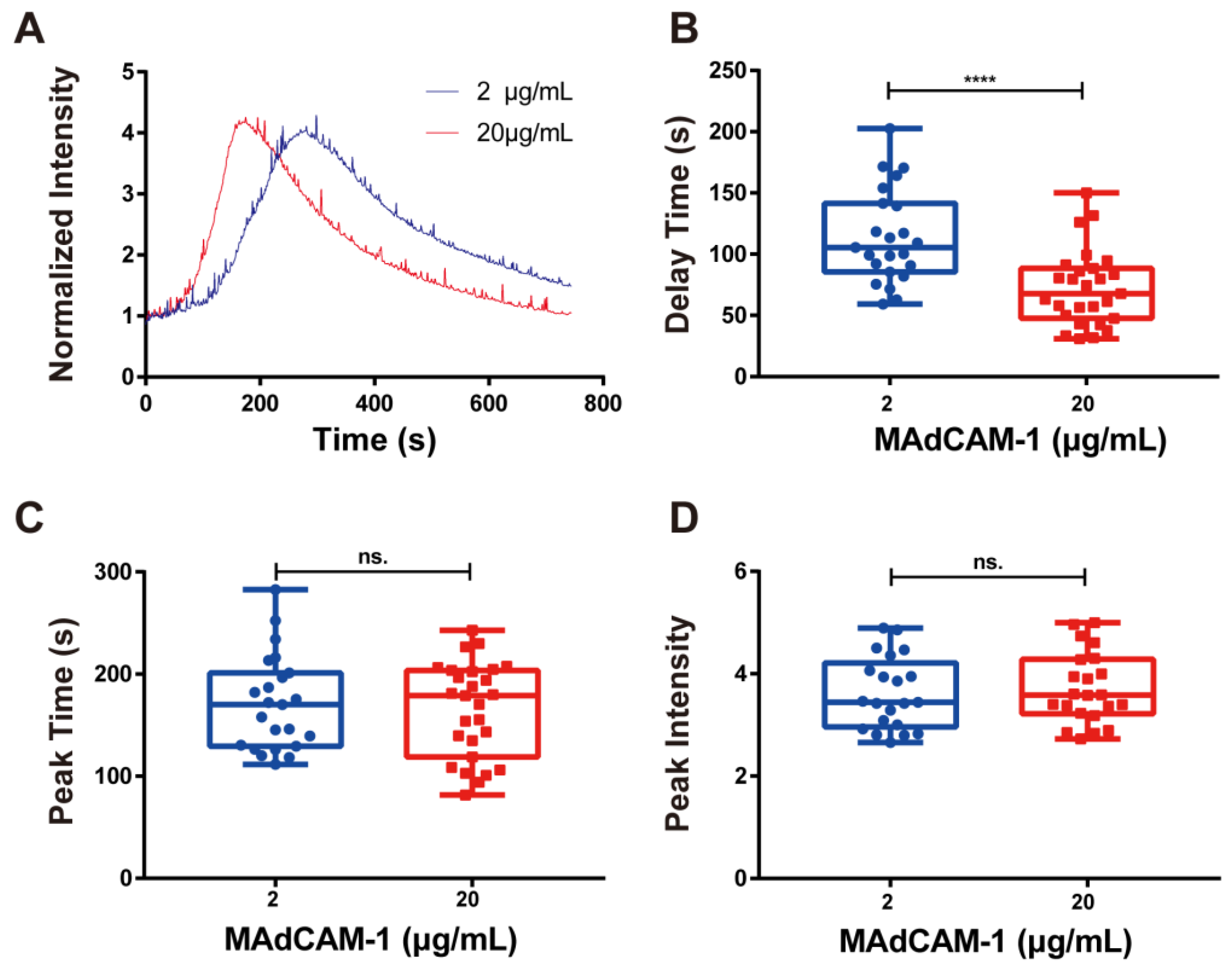

Figure 3. Concentration-dependent calcium signaling. (A) Time course, (B) delay time, (C) peak time, and (D) peak intensity of calcium signaling mediated by the interaction of integrin α4β7 with various concentrations of MAdCAM-1 under wall shear stress of 0.3 dyn/cm2. Data of each group are shown by boxplot with raw data point, where each horizontal line from top to bottom of a boxplot represents the maximum, upper quartile, median, lower quartile, and minimum for the group, respectively. At least 15 typical calcium signaling events of the firmly adhering cells should be collected among three repeat experiments for each group. Significant differences were shown by p-value, ns. for p > 0.05, **** for p < 0.0001.
Figure 3. Concentration-dependent calcium signaling. (A) Time course, (B) delay time, (C) peak time, and (D) peak intensity of calcium signaling mediated by the interaction of integrin α4β7 with various concentrations of MAdCAM-1 under wall shear stress of 0.3 dyn/cm2. Data of each group are shown by boxplot with raw data point, where each horizontal line from top to bottom of a boxplot represents the maximum, upper quartile, median, lower quartile, and minimum for the group, respectively. At least 15 typical calcium signaling events of the firmly adhering cells should be collected among three repeat experiments for each group. Significant differences were shown by p-value, ns. for p > 0.05, **** for p < 0.0001.
Biomolecules 13 00587 g003
Biomolecules 13 00587 g004 550

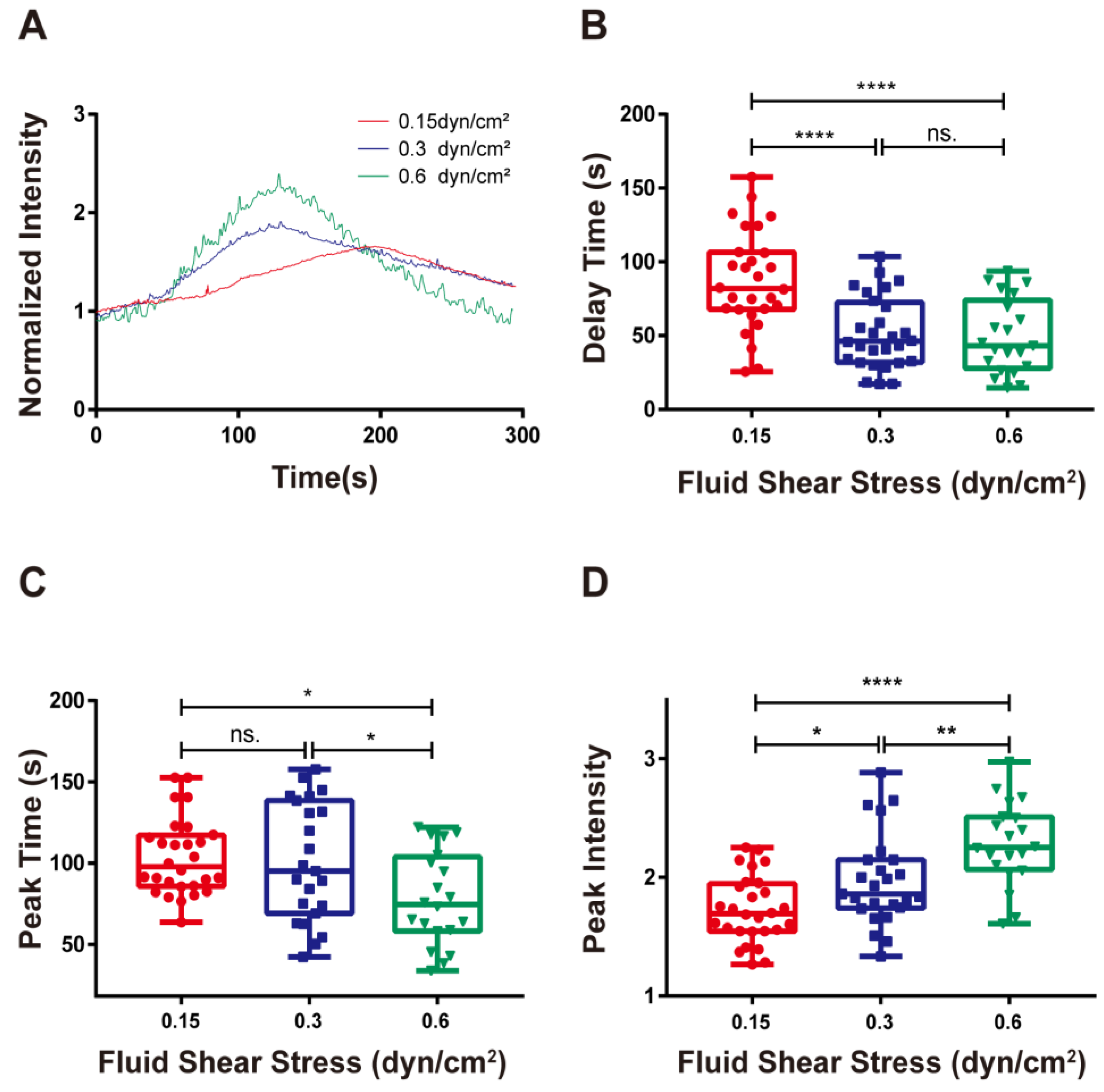

Figure 4. Force-regulated calcium signaling of firmly adhered RPMI 8226 cells. (A) Time course, (B) delay time, (C) peak time, and (D) peak intensity of calcium signaling for firmly adhered RPMI 8226 cells on the substrate coated with 10 μg/mL MAdCAM-1 under shear stresses of 0.15, 0.30, and 0.60 dyn/cm2. Data of each group were shown by boxplot with raw data point, where each horizontal line from top to bottom of a boxplot represents the maximum, upper quartile, median, lower quartile, and minimum for the group, respectively. At least 15 typical calcium signaling events of the firmly adhering cells should be collected among three repeat experiments for each group. Significant differences from the blank substrate group are shown by p-value, with ns. for p > 0.05, * for p < 0.05, ** for p < 0.01, and **** for p < 0.0001.
Figure 4. Force-regulated calcium signaling of firmly adhered RPMI 8226 cells. (A) Time course, (B) delay time, (C) peak time, and (D) peak intensity of calcium signaling for firmly adhered RPMI 8226 cells on the substrate coated with 10 μg/mL MAdCAM-1 under shear stresses of 0.15, 0.30, and 0.60 dyn/cm2. Data of each group were shown by boxplot with raw data point, where each horizontal line from top to bottom of a boxplot represents the maximum, upper quartile, median, lower quartile, and minimum for the group, respectively. At least 15 typical calcium signaling events of the firmly adhering cells should be collected among three repeat experiments for each group. Significant differences from the blank substrate group are shown by p-value, with ns. for p > 0.05, * for p < 0.05, ** for p < 0.01, and **** for p < 0.0001.
Biomolecules 13 00587 g004
Biomolecules 13 00587 g005 550

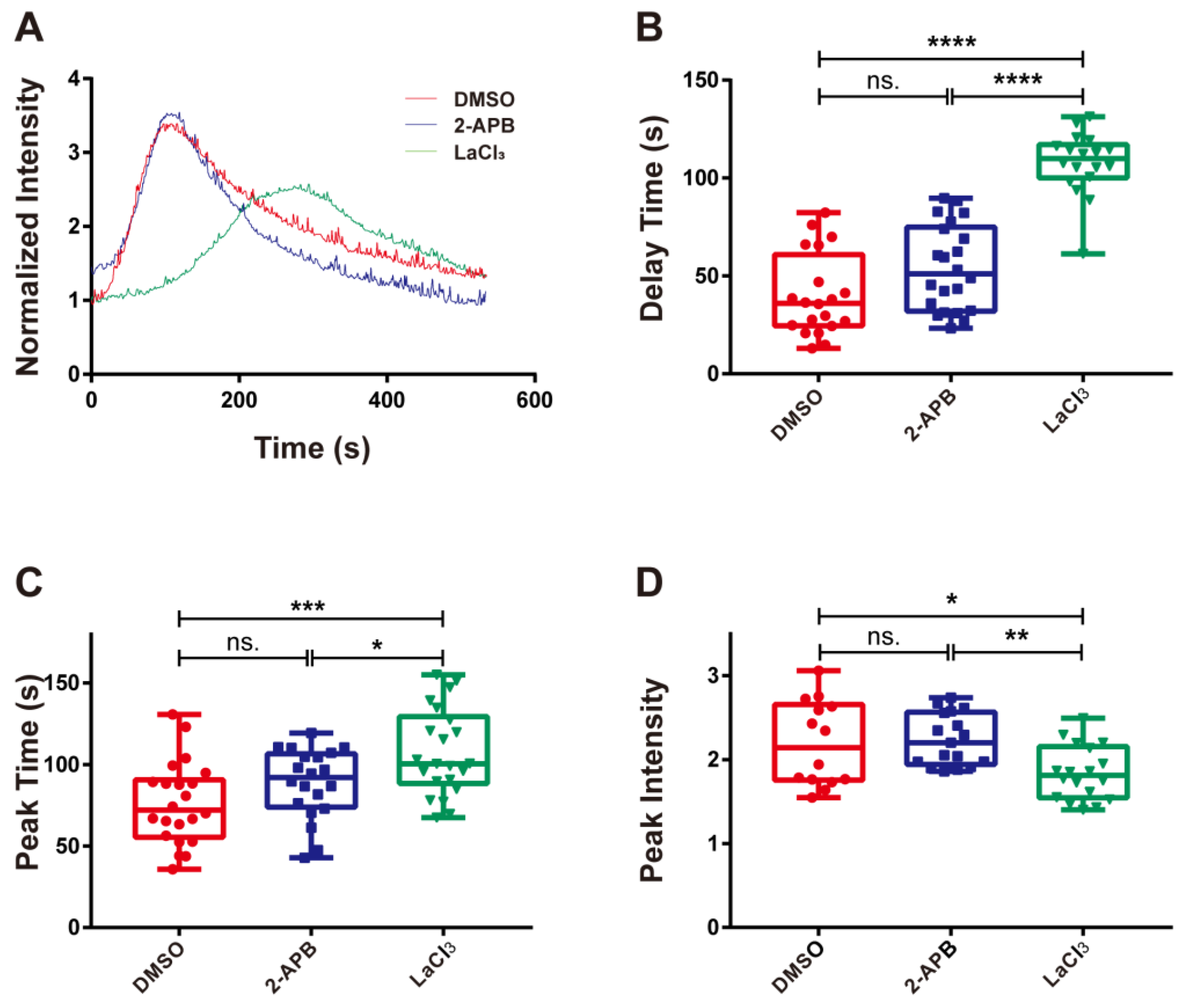

Figure 5. The effects of blocking the membrane calcium channel on calcium signaling. (A) Time course, (B) delay time, (C) peak time, and (D) peak intensity of integrin α4β7/MAdCAM-1 complex-induced calcium signaling of RPMI 8226 cells treated with the membrane calcium channel blocker LaCl3 and the IP3 inhibitor 2-APB or dimethyl sulfoxide (DMSO). The adhesion of RPMI 8226 cells was at a wall shear stress of 0.3 dyn/cm2. Data of each group were shown by boxplot with raw data point, wherein each horizontal line from top to bottom of a boxplot represents the maximum, upper quartile, median, lower quartile, and minimum for the group, respectively. At least 15 typical calcium signaling events of the firmly adhering cells should be collected among three repeat experiments for each group. The significant level of difference with the DMSO control group is shown by p-value, with ns. for p > 0.05, * for p < 0.05, ** for p < 0.01, *** for p < 0.001, and **** for p < 0.0001.
Figure 5. The effects of blocking the membrane calcium channel on calcium signaling. (A) Time course, (B) delay time, (C) peak time, and (D) peak intensity of integrin α4β7/MAdCAM-1 complex-induced calcium signaling of RPMI 8226 cells treated with the membrane calcium channel blocker LaCl3 and the IP3 inhibitor 2-APB or dimethyl sulfoxide (DMSO). The adhesion of RPMI 8226 cells was at a wall shear stress of 0.3 dyn/cm2. Data of each group were shown by boxplot with raw data point, wherein each horizontal line from top to bottom of a boxplot represents the maximum, upper quartile, median, lower quartile, and minimum for the group, respectively. At least 15 typical calcium signaling events of the firmly adhering cells should be collected among three repeat experiments for each group. The significant level of difference with the DMSO control group is shown by p-value, with ns. for p > 0.05, * for p < 0.05, ** for p < 0.01, *** for p < 0.001, and **** for p < 0.0001.
Biomolecules 13 00587 g005
Biomolecules 13 00587 g006 550

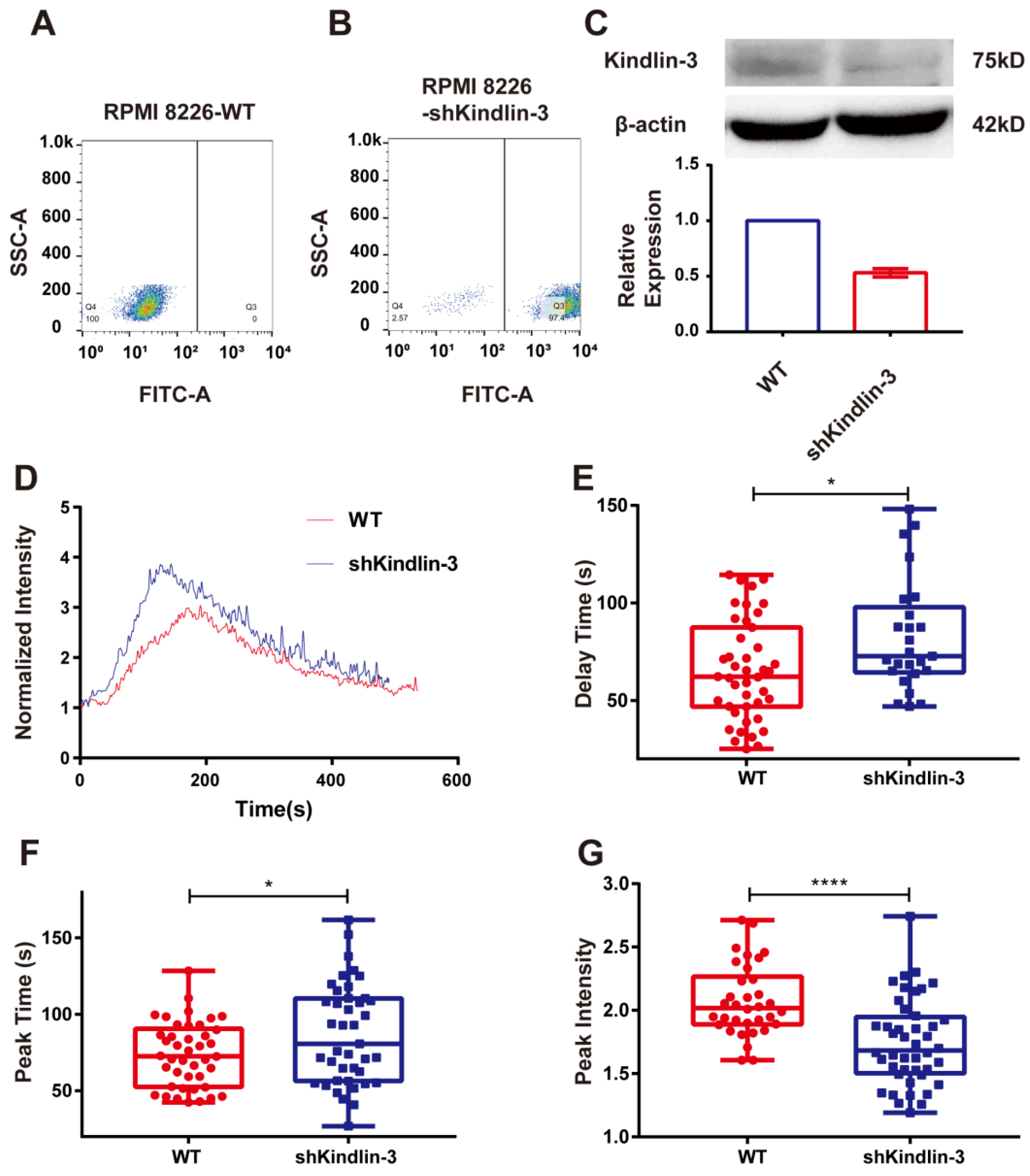

Figure 6. The effects of silencing Kindlin-3 on the calcium signaling of RPMI 8226 cells mediated by integrin α4β7/MAdCAM-1 complex in flow. (A,B) Positive rate of the RPMI 8226 cell line stably transfected by Kindlin-3 short hairpin RNA (shRNA) (RPMI 8226-shKindlin-3) compared to a non-transfected cell line (RPMI 8226-WT) identified by flow cytometry. (C) Western blotting verified the relative expression of total protein levels of Kindlin-3 between the RPMI 8226 cell line stably transfected by Kindlin-3 shRNA (shKindlin-3) and non-transfected one (WT). (D) Time course, (E) delay time, (F) peak time, and (G) peak intensity of integrin α4β7/MAdCAM-1 complex-induced calcium signaling of RPMI 8226 cells, with or without the silence of Kindlin-3, at a wall shear stress of 0.3 dyn/cm2. Data of each group were shown by boxplot with raw data points, where each horizontal line from top to bottom of a boxplot represents the maximum, upper quartile, median, lower quartile, and minimum for the group, respectively. At least 15 typical calcium signaling events of the firmly adhering cells should be collected among three repeat experiments for each group. Significant differences from the control group (non-treated cells) are shown by p-value, with * for p < 0.05 and **** for p < 0.0001.
Figure 6. The effects of silencing Kindlin-3 on the calcium signaling of RPMI 8226 cells mediated by integrin α4β7/MAdCAM-1 complex in flow. (A,B) Positive rate of the RPMI 8226 cell line stably transfected by Kindlin-3 short hairpin RNA (shRNA) (RPMI 8226-shKindlin-3) compared to a non-transfected cell line (RPMI 8226-WT) identified by flow cytometry. (C) Western blotting verified the relative expression of total protein levels of Kindlin-3 between the RPMI 8226 cell line stably transfected by Kindlin-3 shRNA (shKindlin-3) and non-transfected one (WT). (D) Time course, (E) delay time, (F) peak time, and (G) peak intensity of integrin α4β7/MAdCAM-1 complex-induced calcium signaling of RPMI 8226 cells, with or without the silence of Kindlin-3, at a wall shear stress of 0.3 dyn/cm2. Data of each group were shown by boxplot with raw data points, where each horizontal line from top to bottom of a boxplot represents the maximum, upper quartile, median, lower quartile, and minimum for the group, respectively. At least 15 typical calcium signaling events of the firmly adhering cells should be collected among three repeat experiments for each group. Significant differences from the control group (non-treated cells) are shown by p-value, with * for p < 0.05 and **** for p < 0.0001.
Biomolecules 13 00587 g006
Biomolecules 13 00587 g007 550

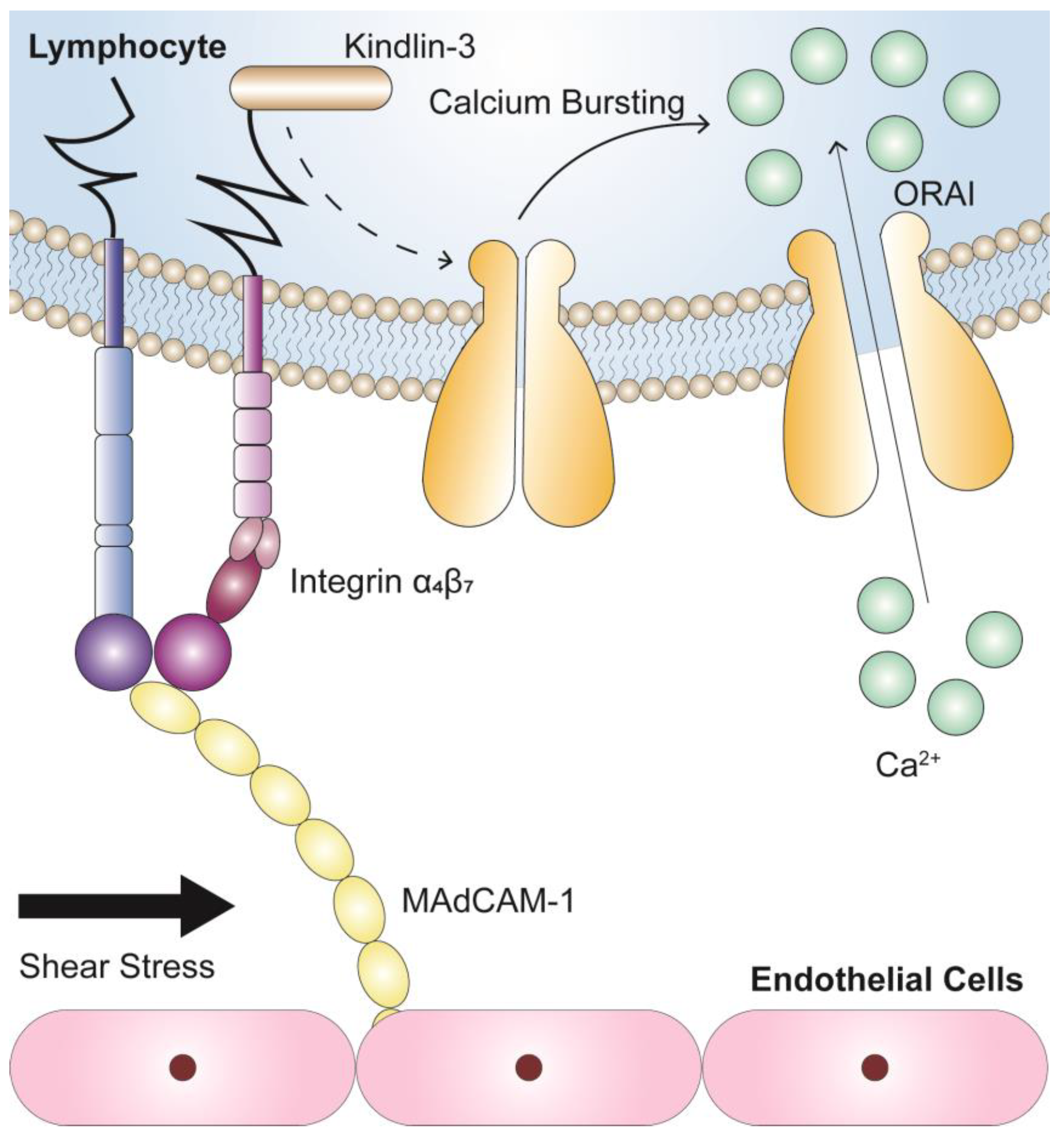

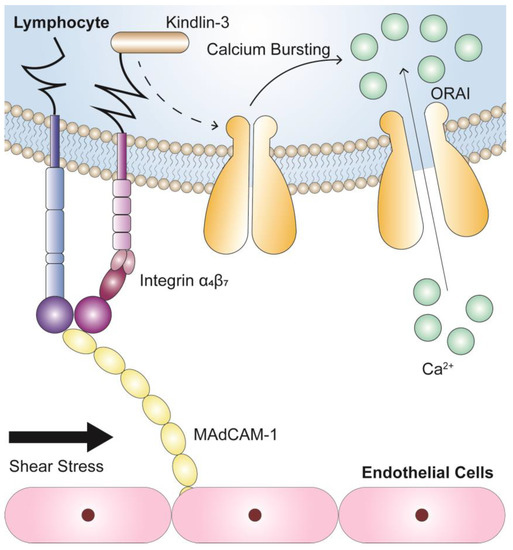

Figure 7. Potential mechanism of calcium signaling for circulating lymphocytes induced by the interaction between integrin α4β7 and MAdCAM-1. Integrin α4β7 engagement of MAdCAM-1 induces the force-dependent calcium signaling of firmly adhered RPMI 8226 cells in flow through a common pathway, in which Kindlin-3 is required, to subsequently activate calcium influx.
Figure 7. Potential mechanism of calcium signaling for circulating lymphocytes induced by the interaction between integrin α4β7 and MAdCAM-1. Integrin α4β7 engagement of MAdCAM-1 induces the force-dependent calcium signaling of firmly adhered RPMI 8226 cells in flow through a common pathway, in which Kindlin-3 is required, to subsequently activate calcium influx.
Biomolecules 13 00587 g007
