Solar Sail Trajectories to Earth’s Trojan Asteroids

Abstract

The recent discovery of Earth’s second Trojan asteroid (2020 XL${}_5$), which will remain in the vicinity of the Sun–[Earth+Moon] triangular Lagrangian point $L_4$ for at least 4000 years, has attracted the attention of the scientific community as a remarkable example of those elusive objects that are the witnesses of the first phase of our Solar System. The possibility that an Earth’s Trojan asteroid (ETa) may represent a pristine record of the initial conditions of the Solar System formation makes these small objects an interesting target for a robotic exploration mission. This paper analyzes orbit-to-orbit Earth–ETa transfer trajectories of an interplanetary spacecraft propelled by a solar sail. In the last decade, some pioneering space missions have confirmed the feasibility and potentiality of the solar sail concept as a propellantless propulsion system able to convert the solar radiation pressure in a continuous thrust by means of a large, lightweight and highly reflective surface. Using the state-of-the-art level of solar sail technology, this paper studies the performance of a solar-sail-based transfer trajectory toward an ETa from an optimal viewpoint and with a parametric approach.

1. Introduction

The existence of Trojan asteroids, orbiting around the $L_4$ or $L_5$ triangular Lagrangian points of a restricted three-body system, have been known since many years for different planets of the Solar System, such as Jupiter, Mars, and Neptune [1,2,3]. In recent years, many efforts have been devoted to discover possible Earth’s Trojan asteroids (ETas). The existence of primordial ETas would be of invaluable scientific importance as they could provide unique information on the Solar System’s dynamical and chemical history. Current theories suggest that primordial ETas could exist [4] and, indeed, numerical simulations have confirmed the stability of some ETa orbits in the presence of perturbations from other planets of the Solar System for a time span up to ${10}^5$ years and possibly permanently [5]. Thus far only two ETas have been found, 2010 $\mathrm{T}{\mathrm{K}}_7$ and 2020 $\mathrm{X}{\mathrm{L}}_5$, and numerical simulations have revealed that both asteroids are transient [6], although their orbits around the Sun–[Earth+Moon] triangular Lagrangian point $L_4$ will remain stable for some thousand years [7]. The difficulty in discovering new ETas is due to several reasons, including their small size, but especially because of their unfavorable viewing geometry when observed from Earth. In fact, asteroids orbiting around $L_4$ or $L_5$ are visible very close to the Sun and under large phase angles [8]. For example, the asteroid 2020 $\mathrm{X}{\mathrm{L}}_5$ is observable only a few minutes before dawn. In addition, 2020 $\mathrm{X}{\mathrm{L}}_5$ is a C-type asteroid, meaning it is carbon-rich and, as such, characterized by a very low albedo. For these reasons, although it was originally discovered in December 2020 by a Pan-STARRS1 survey, the small body 2020 $\mathrm{X}{\mathrm{L}}_5$ has been confirmed to be an ETa only very recently using new sets of observations and archival data from 2012 to 2019 [9].

Due to their scientific interest, ETas represent targets of primary importance for future space missions, especially in case it would be possible for a probe to reach the asteroid surface, collect samples of it and return the samples to Earth. The main problems related to a preliminary analysis and design of trajectories toward the two currently known ETas are therefore worthy of investigation. The orbits of these asteroids, which move in the vicinity of the triangular libration points of the Sun–Earth system, have a semimajor axis very close to that of their parent planet (that is, a≅1$\mathrm{au}$). Unfortunately, sending a probe to rendezvous these asteroids is not a simple task to carry out, as their heliocentric orbits are characterized by high values of eccentricity and inclination. As such, a direct transfer towards them with a typical chemical propulsion system is a very demanding option and, in practice, rather complex with current technology, so that a feasible solution is to plan a mission exploiting one or more intermediate (planetary) flyby maneuvers. This is actually the strategy proposed by Lei et al. [10], who studied possible trajectories to 2010 $\mathrm{T}{\mathrm{K}}_7$ with gravity assists by Venus (V) and Earth (E), using either VE or VEV sequences. However, transfer trajectories with multiple planetary flyby maneuvers usually cause significant increases of flight times due to the constraints related to the celestial body ephemerides.

An interesting option for reducing the flight time and avoiding the need of flyby maneuvers is offered by the use of a propellantless and continuous-thrust propulsion system such as a classical (photonic) solar sail [11,12]. A solar sail, which exploits the continuous pressure from the solar photons acting on a lightweight membrane to produce a net thrust, enables space missions that would be prohibitive with conventional (either chemical or electric) propulsion systems [13]. In particular, it is especially well suited for trajectories requiring an orbital plane change and, indeed, it has been proposed as the primary propulsion system for possible missions towards near-Earth asteroids [14,15,16,17,18]. The aim of this paper is to investigate optimal trajectories towards the two currently known ETas using a probe propelled by a solar sail. In particular, our study is concentrated on the relationships between the sail performance (parameterized with its characteristic acceleration) and the total flight time. To better quantify the actual potentialities of a solar sail, we tackle the problem by looking for the minimum time trajectory that transfers the probe starting from a point on the heliocentric Earth’s orbit to a point on the ETa orbit without considering the ephemerides of the two celestial objects involved in the interplanetary transfer.

2. Problem Description and Mathematical Model

The problem addressed here is to calculate the transfer trajectory of an interplanetary spacecraft, propelled by a classical solar sail, between two Keplerian heliocentric orbits with given characteristics. More precisely, the initial (or the final) orbit, that is, the orbit that the spacecraft traces at the beginning (or at the end) of the transfer, coincides with the Earth’s (or the ETa) heliocentric orbit. This situation is consistent with a case when the solar-sail-based spacecraft leaves the Earth’s sphere of influence using a parabolic escape trajectory, with zero hyperbolic excess velocity relative to the Earth. It is assumed that the spacecraft true anomaly on both the initial and final orbit is not fixed a priori, that is, we study an orbit-to-orbit transfer without considering the ephemerides of the two celestial bodies at both the beginning and the end of the heliocentric mission. This allows us to estimate the optimal transfer performance without including the mission constraints related to actual launch windows, which depend on the current positions of the celestial bodies on their orbits. Since the spacecraft mass does not vary with time, the transfer performance is quantified by the total flight time defined as

$$\mathsf{\Delta }t\triangleq t_f-t_0\equiv t_f$$

(1)

where $t_0\triangleq 0$ is the initial time when the spacecraft leaves the Earth’s orbit, and $t_f$ is the final time, when the spacecraft reaches the ETa and completes the interplanetary rendezvous.

2.1. Solar Sail Thrust Model

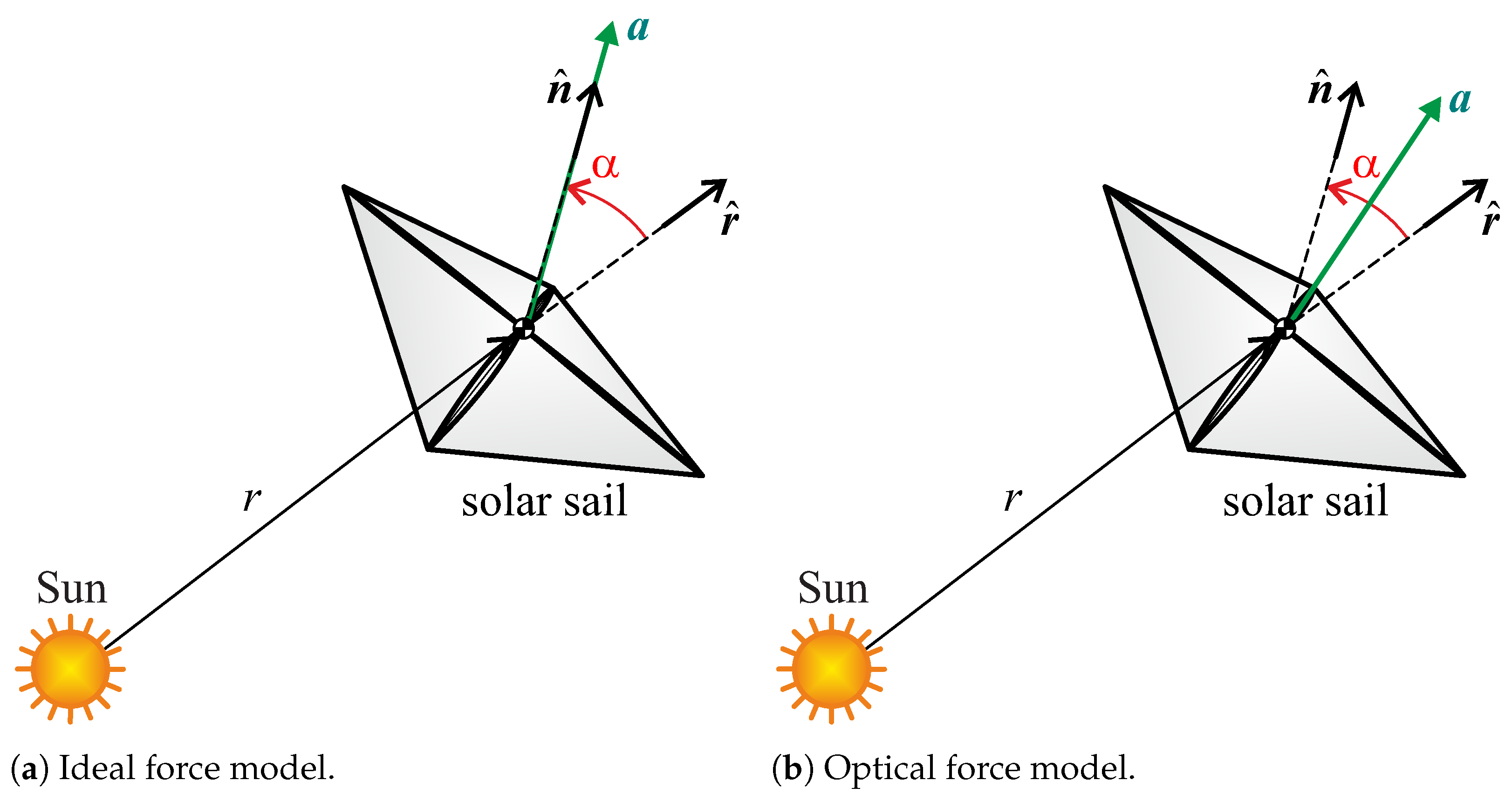

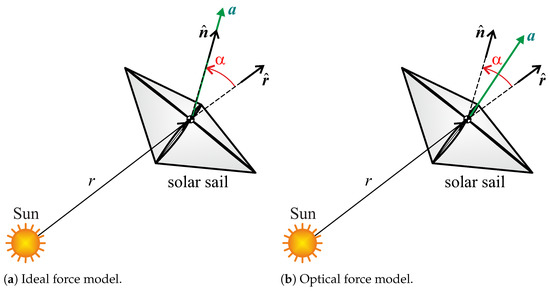

During the transfer, the solar-sail-induced propulsive acceleration vector $\mathit{a}$ may be described by one of the possible thrust models discussed in the classical [19,20,21] or more recent [22,23,24] literature. In this study, we assume a flat solar sail (i.e., a rigid sail membrane in which the solar radiation pressure-induced billowing effect [25,26,27] is neglected) without in-flight degradation of the reflective film [28,29], and we adopt the so called “optical force model” [20], according to which the actual optical characteristics of the sail reflective material are included in the thrust vector description. In particular, the physical characteristics of the solar sail membrane are identified by the reflection coefficient $\rho$, the fraction of photons that are specularly reflected s, the-Lambertian coefficient of the front ($B_f$) or back ($B_b$) sail surface, and the emissivity coefficient of the front (${ϵ}_f$) or back (${ϵ}_b$) sail reflective surface. For example, assuming a sail film with a highly reflective aluminum coated front side and a highly emissive chromium-coated backside, the value of the optical coefficients [19] are summarized in

Table 1. Reflective film optical coefficients in an ideal case, and in a sail membrane with a highly reflective aluminum coated front side and a highly emissive chromium-coated backside.

Force Model	$\mathit{\rho }$	s	${\mathit{B}}_{\mathit{f}}$	${\mathit{B}}_{\mathit{b}}$	${\mathit{ϵ}}_{\mathit{f}}$	${\mathit{ϵ}}_{\mathit{b}}$
ideal	1	1	$2/3$	$2/3$	0	0
optical	$0.88$	$0.94$	$0.79$	$0.55$	$0.05$	$0.55$

. The first row of Table 1 reports the optical coefficients in an ideal case (the so called “ideal force model”), when the sail surface is considered as a specularly reflecting rigid mirror [20].

According to the optical force model described by McInnes [20] and using the approach detailed in Ref. [30], the propulsive acceleration vector $\mathit{a}$ of a flat solar sail can be written as

$$\mathit{a}=\frac{a_c}{b_1+b_2+b_3}{\left(\frac{r_{\oplus }}{r}\right)}^2\left(\widehat{\mathit{n}}·\widehat{\mathit{r}}\right)\left[b_1\widehat{\mathit{r}}+\left(b_2\widehat{\mathit{n}}·\widehat{\mathit{r}}+b_3\right)\widehat{\mathit{n}}\right]$$

(2)

where r is the Sun–spacecraft distance, $r_{\oplus }\triangleq 1\mathrm{au}$ is a reference distance, $a_c$ is the characteristic acceleration, defined as the maximum value of $\parallel \mathit{a}\parallel$ when $r=r_{\oplus }$, $\widehat{\mathit{r}}$ is the Sun–spacecraft unit vector, $\widehat{\mathit{n}}$ is the unit vector perpendicular to the sail nominal plane (in the opposite side of the Sun), whereas $\{b_1,b_2,b_3\}$ are the dimensionless force coefficients [30], which depend on the optical characteristics of the sail reflective film and are defined as

$$\begin{array}{}\mathrm{(3)}& \begin{array}{cc}{b}_1\hfill & \triangleq 1-\rho s\hfill \end{array}\hfill \mathrm{(4)}& \begin{array}{cc}{b}_2\hfill & \triangleq 2\rho s\hfill \end{array}\hfill \mathrm{(5)}& \begin{array}{cc}{b}_3\hfill & \triangleq B_f\rho (1-s)+\frac{(1-\rho )\left({ϵ}_f{B}_f-{ϵ}_b{B}_b\right)}{\left({ϵ}_f+{ϵ}_b\right)}\hfill \end{array}\hfill \end{array}$$

Using the values of $\{\rho ,s,{ϵ}_f,{ϵ}_b,B_f,B_b\}$ from Table 1, Equations (3)–(5) give the force coefficients $\{b_1,b_2,b_3\}$ reported in

Table 2. Force coefficients for an ideal and an optical force model obtained through Equations (3)–(5).

Force Model	${\mathit{b}}_1$	${\mathit{b}}_2$	${\mathit{b}}_3$
ideal	0	2	0
optical	$0.1728$	$1.6544$	$-0.0109$

. Note that, according to the values of Table 2, in an ideal force model the propulsive acceleration vector is aligned with the normal unit vector $\widehat{\mathit{n}}$. Assuming, instead, an optical force model, the direction of $\mathit{a}$ is between the direction of $\widehat{\mathit{n}}$ and that of $\widehat{\mathit{r}}$, as sketched in Figure 1, where $\alpha \in [0,\pi /2]\mathrm{rad}$ is the cone angle, defined as the angle between $\widehat{\mathit{n}}$ and $\widehat{\mathit{r}}$.

In Equation (2), the characteristic acceleration $a_c$ is the typical solar sail performance parameter [20], whose value depends on the total spacecraft mass and the solar sail reflective area. Using current (or near future) solar sail technology, it is possible to reach values of $a_c$ of about $0.1\mathrm{mm}/{\mathrm{s}}^2$ (or $0.5\mathrm{mm}/{\mathrm{s}}^2$). For exemplary purposes, consider the NASA’s Solar Cruiser demonstration mission [31], which is scheduled to be launched in 2025 to test the capability of a large solar sail to reach an artificial orbit between the Earth and the Sun, and to maintain it in a position sunward of the natural Lagrange point $L_1$. The Solar Cruiser will use a propulsion system with a characteristic acceleration of about $0.12\mathrm{mm}/{\mathrm{s}}^2$. On the other hand, the design of the solar sail employed in the proposed Helianthus mission concept [32,33] estimates a value of $a_c\simeq 0.6\mathrm{mm}/{\mathrm{s}}^2$ to be necessary to generate an artificial (collinear) equilibrium point in the Sun–[Earth+Moon] system.

2.2. Spacecraft Dynamics

During the interplanetary transfer, the spacecraft state vector

$$\mathit{x}\triangleq {\left[p,f,g,h,k,L\right]}^{\mathrm{T}}$$

(6)

is described by the Walker’s [34,35] modified equinoctial elements (MEOE) $\{p,f,g,h,k,L\}$. The MEOE can be written as a function of the classical orbital elements $\{a,e,i,\omega ,\mathrm{\Omega },\nu \}$ of the spacecraft osculating orbit, and the result is

$$\begin{array}{}\mathrm{(7)}& \begin{array}{cc}a\hfill & =\frac{p}{1-f^2-g^2}\hfill \end{array}\hfill \mathrm{(8)}& \begin{array}{cc}e\hfill & =\sqrt{f^2+g^2}\hfill \end{array}\hfill \mathrm{(9)}& \begin{array}{cc}i\hfill & =2arctan\sqrt{h^2+k^2}\hfill \end{array}\hfill \end{array}$$

$$\begin{array}{}\mathrm{(10)}& \begin{array}{cc}sin\omega \hfill & =gh-fk,cos\omega =fh+gk\hfill \end{array}\hfill \mathrm{(11)}& \begin{array}{cc}sin\mathrm{\Omega }\hfill & =k,cos\mathrm{\Omega }=h\hfill \end{array}\hfill \mathrm{(12)}& \begin{array}{cc}\hspace{1em}\hspace{1em}\nu \hfill & =L-\mathrm{\Omega }-\omega \hfill \end{array}\hfill \end{array}$$

where a is the semimajor axis, e is the eccentricity, i is the orbital inclination, $\omega$ is the argument of the periapsis, $\mathrm{\Omega }$ is the right ascension of the ascending node, and $\nu$ is the spacecraft true anomaly along the osculating orbit. In a preliminary transfer trajectory design, the spacecraft is considered to be only subject to the gravitational attraction from the Sun and the propulsive acceleration from the solar sail. Paralleling the approach proposed by Betts [36], and bearing in mind the results discussed in Ref. [15], the spacecraft equations of motion can be written as

$$\dot{\mathit{x}}=\mathbb{A}{\left[\mathit{a}\right]}_{\mathrm{RTN}}+\mathit{b}$$

(13)

where $\mathit{x}$ is the state vector given by Equation (6), $\mathit{b}\in {\mathbb{R}}^{6\times 1}$ is defined as

$$\mathit{b}\triangleq {\left[0,0,0,0,0,\sqrt{{\mu }_{\odot }p}{\left(\frac{1+fcosL+gsinL}{p}\right)}^2\right]}^{\mathrm{T}}$$

(14)

in which ${\mu }_{\odot }$ is the Sun’s gravitational parameter, and $\mathbb{A}\in {\mathbb{R}}^{6\times 3}$ is a matrix in the form

$$\mathbb{A}\triangleq \left[\begin{array}{ccc}0& A_{12}& 0\\ A_{21}& A_{22}& A_{23}\\ A_{31}& A_{32}& A_{33}\\ 0& 0& A_{43}\\ 0& 0& A_{53}\\ 0& 0& A_{63}\end{array}\right]$$

(15)

whose non-zero entries are

$$\begin{array}{}\mathrm{(16)}& \begin{array}{cc}\hfill A_{12}& =\frac{2p}{1+fcosL+gsinL}\sqrt{\frac{p}{{\mu }_{\odot }}}\hfill \end{array}\hfill \mathrm{(17)}& \begin{array}{cc}\hfill A_{21}& =sinL\sqrt{\frac{p}{{\mu }_{\odot }}}\hfill \end{array}\hfill \mathrm{(18)}& \begin{array}{cc}\hfill A_{22}& =\frac{\left(2+fcosL+gsinL\right)cosL+f}{1+fcosL+gsinL}\sqrt{\frac{p}{{\mu }_{\odot }}}\hfill \end{array}\hfill \mathrm{(19)}& \begin{array}{cc}\hfill A_{23}& =-\frac{g\left(hsinL-kcosL\right)}{1+fcosL+gsinL}\sqrt{\frac{p}{{\mu }_{\odot }}}\hfill \end{array}\hfill \mathrm{(20)}& \begin{array}{cc}\hfill A_{31}& =-cosL\sqrt{\frac{p}{{\mu }_{\odot }}}\hfill \end{array}\hfill \mathrm{(21)}& \begin{array}{cc}\hfill A_{32}& =\frac{\left(2+fcosL+gsinL\right)sinL+g}{1+fcosL+gsinL}\sqrt{\frac{p}{{\mu }_{\odot }}}\hfill \end{array}\hfill \mathrm{(22)}& \begin{array}{cc}\hfill A_{33}& =\frac{f\left(hsinL-kcosL\right)}{1+fcosL+gsinL}\sqrt{\frac{p}{{\mu }_{\odot }}}\hfill \end{array}\hfill \mathrm{(23)}& \begin{array}{cc}\hfill A_{43}& =\frac{\left(1+h^2+k^2\right)cosL}{2\left(1+fcosL+gsinL\right)}\sqrt{\frac{p}{{\mu }_{\odot }}}\hfill \end{array}\hfill \mathrm{(24)}& \begin{array}{cc}\hfill A_{53}& =\frac{\left(1+h^2+k^2\right)sinL}{2\left(1+fcosL+gsinL\right)}\sqrt{\frac{p}{{\mu }_{\odot }}}\hfill \end{array}\hfill \mathrm{(25)}& \begin{array}{cc}\hfill A_{63}& =\frac{hsinL-kcosL}{1+fcosL+gsinL}\sqrt{\frac{p}{{\mu }_{\odot }}}\hfill \end{array}\hfill \end{array}$$

In Equation (13), the vector ${\left[\mathit{a}\right]}_{\mathrm{RTN}}\in {\mathbb{R}}^{3\times 1}$ consists of the components of the propulsive acceleration vector written in a radial-tangential-normal (RTN) reference frame, of which the unit vectors $\{{\widehat{\mathit{i}}}_{\mathrm{R}},{\widehat{\mathit{i}}}_{\mathrm{T}},{\widehat{\mathit{i}}}_{\mathrm{N}}\}$ are defined as

$${\widehat{\mathit{i}}}_{\mathrm{R}}\equiv \widehat{\mathit{r}},{\widehat{\mathit{i}}}_{\mathrm{N}}\triangleq \frac{\widehat{\mathit{r}}\times \widehat{\mathit{v}}}{\parallel \widehat{\mathit{r}}\times \widehat{\mathit{v}}\parallel },{\widehat{\mathit{i}}}_{\mathrm{T}}\triangleq {\widehat{\mathit{i}}}_{\mathrm{N}}\times {\widehat{\mathit{i}}}_{\mathrm{R}}$$

(26)

where $\widehat{\mathit{v}}$ is the spacecraft velocity unit vector that, by assumption, belongs to the plane $({\widehat{\mathit{i}}}_{\mathrm{R}},{\widehat{\mathit{i}}}_{\mathrm{T}})$. Note that the orientation of the sail nominal plane in the RTN frame is fully defined by means of two angles, that is, the sail cone angle $\alpha$, shown in Figure 1, and the sail clock angle $\delta \in [0,2\pi ]\mathrm{rad}$, sketched in Figure 2. Since the propulsive acceleration, in turn, depends on the orientation of the sail nominal plane, the angles $\alpha$ and $\delta$ represent the two control variables during the design of the solar sail trajectory.

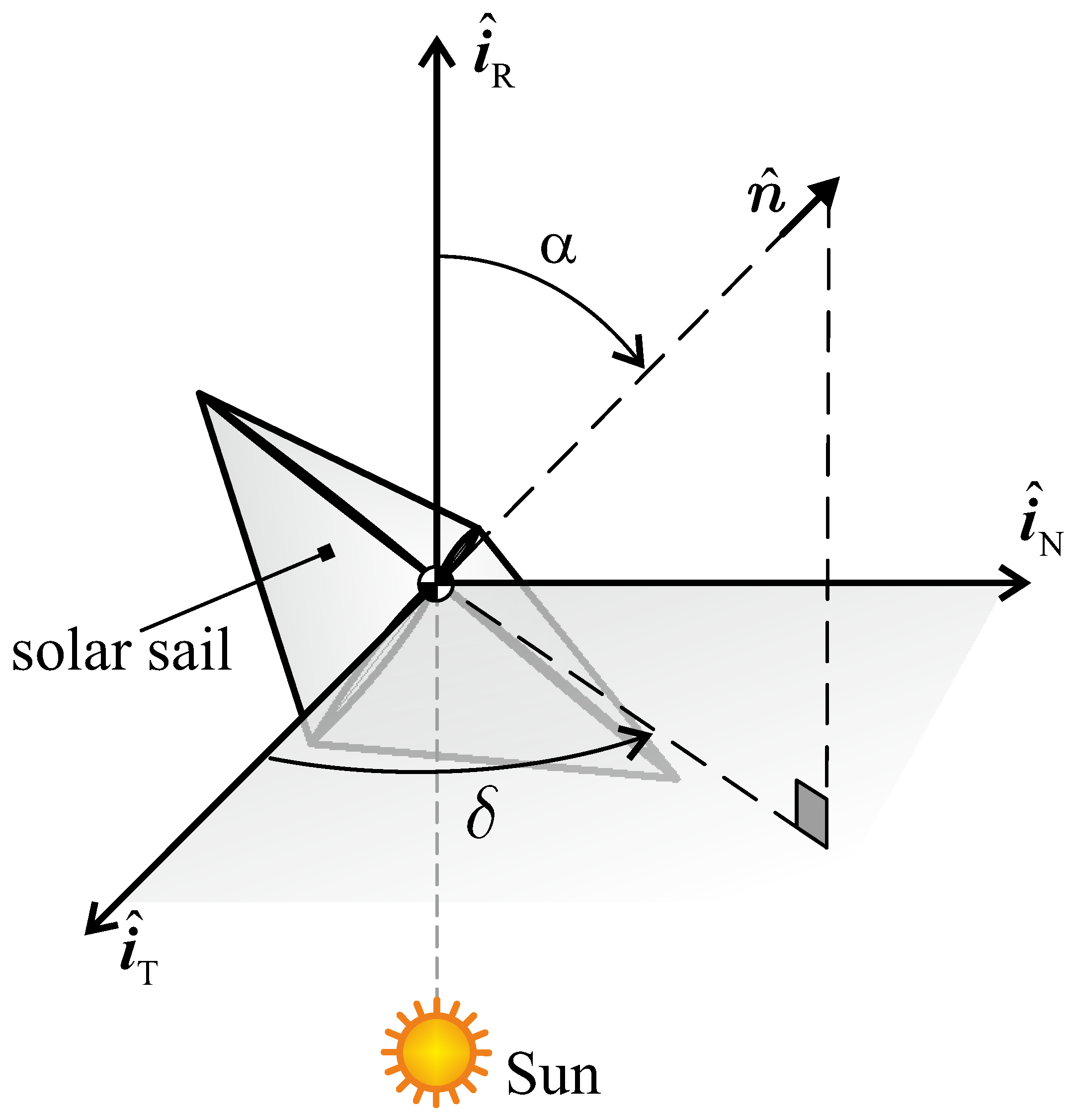

According to the scheme of Figure 2, and bearing in mind Equation (2), the components of the propulsive acceleration vector $\mathit{a}$ in the RTN frame are

$${\left[\mathit{a}\right]}_{\mathrm{RTN}}=\frac{a_c}{b_1+b_2+b_3}{\left(\frac{r_{\oplus }}{r}\right)}^{2}cos\alpha \left[\begin{array}{c}{b}_1+\left(b_{2}cos\alpha +b_3\right)cos\alpha \\ \left(b_{2}cos\alpha +b_3\right)sin\alpha cos\delta \\ \left(b_{2}cos\alpha +b_3\right)sin\alpha sin\delta \end{array}\right]$$

(27)

The vectorial equation of motion (13) gives a system of six scalar differential equations, which is completed by a set of suitable initial conditions. Recalling that the spacecraft angular positions on the initial and the final orbit are both left free, five initial conditions are obtained by observing that the initial values of $\{p,f,g,h,k\}$ coincide with those on the Earth’s heliocentric orbit, whereas the initial value of the remaining MEOE (that is, the value of L) is an output of the optimization process described in the next section. The initial values of the classical orbital elements of Earth’s heliocentric orbit have been retrieved from the JPL Horizons on-line ephemeris system, and the corresponding initial values of $\{p,f,g,h,k\}$ have been calculated with the aid of Equations (28)–(32)

$$\begin{array}{}\mathrm{(28)}& \begin{array}{cc}\hfill p& =a\left(1-e^2\right)\hfill \end{array}\hfill \mathrm{(29)}& \begin{array}{cc}\hfill f& =ecos\left(\omega +\mathrm{\Omega }\right)\hfill \end{array}\hfill \mathrm{(30)}& \begin{array}{cc}\hfill g& =esin\left(\omega +\mathrm{\Omega }\right)\hfill \end{array}\hfill \mathrm{(31)}& \begin{array}{cc}\hfill h& =tan\left(i/2\right)cos\mathrm{\Omega }\hfill \end{array}\hfill \mathrm{(32)}& \begin{array}{cc}\hfill k& =tan\left(i/2\right)sin\mathrm{\Omega }\hfill \end{array}\hfill \end{array}$$

Finally, from Equation (12), note that

$$L=\mathrm{\Omega }+\omega +\nu$$

(33)

Table 3. Classical orbital elements used in the numerical simulations.

Celestial Body	a [au]	e	i [deg]	$\mathit{\omega }$ [deg]	$\mathbf{\Omega }$ [deg]
Earth	$1.0008$	$1.5940\times {10}^{-2}$	$3.0225\times {10}^{-3}$	$302.9781$	$159.8640$
2010 TK${}_7$	$1.0001$	$1.9076\times {10}^{-1}$	$20.8847$	$45.8665$	$96.5194$
2020 XL${}_5$	$1.0007$	$3.8721\times {10}^{-1}$	$13.8467$	$87.9847$	$153.6008$

summarizes the values of $\{a,e,i,\omega ,\mathrm{\Omega }\}$ used in the numerical simulations for the Earth and the target ETa.

Using the data reported in the first row of Table 3, Equations (28)–(32) give the following five initial conditions

$$\begin{array}{c}p\left(t_0\right)=1.0005\mathrm{au},f\left(t_0\right)=-3.5430\times {10}^{-3},g\left(t_0\right)=1.5542\times {10}^{-2},\hfill \\ \hfill \hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}h\left(t_0\right)=-2.4765\times {10}^{-5},k\left(t_0\right)=9.0802\times {10}^{-6}\end{array}$$

(34)

Note that the data of Table 3 can be used to obtain a set of 5 final constraints (that is, calculated at the unknown final time $t_f$), which model the spacecraft rendezvous with the heliocentric orbit of the target ETa. For example, assuming the asteroid 2010 TK${}_7$ as the mission target, the 5 final constraints are

$$\begin{array}{c}p\left(t_f\right)=0.96371\mathrm{au},f\left(t_f\right)=-0.15111,g\left(t_f\right)=0.11643,\hfill \\ \hfill \hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}h\left(t_f\right)=-2.0925\times {10}^{-2},k\left(t_f\right)=0.18311\end{array}$$

(35)

whereas in the case of asteroid 2020 XL${}_5$, the final constraints are

$$\begin{array}{c}p\left(t_f\right)=0.85068\mathrm{au},f\left(t_f\right)=-0.18425,g\left(t_f\right)=-0.34056,\hfill \\ \hfill \hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}h\left(t_f\right)=-0.10876,k\left(t_f\right)=5.3989\times {10}^{-2}\end{array}$$

(36)

2.3. Trajectory Optimization

The spacecraft transfer trajectory is found by minimizing the flight time $\mathsf{\Delta }t$ of Equation (1), that is, by maximizing the performance index J defined as

$$J\triangleq -\mathsf{\Delta }t\equiv -t_f$$

(37)

The optimal control problem is faced with an indirect approach [37] in which, taking Equation (13) into account, the Hamiltonian function $\mathcal{H}$ is given by

$$\mathcal{H}\triangleq \dot{\mathit{x}}·\lambda \equiv \left(\mathbb{A}{\left[\mathit{a}\right]}_{\mathrm{RTN}}\right)·\lambda +\mathit{b}·\lambda$$

(38)

where $\mathit{\lambda }\in {\mathbb{R}}^{6\times 1}$ is a vector defined as

$$\mathit{\lambda }\triangleq {\left[{\lambda }_p,{\lambda }_f,{\lambda }_g,{\lambda }_h,{\lambda }_k,{\lambda }_L\right]}^{\mathrm{T}}$$

(39)

in which ${\lambda }_y$ is the variable adjoint to the (generic) spacecraft MEOE y. The time variation of the generic adjoint ${\lambda }_y$ is obtained from the Euler–Lagrange equations

$${\dot{\lambda }}_y=-\frac{\partial \mathcal{H}}{\partial y}\mathrm{with}y\in \{p,f,g,h,k,L\}$$

(40)

of which the explicit expressions are here omitted for the sake of brevity.

The time variation of the two control angles $\{\alpha ,\delta \}$ is found by applying the Pontryagin’s maximum principle, that is, by maximizing (at any time instant) that part ${\mathcal{H}}^{\prime }$ of the Hamiltonian function $\mathcal{H}$ that explicitly depends on the sail cone and clock angles. Observing that the two controls $\{\alpha ,\delta \}$ appear only in the components of ${\left[\mathit{a}\right]}_{\mathrm{RTN}}$ in Equation (27), and taking Equation (38) into account, we obtain

$${\mathcal{H}}^{\prime }\triangleq \left(\mathbb{A}\mathit{c}\right)·\mathit{\lambda }\mathrm{with}\mathit{c}\triangleq cos\alpha \left[\begin{array}{c}{b}_1+\left(b_{2}cos\alpha +b_3\right)cos\alpha \\ \left(b_{2}cos\alpha +b_3\right)sin\alpha cos\delta \\ \left(b_{2}cos\alpha +b_3\right)sin\alpha sin\delta \end{array}\right]$$

(41)

where $\mathbb{A}$ is given by Equation (15), and $\mathit{\lambda }$ is defined as per Equation (39). Using standard methods, the maximization of ${\mathcal{H}}^{\prime }$ with respect to $\delta$ gives the following expressions of the optimal clock angle

$$sin\delta =\frac{d_s}{\sqrt{d_s^2+d_c^2}},cos\delta =\frac{d_c}{\sqrt{d_s^2+d_c^2}}$$

(42)

where $d_s$ and $d_c$ are two auxiliary functions of the state and the adjoint variables, which are defined as

$$\begin{array}{}\mathrm{(43)}& \begin{array}{cc}\hfill d_s& \triangleq {\lambda }_f{A}_{23}+{\lambda }_g{A}_{33}+{\lambda }_h{A}_{43}+{\lambda }_k{A}_{53}+{\lambda }_L{A}_{63}\hfill \end{array}\hfill \mathrm{(44)}& \begin{array}{cc}\hfill d_c& \triangleq {\lambda }_p{A}_{12}+{\lambda }_f{A}_{22}+{\lambda }_g{A}_{32}\hfill \end{array}\hfill \end{array}$$

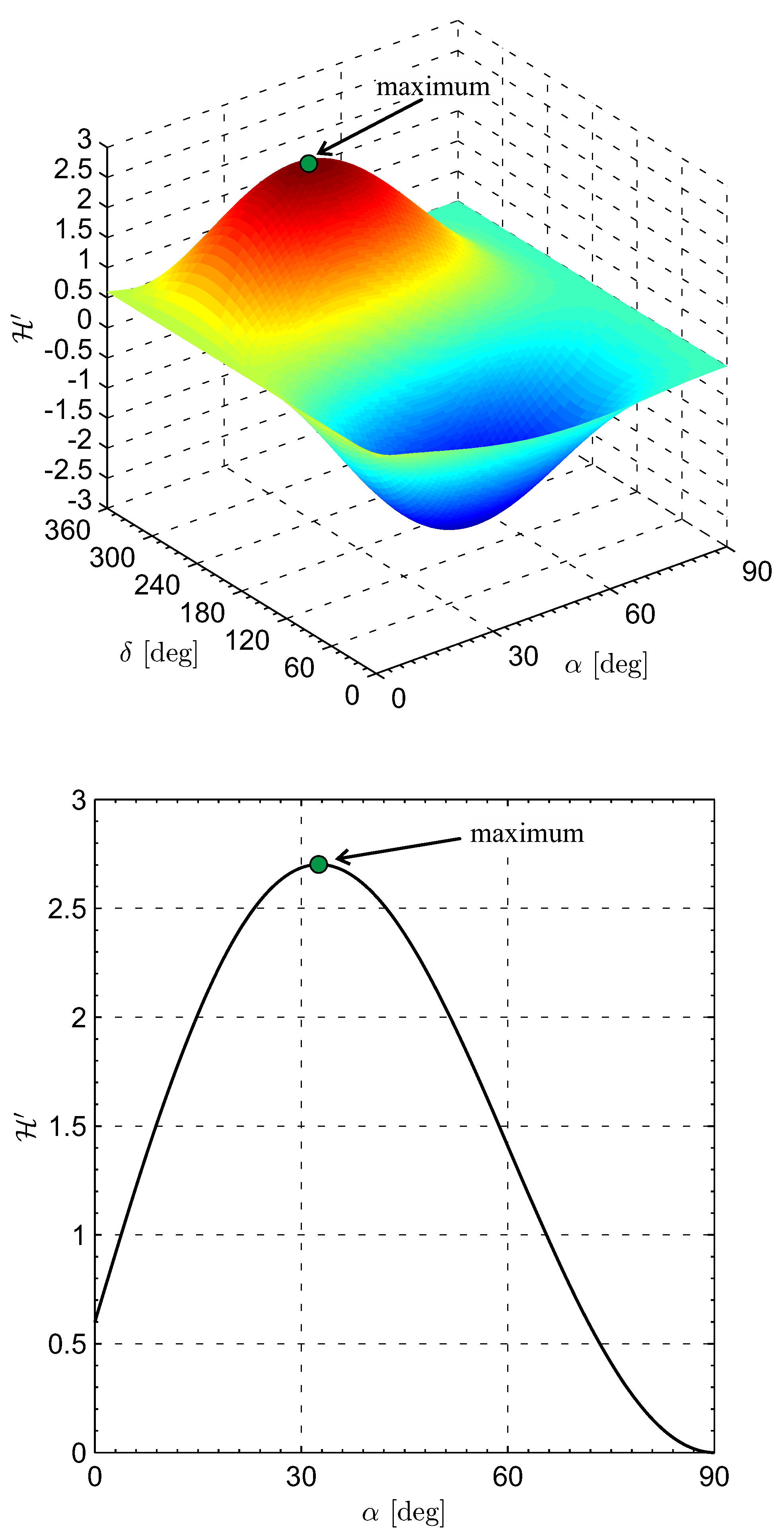

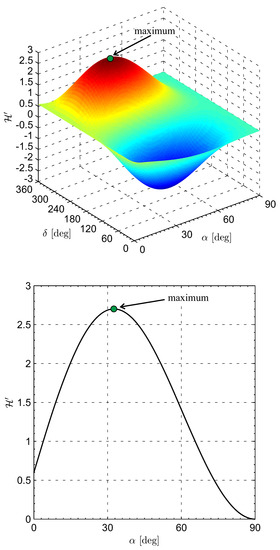

Unfortunately, the maximization of ${\mathcal{H}}^{\prime }$ with respect to $\alpha$ does not provide a closed form expression of the sail cone angle as a function of the state and the adjoint variables. However, using Equation (42) to calculate the optimal clock angle, ${\mathcal{H}}^{\prime }$ may be written as a function of the single variable $\alpha$. Accordingly, at a given time instant, the function ${\mathcal{H}}^{\prime }={\mathcal{H}}^{\prime }\left(\alpha \right)$ can be maximized with a (standard) numerical method such as, for instance, an algorithm based on the golden section search and parabolic interpolation method [38].

Consider, for example, a set of heliocentric canonical units [39] (so that the Sun’s gravitational parameter is 1), an optical force model with the force coefficients reported in Table 2, and assume $p=1\mathrm{au}$, $f=0.4$, $g=-0.2$, $h=0.7$, $k=0.9$, $L=2$, ${\lambda }_p=0.1$, ${\lambda }_f=0.5$, ${\lambda }_g=-0.3$, ${\lambda }_h=1.3$, ${\lambda }_k=-1$, ${\lambda }_L=-0.7$. In that case, the maximization of ${\mathcal{H}}^{\prime }$ gives $\alpha \simeq 33\mathrm{deg}$ and $\delta \simeq 262.5\mathrm{deg}$, as illustrated in Figure 3, which shows the general function ${\mathcal{H}}^{\prime }={\mathcal{H}}^{\prime }(\alpha ,\delta )$, and the reduced function ${\mathcal{H}}^{\prime }={\mathcal{H}}^{\prime }\left(\alpha \right)$ obtained by considering the (optimal) value of the clock angle $\delta$ given by Equation (42).

The two-point boundary value problem (TPBVP) associated with the optimal control problem is made of 12 scalar (non-linear) differential equations, that is, the equations of motion (13) and the Euler–Lagrange Equation (40). The required 12 boundary constraints are given by the 5 initial conditions of Equation (34), the 5 final conditions of Equation (35) or Equation (36), and by 2 additional equations obtained from the transversality condition [40,41], viz.

$${\lambda }_L\left(t_0\right)=0,{\lambda }_L\left(t_f\right)=0$$

(45)

Note that, according to the definition of the performance index J of Equation (37), the transversality condition also gives the additional constraint [40]

$$\mathcal{H}\left(t_f\right)=1$$

(46)

which is necessary to calculate the (minimum) flight time $t_f$. The numerical approach makes use of a hybrid technique that combines a gradient-search based algorithm to obtain a first estimate of the unknown adjoint variables, with direct methods to refine the solution. The solution of the TPBVP gives the initial values of adjoint variables ${\lambda }_p\left(t_0\right)$, ${\lambda }_f\left(t_0\right)$, ${\lambda }_g\left(t_0\right)$, ${\lambda }_h\left(t_0\right)$, ${\lambda }_k\left(t_0\right)$, the initial true anomaly $\nu \left(t_0\right)$ (and so the value of $L\left(t_0\right)$, see Equation (33)), the final spacecraft true anomaly along the ETa orbit $\nu \left(t_f\right)$, and the minimum flight time $t_f$. It also provides the optimal control law, that is, the time variation of the two control angles $\{\alpha ,\delta \}$ necessary for the spacecraft to complete its minimum-time interplanetary transfer. The results of the numerical simulations are discussed in the next section.

3. Numerical Results

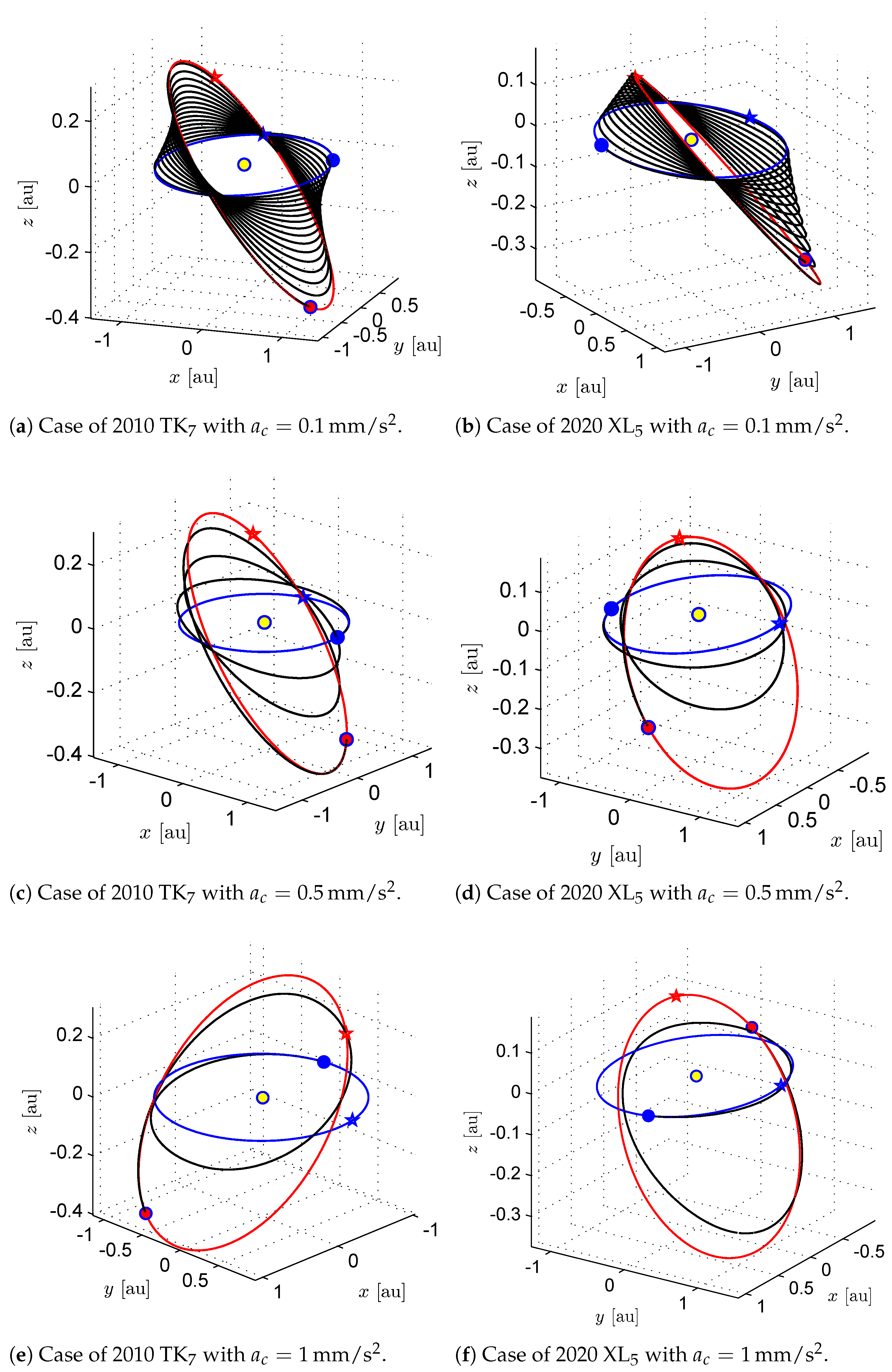

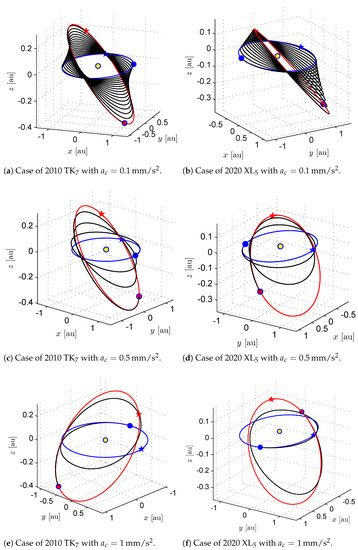

For a given solar sail force model (either ideal or optical), and for an assigned rendezvous mission (with either asteroid 2010 TK${}_7$ or asteroid 2020 XL${}_5$), the minimum-time solution depends on the value of the spacecraft characteristic acceleration. In order to obtain a parametric analysis of Earth–ETa transfer performance, the characteristic acceleration in the numerical simulations has been assumed to range within the interval $[0.1,1]\mathrm{mm}/{\mathrm{s}}^2$. Values of $a_c$ at the bottom (or top) of that range of variation are representative of a solar sail propulsion system designed with current (or future) technology.

With the aid of the mathematical model discussed in the previous section,

Table 4. Earth–asteroid 2010 TK${}_7$ minimum-time performance as a function of the characteristic acceleration and the sail force model.

${\mathit{a}}_{\mathit{c}}$ [mm/s${}^2$]	Force Model	${\mathit{t}}_{\mathit{f}}$ [Days]	$\mathit{\nu }\left({\mathit{t}}_0\right)$ [deg]	$\mathit{\nu }\left({\mathit{t}}_{\mathit{f}}\right)$ [deg]	N
0.1	optical	5032.8	280.3	196.2	15
0.1	ideal	4830.9	264.4	214.3	13
0.2	optical	2530.9	281.1	193.9	7
0.2	ideal	2215.7	306.3	158.3	7
0.3	optical	1644.5	311.3	154.2	5
0.3	ideal	1494.0	347.3	129.7	5
0.4	optical	1271.4	284.5	188.2	3
0.4	ideal	1119.3	304.6	160.1	3
0.5	optical	1110.7	266.8	245.0	3
0.5	ideal	910.2	291.8	176.5	2
0.6	optical	838.4	306.4	155.6	2
0.6	ideal	758.4	318.6	133.5	2
0.7	optical	733.8	336.4	126.3	2
0.7	ideal	723.9	291.0	276.3	2
0.8	optical	710.1	317.5	289.9	2
0.8	ideal	643.3	5.2	286.5	1
0.9	optical	640.4	32.2	278.5	1
0.9	ideal	564.4	110.5	279.0	1
1	optical	535.1	86.7	189.6	1
1	ideal	471.4	103.8	168.0	1

and

Table 5. Earth–asteroid 2020 XL${}_5$ minimum-time performance as a function of the characteristic acceleration and the sail force model.

${\mathit{a}}_{\mathit{c}}$ [mm/s${}^2$]	Force Model	${\mathit{t}}_{\mathit{f}}$ [Days]	$\mathit{\nu }\left({\mathit{t}}_0\right)$ [deg]	$\mathit{\nu }\left({\mathit{t}}_{\mathit{f}}\right)$ [deg]	N
0.1	optical	4008.9	150.5	195	12
0.1	ideal	3478.8	213.8	119.5	11
0.2	optical	1868.1	195.2	127.2	6
0.2	ideal	1724.2	224.9	116.2	6
0.3	optical	1233.4	205.5	122.2	4
0.3	ideal	1140.7	237.4	113.2	4
0.4	optical	919	214.0	119.1	3
0.4	ideal	849.6	245.4	112.0	3
0.5	optical	710.2	185.1	132.4	2
0.5	ideal	643.7	205.6	119.0	2
0.6	optical	608.6	228.0	113.4	2
0.6	ideal	561.6	256.8	108.4	1
0.7	optical	547.9	282.2	110.2	1
0.7	ideal	504.3	337.5	111.1	1
0.8	optical	598	225.0	292.8	1
0.8	ideal	559.6	246.7	286.6	1
0.9	optical	568.2	248.2	292.1	1
0.9	ideal	533.8	272.0	285.3	1
1	optical	546.6	269.3	290.8	1
1	ideal	514.7	294.9	283.6	1

summarize the main results of an Earth–ETa trajectory optimization in terms of minimum flight time $t_f$, initial ($\nu \left(t_0\right)$) and final ($\nu \left(t_f\right)$) spacecraft true anomaly, number N of complete revolutions around the Sun during the transfer, and sail force model adopted.

The first two columns of Table 4 and Table 5 can be used, through a best fit procedure, to obtain the function $t_f=t_f\left(a_c\right)$ that gives the minimum flight time as a function of the spacecraft characteristic acceleration. For an assigned mission scenario and a given sail force model, the actual variation of the minimum flight time with $a_c$ may be reasonably approximated by the following simple function

$$t_f\simeq \frac{p_1{a}_c+p_2}{a_c^2+q_1{a}_c+q_2}$$

(47)

where $t_f$ is expressed in days, $a_c$ is in millimeters per square second, and the best fit coefficients $\{p_1,p_2,q_1,q_2\}$ are reported in

Table 6. Best fit coefficients in Equation (47) as a function of the mission scenario and the sail force model.

Scenario	Force Model	${\mathit{p}}_1$	${\mathit{p}}_2$	${\mathit{q}}_1$	${\mathit{q}}_2$
Earth-2010 TK${}_7$	ideal	12,285	41,589	$107.6$	$-1.896$
Earth-2010 TK${}_7$	optical	$\mathrm{275,545.8}$	$\mathrm{3,314,602.08}$	6648	$0.1183$
Earth-2020 XL${}_5$	ideal	$362.83$	$-109.47$	$-0.297$	$-1.425\times {10}^{-3}$
Earth-2020 XL${}_5$	optical	$\mathrm{663,873.84}$	$\mathrm{1,060,354.05}$	3738	$-93.04$

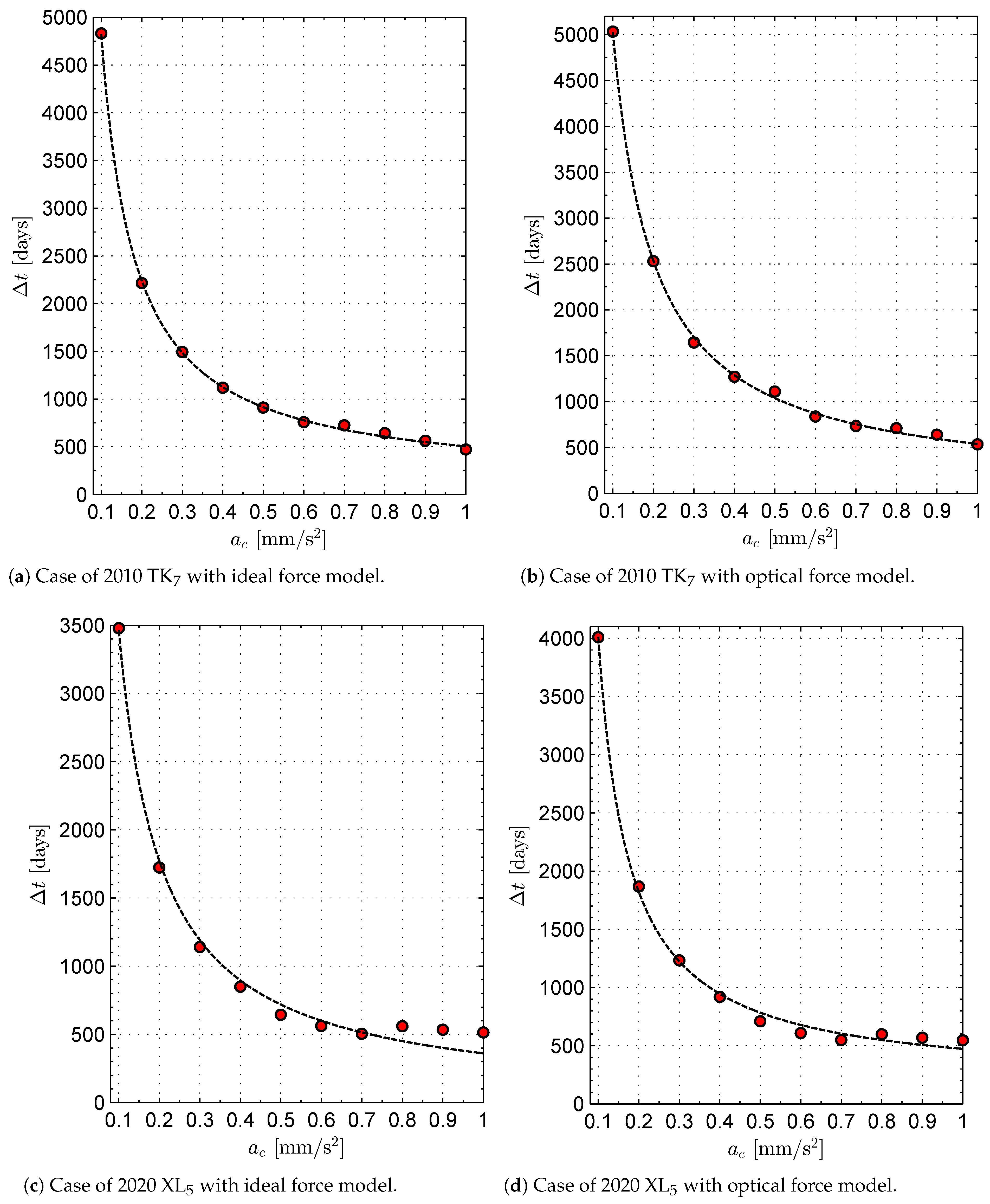

. Figure 4 shows a comparison between the numerical simulation results and the approximate function given by Equation (47). As expected, when a low characteristic acceleration is considered in the optimization process, the value of N tends to increase (see the last column in Table 4 and Table 5), and the transfer trajectory becomes more involved. This aspect is confirmed by Figure 5, which shows the minimum-time transfer trajectory for the two Earth–ETa mission cases (assuming an optical force model) as a function of the characteristic acceleration $a_c$.

Case Study

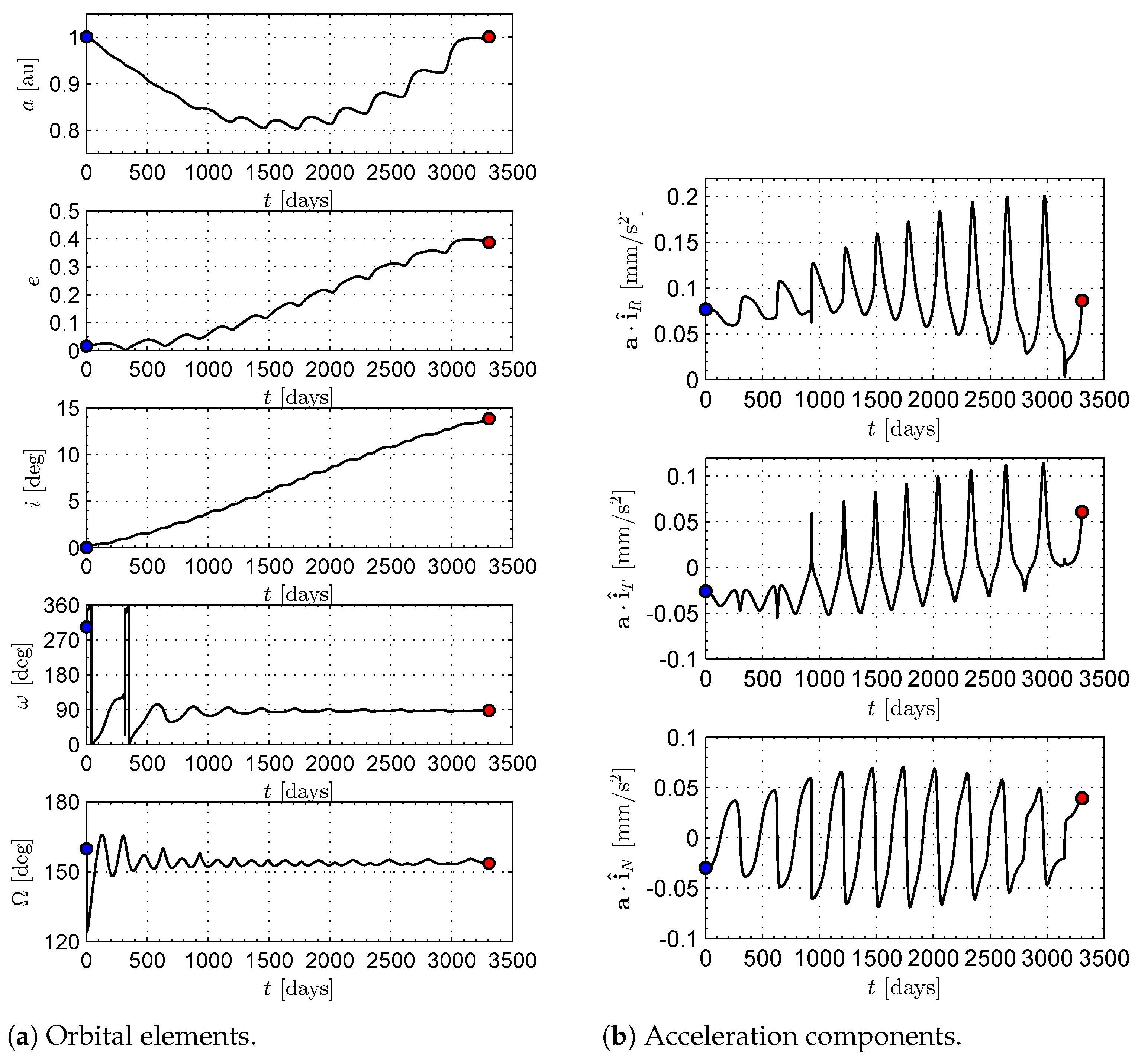

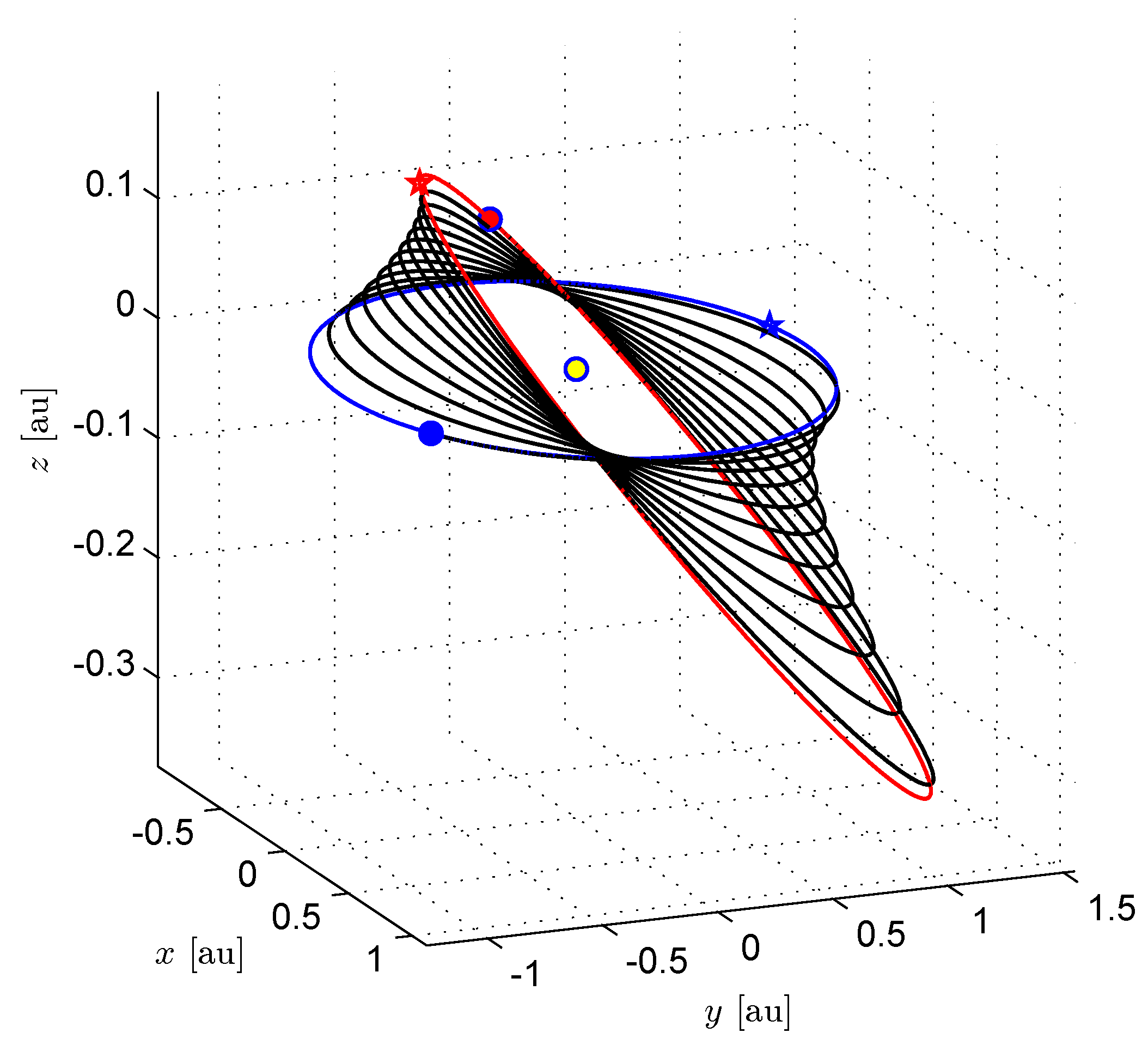

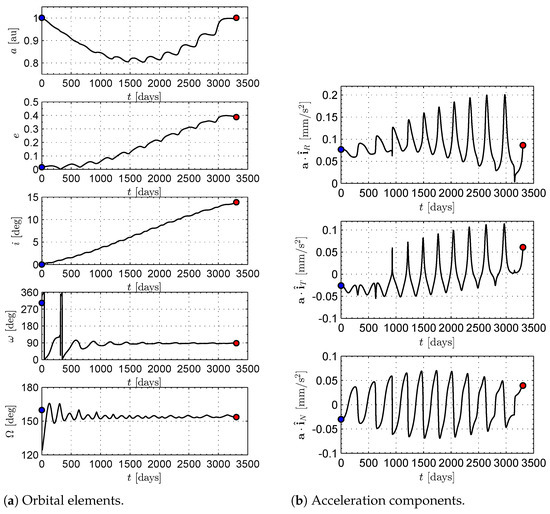

A more detailed analysis is now described in a potential mission scenario from Earth to asteroid 2020 XL${}_5$, assuming the solar sail to have a propulsive acceleration comparable with that employed in the upcoming NASA’s Solar Cruiser interplanetary mission [31]. Accordingly, a value of $a_c=0.12\mathrm{mm}/{\mathrm{s}}^2$ and an optical force model have been used in the numerical simulations to obtain the optimal transfer trajectory illustrated in Figure 6. In this case, the optimal flight time is $t_f$ ≃ 3306$\mathrm{days}$, whereas Equation (47) estimates an approximate value of about $3207\mathrm{days}$ (about $3\%$ smaller). The ephemeris-free optimal orbit-to-orbit transfer starts when the spacecraft true anomaly along the Earth’s orbit is about $195\mathrm{deg}$, whereas the arrival point has a true anomaly (along the ETa heliocentric orbit) of $297\mathrm{deg}$. In this context, the time variations of the classical orbital elements of the spacecraft osculating orbit $\{a,e,i,\omega ,\mathrm{\Omega }\}$ are shown in Figure 7a. Note that the final values of the elements are consistent with the data reported in Table 3. Finally, the time variations of the three components of the propulsive acceleration vector in the orbital RTN reference frame are sketched in Figure 7b.

4. Conclusions

Minimum-time orbit-to-orbit transfers from Earth to one of the two currently known Trojan asteroids have been simulated by solving an optimal control problem with an indirect approach. For a probe propelled by a (flat) solar sail, feasible trajectories exist that enable those transfers without the need of intermediate planetary flyby. The solar-sail-based spacecraft performance has been investigated with a parametric approach as a function of the spacecraft characteristic acceleration. Using the state-of-the-art level of solar sail technology, the interplanetary transfers require flight times on the order of some years, and a substantial reduction of the transfer time could be reached with a characteristic acceleration of about $0.5\mathrm{mm}/{\mathrm{s}}^2$. In fact, simulations have shown that the mission times tends to drastically decrease as the characteristic acceleration increases to a near-term technology level and, indeed, reduce to about 500 days only when a medium-high performance solar sail (with $a_c=1\mathrm{mm}/{\mathrm{s}}^2$) is considered. Although these results have been obtained without considering the planetary ephemerides, they clearly indicate that solar sail propulsion is a very promising option for a mission toward Earth Trojan asteroids. A natural extension of this work is a preliminary analysis of an Earth–ETa transfer by considering the actual planetary ephemerides. Since the two celestial bodies involved in the transfer roughly share the same value of semimajor axis (and so nearly the same orbital period) the ephemeris-constrained transfer can be studied by parametrically analyzing the minimum flight time as a function of the starting true anomaly along the Earth’s orbit, for a fixed value of characteristic acceleration.
