Cold Quark–Gluon Plasma EOS Applied to a Magnetically Deformed Quark Star with an Anomalous Magnetic Moment

Abstract

We consider a QCD cold-plasma-motivated Equation of State (EOS) to examine the impact of an Anomalous Magnetic Moment (AMM) coupling and small shape deformations on the static oblate and prolate core shapes of quark stars. Using the Fogaça QCD-motivated EOS, which shifts from the high-temperature, low-chemical-potential quark–gluon plasma environment to the low-temperature, high-chemical-potential quark stellar core environment, we consider the impact of an AMM coupling with a metric-induced shape deformation parameter in the Tolman–Oppenheimer–Volkov (TOV) equations. The AMM coupling includes a phenomenological scaling that accounts for the weak and strong field characteristics in dense matter. The EOS is developed using a hard gluon and soft gluon decomposition of the gluon field tensor and using a mean-field effective mass for the gluons. The AMM is considered using the Dirac spin tensor coupled to the EM field tensor with quark-flavor-based magnetic moments. The shape parameter is introduced in a metric ansatz that represents oblate and prolate static stellar cores for modified TOV equations. These equations are numerically solved for the final mass and radius states, representing the core collapse of a massive star with a phase transition leading to an unbound quark–gluon plasma. We find that the combined shape parameter and AMM effects can alter the coupled EOS–TOV equations, resulting in an increase in the final mass and a decrease in the final equatorial radius without collapsing the core into a black hole and without violating causality constraints; we find maximum mass values in the range 1.6 M_ʘ < M < 2.5 M_ʘ. These states are consistent with some astrophysical, high-mass magnetar/pulsar and gravity wave systems and may provide evidence for a core that has undergone a quark–gluon phase transition such as PSR 0943 + 10 and the secondary from the GW 190814 event.

1. Introduction

There has been great interest in finding more realistic, QCD-based Equations of State (EOSs) for compact objects since the discovery of anomalous, compact, astrophysical objects, such as the stellar remnant from the energetic hypernova 2006gy [1]. This event, caused by the sudden collapse of a high-mass star, gave rise to final-state mass and radius values that do not agree very well with standard, compact stellar core models. The ongoing observational datasets also include the anomalous X-ray pulsar [2] RX J1856 [3,4] and pulsars such as PSR 0943 + 10 [5], PSR B1828-11 [6], PSR Jo751 + 1807 [7], PSR B1642-03, PSR J1614-2230 and PSR J0348-0432, along with potential magnetar candidates [8] where masses, radii, dual luminosity peaks and cooling rates do not always give excellent fits to conventional models based upon degenerate neutron matter. In general, as a massive, electric-charge-neutral star collapses with a core mass between 1.4 M_ʘ and 2.3 M_ʘ, the resulting object is a rapidly spinning neutron star with a strong magnetic field and a radius of about 10 km; details of these objects are being measured with the Neutron Star Interior Composition Explorer (NICER) satellite and will be improved upon by the Large Observatory for X-ray Timing (LOFT) mission, as described in an extensive review by Burgio [9]. For masses beyond this range, a black hole forms where the no-hair theorems indicate that only the mass and spin of a neutral core can be measured [10]. The central core of the neutron star consists of confined quarks under high pressure. At these pressures, it is possible for the confined quarks to undergo a deconfining phase transition while not forming a black hole. Such a phase transition can result in a smaller radius and higher spin core; these smaller objects are often generally characterized as quark stars, and they can have higher-order multipole moments and various I-Love-Q characterizations, as described in the review by Baym [11], and can find effective no-hair theorems for quark stars and neutron stars [12].

As the observational data have become more robust and refined, more detailed models have emerged to help understand the varied mechanisms at play in dense QCD matter. Several models are gaining support from the observations of the quark–gluon plasma, QGP, demonstrating the existence of a high-temperature, low-chemical-potential state of unconfined quarks, as seen at the SPS [13], LHC [14] and RHIC [15,16] laboratories. In recent years, the QGP data have expanded to include the determination of relativistic, QCD-based transport coefficients [17] and measurements of the overall bulk viscosity for free quark matter [18,19]. Observations of X-ray, γ-ray and quasi-periodic objects, such as SAS J1808.4 -3658, which has a 2.49 ms period [20], have been used to understand how the environment [21] and ambient mass density impact fundamental QCD parameters and potentials [22]. The LIGO-VIRGO detectors also observe events that appear to correspond to massive compact secondaries, such as the GW 190814 [23] event, indicating a secondary with a mass near or above 2.5 M_ʘ. However, it is difficult to find a unique event without, perhaps, reasonable competing scenarios. For instance, in the GW 190814 event, scenarios could involve the 23 M_ʘ primary with a secondary neutron star that is rapidly rotating [24] and could form a black hole by itself or there may be a tertiary object [25] involved which then gives mass values near the conventional neutron star limit of 2.3 M_ʘ for the secondary.

Various EOSs have been used to link the strong coupling constant and quark masses to the local density function using the real-time formalism and the Dyson–Schwinger gap equation at finite temperature [26]. In this way, high-density compact cores can be used to give a density-dependent strong coupling that can be expressed as an analytic function that is suitable for EOS and phase transition analysis [27] with high chemical potentials and lower temperatures. For such a case, the overall charge, density and chemical potentials are constrained by overall charge neutrality for particle number density n_j, mass density ρ_f and electric charge q_j for particle type j or flavor f where ∑q_f n_f = q_e n_e and ρ_B = ρ_u + ρ_d + ρ_s. An additional constraint from the three light-quark-flavor, weak-interaction equilibrium conditions from quark interactions d↔u + e⁻ + ῡ_e, s↔u + e⁻ + ῡ_e, s + u↔d + u constrains the chemical potentials where the neutrinos and antineutrinos exit the core on a short time scale compared to the core formation process, effectively causing their chemical potentials to vanish, resulting in μ_d = μ_u + μ_e, μ_d = μ_s. Then, the EOS can be expressed as a pressure function that is related to the chemical potential from P = −∂U/∂V = n²∂(ε/n)/∂n = nμ − ε, where ε is the energy density, and the chemical potential is μ = ∂ε/∂n. For the massless quark case, this gives a direct comparison to the MIT bag model with bag constant $\mathcal{B}$, where 3P = (ε − 4$\mathcal{B}$) =ε − 4(3μ⁴/4π), linking [28] the vacuum pressure bag constant to the quark chemical potentials which are energy dependent. Other compact core models focus on modified EOSs for various states of dense matter in the QCD ground state of Color-Flavor-Locked (CFL) dense matter [29,30,31] with 2D and 3D color superconductivity [32,33,34] and in the Nambu–Jona-Lasinio (NJL) model [35]. Many models admit to a comparison to versions of the generalized MIT bag model [36] approach and include QCD mean field approximations [37,38] along with computationally intensive numerical lattice approaches that are being improved to accommodate finite-temperature chemical potentials [39]. Refined models include crustal effects [40], deformations [41], layering [42], cooling rates [43], strange quark cores [44], post-merger analysis [45], finite-temperature boson stars [46], kaon condensation [47,48], superconducting color vector potential effects [30,49], phase transitions and different crystalline cores [50,51,52].

In addition, collapsed stellar cores are, in general, rotating and often possess very strong magnetic fields [53]. For collapsed stellar cores composed of self-bound quark matter, the magnetic field energy density should not exceed the vacuum-bound state energy density for a quark system with an energy of order 1 GeV within a diameter of about 1 fm which results in a maximum magnetic field in the order of:

$$\frac{B_{\max }^2}{2{\mu }_o}~{\epsilon }_{binding}\to B_{\max }~\sqrt{2{\mu }_o{\epsilon }_{binding}}~{10}^{15}T.$$

(1)

Detailed mechanisms for achieving magnetic fields of this magnitude are not well understood, and high resolution data from the NASA NICER have given a surface map of PSR J0030 + 0451 showing a complex multipole field structure [54]. A simple and direct method for estimating the magnetic field strength of a collapsed star is to assume that the collapse is magnetic flux conserved from the initial state to the final state, where strong, main-sequence progenitor magnetic fields can be ~1 T with a radius of 1 Gm at 10 M_ʘ and collapse to a radius of order 10 km giving:

$${\varphi }_{B_i}={\displaystyle \oint \overrightarrow{B}\cdot d{\overrightarrow{A}}_i}=B{A}_i=B{A}_f={\varphi }_{B_f}\to B_f={\left(\frac{r_i}{r_f}\right)}^2{B}_i~{10}^{14}T.$$

(2)

However, these overly optimistic estimates do not account for the significant mass loss that makes this estimate untenable for most cases. If we consider the size cutoff to be the Schwarzschild radius, R = 2GM/c², when the magnetic field energy density and the gravitational field energy density are the same, then we find similar maximum field strengths:

$${\epsilon }_B=\frac{B_{\max }^2}{2{\mu }_o}~\frac{9G{M}^2}{20\pi R^4}={\epsilon }_{Gravitational}\to B_{\max }~\sqrt{\frac{9{\mu }_o^{}{c}^8}{160\pi G^3{M}^2}}~{10}^{15}T.$$

(3)

Here, we examine the low-temperature interactions that can be expressed as hard, short-wavelength gluons and soft, long-wavelength gluons with an EOS that includes a magnetic field and where the static compact core is distorted into an oblate or prolate shape necessitating the use of the modified TOV equations. One expects the quarks and gluons to contribute differently to the EOS due to their different spin and color degrees of freedom. For a compact core at the Fermi temperature, estimated by assuming a quark separation on the order of a fraction of a neutron with number density n and quark mass m, the Fermi temperature is $T~{\hslash }^2{n}^{2/3}/3mk~150MeV$ where $\hslash$ is the reduced Planck’s constant, and k is the Boltzmann constant. If we consider the pressure for the noninteracting particles expressed as being due to free-spin ½ fermions and the pressure being due to massless spin-1 bosons for an SU(3)_c color symmetry where the number of degrees of freedom depends on spin, color and flavor degrees of freedom, then the pressures are:

$$p_{gluons}=\frac{g_{gluons}{\pi }^2}{90}{T}^4{g}_{gluon}=2_{spin}\cdot 8_{color}=16p_{quarks}=\frac{g_{quarks}7{\pi }^2}{360}{T}^4{g}_{quark}=2_{spin}\cdot 3_{color}\cdot 2_{flavor}=12\frac{p_{gluons}}{p_{quarks}}~4$$

(4)

indicating that the gluons can play a considerable role in the total pressure of the compact core. The magnetic field resulting from the internal current densities also contributes to the pressure via a Lorentz force density which, by applying Maxwell’s equations, can be expressed as F_j = ε_jkl j_k B_l = −∂_iT_ji where T_ji = −(1/2μ_o) [B² δ_ji − 2B_jB_i], resulting in pressure-like forces both parallel and perpendicular to the magnetic field direction, giving rise to anisotropic magnetic field interactions [55]. For the observed field strengths, these magnetic pressure terms can be similar in magnitude to the quark and gluon pressure terms at the Fermi temperature of the stellar core: p_mag/p_quark ~ 0.5. Fields of this strength alter the EOS and allow for a more massive core where crustal rigidity and rapid rotation [56] can deform [57] the stellar core into a prolate or oblate shape and can alter the long-term stability of the star [58]. For instance, Tatsumi found that when all the quarks stay in the lowest Landau level, there is a critical magnetic field where the EOS can support more mass in a static spherical geometry [59]. However, in general, the magnetic field alters the core shape to be oblate or prolate, which, for neutron stars, results in small changes in the equatorial radius and maximum mass. Such deformations have been observed in rapidly spinning neutron stars, magnetars and tidally deformed binaries [60]. Several shape parameters have been used for neutron star curst deformations and CFL quark stars [61], including oblateness, which is the ratio of the polar radius to the equatorial radius, γ = R_p/R_e, and eccentricity defined as e² = 1 − γ². For slow-rotating neutron stars, e~10⁻⁸, for fast-rotating neutron stars with high magnetic fields, e~0.01, and, with tidal distortions, e > 0.05. To cover slightly more than this range in oblate and prolate cases, we will examine cases where the oblateness ranges from 0.85 to 1.15. For neutron and quark stars, a static shape deformation can be explored with modified TOV equations by introducing a shape parameter into the metric [62]. The structure of the internal magnetic field is difficult to ascertain, in part due to phase change or superconducting boundaries, but some authors parametrize the field by phenomenological models that match a central field strength to the zero pressure surface. For instance, Chatterjee [63] examined several models with improvements on the widely used Sigmoid-like contributions using linear and quadratic exponentials and fixed central core values that match surface values which can be expressed as functions which are not self-consistent solutions to the Einstein–Maxwell equations. Generally, they depend on the ratio of baryon number density to nuclear density, part of which has the form [64,65]: B(n_B/n_o) = B_s + B_c [1 − exp(−β (n_B/n_o)^γ)] with two parameters β and γ, which they generalize to a multipole form. As noted by Kayanikhoo [66], these models for neutron stars have surface magnetic fields in a range of about 10¹²–10¹⁴ G with corresponding internal fields from about 10¹⁸ to 10²⁰ G. However, for an internal EOS with gravitational and magnetic sources of pressure, there exists an inflection point in the mass vs. radius curve, the Mallick [57] critical point, where the magnetic pressure and the matter pressure are balanced. When the magnetic field is increased beyond this point, there is no longer a maximum to the mass even though the gravitational energy is greater than the magnetic energy, indicating the limit to the application of the EOS. Here, we find the maximum field strength is 3.2 × 10¹⁸ G, making this our cutoff maximum value.

The properties of quark matter in a strong magnetic field [67] lead to phenomena such as chiral symmetry breaking [68], magnetic catalysis and critical phenomena. The coupling of the quark AMM to an external magnetic field results in shifts in magnetic susceptibility, changes in confined quark state masses [69], changes in coupling constants [70], shifts in antiscreening [69,71], catalyzing strange matter formation and strange stars [72] and induces inverse magnetic catalysis [73]. While it is known that both the Maxwell electromagnetic AMM and the chromomagnetic QCD AMM can be generated dynamically, here, we are only considering the Maxwell AMM interactions where applications include magnetars, neutron star mergers, heavy ion collisions and early cosmology. In particular, shifts in the two-flavor meson [74] and dilepton [75] spectra of mass values provide insight about the magnitude of the interaction, as observed in particle experiments. Insights have also been gained through lattice simulations used to restrict the form and magnitude of the quark AMM dynamically generated through the spontaneous breaking of chiral symmetry to determine the QCD phase structure in the presence of strong external magnetic fields [76]. Of special interest here are the changes in the QCD phase diagram [77] due to the presence of the quark AMM and magnetic field [78,79] altering the phase boundaries. The magnetic field interaction shifts the critical point and the phase transition boundary, causing a shift in the deconfinement parameters and altering the mass and size of the stellar quark core. For weak fields in a constituent quark model, one can estimate the up- and down-quark AMM couplings using the known magnetic moments of the proton and neutron to find [80] κ_u = 0.2916 GeV⁻¹ and κ_d = 0.35986 GeV⁻¹. In this case, the well-known Schwinger term [81] accounts for the interaction; however, as shown by Ferrer [82], this is not the case for the strong field. Using the one-loop fermion self-energy correction for strong magnetic fields in dense matter, they found that the AMM term makes an insignificant contribution to the EOS. In particular, if we ignore the chemical potential and temperature, the critical value where the weak-field Schwinger term is appropriate corresponds to when the magnetic energy, ℏω_c, where ω = qB/mc in cgs units, is the cyclotron frequency and is equal to the rest-mass energy mc². For light quarks where m_u~m_d~5 MeV/c², the critical field is near B_c^(u,d) = 4.4 × 10¹⁵ Gauss. There is a small mass shift due to the light quark mass differences; however, it is either significantly below or above this value where the mass difference does not impact the result. To introduce the field transition from weak to strong regimes, we introduce a phenomenological Sigmoid step-down function in the AMM term which removes the AMM interaction above the critical value. Overall, this softens the EOS and lowers the maximum core mass value. To explore the resulting changes in the EOS with a magnetic field, we look at separating the QCD interaction into soft and hard gluon modes, as are often used for the cold quark–gluon QCD condensate [83,84] method developed by Fogaça [85] with magnetic field terms that exhibit an external field and an internal field coupling between the anomalous magnetic moment, AMM, of the quarks and the magnetic field of the form σ_μν F_μν where σ_μν is the spin tensor that is proportional to the commutator of the Dirac matrices, and F_μν is the EM field tensor in a fashion similar to Mao [86]. Supporting the more massive and smaller compact core consistent with observations that can be formed by the deconfinement of the quarks requires a modified EOS. Here, we examine such an EOS that results in changes in the maximum mass and radius values for quark stars by including both the magnetic couplings in the EOS and the shape-parameter-generalized TOV equations. In the next section, we summarize the QCD-motivated quark–gluon condensation EOS with a magnetic field and AMM coupling applied in the mean field, followed by the TOV equations. We then numerically solve for the mass–radius dependence and discuss the resulting values with constraints on causality and stability and a comparison of compactness.

2. QCD-Motivated EOS

The EOS of interest here is the cold QGP model of Fogaça modified to include the AMM quark interactions and magnetic field. The method provides a way to extend the high-temperature, low-chemical-potential system to a low-temperature, high-chemical-potential stellar core by decomposing the gluon field into high-momentum hard gluons and low-momentum soft gluons. The hard gluon terms are simplified in the mean field limit, and the soft gluons are replaced by matrix elements of the plasma gluon field. Here, we consider our system to be a remnant quark stellar core that is in weak force equilibrium and in an electric charge neutral state. To find the gluon and quark pressure terms, consider the QCD-core Lagrangian for interacting quarks with flavors denoted by f and the SU(3) generators given by T^a with structure constants f^abc, where a is the color index, q is the electric charge, g is the strength of the color coupling and κ_f = S diag(a_u, a_d) is the AMM coupling with a Sigmoid function, S, to adjust for strong and weak magnetic field regimes, given as:

$${\mathcal{L}}_{core}=-\frac{1}{4}{H}_{\mu \nu }^a{H}^{a\mu \nu }-{\displaystyle \sum _{f=1}^{N_f}{\overline{\psi }}_i^f\left[i{\gamma }^{\mu }\left({\delta }_{ij}{\partial }_{\mu }-ig{T}_{ij}^a{G}_{\mu }^a\right)-{\delta }_{ij}{m}_f+{\kappa }_{f}S{\delta }_{ij}{F}_{\mu \nu }{\sigma }^{\mu \nu }\right]{\psi }_j^f}$$

(5)

where the EM tensor, the gluon field tensor and the spin tensors are defined as:

$$\begin{array}{l}{F}_{\mu \nu }={\partial }_{\mu }{A}_{\nu }-{\partial }_{\nu }{A}_{\mu }\\ H^{a\mu \nu }={\partial }^{\mu }{G}^{a\nu }-{\partial }^{\nu }{G}^{a\mu }+g{f}^{abc}{G}^{b\mu }{G}^{c\nu }\\ {\sigma }^{\mu \nu }=\frac{i}{2}\left[{\gamma }^{\mu },{\gamma }^{\nu }\right]S=\frac{1}{1+e^{\alpha (B-B_c)}}\\ {\kappa }_f={\alpha }_f{\mu }_B,{\alpha }_f=\frac{{\alpha }_e{q}_f^2}{2\pi },{\mu }_B=\frac{e}{2m_f},{\alpha }_e=\frac{e^2}{4\pi }\end{array}$$

(6)

for Dirac matrices in the standard representation with the magnetic field aligned in the positive z-direction using an electromagnetic four-vector potential component in the y-direction A_μ = (A₀, A₁, A₂, A₃) = (0, 0, xB, 0). Initially, we consider a system with one flavor and all quarks with the same mass and will later add the contributions for each flavor, allowing us to use B_c = 4.4 × 10¹⁵ G, and the result is not sensitive to the slope parameter α = 1 G⁻¹. We decompose the gluon field into low momentum, A^aμ, or soft gluons, and high momentum, α^aμ, or hard gluons, using the binomial ansatz:

$$G^{a\mu }=A^{a\mu }+{\alpha }^{a\mu }$$

(7)

where the long-wavelength, low-momentum gluons are responsible for the long-range strong force and the short-wavelength, high-momentum gluons give rise to the short-range strong force. Assuming high gluon occupation numbers at the high cold plasma density and taking the hard gluon term to be a function of coordinates then, in the mean field approximation, the gluons in the core can be described by the conditions:

$$\begin{array}{c}{\alpha }_{\mu }^a={\alpha }_0^a{\delta }_{0\mu }\\ {\partial }^{\mu }{A}^{a\nu }={\partial }^{\mu }{\alpha }^{a\nu }=0.\end{array}$$

(8)

The mean field terms have non-zero matrix elements that arise from the quadratic field terms and the vector potential terms, and the gluons act with an effective mass m_G, resulting in a total pressure [58] as a function quark number density n, quark mass m_q, strong coupling g, quark degrees of freedom γ_Q = (2 sf) for spin s and flavor f, quark AMM expressed in terms of the quark charge q_f, electron charge, e, α_e, and magnetic field B expressed as:

$$\begin{array}{l}p=\left[\left(\frac{3g^2}{2m_G^2}\right)n^2-\frac{251m_G^4}{288g^2}\right]+\frac{{\gamma }_Q}{2{\pi }^2}\left\{\frac{{\pi }^{2}n}{2{\gamma }_Q}\sqrt{{\left(\frac{2{\pi }^{2}n}{{\gamma }_Q}\right)}^{2/3}+m_q^2}-{\left(\frac{2{\pi }^{2}n}{{\gamma }_Q}\right)}^{1/3}\frac{3m_q^2}{8}\sqrt{{\left(\frac{2{\pi }^{2}n}{{\gamma }_Q}\right)}^{2/3}+m_q^2}+\frac{3m_q^4}{8}\ln \left[{\left(\frac{2{\pi }^{2}n}{{\gamma }_Q}\right)}^{1/3}+\sqrt{{\left(\frac{2{\pi }^{2}n}{{\gamma }_Q}\right)}^{2/3}+m_q^2}\right]-\frac{3m_q^4}{16}\ln \left(m_q^2\right)+\frac{{\alpha }_e{q}_f^{2}e}{4\pi m_q}B\right\}+\frac{B^2}{8\pi }\\ \hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}p={\left(p_{\alpha }+p_A\right)}_{Gluon}+\left(p_Q+p_{AMM}\right)+p_B=P_{Gluon-Total}+{\displaystyle \sum _f{P}_{f-Quark-Total}+P_B}.\end{array}$$

(9)

which corresponds to a sum of the hard gluon term, the soft gluon term, the quark term, which includes the AMM term, and the magnetic field term, where the total quark pressure can be found by summing each flavor for u, d and s quarks—quarks heavier than the s quark—giving rise to radial oscillation instabilities that are not included in the sum [28]; for an analysis of charm star stability, see [87,88]. Here, the baryon number density is n_B = (n_u + n_d + n_s)/3, and the nuclear number density is n₀ = 0.17 fm⁻³. For numerical studies, we consider the optimized values of Fogaça; for separate quark terms, we take m_u = 2.16 MeV, m_d = 4.67 MeV and m_s = 93 MeV from the Particle Data Group [89], the gluon effective mass is set to a value that keeps the core n in the stable zone for the mass vs. radius curve, γ_Q = 3 for spin ½ and flavor f = 3 degrees of freedom for u, d and s quarks, and the strong coupling in this regime is given by α_s = g²/4π = 0.01 where g = 2.7. To characterize the overall stiffness and causality of the EOS, we also calculate the speed of sound in the core and the compressibility k given by:

$$c_s^2=\frac{\partial P}{\partial \epsilon }=\frac{\partial P}{\partial \rho }\frac{\partial \rho }{\partial \epsilon }=k\frac{\partial \rho }{\partial \epsilon }\hspace{1em}\hspace{1em}\mathrm{where}k=\frac{\partial P}{\partial \rho }.$$

(10)

It is useful to compare these results to the free quark MIT bag model. If we denote the bag constant by $\mathcal{B}$, then the pressure p, the baryon density ρ_B, the speed of sound c_s and compressibility κ are given by:

$$p=\frac{1}{3}{\left(\frac{3}{2}\right)}^{7/3}{\pi }^{2/3}{\rho }_B^{4/3}-\mathcal{B},\hspace{0.17em}\hspace{0.17em}{\rho }_B=\frac{1}{3}\left({\rho }_u+{\rho }_d+{\rho }_s\right),\hspace{0.17em}\hspace{0.17em}{c}_s=\sqrt{\frac{1}{3}},\hspace{0.17em}\hspace{0.17em}\kappa =\frac{1}{9}{\left(\frac{3}{2}\right)}^{7/3}{\pi }^{2/3}{\rho }_B^{1/3}.$$

(11)

When the gluon terms and quark masses are set to zero, then Equations (9) and (11) agree by identifying the baryon density as one third of the quark density with no bag constant; this is the classic polytrope often used for high-mass white dwarf stars with degenerate relativistic matter with p~ρ^4/3. With soft gluons and massless quarks, the gluons produce a term that corresponds to the bag constant given by the effective gluon mass. Instead of using a mean quark mass, Equation (9) can be extended by including a quark term for each flavor using the effective mass of each quark. Using these values in Equation (9) yields an EOS that can be used with the TOV equations to find end-state mass and radius values for the three-flavor cold quark plasma stellar core with an AMM quark term. In Figure 1, we plot EOS pressures and comparison values of dimensionless compressibility factors and sound speeds for a range of typical number densities expected in the core.

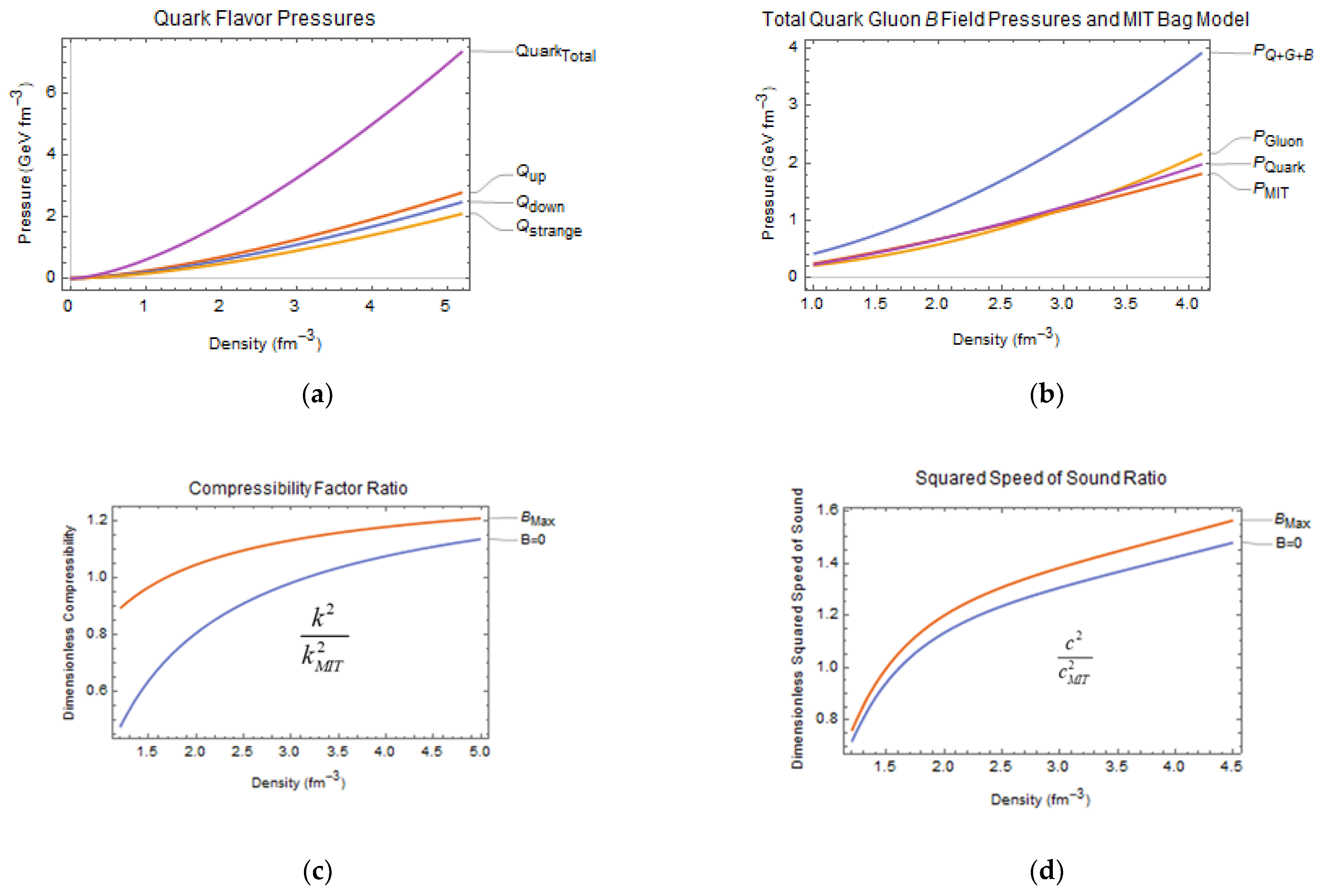

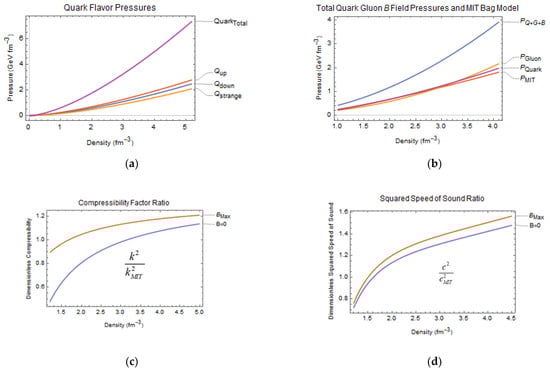

The numerical study of the EOS shows the importance of the gluon terms where the soft gluons establish the effective bag constant and the hard gluons display a quadratic dependence on density. Each flavor term contributes to the pressure, with the lighter quarks contributing slightly more pressure, and, as the density increases, the compressibility and the speed of sound increase. Before solving for the core mass, we want the EOS to represent stable compact matter [89]. We select the stability criterion from Franzon [90], imposed for strange matter stability [91,92], where the stability constraint for this EOS can be expressed in terms of the effective gluon mass and coupling in Equation (9) by requiring the bag constant to be in the range: 38 MeV/fm³ < $\mathcal{B}$ < 75.7 MeV/fm³.

3. TOV Framework

We adopt the method of Zubairi [62] and Yanis [93], which includes deformation and an anisotropic magnetic field, which is similar to the methods developed by Thorne and Hartle [94] for the gravitational field for a static, axisymmetric, oblate/prolate, ellipsoidal mass. In this case, the polar z-direction is scaled by a deformation parameter γ so that z = γr where r is the equatorial radial direction. Then, an oblate shape corresponds to γ < 1, a prolate shape corresponds to γ > 1 and a spherical shape corresponds to γ = 1. This parametrization allows for the field equations to maintain an analytic form as modified TOV equations. The Einstein field equations can be found using the metric ansatz:

$$d{s}^2=g_{\mu \nu }d{x}^{\mu }d{x}^{\nu }=-e^{2\mathsf{\Phi }(r)}d{r}^2+{\left(1-\frac{2m(r)}{r}\right)}^{-\gamma }d{r}^2+r^{2}d{\theta }^2+r^2{\sin }^2\theta d{\phi }^2$$

(12)

with Einstein and stress–energy tensors given by:

$$G_{\mu \nu }=R_{\mu \nu }-\frac{1}{2}{g}_{\mu \nu }R=8\pi T_{\mu \nu }$$

(13)

$$T_{\mu \nu }=\left(\epsilon +P\right)u_{\mu }{u}_{\nu }-g_{\mu \nu }P$$

the resulting modified TOV equations for the pressure and mass are:

$$\frac{dP(r)}{dr}=-\frac{\left(\rho (r)+P(r)\right)\left[\frac{r}{2}+4\pi r^{3}P(r)-\frac{r}{2}{\left(1-\frac{2m(r)}{r}\right)}^{\gamma }\right]}{r^2{\left(1-\frac{2m(r)}{r}\right)}^{\gamma }}$$

(14)

$$\frac{dm(r)}{dr}=4\pi r^2\gamma \rho (r)$$

(15)

where the EOS, Equation (9), gives the pressure term from the effective quark–gluon Lagrangian, the radius of the object is defined to be where the pressure vanishes and the total mass M is the product of the deformation constant and the mass inside the zero-pressure boundary, M = γ m.

4. Numerical Solutions

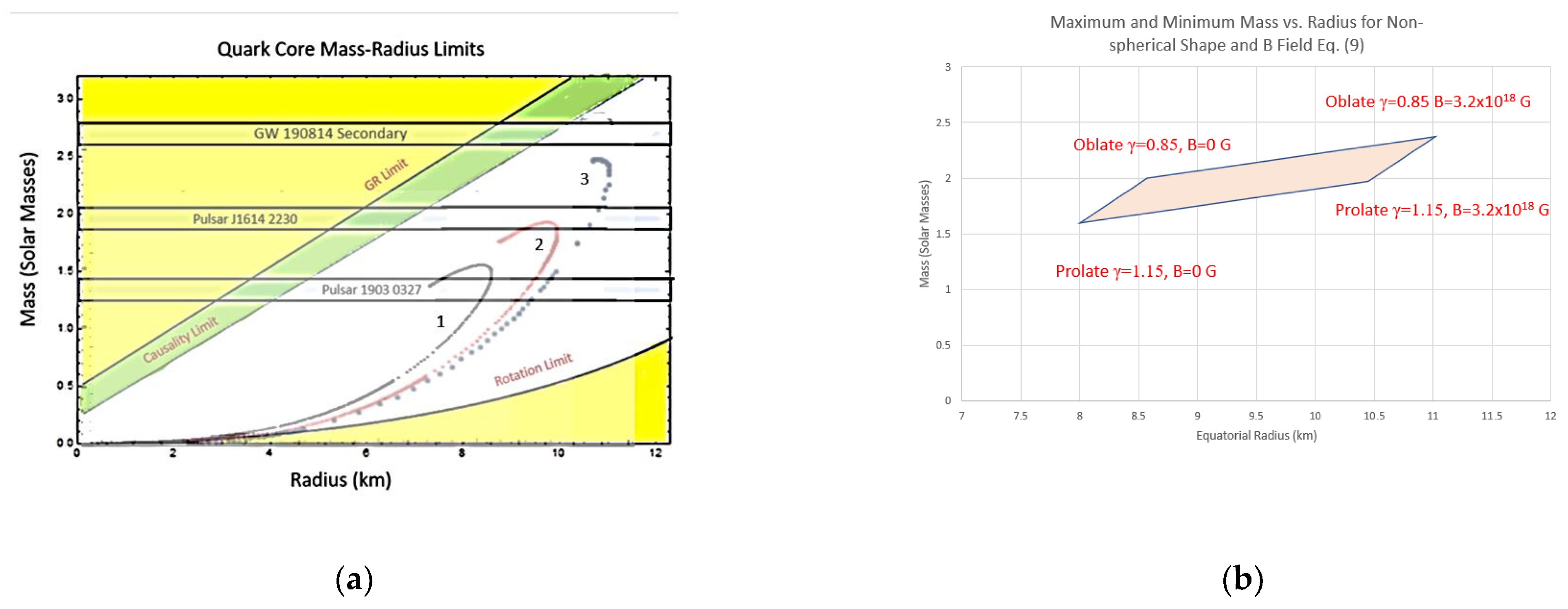

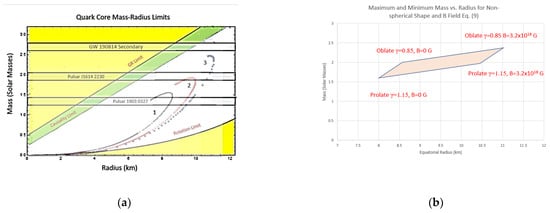

We numerically solve the coupled system of equations using the adaptive NDSolve for stiff systems in Mathematica [95,96,97]. Using the EOS given by Equation (9) and the coupled TOV system of Equation (14) and Equation (15), we solve for the mass and pressure functions. The equatorial radius is taken as the radial value in the equatorial plane where the pressure falls to zero. We solve the system for the limiting magnetic field values for the range of oblateness factors describing the expected deformations shown in Figure 2.

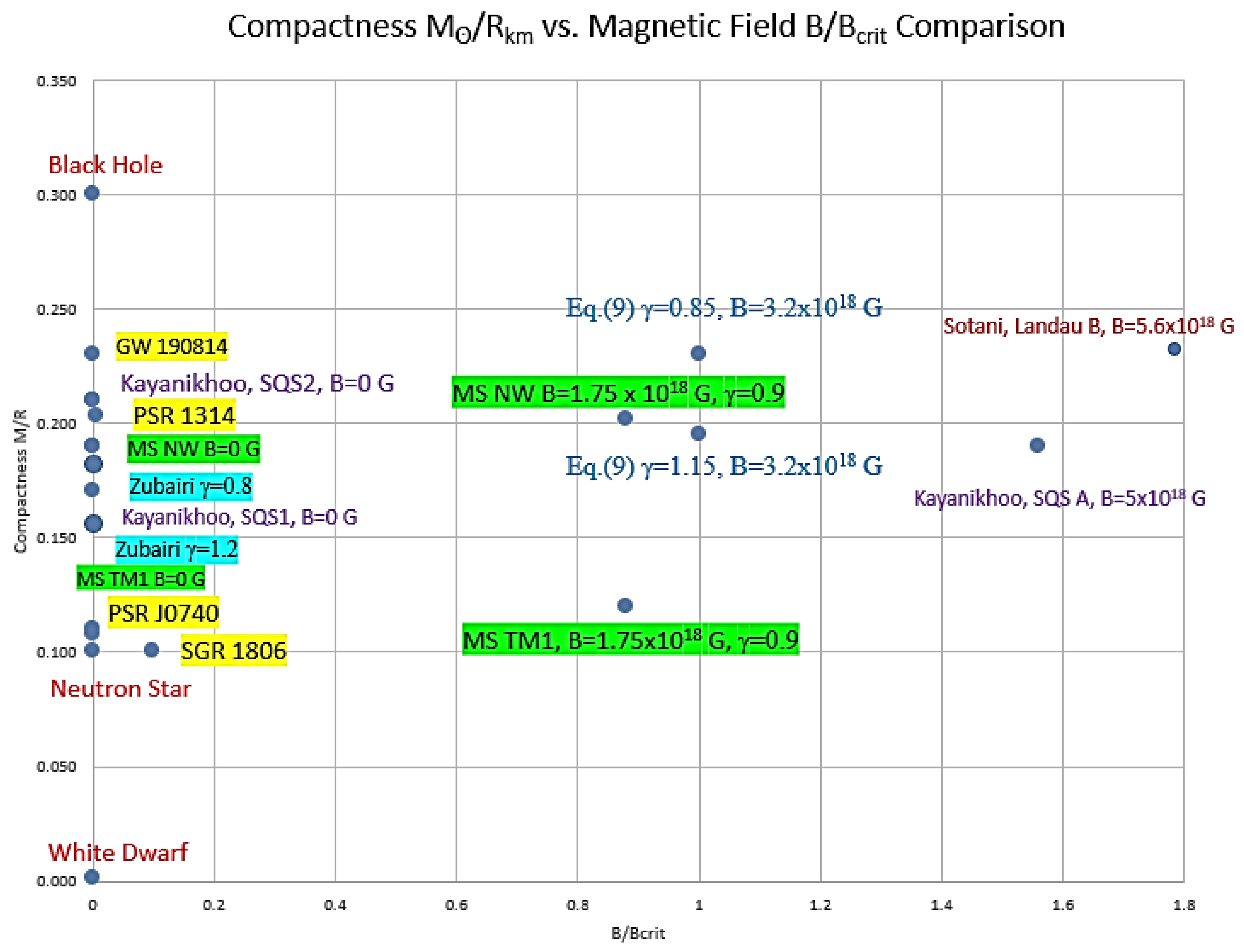

The numerical solutions to the modified TOV equations show that the magnetic field can produce a stiffer EOS up to the critical value, while the deformation increases the stiffness and mass for oblate shapes and decreases the stiffness and mass for prolate shapes. To compare our results to other models that include deformations or magnetic fields, we examine the compactness values for Mallick [57,98], Zubairi [62], Kayanikhoo [66], Sotani [59] and our results from Equation (9). Compactness is defined as the ratio of total mass to equatorial radius; C = M/R_eq for the mass expressed in solar masses and the radius in km. The magnetic fields are scaled to the Equation (9) critical central field intensity B_c = 3.2 × 10¹⁸ G. These models cover a range of different approaches to EOS formulation, where some focus on magnetic field contributions, and Mallick and Sotani include shape deformations similar in scale to the ones used here. The two pulsars, PSR 1413 and PSR J0740, and the magnetar SGR 1806 hold the near-maximum observed mass and magnetic field values for measured surface fields. The GW 190814 event is near the maximum mass companion observed, but the event is model dependent. Figure 3 also includes the standard values for a white dwarf, neutron star and a Schwarzschild black hole.

5. Conclusions

We examined the combined effects of AMM and shape deformation on a cold compact quark stellar core where the EOS is subject to gluon field decomposition into hard and soft gluons with an additive quark term. The soft gluons produce a QCD vacuum barrier that corresponds to the bag constant, and the hard gluons produce a quadratic density dependent pressure while the quarks yield a polytropic pressure. As the deformation parameter goes from oblate to prolate, the equatorial radius is larger for the same mass. As the AMM linear magnetic effect and the external field quadratic term is increased, the EOS is stiffer and can support more mass for the same equatorial radius. At the highest possible magnetic field with an oblate shape, the final mass and radius states are indicative of the values that were observed in cases similar to PSR 1903 0327. As a result, high magnetic fields, gluon exchange and oblate deformations can stiffen the EOS, allowing for a larger quark star with greater mass than a neutron star with densities close to ten times greater than neutron star densities. While a number of theoretical models and the existence of the quark–gluon plasma indicate the possibility of an intermediate stellar core state between the neutron star and black hole, there is no universally agreed upon conclusive evidence for its existence in the current datasets. Next-generation neutron star observatories, such as LOFT, and the enhanced X-ray Timing and Polarimetry mission, eXTP [99], will enhance resolution and allow for better statistics in the near-term search for the existence of a compact stellar quark core. An interesting extension of this work would be to explicitly examine the effects of quark flavor chemical potentials that are expected to further soften the EOS, resulting in a larger equatorial radius for fixed mass and deformation. We are also exploring the impact of the effective massive gluon term on the cooling rate of the quark core, which can be compared to data from objects such as 3C 58 [100] and Cassiopeia A [101].
