# Towards Quantum Simulation of Black Holes in a dc-SQUID Array

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Model and Results

#### 2.1. Simulator

#### 2.2. Black Holes

## 3. Results

#### 3.1. Schwarzschild

#### 3.2. Reissner–Nordstrøm

- If $A=0$:

- 2.
- If $0<\left|A\right|<\frac{1}{\sqrt{2}}$:

- 3
- If $\frac{1}{\sqrt{2}}\le \left|A\right|<1$:

- 4
- If $\left|A\right|=1$:

#### 3.3. Kerr

#### 3.4. Kerr–Newman

## 4. Summary and Conclusions

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Conflicts of Interest

## References

- Woodard, R.P. How far are we from the quantum theory of gravity? Rep. Prog. Phys.
**2009**, 72, 126002. [Google Scholar] [CrossRef] [Green Version] - Hawking, S.W. Chronology protection conjecture. Phys. Rev. D
**1992**, 46, 603–611. [Google Scholar] [CrossRef] [PubMed] - Birrell, N.D.; Davies, P.C.W. Quantum Fields in Curved Space; Cambridge Monographs on Mathematical Physics; Cambridge University Press: Cambridge, UK; New York, NY, USA; Melbourne, Australia, 1982. [Google Scholar] [CrossRef]
- Hawking, S.W. Particle creation by black holes. Commun. Math. Phys.
**1975**, 43, 199–220. [Google Scholar] [CrossRef] - Bousso, R. The holographic principle. Rev. Mod. Phys.
**2002**, 74, 825–874. [Google Scholar] [CrossRef] [Green Version] - Unruh, W.G. Notes on black-hole evaporation. Phys. Rev. D
**1976**, 14, 870–892. [Google Scholar] [CrossRef] [Green Version] - Greenleaf, A.; Kurylev, Y.; Lassas, M.; Uhlmann, G. Electromagnetic Wormholes and Virtual Magnetic Monopoles from Metamaterials. Phys. Rev. Lett.
**2007**, 99, 183901. [Google Scholar] [CrossRef] [Green Version] - Peloquin, C.; Euvé, L.P.; Philbin, T.; Rousseaux, G. Analog wormholes and black hole laser effects in hydrodynamics. Phys. Rev. D
**2016**, 93, 084032. [Google Scholar] [CrossRef] [Green Version] - Prat-Camps, J.; Navau, C.; Sanchez, A. A Magnetic Wormhole. Sci. Rep.
**2015**, 5, 12488. [Google Scholar] [CrossRef] - Clerici, M.; Spalding, G.C.; Warburton, R.; Lyons, A.; Aniculaesei, C.; Richards, J.M.; Leach, J.; Henderson, R.; Faccio, D. Observation of image pair creation and annihilation from superluminal scattering sources. Sci. Adv.
**2016**, 2, e1501691. [Google Scholar] [CrossRef] [Green Version] - Philbin, T.G.; Kuklewicz, C.; Robertson, S.; Hill, S.; K König, F.; Leonhardt, U. Fiber-Optical Analog of the Event Horizon. Science
**2008**, 319, 1367. [Google Scholar] [CrossRef] [Green Version] - Mateos, J.; Sabín, C. Quantum simulation of traversable wormhole spacetimes in a Bose–Einstein condensate. Phys. Rev. D
**2018**, 97, 044045. [Google Scholar] [CrossRef] [Green Version] - Sabín, C. Quantum simulation of traversable wormhole spacetimes in a dc-SQUID array. Phys. Rev. D
**2016**, 94, 081501. [Google Scholar] [CrossRef] [Green Version] - Martín-Vázquez, G.; Sabín, C. Closed timelike curves and chronology protection in quantum and classical simulators. Class. Quantum Gravity
**2020**, 37, 045013. [Google Scholar] [CrossRef] [Green Version] - Sabín, C. One-dimensional sections of exotic spacetimes with superconducting circuits. New J. Phys.
**2018**, 20, 053028. [Google Scholar] [CrossRef] - Steinahuer, J. Observation of quantum Hawking radiation and its entanglement in an analogue black hole. Nat. Phys.
**2016**, 12, 959–965. [Google Scholar] [CrossRef] [Green Version] - Nation, P.D.; Johansson, J.R.; Blencowe, M.P.; Nori, F. Colloquium: Stimulating uncertainty: Amplifying the quantum vacuum with superconducting circuits. Rev. Mod. Phys.
**2012**, 84, 1–24. [Google Scholar] [CrossRef] [Green Version] - Nation, P.D.; Blencowe, M.P.; Rimberg, A.J.; Buks, E. Analogue Hawking Radiation in a dc-SQUID Array Transmission Line. Phys. Rev. Lett.
**2009**, 103, 087004. [Google Scholar] [CrossRef] [Green Version] - Lähteenmäki, P.; Paraoanu, G.S.; Hassel, J.; Hakonen, P.J. Dynamical Casimir effect in a Josephson metamaterial. Proc. Natl. Acad. Sci. USA
**2013**, 110, 4234–4238. [Google Scholar] [CrossRef] [Green Version] - Haviland, D.B.; Andersson, K.; Ågren, P. Superconducting and Insulating Behavior in One-Dimensional Josephson Junction Arrays. J. Low Temp. Phys.
**2000**, 118, 733–749. [Google Scholar] [CrossRef] - Watanabe, M.; Haviland, D.B. Quantum effects in small-capacitance single Josephson junctions. Phys. Rev. B
**2003**, 67, 094505. [Google Scholar] [CrossRef] [Green Version] - Ergül, A.; Schaeffer, D.; Lindblom, M.; Haviland, D.B.; Lidmar, J.; Johansson, J. Phase sticking in one-dimensional Josephson junction chains. Phys. Rev. B
**2013**, 88, 104501. [Google Scholar] [CrossRef] [Green Version] - Josephson, B. Possible new effects in superconductive tunnelling. Phys. Lett.
**1962**, 1, 251–253. [Google Scholar] [CrossRef] - Simoen, M. Parametric Interactions with Signals and the Vacuum. Ph.D. Thesis, Chalmers University of Technology, Gothenburg, Sweden, 2015. [Google Scholar]
- You, J.Q.; Nori, F. Atomic physics and quantum optics using superconducting circuits. Nature
**2011**, 474, 589–597. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Rakhmanov, A.L.; Zagoskin, A.M.; Savel’ev, S.; Nori, F. Quantum metamaterials: Electromagnetic waves in a Josephson qubit line. Phys. Rev. B
**2008**, 77, 144507. [Google Scholar] [CrossRef] [Green Version] - Misner, C.W.; Thorne, K.S.; Wheeler, J.A. Gravitation; W. H. Freeman: San Francisco, CA, USA, 1973. [Google Scholar]

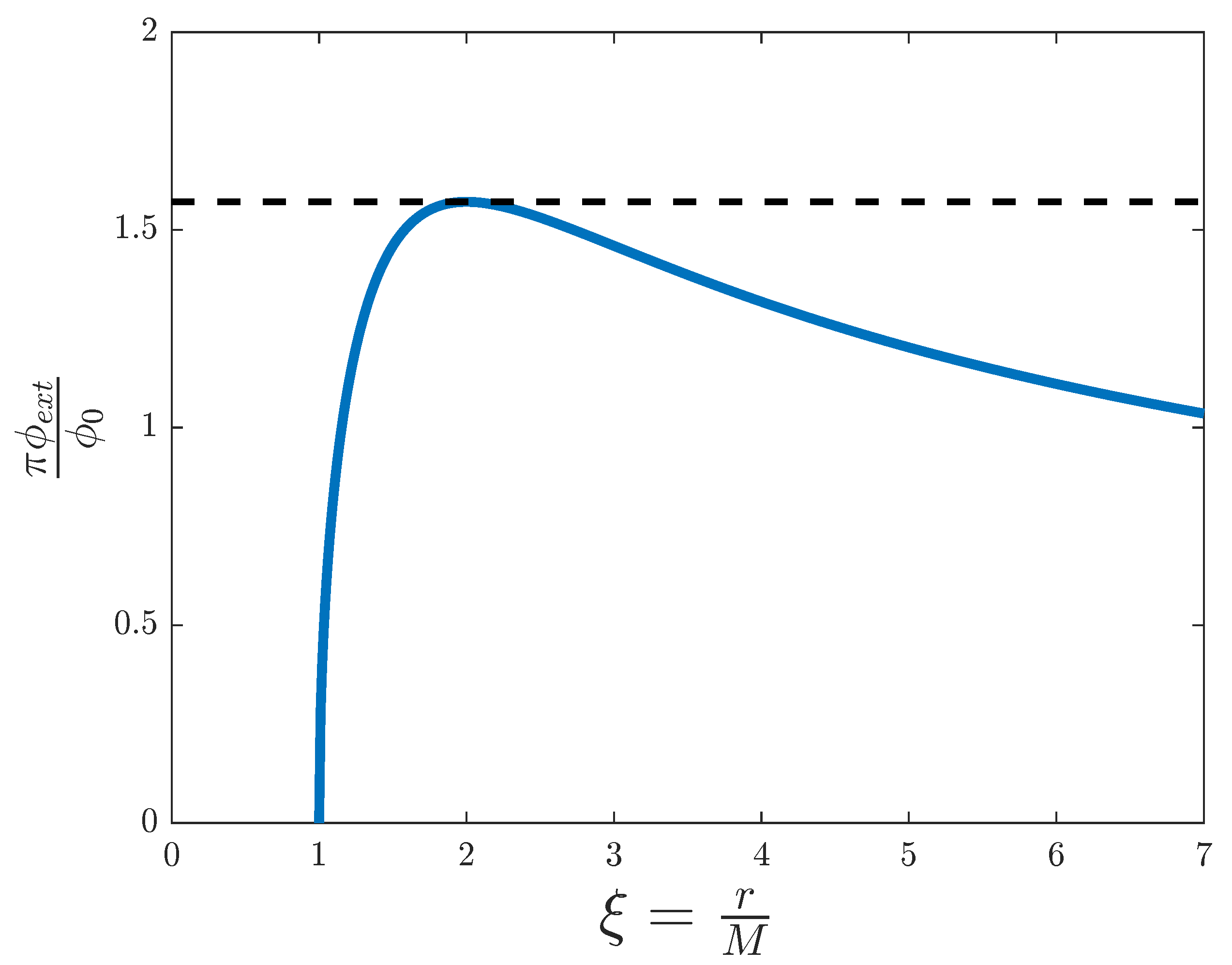

**Figure 1.**External magnetic flux $\pi {\varphi}_{\mathrm{ext}}/{\varphi}_{0}$ versus the adimensional distance $\xi =r/M$ for the simulation of a Schwarzschild black hole. The dashed line represents the threshold value $\pi {\varphi}_{\mathrm{ext}}/{\varphi}_{0}=\pi /2$.

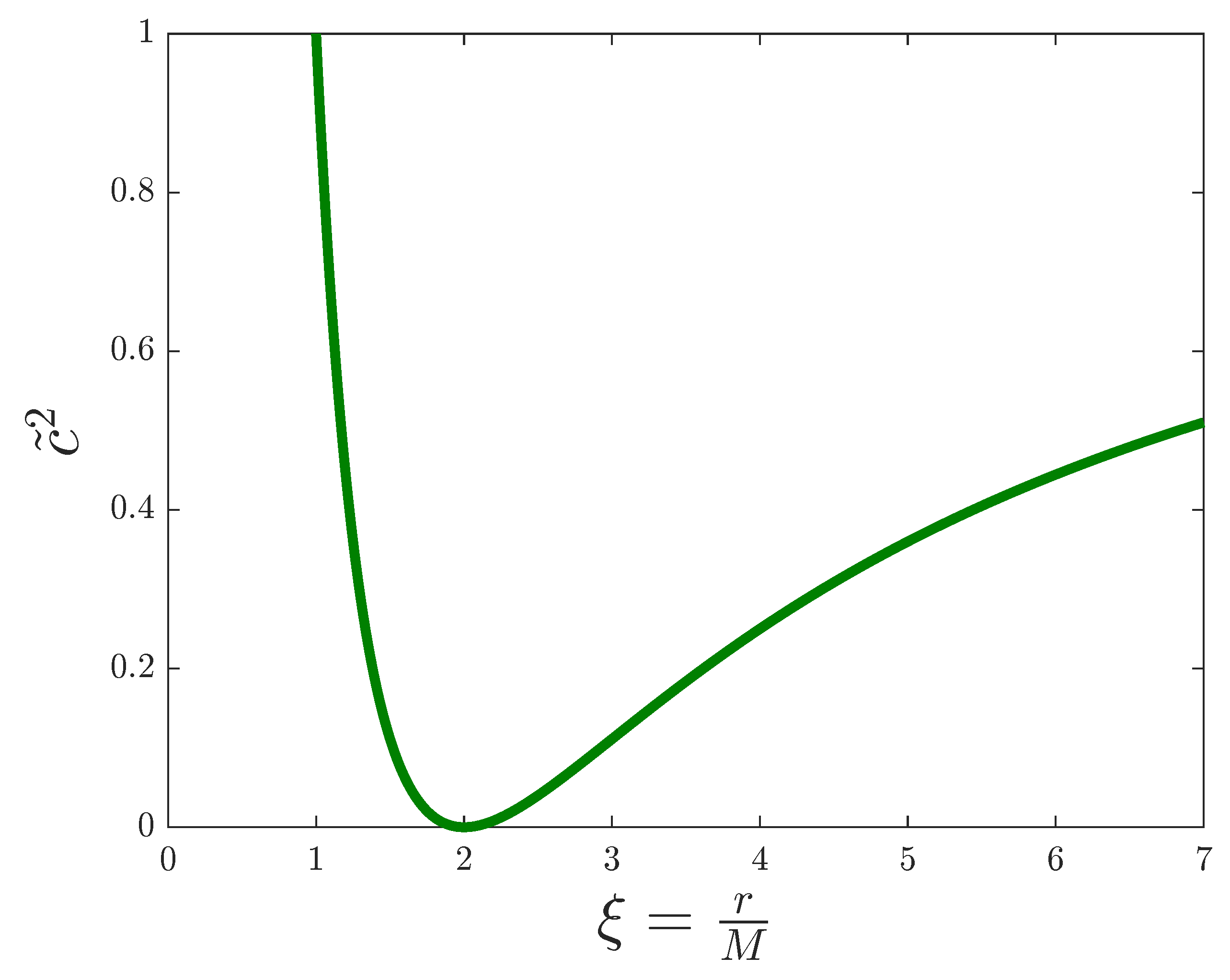

**Figure 2.**Effective speed of light squared ${\tilde{c}}^{2}$ versus the adimensional distance $\xi =r/M$ for the simulation of a Schwarzschild black hole.

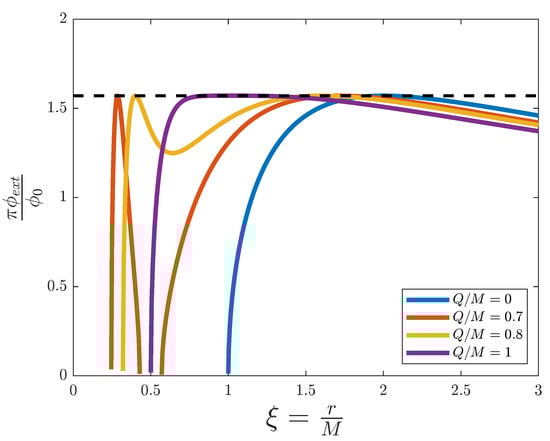

**Figure 3.**External magnetic flux $\pi {\varphi}_{\mathrm{ext}}/{\varphi}_{0}$ versus the adimensional distance $\xi =r/M$ for the simulation of a Reissner–Nordstrøm black hole, for different values of $A=Q/M$. The dashed line represents the threshold value $\pi {\varphi}_{\mathrm{ext}}/{\varphi}_{0}=\pi /2$.

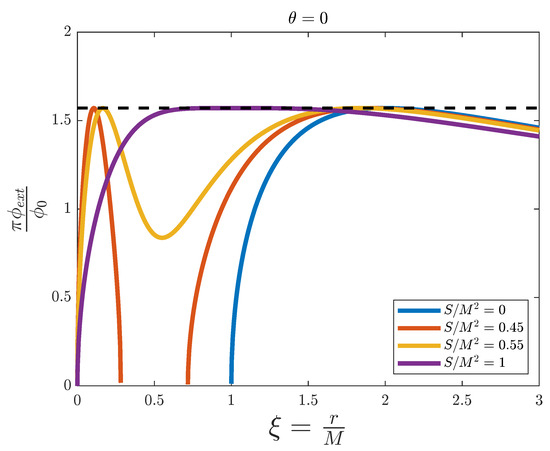

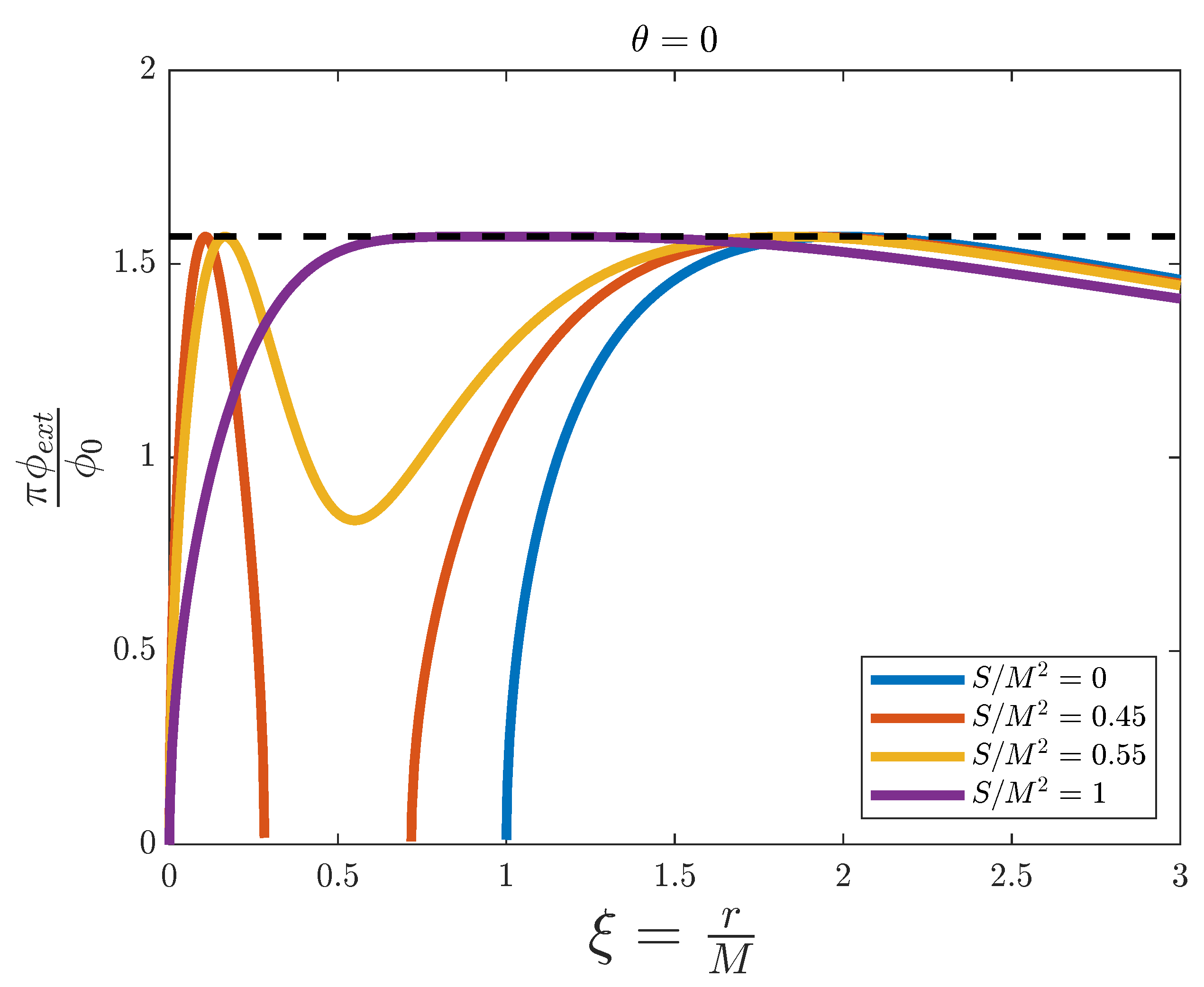

**Figure 4.**External magnetic flux $\pi {\varphi}_{\mathrm{ext}}/{\varphi}_{0}$ versus the adimensional distance $\xi =r/M$ for the simulation of a Kerr black hole with fixed $\theta =0$, and for different values of $B=S/{M}^{2}$. The dashed line represents the threshold value $\pi {\varphi}_{\mathrm{ext}}/{\varphi}_{0}=\pi /2$.

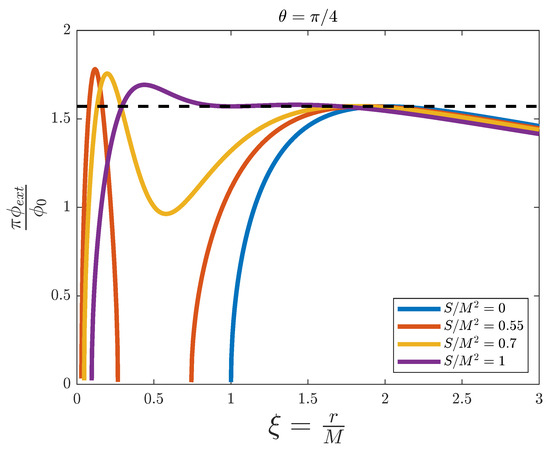

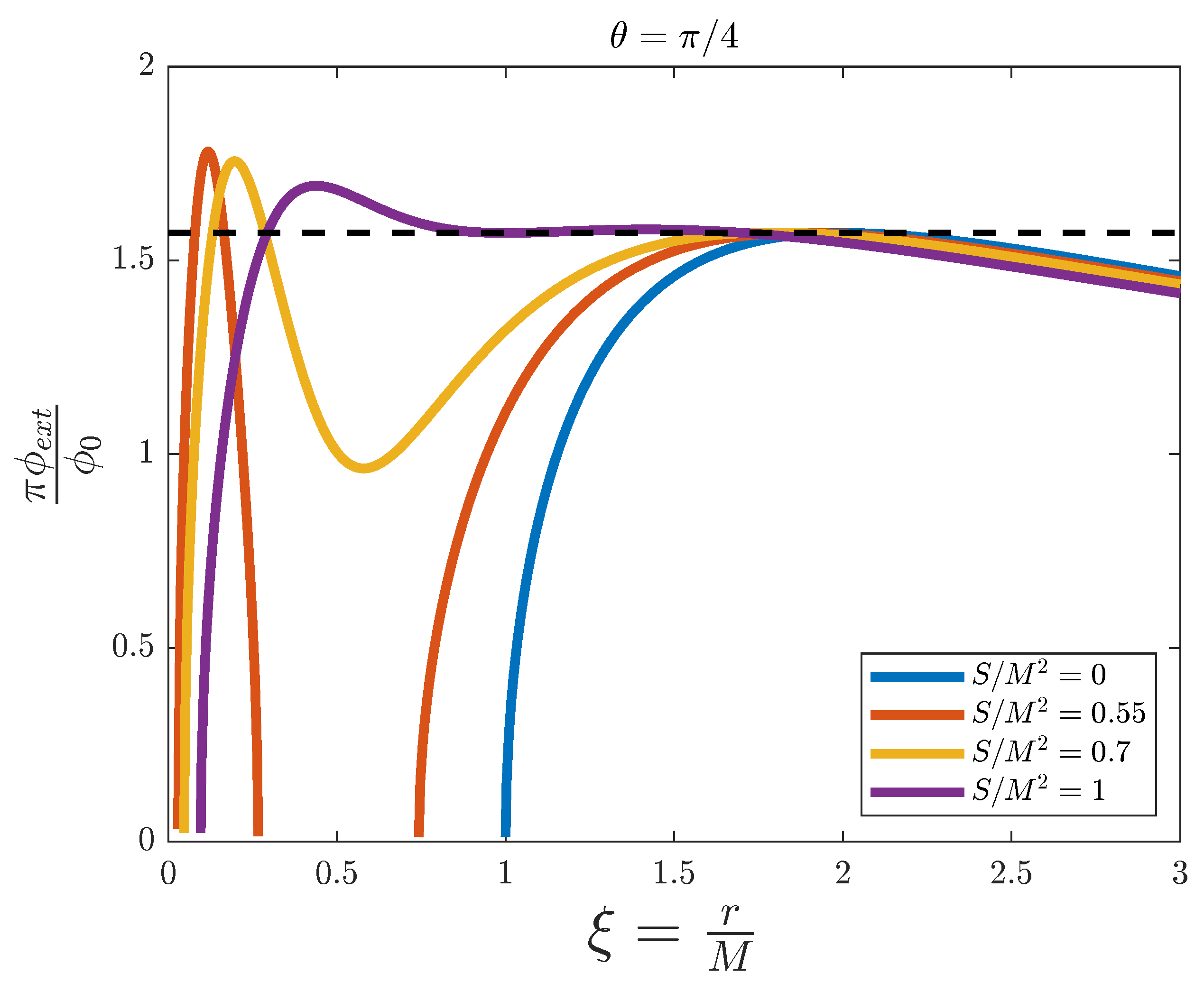

**Figure 5.**External magnetic flux $\pi {\varphi}_{\mathrm{ext}}/{\varphi}_{0}$ versus the adimensional distance $\xi =r/M$ for the simulation of a Kerr black hole with fixed $\theta =\pi /4$, and for different values of $B=S/{M}^{2}$. The dashed line represents the threshold value $\pi {\varphi}_{\mathrm{ext}}/{\varphi}_{0}=\pi /2$.

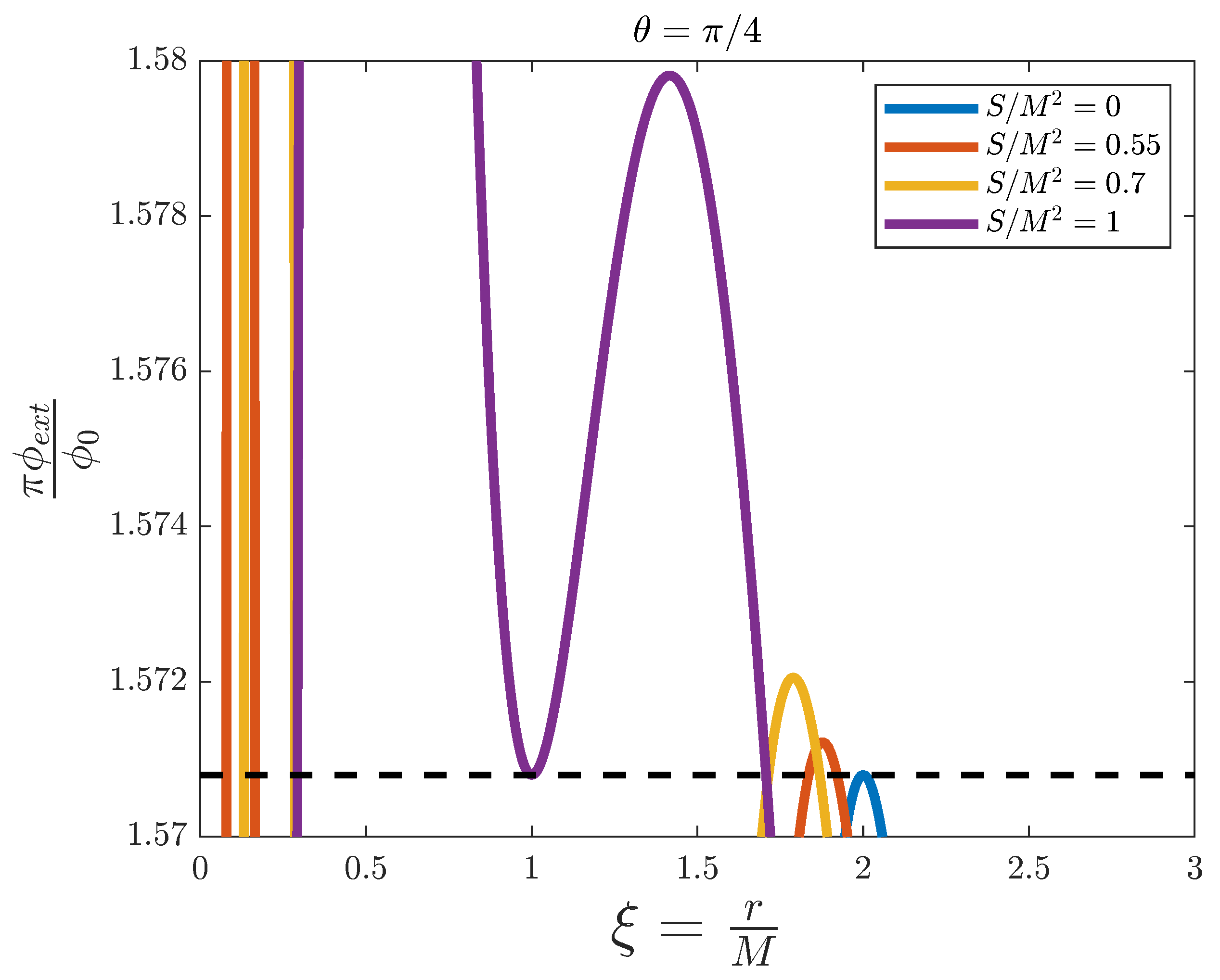

**Figure 6.**A zoom-in of Figure 5, where the regions with $\pi {\varphi}_{\mathrm{ext}}/{\varphi}_{0}$ above the threshold value $\pi /2$ (dashed line) can be better appreciated.

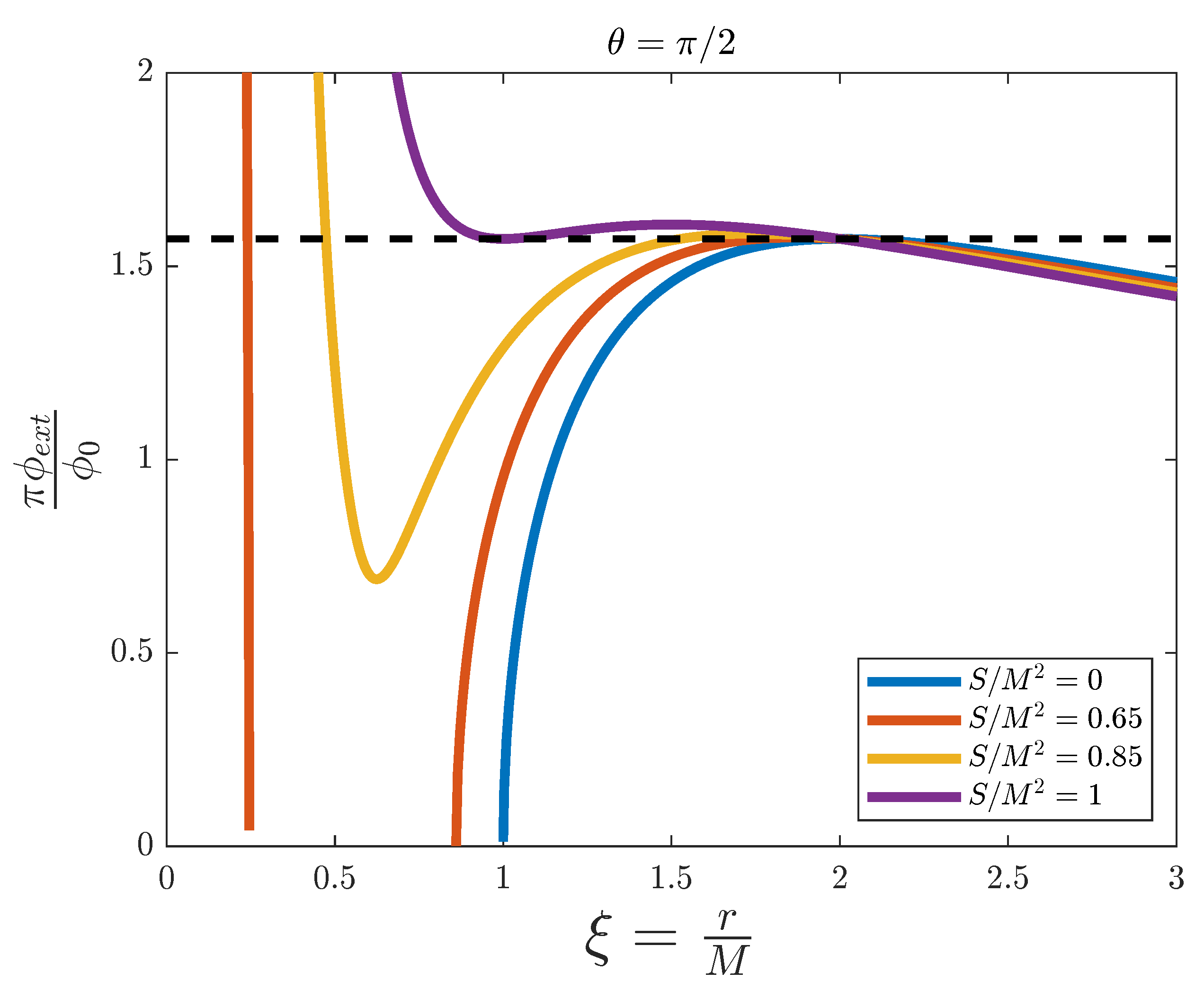

**Figure 7.**External magnetic flux $\pi {\varphi}_{\mathrm{ext}}/{\varphi}_{0}$ versus the adimensional distance $\xi =r/M$ for the simulation of a Kerr black hole with fixed $\theta =\pi /2$, and for different values of $B=S/{M}^{2}$. The dashed line represents the threshold value $\pi {\varphi}_{\mathrm{ext}}/{\varphi}_{0}=\pi /2$.

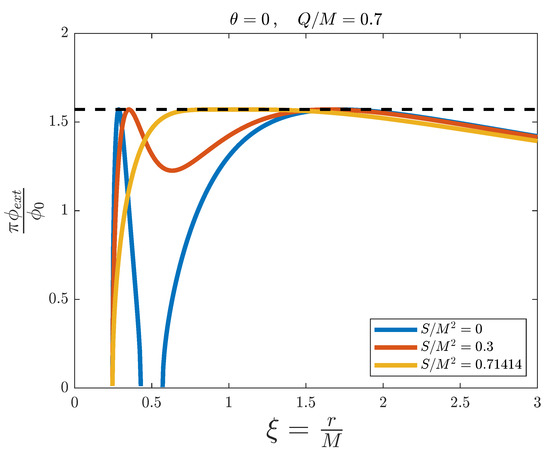

**Figure 8.**External magnetic flux $\pi {\varphi}_{\mathrm{ext}}/{\varphi}_{0}$ versus the adimensional distance $\xi =r/M$ for the simulation of a Kerr–Newman black hole with fixed $\theta =0$ and $A=Q/M=0.7$, and for different values of $B=S/{M}^{2}$. The dashed line represents the threshold value $\pi {\varphi}_{\mathrm{ext}}/{\varphi}_{0}=\pi /2$.

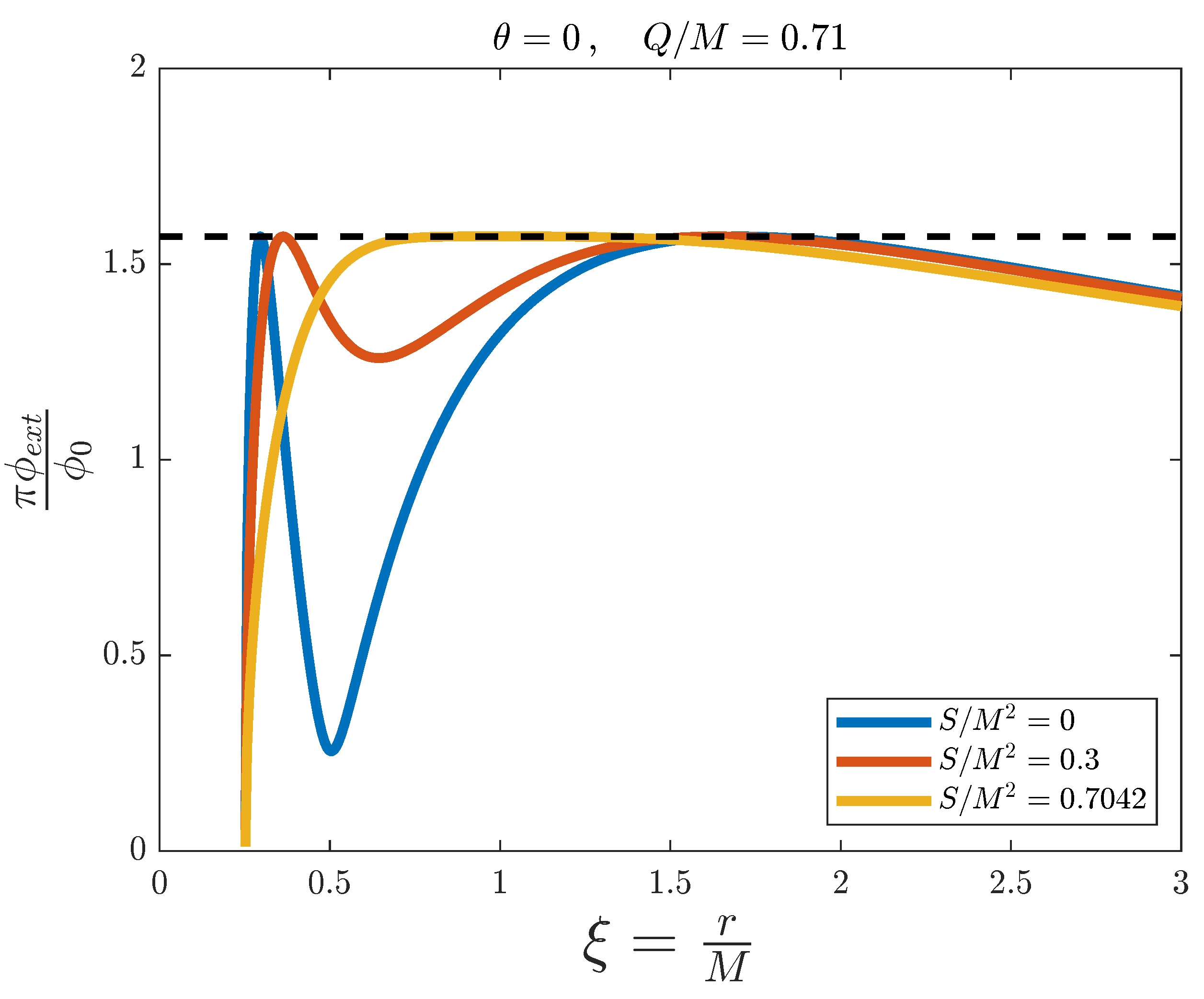

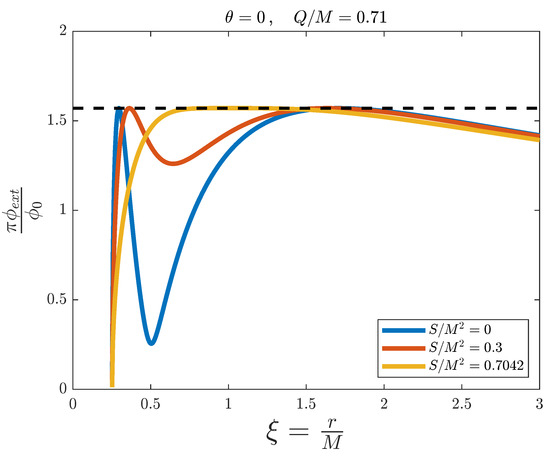

**Figure 9.**External magnetic flux $\pi {\varphi}_{\mathrm{ext}}/{\varphi}_{0}$ versus the adimensional distance $\xi =r/M$ for the simulation of a Kerr–Newman black hole with fixed $\theta =0$ and $A=Q/M=0.71$, and for different values of $B=S/{M}^{2}$. The dashed line represents the threshold value $\pi {\varphi}_{\mathrm{ext}}/{\varphi}_{0}=\pi /2$.

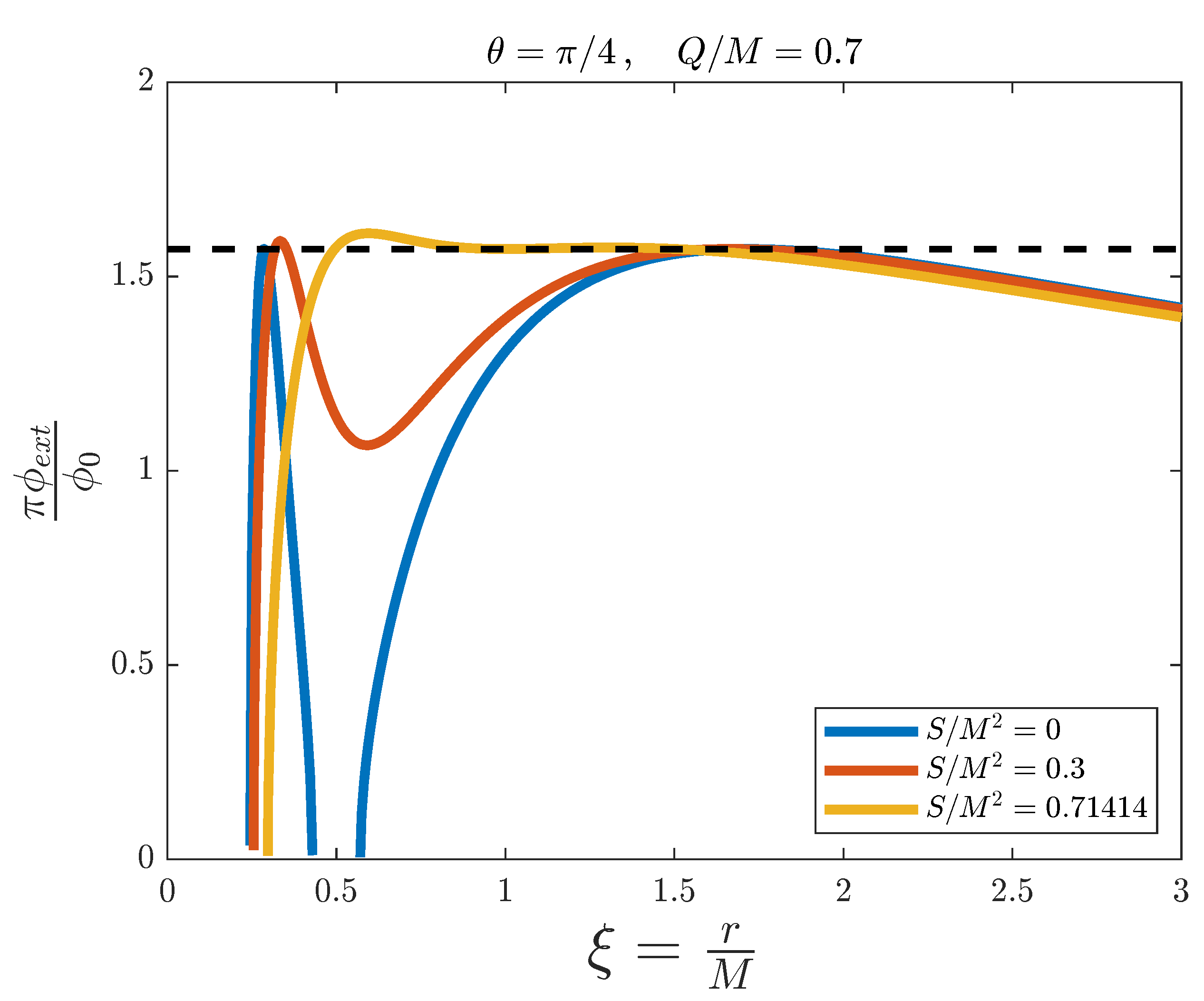

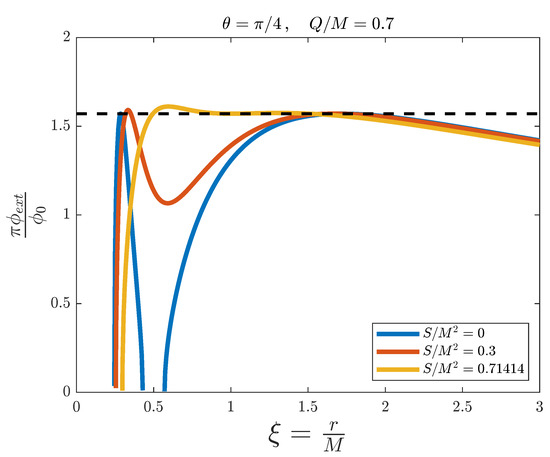

**Figure 10.**External magnetic flux $\pi {\varphi}_{\mathrm{ext}}/{\varphi}_{0}$ versus the adimensional distance $\xi =r/M$ for the simulation of a Kerr–Newman black hole with fixed $\theta =\pi /4$ and $A=Q/M=0.7$, and for different values of $B=S/{M}^{2}$. The dashed line represents the threshold value $\pi {\varphi}_{\mathrm{ext}}/{\varphi}_{0}=\pi /2$.

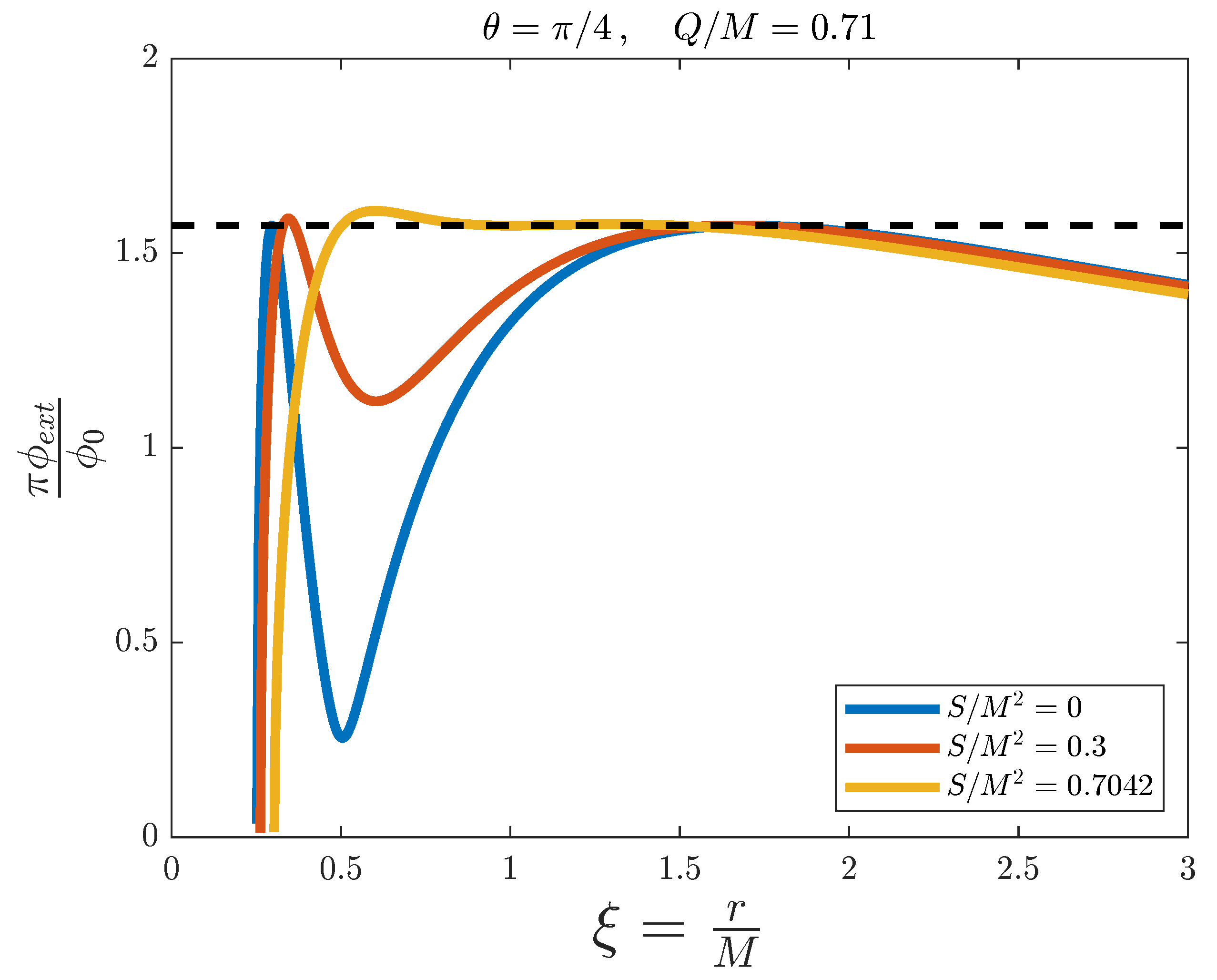

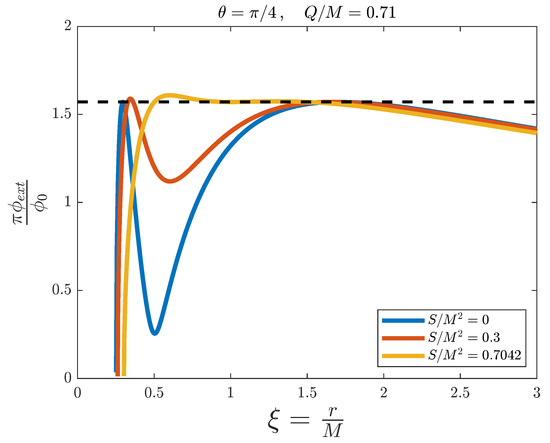

**Figure 11.**External magnetic flux $\pi {\varphi}_{\mathrm{ext}}/{\varphi}_{0}$ versus the adimensional distance $\xi =r/M$ for the simulation of a Kerr–Newman black hole with fixed $\theta =\pi /4$ and $A=Q/M=0.71$, and for different values of $B=S/{M}^{2}$. The dashed line represents the threshold value $\pi {\varphi}_{\mathrm{ext}}/{\varphi}_{0}=\pi /2$.

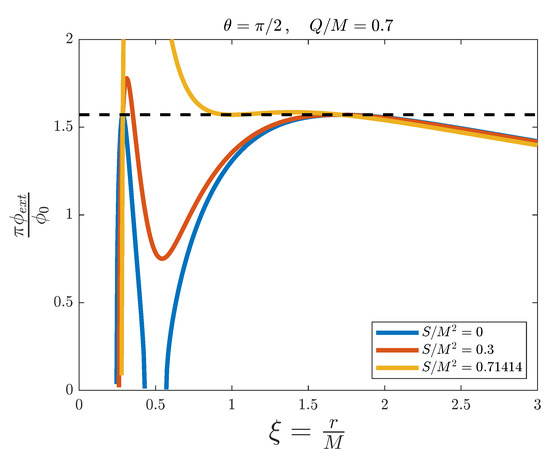

**Figure 12.**External magnetic flux $\pi {\varphi}_{\mathrm{ext}}/{\varphi}_{0}$ versus the adimensional distance $\xi =r/M$ for the simulation of a Kerr–Newman black hole with fixed $\theta =\pi /2$ and $A=Q/M=0.7$, and for different values of $B=S/{M}^{2}$. The dashed line represents the threshold value $\pi {\varphi}_{\mathrm{ext}}/{\varphi}_{0}=\pi /2$.

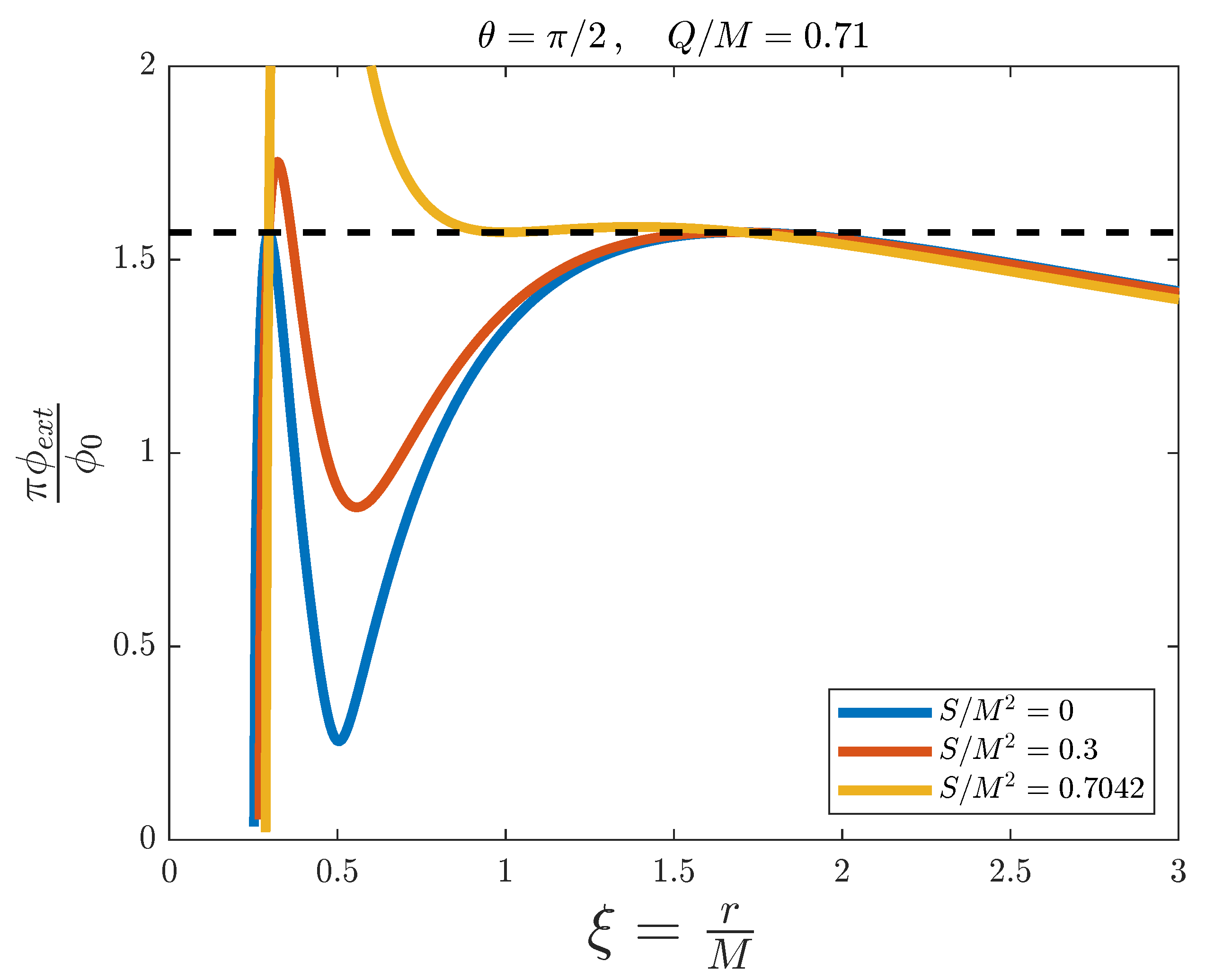

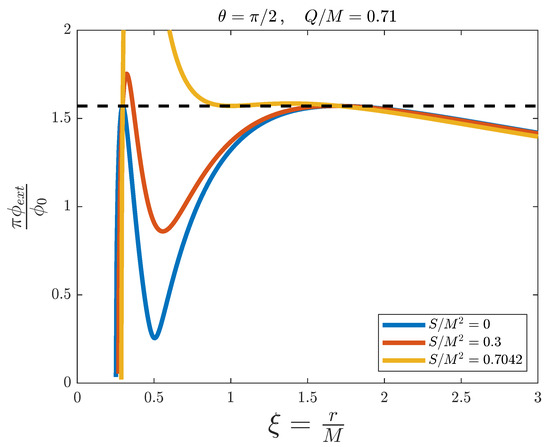

**Figure 13.**External magnetic flux $\pi {\varphi}_{\mathrm{ext}}/{\varphi}_{0}$ versus the adimensional distance $\xi =r/M$ for the simulation of a Kerr–Newman black hole with fixed $\theta =\pi /2$ and $A=Q/M=0.71$, and for different values of $B=S/{M}^{2}$. The dashed line represents the threshold value $\pi {\varphi}_{\mathrm{ext}}/{\varphi}_{0}=\pi /2$.
