Black Hole as a Quantum Field Configuration

Abstract

We describe 4D evaporating black holes as quantum field configurations by solving the semi-classical Einstein equation $G_{\mu \nu }=8\pi G⟨\psi |T_{\mu \nu }|\psi ⟩$ and quantum matter fields in a self-consistent manner. As the matter fields, we consider N massless free scalar fields (N is large). We find a spherically symmetric self-consistent solution of the metric $g_{\mu \nu }$ and the state $|\psi ⟩$. Here, $g_{\mu \nu }$ is locally $Ad{S}_2\times S^2$ geometry, and $|\psi ⟩$ provides $⟨\psi |T_{\mu \nu }|\psi ⟩=⟨0|T_{\mu \nu }|0⟩+T_{\mu \nu }^{\left(\psi \right)}$, where $|0⟩$ is the ground state of the matter fields in the metric and $T_{\mu \nu }^{\left(\psi \right)}$ consists of the excitation of s-waves that describe the collapsing matter and Hawking radiation with the ingoing negative energy flow. This object is supported by a large tangential pressure $⟨0\left|{T^{\theta }}_{\theta }\right|0⟩$ due to the vacuum fluctuation of the bound modes with large angular momenta $l\gg 1$. This describes the interior of the black hole when the back reaction of the evaporation is taken into account. In this picture, the black hole is a compact object with a surface (instead of horizon) that looks like a conventional black hole from the outside and eventually evaporates without a singularity. If we count the number of configurations $\left\{\right|\psi ⟩\}$ that satisfy the self-consistent equation, we reproduce the area law of the entropy. This tells that the information is carried by the s-waves inside the black hole. $|\psi ⟩$ also describes the process that the negative ingoing energy flow created with Hawking radiation is superposed on the collapsing matter to decrease the total energy while the total energy density remains positive. Finally, as a special case, we consider conformal matter fields and show that the interior metric is determined by the matter content of the theory, which leads to a new constraint to the matter contents for the black hole to evaporate.

1. Introduction

In quantum theory, black holes evaporate [1]. This property may change the definition of black holes from the classical one. It should be determined by quantum dynamics of matter and spacetime. By collapse of a star, an object should be formed and evaporate in a finite time. The Penrose diagram of the space-time should have the same topology structure as the Minkowski space-time, where there is no event horizon or singularity but may be a trapping horizon. Such an object should be the black hole. This view is an accepted consensus in the context of quantum theory [2,3,4,5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,25,26,27]1. In this paper, we consider this problem in field theory and find a picture of the black hole.

First, we briefly describe our basic idea. (In Section 2, we will provide a more detailed picture). Suppose that we throw a test spherical shell or particle into an evaporating spherically symmetric black hole. If the black hole evaporates completely in a finite time without any singular phenomenon, the particle should come back after evaporation. Let’s take a closer look at this process. As the particle comes close to the Schwarzschild radius of the black hole, it becomes ultra-relativistic and behaves like a massless particle [40]. Then, if we take into account the time-dependence of the metric due to the back reaction of evaporation, the particle does not enter the time-dependent Schwarzschild radius but moves along an ingoing null line just outside it [9], which will be explicitly shown below Equation (6). After the black hole evaporates, the particle returns to the outside.

Here, one might think that this view is strange. In a conventional intuition, a collapsing matter should enter soon the slowly decreasing Schwarzschild radius because a typical time scale of evaporation $\Delta t\sim a^3/l_p^2$ is much larger than that of collapse $\Delta \tau \sim a$. Here, $a\equiv 2GM$ is the Schwarzschild radius of the black hole with mass M, $l_p\equiv \sqrt{\hslash G}$ is the Planck length, t is the time coordinate at infinity, and $\tau$ is that of a comoving observer along the collapsing matter. However, it doesn’t make sense to compare these two time scales, which are measured by different clocks. In the above argument, we have considered the both time evolutions of the spacetime and particle in a common time. We will see (around Equation (7)) that the back reaction of the evaporation plays a non-negligible role in determining the motion of the particle at a Planck length distance from the Schwarzschild radius.

Now, let us consider a process in which a spherical matter collapses to form a black hole. We can focus on the motion of each of the spherical layers that compose the matter because of the spherical symmetry. As a layer approaches the Schwarzschild radius that corresponds to the energy of itself and the matter inside it, it moves at the speed of light. At the same time, the time-dependent spacetime (without a horizon structure) causes particle creation [41,42] (which is so-called pre-Hawking radiation [9,16,43,44]), and the energy begins to decrease2. Indeed, we will show in Section 2 that this pre-Hawking radiation has the same magnitude as the usual Hawking radiation. Then, applying the above result about the motion of the particle, we can see that the layer keeps falling just outside the time-dependent Schwarzschild radius. As this occurs for all the layers, the entire of the collapsing matter just shrinks to form a compact object, which is filled with the matter and radiation. Here, it should be noted that a strong tangential pressure occurs inside to stabilize the object against the gravitational force [9]. The pressure is consistent with 4D Weyl anomaly and so strong that the interior is anisotropic locally (that is, the interior is not a fluid) and the dominant energy condition breaks down [14,16,24]. Therefore, this object doesn’t contradict Buchdahl’s limit [45]. (We will explain the origin of the pressure later).

The object has (instead of horizon) a null surface just outside the Schwarzschild radius and looks like the classical black hole from the outside, whose spatial size is $\Delta r\sim a$. Here, the surface is the boundary between the interior dense region and the exterior dilute region. Eventually, it evaporates in a time $\Delta t\sim a^3/l_p^2$.3 This object should be the black hole in quantum theory [9,14,16,24]. As we will see, there is no singularity. (No trans-Planckian quantity appears if the theory has many degrees of freedom of matter fields). Therefore, the Penrose diagram is given by Figure 1, and the spacetime region of $\Delta r\sim a$ and $\Delta t\sim a^3/l_p^2$ corresponds to the black hole. In this paper, we show that this story can be realized in field theory.

Strategy and Result

The above idea has been checked partially by a simple model [9], a phenomenological discussion [14] and the use of conformal matter fields [24]. It also holds for charged black holes and slowly rotating black holes [16]. Furthermore, by a thermodynamical discussion, the entropy density inside the object is evaluated and integrated over the volume to reproduce the area law [16]. Therefore, it seems that this picture is plausible and works universally for various black holes.

However, there still remain several questions about this picture. What is the self-consistent state $|\psi \rangle$? What configurations do the matter fields take inside? How is the large tangential pressure produced inside? Can we reproduce the entropy area law by counting microscopic states of fields? How does the energy of the collapsing matter decrease? These are crucial for understanding what the black hole is and how the information of the matter comes back after evaporation.

In this paper, to answer these questions, we analyze time evolution of a 4D spherical collapsing matter by solving the semi-classical Einstein equation

$$G_{\mu \nu }=8\pi G\langle \psi |T_{\mu \nu }|\psi \rangle$$

(1)

in a self-consistent manner, and we find the metric $g_{\mu \nu }$ and state $|\psi \rangle$ which represent the interior of the black hole. Here, we treat gravity as a classical metric $g_{\mu \nu }$ while we describe the matter as N massless free quantum scalar fields. $\langle \psi \left|T_{\mu \nu }\right|\psi \rangle$ is the renormalized expectation value of the energy-momentum tensor operator in $g_{\mu \nu }$ that contains the contribution from both the collapsing matter and the Hawking radiation.

We explain our self-consistent strategy and the results. The flow chart of Figure 2 represents the composition of this paper.

In Section 2, we first explain our basic idea in a more concrete manner by using a simple model. We also show how the pre-Hawking radiation occurs in the time-evolution of the system. In Section 3, we employ and generalize the model and construct a candidate metric $g_{\mu \nu }$. In particular, the interior metric is shown to be static as a result of dynamics. It can be expressed as

$$d{s}^2=-\frac{e^{A\left(r\right)}}{B\left(r\right)}d{t}^2+B\left(r\right)d{r}^2+r^{2}d{\mathsf{\Omega }}^2.$$

(2)

We write down two functions $A\left(r\right),B\left(r\right)$ in terms of two phenomenological functions: one is the intensity of Hawking radiation $\sigma$ and the other is a function $\eta$ that provides the ratio between the radial pressure and energy density. We also show that this metric is locally $Ad{S}_2\times S^2$ geometry.

We are interested in the black holes most likely to be formed in gravitational collapse. As shown in Section 6, the statistical fluctuation of the mass is evaluated as $\Delta M\sim m_p$, where $m_p\equiv \sqrt{\frac{\hslash }{G}}$ is the Planck mass. Therefore, from a macroscopic perspective, all black holes with mass $\in [M,M+m_p]$ are the same. We consider the set of states $\left\{\right|\psi \rangle \}$ that represent the interior of such statistically identified black holes.

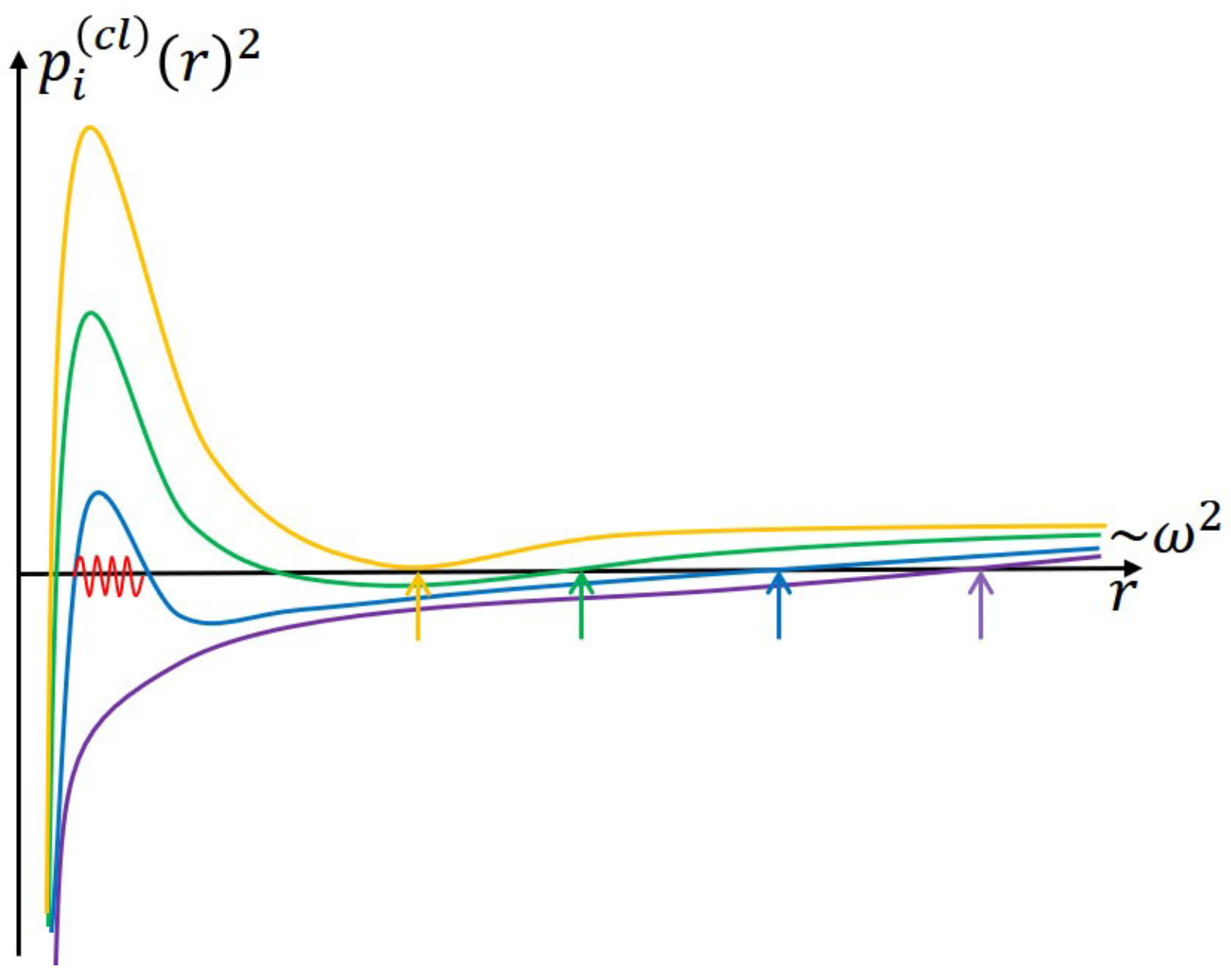

In Section 4, we examine the potential energy of the partial waves of the scalar fields in the interior metric. Modes with angular momenta $l\ge 1$ are trapped inside, and they emerge in the collapsing process even if they don’t exist at the beginning. We show that, if such bound modes are excited, the energy increases by more than $\mathcal{O}\left(\frac{m_p}{\sqrt{N}}\right)$, which means that the number of excited bound modes is at most order of $\mathcal{O}\left(\sqrt{N}\right)$ in the set $\left\{\right|\psi \rangle \}$. Therefore, those modes can be regarded as the ground state because $\mathcal{O}\left(\sqrt{N}\right)$ is negligible compared to the number of total modes $\mathcal{O}\left(\frac{a^2}{l_p^2}\right)$ (which is shown in Section 6). On the other hand, s-wave modes can enter and exit the black hole and represent the collapsing matter and Hawking radiation. Thus, the state $|\psi \rangle$ provides

$$\langle \psi |T_{\mu \nu }|\psi \rangle =\langle 0|T_{\mu \nu }|0\rangle +T_{\mu \nu }^{\left(\psi \right)},$$

(3)

where $|0\rangle$ is the ground state in the interior metric, and $T_{\mu \nu }^{\left(\psi \right)}$ is the contribution from the excitations of the s-waves.

In Section 5, we evaluate $\langle 0\left|T_{\mu \nu }\right|0\rangle$. We first solve the equation of motion of the scalar fields in the interior metric. We calculate the regularized energy-momentum tensor $\langle 0|T_{\mu \nu }{|0\rangle }_{reg}$ in the dimensional regularization. Then, we renormalize the divergences and obtain the finite expectation value, $\langle 0|T_{\mu \nu }{|0\rangle }_{ren}^{\prime }$. This contains contributions from the finite renormalization terms $({\alpha }_0,{\beta }_0)$, which correspond to the renormalized coupling constants of $R^2$ and $R_{\mu \nu }{R}^{\mu \nu }$ in the action, respectively.

In Section 6, we combine Bekenstein’s discussion of black-hole entropy [46] and our picture of the interior of the black hole to infer the form of $T_{\mu \nu }^{\left(\psi \right)}$, which is fixed by a parameter ${\tilde{a}}_{\psi }$.

In Section 7, we solve Equation (1) by using the ingredients obtained so far: $g_{\mu \nu }$, $\langle 0|T_{\mu \nu }{|0\rangle }_{ren}^{\prime }$, and $T_{\mu \nu }^{\left(\psi \right)}$. We determine the self-consistent values of $(\sigma ,\eta ,{\tilde{a}}_{\psi })$ for a certain class of the finite renormalization terms $({\alpha }_0,{\beta }_0)$. We then check the various consistency. In particular, we see that there is no singularity, and that the vacuum fluctuation of the bound modes with $l\gg 1$ creates the large tangential pressure $\langle 0|{T^{\theta }}_{\theta }{|0\rangle }_{ren}^{\prime }$.

In Section 8, we consider the stationary black hole which has grown up adiabatically in the heat bath. We count the number of the states $\left\{\right|\psi \rangle \}$ of the s-waves inside the black hole to evaluate the entropy, reproducing the area law. This implies that the information is carried by the s-waves.

In Section 9, to understand the mechanism by which the energy of the collapsing matter decreases, we assume a s-wave model for simplicity to describe the outermost region of the black hole and study the time evolution of quantum fields. We see that $|\psi \rangle$ describes the process that the negative ingoing energy flow created with Hawking radiation is superposed on the collapsing matter to decrease the total energy while the total energy density remains positive.

Thus, three independently conserved energy-momenta appear in this solution: that of the bound modes of the vacuum $\langle 0\left|T_{\mu \nu }\right|0\rangle$, that of the collapsing matter, and that of the pair of the Hawking radiation and negative energy flow, where the last two contribute to $T_{\mu \nu }^{\left(\psi \right)}$. These three form the self-consistent configuration of the black hole.

In Section 10, as a special case, we consider conformal matter fields and show that the parameters $(\sigma ,\eta )$ are determined by the matter content of the theory. Interestingly, the consistency of $\eta$ provides a condition to the matter content. For example, the Standard Model with a right-handed neutrino satisfies the constraint but a model without it doesn’t. Therefore, this can be regarded as a new constraint (like the weak-gravity conjecture [47,48]) that is required in order for the black hole to evaporate.

In Section 11, we conclude and discuss future directions. In particular, we discuss how the information comes back after evaporation if there are interactions between the collapsing matter, Hawking radiation, and negative energy flow.

In Appendices, we give the derivation of various key equations. In particular, we explain the difference between our pre-Hawking radiation and the usual Hawking radiation in Appendix C.

2. Basic Idea

We explain our basic idea of the black hole more precisely [9,14,16,24], which makes the motivation of this paper clearer. The discussion is composed of three steps. In step1, we examine the motion of a thin shell (with an infinitely small mass) near an evaporating black hole and anticipate what will be formed as a result of the time evolution of a spherical collapsing matter. In step2, we study the time evolution of the pre-Hawking radiation induced by the shell, including the effect of a small finite mass of the shell and the radiation. In step3, we construct a simple model (multi-shell model) to realize the prediction given in step1, and show that the pre-Hawking radiation has the same magnitude as that of the usual Hawking radiation. We also discuss a surface pressure on the shell induced by the pre-Hawking radiation.

2.1. Step1: Motion of a Shell Near the Evaporating Black Hole

Imagine that a spherical collapsing matter with a continuous distribution starts to collapse (see the left of Figure 3).

We pick up a part of it with a radius $r_s$. When the radius comes close to the Schwarzschild radius of the mass inside it, the entire of the part behaves light-like. Then, we can discuss the time evolution of the part without considering the outside because the outside matter does not come in and has no influence to the inside due to the spherical symmetry (see the center of the upper in Figure 3). We suppose that the part becomes a black hole and evaporates eventually (see the right of the upper in Figure 3). Now, we consider the outermost part of the collapsing matter as a spherical thin shell (which is located at $r=r_s$) with an infinitely small energy (see the center of the lower in Figure 3). Focusing on the motion of the shell, it will approach the evaporating black hole consisting of the rest (see the right of the lower in Figure 3). (Note again that the rest part is not affected by the shell and becomes the evaporating black hole). As we show in the following, the black hole evaporates to disappear before the shell catches up with “the horizon", and thus the shell will never enter “the horizon”.

Because of the spherical symmetry, the gravitational field that the shell feels is determined by the energy of itself and the matter inside it, no matter what is outside the shell. Therefore, the metric which determines the motion of the shell near the black hole is given approximately by the outgoing Vaidya metric [49]

$$d{s}^2=-\left(1-\frac{a\left(u\right)}{r}\right)d{u}^2-2dudr+r^{2}d{\mathsf{\Omega }}^2,$$

(4)

where u is the null coordinate that represents an outgoing radial null geodesic as $u=$const. $M\left(u\right)\equiv \frac{a\left(u\right)}{2G}$ is the energy inside the shell at time u (including the energy of the shell itself)4. The Einstein tensor has only $G_{uu}=-\frac{\dot{a}}{r^2}$ and satisfies ${G^{\mu }}_{\mu }=0$, and therefore this metric can represent the outgoing null energy flow with total flux $J=4\pi r^2\langle T_{uu}\rangle$5 6. Thus, we assume that $a\left(u\right)$ decreases according to the Stefan–Boltzmann law of Hawking temperature $T_H=\frac{\hslash }{4\pi a\left(u\right)}$:

$$\frac{da\left(u\right)}{du}=-\frac{\sigma }{a{\left(u\right)}^2}.$$

(5)

Here, $\sigma$ is the intensity of the Hawking radiation, which is determined by dynamics of the theory. In general, it takes the form of $\sigma =kN{l}_p^2$, where k is an $O\left(1\right)$ constant.

Suppose that the shell consists of many particles. If a particle of them comes close to $a\left(u\right)$, the motion is governed by the equation for an ingoing radial null geodesic,

$$\frac{d{r}_s\left(u\right)}{du}=-\frac{r_s\left(u\right)-a\left(u\right)}{2r_s\left(u\right)},$$

(6)

no matter what mass and angular momentum the particle has7. Here, $r_s\left(u\right)$ is the radial coordinate of the particle (or the shell).

At this point, we can see a general property of Equation (6): Once a particle starts from a position outside $r=a\left(u\right)$, the particle comes close to $r=a\left(u\right)$ but does not pass it. Therefore, if $a\left(u\right)$ decreases to zero in a finite time, the particle will reach the center $(r=0)$ in a finite time and return to $r\to \infty$. See the left of Figure 4.

Note that the radius $a\left(u\right)$ becomes zero in a finite time ($\Delta u\sim \frac{a^3}{\sigma }$), and the time coordinate u describes the outside spacetime region $(r>a(u\left)\right)$ globally.

Here, we stress that we have no coordinate singularity in this analysis. First, we note that the Vaidya metric (4) with Equation (5) is the metric around the trajectory $r_s\left(u\right)$ of the particles that composes the outermost shell of the collapsing matter (remember the center of the lower in Figure 3). It seems that the metric has coordinate singularity at $r=a\left(u\right)$. However, because $a\left(u\right)$ is assumed to become zero in a finite time, the particle moves according to Equation (6) and stays always outside $r=a\left(u\right)$. In particular, when $a\left(u\right)$ becomes zero, $r_s\left(u\right)$ is still positive. After that, $r_s\left(u\right)$ propagates in the flat space and reaches $r=0$ in a finite time8. Actually, as we will see in Equation (10), $r_s\left(u\right)$ is always apart from $r=a\left(u\right)$ at least by the proper length $\sim \sqrt{N}{l}_p$, which is physically long if N is large (see the discussion below Equation (11)). Of course, at the final stage of the evaporation, which exceeds the semi-classical approximation, a curvature singularity may occur. However, the black hole at that moment has only a few of Planck mass and should be considered as a stringy object (see also footnote 3). (We can show that, even if we used the metric (4) to describe such a final stage, $r_s\left(u\right)$ and $a\left(u\right)$ would never become zero at the same time. See Appendix B). Thus, the particle keeps moving outside $r=a\left(u\right)$ without coordinate singularity. Finally, we emphasize that, when we consider a particle that starts to fall before the shell we have focused, the metric around the trajectory of the particle is not the Vaidya metric with $a\left(u\right)$. Rather, it is given by another Vaidya metric with the Schwarzschild radius of the energy of the matter inside the shell to which the particle belongs. See the following discussion and Section 2.3.

Let us examine more specifically where $r_s\left(u\right)$ will approach when $a\left(u\right)$ evolves according to Equation (5). We are interested in the difference $\Delta r\left(u\right)\equiv r_s\left(u\right)-a\left(u\right)$, which is much smaller than $a\left(u\right)$, $\Delta r\left(u\right)\ll a\left(u\right)$. Then, $r_s\left(u\right)$ in the denominator of Equation (6) can be replaced with $a\left(u\right)$ approximately, and Equation (6) becomes

$$\frac{d\Delta r\left(u\right)}{du}\approx -\frac{\Delta r\left(u\right)}{2a\left(u\right)}-\frac{da\left(u\right)}{du}.$$

(7)

The first term in the r.h.s. is negative, which is the effect of collapse, and the second one is positive due to Equation (5), which is the effect of evaporation. The second term is negligible when $\Delta r\left(u\right)\sim a\left(u\right)$, but it becomes comparable to the first term when the particle is so close to $a\left(u\right)$ that $\Delta r\left(u\right)\sim \frac{l_p^2}{a\left(u\right)}$. Then, the both terms are balanced so that the r.h.s of Equation (7) vanishes, and we have $\Delta r\left(u\right)=-2a\left(u\right)\frac{da\left(u\right)}{du}$. This means that any particle moves asymptotically as

$$r_s\left(u\right)\to a\left(u\right)-2a\left(u\right)\frac{da\left(u\right)}{du}=a\left(u\right)+\frac{2\sigma }{a\left(u\right)},$$

(8)

and so does the shell. By solving Equation (7) explicitly, we can check that this approach occurs exponentially in the time scale $\Delta u\sim 2a$ (see Appendix A).

This behavior can be understood as follows. See the right side of Figure 4. The particle approaches the radius $a\left(u\right)$ in the time $\Delta u\sim 2a$. During this time, the radius $a\left(u\right)$ itself is slowly shrinking as Equation (5). Therefore, $r_s\left(u\right)$ cannot catch up with $a\left(u\right)$ completely and is always separate from $a\left(u\right)$ by $-2a\frac{da}{du}=\frac{2\sigma }{a}$.

Thus, considering the time evolution of both the particle and spacetime together, we have reached the conclusion that any particle never enters “the horizon”. Therefore, the shell (consisting of the particles) will move according to Equation (8) just outside “the horizon”.

Because the above argument holds for any radius $r_s$ (recall the center of the upper in Figure 3), we can imagine that the entire matter consists of many spherical thin shells. See Figure 5.

That is, when we focus on any part of it with radius $r_i$ and mass $\frac{a_i}{2G}$, the shell (particle) at $r_i$ moves asymptotically as $r_i\to a_i+\frac{2\sigma }{a_i}$ if the inner part evaporates as $\frac{d{a}_i}{d{u}_i}=-\frac{\sigma }{a_i^2}$ (see the left of Figure 5). Here, $u_i$ is the local time just outside the shell. If this happens in the whole part of the matter, it implies that many shells pile up and form a dense object with the total mass M (see the right of Figure 5). The object has, instead of a horizon, a surface as the boundary between the high-density interior and the low-density exterior at

$$r=a\left(u\right)+\frac{2\sigma }{a\left(u\right)}\equiv R\left(a\left(u\right)\right),$$

(9)

where the total radius $a\left(u\right)$ decreases as Equation (5). This object looks like a conventional black hole from the outside because $\frac{2\sigma }{a}\ll a$, while it is not vacuum and has an internal structure. Eventually, it evaporates in $\Delta u\sim \frac{a^3}{\sigma }$, and the Penrose diagram should be represented as in Figure 1. This should be the black hole in quantum theory. In the following two steps, we will gradually describe this picture precisely.

Before going to the next step, one might wonder here if the above idea can be realized in field theory or not. To see this point simply, we examine the distance $\Delta r=\frac{2\sigma }{a}$ more because it is the typical length scale in this picture. The proper length $\Delta l$ is evaluated as 9

$$\Delta l=\sqrt{\frac{R\left(a\right)}{R\left(a\right)-a}}\frac{2\sigma }{a}\approx \sqrt{2\sigma },$$

(10)

where Equations (4) and (9) have been used. We here assume that N is large but finite, for example, $\mathcal{O}\left(1000\right)$:

$$\sigma \sim N{l}_p^2\gg l_p^2.$$

(11)

Then, $\Delta l$ is larger than $l_p$, and $\Delta r=\frac{2\sigma }{a}$ is sufficiently long in order for the effective local field theory to be valid. In particular, the position of the surface (9) is meaningful physically. A way to show the validity of the field theory more precisely is to construct a concrete solution by solving Equation (1) and confirm its self-consistency. From Section 3, we will do it.

2.2. Step2: Pre-Hawking Radiation

In the step1, we have neglected the effect of the mass of the shell and considered only the Hawking radiation from the black hole inside the shell. In this step, we will take into account the effect of the mass and a pre-Hawking radiation.

Suppose that we add a spherical thin null shell with a small but finite energy $\Delta M$ to the black hole with mass M evaporating as Equation (5) 10. From now, we will show that a pre-Hawking radiation is induced by this shell so that the total magnitude of the pre-Hawking radiation and the Hawking radiation from the black hole is equal to that of the Hawking radiation from a larger black hole of mass $M+\Delta M$ (up to $\mathcal{O}\left(\frac{\Delta M}{M^3}\right)$ corrections). See Figure 6.

Therefore, the total system of the black hole and the shell behaves like a larger black hole. (This provides a more precise description of the right of the lower in Figure 3).

2.2.1. Setup

Although we will start a 4D complete analysis from Section 3, here for simplicity we consider only s-waves of N massless scalar fields. For example, by using the conservation law with 2D Weyl anomaly [41,50,51,53], we can evaluate the outgoing flux from the center black hole as

$$J\equiv 4\pi r^2\langle T_{uu}\rangle =\frac{N\hslash }{192\pi a{\left(u\right)}^2}.$$

(12)

Comparing this to Equation (5), we see the intensity of s-wave Hawking radiation:

$${\sigma }_s=\frac{N{l}_p^2}{96\pi }.$$

(13)

We are now interested in the situation where the shell comes to the black hole as in Figure 7.

Because of the spherical symmetry, the region between the black hole and the shell is still described by the metric (4) with Equation (5) of the intensity (13) 11, while the region above the shell is expressed by another Vaidya metric

$$d{s}^{\prime 2}=-\left(1-\frac{a^{\prime }\left(u^{\prime }\right)}{r}\right)d{u}^{\prime 2}-2d{u}^{\prime }dr+r^{2}d{\mathsf{\Omega }}^2.$$

(14)

Here, $a^{\prime }\equiv 2G(M+\Delta M)$ is the Schwarzschild radius of the total mass, and the time $u^{\prime }$ is different from u due to the mass of the shell $\Delta M$.

The evolution equation of $a^{\prime }\left(u^{\prime }\right)$ is given by the energy conservation, $\frac{d{a}^{\prime }}{d{u}^{\prime }}=-2G{J}^{\prime }$, where $J^{\prime }=4\pi r^2\langle T_{u^{\prime }{u}^{\prime }}\rangle {|}_{r\gg a}$ is the total flux coming out of the total system. In general, particles are created in a time-dependent spacetime of a collapsing matter. It is well-known that we can formulate the s-wave approximated energy flux of the particles as [53,54,55]

$$J=\frac{N\hslash }{16\pi }\{u,U\},J^{\prime }=\frac{N\hslash }{16\pi }\{u^{\prime },U\}.$$

(15)

Here, U is the outgoing null time of the flat spacetime before the collapse, and $\{x,y\}\equiv \frac{{\ddot{y}}^2}{{\dot{y}}^2}-\frac{2}{3}\frac{\stackrel{⃛}{y}}{\dot{y}}$ is the Schwarzian derivative for $y=y\left(x\right)$. (See above Equation (33) for a more explanation). Using a formula [56]

$$\{u^{\prime },U\}={\left(\frac{du}{d{u}^{\prime }}\right)}^2\{u,U\}+\{u^{\prime },u\},$$

(16)

and applying Equations (12) and (13), we have

$$J^{\prime }={\left(\frac{du}{d{u}^{\prime }}\right)}^2\frac{{\sigma }_s}{2G{a}^2}+\frac{\hslash N}{16\pi }\{u^{\prime },u\}.$$

(17)

This has a physical interpretation. See Figure 7. The first term represents the energy flux from the black hole (12), that is redshifted due to the mass of the shell, and the second one corresponds to the radiation induced by the shell. We call this term pre-Hawking radiation because any horizon structure is not relevant to $\{u^{\prime },u\}$. Thus, the total of the redshifted Hawking radiation and the pre-Hawking radiation determines time evolution of the energy $\frac{a^{\prime }}{2G}$ of the total system:

$$\frac{d{a}^{\prime }}{d{u}^{\prime }}=-{\left(\frac{du}{d{u}^{\prime }}\right)}^2\frac{{\sigma }_s}{a^2}-12{\sigma }_s\{u^{\prime },u\},$$

(18)

which is nothing but the $u^{\prime }{u}^{\prime }$-component of the semi-classical Einstein equation.

To relate u and $u^{\prime }$ each other, we use a fact that the trajectory of the shell, $r=r_s\left(u\right)$, is null from both sides of the shell to get the connection conditions:12

$$\frac{r_s-a}{2r_s}du=-d{r}_s=\frac{r_s-a^{\prime }}{2r_s}d{u}^{\prime }.$$

(19)

This is equivalent to Equation (6) and

$$\frac{d{u}^{\prime }}{du}=\frac{r_s-a}{r_s-a^{\prime }}.$$

(20)

Now, suppose that the shell is close to a so that the relation (8) holds. Then, we can evaluate Equation (20) as

$$\frac{d{u}^{\prime }}{du}={\left(1-\frac{\Delta a}{r_s-a}\right)}^{-1}\approx 1+\frac{a\Delta a}{2{\sigma }_s},$$

(21)

where we have used Equation (8) with $\sigma$ replaced by ${\sigma }_s$ and assumed that $\Delta a\equiv a^{\prime }-a\ll \mathcal{O}\left(\frac{\sigma }{a}\right)$.

2.2.2. Time Evolution of the Pre-Hawking Radiation

We examine how the pre-Hawking radiation occurs by solving directly the coupled time-evolution Equations (18) and (21). Here, we consider linearized equations for $\Delta a$.

In the linear order of $\Delta a$, from the evaluation (21), we have

$$\{u^{\prime },u\}=\frac{a}{3{\sigma }_s}\Delta \ddot{a}\left(1+\mathcal{O}\left(\frac{{\sigma }_s}{a^2}\right)\right),$$

(22)

where the dot stands for the u derivative (e.g., $\Delta \ddot{a}=\frac{d^2\Delta a}{d{u}^2}$). Note that once the quantity is linear in $\Delta a$, we no longer need to distinguish u derivative from $u^{\prime }$ derivative because of Equation (21). In order to get Equation (22), we have used an identity for the Schwarzian derivative

$$\{u^{\prime },u\}=-\frac{1}{3}{\left(\frac{du}{d{u}^{\prime }}\right)}^2({\dot{q}}^2-2\ddot{q}),q\left(u\right)\equiv log\frac{d{u}^{\prime }}{du}$$

(23)

and the fact that $\dot{a}\sim a\times \mathcal{O}\left(\frac{\sigma }{a^3}\right)$ and $\Delta \dot{a}\sim \Delta a\times \mathcal{O}\left(\frac{1}{a}\right)$, which will be checked in a self-consist manner below.

Then, from Equations (5) (with $\sigma$ replaced by ${\sigma }_s$), (18), (21), and (22), we obtain

$$\frac{d\Delta a}{d{u}^{\prime }}=\frac{d{a}^{\prime }}{d{u}^{\prime }}-\frac{da}{d{u}^{\prime }}=\frac{du}{d{u}^{\prime }}\left(\frac{du}{d{u}^{\prime }}-1\right)\frac{da}{du}-12{\sigma }_s\{u^{\prime },u\}=\frac{\Delta a}{2a}-4a\Delta \ddot{a}+\mathcal{O}\left(\frac{{(\Delta a)}^2}{{\sigma }_s},\frac{{\sigma }_s\Delta a}{a^3}\right).$$

(24)

As mentioned above, the $u^{\prime }$ derivative in the l.h.s. can be replaced to u derivative, and we reach

$$\Delta \ddot{a}+\frac{1}{4a}\Delta \dot{a}-\frac{1}{8a^2}\Delta a=0.$$

(25)

This determines the time evolution of $\Delta a\left(u\right)$ and how the pre-Hawking radiation is emitted.

Let us solve Equation (25) in the time scale $\Delta u\sim a$, where $a\left(u\right)$ hardly changes because of Equation (5). Putting the ansatz $\Delta a\left(u\right)=C{e}^{\frac{\gamma }{a}u}$ into Equation (25), we have

$${\gamma }^2+\frac{1}{4}\gamma -\frac{1}{8}=0,$$

(26)

that is, $\gamma =-\frac{1}{2},\frac{1}{4}$. $\gamma =\frac{1}{4}$ means that the energy of the shell increases exponentially in time, which is not accepted physically. Here, one might wonder why such an unphysical solution appears. The reason is that Equation (18) is a higher derivative equation describing the back reaction of the radiation to be created in the time evolution. A similar problem occurs in “Lorentz friction” (a recoil force on an accelerating charged particle caused by electromagnetic radiation emitted by the particle), where one must choose a physical solution by hand [40]. In the present case, therefore, we select as the physical solution

$$\Delta a\left(u\right)=\Delta a_0{e}^{-\frac{u}{2a}}.$$

(27)

This indicates that, as the pre-Hawking radiation is emitted, the energy of the shell decreases exponentially in the time scale $\Delta u\sim 2a$ 13. In particular, this solution satisfies

$$\frac{d}{du}\Delta a=-\frac{1}{2a}\Delta a.$$

(28)

Now, we check the time evolution of $a^{\prime }\left(u^{\prime }\right)$. Using $a^{\prime }=a+\Delta a$, Equations (5) with ${\sigma }_s$, (21), and (28), we can evaluate

$$\begin{array}{cc}\hfill \frac{d{a}^{\prime }}{d{u}^{\prime }}& =\frac{du}{d{u}^{\prime }}\left(\frac{da}{du}+\frac{d\Delta a}{du}\right)\hfill \\ \hfill & =\left(1-\frac{a\Delta a}{2{\sigma }_s}\right)\left(-\frac{{\sigma }_s}{a^2}-\frac{\Delta a}{2a}\right)+\mathcal{O}\left(\frac{{\sigma }_s\Delta a}{a^3}\right)\hfill \\ \hfill & =-\frac{{\sigma }_s}{a^2}+\frac{\Delta a}{2a}-\frac{\Delta a}{2a}+\mathcal{O}\left(\frac{{\sigma }_s\Delta a}{a^3}\right)\hfill \\ \hfill & =-\frac{{\sigma }_s}{a^2}+\mathcal{O}\left(\frac{{\sigma }_s\Delta a}{a^3}\right).\hfill \end{array}$$

(29)

This agrees with $\frac{d{a}^{\prime }}{d{u}^{\prime }}=-\frac{{\sigma }_s}{a^{\prime 2}}$ up to $\mathcal{O}\left(\frac{{\sigma }_s\Delta a}{a^3}\right)$, which shows that Figure 6 holds as a result of the time evolution. (In the next step, we will show $\frac{d{a}^{\prime }}{d{u}^{\prime }}=-\frac{{\sigma }_s}{a^{\prime 2}}$ including the correction of $\mathcal{O}\left(\frac{{\sigma }_s\Delta a}{a^3}\right)$). It should be noted that, on the third line of Equation (29), the amount of the Hawking radiation reduced by the redshift is compensated by the pre-Hawking radiation14. Therefore, the pre-Hawking radiation plays an essential role in the evaluation (29).

2.3. Step3: A Multi-Shell Model

We have seen so far that the statement of Figure 6 works up to $\mathcal{O}\left(\frac{\sigma }{a^2}\right)$ corrections for any part of the collapsing matter. Therefore, we can imagine that the collapsing matter consisting of many shells shrinks emitting the pre-Hawing radiation from each shell in the time evolution. In this last step, we will construct a dynamical model representing the situation and show under the s-wave approximation that the pre-Hawking radiation is emitted with exactly as the same magnitude as the usual Hawking radiation. Then, we see that a surface pressure is induced on each shell by the pre-Hawking radiation and discuss its role in the time evolution.

2.3.1. Setup

We consider a spherical collapsing matter consisting of n spherical thin null shells. See Figure 8, where $r_i$ represents the position of the i-th shell.

Here, physically, some part of the radiation emitted from a shell can be scattered by the other shells or the gravitational potential, but we neglect the effect for simplicity. (We will introduce it in Section 3.2.1). Then, because of spherical symmetry, for $i=1\cdots n$, the region just outside the i-th shell can be described by the outgoing Vaidya metric:

$$d{s}_i^2=-\left(1-\frac{a_i\left(u_i\right)}{r}\right)d{u}_i^2-2d{u}_{i}dr+r^{2}d{\mathsf{\Omega }}^2.$$

(30)

Here, $u_i$ is the local time, $a_i=2G{m}_i\gg l_p$, and $m_i$ is the energy inside the i-th shell (including the contribution from the shell itself). For $i=n$, $u_n=u$ is the time coordinate at infinity, and $a_n=a=2GM$, where M is the total mass. That is, the outside is given by the metric (4), but we do not assume Equation (5). On the other hand, the center, which is below the 1-st shell, is the flat spacetime,

$$d{s}^2=-d{U}^2-2dUdr+r^{2}d{\mathsf{\Omega }}^2,$$

(31)

because of the spherical symmetry. Therefore, we can regard that

$$a_0=0,u_0=U.$$

(32)

To set the time evolution equations of $a_i\left(u_i\right)$, we consider how particle creation occurs in this time-dependent spacetime [1]. Suppose that the quantum fields start in the Minkowski vacuum state ${|0\rangle }_M$ from a distance. They come to and pass the center as the green arrow in Figure 8. Then, they will propagate through the matter and be excited by the curve metric to create particles, which corresponds to the pre-Hawking radiation. For example, by solving the field equation in the eikonal approximation and using the point-splitting regularization [9,16], we can evaluate the total outgoing energy flux observed just above the i-th shell as

$$J_i\equiv 4\pi {r^2}_M\langle 0|T_{u_i{u}_i}{|0\rangle }_M=\frac{N\hslash }{16\pi }\{u_i,U\}$$

(33)

for $i=1,2,\cdots ,n$. Therefore, we have for each i

$$\frac{d{a}_i}{d{u}_i}=-2G{J}_i=-12{\sigma }_s\{u_i,U\}.$$

(34)

To complete the setup, we need to connect time coordinates, $u_n=u,u_{n-1},\cdots ,u_0=U$. Following the idea used to get the conditions (19), we have the connection conditions at $r=r_i$:

$$\frac{r_i-a_i}{r_i}d{u}_i=-2d{r}_i=\frac{r_i-a_{i-1}}{r_i}d{u}_{i-1}\mathrm{for}i=1\cdots n.$$

(35)

This is equivalent to

$$\frac{d{r}_i\left(u_i\right)}{d{u}_i}=-\frac{r_i\left(u_i\right)-a_i\left(u_i\right)}{2r_i\left(u_i\right)}$$

(36)

and

$$\frac{\mathrm{d}{u}_i}{\mathrm{d}{u}_{i-1}}=\frac{r_i-a_{i-1}}{r_i-a_i}=1+\frac{a_i-a_{i-1}}{r_i-a_i}.$$

(37)

Equation (36) determines $r_i\left(u_i\right)$ for a given $a_i\left(u_i\right)$, and then the solution $r_i\left(u_i\right)$ and Equation (37) give the relation between $\left\{u_i\right\}$. Thus, the coordinates are connected smoothly. (Israel’s junction condition will be checked later).

2.3.2. Check of the Pre-Hawking Radiation

In order to solve the coupled Equations (34) and (35), let us take the continuum limit by $\Delta M_i\equiv \frac{a_i-a_{i-1}}{2G}\to 0$. In particular, we focus on a configuration in which the following ansatz holds:15

$$\begin{array}{}\mathrm{(38)}& \hfill \frac{d{a}_i}{d{u}_i}& =-\frac{C}{a_i^2},\hfill \mathrm{(39)}& \hfill r_i& =a_i-2a_i\frac{d{a}_i}{d{u}_i}=a_i+\frac{2C}{a_i}.\hfill \end{array}$$

These can be justified by the result of step 2: From the outside of the i-th shell, the system consisting of the shell and its inside behaves like the ordinary evaporating black hole as in Equation (5), and the shell comes close to the asymptotic position as in Equation (8).

In the following, we show that the ansatz (38) and (39) gives a solution to the coupled equations to be solved, (34), (36), and (37). First of all, the ansatz (39) is nothing but the asymptotic solution of Equation (36) under the assumption (38). As we will see below, there exists a C that makes Equations (34) and (37) be satisfied.

We first solve Equation (37). By introducing

$${\xi }_i\equiv log\frac{\mathrm{d}U}{\mathrm{d}{u}_i},$$

(40)

we have

$$\begin{array}{cc}\hfill {\xi }_i-{\xi }_{i-1}& =log\frac{\frac{\mathrm{d}U}{\mathrm{d}{u}_i}}{\frac{\mathrm{d}U}{\mathrm{d}{u}_{i-1}}}=-log\frac{\mathrm{d}{u}_i}{\mathrm{d}{u}_{i-1}}\hfill \\ \hfill & =-log\left(1+\frac{a_i-a_{i-1}}{r_i-a_i}\right)\hfill \\ \hfill & \approx -\frac{a_i-a_{i-1}}{r_i-a_i}=-\frac{a_i-a_{i-1}}{\frac{2C}{a_i}}\hfill \\ \hfill & \approx -\frac{1}{4C}\left(a_i^2-a_{i-1}^2\right).\hfill \end{array}$$

(41)

Here, on the second line, we have used Equation (37); on the third line, we have used the ansatz (39) and assumed $\frac{a_i-a_{i-1}}{\frac{2C}{a_i}}\ll 1$; and, on the last line, we have approximated $2a_i\approx a_i+a_{i-1}$. These approximations become exact in the continuum limit. Then, with the condition (32), we obtain

$${\xi }_i=-\frac{1}{4C}{a}_i^2.$$

(42)

Next, we consider the time evolution Equation (34). We first note that from the definitions of the Schwarzian derivative and ${\xi }_i$ (see Equation (40)), we have

$$\{u_i,U\}=\frac{1}{3}{\left(\frac{d{\xi }_i}{d{u}_i}\right)}^2-\frac{2}{3}\frac{d^2{\xi }_i}{d{u}_i^2}.$$

(43)

On the other hand, from Equations (42) and (38), we have

$$\frac{d{\xi }_i}{d{u}_i}=-\frac{1}{2C}{a}_i\frac{d{a}_i}{d{u}_i}=\frac{1}{2a_i}.$$

(44)

Therefore, we have

$$\{u_i,U\}\approx \frac{1}{12a_i^2},$$

(45)

where the higher terms in $\frac{l_p}{a_i}$ have been neglected for $a_i\gg l_p$. Using this, Equations (34), and (38), we find $C={\sigma }_s$. That is, the solution tells that the system inside (including) each shell evaporates emitting the pre-Hawking radiation with the same magnitude as the usual Hawking radiation:

$$\frac{d{a}_i}{d{u}_i}=-\frac{{\sigma }_s}{a_i^2}.$$

(46)

Note again that this is not an assumption but the result of solving the semi-classical Einstein equation in the s-wave approximation [9,16]. Thus, we have seen in the s-wave approximation that the collapsing matter becomes a dense object with the surface (9) and evaporates as in Figure 5. The pre-Hawking radiation is emitted from each shell, and the sum of them comes out of the surface of the object just like the usual Hawking radiation. In the following, we will use the term “Hawking radiation” to mean the pre-Hawking radiation 16. (In Appendix C, we compare this pre-Hawking radiation to the usual Hawking radiation [1]).

Here, one might wonder how the Planck-like distribution with the Hawking temperature is obtained in this pre-Hawking radiation. Suppose that we want to evaluate the distribution of the particles created around a time $u=u_{*}$. Because $a(u)$ changes slowly as Equation (46), we can approximate it as $a(u)\approx a_{*}-\frac{{\sigma }_s}{a_{*}^2}(u-u_{*})$ (where $a_{*}=a(u_{*})$), which leads to $a{(u)}^2\approx a_{*}^2-\frac{2{\sigma }_s}{a_{*}}(u-u_{*})$. Using this, Equations (40) and (42) with $C={\sigma }_s$, we have

$$\frac{dU}{du}\approx e^{-\frac{a_{*}^2}{4{\sigma }_s}+\frac{1}{2a_{*}}(u-u_{*})}=D_{*}{e}^{\frac{1}{2a_{*}}u}.$$

(47)

Note that U is the affine parameter for outgoing null modes in the initial flat space, and u is that in the asymptotically flat region of the spacetime after the formation of the black hole. In general, such an exponential relation between the two affine parameters plays an essential role in obtaining the Planck-like distribution of the Hawking temperature [43,44]. In fact, the relation (47) leads to the Planck-like distribution of the time-dependent Hawking temperature [9,16] 17

$$T_H\left(u\right)=\frac{\hslash }{4\pi a\left(u\right)}.$$

(48)

Therefore, it is possible to discuss black-hole thermodynamics by using the pre-Hawking radiation (without any horizon structure) and consider the entropy (see Section 8).

2.3.3. Surface Pressure Induced by the Pre-Hawking Radiation

We check the junction condition along the trajectory of each shell and study why the matter does not collapse. When two different metrics are connected at a null hypersurface, a surface energy-momentum tensor exists on it generically. By using the Barrabes–Israel formalism [57,58], we can calculate the surface energy density ${ϵ}_{2d}^{\left(i\right)}$ and the surface pressure $p_{2d}^{\left(i\right)}$ on the i-th shell as (see Appendix F of [16] for the derivation)

$${ϵ}_{2d}^{\left(i\right)}=\frac{a_i-a_{i-1}}{8\pi G{r}_i^2},p_{2d}^{\left(i\right)}=-\frac{r_i}{4\pi G{(r_i-a_i)}^2}\left(\frac{d{a}_i}{d{u}_i}-{\left(\frac{r_i-a_i}{r_i-a_{i-1}}\right)}^2\frac{d{a}_{i-1}}{d{u}_{i-1}}\right).$$

(49)

Naturally, ${ϵ}_{2d}^{\left(i\right)}$ expresses the energy density of the shell with energy $\Delta M_i=\frac{a_i-a_{i-1}}{2G}$ and area $4\pi r_i^2$. Using Equations (34) and (37) and then applying the formula (16) to $(U,u,u^{\prime })\to (U,u_{i-1},u_i)$, we can express $p_{2d}^{\left(i\right)}$ as

$$p_{2d}^{\left(i\right)}=\frac{3{\sigma }_s{r}_s}{\pi G{(r_s-a^{\prime })}^2}\{u_i,u_{i-1}\},$$

(50)

which shows through Equation (17) that the pressure is induced by the pre-Hawking radiation $\frac{\hslash N}{16\pi }\{u_i,u_{i-1}\}$.

Let us evaluate $p_{2d}^{\left(i\right)}$. We start with the expression (49). Using Equations (39) with $C={\sigma }_s$ and (46) and performing a similar calculation to the evaluation (29), we obtain

$$p_{2d}^{\left(i\right)}\approx \frac{a_i^2\Delta a_i}{16\pi G{\sigma }_s^2},$$

(51)

for $\Delta a_i=a_i-a_{i-1}$. Therefore, the pressure is positive and strong (even for $\Delta a_i\sim \frac{l_p^2}{a}$). This means that, as the shell contracts, the pressure works to resist the gravitational force while the pre-Hawking radiation is dissipated.

We can understand the origin of this pressure from a 4D field-theoretic point of view. Indeed, the pressure appears naturally from conservation law and 4D Weyl anomaly [24]. In the following sections, we will calculate directly the expectation value of the energy-momentum tensor and show that the vacuum fluctuation of the bound modes with $l\gg 1$ creates the pressure.

3. Construction of the Candidate Metric

From now, we start a full 4D self-consistent discussion, and show that the basic idea works as a solution of the Einstein Equation (1). In the present and following sections (except for Section 9), we do not employ the s-wave approximation used in the previous section, but we consider the full 4D dynamics of quantum fields.

In this section, we use and generalize the multi-shell model in the previous section and construct a candidate metric for the interior [9,14,16,24]. Note that at this stage we do not mind if the metric is the solution of the Equation (1) or not. In Section 7, we will show that indeed it is.

3.1. The Interior Metric

We use the multi-shell model of Figure 8 and construct a candidate metric for the interior of the object. To do that, we suppose again that in the continuum limit the ansatz

$$\frac{d{a}_i}{d{u}_i}=-\frac{\sigma }{a_i^2},r_i=a_i+\frac{2\sigma }{a_i}$$

(52)

hold for an intensity $\sigma$. Then, we can use these and the condition (37) to obtain (like the calculation (41))

$${\xi }_i=-\frac{1}{4\sigma }{a}_i^2.$$

(53)

Note that in the previous section we have used the s-wave approximated Einstein Equation (34) to obtain $C={\sigma }_s$ in Equation (46), but we are now trying to use the full 4D Einstein equation to identify the self-consistent value of $\sigma$ (see Section 7).

Now, the metric at a spacetime point $(U,r)$ inside the object is obtained by considering the shell that passes the point and evaluating the metric (30). We have at $r=r_i$

$$\begin{array}{cc}\hfill \frac{r-a_i}{r}& =\frac{r_i-a_i}{r_i}=\frac{\frac{2\sigma }{a_i}}{r_i}\approx \frac{2\sigma }{r^2}\hfill \end{array}$$

(54)

$$\begin{array}{cc}\hfill \frac{d{u}_i}{dU}& =e^{-{\xi }_i}=e^{\frac{a_i^2}{4\sigma }}\approx e^{\frac{r^2}{4\sigma }},\hfill \end{array}$$

(55)

where Equations (52) and (53) have been used. From these, we can obtain the metric

$$\begin{array}{cc}\hfill d{s}^2& =-\frac{r-a_i}{r}d{u}_i^2-2d{u}_{i}dr+r^{2}d{\mathsf{\Omega }}^2\hfill \\ \hfill & =-\frac{r_i-a_i}{r_i}{\left(\frac{d{u}_i}{dU}\right)}^{2}d{U}^2-2\frac{d{u}_i}{dU}dUdr+r_i^{2}d{\mathsf{\Omega }}^2\hfill \\ \hfill & \approx -\frac{2\sigma }{r^2}{e}^{\frac{r^2}{2\sigma }}d{U}^2-2e^{\frac{r^2}{4\sigma }}dUdr+r^{2}d{\mathsf{\Omega }}^2.\hfill \end{array}$$

(56)

Note that this is static although each shell is emitting the pre-Hawking radiation and shrinking physically.

Thus, our candidate metric for the evaporating black hole is given by [9]

$$d{s}^2=\left\{\begin{array}{c}-\frac{r-a\left(u\right)}{r}d{u}^2-2dudr+r^{2}d{\mathsf{\Omega }}^2,\mathrm{for}R\left(a\left(u\right)\right)\le r,\hfill \\ -\frac{2\sigma }{r^2}{e}^{-\frac{R{\left(a\left(u\right)\right)}^2-r^2}{2\sigma }}d{u}^2-2e^{-\frac{R{\left(a\left(u\right)\right)}^2-r^2}{4\sigma }}dudr+r^{2}d{\mathsf{\Omega }}^2,\mathrm{for}\sqrt{2\sigma }\lesssim r\le R\left(a\left(u\right)\right),\hfill \end{array}\right.$$

(57)

under the assumption that the scattering effects are neglected. See Figure 9.

This metric is continuous at the null surface located at $r=R\left(a\left(u\right)\right)=a\left(u\right)+\frac{2\sigma }{a\left(u\right)}$, where the total Schwarzschild radius $a\left(u\right)$ decreases as Equation (5). Here, we have converted U in the metric (56) to u in the Vaidya metric (4) by the relation $dU=e^{-\frac{R{\left(a\left(u\right)\right)}^2}{4\sigma }}du$, which can be obtained by Equations (40) and (53).

In the construction, we have started from the vacuum spacetime and piled up many shells. The flat region around $r=0$ with width $\Delta r\sim \sqrt{\sigma }$ is extremely delayed due to the large redshift, and is still flat because of the spherical symmetry. Around $r=\sqrt{2\sigma }$, the interior metric (60) takes the same form as the flat metric (62). Then, for convenience, we assume that the region $0\le r\lesssim \sqrt{2\sigma }$ is flat. Note that the choice of $r=\sqrt{2\sigma }$ is not essential to the following discussion because we can redefine the time coordinate T (or U) and select another point, say, $r=\sqrt{4\sigma }$.

As shown in Figure 9, this object evaporates emitting the Hawking radiation through the null surface although the interior is static. Thus, the whole system is time-dependent.

This object has the surface at $r=R\left(a\right(u\left)\right)$, instead of a horizon. We can also check that there is no trapped region inside. However, the redshift is exponentially large inside, and time is almost frozen in the region deeper than the surface by $\Delta r\gg \frac{\sigma }{a}$. Therefore, this object looks like the conventional black hole from the outside. Note also that, because of this large redshift, only the Hawking radiation from the outermost region comes out although the radiation is emitted from each region inside [9].

Next, let’s consider a stationary black hole. Suppose that we put the evaporating object in the vacuum into the heat bath with temperature $T_H=\frac{\hslash }{4\pi a}$. Then, the ingoing and outgoing radiations balance each other, and the system becomes stationary. The object has the surface at $r=R\left(a\right)$ for $a=const.$, which corresponds to a stationary black hole in the heat bath 18. Then, the outside spacetime is described approximately by the Schwarzschild metric (instead of the Vaidya metric):

$$d{s}^2=-\frac{r-a}{r}d{t}^2+\frac{r}{r-a}d{r}^2+r^{2}d{\mathsf{\Omega }}^2.$$

(58)

By defining the time coordinate T around the origin as

$$dT=dU+\frac{r^2}{2\sigma }{e}^{-\frac{r^2}{4\sigma }}dr,$$

(59)

we can reexpress the interior metric (56) as

$$d{s}^2=-\frac{2\sigma }{r^2}{e}^{\frac{r^2}{2\sigma }}d{T}^2+\frac{r^2}{2\sigma }d{r}^2+r^{2}d{\mathsf{\Omega }}^2.$$

(60)

Thus, by changing T to t through $dT=e^{-\frac{R{\left(a\right)}^2}{4\sigma }}dt$, we have [9]

$$d{s}^2=\left\{\begin{array}{c}-\frac{r-a}{r}d{t}^2+\frac{r}{r-a}d{r}^2+r^{2}d{\mathsf{\Omega }}^2,\mathrm{for}R\left(a\right)\le r,\hfill \\ -\frac{2\sigma }{r^2}{e}^{-\frac{R{\left(a\right)}^2-r^2}{2\sigma }}d{t}^2+\frac{r^2}{2\sigma }d{r}^2+r^{2}d{\mathsf{\Omega }}^2,\mathrm{for}\sqrt{2\sigma }\lesssim r\le R\left(a\right),\hfill \end{array}\right.$$

(61)

which is the candidate metric for the stationary black hole. This metric is continuous at $r=R\left(a\right)$ and connected to the flat region around $r=0$

$$d{s}^2=-d{T}^2+d{r}^2+r^{2}d{\mathsf{\Omega }}^2$$

(62)

at $r\approx \sqrt{2\sigma }$ by the relation $dT=e^{-\frac{R{\left(a\right)}^2}{4\sigma }}dt$.

Note that the interior parts of both the metrics (57) and (61) are static and the same. In the following sections, we will be interested basically in the interior region. Therefore, we will often consider the case of $a=const.$ and use the static metric (61).

3.2. Generalization of the Metric

The interior part of the candidate metric (61) doesn’t contain the effect of scattering which has been mentioned above (30). Actually, the metric has $-{G^t}_t={G^r}_r=\frac{1}{r^2}$ for $r\gg l_p$, which is, through Equation (1), equivalent to $-\langle {T^t}_t\rangle =\langle {T^r}_r\rangle$. Here, $-\langle {T^t}_t\rangle$ and $\langle {T^r}_r\rangle$ are the energy density and radial pressure, respectively. This indicates that, from a microscopic point of view, the collapsing matter and radiation move radially in a lightlike way without scattering. In this subsection, we introduce a phenomenological function representing the effect of the scattering and generalize the metric (61) [14].

3.2.1. Another Phenomenological Function $\eta$

We first examine the energy-momentum flow in the general static metric (2). The self-consistent energy-momentum flow must be time-reversal, which can be characterized by

$$-\langle T^{\mu \nu }\rangle k_{\nu }=\kappa (l^{\mu }+(\eta -1)k^{\mu }),-\langle T^{\mu \nu }\rangle l_{\nu }=\kappa (k^{\mu }+(\eta -1)l^{\mu }).$$

(63)

Here, $\kappa$ is a function. As we have seen that the interior of the object is very dense, we assume that $\eta =\eta \left(r\right)$ is a function of $\mathcal{O}\left(1\right)$ which varies slowly 19. $\mathit{l}$ and $\mathit{k}$ are the radial outgoing and ingoing null vectors, respectively:

$$\mathit{l}=e^{-\frac{A}{2}}{\partial }_t+\frac{1}{B}{\partial }_r,\mathit{k}=e^{-\frac{A}{2}}{\partial }_t-\frac{1}{B}{\partial }_r.$$

(64)

These transform under time reversal as $(\mathit{l},\mathit{k})\to (-\mathit{k},-\mathit{l})$. Equation (63) can be rewritten as

$$\langle T^{\mathit{k}\mathit{k}}\rangle :\langle T^{\mathit{l}\mathit{k}}\rangle =1:\eta -1,\langle T^{\mathit{k}\mathit{k}}\rangle =\langle T^{\mathit{l}\mathit{l}}\rangle ,$$

(65)

where $T^{\mathit{k}\mathit{k}}$ stands for $T^{\mu \nu }{k}_{\mu }{k}_{\nu }$, and so on. Furthermore, this can also be expressed in terms of the ratio between $-\langle {T^t}_t\rangle$ and $\langle T^r{}_r\rangle$:

$$\frac{\langle T^r{}_r\rangle }{-\langle T^t{}_t\rangle }=\frac{2-\eta }{\eta }.$$

(66)

Therefore, $\eta$ must satisfy

$$1\le \eta <2.$$

(67)

Here, the first inequality is required by the fact that, in Equation (65), $\eta -1$ plays a role of the ratio between two energy flows, which must be positive. The second one is needed in order for the pressure to be positive under $-\langle T^t{}_t\rangle >0$.

Now, we discuss the physical meaning of $\eta$ from a microscopic point of view. See Figure 10.

We focus on one of the null shells that make up the black hole and consider the moment when the size is r, which is represented by S in Figure 10. The vector $P^{\mu }\equiv \langle T^{\mu \mathit{k}}\rangle$ expresses the energy-momentum flow through the shell, which moves lightlike inward along $\mathit{k}$. If the radiated particle is massless and propagates outward along the radial direction without scattering, $P^{\mu }$ should be parallel to $l^{\mu }$, which means $\eta =1$. Therefore, $\eta -1$ represents the deviation from this ideal situation. $\eta -1$ can become non-zero if the massless particle is scattered in the ingoing direction by the gravitational potential or interaction with other matters20. This is because such a scattered particle comes back to the surface in the time scale of $O\left(a\right)$ according to Equation (6), and produces an energy-momentum flow along the $\mathit{k}$ direction. In this way, $\eta$ is a phenomenological function that depends on the detail of microscopic dynamics.

3.2.2. The Candidate Metric

We determine $A\left(r\right)$ and $B\left(r\right)$ by considering the ratio (66) for a given $\eta$. Here, we assume for simplicity that $\eta$ is a constant satisfying the condition (67) in $\sqrt{2\sigma }\lesssim r\le R\left(a\right)$. We can expect that the introduction of $\eta (\ne 1)$ should not change the functional forms of $A\left(r\right)$ and $B\left(r\right)$ in a drastically different way from those of the metric (60) 21. Therefore, we can put

$$A\left(r\right)=C_1\frac{r^2}{2\sigma },B\left(r\right)=C_2\frac{r^2}{2\sigma },$$

(68)

where $C_1$ and $C_2$ are some coefficients such that $C_1,C_2\to 1$ in $\eta \to 1$ 22.

Then, using the ratio (66) and the Einstein Equation (1), we have for $r\gg l_p$

$$\frac{2}{\eta }=\frac{G^r{}_r}{-G^t{}_t}+1=\frac{r{\partial }_{r}A}{B-1+r{\partial }_{r}logB}\approx \frac{r{\partial }_{r}A}{B}=\frac{2C_1}{C_2},$$

(69)

that is, $C_1=\frac{1}{\eta }{C}_2$. Therefore, Equation (68) becomes

$$A\left(r\right)=C_2\frac{r^2}{2\sigma \eta },B\left(r\right)=C_2\frac{r^2}{2\sigma }.$$

(70)

At this stage, the intensity $\sigma$ is arbitrary, and we can redefine it and remove $C_2$ without losing generality to obtain

$$A\left(r\right)=\frac{r^2}{2\sigma \eta },B\left(r\right)=\frac{r^2}{2\sigma }.$$

(71)

Thus, introducing the scattering effect by $\eta$, the metric (61) is generalized to [14]

$$d{s}^2=\left\{\begin{array}{c}-\frac{r-a}{r}d{t}^2+\frac{r}{r-a}d{r}^2+r^{2}d{\mathsf{\Omega }}^2,\mathrm{for}R\left(a\right)\le r,\hfill \\ -\frac{2\sigma }{r^2}{e}^{-\frac{R{\left(a\right)}^2-r^2}{2\sigma \eta }}d{t}^2+\frac{r^2}{2\sigma }d{r}^2+r^{2}d{\mathsf{\Omega }}^2,\mathrm{for}\sqrt{2\sigma }\lesssim r\le R\left(a\right).\hfill \end{array}\right.$$

(72)

This metric is again continuous at the surface at $r=R\left(a\right)\equiv a+\frac{2\sigma }{a}$. The center is assumed again to be flat, which requires that $\eta =1$ there. The flat metric (62) around $r=0$ is expressed in terms of t approximately as

$$d{s}^2=-e^{-\frac{R{\left(a\right)}^2}{2\sigma }+1}d{t}^2+d{r}^2+r^{2}d{\mathsf{\Omega }}^2,\mathrm{for}0\le r\lesssim \sqrt{2\sigma }.$$

(73)

The metrics (72) and (73) are our candidate metric23. It depends on two parameters $(\sigma ,\eta )$, which will be determined self-consistently later.

The interior part of the metric (72) can also be applied to the evaporating black hole because the interior is static. Therefore, the previous metric (57) is generalized to

$$d{s}^2=\left\{\begin{array}{c}-\frac{r-a\left(u\right)}{r}d{u}^2-2dudr+r^{2}d{\mathsf{\Omega }}^2,\mathrm{for}R\left(a\left(u\right)\right)\le r,\hfill \\ -\frac{2\sigma }{r^2}{e}^{-\frac{R{\left(a\left(u\right)\right)}^2-r^2}{2\sigma \eta }}d{u}^2-2e^{-\frac{R{\left(a\left(u\right)\right)}^2-r^2}{4\sigma \eta }}dudr+r^{2}d{\mathsf{\Omega }}^2,\mathrm{for}\sqrt{2\sigma }\lesssim r\le R\left(a\left(u\right)\right),\hfill \end{array}\right.$$

(74)

We check the form of the Einstein tensor. The interior part of the metric (72) has

$$G^t{}_t=-\frac{1}{r^2},G^r{}_r=\frac{2-\eta }{\eta }\frac{1}{r^2},G^{\theta }{}_{\theta }=G^{\varphi }{}_{\varphi }=\frac{1}{2\sigma {\eta }^2}-\frac{1}{\eta r^2},$$

(75)

to $\mathcal{O}\left(r^{-2}\right)$ for $r\gg l_p$. This means through the Einstein Equation (1) that the energy density and pressure are positive, but the angular pressure is so large (almost Planckian) that the dominant energy condition violates, as mentioned in Section 1.

Next, we calculate the curvatures in $\sqrt{2\sigma }\lesssim r\le R\left(a\right)$:

$$\begin{array}{}\mathrm{(76)}& \hfill R& =-\frac{1}{{\eta }^2\sigma }+\frac{2}{r^2}\hfill \mathrm{(77)}& \hfill R_{\mu \nu }{R}^{\mu \nu }& =\frac{1}{2{\eta }^4{\sigma }^2}-\frac{2}{{\eta }^3\sigma r^2}+\mathcal{O}\left(r^{-4}\right),\hfill \mathrm{(78)}& \hfill R_{\mu \nu \alpha \beta }{R}^{\mu \nu \alpha \beta }& =\frac{1}{{\eta }^4{\sigma }^2}-\frac{8}{{\eta }^3\sigma r^2}+\mathcal{O}\left(r^{-4}\right).\hfill \end{array}$$

This means that, if the metric is the solution of the Einstein Equation (1) and Equations (11) and (67) are satisfied, the geometry has no singularity. Then, the Penrose diagram of the evaporating black hole is given by Figure 1.

We here discuss Hawking radiation in this picture. We consider the total energy flux through an ingoing null shell along $\mathit{k}$ in Figure 10:

$$\begin{array}{cc}\hfill J& \equiv 4\pi r^2\langle T^{\mathit{u}\mathit{k}}\rangle \hfill \\ \hfill & =4\pi r^2\left(-B^{-1}\langle T^t{}_t\rangle -e^{-\frac{A}{2}}\langle T^r{}_t\rangle \right),\hfill \end{array}$$

(79)

where Equation (64) has been used, and $\mathit{u}\equiv \frac{1}{2}{e}^{-\frac{A}{2}}{\partial }_t$ is the vector of the local time (like $u_i$ in Figure 8). This is a generalized definition of the total flux. Applying the definition (79) to the interior of the metric (72) (or (74)) and using Equations (1) and (75), we have $J=4\pi r^2\left(-B^{-1}\frac{1}{16\pi G}{G}^t{}_t\right)=\frac{\sigma }{2G{r}^2}$. For the exterior part of the metric (74) for the evaporating black hole, on the other hand, we obtain $G_{\mathit{u}\mathit{k}}\approx G_{uu}=-\frac{\dot{a}}{r^2}$. Then, we have $J\approx \frac{\sigma }{2G{a}^2}$ by using Equations (1) and (5). Thus, these agree with each other at $r=R\left(a\right)\approx a$, which means that the radiation emitted from the inside goes to the outside.

Finally, we argue that the interior part of the metric (72) is $Ad{S}_2\times S^2$ locally. First, we can check that, in general, a spherically symmetric metric $d{s}^2=-f\left(r\right)d{t}^2+h\left(r\right)d{r}^2+r^{2}d{\mathsf{\Omega }}^2$ is $Ad{S}_2\times S^2$ spacetime with $d{s}^2=\frac{l^2}{z^2}(-d{t}^2+d{z}^2)+r{\left(z\right)}^{2}d{\mathsf{\Omega }}^2$ if the condition

$$\sqrt{h\left(r\right)}=\pm \frac{l}{2}{\partial }_{r}logf\left(r\right)$$

(80)

is satisfied24. For the interior metric, we have $h\left(r\right)=B\left(r\right)=\frac{r^2}{2\sigma }$ and ${\partial }_{r}logf\left(r\right)\approx {\partial }_{r}A\left(r\right)=\frac{r}{\sigma \eta }$, where we have neglected the contribution from $B\left(r\right)$ of $g_{tt}=-\frac{e^{A\left(r\right)}}{B\left(r\right)}$ for $r\gg l_p$. Then, the condition (80) is satisfied for $l=\sqrt{2\sigma {\eta }^2}$ around the point r we are focusing. Thus, the interior metric can be approximated locally as $Ad{S}_2\times S^2$ geometry:

$$d{s}^2\approx \left(2\sigma {\eta }^2\right)\left[\frac{1}{z^2}(-d{t}^2+d{z}^2)+{\overline{r}}^{2}d{\mathsf{\Omega }}^2\right],$$

(81)

where $\overline{r}\equiv \frac{r\left(z\right)}{\sqrt{2\sigma {\eta }^2}}$25. This means that the local symmetry for a fluid before the matter collapses becomes that for $Ad{S}_2$ after the black hole is formed. It would be interesting to study this more in future.

4. Field Configurations

We consider N massless free scalar fields

$$S_M[\varphi ;g_{\mu \nu }]=-\frac{1}{2}\sum _{a=1}^N\int d{x}^4\sqrt{-g}{g}^{\mu \nu }{\partial }_{\mu }{\varphi }_a{\partial }_{\nu }{\varphi }_a$$

(82)

in the candidate metrics (72) and (73) and study their configurations to find a candidate state. This action leads to the equation of motion26

$$0=\square \varphi \left(x\right)=\frac{1}{\sqrt{-g}}{\partial }_{\mu }\left(\sqrt{-g}{g}^{\mu \nu }{\partial }_{\nu }\varphi \right).$$

(83)

4.1. Classical Effective Potential and Bound Modes

Before going to quantum fields, we study the classical behavior of matter to see intuitively what happens in the spacetime (72). To do that, we analyze the field Equation (83) in the classical approximation to draw the effective potential for the partial waves of the fields.

We first consider the general static metric (2) and set

$$\varphi \left(x\right)={\mathcal{N}}_i\frac{e^{-i\omega t}}{\sqrt{C\left(r\right)}}{\phi }_i\left(r\right)Y_{lm}(\theta ,\varphi ),C\left(r\right)\equiv r^{2}B{\left(r\right)}^{-1}{e}^{\frac{A\left(r\right)}{2}},$$

(84)

where $i=(\omega ,l)$ and the normalization factor ${\mathcal{N}}_i$ will be fixed in Section 4.2. Then, the field Equation (83) becomes

$$\begin{array}{}\mathrm{(85)}& \hfill 0& ={\partial }_r^2{\phi }_i\left(r\right)+p_i^2\left(r\right){\phi }_i\left(r\right),\hfill \mathrm{(86)}& \hfill p_i^2\left(r\right)& \equiv B\left(r\right)\left(B\left(r\right)e^{-A\left(r\right)}{\omega }^2-\frac{l(l+1)}{r^2}-\mathcal{M}\left(r\right)\right),\mathcal{M}\left(r\right)\equiv \frac{{\partial }_r^2\sqrt{C\left(r\right)}}{B\left(r\right)\sqrt{C\left(r\right)}}.\hfill \end{array}$$

This Equation (85) takes the same form as the Schrödinger equation with energy $E=0$ and the potential $V\left(r\right)=-p_i^2\left(r\right)$. Therefore, the classically allowed region is determined by the condition $p_i^2\left(r\right)\ge 0$.

In general, when one studies a field equation in a curved spacetime, he needs to take the curvature effect into account, which is expressed here as the “mass term" $\mathcal{M}$, the two derivative term of the metric27. For the metrics (72) and (73), $\mathcal{M}$ takes28

$$\mathcal{M}=\left\{\begin{array}{c}-\frac{a^2}{4r^3(r-a)},\mathrm{for}R\left(a\right)\le r,\hfill \\ \frac{1}{8\sigma {\eta }^2}+\frac{1}{2\eta r^2},\mathrm{for}\sqrt{2\sigma }\lesssim r\le R\left(a\right),\hfill \\ 0,\mathrm{for}0\le r\lesssim \sqrt{2\sigma }.\hfill \end{array}\right.$$

(87)

However, $\mathcal{M}$ should not significantly affect the purely classical motion of matter because a classical particle equation (Hamilton–Jacobi equation) does not include derivative terms of the metric. Therefore, in this subsection, we ignore $\mathcal{M}$ for a while.

Let us draw the classical effective potential $p_i^{\left(cl\right)}{\left(r\right)}^2$ for the whole spacetime of the static black hole with $a=$const. for simplicity. (This corresponds to the stationary black hole in the heat bath). We apply the metrics (72) and (73) to the formula (86) (without $\mathcal{M}$) and obtain

$$p_i^{\left(cl\right)}{\left(r\right)}^2=\left\{\begin{array}{c}{\left(1-\frac{a}{r}\right)}^{-2}{\omega }^2-{\left(1-\frac{a}{r}\right)}^{-1}\frac{l(l+1)}{r^2},\mathrm{for}R\left(a\right)\le r,\hfill \\ \frac{r^4}{4{\sigma }^2}{e}^{-\frac{r^2-R{\left(a\right)}^2}{2\sigma \eta }}{\omega }^2-\frac{l(l+1)}{2\sigma },\mathrm{for}\sqrt{2\sigma }\lesssim r\le R\left(a\right),\hfill \\ e^{\frac{R{\left(a\right)}^2}{2\sigma }-1}{\omega }^2-\frac{l(l+1)}{r^2},\mathrm{for}0\le r\lesssim \sqrt{2\sigma }.\hfill \end{array}\right.$$

(88)

This is continuous29. Note that the frequency $\omega$ is measured at $r\gg a$.

For $l=0$, we have the left of Figure 11, which shows that the whole region is allowed classically; s-waves can enter the inside from the outside, pass the center, and come back to the outside, which takes an exponentially long time because of the large redshift.

We refer to such modes as continuum modes in the following. For $l\gg 1$, on the other hand, the classically allowed region consists of two disconnected domains as in the right of Figure 11. The outer one indicates that such modes coming from the outside are reflected by the barrier $\frac{l(l+1)}{r^2}$ while the inner one shows that they are trapped inside, which we call bound modes.

Now, we discuss the behavior of each mode in the formation process of the black hole. We first study the condition for a mode with $(\omega ,l)$ to enter the black hole with a from the outside. From the potential (88), for $r\gg a$, we have $p_i^{\left(cl\right)}{\left(r\right)}^2\approx {\omega }^2-\frac{l^2}{r^2}$, which becomes zero at $r=\frac{l}{\omega }$. This means that the mode is reflected at the point and returns to the outside. Therefore, the condition is $r=\frac{l}{\omega }<a$ that is, $l<\omega a$. From this, we can also see that a mode with $(\omega ,l)$ composing i-th shell of the multi-shell model in Figure 8 can enter inside if $l<\omega a_i$. As we will see in Section 6, most such modes have the energy $\hslash \omega \sim \frac{\hslash }{a_i}$. Then, the condition becomes $l<\omega a_i\sim 1$. Thus, we conclude that only the continuum modes of s-wave can enter the black hole from the outside.

Although modes with $l\ge 1$ cannot enter from the outside, they emerge inside the black hole in the formation process. To see it, we study how the potential $p_i^{\left(cl\right)}{\left(r\right)}^2$ changes for a given $(\omega ,l)$ as a increases from zero. See Figure 12.

Initially, there is no mass, $a=0$, so the spacetime is flat and the potential is given by the purple line. When the mass becomes larger than $m_p$, the allowed region appears inside, which is described by the blue line. Then, the bound modes emerge there. As the mass increases, the potential grows up and the allowed region is broaden (see the green and yellow lines). Then, the outer zero point (which is depicted by the arrows) moves inward, which means that, as the mass increases, the gravitational attraction increases, allowing the mode to overcome the centrifugal repulsion and penetrate more inside. In this way, many bound modes emerge inside the black hole independently of the initial state.

Finally, we note that, if the curvature term $\mathcal{M}$ is considered in the formula (86), the bound mode of s-wave can also emerge inside the black hole. In fact, for $\sqrt{2\sigma }\lesssim r\le R\left(a\right)$, we have $p_{\omega ,l=0}^2{|}_{r=R\left(a\right)}=\frac{R{\left(a\right)}^2}{2\sigma }\left(\frac{R{\left(a\right)}^2}{2\sigma }{\omega }^2-\frac{1}{8\sigma {\eta }^2}\right)$. This means that the s-waves with $\omega <\mathcal{O}\left(\frac{1}{R\left(a\right)}\right)$ are trapped inside $r=R\left(a\right)$. See Figure 13. Thus, the s-wave in the interior metric can be in a continuum mode as in the left of Figure 11 or in a bound mode as in Figure 13.

4.2. WKB Approximation

We now consider quantum fields and try to solve the field Equation (83) by WKB method30. In the interior of the metric (72), the leading WKB solution is given, through Equations (84), (85) and (86), by [59]31

$$\begin{array}{}\mathrm{(89)}& \hfill \varphi \left(x\right)& =\sum _i(a_i{u}_i\left(x\right)+a_i^{†}{u}_i^{*}\left(x\right)),\hfill \mathrm{(90)}& \hfill u_i\left(x\right)& ={\mathcal{N}}_i\frac{e^{-i{\omega }_{i}t}}{\sqrt{C\left(r\right)}}\frac{1}{\sqrt{p_i\left(r\right)}}cos[{\int }^{r}d{r}^{\prime }{p}_i\left(r^{\prime }\right)+{\theta }_i]Y_{lm}(\theta ,\varphi ).\hfill \end{array}$$

Here, $A\left(r\right)=\frac{r^2-R{\left(a\right)}^2}{2\sigma \eta }$, $B\left(r\right)=\frac{r^2}{2\sigma }$, $i=(\alpha ,l,m)$, and ${\theta }_i$ is a phase factor, where $\alpha$ labels the frequencies for each l and m. For the bound modes, the frequencies are quantized, ${\omega }_i={\omega }_{nl}$ ($n\in \mathbb{Z}$), and are approximately given by32

$$2\pi n=\oint dr{p}_{nl}\left(r\right)=2{\int }_{r_{nl}^{-}}^{r_{nl}^{+}}dr\sqrt{B\left(B{e}^{-A}{\omega }_{nl}^2-\frac{l(l+1)}{r^2}-\mathcal{M}\right)},$$

(91)

where $p_{nl}\left(r\right)$ vanishes at $r=r_{nl}^{+},r_{nl}^{-}$. The normalization is fixed as (see Appendix D)

$${\mathcal{N}}_i=\sqrt{\frac{\hslash }{\pi }}\sqrt{\frac{\partial {\omega }_{nl}}{\partial n}}.$$

(92)

On the other hand, the s-waves have continuum modes (as in the left of Figure 11), which we will discuss more in Section 6.

We also have the commutation relation

$$[\varphi (t,\mathit{x}),\pi (t,\mathit{y})]=i\hslash {\delta }^3(\mathit{x}-\mathit{y})$$

(93)

and

$$[a_i,a_j^{†}]={\delta }_{ij},$$

(94)

where $\pi (t,\mathit{x})$ is the momentum conjugate to $\varphi (t,\mathit{x})$$(S_M=\int dt{L}_M)$:

$$\pi (t,\mathit{x})\equiv \frac{\partial L_M}{\partial \left({\partial }_t\varphi (t,\mathit{x})\right)}=-\sqrt{-g}{g}^{tt}\dot{\varphi }.$$

(95)

The ground state $|0\rangle$ for all modes $\left\{u_i\right\}$ in the interior metric is characterized by

$$a_i|0\rangle =0.$$

(96)

4.3. A Candidate State

We show that the bound modes are in the ground state while the continuum modes of s-wave are in an excited state. If $|\psi \rangle$ is the ground state for the bound modes ${\left\{u_i\right\}}_{i\in B}$, it satisfies

$$a_i|\psi \rangle =0\mathrm{for}i\in B,$$

(97)

where B stands for the set of the bound modes. From Figure 12, the condition (97) is independent of the initial state of the system because the bound modes emerge in the region disconnected from the outside.

In general, the ADM energy M inside radius r in a spherically-symmetric spacetime is given by [40]

$$M=4\pi {\int }_0^{r}d{r}^{\prime }{r}^{\prime 2}\langle -T^t{}_t\rangle ,$$

(98)

where

$$T_{\mu \nu }\left(x\right)\equiv \frac{-2}{\sqrt{-g}}\frac{\delta S_M}{\delta g^{\mu \nu }\left(x\right)}=\sum _{a=1}^N\left({\partial }_{\mu }{\varphi }_a\left(x\right){\partial }_{\nu }{\varphi }_a\left(x\right)-\frac{1}{2}{g}_{\mu \nu }\left(x\right)g^{\alpha \beta }\left(x\right){\partial }_{\alpha }{\varphi }_a\left(x\right){\partial }_{\beta }{\varphi }_a\left(x\right)\right).$$

(99)

Then, we can define the ADM-energy increase ${(\Delta M)}_i$ of the first-excited state of the i-th bound mode (of a component of fields ${\left\{{\varphi }_a\right\}}_{a=1}^N$), $|i;\psi \rangle \equiv a_i^{†}|\psi \rangle$, by

$${(\Delta M)}_i\equiv 4\pi {\int }_{r_i^{-}}^{r_i^{+}}dr{r}^2(\langle i;\psi |-T^t{}_t|i;\psi \rangle -\langle \psi |-T^t{}_t|\psi \rangle ),$$

(100)

where $|\psi \rangle$ satisfies the condition (97) and the integration interval is the allowed region of the bound mode $u_i$. This is finite because the UV divergence is subtracted by the second term. We estimate the order of this by using the WKB approximation.

We first check the condition for the bound mode to exist, which is determined by the quantization condition (91). That is, the quantum number of the i-th bound mode must be at least greater than 1:

$$1\lesssim \pi n={\int }_{r_i^{-}}^{r_i^{+}}dr{p}_i\approx {\int }_{r_i^{-}}^{r_i^{+}}drB{e}^{-\frac{A}{2}}{\omega }_i=e^{\frac{R{\left(a\right)}^2}{4\sigma \eta }}{\omega }_i{\int }_{r_i^{-}}^{r_i^{+}}dr\frac{r^2}{2\sigma }{e}^{-\frac{r^2}{4\eta \sigma }}=e^{\frac{R{\left(a\right)}^2}{4\sigma \eta }}{\omega }_{i}K\sqrt{\sigma },$$

(101)

where we have considered only the most dominant term of Equation (86) in the WKB approximation and evaluated the integration as ${\int }_{r_i^{-}}^{r_i^{+}}dr\frac{r^2}{2\sigma }{e}^{-\frac{r^2}{4\eta \sigma }}=K\sqrt{\sigma }$ with a constant $K=\mathcal{O}\left(1\right)$33. Therefore, the frequency must satisfy

$${\omega }_i\gtrsim \frac{1}{K\sqrt{\sigma }}{e}^{-\frac{R{\left(a\right)}^2}{4\sigma \eta }}.$$

(102)

Similarly, we can calculate from Equation (A20)

$$\frac{\partial {\omega }_i^2}{\partial n}=2\pi {\left({\int }_{r_i^{-}}^{r_i^{+}}dr\frac{B^2{e}^{-A}}{p_i}\right)}^{-1}\approx 2\pi {\omega }_i{\left({\int }_{r_i^{-}}^{r_i^{+}}drB{e}^{-\frac{A}{2}}\right)}^{-1}=\frac{2\pi {\omega }_i}{K\sqrt{\sigma }}{e}^{-\frac{R{\left(a\right)}^2}{4\sigma \eta }}.$$

(103)

Next, we see $\dot{\varphi }={\sum }_j(-i{\omega }_j)(a_j{u}_j-a_j^{†}{u}_j^{*})$ from Equations (89) and (90). Using Equations (94) and (97), we can see easily $\langle i;\psi |{\dot{\varphi }}^2|i;\psi \rangle =2{\omega }_i^2|u_i{|}^2+\langle \psi |{\dot{\varphi }}^2|\psi \rangle$. We check the form

$$T^t{}_t=-\frac{1}{2}\sum _{a=1}^N\left(-g^{tt}{\dot{\varphi }}_a^2+g^{rr}{\left({\partial }_r{\varphi }_a\right)}^2+g^{\theta \theta }{\left({\partial }_{\theta }{\varphi }_a\right)}^2+g^{\varphi \varphi }{\left({\partial }_{\varphi }{\varphi }_a\right)}^2\right).$$

(104)

Then, we evaluate

$$\begin{array}{cc}\hfill \langle i;\psi |-T^t{}_t|i;\psi \rangle -\langle \psi |-T^t{}_t|\psi \rangle & \approx \left(-g^{tt}{\omega }_i^2+g^{rr}{p}_i^2+\frac{l(l+1)}{r^2}\right){\left|u_i\right|}^2\hfill \\ \hfill & \approx \frac{\hslash }{8{\pi }^2}\frac{\partial {\omega }_i}{\partial n}\frac{2B{e}^{-A}{\omega }_i^2-\frac{1}{8{\eta }^2\sigma }}{r^2{B}^{-1}{e}^{\frac{A}{2}}\sqrt{B\left(B{e}^{-A}{\omega }_i^2-\frac{l(l+1)}{r^2}-\frac{1}{8{\eta }^2\sigma }\right)}}\hfill \\ \hfill & \approx \frac{\hslash }{8{\pi }^2{r}^2}\frac{\partial {\omega }_i^2}{\partial n}B{e}^{-A},\hfill \end{array}$$

(105)

Here, on the first line, we have applied ${\partial }_r$ only to $cos\int dr{p}_i$ in $u_i\left(x\right)$; on the second line, we have used the WKB solution (90), ${cos}^2\int dr{p}_i\approx \frac{1}{2}$ and $|Y_{lm}{|}^2\approx \frac{1}{4\pi }$; and, on the last line, we have picked up only the most dominant terms because we are interested in the order estimation.

Thus, we estimate the energy increase (100) as

$$\begin{array}{cc}\hfill {(\Delta M)}_i& \approx \frac{\hslash }{2\pi }\frac{\partial {\omega }_i^2}{\partial n}{\int }_{r_i^{-}}^{r_i^{+}}dr\frac{r^2}{2\sigma }{e}^{\frac{R{\left(a\right)}^2-r^2}{2\sigma \eta }}\hfill \\ \hfill & =\frac{\hslash }{2\pi }\frac{\partial {\omega }_i^2}{\partial n}{K}^{\prime }\sqrt{\sigma }{e}^{\frac{R{\left(a\right)}^2}{2\sigma \eta }}\hfill \\ \hfill & \approx \hslash \frac{K^{\prime }}{K}{e}^{\frac{R{\left(a\right)}^2}{4\sigma \eta }}{\omega }_i\hfill \\ \hfill & \gtrsim \hslash \frac{K^{\prime }}{K}\frac{1}{K\sqrt{\sigma }}.\hfill \end{array}$$

(106)

Here, on the first line, we have used the evaluation (105); on the second line, we have expressed ${\int }_{r_i^{-}}^{r_i^{+}}dr\frac{r^2}{2\sigma }{e}^{-\frac{r^2}{2\sigma \eta }}=K^{\prime }\sqrt{\sigma }$ with $K^{\prime }=\mathcal{O}\left(1\right)$; on the third line, we have employed Equation (103); and on the last line, we have applied the condition (102). That is, we have34

$${(\Delta M)}_i\gtrsim \mathcal{O}\left(\frac{m_p}{\sqrt{N}}\right).$$

(107)

Here, as we will see in Section 6, the statistical fluctuation of the mass of the black hole is $\mathcal{O}\left(m_p\right)$. Thus, the result (107) means that when the number of excited bound modes exceeds $\mathcal{O}\left(\sqrt{N}\right)$, the excitation energy becomes larger than $\mathcal{O}\left(m_p\right)$, and the object becomes different from the black hole. Therefore, we can regard that the bound modes are in the ground state because $\mathcal{O}\left(\sqrt{N}\right)$ is negligible compared to the number of total modes, which is on the order of $\mathcal{O}\left(\frac{a^2}{l_p^2}\right)$ (see Section 6).

On the other hand, the continuum modes of s-wave are not restricted by the condition (102) because they are not trapped inside. Therefore, those modes can enter and exit the black hole as an excitation that represents the collapsing matter and Hawking radiation. Thus, the candidate state $|\psi \rangle$ is a state in which the bound modes are in the ground state and the s-waves are excited, leading to the energy-momentum tensor (3). (In Section 6, we will characterize $|\psi \rangle$ more specifically).

5. Energy-Momentum Tensor in the Ground State $|0\rangle$

In this section, we evaluate $\langle 0\left|T_{\mu \nu }\right|0\rangle$ of Equation (3), where $|0\rangle$ is the ground state (96). The plan is as follows. In Section 5.1, we first study how the WKB approximation breaks down and solve the field equation in a different perturbation technique to obtain the leading solution of the bound modes. In Section 5.2, we check the general procedure of the renormalization for the dimensional regularization. In Section 5.3, we evaluate the leading value of the renormalized energy-momentum tensor $\langle 0|T_{\mu \nu }{|0\rangle }_{ren}^{\prime \left(0\right)}$. In Section 5.4, we study the subleading value $\langle 0|T_{\mu \nu }{|0\rangle }_{ren}^{\prime \left(1\right)}$.

5.1. Solutions of the Bound Modes

We construct the solutions of the bound modes in the interior, which will be used in Section 5.3.

5.1.1. Breakdown of the WKB Approximation

We first examine the validity of the WKB approximation in Section 4.2. If we want to evaluate the energy-momentum tensor at a point $r=r_0$ inside the object, we need $u_i\left(x\right)$ at $r=r_0$ with various values of $i=(\omega ,l,m)$. Then, the proper frequency $\tilde{\omega }$ and the proper angular momentum $\tilde{L}$ at $r=r_0$ are physically important:35

$${\tilde{\omega }}^2\equiv {\left(\frac{\omega }{\sqrt{-g_{tt}\left(r_0\right)}}\right)}^2=\frac{r_0^2}{2\sigma }{e}^{-\frac{r_0^2}{2\sigma \eta }}{\omega }^2,\tilde{L}\equiv \frac{l(l+1)}{r_0^2}.$$

(108)

In terms of these, the formula (86) is expressed as

$$p_i{\left(r\right)}^2=\frac{r_0^2}{2\sigma }\left[{\left(\frac{r}{r_0}\right)}^4{e}^{-\frac{r^2-r_0^2}{2\sigma \eta }}{\tilde{\omega }}^2-\left(\tilde{L}+\frac{1}{2\eta r_0^2}\right)-\frac{1}{8\sigma {\eta }^2}{\left(\frac{r}{r_0}\right)}^2\right].$$

(109)

From this, we have $p_i{\left(r_0\right)}^2=\frac{r_0^2}{2\sigma }\left[{\tilde{\omega }}^2-\left(\tilde{L}+\frac{1}{2\eta r_0^2}\right)-\frac{1}{8\sigma {\eta }^2}\right]$. This means that the WKB approximation is good at $r=r_0$ for ${\tilde{\omega }}^2\gg \tilde{L}$ because the semi-classical treatment is valid for a large wave number: $p_i\left(r_0\right)\gg 1$ [59]. On the other hand, the approximation is bad for ${\tilde{\omega }}^2\sim \tilde{L}$; $r=r_0$ becomes the turning point. Although the WKB approach has a potential to reproduce the UV-divergent structure of the energy-momentum tensor properly, it cannot determine the finite values without $\mathcal{O}\left(1\right)$ errors36.

For later analysis, we investigate more precisely how the approximation breaks down. In oder for the WKB analysis to be valid, the wave length ${\lambda }_i\left(r\right)\equiv 1/p_i\left(r\right)$ must change slowly [59]. We pick up only the first term of Equation (109) because the exponential factor changes most drastically as a function of r. We then evaluate at $r=r_0-\Delta r$

$${\left.\frac{d{\lambda }_i}{dr}\right|}_{r=r_0-\Delta r}\approx {\left.\frac{r}{2\sigma \eta }\frac{\sqrt{2\sigma }}{r_0}\frac{r_0^2}{r^2}{e}^{\frac{r^2-r_0^2}{4\sigma \eta }}\frac{1}{\tilde{\omega }}\right|}_{r=r_0-\Delta r}\approx \frac{1}{\sqrt{2\sigma {\eta }^2}}{e}^{-\frac{r_0}{2\sigma \eta }\Delta r}\frac{1}{\tilde{\omega }},$$

(110)

where the derivative has applied only to the exponential. If $\Delta r=0$, the approximation at $r=r_0$ is good for $\tilde{\omega }\gg 1/\sqrt{\sigma {\eta }^2}$ and bad for $\tilde{\omega }\sim 1/\sqrt{\sigma {\eta }^2}$, which is consistent with the fact that the curvature radius is $\sim \sqrt{\sigma {\eta }^2}$ from the Ricci scalar (76). The evaluation (110) tells more: even when $\tilde{\omega }\sim 1/\sqrt{\sigma {\eta }^2}$, the approximation is good at $r=r_0-\Delta r$ if $r=r_0-\Delta r$ is inside the turning point $r=r_0$ so that ${\left.\frac{d{\lambda }_i}{dr}\right|}_{r=r_0-\Delta r}\ll 1$ is satisfied, that is,37

$$\Delta r\gg \frac{2\sigma \eta }{r_0}log\frac{1}{\tilde{\omega }\sqrt{2\sigma {\eta }^2}}\sim \frac{\sigma }{r_0}.$$

(111)

5.1.2. A Perturbative Method and the Leading Exact Solution

The finite values of the energy-momentum tensor are important for our self-consistent discussion. We here develop a new perturbation method to solve exactly the field Equation (85) in the interior of the metric (72). Suppose that we want to determine ${\phi }_i\left(r\right)$ at a point $r=r_0$. Motivated by the evaluation (111), we set

$$r=r_0-x,x=\mathcal{O}\left(\frac{\sigma }{r_0}\right)$$

(112)

and expand the potential (109) as

$$\begin{array}{cc}\hfill p_i{\left(r\right)}^2& =\frac{r_0^2}{2\sigma }\left[{\left(1-\frac{x}{r_0}\right)}^4{e}^{\frac{r_0}{\sigma \eta }x}{e}^{-\frac{x^2}{2\sigma \eta }}{\tilde{\omega }}^2-\left(\tilde{L}+\frac{1}{2\eta r_0^2}\right)-\frac{1}{8\sigma {\eta }^2}{\left(1-\frac{x}{r_0}\right)}^2\right]\hfill \\ \hfill & =\frac{r_0^2}{2\sigma }\left[\left(e^{\frac{r_0}{\sigma \eta }x}{\tilde{\omega }}^2-\tilde{L}-\frac{1}{8\sigma {\eta }^2}\right)+\left(-\left(\frac{4x}{r_0}+\frac{x^2}{2\sigma \eta }\right)e^{\frac{r_0}{\sigma \eta }x}{\tilde{\omega }}^2-\frac{1}{2\eta r_0^2}+\frac{1}{4\sigma {\eta }^2}\frac{x}{r_0}\right)+\mathcal{O}\left(r_0^{-4}\right)\right]\hfill \\ \hfill & \equiv P_i^{\left(0\right)}\left(x\right)+s{P}_i^{\left(1\right)}\left(x\right)+\cdots ,\hfill \end{array}$$

(113)

where $\tilde{\omega }$ and $\tilde{L}$ are considered as $\mathcal{O}\left(1\right)$, and s is an expansion parameter. $P_i^{\left(0\right)}\left(x\right)$ is the leading potential of $\mathcal{O}\left(r_0^2\right)$, and $P_i^{\left(1\right)}\left(x\right)$ is the subleading one of $\mathcal{O}\left(1\right)$. Note here that $e^{\frac{r_0}{\sigma \eta }x}$ cannot be expanded because its exponent is $\mathcal{O}\left(1\right)$.

Now, we can determine ${\phi }_i\left(r\right)$ around $r=r_0$ by the perturbative expansion with respect to $1/r_0^2$. We put it as

$${\phi }_i\left(r\right)={\phi }_i^{\left(0\right)}\left(x\right)+s{\phi }_i^{\left(1\right)}\left(x\right)+\cdots .$$

(114)

Combing this and Equation (113), then the field Equation (85) becomes

$$({\partial }_x^2+P_i^{\left(0\right)}\left(x\right)+s{P}_i^{\left(1\right)}\left(x\right)+\cdots )({\phi }_i^{\left(0\right)}\left(x\right)+s{\phi }_i^{\left(1\right)}\left(x\right)+\cdots )=0.$$

(115)

This gives an iterative equation:

$$\begin{array}{}\mathrm{(116)}& \hfill ({\partial }_x^2+P_i^{\left(0\right)}\left(x\right)){\phi }_i^{\left(0\right)}\left(x\right)& =0,\hfill \mathrm{(117)}& \hfill ({\partial }_x^2+P_i^{\left(0\right)}\left(x\right)){\phi }_i^{\left(1\right)}\left(x\right)& =-P_i^{\left(1\right)}\left(x\right){\phi }_i^{\left(0\right)}\left(x\right),\hfill & \hfill & \cdots .\hfill \end{array}$$

By construction, ${\phi }_i^{\left(0\right)}\left(x\right)$ is the leading exact solution in this perturbative expansion.

Let us solve the leading Equation (116). We can convert from x to

$$\xi =\sqrt{2\sigma {\eta }^2}\tilde{\omega }{e}^{\frac{r_0}{2\sigma \eta }x}$$

(118)

and rewrite the Equation (116) as

$$\left({\xi }^2\frac{d^2}{d{\xi }^2}+\xi \frac{d}{d\xi }+{\xi }^2-A^2\right){\phi }_i^{\left(0\right)}\left(\xi \right)=0,$$

(119)

where

$$A\equiv \sqrt{2\sigma {\eta }^2\tilde{L}+\frac{1}{4}}.$$

(120)

This is the Bessel equation, whose solutions are Bessel functions $J_A\left(\xi \right)$ and $J_{-A}\left(\xi \right)$. Using the boundary condition that the mode is bounded, we can choose $J_A\left(\xi \right)$ properly. Considering the evaluation (111) and the region where the WKB solution (90) is valid, we can fix the normalization. See Appendix E. Thus, we obtain the leading solution

$${\phi }_i^{\left(0\right)}\left(\xi \right)=\sqrt{\frac{\pi \sigma \eta }{r_0}}{J}_A\left(\xi \right).$$

(121)

Substituting this and the normalization (92) for the formula (84), the leading bound-mode functions in the interior of the metric (72) without $R\left(a\right)$ (which will not affect the following analysis) are given by

$$u_i^{\left(0\right)}(t,r,\theta ,\varphi )=\sqrt{\frac{\hslash \eta }{2r_0}}\sqrt{\frac{\partial {\omega }_{nl}}{\partial n}}{e}^{-i{\omega }_{nl}t}{e}^{-\frac{r^2}{8\sigma \eta }}{J}_A\left(\xi \right)Y_{lm}(\theta ,\varphi ).$$

(122)

Note again that $\xi$ depends on ${\omega }_{nl}$ and A on l.

The subleading solution ${\phi }_i^{\left(1\right)}\left(x\right)$ can be determined from the subleading Equation (117) and the leading solution (121), for example, by the Green-function method. We leave it as a future task.

Finally, we make a comment on the origin of the leading potential $P_i^{\left(0\right)}\left(x\right)$. We can also focus a region around $r=r_0$ and use the $Ad{S}_2\times S^2$ metric (81) to show that the field Equation (83) becomes the Bessel equation. In this sense, the local $Ad{S}_2\times S^2$ structure makes the Equation (83) solvable. More generally, the condition (80) is the origin.

5.2. Dimensional Regularization and Renormalization

In general, when one considers composite operators such as $T_{\mu \nu }\left(x\right)$, he needs to regularize them. We use the dimensional regularization technique, which has an advantage that it is covariant; thus, it is the UV-divergent part. Before going to the explicit evaluation of $\langle 0|T_{\mu \nu }\left(x\right){|0\rangle }_{ren}$, we here give the general discussion about the dimensional regularization and renormalization of the energy-momentum tensor.

The bare action of our theory on a d-dimensional spacetime is

$$\begin{array}{cc}\hfill S_B[{\varphi }_{Ba},g_{B\mu \nu }]& =\int d^{d}x\sqrt{-g_B}\left(-\frac{1}{2}\sum _{a=1}^N{g}_B^{\mu \nu }{\partial }_{\mu }{\varphi }_{Ba}{\partial }_{\nu }{\varphi }_{Ba}+\frac{1}{16\pi G_B}{R}_B\right.\hfill \\ \hfill & \left.+{\alpha }_B{R}_B^2+{\beta }_B{R}_{B\mu \nu }{R}_B^{\mu \nu }+{\gamma }_B{R}_{B\mu \nu \alpha \beta }{R}_B^{\mu \nu \alpha \beta }\right),\hfill \end{array}$$

(123)

where the index B expresses the bare quantities.

First, we don’t consider quantization of gravity, and the quantum scalar fields are free. Therefore, the bare fields are the same as the renormalized ones:

$${\varphi }_{Ba}={\varphi }_a,g_{B\mu \nu }=g_{\mu \nu }.$$

(124)

Next, we introduce a renormalization point $\hslash \mu$. Because there is no mass in the theory, the renormalization of the Newton constant does not appear. Therefore, by dimensional analysis, we can put

$$\frac{1}{G_B}=\frac{{\mu }^{ϵ}}{G},$$

(125)

where $d=4+ϵ$, and G is the 4D physical Newton constant, which is independent of $\mu$. $G_B$ agrees with G in $ϵ\to 0$. On the other hand, ${\alpha }_B$, ${\beta }_B$, and ${\gamma }_B$ need to be renormalized. In the limit $ϵ\to 0$, they take the form

$${\alpha }_B={\mu }^{ϵ}\left(\frac{\hslash N}{1152{\pi }^2ϵ}+\alpha \left(\mu \right)\right),{\beta }_B={\mu }^{ϵ}\left(-\frac{\hslash N}{2880{\pi }^2ϵ}+\beta \left(\mu \right)\right),{\gamma }_B={\mu }^{ϵ}\left(\frac{\hslash N}{2880{\pi }^2ϵ}+\gamma \left(\mu \right)\right).$$

(126)

Here, we choose the counter terms with $\frac{1}{ϵ}$ as those which are required to renormalize the UV-divergent part of the effective action of N massless free scalar fields by the minimal subtraction scheme [41,42,60]. $\alpha \left(\mu \right)$, $\beta \left(\mu \right)$, and $\gamma \left(\mu \right)$ are the renormalized coupling constants at a renormalization point $\hslash \mu$.

Then, the equation of motion for $g_{\mu \nu }$, $\frac{\delta S_B}{\delta g^{\mu \nu }}$=0, is given by

$$\begin{array}{cc}\hfill G_{\mu \nu }& =8\pi G\left[{\mu }^{-ϵ}{T}_{\mu \nu }-2\left(\frac{\hslash N}{1152{\pi }^2ϵ}+\alpha \left(\mu \right)\right)H_{\mu \nu }\right.\hfill \\ \hfill & \left.-2\left(-\frac{\hslash N}{2880{\pi }^2ϵ}+\beta \left(\mu \right)\right)K_{\mu \nu }-2\left(\frac{\hslash N}{2880{\pi }^2ϵ}+\gamma \left(\mu \right)\right)J_{\mu \nu }\right].\hfill \end{array}$$

(127)

Here, $T_{\mu \nu }$ is the regularized energy-momentum tensor operator, which is formally given by Equation (99) with $S_M$ replaced by the d-dimensional matter action $S_B^{matter}$ of the bare action (123). The other tensors are proportional to the identity operator, which are given by

$$\begin{array}{cc}\hfill H_{\mu \nu }& \equiv \frac{1}{\sqrt{-g}}\frac{\delta }{\delta g^{\mu \nu }}\int d^{d}x\sqrt{-g}{R}^2=-\frac{1}{2}{g}_{\mu \nu }{R}^2+2R{R}_{\mu \nu }-2{\nabla }_{\mu }{\nabla }_{\nu }R+2g_{\mu \nu }\square R,\hfill \end{array}$$

(128)

$$\begin{array}{cc}\hfill K_{\mu \nu }& \equiv \frac{1}{\sqrt{-g}}\frac{\delta }{\delta g^{\mu \nu }}\int d^{d}x\sqrt{-g}{R}_{\alpha \beta }{R}^{\alpha \beta }\hfill \\ \hfill & =-\frac{1}{2}{g}_{\mu \nu }{R}_{\alpha \beta }{R}^{\alpha \beta }+2R_{\mu \alpha \nu \beta }{R}^{\alpha \beta }+\square R_{\mu \nu }+\frac{1}{2}{g}_{\mu \nu }\square R-{\nabla }_{\mu }{\nabla }_{\nu }R,\hfill \end{array}$$

(129)

$$\begin{array}{cc}\hfill J_{\mu \nu }& \equiv \frac{1}{\sqrt{-g}}\frac{\delta }{\delta g^{\mu \nu }}\int d^{n}x\sqrt{-g}{R}_{\alpha \beta \gamma \delta }{R}^{\alpha \beta \gamma \delta }\hfill \\ \hfill & =-\frac{1}{2}{g}_{\mu \nu }{R}_{\alpha \beta \gamma \delta }{R}^{\alpha \beta \gamma \delta }+2R_{\mu \alpha \beta \gamma }{R}_{\nu }{}^{\alpha \beta \gamma }+4R_{\mu \alpha \nu \beta }{R}^{\alpha \beta }-4R_{\mu \alpha }{R}_{\nu }{}^{\alpha }+4\square R_{\mu \nu }-2{\nabla }_{\mu }{\nabla }_{\nu }R.\hfill \end{array}$$

(130)

From this, we can obtain the precise expression of the Einstein Equation (1):

$$G_{\mu \nu }=8\pi G\langle \psi |T_{\mu \nu }{|\psi \rangle }_{ren}^{\prime }.$$

(131)

Here, we have defined

$$\langle \psi |T_{\mu \nu }{|\psi \rangle }_{ren}^{\prime }\equiv \langle \psi |T_{\mu \nu }{|\psi \rangle }_{ren}\left(\mu \right)-2(\alpha \left(\mu \right)H_{\mu \nu }+\beta \left(\mu \right)K_{\mu \nu }+\gamma \left(\mu \right)J_{\mu \nu }),$$

(132)

where the 4D renormalized energy-momentum tensor at energy scale $\hslash \mu$ is

$$\langle \psi |T_{\mu \nu }{|\psi \rangle }_{ren}\left(\mu \right)\equiv {\mu }^{-ϵ}\langle \psi |T_{\mu \nu }{|\psi \rangle }_{reg}-\frac{\hslash N}{1440{\pi }^2ϵ}\left(\frac{5}{2}{H}_{\mu \nu }-K_{\mu \nu }+J_{\mu \nu }\right).$$

(133)

This is finite in the limit $ϵ\to 0$, as we will see explicitly below.

The second term in the r.h.s. of the definition (132) is a finite renormalization which plays a role in choosing the theory. The point is that the $\mu$-dependence of the renormalized coupling constants $\alpha \left(\mu \right),\beta \left(\mu \right),\gamma \left(\mu \right)$ must be chosen so that the bare coupling constants ${\alpha }_B,{\beta }_B,{\gamma }_B$ are independent of $\mu$. From the formulae (126), the condition $\frac{dlog{\alpha }_B}{dlog\mu }=0$ provides $\frac{dlog\alpha \left(\mu \right)}{dlog\mu }=-\frac{\hslash N}{1152{\pi }^2}$ in $ϵ\to 0$. We can do the same procedure for the other couplings. From these, we obtain

$$\alpha \left({\mu }^2\right)={\alpha }_0-\frac{\hslash N}{2304{\pi }^2}log\left(\frac{{\mu }^2}{{\mu }_0^2}\right),\beta \left({\mu }^2\right)={\beta }_0+\frac{\hslash N}{5760{\pi }^2}log\left(\frac{{\mu }^2}{{\mu }_0^2}\right),\gamma \left({\mu }^2\right)=-\frac{\hslash N}{5760{\pi }^2}log\left(\frac{{\mu }^2}{{\mu }_0^2}\right).$$

(134)

Here, ${\alpha }_0$ and ${\beta }_0$ fix a 4D theory at energy scale $\hslash {\mu }_0$ while we have chosen ${\gamma }_0=0$ because of the 4D Gauss–Bonnet theorem. We will see later that the renormalized energy-momentum tensor (132) with the coupling constants (134) is independent of $\mu$, which is consistent with the l.h.s. of the Einstein Equation (131).

5.3. Leading Terms of the Energy-Momentum Tensor

Now, we evaluate the leading value of the renormalized energy-momentum tensor (132) for $|0\rangle$, $\langle 0|T_{\mu \nu }{|0\rangle }_{ren}^{\prime \left(0\right)}$. Generically, the continuum modes of s-wave also appear in the mode expansion of a field $\varphi \left(x\right)$. However, as we will see in Section 5.3.2, the leading value $\langle 0|T_{\mu \nu }{|0\rangle }_{reg}^{\left(0\right)}$ becomes $\mathcal{O}\left(1\right)$ by integrating both $\omega$ and l, which means that the sum of such s-wave modes (integration only over $\omega$) can contribute to at most $\mathcal{O}\left(r^{-2}\right)$. Therefore, in this subsection, we keep only the bound modes (122) in the expansion of the leading solution of $\varphi \left(x\right)$.

5.3.1. Fields in the Dimensional Regularization

To use dimensional regularization, we consider the $(4+ϵ)$-dimensional spacetime manifold $M\times {\mathbb{R}}^{ϵ}$, where M is our 4D physical spacetime and ${\mathbb{R}}^{ϵ}$ is $ϵ$-dimensional flat spacetime [61]. That is, we take

$$d{s}^2=-\frac{2\sigma }{r^2}{e}^{\frac{r^2}{2\sigma \eta }}d{t}^2+\frac{r^2}{2\sigma }d{r}^2+r^{2}d{\mathsf{\Omega }}^2+\sum _{a=1}^{ϵ}{\left(d{y}^a\right)}^2.$$

(135)

In this metric, the leading bound mode function (122) becomes

$$u_i^{\left(0\right)}(t,r,\theta ,\varphi ,y^a)=\sqrt{\frac{\hslash \eta }{2r_0}}\sqrt{\frac{\partial {\omega }_{nl}}{\partial n}}{e}^{-i{\omega }_{nl}t}{e}^{-\frac{r^2}{8\sigma \eta }}{J}_A\left(\xi \right)Y_{lm}(\theta ,\varphi )\frac{e^{ik·y}}{{\left(2\pi \right)}^{ϵ/2}}.$$

(136)

The plane wave part $e^{ik·y}$ makes a shift $\mathcal{M}\to \mathcal{M}+k^2$ in the formula (86), and the definition of the label A changes from Equation (120) to

$$A\equiv \sqrt{2\sigma {\eta }^2(\tilde{L}+k^2)+\frac{1}{4}}.$$

(137)

In terms of the mode function (136), we express the leading solution of $\varphi \left(x\right)$ as

$$\varphi \left(x\right)=\sum _i(a_i{u}_i^{\left(0\right)}\left(x\right)+a_i^{†}{u}_i^{\left(0\right)*}\left(x\right)),$$

(138)

where ${\sum }_i={\sum }_{n,l,m}\int d^{ϵ}k$ and $a_i$ satisfies the condition (96).

5.3.2. Renormalized Energy-Momentum Tensor

From the leading solution (138), we can obtain the leading values of the regularized energy-momentum tensor (see Appendix F for the detailed calculation)38:

$${\mu }^{-ϵ}\langle 0|T^{\mu }{}_{\nu }{|0\rangle }_{reg}^{\left(0\right)}=\left(\begin{array}{cc}1& \\ & 1& \\ & & -1\\ & & & -1\end{array}\right){\mu }^{-ϵ}\langle 0|T^t{}_t{|0\rangle }_{reg}^{\left(0\right)}+\left(\begin{array}{cc}0& \\ & 0& \\ & & 1\\ & & & 1\end{array}\right)\frac{\hslash N}{1920{\pi }^2{\eta }^4{\sigma }^2},$$

(139)

where the components are in the order of $(t,r,\theta ,\varphi )$ and

$${\mu }^{-ϵ}\langle 0|T^t{}_t{|0\rangle }_{reg}^{\left(0\right)}=\frac{\hslash N}{960{\pi }^2{\eta }^4{\sigma }^2}\left[\frac{1}{ϵ}+\frac{1}{2}\left(\gamma +log\frac{1}{32\pi {\eta }^2\sigma {\mu }^2}\right)+c\right].$$

(140)

Here, $\gamma$ is Euler’s constant and c is the non-trivial finite value for $|0\rangle$:

$$c=0.055868.$$

(141)

Note here that, as shown in Appendix F, this leading value of $\mathcal{O}\left(1\right)$ is obtained as a result of the integration over $\omega$ and l, and the 4D dynamics is important.

Next, we can check that the poles $\frac{1}{ϵ}$ of Equation (139) are cancelled by the counter terms in Equation (133), and $\langle 0|T^{\mu }{}_{\nu }{|0\rangle }_{ren}^{\left(0\right)}\left(\mu \right)$ is indeed finite. Here, we have used the explicit form of $H_{\mu \nu }$, $K_{\mu \nu }$ and $J_{\mu \nu }$ for the interior part of the metric (72):

$$\begin{array}{cc}\hfill H^{\mu }{}_{\nu }& =\frac{1}{2{\eta }^4{\sigma }^2}\left(\begin{array}{ccc}1& & \\ & 1& \\ & & -1& \\ & & & -1\end{array}\right)+\frac{1}{{\eta }^3\sigma r^2}\left(\begin{array}{ccc}0& & \\ & -4& \\ & & 2& \\ & & & 2\end{array}\right)+\mathcal{O}\left(r^{-4}\right),\hfill \\ \hfill K^{\mu }{}_{\nu }& =\frac{1}{4{\eta }^4{\sigma }^2}\left(\begin{array}{ccc}1& & \\ & 1& \\ & & -1& \\ & & & -1\end{array}\right)+\frac{1}{{\eta }^3\sigma r^2}\left(\begin{array}{ccc}-1& & \\ & -3& \\ & & 2& \\ & & & 2\end{array}\right)+\mathcal{O}\left(r^{-4}\right),\hfill \\ \hfill J^{\mu }{}_{\nu }& =\frac{1}{2{\eta }^4{\sigma }^2}\left(\begin{array}{ccc}1& & \\ & 1& \\ & & -1& \\ & & & -1\end{array}\right)+\frac{1}{{\eta }^3\sigma r^2}\left(\begin{array}{ccc}-4& & \\ & -8& \\ & & 6& \\ & & & 6\end{array}\right)+\mathcal{O}\left(r^{-4}\right).\hfill \end{array}$$

(142)

Finally, we use the definition (132) with the running coupling constants (134) to obtain the renormalized energy-momentum tensor with a finite renormalization:

$$\langle 0|T^{\mu }{}_{\nu }{|0\rangle }_{ren}^{\prime \left(0\right)}=\left(\begin{array}{cc}1& \\ & 1& \\ & & -1\\ & & & -1\end{array}\right)\langle 0|T^t{}_t{|0\rangle }_{ren}^{\prime \left(0\right)}+\left(\begin{array}{cc}0& \\ & 0& \\ & & 1\\ & & & 1\end{array}\right)\frac{\hslash N}{1920{\pi }^2{\eta }^4{\sigma }^2},$$

(143)

where

$$\langle 0|T^t{}_t{|0\rangle }_{ren}^{\prime \left(0\right)}=\frac{\hslash N}{1920{\pi }^2{\eta }^4{\sigma }^2}\left[2c+\gamma +log\frac{1}{32\pi {\eta }^2\sigma {\mu }_0^2}-\frac{960{\pi }^2}{\hslash N}(2{\alpha }_0+{\beta }_0)\right].$$

(144)

Here, the $\mu$-dependence disappears. In Section 7, we will see that ${\alpha }_0$ and ${\beta }_0$ should be tuned properly in order to have a self-consistent solution of the form of Equation (72).

The point is that the leading value of the trace is fixed independently of $({\alpha }_0,{\beta }_0)$:

$$\langle 0|T^{\mu }{}_{\mu }{|0\rangle }_{ren}^{\prime \left(0\right)}=\frac{\hslash N}{960{\pi }^2{\eta }^4{\sigma }^2}.$$

(145)

We can see that this comes from the UV-divergent structure and is essentially the 4D Weyl anomaly [41,42,62] although the matter fields are not conformal. The value (145) was obtained by first renormalizing the divergences and then taking the trace. We can reverse the order to see clearly how the value appears. If we first take the trace of $\langle 0|T_{\mu \nu }{|0\rangle }_{reg}^{\left(0\right)}$, we have, through Equations (99), (A72), (A78), and (A83),

$$\begin{array}{c}\hfill \begin{array}{cc}\langle 0|T^{\mu }{}_{\mu }{|0\rangle }_{reg}^{\left(0\right)}\hfill & =N\langle 0|g^{\mu \nu }{\partial }_{\mu }\varphi {\partial }_{\nu }\varphi -\frac{1}{2}(4+ϵ)g^{\mu \nu }{\partial }_{\mu }\varphi {\partial }_{\nu }\varphi {|0\rangle }_{reg}^{\left(0\right)}\hfill \\ \hfill & =-N\left(1+\frac{ϵ}{2}\right)\langle 0|g^{tt}{\left({\partial }_t\varphi \right)}^2+g^{rr}{\left({\partial }_r\varphi \right)}^2+g^{\theta \theta }{\left({\partial }_{\theta }\varphi \right)}^2+g^{\varphi \varphi }{\left({\partial }_{\varphi }\varphi \right)}^2+\sum _{a=1}^{ϵ}{\left({\partial }_{y^a}\varphi \right)}^2{|0\rangle }_{reg}^{\left(0\right)}\hfill \\ \hfill & =-N\left(1+\frac{ϵ}{2}\right)\langle 0|g^{tt}{\left({\partial }_t\varphi \right)}^2+g^{tt}{\left({\partial }_t\varphi \right)}^2+(-2+ϵ)g^{tt}{\left({\partial }_t\varphi \right)}^2-ϵg^{tt}{\left({\partial }_t\varphi \right)}^2{|0\rangle }_{reg}^{\left(0\right)}\hfill \\ \hfill & =0\hfill \end{array}\end{array}$$

(146)

before taking the limit $ϵ\to 0$. However, the trace of the counter terms in the definition (133) makes a non-trivial contribution:

$$\begin{array}{cc}\hfill & -\frac{\hslash N}{1440{\pi }^2ϵ}\left(\frac{5}{2}{H}^{\mu }{}_{\mu }-K^{\mu }{}_{\mu }+J^{\mu }{}_{\mu }\right)\hfill \\ \hfill & =-\frac{\hslash N}{1440{\pi }^2ϵ}\frac{-ϵ}{2}\left(\frac{5}{2}{R}^2-R_{\alpha \beta }{R}^{\alpha \beta }+R_{\alpha \beta \mu \nu }{R}^{\alpha \beta \mu \nu }\right)+\mathcal{O}\left(r^{-4}\right)\hfill \\ \hfill & =\frac{\hslash N}{960{\pi }^2}\left(\frac{1}{{\eta }^4{\sigma }^2}-\frac{2}{{\eta }^3\sigma r^2}\left(\frac{5}{3}\eta +1\right)\right)+\mathcal{O}\left(r^{-4}\right),\hfill \end{array}$$

(147)

where we have used Equations (76), (77), (78) and

$$\begin{array}{}\mathrm{(148)}& \hfill H^{\mu }{}_{\mu }& =-\frac{ϵ}{2}{R}^2+(6+2ϵ)\square R,K^{\mu }{}_{\mu }=-\frac{ϵ}{2}{R}_{\alpha \beta }{R}^{\alpha \beta }+\left(2+\frac{ϵ}{2}\right)\square R,\hfill \mathrm{(149)}& \hfill J^{\mu }{}_{\mu }& =-\frac{ϵ}{2}{R}_{\mu \nu \alpha \beta }{R}^{\mu \nu \alpha \beta }+2\square R,\hfill \mathrm{(150)}& \hfill \square R& =\mathcal{O}\left(r^{-4}\right).\hfill \end{array}$$

Here, the last equation has been evaluated by using the interior of the metric (72). The first term of Equation (147) agrees with the value (145)39.

5.4. Sub-Leading Terms of the Energy-Momentum Tensor

The sub-leading bound-mode solution ${\phi }_i^{\left(1\right)}\left(x\right)$ of Equation (117), which we have not found yet, determines the subleading value ${\mu }^{-ϵ}\langle 0|T_{\mu \nu }{|0\rangle }_{reg}^{\left(1\right)}$ completely40. In this subsection, we instead use the conservation law to show that $\langle 0|T_{\mu \nu }{|0\rangle }_{ren}^{\prime \left(1\right)}$ is expressed in terms of two parameters.

In the interior part of the metric (72), the conservation law ${\nabla }_{\mu }{T}^{\mu }{}_{\nu }=0$ is expressed as

$$\begin{array}{cc}\hfill 0& ={\partial }_r{T}^r{}_r+{\partial }_{r}log\sqrt{-g_{tt}}(-T^t{}_t+T^r{}_r)+\frac{2}{r}(T^r{}_r-T^{\theta }{}_{\theta })\hfill \\ \hfill & ={\partial }_r{T}^r{}_r+\frac{r}{2\eta \sigma }(-T^t{}_t+T^r{}_r)+\frac{1}{r}(T^t{}_t+T^r{}_r-2T^{\theta }{}_{\theta }),\hfill \end{array}$$

(151)

where $T^{\mu }{}_{\nu }$ is assumed to be static and spherically symmetric: $T^{\mu }{}_{\nu }\left(r\right)$ and $T^{\theta }{}_{\theta }=T^{\varphi }{}_{\varphi }$41.

$H_{\mu \nu }$, $K_{\mu \nu }$, and $J_{\mu \nu }$ are conserved, and their explicit forms are given by Equation (142), which are negative power polynomials in $r^2$ starting from a constant. In addition, the leading value $\langle 0|T^{\mu }{}_{\nu }{|0\rangle }_{ren}^{{}^{\prime }\left(0\right)}$ is constant. Motivated by these facts, we can set the ansatz as

$$\langle 0|T^t{}_t{|0\rangle }_{ren}^{\prime }=a_0+\frac{a_1}{r^2}+\cdots ,\langle 0|T^r{}_r{|0\rangle }_{ren}^{\prime }=b_0+\frac{b_1}{r^2}+\cdots ,\langle 0|T^{\theta }{}_{\theta }{|0\rangle }_{ren}^{\prime }=c_0+\frac{c_1}{r^2}+\cdots .$$

(152)

Then, we substitute this into Equation (151) and solve it for each order of r to get

$$b_0=a_0,c_0=a_0+\frac{-a_1+b_1}{4\eta \sigma },c_1=\frac{a_1-b_1}{2}+\frac{-a_2+b_2}{4\eta \sigma },\cdots .$$

(153)

In fact, the leading value (143) satisfies the first one of Equation (153).

From the definition (132), we put

$$\begin{array}{c}\hfill \begin{array}{cc}\langle 0|T^t{}_t{|0\rangle }_{ren}^{\prime \left(1\right)}\hfill & =\left[{\mu }^{-ϵ}\langle 0|T^t{}_t{|0\rangle }_{reg}^{\left(1\right)}+\frac{\hslash N}{480{\pi }^2{\eta }^3\sigma r^2ϵ}-\frac{\hslash N}{960{\pi }^2{\eta }^3\sigma r^2}log\frac{{\mu }^2}{{\mu }_0^2}\right]+\frac{2{\beta }_0}{{\eta }^3\sigma r^2}\hfill \\ \hfill & \equiv \frac{\hslash N}{480{\pi }^2{\eta }^3\sigma r^2}{\tilde{a}}_1+\frac{2{\beta }_0}{{\eta }^3\sigma r^2},\hfill \end{array}\end{array}$$

(154)

where we have used Equations (134) and (142). This means

$$a_1=\frac{\hslash N}{480{\pi }^2{\eta }^3\sigma }{\tilde{a}}_1+\frac{2{\beta }_0}{{\eta }^3\sigma }.$$

(155)

By construction, ${\tilde{a}}_1$ should be a $\mu$-independent finite number of $\mathcal{O}\left(1\right)$, as we have seen in the leading value (144). We suppose that such a ${\tilde{a}}_1$ is given. By using Equations (143), (144), the second one of (153), and (155), we can obtain

$$\begin{array}{c}\hfill \begin{array}{cc}\langle 0|T^r{}_r{|0\rangle }_{ren}^{\prime \left(1\right)}\hfill & =\frac{b_1}{r^2}=\frac{1}{r^2}(a_1+4\eta \sigma (c_0-a_0))\hfill \\ \hfill & =\frac{\hslash N}{480{\pi }^2{\eta }^3\sigma r^2}\left({\tilde{a}}_1+\frac{960{\pi }^2}{\hslash N}{\beta }_0+1\right.\hfill \\ \hfill & \left.-2\left[2c+\gamma +log\frac{1}{32\pi {\eta }^2\sigma {\mu }_0^2}-\frac{960{\pi }^2}{\hslash N}(2{\alpha }_0+{\beta }_0)\right]\right).\hfill \end{array}\end{array}$$

(156)

Finally, we write the subleading value of the trace part $\langle 0|T^{\mu }{}_{\mu }{|0\rangle }_{ren}^{\prime \left(1\right)}$ as

$$\langle 0|T^{\mu }{}_{\mu }{|0\rangle }_{ren}^{\prime \left(1\right)}=\frac{\hslash N}{240{\pi }^2{\eta }^3\sigma r^2}{\tilde{\tau }}_1,$$

(157)

where ${\tilde{\tau }}_1$ is a finite value independent of the finite renormalization in the definition (132) because of Equation (142). We suppose that such a ${\tilde{\tau }}_1$ is obtained. This together with Equations (154) and (156) determines $\langle 0|T^{\theta }{}_{\theta }{|0\rangle }_{ren}^{\prime \left(1\right)}$.

Thus, we can express all the components of $\langle 0|T^{\mu }{}_{\nu }{|0\rangle }_{ren}^{\prime }$ to $\mathcal{O}\left(r^{-2}\right)$ in terms of $({\tilde{a}}_1,{\tilde{\tau }}_1)$.

6. Contribution of S-Wave Excitations to the Energy-Momentum Tensor

In this section, we first consider the generic configuration of excitations of the continuum modes of s-wave from a statistical point of view and characterize the candidate state $|\psi \rangle$ more. Then, we study the excitation energy in the interior of the black hole and find the energy density $-T^{\left(\psi \right)t}{}_t$. From this and the conservation law, we infer $T_{\mu \nu }^{\left(\psi \right)}$ of Equation (3).

6.1. Fluctuation of Mass of the Black Hole

We consider the black holes with mass $M=\frac{a}{2G}$ that are most likely to be formed statistically. Such black holes are created in the most generic manner. When making a black hole in several operations, the more energy given per operation, the more specific and less generic the black hole formed is. Therefore, the most generic black hole should be created by using a collection of quanta with as small energy as possible. According to Bekenstein’s idea [46], in order for a wave to enter the black hole, the wavelength $\lambda$ must be smaller than a: $\lambda \lesssim a$. This means that the energy of the wave, $ϵ\sim \frac{\hslash }{\lambda }$, must satisfy $ϵ\gtrsim \frac{\hslash }{a}$. As discussed in Section 4.1, only continuum modes of s-wave can play a role in the black-hole formation. Therefore, a quantum required is such a s-wave with the minimum energy,

$$ϵ\sim \frac{\hslash }{a}.$$

(158)

Suppose that we form a black hole of size a by injecting such quanta many times. Because the wavelength of each quantum is almost the same as the size $a^{\prime }$ of the black hole at each stage ($\lambda \sim a^{\prime }$), the wave enters the black hole with a probability of 1/2 and is bounced back with a probability of 1/2. Here, we model the formation as a stochastic process according to binomial distribution. Then, the average number of trials $\mathcal{N}$ is given by dividing $M=\frac{a}{2G}$ by the energy $\sim \frac{\hslash }{a}$ that can enter at one time:

$$\mathcal{N}\sim \frac{a}{2G}\times \frac{1}{\hslash /a}\sim \frac{a^2}{l_p^2}.$$

(159)

Therefore, the statistical fluctuation of mass M is evaluated as [63]

$$\Delta M\sim \frac{M}{\sqrt{\mathcal{N}}}\sim m_p.$$

(160)

This means that all the black holes with mass $\in [M,M+m_p]$ are not statistically distinguished, and they are considered as the same macroscopically.

In this way, our candidate state $|\psi \rangle$ is one of the states $\left\{\right|\psi \rangle \}$ that represent microscopically different continuum s-wave configurations and have the energy-momentum tensor in the form of Equation (3). The number of those states reproduces the area law of the entropy, as shown in Section 8.

6.2. S-Wave Excitation inside the Black Hole and $T^{\left(\psi \right)t}{}_t$

To determine the functional form of $T^{\left(\psi \right)t}{}_t\left(r\right)$, we consider how the s-wave excitations used to form the black hole are distributed in the interior part of the metric (72). First, suppose that an s-wave having a proper wavelength ${\lambda }_{local}$ is excited at a certain point r inside the black hole. It has the proper energy ${ϵ}_{local}\sim \frac{\hslash }{{\lambda }_{local}}$. Here, the local Hamiltonian is given by $\Delta H_{local}=4\pi r^2\Delta l{T}^{\left(\psi \right)\tau \tau }$, where $\Delta l$ is the proper length of a width $\Delta r$ around r, $T_{\mu \nu }^{\left(\psi \right)}$ is the energy-momentum tensor from the contribution of the excitation, and $\tau$ is the proper time of the local inertial frame at r. Therefore, by considering the number of fields N, we can set $\Delta H_{local}=N{ϵ}_{local}$ and $\Delta l={\lambda }_{local}$ and obtain

$$T^{\left(\psi \right)\tau \tau }\sim \frac{N\hslash }{4\pi r^2{\lambda }_{local}^2}.$$

(161)

Here, $T^{\left(\psi \right)\tau \tau }=-T^{\left(\psi \right)\tau }{}_{\tau }$ holds because we have $g^{\tau \tau }=-1$ in the local inertial frame. Furthermore, in the static metric (72), we have $T^{\left(\psi \right)\tau }{}_{\tau }=T^{\left(\psi \right)t}{}_t$. Thus, we reach

$$-T^{\left(\psi \right)t}{}_t\sim \frac{N\hslash }{4\pi r^2{\lambda }_{local}^2}.$$

(162)

Using this and the formula (98), the ADM-mass contribution from this excitation can be expressed as

$$\begin{array}{cc}\hfill {(\Delta M)}^{\left(\psi \right)}& =4\pi r^2\Delta r(-T^{\left(\psi \right)t}{}_t)/N\hfill \\ \hfill & \sim \frac{\hslash }{{\lambda }_{local}^2}\Delta r\hfill \\ \hfill & \sim \frac{\hslash \sqrt{\sigma }}{r{\lambda }_{local}}.\hfill \end{array}$$

(163)

Here, on the first line, we have divided it by N because the s-wave is an excitation of one kind of field and $T_{\mu \nu }^{\left(\psi \right)}$ contains all the contribution from N kinds of fields; and on the last line, we have used ${\lambda }_{local}=\Delta l=\sqrt{g_{rr}}\Delta r=\frac{r}{\sqrt{2\sigma }}\Delta r$ for the interior of the metric (72). According to the formation process in the previous subsection, each s-wave excitation corresponds to the ADM energy (158)42. Therefore, the condition ${(\Delta M)}^{\left(\psi \right)}\sim \frac{\hslash }{a}$ indicates

$${\lambda }_{local}\sim \sqrt{\sigma },$$

(164)

and then the energy density (162) becomes

$$-T^{\left(\psi \right)t}{}_t\sim \frac{1}{4\pi G{r}^2},$$

(165)

where we have used $\sigma \sim N{l}_p^2$. This should be the self-consistent form. In Section 9, we will discuss how to obtain this functional form from the field equation.

We here discuss the entropy from this point of view. We consider a unit with width $\Delta l\sim {\lambda }_{local}\sim \sqrt{\sigma }$ inside the black hole. It contains N waves with $ϵ\sim \frac{\hslash }{a}$ because the proper wavelength (164) corresponds to $\Delta r=\frac{\Delta l}{\sqrt{g_{rr}}}\sim \frac{\sigma }{r}$ and the ADM mass of the unit is evaluated from the energy density (165) as $4\pi r^2\Delta r(-T^{\left(\psi \right)t}{}_t)\sim \frac{\sigma }{Gr}\sim \frac{N\hslash }{a}$. Therefore, the entropy per proper radial length, s, can be evaluated as

$$s\sim \frac{N}{\Delta l}\sim \frac{\sqrt{N}}{l_p},$$

(166)

which means that $\mathcal{O}\left(\sqrt{N}\right)$ bits of information are contained per proper length. On the other hand, the proper length of the interior of the black hole is evaluated from the metric (72) as

$$l_{BH}={\int }_0^{R\left(a\right)}dr\sqrt{g_{rr}\left(r\right)}\approx \frac{a^2}{2\sqrt{2\sigma }},$$

(167)

which is much longer than a. Thus, the entropy is evaluated as

$$S_{BH}\sim s\times l_{BH}\sim \frac{\sqrt{N}}{l_p}\frac{a^2}{\sqrt{\sigma }}\sim \frac{a^2}{l_p^2}.$$

(168)

6.3. The Form of $T_{\mu \nu }^{\left(\psi \right)}$

Using the form of $T^{\left(\psi \right)t}{}_t$ (165) and the conservation law inside the black hole (151), we express all the components of $T_{\mu \nu }^{\left(\psi \right)}$ in terms of a single parameter ${\tilde{a}}_{\psi }$. First, by the same reason as $\langle 0|T^{\mu }{}_{\nu }{|0\rangle }_{ren}^{\prime }$, we can set the ansatz for $T^{\left(\psi \right)\mu }{}_{\nu }$ as Equation (152):

$$T^{\left(\psi \right)t}{}_t=a_0^{\left(\psi \right)}+\frac{a_1^{\left(\psi \right)}}{r^2}+\cdots ,T^{\left(\psi \right)r}{}_r=b_0^{\left(\psi \right)}+\frac{b_1^{\left(\psi \right)}}{r^2}+\cdots ,T^{\left(\psi \right)\theta }{}_{\theta }=c_0^{\left(\psi \right)}+\frac{c_1^{\left(\psi \right)}}{r^2}+\cdots .$$

(169)

Putting this into the conservation law (151), we can obtain (like Equation (153))

$$b_0^{\left(\psi \right)}=a_0^{\left(\psi \right)},c_0^{\left(\psi \right)}=a_0^{\left(\psi \right)}+\frac{-a_1^{\left(\psi \right)}+b_1^{\left(\psi \right)}}{4\eta \sigma },c_1^{\left(\psi \right)}=\frac{a_1^{\left(\psi \right)}-b_1^{\left(\psi \right)}}{2}+\frac{-a_2^{\left(\psi \right)}+b_2^{\left(\psi \right)}}{4\eta \sigma },\cdots .$$

(170)

Now, Equation (165) shows that $T^{\left(\psi \right)t}{}_t$ is at most order of $\mathcal{O}\left(r^{-2}\right)$, which means $a_0^{\left(\psi \right)}=0$. The first one of Equation (170) indicates $b_0^{\left(\psi \right)}=a_0^{\left(\psi \right)}=0$. Next, as seen in Section 5.3.2, the leading order $\langle 0|T^{\mu }{}_{\nu }{|0\rangle }_{ren}^{\left(0\right)\prime }$ appears as a result of the integration over $(\omega ,l)$. Therefore, $T^{\left(\psi \right)\mu }{}_{\nu }$, which represents the contribution of the s-wave excitation, should be smaller than $\mathcal{O}\left(1\right)$. This requires $c_0^{\left(\psi \right)}=0$, and then the second one of Equation (170) leads to $b_1^{\left(\psi \right)}=a_1^{\left(\psi \right)}$. Thus, all the components are at most order of $\mathcal{O}\left(r^{-2}\right)$, which can be expressed as

$$\begin{array}{cc}\hfill T^{\left(\psi \right)t}{}_t=a_1^{\left(\psi \right)}\left(\frac{1}{r^2}+\frac{4{\kappa }_t\eta \sigma }{r^4}\right)+\mathcal{O}\left(r^{-6}\right),& T^{\left(\psi \right)r}{}_r=a_1^{\left(\psi \right)}\left(\frac{1}{r^2}+\frac{4{\kappa }_r\eta \sigma }{r^4}\right)+\mathcal{O}\left(r^{-6}\right),\hfill \\ \hfill T^{\left(\psi \right)\theta }{}_{\theta }& =c_1^{\left(\psi \right)}\left(\frac{1}{r^2}+\frac{4{\kappa }_{\theta }\eta \sigma }{r^4}\right)+\mathcal{O}\left(r^{-6}\right).\hfill \end{array}$$

(171)

Here, ${\kappa }_t,{\kappa }_r,{\kappa }_{\theta }$ are the $\mathcal{O}\left(1\right)$ ratios between terms of $r^{-2}$ and $r^{-4}$ which are determined by dynamics of the s-waves including the contribution from the negative energy flow (see Section 9).

Then, the third one of Equation (170) determines $c_1^{\left(\psi \right)}$ as

$$c_1^{\left(\psi \right)}=a_1^{\left(\psi \right)}(-{\kappa }_t+{\kappa }_r).$$

(172)

Thus, all the components of $\mathcal{O}\left(r^{-2}\right)$ are expressed in terms of the parameter $a_1^{\left(\psi \right)}$ under a given $({\kappa }_t,{\kappa }_r)$. Note that $a_1^{\left(\psi \right)}$ corresponds to the square of the amplitude of the classical field that represents the collapsing matter and radiation. For a later convenience, we represent $a_1^{\left(\psi \right)}$ in terms of a $\mathcal{O}\left(1\right)$ parameter ${\tilde{a}}_{\psi }$ as

$$a_1^{\left(\psi \right)}=\frac{\hslash N}{480{\pi }^2{\eta }^3\sigma }{\tilde{a}}_{\psi }$$

(173)

In Section 7, we will determine ${\tilde{a}}_{\psi }$ by the self-consistent Equation (131).

7. Self-Consistent Solution

We have obtained all the ingredients for the self-consistent analysis: the candidate metric (72), which is written in terms of $(\sigma ,\eta )$, the energy-momentum tensor for the ground state (143), (154) and (157), which depend on $({\alpha }_0,{\beta }_0)$, and the energy-momentum tensor for the s-wave excitation contribution (171), which is controlled by ${\tilde{a}}_{\psi }$. In this section, we solve the Einstein Equation (131) and determine the self-consistent values of $(\sigma ,\eta ,{\tilde{a}}_{\psi })$ for a certain class of $({\alpha }_0,{\beta }_0)$. We then examine the consistency.

7.1. Self-Consistent Values of $(\sigma ,\eta ,{\tilde{a}}_{\psi })$ for a Class of $({\alpha }_0,{\beta }_0)$

First, we examine the trace part of the Einstein Equation (131), $G^{\mu }{}_{\mu }=8\pi G(\langle 0|T^{\mu }{}_{\mu }{|0\rangle }_{ren}^{\prime }+T^{\left(\psi \right)\mu }{}_{\mu })$, to $\mathcal{O}\left(r^{-2}\right)$. It is obtained from Equations (76), (145), (157), and (171) (with Equations (172) and (173)) as

$$\frac{1}{{\eta }^2\sigma }-\frac{2}{r^2}=8\pi G\left(\frac{\hslash N}{960{\pi }^2}\left[\frac{1}{{\eta }^4{\sigma }^2}+\frac{4}{{\eta }^3\sigma r^2}{\tilde{\tau }}_1\right]+\frac{\hslash N}{240{\pi }^2{\eta }^3\sigma r^2}{\tilde{a}}_{\psi }(1-{\kappa }_t+{\kappa }_r)\right)$$

(174)

Equating the terms of $\mathcal{O}\left(1\right)$ on the both sides, we have $\frac{1}{{\eta }^2\sigma }=8\pi G\frac{\hslash N}{960{\pi }^2{\eta }^4{\sigma }^2}$, that is,

$$\sigma =\frac{N{l}_p^2}{120\pi {\eta }^2}.$$

(175)

This is indeed proportional to $N{l}_p^2$, which is consistent with the assumption we have put just below Equation (5). In addition, $\eta$ appears in the denominator, and $\sigma$ with $\eta >1$ is smaller than that with $\eta =1$, which is consistent with the meaning of $\eta$ in Figure 10. Then, the terms of $\mathcal{O}\left(r^{-2}\right)$ in Equation (174) together with the result (175) bring $-\frac{2}{r^2}=\frac{4}{r^2\eta }\left[{\tilde{\tau }}_1+{\tilde{a}}_{\psi }(1-{\kappa }_t+{\kappa }_r)\right]$, which means

$$\eta =-2{\tilde{\tau }}_1-2{\tilde{a}}_{\psi }(1-{\kappa }_t+{\kappa }_r).$$

(176)

Next, we construct $G^t{}_t=8\pi G(\langle 0|T^t{}_t{|0\rangle }_{ren}^{\prime }+T^{\left(\psi \right)t}{}_t)$ to $\mathcal{O}\left(r^{-2}\right)$. From Equations (75), (144), (154), and (171) (with (173)), we have

$$\begin{array}{cc}\hfill -\frac{1}{r^2}& =8\pi G\left(\frac{\hslash N}{1920{\pi }^2{\eta }^4{\sigma }^2}\left[2c+\gamma +log\frac{1}{32\pi {\eta }^2\sigma {\mu }_0^2}-\frac{960{\pi }^2}{\hslash N}(2{\alpha }_0+{\beta }_0)\right]\right.\hfill \\ \hfill & \left.+\frac{\hslash N}{480{\pi }^2{\eta }^3\sigma r^2}\left[{\tilde{a}}_1+{\tilde{a}}_{\psi }+\frac{960{\pi }^2}{\hslash N}{\beta }_0\right]\right).\hfill \end{array}$$

(177)

First, the terms of $\mathcal{O}\left(1\right)$ are balanced on the both sides if ${\alpha }_0$ and ${\beta }_0$ are tuned such that

$$2{\alpha }_0+{\beta }_0=\frac{\hslash N}{960{\pi }^2}\left(\gamma +2c+log\frac{1}{32\pi {\eta }^2\sigma {\mu }_0^2}\right).$$

(178)

Then, the terms of $\mathcal{O}\left(r^{-2}\right)$ lead together with the intensity (175) to

$$\eta =-2\left({\tilde{a}}_1+{\tilde{a}}_{\psi }+\frac{960{\pi }^2}{\hslash N}{\beta }_0\right).$$

(179)

Note that the $rr$-component and $\theta \theta$-component of the Einstein equation hold automatically because of the conservation law and the trace equation.

Now, using Equations (176) and (179), we can determine

$$\eta =-2\frac{{\tilde{\tau }}_1+(-1+{\kappa }_t-{\kappa }_r)\left({\tilde{a}}_1+\frac{960{\pi }^2}{\hslash N}{\beta }_0\right)}{{\kappa }_t-{\kappa }_r},$$

(180)

$${\tilde{a}}_{\psi }=\frac{{\tilde{\tau }}_1-\left({\tilde{a}}_1+\frac{960{\pi }^2}{\hslash N}{\beta }_0\right)}{{\kappa }_t-{\kappa }_r}.$$

(181)

Here, ${\beta }_0$ should be chosen so that the condition (67) is satisfied. Note that $\eta$ is actually constant, as we have assumed in Section 3.2.2.

Thus, we have determined the self-consistent values of $(\sigma ,\eta ,{\tilde{a}}_{\psi })$ in terms of $({\tilde{a}}_1,{\tilde{\tau }}_1,{\kappa }_t,{\kappa }_r)$ that can be fixed in principle by dynamics (see Equations (154), (157) and (171) for their definitions). Therefore, the interior of the metric (72) and the state $|\psi \rangle$ are the self-consistent solution of the Einstein Equation (1). Note that this is a non-perturbative solution w.r.t. ℏ because we cannot take $\hslash \to 0$ in the solution metric (72) with the values (175) and (180).

7.2. Consistency Check

First, we check the curvature $\mathcal{R}$. From Equations (76), (77), (78), and (175), we can evaluate

$$\mathcal{R}\sim \frac{1}{N{l}_p^2},$$

(182)

which is smaller than the Planck scale if N is large, Equation (11)43. Thus, no singularity exists inside the black hole44 and the Penrose diagram is actually given by Figure 1. Note that this result is so robust because (175) is not affected by the values of $({\alpha }_0,{\beta }_0)$.

Second, we study the energy density. From Equations (144), (154), (171) (with (173)), (180) and (181), we have

$$-\langle \psi |T^t{}_t{|\psi \rangle }_{ren}^{\prime }=\frac{1}{8\pi G{r}^2},$$

(183)

to which both $\langle 0|T^t{}_t{|0\rangle }_{ren}^{\prime }$ and $T^{\left(\psi \right)t}{}_t$ contribute. Integrating this over the volume in the formula (98), we can reproduce the total energy M. We also see from the definition of the energy flux (79) that the energy density (183) also leads to the Hawking radiation consistently. Therefore, both the bound modes and s-waves play a role in the energy inside the black hole.

Third, we discuss the tangential pressure. The self-consistent solution has

$$\langle \psi |T^{\theta }{}_{\theta }{|\psi \rangle }_{ren}^{\prime }=\langle 0|T^{\theta }{}_{\theta }{|0\rangle }_{ren}^{\prime \left(0\right)}+\mathcal{O}\left(r^{-2}\right)=\frac{15}{2GN{l}_p^2}+\mathcal{O}\left(r^{-2}\right),$$

(184)

which can be checked by Equations (143), (171), (175), and (178). From this, we can see that this near-Planckian pressure comes from the vacuum fluctuation of the bound modes in the ground state. The origin is the same as the 4D Weyl anomaly because the value (184) comes from the second term of Equation (143), which appears from the pole $\frac{1}{ϵ}$ as shown in Equation (A86). Indeed, twice that of the pressure (184) is equal to the trace (145). Therefore, the pressure is very robust in that it is independent of the state. Note also that this large pressure supports the object against the strong gravity, which can be seen by noting that in the conservation law (151) $T^{\theta }{}_{\theta }$ and ${\partial }_{r}log\sqrt{-g_{tt}}$ are balanced for the self-consistent solution.

This large tangential pressure associated with the anomaly should be universal for any kind of matter fields. In the previous work [24], only conformal matter fields were considered, and the 4D Weyl anomaly was used to obtain the self-consistent solution with the large tangential pressure. In the present work, however, we reach the same picture of the black hole without using the conformal property, which means that the assumption of conformal matter is not essential. It is related to the fact that any matter behaves as ultra-relativistic near the black hole, as we have discussed around Equation (6). Therefore, our picture of the black hole should work for any kinds of matter fields. Even for a massive field, it should if the mass is smaller than $\mathcal{O}\left(m_p\right)$.

The surface pressure $p_{2d}^{\left(i\right)}$ (49) also comes from this tangential pressure. When a shell in Figure 8 approaches so that Equation (8) is satisfied, the interior metric becomes Equation (72) and the shell itself forms a new surface, whose position is represented by the point R in Figure 11. Then, the vacuum fluctuation of the bound modes which reach the point R produces the tangential pressure (184), which corresponds to the continuum version of $p_{2d}^{\left(i\right)}$. Note that the mode that makes the pressure is different from the mode that constitutes the shell while the surface pressure (49) has been obtained by a geometrical analysis. Therefore, the two modes are combined to form the consistent picture.

Finally, we discuss the finite renormalization. In this solution, there are no quantities with dimension other than $\sigma$. The value (175) implies that the renormalization point $\hslash {\mu }_0$ should be chosen near the Planck scale:

$${\mu }_0^2\sim \frac{1}{N{l}_p^2}.$$

(185)

Then, the condition (178) means that $2{\alpha }_0+{\beta }_0\sim \mathcal{O}\left(1\right)N\hslash$. On the other hand, the solution (180) together with the condition (67) indicate that ${\beta }_0\sim \mathcal{O}\left(1\right)N\hslash$. Therefore, we have

$${\alpha }_0,{\beta }_0\sim \mathcal{O}\left(1\right)N\hslash .$$

(186)

From this and the curvature (182), we can see that all four of the terms of gravity in the bare action (123) are $\sim \mathcal{O}(\frac{1}{GN{l}_p^2})$. Therefore, the $R^2,R_{\alpha \beta }{R}^{\alpha \beta },R_{\alpha \beta \mu \nu }{R}^{\alpha \beta \mu \nu }$ terms cannot be much larger than the R term, which means that the three terms would not change the picture of the black hole drastically even if we consider them from the beginning45. Thus, our argument based on the Einstein–Hilbert term is self-consistent.

As we have seen, the coupling constants ${\alpha }_0$ and ${\beta }_0$ should be related by Equation (178). However, there is a possible way to relax it. Instead of the interior metric (72), we consider $B\left(r\right)=C_1{r}^{2+\zeta }$ and $A\left(r\right)=C_2{r}^{2+\frac{\zeta }{2}}$, where $\zeta$ is a small number. Because this ansatz satisfies the condition (80), we can solve the wave Equation (83) locally as discussed in the end of Section 5.1.2. Then, we can evaluate the renormalized energy-momentum tensor $\langle 0|T^{\mu }{}_{\nu }{|0\rangle }_{ren}^{\prime }$, which should contain $\zeta$-dependent terms. Therefore, we should be able to choose $\zeta$ so that the terms satisfy the Einstein Equation (131) for a given value of $({\alpha }_0,{\beta }_0)$. It would be exciting to find another class of solutions in this direction.

8. Black Hole Entropy

We count the number of states of the s-waves inside the black hole to evaluate the entropy more quantitatively than the discussion in Section 6.2.

8.1. Adiabatic Formation in the Heat Bath

Let us consider the adiabatic formation of the black hole in the heat bath [14]. Specifically, suppose that we grow a small black hole to a large one very slowly by changing the temperature and size of the heat bath properly46. Then, we obtain the stationary black hole, whose metric is given by Equation (72) with $a=$const., and consider it as consisting of excitations of the s-wave continuum modes, as discussed in Section 6.

This black hole is not in equilibrium in an exact sense [16]. Let us see the above formation process from a microscopic view. See Figure 14.

At a stage where the black hole has the radius $a^{\prime }$, s-wave ingoing radiation from the bath comes to the black hole, balancing s-wave Hawking radiation of $T_H=\frac{\hslash }{4\pi a^{\prime }}$ with the s-wave intensity ${\sigma }_s$ (13). The ingoing radiation approaches

$$r=a^{\prime }+\frac{2{\sigma }_s}{a^{\prime }}$$

(187)

as we have shown (8). Then, the local temperature that the radiation feels there is

$$T_{local}={\left.\frac{\frac{\hslash }{4\pi a^{\prime }}}{\sqrt{1-\frac{a^{\prime }}{r}}}\right|}_{r=a^{\prime }+\frac{2{\sigma }_s}{a^{\prime }}}\approx \frac{\hslash }{4\pi \sqrt{2{\sigma }_s}},$$

(188)

which is near the Planck temperature $\sim \frac{\hslash }{\sqrt{N}{l}_p}$ because of Equation (13). After this, the subsequent radiations pile up and cover the radiation. Then, it is redshifted exponentially, almost frozen in time t, and suspends there. From the local point of view, however, the radiation keeps falling with the initial information. Therefore, the black hole is not in equilibrium in the usual sense. Rather, the ingoing radiation from the bath and the Hawking radiation are just balanced, and therefore the system is stationary.

This property allows us to use the temperature (188) as the local temperature at each radius r inside the black hole. Because of the exponentially large redshift, the outgoing Hawking radiation there is frozen in time t. Even if we wait for an exceptionally long time which is longer than the lifetime of the universe, the Hawking radiation of this temperature (188) will not go outside to exchange energy with the radiation from the heat bath. This indicates that Tolman’s law [63] doesn’t hold inside the black hole47. As we will see below, this is consistent with the area law of the entropy.

8.2. Micro-Counting of the S-Wave States

We count the number of possibilities of these s-wave configurations to find the entropy density $\widehat{s}\left(r\right)$ per radius r inside the black hole. First, we evaluate the number $\Delta n\left(r\right)$ of the s-waves with frequency $\le \omega$ in the width $\Delta r$ near the surface when the black hole of $a^{\prime }$ is formed. In the semi-classical approximation [59], using the condition (91) for $l=0$, $\mathcal{M}=0$, $A=0$, and $B=\frac{r}{r-a^{\prime }}$, we can evaluate for N kinds of fields 48

$$\Delta n\left(r\right)=\frac{N}{\pi }\Delta r\frac{1}{\sqrt{1-\frac{a^{\prime }}{r}}}\frac{\omega }{\sqrt{1-\frac{a^{\prime }}{r}}}\approx \frac{N}{\pi }\frac{r}{\sqrt{2{\sigma }_s}}\tilde{\omega }\Delta r.$$

(189)

Here, $\tilde{\omega }=\frac{\omega }{\sqrt{-g_{tt}}}=\frac{\omega }{\sqrt{1-\frac{a^{\prime }}{r}}}$ is the blueshifted frequency when approaching the surface, and we have approximated $\frac{1}{\sqrt{1-\frac{a^{\prime }}{r}}}\approx \frac{a^{\prime }}{\sqrt{2{\sigma }_s}}\approx \frac{r}{\sqrt{2{\sigma }_s}}$ near the position (187). Thus, the number of modes for $[\tilde{\omega },\tilde{\omega }+\Delta \tilde{\omega }]$ is given by

$$\frac{d\Delta n\left(r\right)}{d\tilde{\omega }}\Delta \tilde{\omega }=\frac{N}{\pi }\frac{r}{\sqrt{2{\sigma }_s}}\Delta \tilde{\omega }\Delta r\equiv \mathcal{D}(\tilde{\omega },r)\Delta \tilde{\omega }\Delta r.$$

(190)

Next, we review the entropy of a harmonic oscillator with frequency $\omega$ in the heat bath of temperature ${\beta }^{-1}$ [63]. The canonical distribution is given by $e^{-\beta \left(a^{†}a+\frac{1}{2}\right)\hslash \omega }Z{\left(\beta \right)}^{-1}$, where

$$Z\left(\beta \right)=\mathrm{Tr}{e}^{-\beta \left(a^{†}a+\frac{1}{2}\right)\hslash \omega }=2sinh\left(\frac{1}{2}\hslash \beta \omega \right).$$

(191)

Therefore, the entropy is evaluated as

$$S={\beta }^2\frac{\partial }{\partial \beta }\left(-{\beta }^{-1}logZ\left(\beta \right)\right)=g_s(\hslash \beta \omega ),$$

(192)

where we have defined a function

$$g_s\left(x\right)\equiv \frac{x}{e^x-1}-log(1-e^{-x}).$$

(193)

From the formulae (190) and (192), we obtain the entropy density:

$$\widehat{s}\left(r\right)=\frac{1}{2}{\int }_0^{\infty }d\tilde{\omega }\mathcal{D}(\tilde{\omega },r)g_s(\hslash {\beta }_{local}\tilde{\omega }),$$

(194)

with $1/{\beta }_{local}=T_{local}$ (188). The reason of the factor $\frac{1}{2}$ is that, because of the time-freezing effect, only ingoing modes carry the information, and the integration only over ingoing direction momenta should be performed. This can be evaluated as

$$\begin{array}{cc}\hfill \widehat{s}\left(r\right)& =\frac{N}{2\pi }\frac{r}{\sqrt{2{\sigma }_s}}\frac{1}{\hslash {\beta }_{local}}{\int }_0^{\infty }dx{g}_s\left(x\right)\hfill \\ \hfill & =\frac{N}{2\pi }\frac{r}{\sqrt{2{\sigma }_s}}\frac{1}{4\pi \sqrt{2{\sigma }_s}}\frac{{\pi }^2}{3}\hfill \\ \hfill & =\frac{Nr}{48{\sigma }_s}\hfill \\ \hfill & =\frac{2\pi }{l_p^2}r,\hfill \end{array}$$

(195)

where on the third line we have used the intensity (13)49. Integrating this over the interior reproduces the area law:

$$S={\int }_0^{R\left(a\right)}dr\widehat{s}\left(r\right)=\frac{\pi R{\left(a\right)}^2}{l_p^2}=\frac{\pi a^2}{l_p^2}+\mathcal{O}\left(1\right)\approx \frac{A}{4l_p^2},$$

(196)

where $R{\left(a\right)}^2={\left(a+\frac{2\sigma }{a}\right)}^2=a^2+4\sigma +\frac{4{\sigma }^2}{a^2}$ and $A\equiv 4\pi a^2$ have been used50. This implies that the information is stored inside the black hole as excitations of the s-waves.

9. Mechanism of Energy Decrease of the Collapsing Matter

In this section, we examine how the energy of the collapsing matter decreases and discuss how $T^{\left(\psi \right)\mu }{}_{\nu }$, Equation (171), is obtained by dynamics. The point is to consider the contribution from the vacuum fluctuation of s-waves.

9.1. Setup

Suppose that a classical matter collapses to the black hole which is described by the self-consistent metric. To analyze the time evolution of this matter, we can focus just on the part of the matter around the surface, since the deeper region is frozen in time due to the exponentially large redshift. We consider the matter as consisting of many shells like the multi-shell model of Figure 8 and study the energy of the outermost shell along $r=r_n\left(u\right)\equiv r_s\left(u\right)$ as in Figure 15.

We use the Vaidya metric (4) in the $(u,v)$ coordinate to describe the outside region:

$$\begin{array}{cc}\hfill d{s}^2& =-\left(1-\frac{a\left(u\right)}{r}\right)d{u}^2-2dudr+r^{2}d{\mathsf{\Omega }}^2\hfill \\ \hfill & =-e^{\phi (u,v)}dudv+r{(u,v)}^{2}d{\mathsf{\Omega }}^2,\hfill \end{array}$$

(197)

where $a\left(u\right)$ follows Equation (5) and each function is given by

$$\phi (u,v)=-{\int }_{-\infty }^{u}d\tilde{u}\frac{a\left(\tilde{u}\right)}{2r{(\tilde{u},v)}^2},{\partial }_{u}r(u,v)=-\frac{r(u,v)-a\left(u\right)}{2r(u,v)},{\partial }_{v}r(u,v)=\frac{1}{2}{e}^{\phi (u,v)}.$$

(198)

We label the outermost shell by $v_s$ so that its location is given by $r_s\left(u\right)=r(u,v_s)$.

9.2. S-Wave Model of Quantum Fields

Thus far, we have considered the collapsing matter as an excitation of s-waves, and we have also seen that only s-waves can enter and exit the black hole. Therefore, in order to study quantum fields propagating in this time-dependent background spacetime, we can use the s-wave approximation to analyze N massless free scalar fields as we have done in Section 251. In this subsection, we explain the general setup [41,56].

We consider s-waves of N kinds of scalar fields, ${\varphi }_a={\varphi }_a\left(x^i\right)$, in a spherically symmetric metric, where $x^i$ is the 2D part of the coordinate. The 4D action can be reduced to the 2D one:

$$\begin{array}{cc}\hfill S& =-\frac{1}{2}\sum _{a=1}^N\int d^{4}x\sqrt{-g}{g}^{\mu \nu }{\partial }_{\mu }{\varphi }_a{\partial }_{\nu }{\varphi }_a\hfill \\ \hfill & =-\frac{1}{2}\sum _{a=1}^{N}4\pi \int d^2{x}_{2d}\sqrt{-g_{2d}}{r}^2{g}^{ij}{\partial }_i{\varphi }_a{\partial }_j{\varphi }_a\hfill \\ \hfill & \approx -\frac{1}{2}\sum _{a=1}^N\int d^2{x}_{2d}\sqrt{-g_{2d}}{g}^{ij}{\partial }_i{\mathsf{\Phi }}_a{\partial }_j{\mathsf{\Phi }}_a,\hfill \end{array}$$

(199)

where r is the areal radius, and the derivative ${\partial }_i$ is applied only to $\varphi \left(x^i\right)$ as the approximation. Here, we have defined the 2D field as

$${\mathsf{\Phi }}_a\equiv \sqrt{4\pi }r{\varphi }_a.$$

(200)

The 2D energy momentum tensor is given by

$${\tau }_{ij}\equiv \frac{-2}{\sqrt{-g_{2d}}}\frac{\delta S}{\delta g^{ij}}=\sum _{a=1}^N\left({\partial }_i{\mathsf{\Phi }}_a{\partial }_j{\mathsf{\Phi }}_a-\frac{1}{2}{g}_{ij}{g}^{i^{\prime }{j}^{\prime }}{\partial }_{i^{\prime }}{\mathsf{\Phi }}_a{\partial }_{j^{\prime }}{\mathsf{\Phi }}_a\right),$$

(201)

which is related to the 4D energy-momentum tensor $T_{ij}$ through the definition (200) as

$${\tau }_{ij}\approx 4\pi r^2{T}_{ij}.$$

(202)

Classically, this 2D part is traceless, ${\tau }^i{}_i=0$. However, the 2D Weyl anomaly contributes to the trace part [41,56]:

$${\tau }^i{}_i=\frac{N\hslash }{24\pi }{R}_{2d},$$

(203)

where $R_{2d}$ is the 2D Ricci scalar.

We here consider a 2D metric of the form $d{s}_{2d}^2=-e^{\phi (u,v)}dudv$. Then, the 2D action (199) becomes $S={\sum }_{a=1}^N\int dudv{\partial }_u{\mathsf{\Phi }}_a{\partial }_v{\mathsf{\Phi }}_a$, and the equation of motion $\frac{\delta S}{\delta {\mathsf{\Phi }}_a}=0$ is

$${\partial }_u{\partial }_v{\mathsf{\Phi }}_a=0.$$

(204)

Each component of the energy-momentum tensor is given from Equations (201) and (203) by

$${\tau }_{uu}=\sum _{a=1}^N{\left({\partial }_u{\mathsf{\Phi }}_a\right)}^2,{\tau }_{vv}=\sum _{a=1}^N{\left({\partial }_v{\mathsf{\Phi }}_a\right)}^2,{\tau }_{uv}=-\frac{N\hslash }{24\pi }{\partial }_u{\partial }_v\phi \equiv 2\gamma {\partial }_u{\partial }_v\phi ,$$

(205)

where we have used $R_{2d}=4e^{-\phi }{\partial }_u{\partial }_v\phi$. The conservation law ${\nabla }_{\left(2d\right)}^i{\tau }_{ij}=0$ is given by

$$\begin{array}{cc}\hfill {\partial }_v{\tau }_{uu}+e^{\phi }{\partial }_u\left(e^{-\phi }{\tau }_{uv}\right)& =0,\hfill \end{array}$$

(206)

$$\begin{array}{cc}\hfill {\partial }_u{\tau }_{vv}+e^{\phi }{\partial }_v\left(e^{-\phi }{\tau }_{vu}\right)& =0.\hfill \end{array}$$

(207)

In the following, we consider ${\tau }_{ij}$ as the expectation value with respect to a state $|\psi \rangle$. The information of $|\psi \rangle$ is introduced as a boundary condition of ${\tau }_{ij}$.

9.3. Hawking Radiation

Now, let us find ${\tau }_{uu}$ in our setup of Figure 15. Initially, $(u=-\infty )$, and there is only the collapsing matter with ${\tau }_{vv}^{\left(0\right)}\left(v\right)$. Therefore, ${\tau }_{uu}$ appears as a result of dynamics of the quantum fields.

First, we can use the third one of Equation (205) to express the conservation law (206) as ${\partial }_v{\tau }_{uu}+2\gamma {\partial }_v\left({\partial }_u^2\phi -\frac{1}{2}{\left({\partial }_u\phi \right)}^2\right)=0.$ From this, we obtain

$${\tau }_{uu}=\gamma \left({\left({\partial }_u\phi \right)}^2-2{\partial }_u^2\phi \right)+{\tau }_{uu}^{\left(0\right)}\left(u\right).$$

(208)

Next, we determine ${\tau }_{uu}^{\left(0\right)}\left(u\right)$ by the boundary condition given above Equation (33). That is, the quantum fields have started in the Minkowski vacuum state ${|0\rangle }_M$ from a distance (see the left of Figure 15)52. This corresponds to the condition that ${\tau }_{UU}^{\left(0\right)}\left(U\right)=0$, where U is the outgoing null time in the flat region around $r=0$. In general, in order for ${\tau }_{uu}$ to transform covariantly under $u\to U\left(u\right)$, this holomorphic term must change as [55,56]

$${\tau }_{uu}^{\left(0\right)}\left(u\right)={\left(\frac{dU}{du}\right)}^2{\tau }_{UU}^{\left(0\right)}\left(U\right)+\frac{N\hslash }{16\pi }\{u,U\}.$$

(209)

Thus, Equation (208) becomes

$${\tau }_{uu}=\gamma \left({\left({\partial }_u\phi \right)}^2-2{\partial }_u^2\phi \right)+\frac{N\hslash }{16\pi }\{u,U\}.$$

(210)

The shell we are now considering corresponds to the outermost one in the multi-shell model of Section 2.3.2. Therefore, we can use the result (53), that is,

$$\xi \equiv log\frac{dU}{du}=-\frac{a{\left(u\right)}^2}{4\sigma }.$$

(211)

Calculating the first two terms of the formula (210) from Equation (198) and evaluating $\{u,U\}$ with the relation (211) in the same way as in deriving Equation (45) from Equation (42), then the formula (210) becomes

$${\tau }_{uu}=-\frac{\hslash N}{192\pi }\left[\frac{a^2}{r^4}+\frac{4a}{r^3}\left(1-\frac{a}{r}\right)+\frac{4\dot{a}}{r^2}\right]+\frac{\hslash N}{192\pi }\left(\frac{1}{a^2}+\frac{4\dot{a}}{a^2}\right),$$

(212)

where the last two terms come from ${\tau }_{uu}^{\left(0\right)}\left(u\right)=\frac{N\hslash }{16\pi }\{u,U\}$. This formula can be applied to any point outside the black hole.

At $r\gg a$, this becomes

$${\tau }_{uu}\stackrel{r\gg a}{\to }\frac{\hslash N}{192\pi a^2},$$

(213)

which is consistent through the relation (202) with Equation (46) 53.

On the other hand, ${\tau }_{uu}$ vanishes near the surface at $r=a+\frac{2\sigma }{a}$:

$${\tau }_{uu}\stackrel{r\to a+\frac{2\sigma }{a}}{\to }0,$$

(214)

which is consistent with the literature [41,50,51,53].

Thus, the Hawking radiation of the s-waves is created at $r\sim (1+k)a$ ($k=\mathcal{O}\left(1\right)$) and emits the energy of the system. As we will see in the next subsection, a negative ingoing energy flow with the same magnitude as the outgoing one (213) is induced near $r=a+\frac{2\sigma }{a}$, and the energy inside $r=a+\frac{2\sigma }{a}$ decreases as $\frac{da}{du}=-\frac{{\sigma }_s}{a^2}$. This fact justifies the use of the Vaidya metric in studying the motion of a particle near $r=a+\frac{2\sigma }{a}$.

9.4. Ingoing Negative Energy Flow Near the Surface

In turn, we determine the ingoing energy flow ${\tau }_{vv}$ by using the conservation law (207). From Equation (198), we have ${\partial }_v{\partial }_u\phi =\frac{a}{r^3}{\partial }_{v}r=\frac{a}{2r^3}{e}^{\phi }$, which gives ${\tau }_{uv}=\gamma \frac{a}{r^3}{e}^{\phi }$ through the third of Equation (205). From this and Equation (198), we can express the conservation law (207) as ${\partial }_u{\tau }_{vv}=-e^{\phi }{\partial }_v\left(\gamma \frac{a}{r^3}\right)=\frac{3\gamma a}{2r^4}{e}^{2\phi }$. Therefore, we obtain the general expression

$${\tau }_{vv}=\frac{3\gamma }{2}{\int }_{-\infty }^{u}d\tilde{u}\frac{a\left(\tilde{u}\right)}{r{(\tilde{u},v)}^4}{e}^{2\phi (\tilde{u},v)}+{\tau }_{vv}^{\left(0\right)}\left(v\right).$$

(215)

Let us focus ${\tau }_{vv}$ at $v\sim v_s$. Then, the boundary term ${\tau }_{vv}^{\left(0\right)}\left(v\right)$ represents the energy of the outermost shell that comes from a distance at $u=-\infty$. The shell is classical, and the configuration ${\mathsf{\Phi }}_a^{\left(cl\right)}\left(v\right)$ is an ingoing solution of the field Equation (204) so that ${\tau }_{vv}^{\left(cl\right)}\left(v\right)={\sum }_{a=1}^N{({\partial }_v{\mathsf{\Phi }}_a^{\left(cl\right)}\left(v\right))}^2$ is non-zero only around $v\sim v_s$ and zero otherwise. We then put this classical ingoing energy flow as an idealization

$${\tau }_{vv}^{\left(0\right)}\left(v\right)=W\delta (v-v_s),$$

(216)

where W is a positive constant. This indicates that the energy of the matter is kept along a line of $v=v_s$.

Now, suppose that this shell comes close to $r=a+\frac{2\sigma }{a}$ at a time $u=u_{*}$. Then, we can evaluate

$$\phi (u,v_s)\approx \left\{\begin{array}{c}log\frac{r_s\left(u\right)-a_{*}}{r_s\left(u\right)},\mathrm{for}u\lesssim u_{*},\hfill \\ log\frac{2\sigma }{a_{*}^2}+\frac{a{\left(u\right)}^2-a_{*}^2}{4\sigma },\mathrm{for}{u}_{*}\lesssim u,\hfill \end{array}\right.$$

(217)

and obtain for $u\gtrsim u_{*}$

$${\tau }_{vv}(u,v_s)\approx -\frac{N\hslash }{192\pi a{\left(u\right)}^2}+W\delta (v-v_s){|}_{v\to v_s},$$

(218)

where $a_{*}=a\left(u_{*}\right)$ (see Appendix G for the derivation). The first negative term has the same absolute value as the outgoing energy flux at infinity (213) [41,50]. In addition, we can check that the 4D energy density of this negative part is on the order of $\mathcal{O}\left(a^{-2}\right)$ (see Equation (226)).

The mechanism for reducing the energy of the system is as follows (see Figure 15). First, the collapsing matter comes with the positive ingoing energy ${\tau }_{vv}^{\left(0\right)}$. As it approaches the black hole, the negative energy flow is created from the vacuum fluctuation of the s-waves and superposed on the matter. At the same time, the same amount of the positive energy flow is emitted to infinity. Thus, the negative energy cancels the positive energy of the matter locally, and the energy of the system decreases. We can also see how this occurs in the interior metric (see section 5 of [14] and section 4-E of [16]) 54.

9.5. Configuration of S-Wave and $T^{\left(\psi \right)\mu }{}_{\nu }$

Here, by considering the above mechanics of the energy decrease, we discuss how to obtain $-T^{\left(\psi \right)t}{}_t\sim \frac{1}{r^2}$ in Equation (171) directly from dynamics of fields.

We first point out that the energy of the outermost shell in the multi-shell model decreases exponentially in the time $\Delta u\sim 2a$ [16] (see the right of Figure 15). This is the same statement as Equation (27) (or Equation (28)) in Figure 7. Here, note that in Figure 7 and Figure 15, the roles of $(u,a)$ and $(u^{\prime },a^{\prime })$ are reversed! Therefore, by almost the same calculation as the evaluation (29), we have in the case of Figure 15

$$\begin{array}{cc}\hfill {\left(\frac{d\Delta a}{du}\right)}_{self-consistent}& =\frac{da}{du}-\frac{d{u}^{\prime }}{du}\frac{d{a}^{\prime }}{d{u}^{\prime }}\hfill \\ \hfill & =-\frac{{\sigma }_s}{a^2}+\frac{r_s-a}{r_s-a^{\prime }}\frac{{\sigma }_s}{a^{\prime 2}}\hfill \\ \hfill & \approx -\frac{\sigma }{a^2}+\left(1-\frac{a}{2{\sigma }_s}\Delta a\right)\frac{\sigma }{a^2}\left(1+\frac{2\Delta a}{a}\right)\hfill \\ \hfill & \approx -\frac{1}{2a}\Delta a.\hfill \end{array}$$

(219)

This is the self-consistent time evolution of the energy of the matter that has come from the outside and become a part of the evaporating black hole.

The behavior (219) can be understood as a combination of the increase of the energy of the classical matter and the decrease of the energy by the negative energy flow:

$${\left(\frac{d\Delta a}{du}\right)}_{self-consistent}={\left(\frac{d\Delta a}{du}\right)}_{classical}-2G\Delta J=\frac{1}{2a}\Delta a-\frac{1}{a}\Delta a=-\frac{1}{2a}\Delta a,$$

(220)

where the first and second terms are the classical and quantum contributions, respectively. We explain these terms below.

First, it is natural that, when we throw a particle to the evaporating black hole, the energy of the particle itself increases if we don’t consider any quantum effect. This is because when viewed from a distant, the approaching particle is pulled by the gravitational force of the “escaping" surface of the black hole and thus gains the extra kinetic energy just like gravity assist for spacecraft. In fact, we can consider the contribution only from the ingoing energy ${\tau }_{vv}^{\left(0\right)}\left(v\right)$ (216) of the classical shell and evaluate the Bondi mass as (see Appendix H)55

$${(\Delta M)}_{classical}\approx e^{-\frac{a{\left(u\right)}^2-a_{*}^2}{4\sigma }}W,$$

(221)

from which we have the classical evolution of the mass

$${\left(\frac{d\Delta a}{du}\right)}_{classical}=-\frac{a}{2\sigma }\frac{da}{du}\Delta a=\frac{1}{2a}\Delta a,$$

(222)

where we have used Equation (5). This gives the first term in Equation (220).

Second, we evaluate the contribution of the negative energy flow that directly reduces the energy of the shell. As we have seen in the previous subsections, the amount of the negative energy flow near the black hole is the same as that of the positive energy flow going out. Thus, the contribution we should take is equal to the difference $\Delta J$ between the energy flows ${\tau }_{uu}$ and ${\tau }_{u^{\prime }{u}^{\prime }}$ exiting the systems with mass $\frac{a}{2G}$ and $\frac{a^{\prime }}{2G}$, respectively (see the right of Figure 15). More precisely, it is given by

$$\Delta J\equiv {\left.\left({\tau }_{uu}-{\left(\frac{d{u}^{\prime }}{du}\right)}^2{\tau }_{u^{\prime }{u}^{\prime }}\right)\right|}_{r=\infty },$$

(223)

where we have considered the two redshift factors in order to translate ${\tau }_{u^{\prime }{u}^{\prime }}$ in terms of u. This can be evaluated as

$$\begin{array}{cc}\hfill \Delta J& =\frac{N\hslash }{192\pi a^2}-{\left(\frac{r_s-a}{r_s-a^{\prime }}\right)}^2\frac{N\hslash }{192\pi a^{\prime 2}}\hfill \\ \hfill & \approx \frac{N\hslash }{192\pi }\left(\frac{1}{a^2}-\left(1-\frac{a}{\sigma }\Delta a\right)\frac{1}{a^2}\left(1+2\frac{\Delta a}{a}\right)\right)\hfill \\ \hfill & \approx \frac{N{l}_p^2}{2G·96\pi }\frac{\Delta a}{\sigma a}\hfill \\ \hfill & =\frac{1}{2Ga}\Delta a.\hfill \end{array}$$

(224)

Here, on the first line, Equation (213) has been applied to both ${\tau }_{uu}$ and ${\tau }_{u^{\prime }{u}^{\prime }}$ because the relation (211) holds for both u and $u^{\prime }$; on the second line, Equation (8) has been used; and on the last line, the intensity (13) has been considered. This provides the second term of Equation (220).

Now, we discuss the energy density. As shown in Appendix H, the energy density corresponding to the mass (221) is given by

$$-T^{\left(cl\right)u}{}_u\approx \frac{W}{4\pi \sigma }{e}^{-\frac{r^2-a_{*}^2}{2\sigma }}\delta (v-v_s),$$

(225)

while the energy density corresponding to the negative energy flow in Equation (218) is evaluated as

$$-T^{\left(vac\right)u}{}_u\approx -\frac{1}{8\pi G{r}^2}{e}^{-\frac{r^2-a_{*}^2}{2\sigma }},$$

(226)

where we express these in the $(u,r)$ coordinate of the metric (197)56. These are not consistent with $-T^{\left(\psi \right)t}{}_t\sim \frac{1}{r^2}$ in Equation (171).

However, the above observation (220) implies that there should be a way to include the effect of the negative energy flow in solving the field equation of the s-wave. Such an analysis could be similar to “Lorentz friction”. While the radiation is emitted directly from the particle in the case of the Lorentz friction, the negative energy flow in our case is induced through the change of the metric by the motion of the shell. In this sense, these might be qualitatively different. It should be useful to consider from a field-theoretic point of view the discussion of Section 2.2, which determines the time-evolution of both the spacetime and the energy and motion of the shell. Then, we should be able to obtain the proper functional form $T^{\left(\psi \right)t}{}_t\sim \frac{1}{r^2}$, and the form of $T^{\left(\psi \right)\mu }{}_{\nu }$ (171) will be determined together with ${\kappa }_t,{\kappa }_r,{\kappa }_{\theta }$. We will consider this problem in future (see also the end of Section 11).

10. Conformal Matter Fields

As a special case, we consider conformal fields as the matter fields in the Einstein Equation (1)57. In the previous work [24], we have investigated this case and constructed the self-consistent metric. Here, we perform further analysis to completely determine $(\sigma ,\eta )$.

10.1. Self-Consistent Values of $(\sigma ,\eta )$ for Conformal Matter Fields

The key equation is the trace part of the Einstein Equation (1). The trace of the energy-momentum tensor is given by the 4D Weyl anomaly, independently of the state $|\psi \rangle$ [41,42,62]:

$$G^{\mu }{}_{\mu }=8\pi G\hslash \left(c_W\mathcal{F}-a_W\mathcal{G}+b_W\square R\right),$$

(227)

with

$$\mathcal{F}\equiv C_{\alpha \beta \gamma \delta }{C}^{\alpha \beta \gamma \delta }=R_{\alpha \beta \gamma \delta }{R}^{\alpha \beta \gamma \delta }-2R_{\alpha \beta }{R}^{\alpha \beta }+\frac{1}{3}{R}^2,\mathcal{G}\equiv R_{\alpha \beta \gamma \delta }{R}^{\alpha \beta \gamma \delta }-4R_{\alpha \beta }{R}^{\alpha \beta }+R^2,$$

(228)

where $C_{\alpha \beta \gamma \delta }$ is the Weyl curvature and $\mathcal{G}$ is the Gauss–Bonnet density. The coefficients $c_W$ and $a_W$ are fixed only by the matter content of the action, as we will give explicitly below, while $b_W$ also depends on the finite renormalization.

We can use the interior metric (72) because the multi-shell model is independent of the matter content. Using Equations (76), (77), (78), and (150), the self-consistent Equation (227) becomes

$$\frac{1}{{\eta }^2\sigma }-\frac{2}{r^2}=8\pi l_p^2\left[c_W\frac{1}{3{\eta }^4{\sigma }^2}-\frac{4}{{\eta }^2\sigma r^2}\left(c_W\left(\frac{1}{\eta }+\frac{1}{3}\right)-a_W\right)\right]+\mathcal{O}\left(r^{-4}\right)$$

(229)

to $\mathcal{O}\left(r^{-2}\right)$. Note that $b_W$ does not contribute here because of $\square R=\mathcal{O}\left(r^{-4}\right)$ from Equation (150). Equating the terms of $\mathcal{O}\left(1\right)$ on the both sides, we reach [14,24]

$$\sigma =\frac{8\pi l_p^2{c}_W}{3{\eta }^2},$$

(230)

which is similar to the value (175). Next, comparing the terms of $\mathcal{O}\left(r^{-2}\right)$ and using the result (230), we can obtain easily

$$\eta ={\left(\frac{a_W}{c_W}-\frac{1}{6}\right)}^{-1},$$

(231)

which is a new result 58. Note here that this result is not influenced by a finite renormalization because $H^{\mu }{}_{\mu },K^{\mu }{}_{\mu }=\mathcal{O}\left(r^{-4}\right)$ from Equations (148) and (150). Thus, the interior metric has been determined completely only by the matter content, independently of the state and the theory of gravity.

10.2. A New Constraint to the Matter Content

We discuss the meaning of the result (231). First, the explicit values of $c_W$ and $a_W$ are given by

$$c_W=\frac{1}{1920{\pi }^2}(N_S+6N_F+12N_V),a_W=\frac{1}{5760{\pi }^2}(N_S+11N_F+62N_V),$$

(232)

where $N_S$, $N_F$, and $N_V$ are respectively the numbers of scalars, spin-$\frac{1}{2}$ Dirac fermions and vectors in the theory [62]59. Using this, the result (231) can be expressed as

$$\eta =6\frac{N_S+6N_F+12N_V}{N_S+16N_F+112N_V}.$$

(233)

For example, we can see

$$\eta =\left\{\begin{array}{c}6\mathrm{scalar},\hfill \\ \frac{9}{4}\mathrm{Dirac}\mathrm{ferminon},\hfill \\ \frac{9}{14}\mathrm{vector}.\hfill \end{array}\right.$$

(234)

The consistency condition of $\eta$ is given by Equation (67): $1\le \eta <2$. The lower limit has come from the positive definiteness of the ratio of the scattered part of the radiation as in Figure 10, while the upper limit has been derived by the positive definiteness of the radial pressure in Equation (66) 60. None of the above examples meet the condition.

Let’s examine whether various theories satisfy the condition (67). The first one is the Standard Model with right-handed neutrino61. It has $N_S=4$, $N_F=24$, and $N_V=12$, and then the formula (233) becomes

$$\eta =\frac{438}{433}\approx 1.012,$$

(235)

which satisfies the condition (67). On the other hand, if we remove right-handed neutrino, $N_F=24$ changes to $N_F=24-\frac{1}{2}\times 3$, and then the formula (233) gives

$$\eta =\frac{849}{854}\approx 0.994,$$

(236)

which is outside the condition (67). This result suggests that the right-handed neutrino should exist.

Next, we consider $\mathcal{N}=4$ supersymmetric theory. In this case, we have $N_S=6$, $N_F=2$, and $N_V=1$, and the formula (233) leads to

$$\eta =\frac{6}{5}=1.2,$$

(237)

which satisfies the condition (67). Instead, if we apply the formula (233) to $\mathcal{N}=1$ supersymmetric theory with vector-multiplet, which has $N_S=0,N_F=\frac{1}{2},N_V=1$, we get

$$\eta =\frac{3}{4}=0.75,$$

(238)

which does not meet the condition (67).

In this way, the condition (67) with the formula (233), which is a result of the self-consistent solution of the evaporating black hole, can provide a constraint to the matter content and classify effective field theories. The weak-gravity conjecture tells that black holes should evaporate without global symmetry charge [47,48]. Therefore, Equations (67) and (233) may play a similar role62. It would be exciting to study phenomenology using them.

11. Discussion and Conclusions

In this paper, we have solved time evolution of the collapsing matter taking the full dynamics of the 4D quantum matter fields into account in the semi-classical Einstein equation. Then, we found the self-consistent metric $g_{\mu \nu }$ and state $|\psi \rangle$. This solution tells that the black hole is a compact dense object which has the surface (instead of horizon) and evaporates without a singularity63. It consists of three parts. One is the vacuum fluctuation of the bound modes in the ground state, which produces the large tangential pressure supporting the object. Another one is the excitation of the s-waves composing the collapsing matter, which carries the information responsible for the area law of the entropy. The other one is the excitation of the s-waves producing the pair of the outgoing Hawking radiation and the ingoing negative energy flow, which decreases the energy of the matter. These three energy-momentum flows are conserved independently if there is no interaction among them.

Now, we would like to ask: How is the information $|\psi \rangle$ of the collapsing matter reflected in the Hawking radiation and recovered in this picture? There are two remarkable points to answer this. One point is interaction between the outgoing Hawking radiation and the ingoing collapsing matter. As described in the basic idea of Section 2 and below Equation (183), the Hawking radiation is emitted outwards from each region inside the black hole. Then, the collapsing matter may collide with the outgoing radiation coming from below, go outwards, and exit from the black hole together with the information. See Figure 16.

Because the energy scale there is near the Planck scale (from Equations (182), (185), and (188)), some string-theory effect may be relevant and any kind of matter may interact with the radiation universally 64. Actually, we can describe this idea by a classical ${\varphi }^4$-model and evaluate the scattering time scale as

$$\Delta t\sim alog\frac{a}{\lambda N{l}_p},$$

(239)

where $\lambda$ is the dimensionless coupling constant (see Section 3 of [16]). Then, the scattering is an elastic collision in the radial direction, and the two particles swap their momenta (the right of Figure 16). Therefore, we expect that the energy distribution of the coming-back matter follows the Planck distribution of $T_H=\frac{\hslash }{4\pi a\left(t\right)}$ with a small correction that depends on the initial state.

This scattering process is stochastic. If an outgoing matter in the deep region goes out while the other remains inside, the matter would collide many times before going out, so the probability is very small. Therefore, the information returns in order from the surface region during the evaporation as if one peels off an onion65 (left of Figure 16).

The other point is the role of the negative energy induced by the vacuum. If the black hole evaporates and the information comes out by the above mechanism, the state along an ingoing line should approach a vacuum state (see the right of Figure 16). When the negative energy is superposed on the matter and decreases the energy, interaction between them should play a role in this evolution of the state. This point may be related to the problem of finding the correct configuration of the s-waves discussed in Section 9.5. We will study this scenario in future.
