1. Introduction
Within systems biology, lipidomics is the discipline that creates, analyzes, and integrates complex data on the lipidome of so-called systems. These can be cells, tissues, organs, biofluids, or whole organisms. Ideally, lipid profiles can be correlated with data about genome, transcriptome, proteome, and other metabolites of a system. Lipidomics as a technological platform relies largely on mass spectrometry (MS) as the key analytical technique. Lipids comprise a structurally very heterogeneous group of metabolites that can differ drastically in abundance and physical and functional properties. A noteworthy heterogenous and difficult to determine group of lipids are the glycolipids. Glycolipids are essential components of the surfaces of living cells [
2]. Within the comprehensive classification system suggested by the LIPID MAPS consortium, glycosylated lipids are classified according to the identity of their core lipids, and also as saccharolipids when fatty acyl groups are linked directly to a sugar backbone [
3]. One major group of glycolipids is that of the glycosphingolipids (GSLs), which is further classified into acidic, basic, and amphoteric GSLs. Despite their various roles in human health and disease, GSL analysis is often neglected or incompletely addressed within “omics” approaches, even in lipidomics [
4,
5] and glycomics. This is mainly due to the structural complexity and diversity of cellular glycolipids, and also to differences in abundance, chemical stability, and biophysical properties between the analytes. The glycome represents the largest class of post-translationally modified biomolecules [
6], and glycomics techniques [
7] such as lectin [
8] and glycan microarrays [
9] have been only occasionally applied to glycolipids. Also most of the mass spectrometric techniques developed for glycan analysis are not directly applicable to these glycoconjugates [
10]. In higher animals, most glycolipids are GSLs, in which the carbohydrate part is attached to a ceramide (
N-acylsphingoid) moiety [
2].
The glycan part can contain more than ten monosaccharide units that can differ in type, linkage, and additional modifications. As in the biosynthesis of other glycans, which usually occurs with a mixture of glycoforms, GSL structures are diverse since they arise from a combinatorial biosynthetic pathway [
11]. Despite this great structural variety in the glycan part, evolutionary related organisms express only a limited set of so-called GSL series that share common carbohydrate sequences (
Table 1). In higher animals, most series are derived from lactosylceramide (LacCer;
Figure 1), in which lactose is β-glycosidically linked to the 1-hydroxyl group of ceramides. An exception is the gala series, which is derived from β-galactosylceramide (GalCer,
Figure 1).
Table 1.
Glycosphingolipid (GSL) series of higher eukaryotes [1].
| Series | Core structure |
|---|
| Gala | Galα1,4Galβ1,1′Cer |
| Ganglio | Galβ1,3GalNAcβ1,4Galβ1,4Glcβ1,1′Cer |
| Globo | GalNAcβ1,3Galα1,4Galβ1,4Glcβ1,1′Cer |
| Isoglobo | GalNAcβ1,3Galα1,3Galβ1,4Glcβ1,1′Cer |
| Lacto | Galβ1,3GlcNAcβ1,3Galβ1,4Glcβ1,1′Cer |
| Neolacto | Galβ1,4GlcNAcβ1,3Galβ1,4Glcβ1,1′Cer |
| Muco | Galβ1,3Galβ1,4Galβ1,4Glcβ1,1′Cer |
Figure 1.
Structures of lactosylceramide and galactosylceramide. Only one of the various lipoforms is shown.
In addition to the species dependence, GSLs form cell-type specific glycan patterns that change with cell growth, differentiation, viral transformation, ontogenesis and oncogenesis. GSL heterogeneity results not only from variations within the carbohydrate part, but also within the lipid part, since the biosynthetic machinery that generates the lipid moiety gives rise to “lipoforms” [
12]. This can in part be attributed to the different acyltransferases encoded by the lass-genes [
13] that incorporate the amide-bound fatty acids and differ in their specificity towards the acyl coenzyme A thioesters of different chain lengths. An example is GSLs with polyunsaturated acyl chains that are required for male fertility [
14]. Also sphingoid bases found in GSLs differ in chain length, and in the degree of desaturation and hydroxylation.
With the exception of lysoglycosphingolipids (lysoGSLs; glycosylated sphingoid bases), most GSLs are electrically neutral or are negatively charged. The most abundant negatively charged GSLs are the gangliosides and the sulfoglycosphingolipids (sulfatides,
Figure 2). Gangliosides are sialic acid-containing GSLs. Sialic acids are derivatives of neuraminic acid, with
N-acetylneuraminic acid (Neu5Ac) as the most important one. Sialic acids can be attached to several galactosyl residues within the core structures of the ganglio-, lacto-, and neolacto-series, but also to GalCer (ganglioside GM4;
Figure 2). They can be further modified by acylation of different alcohol groups [
15], or by lactonisation [
16] (
Figure 3). These modifications can be lost during GSL isolation and workup under alkaline conditions, which are often applied to remove glycerophospholipids that contain fatty acids in ester-linkage [
17]. Although removal of other lipid classes can reduce signal suppression and improve the sensitivity of GSL determination, this alkaline treatment is not mandatory. For example, chloroform/methanol extraction in a ratio of 1:1 was used to analyze polar lipids including phospholipids and GSLs from glioblastoma cells by nano-LC FT-ICR MS and quadrupole linear ion trap MS/MS [
18].
O-acetylated gangliosides from tissues can be determined after chloroform/methanol extraction in a ratio of 1:2 and a subsequent partition step, as applied to human gliosarcoma [
19].
O-Acetylated sialic acids in gangliosides occur especially in growing cells and tissues and are regarded as oncofetal markers present on different tumors [
20]. As part of glycolipids and glycoproteins, they serve as receptors for coronaviruses [
21]. Another modified sialic acid is
N-glycolylneuraminic acid (Neu5Gc,
Figure 3). Neu5Gc as component of glycoconjugates is known as the so-called Hanganutziu-Deicher antigen, which is found in human tissues only in trace amounts, with the exception of certain tumors and in fetuses. Determination of Neu5Gc and Neu5Ac-containing gangliosides is either achieved by classical chromatographic techniques, or, with higher sensitivity, by hyphenation of chromatography with ESI-MS [
22]. As in most other glycoconjugates, sialic acids occur only in the α-anomeric configuration.

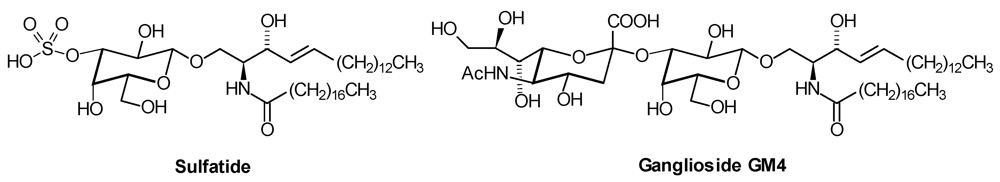

Figure 2.
Structures of sulfatide (GalCer-3′-sulfate) and ganglioside GM4. Only one of the various lipoforms is shown. Sulfatide is the major storage substance in Metachromatic Leukodystrophy.

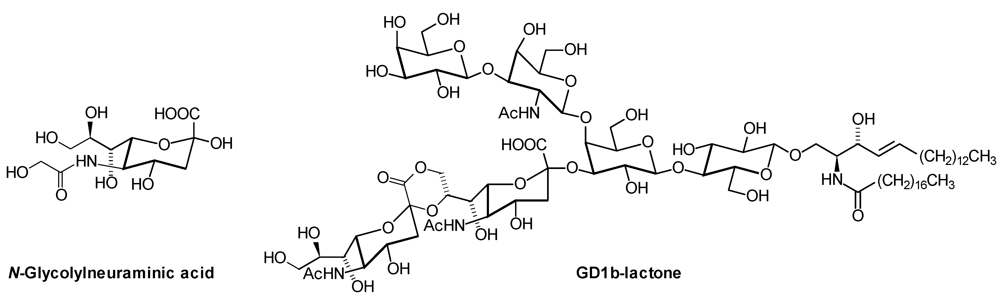

Figure 3.
N-Glycolylneuraminic acid (Neu5Gc; α-configuration) and an example of a GD1b-lactone.
For the nomenclature of gangliosides, the system introduced by Svennerholm [
23] is used, which has been approved by IUPAC [
1]. In brief, the name contains information about the series (G = ganglio), the number of neutral sugars (5-n), and number ("A" = 0, "M" = 1, "D" = 2,
etc.) and position (a,b,c) of sialic acid residues. Gangliosides of the ganglio-series are especially found on neuronal cells. In the nervous system, they contribute to 10-12% of the lipid content [
24]. During brain development, the ganglioside pattern changes from simple gangliosides like GM3 and GD3 (
Figure 4) to more complex ones like GD1a (
Figure 4) and GT1b (
Figure 5) [
25]. The function of the highly diverse GSL pattern on cellular surfaces is not clear, but glycan-protein interactions certainly play a role [
26]. For example, the myelin-associated glycoprotein on oligodendrocytes recognizes Neu5Acα2,3Galβ1,3GalNAc-termini [
27], so that the above mentioned change in ganglioside composition during brain development can be functionally correlated with myelination. Dependent on the deficient glycosyltransferase, genetically engineered mice with defects in ganglioside biosynthesis show defects in neural function, reproductivity, or insulin signalling [
11]. Not only interactions between GSL glycans and lectins, but also carbohydrate-carbohydrate interactions are discussed [
26].

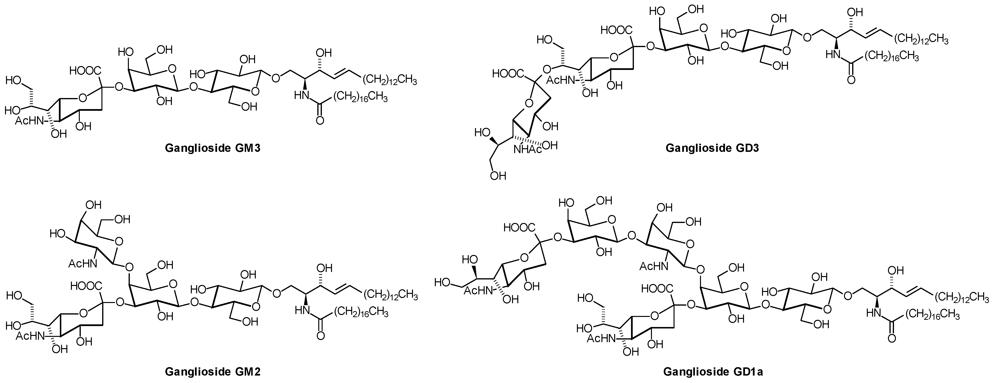

Figure 4.
Structures of gangliosides GM3, GM2, GD3, and GD1a. Only one of the various lipoforms is shown. GD1a is the most abundant ganglioside in the adult human brain. Ganglioside GM2 is the major storage substance in Tay-Sachs disease (β-hexosaminidase α-subunit deficiency), Sandhoff disease (β-hexosaminidase β-subunit deficiency), and GM2-activator deficiency.

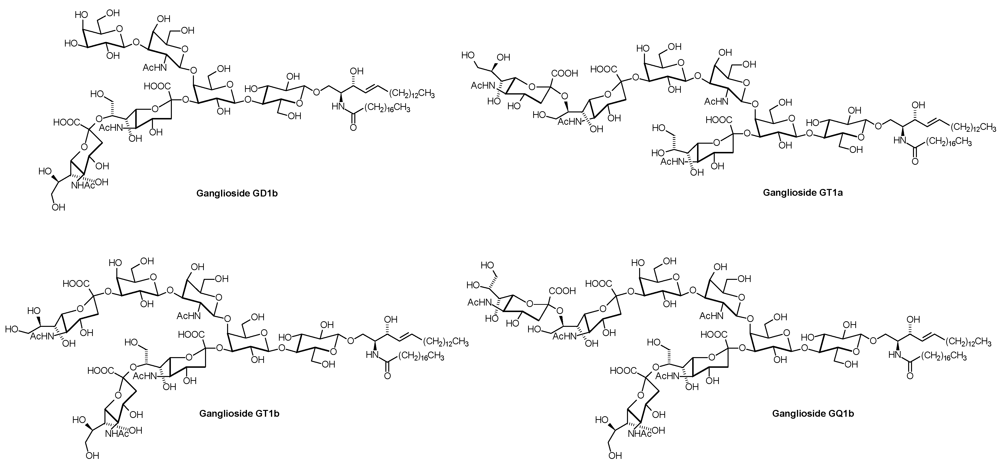

Figure 5.
Structures of Oligosialogangliosides GD1b, GT1a, GT1b, and GQ1b. Only one of the various lipoforms is shown. Autoantibodies against ganglioside GM1 or different other gangliosides or combinations of them are the cause of Guillain-Barré- and Miller-Fisher syndrome [
34].
Since GSLs also interact with proteins present in the same membrane [
28], including pathophysiologically relevant receptors such as that for insulin [
29], methods for their determination in different biological matrices are desired in relation to associated diseases. In addition, it is assumed that GSLs are not homogeneously distributed on the cell surface, but, together with glycosylphosphatidylinositol-anchored proteins, sphingomyelin, and cholesterol, segregate into membrane domains [
28]. These so-called rafts are regarded as the physiological surroundings of many membrane proteins. According to Stimulated Emission Depletion microscopy of living cells, the lifetime of rafts appears to be very short, and also the upper limit for their size seems to be only about 20 nm diameter [
30]. Although methods, such as extraction by means of detergent or immunostaining used for the characterization of these transient structures, have to be critically examined [
31], analysis of lateral GSL distribution should also be a focus of glycosphingolipidomics. In addition, the subcellular distribution of GSLs, which is not resolved by most of the currently applied analytical techniques, is of relevance because GSL function can depend on the cellular site: Different functional properties have been attributed to ganglioside GD3, dependent on its localization in the plasma membrane, the mitochondria, or the nucleus [
32]. In the plasma membrane, GSLs play a role in infectious diseases [
33] where they act as cellular receptors and co-receptors for viruses, bacteria, and microbial toxins. Examples include ganglioside GM1 as the receptor for cholera toxin, and globotriaosylceramide (Gb3Cer) as receptor for verotoxins and Shiga toxins (
Figure 6).
As revealed by classical analytical techniques, epithelial cells of the human intestine contain monoglycosylceramides (cerebrosides) and blood group-GSLs as major compounds together with smaller amounts of di-, tri-, and tetra-glycosylceramides and more complex GSLs [
35]. Gb3Cer is apparently absent from these cells, and it is still an open question how Shiga toxins produced by
E. coli strains in the intestine as the cause of hemorrhagic colitis and hemolytic uremic syndrome pass this barrier to enter the circulation [
36]. On lipoproteins, the globo-series Shiga toxin receptors have been found especially on VLDL and LDL, as determined by ESI-MS [
37]. Also gangliosides, mostly GM3, GD3, GD1a, GM2 (
Figure 4), GT1b, sialylneolactotetraosylceramide, GD1b, and GQ1b (
Figure 5), are also present in serum, where about 98% of them are transported by serum lipoproteins, predominantly by LDL (66%), followed by HDL (25%) and VLDL (7%) [
38]. Very little is known about how this part of the lipidome changes with disease states and how it influences human health.

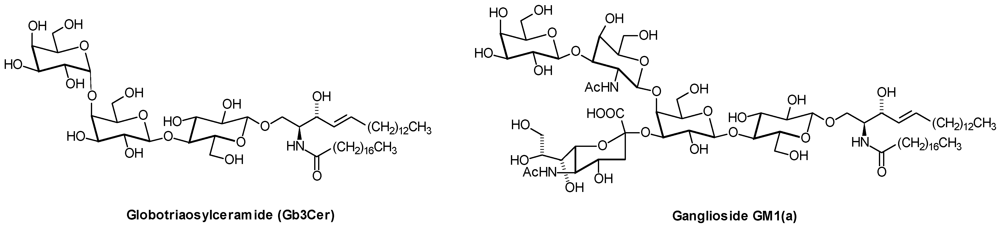

Figure 6.
Structures of the toxin receptors Gb3Cer and ganglioside GM1. Only one of the various lipoforms is shown. Gb3Cer is the major storage substance in Fabry disease (α-galactosidase A deficiency), and GM1 in GM1-gangliosidosis (GM1-β-galactosidase deficiency).
2. Glycosphingolipid Structure Elucidation and Analysis
Mass spectrometry has revolutionized the analysis of (glyco)lipids and allowed the emergence of the field of “lipidomics”, which aims at a comprehensive analysis of the (glyco)lipidome in a given system. In particular, it was the introduction of “new” ionization methods (ESI, APCI, MALDI, APPI, and nano-ESI), as well as the development of different analyzer types (triple quadrupoles, the different ion trap types, and QTOFs), which enabled a more rapid or a more comprehensive (glyco)lipid analysis even from crude lipid extracts without the need for prior separation (shotgun lipidomics). The fact that the new ionization methods are run under atmospheric pressure facilitated the laborious work carried out in older mass spectrometric ionization techniques, and allowed coupling with different chromatographic systems (TLC and liquid chromatography). On the other hand, the various scanning modes (product ion scan, neutral loss, and multiple reaction monitoring) in combination with high mass-resolution and -accuracy, which are achievable by the commercially available analyzers, enabled effective structural elucidation, profiling, and quantification of at least some (glyco)lipid classes of interest in reasonable periods of time.
In classical GSL analysis, mass spectrometry has been used for structural determination of GSLs after separation by TLC or HPLC [
39]. While fast atom bombardment-MS has been frequently applied as ionization technique in the past [
40], current methods rely largely on MALDI- and especially electrospray (ESI) ionization [
41], in combination with additional methods like enzymatic degradation or staining by glycan-specific lectins [
42]. Applications of MS to GSL analysis include ESI for analyzing the fragmentation of permethylated GSLs and of lithium ion-adducts of GSLs in the positive‐ion mode, collision‐induced mass spectrometry, and the analysis of gangliosides and sulfatides in the negative ion mode. Various methods have been developed for the analysis of neutral GSLs [
43]. For example, an approach for the structural elucidation of neutral GSLs was based on low-energy collision-induced dissociation (CID) ESI/MS/MS of lithiated adducts [
44]. MALDI-TOF MS with high-energy CID at 20 keV allowed the determination of the neutral GSLs GlcCer, GalCer, LacCer, Gb3Cer, and Forssman-GSL (
Figure 7) in equine kidneys [
45]. Methods for the structural identification of GSLs from sources such as tissues, body fluids, and cells are still under development, e.g., on the basis of multiple-stage MS fragmentation [
46]. Their application to large sample numbers or to a more comprehensive determination of the glycosphingolipidome is far from being a routine practice. At present, method development, and their utilization to address analytical and clinical questions go in parallel. Isomeric GSL species are difficult to discriminate and quantify by MS; the separate quantification of GlcCer and GalCer species is achieved either within a shotgun approach (see below) using differences in the peak intensity ratio of the product ions at
m/z = 179 and 89 [
47], or after HPLC-separation by ESI-MS/MS [
48].

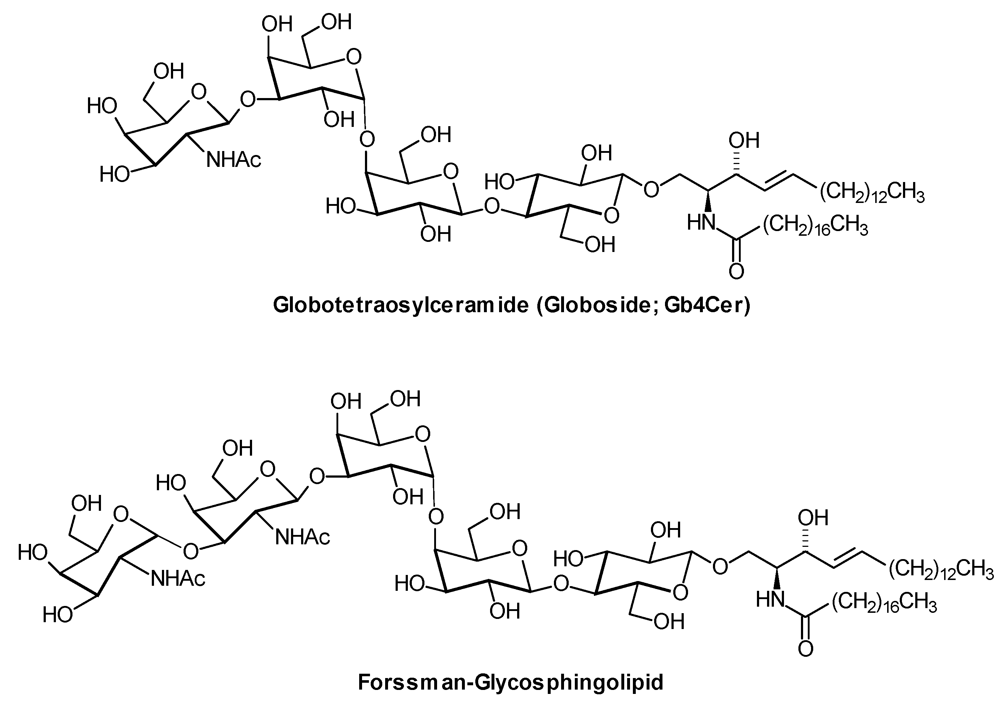

Figure 7.
Structures of two globo-series GSLs, Gb4Cer and the Forssman-GSL [
26]. Only one of the various lipoforms is shown. Together with ganglioside GM2, Gb4Cer is a major storage substance in Sandhoff disease (β-hexosaminidase β-subunit deficiency). In humans, the Forssman-GSL, a blood group antigen, is present only in trace amounts together with globo-series and Lewis-type blood group glycolipids in the kidney [
49]. In sheep, it is mainly responsible for haemolysis of erythrocytes in the presence of Gb4Cer antiserum. For example, in MDCK (Madin Darby canine kidney) cells, it plays a role in maintaining apical membrane transport, is absent in the plasma membrane of unpolarized MDCK cells and becomes the major GSL in their fully polarized state [
50].
2.1. Sample Preparation and Glycosphingolipid Extraction
GSLs can be isolated from tissues by chloroform-methanol extraction [
51]. This step is even more critical than the extraction of other lipid classes: Early work revealed that recovery of GSLs is improved if small amounts of water are present in the extraction solvent [
52]. Mild acidification has been applied in pre-analytics to dissociate gangliosides from hydrophobic peptides present in many samples, and also to reduce adduct formation with counter ions like sodium, potassium, ammonium, and others. For example, extraction with chloroform:methanol:water in a ratio of 5:5:1, taking into account an estimated presence of tissue water (70% for white brain matter, 80% for grey matter) has been used for the isolation of both, gangliosides and neutral GSLs [
53]. A careful investigation of ganglioside recovery from erythrocytes revealed an uneven distribution of the analyte and led to the suggestion of 19 sample volumes of chloroform/methanol in the ratio of 1:2 in a one-step extraction [
54]. If a partition step, such as that developed by Folch [
55] with the system chloroform/methanol/aqueous solution, is applied, gangliosides partition into the aqueous phase. From there, their isolation by solid phase extraction, e.g., with an aminopropyl solid phase suitable also for separation of glycosylsphingosines [
56], can be followed by separation into neutral and negatively charged species via anion exchange chromatography [
57] such as DEAE-Sephadex [
58], subsequent separation by HPLC or TLC, and quantification by mass spectrometry, or by staining and densitometry.
2.2. Glycosphingolipid Standards
Quantitative determination of analytes by MS requires the presence of calibrating substances, either as external standards, or chemically modified as internal standards. External standards need not be structurally different from the analytes and are therefore much more easily accessible. They can be used for external calibration or can be added in increasing concentrations to the analyte within the standard addition method [
59]. In a recent example, eight different classes of gangliosides from the brains of rats were quantified using commercially available (native) external standards for GM1, GM2, GM3, GD3, GD1a, GD1b, GT1b, and GQ1b [
60].
Internal standards contain rare alkyl chain combinations or the stable isotopes
2H or
13C, so that their
m/z-values do not overlap with those of the analyte [
61]. Physical and chemical properties of the standard should match those of the analyte as closely as possible. For the analysis of structurally complex lipids like GSLs including gangliosides, standards have to be chemically prepared in a laborious manner and are still not available for a number of analytes. For example, GSLs have been detected in a study of the lipidome of human plasma, but were not quantified because standard substances for more complex members were not available [
62]. [2H4]- and [C
17]ceramide trihexoside standards were prepared for Gb3Cer quantification [
63]; [2H4]C
16- and [2H47]C
24-isoforms of GalCer, LacCer, Gb3Cer, sulfatide, sphingomyelin, gangliosides GM1, GM2, and GM3 have been synthesized as standard substances [
64]. Standard substances for typically low abundance sulfatides have been prepared such as (18:1,14:0)sulfatide, (18:1,19:0)sulfatide, (18:1,27:0)sulfatide, 2-hydroxy fatty acid containing (18:1,h14:0)sulfatide, and the C
14-, C
19-, and C
27- derivatives of sulfated LacCer, sulfated GA2, and C
19-bis sulfated GA1 [
65].
For the determination of the yeast lipidome, inositolphosphorylceramide, mannosyl-inositolphosphorylceramide, and mannosyl-diinositolphosphorylceramide standards were isolated from a double hydroxylase mutant yeast strain that synthesizes sphingolipids with dihydrosphingosine and a 26:0 fatty acid moiety [
66]. Today, non-natural standard substances with either unusual chain lengths or stable isotopes are commercially available for GlcCer, GalCer, LacCer, Gb3Cer, GM3, GM2, GM1, sulfatide, and GalCer-3,6-disulfate.
2.3. Separation
Chromatographic separation techniques aside from MS analysis are especially valuable in lipidomics, when the combination of high pressure and small particle size allows high chromatographic resolution and / or enables separation of the analytes at reduced analysis times. GSLs are separated using different stationary phases, normal phase such as silica gel, which separates largely according to the head group, and reversed phase chromatography that separates mainly according to the hydrophobic part. A robust technique for separation of lipids that utilizes normal phase is TLC [
67], a technology that has also been successfully combined with MALDI-MS [
68]. TLC-separation in combination with immunodetection and an orthogonal mass spectrometric method such as IR-MALDI has turned out to be a very attractive technology [
69]. Improvement of the existing technology for high throughput analyses will include miniaturization and automation of TLC separation and GSL identification with highly specific lectins, and the coupling to suitable MS techniques. This approach might become applicable for the very difficult determination of abundant polyglycosylceramides [
70]. Neutral GSLs from mouse kidney, spleen, and small intestine have been analyzed by a combination of HPTLC and MALDI-MS [
71]. For MS-analysis, separation by LC methods offers the advantage to reduce ionization suppression by other lipid species and allows for separation of isomeric and isobaric species that is difficult to achieve by MS methods with direct infusion alone. For example, separation and analysis of 182 neolacto series ganglioside species with sialic acids in α2,3 and α2,6 linkage from human granulocytes has been achieved by LC coupled online to nanoESI-MS [
72]. Differences in the fragmentation patterns were applied previously for the analytical discrimination between these two types of gangliosides [
73]. Also hydrophilic interaction liquid chromatography (HILIC [
74]) has been used for GSL separation, such as in the determination of various lipids including HexCer and LacCer [
75]. HILIC can be suitable when GSL analytes differ in their hydrophilic part. It can offer some advantages over RP-HPLC such as good peak shapes, short analysis times, and co-elution of analytes and their internal standards, but can suffer from poorer reproducibility of elution profiles. Also separation by capillary electrophoresis has been applied to GSL-analysis by ESI-MS [
76].
2.4. Shotgun Lipidomics
The expression “shotgun lipidomics” describes the quantitative analysis of lipids by direct infusion of crude extracts in an ESI-MS source without a previous chromatographic separation [
77]. This approach exploits the fact that manipulating ionization parameters in ESI-MS such as ionization mode or pH results in a preferential ionization of selected lipid groups or classes in the ionization source [
78]. The “shotgun lipidomics” approach has been shown to be simple and effective for highly abundant lipids. However, less abundant lipid species can be overlooked due to ion suppression effects. To overcome this limitation, the crude extract needs to be processed prior to analysis. For example, it has been shown that a mild alkaline hydrolysis of a crude extract results in the elimination of the highly abundant glycerophophospholipids and consequently results in gaining access to the less abundant sphingolipid species [
17]. Another possibility is to consider LC/MS methods [
17].
2.5. Electrospray Ionization (ESI)
ESI is the most frequently applied ionization technique in GSL analysis by MS. During ESI, a spray of highly charged droplets is created from an analyte-containing solution by applying a high voltage at the end of a fine capillary needle [
59,
78,
79]. Evaporation of the solvent is accompanied by emission of analyte ions into the gas phase, which are then transferred from the atmospheric-pressure segment to the high vacuum segment of the mass analyzer. Analytes are either infused directly into the interface via a syringe, or coupled to liquid chromatography (LC/ESI-MS). ESI can be conducted in a positive or a negative mode, as selected by the capillary voltage. Gangliosides and sulfatides are usually determined in the negative ion mode, sphingoid bases and ceramides can be identified by multiple reaction monitoring (see below) in the positive ion mode. ESI is an exceptionally mild ionization method that allows the formation of intact molecular ions with no or little fragmentation during ionization [
59,
78,
79]. Fragmentation can occur in the ion-transport region of the ESI source (in-source fragmentation). At higher cone voltages, in source-fragmentation of sialic acids and sulfate is observed with gangliosides and sulfatides, respectively. The major limitations of ESI, which are adduct formation, restriction to polar solvents, and ion suppression when complex matrices are used, can be minimized by using nano-ESI-MS, a miniaturization of ESI-MS.
Coupling of RP-HPLC to ESI-MS allowed the separation of negatively charged GSLs such as sulfatides, GM3, GM2, GM1, GD3, GD1a, GD2, GD1b, GT1a (for structures, see
Figure 5), GT1b, and GQ1b in 25 min and their analysis at picomolar to femtomolar levels [
80]. Sphingolipid profiling including determination of HexCer- and LacCer-species was achieved in human plasma and in lipoproteins after separation of lipid classes by HILIC [
81,
82,
83]. Neutral GSLs from human erythrocytes were determined at the low femtomol level after nano-HPLC separation by ESI-QTOF MS. Modification of this fast and sensitive protocol also allowed the structural analysis and profiling of LacCer, Gb3Cer and globotetraosylceramide (globoside; Gb4Cer, for structure see
Figure 7) species, including the determination of unsaturated and saturated ceramide moieties [
84]. Very recently, Farwanah et al. presented a LC/ESI-MS method which allows the rapid separation and profiling of GlcCer, LacCer, Gb3Cer, and Gb4Cer [
85].
2.6. Matrix-Assisted Laser Desorption/Ionization (MALDI)
MALDI is a mild ionization technique that has often been used for the qualitative analysis of larger molecules and biopolymers, and more recently also for the identification and the profiling of lipids. Unlike ESI, APCI, and APPI, MALDI ionizes the analyte of interest directly from a solid phase [
59]. The analyte is co-crystallized together with an UV-active matrix on a metal target. Irradiation of suitable positions on the target with a pulsed laser leads to desorption and the ionization of the analyte. MALDI has the advantage of being less sensitive to salts. However, the nature of the used matrix and the heterogeneities of the created crystals can affect the results significantly, and the preparation of the matrix can be demanding. MALDI cannot be directly combined with liquid chromatography, but has been coupled to TLC. For the analysis of gangliosides by MALDI-MS, different matrices that lead to sodium- or potassium adducts of the analytes have been investigated [
86], such as 6-azo-2-thiothymine/diammonium citrate [
87]. MALDI coupled to nanoHPLC via an automatic spotting roboter allowed the analysis of complex GSL mixtures using 2,5-dihydroxybenzoic acid and 6-azo-2-thiothymine matrix systems [
88]. Gasphase separation of lipid analytes on the basis of their ion mobility is an attractive tool for the high-throughput structural analysis in lipidomics [
89]. The combination of MALDI and Ion mobility MS has been applied to the separation and analysis of HexCer (cerebrosides) [
90] and gangliosides [
91].
2.7. Other Ionization Techniques
Ionization techniques other than MALDI and ESI have been less often applied to the determination of GSLs. Atmospheric Pressure Chemical Ionization (APCI) is a form of chemical ionization, which is complementary to ESI in that it is usually used for the analysis of less polar lipids in LC eluates. In APCI, the analyte solution enters a sample capillary heated to high temperature in the range of 400 °C–500 °C. The combination of heat and a high flow rate of nitrogen leads to the formation of fine droplets of the analyte solution and a subsequent rapid evaporation of the solvent. A corona metal needle of high voltage at the end of the sample capillary transfers charges onto the analyte molecules [
59,
78,
79]. An advantage of APCI is that less polar solvents such as hexane and chloroform do not significantly affect the ionization process, and adduct formation is less prominent in APCI than in ESI. A significant extent of in-source fragmentation limits its use especially for quantitative analysis. APCI has been occasionally applied to GSL analysis. For example, coupling of reverse phase chromatography to APCI enabled the determination of molecular weight, ceramide composition, and partial oligosaccharide sequence of 60 ng ganglioside [
92]. Separation of cholesterol, sphingomyelin, and the neutral GSLs GlcCer, LacCer, Gb3Cer, and Gb4Cer in one run by normal phase LC was combined with densitometric quantification of these lipid classes and their profiling by APCI [
85]. These GSLs are known to accumulate in inherited diseases of sphingolipid degradation, such as Gaucher-, Fabry-, and Sandhoff disease.
In Atmospheric Pressure Photo-Ionization (APPI), a modification of APCI, the corona needle is replaced by a UV lamp, which emits photons of 10 eV [
59]. Since most lipid molecules have higher ionization energies than 10 eV, APPI is usually performed in a way in which the ionization segment is filled with a substance like acetone or toluene that has a lower ionization energy. Photons absorbed by the dopant molecules lead to the formation of radical cations, which transfer charge directly or via solvent-mediated ionization onto the analyte molecules [
59]. Compared to APCI and ESI, APPI can have the advantage of lower detection limits and of higher signal intensities. APPI has been applied to the determination of neutral GSLs after separation by liquid chromatography on porous graphitic carbon [
93].
2.8. Tandem Mass Spectrometry
Tandem mass spectrometry (MS/MS) is the induced formation of fragments from the analyte of interest for structural elucidation or quantification. This is achieved by collision induced dissociation (CID), where
m/z-selected molecular precursor ions collide with inert gas molecules such as helium or argon, which results in the dissociation of the analyte into fragments (
Figure 8). In tandem-in-space MS, the molecular ions of the analyte are
m/z-scanned, fragmented, and analyzed in different segments of the mass spectrometer. Such an approach can be performed in triple quadrupole mass analyzers, which consist of three quadrupoles (Q1, Q2, Q3) aligned in row, with Q2 as the collision cell in which fragmentation takes place. Here, different scan modes can be performed [
59]. In the product ion scan mode, analyte species with a certain
m/z-value are selected in Q1, enter the collision cell Q2, and the resulting fragments are scanned in Q3. Such a scan mode is usually performed when fragmentation conditions or/and characteristic fragments are searched for. If a characteristic fragment is already known, the precursor (or parent-) ions can be easily determined by a parent ion scan by focusing Q3 on these characteristic fragments and scanning for the corresponding precursor ions using Q1. Characteristic but not charged (neutral) and thus undetectable fragments are used in the so called neutral loss scan, where Q1 and Q3 are applied for scanning operations, but with a mass difference representing the neutral fragment lost during fragmentation. Multiple reaction monitoring (MRM) is a frequently used LC methodology for quantitative analysis. Here, Q1 is fixed to transmit precursor ions of a certain
m/z-value, while Q3 is focused on a selected product ion. As a result, a certain transition is monitored. Q1 and Q3 can then be switched rapidly to other
m/z-value pairs; a process which can be repeated multiple times. The advantages of MRM include good selectivity and sensitivity, as well as wide dynamic range.
Figure 8.
Collision induced dissociation (CID) of the ganglioside standard substance [C
18:1,C
14:0]GD1a. Fragmentation of the [M+2H]
2+ signal at
m/z = 891,37 in the positive mode is shown (M. Gantner, T. Kolter, unpublished). For the nomenclature of fragments, compare [
97].
In gangliosidoses, the ESI-MS/MS-detection of precursor ions of
m/z = 290 that indicates the loss of
N-acetylneuraminic acid has been used for the profiling of gangliosides [
94]. A negatively charged precursor ion of
m/z = 87 can be used at higher collision energy, together with other precursor ions such as the positively charged ions of HexNAc (
m/z = 204), (HexNAc)
2 (
m/z = 407), or sphingosine (
m/z = 264) [
14]. Gangliosides GD3 and GM3 have been determined by monitoring a Neu5Ac-fragment of
m/z = 290 in milk, after RP-separation via a C5-column and a standard addition technique [
95]. [M−H]
−- ions of sulfatides, the major storage substances in Metachromatic Leukodystrophy, were investigated by collisional-activated dissociation in a quadrupole ion-trap tandem mass spectrometer for assignments of sphingoid base and the fatty acid part of the ceramide anchor [
96].
A disadvantage of triple quadrupole instruments is the low resolution power, which can be overcome by using hybrid mass spectrometers such as QTOFs (Quadrupole Time of Flight). Another drawback of triple quadrupole mass spectrometers is their inability to perform multiple stage fragmentations. Such fragmentations can be carried out in ion trap analyzers and in instruments with technical improvements derived therefrom. In principle, an ion trap analyzer consists of a ring electrode and two end cap electrodes with an oscillating trapping electrical field imposed on it [
59]. Manipulation of the electrical field may lead to destabilization of the stable trajectories of trapped ions resulting in their ejection out of the mass analyzer. In ion traps, fragments are generated by colliding the analyte of interest with an inert gas in the ion trap analyzer itself. The resulting fragments can be fragmented n-times further (with n > 2). These multiple fragmentations are referred to as tandem in time mass spectrometry since the various fragments are generated in the same location but at different times. Another new development is the introduction of a fully automated thin chip microsprayer technology coupled to a high resolution hybrid quadrupole time-of-flight mass spectrometer for the mapping, sequencing, and structural elucidation of gangliosides. Using advanced chip-based setups, complex gangliosides such as GT1 were characterized after electrospray ionization in ion trap mass spectrometers [
98]. In a high-throughput setup, a complete fragmentation analysis of gangliosides such as GT1b can be performed within three minutes [
99].
2.9. Imaging Mass Spectrometry (IMS)
MS-based imaging techniques aim to visualize the distribution of molecules within tissue sections, including that of lipids [
100]. To create spatial
m/z- maps of the GSL analytes, MALDI-MS [
101], and Secondary Ion MS (SIMS) [
102] have been used, as well as Desorption electrospray ionization (DESI) [
103]. In the case of the MALDI imaging, tissue sections embedded in suitable matrices are irradiated by nitrogen- or infrared laser beams. Heterogeneity of the matrix, extended acquisition times, chemical noise at low
m/z, and restricted lateral resolution of 20–50 µm are shortcomings of the MALDI imaging approach.
In SIMS, a surface is bombarded with a high energy ion beam, which leads to the sputtering of secondary ions that are collected and analyzed by MS [
78]. Compared to MALDI, some advantages are no need for a matrix, a higher resolution in the sub-micrometer range, and less noise at low
m/z-values. However, SIMS induces fragmentation of the analytes of interest, a restriction, which can limit its use. TOF-SIMS has been used to analyze the spatial distribution of sulfatide and other brain lipids [
104], GalCer species in the white matter and the inner granular layer of rat cerebellum [
105], and of GalCer- [
106] and sulfatide-species [
107] in rat cerebellum. Also DESI has been used to create two-dimensional images of the distribution of sphingolipid species in tissues [
108].
MALDI imaging of ganglioside molecular species in the mouse hippocampus showed a differential distribution of C
18- and C
20-fatty acid-containing gangliosides [
109]. Histological slices of brains from the mouse models of Tay-Sachs and Sandhoff disease were studied by MALDI imaging using an oscillating capillary nebulizer for matrix deposition on the surface of the sample [
110]. Ganglioside profiles of coronal mouse brain sections have been determined with MALDI imaging using a 2,6-dihydroxyacetophenone/ammonium sulfate/heptafluorobutyric acid matrix to maximize the detection of all ganglioside species [
111]. MALDI imaging using 9-aminoacridine as a matrix has been applied to kidneys from normal mice and mice with arylsulfatase A-deficiency, the animal model of Metachromatic Leukodystrophy. The study revealed a differential localization of sulfatides with identical ceramide anchors but different glycan-sulfate head groups, and of sulfatides with identical head groups, but different ceramide moieties [
112]. In a nanoparticle-assisted way, distribution of sulfatide-species was determined in different layers of the dentate gyrus of rat hippocampus [
113].
2.10. Indirect Methods
Modern techniques of glycome profiling, for example after separation of isomeric glycan species by capillary electrophoresis, anion exchange chromatography, or other techniques [
114], are not directly applicable to glycolipids, until after the chemical release of the sugar moiety. It has been known for a long time that the carbohydrate moiety of acetyl-protected GSLs can be liberated [
26] by osmiumtetroxide/periodate-treatment [
115] or of unprotected (native) GSLs by ozonolysis [
116]. Both methods give rise to GSL aldehydes, which are subsequently fragmented by alkaline treatment (
Figure 9). These GSL-aldehyde derivatives can also be isolated and immobilized, and for example transferred onto aminooxy-functionalized gold nanoparticles via chemical ligation in a glycoblotting technology, and directly profiled by MALDI-MS [
117]. MALDI from gold nanoparticles can show higher ionization efficiency than from organic matrices. Also enzymatic methods can be applied for the preparation of GSL-derived oligosaccharides, such as a protocol using Rhodococcal endoglycoceramidase and leech ceramide glycanase [
118]. Cell-derived GSL aldehydes have been linked to a heterobifunctional fluorescent tag, and coupled to glass slides to create shotgun microarrays. These were suitable for binding studies with toxins, antibodies, and sera from individuals with Lyme disease and mass spectrometry [
119].

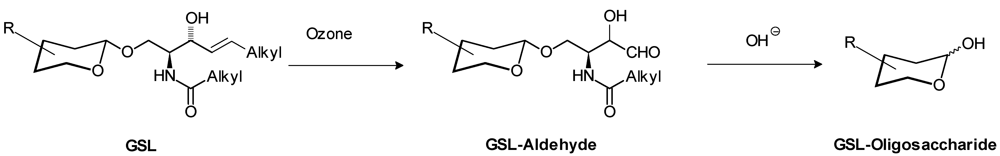

Figure 9.
Oxidative cleavage of GSL and fragmentation of the resulting GSL-aldehydes. This gives access to GSL glycans.
