Gamma-ray Irradiation of Rodent Diets Alters the Urinary Metabolome in Rats with Chemically Induced Mammary Cancer

by
Jeevan K. Prasain
1,*,
Landon S. Wilson
2,
Clinton Grubbs
3,† and
Stephen Barnes
1,2
1
Department of Pharmacology and Toxicology, University of Alabama at Birmingham, Birmingham, AL 35294, USA
2
Targeted Metabolomics and Proteomics Laboratory, University of Alabama at Birmingham, Birmingham, AL 35294, USA
3
Department of Surgery, University of Alabama at Birmingham, Birmingham, AL 35294, USA
*
Author to whom correspondence should be addressed.
†
Retired.
Metabolites 2022, 12(10), 976; https://doi.org/10.3390/metabo12100976
Submission received: 19 September 2022 / Revised: 13 October 2022 / Accepted: 14 October 2022 / Published: 16 October 2022
(This article belongs to the Special Issue Cancer Metabolomics 2023)
Browse Figures
Review Reports Versions Notes

Abstract

:
In this study, a comparative, untargeted metabolomics approach was applied to compare urinary metabolite profiles of rats fed irradiated and non-irradiated diets. γ-Irradiated and non-irradiated NIH 7001 diet was given orally to animals beginning 5 days after exposure to the carcinogen N-methyl-N-nitrosourea and continued for 120 days. There was a 36% reduction in mammary tumor incidence in rats consuming the γ-irradiated diet, compared to rats receiving the non-irradiated form of the same diet. Urine samples from rats fed with γ-irradiated and non-irradiated diets were analyzed using nanoLC-MS/MS on a Q-TOF mass spectrometer, collecting positive and negative ion data. Data processing involved feature detection and alignment with MS-DIAL, normalization, mean-centering and Pareto scaling, and univariate and multivariate statistical analysis using MetaboAnalyst, and pathway analysis with Mummichog. Unsupervised Principal Component Analysis and supervised Partial Least Squares-Discriminant Analysis of both negative and positive ions revealed separation of the two groups. The top 25 metabolites from variable importance in projection scores >1 showed their contributions in discriminating urines the γ-irradiated diet fed group from non-irradiated control diet group. Consumption of the γ-irradiated diet led to alteration of several gut microbial metabolites such as phenylacetylglycine, indoxyl sulfate, kynurenic acid, hippurate and betaine in the urine. This study provides insights into metabolic changes in rat urine in response to a γ-irradiated diet which may be associated with mammary cancer prevention.

1. Introduction

Food irradiation to eliminate/reduce microorganisms has become standard practice in many countries worldwide [1,2]. The potential of food irradiation to prevent infectious diseases and to extend the shelf life of perishable foods by reducing or eliminating microorganisms has been recognized by the CDC [3] and WHO [4]; however, not much is known about potential for long-term health consequences after consuming irradiated diets [5]. Since many countries permit irradiation of foods and their consumption is widespread, it is important to address consumers concern as to whether consumption of such diets has an impact on chronic diseases such as cancer [6]. Furthermore, diet composition is associated with changes in the gut microbiota and their diversity. The latter is considered to be important in the risk, prevention or treatment of cancer. Breast cancer is the second most common cancer world wide; therefore, development of effective preventative strategies is of critical importance. There is a large body of evidence linking diet and nutrition with the development of mammary tumors [7,8,9]. This is an area where intervention and education can have a major preventive effect on the occurrence of cancer on a worldwide basis. While diet-based influences in cancer chemoprevention are recognized [10], the compounds coming from the diet or produced secondarily by the microbiota are not well understood. Both nutritive or non-nutritive components (e.g., phytochemicals) present in the diet can influence the process of carcinogenesis [11,12].
Secondarily, commercial animal diet manufacturers in the past decade have introduced γ-irradiation of diets with 60Co to eliminate disease-causing microbial contamination and many institutional animal resource programs have changed to using these γ-irradiated diets (gIDs). Besides eliminating microbial contamination, γ-irradiation also causes chemical modifications of food components [13] and therefore, doubts about safety or beneficial effects of γ-irradiated foods continue to be debated in public as well as in scientific circles [5]. Although Su et al. have reported the effects of autoclaved or irradiated food on mouse urine and fecal metabolomics [14], the current knowledge on the interplay between consumption of sterilized diets by radiation and cancer biology is limited.
We have previously shown that 60Co γ-irradiation causes substantial changes in the animal diet metabolome, particularly the oxidation of medium chain fatty acids and linoleic acid-derived oxidation products [13]. While there has been growing interest in the food metabolome [15], there have been no reports examining differences in the physiologic metabolomes between animals chronically fed with γ-irradiated and non-irradiated diets. Metabolomics- a comprehensive analysis of all metabolites in a biological sample may provide the link between metabolic alteration and chemoprevention. Metabolic shifts resulting from alteration of diet may be associated with carcinogenesis or cancer prevention [16]. In the present study, we sought to understand whether consumption of a gID affects the urinary metabolite profile, which by implication may be associated with increased cancer risk or prevention.

2. Experimental Design

Animal experiments were conducted in facilities at the University of Alabama at Birmingham (Birmingham, AL, USA). All experimental procedures were conducted under the oversight and approval of the UAB Institutional Animal Care and Use Committee and in accordance with the Guide for the Care and Use of Laboratory Animals (IACUC # 20269). All animals were housed 5/cage in a room lighted 12 h/day and maintained at 22 °C. Chemoprevention studies were performed as previously described with some modifications [17] in female Sprague Dawley rats. A batch of NIH 7001 diet was divided into two parts by the manufacturer Envigo (Indianapolis, IN, USA); one was treated with 20–50 Gy of 60Co γ-irradiation (gID) and the other, non-irradiated (non-gID), was used as the control diet. At day 50, all animals were treated with a single dose of N-methylnitrosourea (MNU) (50 mg/kg b.w.) via the jugular vein. Treatment with gID was initiated 5 days after the administration of MNU. Rats were divided into two groups (gID and non-gID), with 9 animals in the gID group and 11 animals in the non-gID group. Each rat was palpated for mammary tumors twice each week and weighed once every week. At day 170, the rats were euthanized prior to which 24-h urines were collected over dry-ice. Mammary tumors were excised, weighed and processed for histological classification.

Metabolomics Study

Urines were deproteinized by the addition of four volumes of ice-cold aqueous methanol. Precipitated protein was removed by centrifugation at 10,000× g for 5 min at 4 °C; the supernatants were aspirated and evaporated to dryness under N2. Dried extracts were re-suspended in 0.1% formic acid (100 μL) and aliquots (10 μL) analyzed by nanoLC-MS/MS on an Eksigent reverse-phase C18 ChipLC column (15 cm × 200 µm i.d.) using a 20 min, 0–95% linear gradient of acetonitrile in 0.1% formic acid at 45 °C. Eluates were passed into the nano-electrospray ionization source of a SCIEX 5600 TripleTOF mass spectrometer. Data were recorded in the negative and positive ion modes. Each duty cycle consisted of a 250 ms hi-res TOF-MS scan (50–1000 m/z), followed by twenty 50 ms MSMS scans on selected precursor ions using a 15–35 V accelerating voltage. Column flow rate was 1000 nL/min, desolvation temperature was set to 120 °C and IonSpray™ and curtain gas were at 10 psi and 25 psi, respectively.
Ion features in collected data were aligned and integrated using MS-DIAL (version 4.80) and MSMS data mapped against public negative ion and positive ion MS and MSMS databases (version 15). Only compounds with MSMS spectra matching the library MSMS spectra with scores of 80 or more were used for further statistical analysis. Downloaded data files were processed to remove metabolites that either did not bind to the reverse-phase column or appeared during the period where the column was washed with 100% acetonitrile. In addition, peaks with areas less than 100 were removed before univariate and multivariate statistical analysis with MetaboAnalyst 5 (https://www.metaboanalyst.ca, accessed on 18 September 2022). Data were first normalized by the total ion current of annotated ion features and then mean-centered and subjected to Pareto scaling. Unsupervised principal component analysis (PCA) and supervised partial least squares-discriminant analysis (PLS-DA) were performed; heat maps were generated to visualize hierarchical clustering. While both PCA and PLS-DA reduce the dimension of the data, the former was used for visualizing patterns, the latter to remove uncontrolled variables and further differentiate between gID and non-gID groups [18,19]. Variable importance in the projection (VIP) scores from PLS-DA were used as estimate of the contribution of each variable to the group separation. Normalized data were also analyzed by Mummichog (version 1.0.9) to identify differentially expressed metabolic pathways.

3. Results

3.1. Cancer Chemoprevention

A preliminary experiment resulting from the change from the non-gID to gID diets revealed a 36% fall in MNU-induced mammary tumors in female Sprague Dawley rats. Since the two diets were not from the same batch, the study was repeated using a single batch of NIH-7001 diet that was divided into two–one that was exposed to γ-irradiation (20–50 kGy) and the other which was not exposed to γ-irradiation. Compared to non-gID, gID suppressed the number of palpable tumors per animal to 4.5 compared to 7 for non-gID diet group, indicating that γ-irradiation of the NIH 7001 diet caused a 36% reduction in the tumor number. This finding confirmed the preliminary observation and, although not statistically proven, suggests that irradiation of the NIH 7001 diet may have a significant role in chemoprevention in this model.

3.2. Multivariate Statistical Analysis

In order to capture global metabolic changes, unsupervised PCA and supervised PLS-DA multivariate statistical analyses were performed on mass spectrometry data obtained from urine samples from both groups of rats. Data normalization is critically important for accurate identification and quantification of metabolites present in various samples. We used the total ion count (TIC) method in which all metabolites in a sample are divided by the TIC observed in the sample [20,21]. These analyses showed the separation of two groups (gID and non-gID groups) based on the 95% confidence limits for both the positive and negative ions (Figure 1 and Supplemental Figure S1). VIP scores were used to determine the metabolites most contributing to the group separations. There were 25 metabolites with VIP scores greater than 1 across the groups (Figure 2). A heat map of metabolites (top 25) demonstrated the relative abundances of ions in each sample and indicated that changes largely consist of increases in metabolite levels in the gID group (Supplemental Figures S2 and S3).

3.3. Pathway Analysis

Mummichog analysis of positive ions revealed significant involvement of pathways of fatty acids, amino acids (cysteine, histidine, lysine, and methionine), and purine metabolism. Analysis of negative ions also revealed significant effects on fatty acid metabolism (in particular, butanoate and linoleate), as well as metabolism of amino acids (isoleucine and leucine, lysine, valine, and tryptophan (Supplemental Table S1). Thus, chronic intake of ID led to metabolite alteration of the urinary metabolic profile and disturbances in several other protein and energy pathways.

3.4. Differentially Expressed Metabolites

Because identification of differentially expressed ion features is critically important to draw any biological meaning from the analyzed data, we putatively annotated ion features with VIP scores >1 to name them as metabolites or characterized their compound class by manually matching the accurate masses of precursor ions, and their MS/MS product ion spectra to references reported in scientific publications and/or public metabolite databases. Lists of annotated metabolites are presented in Figure 2 and Figure 3. Consumption of gID increased the levels of the gut microbial metabolites phenylacetylglycine, indoxyl sulfate, kynurenic acid, hippurate and betaine. In addition, chronic intake of gID also increased the levels of riboflavin (vitamin B2), pantothenic acid (vitamin B5) and dietary components such as daidzein glucuronide.

3.5. Metabolite Annotation

In untargeted metabolomic studies, metabolites are annotated with 4 different levels (1–4) of confidence [22]. Level 1 includes identified and verified metabolites. Other levels are 2 (putatively identified compounds), 3 (putatively characterized compound class) and 4 (unidentified). In this study, identification levels are 2 and 4. Statistical analysis was only performed on annotated metabolite ions from level 2. Next we discuss identification of major metabolites whose levels are altered after chronic exposure to gID using MS-DIAL as well as manual interpretation of their exact masses and product ions [23].
  • Glycine conjugates
  • m/z 194.079 [M + H]+, 192.065 [M-H]−, Rt 13.5 min
  • MS/MS of m/z 194.079 contained intense fragment ions m/z 119.050 and 91.054 due to the neutral losses of 75.029 (NH2CH2COOH) and 103.025 Da (CONH2CH2COOH), respectively (Supplemental Figure S4). In addition, the characteristic product ion m/z 76.040 further indicated the presence of the glycine moiety. Based on the accurate mass and product ion pattern analyses, this metabolite was annotated as phenylacetylglycine. It is the most significantly altered and upregulated urinary metabolite among the top 25 identified by PLS-DA following chronic exposure to gID in animals.
  • m/z 180.066 [M + H]+, Rt 12.6 min
  • MS/MS spectrum of the precursor ion m/z 180.066 contained a product ion m/z 162.055 due to the neutral loss of H2O. The observation of an intense product ion m/z 105.031 with a neutral 75.035 Da loss from the precursor ion indicated the presence of glycine residue [24]. Based on these data, this metabolite ion was annotated as hippurate.
  • m/z 170.041 [M + H]+, Rt 9.7 min
  • Upon MS/MS fragmentation, the protonated precursor ion m/z 170.041 produced several product ions characteristic of N-acylglycine. A neutral loss of 75.029 Da from the precursor ion generated an intense product ion m/z 95.012. In addition, it also showed product ions m/z 152.034 and 124.039 due the losses of 18 Da (H2O) and 46 Da (HCOOH), respectively. Based on these data, this metabolite ion was annotated as N(2-furoyl)glycine. Glycine N-acyltransferase catalyzes the transfer of acyl group from the acyl-CoA to glycine in the mitochondria [25]. Although glycine can be endogenously formed, composition of an animal diet (irradiated vs. non-irradiated) may influence their levels.
  • Glycine betaine
  • m/z 118.083, Rt 4.3 min
  • The precursor ion m/z 118.083 in the positive ion mode generated major product ions, m/z 58.069 and 59.076, with almost equal intensities (Supplemental Figure S5). These are characteristic product ions of betaine and correspond to C3H8N+ and (CH3)3N+ ions, respectively [26]. This metabolite was elevated in the gID group.
  • Glycocholate
  • m/z 464.299 [M−H]−, Rt 20.0 min
  • MS/MS fragmentation of m/z 464.299 generated the product ions m/z 402.297 and 74.027, after neutral losses of 62.00 Da (H2O + CO2) and glycine moiety, respectively. Comparing these data with those of a published report [27], this metabolite was annotated as a glycine conjugate of cholic acid.
  • Riboflavin (vitamin B2)
  • m/z 377.146 [M + H]+, Rt 11.9 min
  • MS/MS fragmentation of m/z 377.146 generated the product ions m/z 359.138, 341.124 and 243.087, characteristic of riboflavin (Supplemental Figure S6) [28]. Riboflavin was elevated in the urines of the gID group compared to nonID group.
  • Pantothenic acid (vitamin B5)
  • m/z 220.117 [M + H]+, Rt 9.25 min
  • Its product ion m/z 184.095 occurs after the sequential losses of two H2O molecules. Product ions m/z 142.084, 124.074, 90.055 and 72.046 were also observed in the MS/MS spectrum (Supplemental Figure S7). The observed characteristic product ions m/z 90.055 and 72.046 corresponded to the β-alanine residue [29]. Based on this evidence, the structure of this metabolite is annotated as pantothenic acid. Bacteria in the gut can produce this vitamin and its increased levels in gID fed animals may be associated with breast cancer prevention [30].
  • Glucuronide conjugates
  • m/z 431.094 [M + H]+, Rt 12.7 min
  • MS/MS spectrum of the precursor ion m/z 431.094 contained an intense product ion m/z 255.065 due to a neutral loss of 176.025 Da, indicating the presence of a glucuronic acid moiety [31]. In addition, the presence of product ions m/z 177.050 and 149.074 enabled annotation of this metabolite ion as daidzein glucuronide (cal. m/z 431.097). The NIH 7001 diet contains soy protein and therefore contributed expected glucuronide metabolites of the isoflavones, daidzein and genistein.
  • Creatine
  • m/z 132.074 [M + H]+, Rt 4.4 min
  • In an MS/MS experiment, the precursor ion m/z 132.074 generated prominent product ions m/z 114.064 and 90.055 due to neutral losses of H2O and NHCNH (42.02 Da), respectively (Supplemental Figure S8). Comparison of these product ion features with previously published data [32] enabled the annotation of this metabolite ion as creatine (cal. m/z 132.077).
  • Creatinine
  • m/z 114.065 [M + H]+, Rt 4.2 min
  • This precursor ion m/z 114.065 had the product ion m/z 86.073 after the neutral loss of CO (27.995 Da). In addition, the product ion m/z 72.046 is characteristic of metabolites with a guanidino group [32]. These data allowed annotation of this metabolite as creatinine (cal. m/z 114.066).
  • Kynurenic acid
  • m/z 190.047 [M + H]+, Rt 11.2 min
  • The precursor ion 190.047 generated the product ions m/z 172.027 and 162.055 following the neutral losses of H2O and CO, respectively. The intense product ion m/z 144.042 was due to loss of 46.005 Da (H2O + CO2). Other product ions included m/z 116.051, 89.040, and 70.070 (Supplemental Figure S9). These characteric features in the MS/MS spectrum of m/z 190.047 allowed annotation of this metabolite ion as kynurenic acid. In this study, gID-fed animals had increased levels of this metabolite in their urine.
  • Indoxyl-sulfate
  • m/z 212.003 [M−H]−, 13.2 min
  • Its precursor ion generated the major product ions m/z 132.046, 112.040, and 79.958. The product ion m/z 79.958 corresponds to a sulfate group attached to aromatic ring in the molecule. Indoxyl-sulfate is a gut microbial metabolite of tryptophan produced from sulfonation of indole by hepatic sulfotransferase [33].
  • Citramalate
  • m/z 147.029 [M−H]−, Rt 7.3 min
  • Upon dissociation, it had a series of product ions m/z 129.019, 101.026, 103.054, and 85.030 due to neutral losses of H2O, HCOOH, CO2, and H2O + CO2, respectively. Based on accurate mass measurement, and comparison of experimental MS/MS fragmentation spectrum with the published report [34], the peak Rt 7.3 min with m/z 147.029 is annotated as citramalate (Supplemental Figure S10). The level of citramalate is higher in samples derived from animals exposed to gID, compared to non-irradiated diet fed animals.
  • TCA cycle intermediates
  • MS/MS of the precursor ion m/z 117.018 ([M−H]−, Rt 7.2 min) contained the prominent product ion m/z 73.031 along with m/z 99.010. The product ion m/z 73.031 is considered as a characteristic product ion of succinate.
  • The precursor ion m/z 133.013 ([M−H]−, Rt 4.6 min) produced the major product ions m/z 115.003, 89.024, 71.016, and 59.019. The product ions m/z 115.003 and 89.024 are due to neutral losses of 18.010 (H2O) and 43.990 (CO2), respectively. These fragmention patterns correspond to malate.
  • Similarly, MS/MS of the precursor ion m/z 191.021 ([M−H]−, 6.3 min) contained the product ions m/z 173.008, 147.030, 129.019, 111.009, 87.010, 67.021. Based on these data, this metabolite was annotated as citrate (Figure 3).

4. Discussion

In this study we report the effects of long-term consumption of γ-irradiated NIH 7001 diet in female Sprague Dawley rats treated with the carcinogen MNU. A single dose of MNU induces mammary tumors in these rats and is considered a useful animal model of mammary cancer in which to study chemoprevention [35,36]. As observed in a previous study when the use of γ-irradiated NIH 7001 diet began, γ-irradiated NIH 7001 diet also inhibited the development of mammary tumors compared to non-irradiated NIH 7001. Although the inhibition was similar (36% and 38%) in each study, this alone cannot be considered significant and further, much larger studies to verify this observation are warranted.
Because results from our previous study [13] indicated that γ-irradiation increases oxidation of unsaturated fatty acids in the NIH 7001 diet, it was important to determine how it was reflected in the metabolites excreted in the urines of treated animals. Previous studies have shown that several metabolic altered pathways are involved in mammary carcinogenesis [37,38]. Urinary metabolites, being end products of cellular regulatory processes represent a molecular phenotype. Changes in metabolite concentration are indicative of biochemical alterations induced by mammary cancer. The present study reveals that there are significant changes in urine metabolic profiles and disturbances in amino acid and energy pathways in rats fed the γ-irradiated NIH 7001 diet (Supplemental Table S1).
In this study, we used a nano-LCMS platform to analyze the urinary metabolome. Nano-LCMS/MS has widely been utilized by many investigators for untargeted metabolomics as it provides needed sensitivity to detect low abundant metabolite in a biological sample [39]. We observed increased levels of acylglycines (phenylacetylglycine and hippurate) in animals fed with gID. The variation in the availability of free glycine and CoA could potentially influence cancer development and mitochondrial energy metabolism [40,41]. Higher levels of N-acylglycine in the gID fed urine samples may also reflect increased activity of glycine N-acyltransferase. Reduced levels of glycine N-acyltransferase have been reported in human breast cancer metastasis and progression [42,43]. Animals fed with gID diet showed higher levels of glycine betain, compared to non-gID group. High dietary intake of choline and betaine showed a reduced risk of breast cancer mortality in a population based study [44].
Vitamin B2, being an essential micronutrient, is known to be involved in energy metabolism, DNA and other critical functions [45]. We observed increased levels of vitamin B2 in animals with gID. Results from previous meta-analysis have indicated that intake of riboflavin is weakly associated with reduced risk of breast cancer in humans [46]. Phase II metabolism such as glucuronidation is the main route of metabolism of many endogenously formed or ingested food components. Glucuronidation may affect bioavailability of chemopreventive agents, since it makes them more hydrophilic and eliminates them in urine. In our studies, levels of daidzein glucuronide increased significantly in the rat urine samples fed with gID. Interestingly, soy isoflavones such as daidzein exist in the circulation and in human breast tissues predominantly as their glucuronides [47].
In the present studies, gID-fed animals also showed increased levels of kynurenic acid in their urine samples. Previous studies have shown that kynurenic acid induces cell cycle arrest and influences tumor growth [48].
Examination of the fecal microbiome from rats on the irradiated diet revealed substantial changes in the pattern of microorganisms compared to the non-irradiated diet (unpublished results). Alteration of specific metabolites or microbiota may either predispose to mammary cancer or be acquired during the process of cancer progression. Although it is unclear which metabolites are absorbed and bioavailable in the mammary tissues and elicit anti-carcinogenic effect, the additive and or synergistic effects of altered metabolites may be responsible for their cancer chemopreventive effects in this study.
Our central hypothesis is that chronic exposure to an irradiated diet to animals alters the composition and metabolic activity of the gut microbiota, and or reverses metabolic reprograming of energy metabolism of mammary cancer cells which in turn impact mammary cancer susceptibility and progression. These preliminary studies also indicated changes in the gut microbiota and urinary metabolome in rats exposed to irradiated diet. Because about 20% of altered metabolites in VIP score plot analysis are derived from or modified by the gut microbiota in the present study, these metabolites may exert their effects as signaling molecules and substrate of metabolic reactions [49]. Specific metabolites are implicated in the development and prevention of cancers. Medicinal properties of food depend on in part, the gut microbiota composition and metabolism of endogenous and exogenous compounds. It is becoming clear that alteration of specific microbiota may either predispose to mammary cancer or be acquired during the process of cancer progression or prevention [50,51]. Examination of the fecal microbiota from rats on the irradiated diet revealed substantial changes in the pattern of the gut microbiota compared to the non-irradiated diet (unpublished results).

5. Conclusions and Future Directions

Overall, our data indicate that consumption of the γ-irradiated diet led to unexpectedly a 36% reduction in induced-mammary tumors in rats and alteration of a number of metabolites, including the gut microbial metabolites such as phenylacetylglycine, indoxyl sulfate, kynurenic acid, hippurate and betaine in the urine. These metabolites have the potential to be biomarkers associated with breast cancer and help understand the tumor microenvironment and pathogenesis. It is important to investigate what metabolites are bioavailable in mammary tissues using mass spectrometry because the metabolic nature of mammary tissue may indicate the cancer progression or prevention. Because γ-irradiation results in compositional changes of food components, [13], how variable doses of irradiation (40–50 and 10–20 kGy) during exposure affect the levels of food components and chemoprevention warrants further investigations. In addition, future lipidomics studies should be designed to examine tumor lipid phenotype in response to chronic intake of irradiated diet in the rat model of N-methyl-N-nitrosourea (MNU)-induced mammary tumors.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/metabo12100976/s1, Figure S1: 3D-PLSDA score plots of urine samples from gID animals, non-gID fed animals. This analysis shows that urines from rats on gID and non-gID were completely separated in both negative [A] and positive [B] ion modes, Figure S2: Heat maps of negative ion data from rat urines. This analysis shows that rats on gID and non-ID diets were completely separated. Candidate ions leading to the separation are presented. Changes largely consist of increases observed in urines of rats on the gID diet, Figure S3: Heat maps of positive ion data from rat urines. This analysis shows that rats on gID and non-ID diets were completely separated. Candidate ions leading to the separation are presented. Changes largely consist of increases observed in urines of rats on the gID diet, Figure S4: LC-MS/MS product ion spectrum of m/z 194.083 [M+H]+, Rt 13.5 min, Figure S5: LC-MS/MS product ion spectrum of m/z 118.083 [M+H]+, Rt 4.3 min, Figure S6: Product ion spectrum of m/z 377.146 [M+H]+ showing an intense product ions m/z 243.087 indicated this metabolite to be riboflavin vitamin B2 (cal. m/z 377.145), Figure S7: Product ion spectrum of m/z 220.117 [M+H]+, Rt 9.2 min, Figure S8: Product ion spectrum of m/z 132.074 [M+H]+, Rt 4.4 min, Figure S9. LC-MS/MS product ion spectrum of m/z 190.047 [M+H]+, Rt 11.2 min, Figure S10: Product ion spectrum of m/z 147.029 [M-H]− showing intense product ions m/z 129.012 together with 87.010 and 85.030 indicated this metabolite to be citramalate (cal. m/z 147.029); Table S1: Mummichog pathway analysis of negative and positive ion data.

Author Contributions

C.G. performed chemoprevention studies. J.K.P. and S.B. conceived, designed metabolomics experiments and wrote the manuscript. L.S.W. performed metabolomics experiments using mass spectrometry. All authors contributed to the paper by critically reviewing it. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

The animal study protocol was approved by the Institutional Review Board (or Ethics Committee) of University of Alabama at Birmingham (IACUC #20269).

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available in the main article and the supplementary materials.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Gautam, S.; Tripathi, J. Food Processing by Irradiation—An effective technology for food safety and security. Indian J. Exp. Biol. 2016, 54, 700–707. [Google Scholar] [PubMed]
  2. Hussain, P.R.; Wani, I.A.; Suradkar, P.P.; Dar, M.A. Gamma irradiation induced modification of bean polysaccharides: Impact on physicochemical, morphological and antioxidant properties. Carbohydr. Polym. 2014, 110, 183–194. [Google Scholar] [CrossRef]
  3. Food Safety and Irradiation: Protecting the Public from Foodborne Infections. Available online: https://wwwnc.cdc.gov/eid/article/7/7/01-7706_article (accessed on 13 October 2022).
  4. Safety and Nutritional Adequacy of Irradiated Food. Available online: https://apps.who.int/iris/bitstream/handle/10665/39463/9241561629-eng.pdf?sequence=4 (accessed on 18 September 2022).
  5. Sundaralingam, R. A Debate on Safety of the Irradiated Food. Int. J. Res. Stud. Microbiol. Biotechnol. 2017, 3, 4–5. [Google Scholar]
  6. Rao, C.V. Do Irradiated Foods Causes or Promote Colon Cancer? Available online: https://citeseerx.ist.psu.edu/viewdoc/download?doi=10.1.1.504.5316&rep=rep1&type=pdf (accessed on 18 September 2022).
  7. Magaki, M.; Ishii, H.; Yamasaki, A.; Kitai, Y.; Kametani, S.; Nakai, R.; Dabid, A.; Tsuda, H.; Ohnishi, T. A high-fat diet increases the incidence of mammary cancer inc-Ha- ras proto-oncogene transgenic rats. J. Toxicol. Pathol. 2017, 30, 145–152. [Google Scholar] [CrossRef] [Green Version]
  8. Willett, W.C. Diet, nutrition, and avoidable cancer. Environ. Health Perspect. 1995, 103 (Suppl. 8), 165–170. [Google Scholar]
  9. Doll, R. An overview of the epidemiological evidence linking diet and cancer. Proc. Nutr. Soc. 1990, 49, 119–131. [Google Scholar] [CrossRef]
  10. Barnes, S.; Grubbs, C.; Setchell, K.D.; Carlson, J. Soybeans inhibit mammary tumors in models of breast cancer. Prog. Clin. Biol. Res. 1990, 347, 239–253. [Google Scholar]
  11. Messina, M.; Barnes, S. The role of soy products in reducing risk of cancer. J. Natl. Cancer Inst. 1991, 83, 541–546. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  12. Badger, T.M.; Ronis, M.J.; Simmen, R.C.; Simmen, F.A. Soy protein isolate and protection against cancer. J. Am. Coll. Nutr. 2005, 24, 146S–149S. [Google Scholar] [CrossRef]
  13. Prasain, J.K.; Wilson, L.S.; Arabshahi, A.; Grubbs, C.; Barnes, S. Mass spectrometric evidence for the modification of small molecules in a cobalt-60-irradiated rodent diet. J. Mass Spectrom. 2017, 52, 507–516. [Google Scholar] [CrossRef] [PubMed]
  14. Su, X.; Yu, J.; Wang, N.; Zhao, S.; Han, W.; Chen, D.; Li, L.; Li, L. High-Coverage Metabolome Analysis Reveals Significant Diet Effects of Autoclaved and Irradiated Feed on Mouse Fecal and Urine Metabolomics. Mol. Nutr. Food Res. 2021, 65, e2100110. [Google Scholar] [CrossRef]
  15. Scalbert, A.; Brennan, L.; Manach, C.; Andres-Lacueva, C.; Dragsted, L.O.; Draper, J.; Rappaport, S.M.; van der Hooft, J.J.; Wishart, D.S. The food metabolome: A window over dietary exposure. Am. J. Clin. Nutr. 2014, 99, 1286–1308. [Google Scholar] [CrossRef] [Green Version]
  16. Qi, J.; Spinelli, J.J.; Dummer, T.J.B.; Bhatti, P.; Playdon, M.C.; Levitt, J.O.; Hauner, B.; Moore, S.C.; Murphy, R.A. Metabolomics and cancer preventive behaviors in the BC Generations Project. Sci. Rep. 2021, 11, 12094. [Google Scholar] [CrossRef] [PubMed]
  17. Grubbs, C.J.; Lubet, R.A.; Atigadda, V.R.; Christov, K.; Deshpande, A.M.; Tirmal, V.; Xia, G.; Bland, K.I.; Eto, I.; Brouillette, W.J.; et al. Efficacy of new retinoids in the prevention of mammary cancers and correlations with short-term biomarkers. Carcinogenesis 2006, 27, 1232–1239. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  18. Aminu, M.; Ahmad, N.A. Complex Chemical Data Classification and Discrimination Using Locality Preserving Partial Least Squares Discriminant Analysis. ACS Omega 2020, 5, 26601–26610. [Google Scholar] [CrossRef] [PubMed]
  19. Ruiz-Perez, D.; Guan, H.; Madhivanan, P.; Mathee, K.; Narasimhan, G. So you think you can PLS-DA? BMC Bioinform. 2020, 21 (Suppl. 1), 2. [Google Scholar] [CrossRef]
  20. Deininger, S.O.; Cornett, D.S.; Paape, R.; Becker, M.; Pineau, C.; Rauser, S.; Walch, A.; Wolski, E. Normalization in MALDI-TOF imaging datasets of proteins: Practical considerations. Anal. Bioanal. Chem. 2011, 401, 167–181. [Google Scholar] [CrossRef] [Green Version]
  21. Wulff, J.E.; Mitchell, M.W. A Comparison of Various Normalization Methods for LC/MS Metabolomics Data. Adv. Biosci. Biotechnol. 2018, 9, 339–351. [Google Scholar] [CrossRef] [Green Version]
  22. Salek, R.M.; Steinbeck, C.; Viant, M.R.; Goodacre, R.; Dunn, W.B. The role of reporting standards for metabolite annotation and identification in metabolomic studies. Gigascience 2013, 2, 13. [Google Scholar] [CrossRef]
  23. Tsugawa, H.; Cajka, T.; Kind, T.; Ma, Y.; Higgins, B.; Ikeda, K.; Kanazawa, M.; VanderGheynst, J.; Fiehn, O.; Arita, M. MS-DIAL: Data-independent MS/MS deconvolution for comprehensive metabolome analysis. Nat. Methods 2015, 12, 523–526. [Google Scholar] [CrossRef]
  24. Lewis-Stanislaus, A.E.; Li, L. A method for comprehensive analysis of urinary acylglycines by using ultra-performance liquid chromatography quadrupole linear ion trap mass spectrometry. J. Am. Soc. Mass Spectrom. 2010, 21, 2105–2116. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. Badenhorst, C.P.; van der Sluis, R.; Erasmus, E.; van Dijk, A.A. Glycine conjugation: Importance in metabolism, the role of glycine N-acyltransferase, and factors that influence interindividual variation. Expert Opin. Drug Metab. Toxicol. 2013, 9, 1139–1153. [Google Scholar] [CrossRef] [PubMed]
  26. Holm, P.I.; Ueland, P.M.; Kvalheim, G.; Lien, E.A. Determination of choline, betaine, and dimethylglycine in plasma by a high-throughput method based on normal-phase chromatography-tandem mass spectrometry. Clin. Chem. 2003, 49, 286–294. [Google Scholar] [CrossRef] [PubMed]
  27. Choucair, I.; Nemet, I.; Li, L.; Cole, M.A.; Skye, S.M.; Kirsop, J.D.; Fischbach, M.A.; Gogonea, V.; Brown, J.M.; Tang, W.H.W.; et al. Quantification of bile acids: A mass spectrometry platform for studying gut microbe connection to metabolic diseases. J. Lipid Res. 2020, 61, 159–177. [Google Scholar] [CrossRef] [PubMed]
  28. Wang, Z.; Liu, J.; Zhong, X.; Li, J.; Wang, X.; Ji, L.; Shang, X. Rapid Characterization of Chemical Components in Edible Mushroom Sparassis crispa by UPLC-Orbitrap MS Analysis and Potential Inhibitory Effects on Allergic Rhinitis. Molecules 2019, 24, 3014. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  29. Lam, A.K.; Ramarathinam, S.H.; Purcell, A.W.; O’Hair, R.A. Can alpha- and beta-alanine containing peptides be distinguished based on the CID spectra of their protonated ions? J. Am. Soc. Mass Spectrom. 2008, 19, 1743–1754. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  30. Egnell, M.; Fassier, P.; Lécuyer, L.; Zelek, L.; Vasson, M.P.; Hercberg, S.; Latino-Martel, P.; Galan, P.; Deschasaux, M.; Touvier, M. B-Vitamin Intake from Diet and Supplements and Breast Cancer Risk in Middle-Aged Women: Results from the Prospective NutriNet-Santé Cohort. Nutrients 2017, 9, 488. [Google Scholar] [CrossRef] [Green Version]
  31. Hosoda, K.; Furuta, T.; Yokokawa, A.; Ishii, K. Identification and quantification of daidzein-7-glucuronide-4’-sulfate, genistein-7-glucuronide-4’-sulfate and genistein-4’,7-diglucuronide as major metabolites in human plasma after administration of kinako. Anal. Bioanal. Chem. 2010, 397, 1563–1572. [Google Scholar] [CrossRef]
  32. Hou, H.; Xiong, W.; Zhang, X.; Song, D.; Tang, G.; Hu, Q. LC-MS-MS Measurements of Urinary Creatinine and the Application of Creatinine Normalization Technique on Cotinine in Smokers’ 24 Hour Urine. J. Anal. Methods Chem. 2012, 2012, 245415. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  33. Huć, T.; Nowinski, A.; Drapala, A.; Konopelski, P.; Ufnal, M. Indole and indoxyl sulfate, gut bacteria metabolites of tryptophan, change arterial blood pressure via peripheral and central mechanisms in rats. Pharm. Res. 2018, 130, 172–179. [Google Scholar] [CrossRef] [PubMed]
  34. Wu, B.; Zhang, B.; Feng, X.; Rubens, J.R.; Huang, R.; Hicks, L.M.; Pakrasi, H.B.; Tang, Y.J. Alternative isoleucine synthesis pathway in cyanobacterial species. Microbiology 2010, 156, 596–602. [Google Scholar] [CrossRef] [Green Version]
  35. Chan, M.M.; Lu, X.; Merchant, F.M.; Iglehart, J.D.; Miron, P.L. Gene expression profiling of NMU-induced rat mammary tumors: Cross species comparison with human breast cancer. Carcinogenesis 2005, 26, 1343–1353. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  36. Steele, V.E.; Lubet, R.A. The use of animal models for cancer chemoprevention drug development. Semin. Oncol. 2010, 37, 327–338. [Google Scholar] [CrossRef]
  37. Aiderus, A.; Black, M.A.; Dunbier, A.K. Fatty acid oxidation is associated with proliferation and prognosis in breast and other cancers. BMC Cancer 2018, 18, 805. [Google Scholar] [CrossRef] [PubMed]
  38. Long, J.P.; Li, X.N.; Zhang, F. Targeting metabolism in breast cancer: How far we can go? World J. Clin. Oncol. 2016, 7, 122–130. [Google Scholar] [CrossRef]
  39. Chetwynd, A.J.; David, A. A review of nanoscale LC-ESI for metabolomics and its potential to enhance the metabolome coverage. Talanta 2018, 182, 380–390. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  40. di Salvo, M.L.; Contestabile, R.; Paiardini, A.; Maras, B. Glycine consumption and mitochondrial serine hydroxymethyltransferase in cancer cells: The heme connection. Med. Hypotheses 2013, 80, 633–636. [Google Scholar] [CrossRef] [PubMed]
  41. Jain, M.; Nilsson, R.; Sharma, S.; Madhusudhan, N.; Kitami, T.; Souza, A.L.; Kafri, R.; Kirschner, M.W.; Clish, C.B.; Mootha, V.K. Metabolite profiling identifies a key role for glycine in rapid cancer cell proliferation. Science 2012, 336, 1040–1044. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  42. Tian, X.; Wu, L.; Jiang, M.; Zhang, Z.; Wu, R.; Miao, J.; Liu, C.; Gao, S. Downregulation of GLYAT Facilitates Tumor Growth and Metastasis and Poor Clinical Outcomes Through the PI3K/AKT/Snail Pathway in Human Breast Cancer. Front. Oncol. 2021, 11, 641399. [Google Scholar] [CrossRef]
  43. Battista, N.; Bari, M.; Bisogno, T. N-Acyl Amino Acids: Metabolism, Molecular Targets, and Role in Biological Processes. Biomolecules 2019, 9, 822. [Google Scholar] [CrossRef] [Green Version]
  44. Xu, X.; Gammon, M.D.; Zeisel, S.H.; Bradshaw, P.T.; Wetmur, J.G.; Teitelbaum, S.L.; Neugut, A.I.; Santella, R.M.; Chen, J. High intakes of choline and betaine reduce breast cancer mortality in a population-based study. FASEB J. 2009, 23, 4022–4028. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  45. Peterson, C.T.; Rodionov, D.A.; Osterman, A.L.; Peterson, S.N. B Vitamins and Their Role in Immune Regulation and Cancer. Nutrients 2020, 12, 3380. [Google Scholar] [CrossRef] [PubMed]
  46. Yu, L.; tan, Y.; Zhu, L. Dietary vitamin B2 intake and breast cancer risk: A systematic review and meta-analysis. Arch. Gynecol. Obstet. 2017, 295, 721–729. [Google Scholar] [CrossRef]
  47. Bolca, S.; Urpi-Sarda, M.; Blondeel, P.; Roche, N.; Vanhaecke, L.; Possemiers, S.; Al-Maharik, N.; Botting, N.; De Keukeleire, D.; Bracke, M.; et al. Disposition of soy isoflavones in normal human breast tissue. Am. J. Clin. Nutr. 2010, 91, 976–984. [Google Scholar] [CrossRef] [Green Version]
  48. Walczak, K.; Zurawska, M.; Kiś, J.; Starownik, R.; Zgrajka, W.; Bar, K.; Turski, W.A.; Rzeski, W. Kynurenic acid in human renal cell carcinoma: Its antiproliferative and antimigrative action on Caki-2 cells. Amino Acids 2012, 43, 1663–1670. [Google Scholar] [CrossRef]
  49. Krautkramer, K.A.; Fan, J.; Bäckhed, F. Gut microbial metabolites as multi-kingdom intermediates. Nat. Rev. Microbiol. 2021, 19, 77–94. [Google Scholar] [CrossRef]
  50. Fernández, M.F.; Reina-Pérez, I.; Astorga, J.M.; Rodríguez-Carrillo, A.; Plaza-Díaz, J.; Fontana, L. Breast Cancer and Its Relationship with the Microbiota. Int. J. Environ. Res. Public Health 2018, 15, 1747. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  51. Ruo, S.W.; Alkayyali, T.; Win, M.; Tara, A.; Joseph, C.; Kannan, A.; Srivastava, K.; Ochuba, O.; Sandhu, J.K.; Went, T.R.; et al. Role of Gut Microbiota Dysbiosis in Breast Cancer and Novel Approaches in Prevention, Diagnosis, and Treatment. Cureus 2021, 13, e17472. [Google Scholar] [CrossRef] [PubMed]
Metabolites 12 00976 g001 550

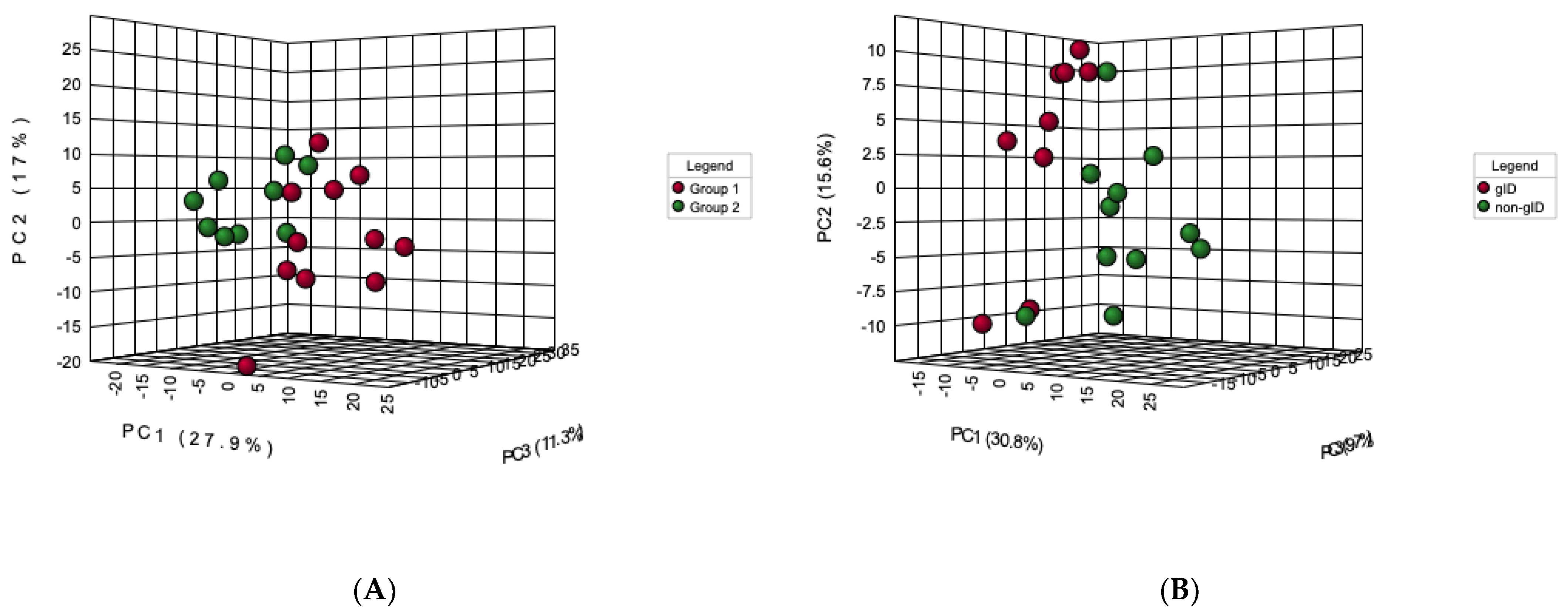

Figure 1. 3D−PCA score plots of urine samples from gID fed animals (red spheres) and non−gID fed animals (green spheres). This analysis shows data from negative (A) and positive (B) ion modes. This separation was also clearly observed in supervised PLS−DA plots (Supplementary Figure S1).
Figure 1. 3D−PCA score plots of urine samples from gID fed animals (red spheres) and non−gID fed animals (green spheres). This analysis shows data from negative (A) and positive (B) ion modes. This separation was also clearly observed in supervised PLS−DA plots (Supplementary Figure S1).
Metabolites 12 00976 g001
Metabolites 12 00976 g002 550

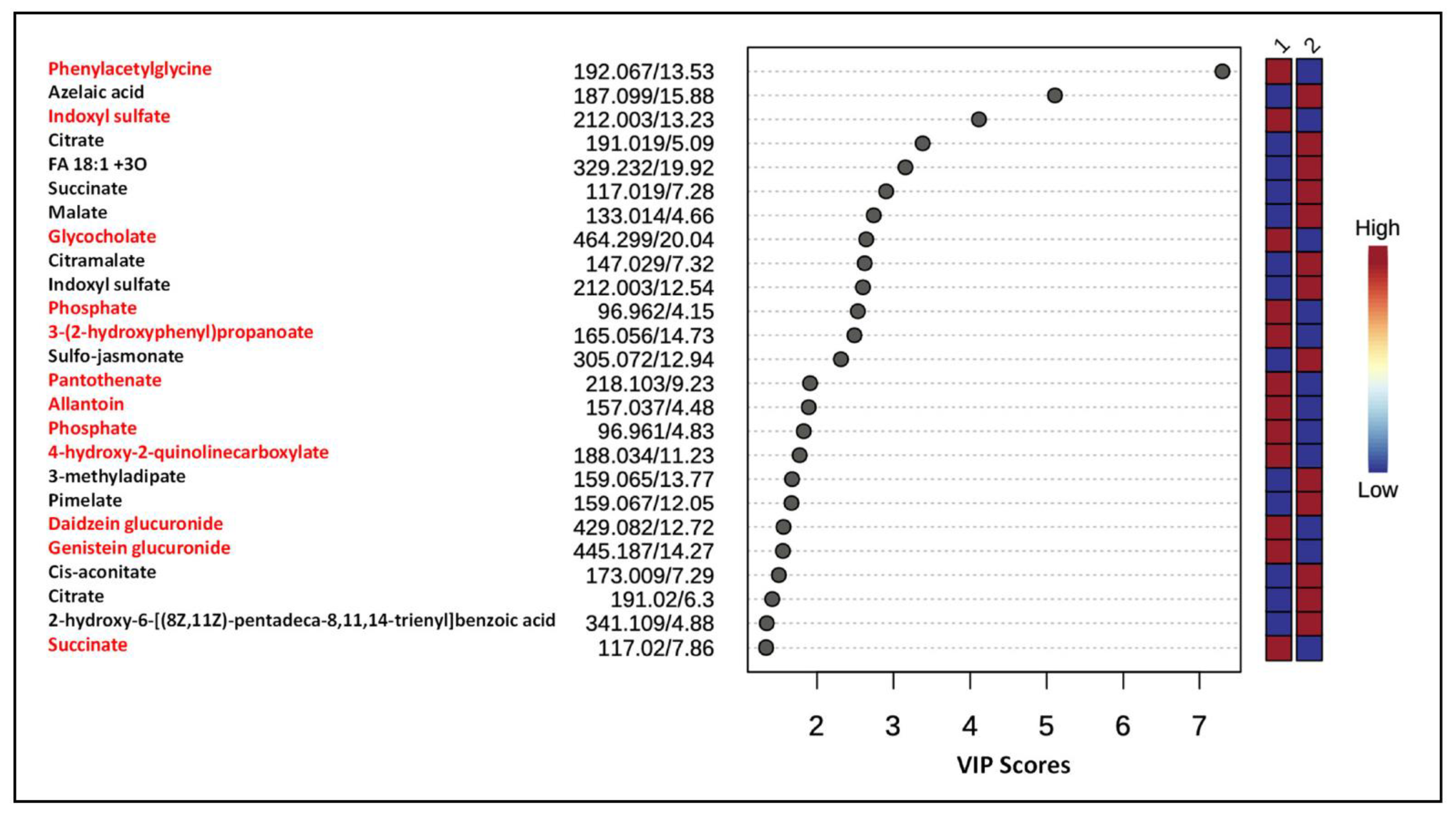

Figure 2. Variable Importance of Projection (VIP) scores for the 25 features most contributing to the PLS-DA plots in the negative ion mode. Colored boxes on the right side indicate the relative intensity of the corresponding feature in each group. ND = not determined. 1 = gID−fed animals, 2 = non−gID-fed animals. Metabolites highlighted in red indicate their higher levels in animals fed with gID.
Figure 2. Variable Importance of Projection (VIP) scores for the 25 features most contributing to the PLS-DA plots in the negative ion mode. Colored boxes on the right side indicate the relative intensity of the corresponding feature in each group. ND = not determined. 1 = gID−fed animals, 2 = non−gID-fed animals. Metabolites highlighted in red indicate their higher levels in animals fed with gID.
Metabolites 12 00976 g002
Metabolites 12 00976 g003 550

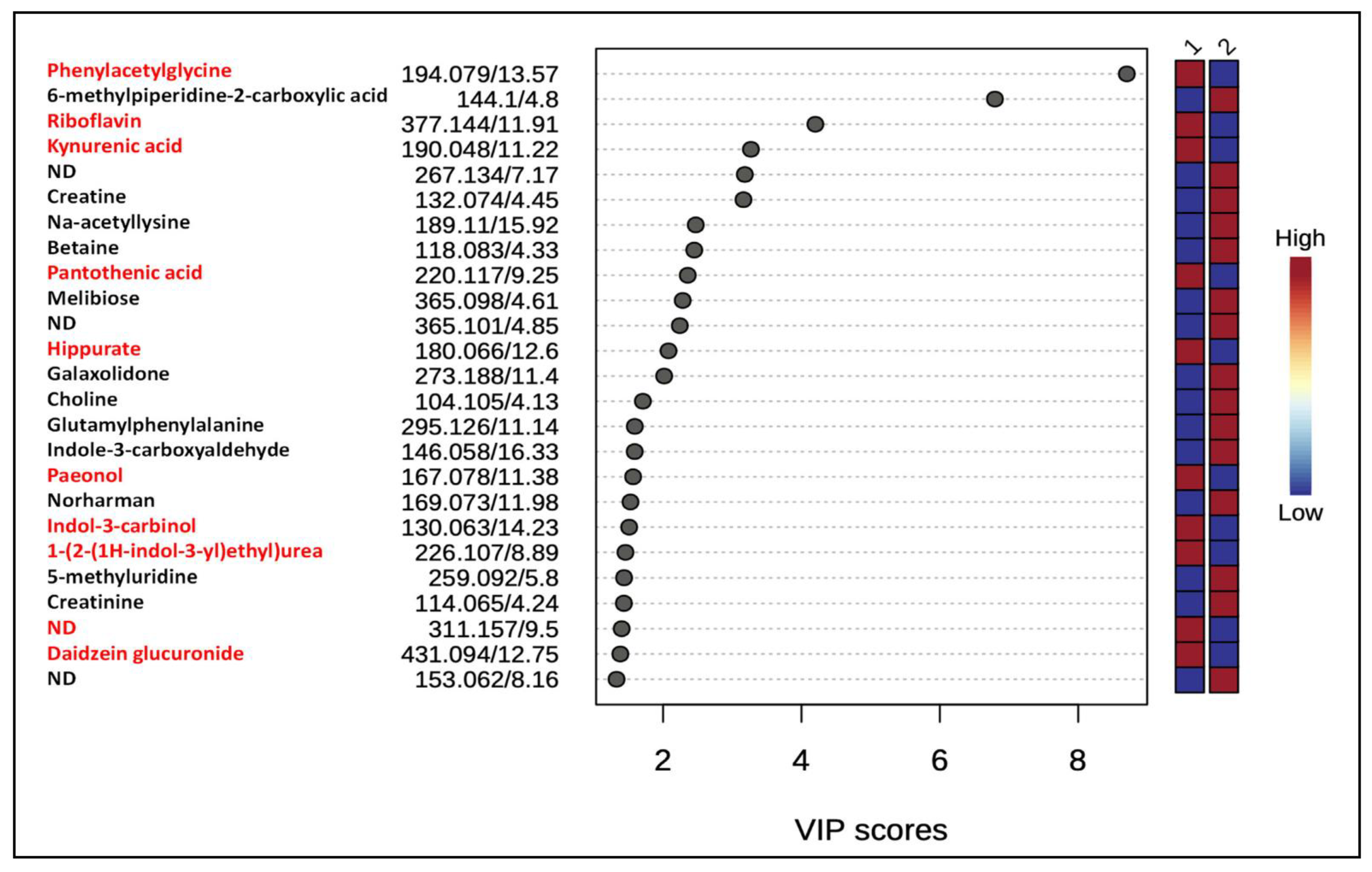

Figure 3. Variable Importance of Projection (VIP) scores for the 25 most contributing features from PLS−DA in positive ion modes. Colored boxes on the right panel indicate the relative intensity of the corresponding feature in each group. ND = not determined. 1 = gID−fed animals, 2 = non−gID-fed animals. Metabolites highlighted in red indicate their higher levels in animals fed with gID.
Figure 3. Variable Importance of Projection (VIP) scores for the 25 most contributing features from PLS−DA in positive ion modes. Colored boxes on the right panel indicate the relative intensity of the corresponding feature in each group. ND = not determined. 1 = gID−fed animals, 2 = non−gID-fed animals. Metabolites highlighted in red indicate their higher levels in animals fed with gID.
Metabolites 12 00976 g003
