Article

Electroless Pd Nanolayers for Low-Temperature Hybrid Cu Bonding Application: Comparative Analysis with Electroplated Pd Nanolayers

1
Department of Semiconductor Engineering, Seoul National University of Science and Technology, Seoul 01811, Republic of Korea
2
R&D Department, EEJA Ltd., Kanagawa 254-0076, Japan
*
Author to whom correspondence should be addressed.
Electronics 2025, 14(19), 3814; https://doi.org/10.3390/electronics14193814
Submission received: 1 September 2025 / Revised: 21 September 2025 / Accepted: 25 September 2025 / Published: 26 September 2025
(This article belongs to the Section Electronic Materials, Devices and Applications)

Abstract

As 3D stacking technologies advance, low-temperature hybrid Cu bonding has become essential for fine-pitch integration. This study focuses on evaluating Pd nanolayers deposited by electroless plating (ELP) on Cu surfaces and compares them to electroplated (EP) Pd to assess their suitability for hybrid bonding. Pd nanolayers (5~7 nm) were deposited on Cu films, and their surface morphology, crystallinity, and chemical composition were characterized using AFM, TEM, GIXRD, and XPS. EP-Pd layers exhibited lower roughness and larger grain size, acting as effective Cu diffusion barriers. In contrast, ELP-Pd layers showed small grains, higher surface roughness, and partial Cu diffusion and oxidation. At 200 °C, both Pd layers enabled bonding, but ELP-Pd samples achieved more uniform and continuous interfaces with thinner copper oxide layers. Shear testing revealed that ELP-Pd samples exhibited higher average bonding strength (20.58 MPa) and lower variability compared to EP-Pd (16.47 MPa). The improved bonding performance of ELP-Pd is attributed to its grain-boundary-driven diffusion and uniform interface formation. These findings highlight the potential of electroless Pd as a passivation layer for low-temperature hybrid Cu bonding and underscore the importance of optimizing pre-bonding surface treatments for improved bonding quality.

1. Introduction

Three-dimensional stacking technology offers a transformative approach to overcoming the limitations of traditional 2D planar scaling by vertically stacking chips, which allows for increased functionality within a smaller physical footprint. This approach enables higher integration densities, leading to improved chip performance, better data transfer rates, and significant reductions in power consumption, all while maintaining or even improving the overall size constraints [1,2,3]. 3D stacked devices are particularly valuable in applications where space is limited, such as in mobile devices, high-performance computing (HPC), and internet of things (IoT) systems. However, to realize the benefits of 3D stacking, several complex processes must be carefully executed, including through-silicon vias (TSV), wafer grinding, and chip or wafer bonding. Among these, the bonding process is particularly crucial, as it directly influences the electrical, thermal, and mechanical properties of the final stacked device. With the increasing density of input/output (I/O) counts, bonding with the conventional micro-bumps becomes difficult to support continuous fine-pitch scaling. This difficulty can be overcome by the use of hybrid Cu bonding, which provides low resistivity, high density interconnects and improved power efficiency and better thermal management [4,5].
In recent years, low-temperature Cu bonding has emerged as a critical technique for enabling reliable and effective 3D stacking, particularly when coupled with noble metal passivation layers. The use of a metal passivation layer offers several advantages in advanced Cu-to-Cu bonding applications, particularly as bonding pitches continue to scale down. These nanolayers enable reliable low-temperature bonding below 200 °C without the need for vacuum conditions, which are often required in surface-activated or plasma-assisted bonding methods. In addition to passivating the Cu surface and preventing oxidation, the metal layer also promotes atomic interdiffusion at the interface, which is essential for forming strong bonds at low temperature. Moreover, the metal nanolayer can also help mitigate the challenges associated with achieving uniform and precise Cu dishing control during the CMP process. By acting as a compensating layer, it can reduce the sensitivity of the bonding interface to local height variations, thereby improving planarity and enhancing bonding yield, especially in fine-pitch applications. The passivation layers, such as palladium (Pd), Gold (Au), and ruthenium (Ru), have demonstrated some promising results in enhancing the bonding process, and offering suitable for strength in Cu-to-Cu bonding. Noble metal passivation layers are especially beneficial in fine-pitch bonding applications, where the need for high-precision and reliable connections is paramount. These layers serve to improve the overall reliability and performance of the bonding interface, reducing issues such as electrical resistance, thermal instability, and mechanical failure. Numerous studies [6,7,8,9,10,11,12,13,14,15,16,17] have already explored the use of noble metal nanolayers in bonding applications shown in Table 1.
Among the various candidate materials, Pd is the primary focus of this study. Although Pd nanolayers present some disadvantages in hybrid bonding compared to other metals, they remain a promising option. While Pd offers better oxidation resistance than reactive metals such as Ti or Cr, it is not as chemically inert as Au or Pt, and its surface may still be susceptible to contamination. Additionally, Pd can diffuse into adjacent materials at elevated temperatures, potentially affecting long-term interfacial stability. Its relatively high cost is also a consideration. Despite these limitations, Pd exhibits several advantageous properties that make it suitable for hybrid bonding. It offers adequate electrical conductivity, good resistance to oxidation, and compatibility with low temperature bonding. Furthermore, in terms of bonding conditions, Pd performs similarly to other metals and is well-suited for low temperature bonding below 200 °C. The material properties of Pd are summarized in Table 2. Both Pd and Cu possess a face-centered cubic (FCC) crystal structure; however, Pd has a slightly larger lattice constant. This lattice mismatch can enhance atomic interdiffusion at the bonding interface, which may contribute to stronger and more uniform bonding.
Pd nanolayers can be deposited using electroplating (EP) or electroless plating (ELP). EP involves the whole surface deposition driven by metal ion reduction process and typically results in dense, oriented crystal growth. Since EP deposits metal non-selectively across a wafer, it is not easy to apply in hybrid Cu bonding to passivate Cu pads because of post-plating processes such as CMP or lithography and etching to remove undesired Pd nanolayer on dielectric areas. ELP, on the other hand, is a chemically driven process that enables are-selective deposition only on catalytic metal surfaces, effectively preventing deposition on dielectric areas as shown in Figure 1. This selective deposition capability is particularly critical in hybrid Cu bonding application. ELP offers simple processing, lower equipment cost, and higher throughput, while maintaining compatibility with low-temperature bonding environments.
This study investigates the characteristics of ELP-Pd nanolayers for low-temperature hybrid Cu bonding applications, with a particular focus on comparison with EP-Pd nanolayers. The structural and chemical properties of the Pd nanolayers are examined, along with their interfacial interaction with Cu after bonding. Notably, this study demonstrates that ELP-Pd nanolayers yield stronger and more uniform Cu-to-Cu bonds than those formed with EP-Pd nanolayers.

2. Materials and Methods

A thermally grown SiO2 layer with a thickness of approximately 0.7 µm was formed on an 8-inch Si wafer. Subsequently, 50 nm of Ti and 1 µm of Cu were deposited by RF magnetron sputtering (SRN-110, Sorona @ S-FAB, Seoul Tech, Seoul, Republic of Korea). Then a wafer was diced into 2 cm by 5 cm sample for plating processes (DAD3350, Disco, Tokyo, Japan). The schematics of process flow is shown in Figure 2. Pd nanolayers were deposited via both EP and ELP methods, with thicknesses of 5.90 ± 0.43 nm for EP-Pd and 6.78 ± 0.58 nm for ELP-Pd, respectively. The thickness was measured at 17 different sites using Hitachi FT160 XRF Analyzer (Hitachi High-Tech, Tokoy, Japan). The 5–7 nm thickness range was carefully selected to ensure a balance between two critical requirements in hybrid bonding applications: effective surface passivation and promotion of low-temperature bonding through interdiffusion. If the Pd layer is too thin, it may not provide complete and uniform coverage of the Cu surface, resulting in incomplete oxidation prevention during the bonding processes. On the other hand, an excessively thick Pd layer may impede solid-state interdiffusion between Cu and Pd atoms, which is essential for achieving strong bonding at low temperatures. Therefore, the thickness range of 5–7 nm was chosen as a compromise that ensures both adequate oxidation resistance and sufficient atomic interdiffusion. All plating processes were conducted at EEJA Ltd. All sample was pretreated by both O2 plasma process (100 W for 2 min) and soft wet treatment (Microfab 74 at 25 °C) prior to the plating process. The PRECIOUSFAB Pd-ST3 plating solution (EEJA Inc., Kanagawa, Japan) was used for the electroplating of the Pd nanolayer, while a newly developed plating solution currently under development was used for electroless Pd deposition. The detailed plating recipe cannot be disclosed due to the company confidentiality policy. After plating, structural and chemical analyses of the Pd nanolayers were carried out using X-ray photoelectron spectroscopy (XPS), grazing incidence X-ray diffraction (GIXRD), and transmission electron microscopy (TEM). For surface roughness atomic force microscopy (AFM) was utilized.
For die bonding, the plated sample was diced into 5 × 5 mm2 dies. Prior to bonding, Ar plasma treatment was performed on the diced dies at an RF power of 100 W, with an Ar flow rate of 150 sccm under a pressure of 7.5 mTorr for 10 s, in order to clean and activate the metal surface. Die-to-die bonding was subsequently performed at 180 °C and 200 °C, respectively, for 1 h under a bonding pressure of 15 MPa (SET, Accura100, Saint-Jeoire, France, shown in Figure 3). Post-bond annealing was conducted at 200 °C for 1 h. The bonding temperature range (180–200 °C) used in this study was selected based on conditions relevant to DRAM applications, where such temperatures are considered acceptable for memory packaging processes. The bonding interfaces were evaluated by scanning acoustic tomography (SAT), scanning electron microscopy (SEM), and TEM. For mechanical strength evaluation, the bonded dies were further diced into 2 × 2 mm2 samples, and shear tests were conducted using a Nordson 400Plus system (Nordson Corporation, Westlake, Ohio, USA) at a test speed of 338 μm/s and a shear height of 50 μm. Five samples were tested for each condition. During the test, the system automatically determined the failure endpoint when the real-time applied force dropped below 70% of the peak force, as identified from the load–displacement curve, indicating a force decrease of more than 30% from the peak force.

3. Results and Discussion

3.1. Characterization of Pd Nanolayer on Cu Layer

To compare the morphology of electroplated (EP) and electroless plated (ELP) Pd nanolayers, surface roughness measurements were conducted over a 1 μm × 1 μm area, and the resulting Rq values are presented in Figure 4a. The surface roughness of the bare EP-Cu layer was measured to be 4.56 nm. It is noted that a Cu wafer has not been polished by CMP in this study. After Pd deposition on Cu layer, the EP-Pd nanolayer exhibited an increased roughness of 9.42 nm, while the ELP-Pd nanolayer showed an even higher roughness of 11.88 nm. As shown in Figure 4b,c, the surface roughness of the EP-Pd nanolayer was lower than that of the ELP-Pd nanolayer, and it was composed of relatively larger grains. This difference arises from the fundamental deposition mechanisms of each method. In electroplating, Pd ions are reduced on the cathode surface by an externally applied current, resulting in a high deposition rate and a growth-driven process. In contrast, electroless plating proceeds via chemical reduction without an external current, which promotes the formation of numerous nucleation sites, making it a nucleation-driven process. As conceptually illustrated in Figure 5, the EP-Pd nanolayer shows a continuous film formed by large grains, whereas the ELP-Pd nanolayer displays a slightly less-dense structure composed of aggregated small grains, attributed to the suppressed grain growth and Pd core formation inherent in the ELP process. This structural difference is further confirmed by the TEM images in Figure 6.
To investigate the structural characteristics of the Pd nanolayers, grazing incidence X-ray diffraction (GIXRD) and transmission electron microscopy combined with fast Fourier transform (TEM-FFT) analyses were performed. GIXRD measurements were conducted at an incidence angle (ω) of 0.4°, and the corresponding results are presented in Figure 7. For the EP-Pd nanolayer, distinct diffraction peaks corresponding to metallic Pd (111) and Pd (200) were observed, along with a minor peak attributed to PdO. In contrast, the ELP-Pd nanolayer exhibited negligible Pd-related peaks, while prominent peaks associated with metallic Cu and copper oxides were detected. This indicates significant diffusion of Cu toward the surface, likely facilitated by the fine-grained microstructure of the ELP-Pd layer. These findings are further corroborated by the TEM-FFT analysis shown in Figure 8. In the EP-Pd nanolayer, crystalline planes corresponding to both Pd and PdO were identified. Meanwhile, the ELP-Pd nanolayer displayed diffraction patterns indicative of Cu2O mostly, suggesting that surface oxidation had already taken place prior to the bonding process. The interplanar spacings for Pd, Cu, Cu2O, and PdO have been tabulated in Table 3 as references.
Figure 9 presents the X-ray photoelectron spectroscopy (XPS) analysis performed to investigate the surface chemical composition of the Pd nanolayers. The XPS measurements were conducted at an approximate analysis depth of 2 nm from the surface. As shown in Figure 9a, the EP-Pd nanolayer was primarily composed of metallic Pd, with no detectable Cu signal. According to other reports [18,19], the binding energies of metallic Pd (Pd3d) appear near 335.3 eV and 340.6 eV, while Pd oxide peaks are typically observed in the range of 335.4 eV to 336.8 eV. In the O1s spectra of Figure 9, the peak observed around 529.6–530.4 eV corresponds to Pd oxide, while additional peaks are attributed to other oxygen species or adsorbed oxygen. These results indicate that the EP-Pd nanolayer functioned effectively as a diffusion barrier, suppressing Cu diffusion and subsequent oxidation. However, partial surface oxidation of Pd was still evident. In contrast, the ELP-Pd nanolayer displayed distinct XPS peaks corresponding to Cu and Cu2O, indicating that Cu had diffused to the surface and undergone oxidation. This suggests that the ELP-Pd layer provided limited protection against Cu oxidation, which can be attributed to its microstructural features, such as many grain boundaries due to smaller grain size.

3.2. Characterization of Bonding Interface

Figure 10 presents SAT images of the samples bonded at 180 °C and 200 °C. In the case of the EP-Pd samples, interfacial bonding is observed at both temperatures, although the bonding integrity appears suboptimal. For the ELP-Pd samples, negligible bonding is observed at 180 °C, possibly due to rough surface and excessively oxidized surface. At 200 °C, however, the ELP-Pd samples exhibit a notably improved interfacial bonding quality. Furthermore, the SAT images reveal the presence of surface contaminants across bonded interfaces, which likely contributed to the non-uniform bonding and reduced bonding integrity. These findings underscore the need for further optimization of pre-bonding plasma surface treatments and tighter contamination control measures during the die bonding process under ambient conditions.
Figure 11 shows the interfacial microstructure of the EP-Pd sample bonded at 200 °C. As seen in Figure 11a, the bonding interface appears highly non-uniform, with regions where Cu has significantly diffused toward the interface and other regions where little to no diffusion has occurred. Although negligible Cu was present on the surface prior to bonding, non-uniform Cu diffusion has occurred due to solid-state thermomechanical behavior at bonding temperatures. In Figure 11b,c, a non-uniform copper oxide layer with a thickness ranging from approximately 10 to 130 nm was observed at the bonding interface, accompanied by a substantial presence of oxygen. This is attributed to the incomplete removal of the oxide layer formed prior to bonding by the Ar plasma pre-treatment, suggesting that the surface preparation was inadequate. Beneath this oxide layer, a thin Pd-rich Pd–Cu alloy layer was detected.
In the case of the ELP-Pd sample shown in Figure 12, partial Cu diffusion to the surface was already observed prior to bonding. During bonding, Cu further diffused along numerous grain boundaries, resulting in the formation of a copper oxide layer at the interface. Compared to the EP-Pd sample, this copper oxide layer was more uniform and thinner, and exhibited a lower oxygen concentration. In contrast, the underlying Pd–Cu alloy layer appeared Cu-rich and was more widely distributed than in the EP-Pd sample. This behavior is attributed to the lower film density and smaller grain structure of the ELP-Pd layer, which facilitated more efficient interdiffusion between Cu and Pd. Although the ELP-Pd layer exhibited higher surface roughness (approximately 2.4 nm greater Rq than EP-Pd) and Cu2O was detected on the surface by XPS analysis prior to bonding, a relatively uniform interfacial layer was still formed after bonding. This outcome can be attributed to the small grain size and slightly agglomerated morphology of the ELP-Pd layer, which likely enhanced surface activation by Ar ion bombardment and promoted subsequent atomic interdiffusion; however, the Ar plasma process itself still requires further optimization.
Furthermore, as shown in the EDS line scan profiles in Figure 11c and Figure 12c, Pd diffusion into the Cu side extends up to approximately 65 nm in the ELP-Pd sample, whereas the corresponding diffusion depth in the EP-Pd sample is about 40 nm. This suggests that Cu–Pd interdiffusion is more pronounced in the ELP-Pd sample, which can be attributed to the smaller grain size and higher density of grain boundaries characteristic of the ELP-Pd layer.
The shear test was conducted using samples diced into 2 × 2 mm2 pieces, and the shear strength values are shown in Figure 13. The average shear strength of the EP-Pd samples was 16.47 MPa with a standard deviation of 7.54 MPa, while the ELP-Pd samples exhibited a higher average shear strength of 20.58 MPa and a lower standard deviation of 5.62 MPa. Based on our experimental observations, the ELP-Pd samples exhibited higher shear strength (20.59 MPa) compared to the EP-Pd samples (16.47 MPa). This difference can be partially attributed to the improved bonding interface morphology observed in ELP-Pd. As confirmed by TEM imaging, the ELP-Pd samples demonstrated a more uniform and continuous bonding interface, which likely contributed to better mechanical integrity. Additionally, the lower oxygen content at the surface of ELP-Pd may have further facilitated stronger interfacial bonding. Although the surface roughness of ELP-Pd is slightly higher than that of EP-Pd, the presence of smaller grains with a higher density of grain boundaries at the bonding interface in ELP-Pd appears to have outweighed this factor, contributing positively to the bonding performance. To improve the bonding quality, it is essential to optimize the pre-bonding plasma treatment process to effectively remove surface oxides and ensure the formation of an activated surface.

4. Conclusions

This study aims to investigate an electroless-plated Pd nanolayer process for application in low-temperature hybrid Cu bonding. The material properties of the ELP Pd nanolayer were systematically compared with those of an EP Pd nanolayer, and their performance in low-temperature bonding was evaluated. The EP-Pd nanolayer exhibited a relatively continuous and uniform structure, with excellent Cu passivation characteristics, as indicated by negligible Cu detection on the surface. In contrast, the ELP-Pd nanolayer exhibited a smaller grain structure and slightly higher surface roughness, with detectable amounts of Cu and Cu oxides present on the surface. Nevertheless, during bonding at 200 °C, the ELP-Pd nanolayer achieved a uniform bonding interface, likely due to its small grains, and demonstrated high shear strength.
To achieve hybrid Cu bonding via a metallic nanolayer at temperatures below 200 °C, solid-state diffusion between the constituent metals is essential. In this context, the selectively deposited ELP-Pd nanolayer emerges as a promising candidate. However, for the effective implementation of ELP-Pd nanolayers, it is necessary to enhance the nanolayer’s structure to passivate Cu diffusion toward surface and to develop appropriate plasma pre-treatment conditions specifically optimized for Pd surfaces.

Author Contributions

Conceptualization, S.E.K.; Methodology, D.L. and K.K.; Validation, D.L. and B.G.; Formal analysis, D.L. and K.K.; Investigation, D.L. and S.E.K.; Data Curation, D.L. and B.G.; Writing—original draft, D.L.; Writing—review & editing, S.E.K.; Supervision, S.E.K.; Funding acquisition, S.E.K. All authors have read and agreed to the published version of the manuscript.

Funding

This research was supported by the National R&D Program through the National Research Foundation of Korea (NRF), funded by the Ministry of Science and ICT (No. 2022M3I7A4072293), with partial support from the industry-university project (No. 2024-1397) by the EEJA Inc.

Data Availability Statement

All data analyzed during this study are included in this published article.

Conflicts of Interest

Author Keiyu Komamura was employed by the company R&D Department, EEJA Ltd. The remaining authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

References

  1. Chen, K.N.; Tan, C.S.; Fan, A.; Reif, R. Abnormal Contact Resistance Reduction of Bonded Copper Interconnects in Three-Dimensional Integration During Current Stressing. Appl. Phys. Lett. 2005, 86, 011903. [Google Scholar] [CrossRef]
  2. Das, S.; Chandrakasam, A.P.; Reif, R. Calibration of Rent’s Rule Models for Three-Dimensional Integrated Circuits. IEEE Trans. Very Large Scale Integr. Syst. 2004, 12, 359–366. [Google Scholar] [CrossRef]
  3. Morrow, P.R.; Park, C.M.; Ramanathan, S.; Kobrinsky, M.J.; Harmes, M. Three-Dimensional Wafer Stacking via Cu–Cu Bonding Integrated with 65-nm Strained-Si/Low-k CMOS Technology. IEEE Electron Device Lett. 2006, 27, 335–337. [Google Scholar] [CrossRef]
  4. Lau, J. Recent Advances and Trends in Cu–Cu Hybrid Bonding. IEEE Trans. Compon. Packag. Manuf. Technol. 2023, 13, 399–425. [Google Scholar] [CrossRef]
  5. Lee, Y.; McInerney, M.; Joo, Y.; Choi, I.; Kim, S.E. Copper Bonding Technology in Heterogeneous Integration. Electron. Mater. Lett. 2024, 20, 1–25. [Google Scholar] [CrossRef]
  6. Huang, Y.P.; Chien, Y.S.; Tzeng, R.N.; Chen, K.N. Demonstration and Electrical Performance of Cu–Cu Bonding at 150 °C With Pd Passivation. IEEE Trans. Electron Devices 2015, 62, 2587–2592. [Google Scholar] [CrossRef]
  7. Huang, Y.P.; Chien, Y.S.; Tzeng, R.N.; Shy, M.S.; Lin, T.H.; Chen, K.H.; Chiu, C.T.; Chiou, J.C.; Chuang, C.T.; Hwang, W.; et al. Novel Cu-to-Cu Bonding With Ti Passivation at 180 °C in 3-D Integration. IEEE Electron Device Lett. 2013, 34, 1551–1553. [Google Scholar] [CrossRef]
  8. Park, S.W.; Hong, S.K.; Kim, S.E.; Park, J.K. First Demonstration of Enhanced Cu–Cu Bonding at Low Temperature with Ruthenium Passivation Layer. IEEE Access 2024, 12, 82396–82403. [Google Scholar] [CrossRef]
  9. Bonam, S.; Panigrahi, A.K.; Kumar, C.H.; Vanjari, S.R.K.; Singh, S.G. Interface and Reliability Analysis of Au-Passivated Cu–Cu Fine-Pitch Thermocompression Bonding for 3-D IC Applications. IEEE Trans. Compon. Packag. Manuf. Technol. 2019, 9, 1227–1234. [Google Scholar] [CrossRef]
  10. Lee, S.; Song, J.; Park, S.; Kim, S.E. Effects of Au Passivation Thickness on Improving Low-Temperature Cu-to-Cu Bonding Interface. IEEE Trans. Compon. Packag. Manuf. Technol. 2025, 15, 1351–1358. [Google Scholar] [CrossRef]
  11. Liu, Z.; Cai, J.; Wang, Q.; Tan, L.; Hua, Y. Low Temperature Cu–Cu Bonding Using Ag Nanostructure for 3D Integration. ECS Solid State Lett. 2015, 4, P75–P76. [Google Scholar] [CrossRef]
  12. Kim, Y.; Kim, S.E. Effect of the Annealing Process on Cu Bonding Quality Using Ag Nanolayer. IEEE Trans. Compon. Packag. Manuf. Technol. 2023, 13, 737–742. [Google Scholar] [CrossRef]
  13. Cheemalamarri, H.K.; Fujino, M.; Bhesetti, C.R.; Long, L.B.; Dileep, M.; Vempati, S.R.; Singh, N. Novel Selective Metal Capping on Cu pad Enabling Void-Free Hybrid Bonding at Low Thermal Budgets, Irrespective of Cu Topography and Microstructure. In Proceedings of the IEEE 75th ECTC, Dallas, TX, USA, 27–30 May 2025; pp. 576–581. [Google Scholar]
  14. Jeong, M.S.; Park, S.W.; Kim, Y.J.; Kim, J.H.; Hong, S.K.; Kim, S.E.; Park, J.K. Unraveling diffusion behavior in Cu-to-Cu direct bonding with metal passivation layers. Sci. Rep. 2024, 14, 6665. [Google Scholar] [CrossRef] [PubMed]
  15. Lee, S.; Park, S.; Kim, S.E. Low-Temperature Diffusion of Au and Ag Nanolayers for u Bonding. Appl. Sci. 2024, 14, 147. [Google Scholar] [CrossRef]
  16. Tsai, W.; Hsu, M.; Chen, Y.; Liu, Y.; Huang, Y.; Chen, K. Development of hybrid bonding using area-selective passivation layer deposition technology on various substrates for heterogeneous integrated structure. Jpn. J. Appl. Phys. 2024, 63, 12SP06. [Google Scholar] [CrossRef]
  17. Hsu, M.; Chen, C.; Chang, H.; Chen, K. Achieving low-temperature CU-Cu bonding platform via area-selective metal films with superior surface roughness for advanced packaging. J. Mater. Res. Technol. 2025, 36, 7748–7754. [Google Scholar] [CrossRef]
  18. Tang, J.; Zui, Y. Study on corrosion resistance of palladium films on 316L stainless steel by electroplating and electroless plating. Corros. Sci. 2008, 50, 2873–2878. [Google Scholar] [CrossRef]
  19. Moulder, J.F.; Stickle, W.F.; Sobol, P.E.; Bomben, K.D. Handbook of X-Ray Photoelectron Spectroscopy; Physical Electronics, Inc.: Chanhassen, MN, USA, 1992; pp. 118–119. [Google Scholar]

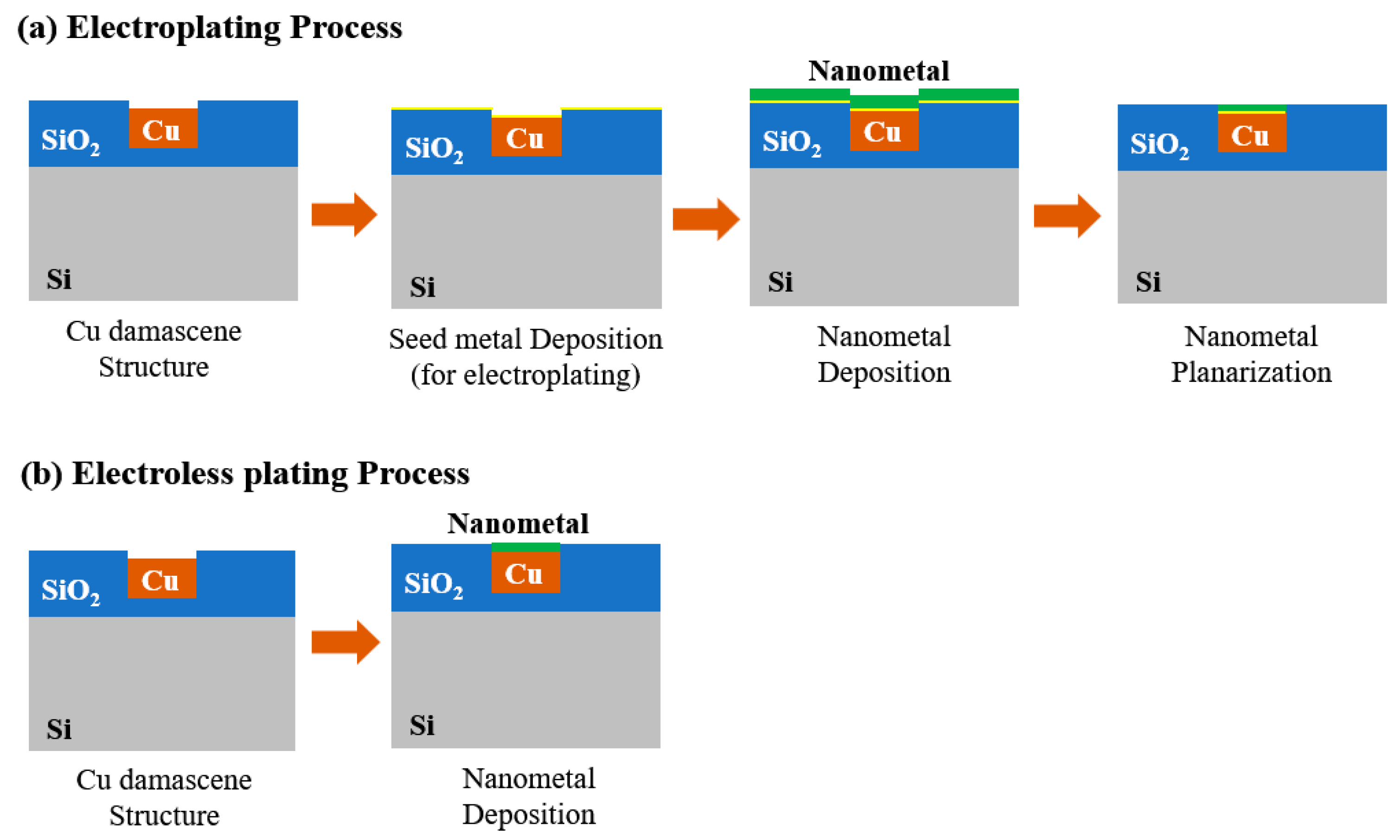

Figure 1. Schematic illustration of the nanometal passivation process using (a) electroplating and (b) electroless plating methods.
Figure 1. Schematic illustration of the nanometal passivation process using (a) electroplating and (b) electroless plating methods.
Electronics 14 03814 g001

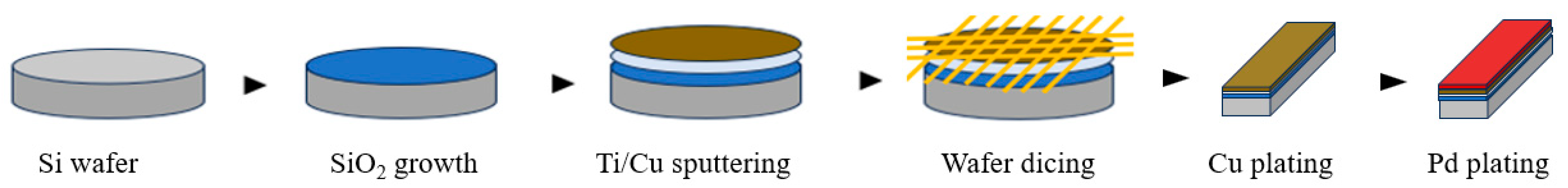

Figure 2. Process flow of sample preparation.
Figure 2. Process flow of sample preparation.
Electronics 14 03814 g002

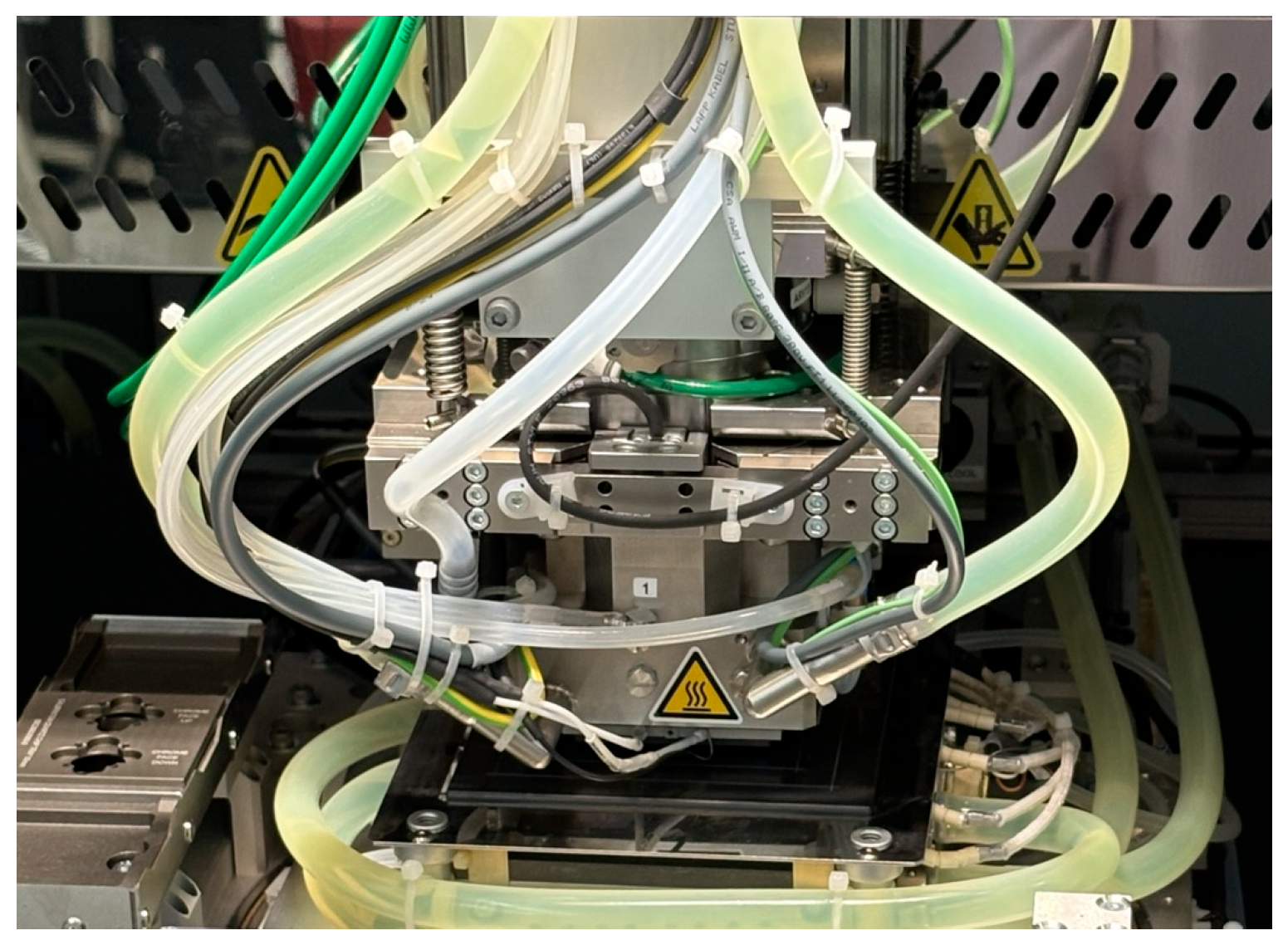

Figure 3. Photo-image of bonding stage (SET, Accura100).
Figure 3. Photo-image of bonding stage (SET, Accura100).
Electronics 14 03814 g003

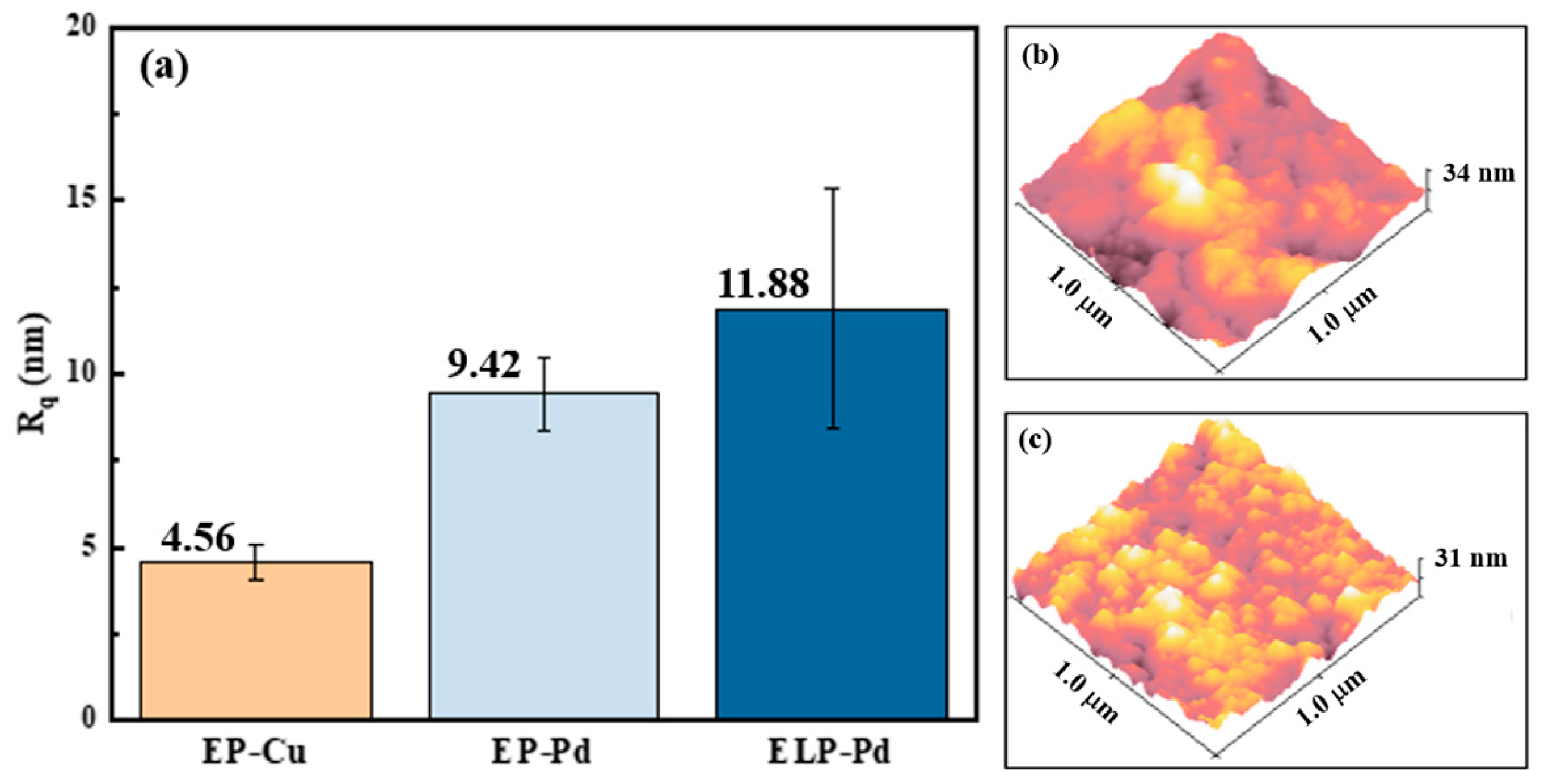

Figure 4. Surface roughness analysis of Pd passivation layers measured by AFM: (a) comparison of Rq values for EP-Cu, EP-Pd, and ELP-Pd; (b) AFM image of EP-Pd; (c) AFM image of ELP-Pd.
Figure 4. Surface roughness analysis of Pd passivation layers measured by AFM: (a) comparison of Rq values for EP-Cu, EP-Pd, and ELP-Pd; (b) AFM image of EP-Pd; (c) AFM image of ELP-Pd.
Electronics 14 03814 g004

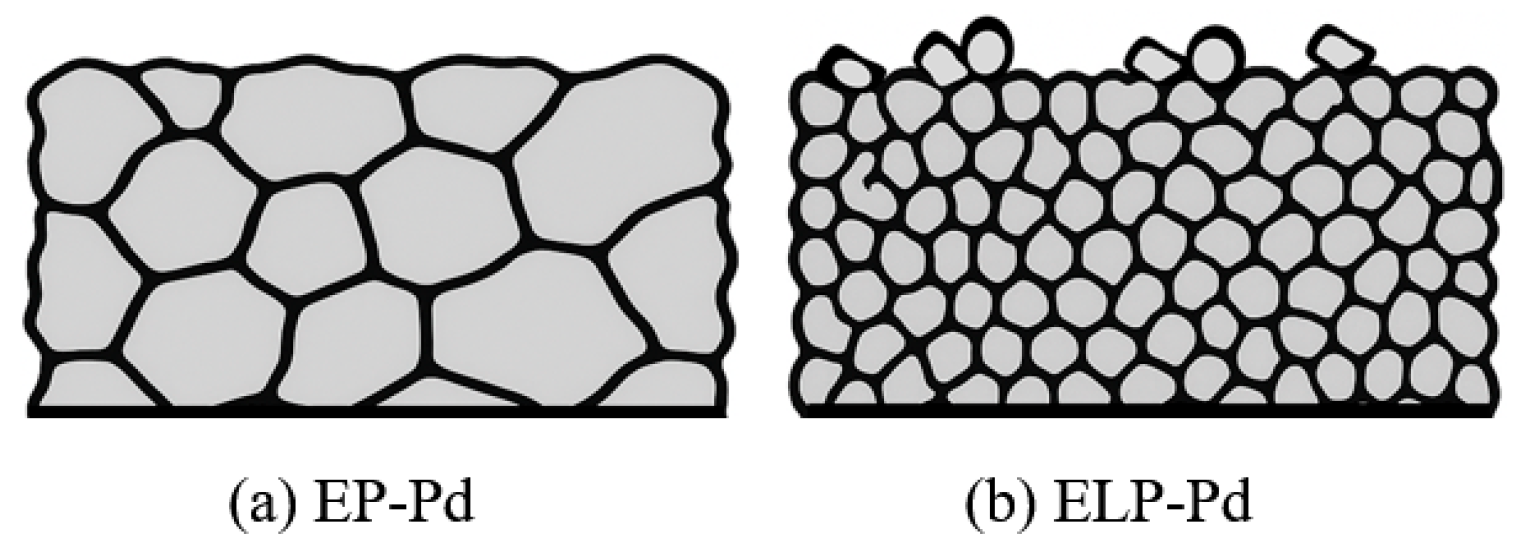

Figure 5. Conceptual illustration of (a) EP-Pd and (b) ELP-Pd nanolayer structures.
Figure 5. Conceptual illustration of (a) EP-Pd and (b) ELP-Pd nanolayer structures.
Electronics 14 03814 g005

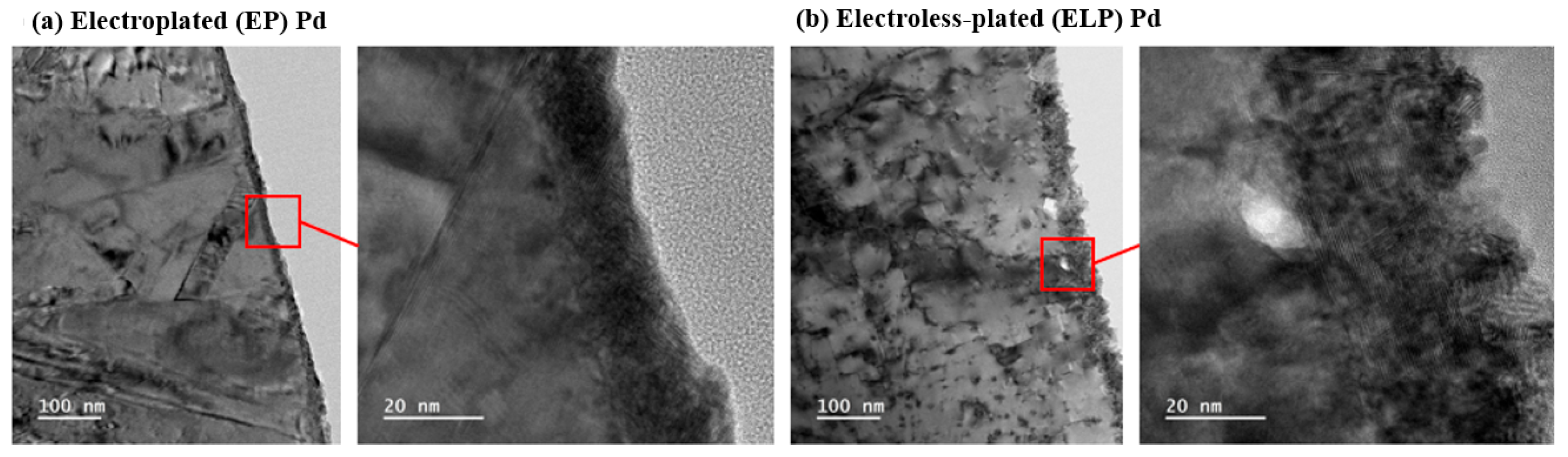

Figure 6. Cross-sectional TEM images of Pd-passivated samples. (a) EP-Pd. (b) ELP-Pd.
Figure 6. Cross-sectional TEM images of Pd-passivated samples. (a) EP-Pd. (b) ELP-Pd.
Electronics 14 03814 g006

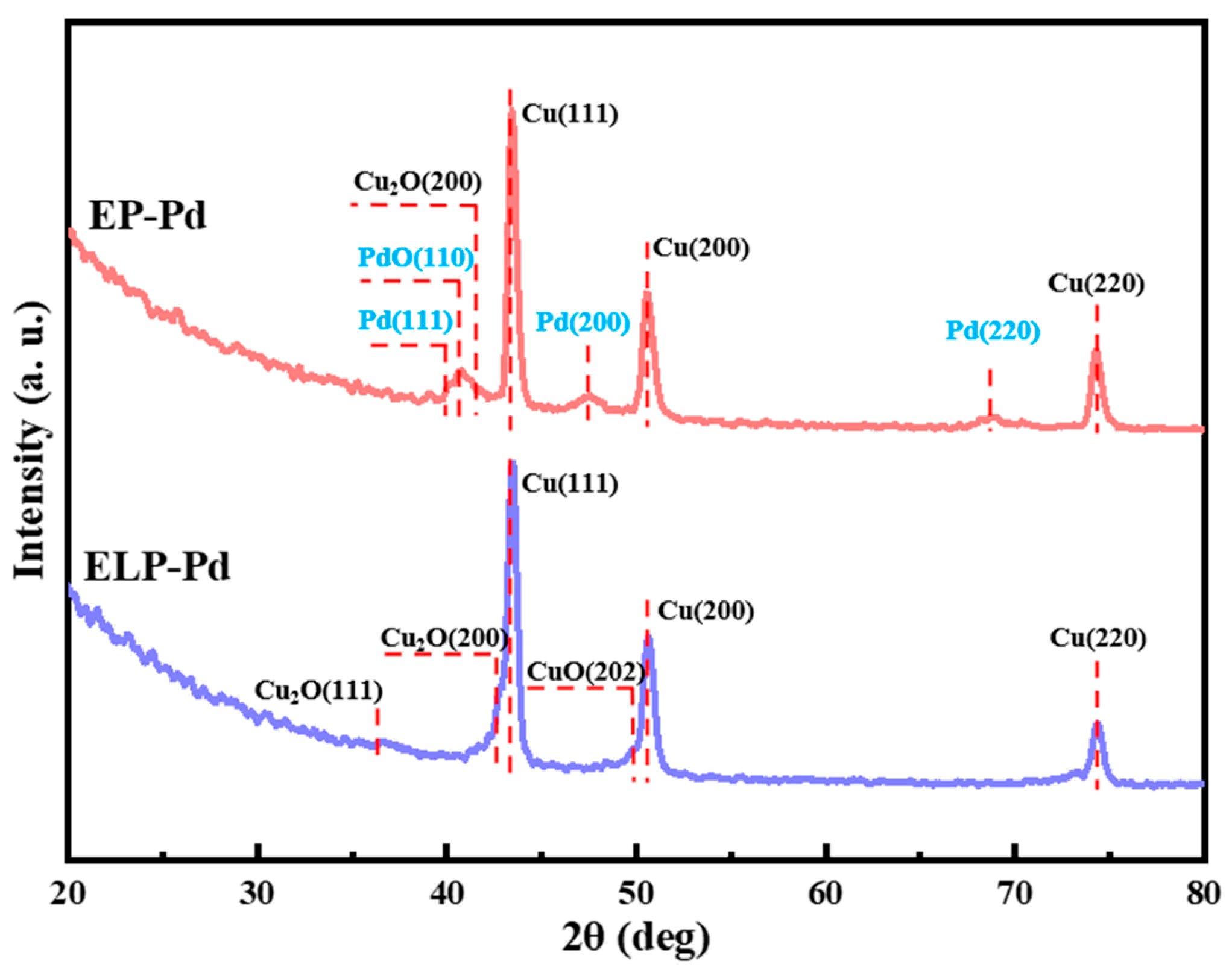

Figure 7. Crystal structure measured by GIXRD.
Figure 7. Crystal structure measured by GIXRD.
Electronics 14 03814 g007

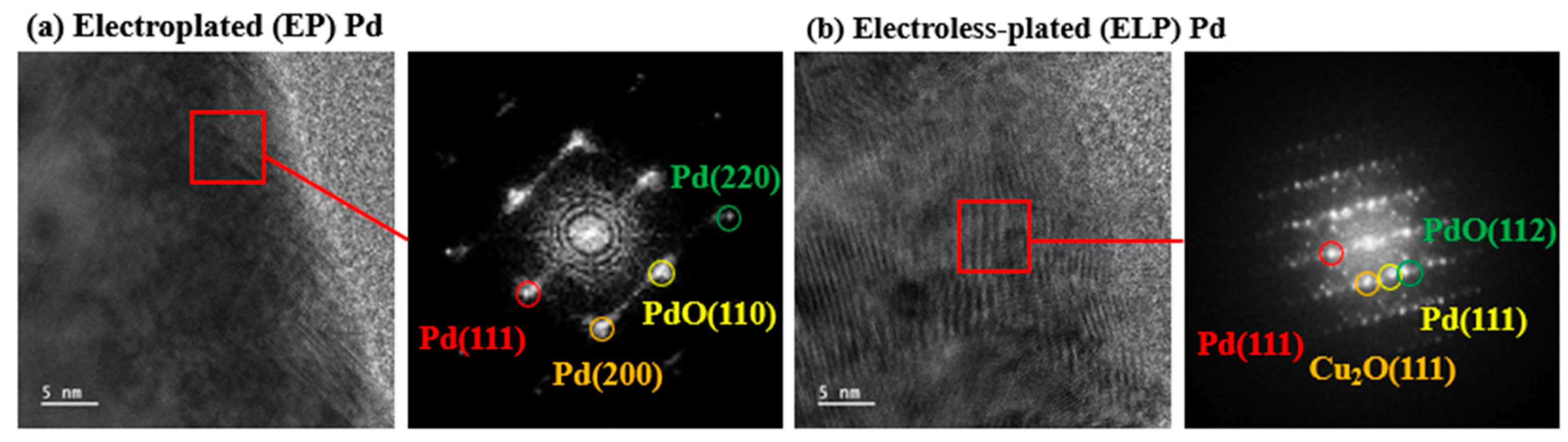

Figure 8. FFT analysis of Pd-passivated layers. (a) EP-Pd: Pd (111), (200), (220), and PdO (110). (b) ELP-Pd: Pd (111), Cu2O (111), and PdO (112).
Figure 8. FFT analysis of Pd-passivated layers. (a) EP-Pd: Pd (111), (200), (220), and PdO (110). (b) ELP-Pd: Pd (111), Cu2O (111), and PdO (112).
Electronics 14 03814 g008

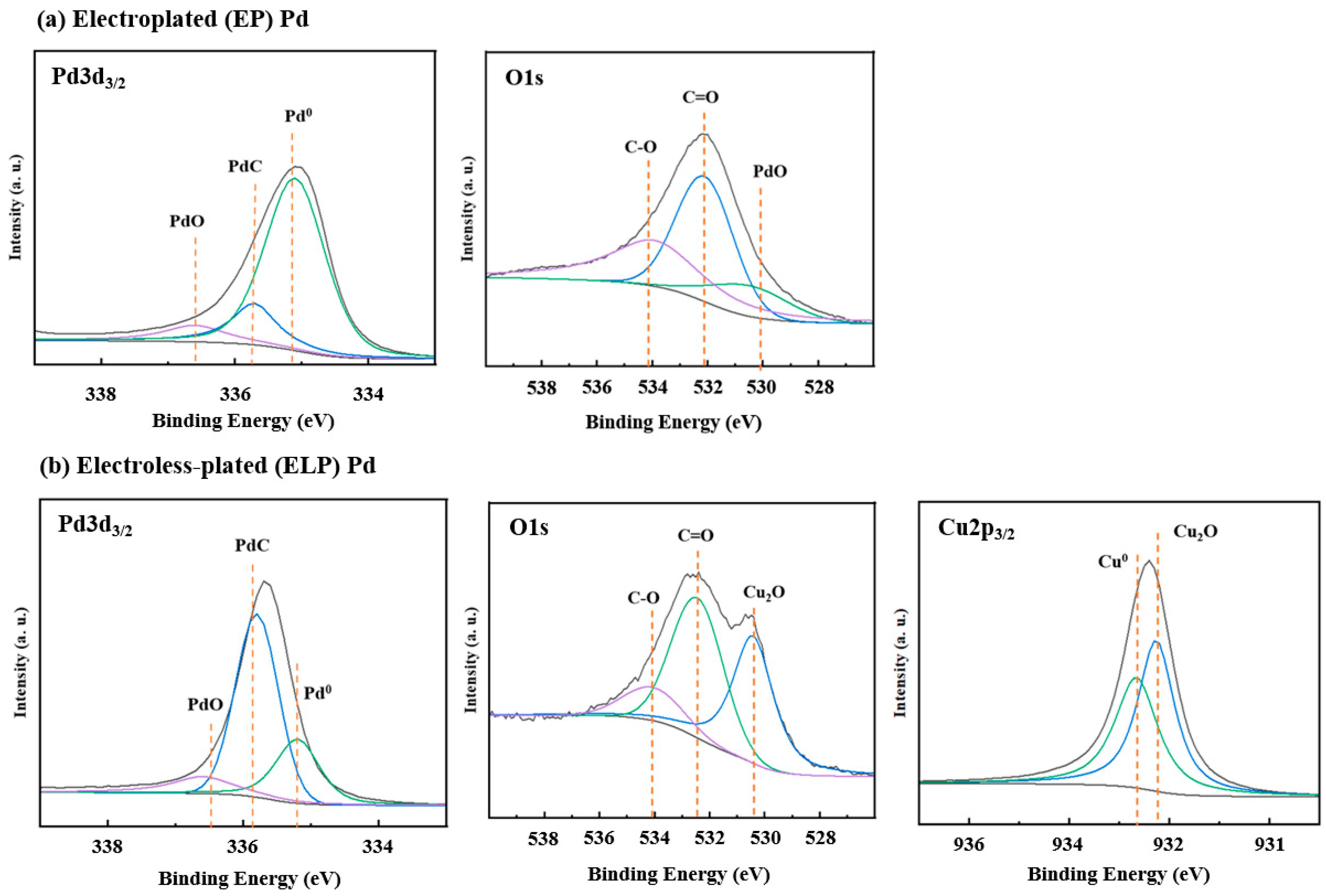

Figure 9. Chemical analysis using XPS measurements (The measurement was conducted at a depth of 2 nm from the surface).
Figure 9. Chemical analysis using XPS measurements (The measurement was conducted at a depth of 2 nm from the surface).
Electronics 14 03814 g009

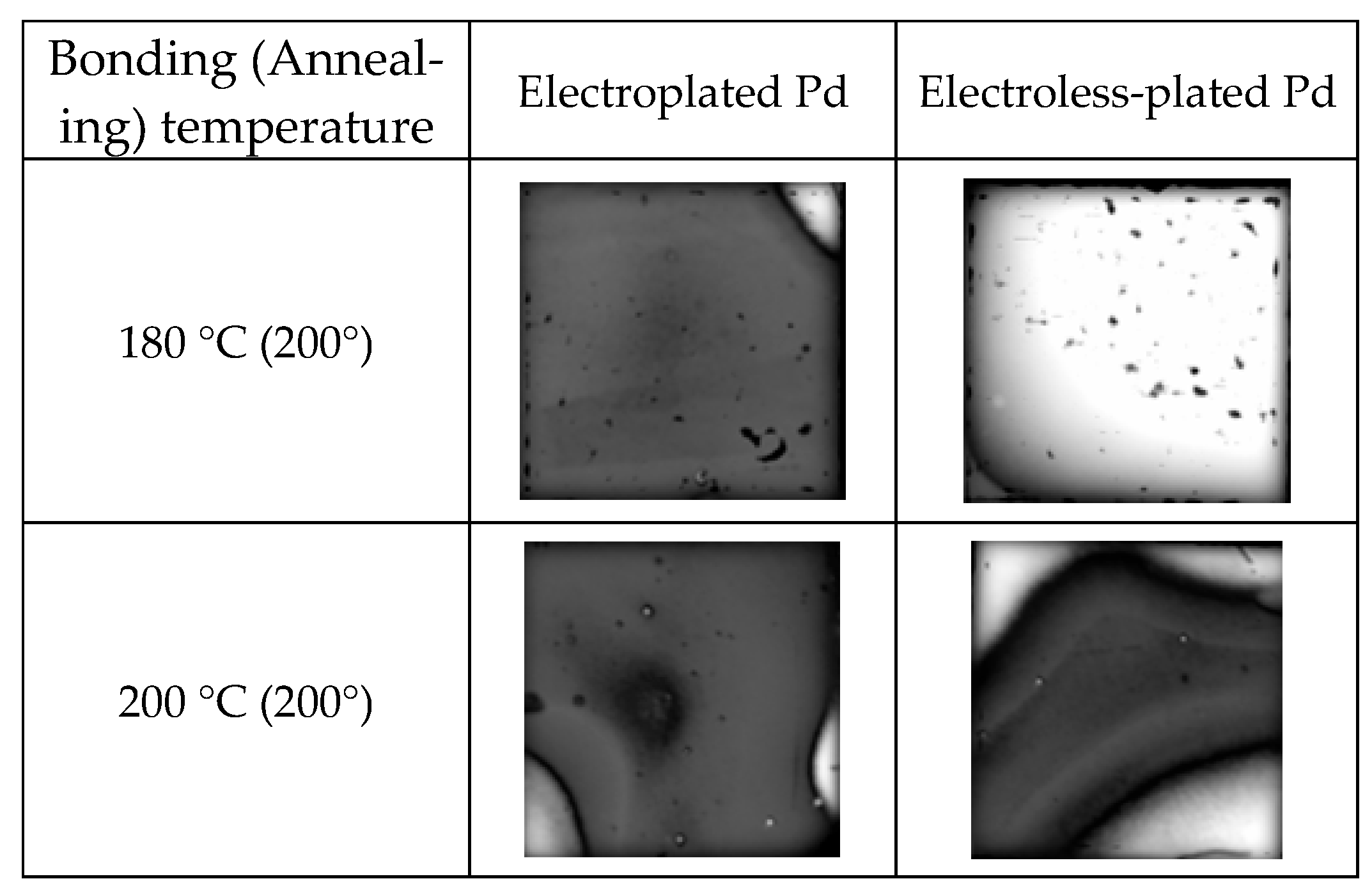

Figure 10. SAT images of EP-Pd and ELP-Pd samples bonded and annealed at 180 °C and 200 °C.
Figure 10. SAT images of EP-Pd and ELP-Pd samples bonded and annealed at 180 °C and 200 °C.
Electronics 14 03814 g010
Figure 11. Interfacial characterization of bonding at 200 °C using an EP-Pd nanolayer.
Figure 11. Interfacial characterization of bonding at 200 °C using an EP-Pd nanolayer.
Electronics 14 03814 g011
Figure 12. Interfacial characterization of bonding at 200 °C using an ELP Pd nanolayer.
Figure 12. Interfacial characterization of bonding at 200 °C using an ELP Pd nanolayer.
Electronics 14 03814 g012

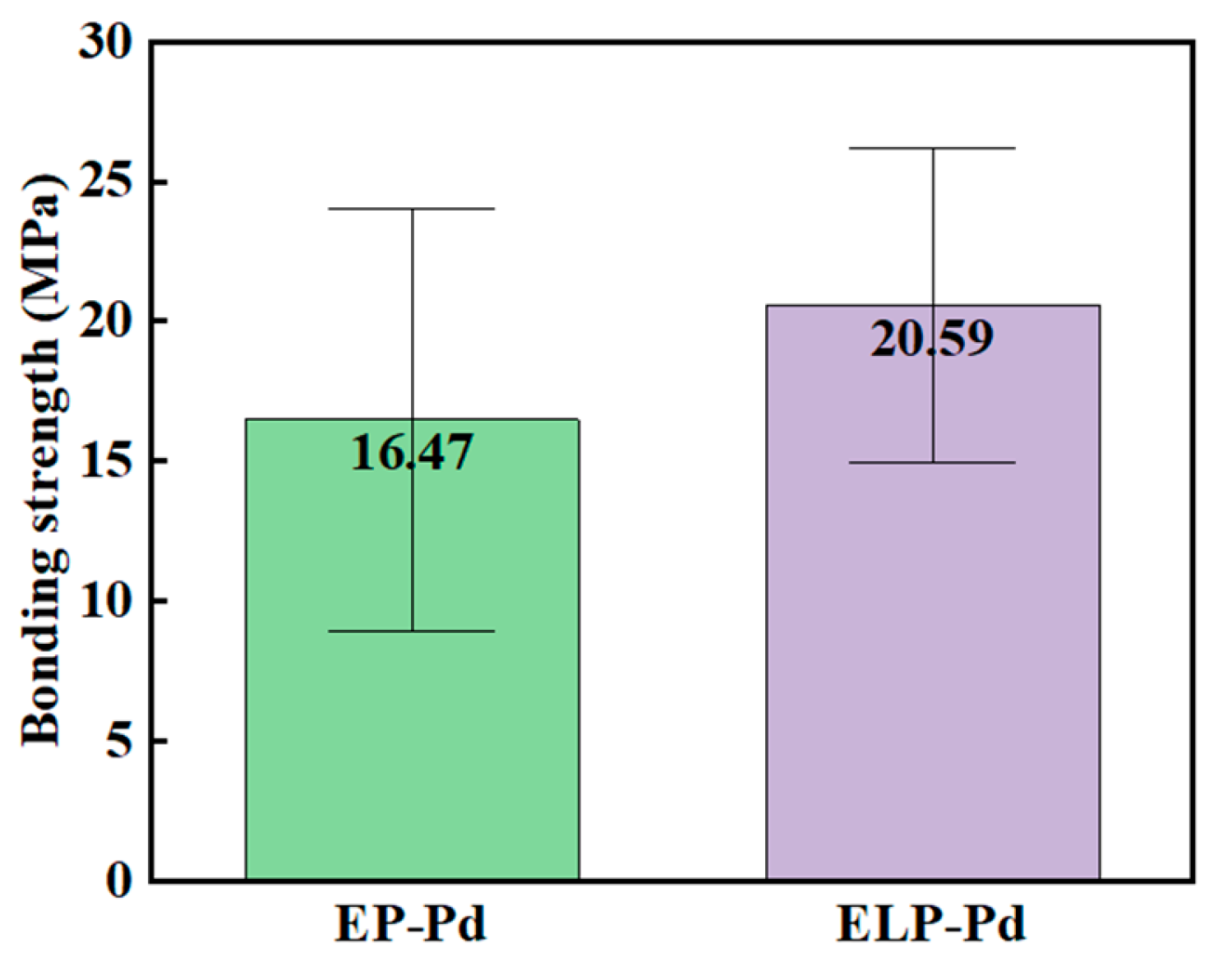

Figure 13. Shear strength results of EP-Pd and ELP-Pd samples bonded at 200 °C.
Figure 13. Shear strength results of EP-Pd and ELP-Pd samples bonded at 200 °C.
Electronics 14 03814 g013
Table 1. Various nanometal layers used in Cu-to-Cu bonding.
Table 1. Various nanometal layers used in Cu-to-Cu bonding.
RefMetalTHK
(nm)
BondingAnnealingShear Strength
(MPa)
Contact Resistance
(Ω·cm2)
Remarks
Temp
(°C)
Pressure
(MPa)
Time
(min)
This workPd (ASD)72001560200 °C, 1 h20.59-D2D, Air
[6]Pd101501.9150No annealing125 kg
(Pull test)
2 × 10−7W2W, Vacuum
[7]Ti5–101801.9130–50No annealing-7 × 10−4W2W, Vacuum
[8]Ru102001560200 °C, 2 h17.161.78 × 10−7D2D, Air
[9]Au31400.330No annealing200 W2W, Vacuum
[10]Au51801530200 °C, 1 h21.85-D2D, Air
[11]Ag~20 (nanoparticle)250205250 °C, 25 min14.4-D2D, Air
[12]Ag151800.830200 °C, 1 h6.5-W2W, Vacuum
[13]Unknown (ASD)5–7--->300 °C, 2 h--W2W
[14]Pt, Ti, Ta, Cr10~12200-60280 °C, 1--D2D, Air
[15]Au/Ag12/151800.830200 °C, 1 h5.4/6.6-W2W, Vacuum
[16]Ag (ASD)18–40---180 °C, 200 °C. 3 min-2 × 10−9
[17]Au (ASD)10150–200200 (N)3-26.1222 × 10−7D2D, Air
Table 2. Materials properties of Copper and Palladium.
Table 2. Materials properties of Copper and Palladium.
NameCopper (Cu)Palladium (Pd)
Atomic
Property
Atomic Number2946
Electron configuration[Ar] 3d10 4s1[Kr] 4d10
Atomic radius (nm)0.1280.137
Structural PropertyCrustal StructureFCCFCC
Lattice constant (a) nm0.36150.38902
Thermal PropertyThermal expansion at 20 °C (10 × 10−6/K)16.6411.77
Melting point (°C)1084.61554.9
Electrical PropertyElectronegativity1.92.2
Electrical resistivity (nOhm-m)16.78105.4
Mechanical PropertyYoung’s modulus (GPa)110~128121
Vickers Hardness (MPa)343~369400~600
Brinell Hardness (MPa)235~875320~610
Table 3. Interplanar spacings for Pd, Cu, Cu2O, and PdO.
Table 3. Interplanar spacings for Pd, Cu, Cu2O, and PdO.
Plansd-Spacing (Å) Plansd-Spacing (Å)
Pd(111)2.245Cu(111)2.086
(200)1.745(200)1.805
(220)1.375(220)1.276
PdO(111)3.04Cu2O(111)2.466
(200)5.33(200)2.135
(220)2.68(220)1.509
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Lee, D.; Go, B.; Komamura, K.; Kim, S.E. Electroless Pd Nanolayers for Low-Temperature Hybrid Cu Bonding Application: Comparative Analysis with Electroplated Pd Nanolayers. Electronics 2025, 14, 3814. https://doi.org/10.3390/electronics14193814
