Composite Harmonic Source Detection with Multi-Label Approach Using Advanced Fusion Method
Abstract
:1. Introduction
- The factors that generate harmonics in the new power system are complex. It is more difficult to grasp the harmonic generation mechanism and construct a harmonic source identification model comprehensively and accurately, and it is less practical and adaptable.
- The method based on mechanism analysis does not make full use of the massive data generated by intelligent monitoring equipment in the era of big data, and the fitting results cannot reflect all the information of the harmonic source [11].
- Some data are not easy to obtain, e.g., harmonic impedance, harmonic phase angle, and topology cannot be directly obtained from the monitoring device.
2. New Perspective on Harmonic Source Characteristic Analysis

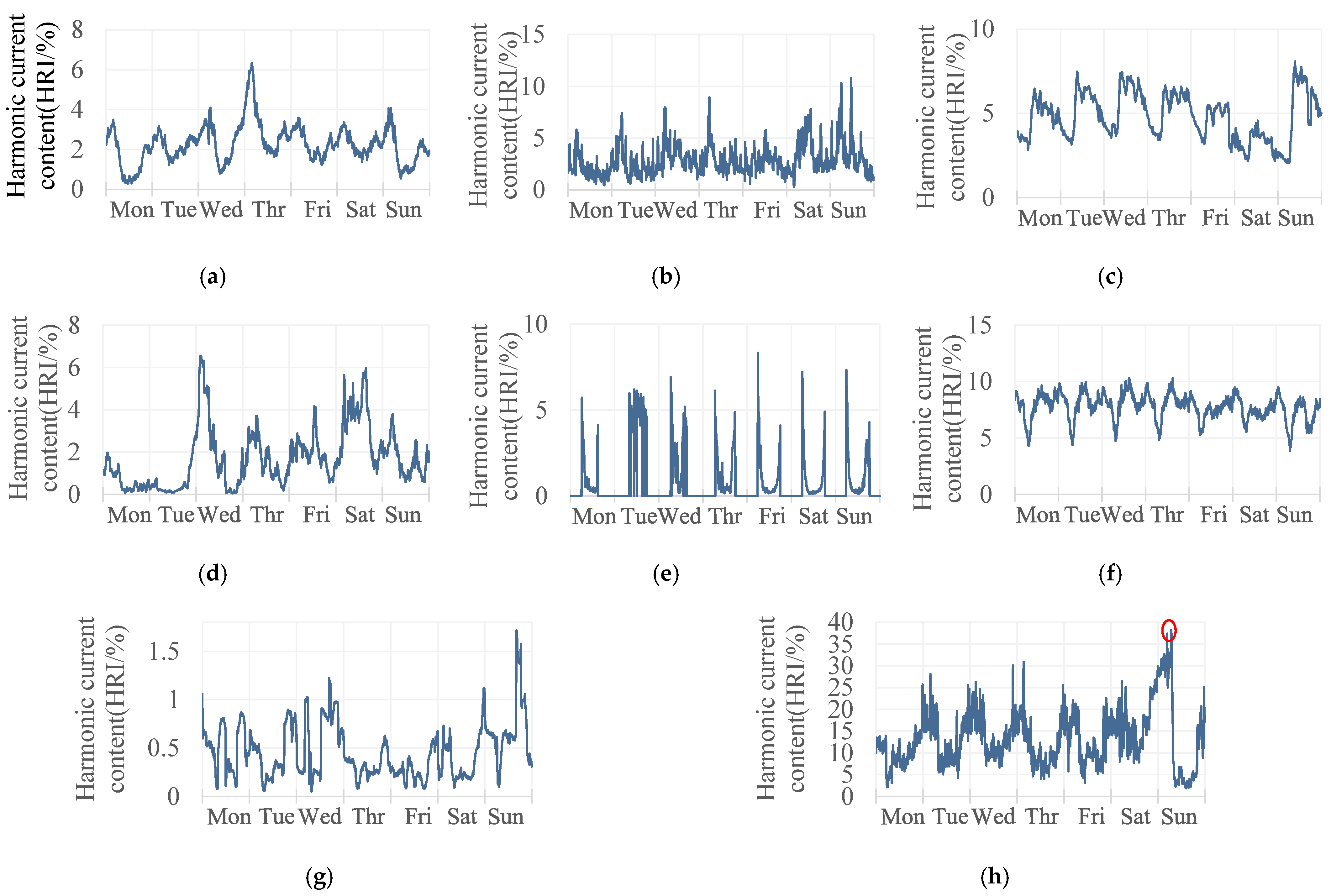

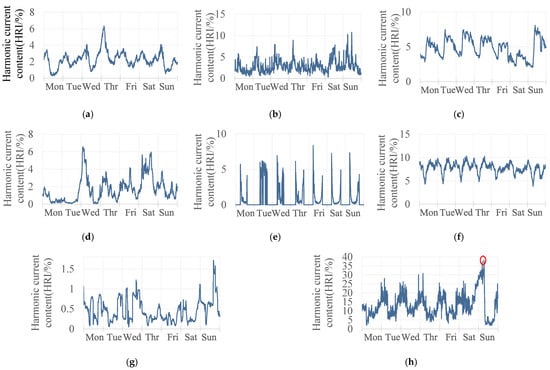

2.1. Time-Frequency Characteristics of Harmonic Sources

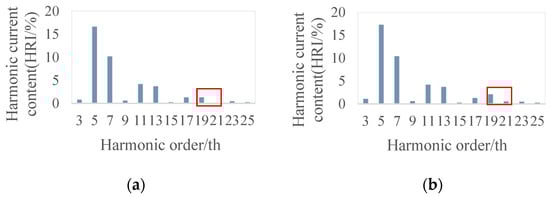

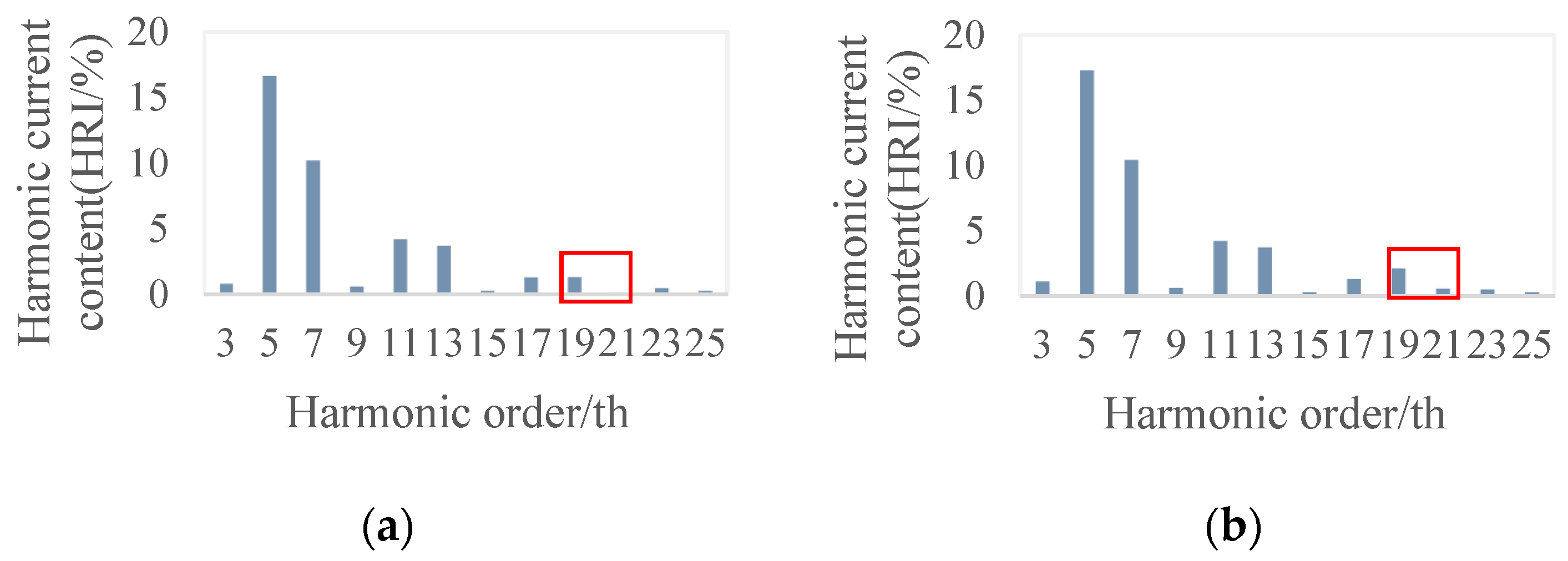

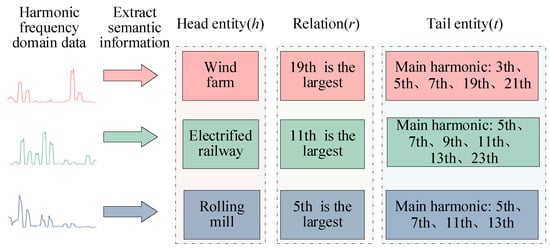

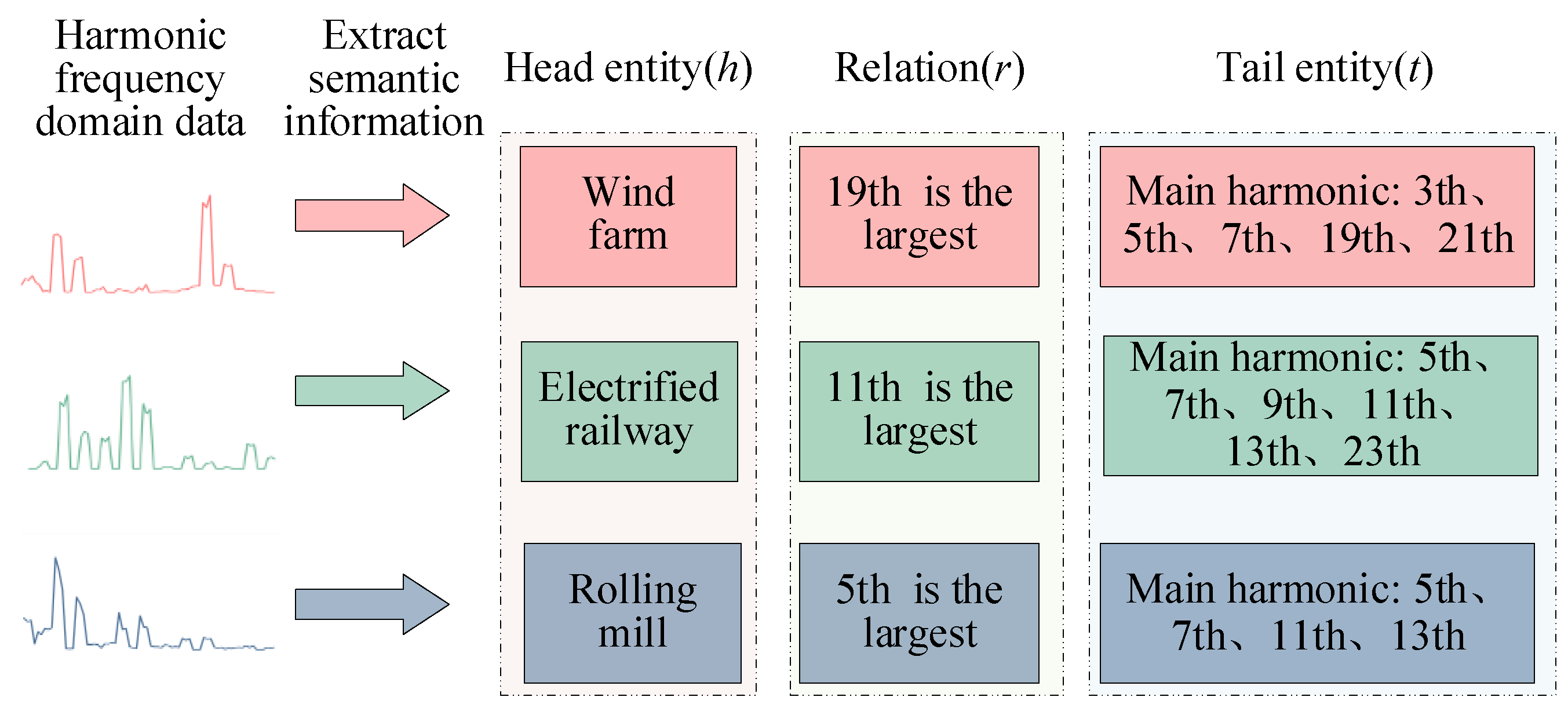

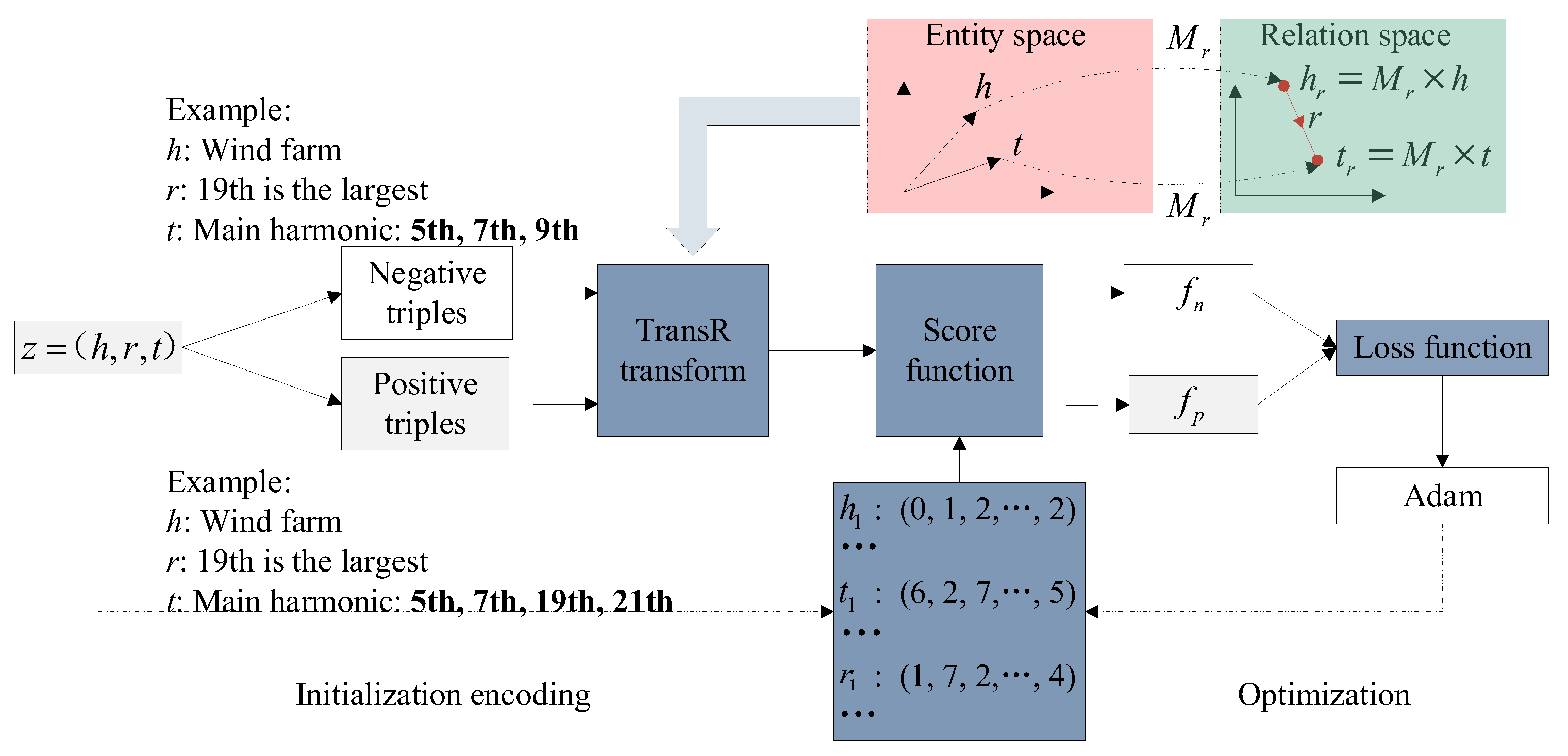

2.2. TransR Knowledge Representation

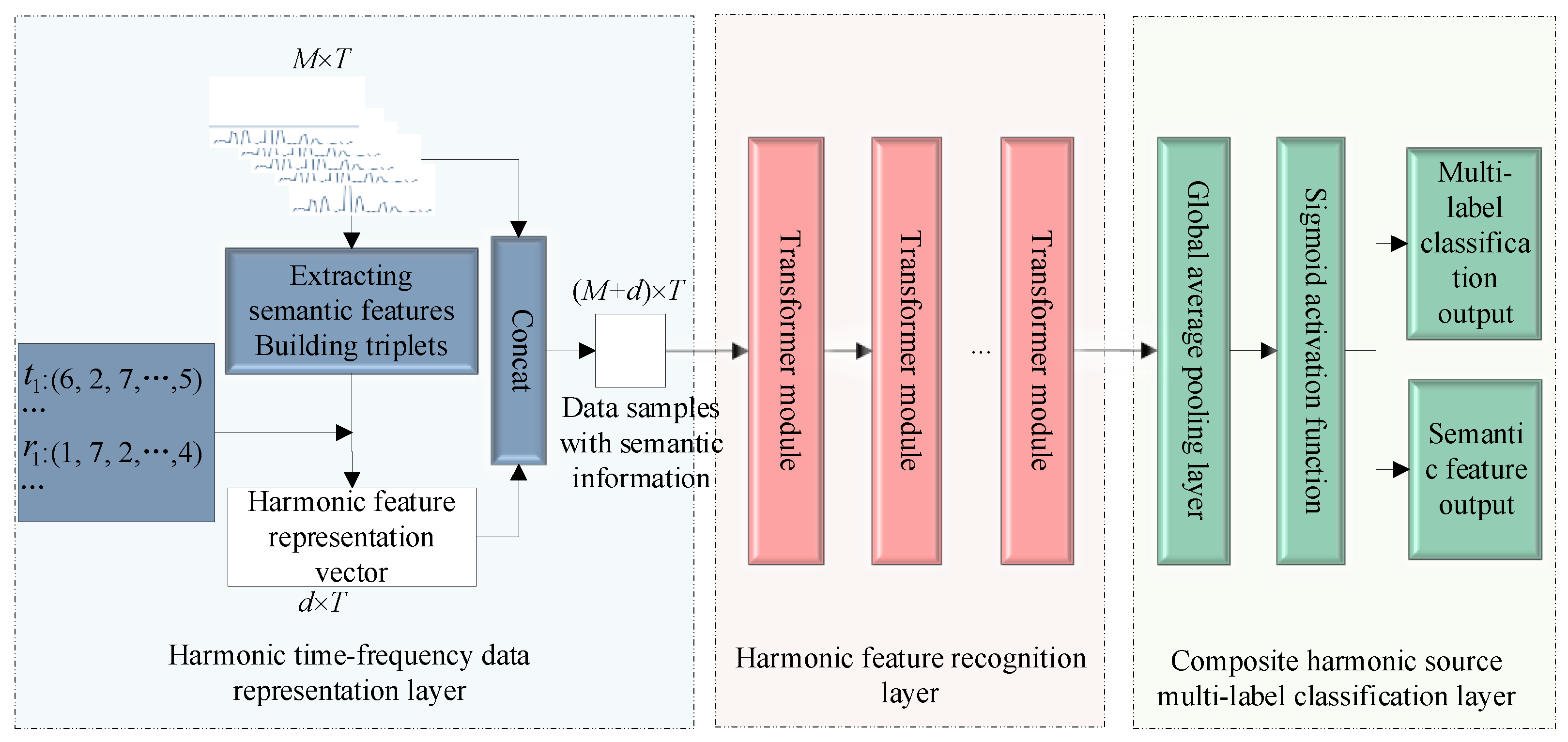

3. Identification Method of Composite Harmonic Source Based on TTM
3.1. Harmonic Time-Frequency Data Representation Layer

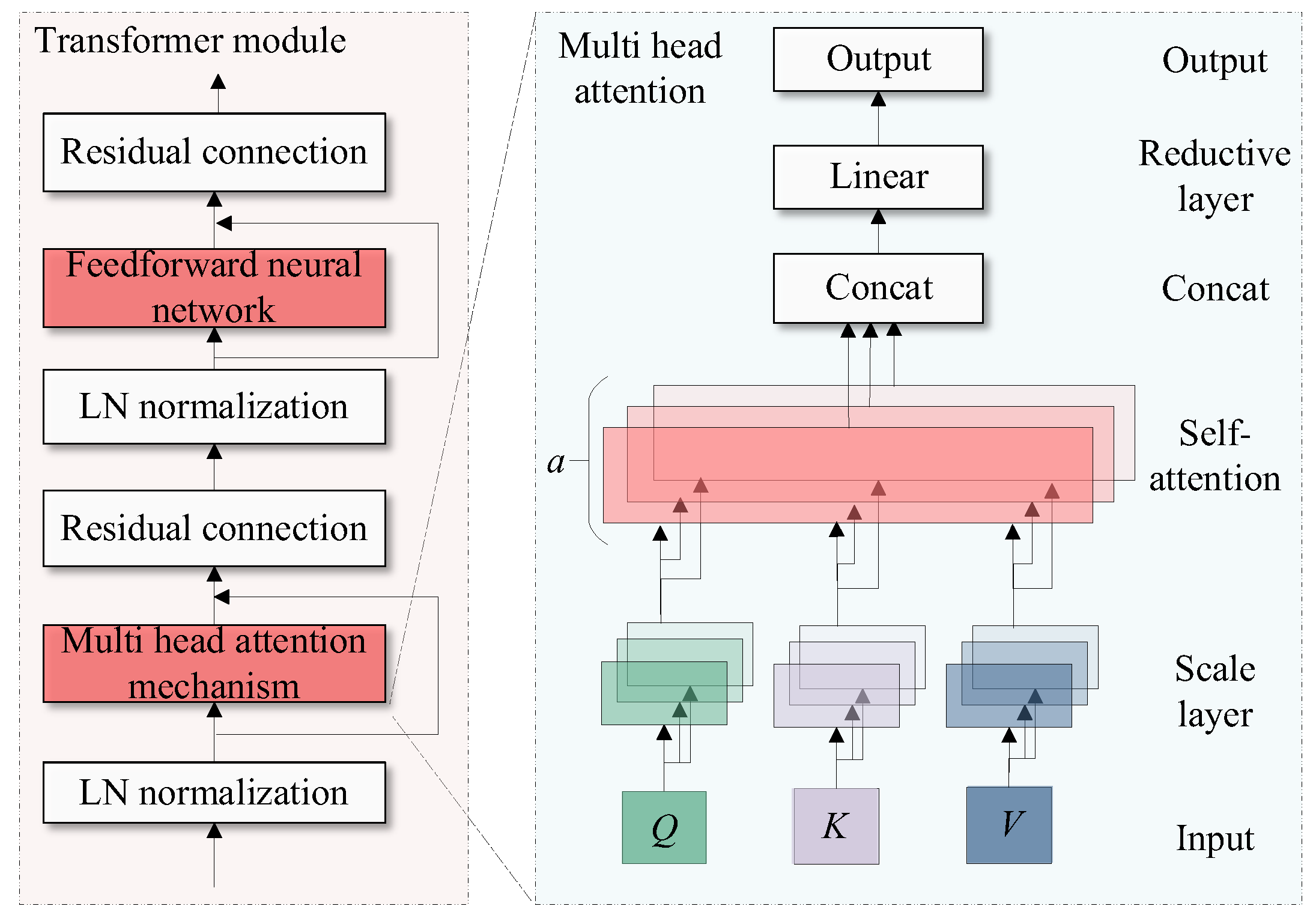

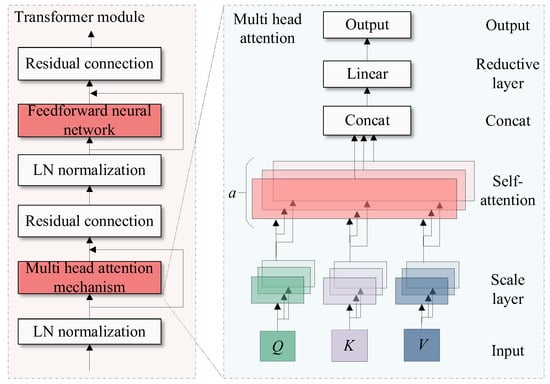

3.2. Harmonic Feature Recognition Layer
3.3. Composite Harmonic Source Multi-Label Classification Layer
4. Analysis
4.1. Experimental Configuration and Evaluation Indicators
- Precision focuses on the recognition of binary positive samples. The multi-label classification problem can be regarded as a multiple-binary classification problem, and the evaluation index adopts the mean micro-precision, which is the quotient of the number of correctly predicted positive samples for all categories and the number of predicted positive samples for all categories. The formula [20] is:
- 2.
- Recall represents the coverage of binary positive sample prediction, and the multi-label classification metric is micro-recall. The formula [20] is:
- 3.
- F1 considers both accuracy and recall, which better represent the effectiveness of classification. In the multi-label classification problem, micro-F1 is used to represent, and the formula [20] is:
- 4.
- HL focuses on predicting incorrect labels, that is, directly comparing the predicted tags with the authentic labels bit by bit and calculating the quotient of the number of predicted error labels and the total number of marks. HL ranges from 0 to 1, with smaller HL indicating better prediction performance. An HL of 0 indicates that the prediction is right, while, conversely, it declares all errors. The formula [20] is:

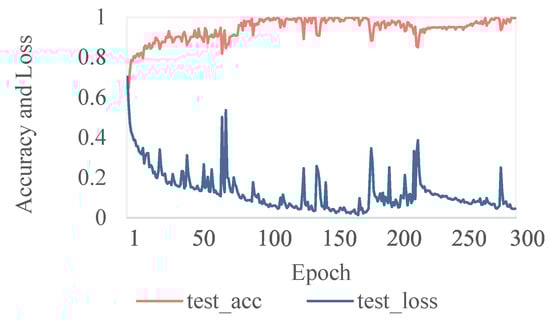

4.2. Example Analysis of Measured Data

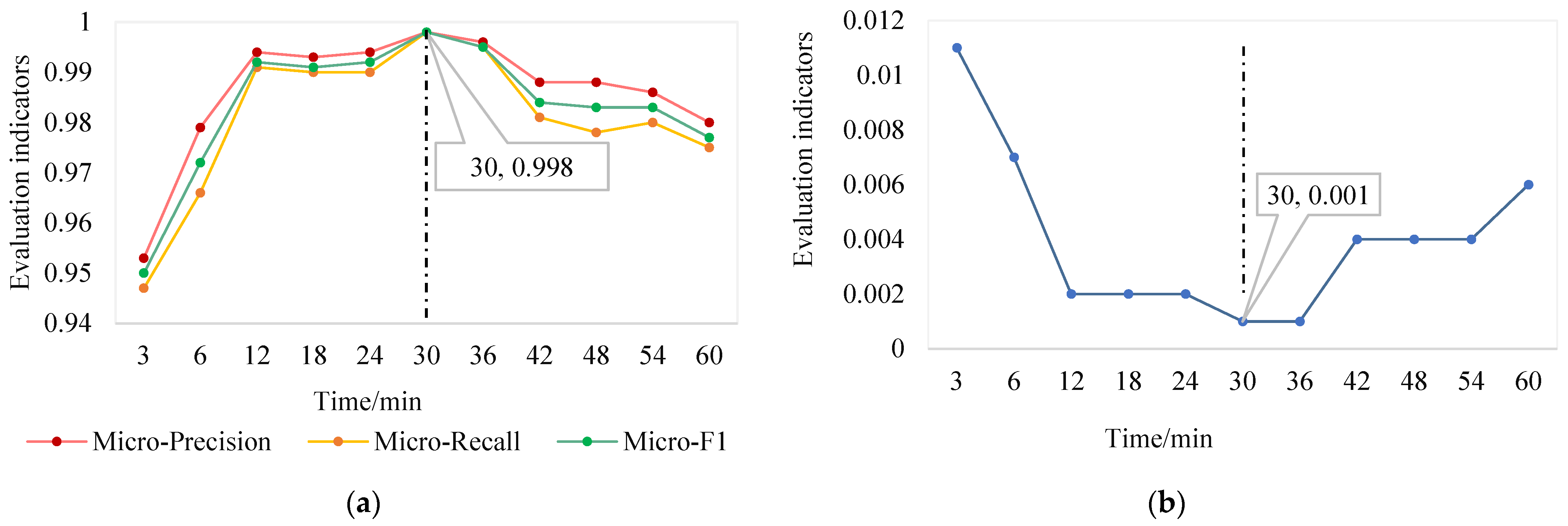

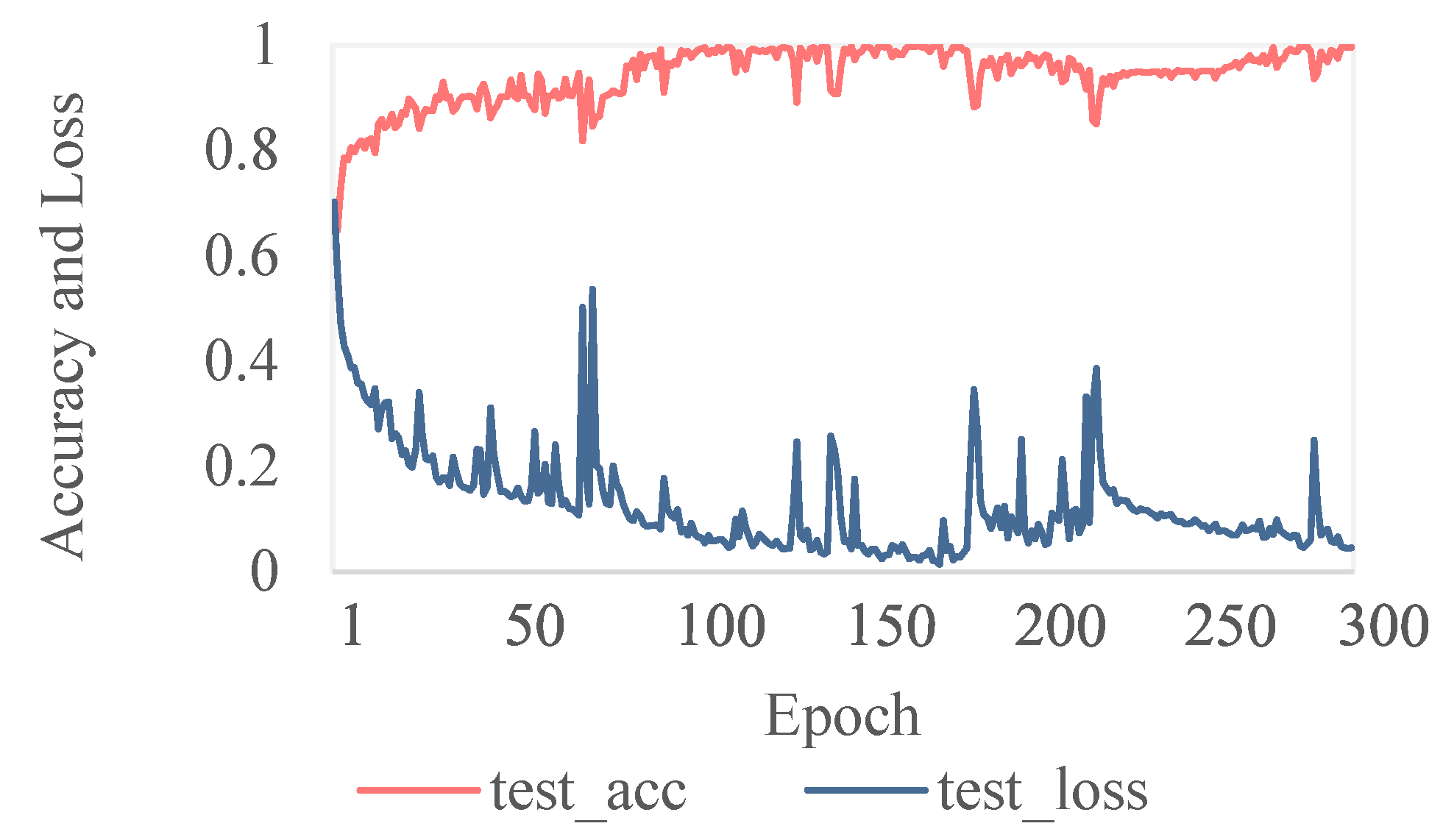

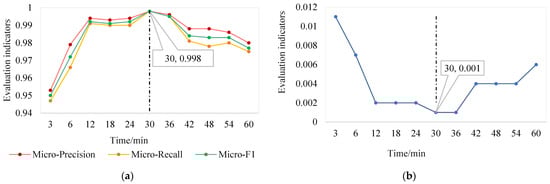

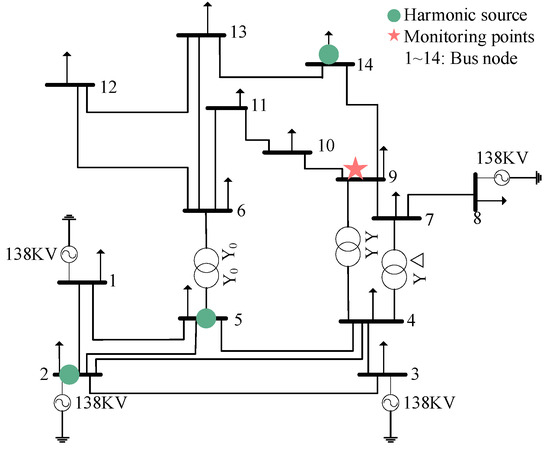

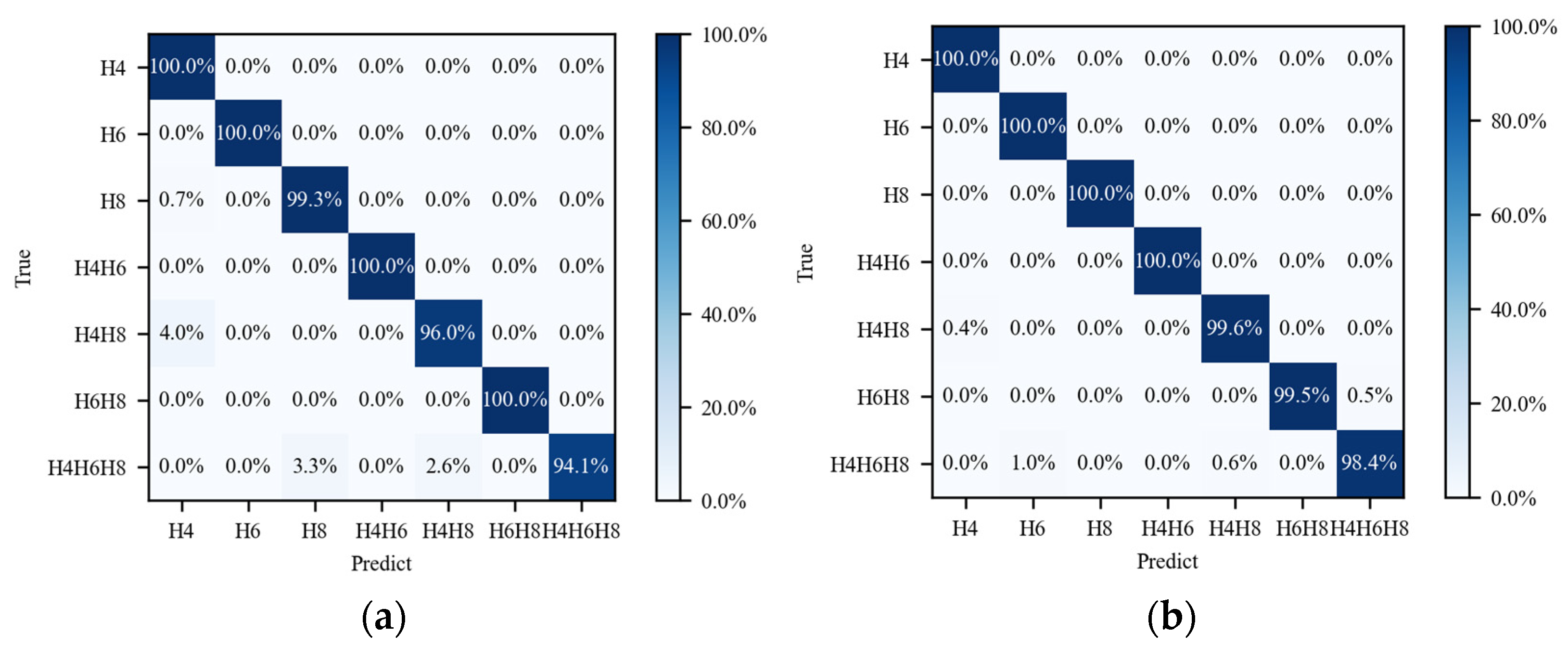

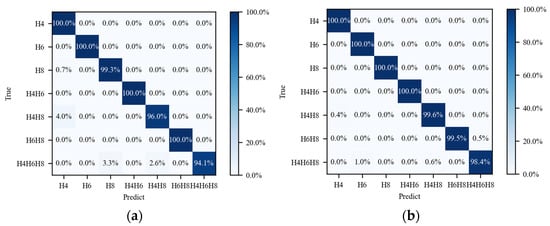

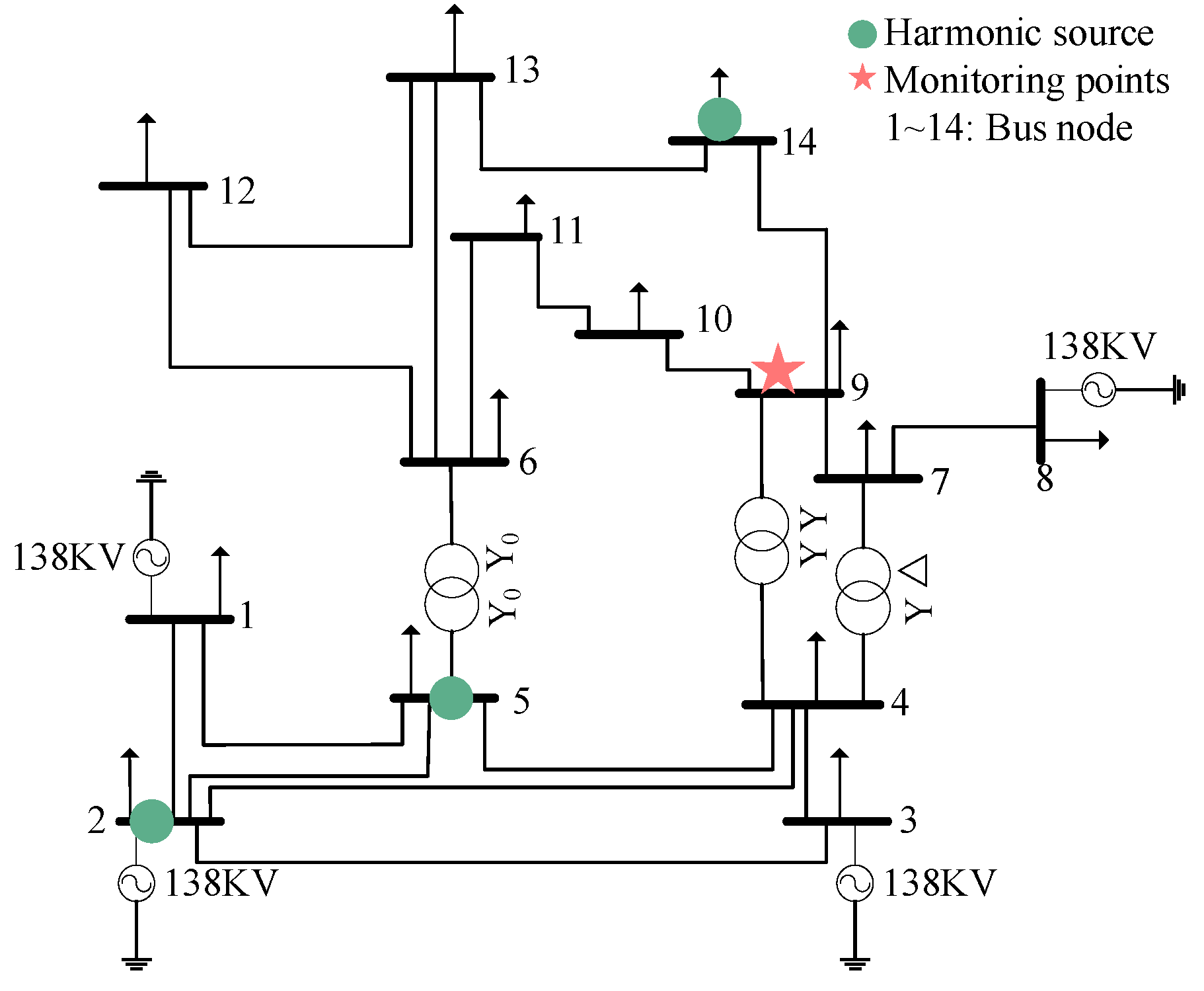

5. Simulation
6. Discussion
7. Conclusions
- TTM model integrating time-frequency feature extraction.
- 2.
- Feasibility verification applied to actual scenarios.
Author Contributions
Funding
Data Availability Statement
Conflicts of Interest
References
- Sun, Y.Y.; Li, S.R.; Shi, F. Division of responsibilities for multiple harmonic sources in distribution networks containing distributed harmonic sources. Proc. CSEE 2019, 39, 5389–5398. [Google Scholar]
- Shao, Z.G.; Xu, H.B.; Xiao, S.Y. Harmonic problems in new energy grids. Power Syst. Prot. Control 2021, 49, 178–187. [Google Scholar]
- Ding, T.; Chen, H.K.; Wu, B. Overview of methods for locating multiple harmonic sources and quantifying harmonic responsibilities. Electr. Power Autom. Equip. 2020, 40, 19–30. [Google Scholar]
- Farhoodnea, M.; Mohamed, A.; Shareef, H. A new method for determining multiple harmonic source locations in a power distribution system. In Proceedings of the IEEE International Conference on Power and Energy, Kuala Lumpur, Malaysia, 29 November–1 December 2010. [Google Scholar]
- Xu, F.; Yang, H.; Zhao, J. Study on constraints for harmonic source determination using active power direction. IEEE Trans. Power Deliv. 2018, 33, 2683–2692. [Google Scholar] [CrossRef]
- Wang, B.; Ma, G.; Xiong, J. Several sufficient conditions for harmonic source identification in power systems. IEEE Trans. Power Deliv. 2018, 33, 3105–3113. [Google Scholar] [CrossRef]
- Huang, C.; Lin, C. Multiple harmonic source classification using a self-organization feature map network with voltage current wavelet transformation patterns. Appl. Math. Model. 2015, 39, 5849–5861. [Google Scholar] [CrossRef]
- Jopri, M.; Abdullah, A.; Karim, R. Accurate harmonic source identification using S transform. Telecommun. Comput. Electron. Control 2020, 18, 2708–2717. [Google Scholar] [CrossRef]
- Karimzadeh, F.; Esmaeili, S.; Hosseinian, S.H. A Novel method for noninvasive estimation of utility harmonic impedance based on complex independent component analysis. IEEE Trans. Power Deliv. 2015, 30, 1843–1852. [Google Scholar] [CrossRef]
- Gao, P.; Tian, M.; Wang, L. Harmonic source identification method based on sinusoidal approximation. J. Phys. Conf. Ser. 2022, 2290, 012054. [Google Scholar] [CrossRef]
- Zhang, Y.; Ruan, Z.X.; Shao, Z.G. Division of responsibilities for multi harmonic sources for distributed power grid connection. Proc. CSU—EPSA 2022, 34, 56–64. [Google Scholar]
- Eslami, A.; Negnevitsky, M.; Franklin, E. Review of AI applications in harmonic analysis in power systems. Renew. Sustain. Energy Rev. 2022, 154, 1–26. [Google Scholar] [CrossRef]
- Anggriawan, D.O.; Wahjono, E.; Sudiharto, I. Identification of short duration voltage variations based on short time fourier transform and artificial neural network. In Proceedings of the International Electronics Symposium, Surabata, Indonesia, 29–30 September 2020. [Google Scholar]
- Ge, X.L.; Liu, Y.W. A dynamic parameter model of harmonic source networks. IEEE Trans. Power Deliv. 2020, 35, 1093–1101. [Google Scholar] [CrossRef]
- Li, Q. Research on Harmonic Source Identification Method Based on Harmonic Monitoring Data. Master’s Thesis, Northern University of Technology, Beijing, China, 2020. [Google Scholar]
- Available online: https://arxiv.org/abs/1706.03762 (accessed on 8 January 2024).
- Xu, S.; Liu, Z.Y.; Li, Y.C. Research on intelligent detection methods for false data injection attacks in battery energy storage systems. Proc. CSEE 2023, 43, 6628–6639. [Google Scholar]
- Gao, F.J.; Wang, H.Y.; Dang, R. Interpretability analysis and model update research of transformer based transient stability assessment mode. Power Syst. Prot. Control 2023, 51, 15–25. [Google Scholar]
- Ruan, C.; Qi, L.H.; Wang, H. Demand response intelligent recommendation combining knowledge graph and neural tensor network. Power Syst. Technol. 2021, 45, 2131–2140. [Google Scholar]
- Liang, Y.; Li, K.J.; Ma, Z. Multilabel classification model for type recognition of single-phase-to-ground fault based on KNN-Bayesian method. IEEE Trans. Ind. Appl. 2021, 57, 1294–1302. [Google Scholar] [CrossRef]
- Jin, G.; Zhu, Q.Z.; Meng, Y. Multilabel classification algorithm for power quality disturbances based on multi-layer limit learning machines. Power Syst. Prot. Control 2020, 48, 96–105. [Google Scholar]
- Qu, T.; Ren, Y.; Lin, H.X.; Du, D.L.; Chen, B.X.; Li, P.Z.; Lv, R.Y. Power Supply Quality—Harmonics in Public Power Supply Networks; China Standard Press: Beijing, China, 1994; pp. 1–8. [Google Scholar]
- Zhang, Z.; Jia, J.; Wan, Y. TransR*: Representation learning model by flexible translation and relation matrix projection. J. Intell. Fuzzy Syst. 2021, 40, 1–9. [Google Scholar] [CrossRef]
- Wu, D.; Zhao, J.; Li, M. A knowledge representation method for multiple pattern embeddings based on entity-relation mapping matrix. In Proceedings of the International Joint Conference on Neural Networks (IJCNN), Padua, Italy, 18–23 July 2022. [Google Scholar]
- Jopri, M.H.; Ab Ghani, M.R.; Abdullah, A.R.; Manap, M.; Sutikno, T.; Too, J. K-nearest neighbor and naïve Bayes based diagnostic analytic of harmonic source identification. Bull. Electr. Eng. Inform. 2020, 9, 2650–2657. [Google Scholar] [CrossRef]
- Mubarok, A.F.; Octavira, T.; Sudiharto, I.; Wahjono, E.; Anggriawan, D.O. Identification of harmonic loads using fast fourier transform and radial basis Function Neural Network. In Proceedings of the 2017 International Electronics Symposium on Engineering Technology and Applications (IES-ETA), Surabaya, Indonesia, 26–27 September 2017. [Google Scholar]
- Zhao, Z.; Lv, N.; Xiao, R. A novel penetration state recognition method based on lstm with auditory attention during pulsed GTAW. IEEE Trans. Ind. Inform. 2023, 19, 9565–9575. [Google Scholar] [CrossRef]
- Nguyen, C.; Hoang, T.M.; Cheema, A.A. Channel estimation using CNN-LSTM in RIS-NOMA assisted 6G network. IEEE Trans. Mach. Learn. Commun. Netw. 2023, 1, 43–60. [Google Scholar] [CrossRef]
- Saha, T.; Ramesh, S.J.; Saha, S. BERT-Caps: A transformer-based capsule network for tweet act classification. IEEE Trans. Comput. Soc. Syst. 2020, 7, 1168–1179. [Google Scholar] [CrossRef]
Reference | Method | Advantage | Shortcoming |
---|---|---|---|
[5] | Harmonic Power Method | Simple and easy to operate. | Prefer to qualitatively explore whether there are harmonic sources in the grid or on which side of the directional analysis. |
[6] | Harmonic Impedance Method | Able to consider the impedance characteristics of the system. | Requires accurate harmonic impedance information. |
[7,8,9] | Signal Processing Tech | Can handle nonlinear and time-varying signals, suitable for real-time applications. | Sensitive to noise and interference, more sensitive to parameter selection. |
[10] | Mathematical Statistics | Provides rigorous analysis and inference of data. | Strict assumptions about data distribution and may not be able to handle nonlinear relationships. |

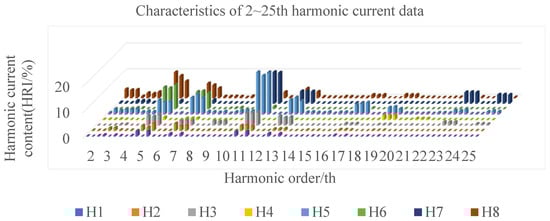

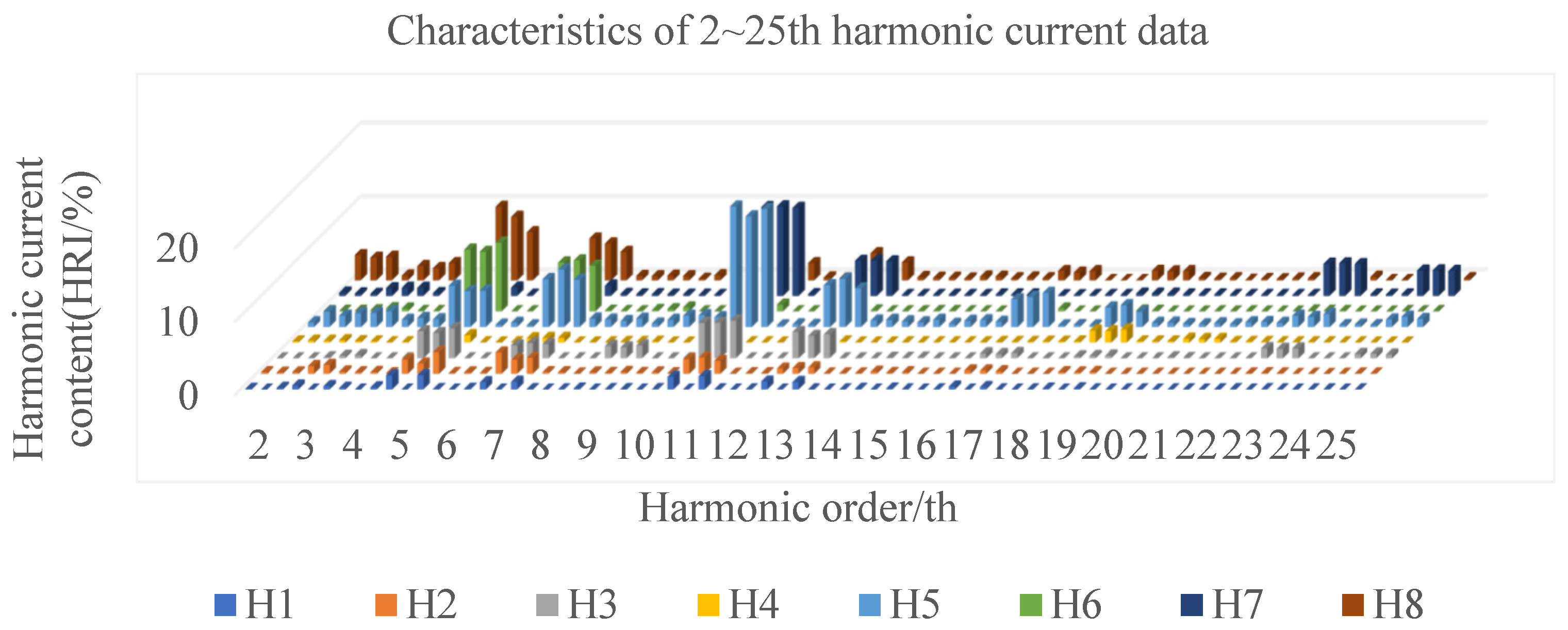

Harmonic Order/th | Im | |||||||
---|---|---|---|---|---|---|---|---|
H1 | H2 | H3 | H4 | H5 | H6 | H7 | H8 | |
3 | 0.173 | 0.245 | 0.018 | 0.153 | 0.094 | 0.017 | 0.073 | 0.049 |
5 | 0.624 | 0.453 | 0.482 | 0.487 | 0.277 | 0.781 | 0.074 | 0.734 |
7 | 0.329 | 0.674 | 0.230 | 0.277 | 0.321 | 0.619 | 0.099 | 0.418 |
9 | 0.044 | 0.048 | 0.223 | 0.041 | 0.057 | 0.018 | 0.014 | 0.043 |
11 | 0.564 | 0.466 | 0.631 | 0.041 | 0.805 | 0.069 | 0.844 | 0.298 |
13 | 0.354 | 0.170 | 0.469 | 0.056 | 0.281 | 0.020 | 0.333 | 0.271 |
15 | 0.025 | 0.073 | 0.010 | 0.023 | 0.032 | 0.007 | 0.012 | 0.019 |
17 | 0.132 | 0.111 | 0.088 | 0.041 | 0.186 | 0.027 | 0.009 | 0.093 |
19 | 0.044 | 0.056 | 0.033 | 0.754 | 0.131 | 0.010 | 0.022 | 0.096 |
21 | 0.004 | 0.005 | 0.016 | 0.247 | 0.019 | 0.003 | 0.009 | 0.007 |
23 | 0.015 | 0.012 | 0.180 | 0.033 | 0.076 | 0.012 | 0.306 | 0.034 |
25 | 0.010 | 0.008 | 0.076 | 0.018 | 0.052 | 0.006 | 0.240 | 0.019 |
Learning Rate | Epoch | Batch Size | Sigmoid Threshold |
---|---|---|---|
0.0005 | 300 | 64 | 0.5 |
Harmonic | Micro-Precision | Micro-Recall | Micro-F1 | HL | ||||
---|---|---|---|---|---|---|---|---|
Time-Frequency | Frequency | Time-Frequency | Frequency | Time-Frequency | Frequency | Time-Frequency | Frequency | |
H1 | 0.996 | 0.999 | 0.999 | 0.899 | 0.997 | 0.946 | 0.002 | 0.021 |
H2 | 1.000 | 1.000 | 1.000 | 1.000 | 1.000 | 1.000 | 0.000 | 0.000 |
H3 | 0.992 | 0.967 | 0.998 | 0.986 | 0.995 | 0.976 | 0.001 | 0.003 |
H4 | 1.000 | 0.998 | 1.000 | 0.982 | 1.000 | 0.990 | 0.000 | 0.004 |
H5 | 1.000 | 0.985 | 0.998 | 0.889 | 0.999 | 0.935 | 0.001 | 0.023 |
H6 | 0.997 | 0.982 | 1.000 | 1.000 | 0.998 | 0.991 | 0.000 | 0.000 |
H7 | 0.999 | 0.898 | 0.989 | 0.971 | 0.994 | 0.933 | 0.003 | 0.006 |
H8 | 1.000 | 0.997 | 1.000 | 1.000 | 1.000 | 0.998 | 0.000 | 0.000 |
Avg | 0.998 | 0.978 | 0.998 | 0.966 | 0.998 | 0.971 | 0.001 | 0.007 |
