Research on the Quantitative Assessment Method of HVDC Transmission Line Failure Risk during Wildfire Disaster
Abstract
:1. Introduction
2. Literature Review
3. Methodology and Analysis

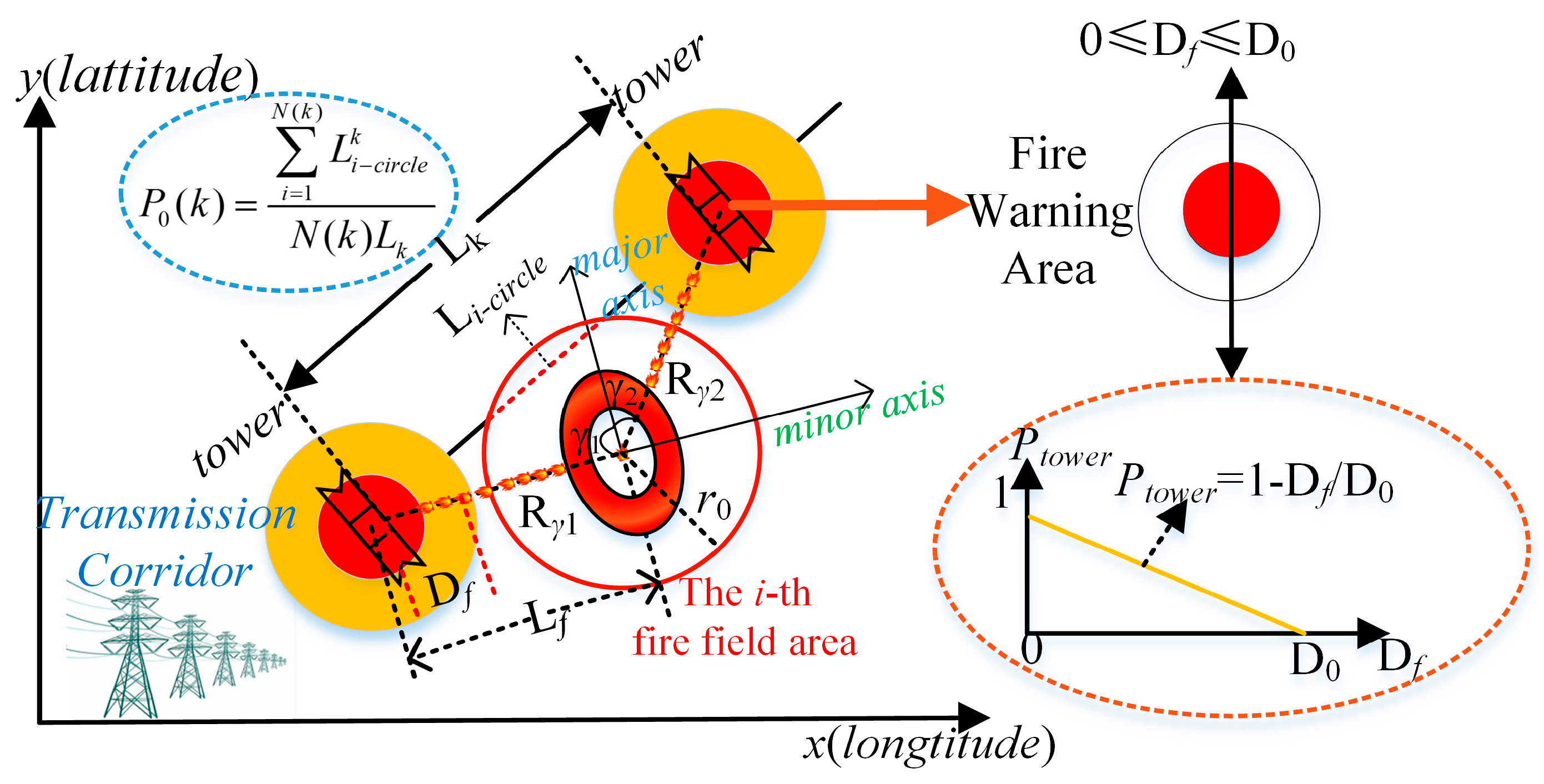

3.1. Probability Model of HVDC Line Failure during Wildfire Disasters

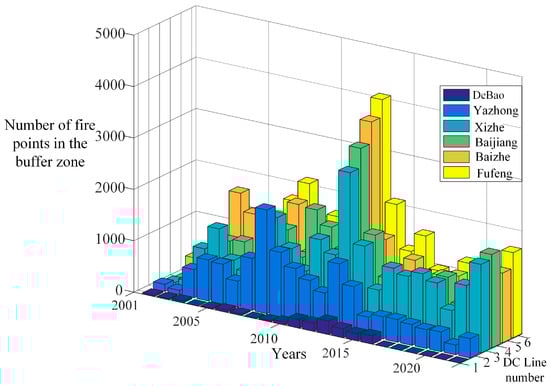

3.1.1. Influencing Factor of the Fire Points Number
3.1.2. Failure Probability Time-Varying Factor
3.1.3. HVDC Line Breakdown Risk Factors
3.2. Constructing Methodology of the Simplified Evaluation Index
3.3. ArcGIS Processing Module

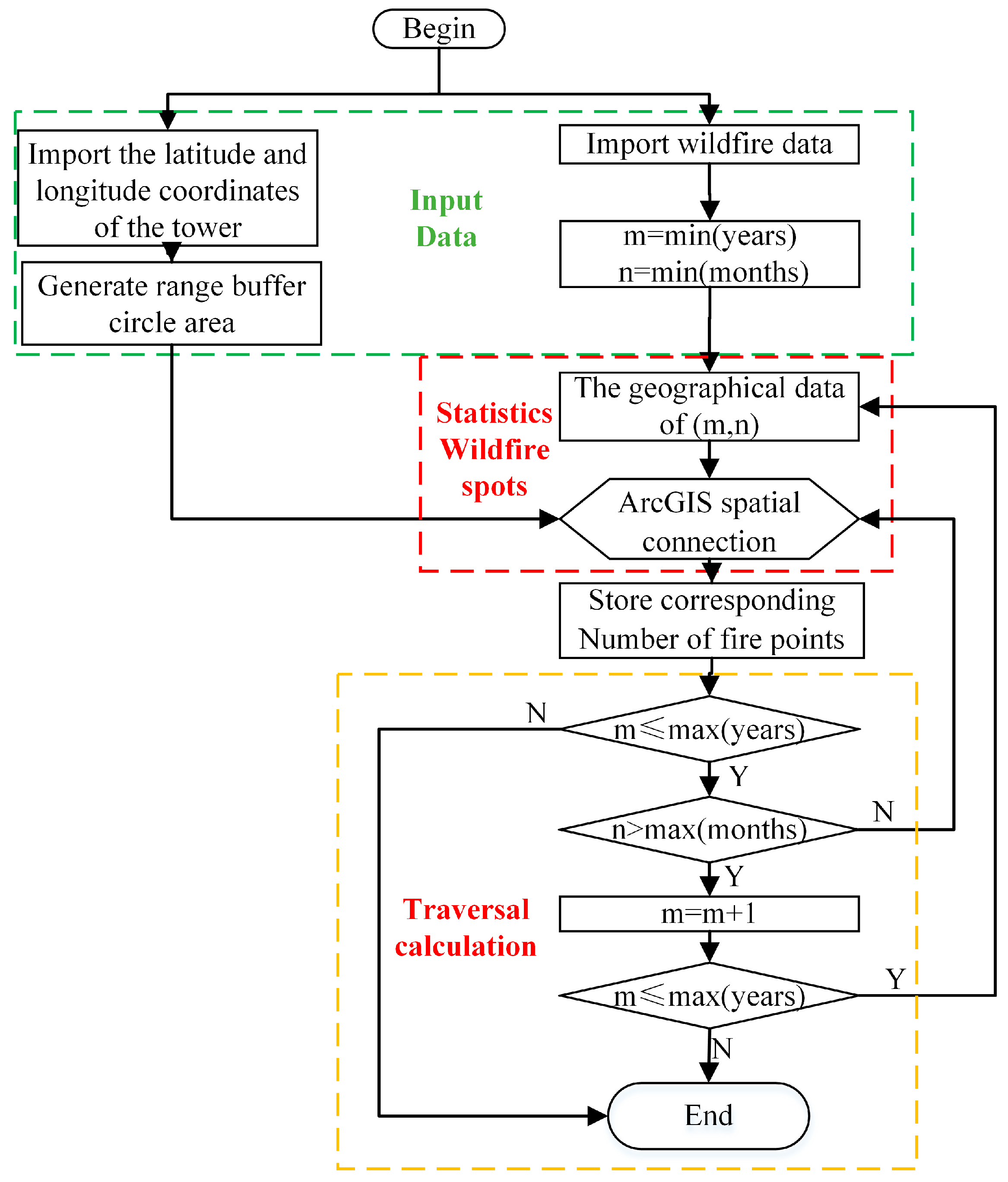

Algorithm 1 Batch rapid fire point counting process in the buffer zone |
Process: Automated batch statistics of the number of fire points within the impact area of transmission towers. |
Input: Latitude and longitude of transmission towers Longitude and latitude data of the wildfire |
Utilizing the ArcGIS Spatial Join module to perform statistical analysis on all fire points within the buffer zones of transmission towers for the specified date. end for end for |
Output: The number of fire points in the transmission towers buffer zone. |
4. Case Study Results
4.1. Introduction to the Calculation System

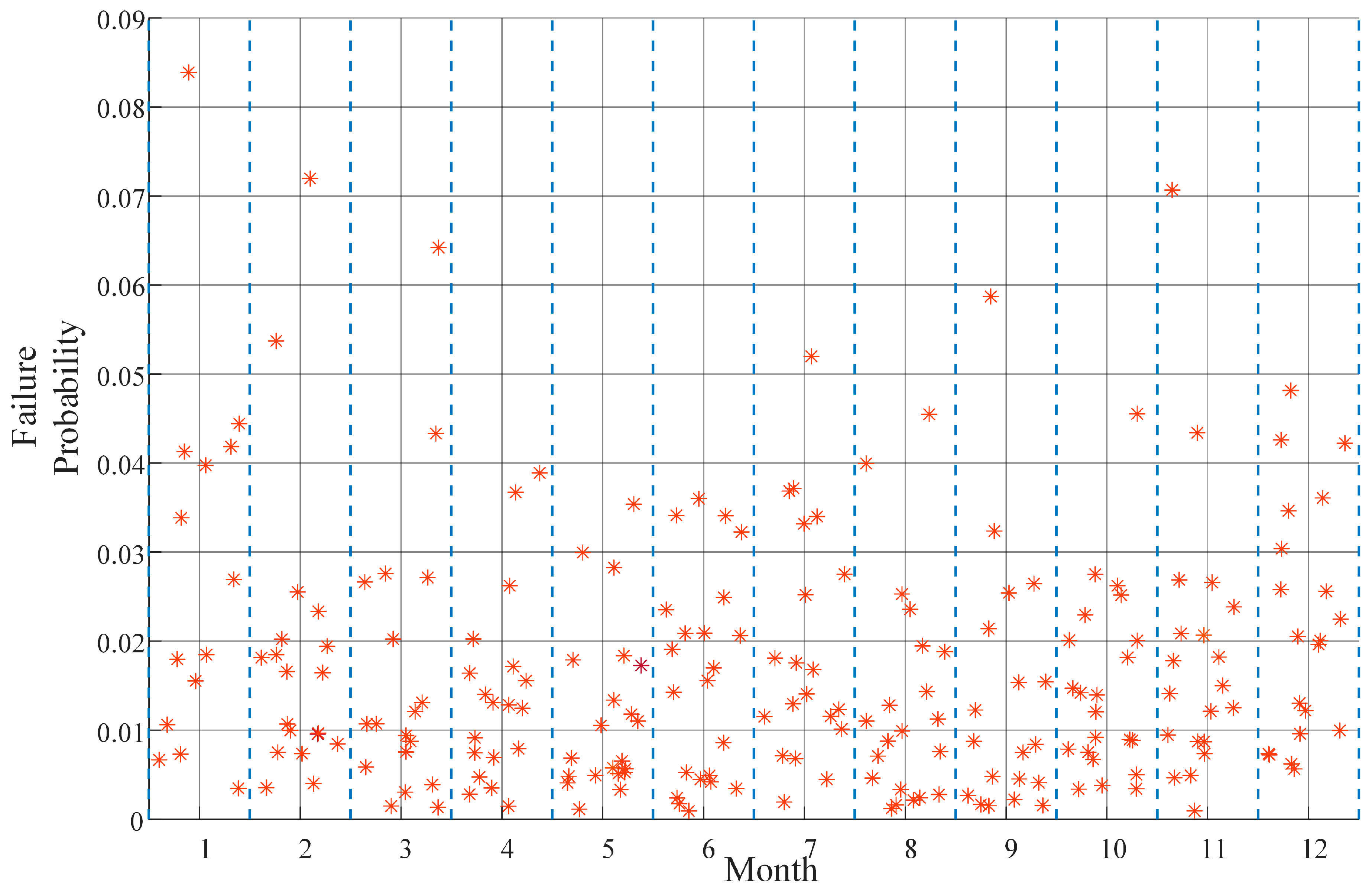

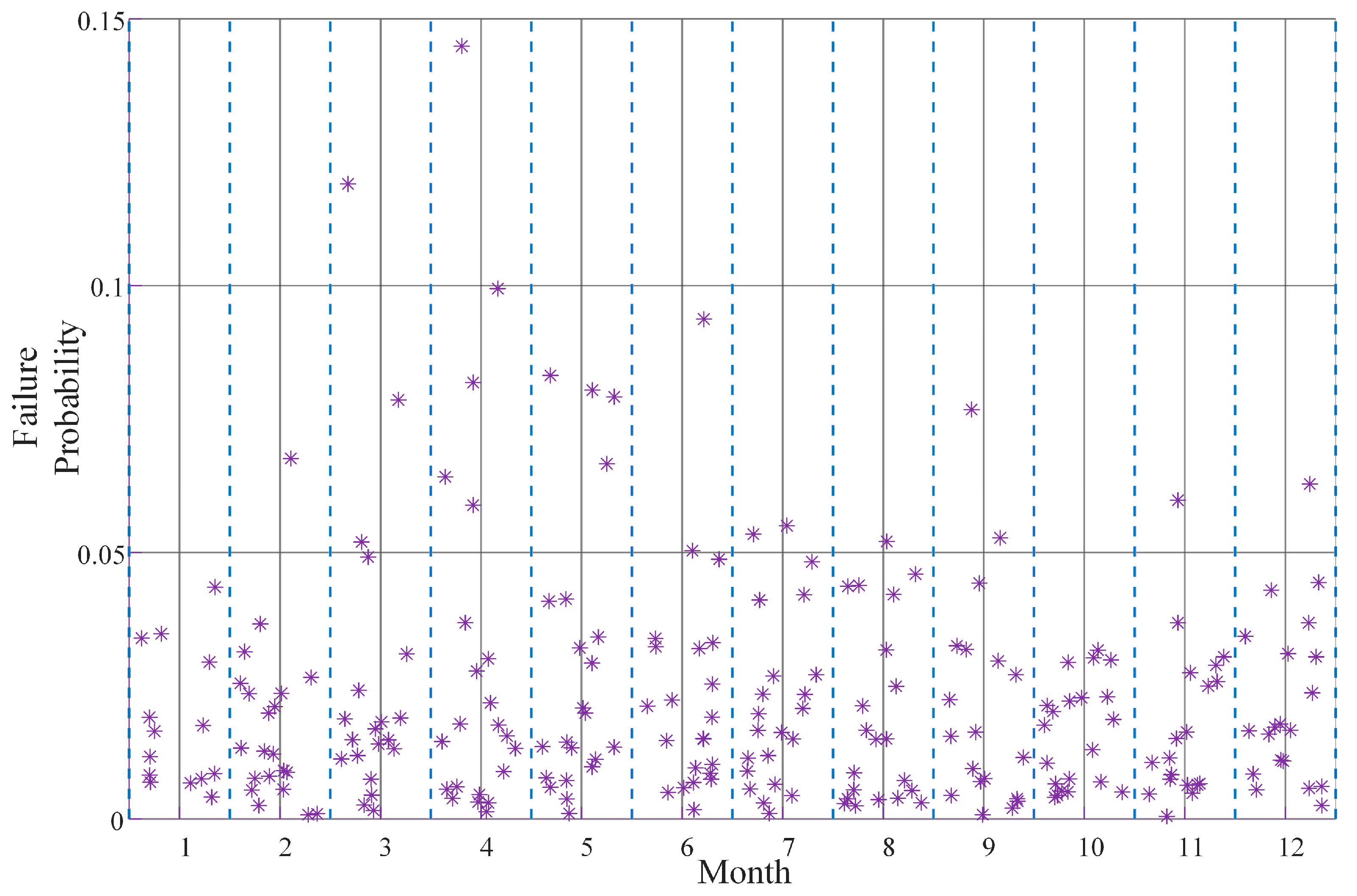

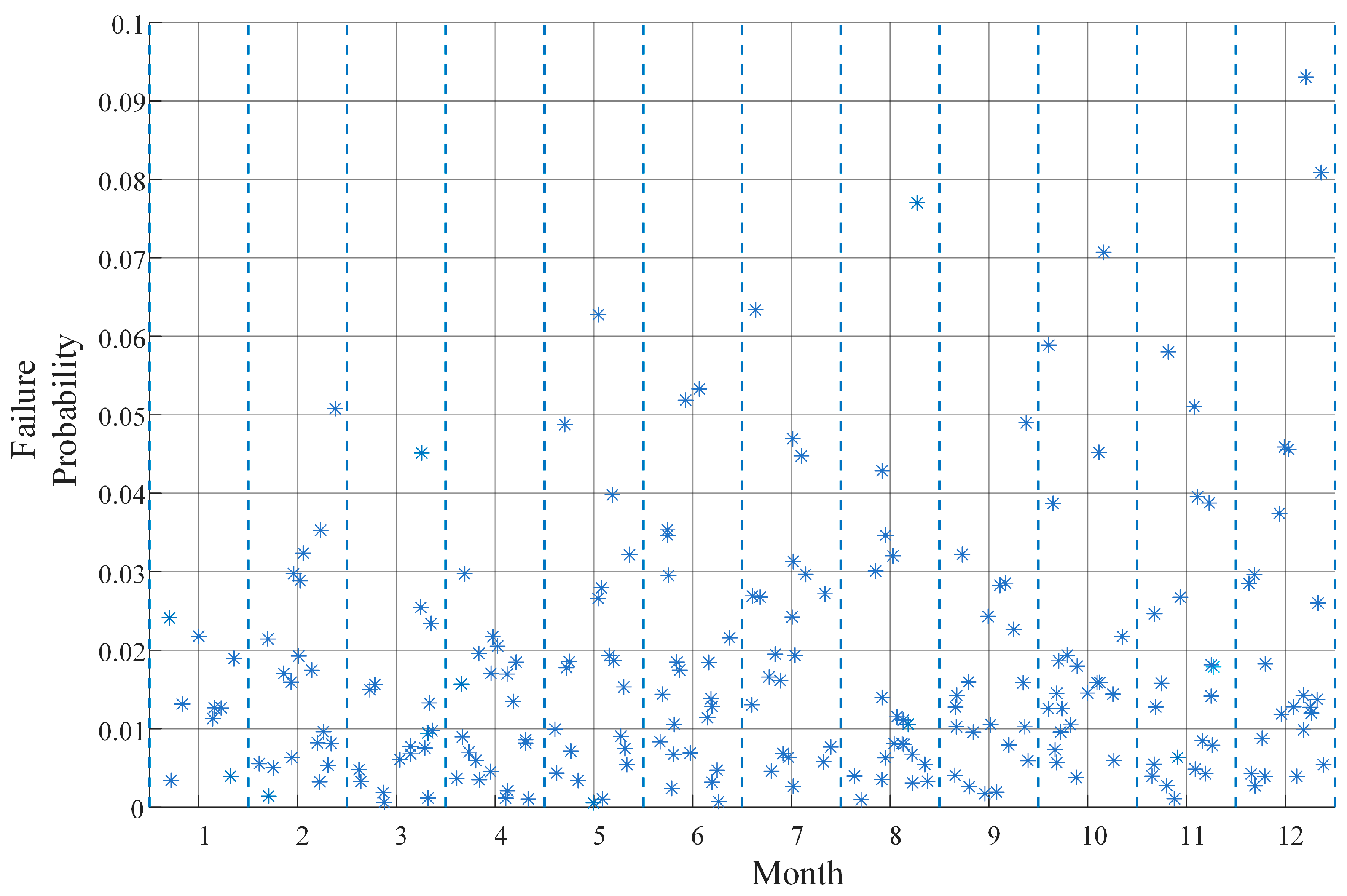

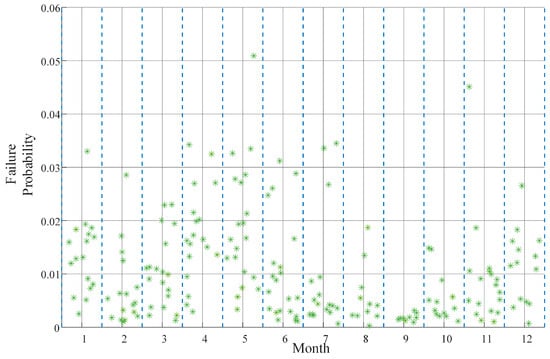

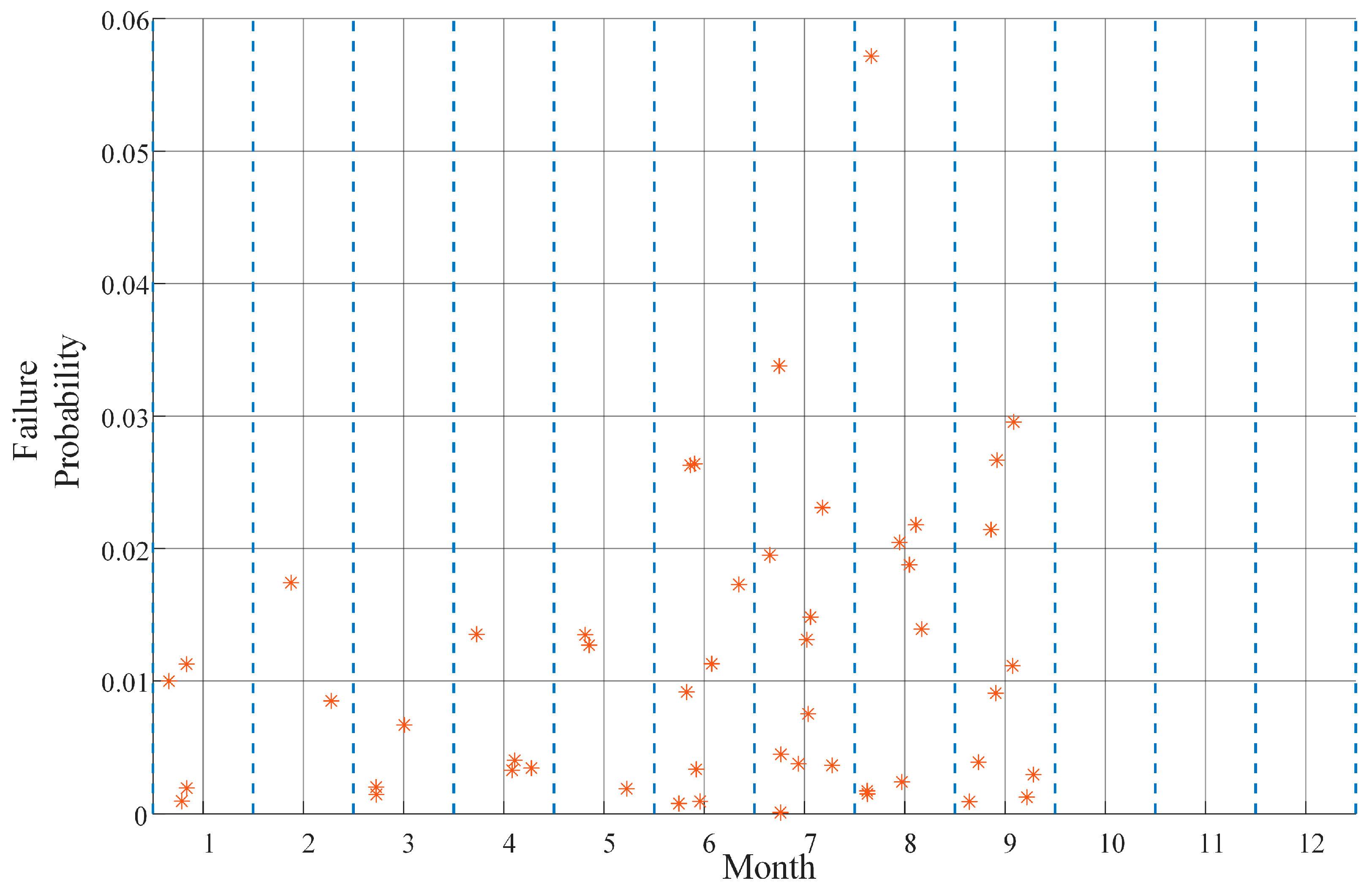

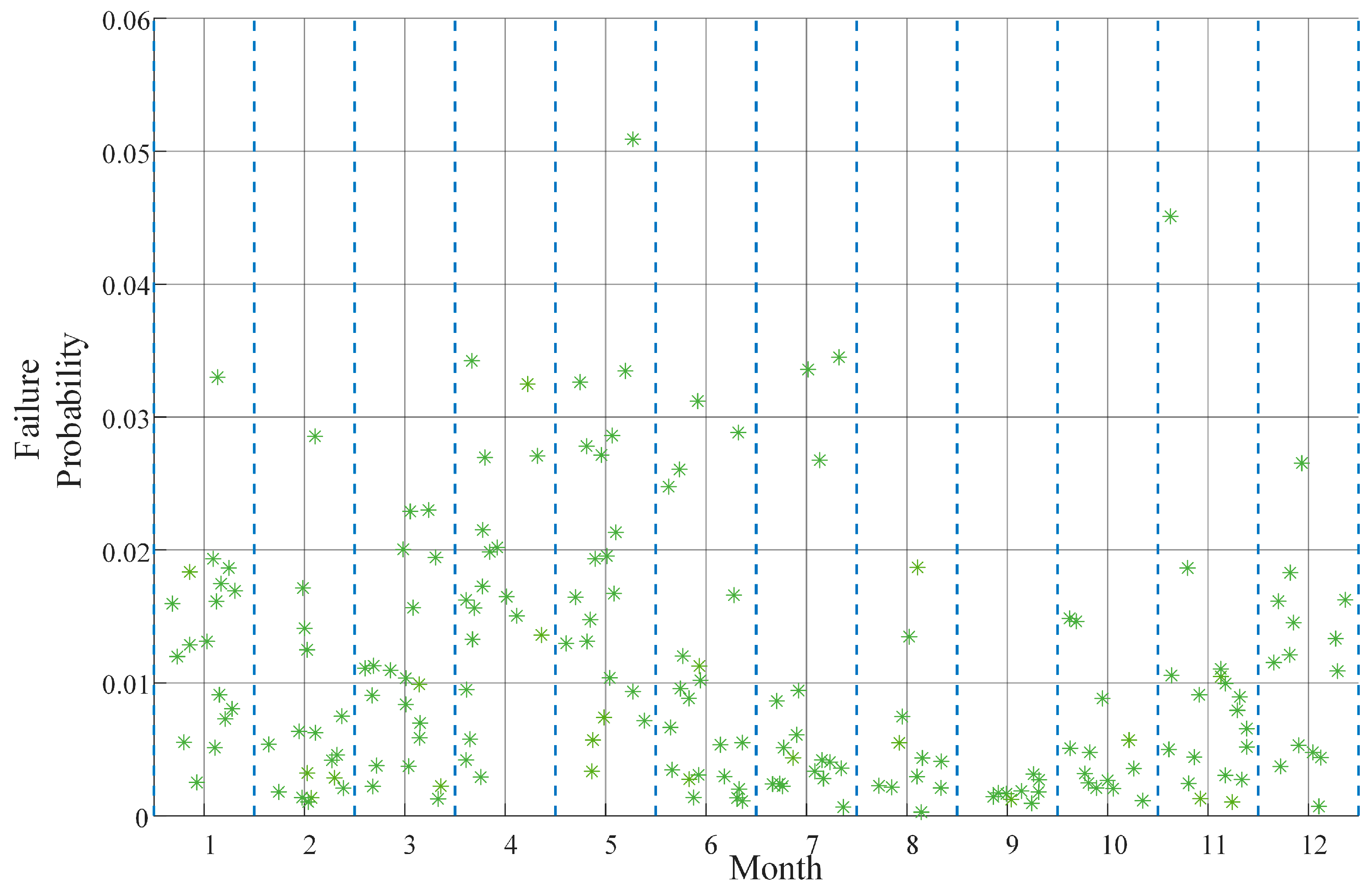

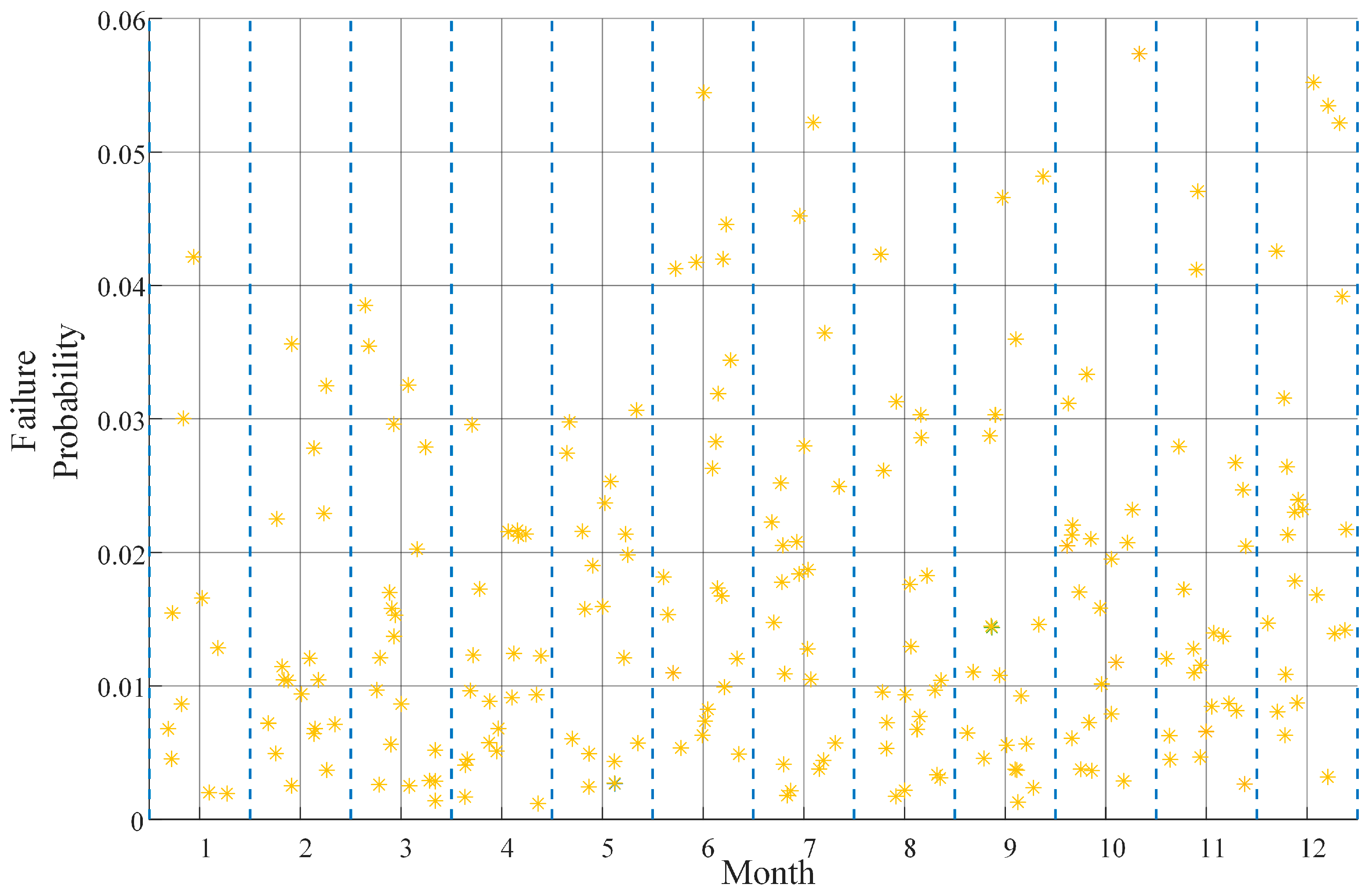

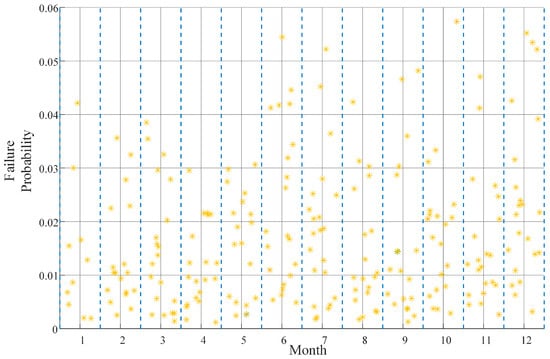

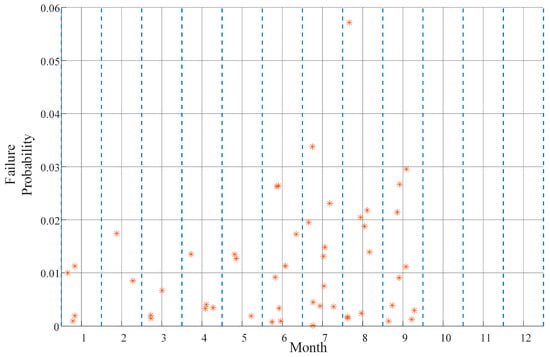

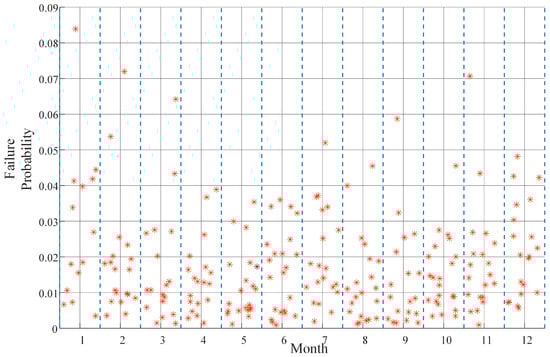

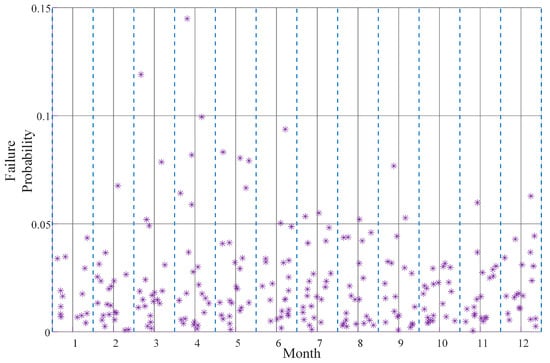

4.2. Analysis of Failure Probability Calculation Results

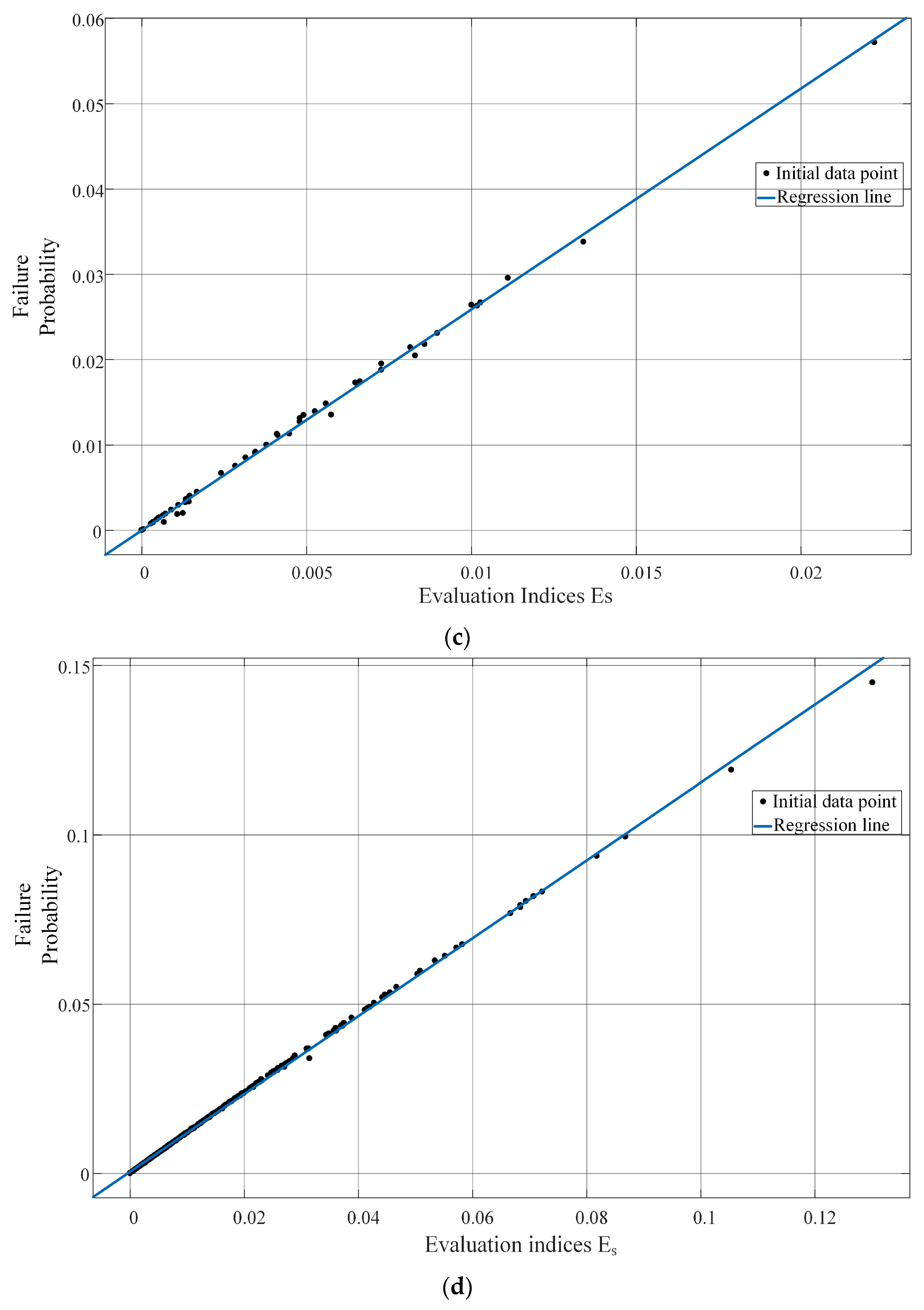

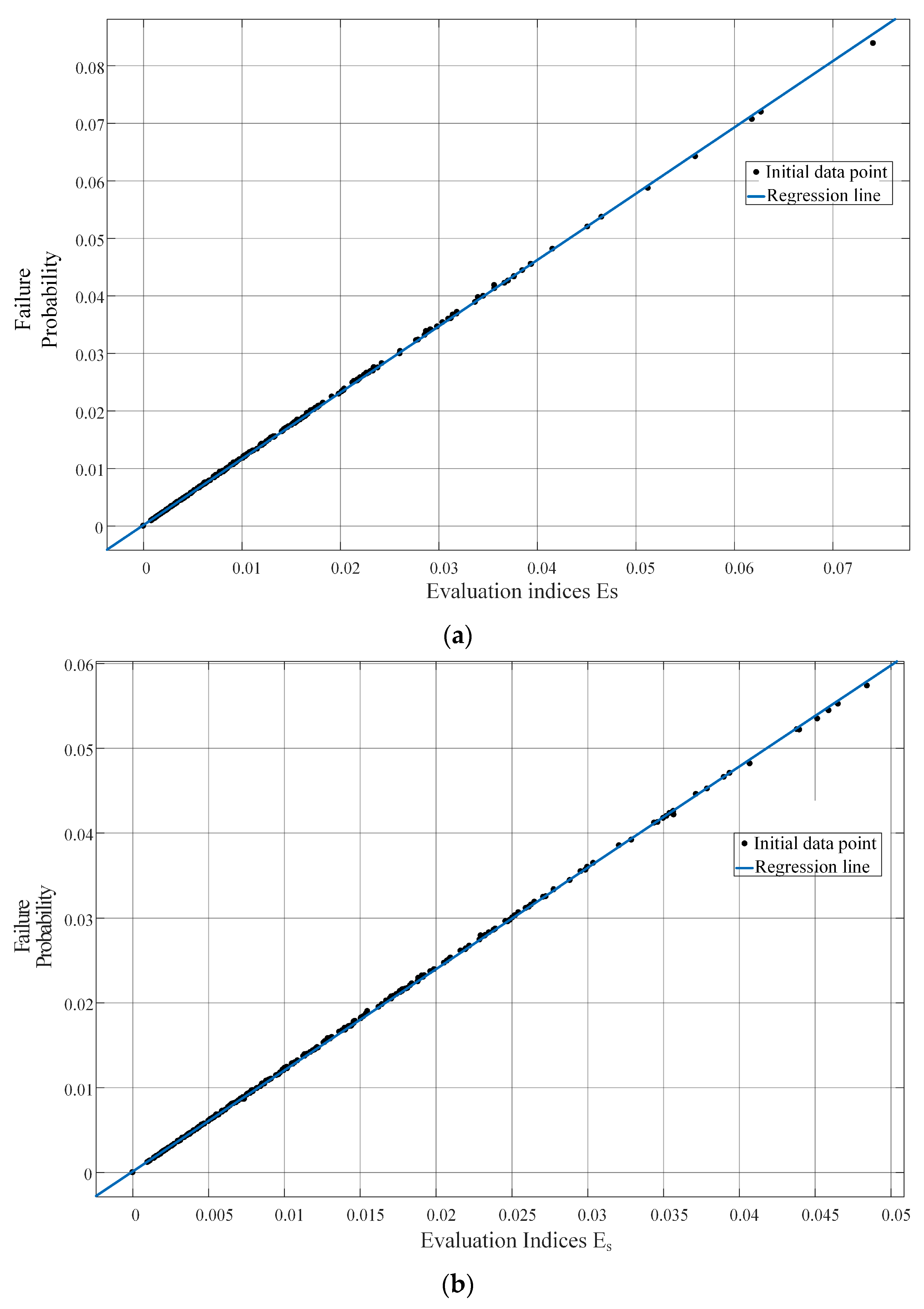

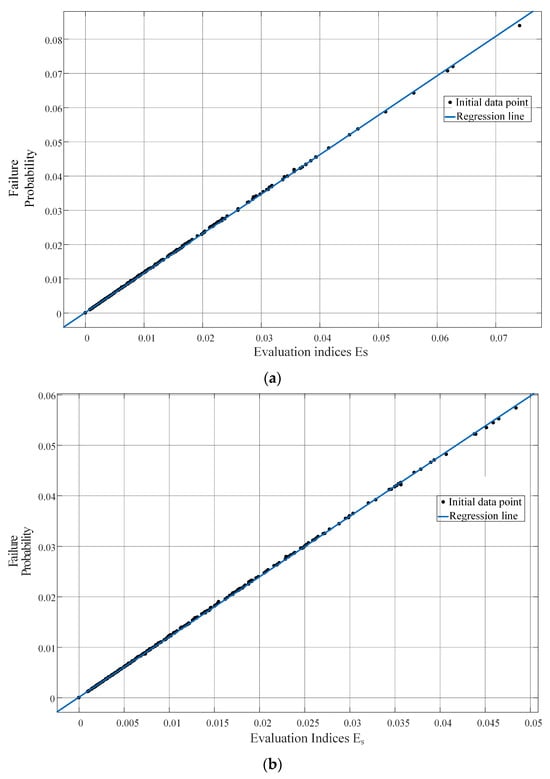

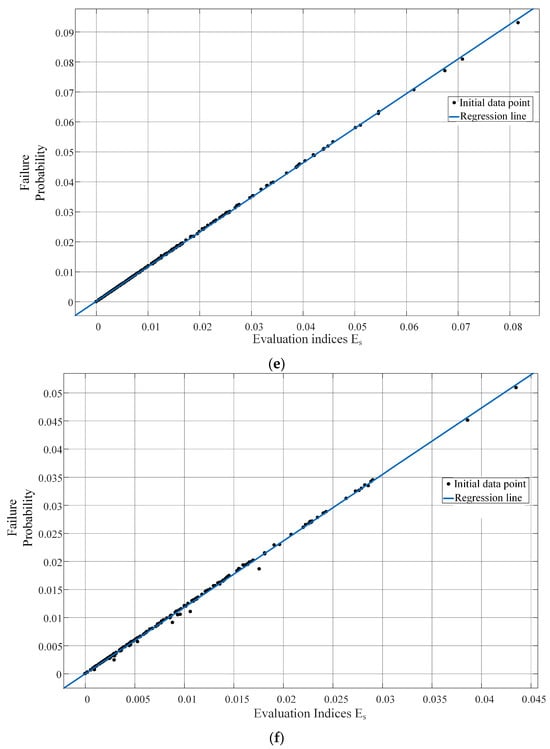

4.3. Evaluation Indicator Effectiveness Analysis
5. Discussion
6. Conclusions
- (1)
- The proposed method for calculating failure probability comprehensively considers various factors influencing wildfire disasters on HVDC transmission lines. It can effectively evaluate the impact of wildfire disasters on HVDC transmission lines. In previous studies about calculating the transmission line failure probability during wildfire disasters, as shown in references [14,15], the multiple influences of the various wildfire spots in reference [15] and the influence of different transmission line characteristics, such as voltage level [14], are not considered. This paper establishes a calculating model considering the various wildfire spots, the diffusion of wildfire disasters, and the transmission line characteristics.
- (2)
- For actual HVDC transmission lines, the failure risk assessment index proposed in this article can accurately evaluate the failure risk of HVDC transmission lines during wildfire disasters and has practical application value. The simplified evaluation index is proposed to accurately assess the failure risk of transmission lines during wildfire disasters, and its accuracy is verified by regression analysis. By using this simplified evaluation index in the large-scale transmission grid, the calculation time can be reduced, and the computational efficiency can be improved.
- (3)
- This paper proposes a processing method of various wildfire spots and develops an automatic processing toolbox based on the ArcGIS. This allows us to obtain the wildfire spots numbers in the buffer zone accurately and rapidly and provides the critical information to calculate the simplified evaluation index.
- (1)
- The computing accuracy of the simplified index and the proposed calculating modelshould be validated by comparing them with the real failure data of transmission lines.
- (2)
- The potential future work will concentrate on the validation of the proposed calculating model accuracy and expand this model and its simplification method to calculate the transmission line failure during other extreme disasters, such as typhoons and earthquakes.
Author Contributions
Funding
Data Availability Statement
Conflicts of Interest
References
- Liang, Y.; Zhou, L.; Chen, J.; Huang, Y.; Wei, R.; Zhou, E. Monitoring and Risk Assessment of Wildfires in the Corridors of High-Voltage Transmission Lines. IEEE Access 2020, 8, 170057–170069. [Google Scholar] [CrossRef]
- Erickson, E.; Slobodin, R.; Poshtan, M.; Taufik, T.; Callenes, J. Using Power Infrastructures for Wildfire Detection in California. In Proceedings of the 2020 IEEE Power & Energy Society Innovative Smart Grid Technologies Conference (ISGT), Washington, DC, USA, 17–20 February 2020; pp. 1–5. [Google Scholar]
- Cai, S.K.; Li, S.; Wang, J.Y.; Meng, G.J.; Cui, J.J. Research on monitoring and early warning technology of transmission line wildfire. Manuf. Autom. 2023, 45, 31–35. [Google Scholar]
- Wu, T.; Hu, Y.; Ruan, J.-J.; Liu, K.; Liu, T.; Chen, C. Air gap breakdown mechanism of model AC transmission line under forest fires. High Volt. Technol. 2011, 37, 1115–1122. [Google Scholar]
- Yang, C.L.; Ning, X.; Xu, H.K.; Chen, T.X.; Zeng, C.X.; Yang, S. Overview of wildfire monitoring and early warning for power grid demand. Power Syst. Technol. 2023, 47, 4765–4777. [Google Scholar]
- Li, J.; Cao, Y.X.; Zhu, J.; Luo, D.H. Research on real-time radar monitoring technology and its application to forest fire around transmission line. Sichuan Electr. Power Technol. 2021, 44, 53–57. [Google Scholar]
- Anderson, D.H.; Catchpole, E.A.; De Mestre, N.J.; Parkes, T. Modelling the spread of grass fires. ANZIAM J. 1982, 23, 451–466. [Google Scholar] [CrossRef]
- Zhou, Z.; Ai, X.; Lu, J.; Liu, X. A Real-time Analysis Approach and Its Application of Transmission Line Trip Risk due to Wildfire Disaster. Proc. Chin. Soc. Electr. Eng. 2017, 37, 5321–5330. [Google Scholar]
- Pu, Z.; Xiong, Y.; Wu, T.; Lu, Z.; Fang, C. Simulation Analysis on Influence of Combustion Particles on the Gap Electric Field under DC Voltage. In Proceedings of the 2018 IEEE International Conference on High Voltage Engineering and Application (ICHVE), Athens, Greece, 10–13 September 2018; pp. 1–4. [Google Scholar]
- Li, P.; Huang, D.; Ruan, J.; Wei, H.; Qin, Z.; Long, M.; Wu, T. Influence of forest fire particles on the breakdown characteristics of air gap. IEEE Trans. Dielectr. Electr. Insul. 2016, 23, 1974–1984. [Google Scholar] [CrossRef]
- Zhou, E.; Yang, F.; Zhang, L. Wildfire Early Warning of Power Grid Failure Rate Based on Modified Ellipse Model. In Proceedings of the 2019 IEEE 3rd Conference on Energy Internet and Energy System Integration (EI2), Changsha, China, 8–10 November 2019; pp. 815–819. [Google Scholar]
- Fonseca, J.R.; Tan, A.L.; Silva, R.P.; Monassi, V.; Assuncao, L.A.R.; Junqueira, W.S.; Melo, M.O.C. Effects of agricultural fires on the performance of overhead transmission lines. IEEE Trans. Power Deliv. 1990, 5, 687–694. [Google Scholar] [CrossRef]
- Muniappan, M. A comprehensive review of DC fault protection methods in HVDC transmission systems. Prot. Control Mod. Power Syst. 2021, 6, 1. [Google Scholar] [CrossRef]
- Su, C.; Yin, C.; Li, F.; Han, L. A Novel Recovery Strategy to Suppress Subsequent Commutation Failure in an LCC-Based HVDC. Prot. Control Mod. Power Syst. 2024, 9, 38–51. [Google Scholar] [CrossRef]
- Yao, Z.; Zhang, Q.; Chen, P.; Zhao, Q. Research on Fault Diagnosis for MMC-HVDC Systems. Prot. Control Mod. Power Syst. 2016, 1, 8. [Google Scholar] [CrossRef]
- Lu, J.; Guo, J.; Jian, Z.; Xu, X. Optimal Allocation of Fire Extinguishing Equipment for a Power Grid Under Widespread Fire Disasters. IEEE Access 2018, 6, 6382–6389. [Google Scholar] [CrossRef]
- Zhou, W.; Chen, W.; Zhou, E.; Huang, Y.; Wei, R.; Zhou, Y. Prediction of Wildfire-induced Trips of Overhead Transmission Line based on data mining. In Proceedings of the 2020 IEEE International Conference on High Voltage Engineering and Application (ICHVE), Beijing, China, 6–10 September 2020; pp. 1–4. [Google Scholar]
- Kaufman, Y.J.; Justice, C.; Flynn, L.; Kendall, J.; Giglio, L.; Prins, E.; Setzer, A. Monitoring global fires from EOS-MODIS. J. Geophys. Res. 1998, 103, 215–239. [Google Scholar] [CrossRef]
- Qin, X.L.; Yi, H.R. A method to identify forest fire based on MODIS data. Fire Saf. Sci. 2004, 2, 83–89. [Google Scholar]
- Yankovich, E.P.; Baranovskiy, N.V.; Yankovich, K.S. ArcGIS for assessment and display of the probability of forest fire danger. In Proceedings of the 2014 9th International Forum on Strategic Technology (IFOST), Cox’s Bazar, Bangladesh, 21–23 October 2014; pp. 222–225. [Google Scholar]
- Shao, Z.; Lu, J.; Lu, Y.; Zou, Q.; Liu, C. Research and application of the control and protection strategy for the ±500kV Xiluodu-Guangdong double bipole HVDC project. In Proceedings of the 2011 4th International Conference on Electric Utility Deregulation and Restructuring and Power Technologies (DRPT), Weihai, China, 6–9 July 2011; pp. 88–93. [Google Scholar]
- Rao, H.; Zhang, D.; Zhao, X.; Guo, Q. Practice and Analyses of UHVDC Power Transmission. High Volt. Eng. 2015, 41, 2481–2488. [Google Scholar]
- Li, L. Technical characteristics and engineering application of UHV DC transmission. Autom. Electr. Power Syst. 2005, 2005, 5–6. [Google Scholar]
- Chen, M.; Rao, H.; Li, L.; Guo, J.; Li, X.; Xu, S. Analysis on the Main Wiring of Nan’ao VSC-HVDC Tranmission System. South. Power Syst. Technol. 2012, 6, 1–5. [Google Scholar]
- Giglio, L.; Chroeder, W.S. A global feasibility assessment of the bi-spectral fire temperature and area retrieval using MODIS data. Remote Sens. Environ. 2014, 152, 166–173. [Google Scholar] [CrossRef]
- Jarman, K.H. The Art of Data Analysis: How to Answer Almost Any Question Using Basic Statistics; Wiley Blackwell: Hoboken, NJ, USA, 2013; pp. 1–179. [Google Scholar] [CrossRef]
- Guo, P.-X.; Datta-Gupta, A.; Valko, P. Optimal Transformations for Multiple Regression: Application to Permeability Estimation From Well Logs. SPE Form. Eval. 1997, 12, 85–93. [Google Scholar]
- Hosmer, D.W.; Lemeshow, S.; Sturdivant, R.X. Applied Logistic Regression, 3rd ed.; Wiley: Hoboken, NJ, USA, 2013; pp. 1–510. [Google Scholar] [CrossRef]
Send node | Receiver | Length | Voltage |
---|---|---|---|
Baihetan | Zhejiang | 2121 (km) | 800 kV |
Baihetan | Jiangsu | 2080 (km) | 800 kV |
Deyang | Baoji | 534 (km) | 500 kV |
Fulong | Fengxian | 1907 (km) | 800 kV |
Shuanglong | Jinhua | 1680 (km) | 800 kV |
Yazhong | Boyanghu | 1696 (km) | 800 kV |
HVDC Line | SSE | |
---|---|---|
Baihetan-Zhejiang | 0.9998 | |
Baihetan-Jiangsu | 0.9999 | |
Deyang-Baoji | 0.9990 | |
Fulong-Fengxian | 0.9993 | |
Shuanglong-Jinhua | 0.9998 | |
Yazhong | 0.9994 |
