Novel Heuristic Optimization Technique to Solve Economic Load Dispatch and Economic Emission Load Dispatch Problems
Abstract
:1. Introduction
2. Literature Review
3. Formulation of ELD Problem
3.1. Formulation of Economic Dispatch along with Valve Point

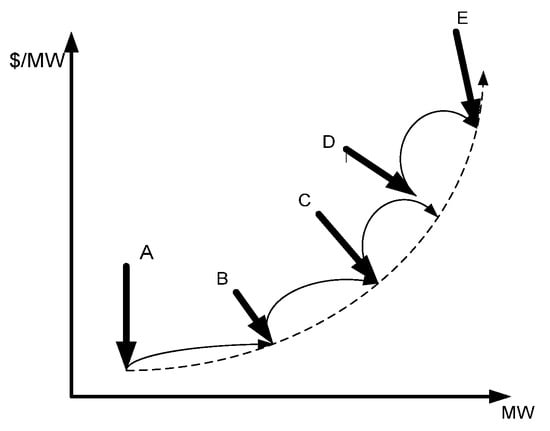

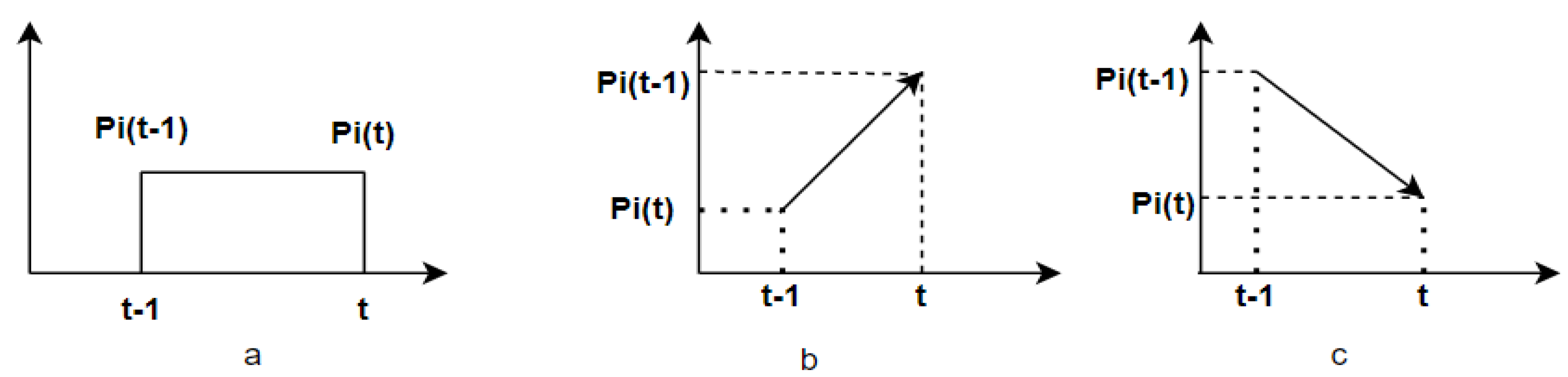

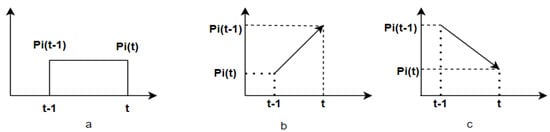

3.2. Formulation of the ELD with a Ramp Rate Limit
3.3. Formulation of the EELD Multi-Objective Problem
3.4. Constraints
3.4.1. Power Balance
3.4.2. Power Limits
4. Heuristic Optimization Technique
- It controls the movements of the particles in such a way that they cannot move away from the search area;
- It continuously changes the particles’ positions so the particles cannot stop during the iteration process until the final results are obtained; therefore, there is no need to update the velocity of the particles after every iteration;
- It also attracts the particles so they cannot move to the local solution.
4.1. Initialization of the Swarm
4.2. Updating the Velocity of the Particle
4.3. Updating the Particles’ Positions

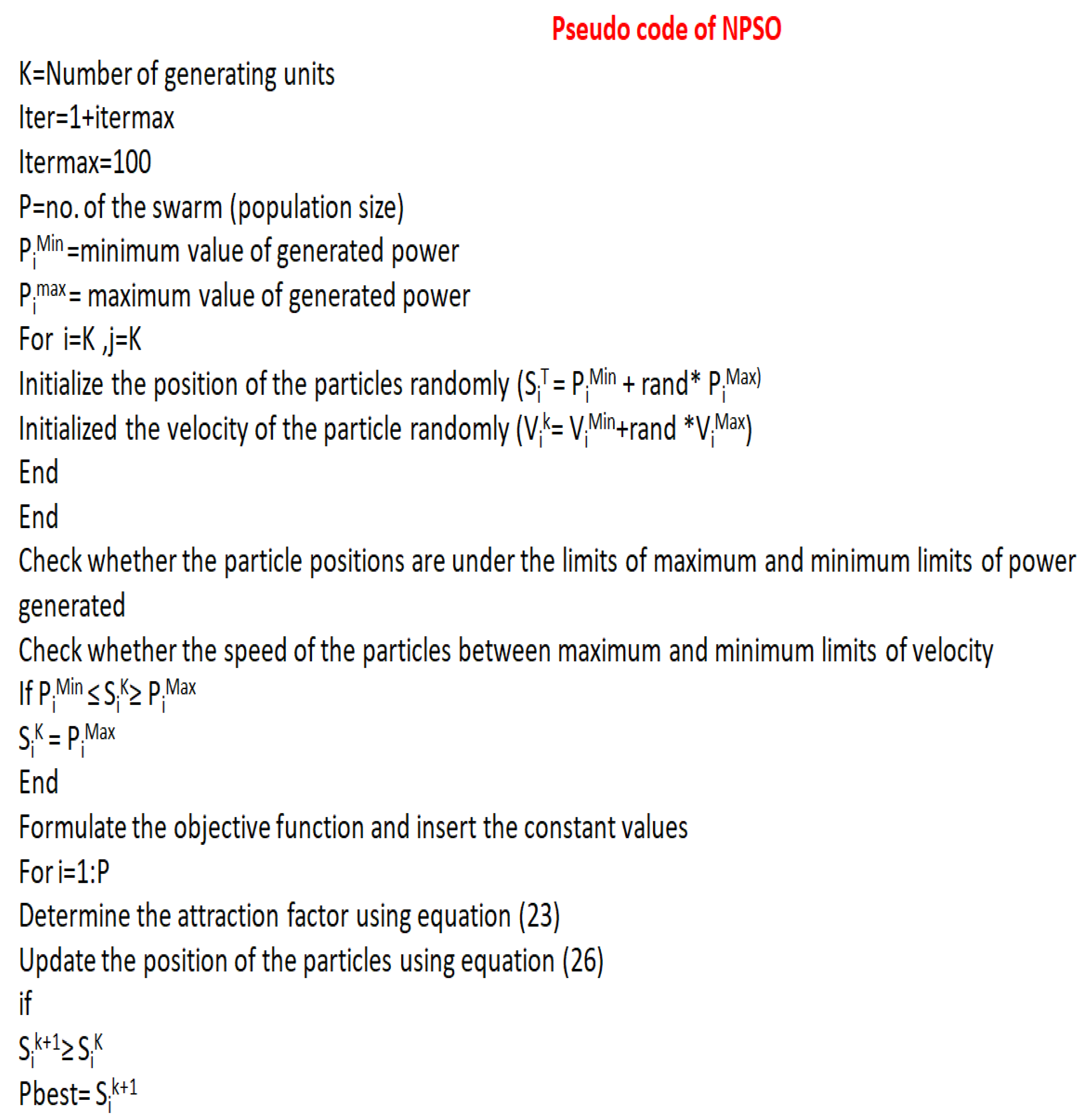

4.4. Algorithm of the Proposed MPSO
- ⮚
- Consider the number of particles;
- ⮚
- Define the number of iterations;
- ⮚
- Initialize the swarm using the minimum and maximum values of the generated power, as given in Equations (17) and (18);
- ⮚
- Initialize the velocity of the particles, as shown in Equations (19) and (20);
- ⮚
- Define the objective function of the ELD;
- ⮚
- Define the constraints;
- ⮚
- Initialize the pbest;
- ⮚
- Select the best global values;
- ⮚
- Update the velocity of the particles;
- ⮚
- Insert an attraction factor;
- ⮚
- Update the position of the particles;
- ⮚
- After completing the iteration, collect the best global values;
- ⮚
- Terminate the algorithm if the objective is fulfilled; otherwise, repeat the process again.

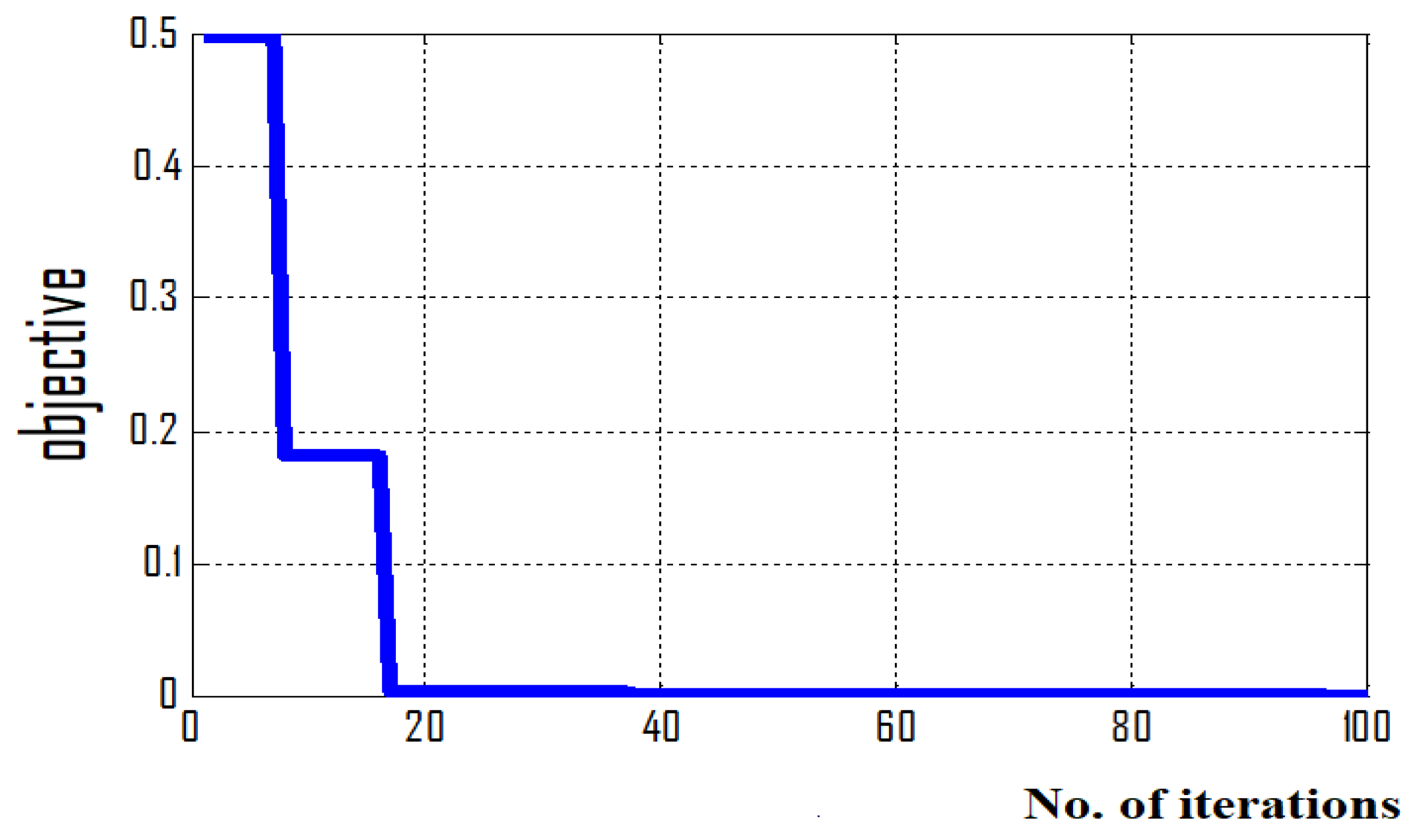

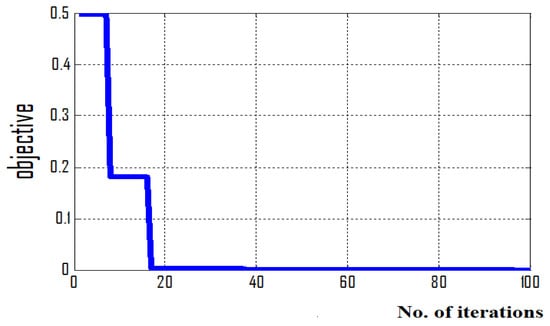

5. Case Study and Result Analysis
5.1. Case 1
5.2. Case 2
5.3. Case 3
6. Conclusions
Author Contributions
Funding
Data Availability Statement
Acknowledgments
Conflicts of Interest
Abbreviations
Total generation cost | |
Power generation cost function of the ith units | |
N | Total number of generating units |
Pi | Power of the ith generating unit |
ai, bi, and ci | Fuel cost coefficients [ai(USD/h), bi(USD/MWh), ci(USD/h) |
ELD cost function with valve loading effect | |
Ei and Fi | Valve loading coefficients of the ith generators [Ei(USD/h), Fi(1/MW)]. |
Ei(Pi)) | Environmental emission function |
di, ei, and fi, | Environmental emission coefficients[di(Ton/h), ei(Ton/MWh), fi(Ton/h)] |
and | Minimum and maximum generation of the power limits (MW). |
pbesti | Best previous position yielding for the ith particle |
gbest | Best position discovered by the whole population |
c1 and c2 | Acceleration coefficients |
rand1 and rand2 | Random numbers generated between zero and one |
Sik | Initial position of the randomly generated particle |
New position of the particles | |
Best global position of the particles; N is the population size | |
PD | Demand of power (load demand) |
PL | Line losses |
Initial velocity of the particles | |
Sd | Attraction factor |
