Static and Dynamic Magnetic Properties of Polycrystalline Hexaferrites of the Ba2Ni2-xCuxFe12O22 System
Abstract
:1. Introduction
2. Materials and Methods
2.1. Preparation of Samples
2.2. Characterization
3. Results and Discussion

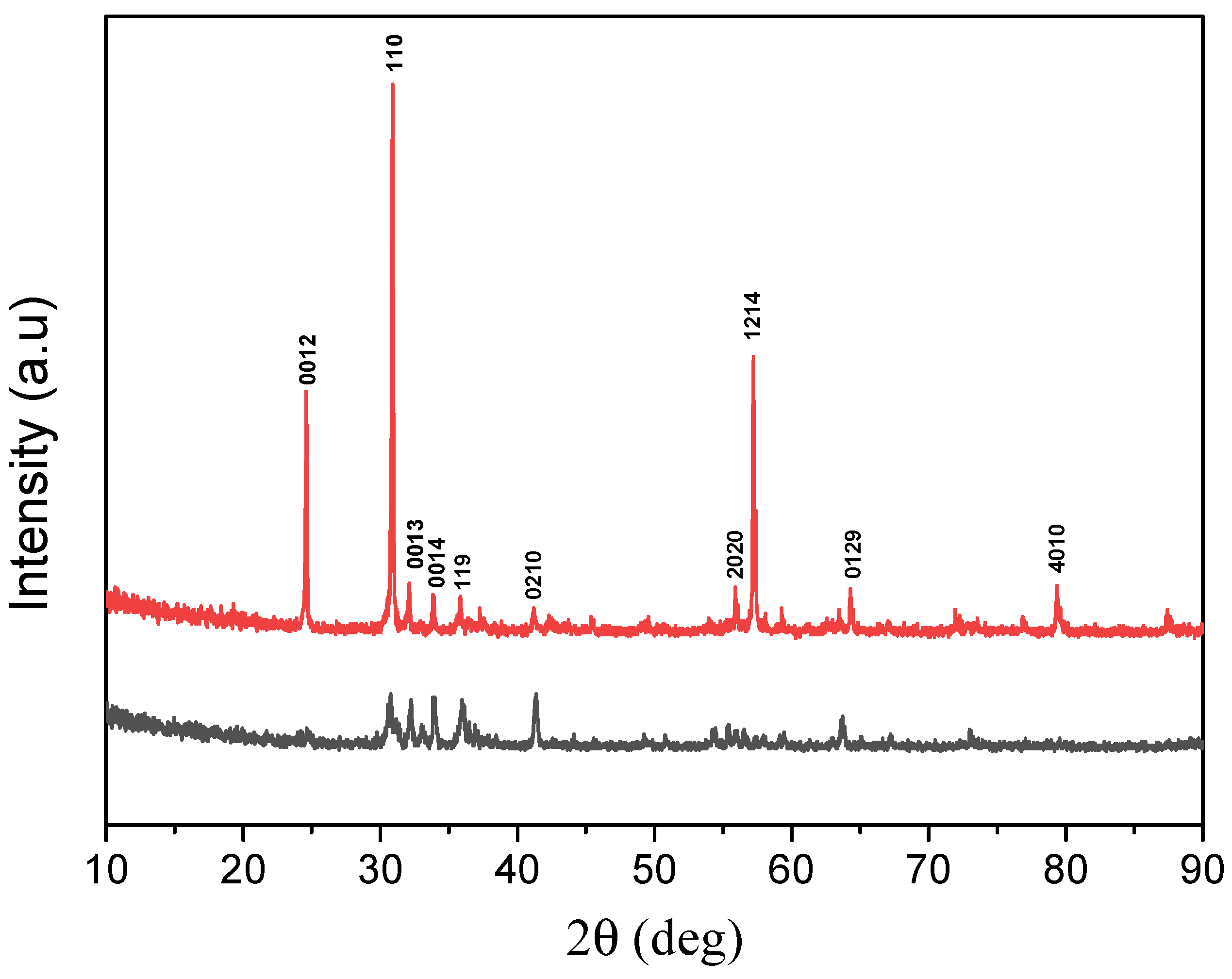

3.1. X-ray Phase Analysis Results

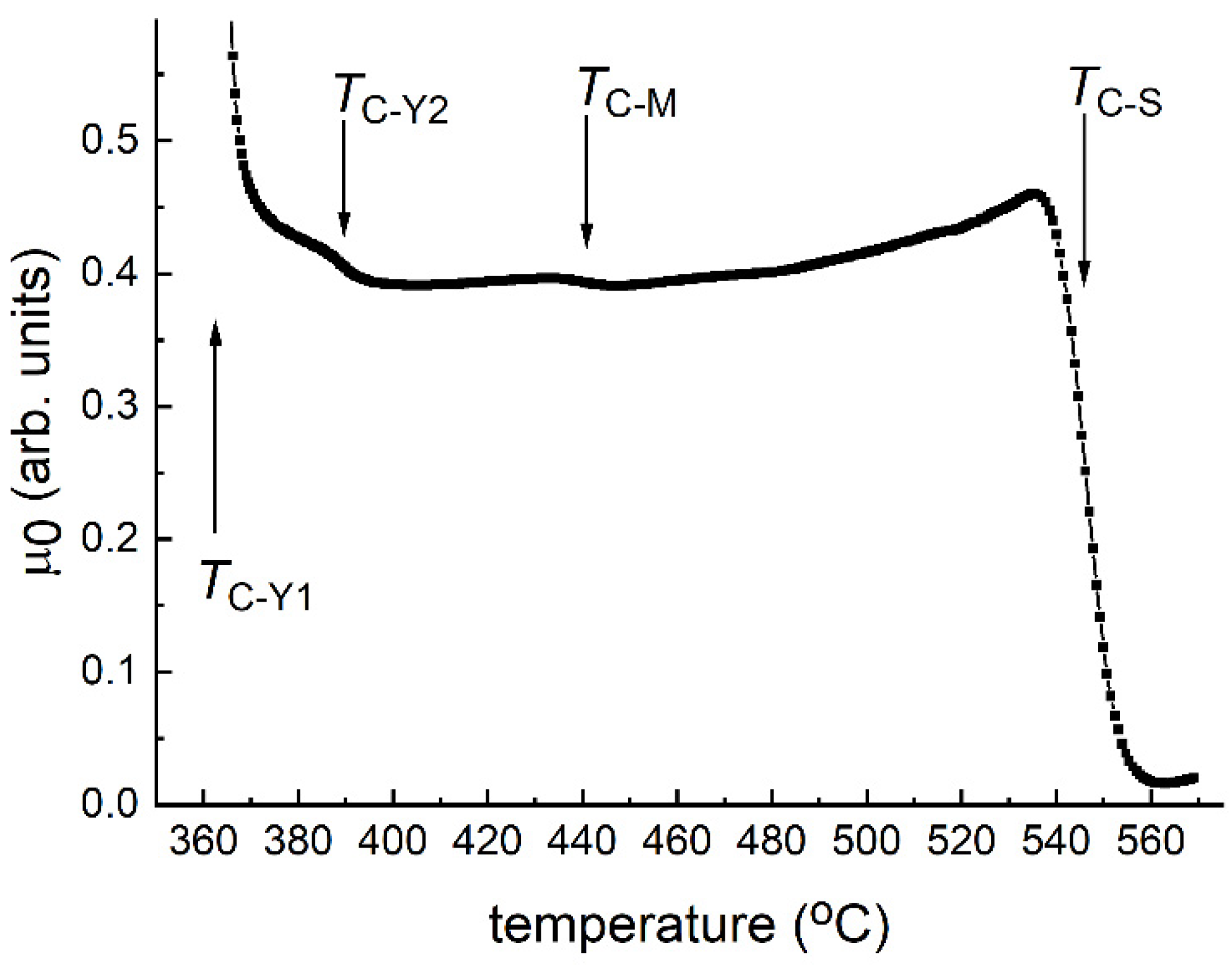

3.2. Temperature Dependence of the Initial Permeability

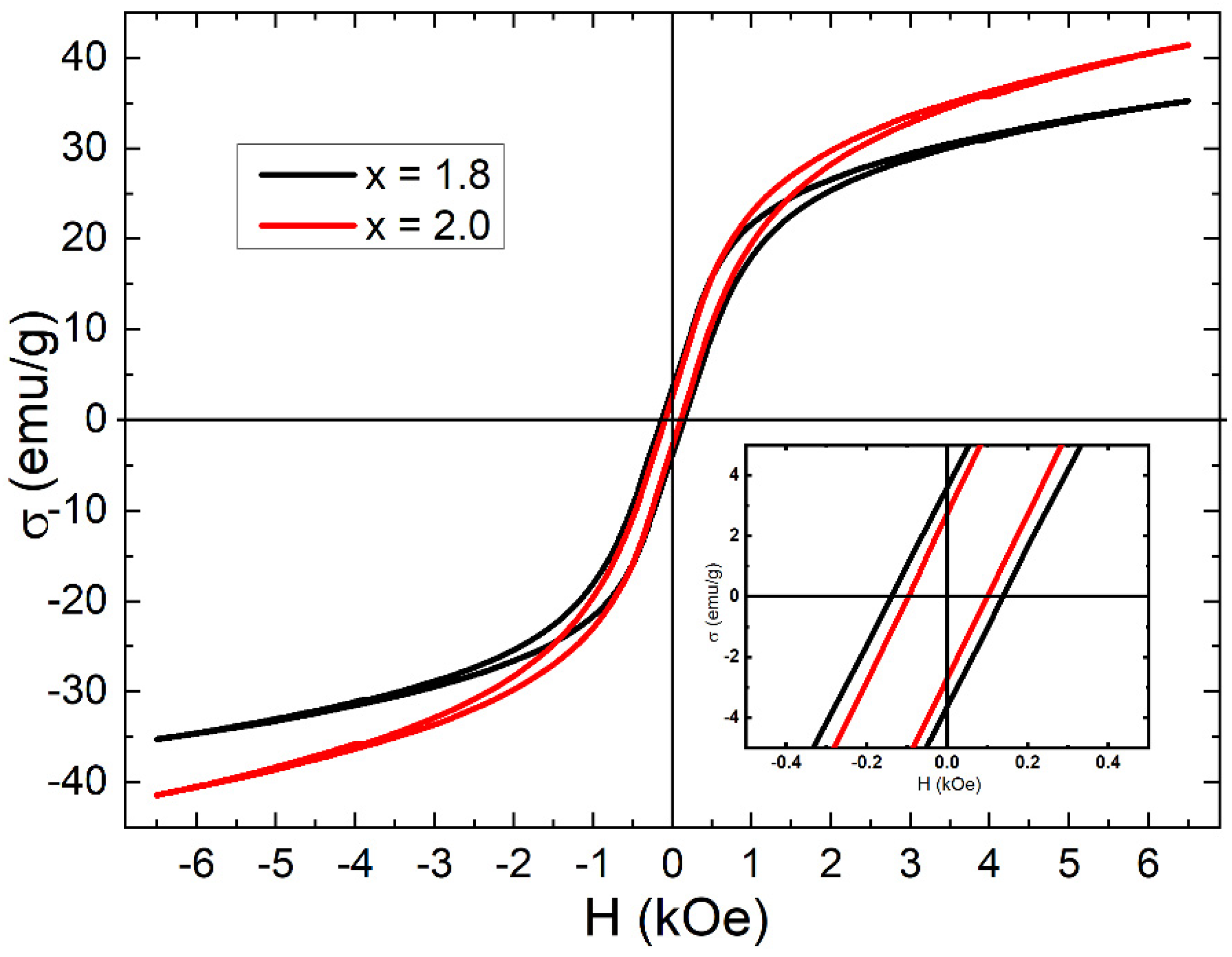

3.3. Magnetization Curve Investigation
3.4. Study of Composite Samples of NiCu-Y Hexaferrite in the Microwave Frequency Range
3.4.1. Sample Morphology and Assessment of the Degree of Magnetic Texture

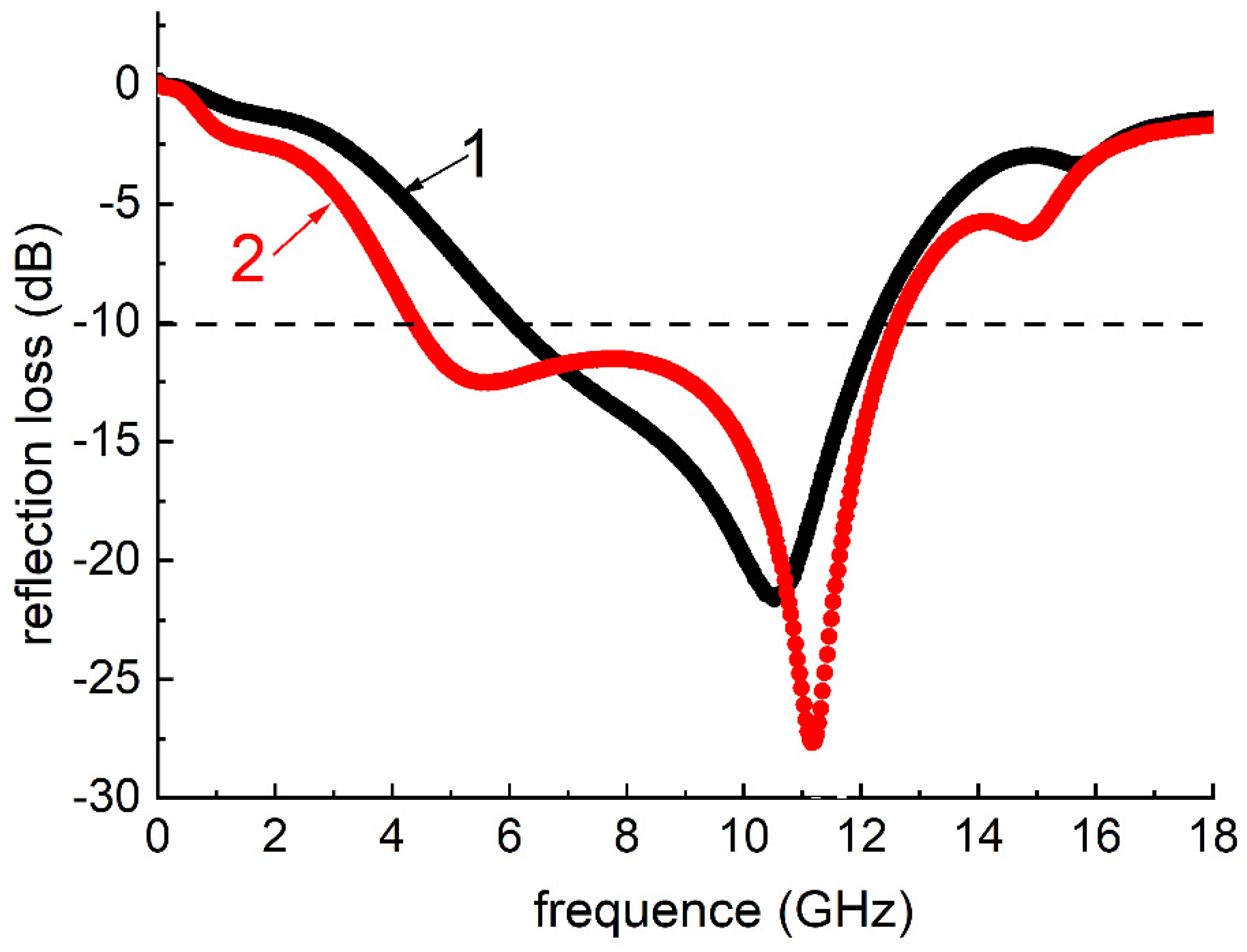

3.4.2. Electromagnetic Response of Composite Samples
4. Conclusions
Supplementary Materials
Author Contributions
Funding
Data Availability Statement
Acknowledgments
Conflicts of Interest
References
- Smit, J.; Wijn, H.P.J. Ferrites: Physical Properties of Ferrimagnetic Oxides in Relation to Their Technical Applications; Philips Technical Library: Eindhoven, The Netherlands, 1959; pp. 232–272. [Google Scholar]
- Pullar, R.C. Hexagonal ferrites: A review of the synthesis, properties and applications of hexaferrite ceramics. Prog. Mater. Sci. 2012, 57, 1191–1334. [Google Scholar]
- Georgieva, B.; Koutzarova, T.; Kolev, S.; Krezhov, K.; Kovacheva, D.; Ghelev, C.; Vertruyen, B.; Tran, L.M.; Zaleski, A. Study of Y-type Hexaferrite Ba0.5Sr1.5ZnNiFe12O22 Powders. AIP Conf. Proc. 2019, 2075, 160032. [Google Scholar]
- Jotania, R.B.; Virk, H.S. Y-type Hexaferrites: Structural, Dielectric and Magnetic Properties. Solid State Phenom. 2012, 189, 209–232. [Google Scholar]
- Unal, B.; Almessiere, M.; Slimani, Y.; Baykal, A.; Trukhanov, A.V.; Ercan, I. The conductivity and dielectric properties of neobium substituted Sr-hexaferrites. Nanomaterials 2019, 9, 1168. [Google Scholar]
- Liu, Y.; Zhou, P.; Ge, B.; Liu, J.; Zhang, J.; Zhang, W.; Zhang, T.; Srinivasan, G. Strain-mediated magneto-electric effects in coaxial nanofibers of Y/W-type hexagonal ferrites and ferroelectrics. J. Compos. Sci. 2021, 5, 268. [Google Scholar]
- Granja-Banguera, C.P.; Silgado-Cortazar, D.G.; Morales-Morales, J.A. Transition metal substituted barium hexaferrite-modified electrode: Application as electrochemical sensor of acetaminophen. Molecules 2022, 27, 1550. [Google Scholar]
- Chandel, M.; Singh, V.P.; Jasrotia, R.; Singha, K.; Kumar, R. A review on structural, electrical and magnetic properties of Y-type hexaferrites synthesized by different techniques for antenna applications and microwave absorbing characteristic materials. AIMS Mater. Sci. 2020, 7, 244–268. [Google Scholar]
- Elahi, A.; Ahmad, M.; Ali, I.; Rana, M.U. Preparation and properties of sol–gel synthesized Mg-substituted Ni2Y hexagonal ferrites. Ceram. Int. 2013, 39, 983–990. [Google Scholar]
- Chen, I.G.; Hsu, S.H.; Chang, Y.H. Preparation and magnetic properties of Ba–Co2Z and Sr–Zn2Y ferrites. J. Appl. Phys. 2000, 87, 6247–6249. [Google Scholar]
- Ahmad, M.; Ali, Q.; Ali, I.; Ahmad, I.; Azhar Khan, M.; Akhtar, M.N.; Murtazad, G.; Rana, M.U. Effects of Sr-substitution on the structural and magnetic behavior of Ba-based Y-type hexagonal ferrites. J. Alloy. Compd. 2013, 580, 23–28. [Google Scholar]
- Novák, P.; Knížek, K. Magnetism in the magnetoelectric hexaferrite system (Ba1−xSrx)2Zn2Fe12O22. Phys. Rev. 2007, 76, 024432. [Google Scholar]
- Wu, M.X.; Zhong, W.J.; Gao, X.S.; Liu, L.J.; Liu, Z.W. Analysis of the alternating current conductivity and magnetic behaviors for the polycrystalline Y-type Ba0.5Sr1.5Co2(Fe1-xAlx)12O22 hexaferrites. J. Appl. Phys. 2014, 116, 224103. [Google Scholar]
- Georgieva, B.; Kolev, S.; Krezhov, K.; Ghelev, C.; Kovacheva, D.; Tran, L.-M.; Babij, M.; Zaleski, A.; Vertruyen, B.; Closset, R.; et al. Magnetic phase transitions in Ba0.5Sr1.5Zn2Fe11.92Al0.08O22 hexaferrites. IOP Conf. Ser. J. Phys. 2021, 1762, 012034. [Google Scholar]
- Georgieva, B.; Kolev, S.; Krezhov, K.; Ghelev, C.; Kovacheva, D.; Tran, L.-M.; Babij, M.; Zaleski, A.; Vertruyen, B.; Closset, R.; et al. Effect of Ni and Al substitution on the magnetic properties of Y-type hexaferrite Ba0.5Sr1.5Zn0.5Ni1.5Fe11.92Al0.08O22 powders. IOP Conf. Ser. J. Phys. 2021, 1859, 012067. [Google Scholar]
- Kwon, H.J.; Shin, J.Y.; Oh, J.H. The microwave absorbing and resonance phenomena of Y type hexagonal ferrite microwave absorbers. J. Appl. Phys. 1994, 75, 6109. [Google Scholar]
- Stergiou, C.A.; Litsardakis, G. Y-type hexagonal ferrites for microwave absorber and antenna applications. J. Magn. Magn. Mater. 2016, 405, 54–61. [Google Scholar]
- Won, M.H.; Kim, C.S. Effect of Ni substitution on Y-type barium ferrite. J. Appl. Phys. 2013, 113, 17D906. [Google Scholar]
- Alizad Farzin, Y.; Mirzaee, O.; Ghasemi, A. Influence of Mg and Ni substitution on structural, microstructural and magnetic properties of Sr2Co2-xMgx/2Nix/2Fe12O22 (Co2Y) hexaferrites. J. Magn. Magn. Mater. 2014, 371, 14–19. [Google Scholar]
- Koutzarova, T.; Kolev, S.; Nedkov, I.; Krezhov, K.; Kovacheva, D.; Blagoev, B.; Ghelev, C.; Henrist, C.; Cloots, R.; Zaleski, A. Magnetic Properties of Nanosized Ba2Mg2Fe12O22 Powders Obtained by Auto-combustion. J. Supercond. Nov. Magn. 2012, 25, 2631–2635. [Google Scholar]
- Mohsen, O.; Mahmood, S.H.; Awadallah, A.; Maswadeh, Y. Effect of heat treatment on the structural and microstructural properties of the Co2-Y hexaferrites. arXiv 2017, arXiv:1709.02964. [Google Scholar]
- Chua, M.J.; Yang, Z.H.; Li, Z.W. Structural and microwave attenuation characteristics of ZnCuY barium ferrites synthesized by a sol–gel auto combustion method. J. Magn. Magn. Mater. 2014, 368, 19–24. [Google Scholar]
- Fujii, S.; Nishijima, K.; Satoh, H.; Yamamoto, S. Co2-Y ferrite modified by CuO addition applied to a terrestrial broadcasting antenna. J. Magn. Magn. Mater. 2015, 379, 256–259. [Google Scholar]
- Kim, J.; Choi, H.; Kim, C.S. Magnetic properties of polycrystalline Y-type hexaferrite Ba2-xSrxNi2(Fe1-yAly)12O22 using Mossbauer spectroscopy. AIP Adv. 2020, 10, 015204. [Google Scholar]
- Koutzarova, T.; Kolev, S.; Krezhov, K.; Georgieva, B.; Kovacheva, D.; Ghelev, C.; Vertruyen, B.; Boschini, F.; Mahmoud, A.; Tran, L.M.; et al. Study of the Structural and Magnetic Properties of Co-Substituted Ba2Mg2Fe12O22 Hexaferrites Synthesized by Sonochemical Co-Precipitation. Materials 2019, 12, 1414. [Google Scholar]
- Zhuravlev, V.A.; Suslyaev, V.I.; Lopushnyak, Y.M.; Wagner, D.V.; Dotsenko, O.A. Magnetocrystalline anisotropy of the multiphase samples of the hexaferrites Ba2Ni2-xCuxFe12O22 studied by the ferromagnetic resonance method. IOP Conf. Ser. Mater. Sci. Eng. 2019, 479, 012073. [Google Scholar]
- Wagner, D.V.; Dotsenko, O.A.; Zhuravlev, V.A. Structure, Magnetic Properties and Electromagnetic Response of Y-Type Hexaferrites and Hexaferrite-Based Composite Materials. Russ. Phys. J. 2019, 62, 581–588. [Google Scholar]
- Zhuravlev, V.A.; Zhuravlev, A.V.; Atamasov, V.V.; Malenko, G.I. Magnetocrystalline anisotropy and spinorientation phase transitions of Co2Z hexaferrite. Russ. Phys. J. 2020, 62, 1926–1936. [Google Scholar]
- Zhuravlev, V.A.; Itin, V.I.; Minin, R.V.; Lopushnyak, Y.M.; Svetlichnyi, V.A.; Lapin, I.N.; Velikanov, D.A.; Lilenko, I.Y. Influence of different organic fuels on the phase composition, structure parameters and magnetic properties of hexaferrites BaFe12O19 synthesized by the sol-gel combustion. J. Alloys Сomр. 2019, 771, 686–698. [Google Scholar]
- Dotsenko, O.A.; Suslyaev, V.I.; Frolov, K.O.; Wagner, D.V. Effect of magnetic field treatment on the electromagnetic properties of polymer composite based on barium hexaferrite at microwave frequencies. AIP Conf. Proc. 2016, 1772, 040006. [Google Scholar]
- Lysenko, E.N.; Nikolaeva, S.A.; Surzhikov, A.P.; Ghyngazov, S.A.; Plotnikova, I.V.; Zhuravlev, V.A.; Zhuravleva, E.V. Electrical and magnetic properties of ZrO2-doped lithium-titanium-zinc ferrite ceramics. Ceram. Int. 2019, 45, 20148–20154. [Google Scholar]
- Kreslin, V.Y.; Naiden, E.P. Automatic complex for a study of the characteristics of hard magnetic materials. Instrum. Exp. Tech. 2002, 45, 55–57. [Google Scholar]
- Chalapat, K.; Sarvala, K.; Li, J.; Paraoanu, G.S. Wideband Reference-Plane Invariant Method for Measuring Electromagnetic Parameters of Materials. IEEE J. Microw. Theory Tech. 2009, 57, 2257–2267. [Google Scholar]
- Naiden, E.P.; Itin, V.I.; Terekhova, О.С. Mechanochemical Modification of the Phase Diagrams of Hexagonal Oxide Ferrimagnets. Tech. Phys. Lett. 2003, 29, 889–891. [Google Scholar]
- Mahmood, S.К.; Zaqsaw, M.D.; Mohsen, O.E.; Awadallahld, A.; Bsoul, I.; Awawdeh, M.; Mohaidat, Q.I. Modification of the Magnetic Properties of Co2Y Hexaferrites by Divalent and Trivalent Metal Substitutions. Solid State Phenom. 2016, 241, 93–125. [Google Scholar]
- Kamishima, K.; Tajima, R.; Watanabe, K.; Kakizaki, K.; Fujimori, A.; Sakai, M.; Watanabe, K.; Abe, H. Crystallographic and magnetic properties of Cu2U-type hexaferrite. J. Magn. Magn. Mater. 2015, 375, 54–60. [Google Scholar]
- Nandotaria, R.A.; Chauhan, C.C.; Jotania, R.B. Effect of Non-Ionic Surfactant Concentration on Microstructure, Magnetic and Dielectric Properties of Strontium-Copper Hexaferrite Powder. Solid State Phenom. 2015, 232, 93–110. [Google Scholar]
- Sudakar, C.; Subbanna, G.N.; Kutty, T.R.N. Wet chemical synthesis of multicomponent hexaferrites bygel-to-crystallite conversion and their magnetic properties. J. Magn. Magn. Mater. 2003, 263, 253–268. [Google Scholar] [CrossRef]
- Cornell, R.M.; Schwertmann, U. The Iron Oxides—Structure, Properties, Reactions, Occurrence and Uses, 2nd ed.; Wiley-VCH: Weinheim, Germany, 2003; p. 123. [Google Scholar]
Concentration, x | Y-Phase, % | M-Phase, % | Spinel, % | Hematite, % |
---|---|---|---|---|
0.0 | 63.5 | 21.1 | 12.4 | 3.0 |
0.2 | 72.7 | 14.0 | 9.3 | 4.0 |
0.4 | 83.0 | 6.6 | 8.9 | 1.5 |
0.6 | 74.1 | 9.5 | 7.9 | 8.5 |
0.8 | 61.1 | 20.0 | 6.9 | 12.0 |
1.0 | 83.0 | 3.0 | 11.0 | 3.0 |
1.2 | 85.0 | 4.7 | 8.1 | 2.2 |
1.4 | 52.5 | 0.0 | 9.2 | 38.3 |
1.6 | 74.0 | 12.0 | 7.0 | 7.0 |
1.8 | 54.9 | 24.4 | 7.2 | 13.5 |
2.0 | 57.4 | 23.6 | 6.5 | 12.5 |
Concentration, x | TC-Y1, °C | TC-Y2, °C | ΔTC-Y, °C | TC-M, °C | TC-S, °C |
---|---|---|---|---|---|
0.0 | 362 | 389 | 27 | 441 | 546 |
0.2 | 368 | 395 | 27 | 446 | 556 |
0.4 | 357 | 378 | 21 | 423 | 535 |
0.6 | 362 | 385 | 23 | 429 | 548 |
0.8 | 353 | 372 | 19 | – | 540 |
1.0 | 348 | 368 | 20 | – | 501 |
1.2 | 333 | 350 | 17 | – | 485 |
1.4 | 342 | – | – | – | 477 |
1.6 | 340 | – | – | 399 | 468 |
1.8 | 304 | – | – | 385 | 452 |
2.0 | 306 | – | – | 405 | 438 |
Concentration, x | Y-Phase, % | σS, emu/g | σr, emu/g | σr/σS, Rel. Units | HC, Oe |
---|---|---|---|---|---|
0.0 | 63.5 | 23.6 | 1.5 | 0.06 | 64 |
0.2 | 72.7 | 25.2 | 1.3 | 0.05 | 45 |
0.4 | 83.0 | 24.9 | 1.7 | 0.07 | 49 |
0.6 | 74.1 | 24.1 | 1.6 | 0.07 | 58 |
0.8 | 61.1 | 28.0 | 1.5 | 0.06 | 45 |
1.0 | 83.0 | 27.4 | 2.3 | 0.08 | 67 |
1.2 | 85.0 | 25.5 | 1.3 | 0.05 | 35 |
1.4 | 52.5 | 25.6 | 2.2 | 0.09 | 60 |
1.6 | 74.0 | 31.7 | 2.1 | 0.07 | 61 |
1.8 | 54.9 | 35.2 | 3.6 | 0.10 | 137 |
2.0 | 57.4 | 41.4 | 2.7 | 0.07 | 101 |
