One Row Keyboard: The Concept of Designing a Common Layout for Physical and Virtual Keyboards
Abstract
:1. Introduction
2. One Row Keyboard

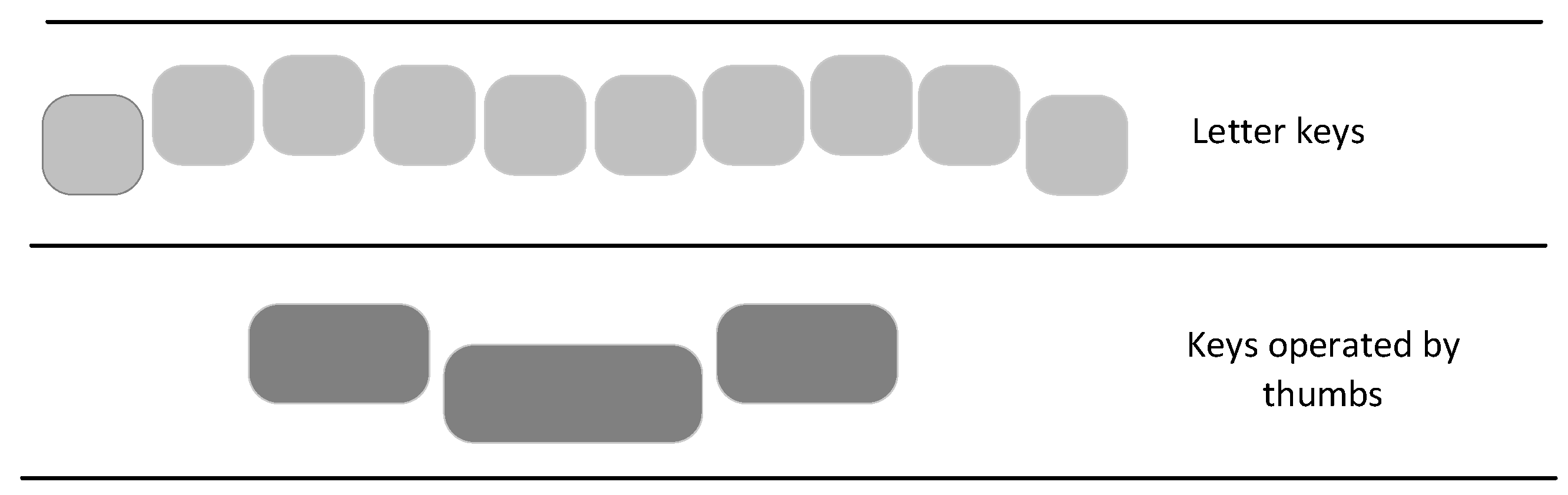

2.1. Definition of ORK Keyboard
- keyboards supporting typing with all fingers,
- keyboards adapted to typing only with thumbs (or any other pair of fingers).
2.2. Method of Developing ORK Keyboard
- Determine the number of characters to be placed on the keyboard and the occurrence frequency of selected characters and their two-element combinations (bigrams).
- Define the number of layout keys.

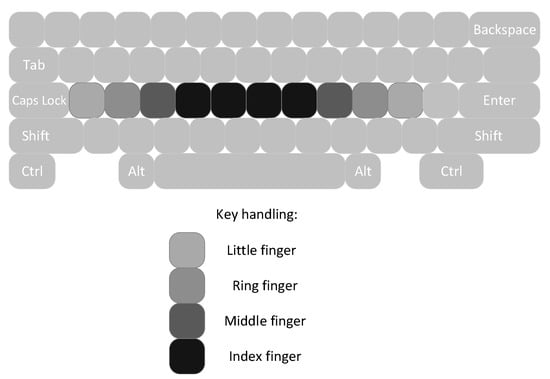

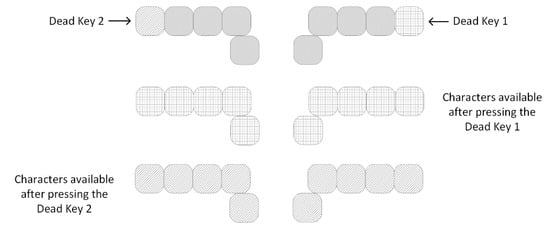

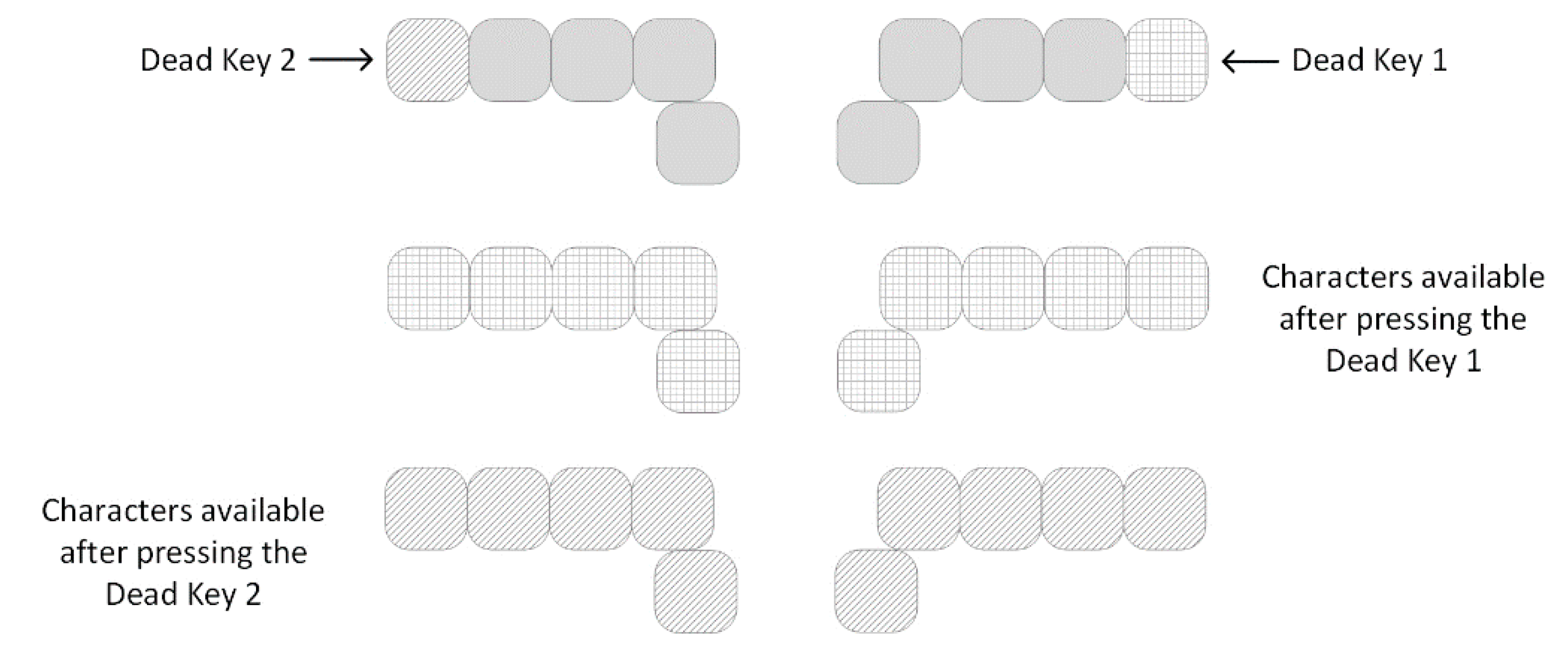

- Determine the number and position of dead keys.
- Select optimization criteria and their weights.
- Assign characters to keys.
3. ORK Type Keyboards

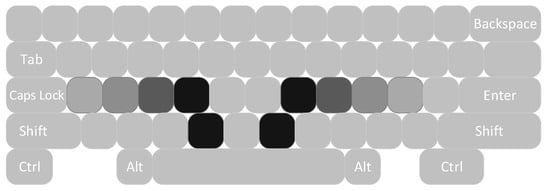

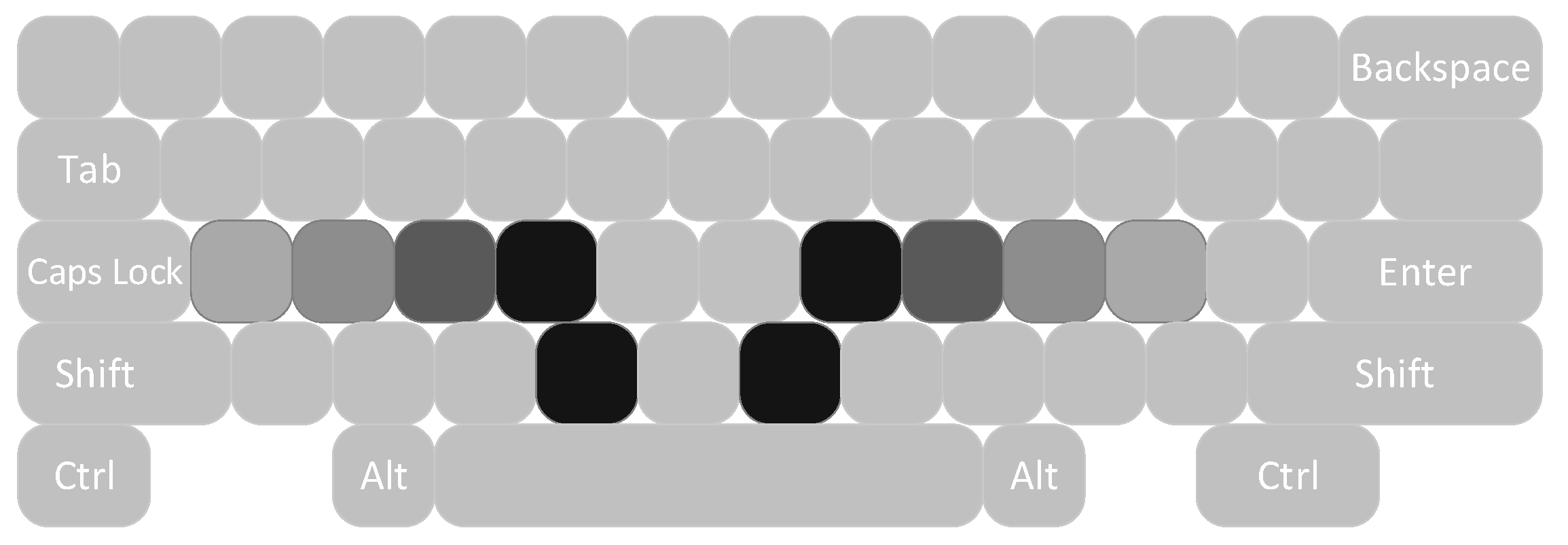

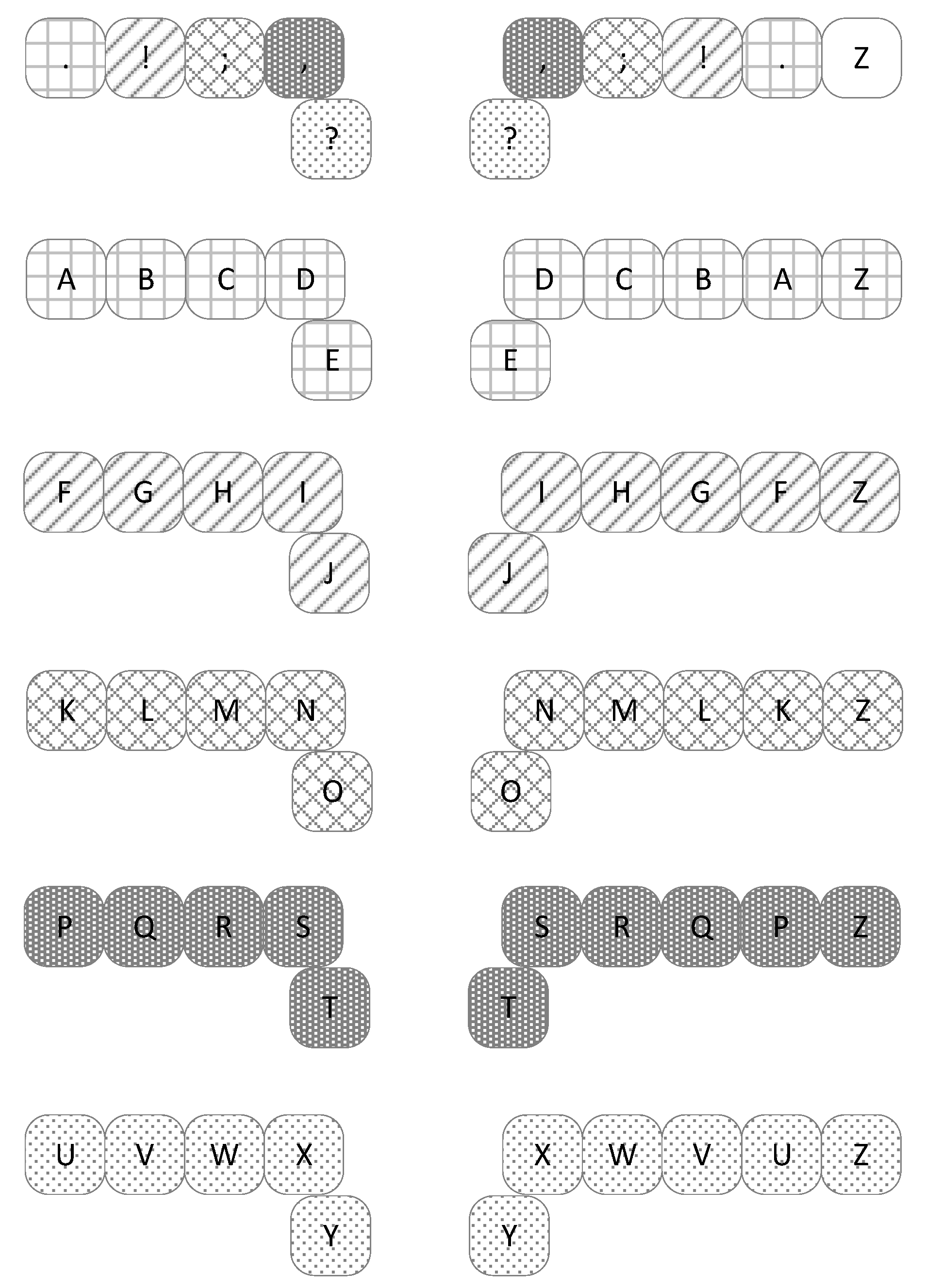

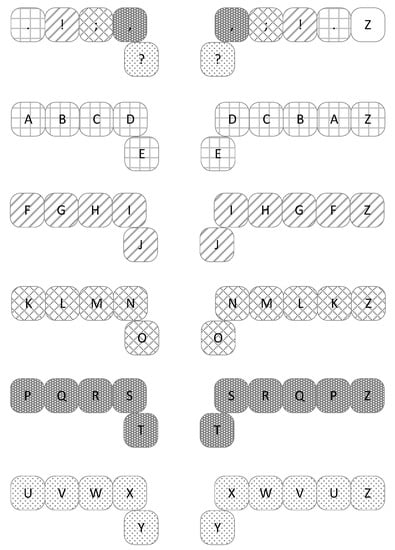

3.1. VX-ORK+ Arrangement Group
- a set of letters assigned to default characters,
- a set of letters using dead keys which need to be typed with both hands (the dead key is operated by a different hand than the character to be typed),
- a set of letters using dead keys for which both the dead key and the letter key are operated with fingers of the same hand.
- maximizing the even distribution of typing load on individual fingers,
- minimizing the usage frequency for a single finger operating two consecutive keys.
- more than three-quarters of the bigrams are typed alternatingly,
- the letters assigned to default characters account for nearly two thirds of all of the letters typed; only slightly more than one-third of the characters typed require the use of a dead key, that is, the use of two keys to type a single character.

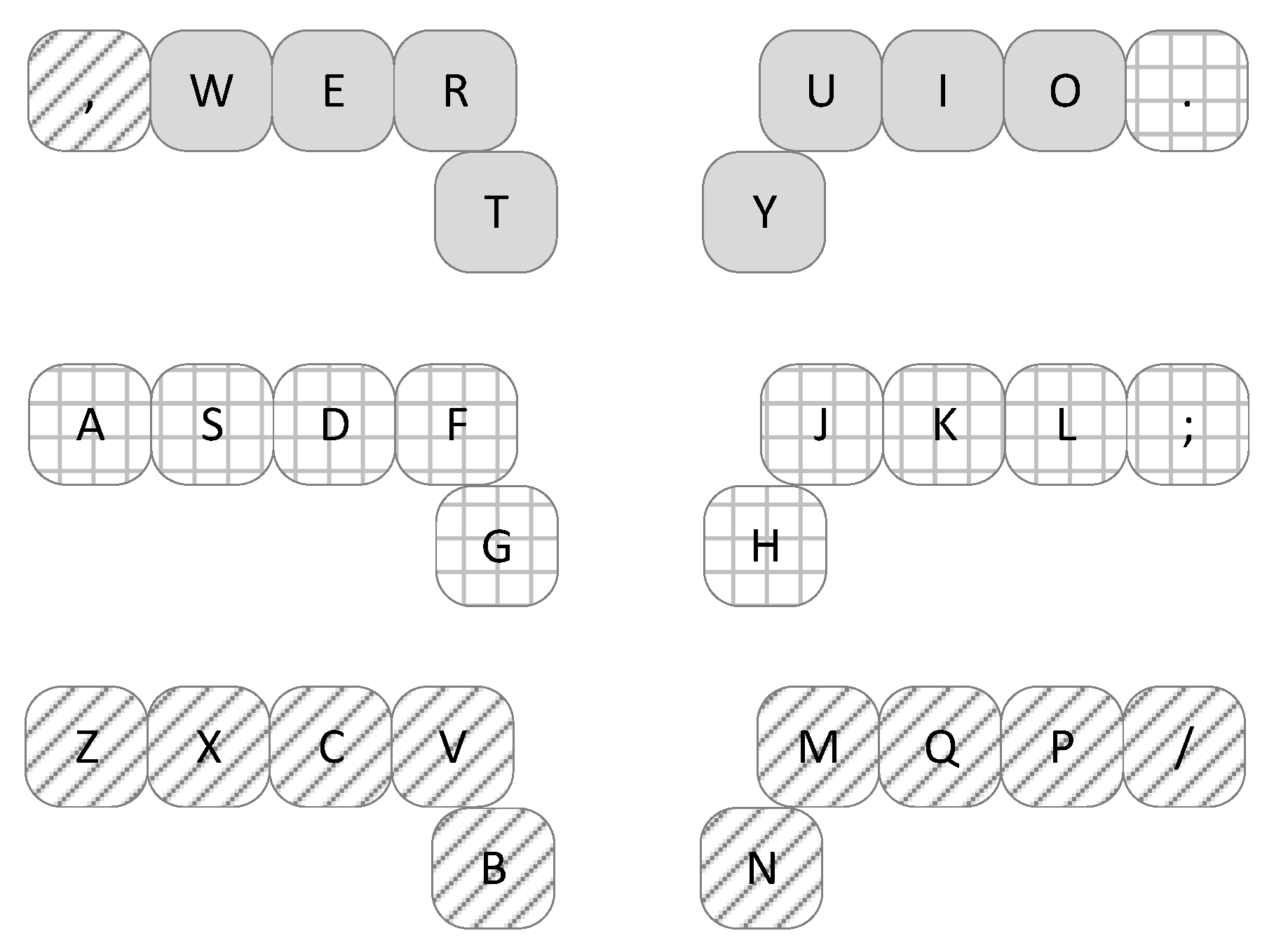

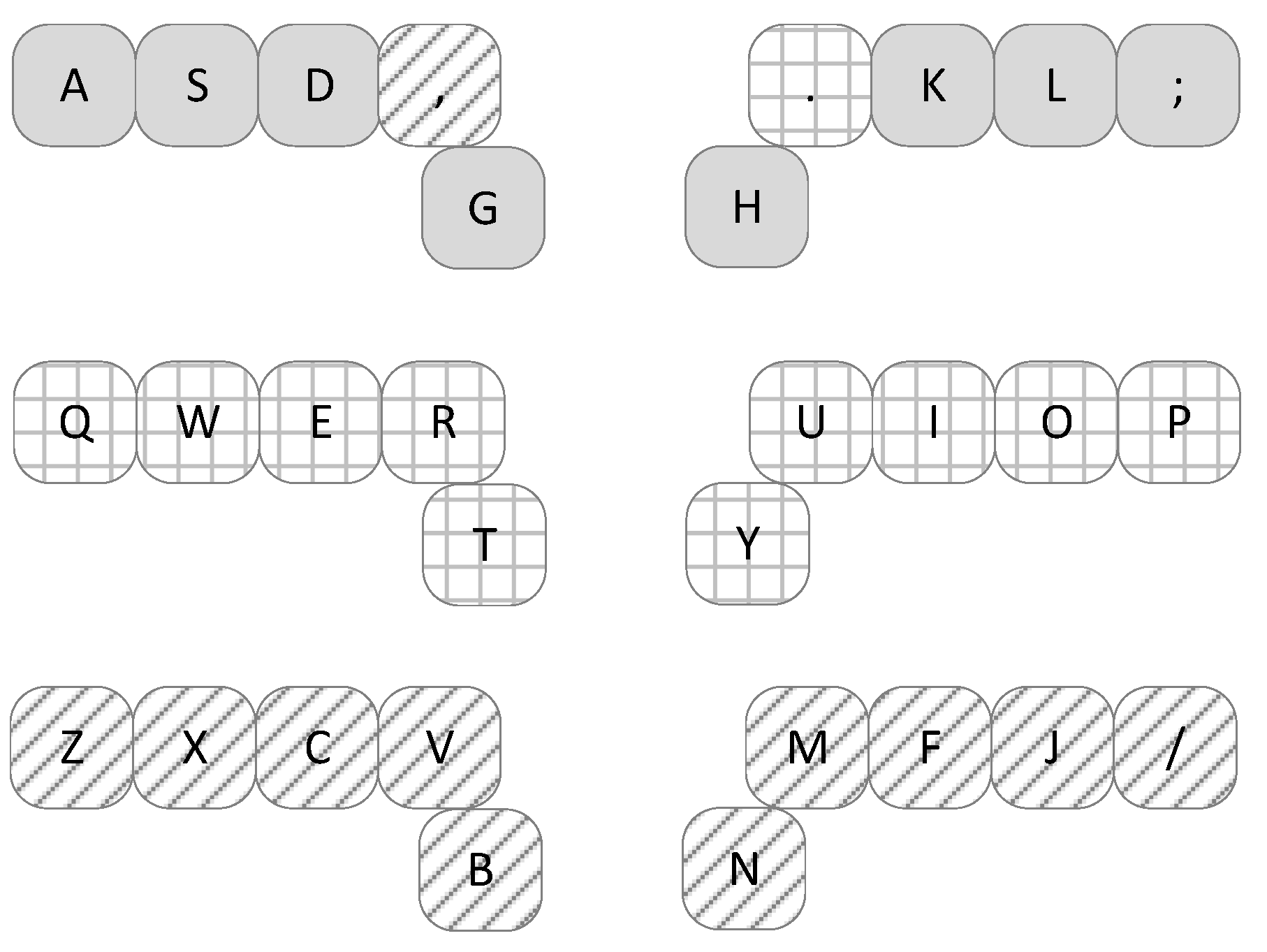

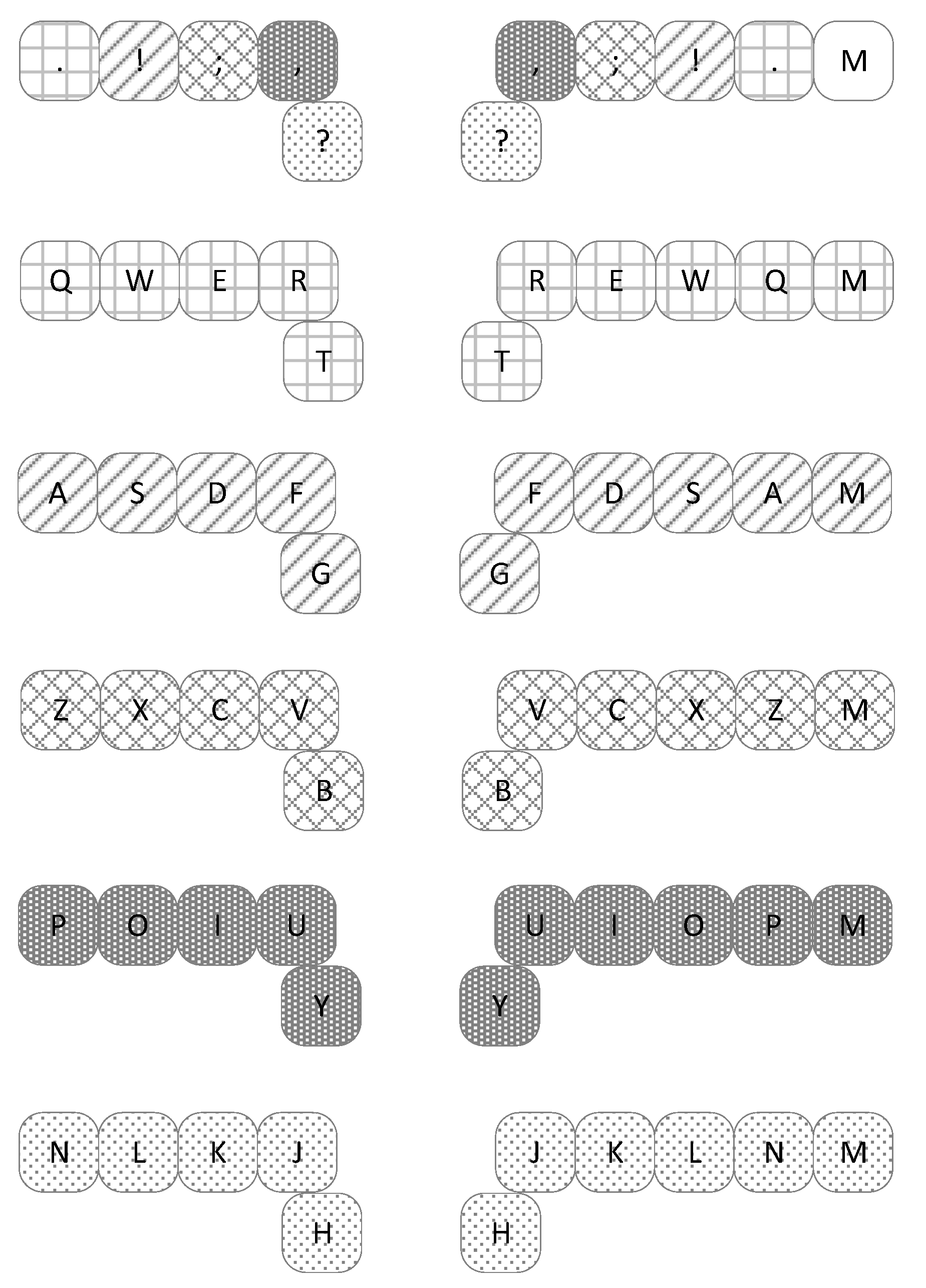

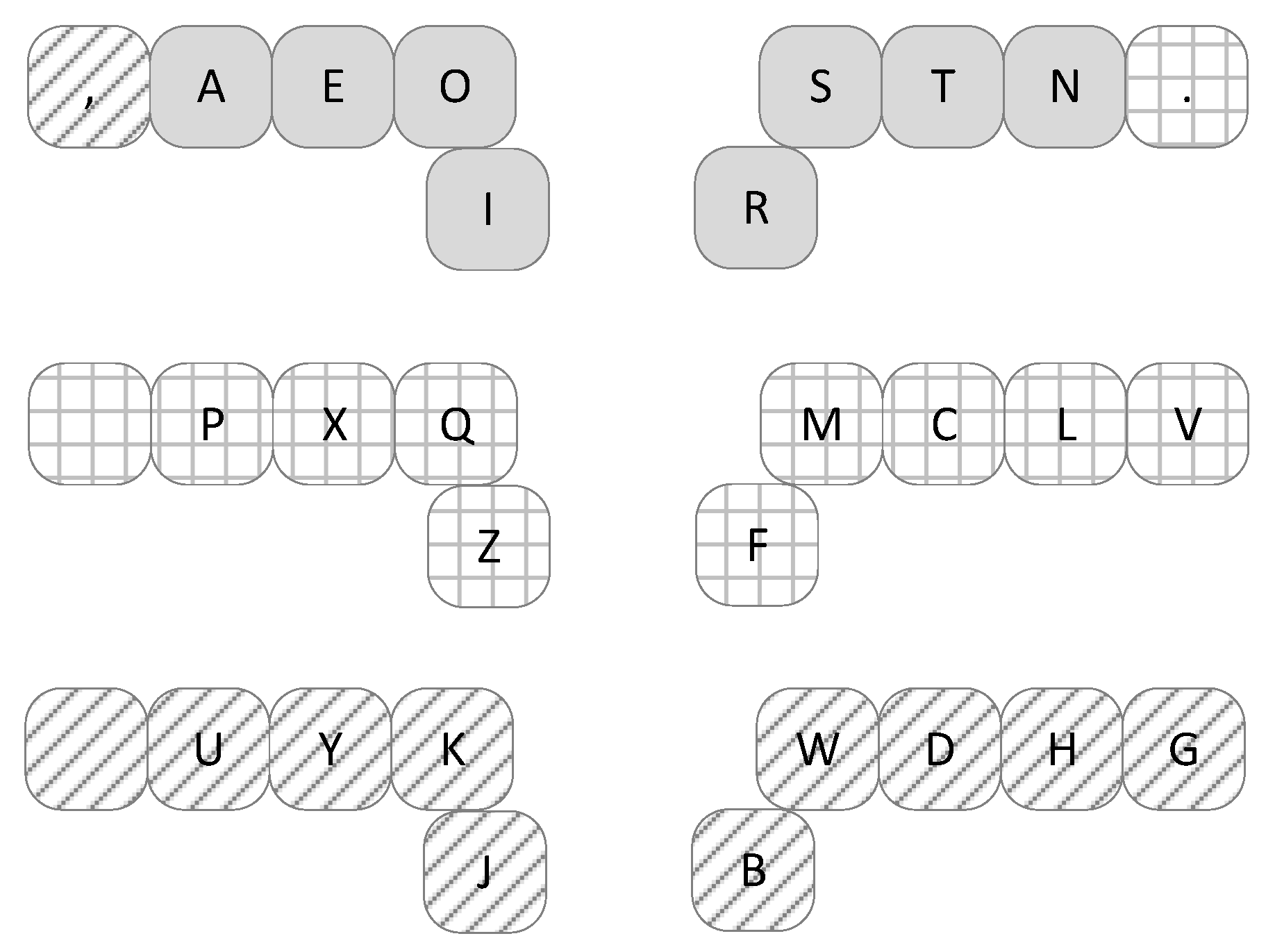

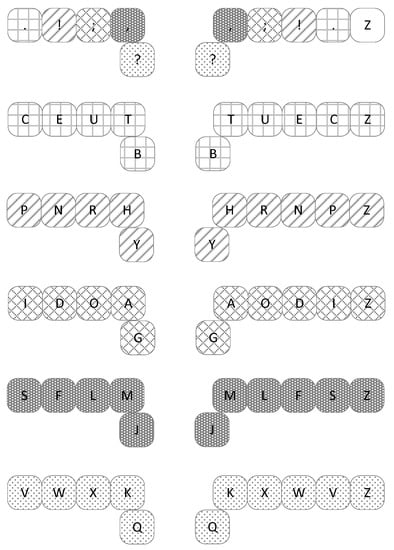

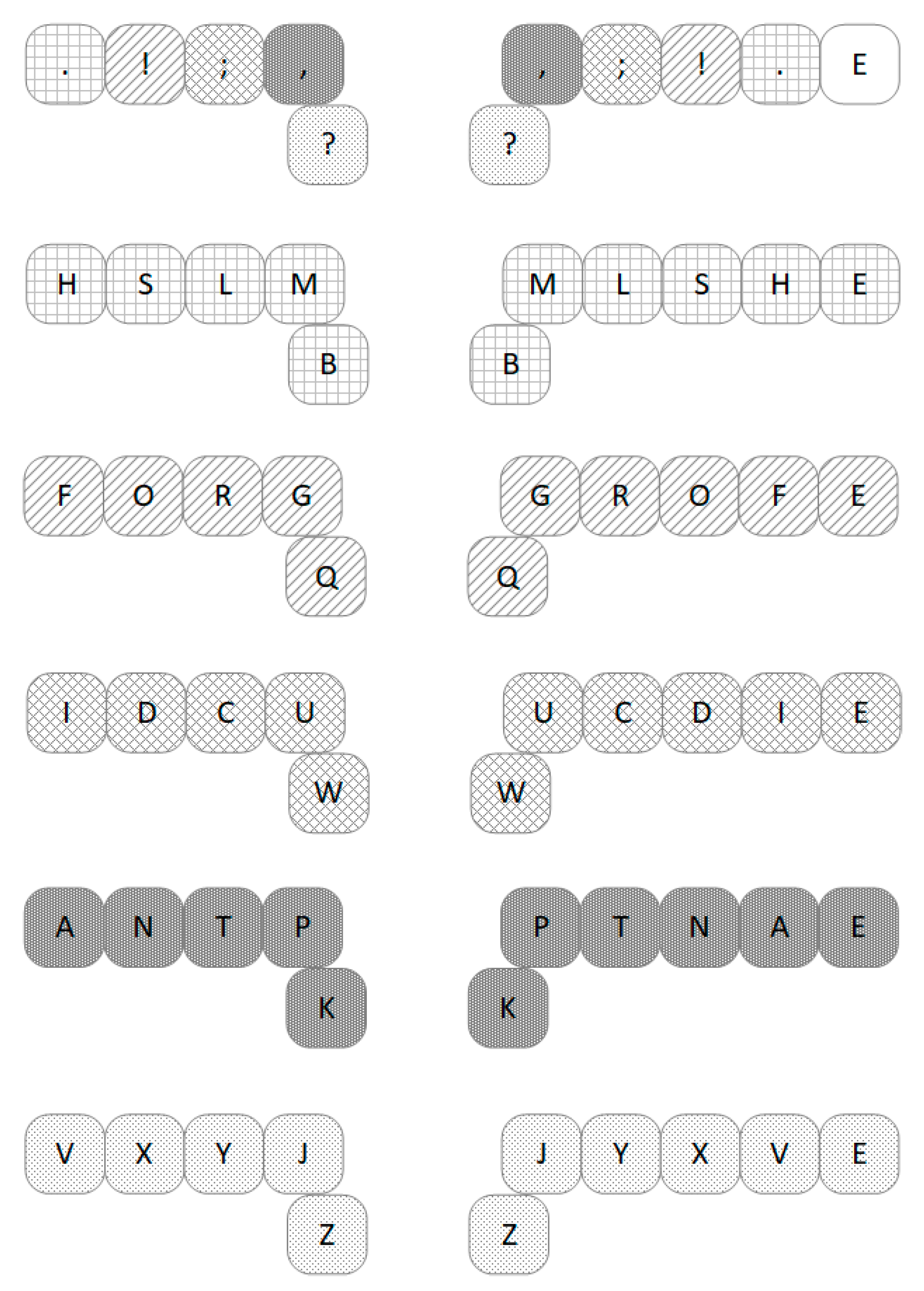

3.2. W-ORK+ Arrangement Group

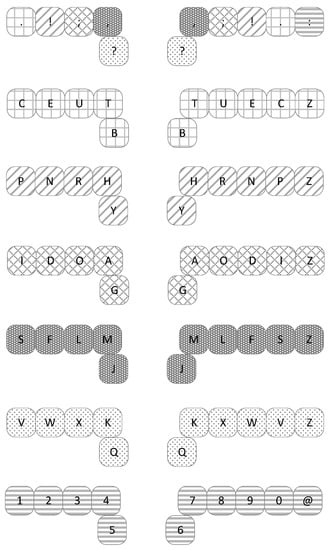

3.3. NUM-ORK+ Arrangement
4. Discussion
5. Conclusions
Author Contributions
Funding
Acknowledgments
Conflicts of Interest
References
