Open AccessCommunication

Developing a Preliminary Causal Loop Diagram for Understanding the Wicked Complexity of the COVID-19 Pandemic

1
School of Engineering and Built Environment, Griffith University, Brisbane, QLD 4222, Australia
2
Cities Research Institute, Griffith University, Brisbane, QLD 4222, Australia
3
Griffith Climate Change Response Program, Griffith University, Brisbane, QLD 4222, Australia
4
UQ Business School, University of Queensland, Brisbane, QLD 4072, Australia
5
School of Medicine, Gold Coast campus, Griffith University, Brisbane, QLD 4222, Australia
*
Author to whom correspondence should be addressed.
Systems 2020, 8(2), 20; https://doi.org/10.3390/systems8020020
Received: 9 May 2020 / Revised: 16 June 2020 / Accepted: 17 June 2020 / Published: 18 June 2020

Abstract

COVID-19 is a wicked problem for policy makers internationally as the complexity of the pandemic transcends health, environment, social and economic boundaries. Many countries are focusing on two key responses, namely virus containment and financial measures, but fail to recognise other aspects. The systems approach, however, enables policy makers to design the most effective strategies and reduce the unintended consequences. To achieve fundamental change, it is imperative to firstly identify the “right” interventions (leverage points) and implement additional measures to reduce negative consequences. To do so, a preliminary causal loop diagram of the COVID-19 pandemic was designed to explore its influence on socio-economic systems. In order to transcend the “wait and see” approach, and create an adaptive and resilient system, governments need to consider “deep” leverage points that can be realistically maintained over the long-term and cause a fundamental change, rather than focusing on “shallow” leverage points that are relatively easy to implement but do not result in significant systemic change.
Keywords: COVID-19; pandemic; wicked problem; systems approach; leverage points COVID-19; pandemic; wicked problem; systems approach; leverage points

1. Introduction

The COVID-19 pandemic has emerged as a problem of wicked complexity for policy makers internationally [1]. The virus and its necessary management strategies have thrown many countries into economic recession [2] and exacerbated existing social problems such as health care access, unemployment and inequality. A few countries have rapidly responded to the pandemic and have had success in its early containment, yet many countries have scrambled to implement interventions and measures when major implications of the disease started to appear.
Policy makers around the world have been mainly focusing on two key responses, namely, virus containment and financial measures for cushioning the resulting economic impact (i.e., jobs subsidies, unemployment benefits, government supported loans, etc.) [3]. However, they have been conducting these assessments separately from a “wait-and-see” perspective and often have not systematically examined this problem with consideration to a feasible and sustainable long-term strategy for managing the pandemic. Many countries have failed to learn from past epidemics of coronaviruses such as Severe Acute Respiratory Syndrome (SARS) and Middle East Respiratory Syndrome (MERS), where these types of viruses have historically long incubation periods [4]. A few countries have responded to this pandemic rapidly [5] with the readiness to sacrifice an early economic loss to prevent worse long-term economic impacts that would occur if the virus had spiralled out of control.
Systems thinking is a framework that can help policy makers to better understand the big picture through identifying the multi-faceted consequences of decision making in order to better weigh options and design the most effective strategies to manage the impacts of unintended consequences [6,7,8]. Effectively containing the virus and keeping the mortality rate low while maintaining economic, social and environmental goals is of importance in effectively managing this pandemic. The aim of this communication piece is to visualise the complexity in managing the COVID-19 pandemic through a systems lens by identifying the interconnectivity between health, economic, social and environmental aspects. This was explored via the development of a preliminary causal loop diagram (CLD) to identify important feedback loops. In the systems thinking field, CLD is a powerful tool for dealing with complex problems which has the ability to uncover the underlying feedback structures and leverage points in a system [9,10,11]. Moreover, causal loop modelling has been widely applied in health systems research [12,13,14].

2. A Wicked Complexity

In an increasingly connected world, the actions of individuals and governments and their resulting consequences are deeply entwined within the socio-economic and environmental systems. Recognising that the impacts of the COVID-19 pandemic transcend many boundaries (e.g., health, communities, science, politics, environment and economics) will help policy makers to determine the “right” intervention in a timely manner and implement additional interventions to reduce negative consequences. A CLD was developed to represent this complex problem through the identification of cause-and-effect links and feedback loops (Figure 1). This preliminary CLD was a product of the collective knowledge of the authors supported by geographical data by Johns Hopkins University [15] and a review of various governments’ responses to the COVID-19 pandemic. The process of developing the preliminary CLD is presented in Appendix A.
Interventions (i.e., leverage points) are central to mitigating this pandemic. International travel restrictions, business restrictions, effectiveness of health crisis management, testing, awareness and social distancing campaigns and economic stimulus packages are among the interventions that have been implemented in many countries. Each intervention, undoubtedly, will have a trade-off between aspects of the system. An example is where the mandated “social distancing” rules can have a significant and immediate impact on business operations with potentially long-term economic and social consequences. Furthermore, delays will also exist in the system to indicate the time required for an intervention to be implemented or for a change to have an impact on the overall system. There is also a delay between the infection and when the symptoms appear (i.e., incubation period) which has caused more challenges in preventing an outbreak [16].
The existence of feedback loops within the system indicates two-way relationships between actions and consequences. These feedback loops can be used to identify if an intervention is able to create a system-wide change or if there is a need to improve or introduce a new solution. There are two types of feedback loops: reinforcing and balancing loops [8,17]. Reinforcing loops are responsible for the creation of an exponential growth or decay in the system, whereas balancing loops will balance a system until an equilibrium has been achieved. The dominance of reinforcing loops in this system indicates that there are more sources of growth, erosion and failure which decision makers need to address and minimise. Many countries have failed to realise and address these reinforcing loops [18]; thus, causing a near-collapse effect in the system that is exhibited by a massive outbreak in many countries.
We have seen in a very short time, how the gradual increase of interventions has led to unprecedented economic consequences [19]. The social distancing rules have created a restriction on some business operations; thus, some business closures are inevitable, consequently leading to an increase in unemployment rates (loop R12). The international and interstate travel restrictions have caused stock market volatility and have been prohibitive to international trading and mobility (loop R4 and R11). They also caused disruptions to almost every industry sector, including education systems and the interconnectivity between transport industries and the tourism and hospitality sector (loop R3). The International Monetary Fund (IMF) suggested that the world’s economy will shrink by three percent this year, which is far worse than the 2008–2009 financial crisis [20]. This restrictive economic activity has led to some governments providing financial packages to affected businesses and employees (loop B5).
From the health perspective, a higher proportion of vulnerable populations will lead to a higher number of confirmed cases (loop B1). Population vulnerability is influenced by the accessibility of health services (loop R7); whilst a higher number of confirmed cases will increase health services’ load (loop R2). However, fewer confirmed cases do not always reflect the actual infection rate as it is also dependent upon the effectiveness of the testing campaign (loop R10). Health care systems in many countries, particularly in developing countries, are overwhelmed with the exponential growth of cases [21,22,23]. Loop R9 (Figure 1) also demonstrates how a higher number of confirmed cases reinforces the speed of government actions that will lead to the introduction of additional measures. The non-infected loop can act as a reinforcing loop (R1) to reflect the number of recovered populations as well as a balancing loop (B6) if there is an increased risk of transmissions due to the increased extent of social interactions.
Conversely, positive environmental benefits should also be considered in the policy analysis system, such as the measurable decline in regional air pollution and greenhouse gas emissions due to reductions in ground and air travel. This improvement of air quality has been observed at a global scale as a result of decline in significant travel, business and social activities [24]. Although there has been a reduction on the waste generation volume due to a downward shift in economic activities, waste from personal protective equipment and testing kits will inevitably rise as the number of vulnerable in a population that need to be tested increases [25]. Furthermore, a culture shift related to panic buying will also contribute to food waste generation.
The human social network is the most challenging to manage in this pandemic with a high risk of catastrophic social order demise if inconsiderate policy is enacted [26]. This is a delicate balancing act; for example, maintaining social distancing will substantially reduce virus transmission (loop B3), however, long periods of isolation may have long lasting effects on mental well-being. Furthermore, this pandemic has caused global panic, heightened fear and eroded trust in governments and within communities. The prevalence of reinforcing loops R5 (trust), R6 (sense of security) and R8 (panic buying) reflects the increasing social issues that need to be addressed. We have seen multiple instances of societal behavioural changes such as panic buying (e.g., toilet paper and sanitiser), the emergence of organised crime, domestic violence, increased and targeted global xenophobia against certain ethnic groups [18,27] and more recently abuse of health care workers as people’s fears lead to irrationality and anxiety. These social problems stem from bounded rationality and responses to their panic and fear [28] where misinformation and confirmation bias may be contributing factors. Beside its social impacts, panic and fear may also increase hygiene practices among communities (loop B2).

3. Placing Interventions in the Right Place at the Right Time

Countries have taken different roads in addressing this global pandemic, leading to an activation of different leverage points. Two questions arise “Have the most widely used global interventions so far targeted relatively ineffective leverage points? Has current intervention been focused too heavily on ‘shallow’ leverage points?”. As Meadows stated [8], there are twelve places in enacting leverage points ranging from “shallow” to “deep” (Figure 2). “Shallow” leverage points refer to interventions that are relatively easy to implement, yet bring a non-significant systemic change, while “deep” leverage points will cause a fundamental change.
Policies enacted in the interests of public health have had economic side effects. The extent, of course, will largely depend on the depth of the early intervention, the ability of governments to enact policy to limit the damage to the economy and the strength of the economy prior to the event. The travel restriction is a good example of both shallow and deep leveraging points as travel restrictions can change the direction to which a system is oriented by preventing infection being transmitted into a population by non-symptomatic carriers. Australia followed a series of largely ineffective (or shallow) international travel restrictions in the early stages where a ban was in place for flights from the source of the outbreak. It was not until it enacted a complete ban for all international and interstate flights (i.e., deeper leverage point) that the spread of new cases appeared to slow down.
While encouraging social distancing and vigilance in personal hygiene are critical measures to reduce the risk of human-to-human transmission, it is challenging for the general public to consciously change their behaviour overnight and maintain these behaviours long-term [29]. Regardless of laws put in place, there remains a threat of public complacency, particularly once infection rates decrease. Government policies need to consider deeper leverage points that can be realistically maintained over the long-term, as infection rates trend up and down. Public confidence and trust in governance may be negatively impacted with regular “shallow”, knee-jerk daily or weekly rule changes.

4. Lessons Learned

A systemic change could transcend the “wait and see” paradigm into a more proactive approach that is imperative for creating an adaptive and resilient system. Regardless of the approach taken, countries which have demonstrated a capacity to assess this problem systemically and comprehensively over various time horizons will emerge from this crisis in a much better position than those that have just tackled each incremental problem in an isolated and knee-jerk manner. It is possible that with a more proactive approach in implementing “deeper” interventions (deep leverage point), governments can be “flattening the curve” more effectively; consequently, limiting the impact of economic recession and associated socio-economic difficulties.
Government interventions will always struggle to completely prevent all types of virus transmission over the long term. However, effective government decisions must consider strategies that reduce infection rates, while dynamically accounting for the economic, social and environmental goals. Putting our “systems thinking” hat on to tackle this wicked problem, will help us to understand that there are always ever-moving and conflicting goals existing in any system, and will help those policy architects to develop best-practice (and deeper) interventions that will help to minimise unintended negative outcomes.
This communication piece reports on the development of a preliminary CLD which depicts the complexity and the multi-faceted nature of the COVID-19 pandemic from health, economic, social and environmental perspectives. This piece aims to demonstrate the COVID-19 pandemic complexity across health–socio–economic–environmental boundaries using a systems thinking visual as a precursor for the special issue “Life in the Time of a Pandemic: Social, Economic, Health and Environmental Impacts of COVID-19—Systems Approach Study” in the Systems journal. It is not intended to provide a full explanation of this issue but rather provide an example of how visualising the complexity of a system can help us to identify leverage points and the key important trade-offs that exist in the system. There remains a need to develop a system dynamics (SD) model that will be able to quantify this system. Such a model will assist policy makers in enacting an effective strategy for preparing nations in defending themselves against future pandemics by revealing the complexity, dynamic behaviour and trade-offs between different objectives. We would be foolish to not learn from the lessons around complexity and system interactions that this COVID pandemic has presented.

Author Contributions

O.S., H.S., E.S., R.R., S.M., and S.H. conducted stakeholder workshops, developed the preliminary causal loop diagram and drafted the manuscript. S.R., R.A.S., and C.D.B. conducted stakeholder workshops and improved the manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Conflicts of Interest

The authors declare no conflict of interest.

Glossary

Variable NameDescription
Access to health services Access into the health care system
Air pollutionThe amount of harmful substances in earth’s atmosphere
Awareness campaign Marketing effort to educate individuals about an issue (e.g., need in regular hand washing, coverage of coughing/sneezing, usage of tissues and bin tissues, etc.)
Business closure Closure of businesses due both temporarily and due to bankruptcy
CO2 concentrationConcentration of carbon dioxide in earth’s atmosphere
Confirmed cases Positive tested population
Crime and violenceIntentional harm
Culture shift Shift in communities’ culture (e.g., panic buying, business culture, etc.)
Economic activities Stable manufacture of goods and the provision of services
GDPGross domestic product
Government’s stimulus packageGovernment’s financial assistance to support businesses, households, and individuals
Health care worker loadNumber of patients per health care professional
Health services capacity Availability of facial masks, hospital beds, medication, treating medical staff, public health services
Hygiene practiceRegular hand washing, coverage of coughing/sneezing, usage of tissues and bin tissues
International trades Export and import of goods and services
International travel restrictions Travel ban to international flights to curb imported cases
Interventions Action plan of the government to controlling pandemic and its impacts
Level of effectiveness of government health crisis actionsEffective operational action plan of the government; innovative steps to enable an effective intervention
Level of goods and servicesGoods and services available in the market
Mental well-beingSocial and emotional well-being of individuals
Misinformation and fake news Pseudo-news, deliberate disinformation, conspiracy theories or hoaxes spread via traditional news media or online social media
Non-infected populationFatalities, recovered, negative tested, non-tested population
Panic and fear Sudden anxiety, hysterical and irrational behaviour
ProductivityRate of goods and services being produced
RacismPrejudice, discrimination, or hatred directed at someone because of their colour, ethnicity or national origin
Restrictions on business Temporarily closure of non-essential businesses, ‘take-away’ only policy
Social interactionAbility to meet (an)other individual(s)
Speed of government actionsCoordinated and timely operational action plan of the government to address health crisis
Stability of education systemUninterrupted work of education institutes, high number of enrolled international students at universities
Stability of supply chainUninterrupted distribution of goods and services, (i.e., no delays), availability of goods and services available in the market
Stability of tourism and hospitality industry Uninterrupted flow of both international and domestic visitors, stable work of hospitality businesses and events
Stability of transportation industryStable work of airlines, train services, shipping industries
Testing campaignCampaign to promote public awareness about COVID-19 testing if they have any symptom
Trust in governmentsCommunity trust and confidence towards parliament, the cabinet, the civil service, local councils, political parties, politicians
Trust within communitiesThe degree of trust towards a certain group of people
Unemployment rateShare of the labour force that is jobless
Vulnerable populationsElderly, socioeconomically disadvantaged (uninsured, homeless), individuals with a pre-existing medical condition
Waste generationThe amount of waste generated by households, industries and health systems

Appendix A

Table A1. Development of the preliminary CLD through expert workshops.
Table A1. Development of the preliminary CLD through expert workshops.
Modelling WorkshopsPurposeDate and Meeting FormatNumber of ParticipantsParticipants’ Area of Expertise **Confirmed COVID-19 Cases, Australia
Workshop 1: Problem scoping
  • Identification of the key variables in regard to impacts of the COVID-19 pandemic
  • Confirmation of the system boundary: COVID-19 pandemic environmental-health-socio-economic system
March 10 2020; Face-to-face5PH, S, CC, EM, ST, MS, G, E, EngM116
Workshop 2: Model conceptualisation
  • Identification of relationships among identified variables
  • Construction of a preliminary conceptual model represented as a CLD
March 24 2020; Face-to-face7PH, S, CC, EM, ST, MS, G, EngM, E, F, B2317
Workshop 3: Model confirmation
  • Refinement of the initial CLD generated from the previous modelling workshop
March 29 2020; Video conferencing *7PH, S, CC, EM, ST, MS, EngM, G, E, F, B4163
Workshop 4: Model confirmation (Cont.)
  • Identification of feedback loops
  • Identification of interventions (i.e., leverage points)
April 5 2020; Video conferencing *4S, CC, EM, ST, MS, EngM, G, E5750
Notes: * Due to COVID-19 pandemic restrictions last two workshops were held in the digital realm via video conferencing platforms. ** PH = Public health; S = Sustainability; CC = Climate change; EM = Environmental management; ST = Systems thinking; MS = Modelling and simulation; G = Governance; E = Economics; EngM = Engineering Management; F = Finance; B = Business.

References

  1. Norman, C.D. Health promotion as a systems science and practice. J. Eval. Clean. Pract. 2009, 15, 868–872. [Google Scholar] [CrossRef] [PubMed]
  2. Wearden, G.; Jolly, W. IMF: Global Economy Faces Worst Recession Since the Great Depression—As It Happened. The Guardian. 15 April 2020. Available online: https://www.theguardian.com/business/live/2020/apr/14/stock-markets-china-trade-global-recession-imf-forecasts-covid-19-business-live (accessed on 20 April 2020).
  3. Anderson, R.M.; Heesterbeek, H.; Klinkenberg, D.; Hollingsworth, T.D. How will country-based mitigation measures influence the course of the COVID-19 epidemic? Lancet 2020, 395, 931–934. [Google Scholar] [CrossRef]
  4. Prompetchara, E.; Ketloy, C.; Palaga, T. Immune responses in COVID-19 and potential vaccines: Lessons learned from SARS and MERS epidemic. Asian Pac. J. Allergy 2020, 38, 1–9. [Google Scholar] [CrossRef]
  5. Barron, L. What We Can Learn from Singapore, Taiwan and Hong Kong about Handling Coronavirus. Time. 13 March 2020. Available online: https://time.com/5802293/coronavirus-covid19-singapore-hong-kong-taiwan/ (accessed on 22 April 2020).
  6. Da Luke, D.A.; Stamatakis, K.A. System science methods in public health: Dynamics, networks, and agents. Annu. Rev. Public Health 2012, 33, 357–376. [Google Scholar] [CrossRef] [PubMed]
  7. Suprun, E.; Sahin, O.; Stewart, R.A.; Panuwatwanich, K. Model of the Russian Federation construction innovation system: An integrated participatory systems approach. Systems 2016, 4, 29. [Google Scholar] [CrossRef]
  8. Meadows, D.H. Thinking in Systems; Chelsea Green Publishing: White River Junction, VT, USA, 2008. [Google Scholar]
  9. Bureš, V. A method for simplification of complex group causal loop diagrams based on endogenisation, encapsulation and order-oriented reduction. Systems 2017, 5, 46. [Google Scholar] [CrossRef]
  10. Agnew, S.; Smith, C.; Dargusch, P. Causal loop modelling of residential solar and battery adoption dynamics: A case study of Queensland, Australia. J. Clean. Prod. 2018, 172, 2363–2373. [Google Scholar] [CrossRef]
  11. Garrity, E.J. Using systems thinking to understand and enlarge mental models: Helping the transition to a sustainable world. Systems 2018, 6, 15. [Google Scholar] [CrossRef]
  12. Rees, D.; Cavana, R.Y.; Cumming, J. Using cognitive and causal modelling to develop a theoretical framework for implementing innovative practices in primary healthcare management in New Zealand. Health Syst. 2018, 7, 51–65. [Google Scholar] [CrossRef]
  13. Lembani, M.; de Pinho, H.; Delobelle, P.; Zarowsky, C.; Mathole, T.; Ager, A. Understanding key drivers of performance in the provision of maternal health services in eastern cape, South Africa: A systems analysis using group model building. BMC Health Serv. Res. 2018, 18, 912. [Google Scholar] [CrossRef]
  14. Littlejohns, L.B.; Baum, F.; Lawless, A.; Freeman, T. The value of a causal loop diagram in exploring the complex interplay of factors that influence health promotion in a multisectoral health system in Australia. Health Res. Policy Syst. 2018, 16, 126. [Google Scholar] [CrossRef] [PubMed]
  15. Dong, E.; Du, H.; Gardner, L. An interactive web-based dashboard to track COVID-19 in real time. Lancet 2020, 20, 533–534. [Google Scholar] [CrossRef]
  16. Lauer, S.A.; Grantz, K.H.; Bi, Q.; Jones, F.K.; Zheng, Q.; Meredith, H.R.; Azman, A.S.; Reich, N.G.; Lessler, J. The incubation period of coronavirus disease 2019 (COVID-19) from publicly reported confirmed cases: Estimation and application. Ann. Intern. Med. 2020, 172, 577–582. [Google Scholar] [CrossRef] [PubMed]
  17. Sterman, J. Business Dynamics: Systems Thinking and Modeling for a Complex World; McGraw-Hill: New York, NY, USA, 2000. [Google Scholar]
  18. Bradley, D.T.; Mansouri, M.A.; Kee, F.; Garcia, L.M.T. A systems approach to preventing and responding to COVID-19. EClinicalMedicine 2020. [Google Scholar] [CrossRef] [PubMed]
  19. McKibbin, W.J.; Fernando, R. The global macroeconomic impacts of COVID-19: Seven scenarios. CAMA Work. Pap. 2020, 19. [Google Scholar] [CrossRef]
  20. International Monetary Fund. World Economic Outlook Reports; International Monetary Fund: Washington, DC, USA, 2020. [Google Scholar]
  21. Gilbert, M.; Pullano, G.; Pinotti, F.; Valdano, E.; Poletto, C.; Boëlle, P.; D’Ortenzio, E.; Yazdanpanah, Y.; Eholie, S.P.; Pharm, M.A.; et al. Preparedness and vulnerability of African countries against importations of COVID-19: A modelling study. Lancet 2020, 395, 871–877. [Google Scholar] [CrossRef]
  22. Loayza, N.V.; Pennings, S. Macroeconomic Policy in the Time of COVID-19: A Primer for Developing Countries; World Bank: Washington, DC, USA, 2020. [Google Scholar]
  23. Grasselli, G.; Pesenti, A.; Cecconi, M. Critical care utilization for the COVID-19 outbreak in Lombardy, Italy: Early experience and forecast during an emergency response. JAMA 2020. [Google Scholar] [CrossRef]
  24. Muhammad, S.; Long, X.; Salman, M. COVID-19 pandemic and environmental pollution: A blessing in disguise? Sci. Total Environ. 2020, 728, 138820. [Google Scholar] [CrossRef]
  25. World Health Organization. Water, Sanitation, Hygiene and Waste Management for the COVID-19 Virus. Available online: https://apps.who.int/iris/bitstream/handle/10665/331305/WHO-2019-NcOV-IPC_WASH-2020.1-eng.pdf (accessed on 7 May 2020).
  26. Galea, S.; Merchant, R.M.; Lurie, N. The mental health consequences of COVID-19 and physical distancing: The need for prevention and early intervention. JAMA Intern. Med. 2020. [Google Scholar] [CrossRef]
  27. Habibi, R.; Burci, G.L.; de Campos, T.C.; Chirwa, D.; Cinà, M.; Dagron, S.; Eccleston-Turner, M.; Forman, L.; Gostin, L.O.; Meier, B.M.; et al. Do not violate the International Health Regulations during the COVID-19 outbreak. Lancet 2020, 395, 664–666. [Google Scholar] [CrossRef]
  28. Sterman, J.D.; Dogan, G. I’m not hoarding, I’m just stocking up before the hoarders get here: Behavioral causes of phantom ordering in supply chains. J. Oper. Manag. 2015, 39–40, 6–22. [Google Scholar] [CrossRef]
  29. Van Bavel, J.J.; Baicker, K.; Boggio, P.S.; Capraro, V.; Cichocka, A.; Cikara, M.; Crockett, A.J.; Crum, A.J.; Douglas, K.M.; Druckman, J.N.; et al. Using social and behavioural science to support COVID-19 pandemic response. Nat. Hum. Behav. 2020, 4, 460–471. [Google Scholar] [CrossRef] [PubMed]
Figure 1. A preliminary causal loop diagram demonstrating the complexity of the COVID-19 pandemic environmental–health–socio–economic system.
Figure 1. A preliminary causal loop diagram demonstrating the complexity of the COVID-19 pandemic environmental–health–socio–economic system.
Systems 08 00020 g001

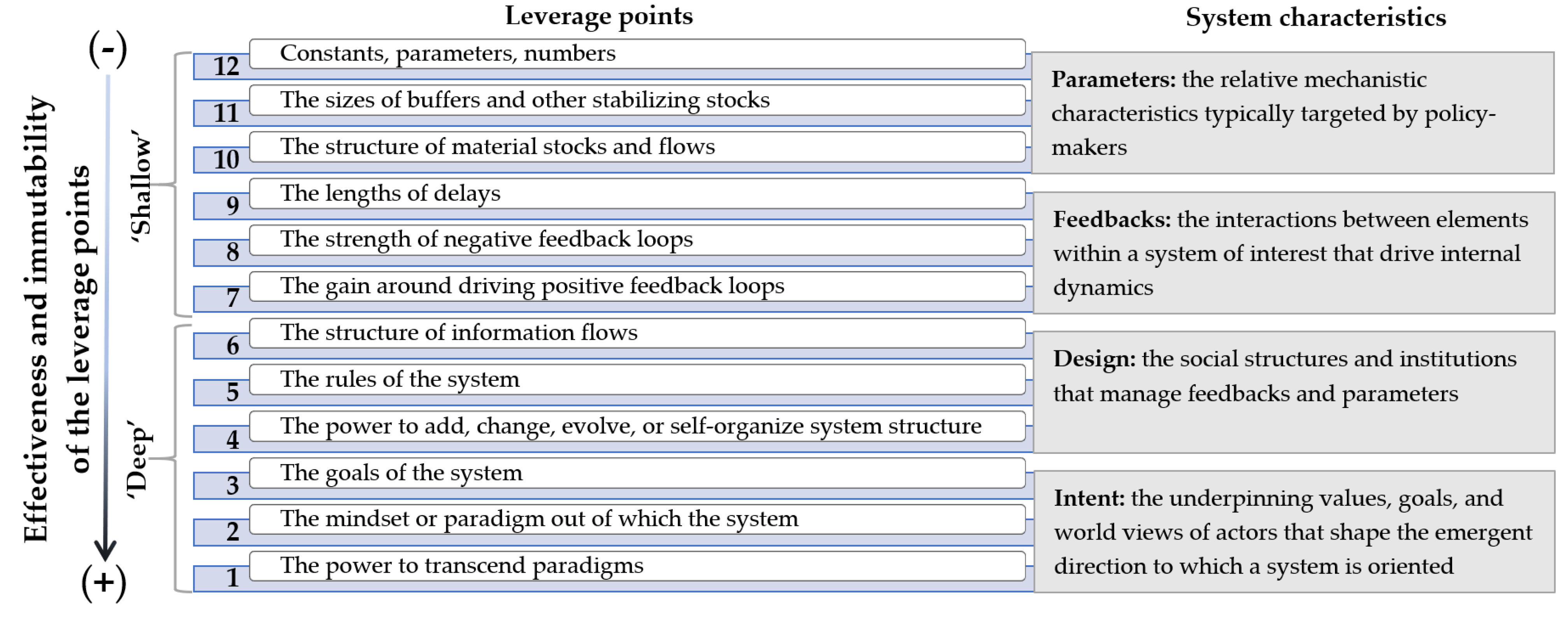

Figure 2. Leverage points to intervene a system. Adapted from Meadows [8].
