# A System Dynamics Modeling Support System Based on Computational Intelligence

^{*}

## Abstract

**:**

## 1. Introduction

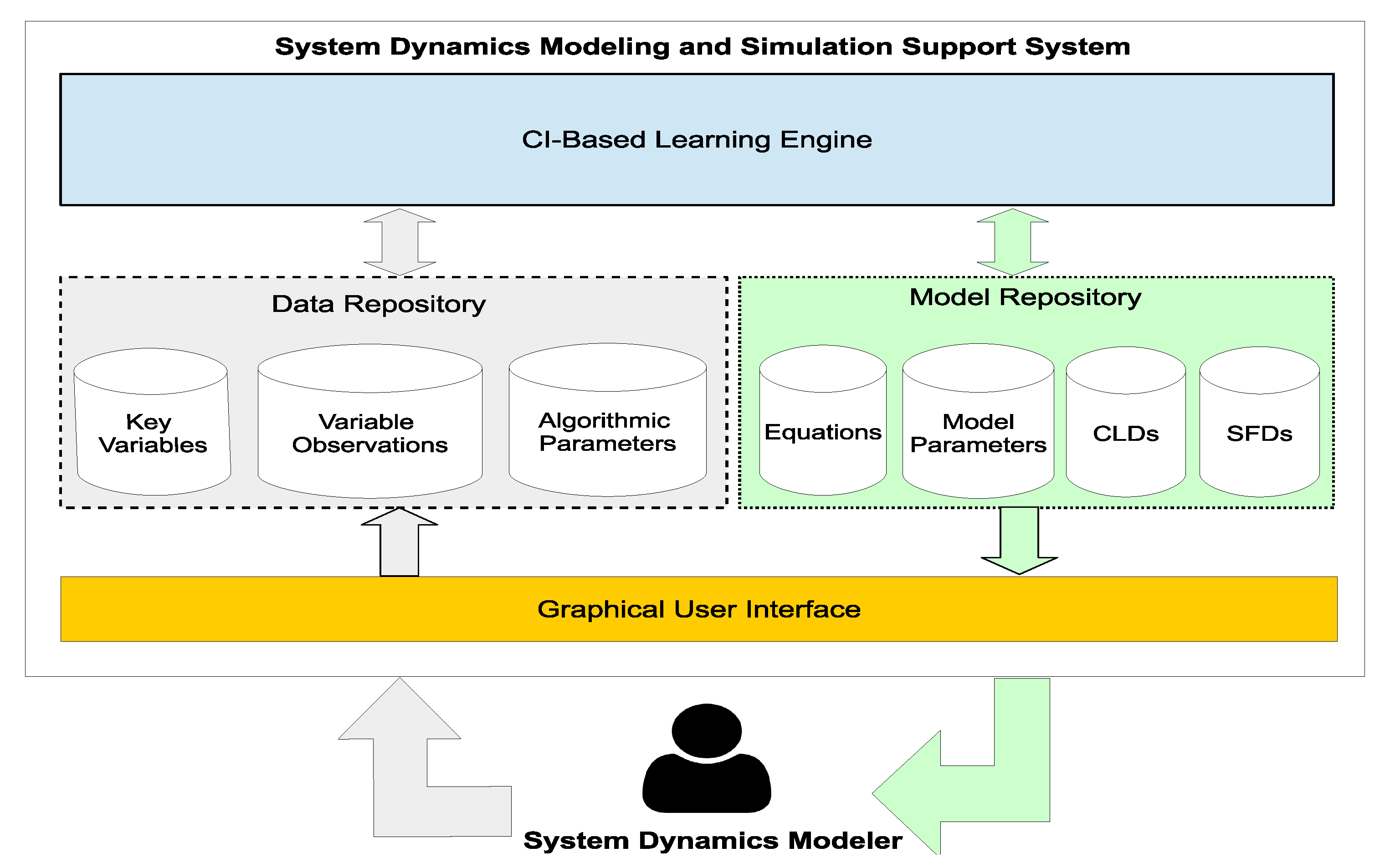

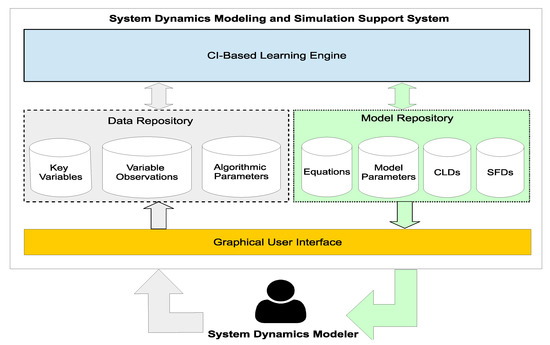

## 2. Overview of SD Modeling Support System

#### 2.1. Inferring System Equations and Parameter Estimation

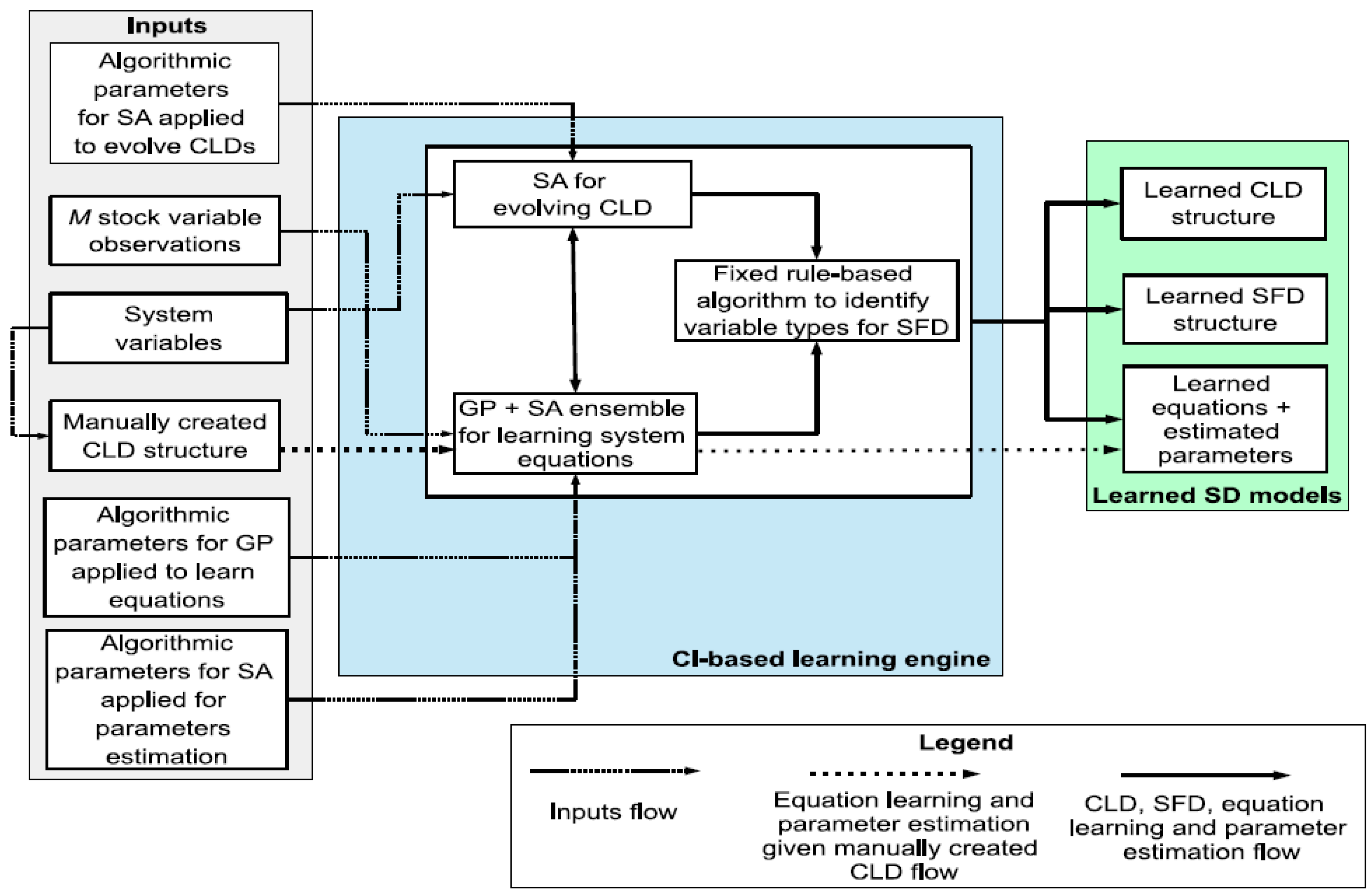

#### 2.2. Inferring CLDs, SFDs, System Equations and Parameter Estimation

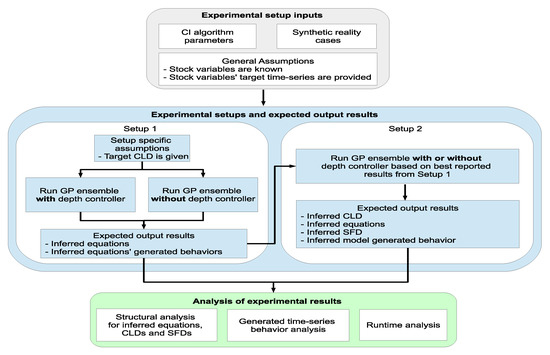

## 3. Experimental Setup

#### 3.1. Setups

#### 3.1.1. Setup 1

#### 3.1.2. Setup 2

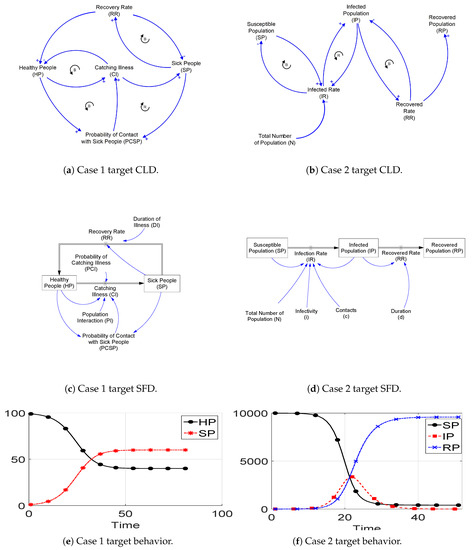

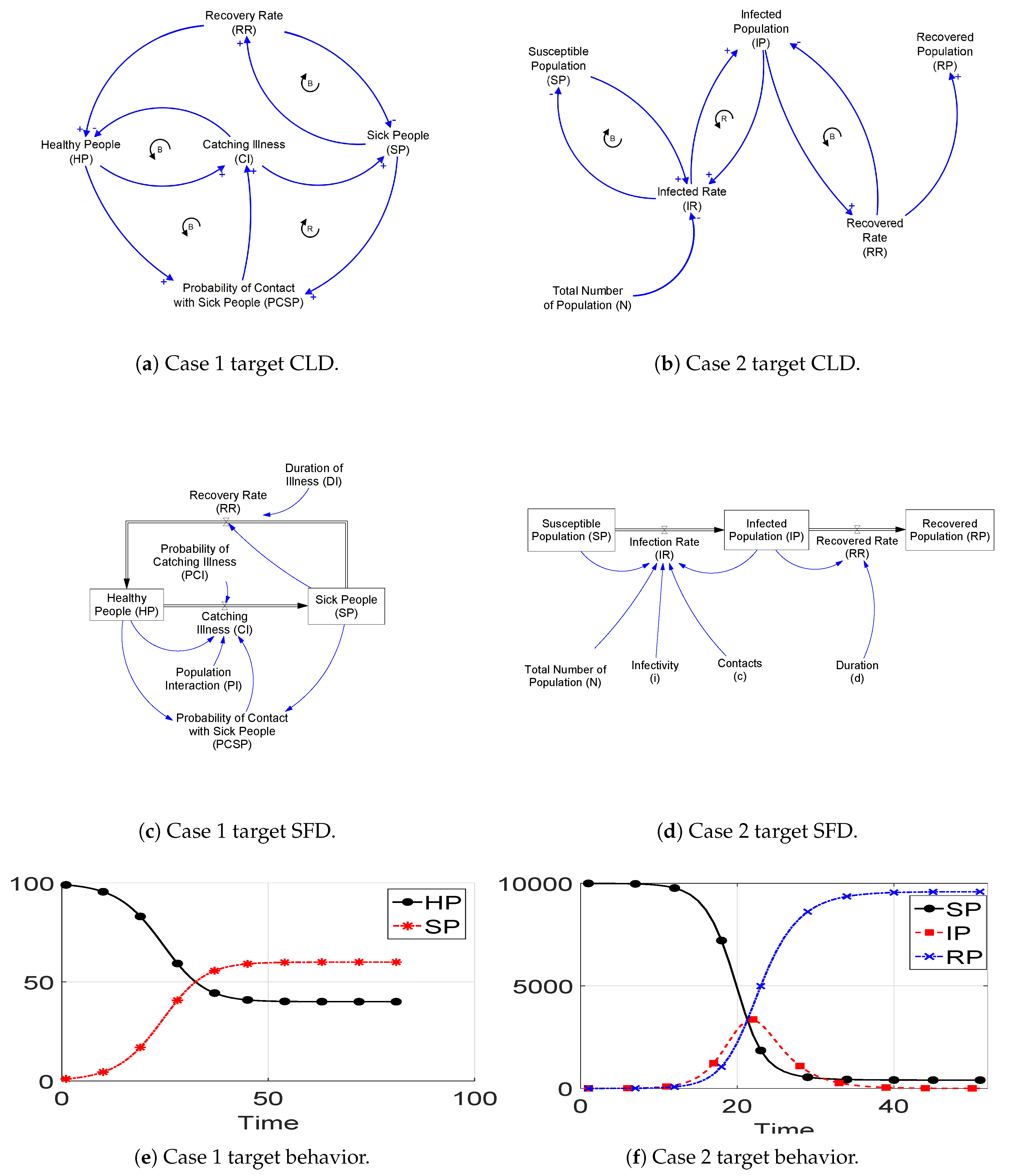

#### 3.2. Case Studies

#### 3.3. CI Algorithm Parameters

## 4. Results and Analysis

#### 4.1. Setup 1

#### 4.1.1. Case 1

#### 4.1.2. Case 2

#### 4.2. Setup 2

#### 4.2.1. Case 1

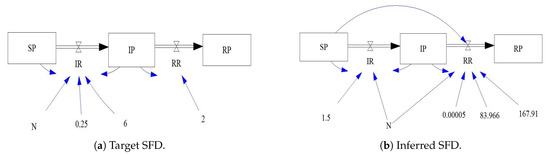

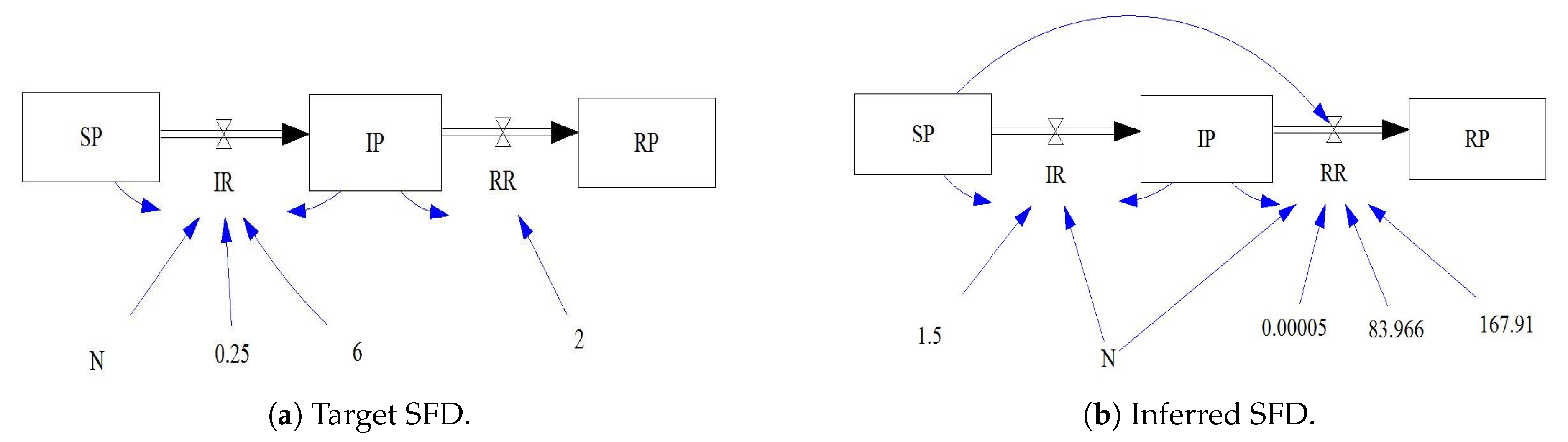

#### 4.2.2. Case 2

#### 4.3. Runtime Analysis

#### 4.4. Limitations

## 5. Conclusions

- Most pressing is the need to work towards enhancing the ability of the methods to generate models with minimal structures that can characterize the data. The methods under development should be robust and scalable with the ability to handle big data.
- It is crucial to integrate the necessary semantic domain knowledge, about the system or problem of interest, with the CI-based methods to generate valid structures. This will add a new dimension to the capability of the CI-methods for generating valuable models, especially for real-life systems where we do not have any idea about how the target model looks.
- Identification of which variables to include in the model, as part of the support system’s inference engine, is challenging because, for each variable set selected, a SD model should be built and simulated to evaluate those selected. Therefore, the efficiency of the modeling process would be greatly enhanced by finding a method which bypassed the need to build the whole SD model.
- Generating an SD model without prior knowledge of the types of variables and only limited observations is a challenging task too. However, the ability to handle these conditions since they are common in real world applications is an important feature to be added to the support system. Generating SD models under these conditions will require not only a search for the set of causal and mathematical relationships, but a search for the types of variables and for the mathematical equations for those variables that do not have any observations.

## Supplementary Materials

## Author Contributions

## Funding

## Conflicts of Interest

## References

- Mohammadifardi, H.; Knight, M.A.; Unger, A.A. Sustainability Assessment of Asset Management Decisions for Wastewater Infrastructure Systems—Implementation of a System Dynamics Model. Systems
**2019**, 7, 34. [Google Scholar] [CrossRef] - Suprun, E.; Sahin, O.; Stewart, R.; Panuwatwanich, K.; Shcherbachenko, Y. An Integrated Participatory Systems Modelling Approach: Application to Construction Innovation. Systems
**2018**, 6, 33. [Google Scholar] [CrossRef] - Reinker, M.; Gralla, E. A System Dynamics Model of the Adoption of Improved Agricultural Inputs in Uganda, with Insights for Systems Approaches to Development. Systems
**2018**, 6, 31. [Google Scholar] [CrossRef] - Winch, G.W.; Arthur, D.J. User-parameterised generic models: A solution to the conundrum of modelling access for SMEs? Syst. Dyn. Rev.
**2002**, 18, 339–357. [Google Scholar] [CrossRef] - Kanninga, P. Simulation Model Development, The Devil Is in the Detail! Ph.D. Thesis, Delft University of Technology, TU Delft, The Netherlands, 2008. [Google Scholar]
- Pruyt, E.; Cunningham, S.; Kwakkel, J.; De Bruijn, J. From data-poor to data-rich: System dynamics in the era of big data. In Proceedings of the 32nd International Conference of the System Dynamics Society, Delft, The Netherlands, 20–24 July 2014; System Dynamics Society: Albany, NY, USA, 2014. [Google Scholar]
- Bourguet, R.E.; Soto, R. Qualitative knowledge acquisition using fuzzy logic and system dynamics. In Proceedings of the 20th International Conference of the System Dynamics Society, Palermo, Italy, 28 July–1 August 2002; System Dynamics Society: Albany, NY, USA, 2002. [Google Scholar]
- Ho, Y.F.; Wang, H.L. Applying fuzzy Delphi method to select the variables of a sustainable urban system dynamics model. In Proceedings of the 26th International Conference of the System Dynamics Society, Athens, Greece, 20–24 July 2008; System Dynamics Society: Albany, NY, USA, 2008. [Google Scholar]
- Abdelbari, H.; Shafi, K. A Computational Intelligence-based Method to Learn Causal Loop Diagram-like Structures from Observed Data. Syst. Dyn. Rev.
**2017**, 33, 3–33. [Google Scholar] [CrossRef] - Abdelbari, H.; Shafi, K. Optimizing a Constrained Echo State Network using Evolutionary Algorithms for Learning Mental Models of complex dynamical systems. In Proceedings of the International Joint Conference on Neural Networks (IJCNN), Vancouver, BC, Canada, 24–29 July 2016; pp. 4735–4742. [Google Scholar]
- Abdelbari, H.; Shafi, K. Learning Structures of Conceptual Models from Observed Dynamics using Evolutionary Echo State Networks. J. Artif. Intell. Soft Comput. Res.
**2018**, 8, 133–154. [Google Scholar] [CrossRef] - Chen, Y.T.; Tu, Y.M.; Jeng, B. A machine learning approach to policy optimization in system dynamics models. Syst. Res. Behav. Sci.
**2011**, 28, 369–390. [Google Scholar] [CrossRef] - Abdelbari, H.; Elsawah, S.; Shafi, K. Model Learning using Genetic Programming under Full and Parial System Information Conditions. In Proceedings of the 33rd International Conference of the System Dynamics Society, Cambridge, MA, USA, 19–23 July 2015; System Dynamics Society: Albany, NY, USA, 2015. [Google Scholar]
- Abdelbari, H.; Shafi, K. A Genetic Programming Ensemble Method for Learning Dynamical System Models. In Proceedings of the 8th International Conference on Computer Modeling and Simulation, Canberra, Australia, 20–23 January 2017. [Google Scholar]
- North, M.; Sydelko, P.; Martinez-Moyano, I. Structurally Evolving System Dynamics Models Using Genetic Algorithms. In Proceedings of the 33rd International Conference of the System Dynamics Society, Cambridge, MA, USA, 19–23 July 2015; System Dynamics Society: Albany, NY, USA, 2015. [Google Scholar]
- Drobek, M.; Gilani, W.; Molka, T.; Soban, D. Automated equation formulation for causal loop diagrams. Lect. Notes Bus. Inf. Process.
**2015**, 208, 38–49. [Google Scholar] - Yücel, G.; Barlas, Y. Automated parameter specification in dynamic feedback models based on behavior pattern features. Syst. Dyn. Rev.
**2011**, 27, 195–215. [Google Scholar] [CrossRef] - Wu, Z.; Xu, J. Predicting and optimization of energy consumption using system dynamics-fuzzy multiple objective programming in world heritage areas. Energy
**2013**, 49, 19–31. [Google Scholar] [CrossRef] - Struben, J.; Sterman, J.; Keith, D. Parameter Estimation through Maximum Likelihood and Bootstrapping Methods. In Analytical Methods for Dynamic Modelers; MIT Press: Cambridge, MA, USA, 2015; pp. 3–38. [Google Scholar]
- Liu, H.; Howley, E.; Duggan, J. Optimisation of the Beer Distribution Game with complex customer demand patterns. In Proceedings of the 2009 Congress on Evolutionary Computation, Trondheim, Norway, 18–21 May 2009. [Google Scholar]
- Phelan, M.; McGarraghy, S. Mitigating the bullwhip effect in supply chains using grammatical evolution. In Proceedings of the 25th International Conference of the System Dynamics Society, Boston, MA, USA, 29 July–2 August 2007; System Dynamics Society: Albany, NY, USA, 2007. [Google Scholar]
- Graham, A.K.; Ariza, C.A. Dynamic, hard and strategic questions: Using optimization to answer a marketing resource allocation question. Syst. Dyn. Rev.
**2003**, 19, 27–46. [Google Scholar] [CrossRef] - Rahmandad, H.; Oliva, R.; Osgood, N.D.; Richardson, G. Using Decision Trees to Value Managerial Real Options. In Analytical Methods for Dynamic Modelers; MIT Press: Cambridge, MA, USA, 2015; pp. 307–336. [Google Scholar]
- Rahmandad, H.; Spiteri, R.J. Modeling Comparing Actors using Differential Games. In Analytical Methods for Dynamic Modelers; MIT Press: Cambridge, MA, USA, 2015; pp. 373–404. [Google Scholar]
- Miller, J.H. Active nonlinear tests (ANTs) of complex simulation models. Manag. Sci.
**1998**, 44, 820–830. [Google Scholar] [CrossRef] - Yücel, G.; Barlas, Y. Pattern recognition for model testing, calibration, and behavior analysis. In Analytical Methods for Dynamic Modelers; MIT Press: Cambridge, MA, USA, 2015; pp. 173–206. [Google Scholar]
- Pei, W. Fuzzy Evaluation on the Validity of System Dynamics Models. In Computer-Based Management of Complex Systems; Springer: Berlin/Heidelberg, Germany, 1989; pp. 271–276. [Google Scholar]
- Koza, J.R. Genetic Programming: On the Programming of Computers by Means of Natural Selection; MIT Press: Cambridge, MA, USA, 1992; Volume 1. [Google Scholar]
- O’Neill, M.; Vanneschi, L.; Gustafson, S.; Banzhaf, W. Open issues in genetic programming. Genet. Program. Evolvable Mach.
**2010**, 11, 339–363. [Google Scholar] [CrossRef] [Green Version] - Quade, M.; Abel, M.; Shafi, K.; Niven, R.K.; Noack, B.R. Prediction of Dynamical Systems by Symbolic Regression. Phys. Rev. E
**2016**, 94, 012214. [Google Scholar] [CrossRef] [PubMed] - Soule, T. Code Growth in Genetic Programming. Ph.D. Thesis, University of Idaho, Moscow, ID, USA, 1998. [Google Scholar]
- Miller, J.F. Cartesian Genetic Programming. In Cartesian Genetic Programming; Springer: Berlin, Germany, 2011; pp. 17–34. [Google Scholar]
- Kirkpatrick, S.; Gelatt, C.D.; Vecchi, M.P. Optimization by simulated annealing. Science
**1983**, 220, 671–680. [Google Scholar] [CrossRef] [PubMed] - Batista, G.E.; Wang, X.; Keogh, E.J. A complexity-invariant distance measure for time series. In Proceedings of the 2011 International Conference on Data Mining, Mesa, AZ, USA, 28–30 April 2011; pp. 699–710. [Google Scholar]
- Keogh, E.; Wei, L.; Xi, X.; Vlachos, M.; Lee, S.H.; Protopapas, P. Supporting exact indexing of arbitrarily rotated shapes and periodic time series under Euclidean and warping distance measures. VLDB J.
**2009**, 18, 611–630. [Google Scholar] [CrossRef] - Keogh, E. Efficiently finding arbitrarily scaled patterns in massive time series databases. In Proceedings of the European Conference on Principles of Data Mining and Knowledge Discovery, Cavtat-Dubrovnik, Croatia, 22–26 September 2003; pp. 253–265. [Google Scholar]
- Faloutsos, C.; Ranganathan, M.; Manolopoulos, Y. Fast Subsequence Matching in Time-Series Databases; ACM: New York, NY, USA, 1994; Volume 23. [Google Scholar]
- Oliva, R. Model structure analysis through graph theory: Partition heuristics and feedback structure decomposition. Syst. Dyn. Rev.
**2004**, 20, 313. [Google Scholar] [CrossRef] - Takahashi, Y. Stock Flow Diagram Making with Incomplete Information about Time Properties of Variables. In Proceedings of the 24th International Conference of the System Dynamics Society, Nijmegen, The Netherlands, 23–27 July 2006; System Dynamics Society: Albany, NY, USA, 2006. [Google Scholar]
- Forrester, J.W. System Dynamics Self Study—MIT OpenCourseWare. Available online: http://ocw.mit.edu/courses/sloan-school-of-management/15-988-system-dynamics-self-study-fall-1998-spring-1999/ (accessed on 19 July 2017).
- Sterman, J.D. Business Dynamics: Systems Thinking and Modeling for a Complex World; Irwin/McGraw-Hill: Boston, MA, USA, 2000; Volume 19. [Google Scholar]

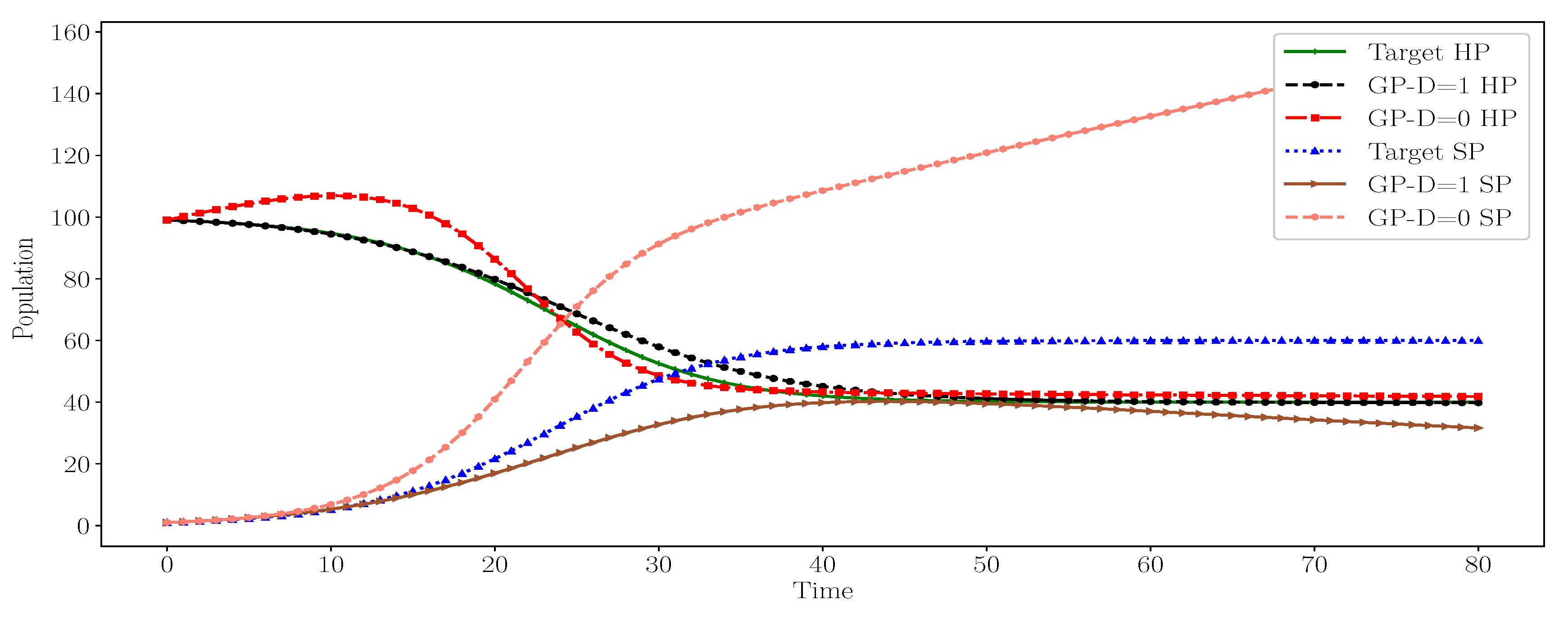

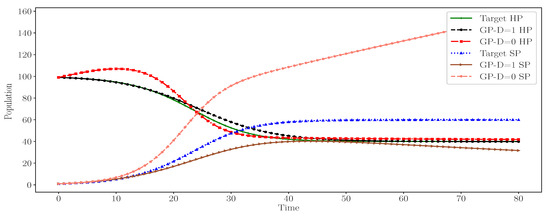

**Figure 5.**Illustration of Case 1 target behaviors, healthy people ($HP$) and sick people ($SP$), and the generated behaviors from the corresponding inferred models for Setup 1, with and without applying genetic programming depth controller.

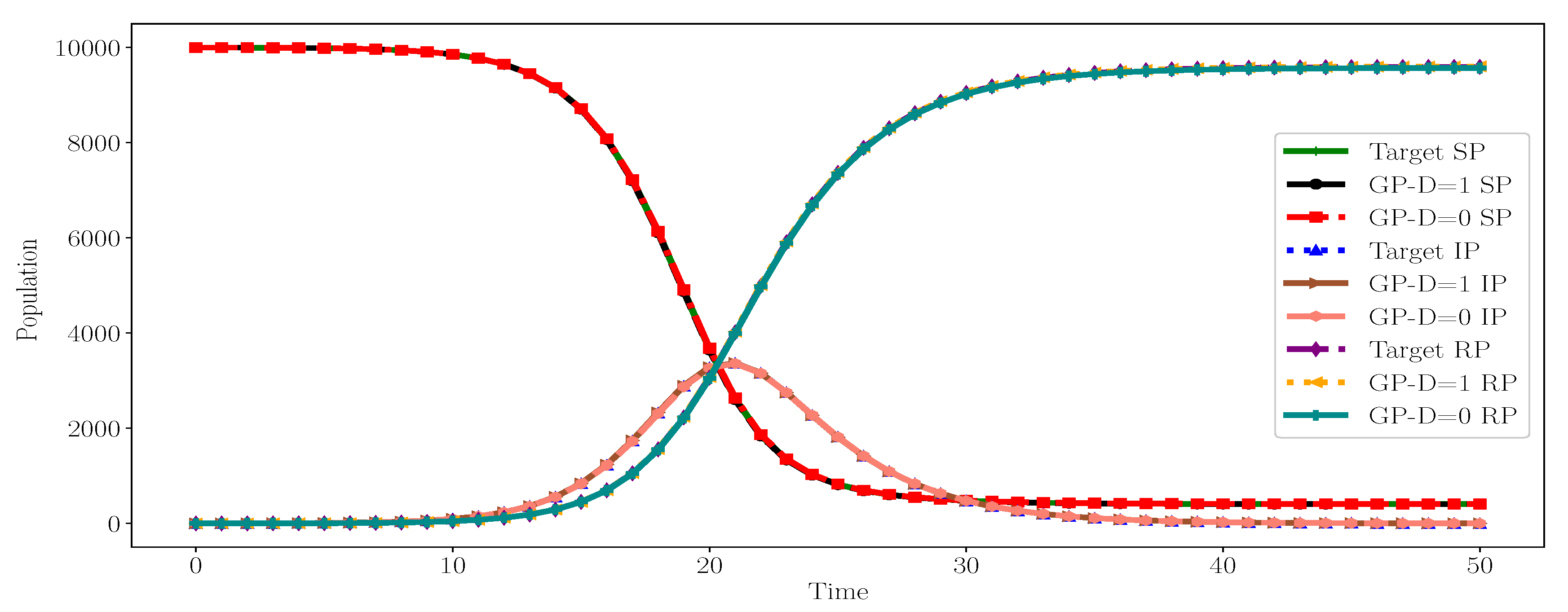

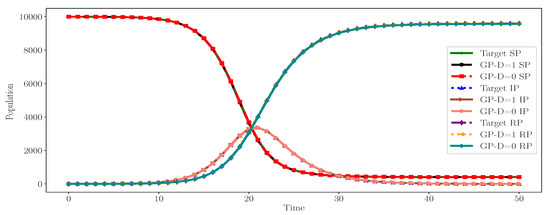

**Figure 6.**Illustration of Case 2 target outputs, susceptible population ($SP$), infected population ($IP$) and recovery population ($RP$), and the two generated outputs from the corresponding inferred models for Setup 1, with and without applying genetic programming depth controller.

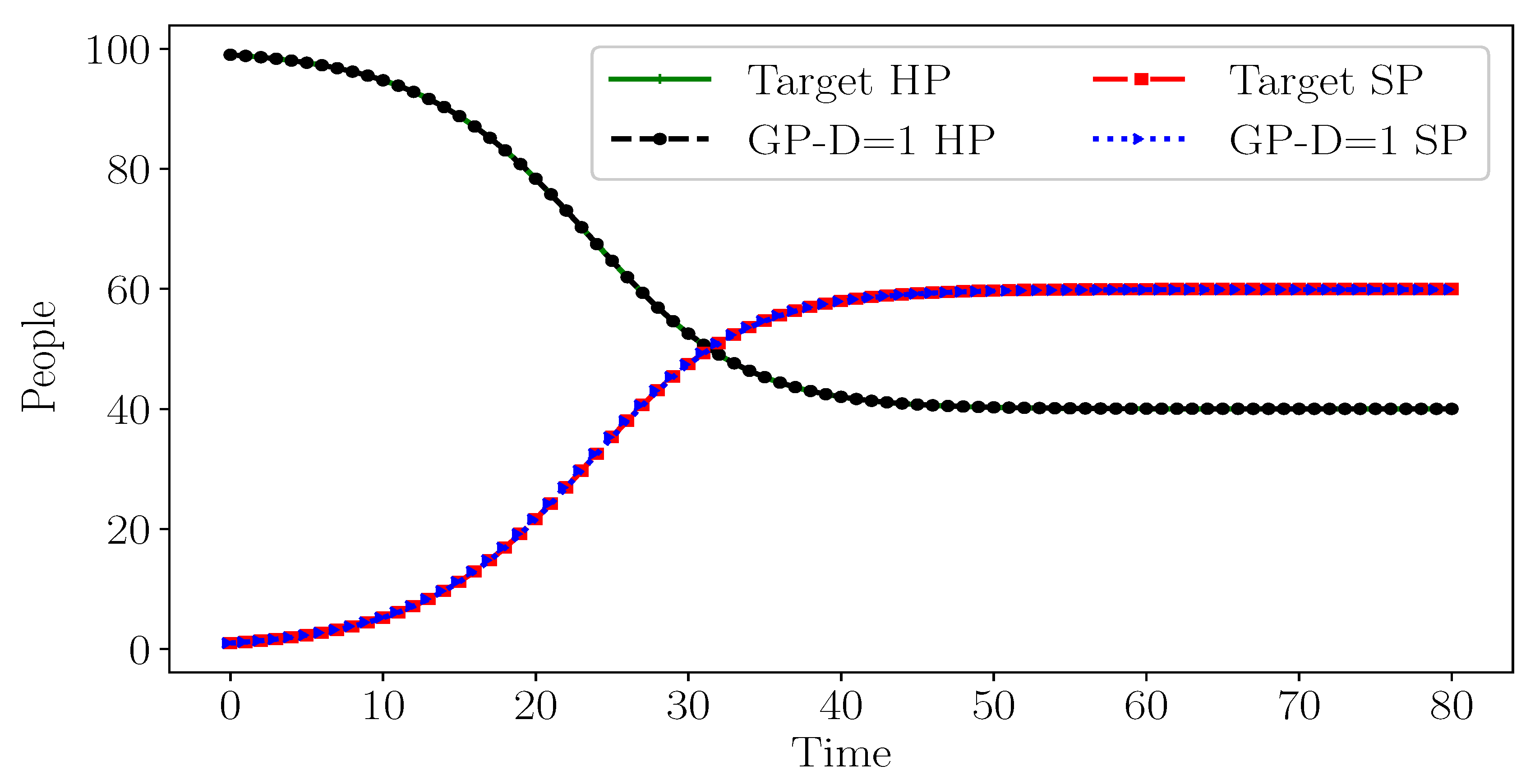

**Figure 7.**Illustration of Case 1 target outputs, healthy people ($HP$) and sick people ($SP$), and the two generated outputs from the corresponding inferred models for Setup 2 with genetic programming depth controller.

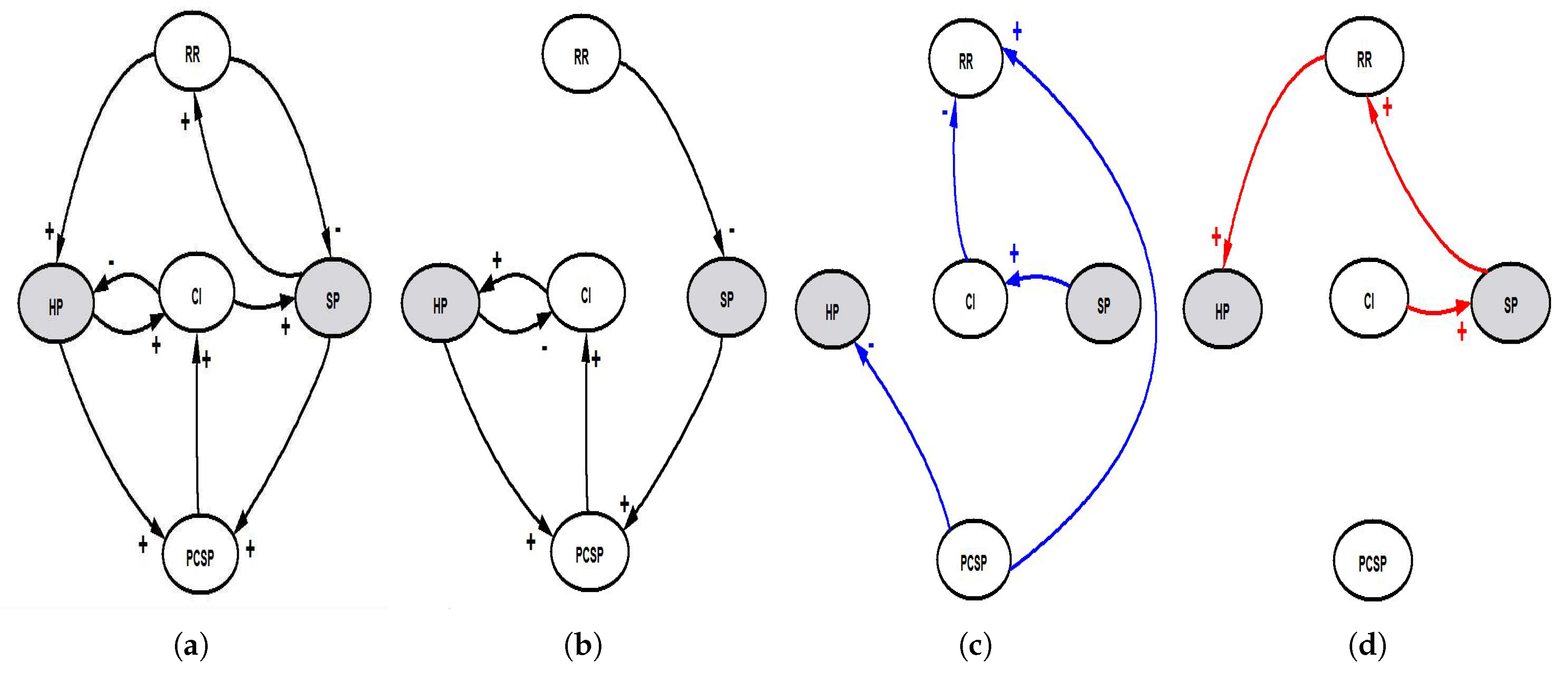

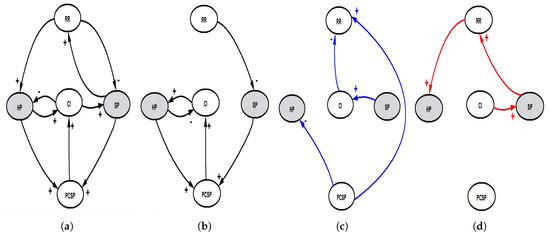

**Figure 8.**Case 1 inferred CLD by showing the correctly predicted links (

**b**), additional links (

**c**) and missing links (

**d**) compared to the target CLD (

**a**)—Setup 2.

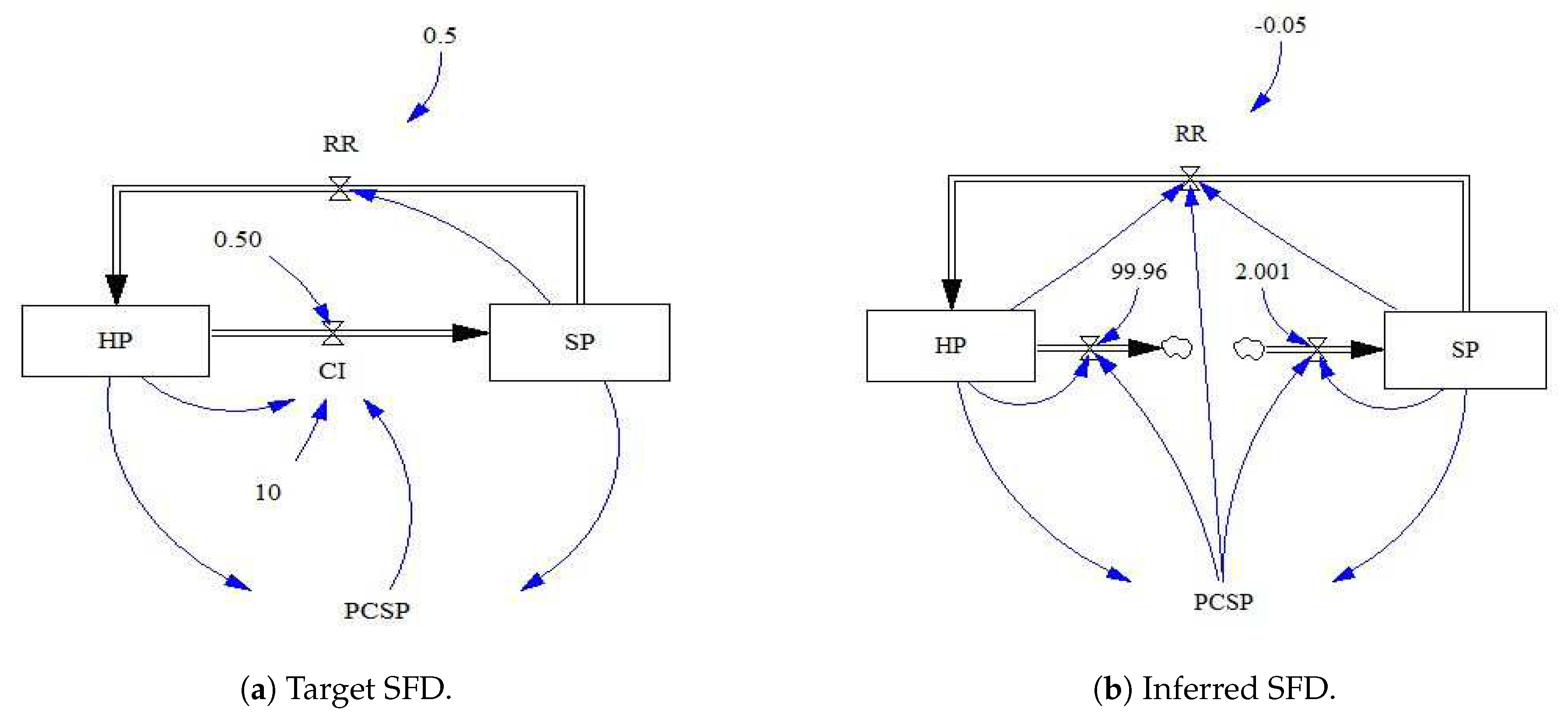

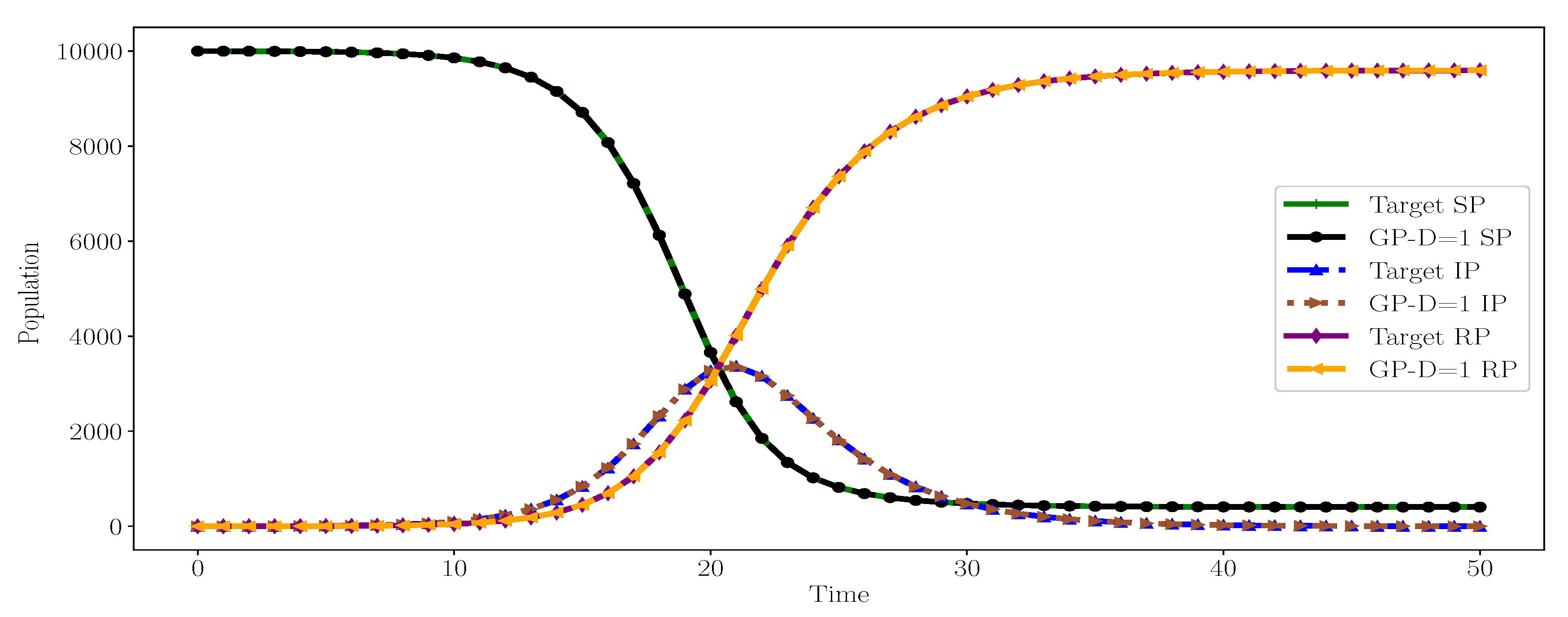

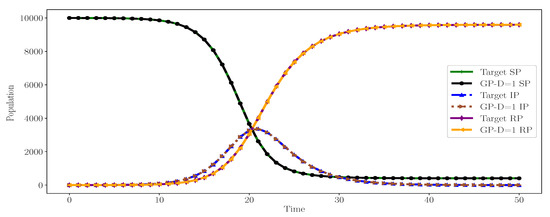

**Figure 10.**Illustration of Case 2 target outputs, susceptible population ($SP$), infected population ($IP$) and recovery population ($RP$), and the two generated outputs from the corresponding inferred models for Setup 2 with genetic programming depth controller.

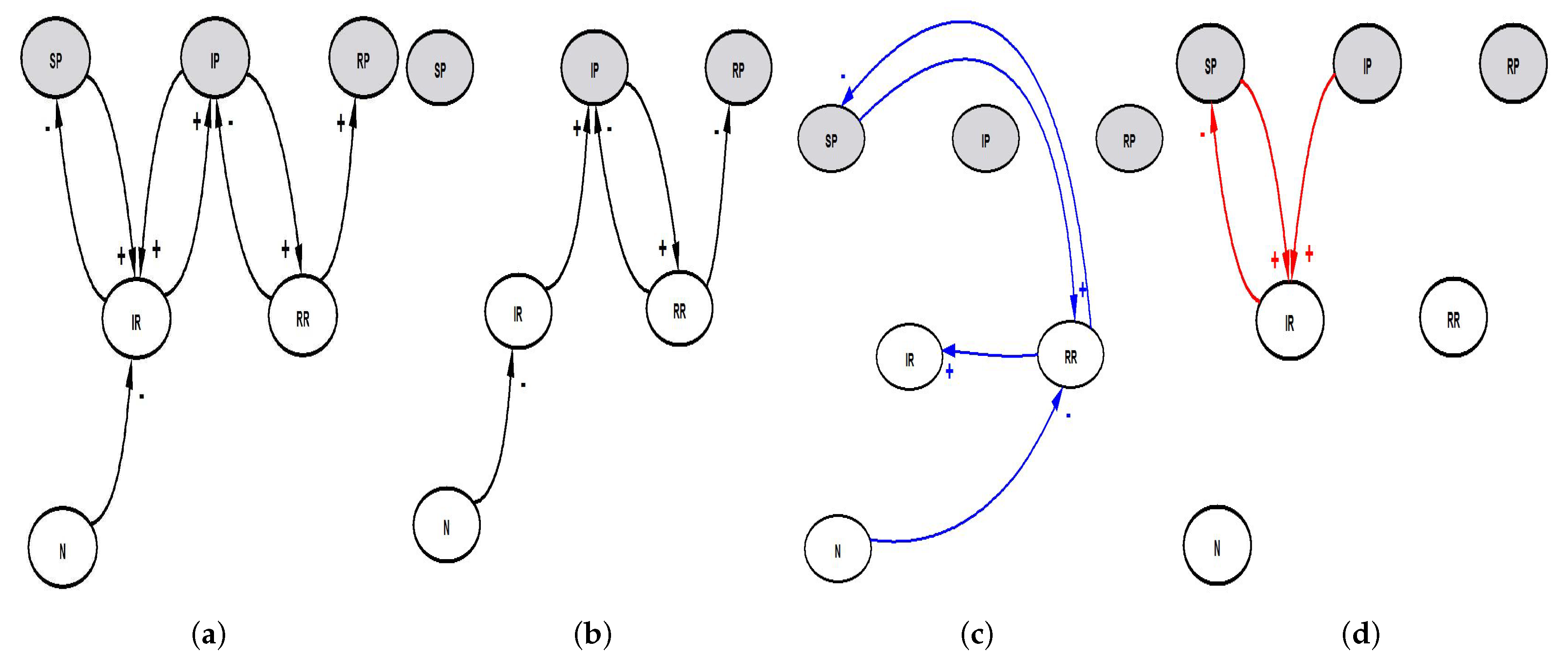

**Figure 11.**Case 2 inferred CLD by showing the correctly predicted links (
