# Strategic Sensor Placement in Expansive Highway Networks: A Novel Framework for Maximizing Information Gain

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Methods

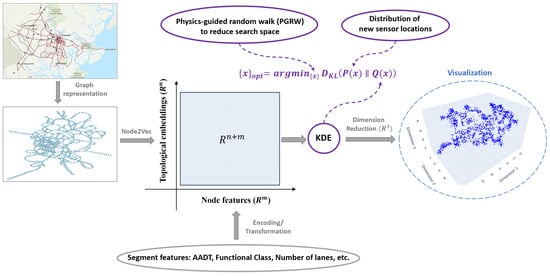

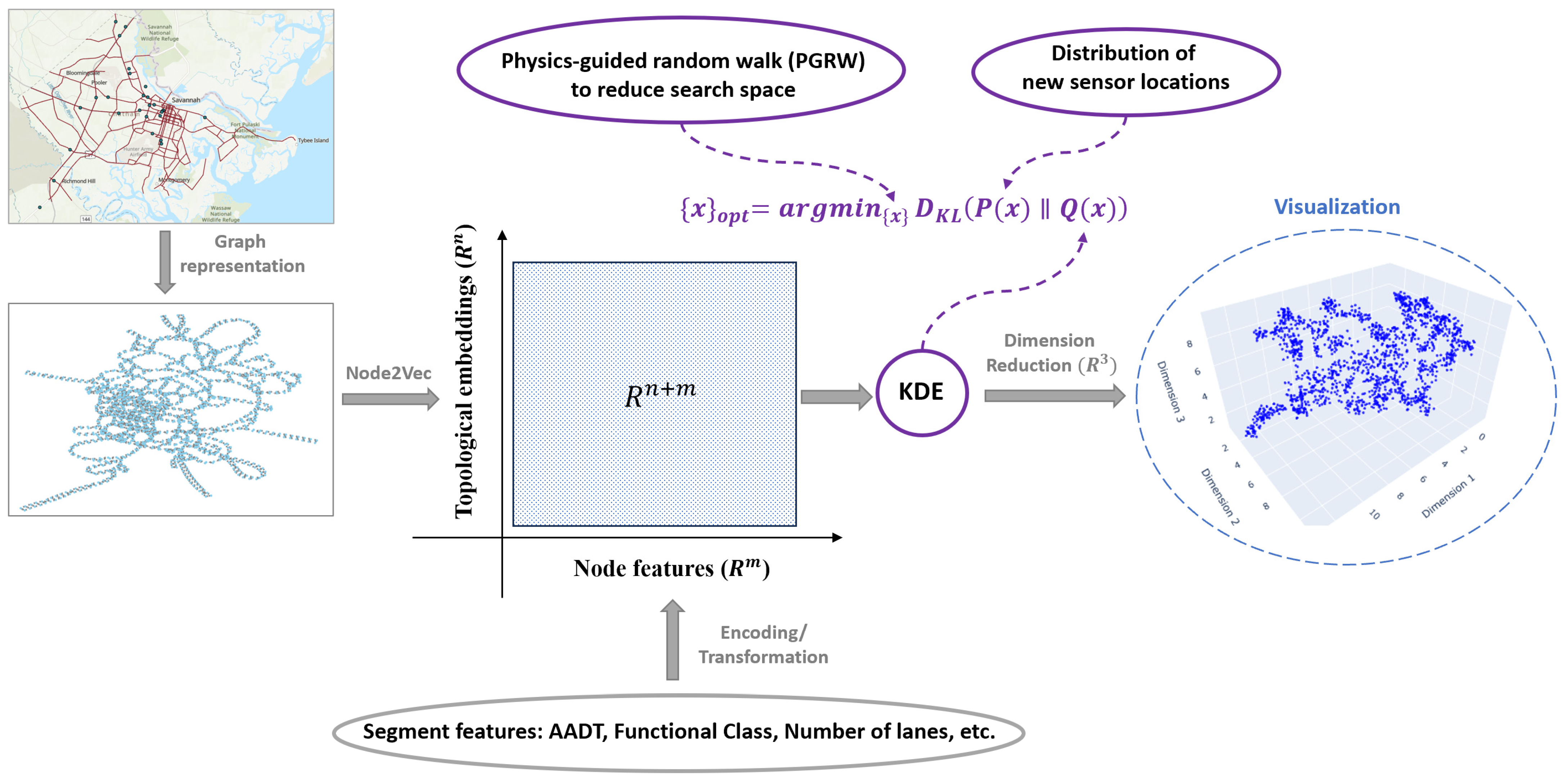

^{n}while preserving the network topology. To enhance the topological embedding, we introduce additional dimensions (R

^{m}) to account for segment-specific features such as AADT, functional class, and the number of lanes. This dimensional augmentation results in a joint vector space (R

^{(n+m)}), highlighted by the shaded blue box in Figure 1. As a result, the inherent distance metric between two nodes (or segments) in this joint vector space incorporates both their topological relationship and segment attributes.

#### 2.1. Graph Representation of Highway Network

#### 2.2. Topological Embedding of Graphs

#### 2.3. Construction of Joint Vector Space

#### 2.4. Kernel Density Estimation

#### 2.5. Optimization Problem Formulation

#### 2.6. Solution Algorithm

#### 2.6.1. Physics-Guided Random Walk

#### 2.6.2. Genetic Algorithm

Algorithm 1. Pseudocode of GA with penalty trick. |

1: Initialize population P with size ${N}_{p}$ |

2: For generation $i=1$ to ${N}_{g}$: |

3: For $j=1$ to ${N}_{p}$: |

4: If (the number of “1” gene in individual ${x}_{j}$) ! = (the desired number of sensors): |

5: assign a low fitness score (e.g., 0.00001) to individual ${x}_{j}$. |

6: Else: compute the fitness score for individual ${x}_{j}$. |

7: End for |

8: Select the best m individuals in the population P and save them as population, ${P}_{1}$ |

9: //crossover operation// |

10: For $j=1$to $\left({N}_{p}-m\right)$: |

11: randomly select two individuals ${x}_{a}$ and ${x}_{b}$ from population P |

12: generate ${x}_{a}^{\prime}$ and ${x}_{b}^{\prime}$ by crossover. |

13: save ${x}_{a}^{\prime}$ and ${x}_{b}^{\prime}$ to population ${P}_{2}$ |

14: End for |

15: //mutation operation// |

16: For $j=1$to $\left({N}_{p}-m\right)$: |

17: select an individual ${x}_{j}$ from ${P}_{2}$ |

18: apply mutation to obtain individual ${x}_{j}^{\prime \prime}$ |

19: replace ${x}_{j}$ with ${x}_{j}^{\prime \prime}$ in ${P}_{2}$ |

20: End for |

21: update population ${P=P}_{1}+{P}_{2}$ |

22: End for |

23: Return the best individual, ${x}_{best}$ in population P |

## 3. Results

## 4. Discussion and Conclusions

## Author Contributions

## Funding

## Data Availability Statement

## Acknowledgments

## Conflicts of Interest

## References

- Salari, M.; Kattan, L.; Lam, W.H.K.; Esfeh, M.A.; Fu, H. Modeling the effect of sensor failure on the location of counting sensors for origin-destination (OD) estimation. Transp. Res. Part C Emerg. Technol.
**2021**, 132, 103367. [Google Scholar] [CrossRef] - Owais, M. Traffic sensor location problem: Three decades of research. Expert Syst. Appl.
**2022**, 208, 118134. [Google Scholar] [CrossRef] - Mínguez, R.; Sánchez-Cambronero, S.; Castillo, E.; Jiménez, P. Optimal traffic plate scanning location for OD trip matrix and route estimation in road networks. Transp. Res. Part B Methodol.
**2010**, 44, 282–298. [Google Scholar] [CrossRef] - Fu, H.; Lam, W.H.; Shao, H.; Kattan, L.; Salari, M. Optimization of multi-type traffic sensor locations for estimation of multi-period origin-destination demands with covariance effects. Transp. Res. Part E Logist. Transp. Rev.
**2022**, 157, 102555. [Google Scholar] [CrossRef] - Castillo, E.; Conejo, A.J.; Menéndez, J.M.; Jiménez, P. The observability problem in traffic network models. Comput. Aided Civ. Infrastruct. Eng.
**2008**, 23, 208–222. [Google Scholar] [CrossRef] - Liu, Y.; Zhu, N.; Ma, S.; Jia, N. Traffic sensor location approach for flow inference. IET Intell. Transp. Syst.
**2015**, 9, 184–192. [Google Scholar] [CrossRef] - Morrison, D.R.; Martonosi, S.E. Characteristics of optimal solutions to the sensor location problem. Ann. Oper. Res.
**2015**, 226, 463–478. [Google Scholar] [CrossRef] - Ng, M. Synergistic sensor location for link flow inference without path enumeration: A node-based approach. Transp. Res. Part B Methodol.
**2012**, 46, 781–788. [Google Scholar] [CrossRef] - Gentili, M.; Mirchandani, P.B. Locating active sensors on traffic networks. Ann. Oper. Res.
**2005**, 136, 229–257. [Google Scholar] [CrossRef] - Owais, M. Location strategy for traffic emission remote sensing monitors to capture the violated emissions. J. Adv. Transp.
**2019**, 2019, 6520818. [Google Scholar] [CrossRef] - Edara, P.; Smith, B.; Guo, J.; Babiceanu, S.; McGhee, C. Methodology to identify optimal placement of point detectors for travel time estimation. J. Transp. Eng.
**2011**, 137, 155–173. [Google Scholar] [CrossRef] - Li, R.; Mehr, N.; Horowitz, R. Submodularity of optimal sensor placement for traffic networks. Transp. Res. Part B Methodol.
**2023**, 171, 29–43. [Google Scholar] [CrossRef] - Grover, A.; Leskovec, J. node2vec: Scalable Feature Learning for Networks. In Proceedings of the KDD’16: The 22nd ACM SIGKDD International Conference on Knowledge Discovery and Data Mining, ACM, San Francisco, CA, USA, 13–17 August 2016; pp. 855–864. [Google Scholar] [CrossRef]
- McInnes, L.; Healy, J.; Melville, J. UMAP: Uniform Manifold Approximation and Projection for Dimension Reduction. arXiv
**2020**, arXiv:1802.03426. [Google Scholar] - Węglarczyk, S. Kernel density estimation and its application. ITM Web Conf.
**2018**, 23, 00037. [Google Scholar] [CrossRef] - Kumar, V.; Chhabra, J.K.; Kumar, D. Parameter adaptive harmony search algorithm for unimodal and multimodal optimization problems. J. Comput. Sci.
**2014**, 5, 144–155. [Google Scholar] [CrossRef] - Van Erven, T.; Harremos, P. Rényi divergence and Kullback-Leibler divergence. IEEE Trans. Inf. Theory
**2014**, 60, 3797–3820. [Google Scholar] [CrossRef] - Bonabeau, E.; Theraulaz, G.; Dorigo, M. Swarm Intelligence: From Natural to Artificial Systems; Oxford University Press: Oxford, UK, 1999. [Google Scholar]
- Katoch, S.; Chauhan, S.S.; Kumar, V. A review on genetic algorithm: Past, present, and future. Multimed. Tools Appl.
**2021**, 80, 8091–8126. [Google Scholar] [CrossRef] - He, T.; Wang, H.; Yoon, S.W. Comparison of Four Population-Based Meta-Heuristic Algorithms on Pick-and-Place Optimization. Procedia Manuf.
**2018**, 17, 944–951. [Google Scholar] [CrossRef] - Mirjalili, S. Evolutionary Algorithms and Neural Networks, Studies in Computational Intelligence; Springer: Berlin/Heidelberg, Germany, 2019. [Google Scholar] [CrossRef]

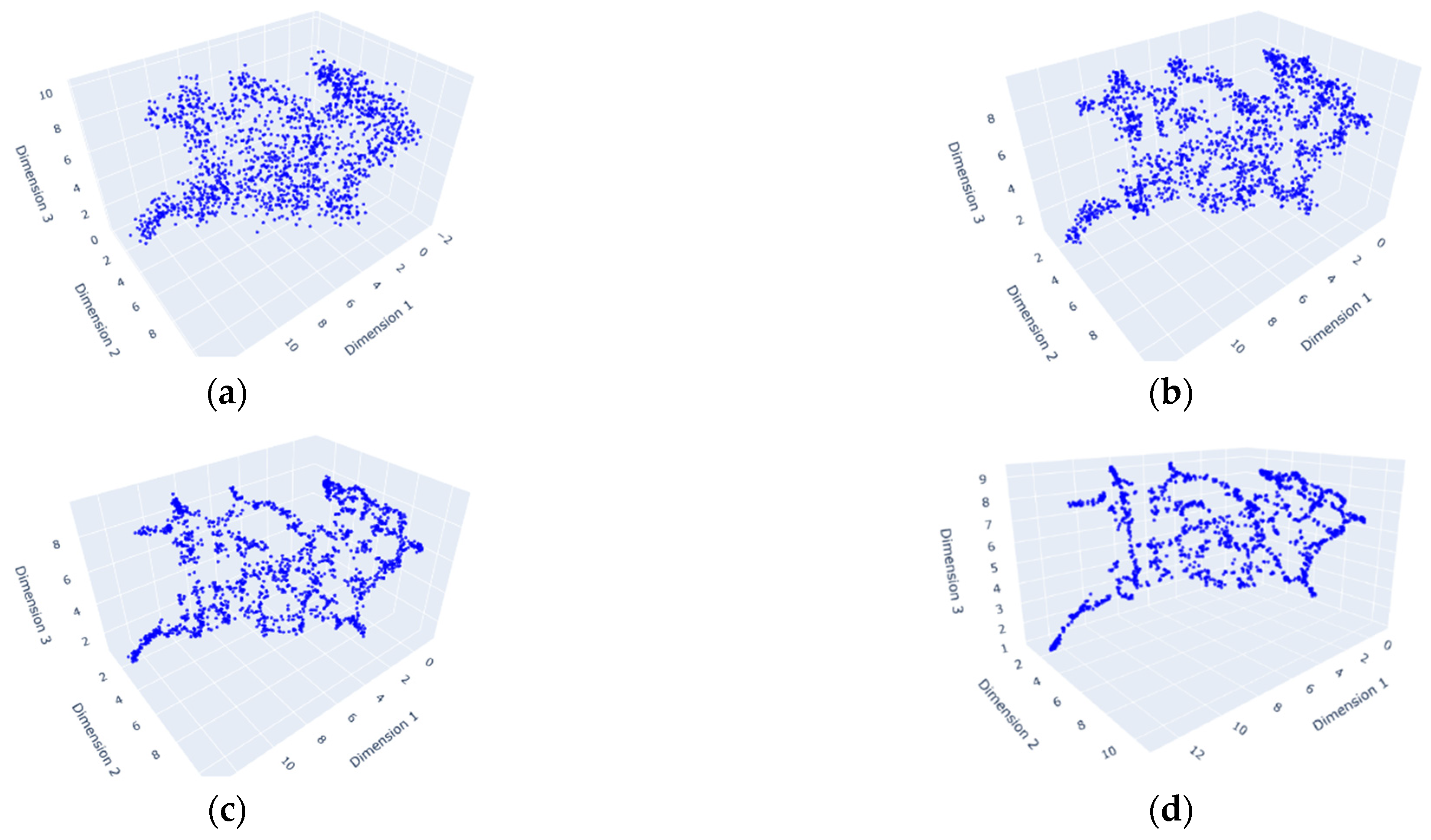

**Figure 6.**The KDE of the Savannah highway network on 3D UMAP embeddings: (

**a**) bandwidth 0.4, (

**b**) bandwidth 0.2, (

**c**) bandwidth 0.1, (

**d**) bandwidth 0.05.

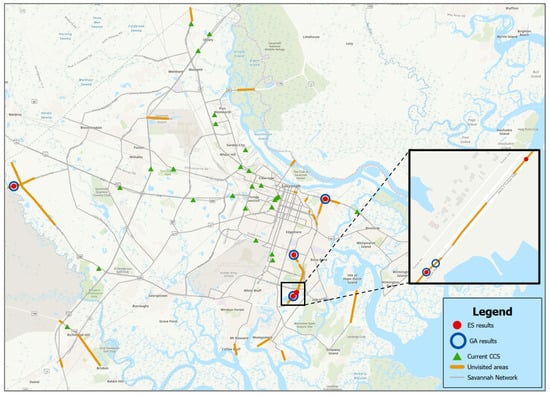

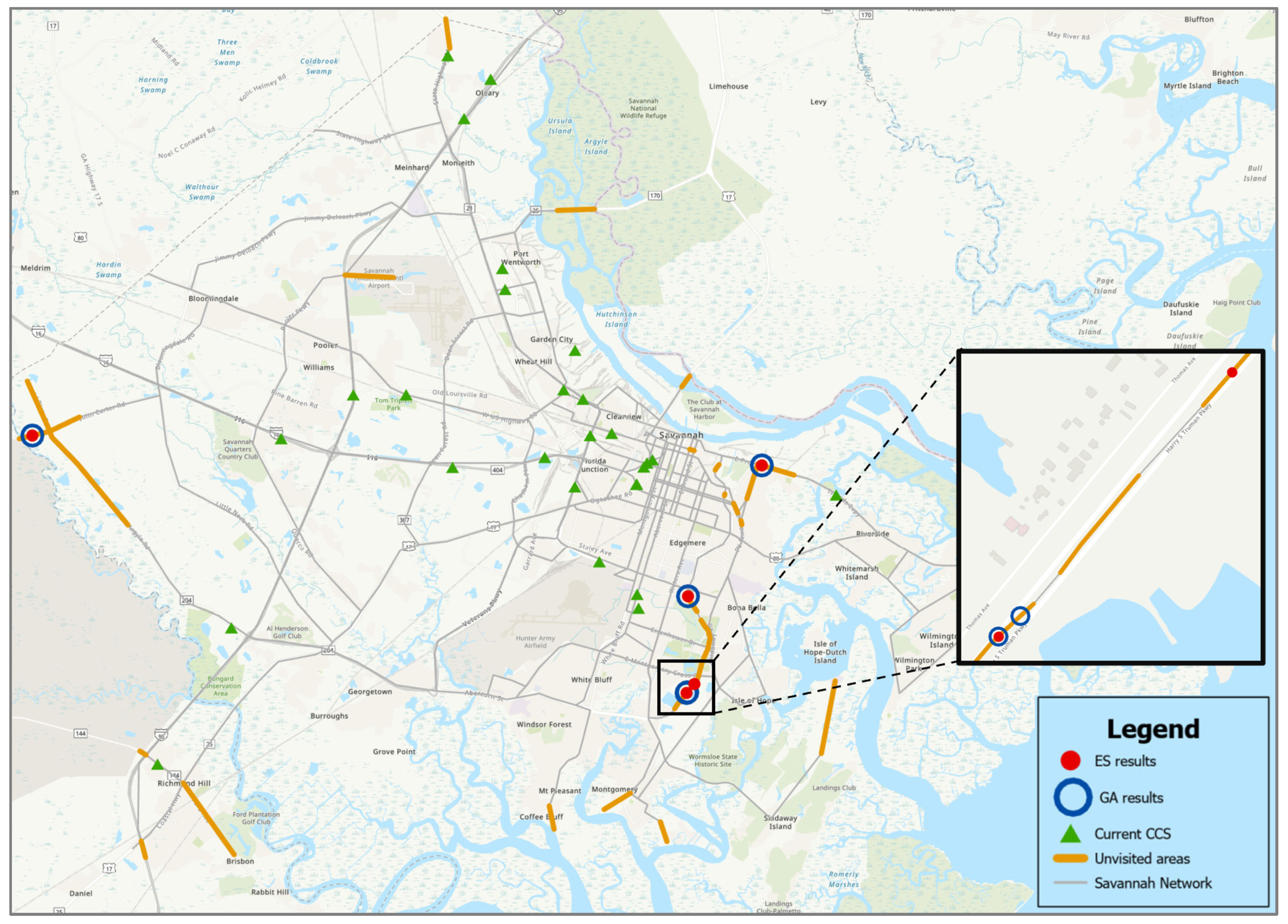

**Figure 9.**Visualization of GA results. (Note: orange segments denote the reduced search space by the PGRW, green triangles denote the existing sensor locations, blue circles indicate the locations selected by the GA method, and red dots are the locations from the ES method).

Parameter | Value | Description |
---|---|---|

${l}_{wl}$ | 30 | Walk length, i.e., the number of nodes in each walk |

${N}_{nw}$ | 200 | Number of walks per node |

$p$ | 1 | The likelihood of backtracking the walk and immediately revisiting a node in the random walk |

$q$ | 1 | The In-Out parameter q allows the traversal calculation to differentiate between inward and outward nodes |

${d}_{dim}$ | 8 | The output Node2Vec embeddings dimension |

Parameter | Value |
---|---|

Number of generations | 100 |

Number of parents mating | 30 |

Population size | 100 |

Gene space | [0, 1] |

Parent selection | roulette wheel |

Crossover | single point |

Mutation | random |

Mutation percent for genes | 5 |
