Preparation and Characterization of Ultrasound Treated Polyvinyl Alcohol/Chitosan/DMC Antimicrobial Films
Abstract
:1. Introduction
2. Materials and Methods
2.1. Materials
2.2. PVA/CS and PVA/CS/DMC Films Preparation
2.3. Fourier-Transform Infrared Experiment
2.4. Thickness
2.5. Water Vapor Permeability
2.6. Light Transmittance
2.7. Color Properties
2.8. Tensile Properties
2.9. Density Test
2.10. Biodegradability in Soil
2.11. Moisture Content
2.12. Antimicrobial Experiment
2.13. Statistical Analysis
3. Results and Discussion
3.1. FTIR Analysis of PVA/CS/DMC Composite Films
3.2. Morphology of PVA/CS/DMC Composite Films

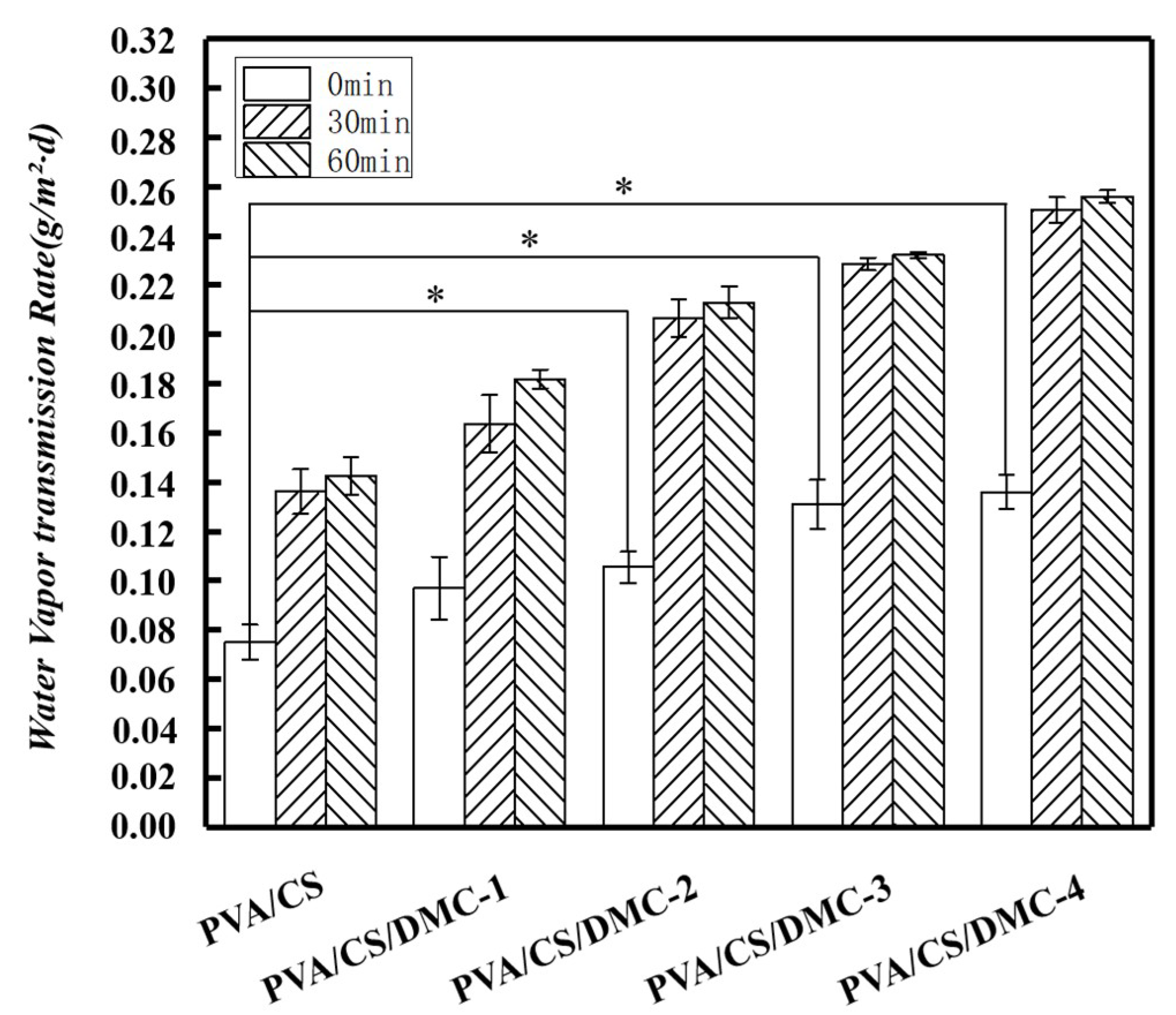

3.3. Water Vapor Permeability of PVA/CS/DMC Composite Films

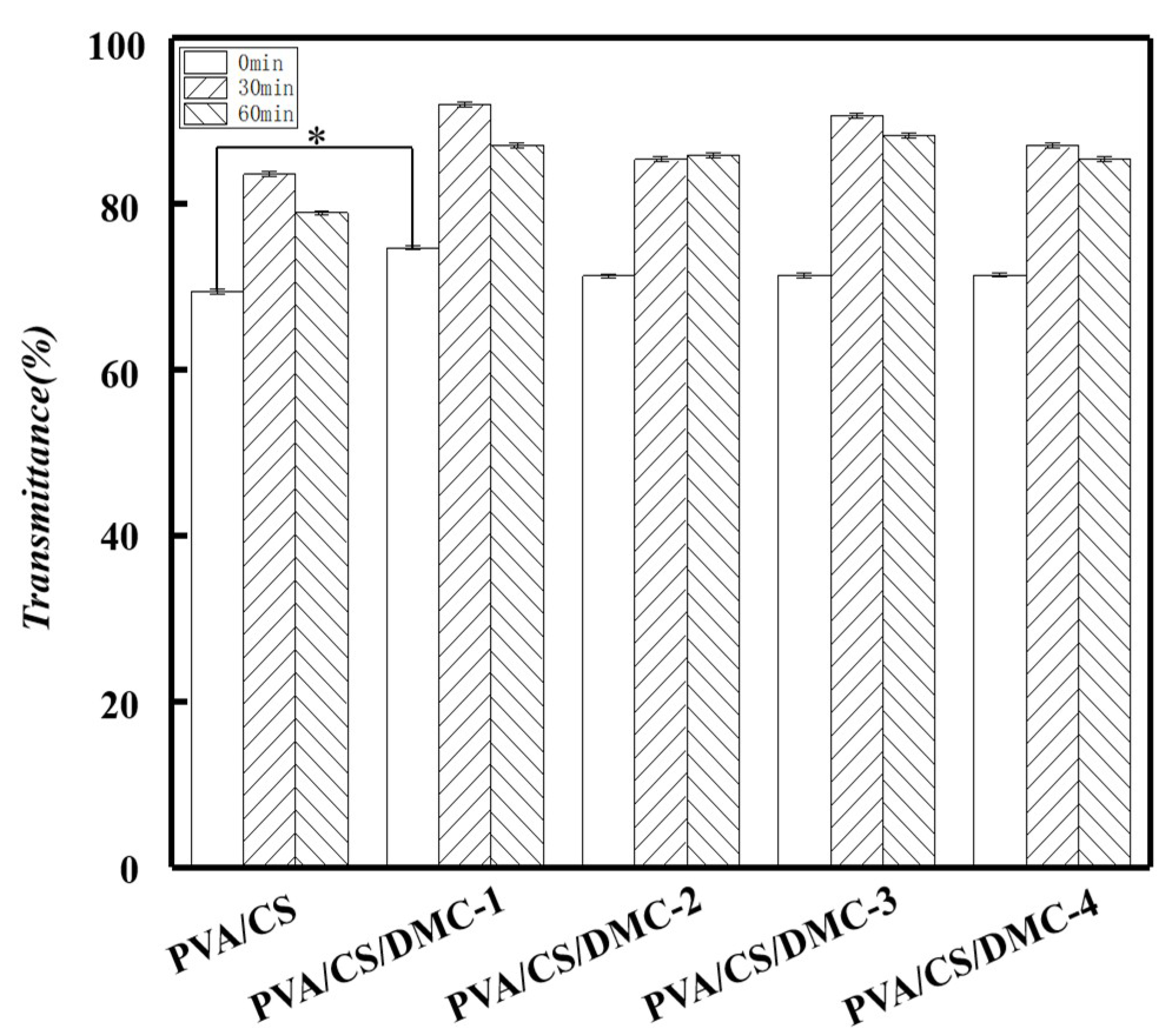

3.4. The Light Transmittance of PVA/CS/DMC Composite Films
3.5. The Measurement of Color Properties and Opacity of PVA/CS/DMC Composite Films
3.6. Mechanical Properties of PVA/CS/DMC Composite Films
3.7. Density Test of PVA/CS/DMC Composite Films

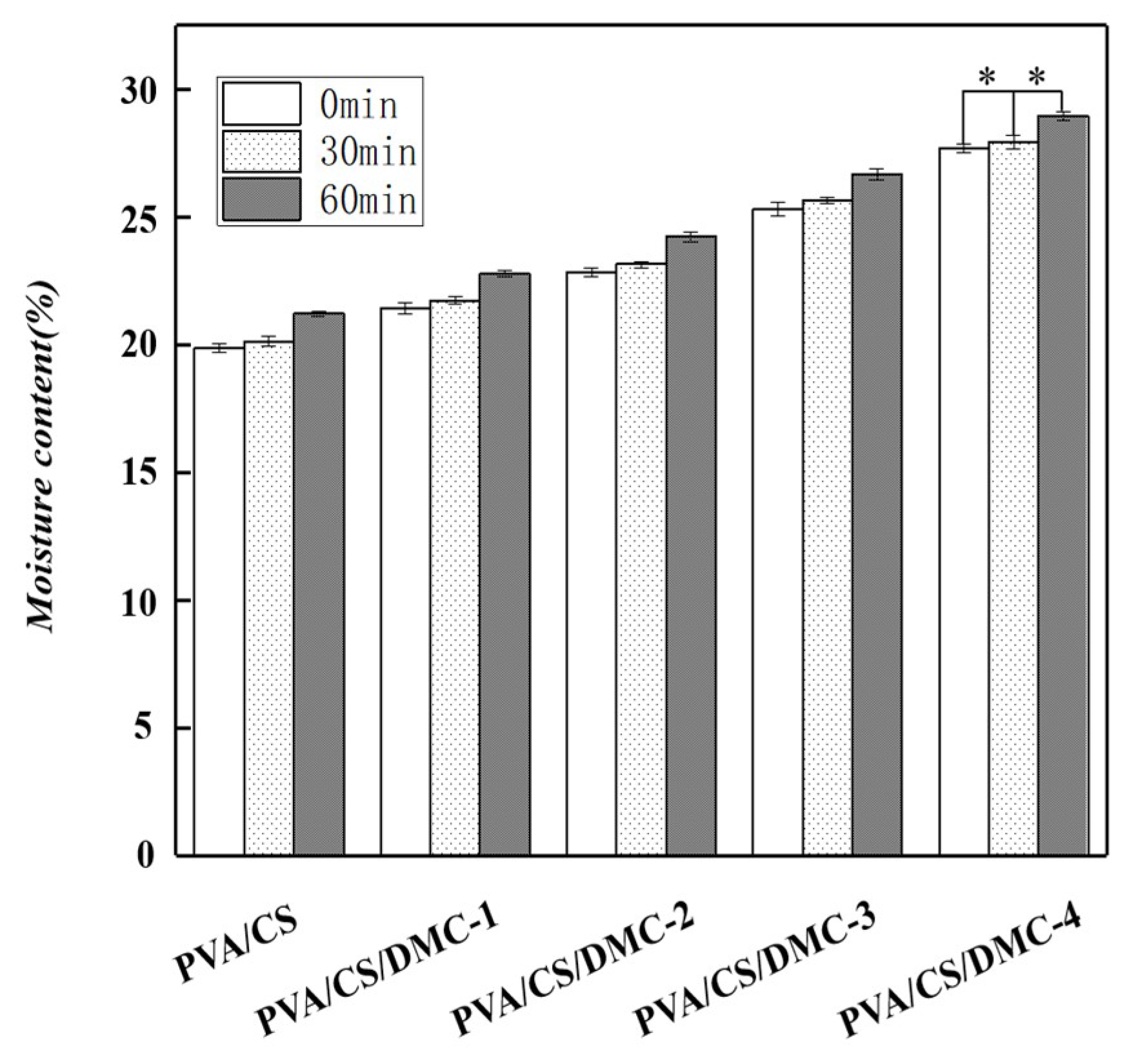

3.8. Moisture Contents of PVA/CS/DMC Composite Films

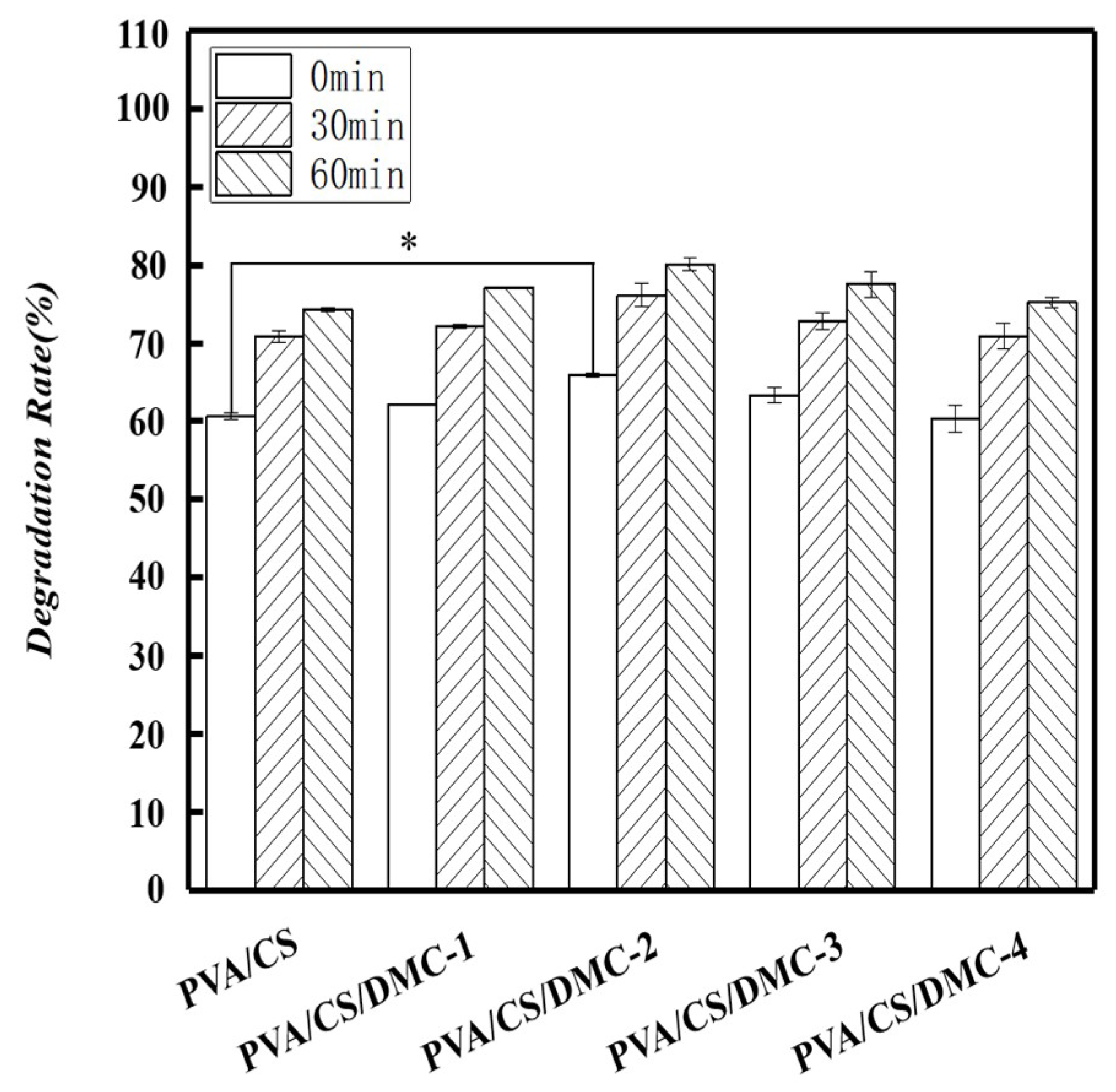

3.9. Degradation Percentages of PVA/CS/DMC Composite Films
3.10. Antibacterial Properties of PVA/CS/DMC Composite Films
4. Conclusion
Author Contributions
Funding
Conflicts of Interest
References
- Azeredo, D.; Henriette, M.C. Nanocomposites for food packaging applications. Food Res. Int. 2009, 42, 1240–1253. [Google Scholar] [CrossRef] [Green Version]
- Dutta, P.K.; Tripathi, S.; Mehrotra, G.K.; Dutta, J. Perspectives for chitosan-based antimicrobial films in food applications. Food Chem. 2009, 114, 1173–1182. [Google Scholar] [CrossRef]
- Nur Hanania, Z.A.; Roos, Y.H.; Kerry, J.P. Use and application of gelatin as potential biodegradable packaging materials for food products. Int. J. Biol. Macromol. 2014, 71, 94–102. [Google Scholar] [CrossRef]
- Li, X.X.; Shi, X.W.; Wang, M.; Du, Y.M. Xylan chitosan conjugate—A potential food preservative. Food Chem. 2011, 126, 520–525. [Google Scholar] [CrossRef]
- Mendes, F.R.S.; Bastos, M.S.R.; Mendes, L.G.A.; Silva, R.A.; Sousa, F.D.; MonteiroMoreira, A.C.O.; Cheng, H.N.; Biswas, A.; Moreira, R.A. Preparation and evaluation of hemicellulose films and their blends. Food Hydrocolloid. 2017, 70, 181–190. [Google Scholar] [CrossRef] [Green Version]
- Yu, Z.; Li, B.Q.; Chu, J.; Zhang, P. Silica in situ enhanced PVA/chitosan biodegradable films for food packages. Carbohydr. Polym. 2017, 184, 214. [Google Scholar] [CrossRef]
- Ye, J.S.; Wang, S.Y.; Lan, W.J.; Qin, W.; Liu, Y.W. Preparation and properties of polylactic acid-tea polyphenol-chitosan composite membranes. Int. J. Biol. Macromol. 2018, 117, 632–639. [Google Scholar] [CrossRef]
- Tripathi, S.; Mehrotra, G.K.; Dutta, P.K. Physicochemical and bioactivity of cross-linked chitosan-PVA film for food packaging applications. Int. J. Biol. Macromol. 2009, 45, 372–376. [Google Scholar] [CrossRef]
- Hu, D.Y.; Wang, L.J. Fabrication of antibacterial blend film from poly (vinyl alcohol) and quaternized chitosan for packaging. Mater. Res. Bull. 2016, 78, 46–52. [Google Scholar] [CrossRef]
- Jridi, M.; Hajji, S.; Ayed, H.B.; Lassoued, I.; Mbarek, A.; Kammoun, M.; Souissi, N.; Nasri, M. Physical, structural, antioxidant and antimicrobial properties of gelatin-chitosan composite edible films. Int. J. Biol. Macromol. 2014, 67, 373–379. [Google Scholar] [CrossRef]
- Liu, Y.W.; Wang, S.Y.; Zhang, R. Composite poly(lactic acid)/chitosan nanofibrous scaffolds for cardiac tissue engineering. Int. J. Biol. Macromol. 2017, 103, 373–379. [Google Scholar] [CrossRef]
- Wang, H.L.; Zhang, R.; Zhang, H.; Jiang, S.W.; Liu, H.; Sun, M.; Jiang, S.T. Kinetics and functional effectiveness of nisin loaded antimicrobial packaging film based on chitosan/poly(vinyl alcohol). Carbohydr. Polym. 2015, 127, 64–71. [Google Scholar] [CrossRef]
- Cazón, P.; Velazquez, G.; Ramírez, J.A.; Vázquez, M. Polysaccharide-based films and coatings for food packaging: A review. Food Hydrocolloid. 2017, 68, 136–148. [Google Scholar] [CrossRef]
- Liu, Y.W.; Wang, S.Y.; Lan, W.T. Fabrication of antibacterial chitosan-PVA blended film using electrospray technique for food packaging applications. Int. J. Biol. Macromol. 2017, 107, 8448–8854. [Google Scholar] [CrossRef]
- Wang, J.H.; Wang, L.; Yu, H.J.; Abdin, Z.; Chen, Y.; Chen, Q.; Zhou, W.D.; Zhang, H.T.; Chen, X. Recent progress on synthesis, property and application of modified chitosan: An overview. Int. J. Biol. Macromol. 2016, 88, 333–344. [Google Scholar] [CrossRef]
- Sin, L.T.; Rahman, W.A.W.A.; Rahmat, A.R.; Khan, M.I. Detection of synergistic interactions of polyvinyl alcohol–cassava starch blends through DSC. Carbohydr. Polym. 2010, 79, 224–226. [Google Scholar] [CrossRef]
- Dai, H.G.; Chang, P.R.; Yu, J.G.; Ma, X.F.; Zhou, P. Preparation and properties of thermoplastic pea starch using N,N-bis(2-hydroxyethyl)formamide as the plasticizer. Polym. Eng. Sci. 2010, 50, 970–977. [Google Scholar] [CrossRef]
- Ye, Q.; Zhang, Z.C.; Ge, X.W. Highly efficient flocculant synthesized through the dispersion copolymerization of water-soluble monomers induced by γ-ray irradiation: Synthesis and polymerization kinetics. J. Appl. Polym. Sci. 2003, 89, 8. [Google Scholar] [CrossRef]
- Abdollahi, Z.; Frounchi, M.; Dadbin, S. Synthesis, characterization and comparison of PAM, cationic pdmc and p(am-co-dmc) based on solution polymerization. J. Ind. Eng. Chem. 2011, 17, 580–586. [Google Scholar] [CrossRef]
- Ochoa, J.R.; Sanz, F.J.E.; Sasia, P.M.; Santos García, A.; Díaz de Apodaca, E.; Río, P. Synthesis of cationic flocculants by the inverse microemulsion copolymerization of acrylamide with 60% 2-acryloxyethyltrimethyl ammonium chloride in the monomer feed. ii. influence of the formulation composition, hydrophilic-lipophilic balance, starting polymerization temperature, and reaction time. J. Clin. Pathol. 2007, 103, 186–197. [Google Scholar] [CrossRef]
- Agha, H.; Pedram, F. Cationic kraft lignin-acrylamide copolymer as a flocculant for clay suspensions: (2) Charge density effect. Sep. Purif. Technol. 2019, 210, 963–972. [Google Scholar] [CrossRef]
- Wang, B.; Zhang, Y.; Miao, C. Preparation of cationic chitosan-polyacrylamide flocculant and its properties in wastewater treatment. J. Ocean. U. China. 2011, 10, 42–46. [Google Scholar] [CrossRef]
- Wang, L.J.; Wang, J.P.; Zhang, S.J.; Chen, Y.Z.; Yuan, S.J.; Sheng, G.P.; Yu, H.Q. A water-soluble cationic flocculant synthesized by dispersion polymerization in aqueous salts solution. Sep. Purif. Technol. 2009, 67, 331–335. [Google Scholar] [CrossRef]
- Chen, J.H.; Liu, Q.L.; Fang, J.; Zhu, A.M.; Zhang, Q.G. Composite hybrid membrane of chitosan–silica in pervaporation separation of MEOH/DMC mixtures. J. Colloid Interface Sci. 2007, 316, 580–588. [Google Scholar] [CrossRef]
- Liu, Y.W.; Wang, S.Y.; Lan, W.J.; Qin, W. Development of ultrasound treated polyvinyl alcohol/tea polyphenol composite films and their physicochemical properties. Ultrason. Sonochem. 2019, 51, 386–394. [Google Scholar] [CrossRef]
- ASTM E96-00. Standard test methods for water vapour transmission of materials; ASTM International: West Conshohocken, PA, USA, 2000. [CrossRef]
- Zhang, D.; Zhou, W.; Wei, B.; Wang, X.; Tang, R.P.; Nie, J.M.; Wang, J. Carboxyl-modified poly(vinyl alcohol)-crosslinked chitosan hydrogel films for potential wound dressing. Carbohydr. Polym. 2015, 125, 189–199. [Google Scholar] [CrossRef]
- Yu, Z.L.; Alsammarraie, F.K.; Nayigiziki, F.X.; Wang, W.; Vardhanabhuti, B.; Mustapha, A.; Lin, M. Effect and mechanism of cellulose nanofibrils on the active functions of biopolymer-based nanocomposite films. Food Res. Int. 2017, 99, 166–172. [Google Scholar] [CrossRef]
- Vaezi, K.; Asadpour, G.; Sharifi, H. Effect of ZnO nanoparticles on the mechanical, barrier and optical properties of thermoplastic cationic starch/montmorillonite biodegradable films. Int. J. Biol. Macromol. 2019, 124, 519–529. [Google Scholar] [CrossRef]
- Peng, Y.; Wu, Y.; Li, Y.F. Development of tea extracts and chitosan composite films for active packaging materials. Int. J. Biol. Macromol. 2013, 59, 282–289. [Google Scholar] [CrossRef]
- Sun, L.J.; Sun, J.J.; Chen, L.; Niu, P.F.; Yang, X.B.; Guo, Y.R. Preparation and characterization of chitosan film incorporated with thinned young apple polyphenols as an active packaging material. Carbohydr. Polym. 2017, 163, 81–91. [Google Scholar] [CrossRef] [Green Version]
- Kim, E.Y.; Yoo, Y.T.; Im, S.S. Effect of hydrophilicity on the biodegradability of polyesteramides. J. Appl. Poly. Sci. 2003, 90, 2708–2714. [Google Scholar] [CrossRef]
- García, M.A.; Pinottia, A.; Martino, M.N.; Zaritzky, N.E. Characterization of composite hydrocolloid films. Carbohydr. Polym. 2004, 56, 339–345. [Google Scholar] [CrossRef]
- Rivero, S.; García, M.A.; Pinotti, A. Crosslinking capacity of tannic acid in plasticized chitosan films. Carbohydr. Polym. 2011, 82, 270–276. [Google Scholar] [CrossRef]
- Sánchez-González, L.; Saavedra, J.I.Q.; Chiralt, A. Antilisterial and physical properties of biopolymer films containing lactic acid bacteria. Food Control. 2014, 35, 200–206. [Google Scholar] [CrossRef]
- Krishna Rao, K.S.V.; Subha, M.C.S.; Sairam, M.; Mallikarjuna, N.N.; Aminabhavi, T.M. Blend membranes of chitosan and poly(vinyl alcohol) in pervaporation dehydration of isopropanol and tetrahydrofuran. J. Appl. Polym. Sci. 2007, 103, 1918–1926. [Google Scholar] [CrossRef]
- Chenaria, H.M.; Kangarlou, H. Electrospun tungsten oxide NPs/PVA nanofibers: A study on the morphology and Kramers–Kronig analysis of infrared reflectance spectra. Physica B 2016, 499, 38–43. [Google Scholar] [CrossRef]
- Kanatt, S.R.; Rao, M.S.; Chawla, S.P.; Sharma, A. Active chitosan-polyvinyl alcohol films with natural extracts. Food Hydrocolloid. 2012, 29, 290–297. [Google Scholar] [CrossRef]
- Farris, S.; Introzzi, L.; Biagioni, P.T.; Holz, L. Piergiovanni, wetting of biopolymer coatings: Contact angle kinetics and image analysis investigation. Langmuir 2011, 27, 7563–7574. [Google Scholar] [CrossRef]
- Raj, B.; Somashekar, R. Structure-property relation in polyvinyl alcohol/starch composites. J. Appl. Polym. Sci. 2004, 91, 630–635. [Google Scholar] [CrossRef]
- Kubo, S.; Kadla, J.F. The formation of strong intermolecular interactions in immiscible blends of poly(vinyl alcohol) (PVA) and lignin. Biomacromolecules 2003, 4, 561–567. [Google Scholar] [CrossRef]
- Fernandez-Saiz, P.; Ocio, M.J.; Lagaron, J.M. Antibacterial chitosan-based blends with ethylene–vinyl alcohol copolymer. Carbohydr. Polym. 2010, 80, 874–884. [Google Scholar] [CrossRef]
- Bonilla, J.; Fortunati, E.; Atarés, L.; Chiralt, A.; Kenny, J.M. Physical, structural and antimicrobial properties of poly vinyl alcohol-chitosan biodegradable films. Food Hydrocolloid. 2014, 35, 463–470. [Google Scholar] [CrossRef]
- Wang, D.L.; Lv, R.L.; Ma, X.B.; Zou, M.M.; Wang, W.J.; Yan, L.; Ding, T.; Ye, X.Q.; Liu, D.H. Lysozyme immobilization on the calcium alginate film under sonication: Development of an antimicrobial film. Food Hydrocolloid. 2018, 83, 1–8. [Google Scholar] [CrossRef]
- Liu, X.X.; Chen, X.F.; Ren, J.L.; Chang, M.M.; He, B.; Zhang, C.H. Effects of nano-ZnO and nano-SiO2 particles on properties of PVA/xylan composite films. Int. J. Biol. Macromol. 2019, 132, 978–986. [Google Scholar] [CrossRef]
- Abrala, H.; Hartonoa, A.; Hafizulhaqa, F.; Handayanib, D.; Sugiartic, E.; Pradiptad, O. Characterization of PVA/cassava starch biocomposites fabricated with and without sonication using bacterial cellulose fiber loadings. Carbohydr. Polym. 2019, 206, 593–601. [Google Scholar] [CrossRef] [PubMed]
- Alexy, P.; Bakoš, D.; Crkoňová, G.; Kramárová, Z.; Hoffmann, J.; Julinová, M.; Chiellini, E.; Cinelli, P. Poly(vinyl alcohol)-collagen hydrolysate thermoplastic blends: II. Water penetration and biodegradability of melt extruded films. Polym. Test. 2003, 22, 811–818. [Google Scholar] [CrossRef]
- Yu, Q.; Song, Y.; Shi, X.; Xu, C.; Bin, Y. Preparation and properties of chitosan derivative/poly(vinyl alcohol) blend film crosslinked with glutaraldehyde. Carbohydr. Polym. 2011, 84, 465–470. [Google Scholar] [CrossRef]
- Liu, H.H.; Adhikari, R.; Guo, Q.; Adhikari, B. Preparation and characterization of glycerol plasticized (high-amylose) starch–chitosan films. J. Food Eng. 2013, 116, 588–597. [Google Scholar] [CrossRef]
- Huang, M.; Liu, Z.; Li, A.; Yang, H. Dual functionality of a graft starch flocculant: Flocculation and antibacterial performance. J. Environ. Manage. 2017, 196, 63–71. [Google Scholar] [CrossRef]
- Ge, J.J.; Shi, X.H.; Cai, M.Q.; Wu, R.; Wang, M. A novel biodegradable antimicrobial PU foam from wattle tannin. J. Appl. Polym. Sci. 2003, 90, 2756–2763. [Google Scholar] [CrossRef]
Sample | DMC (g) | CS (g) | PVA (g) | Gly (g) |
---|---|---|---|---|
PVA | 0 | 0 | 26 | 2 |
PVA/CS | 0 | 6 | 20 | 2 |
PVA/CS/DMC-1% | 2 | 6 | 20 | 2 |
PVA/CS/DMC-2% | 4 | 6 | 20 | 2 |
PVA/CS/DMC-3% | 6 | 6 | 20 | 2 |
PVA/CS/DMC-4% | 8 | 6 | 20 | 2 |
Film | L* | a* | b* | △E* |
---|---|---|---|---|
PVA/CS-0 | 88.17 ± 0.65Aa | 1.26 ± 0.21Aa | -5.51 ± 0.4Bb | 1.40 ± 0.39Ac |
PVA/CS-30 | 88.45 ± 0.11Aa | 0.73 ± 0.08Ba | -4.79 ± 0.11Aa | 1.82 ± 0.11Ab |
PVA/CS-60 | 88.38 ± 0.19Aa | 0.72 ± 0.15Ba | -4.61 ± 0.15Ac | 1.96 ± 0.25Ac |
PVA/CS/DMC-1-0 | 88.30 ± 0.09Aa | 0.73 ± 0.15Aab | -4.47 ± 0.05Aa | 0.82 ± 0.09Ad |
PVA/CS/DMC-1-30 | 87.86 ± 0.28Aa | 0.40 ± 0.14Aab | -4.36 ± 0.19Abc | 0.41 ± 0.24Ac |
PVA/CS/DMC-1-60 | 88.01 ± 0.27Aab | 0.48 ± 0.20Aab | -4.39 ± 0.28Ac | 0.61 ± 0.20Ad |
PVA/CS/DMC-2-0 | 88.48 ± 0.17Aa | 0.64 ± 0.16Aab | -4.42 ± 0.18Aa | 2.12 ± 0.27Ab |
PVA/CS/DMC-2-30 | 88.42 ± 0.15Aa | 0.39 ± 0.18Aab | -4.16 ± 0.20Aab | 2.48 ± 0.27Aab |
PVA/CS/DMC-2-60 | 88.16 ± 0.55Aa | 0.23 ± 0.34Aabc | -3.94 ± 0.31Ab | 2.83 ± 0.63Ab |
PVA/CS/DMC-3-0 | 88.14 ± 0.18Aa | 0.23 ± 0.39Ab | -4.32 ± 0.13Ba | 0.72 ± 0.22Ad |
PVA/CS/DMC-3-30 | 87.78 ± 0.28Aa | 0.19 ± 0.19Aab | -3.93 ± 0.12ABab | 0.57 ± 0.16Ac |
PVA/CS/DMC-3-60 | 87.92 ± 0.26Aab | 0.04 ± 0.12Abc | -3.76 ± 0.13Ab | 0.79 ± 0.05Ad |
PVA/CS/DMC-4-0 | 88.46 ± 0.21Aa | 0.17 ± 0.15Aab | -4.01 ± 0.17Ba | 2.72 ± 0.26Aa |
PVA/CS/DMC-4-30 | 87.71 ± 0.33ABa | −0.11 ± 0.28Ab | −3.78 ± 0.30ABc | 3.27 ± 0.49Aa |
PVA/CS/DMC-4-60 | 87.37 ± 0.27Bb | −0.15 ± 0.18Ac | −3.29 ± 0.31Aa | 3.81 ± 0.35Aa |
Samples | Stress (MPa) | Strain (%) | Thickness (mm) | Density (g/cm3) |
---|---|---|---|---|
PVA/CS-0 | 21.91 ± 0.34Aa | 240.44 ± 6.19Bb | 0.05 ± 0.01Aa | 1.24 ± 0.02Ab |
PVA/CS-30 | 22.07 ± 0.35Aa | 281.76 ± 0.30Ba | 0.10 ± 0.02Aa | 1.39 ± 0.01Aa |
PVA/CS-60 | 22.01 ± 0.18Aa | 256.83 ± 9.49Ab | 0.07 ± 0.01Ca | 1.28 ± 0.02ABb |
PVA/CS/DMC-1-0 | 13.28 ± 0.11Ba | 75.27 ± 2.97Ca | 0.11 ± 0.01Ab | 1.24 ± 0.01Ab |
PVA/CS/DMC-1-30 | 16.34 ± 2.67Ca | 60.23 ± 6.54Ca | 0.14 ± 0.02Aa | 1.35 ± 0.02Aa |
PVA/CS/DMC-1-60 | 13.56 ± 0.59ABa | 78.93 ± 7.39Ba | 0.11 ± 0.01ABab | 1.26 ± 0.02ABb |
PVA/CS/DMC-2-0 | 11.65 ± 0.21Ca | 273.70 ± 4.86Ab | 0.10 ± 0.02Aa | 1.31 ± 0.03Ab |
PVA/CS/DMC-2-30 | 17.35 ± 2.72Ba | 347.06 ± 21.31Aa | 0.10 ± 0.02Aa | 1.40 ± 0.02Aa |
PVA/CS/DMC-2-60 | 15.00 ± 0.65Aa | 277.85 ± 15.14Ab | 0.08 ± 0.02BCa | 1.31 ± 0.02Ab |
PVA/CS/DMC-3-0 | 10.46 ± 0.06Da | 44.24 ± 0.05Db | 0.12 ± 0.02Aa | 1.23 ± 0.02Ab |
PVA/CS/DMC-3-30 | 10.70 ± 0.01Da | 44.14 ± 0.05Cb | 0.10 ± 0.02Aa | 1.35 ± 0.02Aa |
PVA/CS/DMC-3-60 | 10.49 ± 0.26Ba | 83.43 ± 7.07Ba | 0.13 ± 0.02Aa | 1.27 ± 0.01ABb |
PVA/CS/DMC-4-0 | 3.19 ± 0.62Ea | 55.40 ± 2.29Da | 0.11 ± 0.02Ab | 1.22 ± 0.04Aa |
PVA/CS/DMC-4-30 | 4.63 ± 0.18Ea | 62.44 ± 1.00Ca | 0.08 ± 0.02Aa | 1.24 ± 0.02Ba |
PVA/CS/DMC-4-60 | 3.81 ± 0.62Ca | 67.83 ± 10.54Ba | 0.08 ± 0.02BCb | 1.22 ± 0.02Aba |
Sample | S. aureus | E. coli |
---|---|---|
PVA/CS | 52.88 ± 2.50c | 45.19 ± 2.12c |
PVA/CS/DMC-2%-0 min | 62.12 ± 1.35b | 54.04 ± 0.67b |
PVA/CS/DMC-2%-30 min | 79.23 ± 1.92a | 72.31 ± 1.35a |
PVA/CS/DMC-2%-60 min | 81.15 ± 0.38a | 74.42 ± 1.06a |
