Influence of Treatment Time on Performance of Cr(III)-Based Conversion Coatings on Hot Dip Zn–55Al–1.6Si Coated Steel Sheet

School of Material Science and Engineering, China University of Petroleum (East China), Qingdao 266580, China
*
Author to whom correspondence should be addressed.
Coatings 2019, 9(5), 297; https://doi.org/10.3390/coatings9050297
Received: 29 March 2019 / Revised: 23 April 2019 / Accepted: 24 April 2019 / Published: 1 May 2019
  |
PDF [14241 KB, uploaded 20 May 2019]
  |

Abstract

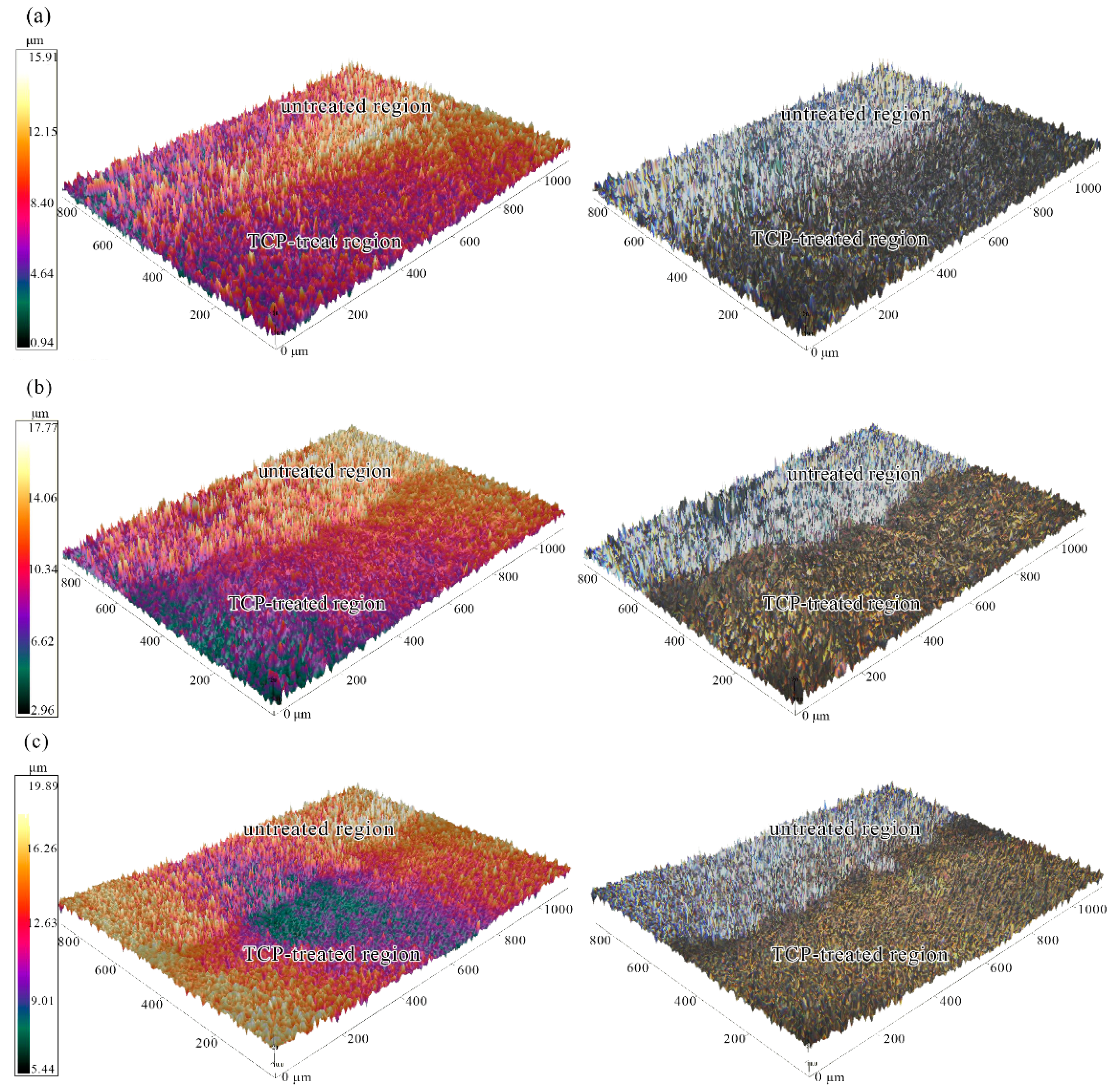

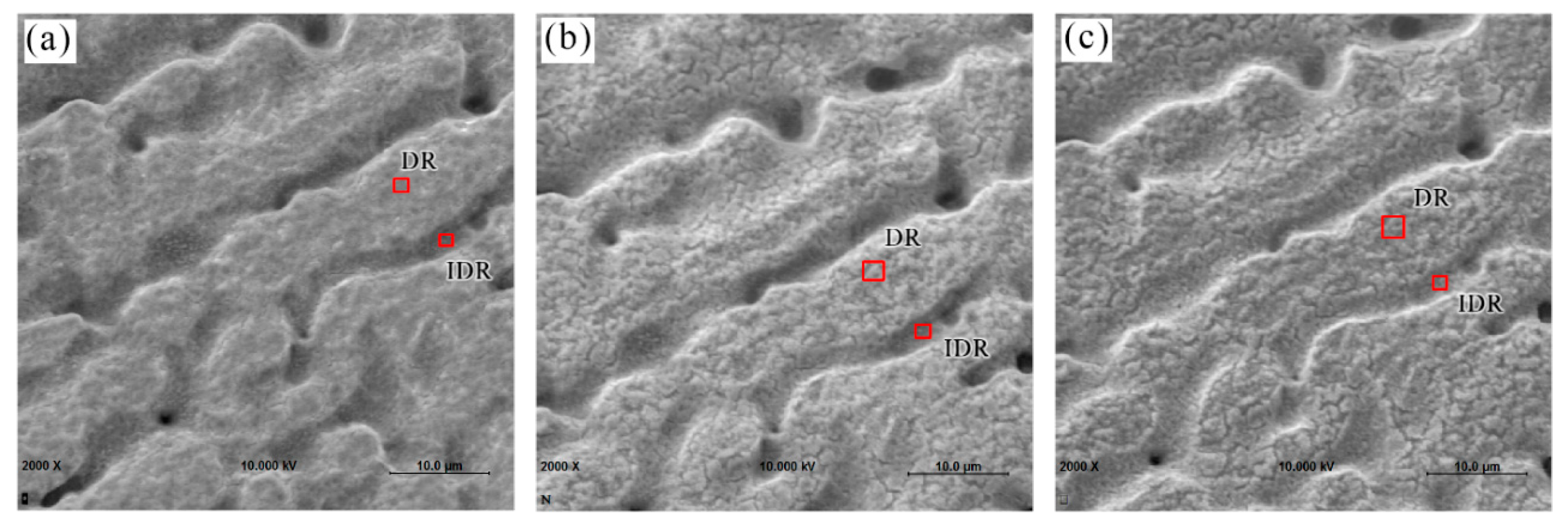

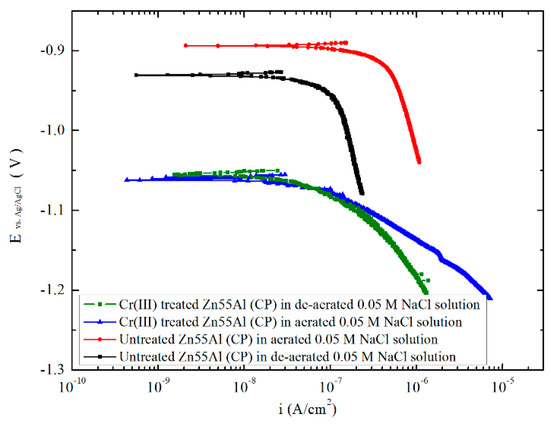

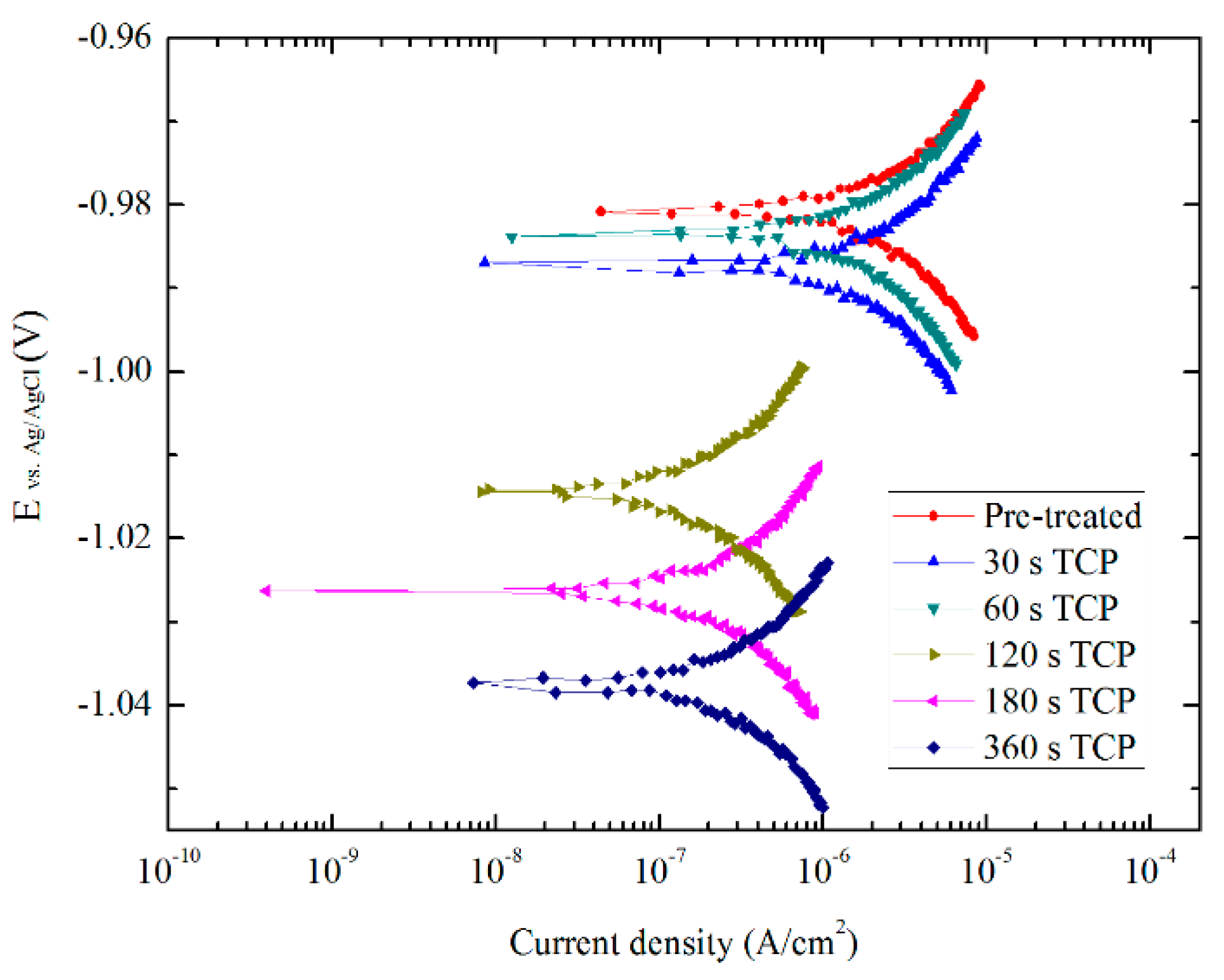

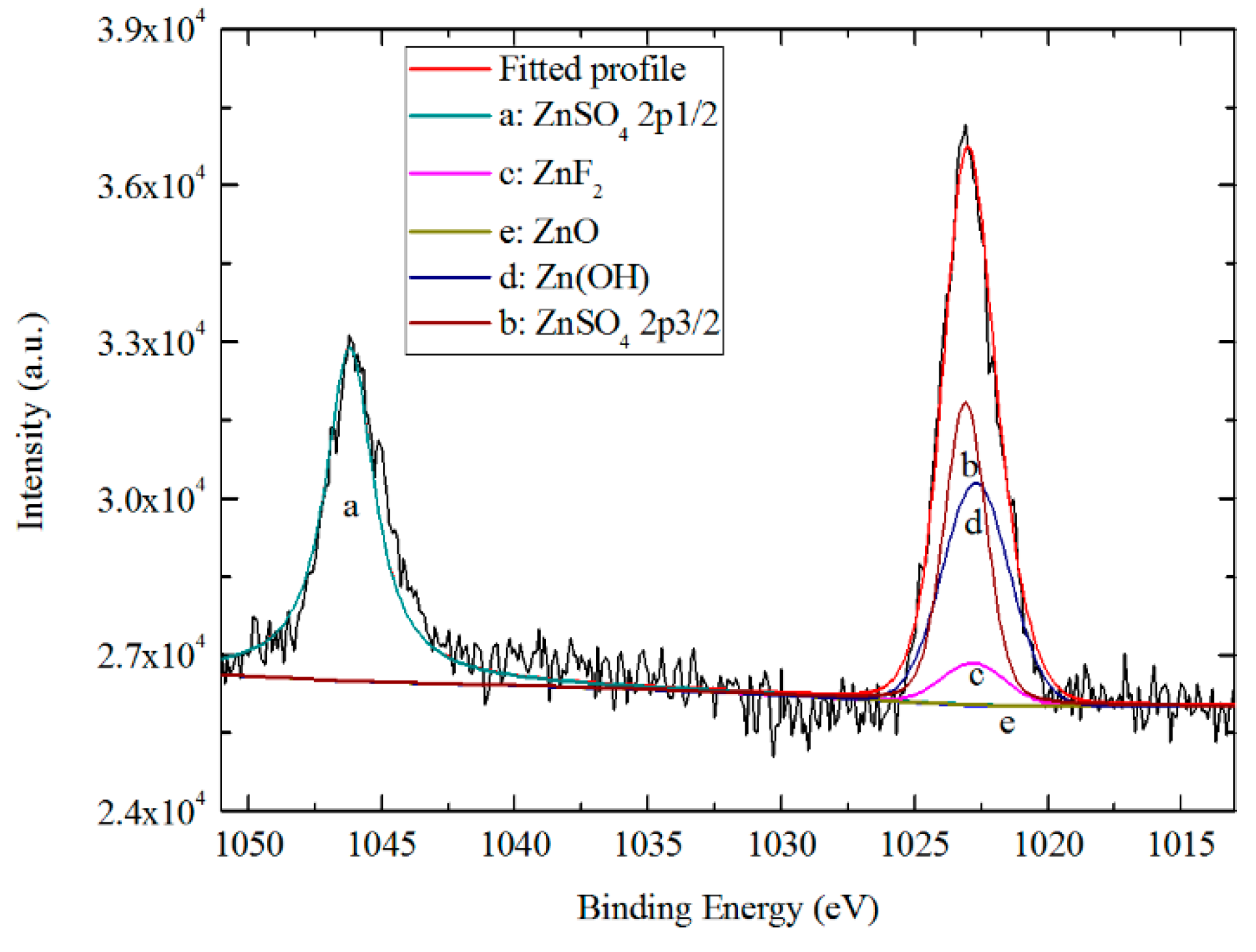

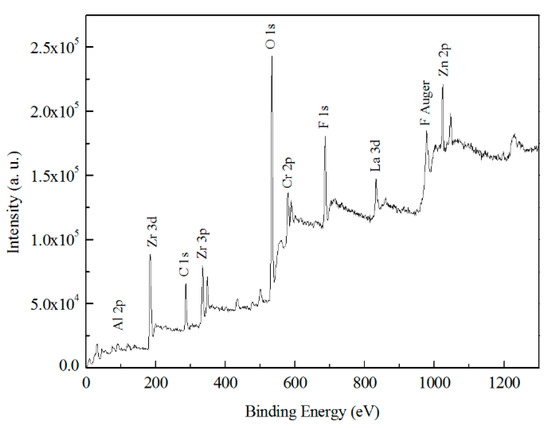

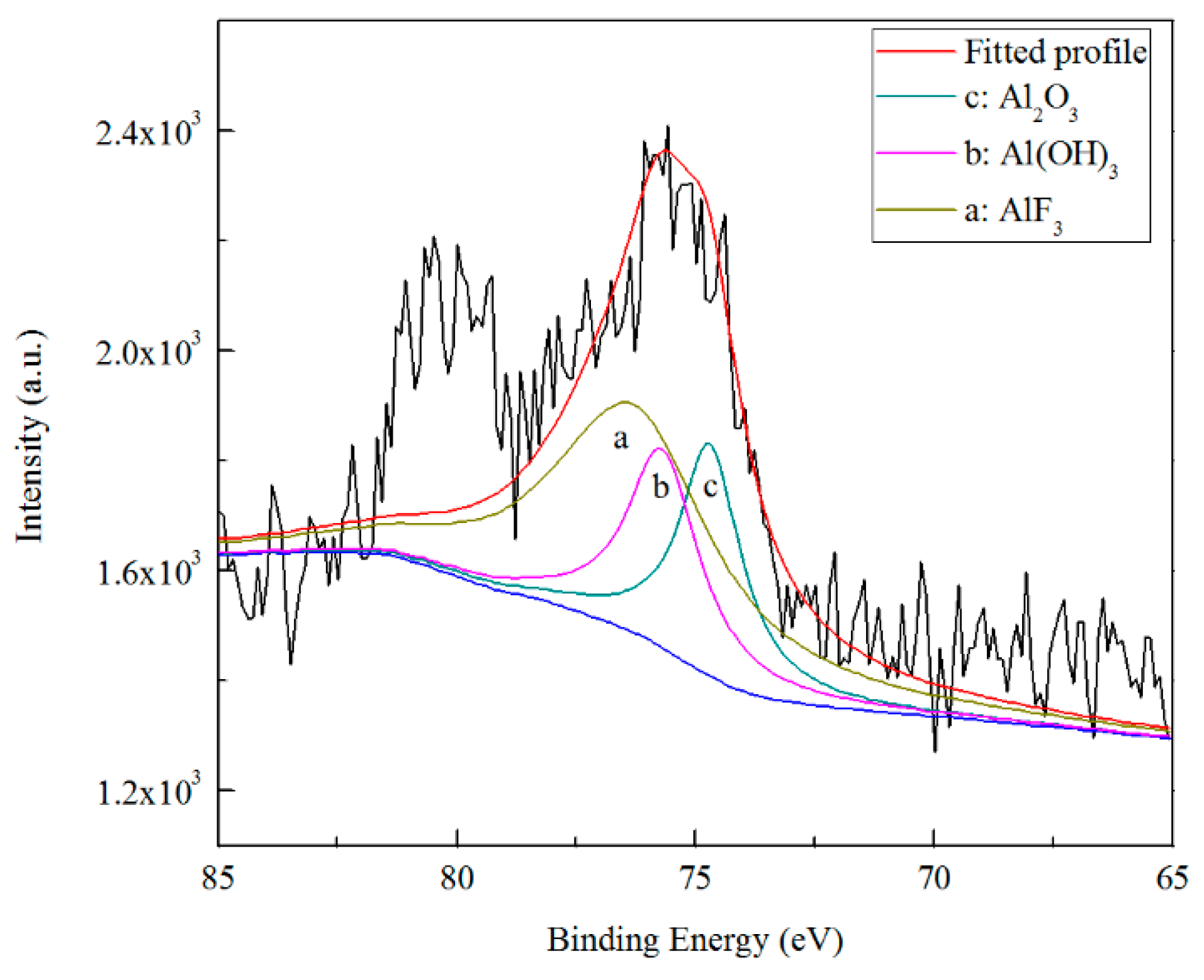

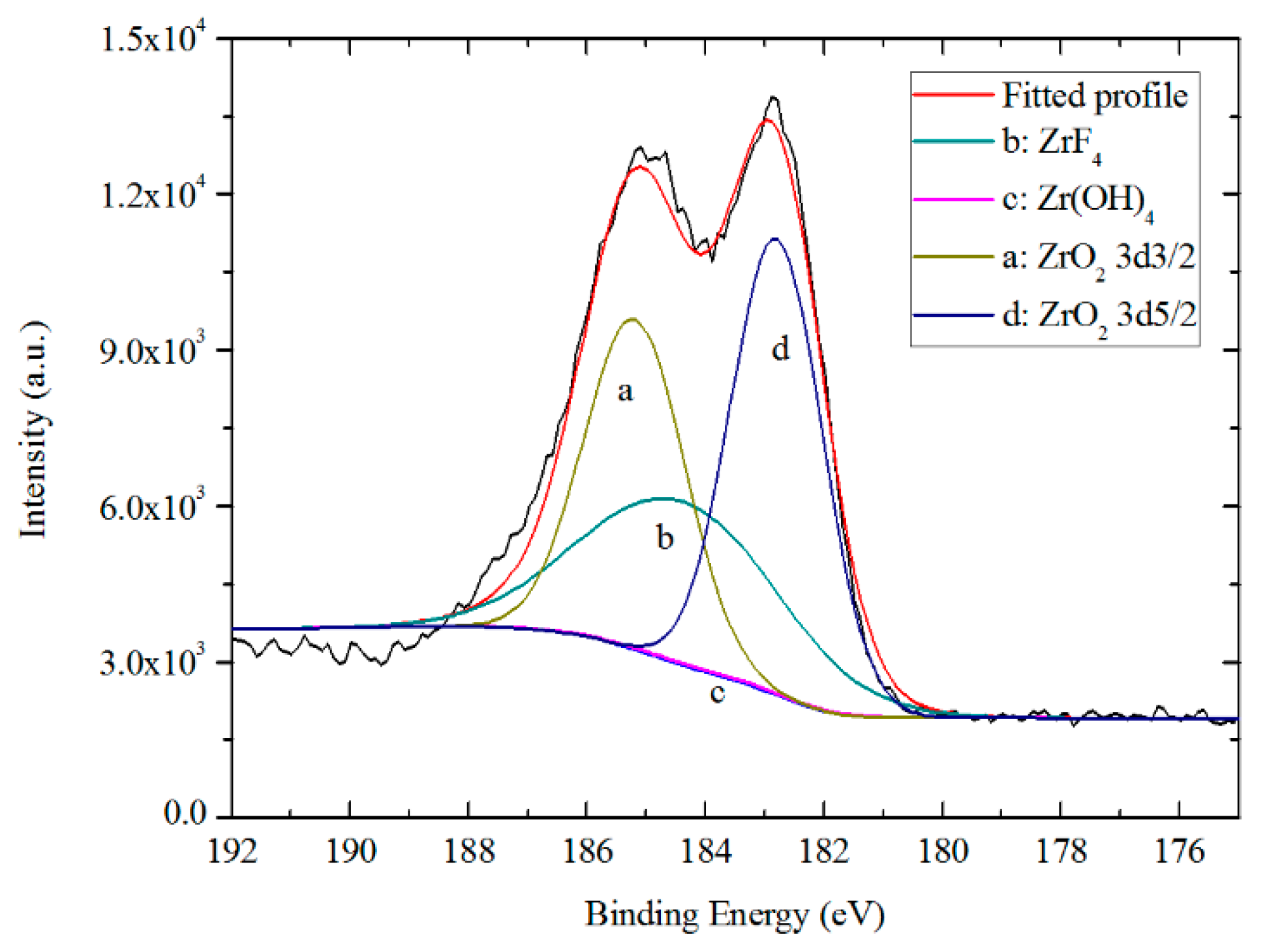

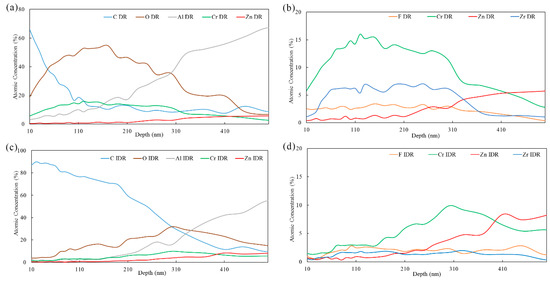

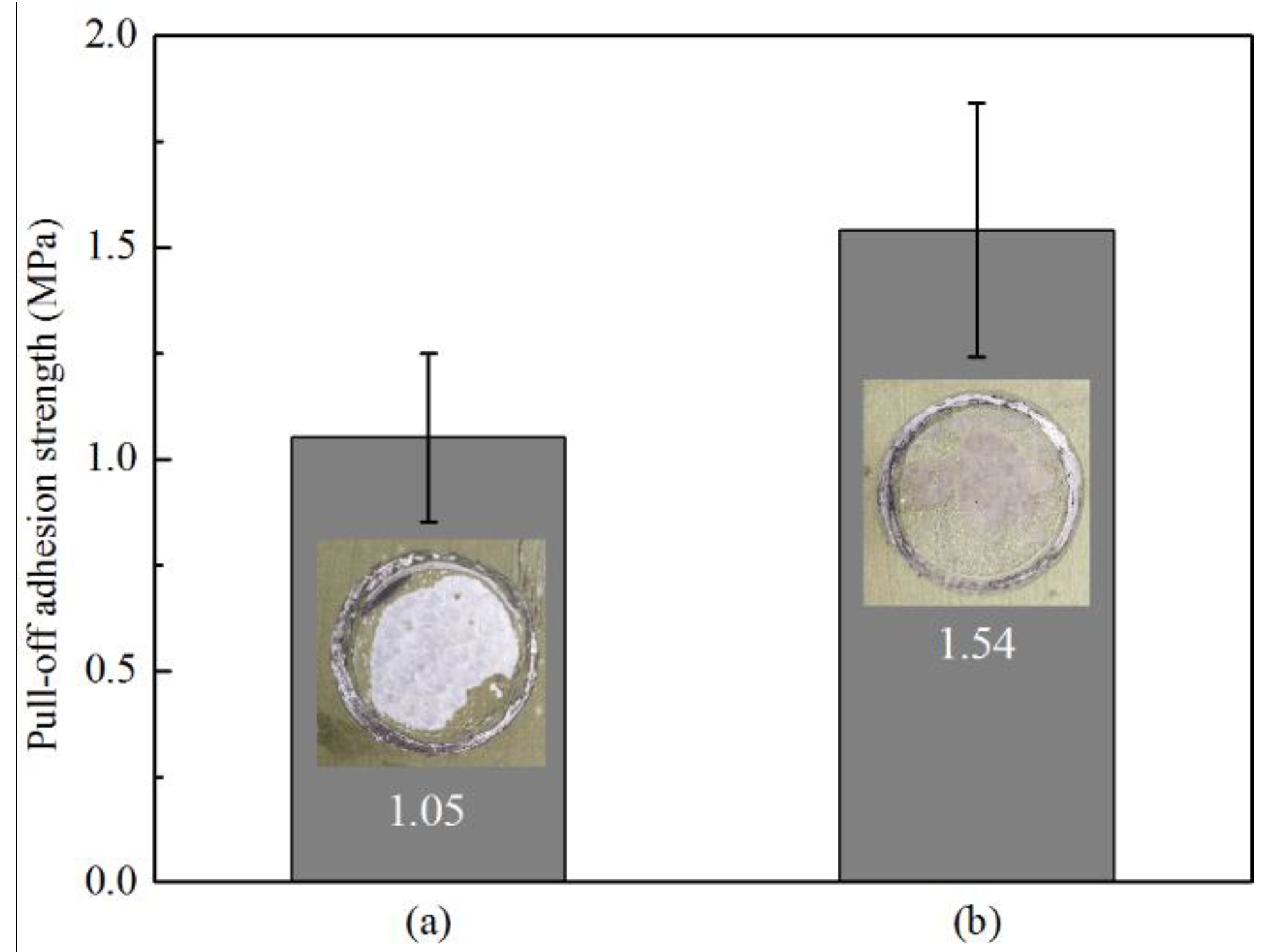

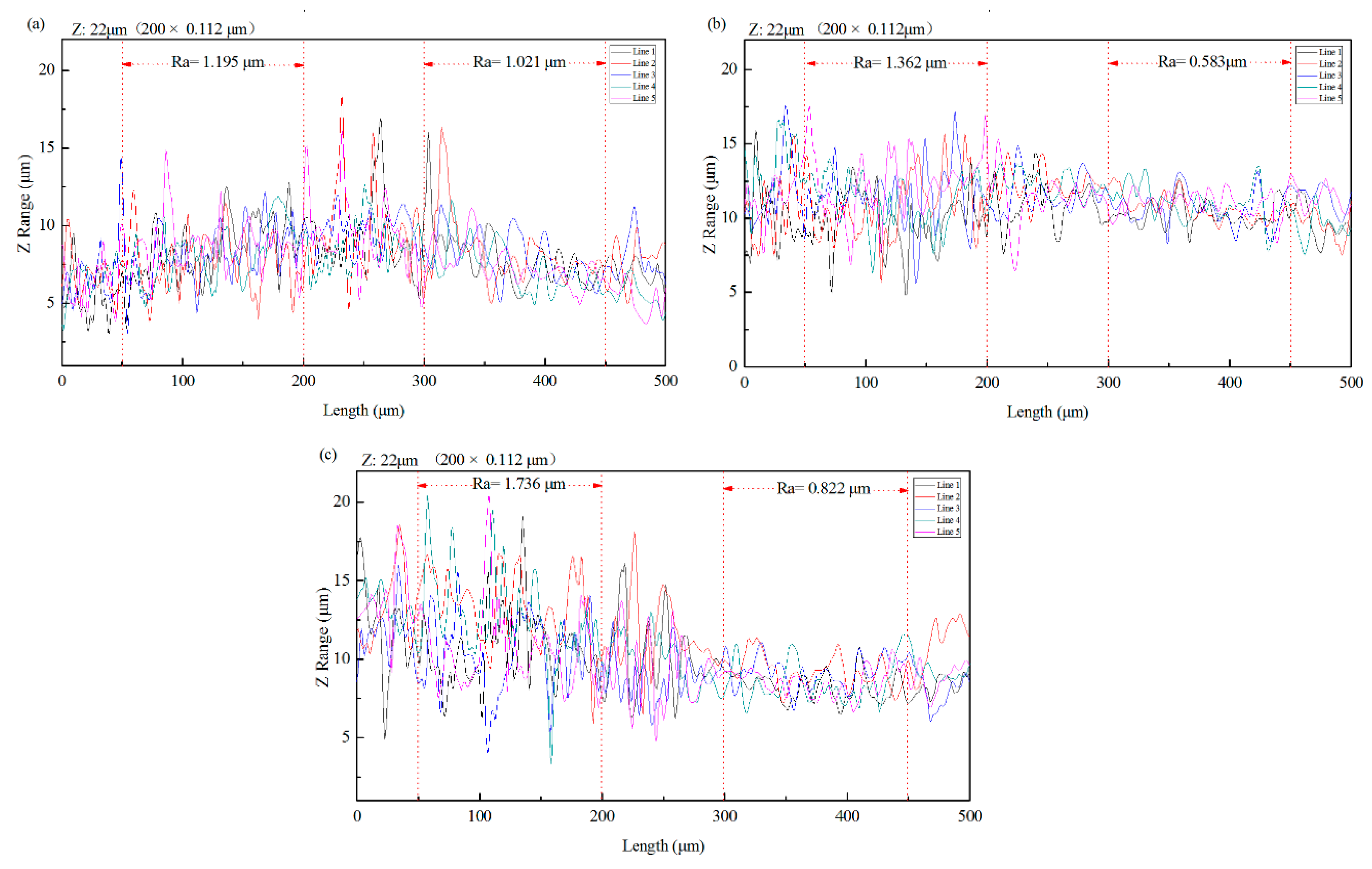

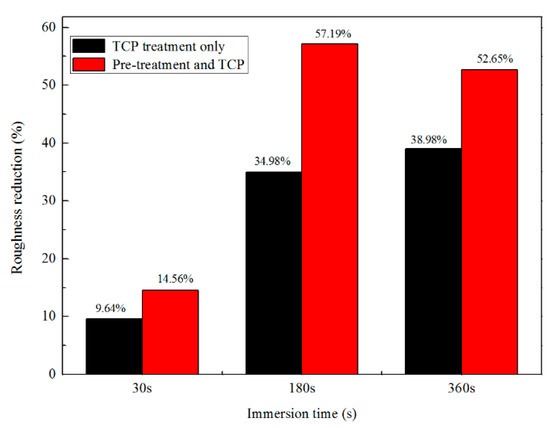

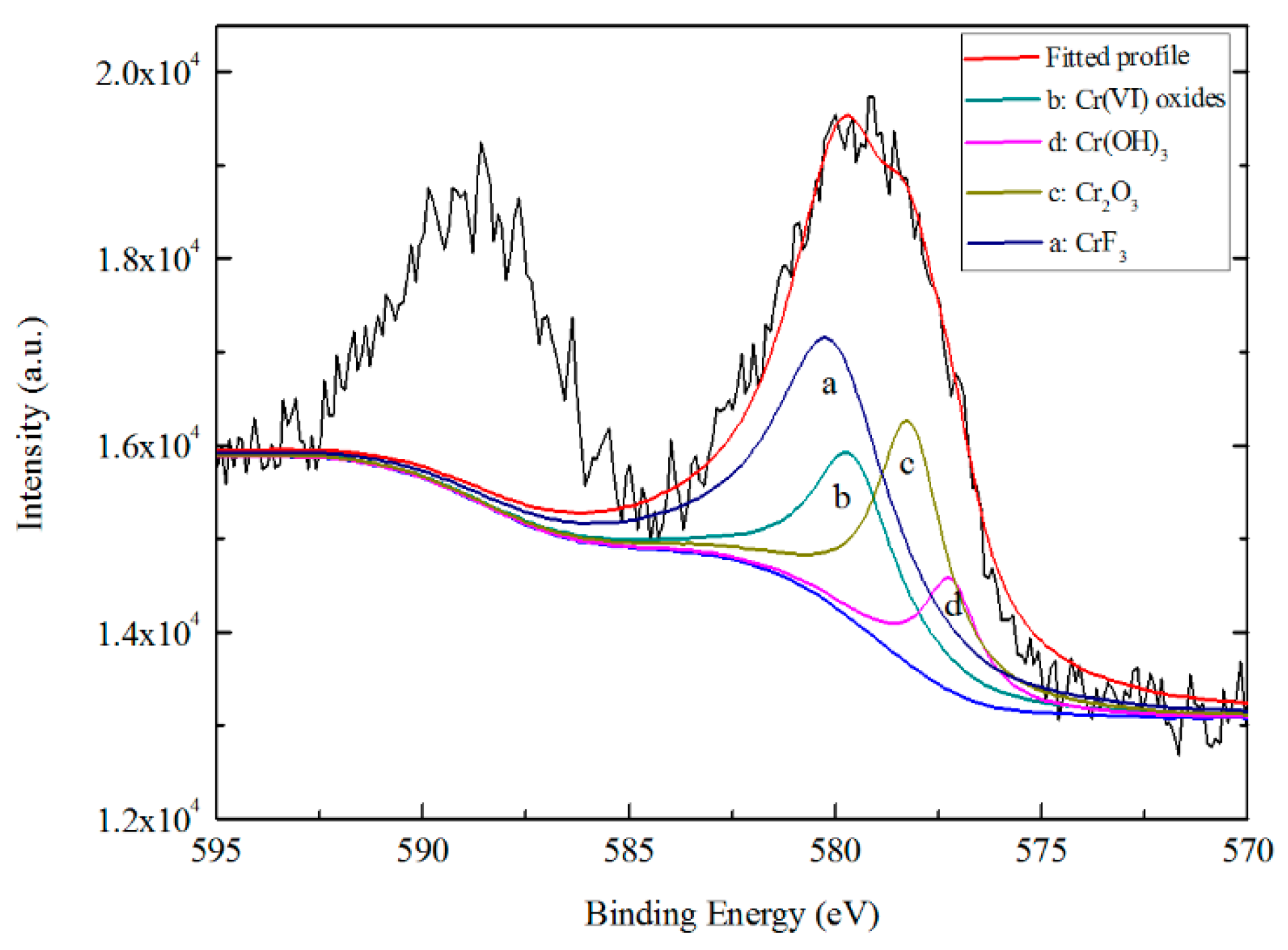

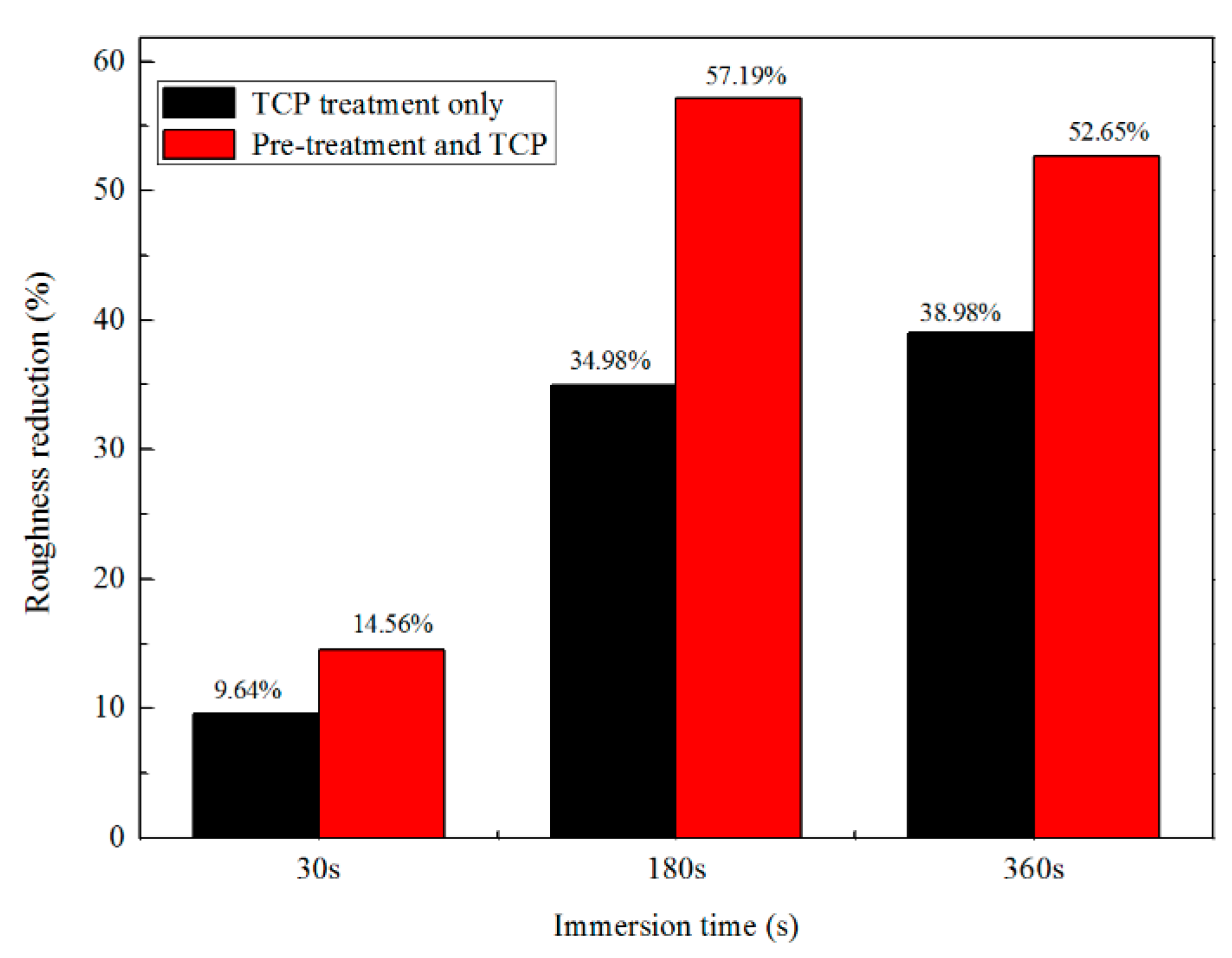

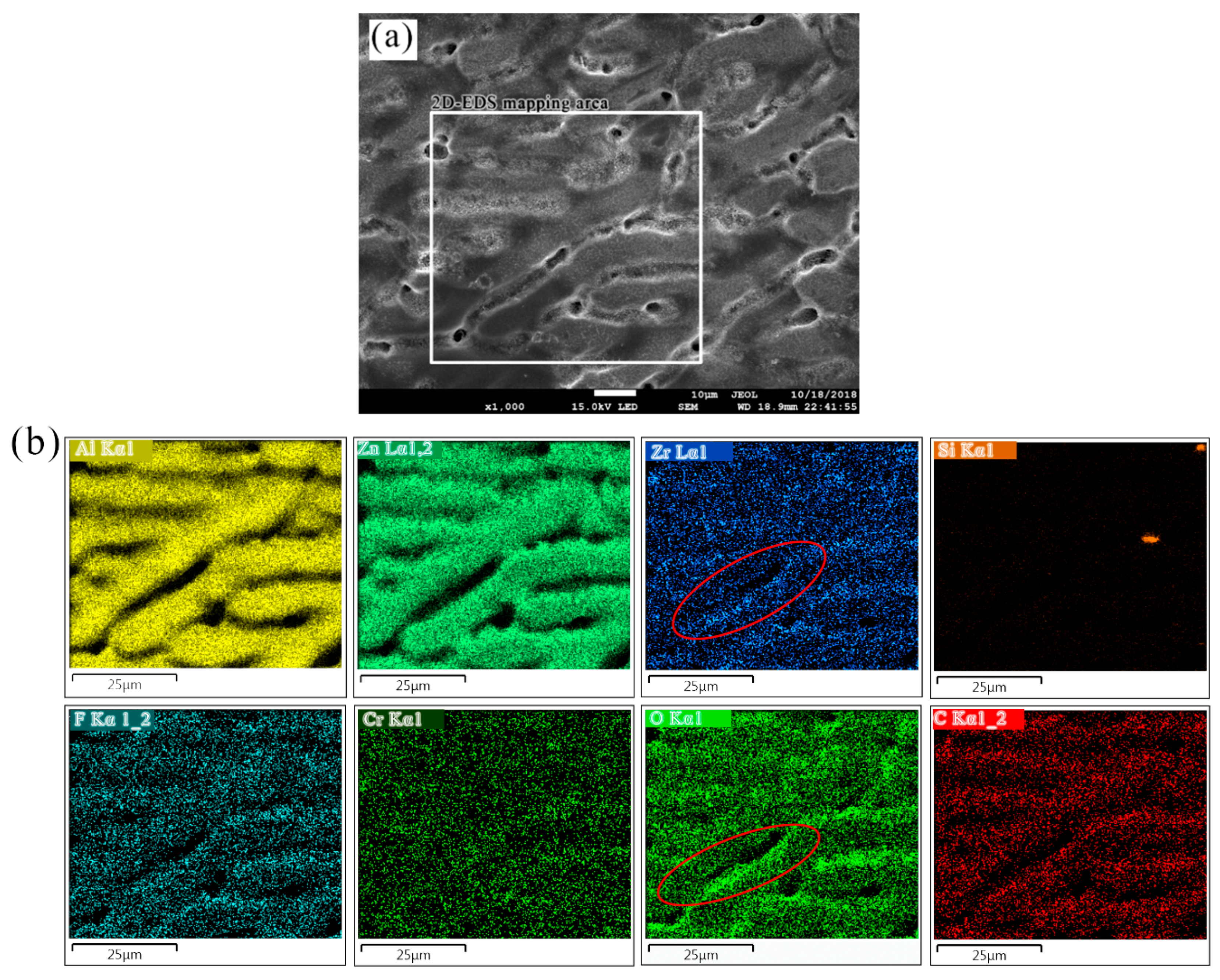

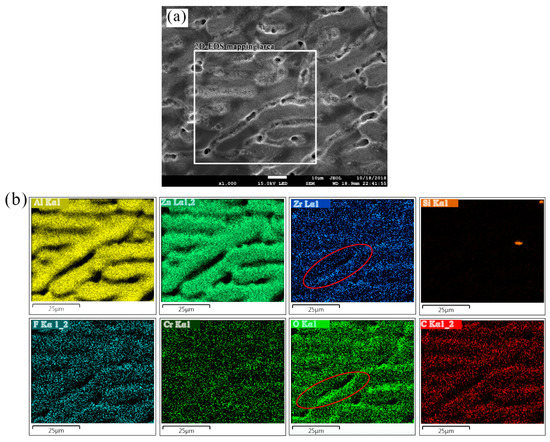

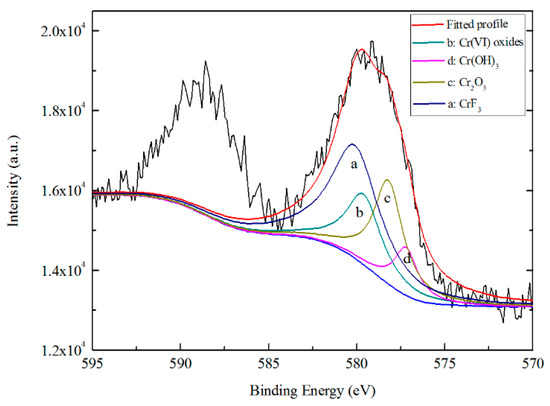

In this work, the effect of treatment time on the performance of Cr(III) conversion coatings (TCC) on hot dip Zn–55Al–1.6Si (Zn55Al) coated steel sheet were investigated. The surface 3D morphology and roughness of TCCs were examined by a 3D topography instrument and the structure, chemical composition, and elemental depth distribution were studied by means of scanning electron microscope (SEM), X-ray photoelectron spectroscopy (XPS), and auger electron spectroscopy (AES). The results indicated that during the formation of TCC, the macro-roughness of Zn55Al surface was reduced, but the micro-roughness increased, which are considered to be key factors in enhancing the adhesion strength of epoxy primers. The AES depth profiles showed a two-layer TCC for both dendritic and inter-dendritic regions and chemical composition analysis of XPS showed that the surface of TCC was mainly oxides, fluoride and a small number of hydroxides. Overall, Zn55Al specimen prepared in a diluted commercial Cr(III)-based solution for 180 s at 40 °C performed a better adhesion strength to epoxy primer and had the largest polarization resistance among all TCCs in this work. Additionally, longer Cr(III) passivation process (TCP) treatment time will increase the sensitivity of the TCC to micro-cracks. View Full-Text
Keywords: hot dip Zn55Al coated steel; trivalent chromium conversion coating (TCC); trivalent chromium passivation process (TCP); physicochemical properties; adhesion strength; corrosion resistance hot dip Zn55Al coated steel; trivalent chromium conversion coating (TCC); trivalent chromium passivation process (TCP); physicochemical properties; adhesion strength; corrosion resistance
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
SciFeed

Share & Cite This Article

MDPI and ACS Style

Pan, J.; Tang, X.; Li, Y. Influence of Treatment Time on Performance of Cr(III)-Based Conversion Coatings on Hot Dip Zn–55Al–1.6Si Coated Steel Sheet. Coatings 2019, 9, 297.
