# Interdiffusion at Room Temperature in Cu-Ni(Fe) Nanolaminates

## Abstract

**:**

^{−24}cm

^{2}·s

^{−1}is determined for the Cu-Ni(Fe) alloy system, perhaps the first such measurement at a ratio of melt temperature to test temperature that is greater than 5. The anomalously high diffusivity value with respect to bulk diffusion is attributed to the nanolaminate structure that features paths for short-circuit diffusion through interlayer grain boundaries.

## 1. Introduction

_{A/B}is the A/B layer pair thickness. The interdiffusivity coefficients are dependent on λ

_{A/B}as a function of time at temperature T

_{i}, as determined through the microscopic theory of diffusion [7,14,15,16,17,18]. The corresponding macroscopic diffusion coefficient Ď for the alloy system at T

_{i}corresponds with an infinite composition wavelength, i.e., a wavenumber equal to zero. The interaction between interfaces is examined for prescribed composition fluctuations as determined by synthesis conditions. In this approach, parametric values for growth of the composition wave can be determined as arise from interfacial and gradient energy effects, including the critical wavenumber (β

_{crit}) above which growth occurs, and that wavenumber (β

_{max}) where the maximum amplification of growth is found for the decomposition process.

_{84}Ni

_{10}Sn

_{6}can occur for long time periods at elevated temperatures within the chemical spinodal. A recent Mössbauer study of a Cu

_{79}Ni

_{14}Fe

_{7}alloy [21] aged at room temperature has shown spinodal decomposition. The growth (or decay) of the composition fluctuation is now examined for Cu

_{53}-Ni

_{40}Fe

_{7}multilayer specimens that have been aged at room temperature for 30 years. The analysis method [19] recently improved [22] for quantifying higher-order gradient energy terms is again utilized for consistency with prior efforts to determine the interdiffusion kinetics of the one-dimensional, composition fluctuation.

## 2. Materials and Methods

#### 2.1. Nanolaminate Synthesis and X-ray Characterization

_{0.53}-Ni

_{0.40}Fe

_{0.07}nanolaminates are synthesized [19,22] by alternating the vapor flux between Cu and a simultaneous exposure to Ni and Fe sources. In this study, the component A and B layers are of equal thickness to produce the characteristic A/B layer pair thickness, i.e., the composition wavelength (λ

_{A/B}). The deposition chamber is evacuated to a base pressure of 20 μPa (0.2 μTorr) with use of a liquid-nitrogen cooled Meissner trap. The source metals are >0.99995 pure and are thermally evaporated from 7 cm

^{3}crucibles at 0.1–1 nm·s

^{−1}evaporation rates to produce a 0.5–0.9 μm film thickness. The source-to-substrate separation of 30 cm enables thickness control with use of 6 MHz gold-coated quartz-crystal microbalances to produce a coating composition to within ±1 at.%. The nanolaminates coatings are deposited onto 4 cm × 8 cm sheets of both cleaved mica and polished Si wafers (with the native oxide intact). The substrate platen is oxygen-free Cu that is heated with a quartz lamp. A 20–40 nm thick buffer layer of pure Cu is deposited initially to introduce (111) film growth at a substrate temperature of 400 ± 10 °C. Deposition of the nanolaminate proceeds at a growth temperature of 350 ± 5 °C.

_{i}), Lorentz-polarization (L·P), mass absorption, and the Debye–Waller temperature effect on lattice vibration. The composition-averaged scattering and polarization terms is found [19,22] to dominate the intensity corrections for the Cu-Ni(Fe) samples. Detailed formulations of the diffraction analysis are provided in Appendix A.

#### 2.2. Analytic Interfdiffusion Model

_{max}with maximum amplification is seen [23] to decrease linearly with the cube-root of time t

^{1/3}at various isothermal anneal temperatures. In addition, a strain energy effect is formulated [24] as the 2η

^{2}Y term where the misfit strain between layer interfaces is η and the biaxial modulus is Y. Strain energy is known to inhibit growth of the composition fluctuation for associated wavelengths within the chemical spinodal producing a coherent spinodal regime, whereas diffusivity is enhanced due to strain energy at temperatures outside, i.e., above, the spinodal. A slowing effect over long-time periods towards a steady-state amplitude with an increased composition wavelength is modeled [15,16] within the spinodal that can account for nonlinear effects in the diffusivity behavior. Results obtained for quantifying the strain energy through modeling the effects on diffusion using fourth-order gradient energy terms evidence [22] these higher-order interface contributions to the spinodal decomposition of Cu-Ni(Fe) nanolaminates. The ln-scale change in the X-ray satellite intensity I

^{±}(t) for the short-range ordering from the composition fluctuation as normalized to the Bragg peak intensity [22,25,26], is used to determine the amplification factor R. The shape of the amplification factor R(β) variation with its corresponding wavenumber β can change over long periods of time t. Herein, a dispersion relationship (B) is used to represent the wavenumber (β) where the effects of crystalline orientation to the composition wave are accounted for quantitatively. The higher-order gradient-energy coefficients included in the expansion of the modified linear theory account for nonlinear effects of composition wavelength on diffusion and strain energy.

^{2}curve [19]. The use of the R(B) vs. B curve is a more desirable analytic approach since the R(B) value will equal zero for the infinite-wavelength case when B equals zero, which then provides a unique boundary condition for the interpolative data analysis. This approach [22] provides a treatment of the data in a form closest to the experimental X-ray measurement where R(B) equals zero at B equals zero. For growth of the composition fluctuation within the spinodal, the simulated R(B) vs. B curve is fit to envelope all data as an upper bound [22], since strain energy accelerates [24] diffusion outside the spinodal but hinders it within. The ∂R/∂B requirements guide the fitting procedure [22] to determine the order μ of the polynomial to appropriately provide the correct (±) sign of the first k′

_{μ}term, where k′

_{1}< 0 for decay and k′

_{1}> 0 for growth. However, if the slope at B = 0 is negative, then the (±) signage would invert for K′

_{i}and K

_{i}. For case of k′

_{1}> 0, the result anticipated is K′

_{1}> 0 and K

_{1}< 0 since f″ < 0 and Ď < 0 within the chemical spinodal. For decay at temperatures outside the spinodal, i.e., T > T

_{s}, use of the archival Cu-Ni(Fe) experimental data was evaluated to refine the computation [19,22] of the higher-order gradient energy coefficients K

_{μ}. The simulated model curve must again envelope all R(B) vs. B data since the presence of strain energy accelerates the diffusion process. In the Ď(B) vs. B

^{2}variation for growth within the spinodal, a decrease in the absolute value of the wavenumber-dependent diffusion coefficient Ď(B) is found [22] where strain energy 2η(B)

^{2}Y(B) effects are present. The effect of the operative diffusion mechanism on diffusivity behavior is evaluated for the Cu-Ni(Fe) nanolaminates aged at room temperature for 30 years. The analysis provides insight for the evaluation of the wavenumber-dependent strain-energy effect from growth or decay of the composition fluctuation.

## 3. Results

^{2}values from the dispersion relation used for each nanolaminate in the Figure 3 plot are listed in Table 1 along with the R-value computed from the X-ray diffraction measurements and the corresponding value computed for the interdiffusivity Ď(B). The Table 1 list for the corrected integrated intensity value of the first order satellite reflection below the Bragg peak is the (I

_{−1}/I

_{B}) corrected value. Two sets of curves are fit to the data points plotted in Figure 3.

^{−1}for the maximum amplification factor—corresponding to the composition wavelength of maximum growth.

_{s}in Figure 3 has a large difference compared to the experimental values of R

_{e}. Curve 2 uses a higher-order polynomial fit to envelope the distribution of points to minimize the difference with the experimental R values. Curve 2 features a bimodal peak for the amplification factor R with respect to the dispersion relation B. The bimodal distribution of Curve 2 can be considered the superposition of two constituent curves as, e.g., Curves 2a and 2b—each with a peak value for maximum amplification of growth that appear at 1.7 and 2.9 nm

^{−1}, respectively. The curves for the R versus B variation of Figure 3 are next used to compute the curve simulations that fit the data points plotted in Figure 4 for the variation of Ď(B) as a function of B

^{2}.

^{2}value near 2 nm

^{−2}. The Curve 1 fit in Figure 4 for the Ď(B) data is nearly a straight line as would be in accordance with a singular, first-order gradient energy coefficient. A significant deficiency of the Curve 1 fit is that the decrease in Ď(B) values that trend below a B

^{2}value of 1 nm

^{−1}cannot be reproduced as observed in the experimental data using a first order curve, nor would a third order curve accommodate the additional inflection towards as Ď(B) approaches a value of zero at B

^{2}= 0. Curve 2 is seen to appropriately envelope the diffusivity values, thereby minimizing the Fourier energy component. The accuracy of the interdiffusivity intercept value Ď, i.e., Ď(B) at B

^{2}= 0, is uncertain as the constituent 2a and 2b curves produce Ď(B) values >0 and <0, respectively. The higher-order gradient energy coefficients that are fit to the Figure 4 curves are listed in Table 2, along with the corresponding computed values for the interdiffusivity intercept value Ď (10

^{−10}nm

^{2}·s

^{−1}), mobility M (10

^{10}nm

^{2}·J

^{−1}·s

^{−1}), and second derivative f″ (10

^{−18}J·nm

^{−3}) of the Helmholtz free energy per atom volume.

^{2}value of 1 nm

^{−1}cannot be reproduced as observed in the experimental data using a first order curve. Also, a third order curve will not accommodate the additional inflection towards as Ď(B) approaches a value of zero at B

^{2}= 0. Curve 2 is seen to appropriately envelope the diffusivity values, thereby minimizing the Fourier energy component. The accuracy of the interdiffusivity intercept value Ď, i.e., Ď(B) at B

^{2}= 0, is uncertain as the constituent 2a and 2b curves produce Ď(B) values >0 and <0, respectively. The higher-order gradient energy coefficients that are fit to the Figure 4 curves are listed in Table 2, along with the corresponding computed values for the interdiffusivity intercept value Ď (10

^{−10}nm

^{2}·s

^{−1}), mobility M (10

^{10}nm

^{2}·J

^{−1}·s

^{−1}), and second derivative f″ (10

^{−18}J·nm

^{−3}) of the Helmholtz free energy per atom volume. The Ď values are the Ď(B) axis intercepts for Curves 1 and 2 in Figure 4. The values for Ď are on the order of (−1 ± 0.3) × 10

^{−10}nm

^{2}·s

^{−1}, as listed in Table 2. The accuracy in determining the diffusivity coefficients for these curves 2 and 1 at B

^{2}= 0 is limited by a total error of 30–35%, respectively. This error is orders of magnitude greater than the Ď value of −1 × 10

^{−26}nm

^{2}·s

^{−1}at 23 °C which could be extrapolated [22] from high-temperature data for Ni

^{63}self-diffusion [29] where Ď(T) at T

^{−1}= 0 equals Ď

_{0}~1 cm

^{2}·s

^{−1}. To reconcile this difference, the third data-point fit is considered where the Ď value of −1 × 10

^{−26}nm

^{2}·s

^{−1}at 23 °C is assumed, and the required values of the gradient energy coefficients are computed (as listed in Table 2) along with the required order of magnitude for the amplification factor R. In this third fit, it’s found that the gradient energy coefficients would have to be 10–12 orders of magnitude smaller than measured, and that the corresponding R values would need to be 16 orders of magnitude smaller than actually measured. The variation of the Fourier energy term (F

_{e}/f″) with composition wavelength is plotted in Figure 5.

_{e}/f″ in Figure 5 is made using the value of ΔĎ(B) that corresponds to the difference between the Curve 2 fit and the interdiffusivity data of Figure 4 where F

_{e}(h) equals ΔĎ(B)·[f′(h)/Ď]. The values of F

_{e}/f″ as plotted in Figure 5 are comparable to those found previously [18] for computations at higher temperatures, specifically outside the spinodal at 345 and 400 °C, as well as within the spinodal at 320 °C. The local maximum in the F

_{e}/f″ curve occurs at a composition wavelength consistent with the local maximum in absolute value of the interdiffusivity Ď(B) coefficient as plotted in Figure 4. Note, the corresponding values of F

_{e}/f″ would have to be 16 orders of magnitude greater (than those shown in Figure 5) for the third data fit requirement of Table 2. So, a Ď value of −1 × 10

^{−26}nm

^{2}·s

^{−1}that would correspond with bulk diffusivity does not appear to be a feasible consideration for the Cu-NiFe room temperature data. The Curve 1 fit of Table 2 would produce a comparable curve as shown in Figure 5, but scaled to a maximum value of F

_{e}/f″ equal to just 0.40 at a composition wavelength of 4.0 nm.

## 4. Discussion

#### 4.1. Bimodal Interdiffusion Behavior

_{max}for the maximum amplification of the composition wave should decrease with time as attributed to nonlinear diffusion as independent of strain energy. However, the suppression of the coherent spinodal for long wavenumbers with strain energy contributions will tend to shift the critical wavenumber β

_{crit}for allowable growth to greater values since the driving force of the Helmholz free energy increases proportional to the decrease in the process temperature below the chemical spinodal. Consequently, the change in β

_{crit}would tend to shift the maximum amplification to a larger wavenumber β

_{max}, although with slower kinetics.

_{s}* for growth will be suppressed to lower values below the chemical spinodal T

_{s}. This attribute of strain energy will, again, slow the growth of samples with larger wavenumbers since coherency effects result from epitaxial growth. In general, the strain energy effect increases for thinner epitaxial and coherent layers of the one-dimensional artificial fluctuation, hence shorter interface separations. Coincident with the state of coherency, is the effect of strain and crystalline orientation on the biaxial modulus Y(η). In general, tensile strains and non-close packed directions tend to soften the biaxial modulus whereas compressive strain and orientation along closed packed directions stiffen the modulus. If the modulus softens, then the 2η

^{2}Y barrier that inhibits diffusion will be lowered. Consequently, an increase would be found in the coherent spinodal temperature T

_{s}*.

^{2}Y(η) term is not constant, a change can be seen in the classic relationship between β

_{max}and β

_{crit}. A transition to a bimodal shape of the R(B) versus B curves occurs when comparing results for temperatures just below the chemical spinodal T

_{s}to temperatures well below the coherent spinodal T

_{s}* where β

_{c}may no longer equal β

_{m}·$\sqrt{2}$. A shift to an amplified growth should be seen towards shorter wavenumbers as a consequence of nonlinear diffusion, whereas growth can be expected at disproportionately longer wavenumbers due to an increased Helmholz free energy. The result seen in the data plots of Figure 3 and Figure 4 is a bimodal distribution in R(B) versus B curve as the outcome of room temperature aging. A decrease in wavenumber β, and corresponding increase in λ for maximum growth is seen from a value of 1.8 nm reported [22] at 320 °C to a 3.7 nm at room temperature as found in Figure 3 and listed in Table 1.

#### 4.2. Anomalous Diffusivity

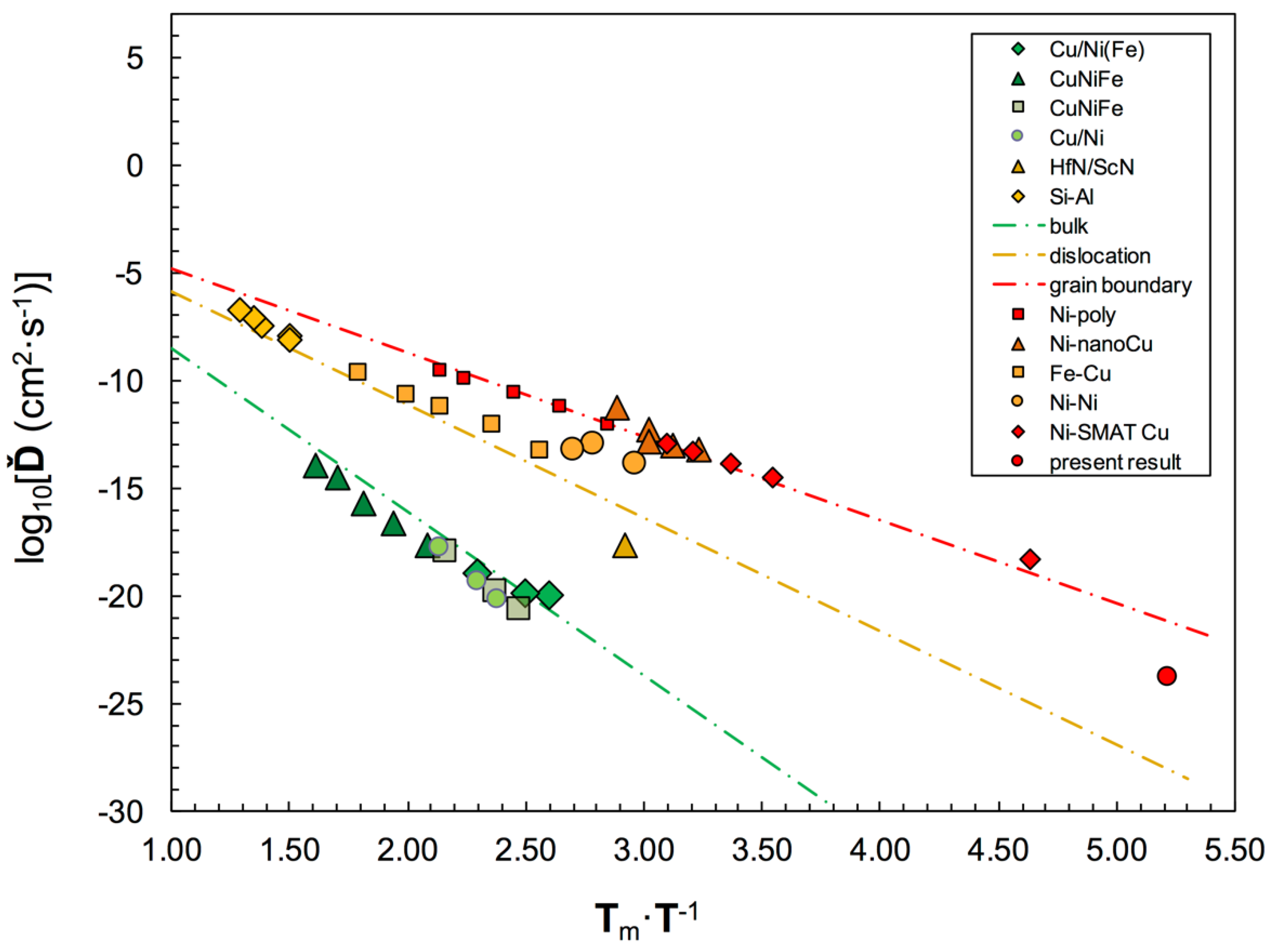

^{−1}as normalized to the melt temperature T

_{m}of the matrix metal alloy. The bulk diffusion mechanism requires consideration of atomic diffusion through the lattice, as e.g., via vacancies and interstitials. The bulk diffusivity that would result at room temperature is well below by 16 orders of magnitude—the anomalously high diffusivity determined for the Cu-Ni(Fe) nanolaminates. As such, additional mechanisms for diffusion are now considered that are much faster than found in the bulk at lower temperatures. For example, a transition in diffusion behavior can be observed below half the melt point where a much faster rate of nano-micro-polycrystalline grain growth occurs [33,34] than would correspond to bulk diffusion. The higher diffusion rates become prevalent, often, though the transport of atoms along paths that short circuit [35,36] the bulk diffusion process. Alternative paths for progressively higher diffusivities can be found along dislocation-pipes, grain boundaries, and surfaces. The grain boundaries between layers in nanocrystalline nanolaminate materials provides such features as needed for enhanced diffusion.

^{63}Ni isotope diffusion with type-C behavior is measured in: polycrystalline Cu [42] over the temperature range of 476–635 K; nanocrystalline Cu [43] with 35–55 nm grain sizes over 420–470 K; and pure Cu subjected [44] to surface mechanical attrition treatment (SMAT) over 293–438 K. Diffusion coefficients from these studies are plotted in Figure 6 indicating that the

^{63}Ni in Cu data rests on the guideline for grain boundary diffusion.

^{59}Fe isotope diffusion in Cu [45] is measured in the temperature range of 529–758 K. Corresponding diffusion coefficient data plotted in Figure 6 shows that the

^{59}Fe in Cu diffusion data rests just above the dislocation diffusion guideline. Similarly,

^{59}Fe in diffusion in pure Cu and CuFe alloys under type-B conditions [46], indicates diffusion occurs along grain boundaries with leakage into the grain bulk. The effect of impurity on grain boundary self-diffusion of the

^{63}Ni isotope in polycrystalline Ni [47] indicates diffusion decreases with increasing impurity. These type-C diffusion results in the 584–640 K range are plotted in Figure 6 for 0.99999 pure Ni. The

^{63}Ni self-diffusion in Ni data rests just below the grain boundary diffusion guideline. The present room-temperature Cu-Ni(Fe) result is the data point marked by the largest (solid red) circle in Figure 6. The diffusion coefficient computed at 23 °C rests just below the guideline for grain-boundary diffusion mechanism, and may well represents an extension of the grain-boundary diffusion data [38,39,40,41,42,43] for both Ni and Fe in Cu as well as Ni self-diffusion. The lack of grain growth, i.e., recrystallization, implies that the role of grain-boundary motion induced diffusion [48] is not a significant factor for the nanolaminates of this study whereas the use of grain boundaries and dislocation pipes provide paths for accelerated atomic transport between layers.

## 5. Conclusions

^{−18}J·nm

^{−3}and which is dependent upon the composition wavelength. An upper-bound in interdiffusivity Ď(B) is observed that peaks at (3.6 ± 1.1) × 10

^{−24}cm

^{2}·s

^{−1}for a composition wavelength λ of 6.2 nm, and then decreases rapidly with increasing wavelength as the oriented corrected wavenumber β approaches zero. Overall, the diffusivity Ď of (1.8 ± 0.5) × 10

^{−24}cm

^{2}·s

^{−1}is anomalously high for the Cu-Ni(Fe) alloy system with respect to bulk diffusion and can be attributed, perhaps, to diffusion mechanism(s) consistent with transport along dislocation pipes and grain boundaries. The novelty in the three-decade time lapse for this study of diffusion kinetics is that the measurements are made at room temperature, i.e., perhaps the first measurement at a ratio of melt temperature to test temperature that is greater than 5, and where spinodal decomposition is observed in a metal alloy system at a diffusivity of only 10

^{−24}cm

^{2}·s

^{−1}.
