The effect of electrospinning operational parameters on the morphology, surface roughness, and wettability of different compositions of electrospun polystyrene (PS)–aluminum oxide (Al2

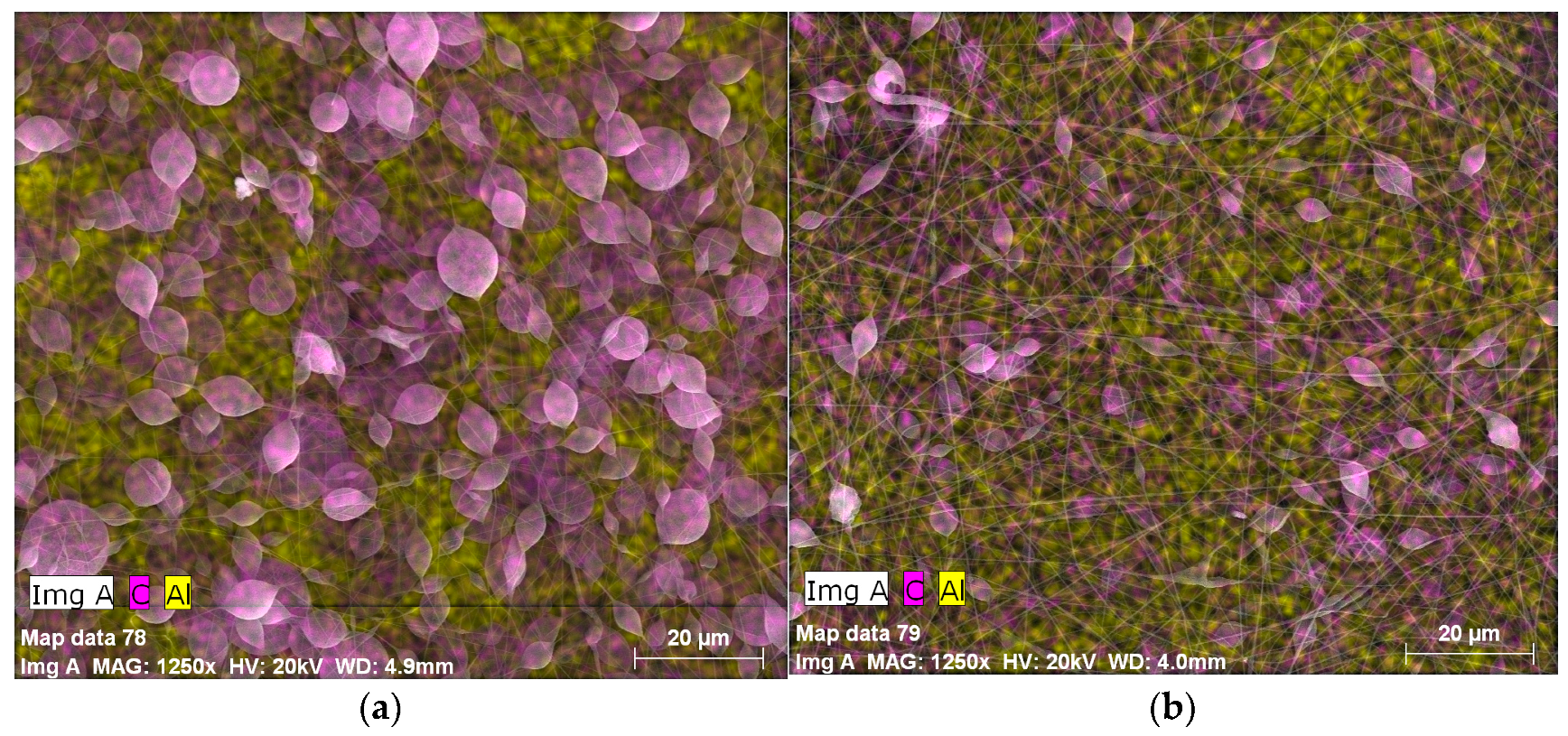

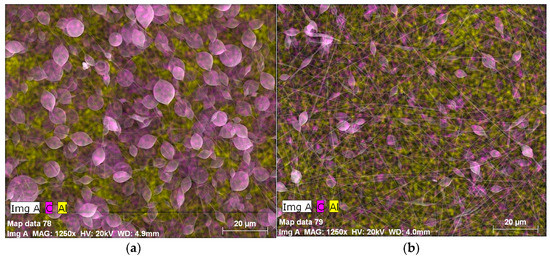

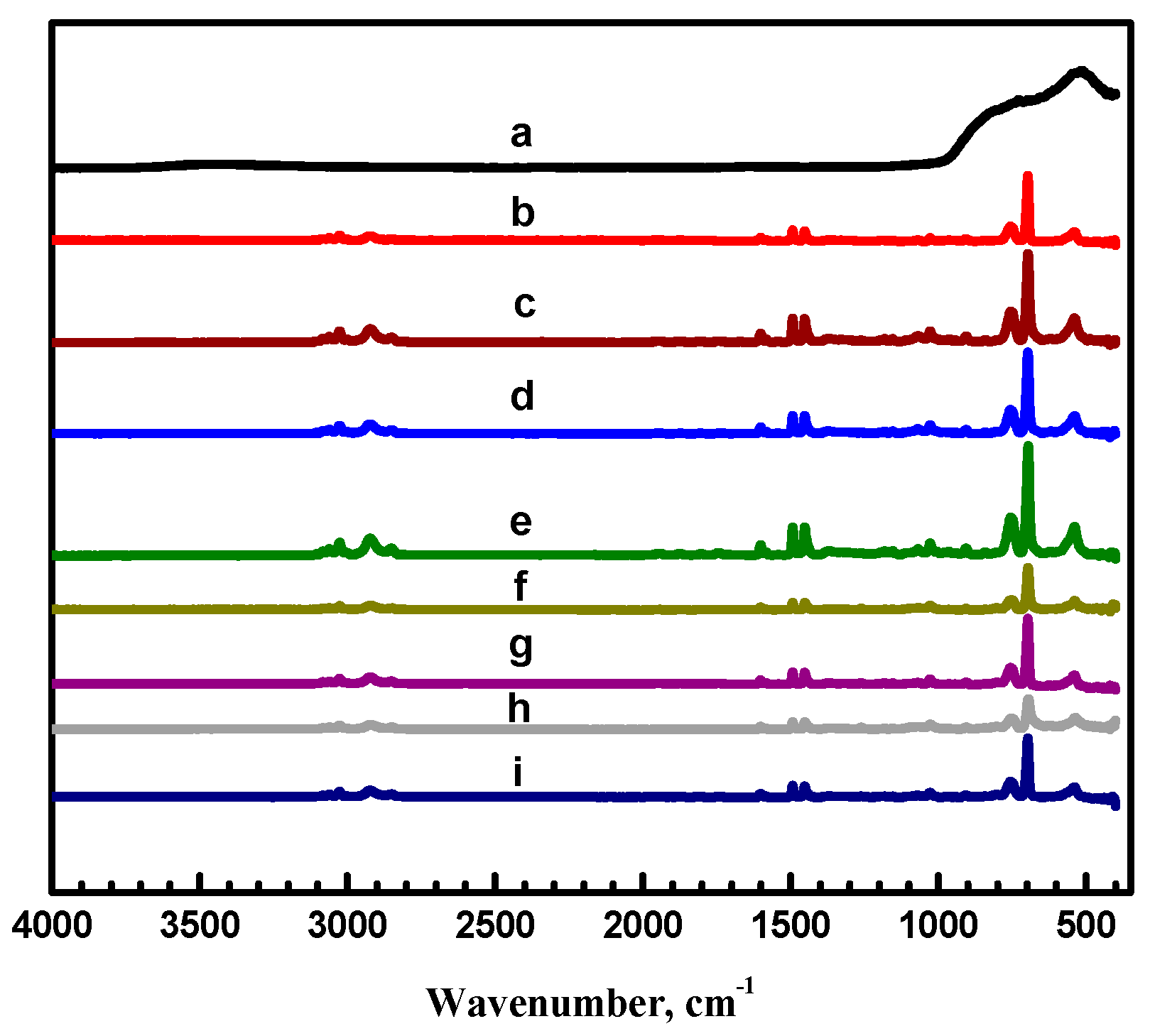

) nanocomposite coatings was investigated using different techniques. For example, a scanning electron microscope (SEM) coupled with an energy dispersive X-ray (EDX) unit, a Fourier transform infrared (FTIR) spectrometer, an atomic force microscope (AFM), and water contact angle (WCA), and contact angle hysteresis (CAH) measurements using the sessile droplet method, were used. The latter used 4 µL of distilled water at room temperature. PS/Al2

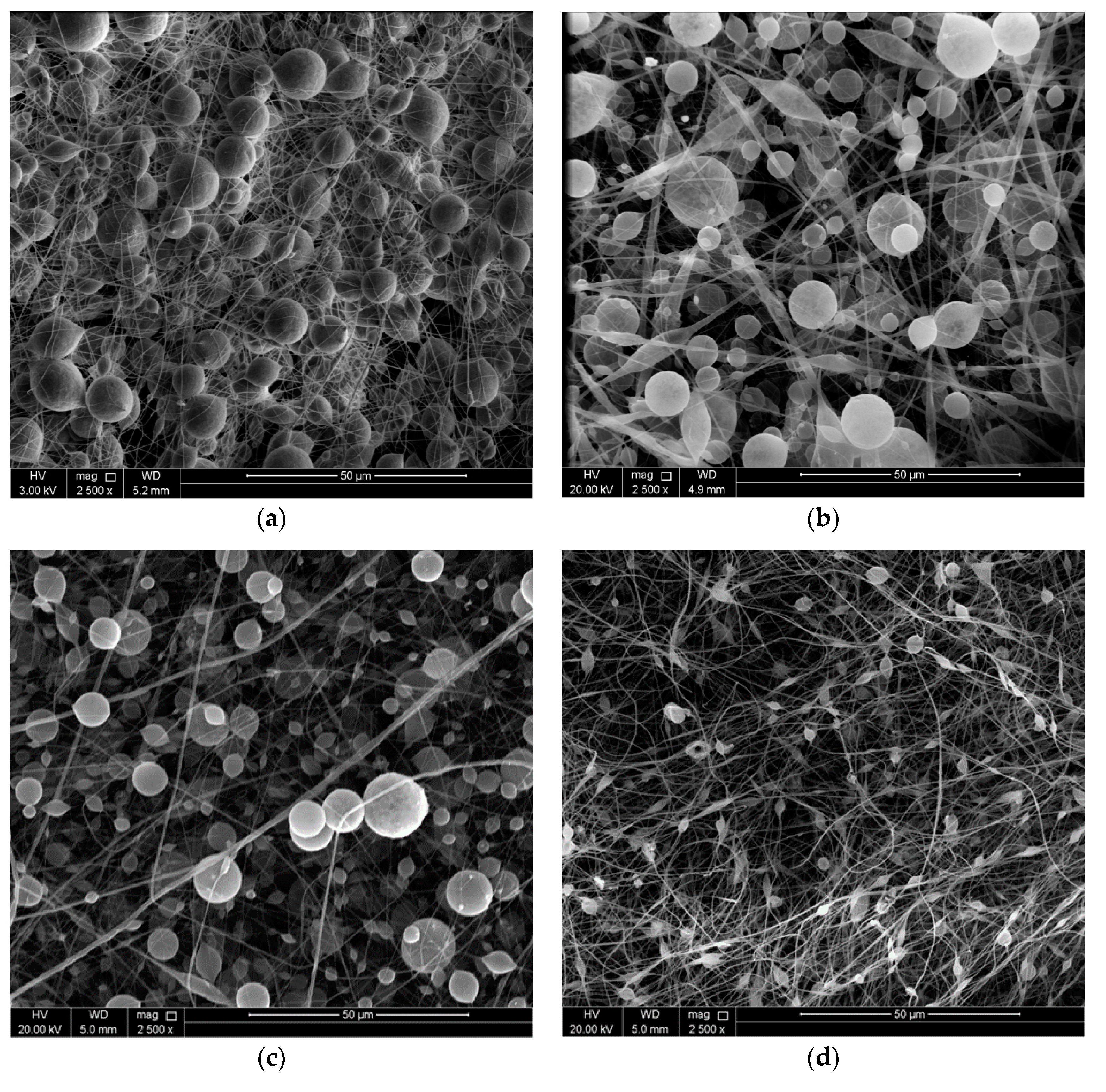

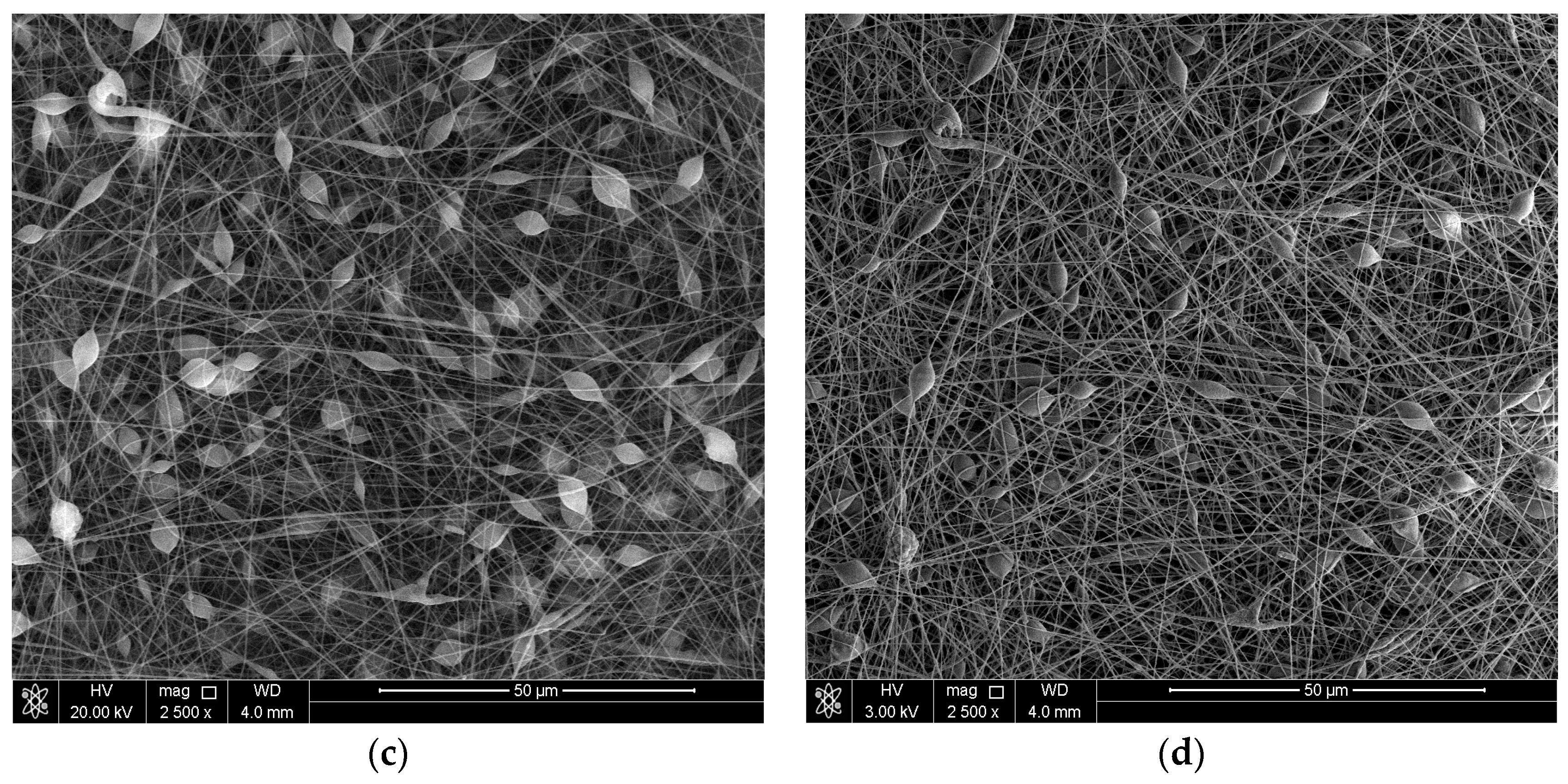

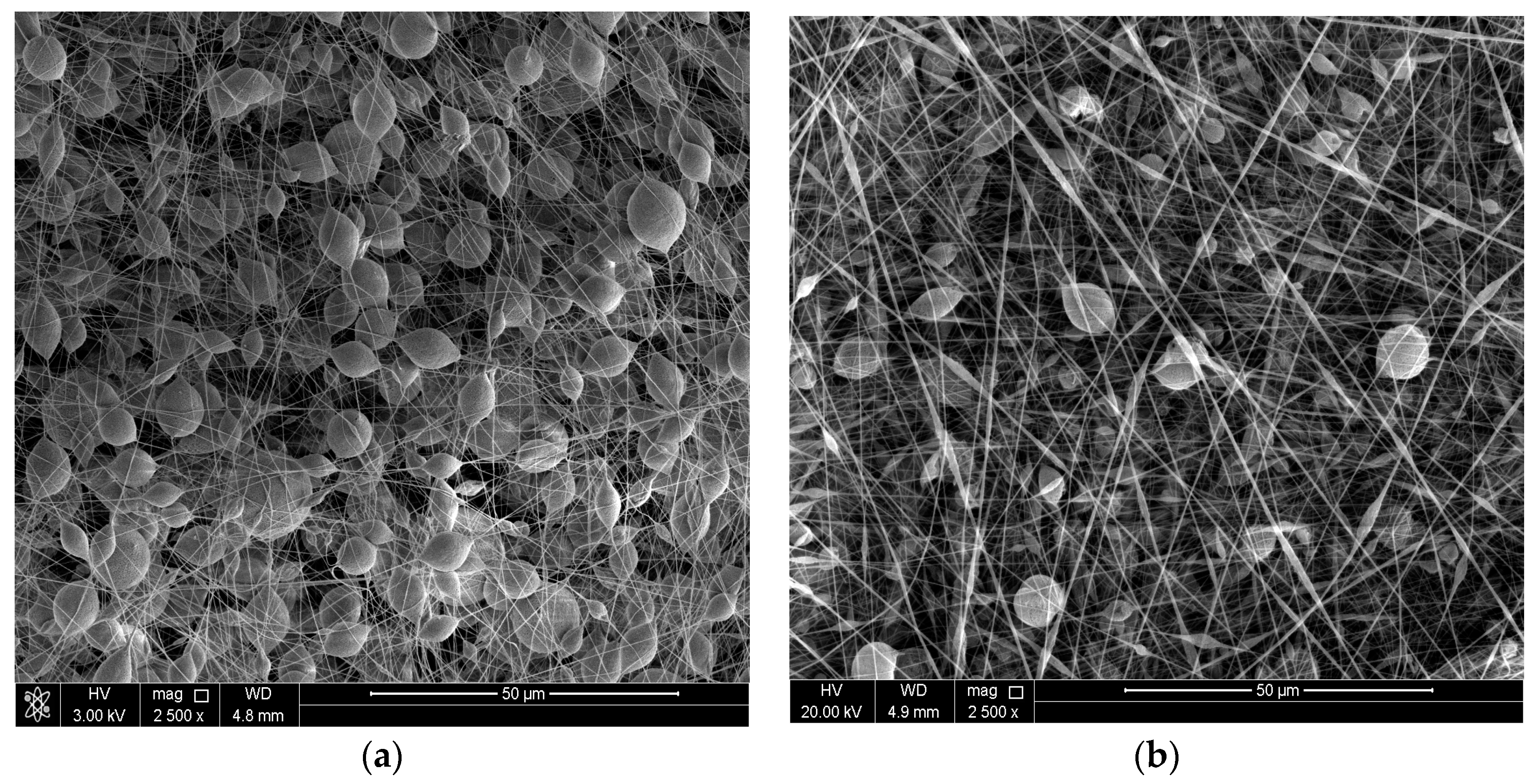

nanocomposite coatings exhibited different morphologies, such as beaded fibers and microfibers, depending on the concentration ratio between the PS and Al2

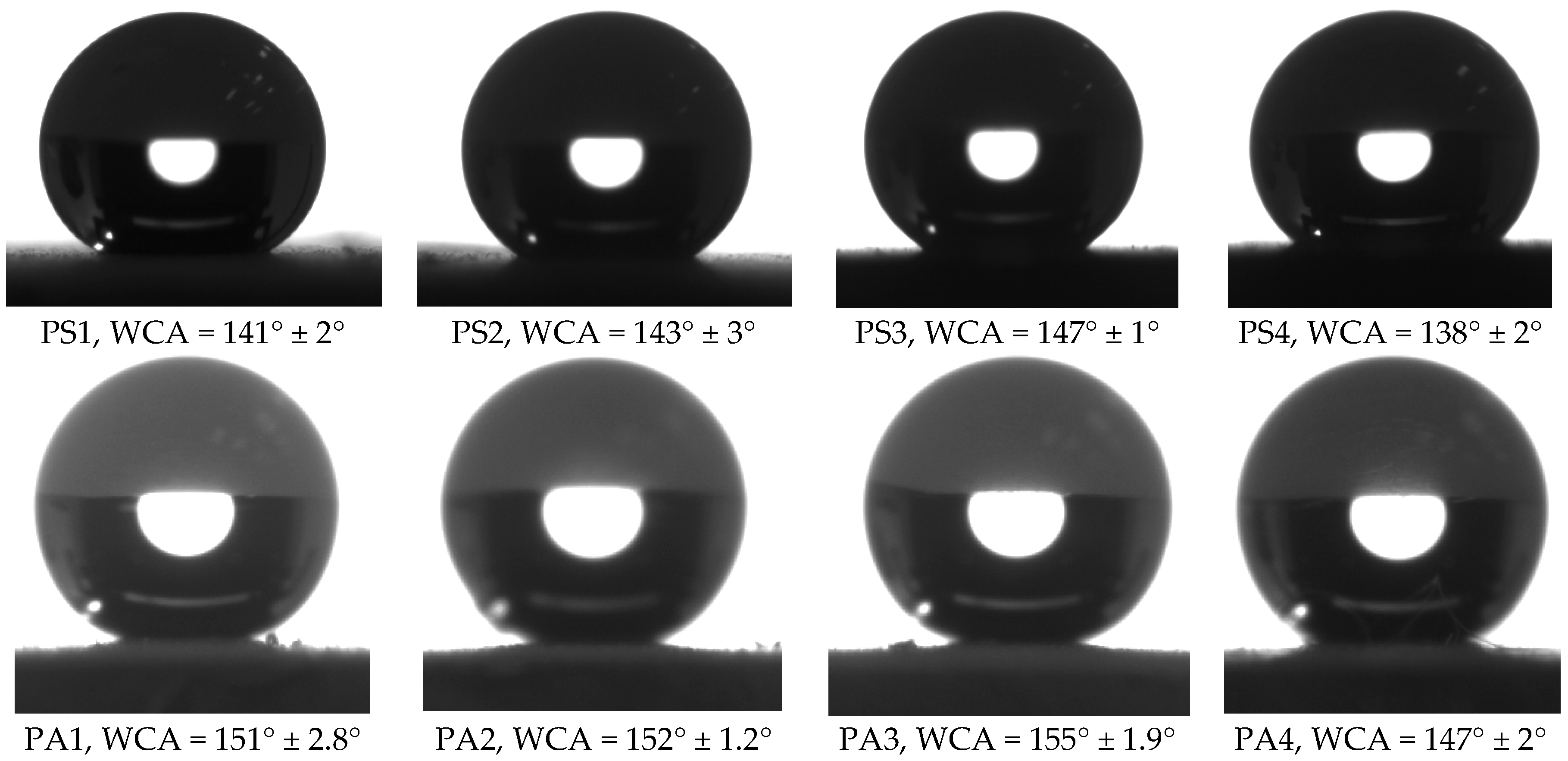

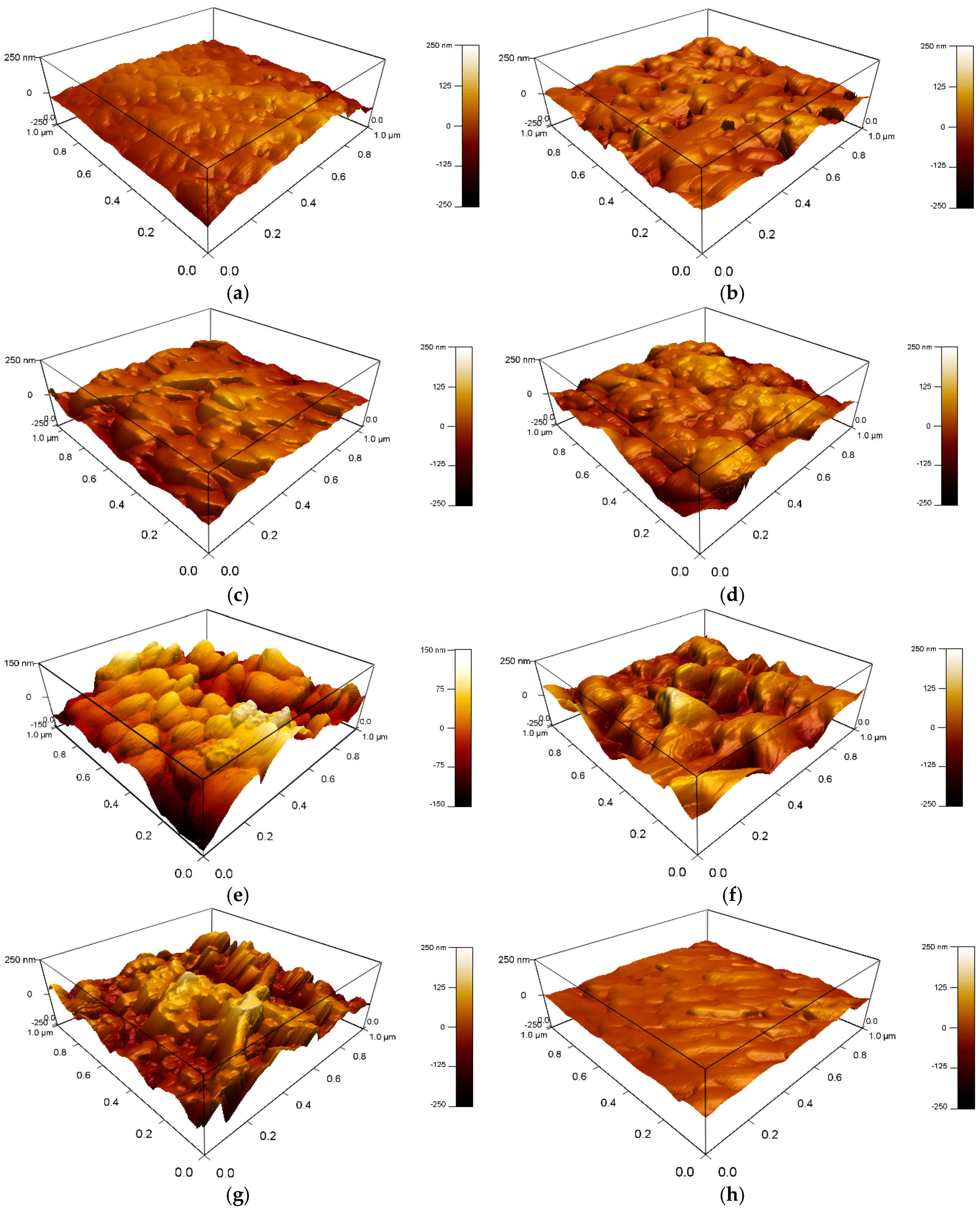

nanoparticles and the operational parameters of the electrospinning process. The optimum conditions to produce a nanocomposite coating with the highest roughness and superhydrophobic properties (155° ± 1.9° for WCA and 3° ± 4.2° for CAH) are 2.5 and 0.25 wt % of PS and Al2
, respectively, 25 kV for the applied potential and 1.5 mL·h−1

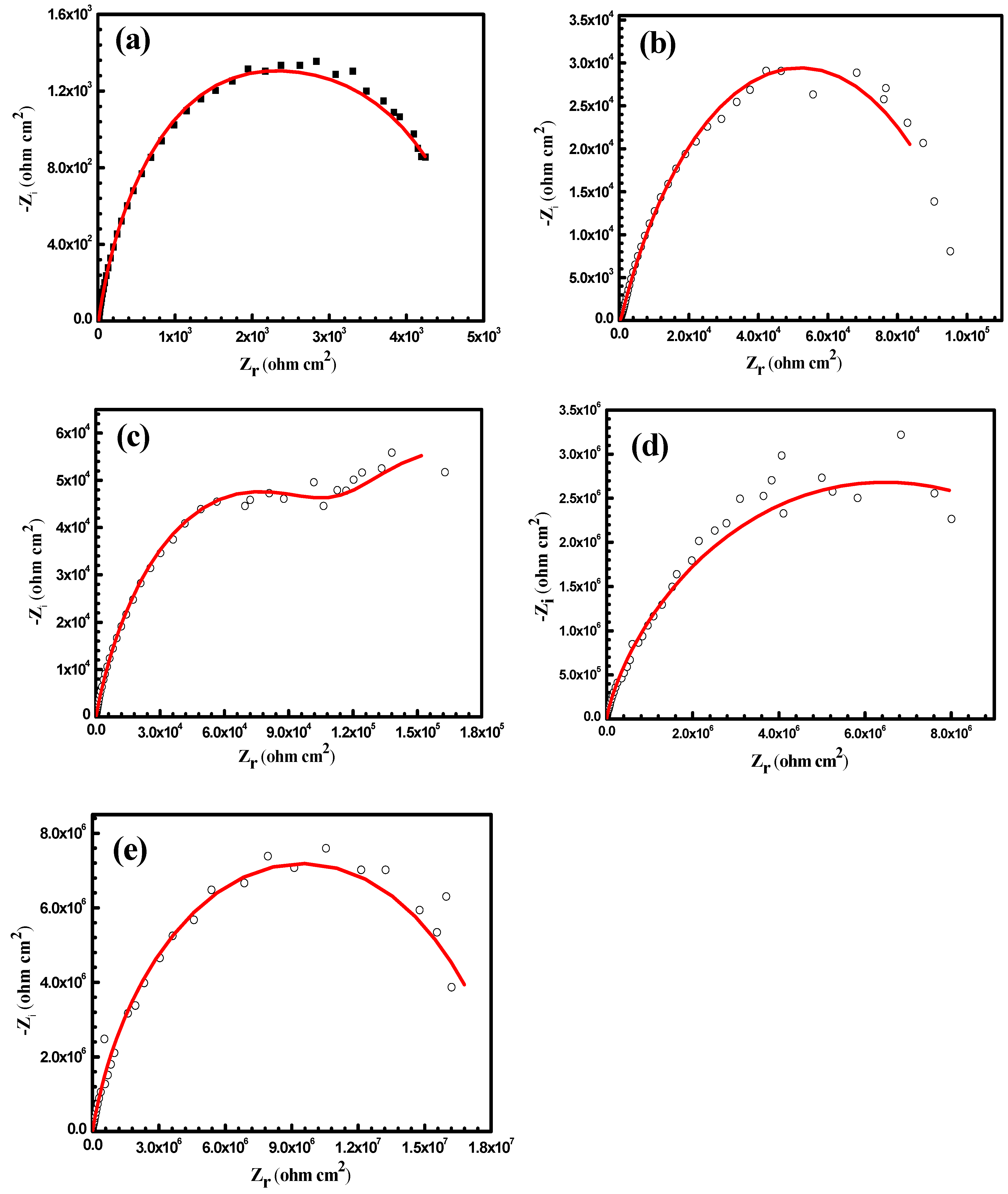

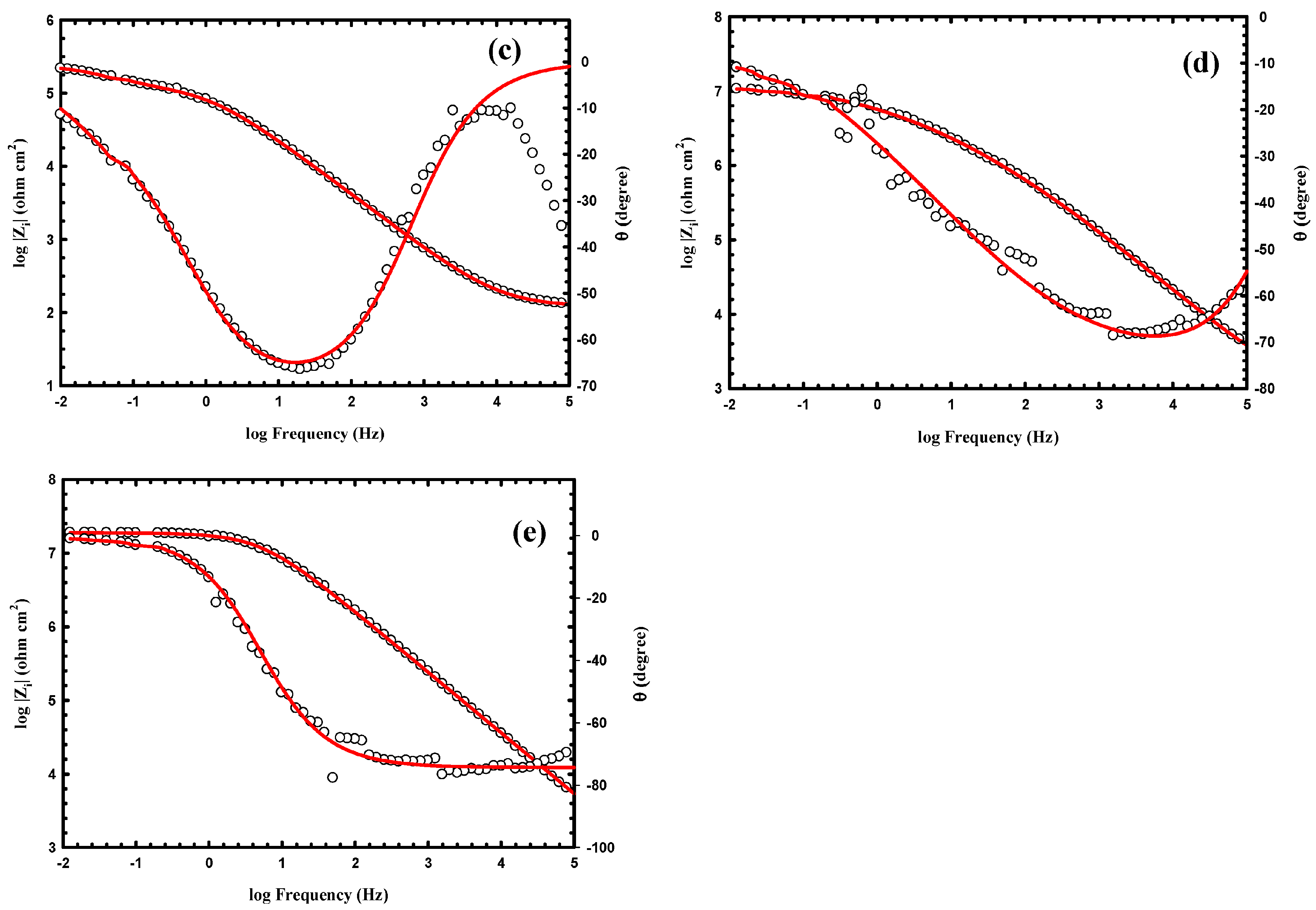

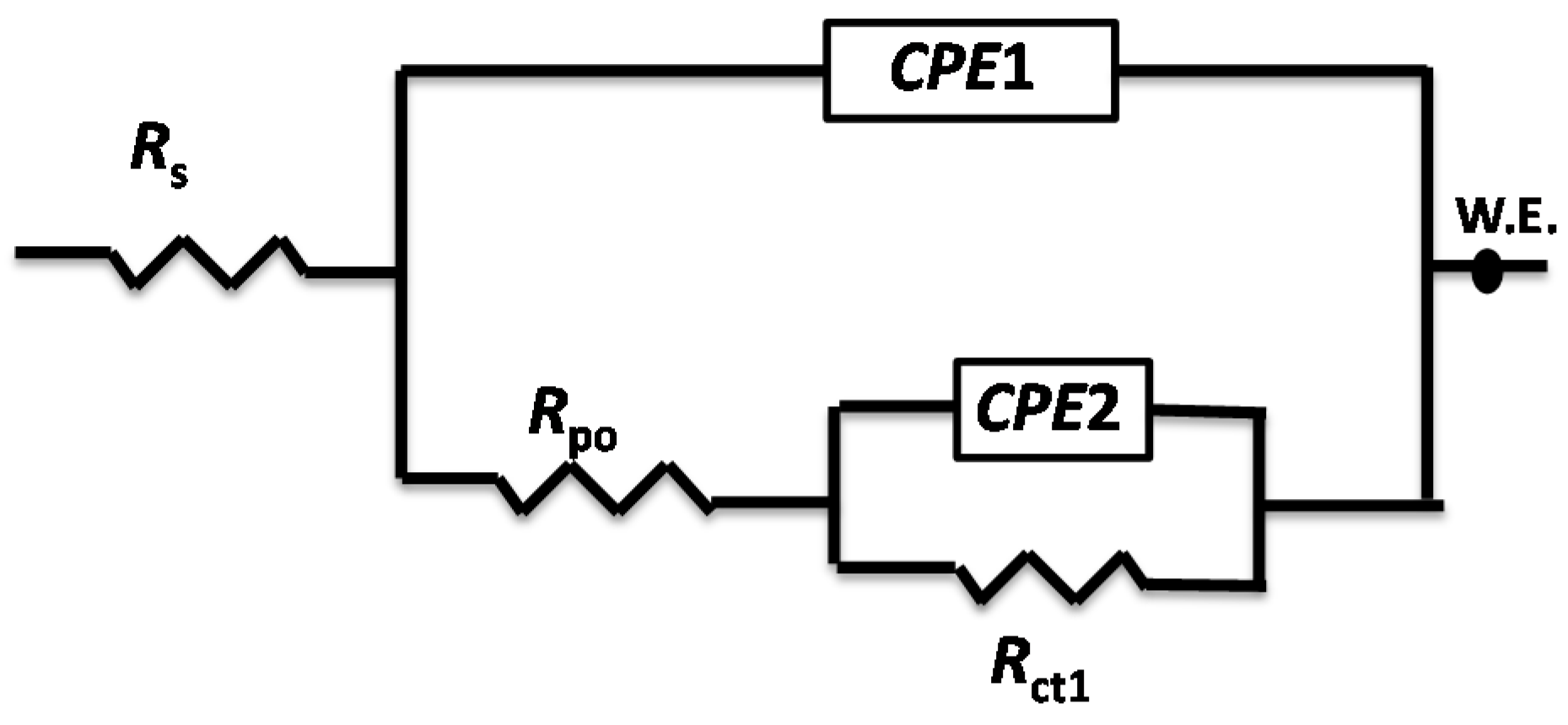

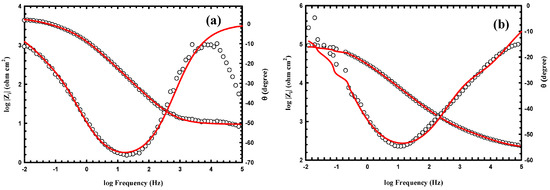

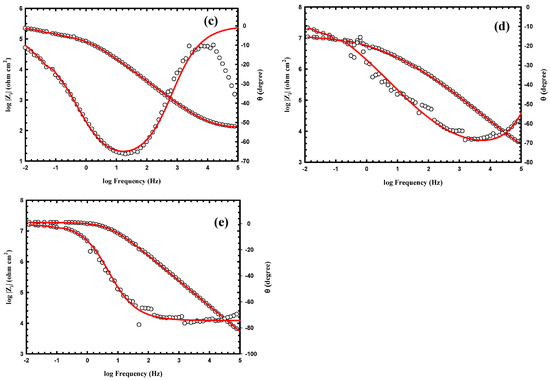

for the solution flow rate at 35 °C. The corrosion resistance of the as-prepared coatings was investigated using the electrochemical impedance spectroscopy (EIS) technique. The results have revealed that the highly porous superhydrophobic nanocomposite coatings (SHCs) possess a superior corrosion resistance that is higher than the uncoated Al alloy by three orders of magnitude.
This is an open access article distributed under the Creative Commons Attribution License
which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited
