Next Article in Journal
Cylindrical Three-Dimensional Porous Anodic Alumina Networks
Next Article in Special Issue
Corrosion Testing of Thermal Spray Coatings in a Biomass Co-Firing Power Plant
Previous Article in Journal
Statistical Contact Angle Analyses with the High-Precision Drop Shape Analysis (HPDSA) Approach: Basic Principles and Applications
Previous Article in Special Issue
Cellular Automata Modelling of Photo-Induced Oxidation Processes in Molecularly Doped Polymers
Article Menu
Issue 4 (December) cover image

Export Article

Open AccessArticle

Thermally Sprayed Aluminum Coatings for the Protection of Subsea Risers and Pipelines Carrying Hot Fluids

School of Engineering, Federal University of Rio Grande do Sul, Porto Alegre 90040-060, Brazil
TWI Ltd, Cambridge, CB21 6AL, UK
Author to whom correspondence should be addressed.
Academic Editor: Robert B. Heimann
Coatings 2016, 6(4), 58;
Received: 20 September 2016 / Revised: 29 October 2016 / Accepted: 1 November 2016 / Published: 8 November 2016
PDF [3511 KB, uploaded 10 November 2016]

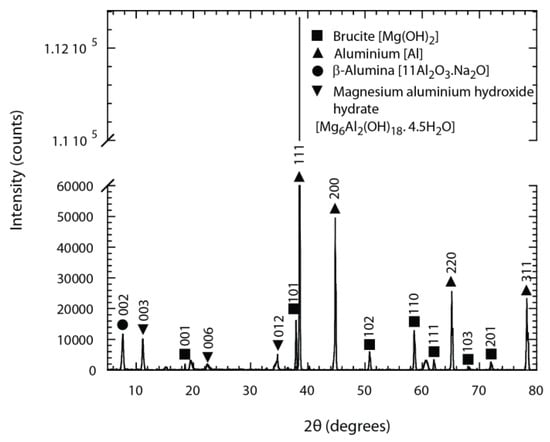

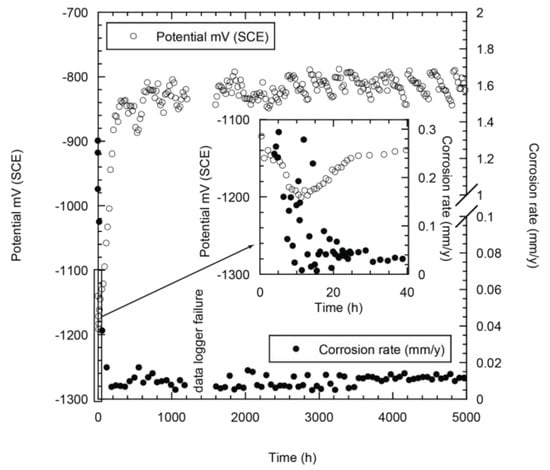

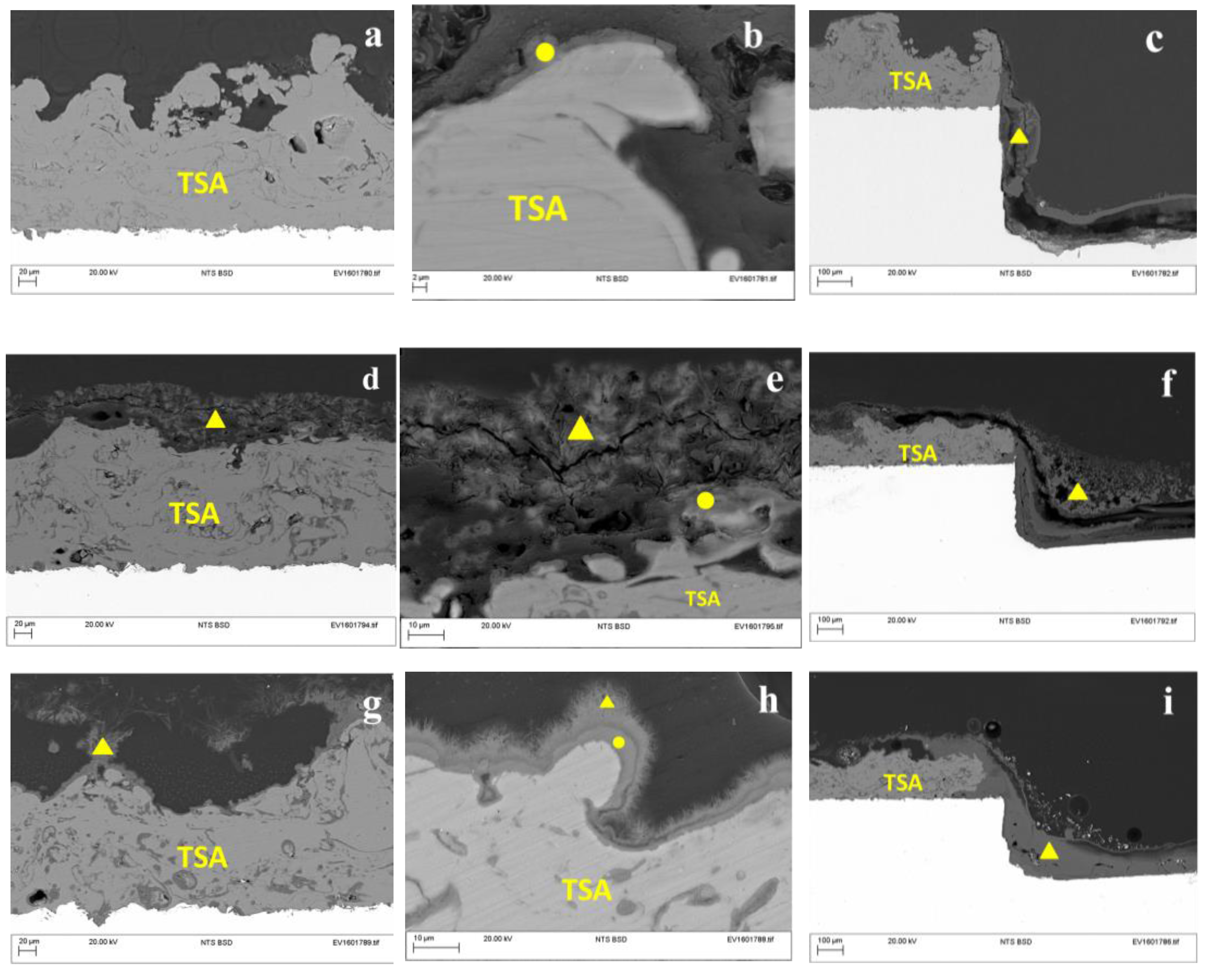

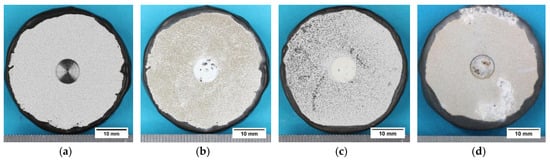

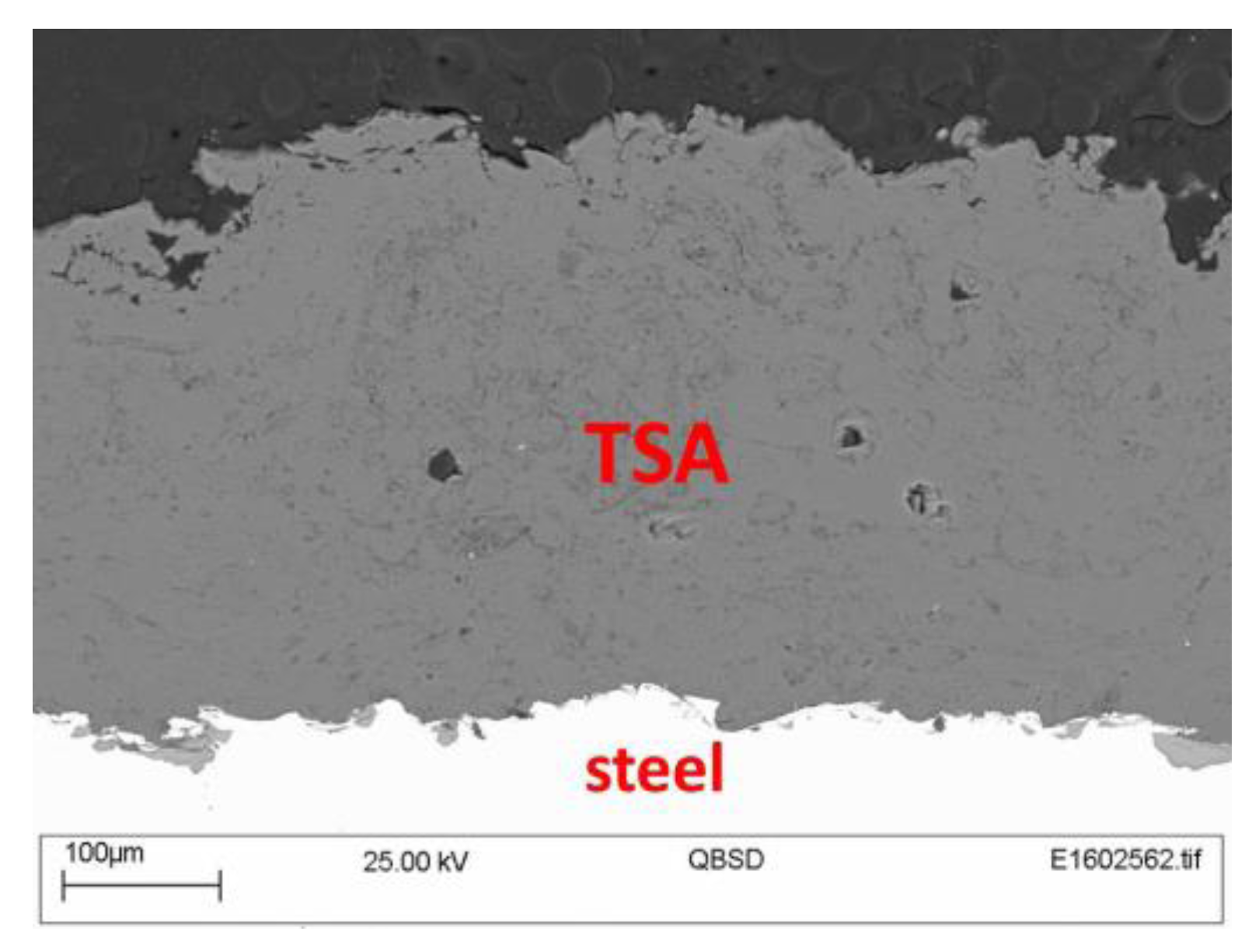

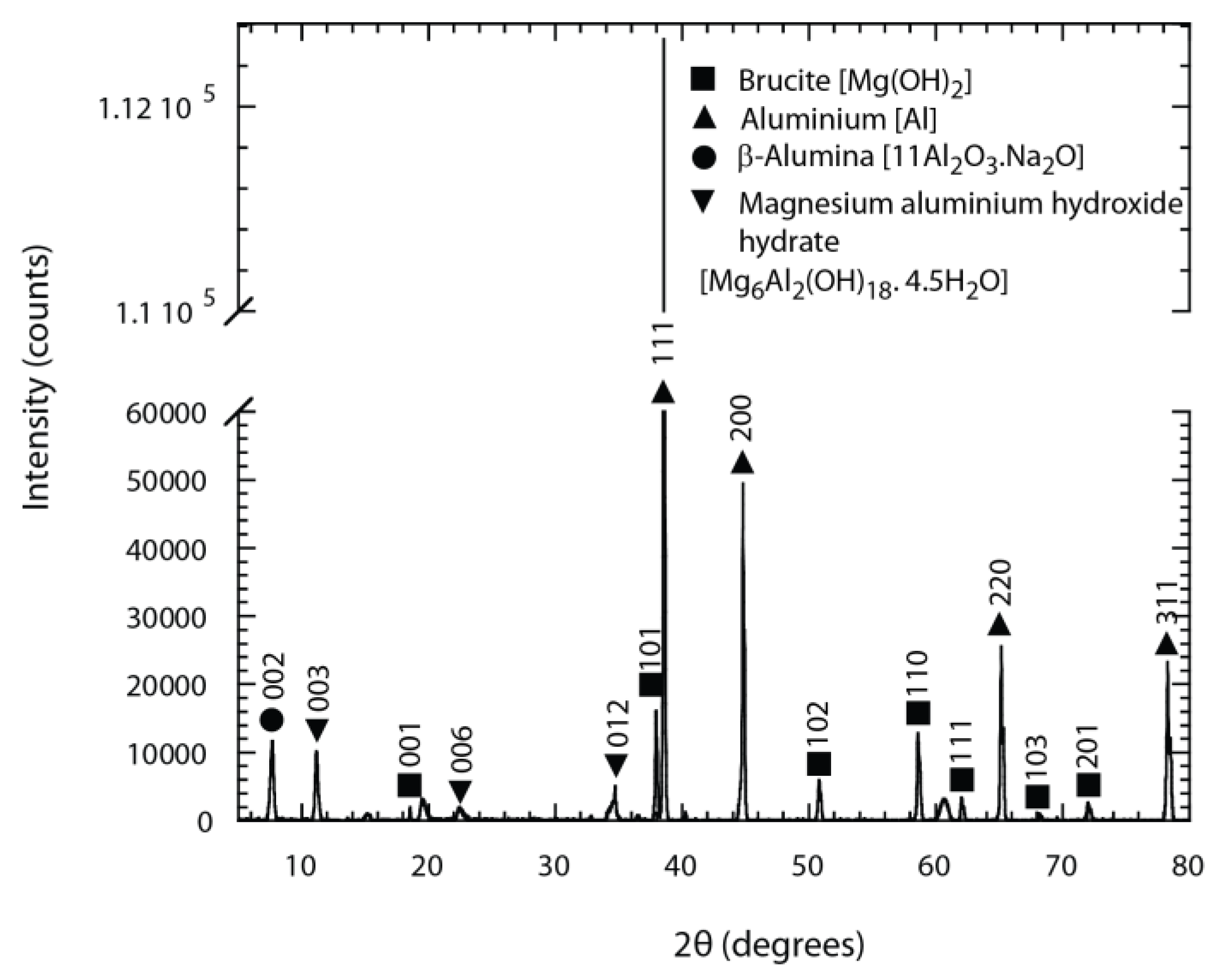

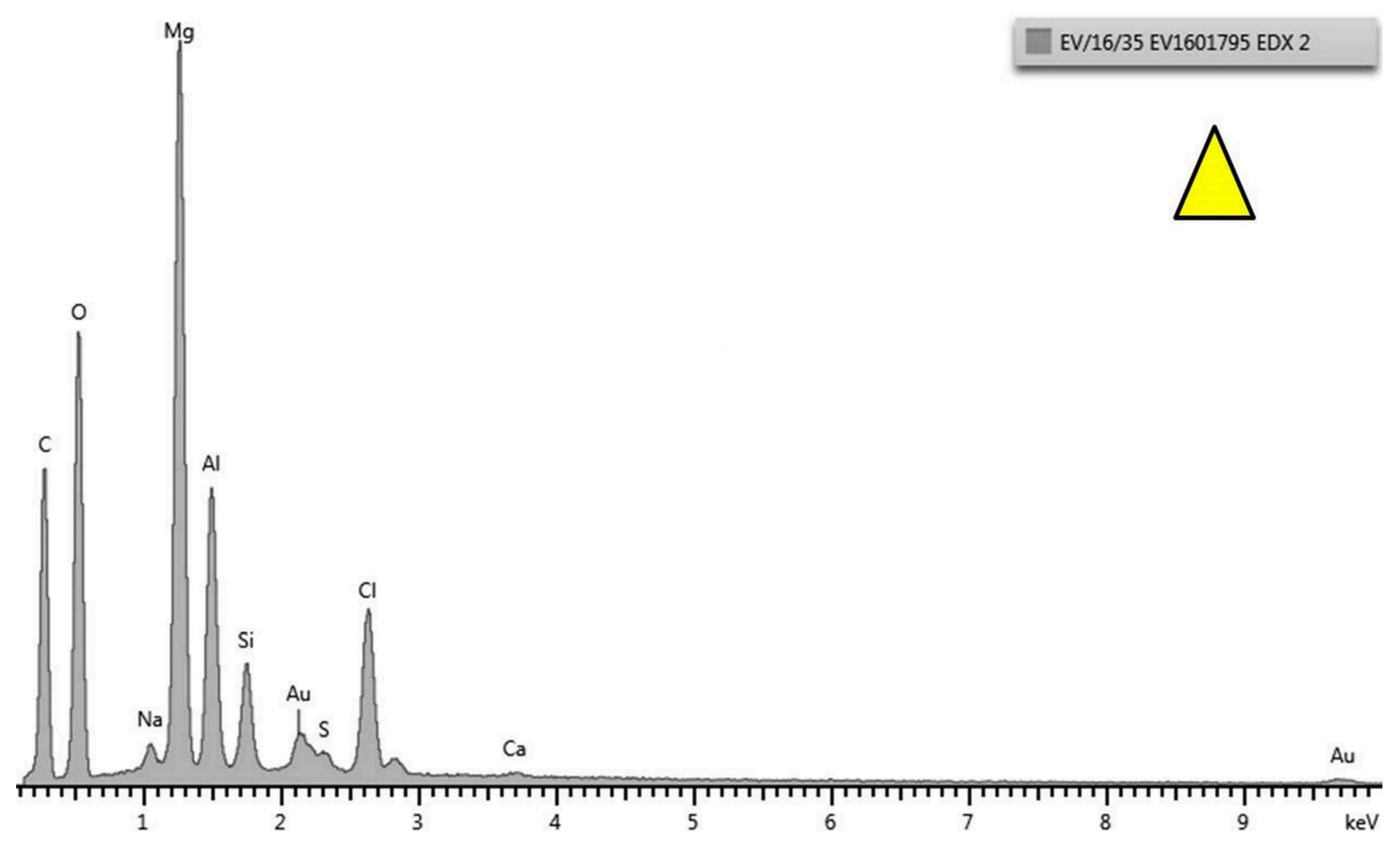

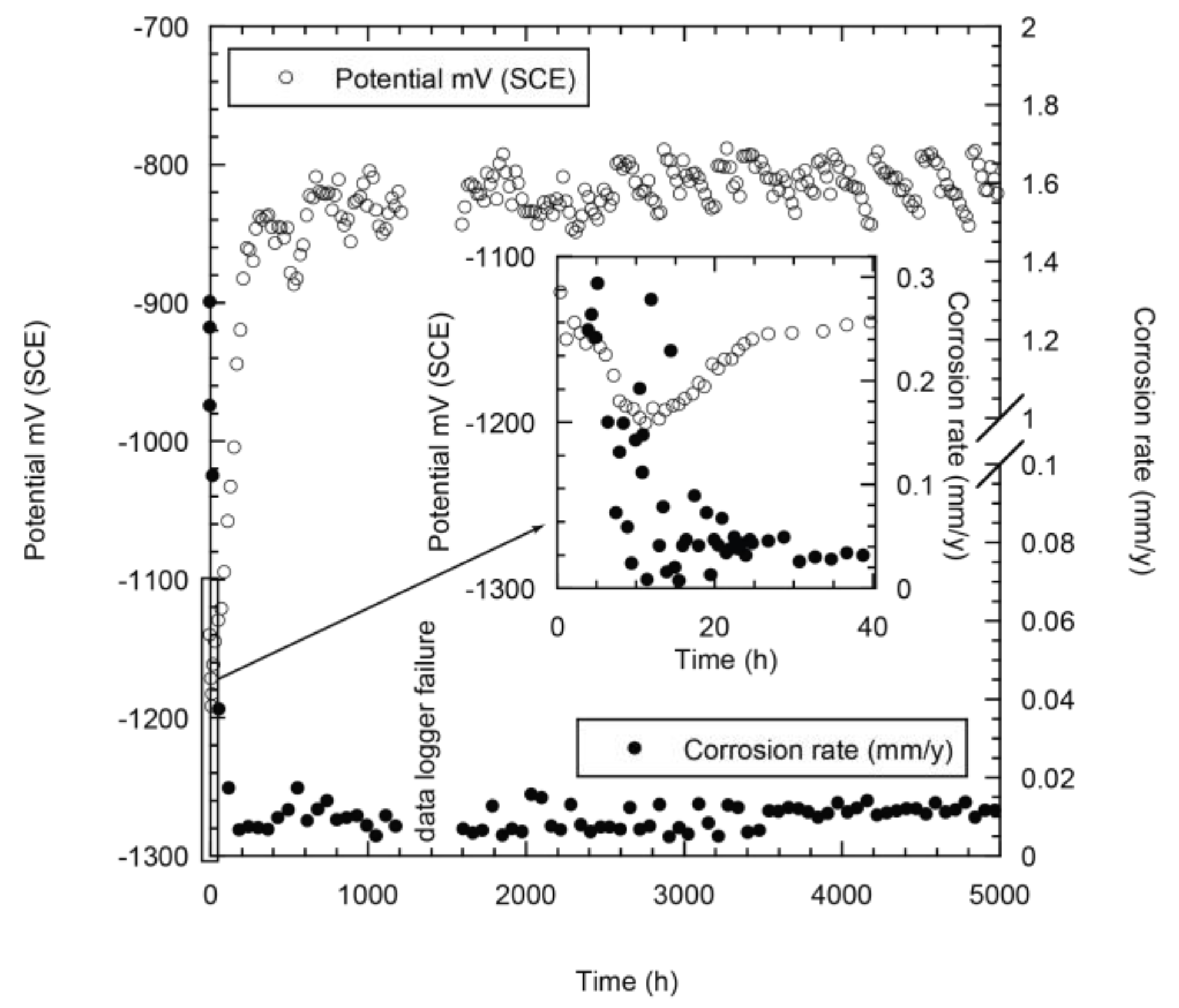

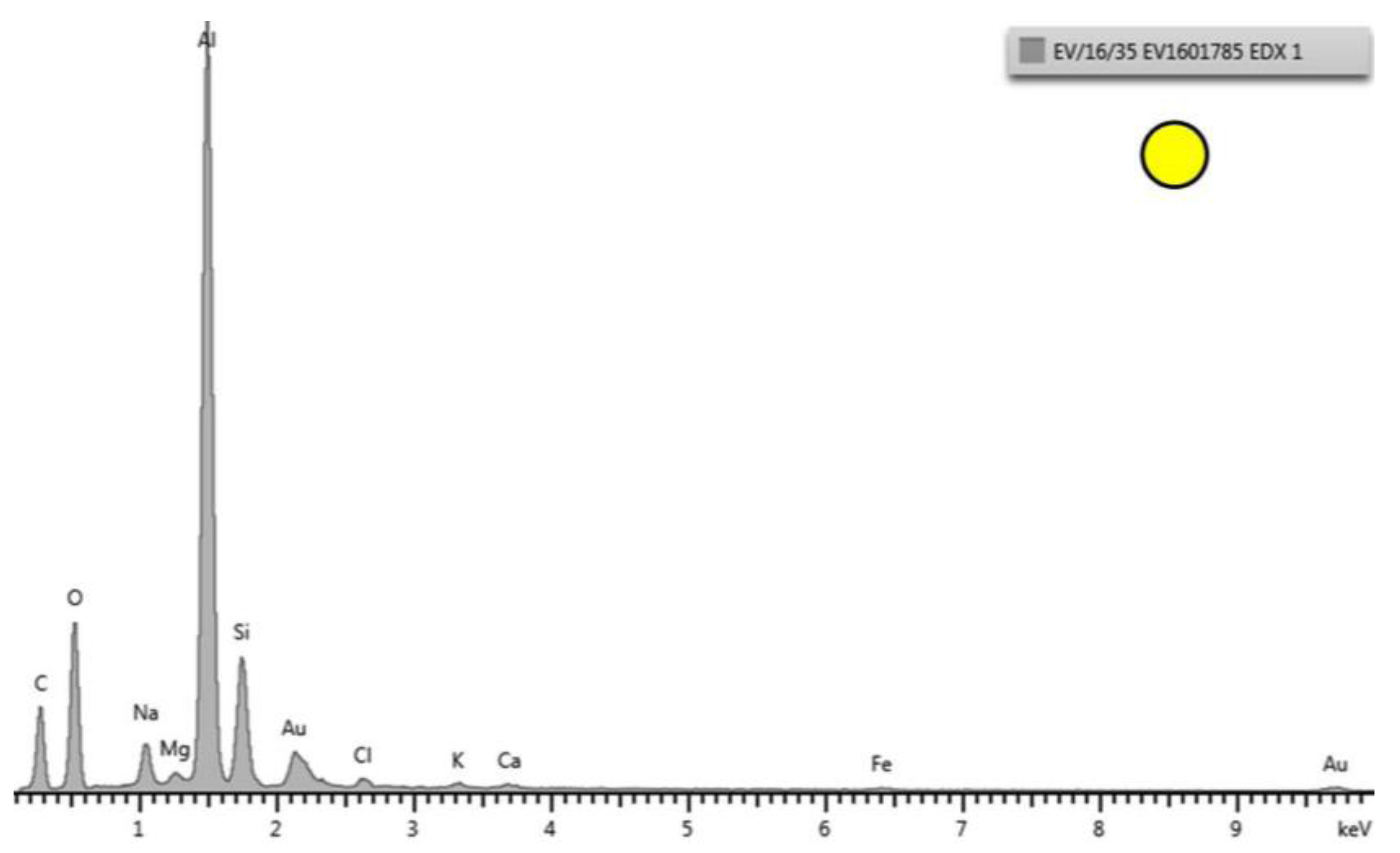

This paper reports the effect of boiling synthetic seawater on the performance of damaged Thermally Sprayed Aluminum (TSA) on carbon steel. Small defects (4% of the sample’s geometric surface area) were drilled, exposing the steel, and the performance of the coating was analyzed for corrosion potential for different exposure times (2 h, 335 h, and 5000 h). The samples were monitored using linear polarization resistance (LPR) in order to obtain their corrosion rate. Scanning electron microscopy (SEM)/energy dispersive X-ray spectroscopy (EDX) and X-ray diffraction (XRD) were used for post-test characterization. The results showed that a protective layer of Mg(OH)2 formed in the damaged area, which protected the underlying steel. Additionally, no coating detachment from the steel near the defect region was observed. The corrosion rate was found to be 0.010–0.015 mm/year after 5000 h in boiling synthetic seawater. View Full-Text
Keywords: thermally sprayed aluminum (TSA); high temperature; corrosion; hot risers thermally sprayed aluminum (TSA); high temperature; corrosion; hot risers

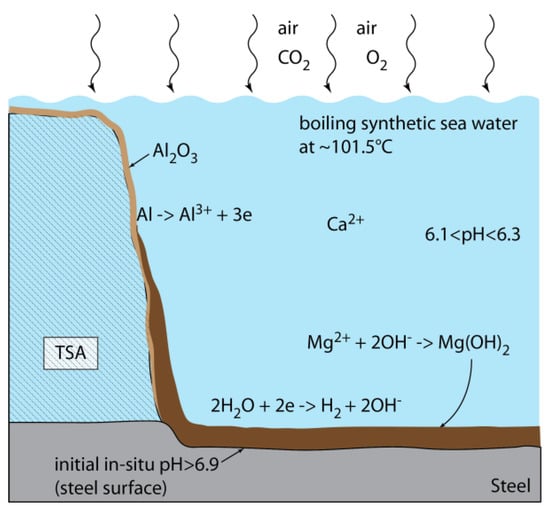

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).

Share & Cite This Article

MDPI and ACS Style

Ce, N.; Paul, S. Thermally Sprayed Aluminum Coatings for the Protection of Subsea Risers and Pipelines Carrying Hot Fluids. Coatings 2016, 6, 58.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics



[Return to top]
Coatings EISSN 2079-6412 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
