Nanoparticles in Polyelectrolyte Multilayer Layer-by-Layer (LbL) Films and Capsules—Key Enabling Components of Hybrid Coatings

Abstract

Originally regarded as auxiliary additives, nanoparticles have become important constituents of polyelectrolyte multilayers. They represent the key components to enhance mechanical properties, enable activation by laser light or ultrasound, construct anisotropic and multicompartment structures, and facilitate the development of novel sensors and movable particles. Here, we discuss an increasingly important role of inorganic nanoparticles in the layer-by-layer assembly—effectively leading to the construction of the so-called hybrid coatings. The principles of assembly are discussed together with the properties of nanoparticles and layer-by-layer polymeric assembly essential in building hybrid coatings. Applications and emerging trends in development of such novel materials are also identified.

1. Introduction

Versatile LbL (layer-by-layer) polyelectrolyte multilayer coatings have steadily drawn the increasing attention of researchers. This is driven by various factors including the versatility of the approach and an extensive range of applications, which is steadily continuing to increase. Originally, LbL was developed as planar layers [1]. In such an assembly [2], the structure of polyelectrolytes, the influence of water, pH, and salts on the LbL assembly have been investigated Various interactions and assembly methods [3,4] in the LbL assembly have been explored, including the electrostatic interaction, hydrogen bonding [5], while micrometre thick films have been also developed [6]. The extensive range of application of planar LbL coatings has included antifog [7] and ultraviolet (UV)-protective coatings [7], cell adhesion and tissue engineering [8]. A fundamental understanding of the interaction of polyelectrolytes has opened opportunities for versatile assembly of polymers incorporating diverse building blocks. Nanoparticles (NPs) have been explored as components of the LbL assembly in earlier publications [9,10,11] but their full potential has been recognised somewhat later, after enabling remote opening, increasing the efficiency of the effect of ultrasound on affecting the polyelectrolyte coatings, enhancing mechanical properties of capsules, extending the range of materials for sensors.

Originally developed for planar structures and substrates, the LbL approach has been transferred to spherical templates, which led to preparation of an LbL assembly freely suspended in water. This can be done by applying the LbL coatings onto colloidal particles, and subsequently dissolving the colloidal particle, which is also called a template for LbL assembly. The spherical shells, also called capsules, enable the polyelectrolytes to be freely suspended in an aqueous solution: the substrate holding the planar polyelectrolyte multilayers is thus not present. In this case, the zeta-potential of capsules can be easily measured, and polyelectrolytes are bound to each other directly, without a substrate. As a result, various stimuli can now be applied to control the LbL assembly [12], as it was shown, for example, studying the influence of pH and salt on the interaction of polyelectrolytes [13,14].

In this overview, we describe progress in the area of polyelectrolyte multilayer capsules and planar coatings with the emphasis on functionalization of LbL coatings with nanoparticles, which would constitute the so-called hybrid (organic coatings with incorporated inorganic components) [15,16,17,18,19,20]. We analyse the assembly of polyelectrolytes on both planar coatings and polyelectrolyte multilayer capsules. Furthermore, the assembly of nanoparticles is analysed, while the functionality of resultant structures is also described.

2. Functionalization of Polyelectrolyte Multilayers—Organic versus Inorganic Building Blocks

2.1. Incorporation of Dyes in Layer-by-Layer (LbL) Coatings—Bringing Multifunctionality through Organic Moieties

Various materials [21] can be incorporated into self-assembled LbL coatings. Although charged molecules have been traditionally employed in the LbL assembly, non-charged molecules or dyes can be ordered in LbL films by means of chemical bonding or by carriers. Pyrene molecules were shown to be incorporated in polyelectrolyte layers in a liposome-mediated process. In this regard, pyrene molecules were encapsulated into poly(acrylic acid)-stabilized cetyltrimethylammonium bromide micelles followed by LbL assembly of the micelles in a poly(diallyldimethylammonium chloride) (PDADMAC) framework [22], where optical signal is detected by detecting optical resonances of light propagating around a sphere, also referred to as whispery gallery modes. Moreover, the inclusion of dye into nanocomposite LbL-assembled film was found to be a simple method to provide spectroscopic analysis of stability (both structural and chemical) and adsorption properties of the film [23]. Additionally, fluorescent dyes bound to non-fluorescent particles via LbL films were shown to generate a strong whispering gallery modes signal for bioanalysis [24]. Incorporated in LbL layers electroactive dyes have also received substantial attention. It was shown that the way to incorporate electroactive anthraquinone dye to LbL films strongly influences its electrochemical properties and chemical properties [25]. Metachromic cationic dye methylene blue was investigated for organization in the LbL framework [26]. In addition, photocleavable chromophores [27], laser absorbing dye (IR-806) [28], bacteriorhodopsin [29], phthalocyanine [30], porphyrin [31,32], and naphthalocyanine [33] have been also incorporated in microcapsules for remote opening by laser light, but it was also noticed that inorganic nanoparticles appeared to be much more effective laser light absorbers

2.2. Incorporation of Nanoparticles in LbL Coatings—Hardness Enhancement and Additional Properties through Inorganic Building Blocks

Although nanoparticles have been perhaps most frequently used for LbL functionalization, various nanostructured building blocks, nanocomposite films with nanoparticles embedded in the layered structure have been shown to be a highly effective class of material to tune various properties (among which mechanical stiffness) with a high accuracy [34], Figure 1. Various methods have been used for LbL assembly with nanoparticles, where in addition to a dipping or incubation, spin-spray LbL assembly [35], spin-coating [36], spray assisted alignments [37], and cross-linking after infiltration [38] were used. Nanocomposite LbL films containing immobilized ZnO/SiO₂ nanoparticles were investigated to provide UV protection properties [39]. Alternating layers of cerium oxide nanoparticles (CONP)/alginate were fabricated on top of beta cells via LbL exhibiting robust antioxidant activity and providing excellent protection to these cells upon exposure to 10⁻⁴ M of H₂O₂ without affecting the metabolism of the cells [40].

3. Planar LbL Coatings and Their Functionalization by Nanoparticles

Nanoparticles have been essential components of planar layers, where they were used for enhancement of mechanical properties, remote activation, controlling the stiffness of the coatings, for quantum dots incorporation and corrosion protection.

3.1. Enhancement of Mechanical Properties and Remote Acteivation of LbL Coatings

Mechanical stability of capsules and films plays an essential role in enabling practical applications. The addition of nanoparticles would thus increase the shell stiffness. It should be added that the same concept of strengthening mechanical properties of LbL by adding nanoparticles has been also shown for planar coatings. In regard with mechanical properties of planar coatings, mechanical properties of nanometre-thin [41] LbL films [42] (each LbL layer was reported to be 1–2 nm) resemble those of the substrate on which they are assembled (often glass, metal or plastic). But thicker LbL films [43], with a high molecular dynamic of polyelectrolytes [44], are rather soft, hindering cell growth in biomedical applications. One way to increase the stiffness of the coatings is to use chemical cross-linking [45,46]. Another possibility to improve the mechanical properties and enable the adherence of cells on the coatings is to functionalize the surface with metal nanoparticles [47]. Recently, particles and nanoparticles have been used to stimulate cell adhesion on the planar and soft hydrogel coatings relevant for osteoblasts and different types of cells [48].

3.2. Passive and Active Activation of LbL Coatings

Passively active coatings are those in which they or some of their components exhibit a certain functionality. For example, alternating layers of hyaluronic acid–dopamine conjugate with silver nanoparticles demonstrated a remarkable antibacterial [49,50] effect as well as improved adhesion, proliferation, and viability of cells to the surface, which promoted the formation of an apatite layer resembling bones [51]. In another example, incorporating of inorganic particles [52] into hybrid (organic-inorganic) coatings enabled effective cell growth, which is seen of a particular importance to various areas of tissue engineering [53].

An active functionality of nanoparticles was to functionalize the micrometre thick LbL coatings with nanoparticles and use them as active absorption centres for remote laser action. Nanoparticle functionalization of such a soft LbL coating is depicted in Figure 2 (left), where step-by-step assembly is presented for non-aggregated (red) and aggregated (blue) states of nanoparticles. Choosing proper aggregation state of nanoparticles and laser wavelength corresponding to the maximum absorption of NPs, one can locally cross-link the surface of films exposed to laser, Figure 2 (right). Even more drastic action of laser-nanoparticle interaction has been implemented in cell detachment [54], differentiation [55], and cell death induction [56].

However, this is not the only functionality of the nanoparticles in the coatings—they can be also used to control the masking for fabricating Janus particles.

3.3. Assembling Janus Particles and Capsules Using LbL Coatings

Janus particles have at least two different surfaces referred to one structural unit [58]. Interest in Janus capsules is associated with a combination of delivery [12,59] for various therapies and self-propelled micro-/nanomotor approaches [60,61,62]. Applied to the encapsulation process, Janus particles combine different properties and provide a range of functions such as delivery, recognition, release of therapeutics, enzymatic activity, physical and chemical sensing [63,64]. In particular, drug delivery is focused on: (i) encapsulation of active chemicals [65], (ii) targeted delivery [66], and (iii) stimuli-responsive release [12]. Therefore, approaches for Janus structure creation aim for a high loading capacity [67] via hierarchical organization.

Methods for fabrication of the Janus particles can be grouped into three main approaches: direct synthesis, chemical modification of particles at biphasic interfaces, and topographically selective modification of particles [68,69,70]. Typically, the following methods are used for fabrication: sputtering [71], gel trapping [72], microcontact printing [73], and masking [74]. Another example of such an application is where nanoparticles were used to control the stiffness of the coatings, which, in turn, were used as a substrate-template for assembly of Janus particles and capsules [75]. The embedding has been regulated by the stiffness of the coatings, which is proportional to the concentration of nanoparticles incorporated into the surface of the coatings.

An interesting uncomplicated way of polyampholyte Janus-like particles formation was shown recently [76]. There, sites of molecules with opposite charge were pooled apart. The polyampholyte structure suggests that such Janus-like particles are dependent on both pH of the solution and its temperature. To create biocompatible Janus polyelectrolyte particles with a high monodispersity, the layer-by-layer technique was combined with multiphasic fabrication and patterned wettability [77]. Engineering self-propelled motors having a controllable speed can be of interest for many applications. For example, it was suggested to use bubble propulsion to move Janus polyelectrolyte particles [78]. Janus microcapsules were formed by grafting polyelectrolyte salt-responsive brushes onto preformed (poly(styrene sulfonate) PSS/(polyallylamine hydrochloride) PAH)₄ microcapsule protected from one side. Depending on the presence of chlorate and polyphosphate anions brush modulation between hydrophobic and hydrophilic configurations was achieved. Upon gradually changed ion concentration, brushes could partially change their state, thereby adjusting the speed of the particle. In other words, it was possible to create particles with continuously propagating with adjustable speeds completely autonomously due to the surrounding chemical concentration gradients in the solution.

Recently, near-infrared (IR) irradiation was used to induce propulsion of Janus motors [79]. There, the particles constructed with erythrocyte membrane-cloak were used to ablate thrombus. Positively charged chitosan and negatively charged heparin were assembled using the LbL approach for building biocompatible and biodegradable capsules. The sensitivity to near infrared irradiation of capsules was achieved by using a sputtered gold layer on a part of the capsule. We note also that other polyelectrolyte systems modified with Au, e.g., hyaluronic acid (HA)/poly-L-lysine (PLL) (HA/PLL)₁₂ [75], became sensitive to near-infrared irradiation. Due to asymmetric coverage of particles with gold IR irradiation crates a local thermal gradient. That led to self-propulsion of the particles, based on thermophoresis effect. Consequently, the intensity of the irradiation directly influences the motile of the particles up to on-off switching behaviour. Besides Au, other nanoparticles, e.g., Pt, and enzymes, were assembled to self-propel capsules [80,81]. In addition, bending and rotational motions of micromotors were also implemented [82] in polymer tubes with poly(allylamine hydrochloride) as positively charged and poly(acrylic acid) as negatively charged polyelectrolytes. Alkaline treatment of one longitudinal side of the tube leads to asymmetry in action (swellability), thereby providing a bent motion. When placed in a fuel solution, such supramolecular structure demonstrates bending for soft connector tubes, and stable rotation for rigid angled ones. In addition, the connection angle determines the rotation velocity. It was noted that such structures could find their application in micro- and nano-machine engineering and biomedicine, such as microscale surgery and drug delivery.

Systematic description and comparison of the influence of grafting density onto interface properties [83] showed that swelling on planar and curved substrates upon changing of grafting density behave in different ways. In other applications, moving Janus capsules was suggested for separation of organics [84], where a reversible adsorption of organic dye by multilayered polyelectrolyte structure was shown. Thus, it is claimed to adsorb about 90% of dye species at pH higher than 9.0 and to release them back at the neutral pH value. The adsorption process is presumably ruled by electrostatic interaction of positive sites of polymer structure and the anionic form of dyes. Application of the above structures in water analysis has been proposed. Contrary to the approach used in classical drug delivery [85], a method of HeLa controlled transportation of cells was also presented. The system is based on relatively known and popular bubble-propelled particles, constructed of polyelectrolytes. It is reported that cells survive both the Janus particle attachment and subsequent movement in 5% H₂O₂ solution for over 20 min. A magnetic field is also claimed to be guideline technique by tuning the friction of moving object. Thereby, up to 90% of moderation could be achieved. Similarly, a high suitability of anisotropic shell for cell or cellular compartments has been also highlighted [86].

Janus capsules coated with leucocyte membranes were proposed as the possible treatment of some cancer cases [87]. The photothermal effect combined with a rapid water evaporation was used to deliver and attach capsules to the cancer cell wall and subsequently induce a damage to cells. Another publication [88] also highlights the possibility of coating Janus particles with leucocyte membrane to adhere to cancer cells. The second step of phagocytose is also observed for such cells labeled by Janus particles. Janus particles constructed to exhibit thermophoresis were applied for welding of mouse tissue via infrared laser heating [89] with the photothermal heating confined on single particles. Eventually, mechanical restoration of welded mouse tissue was proved with a set of mechanical characterization techniques.

Nanoparticle functionalization of planar LbL coatings has been shown to play an important role in controlling the patches of Janus particles and capsules, but nanoparticles have been also directly applied to release adsorbed materials on the surface coatings [90].

3.4. Corrosion Protection of the Coatings

Application of polyelectrolyte layer-by-layer deposition spurred interest in the field of corrosion protection as a possible way to replace toxic Cr(VI)-compounds [63]. One of the main advantages of polyelectrolyte structures is their light, pH, and humidity responsiveness, which would enable a self-healing process by changes of environment that existed at the beginning of the corrosion. Such a system seems to be useful both for steel alloys [91] and non-ferrous materials [63,64,92,93,94].

The protective layer can consist of pure polyelectrolytes [92] (optionally with corrosion protective additives) and could be multi-layered with sol-gel [64] and/or corrosion inhibitor coatings [91]. The more sophisticated way is based on creation micro- and nanocapsules with PE coatings. Capsules can be templated (the template is the dissolvable core) on SiO₂ particles [63,93,95], TiO₂ nanoparticles [95], nanotubes, and pure polyelectrolyte nanocapsules [96,97]. Different corrosive protection substances, such as benzotriazole [64,93,94,95] and its derivatives [97], and monomers for filling scratches for further induced polymerization, could be loaded inside these capsules. They are then incorporated in a more complex matrix such as sol-gel [93,95,98], epoxy [97] coatings, or polyelectrolyte multilayers [96]. Combined, these structures demonstrate mechanical strength, corrosion protection, and self-healing processes [99], triggered by initiation of corrosion or laser irradiation.

We highlight here the development of light-sensitive capsule-based active materials [95,100,101,102]. The principle of the approach is shown in Figure 3. Corrosion mitigating inhibitors encapsulated in the capsule with mesoporous core and light-controlled permeability of the shell have been used for developing coatings with self-healing functions, which are enabled by controllably releasing the inhibitor upon exposure to laser (infra-red) irradiation. Titania nanoparticles [100] can provide multilayers with photosensitivity. Thus, titania was used both as containers for loading benzotriazole (BTA) for corrosion inhibition and as photosensitive agents. Such capsules were then covered with polyelectrolytes, and they released inhibitor upon UV light irradiation.

The conformational structure of polyelectrolytes depends on the pH of the environment. Thus, change in pH for certain configurations will result in different permeability of the structure. Thereby, the system could demonstrate both self-healing and self-regulation behaviour when pH changes due to corrosion process starts self-healing process. The reversible changes of polyelectrolyte permeability could be explained by locally changed pH of the solution, as the consequence of photocatalytic degradation of water on the titania. The end of irradiation or corrosion cause thus system relaxation, and particle returns to their initial structure. Visualization of local pH gradient is possible by model physico-chemical properties—scanning ion-selective electrode technique (SIET) [103,104,105].

The inclusion of metal nanoparticles via LbL procedure enabled the synthesis of materials for unusual applications too. Electroactive (2 nm in diameter) polyelectrolyte-capped Pt nanoparticles assembled into LbL arrays have been used in catalytic production of H₂ [106]. Photocatalytic reduction [107] of noble metal particles on titania core [95] leads to dual-wavelength responsiveness: in the UV to near-IR regions of electromagnetic spectrum. It is possible to regulate photocatalytically (auto-catalytic) waves of enzymatic reactions [108], switch biofilm fluorescence [109], build a platform for a chemical logic device [110], and perform sustainable diagnostics [111,112,113]. The trend in the field of encapsulated systems is to combine different functions in one capsule matrix. One such functionality is to control the release of biocides together with corrosion inhibitors [114], while a prospective approach can lead to building self-regulating biocide systems [115].

3.5. Development of Sensors and Biosensors Based on Layer-by-Layer Assembled Coatings

Gold nanoparticles (AuNP) embedded into the polyelectrolyte matrices on the top of optical fibre exhibited a high accuracy pH sensing functionality based on the localized surface plasmon resonance (SPR) [116]. Measurement of pH shifts [117] was also implemented by incorporating gold nanorods, by detecting the surface plasmon shift of dispersed nanorods upon pH rise [118]. In another application, starch-stabilized silver nanoparticles in 3-n-propylpyridinium silsesquioxane chloride matrices were shown to function as SPR-based electrochemical sensors [119].

Hybrid materials assembled using carbon nanotubes and polyelectrolytes were shown to operate as effective membranes for the separation and rejection of ions [120]. Furthermore, the high electric conductivity of carbon nanotubes in a polymer framework allowed the development of multi-walled carbon nanotubes-based thin film electrodes transparent in the mid-IR (infrared) range [121].

It can be mentioned that sensory functions in planar coatings [122], Figure 4, represent a complementary area to those broadly implemented by polyelectrolyte multilayer capsules [123,124,125].

3.6. Other Nanostructured Inorganic Building Blocks in LbL Planar Coatings

Recently, a variety of materials were applied to design advanced LbL coatings. Quercetin-loaded tripolyphosphate nanoparticles were ordered in a film (by an alternative with hyaluronic acid) resulting in a multilayer film capable to improve anticoagulation performance of surfaces [126]. Polysaccharides and nanogels were employed in polyelectrolyte multilayers proving that the presence of nanogel particles is beneficial for construction of a drug depot system [127]. Linear photochromic norbornene polymers assembled in LbL films exhibited a drastic decrease of the merocyanine band under a prolonged white light irradiation that potentially could be employed as photo-controlled drug depot system [128]. Bioactive thin films were prepared via encapsulation of biomacromolecules such as an enzyme (beta-lactamase, BlaP) into aluminosilicate halloysite nanotubes and their subsequent use for the fabrication of enzymatic coatings by LbL that potentially could act for effluent decontamination [129].

Application of quantum dots (QD) in capsules makes it possible to bring multifunctionality of encapsulation processes and sensor capabilities. Easily adjustable luminescence of QD has a high potential for applying QD-containing polyelectrolyte-based coatings and capsules for biological, particularly medical, and materials science as devices and theragnostic agents [130]. There are two trends in design of composite materials based on quantum dots and layer-by-layer technique. In the first approach, QD are incorporated into layer-by-layer films, Figure 5. For application of LbL technique, QDs are usually chemically modified with thioglycolic acid (TGA) [131], mercaptopropionic acid (MPA) [132], or mercaptoacetic acid (MAA) [133], and they have a negative zeta potential when cysteamine is applied [132].

The first approach has been conducted by reducing the toxicity of QDs, stabilization of dispersity, and optimization of distribution, while the QD optical properties were unaffected [134]. CdSe is the typical material for quantum dots, which are used for layer-by-layer coating functionalization. For example, MAA-treated QDs were coated by alternatively applying polyallylamine and polyvinyl sulfonic acid [133].

Materials prepared by the second approach find applications in designing flexible, organo-electronic devices [135]. Stabilization of QDs with polyelectrolytes provides the possibility of the energy transfer between bilayers of the charged polymers. The resulting film is reported to be sensitive for the detection of paraoxon [136] or deltamethrin. Incorporation of QD with graphene NPs in an alternative stacking manner in the PAH layers [137] leads to augmentation of the separation of charges and transport in GNs–CdS QDs composite film. A drawback of such methods is that CdSe nanoparticles undergo photooxidation in the polyelectrolyte matrix.

The LbL-assembled polyelectrolyte capsules can be functionalized with QD as biocompatible fluorescent agents for live-cell targeting [138,139,140]. In this case, polyelectrolyte film decreases the typical cytotoxic effect of the QD with the fluorescence properties remained. For example, compared to empty PLL/polyglutamic acid (PGA) capsules that do not influence the cell viability, CdTe- labelling of the same capsules displayed a higher cytotoxicity, but lower compared to pure CdTe QD [140]. A prospective field of engineering structures with semiconductor nanocrystals involves construction of complex ordered building blocks similar to those used in photonic crystals. Thus, demonstrated luminescence in both the IR and visible ranges from CdTe and HgTe [141] could be a starting point for development of sophisticated optoelectronics and optical telecommunications devices.

Biologically active QD-based hybrid nanocrystal/polyelectrolyte structures with an outer layer of anti-immunoglobulin G (anti-IgG) were shown to render some bio-specific properties to particles [142]. Considering the interesting info-chemistry [143,144], the optical coding and multiplexing can be achieved at different wavelengths and intensities by bringing in QDs in polyelectrolyte multilayers. To achieve that effect, it is possible to create bits of information by tuning the amount of red, green, and blue QD for achieving some characteristic colour ration. Combining these structures with some receptors makes it possible to identify various bio-processes [145], while gradient coatings [146] can stimulate combinatorial studies [99,147].

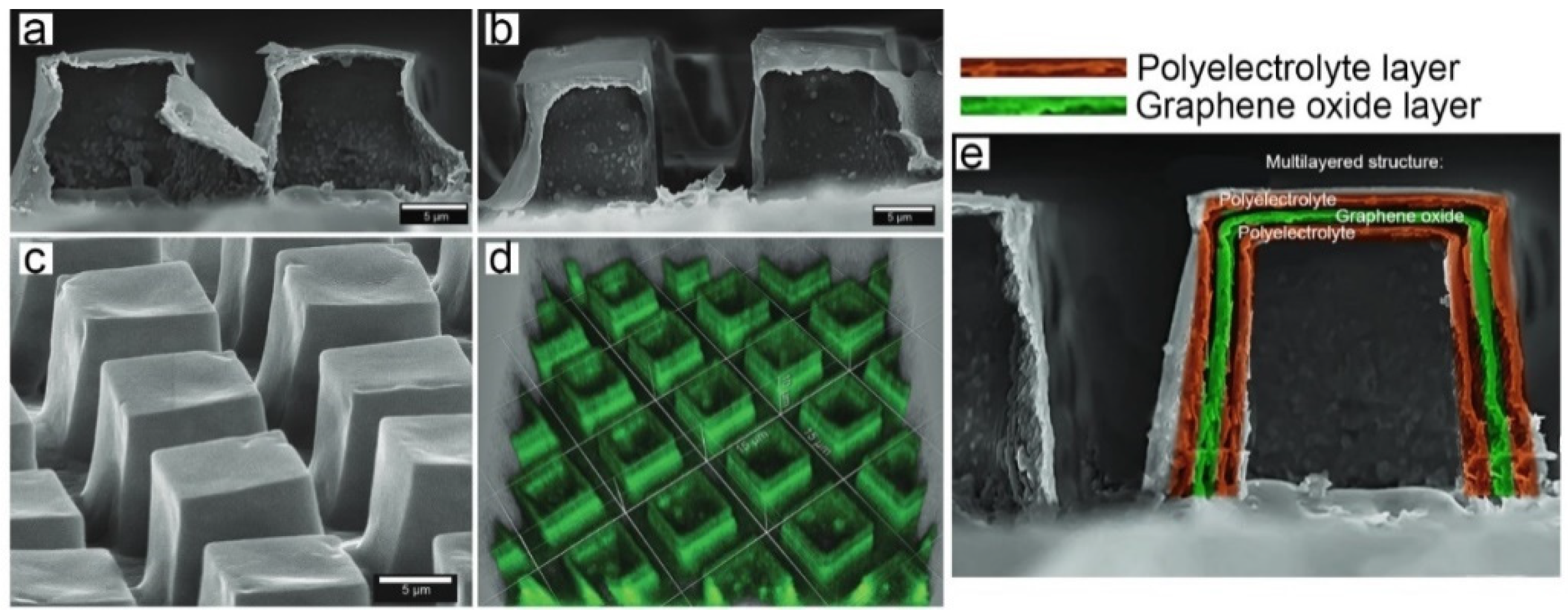

LbL were also functionalized by carbon-based fillers [148]. Polyelectrolyte-assisted layer-by-layer fabrication of carbon-containing coatings was proposed to order carbon fillers providing superior properties of the films. The unique combination of carbon materials properties together with versatility of the LbL assembly allows fabrication of multifunctional nanocomposite materials with improved mechanical, optical, thermal, electromagnetic, electrochemical properties [149]. The unique properties of graphene enabled high-performance capacitors and effective electromagnetic shielding [150]. A wide range of coatings functionalized by carbon fillers is aimed at the development of materials with a gas barrier function [151]. The change in permeability of microcapsules tuned by graphene oxide was also applied in drug delivery to reduce the permeability of low molecular substances [152]. Furthermore, coatings can be obtained on surfaces with complex shapes to provide additional functionality, for example, coatings containing arrays of closed cavities can be obtained (so-called microchambers) to store and release functional cargo in a controlled manner. Functionalisation of microchambers by graphene oxide enabled release on demand by near-infrared (NIR) laser in the “therapeutic window” [153], Figure 6. An unusual application of graphene oxide was shown by the binary hybrid-filled LbL coatings, composed of graphene oxide and β-FeOOH nanorods, which enabled the reduction of flammability of polyurethane foams [154]. AuNP assembled in unconventional LbL architectures enabled analysis of hybridization reactions with the ssDNA monitored via methylene blue as the electrochemical indicator. Such an architecture was used as DNA electrochemical biosensors [155] along with Pd nanoparticle-based RNA biosensor [156].

In addition, carbon nanotubes and carbon-based fibres exhibit anisotropy upon ordering—a property useful in some applications, for example, in porous membranes [157]. It can be noted that many essential properties of LbL coatings, and particularly their permeability [158], depend on the concentration of polyelectrolytes, which was studied by the tangential streaming potential revealing that higher concentrations of polyelectrolytes are preferred for an effective adsorption [159]. In addition, some other nanostructured blocks, which extend functionalities of LbL coatings, include halloysites [160,161].

4. Spherical LbL Capsules and Their Functionalization by Nanoparticles

Nanoparticles have become an integral part of LbL assembly and have been also coated by LbL [162,163,164] and brushes [165] for producing nanocapsules, but frequently nanoparticles are incorporated into the shell of capsules and microcapsules. Many materials have been applied to functionalize multilayer capsules to control the surface properties of the shells; these include metal and magnetic NPs, carbon-based materials (graphene, nanotubes) click moieties, polymers as well as other biomolecules including proteins, peptides, nucleic acids, enzymes, etc.

4.1. Nanoparticle Incorporation into the Shell of LbL Capsules

Among various polymer-nanoparticle capsule systems, metal nanoparticles have been used most frequently [166,167]. AuNP were used as light-absorption centres of NIR light—the property used for release of encapsulated material from capsules. Alternative deposition of polymeric and AuNP layers in hybrid capsules, as shown in Figure 7 led to the possibility of an enhanced Raman microscopy-based detection [168]. The schematic of a capsule with alternatively deposited polymeric layers and nanoparticles is shown in Figure 7G. Another type of nanoparticle, LaVO₄:Ln³⁺, has been used in polyethylene glycol (PEG)-functionalized or PEGylated polymer capsules fabricated using the LbL assembly for internalization by cells [169]. Dextran polymers with ferrocene or azobenzene groups were used for changing their electrical properties and conformational states reversibly with the aim to develop nano-capsules with on/off switching capabilities [170].

Besides metal nanoparticles, silica provides a physically robust, inert substrate with a strong resistance to damage when compared to bare polymer additives. The hybrid materials formed from hydrophilic polymers coated with thin silica layers are remarkably rigid and, at the same time, are capable of surface modification. Thus, straightforward and adoptable silane coupling reactions allow for functionalization of the surface while preserving the functionality of the core [171,172].

4.2. Supramolecular Functionalization and Click Chemistry

Supramolecular functionalization spurred development of the so-called “smart polymers” leading to new functionalities such as the reversibility of non-covalent interactions. Such functionality is expected to extend the range of stimuli for controlling the LbL assembled polymers [2]. Another enabling technology is click chemistry.

Click chemistry is the method of adding click-functionality to polymers with capability of forming covalent bonds within the polyelectrolyte multilayer films. This technique is applicable not only to polymers, biopolymers, proteins, but also to NPs. High stability and excellent physicochemical properties are some other advantages of LbL assembled using click chemistry. Polyelectrolyte multilayer films and capsules assembled using the ‘click’ chemistry have excellent biocompatibility which is particularly sought in drug delivery and tissue engineering [173]. An example of nanoparticle/polyelectrolyte multilayer assembly with click functionality is silver nanoparticle functionalized poly(N-isopropylacrylamide) (PNIPAM) nanocapsules, which were prepared combining the surface-initiated atom transfer radical polymerization (ATRP) and “click” chemistry approaches [174].

Fabrication of thin multilayer films was reported based on the ‘click’ chemistry approach possessing azide and alkyne modified poly(acrylic acid) [175]. Furthermore, biodegradable capsules were shown to be attractive candidates for biomedical applications [176]. Another example is poly(acrylic acid) (PAA) synthesized with alkyne (PAA-Alk) and azide (PAA-Az) moieties alternately deposited on silica particles and transformed into capsules by dissolving the silica template. Such capsules were shown to be pH-responsive confirmed by their reversible size changes upon cycling between basic and acidic solutions [177].

4.3. Release from Microcapsules by Laser Light, Magnetic Fields and Ultrasound

Laser light activation. Heat generation is at the core of the second law of thermodynamics and it drives various chemical reactions and processes. Applied to polyelectrolyte multilayer films and capsules, volume (global) heat is used to encapsulate molecules, but the local heating is used for the release from capsules [178]. Light-induced heat generation can be employed for opening of capsule shells and release of encapsulated molecules [28,179], which is particularly interesting for intracellular release, [180] multi-substance delivery [181] or endosomal escape [182]. This is because nanoparticles incorporated into the shells of capsules have been shown to control remotely by laser light [183] treatment of capsule shells modified by metal nanoparticles, heat is generated around NP causing a complete rupture or a permeability change of the capsule walls [184,185]. In this way, the remote release of tagged proteins from silver alginate microcapsules was demonstrated in vivo [186]. Silver-grafted poly-methacrylic acid, sodium salt (PMA) capsules loaded with an anticancer drug sorafenib tosylate (SFT) were used for controllable laser-induced release [187,188].

Various parameters (including the distribution of nanoparticles, which can be controlled by direct in-situ synthesis [189,190], their aggregation state, the power of illuminating laser) affect the responsiveness of the capsule to illuminating light. Aggregated NPs absorb more laser light, due to an increased absorption, generating more heat, thus lower laser powers are needed to achieve the release. At lower light intensity, the microcapsule shell is minimally affected upon the release of encapsulated cargo, and under some conditions (a low nanoparticle concentration on the polyelectrolyte multilayer shell and minimal laser intensity) the polymeric shell is not affected upon release. Various functionalities have been achieved upon releasing encapsulated drugs, including direction-specific release [191].

Graphene oxide functionalized microcapsules exhibited photothermal response and enhanced permeability of the shells by NIR laser treatment [192]. Polyelectrolyte microcapsules modified by photodynamic dye (zinc phthalocyanine) via thermal treatment were shown to provide selective therapy after internalization into cancer cells under treatment by NIR laser [193]. Also, microcapsules functionalized by single-wall carbon nanotubes were shown to release drugs in response to the NIR laser [194]. Emulsions have been also widely used for LbL coating [195]. Furthermore, microcapsules with a layer of AuNP fabricated by the oil-in-water Pickering emulsion method were proposed as biomedical theragnostic systems due to photothermal and sensor functionality [196].

Ultrasound effect. The use of ultra-sonication in medical applications has proved its effectiveness and opens a venue for the release of cargo without affecting healthy tissues, and that has been demonstrated both in vitro and in vivo. The disruption of the microcapsule shells occurs as a result of a cavitation in liquids under the action of ultrasound waves with a frequency of higher than 20 kHz. Ultrasound wave passing through a sound probe induces the formation of air micro-bubbles, which oscillate in the surrounding fluid and, finally, are destroyed, causing cavitation and the concentration of high energy in the fluid [12]. Applicability of ultrasound for nanoparticle-modified capsules opening has been widely investigated [197,198,199]. Recently, opening of metal NP-containing microcapsules was demonstrated by means of ultrasonication with parameters corresponding to those used in medical applications [200,201]. Ultrasound was also applied to release encapsulated materials from silver alginate hydrogel containers [202]. Polyelectrolyte microcapsules functionalized with magnetite and silica nanoparticles were shown to be raptured by high-intensity ultrasound and compared to each other enabling the conclusion that magnetite-based microcapsules are the most sensitive to sonication [203].

Furthermore, PAH/ PSS microcapsules containing nanoparticles in the shell were investigated in terms of sensitivity to ultrasonication in dependence on the location of magnetite within the shell. It was shown that capsules with iron oxide nanoparticles are readily ruptured [204]. Most ultrasonic approaches induce rapture of capsules via cavitation bubbles which means the unidirectional release of cargo. However, large capsules (above 300 μm) were shown to release cargo in a controllable and direction-specific manner by application of conventional ultrasound at frequencies between 1 and 4 MHz and intensity of a few W/cm² [205].

Hydrogel-based multilayer microcapsules composed of poly(methacrylic acid)/poly(N-vinylpyrrolidone) were shown to release cargo in response to ultrasonic treatment even without additional functionalization by nanoparticles enabling the release of 7 kDa G-quadruplex DNA [206], which was found to maintain their secondary structure. But addition of nanoparticles would further stimulate ultrasound based release, because they increase density in the walls. In addition, carbon dots synthesis within polyelectrolyte shell obtained via the hydrothermal method in the presence of the carbon-reach precursor was shown to stimulate ultrasound induced release [207].

Magnetic field-generated release. Biological tissues are transparent to magnetic fields which open a venue for designing targeted drug delivery systems based on microcapsules functionalized by magnetic nanoparticles facilitating the release of cargo in response to the magnetic field. For example, authors [208] observed rotation of (Co@Au) NPs coated by ferromagnetic gold imbedded into PAH/PSS shells under treatment by the magnetic field at 100–300 Hz. That accompanied by disruption of the shells and drastic increase in permeability of the capsules for model cargo fluorescein isothiocyanate (FITC)-labelled dextran.

Magnetic fields were shown not only to rapture magnetically responsive microcapsules, but also to enable delivery of microcapsules at a designated site or within a cell. Non-directional cell migration of phagocytosing cells was significantly inhibited when the cells were put in a magnetic field. Also, magnetic fields were used to retain magnetite containing microcapsules under flow conditions at the physiologic wall shear stress of 0.751 dyne cm⁻²; under such conditions, release of drugs was achieved for more than 30 h [209]. Release of a model drug (doxycycline) was demonstrated by manipulating the permeability of microcapsules without causing a significant damage to the capsule shells. This was achieved as a result of a long-term treatment of the capsules by low frequency [181] alternating magnetic fields as a non-cytotoxic intracellular trigger [210].

Magnetic prednisolone microcapsules exhibiting the loading capacity of ~18% and encapsulation efficiency of up to 63% were successfully delivered to arthritic joints followed by prolonged drug release of 88.3% over 36 h [211]; 18 nm iron oxide cubes were embedded into the polyelectrolyte shell to exhibit photothermal effect followed by the release of the model drug in response to treatment by an alternating magnetic field [212]. Poly-L-lysine/poly glutamic acid nanocapsules functionalized by Fe₃O₄ nanoparticles were employed to mediate the hyperthermia effect from the radiofrequency magnetic field with maximum fields up to 0.025 T and frequencies up to 430 kHz, which led to increasing temperatures at the rate of 0.46 °C/min accompanied by disruption of capsule shells [213]. In addition, polyelectrolyte multilayer capsules functionalized with lipids were used for release upon application of a magnetic field [214].

Magnetic NPs have shown greater cytotoxicity in comparison to microcapsules containing an equivalent amount of magnetite [215]. Moreover, nanoparticles embedded into the shell lead to the remediation of organic compounds within the capsules [216].

4.4. Strengthening of Mechanical Properties of LbL Microcapsules by Nanoparticles

The mechanical stability of capsules [217] is one of the most important conditions for using them as delivery carriers. Various approaches have been used for mechanical characterization of capsules, including application of AFM (atomic force microscopy) for single-capsule measurement [218]. Polymeric microcapsules can be either strengthened by adding nanoparticles or, alternatively, another strategy can be considered where they would resemble red blood cells [219], because both carriers represent potent delivery systems [220]. It should be noted that particle elasticity and drug/intracellular delivery data point to a rather complex connection [221]. Additional studies of the elasticity of capsules involved atomic-force microscopy and Raman imaging confocal microscopy [222]. A method to handle agarose gel beads covered with assembled inwardly interweaved poly(allylamine) and poly(styrene sulfonate) was proposed [223], where an AFM colloidal probe technique was applied to measure elastic properties of capsules. To monitor the influence of the composition of mechanically deformed polyelectrolyte reflectometry techniques are useful. Thus, by analysing electron density and scattering length density it is possible to find the thickness and density of the material. Overall and internal transformations are investigated via neutron and X-ray reflectometry, respectively [224]. Compared to classical measurements, which are dependent on the contact area, rheology investigation via pendant capsule elastometry has a number of advantages, since in this method there is no contact with capsules in situ, while surface tension provides information about viscoelastic properties of capsules [225]. A reference to software program written in C/C++ for analysis of pendant capsule elastometry data is also provided in [225].

There are several ways to overcome the challenge of capsule mechanical strength enhancement. Varying the number of polyelectrolyte layers, the molecular weight of polyelectrolytes, applying a thermal shrinking as well as nanoparticles incorporation were used for enhancing mechanical properties of polyelectrolyte shells. Increasing the number of polyelectrolyte layers is the simplest method to enhance mechanical stability [223,226], where the elastic modulus was reported to increase from to 10 to 190 kPa (and even higher) by creation of the corresponding shell structure of 10–24 μm or thicker. Polyelectrolyte molecular weight affects mechanical properties of capsules, and that was demonstrated for PDADMAC (molecular weight (MW) 13 kD) assembled with PSS (MW 70 kDa). The study is based on the axisymmetric shape analysis in the process of hydrostatic inflation with varying sodium chloride concentration in water [227] and demonstrates salo-plasticity. In other words, the higher the concentration of the salt, the higher the plasticization of assembled polymers. At certain point, type of response to deformation changes from elastic to plastic one. The complexation charge transfer from intrinsic to extrinsic lead to restoration of polymer mobility. That, in turn, results in a liquid-like interface, which is experimentally observed upon load. Another empirical fact is that the structure with a higher MW demands lower concentration of salt for plasticization. To rephrase it, a higher molecular weight leads to a lower melting point. That can be attributed to fewer electrostatic cross-linkages.

Crosslinking affects the mechanical properties of a capsule. For example, it was shown recently that synthesis of hollow polyelectrolyte capsules with ultraviolet-B-induced crosslinking was achieved by inclusion of thymine pendant groups in polyelectrolyte molecule [228]. One more recent example includes investigation of capsules crosslinked via amino/betaine dual-functional copolymers, also used for cell encapsulation [229]. Genipin-crosslinked capsules are significantly more stable as pipette aspiration tests showed. Thus, to simulate immune recognition a protein adhesion was carried out, where capsules were treated with FITC-labelled bovine serum albumin (BSA). The results show fine mechanical stability and very low binding of BSA to genipin-crosslinked capsules. Finally, sodium polyphosphate was used as a cross-linking agent for chitosan-modified cellulose capsules [230]. Hydrogen bonding affects the mechanical properties of capsules. For example, mechanically robust but soft spherical capsules based on a hydrogen-bonded (poly(N-vinylpyrrolidone) and (poly(methacrylic acid) were recently proposed [231]. The mechanical properties of capsules were evaluated via the method of osmotic pressure difference. The resulting elasticity lay in the range of Young’s modulus that is common for elastomeric networks and was measured to be 97 ± 8 MPa. The deformation was induced by the osmotic pressure due to polystyrene sulfonate addition to the solution. Thus, hydrogen-bonded capsules showed recovery close to their initial shape within 12 h after the rinsing off the PSS. Investigation showed that capsules were capable of withstanding large deformations. This feature seems to be essential for the creation of adaptable delivery particles.

The approach of thermal shrinking of capsules [232] has been widely used for encapsulation of molecules and recently of enzymes [233], which found the optimal temperature for the encapsulation of enzymes. Temperature-dependence (in the range from 20 to 70 degrees °C) of mechanical properties of capsules (filled with air, oil, and water) was also studied by AFM [234]. Water significantly influences the thermal transition, e.g., as it was observed for PDADMAC)/ PAA complexes [235], where the glass-transition temperature was investigated by differential scanning calorimetry. This thermal transition occurs at a lower temperature when hydration is increased and/or complexation pH is decreased. Nevertheless, for some systems the thermal transition appears to be only water dependent. Therefore, a hypothesis for the thermal transition (T-tr) was proposed involving are two steps of hydrated capsule thermal transition. Both T-tr are due to restructuring of hydrogen bonds in the water-polyelectrolyte system and subsequent chain relaxation.

Although research on LbL planar coatings often preceded that on polyelectrolyte capsules, strengthening the capsule by nanoparticles was reported quite early. Indeed, strengthening of mechanical properties of capsules was performed by introduction of gold nanoparticles into the polymeric layers assigned to the introduction of an inorganic components and the formation of additional linkages of polymers [236]. Other examples of incorporation of nanoparticles include carbon nanotubes [237], graphene oxide [238], high stiffness cellulose nanofibrils [239], iron oxide nanoparticles [240], etc. It should be noted that the suspension of polyelectrolytes in polyelectrolyte multilayer capsules allows for a very sensitive assessment of polyelectrolyte multilayer properties [236].

4.5. Other Nanostructured Inorganic Building Blocks in LbL Microcapsules

Employment of carbon nanotubes as a filler in composite shells of polyelectrolyte microcapsules allowed reinforcement of their mechanical properties and tuning barrier properties together with the possibility of controlled opening by a NIR laser [237,241]. The conductivity of the polyelectrolyte films was also shown to be increased by carbon nanostructures (so-called carbon dots) via in situ “green” synthesis [242]. A similar procedure was applied to polyelectrolyte capsules in order to provide bright fluorescence induced by biocompatible carbon nanoparticles [207].

5. Conclusions and Perspectives

At the beginning of research on layer-by-layer assembly, nanoparticles carried rather auxiliary functions. In fact, they were simply other additives among available building blocks. This is evidenced by the first published results, where the focus lay on understanding the assembly and properties, and to a much lesser degree were applications investigated then. But during later research and development phases, nanoparticles emerged as key enabling components, which drove advances and pushed the development of many applications.

Nowadays, nanoparticles are broadly used in the LbL assembly, which serves as a matrix to order functional components in a predetermined manner with a high spatial resolution. This enables a variety of functionalities from smart coatings to drug-delivery systems. Introducing nanoparticles of a different nature into polyelectrolyte matrices is shown to produce alternative materials with superior properties for optical applications (light-emitting materials, light-harvesting materials), sensors, smart coatings including those with anti-corrosion function and improved mechanical properties or barrier function. These advances enabled the fabrication of multifunctional drug carriers with controllable and switchable parameters for advanced coatings in response to external stimuli. Several publications demonstrated possibilities of creating carriers for theranostics based on a combination of sensing properties with responsiveness towards external stimuli of different natures. For hybrid coatings containing nanoparticles, external stimuli have been also shown to control the surface cross-linking, its mechanical properties, corrosion functionality, etc.

Some disadvantages of adding nanoparticles are also identified. First, adding nanoparticles increases the costs and may prolong the time required for the LbL assembly. In addition, and specifically for biological applications, potential biocompatibility issues need to be addressed for some specific types of nanoparticle, for example for semiconductor quantum dots. But advantages of adding nanoparticles or nanocomponents are experienced particularly at a larger scope of applications. That is why the advantages of adding nanoparticles and nanocomponents completely outweigh these potential disadvantages.

Assessing future trends of research and development activities, one can say that nanoparticles have become indispensable components of the LbL assembly. Although some challenges remain for solving issues related to the circulation of drug carries within the body, targeting them to the site of interest, designing advanced coatings controllable by various stimuli, developing mechanisms for sensing physico-chemical parameters, and adjusting the influence of the system response to external stimuli. Research work is underway to develop truly advanced coatings both on spherical and flat interfaces. In this regard, the LbL-assembly has proved to be a very versatile method assembly of coatings with an enormous potential for control of their properties and a rich mix of stimuli available for achieving that. Many scientific groups are working on this subject and many of those groups have had links and have been influenced by Helmuth Möhwald [243], whose dedication, profoundness, and accommodating way of thinking have encouraged many of his students, collaborators, followers, and researchers. His inspiration has influenced development in this area and will certainly do so in the future.
