Design and Detection of Cyanide Raman Tag pH-Responsive SERS Probes

by
Jingjing Shen
1,
Guan Liu
1,
Wen Zhang
1,
Wenwen Shi
1,
Yang Zhou
1,
Zejie Yu
1,
Qunbo Mei
1,
Lei Zhang
1,* and
Wei Huang
1,2,3,*
1
Institute of Advanced Materials (IAM), Nanjing University of Posts and Telecommunications (NJUPT), 9 Wenyuan Road, Nanjing 210023, China
2
Frontiers Science Center for Flexible Electronics (FSCFE), Shaanxi Institute of Flexible Electronics (SIFE), Northwestern Polytechnical University (NPU), 127 West Youyi Road, Xi’an 710072, China
3
Frontiers Science Center for Flexible Electronics (FSCFE), Shaanxi Institute of Biomedical Materials and Engineering (SIBME), Northwestern Polytechnical University (NPU), 127 West Youyi Road, Xi’an 710072, China
*
Authors to whom correspondence should be addressed.
Biosensors 2023, 13(1), 21; https://doi.org/10.3390/bios13010021
Submission received: 30 November 2022 / Revised: 20 December 2022 / Accepted: 22 December 2022 / Published: 25 December 2022
(This article belongs to the Special Issue Recent Advances in Optical Biosensors)
Browse Figures
Review Reports Versions Notes

Abstract

:
As one of the most important parameters of biochemical analysis and detection, the pH value plays a very important role in cell function, food preservation and production, soil and water sources, and other applications. This makes it increasingly important to explore pH detection methods in depth. In this paper, a pH-responsive SERS probe based on the cyano Raman Tag was designed to realize pH sensing detection through the influence of the pH value of analytes on the displacement of the cyano Raman peak in the SERS probe. This cyano Raman tag exhibited not only excellent sensitivity in the liner range of pH 3.0–9.0 with a limit of detection (LOD) of pH 0.33, but also the anti-interference performance and stability (the relative standard deviation (RSD) was calculated to be 6.68%, n = 5). These results indicated that this pH SERS probe with the Raman cyano tag can provide new research ideas for future biological detection, bioimaging, and environmental detection.

1. Introduction

It is well-known that pH value is one of the important parameters in a variety of chemical reactions, biological processes, and life forms. For example, changes in the microenvironmental pH generated from survival, proliferation, apoptosis, and deterioration of living cells are used for cancer prediagnostics [1,2]. The detection of urine’s pH value can be used to diagnose kidney diseases [3,4,5], and the degree of damage to the ecosystem caused by environmental acidification can be judged by the detection of the pH value of lakes and rivers [6,7]. Currently, the main methods for detecting pH are ultraviolet–visible region (UV–Vis) spectroscopy [8,9], the colorimetric method [10,11], fluorescence spectroscopy [12,13], and potentiometry [14,15]. Based on the requirements of high sensitivity, fast response time, and no damage to the test object in pH detection, sensors using luminescence, colorimetric, and surface-enhanced Raman scattering (SERS) detection techniques are considered to be common equipment for pH detection [16,17,18].
As an optical sensing technology, SERS not only can directly obtain the fingerprint information of very low concentration molecules, but also qualitatively analyze a variety of analytes [19], as is often performed in the fields of biological imaging [20,21] and biochemical analysis [22,23]. SERS probes used target molecules to connect to the surface of metal nanomaterials to achieve Raman signal enhancement, which requires physical and chemical stability, high sensitivity, and multiplexing capability. At present, SERS probes mainly include temperature SERS probes [24,25], bioimaging SERS probes [26,27], and pH-responsive SERS probes [28,29]. However, pH-responsive SERS probes mainly used pH-sensitive molecules to functionalize SERS substrates and caused specific groups in the sensitive molecules to undergo protonation or deprotonation through the pH change of the surrounding environment, resulting in changes in the vibration peak intensity or peak displacement of some groups in the Raman spectrum in order to realize pH sensing. Based on the current studies on the pH SERS probe, it was found that, to achieve the pH response of the SERS probe, the selected pH-sensitive molecules should have the amino group, carboxyl group, and pyridine ring [30]. Representative pH-sensitive molecules in related studies included 4-aminobenthiol (4-ATP) [31,32,33], 2-aminobenthiol (2-ABT) [34], 4-mercaptobenzoic acid (4-MBA) [35,36,37,38], and 4-mercaptopyridine (4-MPy) [18,39].
Due to a large number of molecules in the fingerprint region (<1800 cm−1), the molecular Raman vibration peaks often overlap with the background signals, and it is difficult to distinguish the Raman vibration peaks of the same species in different environments [40]. Based on the unique characteristics of the Raman vibration peak of the alkyne (C≡C), cyano (C≡N), azide, deuterium, and metal−carbonyl groups in the Raman silent region (1800–2800 cm−1) [41], it has also been deeply studied in the design of related SERS probes [42,43,44,45,46]. In addition, sulfur-containing compounds (thiols, thioethers, and dithioethers) have a strong affinity for the Au surface, which can be used to form stable monocouches by Au-S polar covalent bonding [47]. Consequently, sulfur-containing compounds are often used in the surface modification of noble-metal nanomaterials and related studies on SERS probes’ design [35,48,49].
In this study, we designed a cyano Raman tag pH-responsive SERS probe. The benzyl 4-(9-(6-cyanopyridin)-9H-carbazole) 5-(1,2-dithiother) pentanoate (BCCDP) containing a pyridine ring, a disulfide bond, and a cyano group was selected as the pH-sensitive molecule. The selected pH-sensitive molecular formula is shown in Figure 1A. The pH-sensing detection was achieved by using the displacement of the cyano Raman vibration peak caused by the protonation/deprotonation effect of the N lone pair electrons on the pyridine ring due to the difference in the external pH value, as shown in Figure 1B,C. We prepared a pH-responsive SERS probe based on the cyano Raman tag, using the method of solvent evaporation induction (sol film formation) [50,51] and immersion self-assembly [52,53]. The SERS substrates prepared by gold nanoparticles (AuNPs) were dense and could generate a large number of “hot spots”, which showed good SERS response ability against the pH value. After the SERS probe was constructed with a 10−8 M pH-sensitive molecule, the Raman pH probe exhibited excellent pH liner responsibility and stability in buffer solution with a pH range from 3.0 to 9.0, and similar results were obtained for a real river sample with an RSD of 6.68% (n = 5). It was known that the pH-responsive SERS probe designed with cyano Raman tag was sensitive and reliable during detection.

2. Materials and Methods

2.1. Materials

Hydrogen tetrachloroaurate (III) trihydrate and sodium citrate tribasic dihydrate were purchased from Sigma-Aldrich (Shanghai, China). Sodium chloride (NaCl, 99.8%), potassium chloride (KCl, 99.8%), magnesium chloride hexahydrate (MgCl2·6H2O, 98.0%), cesium chloride (CsCl, 99.5%), cupric chloride (CuCl2, 99.0%), iron (III) chloride hexahydrate (FeCl3·6H2O, 99.0%), sodium hydroxide (NaOH, 96.0%), sodium nitrate (NaNO3, 99.0%), sodium iodide (NaI, 99.0%), sodium bromide (NaBr, 99.0%), sodium sulphate (Na2SO4, 99.0%), dibasic sodium phosphate (Na2HPO4, 98.0%), sodium hydroxide (H3PO4, 85.0%), boric acid (H3BO3, 99.8%), citric acid (C₆H₈O₇, 99.8%), acetic acid (CH3COOH, 99.8%), acetone (CH3COCH3, 99.0%), and ethanol (CH3CH2OH, 75.0%) were purchased from Sinopharm Chemical Reagent Co., Ltd. (Shanghai, China). BCCDP was purchased from Shanghai Medicilon Inc. (Shanghai, China). The above reagents were used directly without further purification. All aqueous solutions in our experiments were made with Milli-Q water (18 MΩ·cm−1).
Preparation of Britton–Robinson (B–R) buffer solution: First, 400 μL H3PO4, 240 μL CH3COOH, and 0.248 g H3BO3 were added to Milli-Q water and mixed to a constant volume of 100 mL. Second, the prepared mixed acid solution and 0.2 M NaOH solution were mixed into buffer solutions with different pH values at different volume ratios, and the pH value of the buffer solution was calibrated by a pH meter.
Preparation of disodium hydrogen phosphate–citrate buffer solution: First, 100 mL of 0.2 mol/L Na2HPO4 solution and 100 mL of 0.1 mol/L citric acid solution were prepared. Second, the prepared Na2HPO4 and citric acid solutions were mixed into buffer solutions with different pH values at different volume ratios, and the pH value of the buffer solution was calibrated by using a pH meter.

2.2. Test Instrumentation

Extinction spectra measurements of as-synthesized AuNPs were achieved by using a Shimadzu UV3600 spectrophotometer. Transmission electron microscopy (TEM, JEM-2010 instrument, Tokyo, Japan) was utilized to acquire the morphological information of as-synthesized AuNPs. The pH value of the solution was captured by Pondus Hydrogenii (PH meter, PHS-3CW, Shanghai, China).
Scanning electron microscope (SEM) images were acquired by using an S4800 instrument (Tokyo, Japan). The dark-filed microscopy (DFM) images and SERS spectrum measurements were collected by a −75 °C cooled CCD detector (PIXIS 400BR: excelon, Princeton Instruments) and an inverted microscope (eclipse Ti-U, Nikon) equipped with a monochromator (Acton SP2358). A stabilized 633 nm laser diode was used as the excitation light source. The microscope was equipped with a dark-field condenser (0.8 < numerical aperture (NA) < 0.95), a 60× objective lens, a 1200 grating with BLZ of 750 nm in the monochromator, and a true-color digital camera (Nikon DS-f2). The Raman sensitivity was calculated to be 0.816 cm−1.

2.3. Synthesis of AuNPs [54]

Synthesis of Au seeds: A solution of 22 mM sodium citrate (5 mL) in Milli-Q water (45 mL) was heated with an oil bath in a 100 mL two-necked round-bottomed flask for 15 min under vigorous stirring. At the same time, a condensing tube was used to prevent solvent evaporation. After boiling had commenced, 0.4 mL of HAuCl4 (25 mM) was injected. The color of the solution changed from yellow to bluish gray and then to soft pink in 10 min. The resulting Au seeds were coated with negatively charged citrate ions and thus could be well suspended in Milli-Q water.
Seeded growth of AuNPs of up to 55 nm in diameter: The synthesized Au seeds were immediately cooled in the reaction flask until the temperature of the temperature solution reached 90 °C. Then 1 mL of sodium citrate (60 mM) and 0.33 mL of a HAuCl4 solution (25 mM) were sequentially injected (time delay ∼of 3 min). After 30 min, the reaction was finished. This process was repeated twice. After that, the sample was diluted by extracting 25 mL of the sample and adding 24 mL of Milli-Q water. This solution was then used as seed solution, and the process was repeated. The concentration of each generation of NPs was approximately the same as the original seed particles. After about four rounds, the diameter of the AuNPs could reach 55 nm.

2.4. Preparation of SERS Substrates

In the experiment, we chose clean ITO glass slides as the platform of the SERS substrate. Firstly, the ITO glass slides were washed with dish soap, acetone, ethanol, and Milli-Q water and sequentially submitted to ultrasonication for 1 h. To obtain a clean SERS substrate platform, the ITO glass slides were washed again with Milli-Q water and dried with nitrogen.
To reduce the subsequent influence on SERS probe detection, it was necessary to remove the sodium citrate protectant from the AuNPs’ surface. Firstly, 1 mL of AuNPs solution was centrifuged three times at 4500 rpm for 5 min. Secondly, the AuNPs after the third centrifugation were enriched to 10 μL (5 nM) and subjected to ultrasonic treatment for 15 min. After considering the “hot spot” effect of SERS, combined with the wide application of the colloidal NPs film formation process caused by solvent evaporation [50,51], we prepared SERS substrates by solvent evaporation induction (sol-film formation).

2.5. Preparation of SERS Probe and Measurements

First of all, the BCCDP was dissolved in a certain volume of dichloromethane and ethanol solution containing 10−3, 10−4, 10−5, 10−8, and 10−10 M, respectively. Then the immersion self-assembly method [52,53] was selected for the fabrication of the SERS probe. As is typical, the prepared SERS substrate was immersed in five different concentrations of molecular BCCDP solutions, removed after a certain period of time, washed three times with Milli-Q water, and dried with nitrogen gas. Finally, the SERS spectra were recorded under the excitation wavelength of 633 nm lines. All of the spectra were recorded at a 29.2 μW laser power, spectrum collection time of 20 s, and five accumulations.
For SERS spectral data processing, Origin 8.5 software was used to subtract the background and fitting by Gauss function model to obtain the information of SERS peak intensity and position.

3. Results and Discussion

3.1. Characterization of the AuNPs

At present, most precious-metal nanomaterials were colloidal nanoparticle assemblies assembled by surfactants, and their surface protectants will produce unnecessary noise in SERS detection [55,56,57]. In addition, the intensity and position functions of plasmons excited by noble-metal nanoparticles produce SERS enhancement effects [58,59]. Hossain’s study found that AuNPs with a diameter of about 50 nm had the strongest enhancement ability in SERS [60].
To synthesize AuNPs with the easy removal of protective agent and about 50 nm, we synthesized AuNPs with sodium citrate system by using the seed-growth method [54]. In Figure 2(Aa–d), the AuNPs grown in seed, the first step, the third step, and the fifth step were characterized by TEM, respectively. We also performed size statistics separately in Figure 2(Ae–h), which could prove that AuNPs of 55 ± 5.1 nm were synthesized by Au species after five steps of growth. The optical properties of the Au seeds, as well as AuNPs during growth, were measured by UV–Vis spectra. As shown in Figure 2B, the data were normalized for the convenience of comparison, the locally amplified spectral map showed that AuNPs diameter increased with the growth of Au seed, and the absorption peak redshifted from 520 to 537 nm.

3.2. Characterization of pH Sensitive Molecule

As shown in Figure 3A, the 2240 cm−1 band corresponds to C≡N stretching vibration, the 1627 cm−1 band corresponds to C=N stretching vibration, the 1595 and 1615 cm−1 vibration bands correspond to C=C-N ring deformation antisymmetric stretching and symmetric stretching, and the 1500 and 1534 cm−1 vibration bands correspond to aromatic C=C stretching vibration. The 1468 cm−1 vibration band corresponds to the tensile vibration of C-N, the 1382 cm−1 vibration band corresponds to the coupling between the tensile vibration of the benzene ring and the tensile vibration of the carboxyl group, and the 1379 cm−1 vibration band corresponds to the stretching vibration caused by two different hydrogen bonds in the pyridine ring. The 1334 cm−1 vibration band corresponds to the deformation vibration of CH2, and the 1275 cm−1 vibration band corresponds to the tensile vibration of C-O.
To compare the Raman spectral information of BCCDP before and after assembly with SERS substrates, theoretical calculations were performed. The calculation was performed by using the Gaussian 09 suite of programs. The ground-state structure of the Au4-BCCDP molecule was optimized by using DFT with the B3LYP functional at the level of 6–31 g (d, p) for C, H, O, N, S, and Couty–Hall-modified LANL2DZ for Au atoms, respectively. A correction factor of 0.952 was adopted for all the computed wavenumbers corresponding to the vibrational modes. It could be seen in Figure 3B that the theoretical calculation of the molecule was consistent with the actual measurement. After the molecule was assembled with the SERS substrate, the Raman summit of the cyanide group was blue-shifted from 2244 to 2164 cm−1.

3.3. Characterization of SERS Probe

To verify whether pH-sensitive molecules self-assemble with the SERS substrate and to explore the detection sensitivity of the SERS probe, we selected pH-sensitive molecule solutions with 10−3, 10−4, 10−5, 10−8, and 10−10 M concentrations to self-assemble with the SERS substrate to construct the SERS probe. Figure 4 shows the Raman spectra of the SERS probe constructed at the above five molecular concentrations. It can be seen from the Raman spectra that there were more groups in the fingerprint region of the molecule and that the vibration peak signals around 1600 cm−1 overlap greatly. In the Raman silent zone, it was found that two vibration peaks (2150 and 2240 cm−1) appeared around 2200 cm−1 when the concentration of the BCCDP solution was more than 10−5 M. Combined with DFT theoretical calculation and analysis, it could be inferred that the stretching vibration peak at 2240 cm−1 was caused by the free state of the pH-sensitive molecule, while the vibration peak at about 2150 cm−1 coincides with the vibration peak at 2164 cm−1 of Au4-BCCDP. In addition, we also performed Raman spectroscopy on the SERS probe constructed with pH-sensitive molecules at concentrations below 10−10 M, but no distinct Raman spectral information was detected.
Due to the coffee-ring effect brought on by the solvent evaporation induction (sol-film forming) method, the uniformity and repeatability of the SERS substrate prepared would be affected. DFM, SEM, and SERS spectroscopy were employed to evaluate the homogeneity of the SERS probe constructed with BCCDP at a concentration of 10−8 M. As shown in Figure 5A, it could be seen that the dark-field image of the SERS substrate was purplish red, which indicated that the compact aggregation of AuNPs lead to the notable red-shift in the localized surface plasmon scattering spectra. Moreover, it could be further proved in the in−situ SEM image (Figure 5B). As shown in Figure 5C, four Raman spectra were randomly selected on different positions of the SERS substrate to analyze the peak intensity and peak shift of the cyano vibration peak, respectively. The RSD of the cyano vibration peak was calculated to be 0.03% of peak position and 6.62% of peak intensity (n = 5), which indicated the better uniformity of the SERS probe compared with the probe constructed with 10−10 M BCCDP solution.
We considered that the strong laser power would lead to the desorption and photodegradation of the SERS tag molecules in the process of the SERS measurement, so we explored the effect on SERS probes at different laser powers. As shown in Figure 6, different laser powers with 10, 29, and 40 μW, were used to continuously monitor the changes of the SERS spectra. It was found that the SERS signal intensity was weak and the signal–noise ratio was lower than 3 with the 10 μW laser power. Moreover, the peak intensity of cyano Raman peak decreased gradually with the increase of measurement time when the laser power was 40 μW. Above all, the SERS measured in our subsequent experiments were carried out by using 29 μW laser power with the SERS substrates constructed with 10−8 M BCCDP.
To verify the stability of the SERS probe, we performed interference experiments under the conditions of anions and cations, acid–base cycles, and different types of buffer solutions. As shown in Figure 7A,B, we explored the effects of cationic solutions (Na+, K+, Cs+, Fe3+, Mg2+, and Cu2+) and anions (Cl−, Br−, I−, and SO42−) at a concentration of 10−5 M on the stability of the SERS probe. Figure 7(Ab,Bb) show that the negative and positive ions had little effect on the displacement of the cyano vibration peak of the SERS probe, which maintained a relatively stable state. Figure 7C,D show the interference inquiry experiment of the SERS probe with acid–base cycle (pH = 3 and pH = 11.28) under disodium phosphate–citric acid and B–R buffer. It could be seen from Figure 7(Cb,Db) that, under the two types of buffer solutions, the cyano Raman vibration peak in the SERS probe showed a redshift under acidic conditions compared with alkaline conditions and presented a reciprocating and cyclic change.
To test the pH-response ability of the SERS probe, the SERS spectra were measured in the range from 3.0 to 11.28 in disodium hydrogen phosphate–citric acid buffer solution. Figure 8 explores the changes in the response ability of the cyano Raman vibration peak of the SERS probe in the range of pH = 3, 4, 5, 6, 7, 8, 9, 10.39, and 11.28. It was found that the continued linear blue-shift of the cyano Raman peak in the range of pH 3.0−9.0, the fitting line was y = 2152.00 − 2.10x, the R2 was calculated to be 0.9784, and the limit of detection was calculated to be pH 0.33, with an S/N of 3.

4. Detection Application of SERS Probe

Based on the current aggravation of environmental pollution, the detection of the pH value of water resources has become particularly important [61]. Therefore, we selected river water for our real sample analysis to verify the detection performance and feasibility of the cyano Raman tag pH SERS probe. The river water was collected from a river in Nanjing, Jiangsu Province, and the suspended solids of the river water were removed by centrifugation.
Figure 9 shows the Raman detection of five selected groups of river water on the cyano Raman tag SERS probe constructed with BCCDP at the concentration of 10−8 M, and the pH value corresponding to the displacement of the cyano Raman vibration peak after testing was calculated and analyzed by using the function model in Figure 8B. The detection results of five groups of samples are shown in Figure 9B. Compared with the pH values measured by the pH meter and the pH values calculated by the model after the SERS probe detection of river water samples in Table 1, the analysis showed that the average pH measured by the pH meter is 7.23, and the average pH calculated by the SERS probe is 7.71, and the RSD was 6.68% (n = 5).
In addition, different proportions of disodium hydrogen phosphate and citric acid were added to the river-water samples to change the pH value of the river water (pH = 3, 6.1, 7.4, and 9.1) in order to further test the SERS probe’s performance, and the test result is shown in Figure 10B. Compared with the pH value measured by the pH meter and the pH value calculated by the function model after SERS probe detection in Table 2, the RSD of the pH-value-detection results was 3.90% (n = 5).
In general, in regard to the detection and analysis of the river-water sample, this pH SERS probe constructed based on cyano Raman tag had a good performance.

5. Conclusions

In this work, a pH-responsive SERS probe based on the cyano Raman tag was successfully designed and prepared by immobilization of BCCDP on the surface of 55 nm AuNPs. After immersion in 10−8 M BCCDP solution for a certain time, this probe exhibited the best response ability to pH value at 29 μW laser power with 20 s collection time. Moreover, the cyano vibration peak of this SERS probe would shift due to the protonation/deprotonation effect of N in the pyridine ring under different acid–base conditions. Thus, this probe could be used to evaluate the level of acid or alkali of buffer solution and river-water samples. As expected, this SERS probe showed a liner relationship between the Raman shift of the C≡N group and the pH value. The LOD of this probe reached pH 0.33, and the RSD of detection in the buffer solution and real river-water sample was 6.68% and 3.90%, respectively. Therefore, this study is helpful for future exploration of environmental water-resource detection, food preservation and production, and soil acid–base detection. Furthermore, since the pH detection range of cancer cells is between 4 and 7 [62], this SERS probe with a cyano Raman tag would provide an alternative selection for the detection of the pH value or pH imaging in cancer cells due to the fact that its typical peak located at 2150 cm−1 supplied a high signal–noise ratio in the biologically silent region.

Author Contributions

Conceptualization, L.Z.; investigation and resources, G.L.; writing—original draft preparation, J.S., G.L., W.Z., W.S., Y.Z. and Z.Y.; writing—review and editing, L.Z., J.S. and Q.M.; visualization, L.Z. and J.S.; supervision, L.Z. and W.H.; project administration, L.Z.; funding acquisition, L.Z. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Natural Science Foundation grant number 62075103 and the Natural Science Foundation of Jiangsu Province grant number BK20211271.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no competing financial interest.

References

  1. Skinner, W.H.; Chung, M.; Mitchell, S.; Akidil, A.; Fabre, K.; Goodwin, R.; Stokes, A.A.; Radacsi, N.; Campbell, C.J. A SERS-Active Electrospun Polymer Mesh for Spatially Localized pH Measurements of the Cellular Microenvironment. Anal. Chem. 2021, 93, 13844–13851. [Google Scholar] [CrossRef] [PubMed]
  2. Yu, K.K.; Li, K.; Qin, H.H.; Zhou, Q.; Qian, C.H.; Liu, Y.H.; Yu, X.Q. Construction of pH-Sensitive “Submarine” Based on Gold Nanoparticles with Double Insurance for Intracellular pH Mapping, Quantifying of Whole Cells and in Vivo Applications. ACS Appl. Mater. Interfaces 2016, 8, 22839–22848. [Google Scholar] [CrossRef] [PubMed]
  3. Chaudhari, R.; Joshi, A.; Srivastava, R. pH and Urea Estimation in Urine Samples using Single Fluorophore and Ratiometric Fluorescent Biosensors. Sci. Rep. 2017, 7, 5840. [Google Scholar] [CrossRef] [PubMed]
  4. Yang, T.; Ma, J.; Zhen, S.J.; Huang, C.Z. Electrostatic Assemblies of Well-Dispersed AgNPs on the Surface of Electrospun Nanofibers as Highly Active SERS Substrates for Wide-Range pH Sensing. ACS Appl. Mater. Interfaces 2016, 8, 14802–14811. [Google Scholar] [CrossRef] [PubMed]
  5. Lu, Q.; Wang, Y.Y.; Chen, H.M.; Wang, Q.H.; Yang, X.Y.; Zou, L.P. A rise in saliva and urine pH in children with SCN1A-related epilepsy: An exploratory prospective controlled study. Front. Neurol. 2022, 13, 982050. [Google Scholar] [CrossRef]
  6. Tsai, H.H.; Schmidt, W. The enigma of environmental pH sensing in plants. Nat. Plants 2021, 7, 106–115. [Google Scholar] [CrossRef]
  7. Kleinhappel, T.K.; Burman, O.H.P.; John, E.A.; Wilkinson, A.; Pike, T.W.; Herberstein, M. The impact of water pH on association preferences in fish. Ethology 2019, 125, 195–202. [Google Scholar] [CrossRef]
  8. Pieri, E.; Ledentu, V.; Huix-Rotllant, M.; Ferre, N. Sampling the protonation states: The pH-dependent UV absorption spectrum of a polypeptide dyad. Phys. Chem. Chem. Phys. 2018, 20, 23252–23261. [Google Scholar] [CrossRef] [Green Version]
  9. Zhang, Y.; Zhao, Y.; Song, B.; Huang, C. Spectroscopic behavior and intracellular application of a highly sensitive UV-fluorescence double ratio probe based on water-soluble indole for detection acid pH. Dyes Pigments 2021, 188, 109205. [Google Scholar] [CrossRef]
  10. Miao, X.; Zhu, Z.; Jia, H.; Lu, C.; Liu, X.; Mao, D.; Chen, G. Colorimetric detection of cancer biomarker based on enzyme enrichment and pH sensing. Sens. Actuators B Chem. 2020, 320, 128435. [Google Scholar] [CrossRef]
  11. Hao, N.; Lu, J.; Zhou, Z.; Hua, R.; Wang, K. A pH-Resolved Colorimetric Biosensor for Simultaneous Multiple Target Detection. ACS Sens. 2018, 3, 2159–2165. [Google Scholar] [CrossRef]
  12. Yang, S.L.; Liu, W.S.; Li, G.; Bu, R.; Li, P.; Gao, E.Q. A pH-Sensing Fluorescent Metal-Organic Framework: pH-Triggered Fluorescence Transition and Detection of Mycotoxin. Inorg. Chem. 2020, 59, 15421–15429. [Google Scholar] [CrossRef]
  13. Qin, F.; Zhang, Y.; Zhu, J.; Li, Y.; Cao, W.; Ye, Y. A mitochondrial-targeted fluorescent probe to sense pH and HOCl in living cells. Sens. Actuators B Chem. 2019, 291, 207–215. [Google Scholar] [CrossRef]
  14. Shaibani, P.M.; Etayash, H.; Naicker, S.; Kaur, K.; Thundat, T. Metabolic Study of Cancer Cells Using a pH Sensitive Hydrogel Nanofiber Light Addressable Potentiometric Sensor. ACS Sens. 2017, 2, 151–156. [Google Scholar] [CrossRef]
  15. Kraikaew, P.; Jeanneret, S.; Soda, Y.; Cherubini, T.; Bakker, E. Ultrasensitive Seawater pH Measurement by Capacitive Readout of Potentiometric Sensors. ACS Sens. 2020, 5, 650–654. [Google Scholar] [CrossRef]
  16. Chen, L.; He, L.; Ma, F.; Liu, W.; Wang, Y.; Silver, M.A.; Chen, L.; Zhu, L.; Gui, D.; Diwu, J.; et al. Covalent Organic Framework Functionalized with 8-Hydroxyquinoline as a Dual-Mode Fluorescent and Colorimetric pH Sensor. ACS Appl. Mater. Interfaces 2018, 10, 15364–15368. [Google Scholar] [CrossRef]
  17. Gong, K.; Jones, R.R.; Li, K.; Xu, G.; Cheng, H.; Feng, Y.; Valev, V.K.; Zhang, L. Sensing pH of individual microdroplet by combining SERS and indicator paper. Sens. Actuators B Chem. 2021, 346, 130521. [Google Scholar] [CrossRef]
  18. Shen, Y.; Liang, L.; Zhang, S.; Huang, D.; Zhang, J.; Xu, S.; Liang, C.; Xu, W. Organelle-targeting surface-enhanced Raman scattering (SERS) nanosensors for subcellular pH sensing. Nanoscale 2018, 10, 1622–1630. [Google Scholar] [CrossRef]
  19. Zhou, X.; Hu, Z.; Yang, D.; Xie, S.; Jiang, Z.; Niessner, R.; Haisch, C.; Zhou, H.; Sun, P. Bacteria Detection: From Powerful SERS to Its Advanced Compatible Techniques. Adv. Sci. 2020, 7, 2001739. [Google Scholar] [CrossRef]
  20. Huang, X.; Sheng, B.; Tian, H.; Chen, Q.; Yang, Y.; Bui, B.; Pi, J.; Cai, H.; Chen, S.; Zhang, J.; et al. Real-time SERS monitoring anticancer drug release along with SERS/MR imaging for pH-sensitive chemo-phototherapy. Acta Pharm. Sin. B 2022. [Google Scholar] [CrossRef]
  21. Wang, J.; Liang, D.; Jin, Q.; Feng, J.; Tang, X. Bioorthogonal SERS Nanotags as a Precision Theranostic Platform for in Vivo SERS Imaging and Cancer Photothermal Therapy. Bioconjug. Chem. 2020, 31, 182–193. [Google Scholar] [CrossRef] [PubMed]
  22. Nie, X.; Wang, X.; Tian, Y.; Chen, Z.; Chen, S.; Meng, X.; Fan, M. Thermal-fluid coupling green capture device coupling with Surface-Enhanced Raman Scattering for integrated scheme with rapid separation, enrichment and detection of multi-source formaldehyde in milk. Sustain. Mater. Technol. 2021, 30, e00332. [Google Scholar] [CrossRef]
  23. Zheng, Y.; Chen, Z.; Zheng, C.; Lee, Y.I.; Hou, X.; Wu, L.; Tian, Y. Derivatization reaction-based surface-enhanced Raman scattering (SERS) for detection of trace acetone. Talanta 2016, 155, 87–93. [Google Scholar] [CrossRef] [PubMed]
  24. Pozzi, E.A.; Zrimsek, A.B.; Lethiec, C.M.; Schatz, G.C.; Hersam, M.C.; Van Duyne, R.P. Evaluating Single-Molecule Stokes and Anti-Stokes SERS for Nanoscale Thermometry. J. Phys. Chem. C 2015, 119, 21116–21124. [Google Scholar] [CrossRef]
  25. Lu, Y.; Wu, L.W.; Cao, W.; Huang, Y.F. Finding a Sensitive Surface-Enhanced Raman Spectroscopic Thermometer at the Nanoscale by Examining the Functional Groups. Anal. Chem. 2022, 94, 6011–6016. [Google Scholar] [CrossRef]
  26. Jin, X.; Khlebtsov, B.N.; Khanadeev, V.A.; Khlebtsov, N.G.; Ye, J. Rational Design of Ultrabright SERS Probes with Embedded Reporters for Bioimaging and Photothermal Therapy. ACS Appl. Mater. Interfaces 2017, 9, 30387–30397. [Google Scholar] [CrossRef]
  27. Liu, R.; Zhao, J.; Han, G.; Zhao, T.; Zhang, R.; Liu, B.; Liu, Z.; Zhang, C.; Yang, L.; Zhang, Z. Click-Functionalized SERS Nanoprobes with Improved Labeling Efficiency and Capability for Cancer Cell Imaging. ACS Appl. Mater. Interfaces 2017, 9, 38222–38229. [Google Scholar] [CrossRef]
  28. Zhang, Y.; Jimenez de Aberasturi, D.; Henriksen-Lacey, M.; Langer, J.; Liz-Marzan, L.M. Live-Cell Surface-Enhanced Raman Spectroscopy Imaging of Intracellular pH: From Two Dimensions to Three Dimensions. ACS Sens. 2020, 5, 3194–3206. [Google Scholar] [CrossRef]
  29. Wei, H.; Willner, M.R.; Marr, L.C.; Vikesland, P.J. Highly stable SERS pH nanoprobes produced by co-solvent controlled AuNP aggregation. Analyst 2016, 141, 5159–5169. [Google Scholar] [CrossRef] [Green Version]
  30. Zhang, L.; Zhao, Q.; Jiang, Z.; Shen, J.; Wu, W.; Liu, X.; Fan, Q.; Huang, W. Recent Progress of SERS Nanoprobe for pH Detecting and Its Application in Biological Imaging. Biosensors 2021, 11, 282. [Google Scholar] [CrossRef]
  31. Ma, D.; Zheng, J.; Tang, P.; Xu, W.; Qing, Z.; Yang, S.; Li, J.; Yang, R. Quantitative Monitoring of Hypoxia-Induced Intracellular Acidification in Lung Tumor Cells and Tissues Using Activatable Surface-Enhanced Raman Scattering Nanoprobes. Anal. Chem. 2016, 88, 11852–11859. [Google Scholar] [CrossRef]
  32. Li, H.; Men, D.; Sun, Y.; Liu, D.; Li, X.; Li, L.; Li, C.; Cai, W.; Li, Y. Surface enhanced Raman scattering properties of dynamically tunable nanogaps between Au nanoparticles self-assembled on hydrogel microspheres controlled by pH. J Colloid Interface Sci 2017, 505, 467–475. [Google Scholar] [CrossRef]
  33. Gutierrez-Sanz, O.; Forbrig, E.; Batista, A.P.; Pereira, M.M.; Salewski, J.; Mroginski, M.A.; Gotz, R.; De Lacey, A.L.; Kozuch, J.; Zebger, I. Catalytic Activity and Proton Translocation of Reconstituted Respiratory Complex I Monitored by Surface-Enhanced Infrared Absorption Spectroscopy. Langmuir 2018, 34, 5703–5711. [Google Scholar] [CrossRef]
  34. Wang, Z.; Bonoiu, A.; Samoc, M.; Cui, Y.; Prasad, P.N. Biological pH sensing based on surface enhanced Raman scattering through a 2-aminothiophenol-silver probe. Biosens. Bioelectron. 2008, 23, 886–891. [Google Scholar] [CrossRef]
  35. Xie, M.; Li, F.; Gu, P.; Wang, F.; Qu, Z.; Li, J.; Wang, L.; Zuo, X.; Zhang, X.; Shen, J. Gold nanoflower-based surface-enhanced Raman probes for pH mapping of tumor cell microenviroment. Cell Prolif. 2019, 52, e12618. [Google Scholar] [CrossRef]
  36. Chen, H.; Luo, C.; Zhang, S. Intracellular imaging and concurrent pH sensing of cancer-derived exosomes using surface-enhanced Raman scattering. Anal. Bioanal. Chem. 2021, 413, 4091–4101. [Google Scholar] [CrossRef]
  37. Park, J.E.; Yonet-Tanyeri, N.; Vander Ende, E.; Henry, A.I.; Perez White, B.E.; Mrksich, M.; Van Duyne, R.P. Plasmonic Microneedle Arrays for in Situ Sensing with Surface-Enhanced Raman Spectroscopy (SERS). Nano Lett. 2019, 19, 6862–6868. [Google Scholar] [CrossRef]
  38. Guo, J.; Rubfiaro, A.S.; Lai, Y.; Moscoso, J.; Chen, F.; Liu, Y.; Wang, X.; He, J. Dynamic single-cell intracellular pH sensing using a SERS-active nanopipette. Analyst 2020, 145, 4852–4859. [Google Scholar] [CrossRef]
  39. Yang, G.; Zhang, K.; Qu, X.; Xu, W.; Xu, S. Ratiometric pH-responsive SERS strategy for glioma boundary determination. Talanta 2022, 250, 123750. [Google Scholar] [CrossRef]
  40. Yin, Y.; Li, Q.; Ma, S.; Liu, H.; Dong, B.; Yang, J.; Liu, D. Prussian Blue as a Highly Sensitive and Background-Free Resonant Raman Reporter. Anal. Chem. 2017, 89, 1551–1557. [Google Scholar] [CrossRef]
  41. Mi, S.; Ji, L.; Yu, H.; Guo, Y.; Cheng, Y.; Yang, F.; Yao, W.; Xie, Y. Zero-Background Surface-Enhanced Raman Scattering Detection of Cymoxanil Based on the Change of the Cyano Group after Ultraviolet Irradiation. J. Agric. Food Chem. 2021, 69, 520–527. [Google Scholar] [CrossRef] [PubMed]
  42. Hong, S.; Chen, T.; Zhu, Y.; Li, A.; Huang, Y.; Chen, X. Live-cell stimulated Raman scattering imaging of alkyne-tagged biomolecules. Angew. Chem. Int. Ed. 2014, 53, 5827–5831. [Google Scholar] [CrossRef] [PubMed]
  43. Bakthavatsalam, S.; Dodo, K.; Sodeoka, M. A decade of alkyne-tag Raman imaging (ATRI): Applications in biological systems. RSC Chem. Biol. 2021, 2, 1415–1429. [Google Scholar] [CrossRef] [PubMed]
  44. Sloan-Dennison, S.; Laing, S.; Graham, D.; Faulds, K. From Raman to SESORRS: Moving deeper into cancer detection and treatment monitoring. Chem. Commun. 2021, 57, 12436–12451. [Google Scholar] [CrossRef] [PubMed]
  45. Renata, S.; Verma, N.; Tu, Z.; Pan, R.-L.; Hofmann, M.; Lin, C.-H. Development of a Tri-Functional Nanoprobe for Background-Free SERS Detection of Sialic Acid on the Cell Surface. Chemosensors 2021, 9, 92. [Google Scholar] [CrossRef]
  46. Montali, L.; Calabretta, M.M.; Lopreside, A.; D’Elia, M.; Guardigli, M.; Michelini, E. Multienzyme chemiluminescent foldable biosensor for on-site detection of acetylcholinesterase inhibitors. Biosens. Bioelectron. 2020, 162, 112232. [Google Scholar] [CrossRef]
  47. Reimers, J.R.; Ford, M.J.; Halder, A.; Ulstrup, J.; Hush, N.S. Gold surfaces and nanoparticles are protected by Au(0)-thiyl species and are destroyed when Au(I)-thiolates form. Proc. Natl. Acad. Sci. USA 2016, 113, E1424–E1433. [Google Scholar] [CrossRef] [Green Version]
  48. Eling, C.J.; Price, T.W.; Marshall, A.R.L.; Narda Viscomi, F.; Robinson, P.; Firth, G.; Adawi, A.M.; Bouillard, J.G.; Stasiuk, G.J. A Dual-Modal SERS/Fluorescence Gold Nanoparticle Probe for Mitochondrial Imaging. Chempluschem 2017, 82, 674–680. [Google Scholar] [CrossRef]
  49. Su, Z.; Cheng, Y.; Xu, X.; Wang, H.; Xiao, L.; Tang, D.; Xie, Q.; Qin, X. Preparation of porous thiolated polymer nanocomposite for construction of sensitive and selective phytohormone amperometric immunosensor. Microchem. J. 2020, 153, 104380. [Google Scholar] [CrossRef]
  50. Sun, J.F.; Mao, Y.Q.; Guo, Z.R.; Zhang, Y.; Gu, N. Time-varied magnetic-field induced monolayer formation and re-aggregation of Au nanoparticles during solvent evaporation. J. Nanosci. Nanotechnol. 2009, 9, 1156–1159. [Google Scholar] [CrossRef]
  51. Zhang, D.; Fang, J.; Li, T. Sensitive and uniform detection using Surface-Enhanced Raman Scattering: Influence of colloidal-droplets evaporation based on Au-Ag alloy nanourchins. J. Colloid Interf. Sci. 2018, 514, 217–226. [Google Scholar] [CrossRef]
  52. Saha, S.; Dutta, B.; Ghosh, M.; Chowdhury, J. Adsorption of 4-Mercapto Pyridine with Gold Nanoparticles Embedded in the Langmuir-Blodgett Film Matrix of Stearic Acid: SERS, XPS Studies Aided by Born-Oppenheimer on the Fly Dynamics, Time-Resolved Wavelet Transform Theory, and DFT. ACS Omega 2022, 7, 27818–27830. [Google Scholar] [CrossRef]
  53. Zhao, L.; Yang, R.; Wei, Y.; Guo, Y.; Zhao, Q.; Zhang, H.; Cai, W. Rapid and sensitive SERS detection of opioids in solutions based on the solid chip Au-coated Si nano-cone array. Spectrochim. Acta A Mol. Biomol. Spectrosc. 2022, 283, 121720. [Google Scholar] [CrossRef]
  54. Bastus, N.G.; Comenge, J.; Puntes, V. Kinetically controlled seeded growth synthesis of citrate-stabilized gold nanoparticles of up to 200 nm: Size focusing versus Ostwald ripening. Langmuir 2011, 27, 11098–11105. [Google Scholar] [CrossRef]
  55. Tezcan, T.; Hsu, C.H. High-sensitivity SERS based sensing on the labeling side of glass slides using low branched gold nanoparticles prepared with surfactant-free synthesis. RSC Adv. 2020, 10, 34290–34298. [Google Scholar] [CrossRef]
  56. Zeng, F.; Xu, D.; Zhan, C.; Liang, C.; Zhao, W.; Zhang, J.; Feng, H.; Ma, X. Surfactant-Free Synthesis of Graphene Oxide Coated Silver Nanoparticles for SERS Biosensing and Intracellular Drug Delivery. ACS Appl. Nano Mater. 2018, 1, 2748–2753. [Google Scholar] [CrossRef]
  57. Chen, Z.; Lu, S.; Zhang, Z.; Huang, X.; Zhao, H.; Wei, J.; Li, F.; Yuan, K.; Su, L.; Xiong, Y. Green photoreduction synthesis of dispersible gold nanoparticles and their direct in situ assembling in multidimensional substrates for SERS detection. Mikrochim. Acta 2022, 189, 275. [Google Scholar] [CrossRef]
  58. Ding, S.Y.; You, E.M.; Tian, Z.Q.; Moskovits, M. Electromagnetic theories of surface-enhanced Raman spectroscopy. Chem. Soc. Rev. 2017, 46, 4042–4076. [Google Scholar] [CrossRef]
  59. Cardinal, M.F.; Vander Ende, E.; Hackler, R.A.; McAnally, M.O.; Stair, P.C.; Schatz, G.C.; Van Duyne, R.P. Expanding applications of SERS through versatile nanomaterials engineering. Chem. Soc. Rev. 2017, 46, 3886–3903. [Google Scholar] [CrossRef] [Green Version]
  60. Hossain, M.K. Nanoassembly of gold nanoparticles: An active substrate for size-dependent surface-enhanced Raman scattering. Spectrochim. Acta A Mol. Biomol. Spectrosc. 2020, 242, 118759. [Google Scholar] [CrossRef]
  61. Sun, J.; Zhang, Z.; Liu, C.; Dai, X.; Zhou, W.; Jiang, K.; Zhang, T.; Yin, J.; Gao, J.; Yin, H.; et al. Continuous in situ portable SERS analysis of pollutants in water and air by a highly sensitive gold nanoparticle-decorated PVDF substrate. Anal. Bioanal. Chem. 2021, 413, 5469–5482. [Google Scholar] [CrossRef] [PubMed]
  62. Damaghi, M.; Wojtkowiak, J.W.; Gillies, R.J. pH sensing and regulation in cancer. Front. Physiol. 2013, 4, 370. [Google Scholar] [CrossRef] [PubMed]
Biosensors 13 00021 g001 550

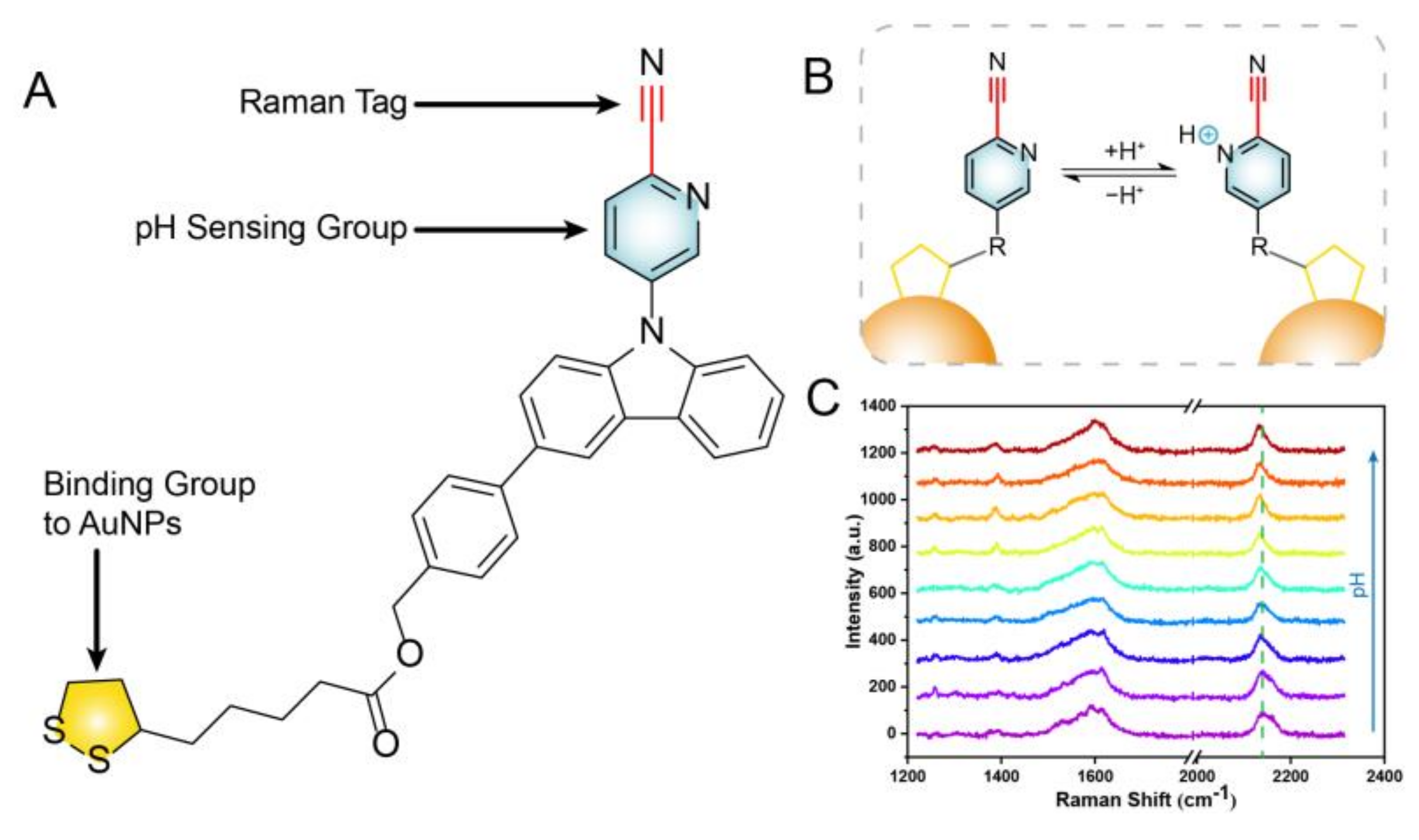

Figure 1. (A) The formula of the pH−sensitive molecule BCCDP. (B,C) Schematic of the sensing detection mechanism of cyano Raman tag pH−responsive SERS probe.
Figure 1. (A) The formula of the pH−sensitive molecule BCCDP. (B,C) Schematic of the sensing detection mechanism of cyano Raman tag pH−responsive SERS probe.
Biosensors 13 00021 g001
Biosensors 13 00021 g002 550

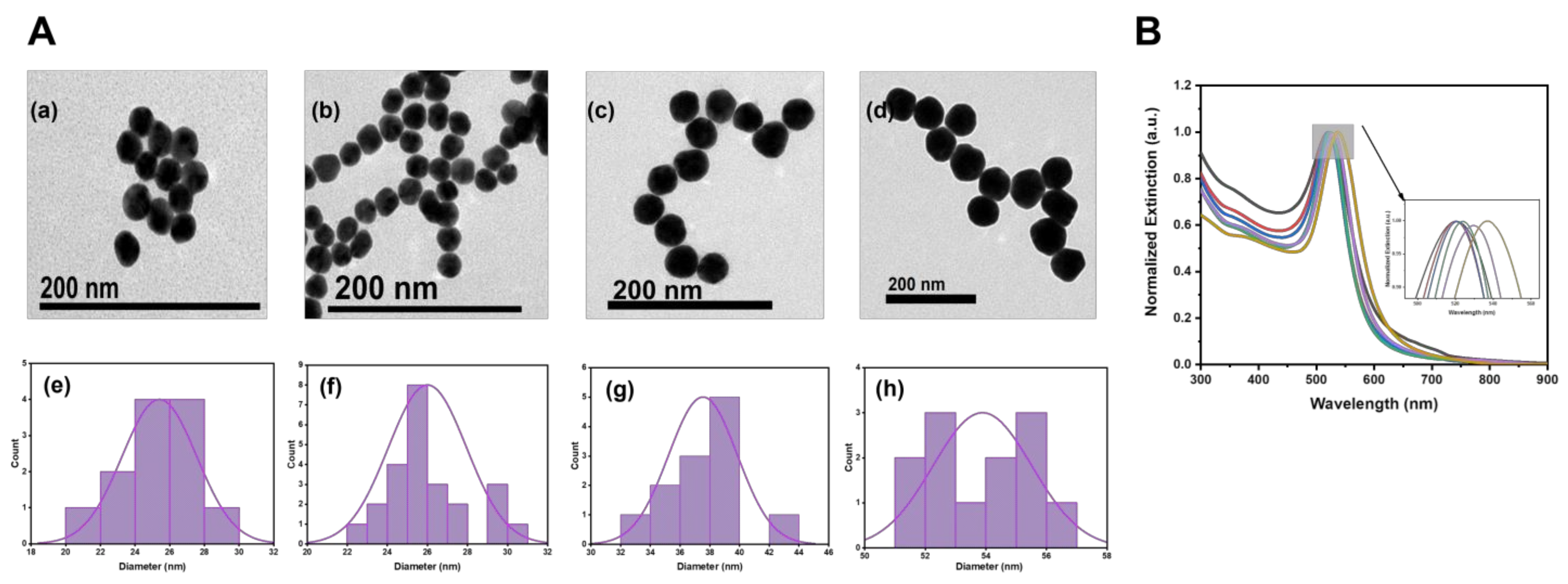

Figure 2. (A) TEM images (a–d) and corresponding grain-size statistics (e–h) of seeds and first-step, third-step, and fifth-step AuNPs. (B) UV−Vis absorption spectra of Au seeds and AuNPs during growth: Au seed (black line), growth 1 step (red line), growth 2 step (blue line), growth 3 step (green line), growth 4 step (purple line), and growth 5 step (yellow line).
Figure 2. (A) TEM images (a–d) and corresponding grain-size statistics (e–h) of seeds and first-step, third-step, and fifth-step AuNPs. (B) UV−Vis absorption spectra of Au seeds and AuNPs during growth: Au seed (black line), growth 1 step (red line), growth 2 step (blue line), growth 3 step (green line), growth 4 step (purple line), and growth 5 step (yellow line).
Biosensors 13 00021 g002
Biosensors 13 00021 g003 550

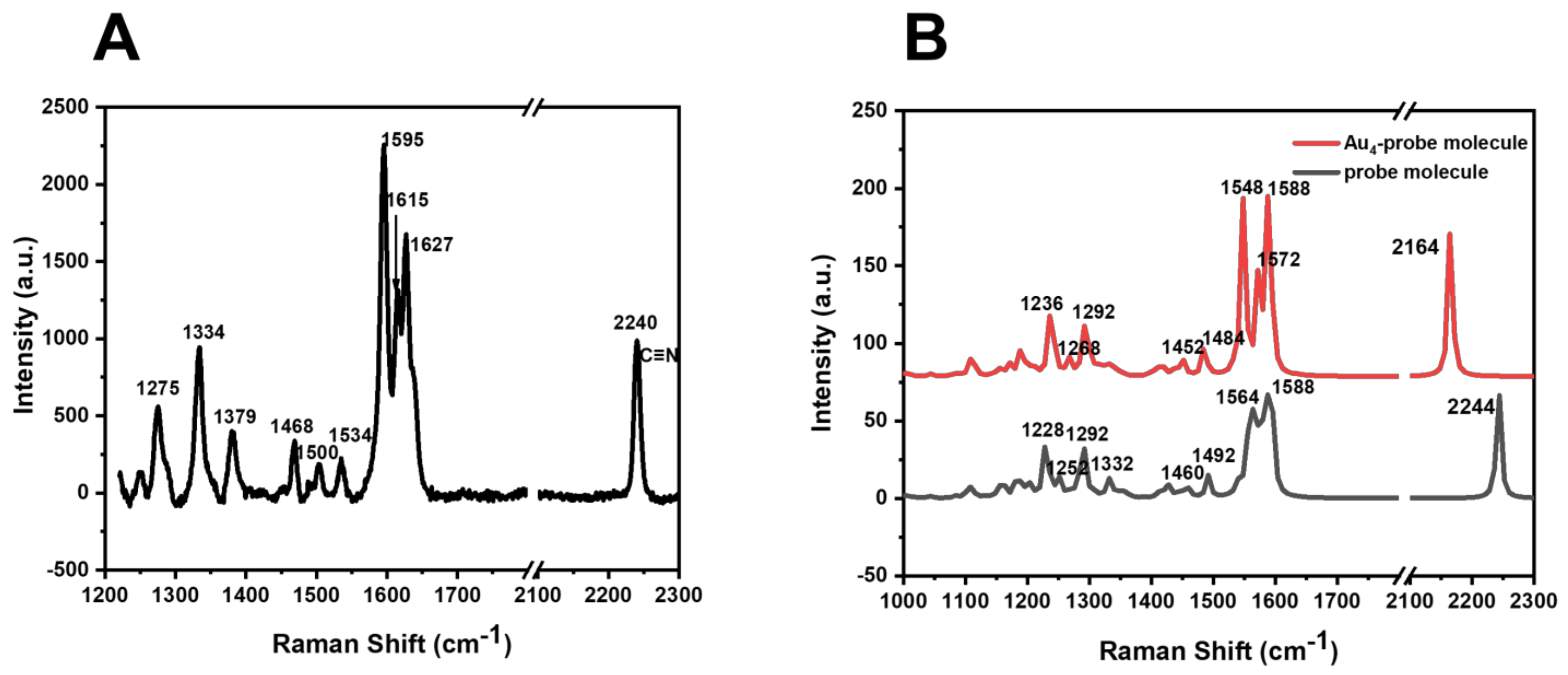

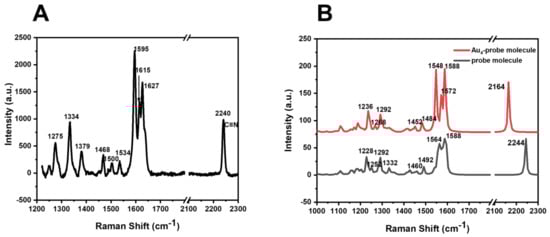

Figure 3. (A) Raman spectra of the pH-sensitive molecule of BCCDP. (B) DFT theoretical calculation of Raman spectra of pH-sensitive molecule and Au4-BCCDP.
Figure 3. (A) Raman spectra of the pH-sensitive molecule of BCCDP. (B) DFT theoretical calculation of Raman spectra of pH-sensitive molecule and Au4-BCCDP.
Biosensors 13 00021 g003
Biosensors 13 00021 g004 550

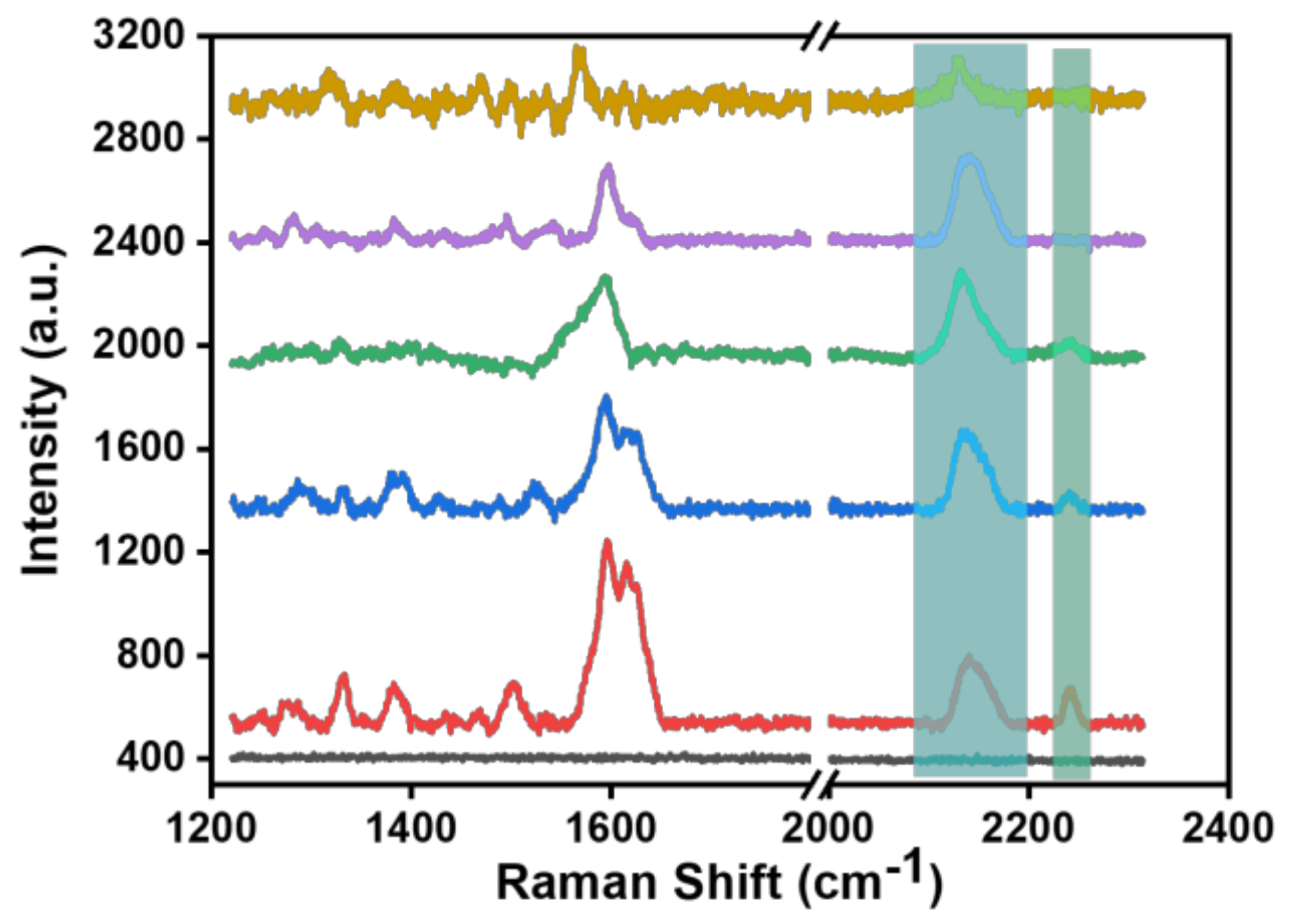

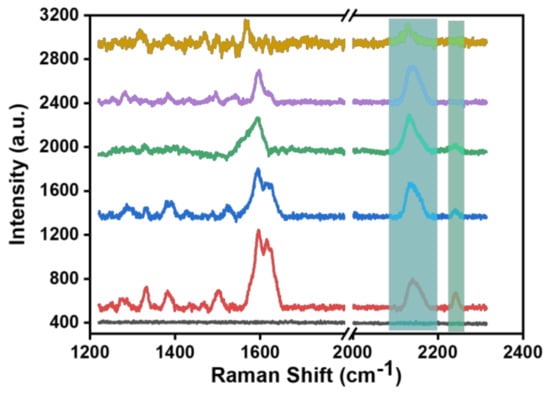

Figure 4. Raman spectra of the SERS probe constructed at 5 different concentrations of BCCDP: blank (black line), 10−3 M (red line), 10−4 M (blue line), 10−5 M (green line), 10−8 M (purple line), and 10−10 M (brown line).
Figure 4. Raman spectra of the SERS probe constructed at 5 different concentrations of BCCDP: blank (black line), 10−3 M (red line), 10−4 M (blue line), 10−5 M (green line), 10−8 M (purple line), and 10−10 M (brown line).
Biosensors 13 00021 g004
Biosensors 13 00021 g005 550

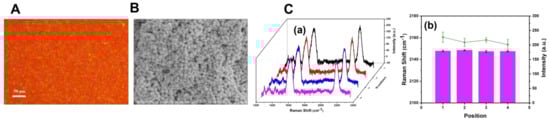

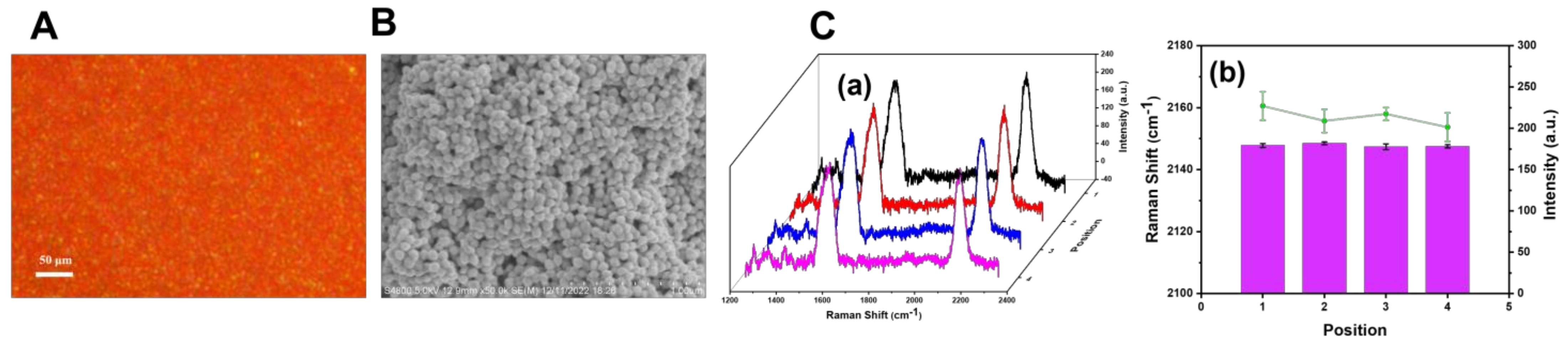

Figure 5. (A) Dark-field image of SERS substrates. (B) Scattering images of SERS substrates taken by SEM. (C) Raman spectra of four randomly selected data points on the SERS substrate (a) and the analysis results of the peak intensity and displacement of the cyano vibration peak (b).
Figure 5. (A) Dark-field image of SERS substrates. (B) Scattering images of SERS substrates taken by SEM. (C) Raman spectra of four randomly selected data points on the SERS substrate (a) and the analysis results of the peak intensity and displacement of the cyano vibration peak (b).
Biosensors 13 00021 g005
Biosensors 13 00021 g006 550

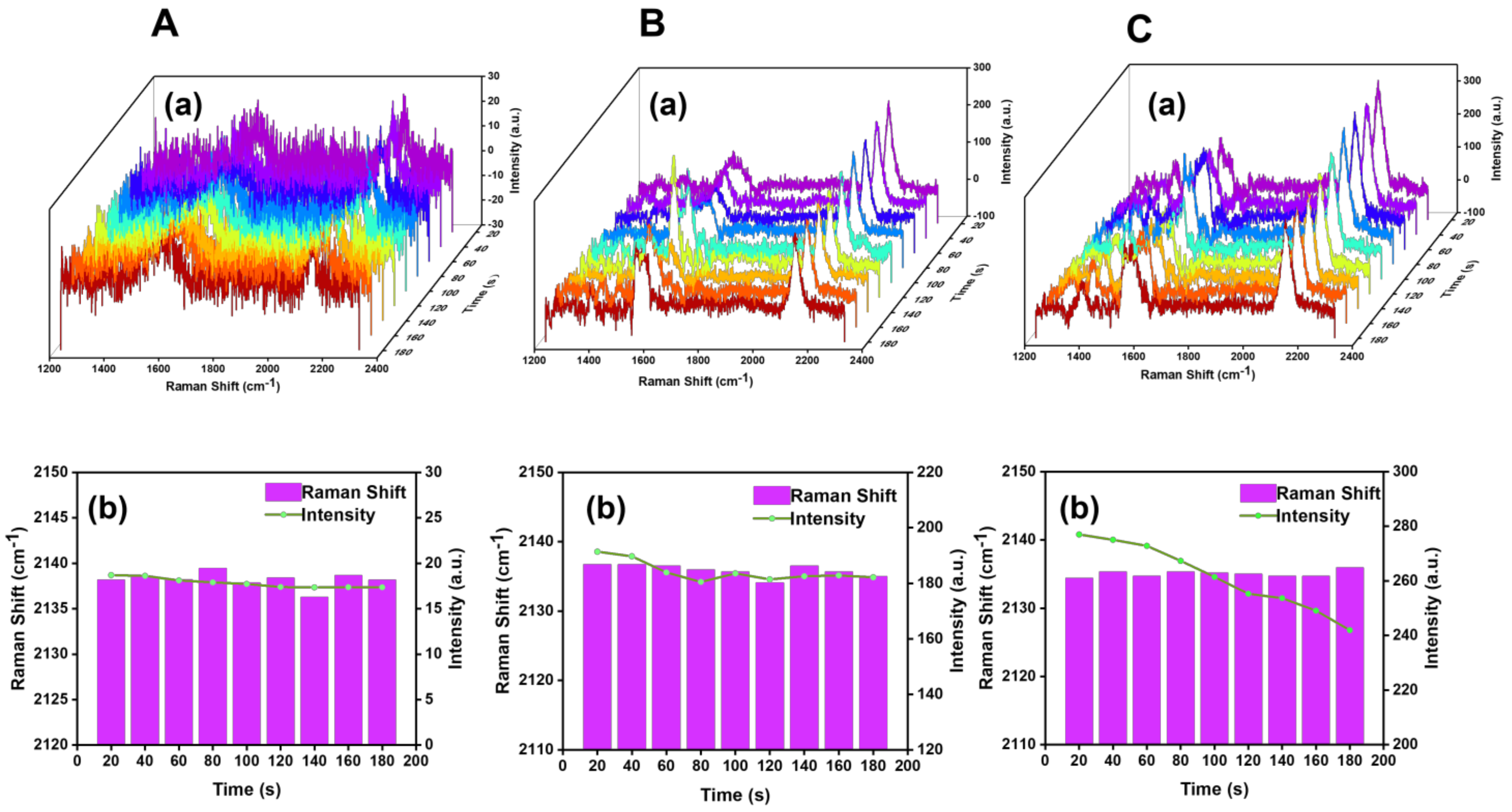

Figure 6. (A–C) Exploration of SERS probe spectra as a function of time at 10, 29, and 40 μW laser power, respectively. (a) Corresponding to the collected SERS probe Raman spectra. (b) Corresponding to the analysis results of the peak intensity and peak shift of cyano vibration peak.
Figure 6. (A–C) Exploration of SERS probe spectra as a function of time at 10, 29, and 40 μW laser power, respectively. (a) Corresponding to the collected SERS probe Raman spectra. (b) Corresponding to the analysis results of the peak intensity and peak shift of cyano vibration peak.
Biosensors 13 00021 g006
Biosensors 13 00021 g007 550

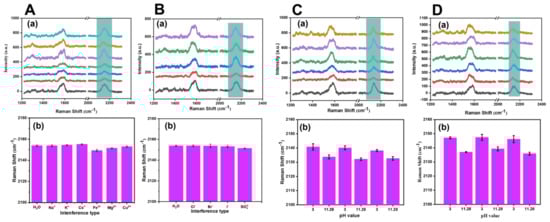

Figure 7. (A) Exploration of the influence of 10 −5 M cationic solution: H2O (black line), Na+ (red line), K+ (blue line), Cs+ (green line), Fe3+ (purple line), Mg2+ (orange line), and Cu2+ (cyan line). (B) Exploration of the influence of 10 −5 M anions solution, namely H2O (black line), Cl− (red line), Br− (blue line), I− (green line), and SO42− (purple line), on the stability of the SERS probe. Exploration of the influence on the stability of the SERS probe under the interference of the acid-base cycle (pH = 3 and pH = 11.28) of disodium phosphate–citric acid buffer (C) and B–R buffer (D). (a) Corresponding to the collected SERS probe Raman spectra. (b) Corresponding to the analysis results of the peak displacement of cyano vibration peak.
Figure 7. (A) Exploration of the influence of 10 −5 M cationic solution: H2O (black line), Na+ (red line), K+ (blue line), Cs+ (green line), Fe3+ (purple line), Mg2+ (orange line), and Cu2+ (cyan line). (B) Exploration of the influence of 10 −5 M anions solution, namely H2O (black line), Cl− (red line), Br− (blue line), I− (green line), and SO42− (purple line), on the stability of the SERS probe. Exploration of the influence on the stability of the SERS probe under the interference of the acid-base cycle (pH = 3 and pH = 11.28) of disodium phosphate–citric acid buffer (C) and B–R buffer (D). (a) Corresponding to the collected SERS probe Raman spectra. (b) Corresponding to the analysis results of the peak displacement of cyano vibration peak.
Biosensors 13 00021 g007
Biosensors 13 00021 g008 550

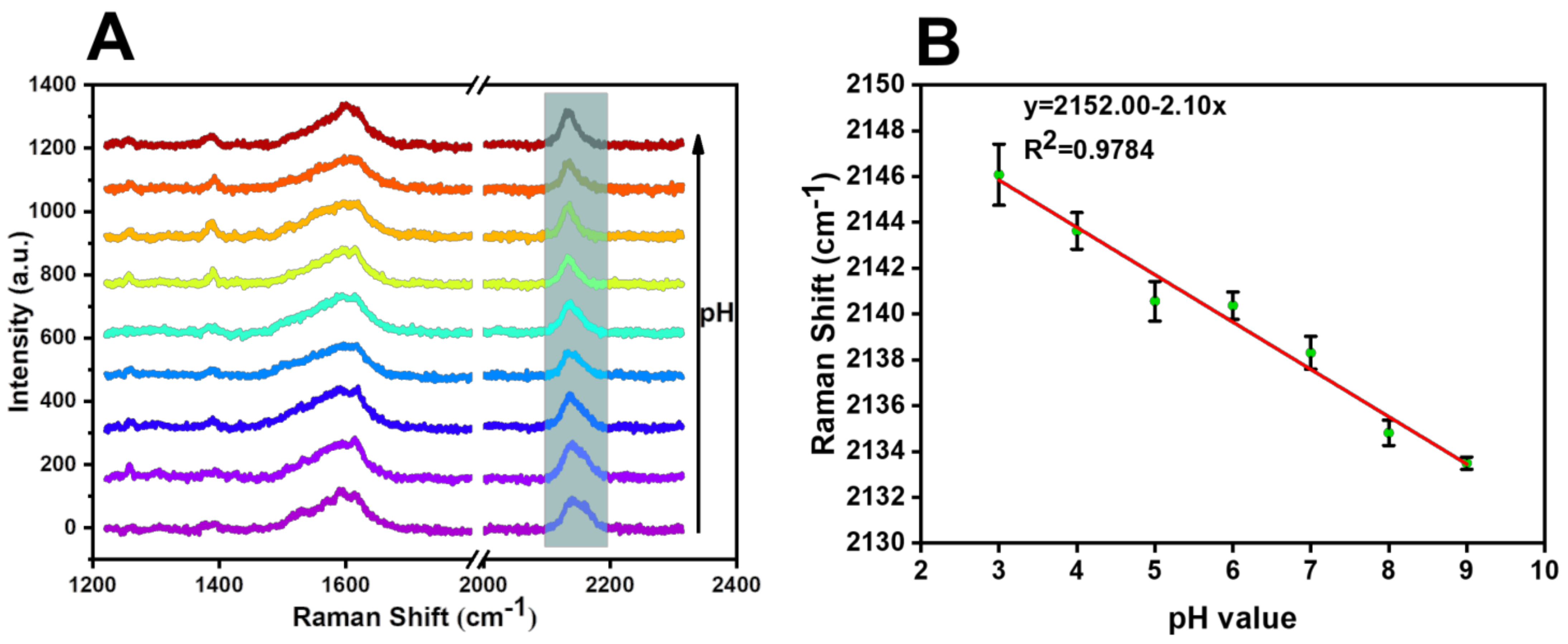

Figure 8. (A) Raman spectra of the response change of cyano Raman vibration peak of SERS probes in the range of pH = 3, 4, 5, 6, 7, 8, 9, 10.39, and 11.28. (B) Response fitting curve of cyano Raman peak displacement of SERS probes in the range of pH = 3−9.
Figure 8. (A) Raman spectra of the response change of cyano Raman vibration peak of SERS probes in the range of pH = 3, 4, 5, 6, 7, 8, 9, 10.39, and 11.28. (B) Response fitting curve of cyano Raman peak displacement of SERS probes in the range of pH = 3−9.
Biosensors 13 00021 g008
Biosensors 13 00021 g009 550

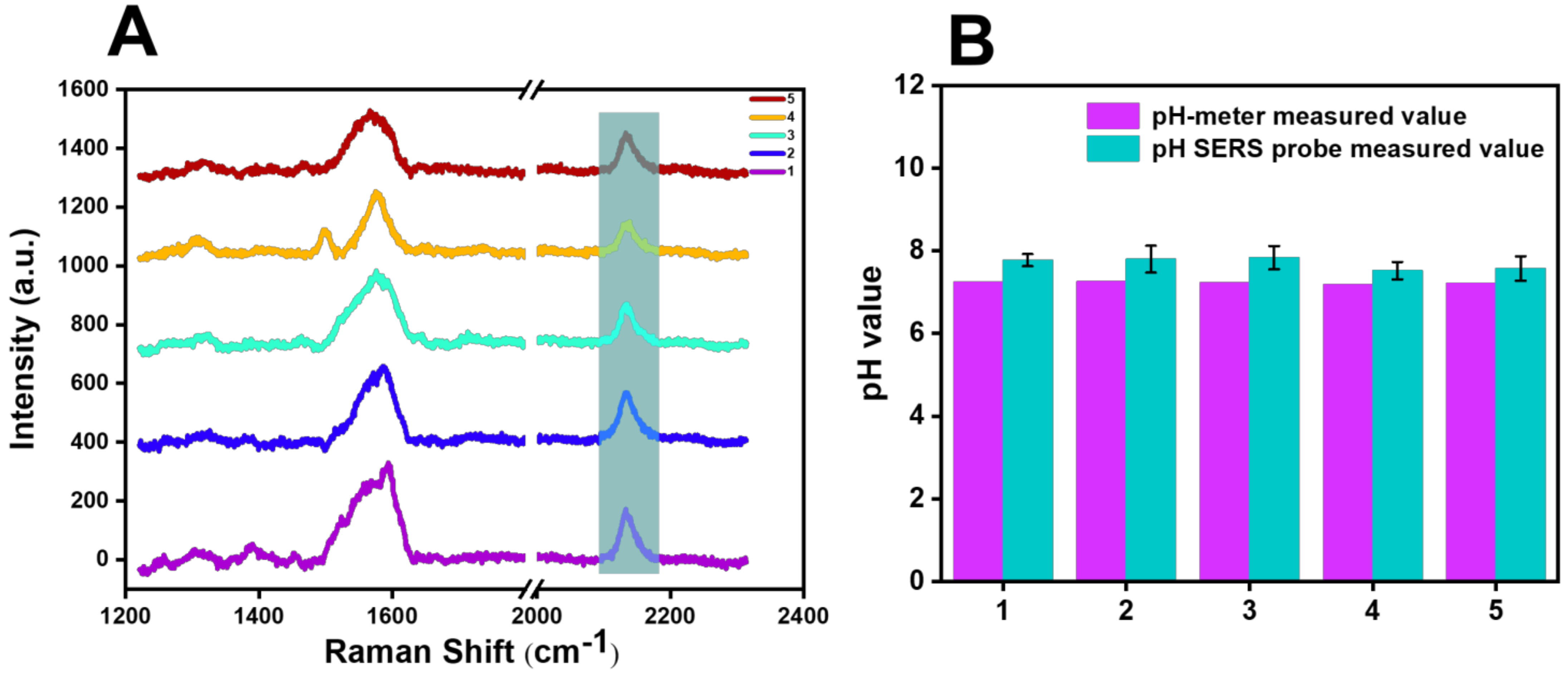

Figure 9. (A) Raman spectra of the 5 selected sets of river-water samples examined with the SERS probe. (B) Comparison of the results of pH values calculated after SERS probe detection and pH measured by pH meter for 5 groups of river-water samples.
Figure 9. (A) Raman spectra of the 5 selected sets of river-water samples examined with the SERS probe. (B) Comparison of the results of pH values calculated after SERS probe detection and pH measured by pH meter for 5 groups of river-water samples.
Biosensors 13 00021 g009
Biosensors 13 00021 g010 550

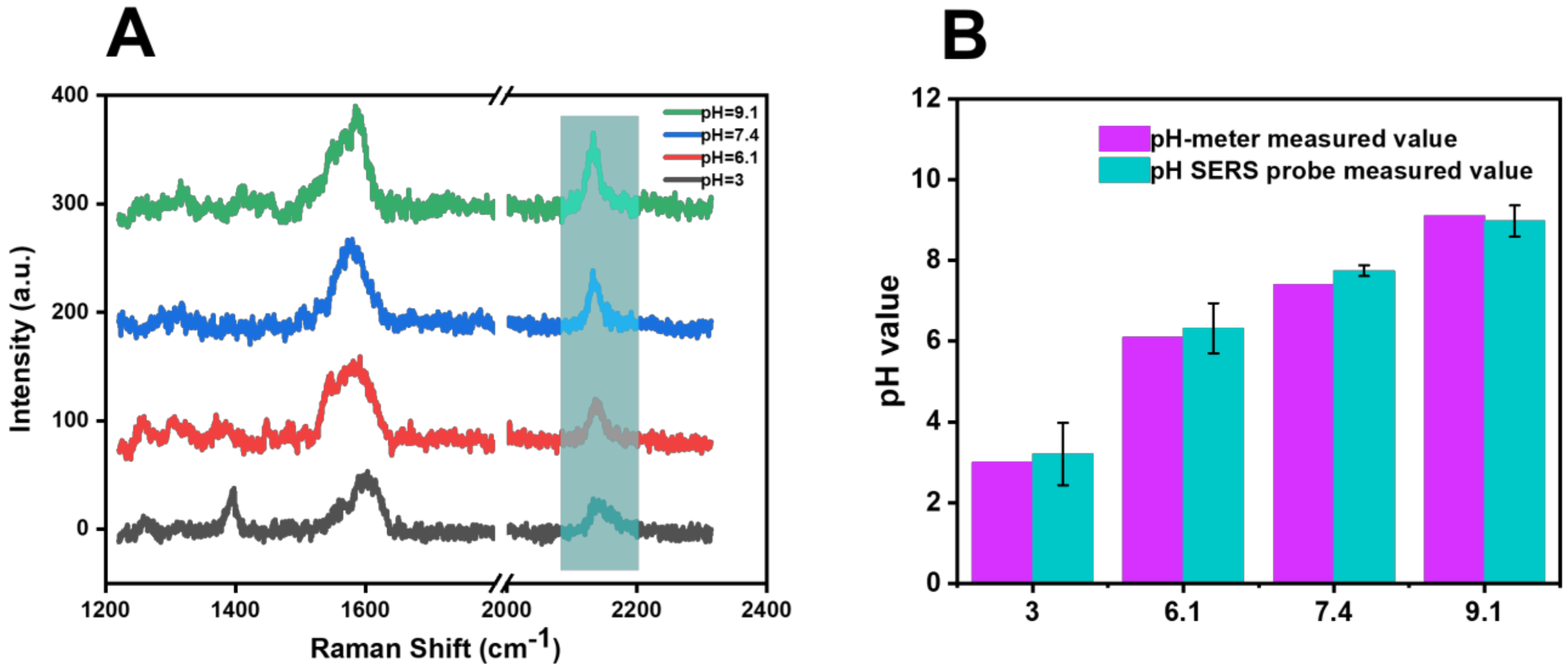

Figure 10. (A) Raman spectra of river −water samples with altered acid −base detected by SERS probe. (B) Comparison of the calculated pH results of river-water samples with altered acid −base detected by SERS probe and with pH results determined by pH meter.
Figure 10. (A) Raman spectra of river −water samples with altered acid −base detected by SERS probe. (B) Comparison of the calculated pH results of river-water samples with altered acid −base detected by SERS probe and with pH results determined by pH meter.
Biosensors 13 00021 g010
Table
Table 1. Detection data of 5 groups of river-water samples.
Table 1. Detection data of 5 groups of river-water samples.
NumberRaman Shift (cm−1)pH-Meter
Measured Value		pH SERS Probe
Measured Value		RSD (100%)
1
2
3
4
5		2135.61
2135.61
2135.53
2136.19
2136.09		7.24
7.26
7.23
7.19
7.22		7.80
7.80
7.84
7.52
7.57		7.80%
7.50%
8.47%
4.71%
4.93%
Table
Table 2. Detection data of river-water samples with altered acidity and alkalinity.
Table 2. Detection data of river-water samples with altered acidity and alkalinity.
pH-Meter Measured ValueCyano Raman Shift (cm−1)pH SERS Probe Measured ValueRSD (100%)
3
6.1
7.4
9.1		2145.27
2138.72
2135.73
2133.00		3.2
6.32
7.74
9.04		6.82%
3.67%
4.59%
0.53%
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Shen, J.; Liu, G.; Zhang, W.; Shi, W.; Zhou, Y.; Yu, Z.; Mei, Q.; Zhang, L.; Huang, W. Design and Detection of Cyanide Raman Tag pH-Responsive SERS Probes. Biosensors 2023, 13, 21. https://doi.org/10.3390/bios13010021

AMA Style

Shen J, Liu G, Zhang W, Shi W, Zhou Y, Yu Z, Mei Q, Zhang L, Huang W. Design and Detection of Cyanide Raman Tag pH-Responsive SERS Probes. Biosensors. 2023; 13(1):21. https://doi.org/10.3390/bios13010021

Chicago/Turabian Style

Shen, Jingjing, Guan Liu, Wen Zhang, Wenwen Shi, Yang Zhou, Zejie Yu, Qunbo Mei, Lei Zhang, and Wei Huang. 2023. "Design and Detection of Cyanide Raman Tag pH-Responsive SERS Probes" Biosensors 13, no. 1: 21. https://doi.org/10.3390/bios13010021

APA Style

Shen, J., Liu, G., Zhang, W., Shi, W., Zhou, Y., Yu, Z., Mei, Q., Zhang, L., & Huang, W. (2023). Design and Detection of Cyanide Raman Tag pH-Responsive SERS Probes. Biosensors, 13(1), 21. https://doi.org/10.3390/bios13010021

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
