Novel Sulfur/Ethylenediamine-Functionalized Reduced Graphene Oxide Composite as Cathode Material for High-performance Lithium-Sulfur Batteries

by
Zhuo Chen
1,
Zhenghao Sun
1,
Yongguang Zhang
1,*,
Taizhe Tan
2,
Yuan Tian
1,* and
Zhihong Chen
3,*
1
School of Materials Science and Engineering, Research Institute for Energy Equipment Materials, Hebei University of Technology, Tianjin 300130, China
2
Synergy Innovation Institute of GDUT, Heyuan 517000, China
3
Shenyang Institute of Automation in Guangzhou, Chinese Academy of Sciences, Guangzhou 511458, China
*
Authors to whom correspondence should be addressed.
Nanomaterials 2018, 8(5), 303; https://doi.org/10.3390/nano8050303
Submission received: 31 March 2018 / Revised: 1 May 2018 / Accepted: 1 May 2018 / Published: 6 May 2018
Browse Figures
Versions Notes

Abstract

:
Sulfur/ethylenediamine-functionalized reduced graphene oxide (S/EDA-RGO) nanocomposites were synthesized using a simple process. Ethylenediamine (EDA) was employed as both the reducing agent and the modification component. The morphologies, microstructures, and compositions of S/EDA-RGO composites were characterized by various detection techniques. The data indicated that EDA-RGO used as scaffolds for sulfur cathodes could enhance the electronic conductivity of the composites and strengthen the adsorbability of polysulfides. Meanwhile, the electrochemical properties of both S/EDA-RGO and S/RGO composites that were used as cathodes for lithium-sulfur (Li-S) batteries were investigated. The initial discharge capacity of S/EDA-RGO composites reached 1240 mAh g−1, with reversible capacity being maintained at 714 mAh g−1 after 100 cycles. The improvement in cycling stability of S/EDA-RGO composites was further verified at different current rates. These findings demonstrated that proper surface modification of RGO by EDA reducing agent might improve the electrochemical performances of Li–S batteries.

1. Introduction

Lithium-sulfur (Li-S) batteries are the most widely used renewable energy storage systems, due to their high theoretical specific capacities (around 1675 mAh g-1), low cost, natural abundance, and low toxicity of sulfur [1,2]. However, although these advantages benefited from high-energy rechargeable Li–S batteries, their applications as energy storage devices are still limited. First, the poor electronic conductivity of sulfur results in low utilization efficiency of sulfur cathode and poor cycle life during charge-discharge processes [3]. Second, the dissolution of polysulfides is unavoidable, leading to shuttle effect, low coulombic efficiency, poor cycle stability, and high self-discharge rate [4,5]. Besides, the large volume expansion of sulfur cathode causes fast capacity decay due to severe electrode pulverization [6,7].
To address these issues, various carbon materials have been proposed for the modification of sulfur cathodes to yield high-performance electrodes. These include graphene [8,9,10], carbon nanotubes [11,12,13], hollow carbon nanostructures [14,15], and mesoporous carbon [16,17]. When compared to these carbon nanomaterials, graphene is a promising two-dimensional carbon with excessive high theoretical specific surface area, superior electrical conductivity, good mechanical properties, and chemical stability. Graphene is found to be appropriate to host sulfur active materials [18,19]. Graphene-enveloped sulfur composites do not only enhance the conductivity of cathode, but also improve both the ionic and electronic transport through shorter diffusion pathways [20].
However, polar polysulfides often escape from nonpolar carbon frameworks. Therefore, functionalized frameworks providing significant functional groups on carbon surfaces to anchor sulfur and suppress polysulfides dissolution have been designed [21]. For instance, Manthiram et al. prepared hydroxylated graphene-sulfur nanocomposites with an improved cycling stability of Li-S batteries [22]. Furthermore, the modification of sulfur/reduced graphene oxides (S/RGO) composites with amino groups was found to be effective in binding polysulfides and yield enhanced discharge capacity and cycle performance. Among the available functional groups, we suggest that amino functionalized reduced graphene oxides-sulfur nanocomposites may prevent polysulfides dissolution in electrolytes through amino groups cross-linked to carbon host and polysulfides, while a functionalized carbon framework may effectively improve the electrical conductivity [23,24].
Here, a novel process was employed to synthesize sulfur/ethylenediamine-modified reduced graphene oxide (S/EDA-RGO) nanocomposites modified electrodes. Ethylenediamine (EDA) acted as both the reducing agent and the modification component. The electrochemical performances of S/EDA-RGO nanocomposites cathodes showed obvious improvements when compared to sulfur/reduced graphene oxide (S/RGO) cathodes.

2. Experimental

2.1. Material Preparation

Graphene oxides (GO, 2 mg mL−1) were fabricated by the modified Hummers’ method [25,26]. Firstly, GO (15 mg) was uniformly dispersed in deionized water (30 mL) and then dehydrated ethylenediamine (EDA, ≥99.0%, 30 mL) by ultra-sonication. Secondly, the mixed solution was heated in an oil bath (80 °C) for 8 h, followed by magnetic stirring. The obtained black dispersion of EDA-RGO was freeze-dried in a vacuum oven at 60 °C for 24 h. Thirdly, the mixture was washed several times with deionized water and absolute ethyl alcohol, and then filtered off. Finally, the obtained powders of EDA-RGO were dried under vacuum at 60 °C for 8 h. The prepared 0.15 g EDA-RGO materials and 0.45 g commercial sulfur were mixed together in a mortar and were ground into powder for nearly 0.5 h. Then, the homogeneous mixture was transferred into a 10 mL stainless autoclave and was maintained at 155 °C for 12 h at argon atmosphere. After cooling down to the room temperature, the S/EDA-RGO composites were obtained. The sulfur content in the final composites was 63.5 wt %, as determined by chemical analysis (CHNS, Vario Micro Cube, Elementar, Langenselbold, Germany).

2.2. Characterization

The crystalline phases of the samples were conducted by X-ray diffraction (D8 Discover, Bruker, Karlsruhe, Germany) using Cu Kα radiation (λ = 0.1542 nm). The chemical transformations of the composites were detected by Fourier Transform Infrared Spectroscopy (FT-IR, Nicolet, Thermo Scientific, Waltham, MA, USA) using KBr pellet method. The Raman spectra were obtained by a Raman microscope (Thermo Scientific, Waltham, MA, USA), from 100 cm−1 to 3200 cm−1 using a laser excitation wavelength of 514 nm. X-ray photoelectron spectroscopy (XPS) measurements were analyzed with a PHI 5000 Versa Probe system (Ulvac-Phi, Kanagawa, Japan). The surface morphologies and the microstructure were examined by scanning electron microscopy (SEM, JSM-6700F, JEOL, Tokyo, Japan) and high-resolution transmission electron microscopy (HRTEM, JEM-2100F, JEOL, Tokyo, Japan).

2.3. Electrochemical Measurements

CR2025 coin-type cells were assembled in high purity argon-filled MBraun glove box. All of the electrochemical measurements were carried out using a Neware battery testing system (BT-2000, Arbin Instruments, College Station, TX, USA) between 1.5 V and 3 V (vs. Li/Li+) at room temperature. The cell consisted of S/EDA-RGO composite cathode and lithium metal anode sandwiched by microporous polypropylene membrane as the separator soaked in 75 μL electrolyte, which is a solution of 1M lithium bis (trifluoromethane) sulfonamide (LiTFSI) mixed with 1, 2-dioxolane, and dimethoxymethane (1:1 by volume). The cathode comprised of S/EDA-RGO composite, Super P conducting agent, and polyvinylidene fluoride (PVDF) as a binder (8:1:1 by weight), dissolved in N-methylpyrrolidone. The resultant slurry was uniformly spread on an aluminum foil current collector, dried at 60 °C for 12 h, and then cut into circular disks with 1 cm in diameter. The sulfur loading amount of each electrode sheet is approximately 3 mg cm-2.

3. Results and Discussion

To compare the microstructural properties and chemical compositions of the samples, several detection techniques, including XRD, Raman, Fourier Transform Infrared Spectroscopy (FT-IR), and X-ray photoelectron spectroscopy (XPS) were used for characterization. The XRD patterns of EDA-RGO showed broad and weak peaks that were centered at around 23.6° (Figure 1), corresponding to (002) diffraction. The absence of (001) diffraction peak centered at around 11° indicated the decreased partial reduction of graphene oxides (GO) [27]. The XRD patterns of S/EDA-RGO composite depicted a characteristic peak at 23.6°, which was assigned to RGO. The other well-resolved diffraction peaks can be indexed to the sulfur orthorhombic phase (JCPDS No. 08-0247), confirming the presence of crystallized sulfur in S/EDA-RGO composite [28,29].
Raman spectroscopy is a powerful non-destructive tool that is suitable for distinguishing ordered from disordered crystalline structures of carbon-based materials [30]. The Raman spectra of S/EDA-RGO composite, EDA-RGO composite, and GO are shown in Figure 2, summarizing the Raman peak positions at different ratios. The Raman spectra of S/EDA-RGO composite in Figure 2a illustrated five remarkable peaks from 100 to 3200 cm−1. The two sharp peaks below 600 cm−1 can be assigned to the S-S bond in the S/EDA-RGO composite. The three typical peaks of graphene-based materials were indexed to D band, G band, and very weak two-dimensional (2D) band at around 2700 cm−1 [9]. The Figure 2b suggested that all of the samples possessed two broad peaks, D band around 1353 cm−1 and G band around 1597 cm−1, corresponding to defect-induced band and crystalline graphite band, respectively [31]. In general, the ratio of D peak to G peak (ID/IG) reflects the disorder degree of carbon materials. The ID/IG value of GO was less than that of the EDA-RGO composite (0.82 vs. 1.03). This partially confirmed disordered structures after the removal of oxygen-containing functional groups and attachments of amino functional groups after the oil bath process doped into the graphene layers [32,33]. After sulfur infiltration, the ID/IG value of the S/EDA-RGO composite dropped to 0.96, demonstrating that the reaction of sulfur with amino functional groups may decrease the disorder degree of the S/EDA-RGO composite [34].
The FT-IR spectra of S/EDA-RGO and EDA-RGO composites are depicted in Figure 3. According to literature [35], the broad band between 3000 and 3500 cm−1 was assigned to O-H stretching vibration, the adsorption band at 1720 cm−1 was attributed to C=O stretching vibration of carboxyl or carbonyl groups, the band at 1670 cm−1 was associated with the overlapping absorption signals from C=C stretching vibration, and the band at 1050 cm−1 was linked to C-O stretching vibration [36]. For the EDA-RGO composite, the C=O and C-O peaks almost vanished, further indicating the successful partial reduction of the oxygen-containing function by ethylenediamine reaction with GO. Also, two new broad bands that were associated with N–H (1568 cm−1) of primary amines and aliphatic C–N (1200 cm−1) stretching vibrations were observed, demonstrating the successful functionalization of EDA on GO [37,38,39]. These data were consistent with the XPS analysis, confirming the successful chemical reduction and the surface modification of the EDA-RGO composite. On the other hand, intense peaks were observed at around 2852 and 2920 cm−1, corresponding to C-H stretching and suggesting the presence of amine functional groups on the GO surface [40].
The XPS spectra of S/EDA-RGO composite are depicted in Figure 4a. The characteristic peaks were observed at 533.4 eV (O 1s), 400.5 eV (N 1s), 283.9 eV (C 1s), 227.1 eV (S 2s), and 164.9 eV (S 2p). This profile confirmed the existence of nitrogen and the incorporation of sulfur in the S/EDA-RGO composite. The C 1s peak of S/EDA-RGO showed a significantly strong intensity in the XPS survey scan when compared to that of the O 1s peak. The latter clearly manifested de-oxygenation during the reduction process. The curve-fitted C 1s spectrum of S/EDA-RGO composite is presented in Figure 4b. After chemical reduction by EDA, the main peaks in C 1s spectrum of S/EDA-RGO were assigned to C-C (284.7 eV), C-O (286.7 eV), and C=O (287.8 eV), whereas the C-N peak component in amine (CH2-NH2) appeared at 285.6 eV. These features confirmed the successful reduction of GO to EDA-RGO [41]. On the other hand, the peak of C-O and C=O exhibited much weaker intensities in the S/EDA-RGO composite. This further explained the EDA functionalization on RGO that was observed with high-resolution XPS spectra based on the presence of the N1 s peak (Figure 4c). The latter could be seen from the two binding energies that were located at 398.3 eV and 399.4 eV, indicating the formation of CO–NH and CH2–NH2, respectively [42]. These data demonstrated the successful de-oxygenation by nitrogen incorporation from EDA reducing agent, which agreed well with the FT-IR data. Figure 4d displays the S2p spectra of S/EDA-RGO composite. The S 2p1/2 and S 2p3/2 peaks were located at 163.5 eV and 164.7 eV, respectively. The two other peaks that were centered at 168.2 eV and 161.7 eV could be ascribed to surface oxidation of sulfur or the interaction between sulfur and RGO [43]. The characterization by XRD, Raman, FT-IR, and XPS all suggested the successful synthesis of RGO by EDA reducing agent, along with sulfur composites.
The morphology and microstructure of the S/EDA-RGO composite were carried out by SEM in Figure 5. The SEM images of the interlaced S/EDA-RGO composites showed that the sulfur was covered with the surface of EDA-RGO through van der Waals forces, which irregularly stacked together. The high-magnification SEM (Figure 5c) clearly illustrated that the S/EDA-RGO composites displayed a loose and porous nanostructure, promoting the electrolyte diffusion into the composite bulk and the electrochemical reactions. The EDX mapping of Figure 5d–f exhibited a high ratio of sulfur content and the homogeneous distribution of EDA-RGO in the S/EDA-RGO composites. It suggested that EDA-RGO could anchor sulfur and polysulfides by functional groups.
To gain a better understanding of the influence of EDA functionalized RGO in trapping polysulfides, various electrochemical measurements of Li–S battery cathodes that were based on S/RGO and S/EDA-RGO composites were carried out. Figure 6 shows the CV profiles of S/RGO and S/EDA-RGO cathodes between 1.5 V and 3 V after the first cycle at scan rate of 0.1 mV s−1. Distinct oxidation and reduction peaks were visible. The cathodic peaks of S/EDA-RGO that were located at around 2.3 V and 2.1 V were assigned to reduction of sulfur (S8) to soluble high-order lithium polysulfides (Li2Sn, 8 ≥ n ≥ 4), and then further to insoluble lower-order lithium polysulfides Li2S2 (Li2S), respectively [44]. The only observed anodic peak of S/EDA-RGO at approximately 2.4 V was attributed to the conversion of Li2S2 (Li2S) to sulfur [45]. As can be seen from Figure 6, the redox peaks of S/EDA-RGO shifted slightly when compared to those of the S/RGO composite, indicating the relatively large polarization of the electrodes.
Figure 7a,b exhibit the charge/discharge curves of S/RGO and S/EDA-RGO composites cathodes at 0.1 C, respectively. Obviously, the two plateaus of discharge voltage of S/EDA-RGO composites that were obtained after the 1st, 50th, and 100th cycle at 0.1 C are consistent with the two cathodic reduction peaks in CV profiles. The S/EDA-RGO voltage-capacity profiles showed slightly better electrochemical performances when compared to the S/RGO composite due to EDA functionalization, which can enhance the electronic conductivity of sulfur cathode and suppress the lithium polysulfides that were dissolved in the electrolyte. Hence, the negatively charged lithium polysulfides could be trapped tightly by the positively charged EDA [46]. Moreover, the discharge plateaus of S/EDA-RGO composites are obviously stable over 100 cycles, indicating the excellent electrochemical stability of S/EDA-RGO composites.
The cycling performance of S/RGO and S/EDA-RGO composites for Li–S batteries was tested between 1.5 V and 3.0 V at 0.1 C, and the results are represented in Figure 8. The discharge capacities of S/RGO and S/EDA-RGO composites were estimated to be 1021 mAh g-1 and 1240 mAh g−1 for the first cycle, respectively. The initial coulombic efficiency of S/EDA-RGO reached 100%, whereas that of S/RGO composite decreased to 95%. The S/EDA-RGO composite cathode also showed better cycling performance than unfunctionalized S/RGO. After 100 cycles, and when compared to S/RGO, the S/EDA-RGO composite revealed exceptionally stable discharge capacity of 714 mAh g−1 with a corresponding coulombic efficiency of 98%. Therefore, EDA functionalization effectively improved the cycling stability of the S/RGO composite cathode.
The rate capability of S/RGO and S/EDA-RGO composites were performed at various C rates (Figure 9). The S/EDA-RGO composites delivered current densities that were reaching 1189 mAh g−1, 1106 mAh g−1, 1052 mAh g−1, 985 mAh g−1, and 932 mAh g−1 at 0.1 C, 0.2 C, 0.5 C, 1 C, and 2 C, respectively. After switching again to 0.1 C, the obtained discharge capacity of S/EDA-RGO composite cathode reached 1013 mAh g−1.
The electrochemical impedance spectroscopy (EIS) measurements of S/RGO and S/EDA-RGO cathodes were carried out, and the data are summarized in Figure 10. Both Nyquist impedance plots exhibited semicircles at high frequency and straight line at low frequency. The equivalent circuit model is shown in the inset, including R1 (resistance of electrolyte and electrode), R2 (charge transfer resistance), CPE (constant phase capacitance), and ZW (Warburg impedance) [47]. The semicircle corresponds to the charge transfer resistance, followed by a straight line of Warburg impedance for ion diffusion in the cathode. Comparison of both Nyquist impedance plots suggested that the electronic conductivity of S/EDA-RGO was higher than that of the S/RGO composite.
To confirm the enhanced electrochemical performances of EDA functionalization-modified RGO, the further comparison among S/GO, S/MWNT, S/RGO, and S/EDA-RGO cathodes of Li-S batteries were carried out and the results are compiled in Table 1. The electrochemical performances of the S/EDA-RGO composite cathode that was obtained here were better than those of the previously reported results [48,49,50]. Overall, this confirmed that EDA functionalization-modified RGO could enhance the electronic conductivity of sulfur cathode and suppress the lithium polysulfides that were dissolved in the electrolyte.

4. Conclusions

S/EDA-RGO composite was successfully obtained by an EDA functional-modified RGO. The EDA functionalization did not only improve the electronic conductivity of carbon framework, but also suppressed lithium polysulfides diffusion in the electrolyte. As the C rate gradually increased, the discharge capacities of S/RGO and S/EDA-RGO cathodes decreased. It will be noted that the S/EDA-RGO composite presented a steady reversible discharge capacity of 932 mAh g−1 at 2 C, which was higher than that of the S/RGO cathode. When the current rate returned back to 0.1 C, the capacity of S/EDA-RGO composite cathode recovered to 1013 mAh g−1, indicating the stable structure of S/EDA-RGO and its promise as a cathode material for Li-S batteries.

Author Contributions

Y.Z. and Y.T. conceived and designed the experiments; Z.C., Y.T. and Z.S. performed the experiments; Z.S., Z.C. and Y.T. analyzed the data; Y.Z., T.T., Y.T. and Z.C. contributed in the drafting and revision of the manuscript; Y.Z. supervised the work and finalized the manuscript.

Funding

This research was funded by the Program for the Outstanding Young Talents of Hebei Province; Ministry of Human Resources and Social Security of China [grant number CG2015003002]; Guangdong Provincial Science and Technology Project [grant number 2017A050506009].

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Rosenman, A.; Markevich, E.; Salitra, G.; Aurbach, D.; Garsuch, A.; Chesneau, F.F. Review on Li-Sulfur battery systems: An integral perspective. Adv. Energy Mater. 2015, 5, 1500212. [Google Scholar] [CrossRef]
  2. Yin, Y.X.; Xin, S.; Guo, Y.G.; Wan, L.J. Lithium-sulfur batteries: Electrochemistry materials, and prospects. Angew Chem. Int. Ed. Engl. 2013, 52, 13186–13200. [Google Scholar] [CrossRef] [PubMed]
  3. Zhang, Z.Y.; Lai, Y.Q.; Zhang, Z.; Zhang, K.; Li, J. Al2O3-coated porous separator for enhanced electrochemical performance of lithium sulfur batteries. Electrochim. Acta 2014, 129, 55–61. [Google Scholar] [CrossRef]
  4. Hassoun, J.; Kim, J.; Lee, D.J.; Jung, H.G.; Lee, S.M.; Sun, Y.K.; Scrosat, B. A contribution to the progress of high energy batteries: A metal-free, lithium-ion, silicon-sulfur battery. J. Power Sources 2012, 202, 308–313. [Google Scholar] [CrossRef]
  5. Yim, T.; Park, M.S.; Yu, J.S.; Kim, K.J.; Im, K.Y.; Kim, J.H.; Jeong, G.; Jo, Y.N.; Woo, S.G.; Kang, K.S.; et al. Effect of chemical reactivity of polysulfide toward carbonate-based electrolyte on the electrochemical performance of Li-S batteries. Electrochim. Acta 2013, 107, 454–460. [Google Scholar] [CrossRef]
  6. Xiao, J.; Hu, J.Z.; Chen, H.H.; Vijayakumar, M.; Zheng, J.M.; Pa, H.J.; Walter, E.D.; Hu, M.Y.; Deng, X.H.; Feng, J.; et al. Following the transient reactions in lithium-sulfur batteries using an in situ nuclear magnetic resonance technique. Nano Lett. 2015, 15, 3309–3316. [Google Scholar] [CrossRef] [PubMed]
  7. Zhang, S.S.; Tran, D.T. New insight into liquid electrolyte of rechargeable lithium/sulfur battery. Electrochim. Acta 2013, 114, 296–302. [Google Scholar] [CrossRef]
  8. Zhang, Y.; Sun, L.; Li, H.; Tan, T.; Li, J. Porous three-dimensional reduced graphene oxide for high performance lithium-sulfur batteries. J. Alloy. Compd. 2018, 739, 290–297. [Google Scholar] [CrossRef]
  9. Evers, S.; Nazar, L.F. Graphene-enveloped sulfur in a one pot reaction: A cathode with good coulombic efficiency and high practical sulfur content. Chem. Commun. 2012, 48, 1233–1235. [Google Scholar] [CrossRef] [PubMed]
  10. Tian, Y.; Sun, Z.; Zhang, Y.; Wang, X.; Bakenov, Z.; Yin, F. Micro-spherical sulfur/graphene oxide composite via spray drying for high performance lithium sulfur batteries. Nanomaterials 2018, 8, 50. [Google Scholar] [CrossRef] [PubMed]
  11. Moon, S.; Jung, Y.H.; Jung, W.K.; Jung, D.S.; Choi, J.W.; Kim, D.K. Encapsulated monoclinic sulfur for stable cycling of Li-S rechargeable batteries. Adv. Mater. 2013, 25, 6547–6553. [Google Scholar] [CrossRef] [PubMed]
  12. Guo, J.C.; Xu, Y.H.; Wang, C.S. Sulfur-impregnated disordered carbon nanotubes cathode for lithium-sulfur batteries. Nano Lett. 2011, 11, 4288–4294. [Google Scholar] [CrossRef] [PubMed]
  13. Ji, L.; Rao, M.; Aloni, S.; Wang, L.; Cairns, E.J.; Zhang, Y. Porous carbon nanofiber-sulfur composite electrodes for lithium/sulfur cells. Energy Environ. Sci. 2011, 4, 5053. [Google Scholar] [CrossRef]
  14. Zheng, G.Y.; Yang, Y.; Cha, J.J.; Hong, S.S.; Cui, Y. Hollow carbon nanofiber-encapsulated sulfur cathode for high specific capacity rechargeable lithium batteries. Nano Lett. 2011, 11, 4462–4467. [Google Scholar] [CrossRef] [PubMed]
  15. Jayaprakash, N.; Shen, J.; Moganty, S.S.; Corona, A.; Archer, L.A. Porous hollow carbon@sulfur composites for high-power lithium/sulfur batteries. Angew. Chem. Int. Ed. 2011, 50, 5904–5908. [Google Scholar] [CrossRef] [PubMed]
  16. Ji, X.; Lee, K.T.; Nazar, L.F. A highly ordered nanostructured carbon-sulphur cathode lithium/sulphur batteries. Nat. Mater. 2009, 8, 500–506. [Google Scholar] [CrossRef] [PubMed]
  17. Chen, S.R.; Zhai, Y.P.; Xu, G.L.; Jiang, Y.X.; Zhao, D.Y.; Li, J.T.; Huang, L.; Sun, S.G. Ordered mesoporous carbon/sulfur nanocomposite of high performances as cathode for lithium-sulfur battery. Electrochim. Acta 2011, 56, 9549–9555. [Google Scholar] [CrossRef]
  18. Li, H.; Wei, Y.; Zhang, Y.; Zhang, C.; Wang, G.; Zhao, Y.; Yin, F.; Bakenov, Z. In situ sol-gel synthesis of ultrafine ZnO nanocrystals anchored on graphene as anode material for lithium-ion batteries. Ceram. Int. 2016, 42, 12371–12377. [Google Scholar] [CrossRef]
  19. Shi, W.H.; Zhu, J.X.; Sim, D.H.; Tay, Y.Y.; Lu, Z.Y.; Zhang, X.J.; Sharma, Y.; Srinivasan, M.; Zhang, H.; Hng, H.H.; et al. Achieving high specific charge capacitances in Fe3O4/reduced graphene oxide nanocomposites. J. Mater. Chem. 2011, 21, 3422–3427. [Google Scholar] [CrossRef]
  20. Huang, X.; Sun, B.; Li, K.; Chen, S.; Wang, G. Mesoporous graphene paper immobilized sulfur as a flexible electrode for lithium-sulfur batteries. J. Mater. Chem. A 2013, 1, 13484–13489. [Google Scholar] [CrossRef]
  21. Wang, Z.G.; Niu, X.Y.; Xiao, J.; Wang, C.M.; Liu, J.; Gao, F. First principle prediction of nitrogen-doped carbon nanotubes as a high-performance cathode for Li-S batteries. RSC Adv. 2013, 3, 16775–16780. [Google Scholar] [CrossRef]
  22. Zu, C.X.; Manthiram, A. Hydroxylated graphene-sulfur nanocomposites for high-rate lithium-sulfur batteries. Adv. Energy Mater. 2013, 3, 1008–1012. [Google Scholar] [CrossRef]
  23. Zhang, L.; Ji, L.; Glans, P.A.; Zhang, Y.; Zhu, J.; Guo, J. Electronic structure and chemical bonding of a graphene oxide-sulfur nanocomposite for use in superior performance lithium-sulfur cells. Phys. Chem. Chem. Phys. 2012, 14, 13670–13675. [Google Scholar] [CrossRef] [PubMed]
  24. Ji, L.; Rao, M.; Zheng, H.; Zhang, L.; Li, O.Y.; Duan, W. Graphene oxide as a sulfur immobilizer in high performance lithium/sulfur cells. J. Am. Chem. Soc. 2011, 133, 18522–18525. [Google Scholar] [CrossRef] [PubMed]
  25. Hummers, W.S.; Offeman, R.E. Preparation of graphitic oxide. J. Am. Chem. Soc. 1958, 80, 1339. [Google Scholar] [CrossRef]
  26. Xu, Y.X.; Zhao, L.; Bai, H.; Hong, W.J.; Li, C.; Shi, G.Q. Chemically converted graphene induced molecular flattening of 5, 10, 15, 20-tetrakis (1-methyl-4-pyridinio) porphyrin and its application for optical detection of cadmium ions. J. Am. Chem. Soc. 2009, 131, 13490–13497. [Google Scholar] [CrossRef] [PubMed]
  27. Tursun, A.; Aminam, U.; Jamal, R.; Adalet, R. Solid-state synthesis of polyaniline/single-walled carbon nanotubes: A comparative study with polyaniline/multi-walled carbon nanotubes. Materials 2012, 5, 1219–1231. [Google Scholar]
  28. Chen, R.; Zhao, T.; Lu, J.; Wu, F.; Li, L.; Chen, J.; Tan, G.; Ye, Y.; Amine, K. Graphene-based three-dimensional hierarchical sandwich-type architecture for high-performance Li/S batteries. Nano Lett. 2013, 13, 4642–4649. [Google Scholar] [CrossRef] [PubMed]
  29. Zheng, S.; Chen, Y.; Xu, Y.; Yi, F.; Zhu, Y.; Liu, Y.; Yang, J.; Wang, C. In situ formed lithium sulfide/microporous carbon cathodes for lithium-ion batteries. ACS Nano 2013, 7, 10995–11003. [Google Scholar] [CrossRef] [PubMed]
  30. Ribeiro-Soares, J.; Oliveros, M.E.; Garin, G. Structural analysis of polycrystalline graphene systems by Raman spectroscopy. Carbon 2015, 95, 646–652. [Google Scholar] [CrossRef]
  31. Tuinstra, F.; Koenig, J.L. Raman spectrum of graphite. J. Chem. Phys. 2003, 53, 1126–1130. [Google Scholar] [CrossRef]
  32. Zhang, Y.G.; Zhao, Y.; Konarov, A.; Gosselink, D.; Soboleski, H.G.; Chen, P. A novel sulfur/polypyrrole/multi-walled carbon nanotube nanocomposite cathode with core-shell tubular structure for lithium rechargeable batteries. Solid State Ionics 2013, 238, 30–35. [Google Scholar] [CrossRef]
  33. Yun, Q.; Qin, X.; He, Y.B.; Lv, W.; Kaneti, Y.V.; Li, B.; Yang, Q.H.; Kang, F. Micronsized spherical Si/C hybrids assembled via water/oil system for high-performance lithium ion battery. Electrochim. Acta 2016, 211, 982–988. [Google Scholar] [CrossRef]
  34. Wang, Y.X.; Huang, L.; Sun, L.C.; Xie, S.Y.; Xu, G.L.; Chen, S.R.; Xu, Y.F.; Li, J.T.; Chou, S.L.; Dou, S.X.; et al. Facile synthesis of a interleaved expanded graphite-embedded sulphur nanocomposite as cathode of Li-S batteries with excellent lithium storage performance. J. Mater. Chem. 2012, 22, 4744–4750. [Google Scholar] [CrossRef]
  35. Wu, T.; Cai, X.; Tan, S.; Li, H.; Liu, J.; Yang, W. Adsorption characteristics of acrylonitrile p-toluenesulfonic acid, 1-naphthalenesulfonic acid and methyl blue on graphene in aqueous solutions. Chem. Eng. J. 2011, 173, 144–149. [Google Scholar] [CrossRef]
  36. Vuković, G.D.; Marinković, A.D.; Čolić, M.; Ristić, M.D.; Aleksić, R.; Perić-Grujić, A.A.; Uskoković, P.S. Removal of cadmium from aqueous solutions by oxided and ethylenediamine-functionalized multi-walled carbon nanotubes. Chem. Eng. J. 2010, 157, 238–248. [Google Scholar] [CrossRef]
  37. Veličković, Z.S.; Marinković, A.D.; Bajić, Z.J.; Marković, J.M.; Perić-Grujić, A.A.; Uskoković, P.S.; Ristić, M.D. Oxidized and ethylenediamine-functionalized multi-walled carbon nanotubes for the separation of the Low concentration arsenate from water. Sep. Sci. Technol. 2013, 48, 2047–2058. [Google Scholar] [CrossRef]
  38. Ramanathan, T.; Fisher, F.T.; Ruoff, R.S.; Brinson, L.C. Amino-functionalized carbon nanotubes for binding to polymers and biological systems. Chem. Mater. 2005, 17, 1290–1295. [Google Scholar] [CrossRef]
  39. Cao, L.; Sun, Q.Q.; Gao, Y.H.; Liu, L.T.; Shi, H.F. Novel acid-base hybrid membrane based on amine-functionalized reduced graphene oxide and sulfonated polyimide for vanadium redox flow battery. Electrochim. Acta 2015, 158, 24–34. [Google Scholar] [CrossRef]
  40. Xu, L.Q.; Yang, W.J.; Neoh, K.G.; Kang, E.T.; Fu, G.D. Dopamine-induced reduction and functionalization of graphene oxide nanosheets. Macromolecules 2010, 43, 8336–8339. [Google Scholar] [CrossRef]
  41. Zhang, S.L.; Song, Y.H.; Si, D.Y. Performance of reduced graphene oxide-sulfur composite prepared by hydrothermal method. Battery Bimon. 2016, 46, 129–132. [Google Scholar]
  42. Huang, T.; Zhang, L.; Chen, H.; Gao, C. Sol-gel fabrication of a non-laminated graphene oxide membrane for oil/water separation. J. Mater. Chem. A 2015, 3, 19517–19524. [Google Scholar] [CrossRef]
  43. Stankovich, S.; Dikin, D.A.; Piner, R.D.; Kohlhass, K.A.; Kleinhammes, A.; Jia, Y.; Wu, Y.; Nguyen, S.T.; Ruoff, R.S. Synthesis of graphene-based nanosheets via chemical reduction of exfoliated graphite oxide. Carbon 2007, 45, 1558–1565. [Google Scholar] [CrossRef]
  44. Deng, Z.F.; Zhang, Z.A.; Lai, Y.Q.; Liu, J.; Li, J.; Liu, Y.X. Electrochemical impedance spectroscopy study of a lithium/sulfur battery: Modeling and analysis of capacity fading. J. Electrochem. Soc. 2013, 160, A553–A558. [Google Scholar] [CrossRef]
  45. Canas, N.A.; Hirose, K.; Pascucci, B.; Wagner, N.; Friedrich, K.A.; Hiesgen, R. Investigation of lithium-sulfur batteries using electrochemical impedance spectroscopy. Electrochim. Acta 2013, 97, 42–51. [Google Scholar] [CrossRef]
  46. Ahad, S.A.; Kumae, P.R.; Kim, J.H.; Kim, D.J.; Ragupathy, P. Catecholamine-functionalized reduced graphene oxide: A scalable carbon host for stable cycling in lithium-sulfur batteries. Electrochim. Acta 2017, 246, 451–458. [Google Scholar] [CrossRef]
  47. Zhang, Y.G.; Bakenov, Z.; Zhao, Y.; Konarov, A.; Dian, T.N.L.; Nalik, M.; Paron, T.; Chen, P. One-step synthesis of branched sulfur/polypyrrole nanocomposite cathode for lithium rechargeable batteries. J. Power Sources 2012, 208, 1–8. [Google Scholar] [CrossRef]
  48. Zhang, Y.; Zhao, Y.; Bakenov, Z. A simple approach to synthesize nanosized sulfur/graphene oxide materials for high-performance lithium/sulfur batteries. Ionics 2015, 20, 1047–1050. [Google Scholar] [CrossRef]
  49. Zhao, Y.; Liu, X.; Zhang, Y.; Bakenov, Z.; Yin, F. Synthesis of Multiwalled Carbon Nanotube Aqueous Suspension with Surfactant Sodium Dodecylbenzene Sulfonate for Lithium/Sulfur Rechargeable Batteries. Electrochemistry 2016, 84, 7–11. [Google Scholar] [CrossRef]
  50. Lu, L.Q.; Lu, L.J.; Wang, Y. Sulfur film-coated reduced graphene oxide composite for lithium-sulfur batteries. J. Mater. Chem. A 2013, 1, 9173–9181. [Google Scholar] [CrossRef]
Nanomaterials 08 00303 g001 550

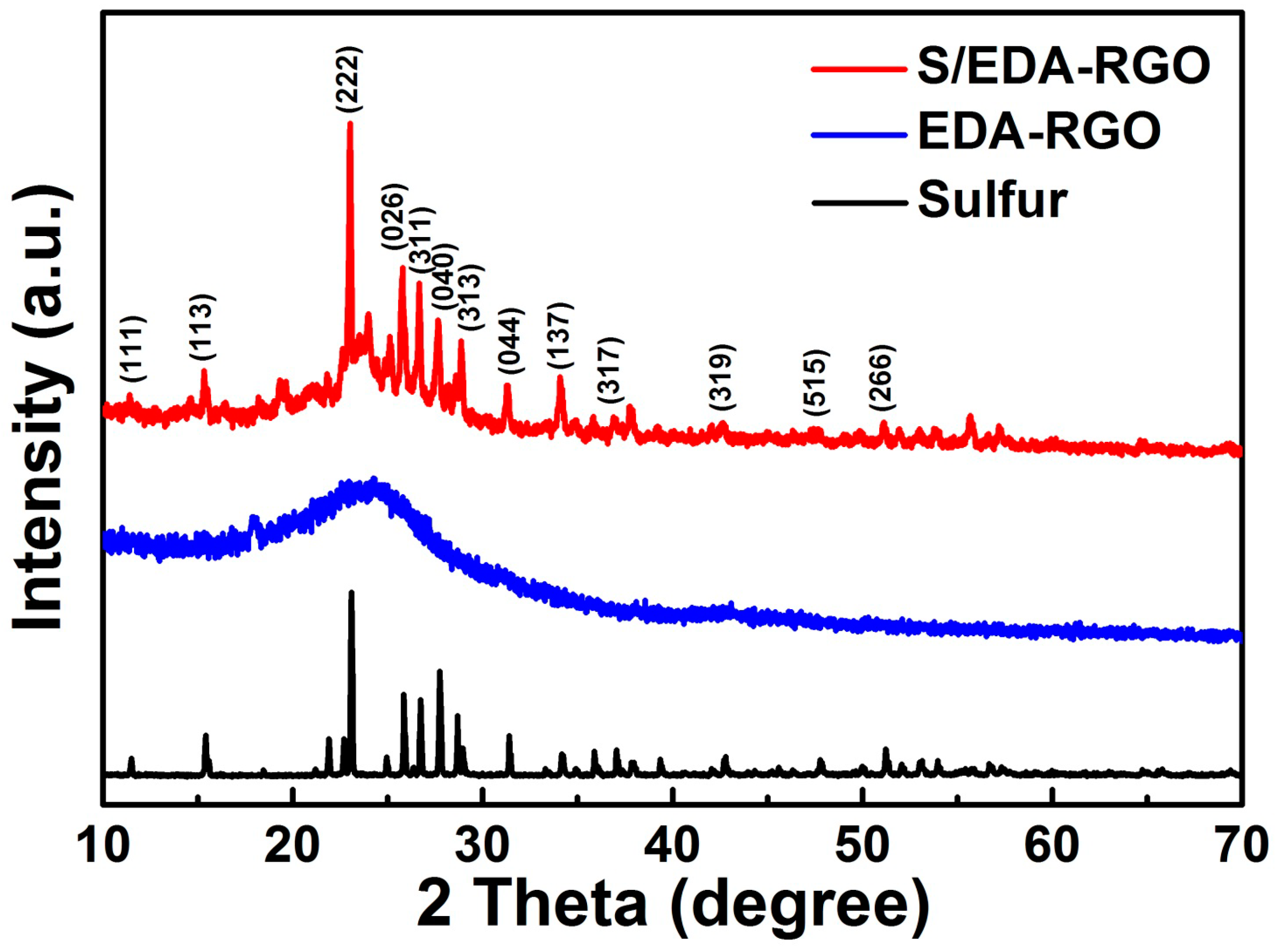

Figure 1. XRD patterns of Sulfur, ethylenediamine (EDA)-reduced graphene oxides (RGO), and sulfur/ethylenediamine-modified (S/EDA)-RGO composites.
Figure 1. XRD patterns of Sulfur, ethylenediamine (EDA)-reduced graphene oxides (RGO), and sulfur/ethylenediamine-modified (S/EDA)-RGO composites.
Nanomaterials 08 00303 g001
Nanomaterials 08 00303 g002 550
Figure 2. Raman spectra of S/EDA-RGO composite (a) and graphene oxides (GO), EDA-RGO composites (b).
Figure 2. Raman spectra of S/EDA-RGO composite (a) and graphene oxides (GO), EDA-RGO composites (b).
Nanomaterials 08 00303 g002
Nanomaterials 08 00303 g003 550

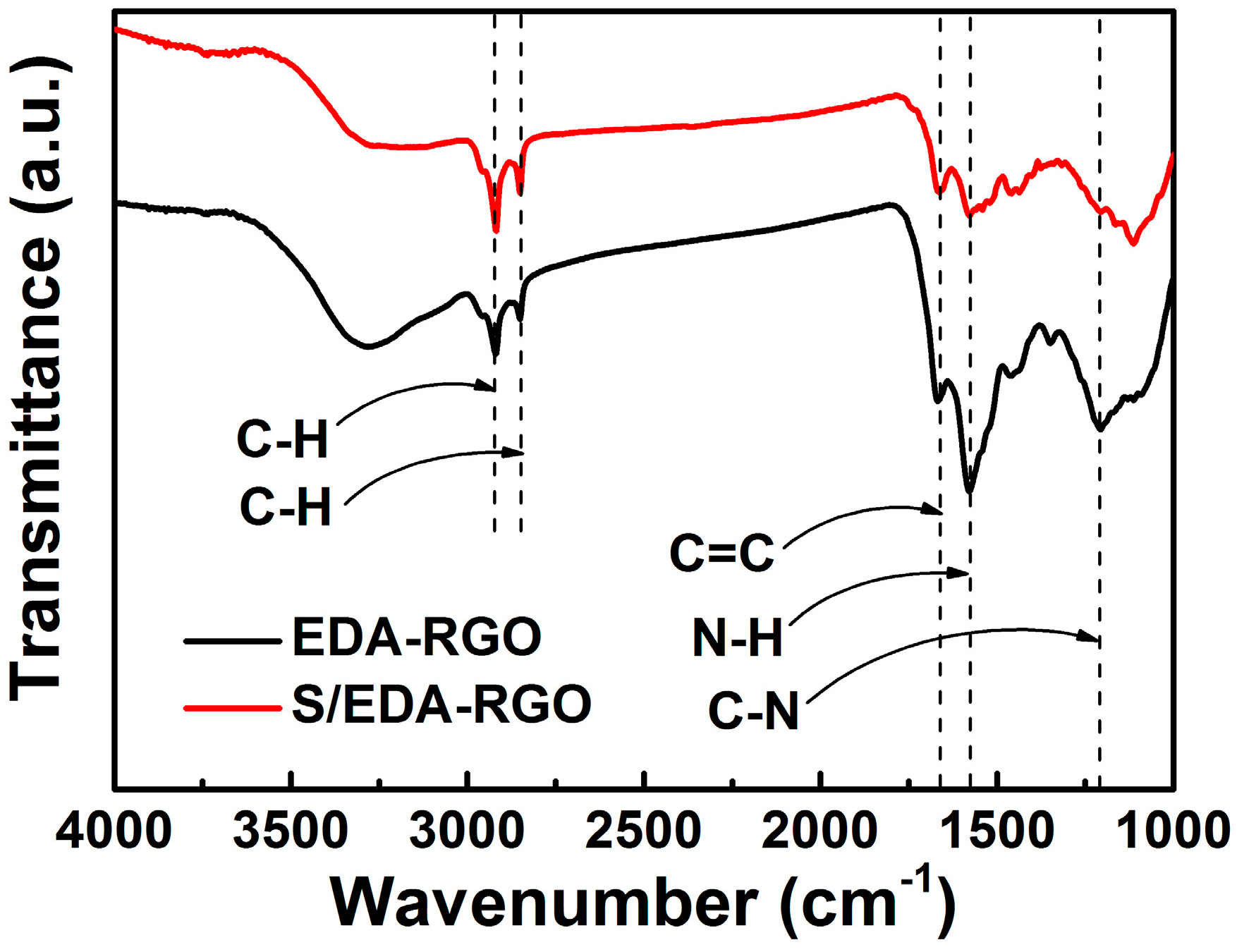

Figure 3. Fourier Transform Infrared Spectroscopy (FT-IR) spectra of EDA-RGO and S/EDA-RGO composites.
Figure 3. Fourier Transform Infrared Spectroscopy (FT-IR) spectra of EDA-RGO and S/EDA-RGO composites.
Nanomaterials 08 00303 g003
Nanomaterials 08 00303 g004 550

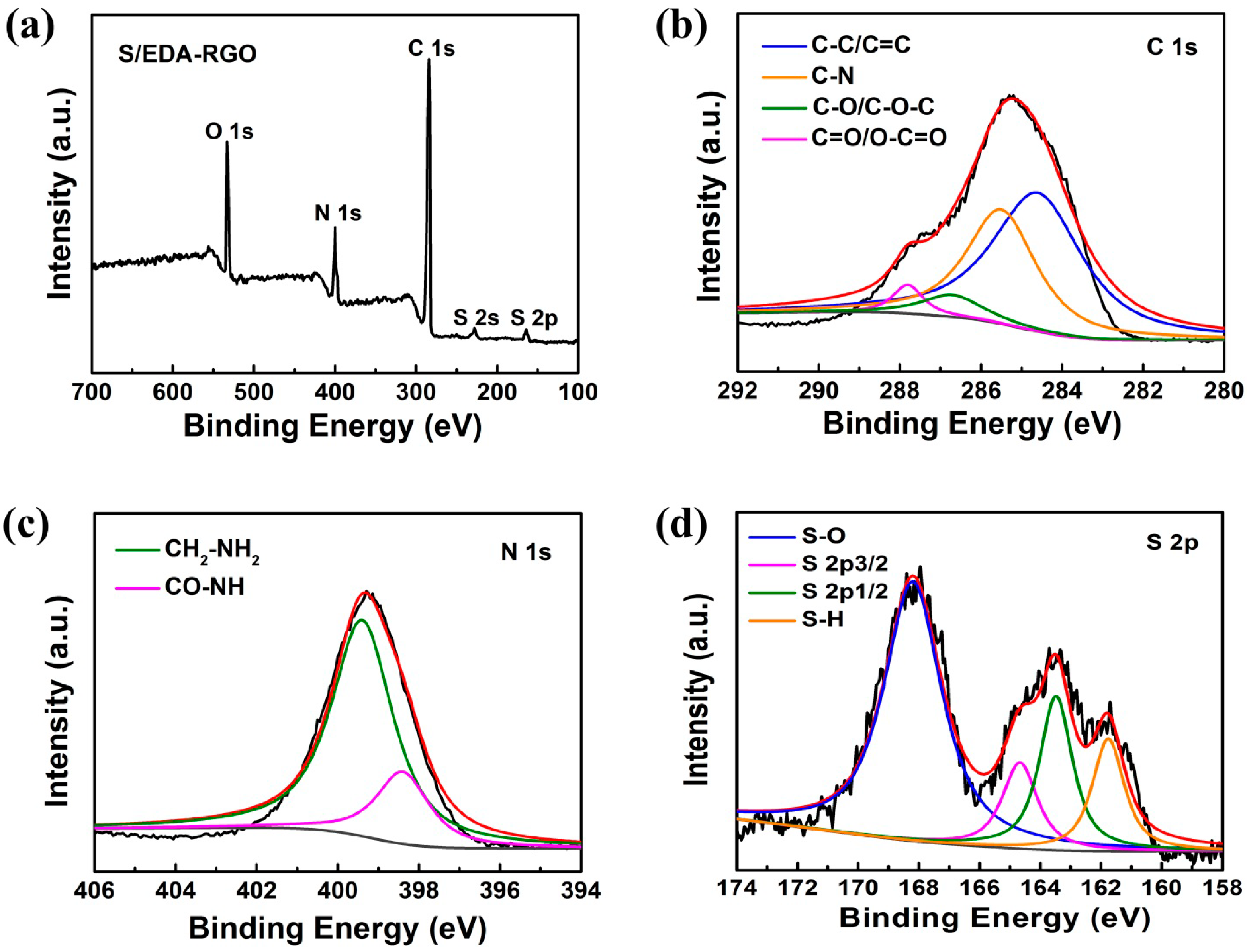

Figure 4. X-ray photoelectron spectroscopy (XPS) survey scan spectra (a), C 1s peaks (b), N 1s peaks (c), and S 2p peaks (d) of S/EDA-RGO composite.
Figure 4. X-ray photoelectron spectroscopy (XPS) survey scan spectra (a), C 1s peaks (b), N 1s peaks (c), and S 2p peaks (d) of S/EDA-RGO composite.
Nanomaterials 08 00303 g004
Nanomaterials 08 00303 g005 550
Figure 5. SEM images (a), (b), and (c) of S/EDA-RGO composites at different magnifications; EDX mapping (d), (e), and (f) showing distribution of sulfur, carbon, and nitrogen.
Figure 5. SEM images (a), (b), and (c) of S/EDA-RGO composites at different magnifications; EDX mapping (d), (e), and (f) showing distribution of sulfur, carbon, and nitrogen.
Nanomaterials 08 00303 g005
Nanomaterials 08 00303 g006 550

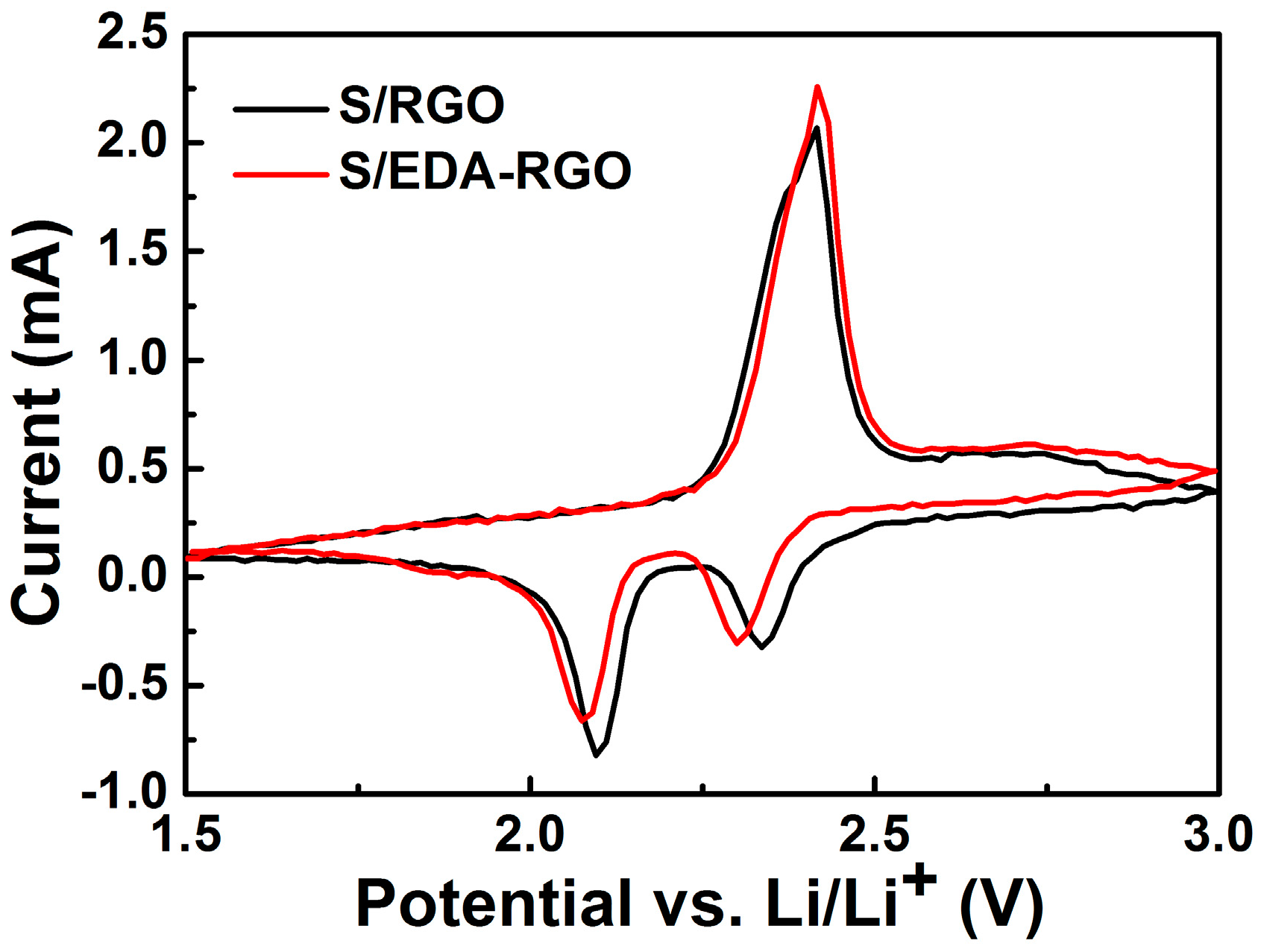

Figure 6. CV profiles of Li-S battery cathodes modified with EDA-RGO and S/EDA-RGO composites.
Figure 6. CV profiles of Li-S battery cathodes modified with EDA-RGO and S/EDA-RGO composites.
Nanomaterials 08 00303 g006
Nanomaterials 08 00303 g007 550

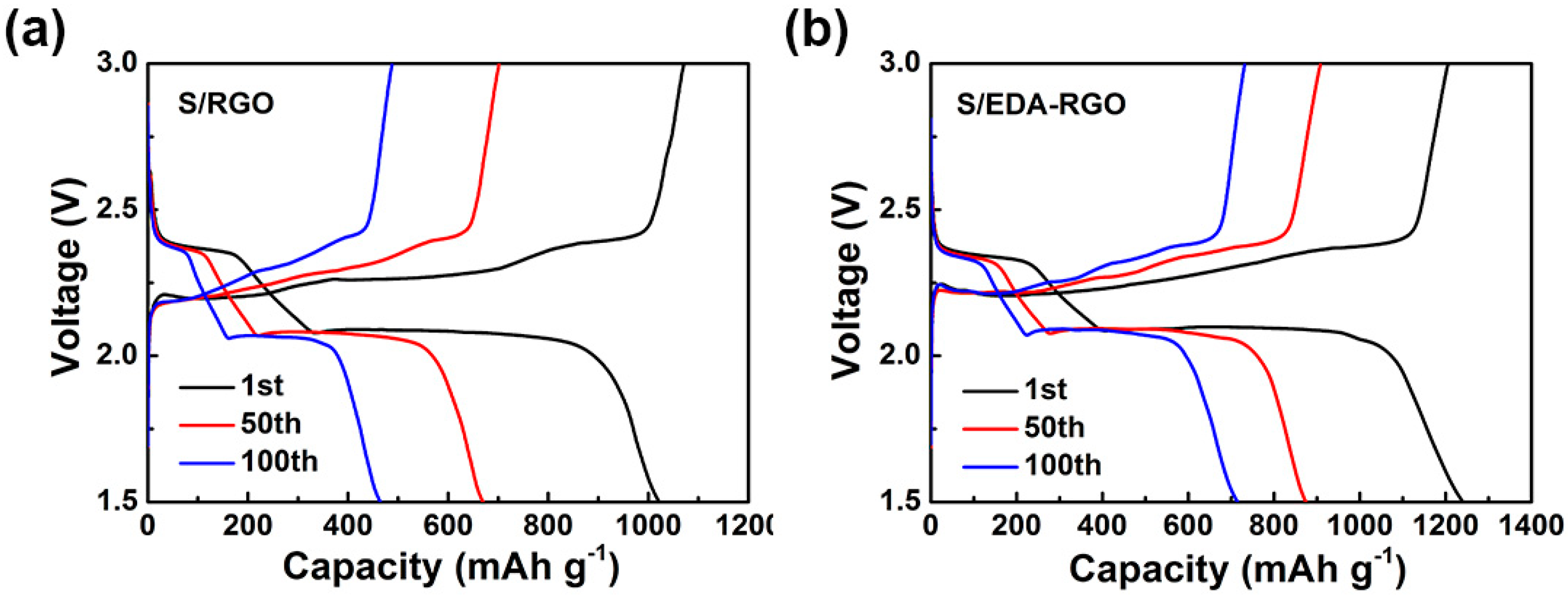

Figure 7. Charge/discharge curves of sulfur/reduced graphene oxides (S/RGO) (a) and S/EDA-RGO (b) composites electrodes.
Figure 7. Charge/discharge curves of sulfur/reduced graphene oxides (S/RGO) (a) and S/EDA-RGO (b) composites electrodes.
Nanomaterials 08 00303 g007
Nanomaterials 08 00303 g008 550

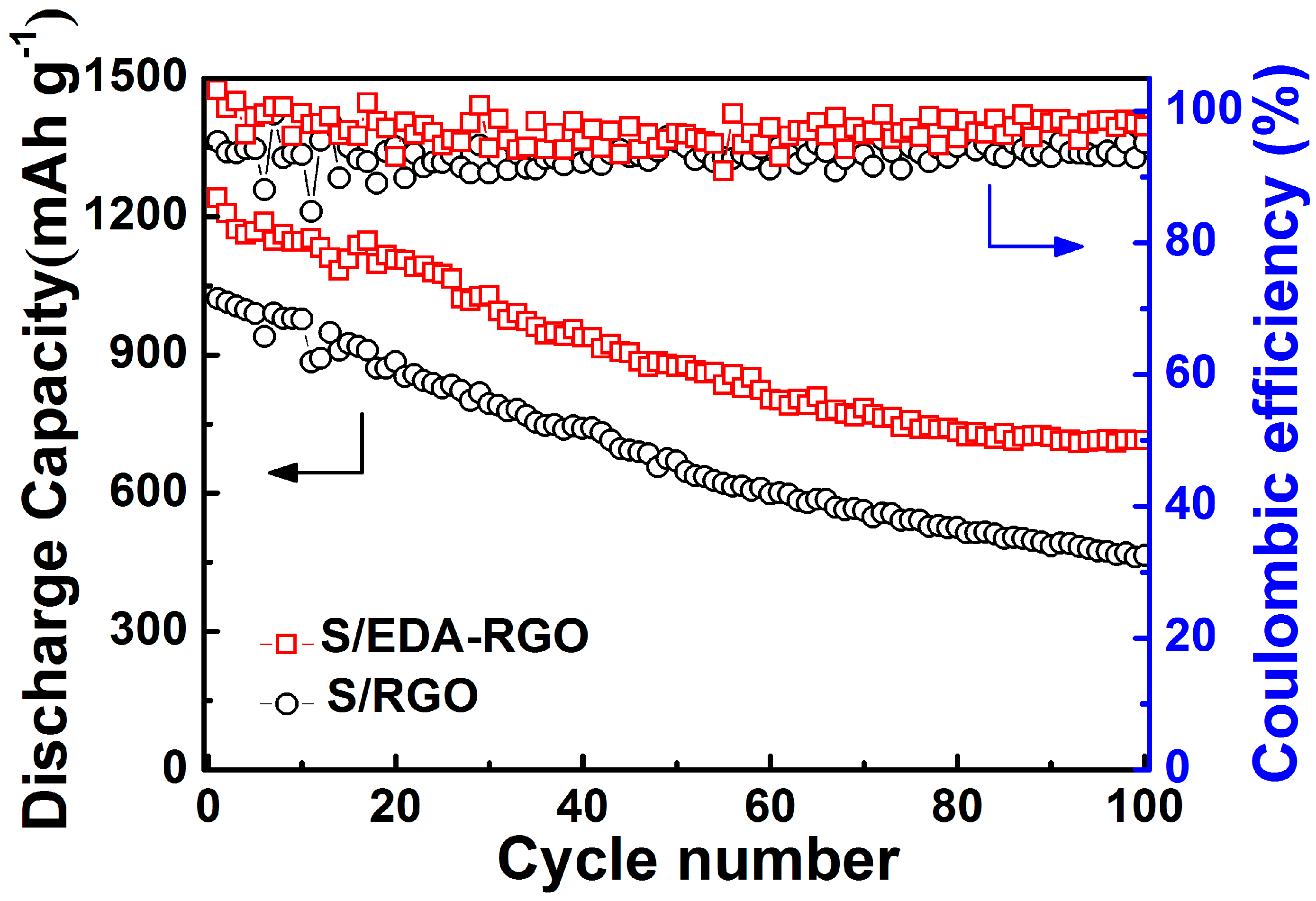

Figure 8. Cycling performances and corresponding coulombic efficiencies of both S/RGO and S/EDA-RGO composites electrodes at 0.1 C.
Figure 8. Cycling performances and corresponding coulombic efficiencies of both S/RGO and S/EDA-RGO composites electrodes at 0.1 C.
Nanomaterials 08 00303 g008
Nanomaterials 08 00303 g009 550

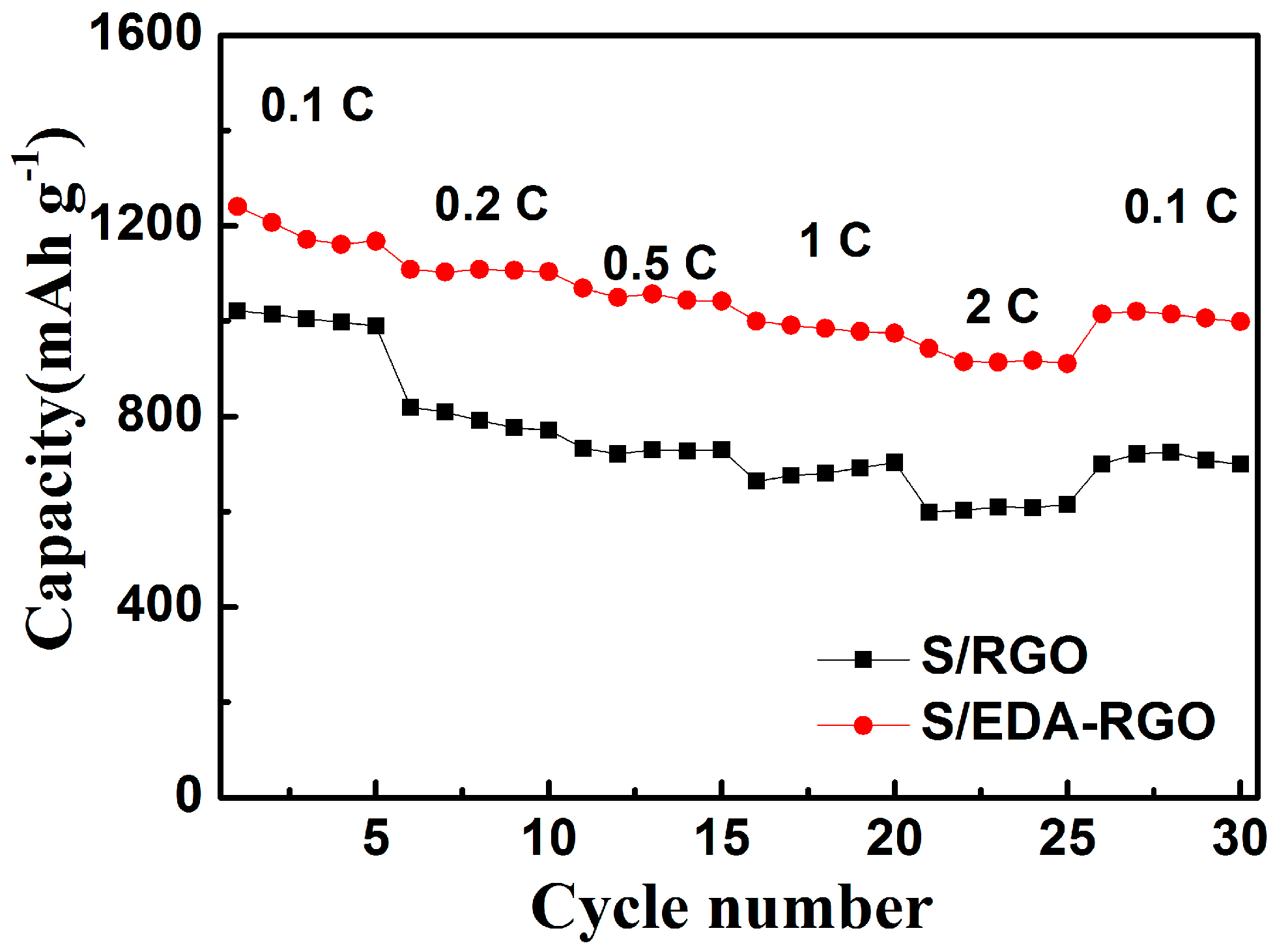

Figure 9. Rate performances of S/RGO and S/EDA-RGO composites electrodes.
Figure 9. Rate performances of S/RGO and S/EDA-RGO composites electrodes.
Nanomaterials 08 00303 g009
Nanomaterials 08 00303 g010 550

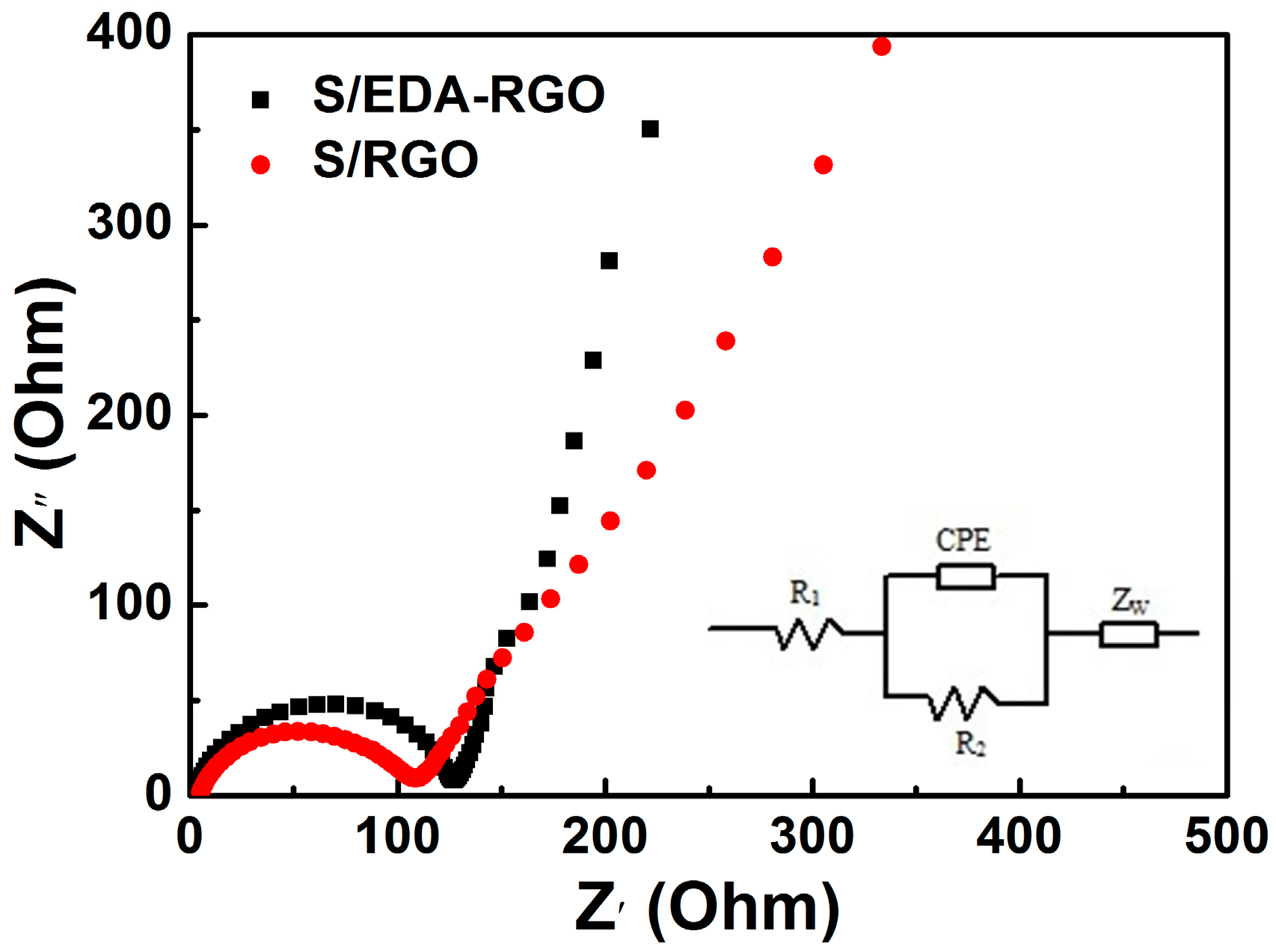

Figure 10. Electrochemical impedance spectroscopy (EIS) of lithium-sulfur batteries with S/RGO and S/EDA-RGO composites. The inset shows the obtained equivalent circuit.
Figure 10. Electrochemical impedance spectroscopy (EIS) of lithium-sulfur batteries with S/RGO and S/EDA-RGO composites. The inset shows the obtained equivalent circuit.
Nanomaterials 08 00303 g010
Table
Table 1. Comparison of the electrochemical performances of S/GO, S/MWNT, S/RGO, and S/EDA-RGO composite cathodes for Li-S batteries with some reported data.
Table 1. Comparison of the electrochemical performances of S/GO, S/MWNT, S/RGO, and S/EDA-RGO composite cathodes for Li-S batteries with some reported data.
MaterialInitial Discharge Capacity (mAh g−1)Discharge Capacity (mAh g−1) (after 100 Cycles)Capacity Decay (%)Current DensityReference
S/GO105359143.80.1c[48]
S/MWNT139470049.70.1c[49]
S/RGO131647663.80.1c[50]
S/EDA-RGO124071442.40.1cThis study
