A Novel Heterostructure of BiOI Nanosheets Anchored onto MWCNTs with Excellent Visible-Light Photocatalytic Activity

Innovation & Application Institute, Zhejiang Ocean University, Zhoushan 316022, China
Zhejiang Provincial Key Laboratory of Health Risk Factors for Seafood, Zhoushan Municipal Center for Disease Control and Prevention, Zhoushan 316021, China
State Key Laboratory for Modification of Chemical Fibers and Polymer Materials, Research Center for Analysis and Measurement, Donghua University, Shanghai 201620, China
State Environmental Protection Engineering Center for Pollution Treatment and Control in Textile Industry, College of Environmental Science and Engineering, Donghua University, Shanghai 201620, China
International Centre for Balanced Land Use (ICBLU), the University of Newcastle, Callaghan, NSW 2308, Australia
Authors to whom correspondence should be addressed.
Nanomaterials 2017, 7(1), 22;
Submission received: 2 December 2016 / Revised: 9 January 2017 / Accepted: 16 January 2017 / Published: 23 January 2017
(This article belongs to the Special Issue Nanoscale in Photocatalysis)


Developing efficient visible-light-driven (VLD) photocatalysts for environmental decontamination has drawn significant attention in recent years. Herein, we have reported a novel heterostructure of multiwalled carbon nanotubes (MWCNTs) coated with BiOI nanosheets as an efficient VLD photocatalyst, which was prepared via a simple solvothermal method. The morphology and structure were characterized by powder X-ray diffraction (XRD), scanning electron microscopy (SEM), transmission electron microscopy (TEM), UV-Vis diffuse reflectance spectroscopy (DRS), and specific surface area measurements. The results showed that BiOI nanosheets were well deposited on MWCNTs. The MWCNTs/BiOI composites exhibited remarkably enhanced photocatalytic activity for the degradation of rhodamine B (RhB), methyl orange (MO), and para-chlorophenol (4-CP) under visible-light, compared with pure BiOI. When the MWCNTs content is 3 wt %, the MWCNTs/BiOI composite (3%M-Bi) achieves the highest activity, which is even higher than that of a mechanical mixture (3 wt % MWCNTs + 97 wt % BiOI). The superior photocatalytic activity is predominantly due to the strong coupling interface between MWCNTs and BiOI, which significantly promotes the efficient electron-hole separation. The photo-induced holes (h+) and superoxide radicals (O2) mainly contribute to the photocatalytic degradation of RhB over 3%M-Bi. Therefore, the MWCNTs/BiOI composite is expected to be an efficient VLD photocatalyst for environmental purification.

Graphical Abstract

1. Introduction

Semiconductor photocatalysis is an effective means to tackle the energy crisis and environmental problems by splitting water to produce H2 and degrading various organic contaminants in water/air [1]. The key aspect of the photocatalysis technique is the development of efficient and stable photocatalysts [2]. To effectively utilize solar energy, a variety of visible-light-driven (VLD) photocatalysts have been explored, including simple oxides (e.g., Ag2O [3], CuO [4]), complex oxides (e.g., Bi2Mo(W)O6 [5,6], BiOBr(Cl/I) [7,8,9], Bi4O5I2 [10]), sulfides (e.g., MoS2 [11], WS2 [12]), and nitrides (e.g., Ta3N5 [13], C3N4 [14]). However, most of the single-component VLD photocatalysts suffer from a fast recombination rate of photogenerated electron-hole pairs and a narrow photo-response range [15,16].
The construction of semiconductor composites can optimize the capture of light and promote the separation of photo-induced charge, thus leading to an enhanced photocatalytic activity [17,18,19]. BiOI (band gap: 1.77–1.92 eV) has been put forward as one of the most promising VLD photocatalysts because the layer structure composed of [Bi2O2]2+ slabs interleaved by double slabs of I atoms can facilitate the separation of electron-hole pairs. To further improve its photocatalytic activity, many kinds of BiOI-based composites have been developed, including BiOI-oxide (oxide: Fe2O3 [20], TiO2 [21,22], WO3 [23] BiOBr(Cl) [24,25], BiVO4 [26], Bi12O17Cl2 [27], Bi2W(Mo)O6 [28,29], BiOIO3 [30], Bi4Ti3O12 [31], BiPO4 [32]), BiOI-sulfide (sulfide: CdS [33], Bi2S3 [34]), BiOI-metal (metal: Ag [35]), BiOI-carbon (carbon: graphene [36,37,38,39], carbon quantum dots [40]), and multi-component (e.g., BiOClx/BiOBry/BiOIz [41], MoS2/AgI/BiOI [42], Ag3VO4/Ag/BiOI [43]). These composites all show relatively higher activity than pure BiOI in degrading organic contaminants, Cr(VI) reduction, and/or hydrogen production. The BiOI-carbon composites have particularly been demonstrated to be excellent photocatalysts, but they are still underdeveloped [36,37,38,39,40].
Carbon nanotubes (CNTs) have been recognized as excellent electron-acceptor/transport matrix in photocatalysis due to their unique structure and excellent electronic properties. Therefore, various CNTs-based composites [44,45,46,47,48] (e.g., CNTs/TiO2, CNTs/Bi2O2CO3, CNTs/Bi2WO6) have been developed and have demonstrated better photocatalytic activity. Thus, it is a promising alternative to construct multiwalled carbon nanotubes (MWCNTs)/BiOI composites with synergistic effects for enhancing photocatalytic activity [49]. However, to the best of our knowledge, photocatalysis using the novel heterostructure of BiOI nanosheets anchored onto MWCNTs has not been reported.
In the present work, the novel solvothermally prepared MWCNTs/BiOI heterostructure showed markedly higher activity than pure BiOI. The best photocatalytic activity was achieved with the proportion of 3 wt % MWCNTs in the composite. A possible mechanism for the enhanced visible-light photocatalytic activity of MWCNTs/BiOI is proposed.

2. Results and Discussion

2.1. Characterization of Photocatalysts

Figure 1 presents the XRD patterns of the as-prepared MWCNTs/BiOI composites, BiOI, and MWCNTs. All diffraction peaks from BiOI can be readily indexed to tetragonal BiOI (JCPDS No. 10-0445). The broad peak at 2θ = 26.3° is assigned to the characteristic peak of MWCNTs [47,48]. For MWCNTs/BiOI composites, when the MWCNTs content is low (0.5, 1.5, or 3 wt %), the XRD patterns of MWCNTs/BiOI composites exhibit BiOI peaks. Six characteristic peaks at 2θ = 29.7°, 2θ = 31.6°, 2θ = 37.1°, 2θ = 39.4°, 2θ = 45.3°, and 2θ = 55.2° are indexed to the (102), (110), (103), (004), (200) and (212) planes of tetragonal BiOI, respectively. When the MWCNTs content is increased to 5 wt %, the characteristic peak of MWCNTs at 2θ = 26.3° appears, which corresponds to the (110) plane of MWCNTs, verifying the formation of MWCNTs/BiOI composites. In addition, no impurity phase is detected, suggesting the high purity of these composites.
The morphologies of BiOI and the MWCNTs/BiOI composite (3%M-Bi) were studied by SEM. Pristine BiOI presents flower-like microspheres (diameters: 1–3.5 μm, Figure 2a) comprised of two-dimensional (2D) nanosheets (thickness: 15 nm, Supplementary Material Figure S1). In contrast, 3%M-Bi presents a one-dimensional shape, where BiOI nanosheets (thickness: 15 nm, diameter: 20–100 nm) were uniformly anchored onto the MWCNTs backbone (Figure 2b–d).
Further information about 3%M-Bi is obtained from TEM and high-resolution transmission electron microscopy (HRTEM) measurements (Figure 3). The TEM images further confirm that BiOI nanosheets are tightly deposited on the surface of MWCNTs (Figure 3a,b). Moreover, the lattices of BiOI and MWCNTs intersect each other (Figure 3c). The lattice fringe with an inter-planar distance of 0.297 nm coincides with the (012) crystal plane of BiOI (Figure 3d). These facts confirm the formation of MWCNTs/BiOI with intimate contact between MWCNTs and BiOI.
The N2 adsorption/desorption isotherms of BiOI and 3%M-Bi were measured (Figure 4a). The Brunauer-Emmett-Teller (BET) specific surface area of BiOI is determined to be 25.7 m2·g−1. Interestingly, 3%M-Bi displays an apparent increase of the BET surface area to 44.5 m2·g−1. The high surface area is primarily caused by the MWCNTs, which could offer more adsorptive and reactive sites for organic pollutants. The pore size distributions, which are calculated from the desorption branches, indicate the existence of nano-pores with diameters of ~9 and 11 nm for BiOI and 3%M-Bi, respectively. Significantly, the presence of nano-pores is favorable for photocatalysis [50].
The absorption spectra of BiOI, MWCNTs, and MWCNTs/BiOI composites were recorded (Figure 4b). BiOI displays strong absorption from the ultraviolet (UV) to visible light (VL) region with an absorption edge located at ~650 nm (band gap: 1.9 eV), consistent with previous reports [35,43]. MWCNTs exhibit excellent light absorption in the whole wavelength range tested, in agreement with the previous observation [48]. The incorporation of MWCNTs broadens and enhances the VL absorption of BiOI, and the wavelength thresholds of MWCNTs/BiOI composites are determined to be 680–851 nm, corresponding to the band gap of 1.82–1.46 eV, which favors the efficient utilization of solar energy.

2.2. Photocatalytic Performances

The photocatalytic performance of MWCNTs/BiOI composites in degrading cationic dye rhodamine B (RhB) under visible light (λ > 400 nm) was studied (Figure 5). Figure 5a presents the temporal evolution of the absorption spectra of RhB with 3%M-Bi as a photocatalyst; the characteristic absorption peak of RhB at 554 nm diminishes rapidly as the irradiation time increases (Figure 5a). After 60 min of reaction, the RhB photodegradation efficiency reaches 98.3% (Figure 5b). For comparison, nearly no RhB is degraded without photocatalyts and with MWCNTs as the photocatalyst after 60 min of visible light, and 50.9%, 77.4%, 95.1%, or 85.3% of RhB is degraded after 60 min of reaction when using BiOI, 0.5%M-Bi, 1.5%M-Bi, or 5%M-Bi as the photocatalyst, respectively. Obviously, all MWCNTs/BiOI composites display significantly enhanced activity compared with pristine BiOI, mainly resulting from the synergistic effect between the MWCNTs and BiOI. Among these composites, 3%M-Bi achieves the highest photocatalytic activity, indicating the optimum content of MWCNTs is ~3 wt%. To further analyze the role of the heterojunction in the MWCNTs/BiOI composite, the RhB degradation over a mechanical mixture (97% BiOI + 3%MWCNTs) was further studied. The degradation efficiency (66.9%) is much lower than that (98.3%) achieved by 3%M-Bi, demonstrating that the strong coupling interface between MWCNTs and BiOI is crucial for the improvement of photocatalytic activity.
In addition, the photocatalytic degradation of RhB over TiO2 (P25) or the catalysts (including CNTs/Bi2O2CO3 [45], Ag2O/BiOCOOH [51], and Ta3N5-Pt [50]) reported by our group were investigated (Figure S2), and the degradation efficiencies was 15.1%, 32.3%, 77.9%, or 100% after 60 min of reaction, respectively. Obviously, 3%M-Bi was much more active than P25, CNTs/Bi2O2CO3, and Ag2O/BiOCOOH, demonstrating that 3%M-Bi displayed excellent photocatalytic activity.
The photocatalytic degradation of RhB followed the pseudo-first-order model [51]: −ln(C/C0) = kt, where C0 and C are the original concentration of RhB and the concentration of RhB at time t, respectively. The k is the reaction rate constant. The k values along with the correlation factors (R2), are shown in Figure S3. The k values of MWCNTs/BiOI composites (0.02441 min−1 for 0.5%M-Bi, 0.0475 min−1 for 1.5%M-Bi, 0.0663 min−1 for 3%M-Bi, and 0.03228 min−1 for 5%M-Bi) are apparently higher than those of MWCNTs (~0 min−1), BiOI (0.01613 min−1), and a mechanical mixture of MWCNTs and BiOI (0.01891 min−1) (Figure S3). Notably, 3%M-Bi has the highest photodegradation rate constant (0.0663 min−1).
Moreover, the photocatalytic degradation of anionic dye methyl orange (MO) with as-prepared catalysts was also studied (Figure S4). 3%M-Bi still achieves the highest photodegradation efficiency (84.2%) and rate constant (0.01022 min−1) after 3 h of reaction. This fact indicates that 3%M-Bi can efficiently decompose anionic dye MO as well.
The effect of the initial concentrations of RhB or MO on the photocatalytic activity of 3%M-Bi was investigated (Figure 6). When the initial concentration of RhB or MO is elevated from 5 mg·L−1 to 20 mg·L−1, the degradation efficiency of RhB or MO decreases from 98.3% or 84.2% to 51.7% or 36.7%, respectively. On the one hand, when the RhB or MO concentration is high, a large portion of visible-light is absorbed by RhB or MO rather than by 3%M-Bi, resulting in lower degradation efficiency. On the other hand, the intermediates produced during the reaction occupy part of the limited adsorptive and catalytic sites on 3%M-Bi, which could inhibit RhB or MO degradation. Such suppression will be more significant in the presence of a rising level of intermediates generated upon an increased initial dye concentration [51,52].
To further confirm that the photocatalytic activity of MWCNTs/BiOI composites originates from the excitation of the catalysts rather than the dye sensitization mechanism, the photocatalytic degradation of colorless neutral para-chlorophenol (4-CP) over MWCNTs/BiOI composites was also performed (Figure 7). The degradation of 4-CP is extremely slow without photocatalysts and with MWCNTs after 180 min of reaction. The degradation efficiency approaches 56.1%, 70.8%, 78.3%, or 61.8% by using 0.5%M-Bi, 1.5%M-Bi, 3%M-Bi, or 5%M-Bi as the photocatalyst, respectively. Among these composites, 3%M-Bi exhibits the highest photodegradation efficiency (78.3%), which is much higher than those from BiOI (23.7%), and a mixture of MWCNTs and BiOI (27.9%). The photodegradation rate constant using 3%M-Bi (0.00842 min−1) is about 4.47 or 3.48 times higher than that using BiOI (0.00154 min−1), or a mixture of the two components (0.00188 min−1).
From the above results, one can conclude that 3%M-Bi can efficiently degrade different kinds of organic pollutants (such as cationic RhB, anionic MO, and neutral 4-CP). The incorporation of a suitable amount of MWCNTs can dramatically improve the activity of BiOI, due to the synergic effect between MWCNTs and BiOI.
The total organic carbon (TOC) value is a significant index for the mineralization degree of organic species. Herein, the mineralization of RhB was studied by using 3%M-Bi as the catalyst (Figure 8). As the irradiation time increases, the TOC value continuously declines from 29.4 mg·L−1 at 0 h to 12.31 mg·L−1 at 6 h, achieving a high mineralization ratio of 58.2%. This fact confirms that 3%M-Bi can effectively mineralize RhB dye under visible light.
The stability of a catalyst is highly important for its practical application. Thus, four successive runs in RhB degradation over 3%M-Bi were performed. After four runs, 3%M-Bi still has a high activity with RhB degradation efficiency of 90.6% (Figure 9a). XRD characterization demonstrates that the used 3%M-Bi presents similar diffraction peaks as the fresh one (Figure 9b). These facts indicate that 3%M-Bi has good stability.
To analyze the photocatalytic reaction mechanism, it is of vital importance to identify the primary active species. Thus, the radical trapping experiments were performed (Figure 10). Scavengers such as benzoquinone (BQ), ammonium oxalate (AO), silver nitrate (AgNO3), and isopropyl alcohol (IPA) are commonly used to capture superoxide radical anions (O2·), photogenerated holes (h+), electrons (e), and hydroxyl free radicals (•OH), respectively [51]. The photocatalytic activity of 3%M-Bi is not markedly influenced by the addition of AgNO3 or IPA, indicating that •OH and photogenerated e are not the primary active species. However, the activity is greatly inhibited by the addition of BQ or AO. After 60 min of reaction, the photodegradation efficiency decreases from 98.3% to 37.4% or 8.5%, respectively (Figure 10a). The photocatalytic degradation process matched well with the pseudo-first-order model. Apparently, the rate constant also declined from 0.0663% to 0.00771% or 0.00145% in the presence of BQ or AO, respectively (Figure 10b). These facts reveal that O2· and photogenerated h+ mainly contribute to the RhB degradation.
Based on the experimental results and band edge positions (Figure 11), the excellent photocatalytic activity of MWCNTs/BiOI is attributed to the intimate contact between MWCNTs and BiOI nanosheets in this novel heterostructure. The CNTs/semiconductor composite is an effective architecture for efficient charge transfer and separation, leading to the high photocatalytic activity. The intimate attachment of MWCNTs with BiOI nanosheets in the composite would greatly promote the efficient separation of photogenerated electron–hole pairs [19,47]. Under visible light, the photogenerated e would transfer from the valence band (VB) to the conduction band (CB), leaving the h+ in the CB of BiOI. The photogenerated e quickly flows into MWCNTs, resulting in a low electron-hole recombination rate [19,47]. According to the results of radical trapping experiments (Figure 10), the h+ stored in the VB of BiOI can directly oxidize RhB/MO/4-CP. Simultaneously, the e accumulated on MWCNTs would reduce O2 to produce strong oxidizing species O2·, which further degrade RhB/MO/4-CP. Consequently, the MWCNTs/BiOI composites exhibit dramatically enhanced photocatalytic activity.

3. Materials and Methods

3.1. Materials

Bismuth nitrate pentahydrate (Bi(NO3)3·5H2O), potassium iodide (KI), ethylene glycol (EG), and absolute ethanol (CH3CH2OH) were purchased from Sinopharm Chemical Reagent Co., Ltd., Shanghai, China. MWCNTs were purchased from XFNANO, INC Advanced Materials Supplier (Nanjing, China).

3.2. Preparation of MWCNTs/BiOI Composites

The MWCNTs were purified according to a previous report [46]. Briefly, 2 g of MWCNTs and 300 mL of 65% HNO3 were added in a flask, and the mixture was refluxed for 2 h. After the system cooled down to room temperature, the product was filtered and washed with deionized water until the pH of the solution was 7. Then the collected product was dried at 90 °C overnight. MWCNTs/BiOI composites were prepared solvothermally. Typically, a desired amount of MWCNTs was ultrasonically dispersed in the mixture (30 mL ethylene glycol + 10 mL absolute ethanol). Subsequently, 1 mmol Bi(NO3)3·5H2O and 1 mmol KI were dissolved in the above solution with ultrasonication. The mixture was transferred to a 50 mL Teflon-lined autoclave and heated in an oven at 150 °C for 20 h. After cooling down naturally, the collected solids were washed with water-ethanol 5 times, and were then dried at 75 °C overnight in an oven. Finally, MWCNTs/BiOI composites with 0.5, 1.5, 3, and 5 wt % MWCNTs were obtained and defined as 0.5%M-Bi, 1%M-Bi, 3%M-Bi, and 5%M-Bi, respectively.

3.3. Characterization

X-ray diffraction (XRD) measurements were recorded on a Rigaku D/max-2550 PC (Tokyo, Japan) X-ray diffractometer using Cu Ka radiation (λ = 0.15418 nm). Scanning electron microscope (SEM) tests were performed on a Hitachi S-4800 field emission scanning electron microscope (Tokyo, Japan). Transmission electron microscope (TEM) tests were conducted by a JEOL JEM-2100 high-resolution transmission electron microscope (Tokyo, Japan). N2 adsorption-desorption isotherms were determined by Brunauer-Emmett-Teller measurements (BET, Micromeritics ASAP 2020, Norcross, GA, USA). Optical diffuse reflectance spectra were obtained on a UV-Vis-NIR scanning spectrophotometer (Shimadzu UV-2600, Kokyo, Japan) with an integrating sphere accessory.

3.4. Photocatalytic Degradation Experiments

Photocatalytic performance of as-prepared catalysts was evaluated by degrading cationic dye rhodamine B (RhB), anionic dye methyl orange (MO), and neutral colorless para-chlorophenol (4-CP) using a xenon lamp (300 W, Perfect Light Co. Ltd. Beijing, China) with a cutoff filter (λ > 400 nm) as the visible-light source. Typically, 10 mg of photocatalyst was dispersed in 50 mL of RhB (5 mg·L−1), MO (5 mg·L−1), or 4-CP (1 mg·L−1) solution in a beaker. The solution was vigorously stirred for 0.5 h in the dark before the reaction. During the irradiation, 2 mL of solution was sampled at certain intervals and centrifuged for analysis. The RhB or MO concentrations in the solution were determined at 554 nm or 463 nm by a UV-2600 spectrophotometer. The 4-CP concentrations in the solution were analyzed by high-performance liquid chromatography (HPLC) using an Agilent 1100 series (Santa Clara, CA, USA) equipped with a UV detector at 280 nm. The mobile phase was composed of 80% methanol and 20% water at a flow rate of 0.5 mL·min−1.
The total organic carbon (TOC) test was performed by adding 100 mg 3%M-Bi into RhB aqueous solution (100 mL, 40 mg·L−1). The suspension was magnetically stirred for 60 min in the dark before the reaction. During the irradiation, 10 mL of the suspension was sampled at given time intervals (60 min), and filtered through a membrane (pore size: 0.45 μm). Subsequently, the resulting solution was examined by a Shimadzu TOC (Tokyo, Japan) analyzer.
In the recycling test, four consecutive runs for RhB degradation over 3%M-Bi were carried out. After each run, the catalysts were collected by a simple precipitation procedure and washed thoroughly with water and dried, and were then dispersed in fresh RhB aqueous solution (50 mL, 5 mg·L−1) again.
Radical scavenging experiments were conducted by adding 6 mM silver nitrate (AgNO3), 1 mM ammonium oxalate (AO), 1 mM p-benzoquinone (BQ), or 1 mM iso-propanol (IPA) into the RhB (50 mL, 5 mg·L−1) solution before the photocatalytic tests.

4. Conclusions

A novel heterostructure of MWCNTs decorated with BiOI nanosheets was prepared by a facile one-pot solvothermal method. The MWCNTs/BiOI composite with 3 wt % MWCNTs achieved the highest photocatalytic activity, which is much higher than pristine BiOI, and a mechanical mixture of BiOI and MWCNTs. Moreover, it can efficiently degrade different kinds of organic pollutants (such as RhB/MO/4-CP) with excellent stability. The superior photocatalytic activity of MWCNTs/BiOI can be ascribed to the synergistic effect of MWCNTs and BiOI, facilitating the sufficient utilization of visible-light and the efficient separation of photogenerated charge carriers. Therefore, the MWCNTs/BiOI composite has great potential for environmental remediation applications.

Supplementary Materials

The following are available online at


This work was financially supported by the Natural Science Foundation of Zhejiang Province (LQ15E090006), the Zhoushan Municipal Science and Technology Commission (2014C11009), Research Startup Foundation of Zhejiang Ocean University (Q1447), and the National Natural Science Foundation of China (21377023/21677031).

Author Contributions

Shijie Li conceived and designed the experiments; Shijie Li and Shiwei Hu performed the experiments; Shijie Li, Shiwei Hu, Kaibing Xu, and Wei Jiang analyzed the data; Shijie Li, Kaibing Xu, and Zhaohui Wang contributed reagents/materials/analysis tools; Shijie Li and Zhaohui Wang wrote the paper.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Li, X.; Yu, J.G.; Jaroniec, M. Hierarchical photocatalysts. Chem. Soc. Rev. 2016, 45, 2603–2636. [Google Scholar] [CrossRef] [PubMed]
  2. Chen, X.; Liu, L.; Peter, Y.Y.; Mao, S.S. Increasing solar absorption for photocatalysis with black hydrogenated titanium dioxide nanocrystals. Science 2011, 331, 746–750. [Google Scholar] [CrossRef] [PubMed]
  3. Wang, X.; Li, S.; Yu, H.; Yu, J.; Liu, S. Ag2O as a new visible-light photocatalyst: Self-stability and high photocatalytic activity. Chem. Eur. J. 2011, 17, 7777–7780. [Google Scholar] [CrossRef] [PubMed]
  4. Jin, C.Y.; Hu, M.; Cheng, X.L.; Bu, F.X.; Xu, L.; Zhang, Q.H.; Jiang, J.S. Three-dimensionalization of ultrathin nanosheets in a two-dimensional nano-reactor: Macroporous CuO microstructures with enhanced cycling performance. Chem. Commun. 2015, 51, 206–209. [Google Scholar] [CrossRef] [PubMed]
  5. Zhou, Y.; Zhang, Y.; Lin, M.; Long, J.; Zhang, Z.; Lin, H.; Wu, J.C.S.; Wang, X. Monolayered Bi2WO6 nanosheets mimicking heterojunction interface with open surfaces for photocatalysis. Nat. Commun. 2015, 6, 8340. [Google Scholar] [CrossRef] [PubMed]
  6. Dai, W.; Yu, J.; Xu, H.; Hu, X.; Luo, X.; Yang, L.; Tu, X. Synthesis of hierarchical flower-like Bi2MoO6 microspheres as efficient photocatalyst for photoreduction of CO2 into solar fuels under visible light. CrystEngComm 2016, 18, 3472–3480. [Google Scholar] [CrossRef]
  7. Li, H.; Shang, J.; Ai, Z.; Zhang, L. Efficient visible light nitrogen fixation with BiOBr nanosheets of oxygen vacancies on the exposed {001} facets. J. Am. Chem. Soc. 2015, 137, 6393–6399. [Google Scholar] [CrossRef] [PubMed]
  8. Cheng, H.; Huang, B.; Dai, Y. Engineering BiOX (X = Cl, Br, I) nanostructures for highly efficient photocatalytic applications. Nanoscale 2014, 6, 2009–2026. [Google Scholar] [CrossRef] [PubMed]
  9. Ahern, J.C.; Fairchild, R.; Thomas, J.S.; Carr, J.; Patterson, H.H. Characterization of BiOX compounds as photocatalysts for the degradation of pharmaceuticals in water. Appl. Catal. B 2015, 179, 229–238. [Google Scholar] [CrossRef]
  10. He, R.; Cao, S.; Yu, J.; Yang, Y. Microwave-assisted solvothermal synthesis of Bi4O5I2 hierarchical architectures with high photocatalytic performance. Catal. Today 2016, 264, 221–228. [Google Scholar] [CrossRef]
  11. Maitra, U.; Gupta, U.; De, M.; Datta, R.; Govindaraj, A.; Rao, C.N.R. Highly effective visible-light-induced H2 generation by single-layer 1T-MoS2 and a nanocomposite of few-layer 2H-MoS2 with heavily nitrogenated graphene. Angew. Chem. Int. Ed. 2013, 52, 13057–13061. [Google Scholar] [CrossRef] [PubMed]
  12. Voiry, D.; Yamaguchi, H.; Li, J.; Silva, R.; Alves, D.C.B.; Fujita, T.; Chen, M.; Asefa, T.; Shenoy, V.B.; Eda, G.; et al. Enhanced catalytic activity in strained chemically exfoliated WS2 nanosheets for hydrogen evolution. Nat. Mater. 2013, 12, 850–855. [Google Scholar] [CrossRef] [PubMed]
  13. Hara, M.; Hitoki, G.; Takata, T.; Kondo, J.N.; Kobayashi, H.; Domen, K. TaON and Ta3N5 as new visible light driven photocatalysts. Catal. Today 2003, 78, 555–560. [Google Scholar] [CrossRef]
  14. Zhang, J.; Chen, Y.; Wang, X. Two-dimensional covalent carbon nitride nanosheets: Synthesis, functionalization, and applications. Energy Environ. Sci. 2015, 8, 3092–3108. [Google Scholar] [CrossRef]
  15. Li, H.; Zhou, Y.; Tu, W.; Ye, J.; Zou, Z. State-of-the-art progress in diverse heterostructured photocatalysts toward promoting photocatalytic performance. Adv. Funct. Mater. 2015, 25, 998–1013. [Google Scholar] [CrossRef]
  16. Yuan, X.; Zhou, C.; Jing, Q.; Tang, Q.; Mu, Y.; Du, A.-K. Facile Synthesis of g-C3N4 Nanosheets/ZnO Nanocomposites with Enhanced Photocatalytic Activity in Reduction of Aqueous Chromium(VI) under Visible Light. Nanomater 2016, 6, 173–185. [Google Scholar] [CrossRef]
  17. Xiang, Q.; Yu, J.; Jaroniec, M. Graphene-based semiconductor photocatalysts. Chem. Soc. Rev. 2012, 41, 782–796. [Google Scholar] [CrossRef] [PubMed]
  18. Liang, X.; Zhao, J.C.; Chen, X.D. Cooperative photoredox catalysis. Chem. Soc. Rev. 2016, 45, 3026–3038. [Google Scholar] [CrossRef] [PubMed]
  19. Wang, H.; Zhang, L.; Chen, Z.; Hu, J.; Li, S.; Wang, Z.; Liu, J.; Wang, X. Semiconductor heterojunction photocatalysts: Design, construction, and photocatalytic performances. Chem. Soc. Rev. 2014, 43, 5234–5244. [Google Scholar] [CrossRef] [PubMed]
  20. Mehraj, O.; Pirzada, B.M.; Mir, N.A.; Zain Khan, M.; Sabir, S. A highly efficient visible-light-driven novel p-n junction Fe2O3/BiOI photocatalyst: Surface decoration of BiOI nanosheets with Fe2O3 nanoparticles. Appl. Surf. Sci. 2016, 387, 642–651. [Google Scholar] [CrossRef]
  21. Dai, G.; Yu, J.; Liu, G. Synthesis and enhanced visible-light photoelectrocatalytic activity of p-n junction BiOI/TiO2 nanotube arrays. J. Phys. Chem. C 2011, 115, 7339–7346. [Google Scholar] [CrossRef]
  22. Liao, C.; Ma, Z.; Dong, G.; Qiu, J. BiOI nanosheets decorated TiO2 nanofiber: Tailoring water purification performance of photocatalyst in structural and photo-responsivity aspects. Appl. Surf. Sci. 2014, 314, 481–489. [Google Scholar] [CrossRef]
  23. Feng, Y.; Liu, C.; Che, H.; Chen, J.; Huang, K.; Huang, C.; Shi, W. The highly improved visible light photocatalytic activity of BiOI through fabricating a novel p-n heterojunction BiOI/WO3 nanocomposite. CrystEngComm 2016, 18, 1790–1799. [Google Scholar] [CrossRef]
  24. Sun, L.; Xiang, L.; Zhao, X.; Jia, C.-J.; Yang, J.; Jin, Z.; Cheng, X.; Fan, W. Enhanced visible-light photocatalytic activity of BiOI/BiOCl heterojunctions: Key role of crystal facet combination. ACS Catal. 2015, 5, 3540–3551. [Google Scholar] [CrossRef]
  25. Lin, H.; Ye, H.; Li, X.; Cao, J.; Chen, S. Facile anion-exchange synthesis of BiOI/BiOBr composite with enhanced photoelectrochemical and photocatalytic properties. Ceram. Int. 2014, 40, 9743–9750. [Google Scholar] [CrossRef]
  26. Huang, H.; He, Y.; Du, X.; Chu, P.K.; Zhang, Y. A general and facile approach to heterostructured core/Shell BiVO4/BiOI p-n junction: Room-temperature in situ assembly and highly boosted visible-light photocatalysis. ACS Sust. Chem. Eng. 2015, 3, 3262–3273. [Google Scholar] [CrossRef]
  27. Huang, H.; Xiao, K.; He, Y.; Zhang, T.; Dong, F.; Du, X.; Zhang, Y. In situ assembly of BiOI@Bi12O17Cl2 p-n junction: Charge induced unique front-lateral surfaces coupling heterostructure with high exposure of BiOI {001} active facets for robust and nonselective photocatalysis. Appl. Catal. B 2016, 199, 75–86. [Google Scholar] [CrossRef]
  28. Xiang, Y.; Ju, P.; Wang, Y.; Sun, Y.; Zhang, D.; Yu, J. Chemical etching preparation of the Bi2WO6/BiOI p-n heterojunction with enhanced photocatalytic antifouling activity under visible light irradiation. Chem. Eng. J. 2016, 288, 264–275. [Google Scholar] [CrossRef]
  29. Li, H.; Cui, Y.; Hong, W. High photocatalytic performance of BiOI/Bi2WO6 toward toluene and reactive brilliant red. Appl. Surf. Sci. 2013, 264, 581–588. [Google Scholar] [CrossRef]
  30. Dong, F.; Xiong, T.; Sun, Y.; Zhang, Y.; Zhou, Y. Controlling interfacial contact and exposed facets for enhancing photocatalysis via 2D-2D heterostructures. Chem. Commun. 2015, 51, 8249–8252. [Google Scholar]
  31. Hou, D.; Hu, X.; Hu, P.; Zhang, W.; Zhang, M.; Huang, Y. Bi4Ti3O12 nanofibers-BiOI nanosheets p-n junction: Facile synthesis and enhanced visible-light photocatalytic activity. Nanoscale 2013, 5, 9764–9772. [Google Scholar] [CrossRef] [PubMed]
  32. Liu, Y.; Yao, W.; Liu, D.; Zong, R.; Zhang, M.; Ma, X.; Zhu, Y. Enhancement of visible light mineralization ability and photocatalytic activity of BiPO4/BiOI. Appl. Catal. B 2015, 163, 547–553. [Google Scholar] [CrossRef]
  33. Song, C.; Feng, Y.; Shi, W.; Liu, C. Fabrication and mechanism of a novel direct solid-state Z-scheme photocatalyst CdS/BiOI under the visible light. CrystEngComm 2016, 18, 7796–7804. [Google Scholar] [CrossRef]
  34. Cao, J.; Xu, B.; Lin, H.; Luo, B.; Chen, S. Novel heterostructured Bi2S3/BiOI photocatalyst: Facile preparation, characterization and visible light photocatalytic performance. Dalton. Trans. 2012, 42, 11482–11490. [Google Scholar] [CrossRef] [PubMed]
  35. Liu, H.; Cao, W.; Su, Y.; Wang, Y.; Wang, X. Synthesis, characterization and photocatalytic performance of novel visible-light-induced Ag/BiOI. Appl. Catal. B 2012, 111–112, 271–279. [Google Scholar] [CrossRef]
  36. Liu, Z.; Xu, W.; Fang, J.; Xu, X.; Wu, S.; Zhu, X.; Chen, Z. Decoration of BiOI quantum size nanoparticles with reduced graphene oxide in enhanced visible-light-driven photocatalytic studies. Appl. Surf. Sci. 2012, 259, 441–447. [Google Scholar] [CrossRef]
  37. He, R.; Cao, S.; Guo, D.; Cheng, B.; Wageh, S.; Al-Ghamdi, A.A.; Yu, J. 3D BiOI-GO composite with enhanced photocatalytic performance for phenol degradation under visible-light. Ceram. Int. 2015, 41, 3511–3517. [Google Scholar] [CrossRef]
  38. Liu, H.; Cao, W.-R.; Su, Y.; Chen, Z.; Wang, Y. Bismuth oxyiodide-graphene nanocomposites with high visible light photocatalytic activity. J. Colloid Interface Sci. 2013, 398, 161–167. [Google Scholar] [PubMed]
  39. Huang, H.; Liu, K.; Zhang, Y.; Chen, K.; Zhang, Y.; Tian, N. Tunable 3D hierarchical graphene-BiOI nanoarchitectures: Their in situ preparation, and highly improved photocatalytic performance and photoelectrochemical properties under visible light irradiation. RSC Adv. 2014, 4, 49386–49394. [Google Scholar] [CrossRef]
  40. Di, J.; Xia, J.; Ji, M.; Wang, B.; Yin, S.; Xu, H.; Chen, Z.; Li, H. Carbon quantum dots induced ultrasmall BiOI nanosheets with assembled hollow structures for broad spectrum photocatalytic activity and mechanism insight. Langmuir 2016, 32, 2075–2084. [Google Scholar] [CrossRef] [PubMed]
  41. Zhang, Y.; Park, M.; Kim, H.Y.; Ding, B.; Park, S.-J. In-situ synthesis of nanofibers with various ratios of BiOClx/BiOBry/BiOIz for effective trichloroethylene photocatalytic degradation. Appl. Surf. Sci. 2016, 384, 192–199. [Google Scholar] [CrossRef]
  42. Islam, M.J.; Reddy, D.A.; Han, N.S.; Choi, J.; Song, J.K.; Kim, T.K. An oxygen-vacancy rich 3D novel hierarchical MoS2/BiOI/AgI ternary nanocomposite: Enhanced photocatalytic activity through photogenerated electron shuttling in a Z-scheme manner. Phys. Chem. Chem. Phys. 2016, 18, 24984–24993. [Google Scholar] [CrossRef] [PubMed]
  43. Wang, S.; Guan, Y.; Wang, L.; Zhao, W.; He, H.; Xiao, J.; Yang, S.; Sun, C. Fabrication of a novel bifunctional material of BiOI/Ag3VO4 with high adsorption-photocatalysis for efficient treatment of dye wastewater. Appl. Catal. B 2015, 168–169, 448–457. [Google Scholar] [CrossRef]
  44. Di, J.; Li, S.; Zhao, Z.; Huang, Y.; Jia, Y.A.; Zheng, H. Biomimetic CNT@TiO2 composite with enhanced photocatalytic properties. Chem. Eng. J. 2015, 281, 60–68. [Google Scholar] [CrossRef]
  45. Zhang, X.; Li, S.; Hu, S.; Chen, J.; Jiang, W.; Zhang, J.; Ji, L.; Cai, L.; Wang, Y.; Song, W.; et al. Flower-like MWCNTs/Bi2O2CO3 composites with enhanced photocatalytic activity under simulated solar light irradiation. Mater. Lett. 2016, 185, 50–53. [Google Scholar] [CrossRef]
  46. Yue, L.; Wang, S.; Shan, G.; Wu, W.; Qiang, L.; Zhu, L. Novel MWNTs–Bi2WO6 composites with enhanced simulated solar photoactivity toward adsorbed and free tetracycline in water. Appl. Catal. B 2015, 176–177, 11–19. [Google Scholar] [CrossRef]
  47. Zhang, Y.; Ma, D.; Wu, J.; Zhang, Q.; Xin, Y.; Bao, N. One-step preparation of CNTs/InVO4 hollow nanofibers by electrospinning and its photocatalytic performance under visible light. Appl. Surf. Sci. 2015, 353, 1260–1268. [Google Scholar] [CrossRef]
  48. Kim, Y.K.; Park, H. Light-harvesting multi-walled carbon nanotubes and CdS hybrids: Application to photocatalytic hydrogen production from water. Energy Environ. Sci. 2011, 4, 685–694. [Google Scholar] [CrossRef]
  49. Su, M.; He, C.; Zhu, L.; Sun, Z.; Shan, C.; Zhang, Q.; Shu, D.; Qiu, R.; Xiong, Y. Enhanced adsorption and photocatalytic activity of BiOI-MWCNT composites towards organic pollutants in aqueous solution. J. Hazard. Mater. 2012, 229–230, 72–82. [Google Scholar] [CrossRef] [PubMed]
  50. Li, S.; Zhang, L.; Wang, H.; Chen, Z.; Hu, J.; Xu, K.; Liu, J. Ta3N5-Pt nonwoven cloth with hierarchical nanopores as efficient and easily recyclable macroscale photocatalysts. Sci. Rep. 2014, 4, 3978. [Google Scholar] [CrossRef] [PubMed]
  51. Li, S.; Xu, K.; Hu, S.; Jiang, W.; Zhang, J.; Liu, J.; Zhang, L. Synthesis of flower-like Ag2O/BiOCOOH p-n heterojunction with enhanced visible light photocatalytic activity. Appl. Surf. Sci. 2017, 397, 95–103. [Google Scholar] [CrossRef]
  52. Wang, H.; Li, S.; Zhang, L.; Chen, Z.; Hu, J.; Zou, R.; Xu, K.; Song, G.; Zhao, H.; Yang, J.; et al. Surface decoration of Bi2WO6 superstructures with Bi2O3 nanoparticles: An efficient method to improve visible-light-driven photocatalytic activity. CrystEngComm 2013, 15, 9011–9019. [Google Scholar] [CrossRef]

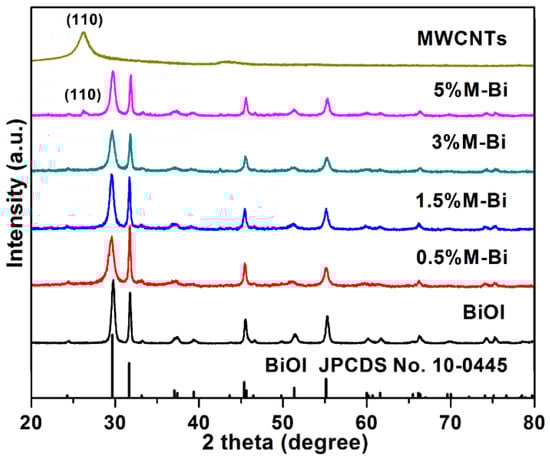

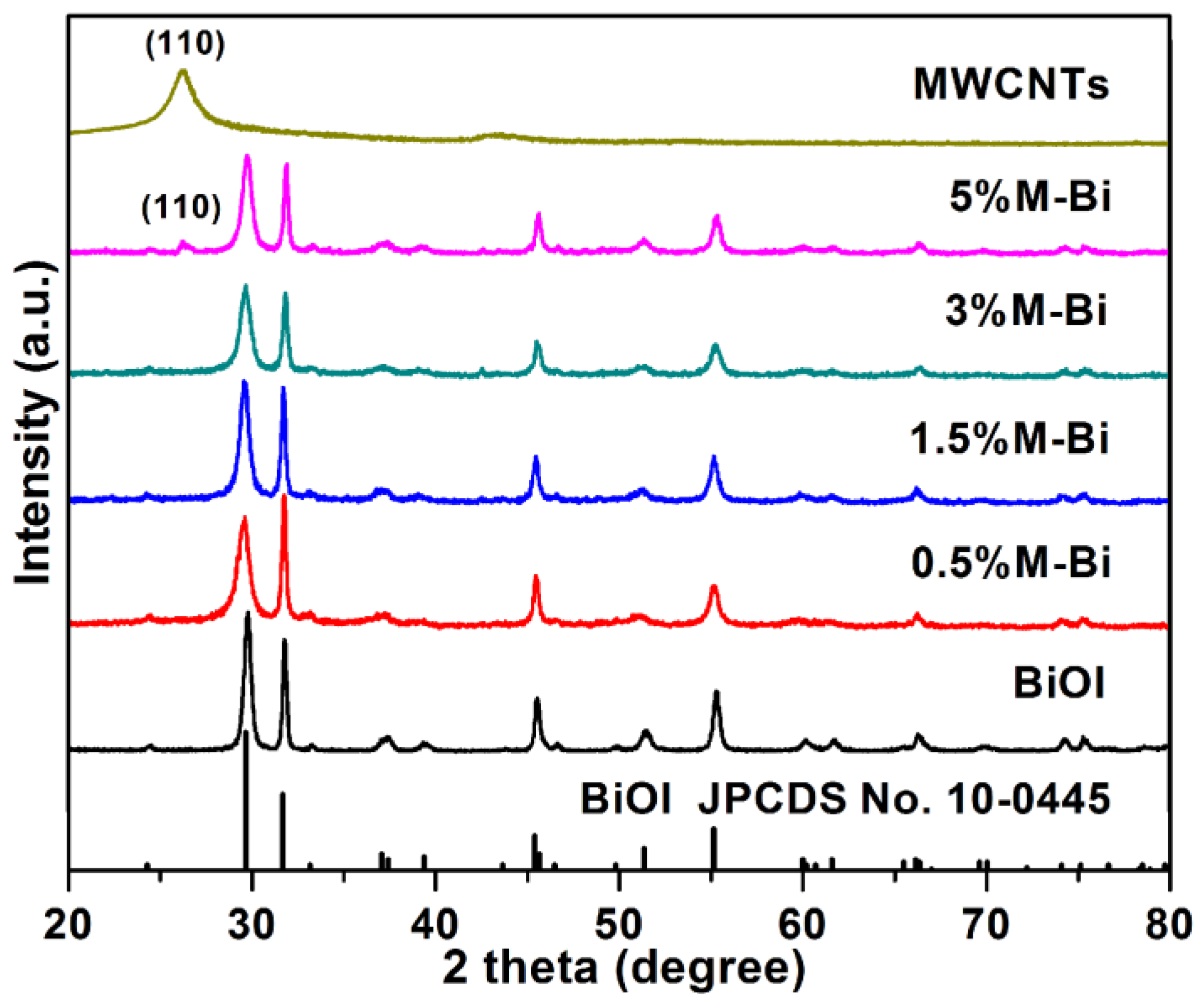

Figure 1. X-ray diffraction (XRD) patterns of as-prepared multiwalled carbon nanotubes (MWCNTs)/BiOI composites, BiOI, and MWCNTs.
Figure 1. X-ray diffraction (XRD) patterns of as-prepared multiwalled carbon nanotubes (MWCNTs)/BiOI composites, BiOI, and MWCNTs.
Nanomaterials 07 00022 g001

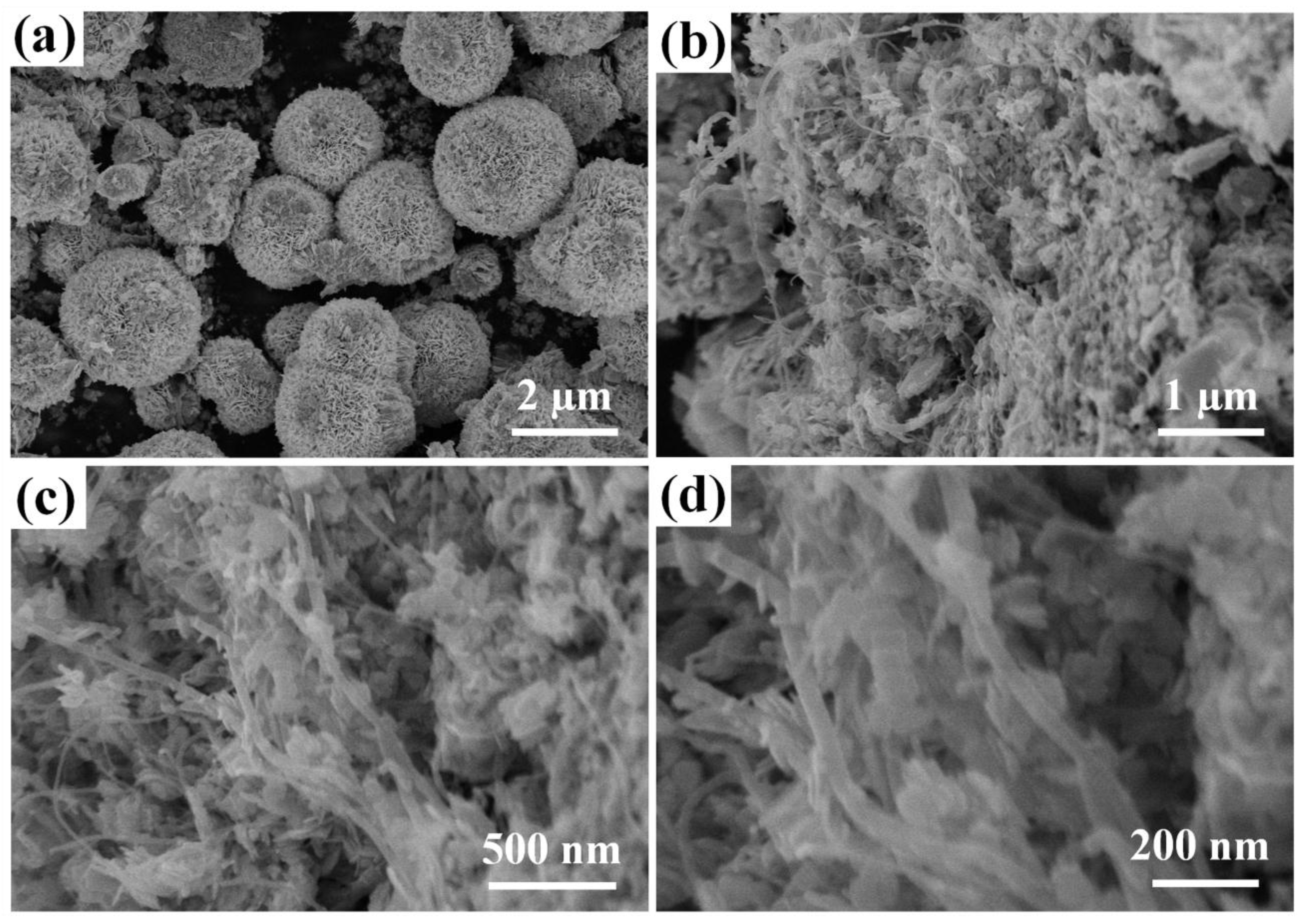

Figure 2. Scanning electron microscopy (SEM) images of (a) BiOI, and (bd) 3%M-Bi.
Figure 2. Scanning electron microscopy (SEM) images of (a) BiOI, and (bd) 3%M-Bi.
Nanomaterials 07 00022 g002

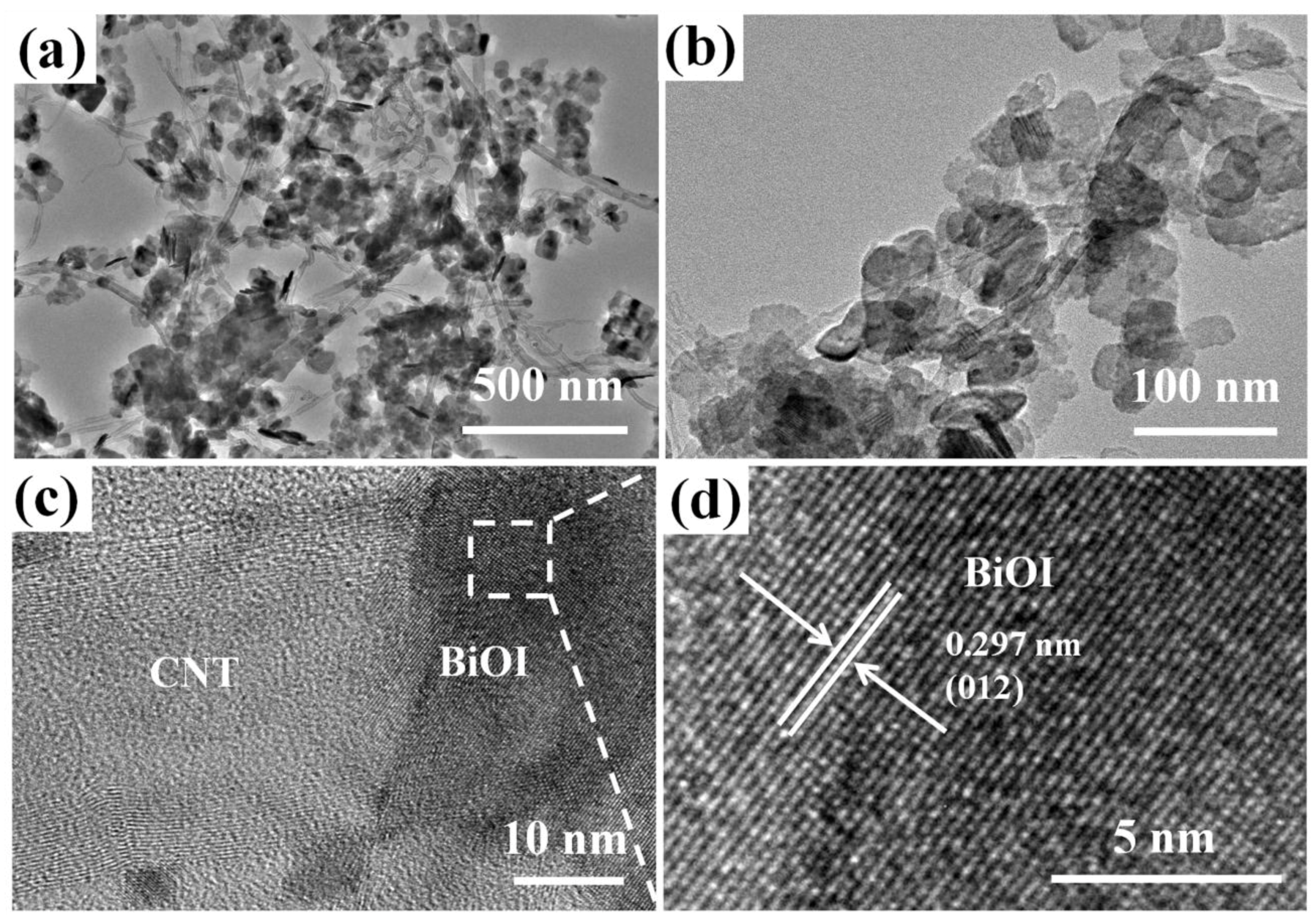

Figure 3. (ad) Transmission electron microscopy (TEM) images of 3%M-Bi.
Figure 3. (ad) Transmission electron microscopy (TEM) images of 3%M-Bi.
Nanomaterials 07 00022 g003

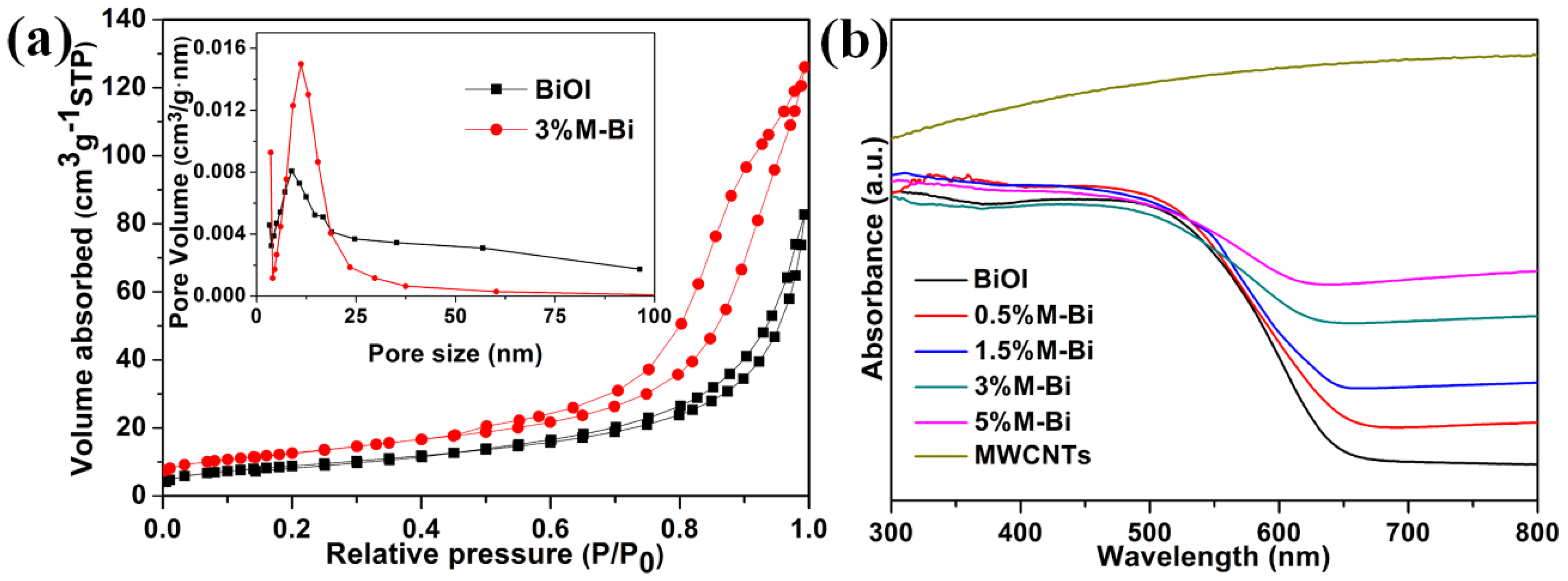

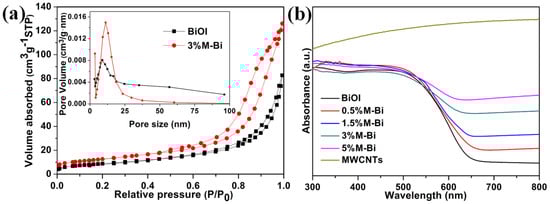

Figure 4. (a) N2 adsorption/desorption isotherms of BiOI and 3%M-Bi; the inset is the corresponding pore size distributions; (b) UV-Vis reflectance spectra of BiOI, MWCNTs, and MWCNTs/BiOI composites.
Figure 4. (a) N2 adsorption/desorption isotherms of BiOI and 3%M-Bi; the inset is the corresponding pore size distributions; (b) UV-Vis reflectance spectra of BiOI, MWCNTs, and MWCNTs/BiOI composites.
Nanomaterials 07 00022 g004

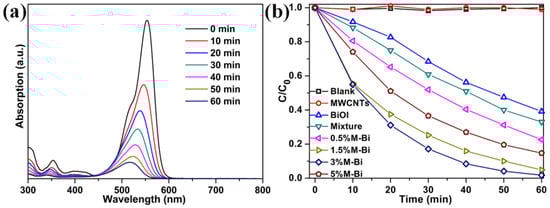

Figure 5. (a) UV-Vis absorption spectra of rhodamine B (RhB) dye versus reaction time over 3%M-Bi; (b) Photocatalytic degradation of RhB under visible light (λ > 400 nm), in the absence of catalysts and in the presence of as-prepared catalysts (10 mg).
Figure 5. (a) UV-Vis absorption spectra of rhodamine B (RhB) dye versus reaction time over 3%M-Bi; (b) Photocatalytic degradation of RhB under visible light (λ > 400 nm), in the absence of catalysts and in the presence of as-prepared catalysts (10 mg).
Nanomaterials 07 00022 g005

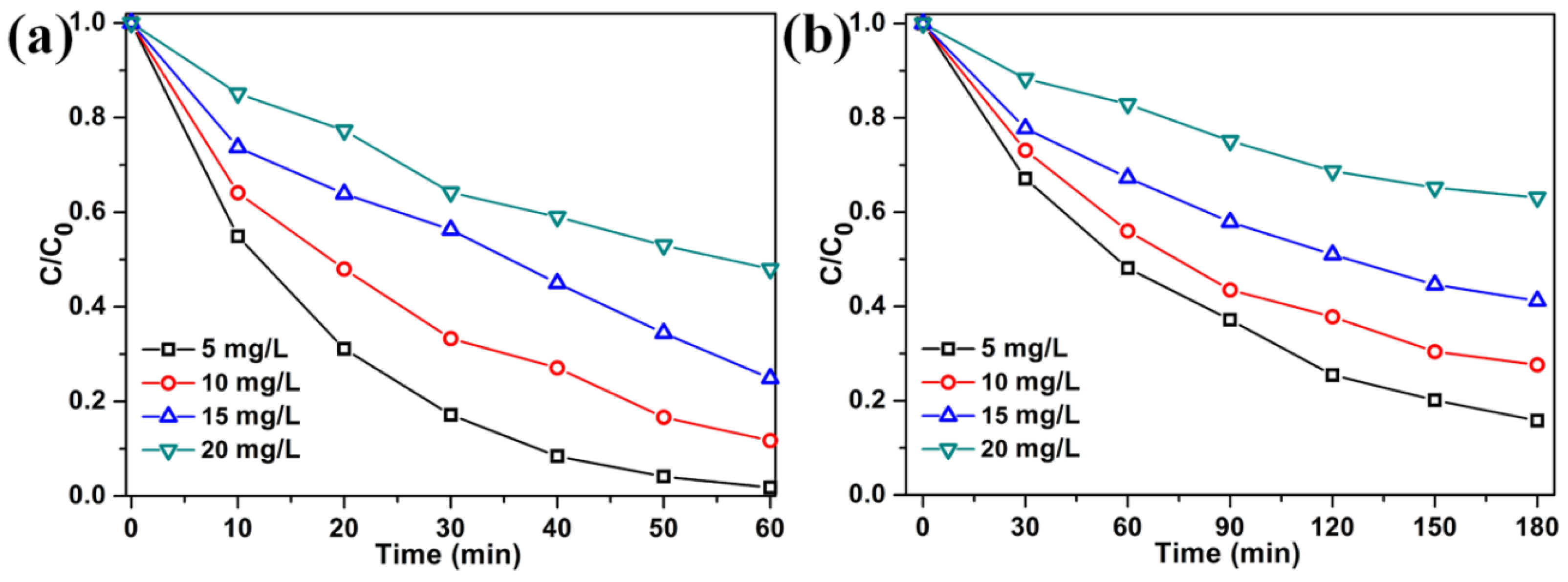

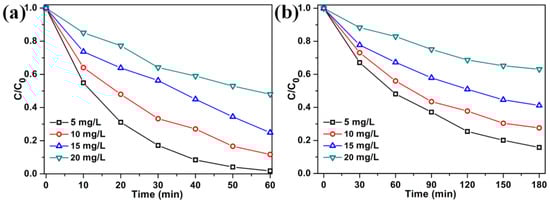

Figure 6. The effect of the initial concentrations of RhB (a) and methyl orange (MO) (b) on the photocatalytic activity of 3%M-Bi (10 mg).
Figure 6. The effect of the initial concentrations of RhB (a) and methyl orange (MO) (b) on the photocatalytic activity of 3%M-Bi (10 mg).
Nanomaterials 07 00022 g006

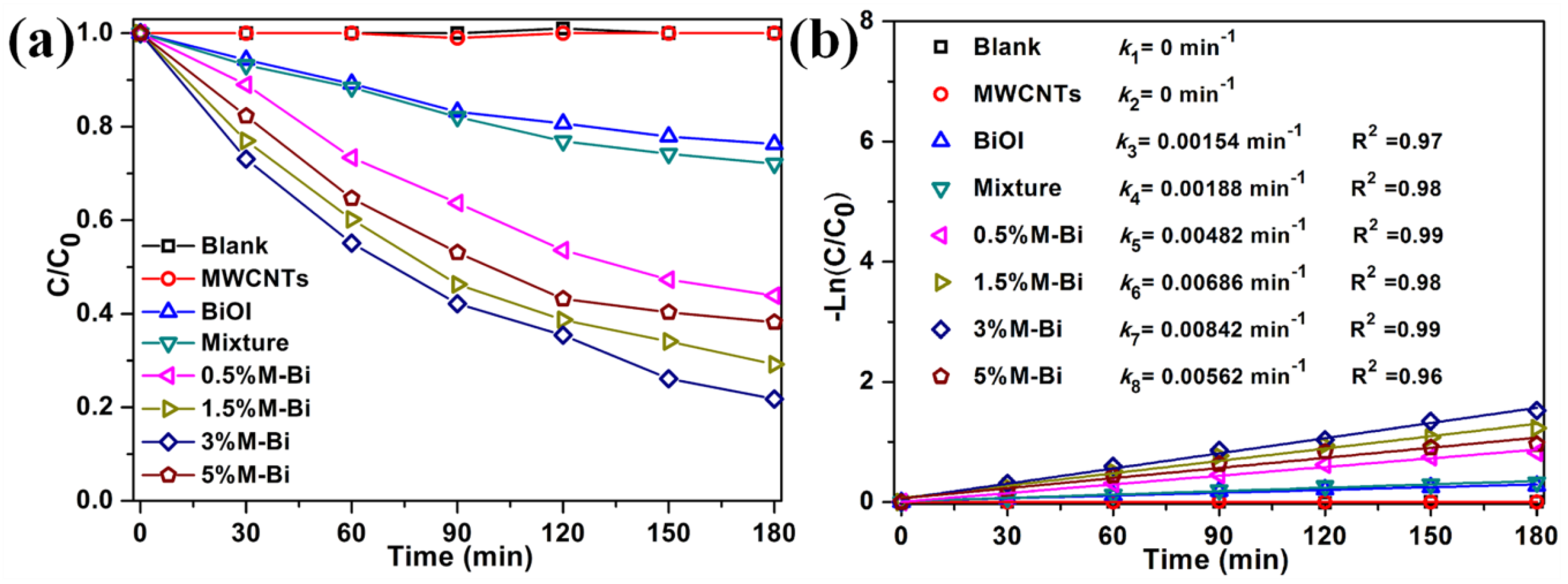

Figure 7. The degradation efficiencies (a) and rate constants (b) of para-chlorophenol (4-CP) in aqueous solution (1 mg·L−1, 50 mL) versus the exposure time under visible light (λ > 400 nm), in the absence of catalysts and in the presence of as-prepared catalysts (10 mg).
Figure 7. The degradation efficiencies (a) and rate constants (b) of para-chlorophenol (4-CP) in aqueous solution (1 mg·L−1, 50 mL) versus the exposure time under visible light (λ > 400 nm), in the absence of catalysts and in the presence of as-prepared catalysts (10 mg).
Nanomaterials 07 00022 g007

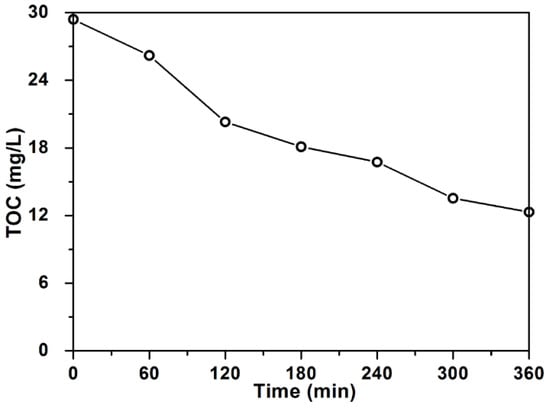

Figure 8. Total organic carbon (TOC) removal during RhB degradation (40 mg·L−1, 100 mL) over 3%M-Bi (100 mg) under visible light (λ > 400 nm).
Figure 8. Total organic carbon (TOC) removal during RhB degradation (40 mg·L−1, 100 mL) over 3%M-Bi (100 mg) under visible light (λ > 400 nm).
Nanomaterials 07 00022 g008

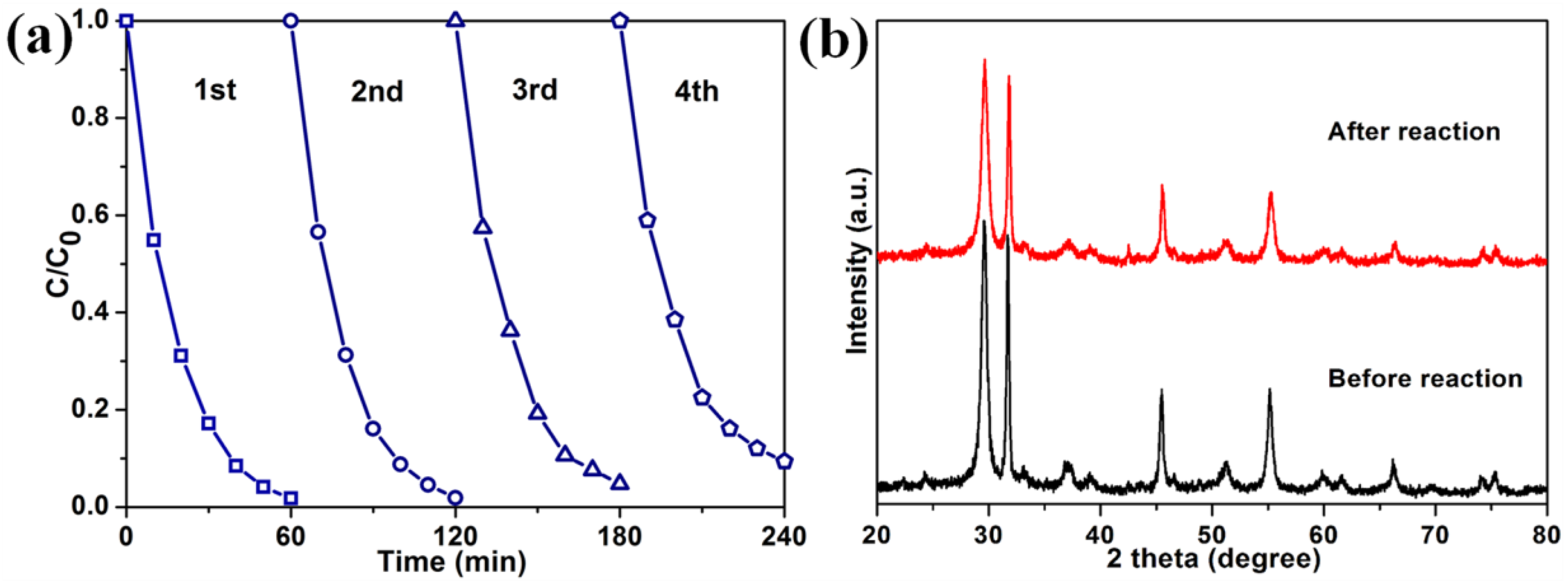

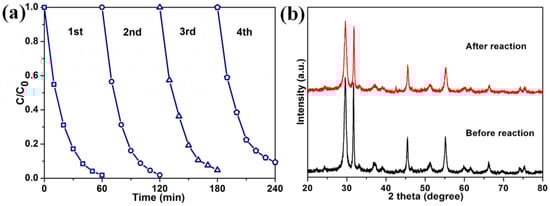

Figure 9. (a) Cycling runs in photocatalytic degradation of RhB (5 mg·L−1, 50 mL) over 3%M-Bi (10 mg) under visible light (λ > 400 nm); (b) XRD patterns of 3%M-Bi before and after the reaction.
Figure 9. (a) Cycling runs in photocatalytic degradation of RhB (5 mg·L−1, 50 mL) over 3%M-Bi (10 mg) under visible light (λ > 400 nm); (b) XRD patterns of 3%M-Bi before and after the reaction.
Nanomaterials 07 00022 g009

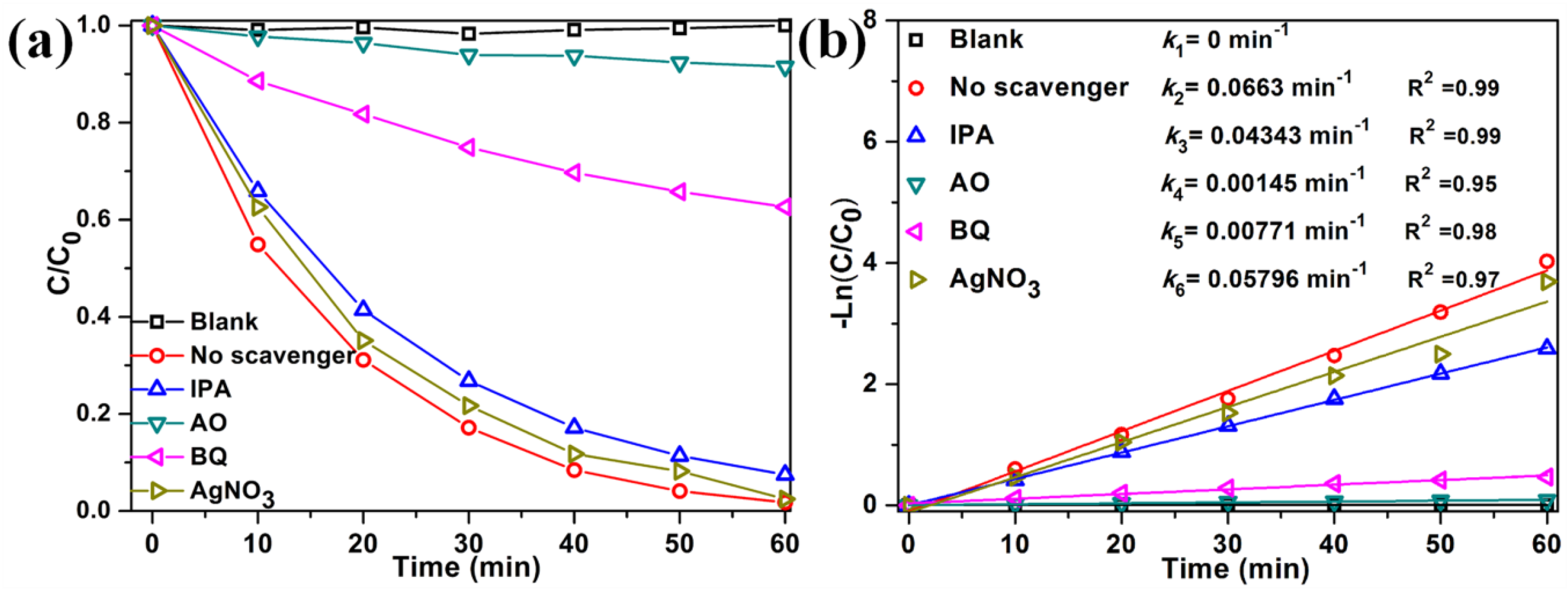

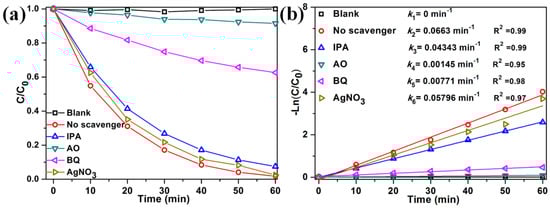

Figure 10. Effect of different scavengers on the degradation efficiencies (a) and rate constants (b) of RhB over 3%M-Bi under visible light (λ > 400 nm).
Figure 10. Effect of different scavengers on the degradation efficiencies (a) and rate constants (b) of RhB over 3%M-Bi under visible light (λ > 400 nm).
Nanomaterials 07 00022 g010

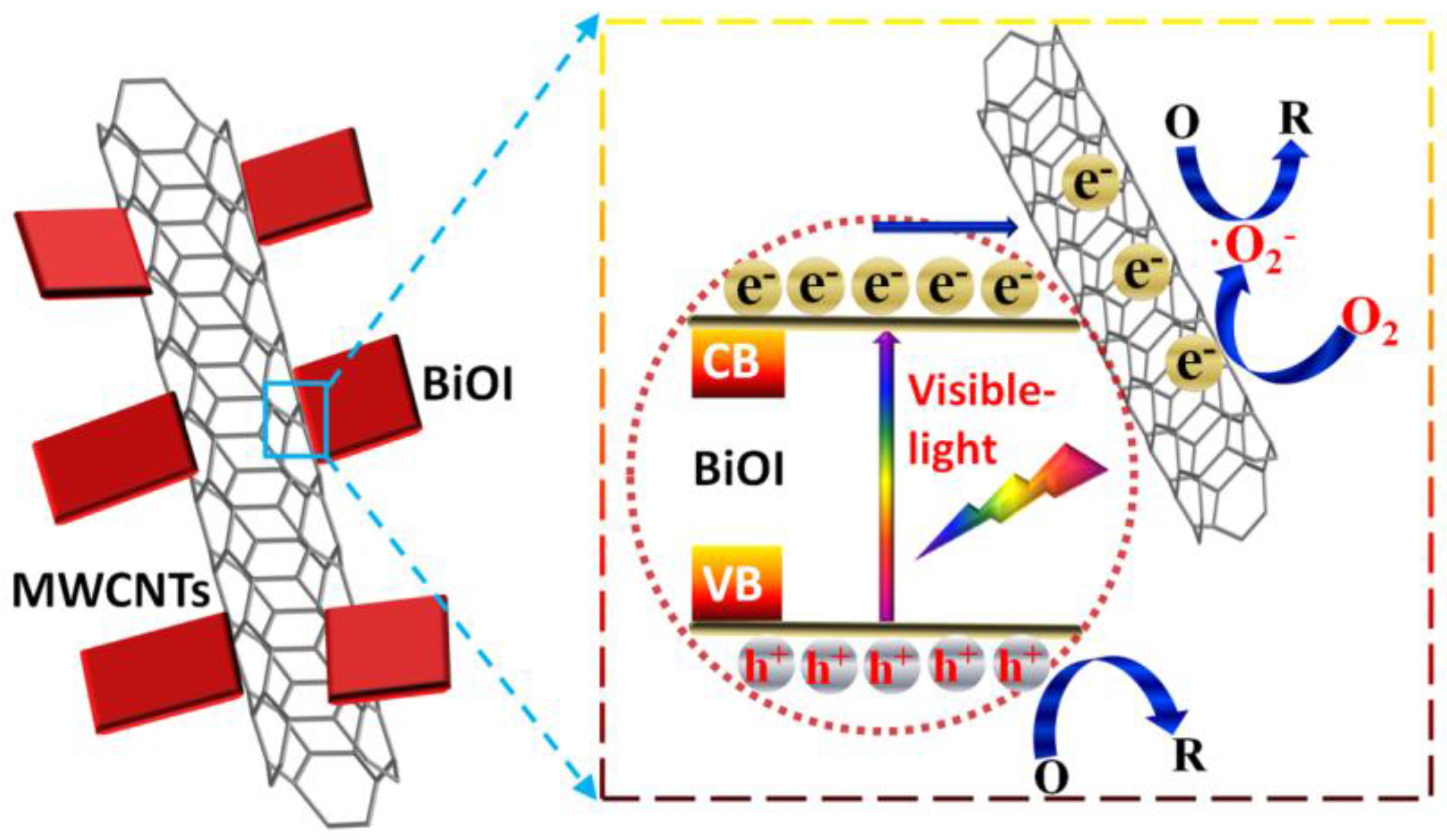

Figure 11. The proposed photocatalytic mechanism for the high activity of MWCNTs/BiOI.
