MoS₂-PtX₂ Vertical Heterostructures

Abstract

This study reports the successful fabrication and characterization of two-dimensional (2D) vertical heterostructures composed of a semiconducting molybdenum disulfide (MoS₂) layer stacked with semimetallic platinum dichalcogenides (PtSe₂ and PtTe₂). The heterostructures were created using a versatile fabrication method that combines chemical vapor deposition (CVD) to grow high-quality MoS₂ nanolayers with thermally assisted conversion (TAC) for the synthesis of the Pt-based layers. The final MoS₂/PtSe₂ and MoS₂/PtTe₂ heterostructures were then assembled via a dry transfer process, ensuring high structural integrity. The quality and properties of these heterostructures were investigated using a range of advanced spectroscopic techniques. Raman spectroscopy confirmed the presence of characteristic vibrational modes for each material, validating successful formation. X-ray photoelectron spectroscopy (XPS) analysis further confirmed the elemental composition and oxidation states, though it also revealed the presence of elemental Pt⁰ and oxidized Te⁺⁴ in the PtTe₂ layer, suggesting an incomplete conversion. Importantly, the photoluminescence (PL) spectra showed a significant quenching effect, a clear sign of strong interlayer charge transfer, which is essential for optoelectronic applications. Finally, UV-Vis-NIR spectrophotometry demonstrated the combined optical properties of the stacked layers, with the Pt-based layers causing broadening and a blue-shift in the MoS₂ exciton peaks, indicating altered electronic and optical behavior. This research provides valuable insights into the synthesis and fundamental properties of MoS₂/PtX₂ heterostructures, highlighting their potential for next-generation electronic and optoelectronic devices.

1. Introduction

The surge of interest in two-dimensional (2D) materials has led to significant breakthroughs across various research fields. Among these, transition metal dichalcogenides (TMDs) have emerged as a highly versatile and promising class due to their unique electronic, optical, mechanical, and catalytic properties [1,2,3]. Composed of a transition metal atom (M) sandwiched between two chalcogenide atoms (X), with the general formula MX₂, TMDs exhibit a wide range of behaviors—from semiconducting and semimetallic to superconducting—dependent on their composition and structural phase. These atomically thin layers, often just a few atoms thick, display properties distinctly different from their bulk counterparts. Notably, the properties of 2D materials can be tailored to specific applications through careful modification of their surface chemistry and structure [4,5,6,7].

Recently, synthesis technologies and efficient growth strategies for wafer-scale TMDs and heterojunctions have been comprehensively summarized and analyzed. These are particularly important for device research and development [8]. However, further exploration and research are still needed to integrate two-dimensional (2D) materials into practical semiconductor applications. This includes maintaining high carrier mobility with wafer-scale uniformity and achieving high-quality, low-defect, low-temperature growth. Leveraging the weak van der Waals forces that hold different TMD layers together, researchers have pioneered the fabrication of innovative heterostructures through vertical stacking or lateral assembly of diverse monolayers/few layers of 2D materials [9,10]. These engineered structures further enable precise control over electronic band alignments, light–matter interactions, and charge transfer processes, offering the pathways to realize advanced functionalities [11,12]. The interlayer van der Waals bonding of 2D materials enables the construction of heterostructures without consideration of lattice mismatch [13,14], which provides a suitable strategy for heterostructures that combine the advantages of different 2D materials. In order to circumvent some weaknesses of single 2D materials, it is promising to construct 2D van der Waals heterostructures with different types of materials [15,16]. As a result, TMD heterostructures have become a vibrant frontier in materials science, with significant potential for applications in electronics, optoelectronics, energy harvesting, catalysis, and sensing. Specifically, semimetal/semiconductor 2D heterostructures are widely used in the design of electronic and optoelectronic devices to achieve high-sensitivity photodetection [17]. Molybdenum disulfide (MoS₂), the most studied among 2D chalcogenide compounds, presents outstanding electrical and optical properties. It has been stacked with graphene, SnS₂, TiS₃, CdS, and so on to fabricate heterojunctions [18,19]. In addition to MoS₂, platinum diselenide (PtSe₂) is an important member of group-10 TMDs. The bandgaps of monolayer PtSe₂ and bilayer PtSe₂ are 1.2 eV and 0.21 eV, respectively. Moreover, when the number of layers reaches three and above, it exhibits semimetal characteristics [18], which enables sensitivity to the near-infrared (NIR) region. PtSe₂ is a p-type semiconductor characterized by high carrier mobility (>1000 cm² V⁻¹ s ⁻¹), a narrow bandgap (0.2 eV in multilayer PtSe₂), and strong light-absorption properties at room temperature [19], which has the potential to functionalize as the photoactive layer in a p-n heterojunction with MoS₂.

As-grown MoS₂ is an n-type semiconductor, and PtSe₂ is a p-type semiconductor characterized by high carrier mobility. Platinum ditelluride (PtTe₂) can be either p-type or n-type, depending on the specific growth conditions and the presence of defects. It is often considered a p-type material due to the presence of intrinsic defects that lead to hole doping. However, PtTe₂ can also be tuned to become n-type, for example, by using it as a contact in devices like atomic transistors [20,21,22].

Semiconducting TMDCs with group VIB transition metals (M = Mo, W) have been extensively explored. Unfortunately, the experimental carrier mobility obtained from the related devices is always one order of magnitude lower than the theoretical value [23], which seriously hinders further device improvement. In addition, the energy bandgap of MoS₂, WS_2, etc., only covers the visible to near-infrared spectrum (<1.0 μm), which limits their applications in the longer wavelength. Recently, the newly discovered group-10 TMDCs with strong interlayer interaction, tunable bandgap from 0.0 to 1.60 eV, and high carrier mobility at room temperature have aroused increasing research attention [24].

This article explores the preparation of MoS₂ and Pt-based group 10 TMDs (PtSe₂, PtTe₂), and their heterostructures synthesized by using the CVD (chemical vapor deposition) technique combined with the transfer technology. The assembled vdW heterostructures of MoS₂-PtSe₂ and MoS₂-PtTe₂ were thoroughly characterized to assess heterostructure quality and possible applications.

2. Materials and Methods

Synthesis of MoS₂ via Chemical Vapor Deposition (CVD)

The synthesis of MoS₂ nanofilms [5] was conducted in a precisely controlled two-zone chemical vapor deposition (CVD) system to ensure high-quality crystalline growth with minimal defects. The process incorporated perylene-3,4,9,10-tetracarboxylic acid tetrapotassium salt (PTAS–C₂₄H₈K₄O₈) as a seeding promoter, spin-coated onto the substrate to enhance nucleation efficiency and promote lateral growth. Zone 2 was initially heated to 105 °C for 60 min under a 300 sccm argon purge to remove contaminants. Then, the temperature was increased to 770 °C over 45 min while reducing argon flow to 25 sccm, optimizing conditions for MoS₂ nucleation. In parallel, Zone 1, containing sulfur, was heated to 180 °C, starting 10 min before Zone 2 reached its final temperature, to ensure sufficient sulfur vapor for the precursor reaction.

Upon reaching the target conditions, Zone 2 was held at 770 °C for 5 min under a constant argon flow of 25 sccm, ensuring complete precursor reaction and uniform MoS₂ layer formation. Precise control of temperature, precursor flux, and gas-phase dynamics is critical for optimizing crystallographic quality and film uniformity.

Synthesis of PtSe₂ and PtTe₂ nanofilms/flakes

PtSe₂ and PtTe₂ thin films were synthesized via thermally assisted conversion (TAC) of pre-deposited Pt films in a three-zone gradient tube furnace [6,7]. High-purity selenium (99.999%) and tellurium (99.999%) served as chalcogen sources. The Pt-coated substrates were placed in the central zone at 500 °C, while the chalcogenide sources were positioned upstream at controlled temperatures to regulate vapor pressure. The reaction was conducted over 2 h, with optimized heating and cooling rates. A carrier gas mixture of Ar (90%) and H₂ (10%) at 150 sccm facilitated chalcogen incorporation while suppressing oxidation. The reactor was purged before initiation to remove residual contaminants, ensuring a clean growth environment and preventing unwanted secondary reactions.

Transfer of MoS₂ Thin Films

MoS₂ thin films were transferred from sapphire substrates onto Pt-based group 10 transition metal dichalcogenide layers (PtSe₂, PtTe₂) to form heterostructures using the well-known thermal release tape (TRT) transfer process.

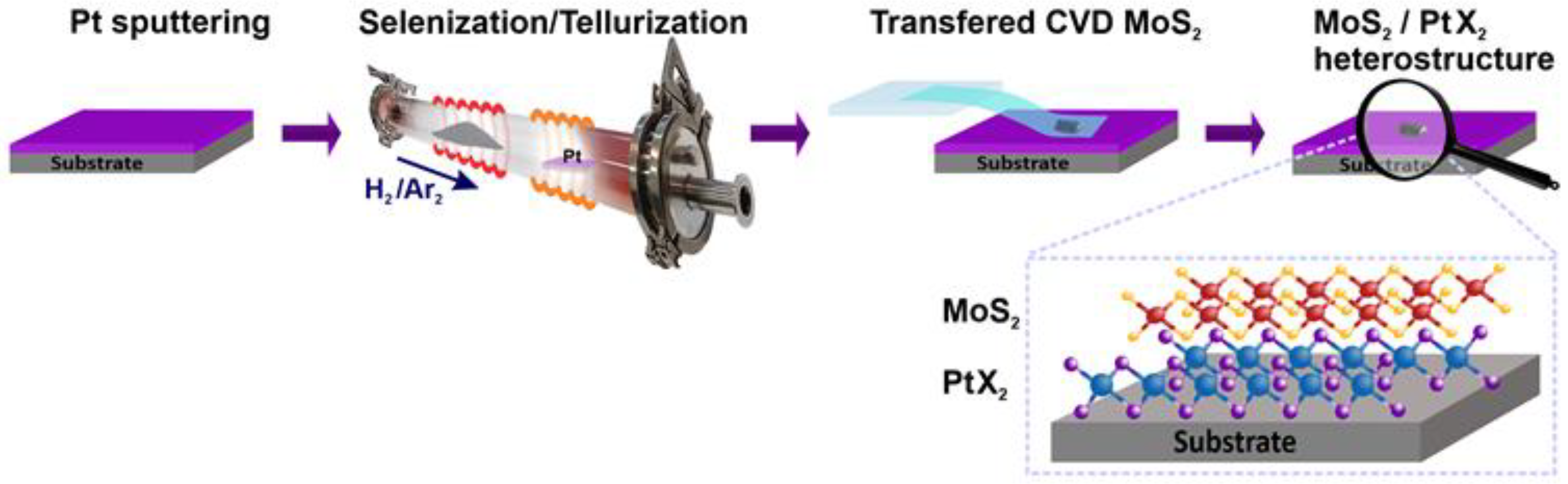

The resulting MoS₂-based heterostructures (see Figure 1) exhibited high structural integrity and minimal contamination, making them suitable for Raman spectroscopy, photoluminescence analysis, and electronic transport measurements.

Atomic force microscopy (AFM) with an MFP-3D system (Asylum Research, Oxford Instruments, Santa Barbara, CA, USA) was employed to investigate the surface topography and thickness of the deposited layers.

Raman spectral data were collected using a laser confocal microscopic Raman spectrometer (inVia Qontor) (Renishaw Wotton-under-Edge, UK) The 532 nm, 50 mW laser was used for excitation. This device included a high-speed grating feedback platform (MS-30), a high-resolution microscopic system (Leica, Wetzlar, Germany), and a CCD detector (Renishaw, RenCam series, Wotton-under-Edge, UK). During the experiment, the laser beam was focused on the sample surface with a 100× objective lens, exciting the sample and producing Raman scattering signals. All Raman spectra in this study were recorded in a temperature-controlled dark room with the following parameters: a 2400 L/mm high-resolution grating and an exposure time of 10 s per spectrum.

The X-ray photoelectron spectroscopy (XPS) studies were performed in a VG Escalab MKII electron spectrometer (Thermo Fisher Scientific Inc., Waltham, MA, USA) using AlKα radiation with an energy of 1486.6 eV under a base pressure of 10⁻⁸ Pa and a total instrumental resolution of 1 eV. The binding energies (BEs) were determined using the O1s line as a reference with an energy level of 530.3 eV. The accuracy of the measured BE was 0.2 eV. The photoelectron lines of the constituent elements on the surface were recorded and corrected by subtracting a Shirley-type background and quantified using the peak area and Scofield’s photoionization cross-sections. The deconvolution of spectra was performed with XPSPEAK41 software.

The optical transmittance spectra were measured at room temperature using an Ultraviolet–Visible–Near-infrared (UV-VIS-NIR) spectrophotometer Cary 5E (Agilent Technologies, Inc, Santa Clara, CA, USA) in the wavelength range of 200 nm–800 nm.

3. Results

3.1. AFM Analysis

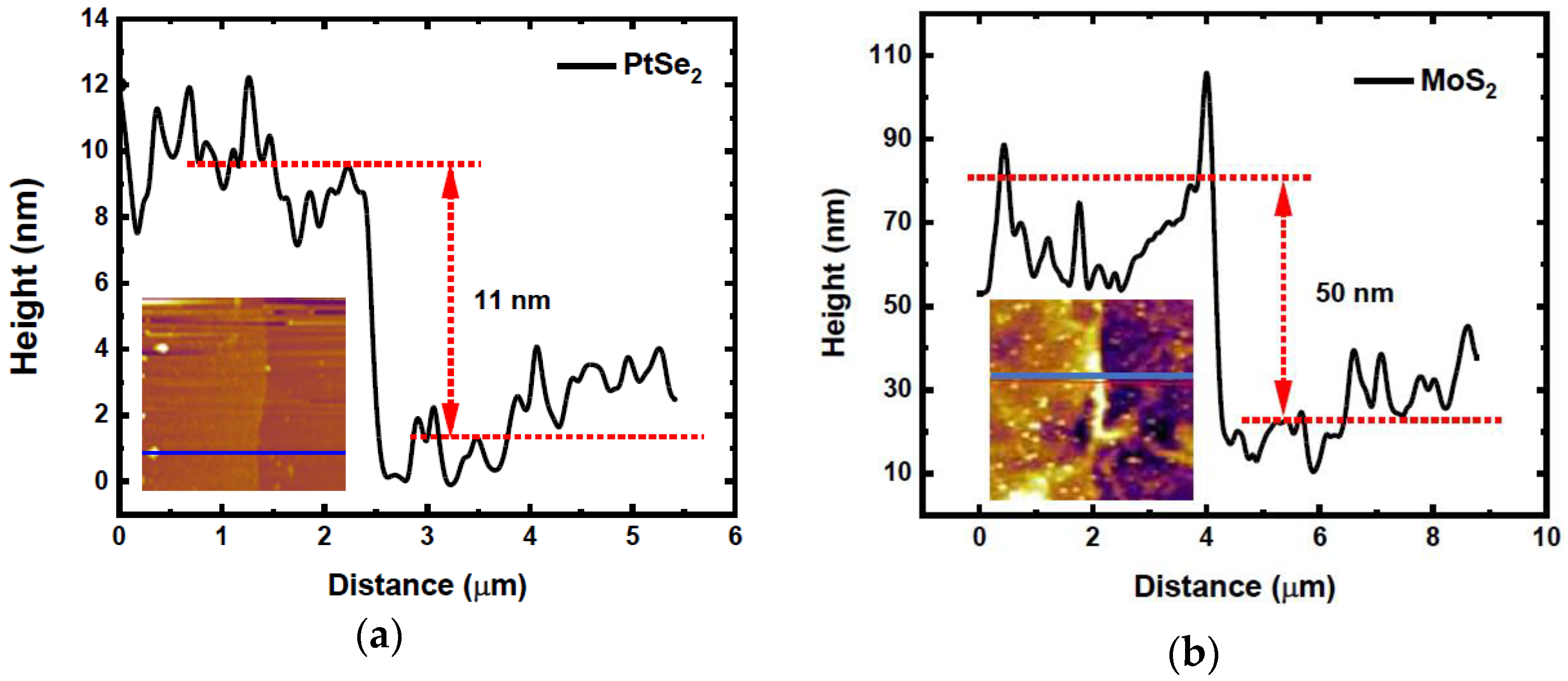

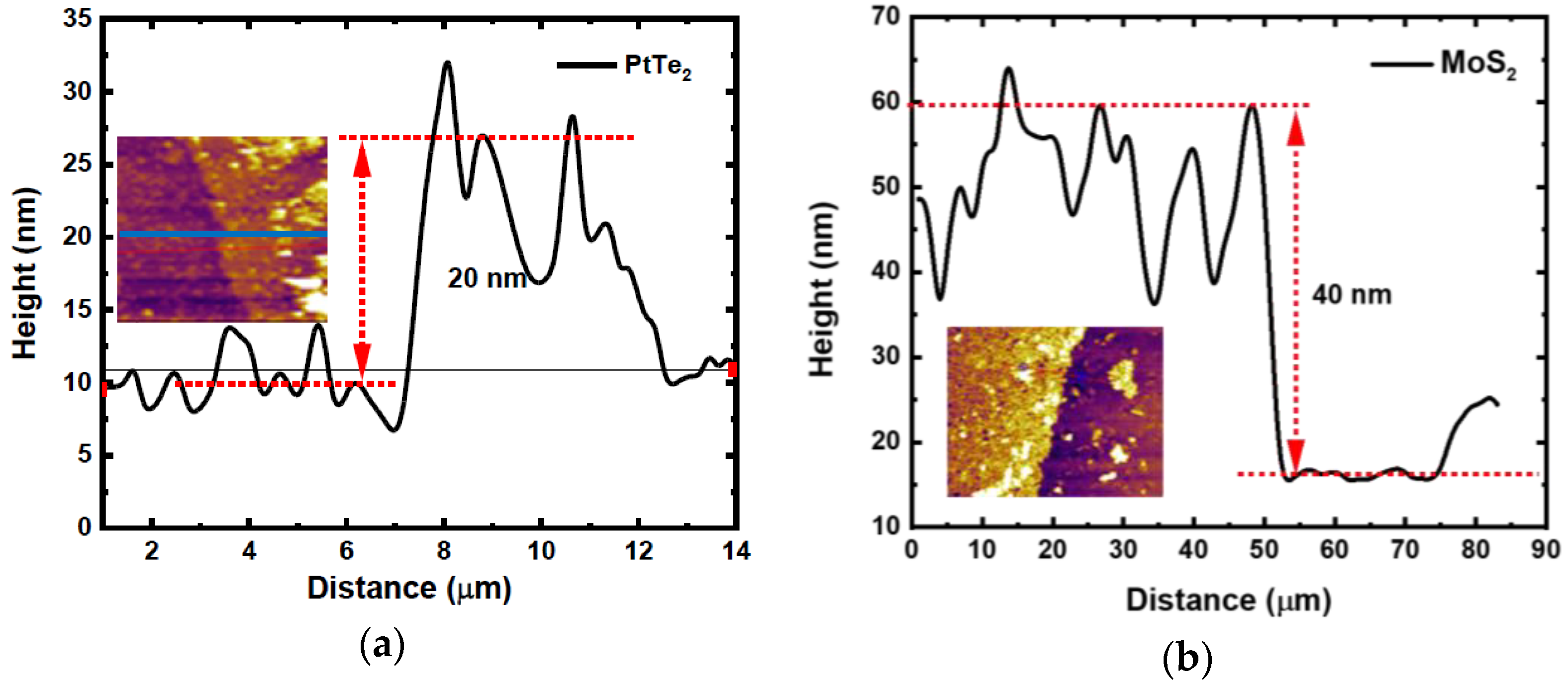

The surface topography was obtained by AFM. Figure 2 and Figure 3 clearly show the thin layers of MoS₂, PtSe₂, and PtTe₂ flakes. The obtained thickness estimated by height profiles is indicated in the figures. From these measurements, the combined height of the heterostructures is around ~60 nm.

3.2. Raman Spectroscopy

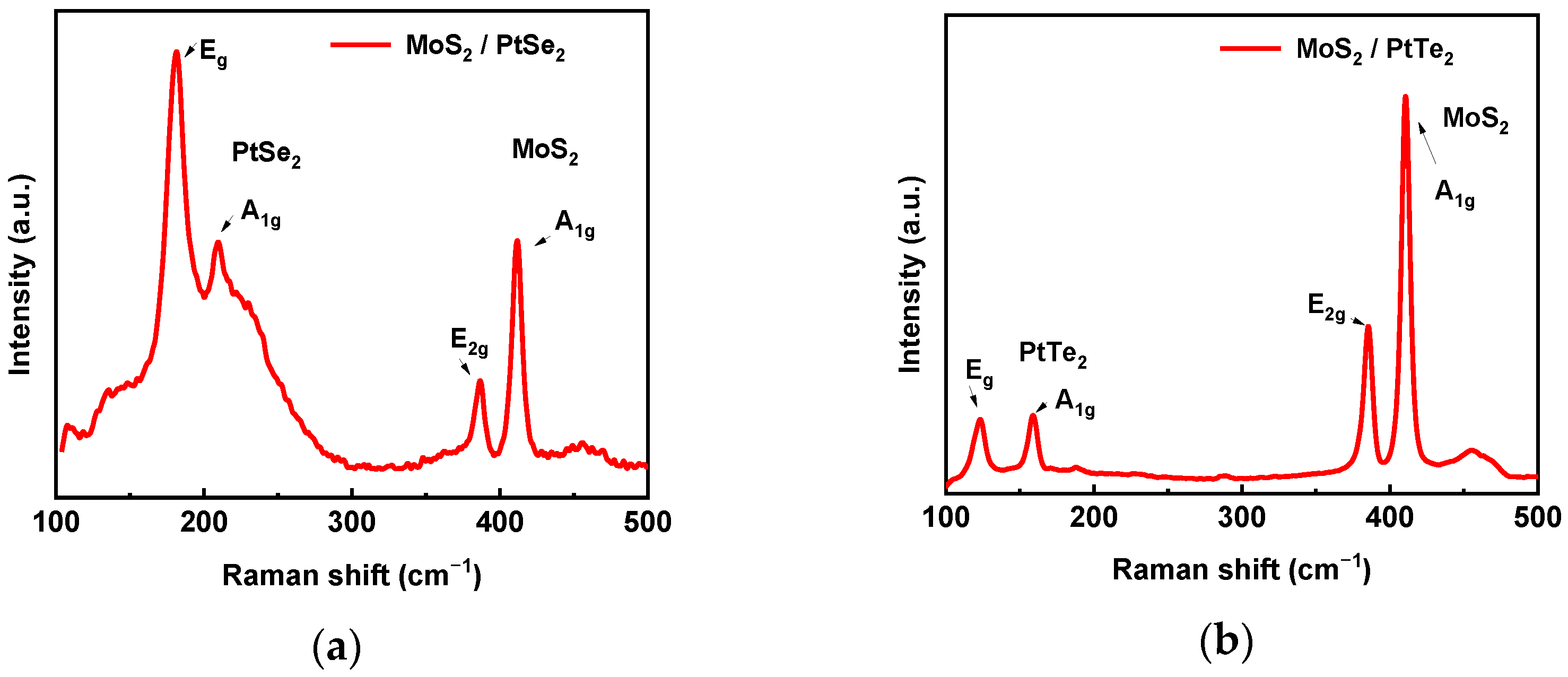

Raman spectroscopy was carried out on both MoS₂/PtSe₂ and MoS₂/PtTe₂ heterostructures to confirm the successful formation and quality after the fabrication. The Raman spectrum of the MoS₂/PtSe₂ heterostructure in Figure 4a shows vibrational peaks from both PtSe₂ and MoS₂. The spectra of PtSe₂ films exhibit two characteristic peaks at approximately 177 cm⁻¹ and 206 cm⁻¹, which represent the E_g and A_1g modes of layered PtSe₂, respectively [19]. The E_g peak originates from the in-plane vibration of selenium (Se) atoms, and the A_1g peak is caused by the out-of-plane vibration of Se atoms. A red-shift in the position of both peaks and an increase in the intensity ratio of the two peaks are observed as the number of PtSe₂ layers increases [18]. This behavior can be explained by an increasing out-of-plane contribution due to an increase in van der Waals interactions between the layers [19]. The full width at half-maximum (FWHM) of the E_g peak indicates the material quality of PtSe₂ [19]. For high-quality TAC-grown PtSe₂ films, the FWHM is smaller than 5 cm⁻¹ [20]. The 387 cm⁻¹ (E_2g) and 412 cm⁻¹ (A_1g) peaks are from MoS₂, with a spacing of 25 cm⁻¹, characteristic of few-layer thickness [22].

Raman spectroscopy was used to further characterize the multilayered MoS₂/PtTe₂ heterostructure. As shown in Figure 4b, two distinct Raman peaks located at approximately 386 cm⁻¹ and 410 cm⁻¹ correspond to E_2g and A_1g modes for multilayer MoS₂; the in-plane (E_2g) mode corresponds to the sulfur atoms vibrating in one direction and the molybdenum atom in the other, while the out-of-plane (A_1g) mode is a mode of the sulfur atoms vibrating out-of-plane. The two distinct Raman peaks located at ~123 cm⁻¹ and ~159 cm⁻¹ correspond to E_g and A_1g modes for PtTe₂ [23].

3.3. Photoluminescence

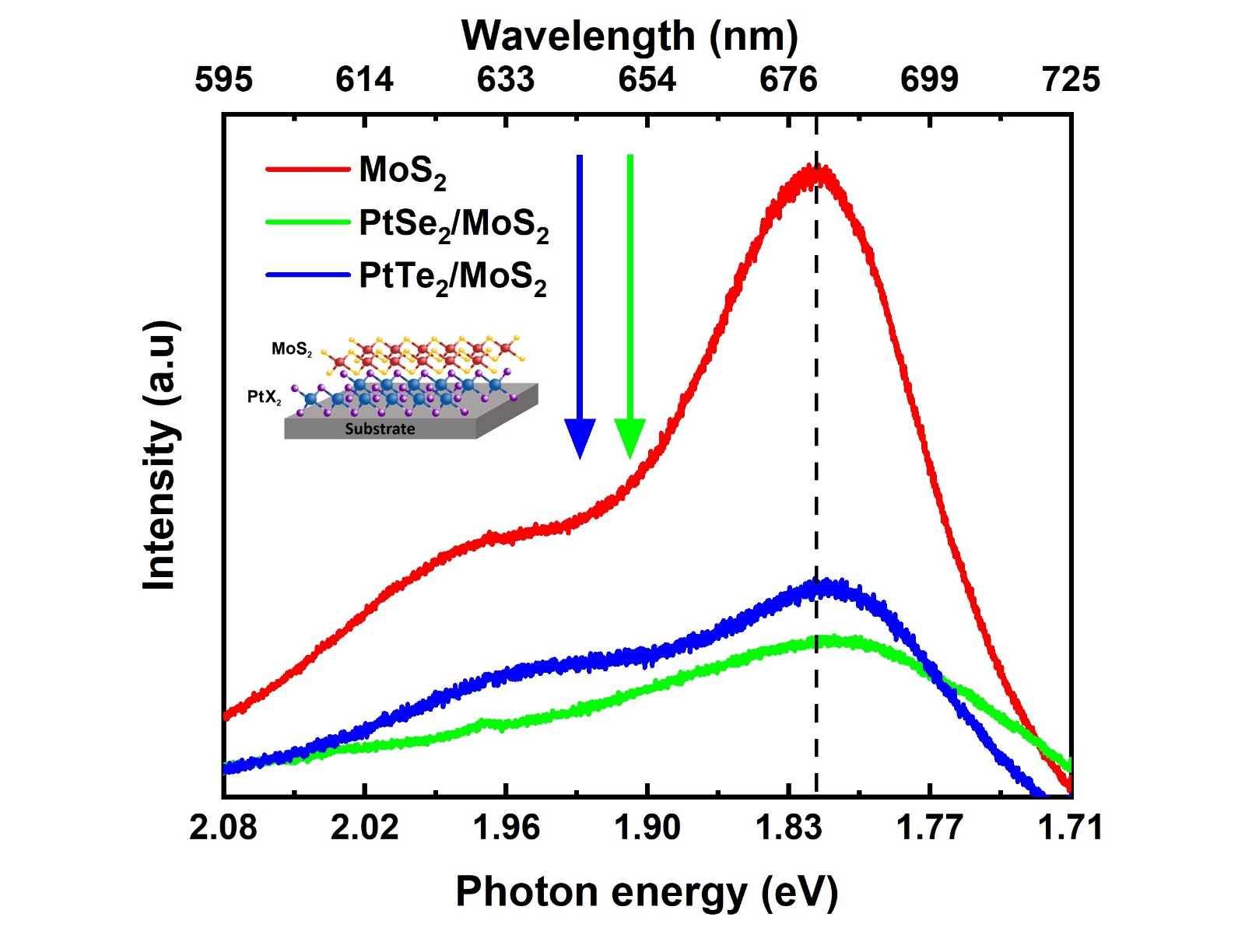

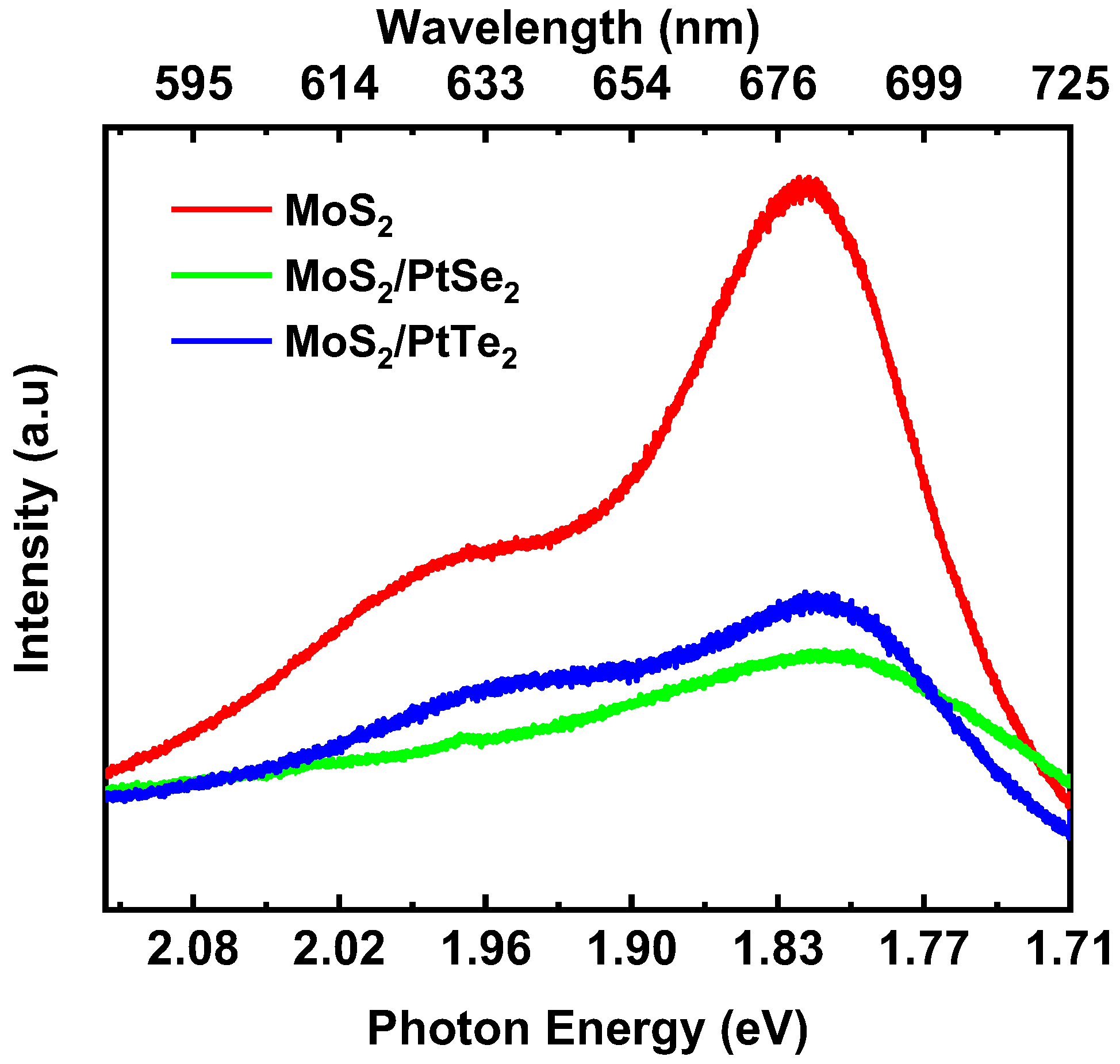

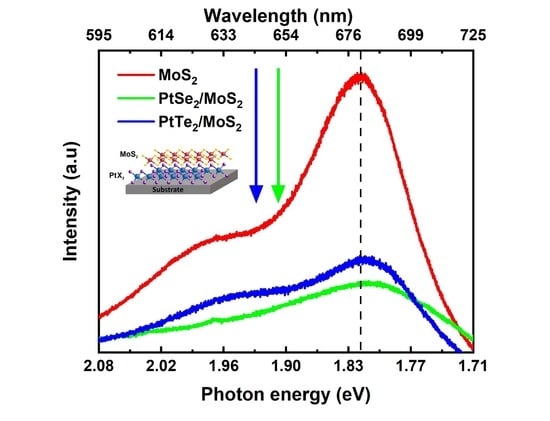

To further investigate the photophysical properties of this heterojunction, the photoluminescence (PL) spectra of MoS₂/PtSe₂, and MoS₂/PtTe₂ were collected under 532 nm laser illumination, respectively. As shown in Figure 5, the MoS₂ layer exhibited strong PL emission. These results show that the interlayer interactions in MoS₂/PtSe₂ and MoS₂/PtTe₂ heterostructures are proved by the PL measurements. PL quenching is a common photophysical phenomenon in van der Waals heterostructures, ascribed to interlayer charge transfer that reduces the radiative recombination efficiency of MoS₂ [25,26]. These spectroscopic results indicate the successful construction of the MoS₂/PtSe₂ and MoS₂/PtTe₂ heterostructures with strong interlayer interaction.

3.4. XPS Analysis

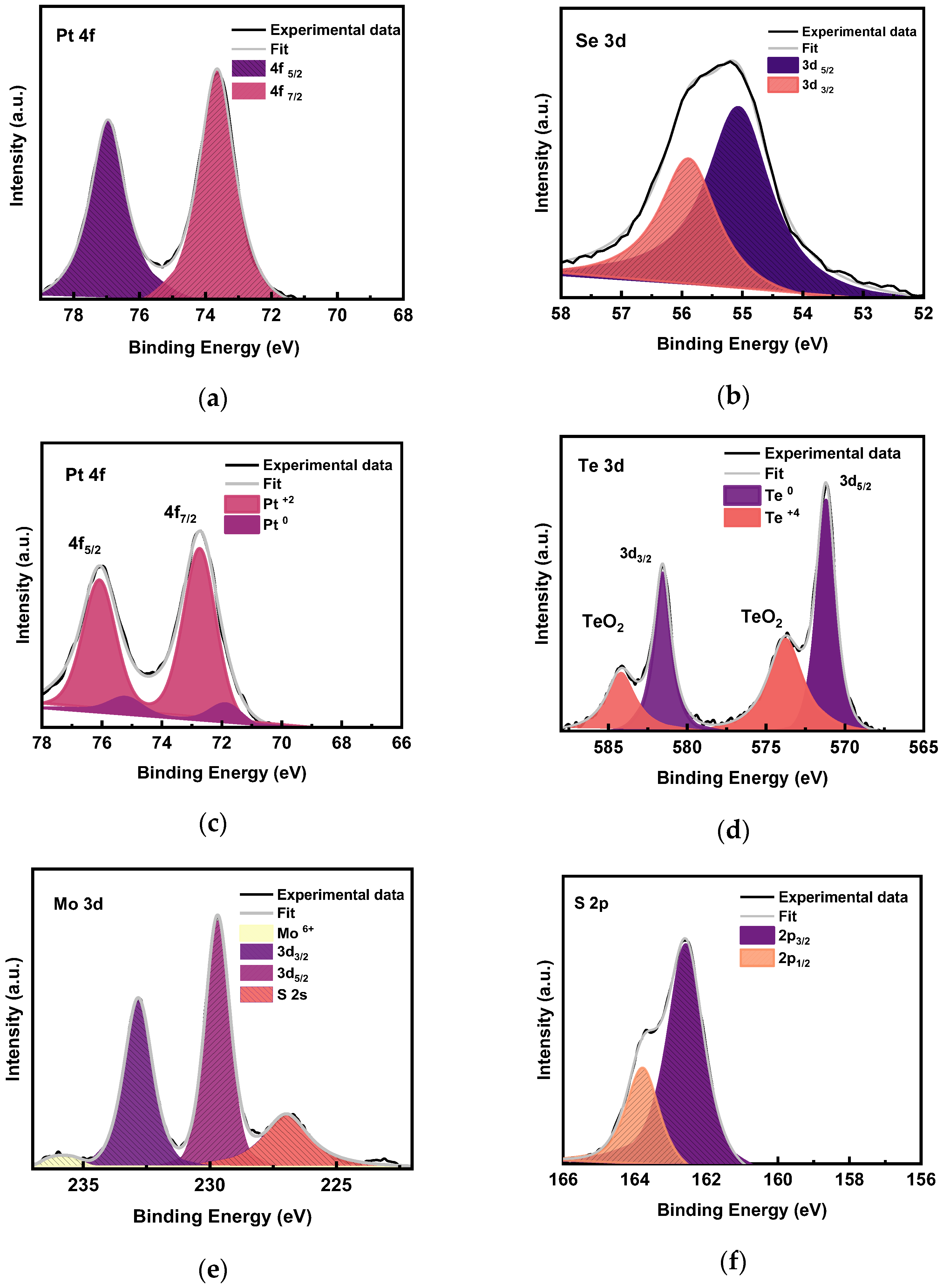

The XPS analyses of PtSe₂, PtTe₂, and MoS₂ were carried out to determine the identity and oxidation states of the elements. The PtSe₂ high-resolution spectrum of Pt in Figure 6a shows the presence of two types of platinum oxidation states. The peak pair at ~76.2 eV and 72.9 eV is attributed to Pt²⁺. There were no discernable peaks at 75.2 eV and 71.9 eV attributed to elemental platinum (Pt⁰) [21], signifying a full conversion of the base Pt to PtSe₂. We can conclude that there is no presence of oxidized Pt within the PtSe₂ samples due to the absence of the PtO₂ peaks at ~73.9 eV and ~77.3 eV. The high-resolution scan of Se in Figure 6b shows a broad peak that is deconvoluted into two peaks at 55.1 eV and 55.9 eV. These peaks are consistent with the Se 3d_5/2 and Se 3d_3/2 peaks observed for various metal selenide materials [19].

XPS measurements carried out on PtTe₂ are shown in Figure 6c,d. The Pt high-resolution scan (Figure 6c) displays two dominant peaks at 75.7 eV and 72.5 eV, which are characteristic of Pt²⁺ [19]. The two low-area peak pairs at 74.2 eV and 71.5 eV are attributed to Pt⁰ [20]. These results are consistent with the observations reported in [27]. The XPS high-resolution spectrum of tellurium shown in Figure 6d illustrates the presence of two Te oxidation states in PtTe₂. The peak at 571 eV and its corresponding shadow peak at 581 eV with a peak-to-peak spacing of 10 eV is due to elemental Te (0 oxidation state) [28]. On the other hand, the peaks at 574 eV and 584 eV occur because of the presence of oxidized tellurium in the prepared material. The oxidation state of Te in its oxidized form is +4 [29,30]. These observations suggest the presence of only Te (0) and Te (+4) in PtTe₂. Due to the strong covalent nature of the Pt-Te bond, its electronic structure is better described as Pt metal possessing an oxidation state within the range of 0 to +2 rather than +4, while the Te chalcogenide adopts an oxidation state of about 0 instead of 2 [20]. Unreacted tellurium (Te) within a MoS₂/PtTe₂ heterostructure can introduce extrinsic defects, altering the band alignment, introducing trapping states, and potentially creating semiconductor–metal transitions, which would significantly degrade its desired electronic and optical properties like carrier injection, photocurrent generation, and bandgap energy, ultimately reducing its performance in optoelectronic devices. Defects, specifically metal-like defects, can drastically decrease the Schottky barrier height in MoS₂/metal contacts, leading to strong Fermi level pinning [31]. This is a direct parallel to how unreacted tellurium (an impurity) could introduce similar defects at the MoS₂/PtTe₂ interface, creating undesirable states that pin the Fermi level and disrupt the ideal band alignment. The combined effects of reduced charge carrier mobility, altered band structure, and increased charge carrier recombination due to unreacted Te would lead to significantly degraded electronic and optical performance [32]. The functional performance of a heterostructure is entirely dependent on its band alignment. A study on MoS₂/PtSe₂ heterojunctions confirms that these structures have a Type-I band alignment, which is essential for effective charge separation [33]. Unreacted tellurium at the interface would disrupt this ideal alignment by creating additional energy levels or a disordered region that acts as a recombination pathway, rather than a charge separation layer. This would severely impact the device’s ability to efficiently separate electron–hole pairs generated by light, a fundamental requirement for photodetectors and solar cells.

The surface chemistry of MoS₂ grown by CVD was also analyzed by XPS and used to measure the binding energies of Mo and S. The Mo 3d and S 2s core level peak regions of the as-grown MoS₂ are shown in Figure 6e,f. The Mo 3d shows three peaks at 228.8 eV, 232.1 eV, and 235.5 eV. The first two peaks are attributed to the doublet Mo 3d5/2 and Mo 3d3/2, respectively, correlating to the Mo⁴⁺ state in MoS₂. The third peak of the Mo 3d core level peak at 235.5 eV is attributed to the Mo⁶⁺ state of MoO₃. The fitted curves of the doublet Mo⁶⁺ 3d3/2 and Mo⁶⁺ 3d5/2 are indicated by the blue line in Figure 6e. This result implies the existence of the Mo oxide state in the MoS₂ grown on sapphire. There are two possibilities for the existence of MoO₃. The first one might be related to sulfur deficiency (S vacancy) during CVD growth [28]. After exposing the grown MoS₂ film to air, the sulfur vacancy will react easily with oxygen to form MoO₃. The second possibility may be the Mo termination with oxygen of Al–O (sapphire substrate) during MoS₂ growth. The S 2p spectrum (Figure 6f) has been resolved into two peaks at 163.5 eV and 162.2 eV for S 2p1/2 and 2p3/2, respectively. The presence of a Mo⁶⁺ state, indicative of MoO₃, significantly impacts the performance of MoS₂ devices by degrading carrier mobility and altering the band alignment. This oxidation, whether from sulfur vacancies or oxygen from the substrate, introduces defects that create new energy levels within the MoS₂ bandgap, acting as charge traps. The concept of defects reducing carrier mobility through scattering is a fundamental principle of condensed matter physics. Specific to MoS₂, this effect has been quantified. A quantitative increase in defect density directly reflects a decrease in carrier mobility, providing a strong foundation for the explanation that MoO₃ defects act as scattering centers [34]. MoO₃, as a new phase, creates a heterojunction with the pristine MoS₂. The presence of the two phases fundamentally alters the electronic structure, leading to a different band alignment, which would be a major performance issue for applications if not controlled [35].

3.5. Optical Properties (Transmittance and Absorbance)

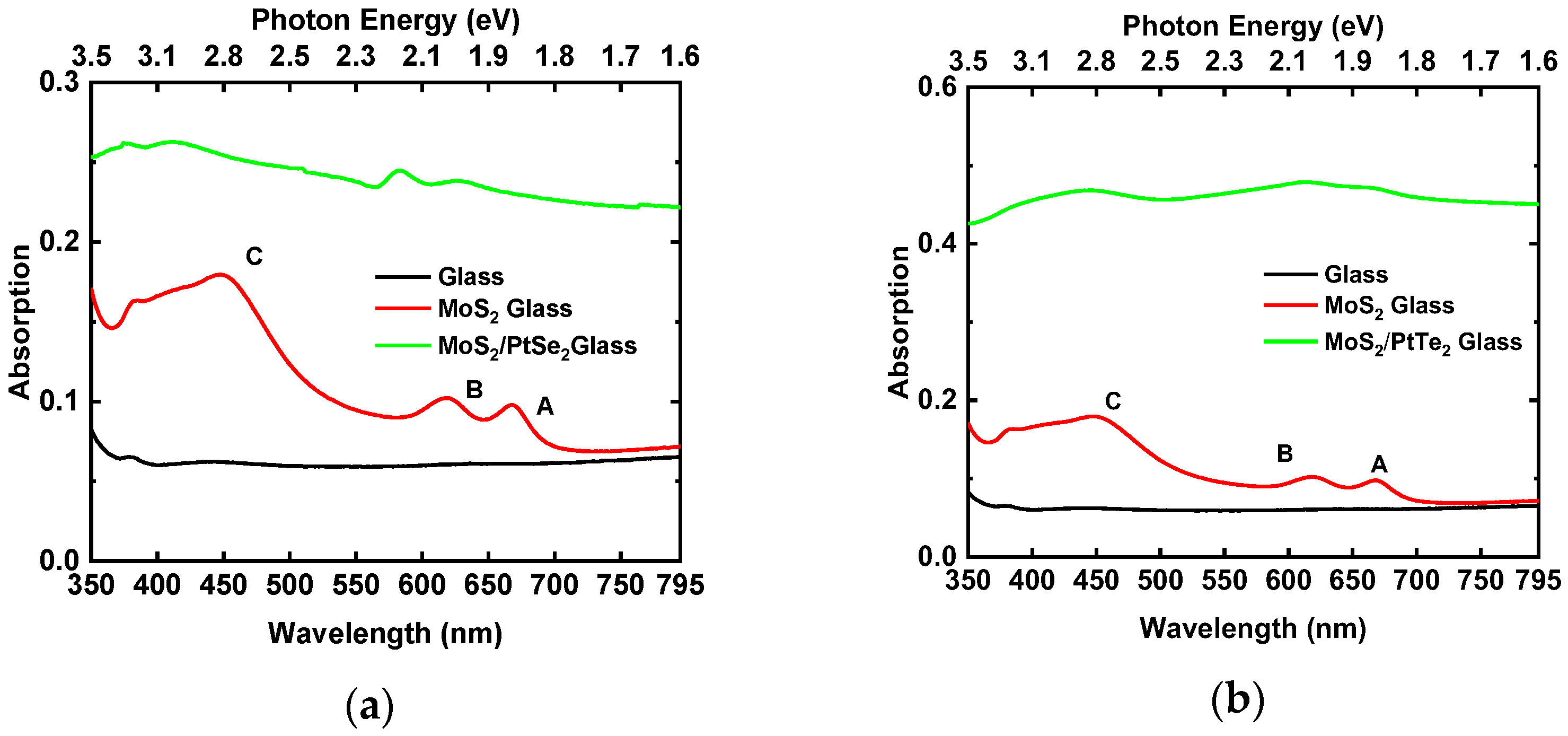

The absorbance spectra of MoS₂ and MoS₂/PtSe₂ and MoS₂/PtTe₂ heterostructures are shown in Figure 7a,b, respectively. Red lines show typical A, B, and C exciton resonance peaks of MoS₂ at 1.85 eV, 2.00 eV, and 2.78 eV. The MoS₂ sample is transparent below 1.65 eV. The optical absorbance of MoS₂ flakes has two prominent narrow peaks occurring at wavelengths ∼605 nm and ∼660 nm that correspond to the absorption due to the direct transitions at the K point of the Brillouin zone, associated with the generation of the B and A excitons, respectively [22]. While the position of the A exciton peak wavelength monotonically red-shifts with the number of layers, the B exciton peak wavelength remains almost unaltered [29]. The spectra also show a broad peak around 440 nm. This feature is typically not observed in photoluminescence experiments, which mostly use an excitation wavelength of ∼500 nm. Recent reflectance and photocurrent spectroscopy experiments, however, present this feature (referred to as a C-exciton peak), whose origin is still a subject of debate [23,24]. The position of this feature strongly depends on the number of layers.

PtSe₂ and PtTe₂ have a broad absorption band at 1.0–3.1 eV with no discernible exciton peaks. The spectrum of the fabricated heterostructure shows absorption features from both materials. In the MoS₂/PtSe₂ heterostructure, there appears to be a blue-shift in the A and B excitons to ~631 nm and ~584 nm, respectively, while the C exciton broadens. As for the MoS₂/PtTe₂ heterostructure, this broadening effect is heightened, and we can no longer observe the well-defined exciton peaks of MoS₂.

4. Conclusions

Vertical heterostructures MoS₂/PtSe₂ and MoS₂/PtTe₂ were successfully created. The heterostructures were assembled using a method that combines chemical vapor deposition (CVD) for nanolayers/flakes, mechanical exfoliation, and dry transfer. The successful creation of the MoS₂/PtSe₂ and MoS₂/PtTe₂ heterostructures was confirmed through analyses from Raman spectroscopy, XPS, optical spectrophotometry, and fluorescence spectroscopy. The presence of strong interlayer interactions within the MoS₂/PtSe₂ and MoS₂/PtTe₂ heterostructures was confirmed based on photoluminescence (PL) measurements.
