Article

An Architectural Battery Designed by Substituting Lithium with Second Main Group Metals (Be, Mg, Ca/Cathode) and Hybrid Oxide of Fourth Group Ones (Si, Ge, Sn/Anode) Nanomaterials Towards H2 Adsorption: A Computational Study

by
Fatemeh Mollaamin
1,* and
Majid Monajjemi
2
1
Department of Biomedical Engineering, Faculty of Engineering and Architecture, Kastamonu University, Kastamonu 37150, Turkey
2
Department of Chemical Engineering, Central Tehran Branch, Islamic Azad University, Tehran 1496969191, Iran
*
Author to whom correspondence should be addressed.
Nanomaterials 2025, 15(13), 959; https://doi.org/10.3390/nano15130959
Submission received: 21 May 2025 / Revised: 16 June 2025 / Accepted: 19 June 2025 / Published: 20 June 2025
(This article belongs to the Section Theory and Simulation of Nanostructures)
Browse Figures
Versions Notes

Abstract

Germanium/tin-containing silicon oxide [SiO–(GeO/SnO)] nanoclusters have been designed with different Si/Ge/Sn particles and characterized as electrodes for magnesium-ion batteries (MIBs) due to forming MgBe [SiO–GeO], MgBe [SiO–SnO], MgCa [SiO–GeO], and MgCa [SiO–SnO] complexes. In this work, alkaline earth metals of magnesium (Mg), beryllium (Be), and calcium (Ca) have been studied in hybrid Mg-, Be-, and Ca-ion batteries. An expanded investigation on H capture by MgBe [SiO–(GeO/SnO)] or MgCa [SiO–(GeO/SnO)] complexes was probed using computational approaches due to density state analysis of charge density differences (CDD), total density of states (TDOS), and electron localization function (ELF) for hydrogenated hybrid clusters of MgBe [SiO–GeO], MgBe [SiO–SnO], MgCa [SiO–GeO], and MgCa [SiO–SnO]. Replacing Si by Ge/Sn content can increase battery capacity through MgBe [SiO–GeO], MgBe [SiO–SnO], MgCa [SiO–GeO], and MgCa [SiO–SnO] nanoclusters for hydrogen adsorption processes and could improve the rate performances by enhancing electrical conductivity. A small portion of Mg, Be, or Ca entering the Si–Ge or Si–Sn layer to replace the alkaline earth metal sites could improve the structural stability of the electrode material at high multiplicity, thereby improving the capacity retention rate. In fact, the MgBe [SiO–GeO] remarks a small enhancement in charge transfer before and after hydrogen adsorption, confirming the good structural stability. In addition, [SiO–(GeO/SnO)] anode material could augment the capacity owing to higher surface capacitive impacts.

Graphical Abstract

1. Introduction

These days, rechargeable multivalent-ion batteries such as magnesium-ion batteries beyond Li-ion battery technology have been attracting researchers’ attention. With a negative reduction potential of −2.37 V versus standard hydrogen electrodes and a desire for a lower dendrite formation close to that of lithium, magnesium anode can release stable performance and high energy [1,2,3]. Recently, researchers designed a quasi-solid-state magnesium-ion battery that confines the hydrogen bond network for true multivalent metal-ion storage. Mg-ion batteries offer a safe and high energy density alternative to current Li-ion batteries. Generally, aqueous batteries encounter a narrow electrochemical yield, but nonaqueous Mg-ion batteries have weak ionic conductivity [4].
Today, two Mg hybrid batteries of Mg-Li and Mg-Na have attained more attention, which merge the advantages of the high-capacitance and high-voltage cathodes of Li+/Na+ ion batteries, fast ion intercalation, and deintercalation into cathodes with high capacity [5].
It is relevant to remark that silicon hybrid inorganic compounds were examined for lithium-ion batteries [6]. Similarly, although Si-based polymer-derived ceramics were investigated in rechargeable batteries [7], there are no results related to discovering their potential for magnesium-ion batteries (MIBs).
One hopping anode material for lithium batteries is silicon, with a theoretical capacity that is more than a graphite structure [8]. But the usage of a Si anode remains moderate because of magnificent volume expansion contributing to structural deterioration [6]. The extracted polymers from ceramics, especially with a silicon backbone, might be a supreme candidate to modify the mentioned concerns [7]. Therefore, silicon oxycarbide with Si tetrahedrally coordinated to O and C was studied in rechargeable lithium-ion batteries [9,10,11,12].
Moreover, Sn-containing SiOC/Sn nanobeads are synthesized with various C/Sn elements and examined as electrodes for Mg-ion batteries [13]. In addition, the synthesis of nano hybrid materials of Sn-including Sn-SiOCN as anode materials for Mg-ion batteries was accomplished. Enhancing Sn ameliorated battery performance by reducing electrode impedance. Silicon and tin have attracted much attention in the pursuit of finding appropriate electrode materials with excellent capacity to substitute graphite in Li-ion batteries [14].
Owing to low electrical conductivity, additives such as tin (Sn) are provided to ameliorate the cycling consistency, rate performance of SiOC electrodes, and reversible capacity [15,16]. Like silicon electrodes, metallic tin electrodes endure severe volume expansion and particle association, contributing to poor cycling consistency [17]. Therefore, silicon oxycarbide ceramics during battery cycling are appropriate active matrices to buffer the volume alteration in and density of tin [18,19,20,21].
Lately, the carbide hybrid nanomaterials of Si-, Ge-, and Sn have been proposed as occupied H2 capture substances [22,23,24]. Whereas the polarizability of Si is more than a C atom, it is assumed that a Si–C/Si nanosurface may append to compositions more intensely in hybrids compared to the pure C nanostructures [25,26,27]. The previous investigations of energy-saving devices through H adsorption have been tailored owing to DFT calculations with a semiconductor group of Si/Ge/Sn/Pb nano-carbides [28], Mg-Al nanoalloys [29], and Al/C/Si doping of BN nanocomposites [30,31].
Si electrodes have structural deterioration and poor performance stability owing to their big volume expansion and pulverization during battery cycling that limit their usage in batteries [32,33]. So, the nanocomposites of Si-containing polymer-derived ceramics such as SiOC and SiCN have been applied instead of Si electrodes to prohibit the mentioned problems [34]. In addition, implanting tin nanomaterials in the SiOC and SiCN ceramics matrix could prevent their volume expansion during the cycling of Li-ion batteries [35,36].
In this research article, the physical and chemical attributes of the mentioned heteroclusters and hydrogenated nanoclusters of MgBe [SiO–GeO].H2, MgBe [SiO–SnO].H2, MgCa [SiO–GeO].H2, and MgCa [SiO–SnO].H2 were characterized. Regarding this context, the [SiO–GeO] or [SiO–SnO] nanocluster was modeled with hybrid alkaline earth metals of Mg/Be/Ca as the cathode materials for comparison. Then, the samples were measured to legislate their potency for the first time in Mg- batteries. Furthermore, the authors reveal how the obtained chemical viewpoints can be used to simulate other hybrid multivalent-ion batteries like MgBe- and MgCa-ion batteries.

2. Materials and Methods

Figure 1a–d,a′–d′ show the alkaline earth metal-based nanoclusters of MgBe [SiO–GeO], MgBe [SiO–SnO], MgCa [SiO–GeO], and MgCa [SiO–SnO], which are able to augment the hydrogen storage in battery cells or other semiconducting devices. In this investigation, the computations have been launched by the Coulomb-attenuating method–(Becke, 3-parameter, Lee–Yang–Parr) [CAM–B3LYP–D3] level of theory. Theoretical calculations have become essential tools for a comprehensive understanding of the microscopic mechanisms in energy storage materials, particularly in charge density variations and electron transport characteristic behaviors in electrode materials. In this research article, the calculations have been performed by the “CAM–B3LYP–D3” level of theory. Dispersion forces were considered under the “DFT-D3” method of Grimme with Becke–Johnson damping [37,38,39,40,41,42,43].
Figure 1a–d,a′–d′ indicate the status of H2 capture by MgBe [SiO–GeO], MgBe [SiO–SnO], MgCa [SiO–GeO], and MgCa [SiO–SnO] nanoclusters and hydrogen-adsorbed nanoclusters of MgBe [SiO–GeO].H2, MgCa [SiO–GeO].H2, MgBe [SiO–SnO].H2, and MgCa [SiO–SnO].H2.
The analysis of the Bader charge parameter [44] has been illustrated for the H2-captured hybrid clusters of MgBe [SiO–GeO].H2, MgBe [SiO–SnO].H2, MgCa [SiO–SnO].H2, and MgCa[SiO–SnO].H2 (Figure 1a–d,a′–d′) due to Gaussian 16 revision C.01 computational software [45] and GaussView 6.1 graphical program [46]. The applied basis sets for the theoretical calculations of H2 capture by MgBe [SiO–GeO], MgBe [SiO–SnO], MgCa [SiO–GeO], and MgCa [SiO–SnO] have been supported by LANL2DZ and 6−311+G (d,p).
One of the most significant advantages of applying (Ge/Sn)-containing SiO nanocluster as anodes/cathodes in Mg batteries is they supply the potential magnesium-ion storage in a firm [SiO–(GeO/SnO)] anode material. Mg2+ ions could react quickly with a Sn atom, C, and probably Si to produce various Mg-based alloys like MgxC, Mg-Si, and Mg2Sn [47]. Li+ cation is bigger than Mg2+ cation, but magnesium storage mechanisms in the [SiO–(GeO/SnO)] matrix could be analogous to those of Li+ [47].
In this investigation, homogenously distributed germanium or tin elements can be immobilized in the [SiO–(GeO/SnO)] matrix. The Mg/Be/Ca insertion could also conclude in the cleavage of some Si–O, Ge–O, or Sn–O bonds in the [SiO–(GeO/SnO)] anode material and the expansion.
At the same time, the Mg, Be, and Ca atoms could react rapidly with a metalloid germanium or metal tin, and possibly hybrid nanocluster of [SiO–(GeO/SnO)] to form different Mg-based alloys and its hydrogenated forms of MgBe [SiO–GeO]/MgBe [SiO–GeO].H2 (Figure 1a,a′), MgCa [SiO–GeO]/MgCa [SiO–GeO].H2 (Figure 1b,b′), MgBe [SiO–SnO]/MgBe [SiO–SnO].H2 (Figure 1c,c′), and MgCa [SiO–SnO]/MgCa [SiO–GeO].H2 (Figure 1d,d′). In fact, the stable structure of the synthesized [SiO–GeO] and [SiO–GeO] hybrid materials could reduce the capacity fading of tin and germanium caused by volume increase during the charging or discharging process. Moreover, the electrical conductivity of these hybrid materials could be increased because of the high electrical conductivity of tin and germanium compared with that of silicon oxide.

3. Results and Discussion

3.1. Evaluation of Charge Density Differences (CDDs)

In Figure 2a–d, the CDD [48] has been displayed for MgBe [SiO–GeO], MgCa [SiO–GeO], MgBe [SiO–SnO], and MgCa [SiO–SnO] nanoclusters with the vibration in the region of about −12 to +6/+10 Bohr and for the hydrogenated forms of MgBe [SiO–GeO].H2, MgCa [SiO–GeO].H2, MgBe [SiO–SnO].H2, and MgCa [SiO–SnO].H2 (Figure 2a′–d′) in the region of about −12 to +6/+10 Bohr. Moreover, the oxygen atoms including 2, 3, 7–12, 14, 15, 17, 18, 22–27, 29, and 30 from Mg-based alloys and its hydrogenated forms of MgBe [SiO–GeO]/MgBe [SiO–GeO].H2, MgCa [SiO–GeO]/MgCa [SiO–GeO].H2, MgBe [SiO–SnO]/MgBe [SiO–SnO].H2, and MgCa [SiO–SnO]/MgCa [SiO–SnO].H2 have displayed the vibration in the region of about −12 to +6/+10 Bohr (Figure 2a–d,a′–d′).
The charge distribution has been displayed in the process of hydrogen trapping by MgBe [SiO–GeO], MgCa [SiO–GeO], MgBe [SiO–SnO], and MgCa [SiO–SnO] complexes accompanying the production of MgBe [SiO–GeO].H2, MgCa [SiO–GeO].H2, MgBe [SiO–SnO].H2, and MgCa [SiO–SnO].H2, respectively (Table 1 and Table 2). Functionalizing of Mg, Be, and Ca atoms can augment the negative atomic charge of oxygen atoms including 2,3, 7–12,14, 15, 17,18, 22–27, 29, and 30 in MgBe [SiO–GeO], MgCa [SiO–GeO], MgBe [SiO–SnO], and MgCa [SiO–SnO] nanoclusters (Table 1 and Table 2). In fact, MgBe [SiO–GeO], MgCa [SiO–GeO], MgBe [SiO–SnO], and MgCa [SiO–SnO] hybrid clusters have displayed more output than [SiO–(GeO/SnO)] [48] for electron acceptance from the electron donor of hydrogen atoms of 33–36 (Table 1 and Table 2).
MgBe [SiO–GeO] and MgCa [SiO–GeO] have shown a Bader charge of −1.545 and −1.733 coulomb before hydrogen adsorption and −1.548 and −1.688 coulomb after H2 capture. In addition, the fluctuation in the charge density values for MgBe [SiO–SnO] and MgCa [SiO–SnO] has shown a Bader charge of −1.677 and −1.712 coulomb before hydrogen adsorption and −1.661 and −1.662 coulomb after hydrogen adsorption. The differences in the charge density value for these hybrid clusters are estimated as follows: ΔQMgBe [SiO–GeO] = −0.003, ΔQMgCa [SiO–GeO] = +0.045, ΔQMgBe [SiO–SnO] = +0.016, and ΔQMgCa [SiO–SnO] = +0.05 coulomb. Therefore, the MgBe [SiO–GeO] complex could have the most gravity for electron receiving owing to H2 capture. In fact, the MgBe [SiO–GeO] remarks a small enhancement in charge transfer before and after hydrogen adsorption, confirming the good structural stability.

3.2. Total Density of States

The notion of “density of states (DOS) and original total density of states (TDOS)” of an isolated system (a molecule) can be written as follows [49]:
T D O S   E = ∑ i δ   ( E − ϵ i   )
The normalized Gaussian function is defined as follows:
G x = 1 c 2 π e − x 2 2 c 2    where    c = F W H M 2 2 l n x
“FWHM (full width at half maximum)” is an adjustable parameter in “Multiwfn” [50,51]. Furthermore, the curve maps of “broadened partial DOS (PDOS)” and “overlap DOS (OPDOS)” are valuable for visualizing orbital composition analysis, the “PDOS function of fragment A” is defined as follows:
P D O S A   E = ∑ i Ξ i , A   F   ( E − ϵ i   )
where “ Ξ i , A is the composition of fragment A in orbital i”. The “OPDOS between fragment A and B” is defined as follows:
O P D O S A , B   E = ∑ i X A , B i   F   ( E − ϵ i )
where “ X A , B i is the composition of total cross term between fragment A and B in orbital i”.
Considering hydrogen trapping by MgBe [SiO–GeO], MgCa [SiO–GeO], MgBe [SiO–SnO], and MgCa [SiO–SnO] nanoclusters, the total density of states was evaluated. This factor can demonstrate the existence of significant chemical interactions often on the “convex side” (Figure 3a–d,a′–d′).
MgBe [SiO–GeO], MgCa [SiO–GeO], MgBe [SiO–SnO], and MgCa [SiO–SnO] (Figure 3a–d) and hydrogenated nanoclusters containing MgBe [SiO–GeO].H2, MgCa [SiO–GeO].H2, MgBe [SiO–SnO].H2, and MgCa [SiO–SnO].H2 (Figure 3a′–d′) have shown the steepest maximum TDOS surrounding −0.30, −0.40, and −0.60 a.u. owing to the covalent bond between Mg/Be and Mg/Ca with a [SiO–(GeO/SnO)] nanocluster with maximum density of states of ≈22.
Frag.1 was displayed for O(9)–O(12), Si(13), O(24)–O(27) and Ge(28), and Mg(31)/X(32) (Y = Be, Ca) in Figure 3a–d and H(36) to H(36) in Figure 3a′–d′. Frag.2 exhibited the fluctuation in Si(1) and Si(4)–Si(6) beside the analogous elements of Frag.1 in Figure 3a–d,a′–d′. In addition, the fluctuation in Ge(16)/Sn(16), Ge(19)/Sn(19) to Ge(21)/Sn(21), O(17), O(18), O(22), O(23), O(29), and O(30) is considered in Figure 3a–d,a′–d′ through Frag.3.

3.3. Electron Localization Function Analysis

Nevertheless, the distinction between deduced/raised electron delocalization/localization into cyclic π-conjugated sets stays encouraging for ELF [52]. The larger the electron localization is in an area, the more likely the electron movement is restricted within it. Therefore, they could be discerned from the ones away if electrons are totally centralized [53,54,55].
Trapping of hydrogens by MgBe [SiO–GeO], MgCa [SiO–GeO], MgBe [SiO–SnO], and MgCa [SiO–SnO] complexes (Figure 4a–d) towards the formation of MgBe [SiO–GeO].H2, MgCa [SiO–GeO].H2, MgBe [SiO–SnO].H2, and MgCa [SiO–SnO].H2 could be described by ELF graphs using Multiwfn [50,51] due to achieving their delocalization/localization characterizations [52] of electrons and chemical bonds (Figure 4a′–d′).
MgBe [SiO–GeO] (Figure 4a), MgBe [SiO–GeO].H2 (Figure 4a′), MgCa [SiO–GeO] (Figure 4b), MgCa [SiO–GeO].H2 (Figure 4b′), MgBe [SiO–SnO] (Figure 4c), MgBe [SiO–SnO].H2 (Figure 4c′), MgCa [SiO–SnO] (Figure 4d), and MgCa [SiO–SnO].H2 (Figure 4d′) have demonstrated electron delocalization through an isosurface map with labeling elements of O(10), O(12), Si(13), O(24), O(26), Ge(28) or Sn(28), X(31)(X = Mg), Y(32) (Y = Be or Mg) and H(33), H(34), H(35), and H(36). In fact, the counter map of ELF can approve that MgBe [SiO–GeO], MgCa [SiO–GeO], MgBe [SiO–SnO], and MgCa [SiO–SnO] nanoclusters may augment the efficiency during H2 capture towards the formation of MgBe [SiO–GeO].H2, MgCa [SiO–GeO].H2, MgBe [SiO–SnO].H2, and MgCa [SiO–SnO].H2 (Table 1 and Table 2).
The observed map in Figure 4 corresponds to the formation of X2Y (X = Mg, Be, Ca; Y = Si, Ge, Sn) based on the electrochemical reaction:
2 X 2 + + Y + 4 e − → X 2 Y
The existence of Ge or Sn in the [SiO–GeO] or [SiO–SnO] matrix may decrease the electrode polarization and improve the battery performance [56].
In addition, the intermolecular orbital overlap integral is significant in the illustration of intermolecular charge transfer, which can compute “HOMO–HOMO” and “LUMO–LUMO” overlap integrals between the H2 molecules and heterostructures of MgBe [SiO–GeO], MgBe [SiO–GeO].H2, MgCa [SiO–GeO], MgCa [SiO–GeO].H2, MgBe [SiO–SnO], MgBe [SiO–SnO].H2, MgCa [SiO–SnO], and MgCa [SiO–SnO].H2 nanoclusters. The layered germanium/tin–silicon oxide improved by the alkaline earth metals of magnesium, beryllium, and calcium has indicated the structural stability of Mg-, Be-, and Ca-ion batteries through the reported stability energy in Table 3. A small portion of Mg, Be, or Ca entering the Si–Ge or Si–Sn layer to replace the alkaline earth metal sites could improve the structural stability of the electrode material at high multiplicity, thereby improving the capacity retention rate of 645.7713, 543.9274, 505.4256, and 440.8573 mAhg−1 for MgBe [SiO–GeO], MgCa [SiO–GeO], MgBe [SiO–SnO], and MgCa [SiO–SnO] complexes, respectively (Table 3).
Furthermore, the binding energies of Mg-, Be-, and Ca-ions and [SiO–GeO] or [SiO–SnO] heteroclusters have been calculated, which are large enough to prohibit metal atom clustering (Table 3). The charge surfaces produced at the metal spot, which can insert a dipole in the H2 molecule, can attach to the H2 molecule by the ion quadrupole and by ion-induced dipole interactions. The consequences display that MgBe [SiO–GeO], MgCa [SiO–GeO], MgBe [SiO–SnO], and MgCa [SiO–SnO] complexes can save the H2 molecule. These investigations could introduce a viewpoint of modeling new 3D hydrogen-saving materials with a [SiO–GeO] or [SiO–SnO] cluster doped with alkaline earth metals as the structure units.

4. Conclusions

H2 trapping by the hybrid materials of MgBe [SiO–GeO], MgCa [SiO–GeO], MgBe [SiO–SnO], and MgCa [SiO–SnO] was studied by computational approaches. The changes in the charge density defined a substantial charge transfer in MgBe [SiO–GeO], MgCa [SiO–GeO], MgBe [SiO–SnO], and MgCa [SiO–SnO]. Enhancing Mg, Be, or Ca to cell batteries could augment energy saving in cell storage. In addition, H bond accepting sites by MgBe [SiO–GeO], MgCa [SiO–GeO], MgBe [SiO–SnO], and MgCa [SiO–SnO] can alleviate parasitic H evolution in H2O electrolytes in Mg-, Be-, and Ca-ion batteries. The results of this research article represent that the architectural design of XY(GeSiO) (X = Mg/Y = Be,Ca) can augment the capacity of battery cells. A small portion of Mg, Be, or Ca entering the Si–Ge or Si–Sn layer to replace the alkaline earth metal sites could improve the structural stability of the electrode material at high multiplicity, thereby improving the capacity retention rate of 645.7713, 543.9274, 505.4256, and 440.8573 mAhg−1 for MgBe [SiO–GeO], MgCa [SiO–GeO], MgBe [SiO–SnO], and MgCa [SiO–SnO] complexes, respectively. So, the MgBe [SiO–GeO] remarks a small enhancement in charge transfer before and after hydrogen adsorption, confirming the good structural stability. This research article is useful for designing and constructing Mg hybrid batteries with high power density/energy density with excellent cycle stability and will represent a perspective for the industrial application of Mg hybrid batteries.

Author Contributions

Conceptualization, F.M.; Methodology, F.M. and M.M.; Software, F.M. and M.M.; Validation, F.M. and M.M.; Formal analysis, F.M. and M.M.; Investigation, M.M.; Resources, M.M.; Data curation, F.M. and M.M.; Writing—original draft, F.M.; Writing—review & editing, M.M.; Visualization, F.M. and M.M.; Supervision, F.M.; Project administration, F.M. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Data Availability Statement

Data are contained within the article.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Liu, X.; Du, A.; Guo, Z.; Wang, C.; Zhou, X.; Zhao, J.; Sun, F.; Dong, S.; Cui, G. Uneven stripping behavior, an unheeded killer of Mg anodes. Adv. Mater. 2022, 34, 2201886. [Google Scholar] [CrossRef] [PubMed]
  2. Zhang, Y.; Li, J.; Zhao, W.; Dou, H.; Zhao, X.; Liu, Y.; Zhang, B.; Yang, X. Defect-free metal–organic framework membrane for precise ion/solvent separation toward highly stable magnesium metal anode. Adv. Mater. 2022, 34, 2108114. [Google Scholar] [CrossRef] [PubMed]
  3. Sun, Y.; Wang, Y.; Jiang, L.; Dong, D.; Wang, W.; Fan, J.; Lu, Y.-C. Non-nucleophilic electrolyte with non-fluorinated hybrid-solvents for long-life magnesium metal batteries. Energy Environ. Sci. 2023, 16, 265–274. [Google Scholar] [CrossRef]
  4. Leong, K.W.; Pan, W.; Yi, X.; Luo, S.; Zhao, X.; Zhang, Y.; Wang, Y.; Mao, J.; Chen, Y.; Xuan, J.; et al. Next-generation magnesium-ion batteries: The quasi-solid-state approach to multivalent metal ion storage. Sci. Adv. 2023, 9, eadh1181. [Google Scholar] [CrossRef]
  5. Wang, P.; Yan, X. Recent advances in Mg-Li and Mg-Na hybrid batteries. Energy Storage Mater. 2022, 45, 142–181. [Google Scholar] [CrossRef]
  6. Zhao, X.; Lehto, V.P. Challenges and prospects of nanosized silicon anodes in lithium-ion batteries. Nanotechnology 2021, 32, 042002. [Google Scholar] [CrossRef]
  7. Wen, Q.; Qu, F.; Yu, Z.; Graczyk-Zajac, M.; Xiong, X.; Riedel, R. Erratum to: Si-based polymer-derived ceramics for energy conversion and storage. J. Adv. Ceram. 2022, 11, 984. [Google Scholar] [CrossRef]
  8. Ge, M.; Cao, C.; Biesold, G.M.; Sewell, C.D.; Hao, S.M.; Huang, J.; Zhang, W.; Lai, Y.; Lin, Z. Recent advances in silicon-based electrodes: From fundamental research toward practical applications. Adv. Mater. 2021, 33, 2004577. [Google Scholar] [CrossRef]
  9. Shao, G.; Hanaor, D.A.H.; Wang, J.; Kober, D.; Li, S.; Wang, X.; Shen, X.; Bekheet, M.F.; Gurlo, A. Polymer-derived SiOC integrated with a graphene aerogel as a highly stable Li-ion battery anode. ACS Appl. Mater. Interfaces 2020, 12, 46045. [Google Scholar] [CrossRef]
  10. Mera, G.; Navrotsky, A.; Sen, S.; Kleebe, H.J.; Riedel, R. Polymer-derived SiCN and SiOC ceramics–structure and energetics at the nanoscale. J. Mater. Chem. A 2013, 1, 3826. [Google Scholar] [CrossRef]
  11. Wilamowska-Zawlocka, M.; Puczkarski, P.; Grabowska, Z.; Kaspar, J.; Graczyk-Zajac, M.; Riedel, R.; Sorarù, G.D. Silicon oxycarbide ceramics as anodes for lithium ion batteries: Influence of carbon content on lithium storage capacity. RSC Adv. 2016, 6, 104597–104607. [Google Scholar] [CrossRef]
  12. VPradeep, V.S.; Ayana, D.G.; Graczyk-Zajac, M.; Soraru, G.D.; Riedel, R. High rate capability of SiOC ceramic aerogels with tailored porosity as anode materials for Li-ion batteries. Electrochim. Acta 2015, 157, 41–45. [Google Scholar] [CrossRef]
  13. Guo, W.; Icin, O.; Vakifahmetoglu, C.; Kober, D.; Gurlo, A.; Bekheet, M.F. Magnesium-Ion Battery Anode from Polymer-Derived SiOC Nanobeads. Adv. Funct. Mater. 2023, 33, 2304933. [Google Scholar] [CrossRef]
  14. Guo, W.; Wang, J.; Gurlo, A.; Bekheet, M.F. Tin–containing Silicon Oxycarbonitride Ceramic Nanocomposites as Stable Anode for Magnesium Ion Batteries. Batter. Supercaps 2024, 7, e202400032. [Google Scholar] [CrossRef]
  15. Shi, C.; Huang, H.; Xia, Y.; Yu, J.; Fang, R.; Liang, C.; Zhang, J.; Gan, Y.; Zhang, W. Importing Tin Nanoparticles into Biomass-Derived Silicon Oxycarbides with High-Rate Cycling Capability Based on Supercritical Fluid Technology. Chem. A Eur. J. 2019, 25, 7719–7725. [Google Scholar] [CrossRef]
  16. Kravchyk, K.; Protesescu, L.; Bodnarchuk, M.I.; Krumeich, F.; Yarema, M.; Walter, M.; Guntlin, C.; Kovalenko, M.V. Monodisperse and inorganically capped Sn and Sn/SnO2 nanocrystals for high-performance Li-ion battery anodes. J. Am. Chem. Soc. 2013, 135, 4199–4202. [Google Scholar] [CrossRef]
  17. Gonzalez, J.; Sun, K.; Huang, M.; Dillon, S.; Chasiotis, I.; Lambros, J. X-ray microtomography characterization of Sn particle evolution during lithiation/delithiation in lithium ion batteries. J. Power Sources 2015, 285, 205–209. [Google Scholar] [CrossRef]
  18. Zhao, L.; Bi, S.; Li, J.; Wen, Y.; Zhang, H.; Zhang, D.; Lu, S.; Yin, P.; Shi, F.; Yan, J.; et al. Prussian blue analogues for advanced non-aqueous sodium ion batteries: Redox mechanisms, key challenges and modification strategies. Energy Storage Mater. 2025, 78, 104256. [Google Scholar] [CrossRef]
  19. Dubey, R.J.C.; Sasikumar, P.V.W.; Krumeich, F.; Blugan, G.; Kuebler, J.; Kravchyk, K.V.; Graule, T.; Kovalenko, M.V. Silicon Oxycarbide—Tin Nanocomposite as a High-Power-Density Anode for Li-Ion Batteries. Adv. Sci. 2019, 6, 1901220. [Google Scholar] [CrossRef]
  20. Kaspar, J.; Terzioglu, C.; Ionescu, E.; Graczyk-Zajac, M.; Hapis, S.; Kleebe, H.J.; Riedel, R. Stable SiOC/Sn nanocomposite anodes for lithium-ion batteries with outstanding cycling stability. Adv. Funct. Mater. 2014, 24, 4097–4104. [Google Scholar] [CrossRef]
  21. Youn, D.H.; Heller, A.; Mullins, C.B. Simple synthesis of nanostructured Sn/nitrogen-doped carbon composite using nitrilotriacetic acid as lithium ion battery anode. Chem. Mater. 2016, 28, 1343–1347. [Google Scholar] [CrossRef]
  22. Nazeer, W.; Farooq, A.; Younas, M.; Munir, M.; Kang, S.M. On Molecular Descriptors of Carbon Nanocones. Biomolecules 2018, 8, 92. [Google Scholar] [CrossRef] [PubMed]
  23. Zhao, J.; Li, Z.; Cole, M.T.; Wang, A.; Guo, X.; Liu, X.; Lyu, W.; Teng, H.; Qv, Y.; Liu, G.; et al. Nanocone-Shaped Carbon Nanotubes Field-Emitter Array Fabricated by Laser Ablation. Nanomaterials 2021, 11, 3244. [Google Scholar] [CrossRef] [PubMed]
  24. Rong, Y.; Cao, Y.; Guo, N.; Li, Y.; Jia, W.; Jia, D. A simple method to synthesize V2O5 nanostructures with controllable morphology for high performance Li-ion batteries. Electrochim. Acta 2016, 222, 1691–1699. [Google Scholar] [CrossRef]
  25. Yodsin, N.; Sakagami, H.; Udagawa, T.; Ishimoto, T.; Jungsuttiwong, S.; Tachikawa, M. Metal-doped carbon nanocones as highly efficient catalysts for hydrogen storage: Nuclear quantum effect on hydrogen spillover mechanism. Mol. Catal. 2021, 504, 111486. [Google Scholar] [CrossRef]
  26. Taha, H.O.; El Mahdy, A.M.; Shemy, F.E.S.E.; Hassan, M.M. Hydrogen storage in SiC, GeC, and SnC nanocones functionalized with nickel, Density Functional Theory—Study. Int. J. Uantum Chem. 2023, 123, e27023. [Google Scholar] [CrossRef]
  27. Wei, T.; Zhou, Y.; Sun, C.; Guo, X.; Xu, S.; Chen, D.; Tang, Y. An intermittent lithium deposition model based on CuMn-bimetallic MOF derivatives for composite lithium anode with ultrahigh areal capacity and current densities. Nano Res. 2023, 17, 2763–2769. [Google Scholar] [CrossRef]
  28. Mollaamin, F.; Monajjemi, M. Nanomaterials for Sustainable Energy in Hydrogen-Fuel Cell: Functionalization and Characterization of Carbon Nano-Semiconductors with Silicon, Germanium, Tin or Lead through Density Functional Theory Study. Russ. J. Phys. Chem. B 2024, 18, 607–623. [Google Scholar] [CrossRef]
  29. Mollaamin, F.; Shahriari, S.; Monajjemi, M. Influence of Transition Metals for Emergence of Energy Storage in Fuel Cells through Hydrogen Adsorption on the MgAl Surface. Russ. J. Phys. Chem. B 2024, 18, 398–418. [Google Scholar] [CrossRef]
  30. Mollaamin, F. Competitive Intracellular Hydrogen-nanocarrier Among Aluminum, Carbon, or Silicon Implantation: A Novel Technology of Eco-Friendly Energy Storage using Research Density Functional Theory. Russ. J. Phys. Chem. B 2024, 18, 805–820. [Google Scholar] [CrossRef]
  31. Che, H.; Liu, J.; Wang, H.; Wang, X.; Zhang, S.S.; Liao, X.-Z.; Ma, Z.-F. Rubidium and cesium ions as electrolyte additive for improving performance of hard carbon anode in sodium-ion battery. Electrochem. Commun. 2017, 83, 20–23. [Google Scholar] [CrossRef]
  32. Wang, C.; Zhu, Y.; Zhang, T.; Tian, J.; Gao, F.; Zhao, Y.; Bu, X.; Quan, T. Competition between discharge reaction and side reaction for anode’s lithium during internal short circuit in lithium-ion batteries. J. Clean. Prod. 2024, 470, 143280. [Google Scholar] [CrossRef]
  33. Bu, X.; Zhu, Y.; Wang, C.; Li, W.; Xia, Y.; Zhao, Y. 1T-VS2@V2O3 Synergistic Nanoarchitecture-Based Lamellar Clusters as the High Conductivity Cathodes of Thermal Batteries. ACS Appl. Mater. Interfaces 2024, 16, 7200–7210. [Google Scholar] [CrossRef] [PubMed]
  34. Cui, Y.; Jiang, T.; Guan, Q.; Liu, L.; Yang, G.; Wang, P.; Zhang, Y.; Tian, L.; Li, Y.; Shi, F. Synergistic effect of Y2O3 and carbon coating of silicon anode achieved high stable lithium storage. J. Alloys Compd. 2025, 1027, 180641. [Google Scholar] [CrossRef]
  35. Wang, J.; Gili, A.; Grünbacher, M.; Praetz, S.; Epping, J.D.; Görke, O.; Schuck, G.; Penner, S.; Schlesiger, C.; Schomäcker, R.; et al. Silicon oxycarbonitride ceramic containing nickel nanoparticles: From design to catalytic application. Mater. Adv. 2021, 2, 1715–1730. [Google Scholar] [CrossRef]
  36. Wang, J.; Kober, D.; Shao, G.; Epping, J.D.; Görke, O.; Li, S.; Gurlo, A.; Bekheet, M.F. Stable anodes for lithium-ion batteries based on tin-containing silicon oxycarbonitride ceramic nanocomposites. Mater. Today 2022, 26, 100989. [Google Scholar] [CrossRef]
  37. Hohenberg, P.; Kohn, W. Inhomogeneous Electron Gas. Phys. Rev. B 1964, 136, B864–B871. [Google Scholar] [CrossRef]
  38. Kohn, W.; Sham, L.J. Self-Consistent Equations Including Exchange and Correlation Effects. Phys. Rev. 1965, 140, A1133–A1138. [Google Scholar] [CrossRef]
  39. Alaya, R.; Kourchid, K.; Althaqafi, Y.; Mbarki, M.; Rebey, A. Structural, Electronic and Optical Properties of the Ordered InP1–xBix: An Ab-Initio Study. Russ. J. Phys. Chem. B 2023, 17, 868–877. [Google Scholar] [CrossRef]
  40. Perdew, J.P.; Burke, K.; Ernzerhof, M. Generalized Gradient Approximation Made Simple. Phys. Rev. Lett. 1996, 77, 3865–3868. [Google Scholar] [CrossRef]
  41. Becke, A.D. Density-functional thermochemistry. III. The role of exact exchange. J. Chem. Phys. 1993, 98, 5648–5652. [Google Scholar] [CrossRef]
  42. Lee, C.; Yang, W.; Parr, R.G. Development of the Colle-Salvetti correlation-energy formula into a functional of the electron density. Phys. Rev. B 1988, 37, 785–789. [Google Scholar] [CrossRef] [PubMed]
  43. Kim, K.; Jordan, K.D. Comparison of Density Functional and MP2 Calculations on the Water Monomer and Dimer. J. Phys. Chem. 1994, 98, 10089–10094. [Google Scholar] [CrossRef]
  44. Henkelman, G.; Arnaldsson, A.; Jónsson, H. A fast and robust algorithm for Bader decomposition of charge density. Comput. Mater. Sci. 2006, 36, 354–360. [Google Scholar] [CrossRef]
  45. Frisch, M.J.; Trucks, G.W.; Schlegel, H.B.; Scuseria, G.E.; Robb, M.A.; Cheeseman, J.R.; Scalmani, G.; Barone, V.; Petersson, G.A.; Nakatsuji, H.; et al. Gaussian 16; Revision C.01; Gaussian, Inc.: Wallingford, CT, USA, 2016. [Google Scholar]
  46. Dennington, R.; Keith Todd, A.; Millam John, M. GaussView; Version 6.06.16; Semichem Inc.: Shawnee Mission, KS, USA, 2016. [Google Scholar]
  47. Xu, H.; Wu, N.; Ji, B.; Cai, J.; Yao, W.; Wang, Z.; Zhang, Y.; Zhang, X.; Guo, S.; Zhou, X.; et al. Lattice Water Deprotonation Enables Potassium-Ion Chemistries. Angew. Chem. Int. Ed. 2025, e202503904. [Google Scholar] [CrossRef]
  48. Xu, Z.; Qin, C.; Yu, Y.; Jiang, G.; Zhao, L. First-principles study of adsorption, dissociation, and diffusion of hydrogen on α-U (110) surface. AIP Adv. 2024, 14, 055114. [Google Scholar] [CrossRef]
  49. Mollaamin, F. Alkali Metals Doped on Tin-Silicon and Germanium-Silicon Oxides for Energy Storage in Hybrid Biofuel Cells: A First-Principles Study. Russ. J. Phys. Chem. B 2025, 19, 720–734. [Google Scholar] [CrossRef]
  50. Lu, T.; Chen, F. Multiwfn: A multifunctional wavefunction analyzer. J. Comput. Chem. 2012, 33, 580–592. [Google Scholar] [CrossRef]
  51. Lu, T. A comprehensive electron wavefunction analysis toolbox for chemists, Multiwfn. J. Chem. Phys. 2024, 161, 082503. [Google Scholar] [CrossRef]
  52. Matta, C.F.; Ayers, P.W.; Cook, R. The Physics of Electron Localization and Delocalization. In Electron Localization-Delocalization Matrices; Lecture Notes in Chemistry; Springer: Cham, Switzerland, 2024; Volume 112. [Google Scholar] [CrossRef]
  53. Bader, R.F.W. The zero-flux surface and the topological and quantum definitions of an atom in a molecule. Theor. Chem. Accounts 2001, 105, 276–283. [Google Scholar] [CrossRef]
  54. Becke, A.D.; Edgecombe, K.E. A simple measure of electron localization in atomic and molecular systems. J. Chem. Phys. 1990, 92, 5397–5403. [Google Scholar] [CrossRef]
  55. Savin, A.; Jepsen, O.; Flad, J.; Andersen, O.K.; Preuss, H.; von Schnering, H.G. Electron Localization in Solid-State Structures of the Elements: The Diamond Structure. Angew. Chem. Int. Ed. Engl. 1992, 31, 187–188. [Google Scholar] [CrossRef]
  56. Lu, B.; Song, Y.; Zhang, Q.; Pan, J.; Cheng, Y.-T.; Zhang, J. Voltage hysteresis of lithium ion batteries caused by mechanical stress. Phys. Chem. Chem. Phys. 2016, 18, 4721–4727. [Google Scholar] [CrossRef] [PubMed]
Nanomaterials 15 00959 g001

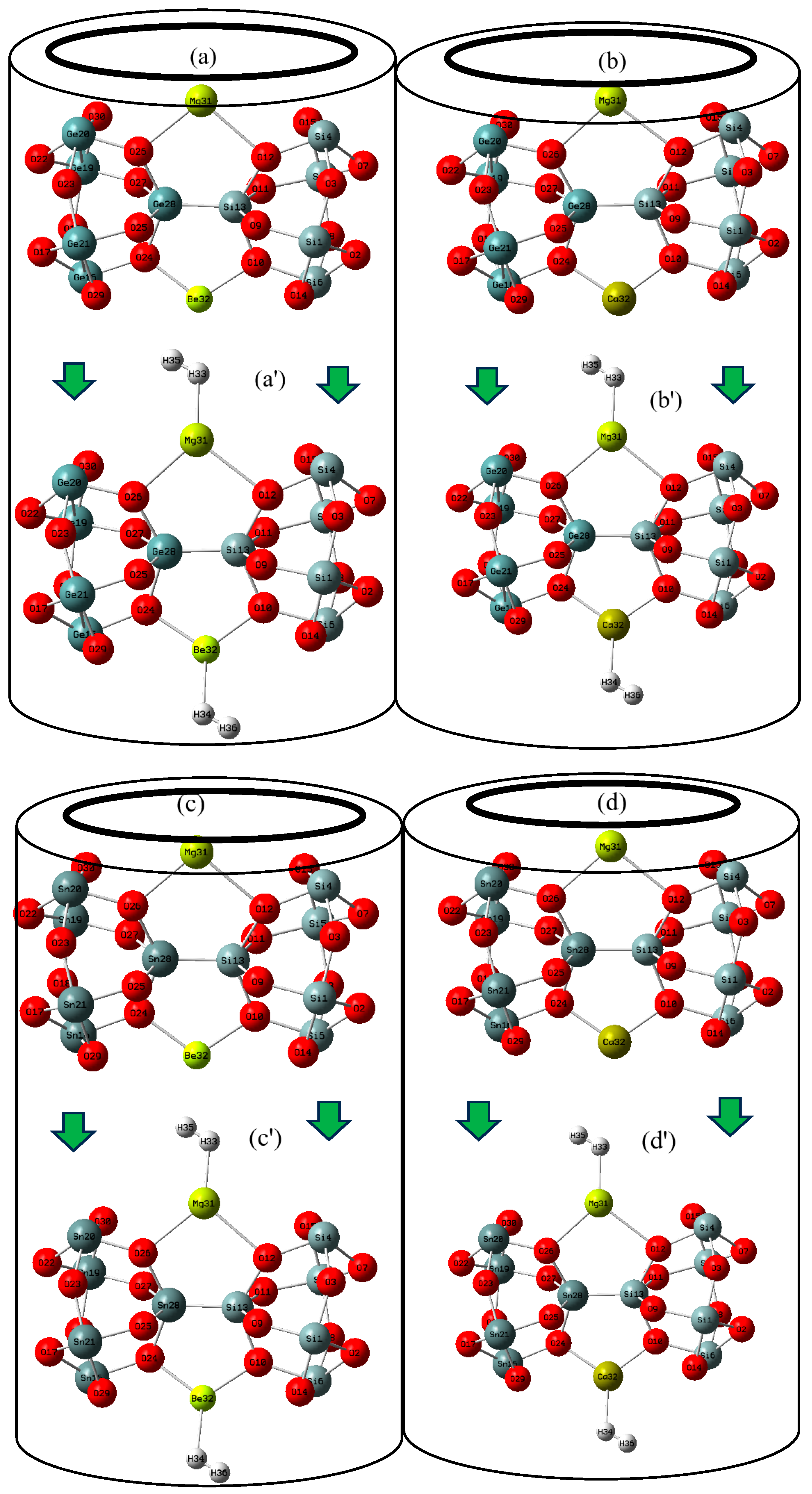

Figure 1. Adding Mg, Be, and Ca to [SiO–(GeO/SnO)] nanoclusters and formation of (a) MgBe [SiO–GeO], (b) MgCa [SiO–GeO], (c) MgBe [SiO–SnO], and (d) MgCa [SiO–SnO] nanoclusters towards energy storage through hydrogen adsorption as (a′) MgBe [SiO–SnO].H2, (b′) MgCa [SiO–GeO].H2, (c′) MgBe [SiO–SnO].H2, and (d′) MgCa [SiO–SnO].H2 in novel batteries.
Figure 1. Adding Mg, Be, and Ca to [SiO–(GeO/SnO)] nanoclusters and formation of (a) MgBe [SiO–GeO], (b) MgCa [SiO–GeO], (c) MgBe [SiO–SnO], and (d) MgCa [SiO–SnO] nanoclusters towards energy storage through hydrogen adsorption as (a′) MgBe [SiO–SnO].H2, (b′) MgCa [SiO–GeO].H2, (c′) MgBe [SiO–SnO].H2, and (d′) MgCa [SiO–SnO].H2 in novel batteries.
Nanomaterials 15 00959 g001
Nanomaterials 15 00959 g002aNanomaterials 15 00959 g002b

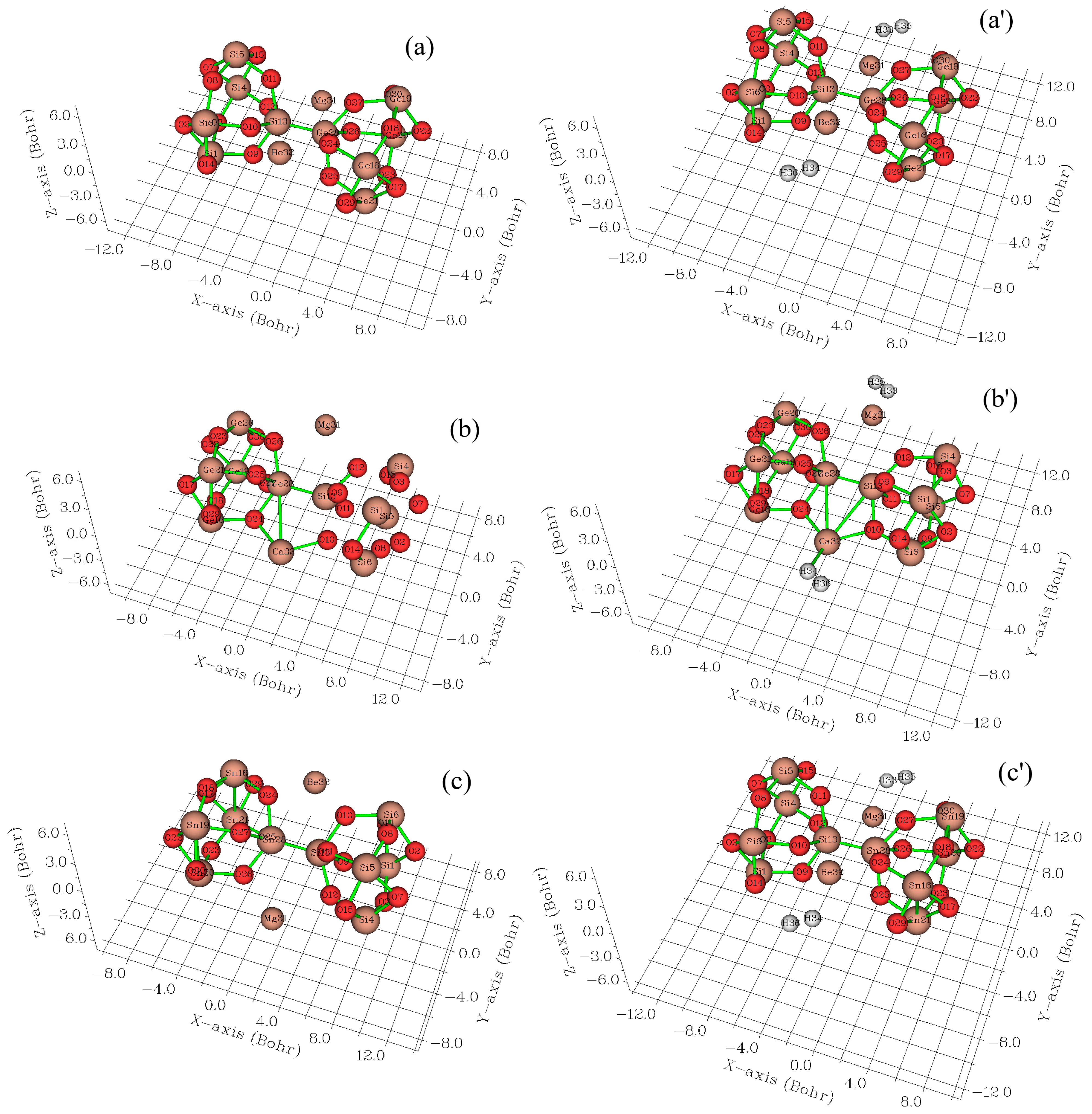

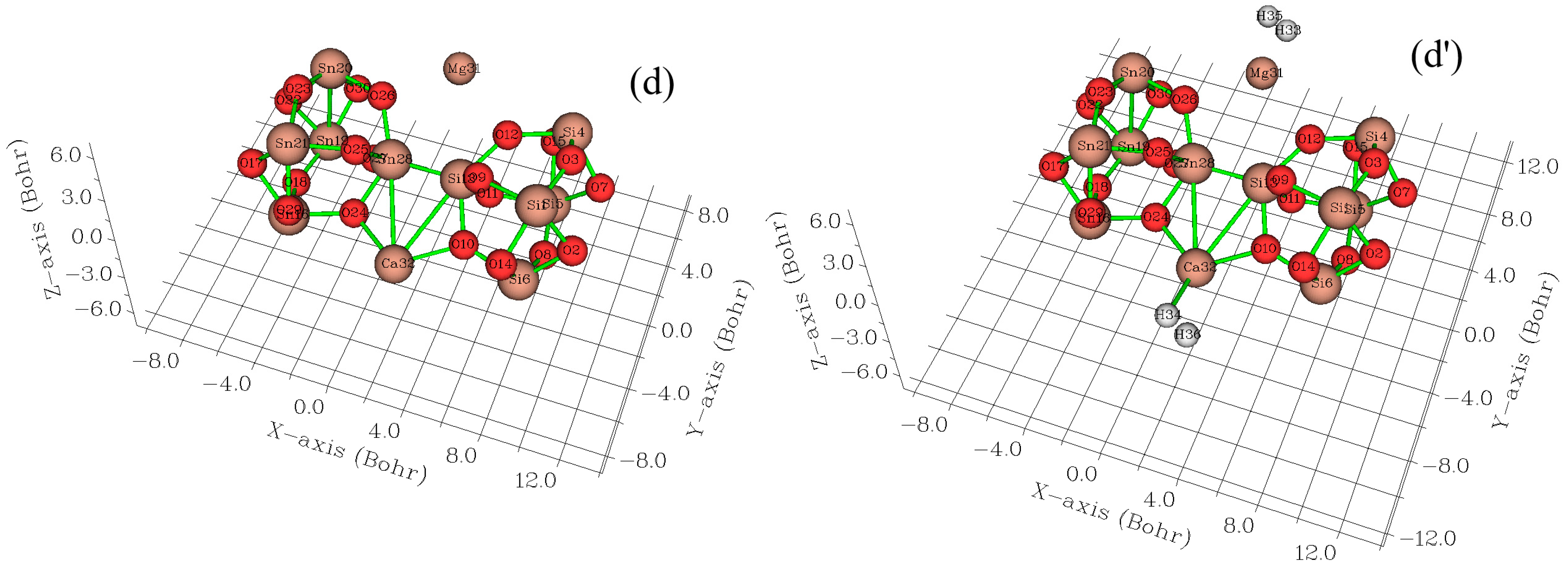

Figure 2. CDD graphs for (a) MgBe [SiO–GeO], (a′) MgBe [SiO–SnO].H2, (b) MgCa [SiO–GeO], (b′) MgCa [SiO–GeO].H2, (c) MgBe [SiO–SnO], (c′) MgBe [SiO–SnO].H2, (d) MgCa [SiO–SnO], and (d′) MgCa [SiO–SnO].H2 nanoclusters.
Figure 2. CDD graphs for (a) MgBe [SiO–GeO], (a′) MgBe [SiO–SnO].H2, (b) MgCa [SiO–GeO], (b′) MgCa [SiO–GeO].H2, (c) MgBe [SiO–SnO], (c′) MgBe [SiO–SnO].H2, (d) MgCa [SiO–SnO], and (d′) MgCa [SiO–SnO].H2 nanoclusters.
Nanomaterials 15 00959 g002aNanomaterials 15 00959 g002b
Nanomaterials 15 00959 g003

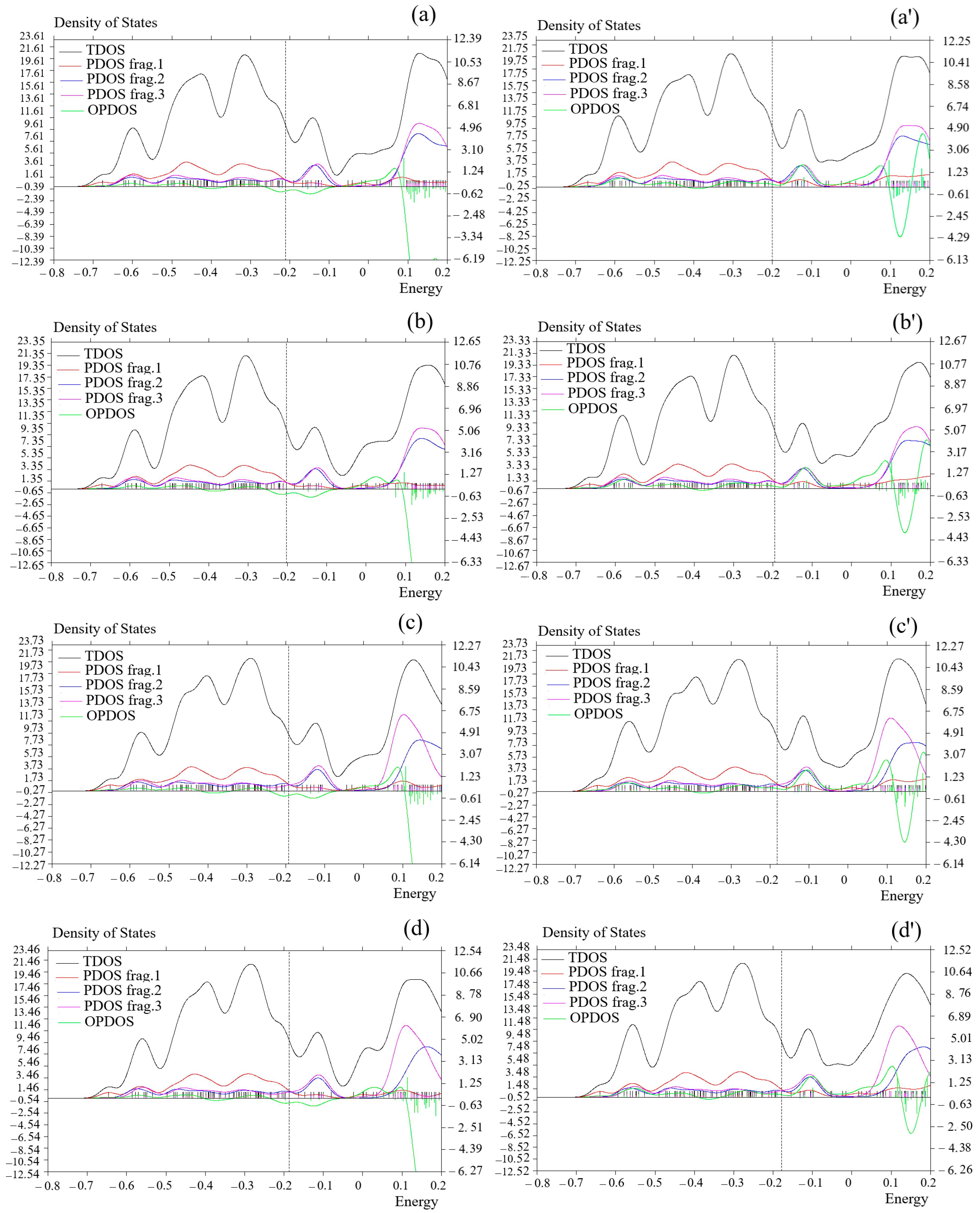

Figure 3. OPDOS/PDOS/TDOS graphs of (a) MgBe [SiO–GeO], (a′) MgBe [SiO–SnO].H2, (b) MgCa [SiO–GeO], (b′) MgCa [SiO–GeO].H2, (c) MgBe [SiO–SnO], (c′) MgBe [SiO–SnO].H2, (d) MgCa [SiO–SnO], and (d′) MgCa [SiO–SnO].H2 nanoclusters.
Figure 3. OPDOS/PDOS/TDOS graphs of (a) MgBe [SiO–GeO], (a′) MgBe [SiO–SnO].H2, (b) MgCa [SiO–GeO], (b′) MgCa [SiO–GeO].H2, (c) MgBe [SiO–SnO], (c′) MgBe [SiO–SnO].H2, (d) MgCa [SiO–SnO], and (d′) MgCa [SiO–SnO].H2 nanoclusters.
Nanomaterials 15 00959 g003
Nanomaterials 15 00959 g004aNanomaterials 15 00959 g004b

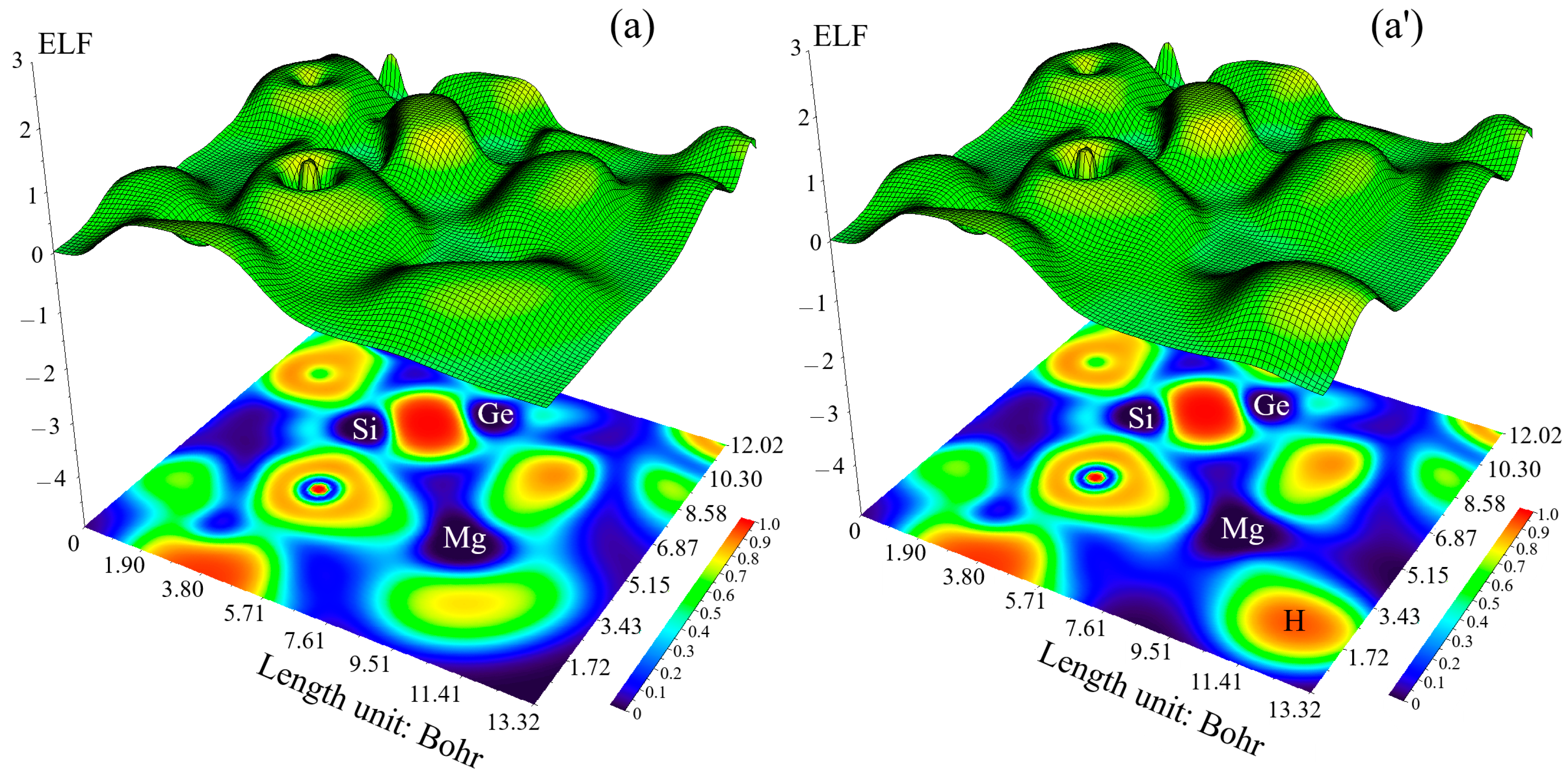

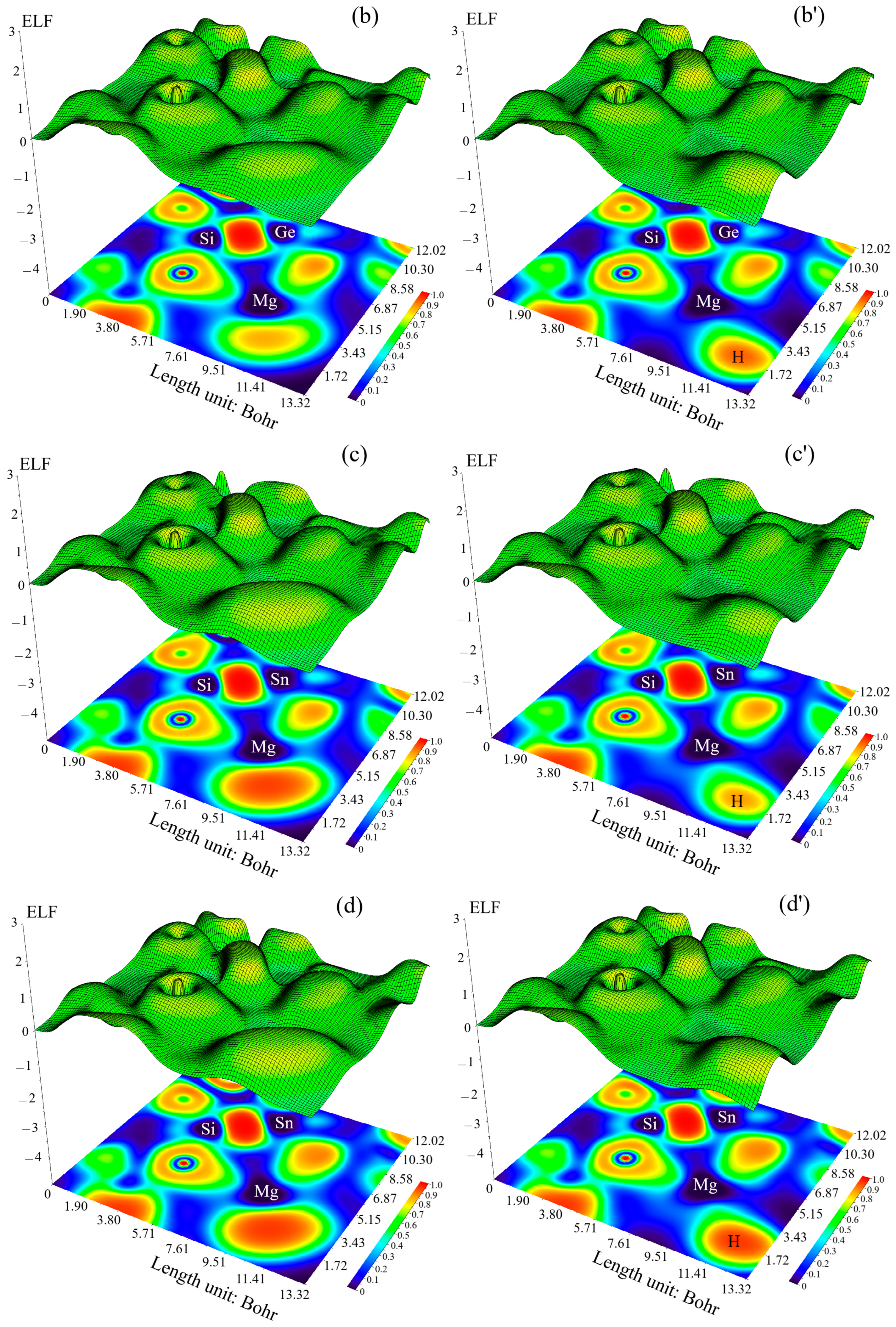

Figure 4. The shaded map of ELF graphs for (a) MgBe [SiO–GeO], (a′) MgBe [SiO–SnO].H2, (b) MgCa [SiO–GeO], (b′) MgCa [SiO–GeO].H2, (c) MgBe [SiO–SnO], (c′) MgBe [SiO–SnO].H2, (d) MgCa [SiO–SnO], and (d′) MgCa [SiO–SnO].H2 nanoclusters.
Figure 4. The shaded map of ELF graphs for (a) MgBe [SiO–GeO], (a′) MgBe [SiO–SnO].H2, (b) MgCa [SiO–GeO], (b′) MgCa [SiO–GeO].H2, (c) MgBe [SiO–SnO], (c′) MgBe [SiO–SnO].H2, (d) MgCa [SiO–SnO], and (d′) MgCa [SiO–SnO].H2 nanoclusters.
Nanomaterials 15 00959 g004aNanomaterials 15 00959 g004b
Table 1. The atomic charge (Q/coulomb) for MgBe [SiO–GeO], MgBe [SiO–GeO].H2, MgCa [SiO–GeO], and MgCa [SiO–GeO].H2 nanoclusters.
Table 1. The atomic charge (Q/coulomb) for MgBe [SiO–GeO], MgBe [SiO–GeO].H2, MgCa [SiO–GeO], and MgCa [SiO–GeO].H2 nanoclusters.
MgBe [SiO–GeO]MgBe [SiO–GeO].H2MgCa [SiO–GeO]MgCa [SiO–GeO].H2
AtomQAtomQAtomQAtomQ
Si11.4393Si11.4305Si11.4372Si11.4325
O2−0.6703O2−0.6828O2−0.6788O2−0.6881
O3−0.8343O3−0.8327O3−0.8340O3−0.8329
Si41.3740Si41.3631Si41.366Si41.3546
Si51.4332Si51.4236Si51.4286Si51.4205
Si61.4172Si61.4043Si61.3943Si61.3921
O7−0.6767O7−0.6788O7−0.6763O7−0.6795
O8−0.8532O8−0.8514O8−0.8475O8−0.8450
O9−0.8153O9−0.8220O9−0.8197O9−0.8221
O10−0.9649O10−0.9656O10−1.2365O10−1.2353
O11−0.8329O11−0.8361O11−0.8281O11−0.8270
O12−1.0175O12−1.0178O12−1.0194O12−1.0193
Si131.5445Si131.5476Si131.5089Si131.5121
O14−0.7512O14−0.7688O14−0.7804O14−0.7884
O15−0.7733O15−0.7962O15−0.7745O15−0.7959
Ge161.3562Ge161.3394Ge161.3435Ge161.3411
O17−0.6284O17−0.6676O17−0.6324O17−0.6341
O18−0.7884O18−0.7866O18−0.7822O18−0.7821
Ge191.3576Ge191.3384Ge191.3549Ge191.3444
Ge201.3304Ge201.3158Ge201.3243Ge201.3063
Ge211.3682Ge211.3580Ge211.3704Ge211.3623
O22−0.6836O22−0.6495O22−0.6884O22−0.6937
O23−0.7965O23−0.7968O23−0.7970O23−0.7977
O24−0.9093O24−0.9021O24−1.1820O24−1.1798
O25−0.8050O25−0.8164O25−0.8135O25−0.8152
O26−0.9793O26−0.9859O26−0.9811O26−0.9853
O27−0.8325O27−0.8270O27−0.8143O27−0.8169
Ge281.2053Ge281.2023Ge281.1979Ge281.1995
O29−0.7461O29−0.7516O29−0.7978O29−0.8025
O30−0.7284O30−0.7719O30−0.7262O30−0.7438
Mg311.2824Mg311.2834Mg311.2514Mg311.2686
Be320.9790Be320.9635Ca321.7324Ca321.6878
H33−0.0845 H33−0.0824
H34−0.0343 H34−0.1340
H350.1936 H350.1901
H360.1630 H360.1893
Table 2. The atomic charge (Q/coulomb) for MgBe [SiO–SnO], MgBe [SiO–SnO].H2, MgCa [SiO–SnO], and MgCa [SiO–SnO].H2 nanoclusters.
Table 2. The atomic charge (Q/coulomb) for MgBe [SiO–SnO], MgBe [SiO–SnO].H2, MgCa [SiO–SnO], and MgCa [SiO–SnO].H2 nanoclusters.
MgBe [SiO–SnO]MgBe [SiO–SnO].H2MgCa [SiO–SnO]MgCa [SiO–SnO].H2
AtomQAtomQAtomQAtomQ
Si11.4285Si11.4183Si11.4300Si11.4257
O2−0.6719O2−0.6897O2−0.6895O2−0.6988
O3−0.8351O3−0.8318O3−0.8320O3−0.8304
Si41.3636Si41.3479Si41.3597Si41.3429
Si51.4168Si51.4086Si51.4167Si51.4093
Si61.4029Si61.3881Si61.3827Si61.3819
O7−0.6886O7−0.6904O7−0.6830O7−0.6892
O8−0.8536O8−0.8503O8−0.8450O8−0.8419
O9−0.8227O9−0.8313O9−0.8304O9−0.8334
O10−0.9564O10−0.9576O10−1.2393O10−1.2369
O11−0.8390O11−0.8425O11−0.8324O11−0.8316
O12−1.0083O12−1.0051O12−1.0091O12−1.0063
Si131.3627Si131.3705Si131.3426Si131.3483
O14−0.7749O14−0.7901O14−0.8001O14−0.8099
O15−0.7646O15−0.8013O15−0.7757O15−0.8049
Sn161.6457Sn161.6109Sn161.6092Sn161.6015
O17−0.8062O17−0.8108O17−0.7944O17−0.7967
O18−0.8870O18−0.8859O18−0.8719O18−0.8711
Sn191.6753Sn191.6503Sn191.6533Sn191.6358
Sn201.6269Sn201.5864Sn201.5903Sn201.5527
Sn211.6774Sn211.6537Sn211.6238Sn211.6110
O22−0.8309O22−0.8272O22−0.8107O22−0.8102
O23−0.8919O23−0.8907O23−0.8810O23−0.8797
O24−0.9885O24−0.9824O24−1.2527O24−1.2501
O25−0.9185O25−0.9202O25−0.9201O25−0.9219
O26−1.0596O26−1.0603O26−1.0678O26−1.0690
O27−0.9570O27−0.9598O27−0.9403O27−0.9417
Sn281.6716Sn281.6607Sn281.6348Sn281.6351
O29−0.8873O29−0.9011O29−0.9249O29−0.9273
O30−0.8926O30−0.9072O30−0.8887O30−0.9027
Mg311.1567Mg311.2116Mg311.1344Mg311.1928
Be320.9065Be320.9048Ca321.7117Ca321.6622
H33−0.0736 H33−0.0707
H34−0.0386 H34−0.1403
H350.1767 H350.1734
H360.1597 H360.1924
Table 3. Stability energy (Es, kcal/mol), binding energy (Eb, kcal/mol), dipole moment (D,debye), ELUMO (eV), EHOMO (eV), and energy gap (∆E = ELUMO − EHOMO) (eV) and cell capacity (C, mAh g−1) for MgBe [SiO–GeO], MgBe [SiO–SnO].H2, MgCa [SiO–GeO], MgCa [SiO–GeO].H2, MgBe [SiO–SnO], MgBe [SiO–SnO].H2, MgCa [SiO–SnO], and MgCa [SiO–SnO].H2 heteroclusters.
Table 3. Stability energy (Es, kcal/mol), binding energy (Eb, kcal/mol), dipole moment (D,debye), ELUMO (eV), EHOMO (eV), and energy gap (∆E = ELUMO − EHOMO) (eV) and cell capacity (C, mAh g−1) for MgBe [SiO–GeO], MgBe [SiO–SnO].H2, MgCa [SiO–GeO], MgCa [SiO–GeO].H2, MgBe [SiO–SnO], MgBe [SiO–SnO].H2, MgCa [SiO–SnO], and MgCa [SiO–SnO].H2 heteroclusters.
HeteroclustersEs × 10−3Eb × 10−3DEHOMOELUMO∆EC
MgBe [SiO–GeO]−976.9153−1.46493.4528−5.7388−5.17790.5609645.7713
MgBe [SiO–GeO].H2−978.38023.7950−5.4447−4.89190.5528
MgCa [SiO–GeO]−990.5851−1.44690.9860−5.5242−4.94320.5809543.9274
MgCa [SiO–GeO].H2−992.03202.2704−5.3185−4.74210.5764
MgBe [SiO–SnO]−975.2794−1.46317.4382−5.2431−4.65030.5927505.4256
MgBe [SiO–SnO].H2−976.74257.4859−4.9463−4.31480.6315
MgCa [SiO–SnO]−988.9556−1.44536.3492−5.0786−4.43650.6420440.8573
MgCa [SiO–SnO].H2−990.40096.1184−4.8506−4.19930.6513
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Mollaamin, F.; Monajjemi, M. An Architectural Battery Designed by Substituting Lithium with Second Main Group Metals (Be, Mg, Ca/Cathode) and Hybrid Oxide of Fourth Group Ones (Si, Ge, Sn/Anode) Nanomaterials Towards H2 Adsorption: A Computational Study. Nanomaterials 2025, 15, 959. https://doi.org/10.3390/nano15130959

AMA Style

Mollaamin F, Monajjemi M. An Architectural Battery Designed by Substituting Lithium with Second Main Group Metals (Be, Mg, Ca/Cathode) and Hybrid Oxide of Fourth Group Ones (Si, Ge, Sn/Anode) Nanomaterials Towards H2 Adsorption: A Computational Study. Nanomaterials. 2025; 15(13):959. https://doi.org/10.3390/nano15130959

Chicago/Turabian Style

Mollaamin, Fatemeh, and Majid Monajjemi. 2025. "An Architectural Battery Designed by Substituting Lithium with Second Main Group Metals (Be, Mg, Ca/Cathode) and Hybrid Oxide of Fourth Group Ones (Si, Ge, Sn/Anode) Nanomaterials Towards H2 Adsorption: A Computational Study" Nanomaterials 15, no. 13: 959. https://doi.org/10.3390/nano15130959

APA Style

Mollaamin, F., & Monajjemi, M. (2025). An Architectural Battery Designed by Substituting Lithium with Second Main Group Metals (Be, Mg, Ca/Cathode) and Hybrid Oxide of Fourth Group Ones (Si, Ge, Sn/Anode) Nanomaterials Towards H2 Adsorption: A Computational Study. Nanomaterials, 15(13), 959. https://doi.org/10.3390/nano15130959

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
