Photocatalytic Degradation of Rhodamine-B and Water Densification via Eco-Friendly Synthesized Cr2O3 and Ag@Cr2O3 Using Garlic Peel Aqueous Extract

by
Laila S. Alqarni
1,
Maha D. Alghamdi
2,
Aisha A. Alshahrani
2,
Nasser F. Alotaibi
3,
Shaima M. N. Moustafa
4,
Khulaif Ashammari
5,
Ibtihal A. Alruwaili
3 and
Amr Mohammad Nassar
3,*
1
Chemistry Department, College of Science, Imam Mohammad Ibn Saud Islamic University (IMSIU), P.O. Box 90950, Riyadh 11623, Saudi Arabia
2
Department of Chemistry, Faculty of Science, Al-Baha University, P.O. Box 1988, Al-Baha 65799, Saudi Arabia
3
Chemistry Department, College of Science, Jouf University, Sakaka 2014, Saudi Arabia
4
Biology Department, College of Science, Jouf University, Sakaka 2014, Saudi Arabia
5
Physics Department, College of Science, Jouf University, Sakaka 2014, Saudi Arabia
*
Author to whom correspondence should be addressed.
Nanomaterials 2024, 14(3), 289; https://doi.org/10.3390/nano14030289
Submission received: 17 December 2023 / Revised: 23 January 2024 / Accepted: 25 January 2024 / Published: 31 January 2024
(This article belongs to the Special Issue Biosynthesis and Green Synthesis of Nanomaterials: New Methodologies and Results, 2nd Edition)
Browse Figures
Versions Notes

Abstract

:
The purification and densification of wastewater play an important role in water recycling, especially if the materials used in water recycling are other types of recycled waste. Therefore, considering this view in this study, the biosynthesis of silver-decorated chromium oxide nanoparticles utilizing a wasted Allium sativum (garlic) peel extract is investigated. The aqueous extract of garlic peel (GPE) was treated with silver nitrate, chromium nitrate, and a mixture of silver nitrate and chromium nitrate to synthesize silver nanoparticles (Ag-garlic), chromium oxide nanoparticles (Cr2O3-garlic), and silver-decorated chromium oxide nanoparticles (Ag@Cr2O3-garlic), respectively. The synthesized nanoparticles were elucidated via thermal gravimetric analysis (TGA), infrared spectra (FT-IR), absorption spectra (UV-Vis), scanning electron microscopy (SEM), energy dispersive X-ray analysis (EDX), X-ray diffraction (XRD), X-ray photoelectron spectroscopy (XPS), and transmission electron microscopy (TEM). Antimicrobial activity studies were conducted against waterborne germs, bacterial strains (Bacillus subtilis, Enterococcus faecium, Escherichia coli, and Pseudomonas aeruginosa), and fungal strains (Alternaria porri, Aspergillus flavus, Aspergillus niger, Fuserium oxysporum, and Trichoderma longibrachiatum) and showed significant levels of antimicrobial activity. The results revealed that Ag@Cr2O3 significantly improved antimicrobial activity due to their synergistic effect. The photocatalytic activity of nanoparticles was assessed using Rhodamine B dye (5 ppm) under solar irradiation. Cr2O3-garlic exhibited the best activity as a photocatalyst among the studied nanoparticles, with 97.5% degradation efficiency under optimal conditions.

1. Introduction

Nowadays, one of the important aims of environmental research is the circular economy, which aims to increase sustainable development by producing environmentally beneficial products from waste and by-products [1,2]. It also seeks to reduce pollution from industry and humans [3]. Metal and metal oxide nanoparticles are of tremendous importance due to their unique features. The remarkable electrical, optical, magnetic, and catalytic capabilities of metal and metal oxide nanoparticles (NPs) open a wide range of applications, including industrial, medicinal, and environmental applications [4]. The use of bioresources for the green synthesis of metal and metal oxide nanoparticles is gaining popularity among researchers as a sustainable and environmental strategy [5]. The phytochemicals in plants function as a reducing and capping agent, leading to the formation of nanoparticles. Since many phytochemicals express biological activities, the resulting nanoparticles could be employed for biological and medicinal applications by utilizing them as antibacterial, antifungal, anticancer, and antioxidant agents [6,7]. Green synthesis is better than common chemical synthesis because it is less expensive, causes less pollution, and reduces environmental and human health risks. Due to their low toxicity and less detrimental effects on the environment, green-synthesizing NPs derived from plant extracts have recently gained attention for the synthesis of different metal and metal oxide nanoparticles [8,9,10,11,12,13].
Chromium (III) oxide (Cr2O3) is a semiconductor with both n-type and p-type behaviors [14] that has been widely studied in nanopowder and thin layers in several applications and has drawn a lot of attention in science and technology [15,16,17]. Recently, there have been several methods for the synthesis of Cr2O3 nanoparticles using plant extracts [18,19], fungal extracts [20], and other green sources [21]. To the best of our knowledge, there is no report in the literature describing the synthesis of Cr2O3-NPs via a garlic peel extract. Silver nanoparticles (Ag-NPs) are attracting increasing interest in the research community due to their various effective applications. Their applications include biological, biomedical, optical, thermal, catalytic, electrochemical, and electrical applications [22,23]. There have been a variety of green strategies to prepare Ag-NPs [24]. The Ag@Cr2O3 nanocomposite has been synthesized using different methods [25,26,27,28]. For the enhancement of the properties of Cr2O3-NPs in their applications, Ag-NPs were added to form Ag/Cr2O3, as discussed by Cao. J et al. [29]. This research looked at how Ag/Cr2O3 increased sensitivity to triethylamine gas when compared to Cr2O3. After careful research in the literature, it is clear that Ag@Cr2O3 has not been synthesized via green methods.
The discovery of safe and eco-friendly antimicrobial agents still plays an important role in the treatment of several environmental issues. The development of eco-friendly processes for synthesizing nanoparticles could, therefore, contribute to finding a solution to this concern. Although the antimicrobial activity of Cr2O3 has not been studied widely, these NPs are good candidates as antimicrobial agents [30]. Using H. thebaica extracts, Khalil et al. [31] reported the synthesis of Cr2O3NPs and studied their antimicrobial activity. According to their findings, Cr2O3 NPs significantly inhibited the growth of the bacteria E. coli, B. subtilis, S. epidermidis, K. pneumonia, and P. aeruginosa, as well as the fungi A. niger and F. solani, Mucor sp., and A. fumigatus. The antimicrobial activity of Cr2O3-NPs synthesized using the Callostemon viminalis flower extract was reported by Hassan et al. [32]. They revealed that biosynthesized Cr2O3NPs exhibited remarkable antimicrobial activity. Apis mellifera was used to make chromium oxide nanoparticles, Cr2O3NPs, which show remarkable antibacterial activity [33].
In the current work, a novel green approach for the synthesis of Cr2O3 and Ag@Cr2O3 via the wasted garlic peel extract was carried out for the valorization of food waste recycling and transformation into valuable materials for benefits in vital applications. In light of their structural, spectroscopic, and thermal properties, the characterization of nanoparticles was studied. In order to determine how garlic peel extract and its nanoparticles performed in antimicrobial studies, their capacity to inhibit microbial growth was examined. The photocatalytic activity of the biosynthesized nanoparticles was examined under solar irradiation for the degradation of rhodamine B.

2. Experimental Section

2.1. Materials

Allium sativum (garlic) peels were collected from a nearby Sakaka market. Sigma-Aldrich (Missouri, MO, USA) supplied the chemicals chromium nitrate, silver nitrate, and rhodamine B, which were used as received without additional purification. Using Milli-Q water, aqueous solutions were prepared.

2.2. Instruments

Thermo Scientific’s Quattro S instrument (Waltham, MA, USA) was employed for SEM photodetection. Fourier-transform infrared (FT-IR) measurements were made using the IRTracer-100 SHIMADZU spectrophotometer (Kyoto, Japan). Using a copper radiation source, the XRD-7000 SHIMADZU was used for investigating X-ray diffraction (XRD) patterns. XPS Amicus mono-energetic beams of X-ray photons with a higher energy than 1 keV (Manchester, UK) were used to obtain XPS spectra. The TGA-51SHIMADZU was used to detect thermal gravimetric analysis (TGA) at a heating rate of 10 °C/min. Using Labomed-Spector 99 UV-Vis double-beam 3200, UV-Vis spectra were detected. Utilizing an 80 kV operated JEOL GEM-1010 transmission electron microscope (Tokyo, Japan) with a JEOL GEM-1010 transmission electron microscope operating at 80 kV, the transmittance electron microscope (TEM) images were taken.

2.3. Preparation of Garlic Peels Aqueous Extract (GPE)

Garlic peels were cleaned with distilled water to remove dirt and other impurities, and they were then allowed to air-dry. To obtain the aqueous extract, 5 g of garlic peel was heated at 75 °C for 1 h in 500 mL of distilled water. The solution was preserved for further work after being filtered using Whatman’s No. 1 filter paper.

2.4. Green Synthesis of Nanoparticles, Cr2O3-Garlic, Ag-Garlic, and Ag@Cr2O3-Garlic

Cr2O3-garlic was synthesized as follows: A 100 mL solution of GPE was added to 100 mL of 0.1 M chromium nitrate with stirring for 1 h until a precipitate appeared at the bottom of the flask; this was then incubated in a water bath for 3 h. The precipitate was filtered with filter paper, Whatman’s No. 1, air dried and then heated in a muffle furnace at 550 °C for 2 h. The obtained solid was preserved for further characterization and antimicrobial studies. The same procedures were used for the synthesis of Ag-garlic and Ag@Cr2O3-garlic using silver nitrate and a mixture of silver nitrate/chromium nitrate, respectively.

2.5. Antimicrobial Assay

2.5.1. Collection of Samples

Waterborne germs used in this study were as follows: bacterial strains (Bacillus subtilis, Enterococcus faecium, Escherichia coli, and Pseudomonas aeruginosa) and fungal strains (Alternaria porri, Aspergillus flavus, Aspergillus niger, Fuserium oxysporum, and Trichoderma longibrachiatum). All germs were isolated at biology department labs at the College of Science at Jouf University.

2.5.2. Evaluation of Antimicrobial Activity

The antimicrobial characteristics were investigated using determination of minimum inhibition concentrations (MICs) and an agar well diffusion methods.
The MIC values were assessed based on the lowest concentration of garlic peels, Ag-garlic, Cr2O3-garlic, and Ag@Cr2O3-garlic, which showed a complete absence of mycelium growth. Fungal isolates were cultivated on PDA media plates at 26 oC for 6 days to yield fungal inoculums. Conidia were obtained by scraping them off surfaces with a sterile spatula, and they were then suspended in sterile-distilled water. Under a light microscope, the spores were counted, and the suspension was diluted with sterile-distilled water to reach the desired concentration of (15 spores per µL). A volume of 50 µL of spore suspension was placed on a 250 mL Erlenmeyer flask containing 100 mL of a PD broth medium and supplemented with 10 mL of different concentrations of the garlic peels, Ag-garlic, Cr2O3-garlic, and Ag@Cr2O3-garlic (1, 20, 40, 60, 80, and 100 ppm). Incubation was performed at 26 °C for 7 days in the dark with continuous shaking. Each flask’s mycelial mat was filtered through filter paper, Whatman’s No. 1, and washed twice with distilled water before drying in an oven at 60 °C for 24 h. The mycelial mat of each fungus was measured by subtracting the dry filter paper’s weight from the total weight. Controls were performed using PDB media only.
The agar-well diffusion approach was utilized to ascertain the antifungal activity [34]. Potato broth was used as the inoculation medium for the isolates. A cork borer was used to construct the 0.5 mm-diameter wells on each isolate, which were prepared on separate agar plates. The samples, totaling 100 µL, were added to the well. After that, the Petri plates were incubated for seven days at 26 °C. The inhibition zone of pathogenic fungus was used to measure the antifungal activity of the samples [35].
For antibacterial activity, a broth macro-dilution technique was used to determine the MIC, which was performed by preparing tubes that contained 2 mL (of nutrient broth), 20 µL of tested bacteria, and serial dilutions yielding concentrations of 20, 25, 30, 35, 40, 45, 50, 55, and 60 ppm of the garlic peels, Ag-garlic, Cr2O3-garlic, and Ag@Cr2O3-garlic in each tube. After that, the tubes were incubated at 37 °C for 48 h.
Antibacterial activity was determined using the agar-well diffusion method. The isolates were inoculated using a Nutrient Agar medium. Each isolate was prepared onto separate agar plates and the wells (0.5 mm in diameter). The well was filled with 100 µL of the garlic peels, Ag-garlic, Cr2O3-garlic, and Ag@Cr2O3-garlic. After that, the Petri plates were incubated for 48 h at 30 °C. The inhibition zone was found in order to quantify the samples’ antibacterial activity [36].

2.6. Photocatalytic Studies

The synthesized nanoparticles were examined as photocatalysts using rhodamine B (RhB) dye under sunlight. In order to achieve equilibrium for RhB on the catalyst’s surface, 20 mg of the catalyst was added to 50 mL of 5 ppm RhB in a 200 mL conical flask and stirred for 10 min in the dark. The solution was then subjected to 40 × 103 LUX of sunlight. Then, 3 mL of the treated solution was taken out every 10 min and centrifuged for 2 min to isolate the catalyst.

3. Results and Discussion

The aim of this work is to recycle food waste that is collected for no cost into valuable materials for use in the disinfection and purification of wastewater. Chromium oxide (Cr2O3-garlic), silver (Ag-garlic), and silver-decorated chromium oxide (Ag@Cr2O3-garlic) were biogenically synthesized using an aqueous extract of garlic peel. Bioactivity was studied against a wide spectrum of isolated water germs. The photocatalytic properties were evaluated for the decomposition of RhB dye under sunlight, Scheme 1.

3.1. Characterization

3.1.1. XRD

The XRD pattern of the synthesized nanoparticles on the scale of 2θ  =  10–80 is shown in Figure 1. The materials were successfully nanocrystalline, as indicated by the sharp and strong peaks. The Ag-garlic XRD investigation findings revealed strong diffraction peaks. The diffraction peaks present at angles 2θ = 77.5°, 64.6°, 44.5°, and 38.3° were perfectly matched with the (311), (220), (200), and (111) planes of silver in the metallic form (JCPDS #: 04-0783) [37]. Additionally, the diffraction pattern showed no peaks associated with AgO2, Ag3O4, or other Ag molecules, demonstrating the high purity of nanoparticles. The XRD of Cr2O3-garlic showed Bragg’s diffraction peaks at 2θ = 24.5°, 33.6°, 36.2°, 41.5°, 50.2°, 63.4°, 76.8°, and 79.1°, respectively, correlating to the crystal planes of (012), (104), (110), (113), (024), (116), (214), and (306). The diffraction peaks of Cr2O3 nanoparticles and the (JCPDS 38–1479) diffraction standard matched quite well [38]. The XRD of Ag@Cr2O3-garlic shows the shift in Ag and Cr2O3 peaks due to the involvement of silver on the surface of chromium oxide, which led to a difference in crystallinity in the formed nanocomposite [39]. The loading of silver that covers an area of Cr2O3 results in low-intensity peaks in the XRD of Ag@Cr2O3-garlic compared to Ag-garlic and Cr2O3-garlic, which have free surfaces.

3.1.2. TGA

TGA of the produced NPs was achieved in the 30–600 °C range to guarantee purity and thermal stability (Figure 2). The TGA curves show no deprivation, which indicates the elimination of the bioorganic molecules from the garlic extract after calcination and confirms the purity of the biogenic synthesized NPs.

3.1.3. XPS Analysis

The X-ray electron spectroscopy (XPS) results of Ag@Cr2O3-garlic and Ag-garlic are illustrated in Figure 3 and Figure 4, respectively. The components of Ag@Cr2O3-garlic are revealed in Figure 3a. As shown, the formation of Cr2O3-NPs and the presence of Ag-NPs in their decorated form can be confirmed. The spectrum shows the presence of Ag, Cr, and O as the main components of the synthesized nanocomposite. The presence of a few other components like Ca, K, and Na is due to some metallic residues in the garlic peel extract and is consistent with previous studies [40]. Figure 3b shows that the binding energies of silver are 373.90 eV and 367.90 eV, which correspond to Ag 3d5/2 and Ag 3d3/2, respectively. The separation between these two binding peaks is roughly 6.00 eV. This confirms how a reduction in Ag+ forms metallic Ag using the garlic peel extract [41]. The peak centering at 530 eV corresponds to the O1s, as seen in Figure 3c. In Figure 3d, there are two peaks centered at 576 and 586 eV, which correspond to Cr3+ 2p3/2 and Cr3+ 2p1/2, respectively, which agree well with previous reports [42]. Also, Figure 3d shows peaks due to Ag 3p observed at 573 and 604 eV, which correspond to Ag 3p3/2 and Ag 3p1/2, respectively. Figure 4a shows the components of Ag-garlic. The spectrum also exhibits the presence of a very low concentration of metallic residues (Na, K, and Ca) from the garlic peel extract. The reduction in Ag+ to Ag0 using the garlic peel extract is confirmed by the observation of two peaks at 373.85 eV and 367.85 eV, which are attributed to Ag 3d5/2 and Ag 3d3/2, respectively. The formation of Ag-NPs is demonstrated by the 6.00 eV separations between these two binding peaks [41].

3.1.4. FT-IR

The FT-IR spectra of a solid garlic peel and synthetic NPs in the 400–4000 cm−1 spectral range are shown in Figure 5. A solid garlic peel spectra revealed several bands at 3350, 2900, 1710, 1660, and 1160 cm−1. The stretching bonds O-H, C-H, C=O, C=C, and C-O, which are present in bioorganic molecules such as phenolic compounds, amino acids, and carboxylic acid compounds, are responsible for these bands [43]. The main organosulfur ingredient in garlic is called allicin [44]. More well-defined bands connected to allicin were discovered at 800 cm−1, 1050 cm−1, and 1215 cm−1 attributed to vC-S, vS = O, and vS-S, respectively [45]. The weak bands between 400 and 600 cm−1 were detected in Ag-NPs and are related to metal–metal bonds [46]. The vibrational modes observed at 420, 560, and 650 cm−1 indicate chromium oxide mode. The strong absorption band at 560 cm−1 and the relatively weak absorption band at 420 cm−1 can both be attributed to Cr-O bonds in the bending mode, while the high absorption band at 650 cm−1 is reported for the existence of crystalline Cr2O3. The low-intensity band at 1050 cm−1 is due to Cr-O stretching vibrations [47].

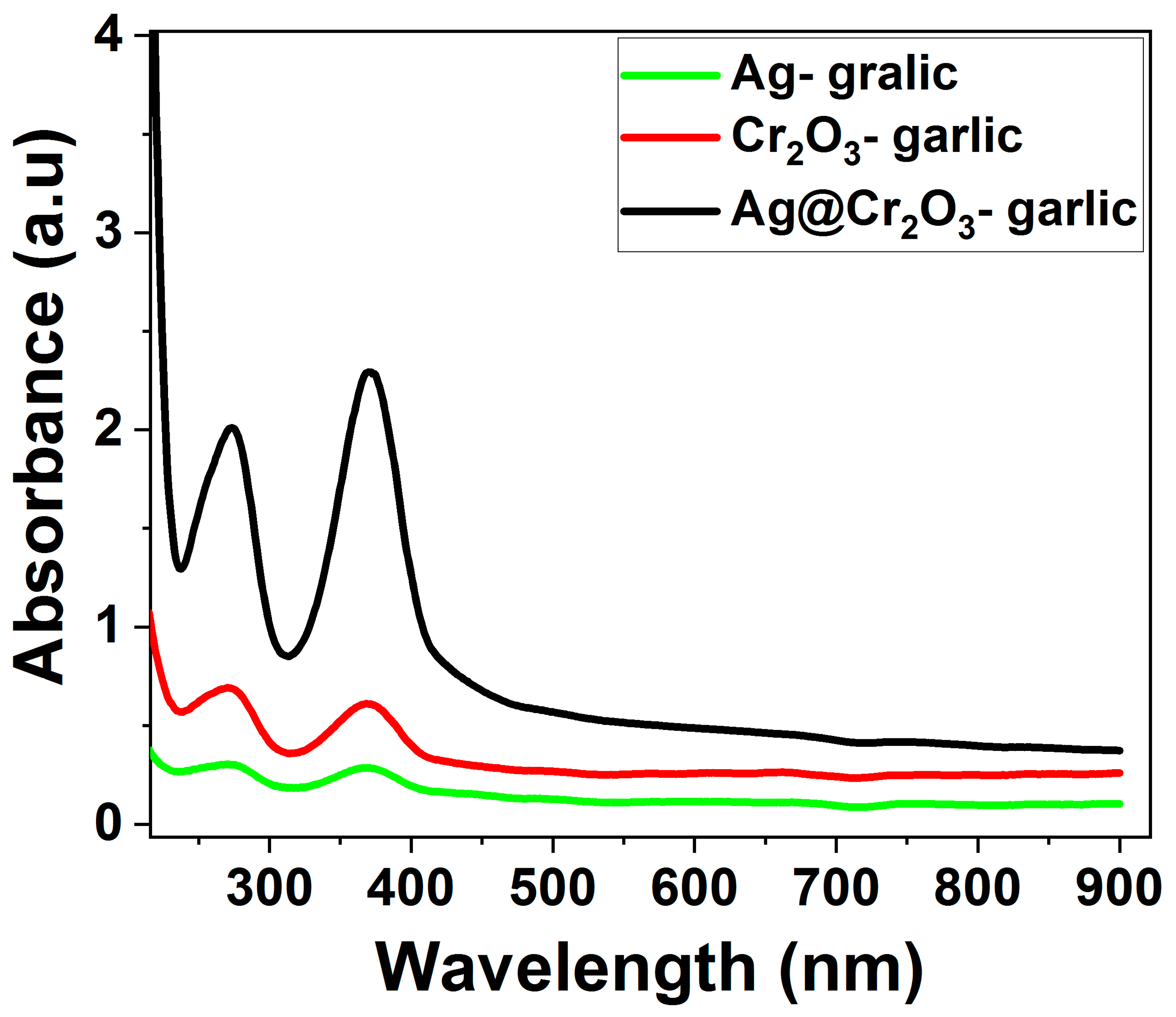

3.1.5. UV-Vis Spectra

Figure 6 illustrates the UV-Vis spectra of the synthesized nanoparticles. The spectra of synthesized Ag-garlic, Cr2O3-garlic, and Ag@Cr2O3-garlic show two distinct surface plasmon resonances, with absorption peaks at 270 and 385 nm [48,49,50].

3.1.6. SEM Studies

The nanoparticles produced via GPE are examined using SEM analysis, as shown in Figure 7. The nanoparticles exhibited a lack of direct interaction with each other even inside the aggregates, suggesting that the presence of a capping agent effectively stabilizes the particles [51]. Based on SEM data, it is possible that the smaller porous particles experienced aggregation, resulting in the formation of larger ones.

3.1.7. TEM Studies

In order to obtain insight into the formation, size, and morphology of the nanoparticles, TEM analysis was utilized, Figure 8. The formation of the synthetic nanoparticle was verified using TEM photos. TEM images indicate that Ag-garlic takes a spherical shape with a size ≈50 nm, Figure 8a. The TEM image of Cr2O3-garlic, Figure 8b, is mostly short and rod-shaped, with a 20–30 nm length. The TEM images of Ag@Cr2O3-garlic show both short, rod-shaped chromium oxide nanoparticles and spherical silver nanoparticles in decoration form, Figure 8c,d.

3.2. Antimicrobial Assay

In vitro tests were performed to assess the antimicrobial susceptibility of waterborne microorganisms to the garlic extract and its biosynthesized chromium oxide nanoparticles (Cr2O3-garlic), silver oxide nanoparticles (Ag-garlic), and composites (Ag@Cr2O3-garlic) against fungal and bacterial germs. The fungal germs include Alternaria porri, Aspergillus flavus, A. niger, Fuserium oxysporum, and Trichoderma longibrachiatum. Four bacterial isolates were used in this study as follows: Gram-positive bacteria (Bacillus subtilis and Enterococcus faecium) and Gram-negative bacteria (E. coli and P. aeruginosa). An agar-well diffusion method, a broth macro-dilution technique, and MIC determination served as reference methods for these experiments. An agar-well diffusion method, a broth macro-dilution technique, and MIC determination served as reference methods for these experiments. The antimicrobial results are provided in Table 1 and Table 2 and illustrated in Figure 9 and Figure 10.
Except for Fusarium, the MIC of Ag@Cr2O3-garlic at 40 ppm was found to be the optimal concentration for inhibiting fungi growth. But when Cr2O3-garlic and Ag-garlic were used, the MIC was at 60 ppm for all tested fungi except for Aspergillus spp. and Fusarium at 80 ppm. Additionally, the MIC of the garlic extract was 80 ppm. In the case of bacteria, the results showed that the ability of Ag@Cr2O3-garlic is absolutely the best to inhibit different bacterial cells, as the MIC ranged from 25 ppm to 30 ppm, while in the case of Ag-garlic, the MIC ranged from 35 ppm to 45 ppm. The range of 50 ppm to 45 ppm is the MIC of Cr2O3-garlic. The results indicate that the MIC of the garlic extract ranges between 50 ppm and 60 ppm. As a result, we can conclude that the results were as follows: Ag@Cr2O3-garlic > Ag-garlic > Cr2O3-garlic > GPE. These results were due to the synergistic effects of the overall nanocomposite rather than the individual effects of Ag and Cr2O3.

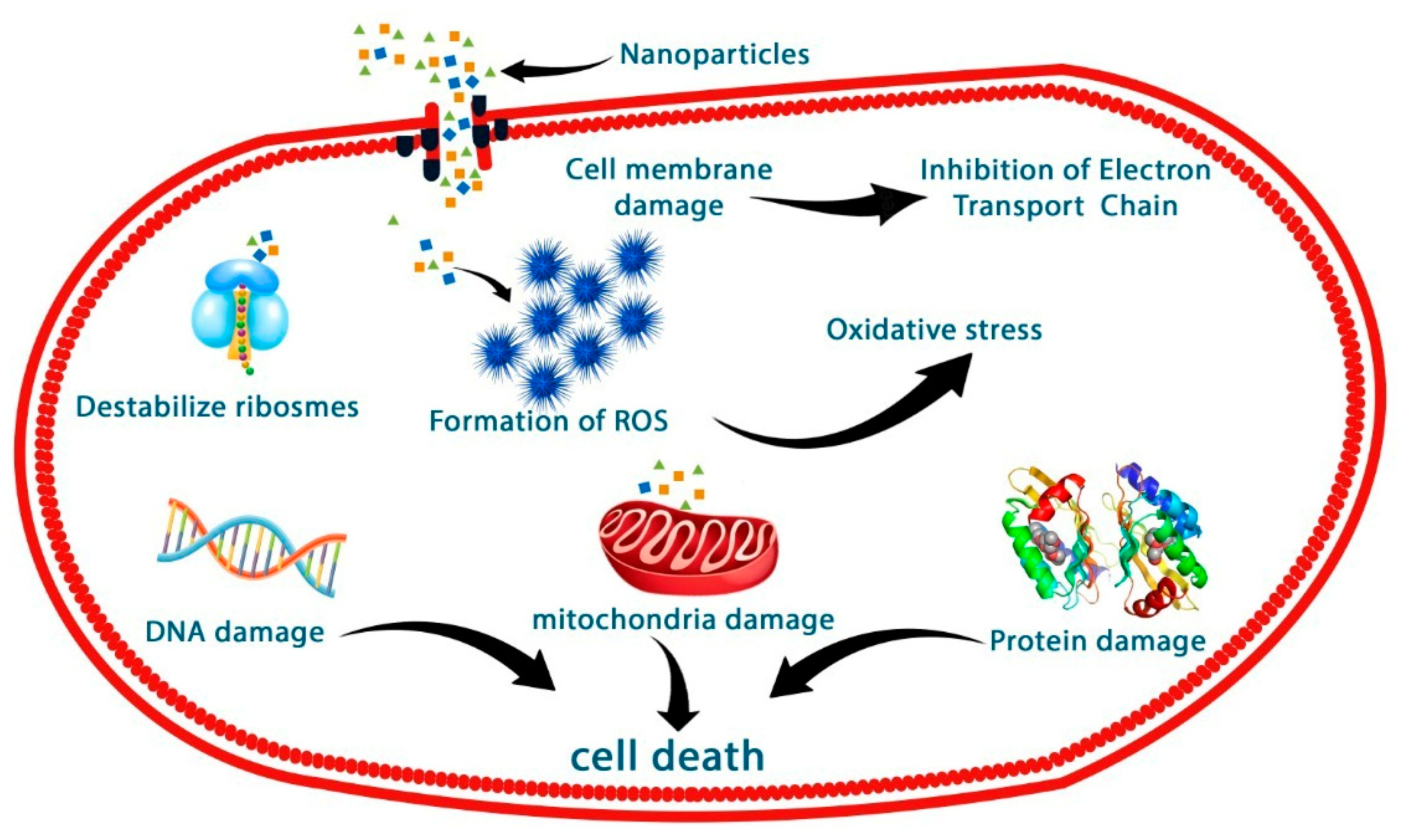

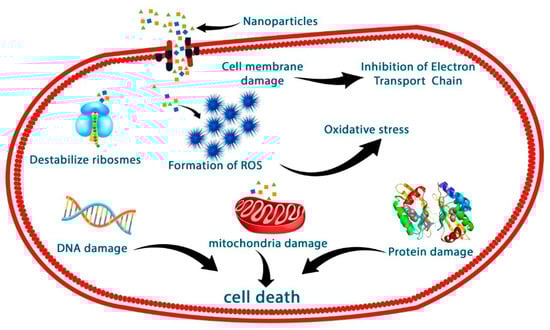

The suggested mechanism can be based on the fact that the nanoparticles can enter microbial cell walls, which cause the denaturation of cell membranes and impede microbial growth, Figure 11. Then, the nanoparticles can generate reactive oxygen species (ROS), which are produced at a higher rate and prevent adenosine triphosphate (ATP) release, DNA replication, and cell growth [52]. Furthermore, as a result of cell membrane denaturation, the intracellular and extracellular components of the microbial cell membrane may break, resulting in cell lysis [53].
The antimicrobial results in this study are compared with similar studies (Table 3).

3.3. Photocatalytic Studies

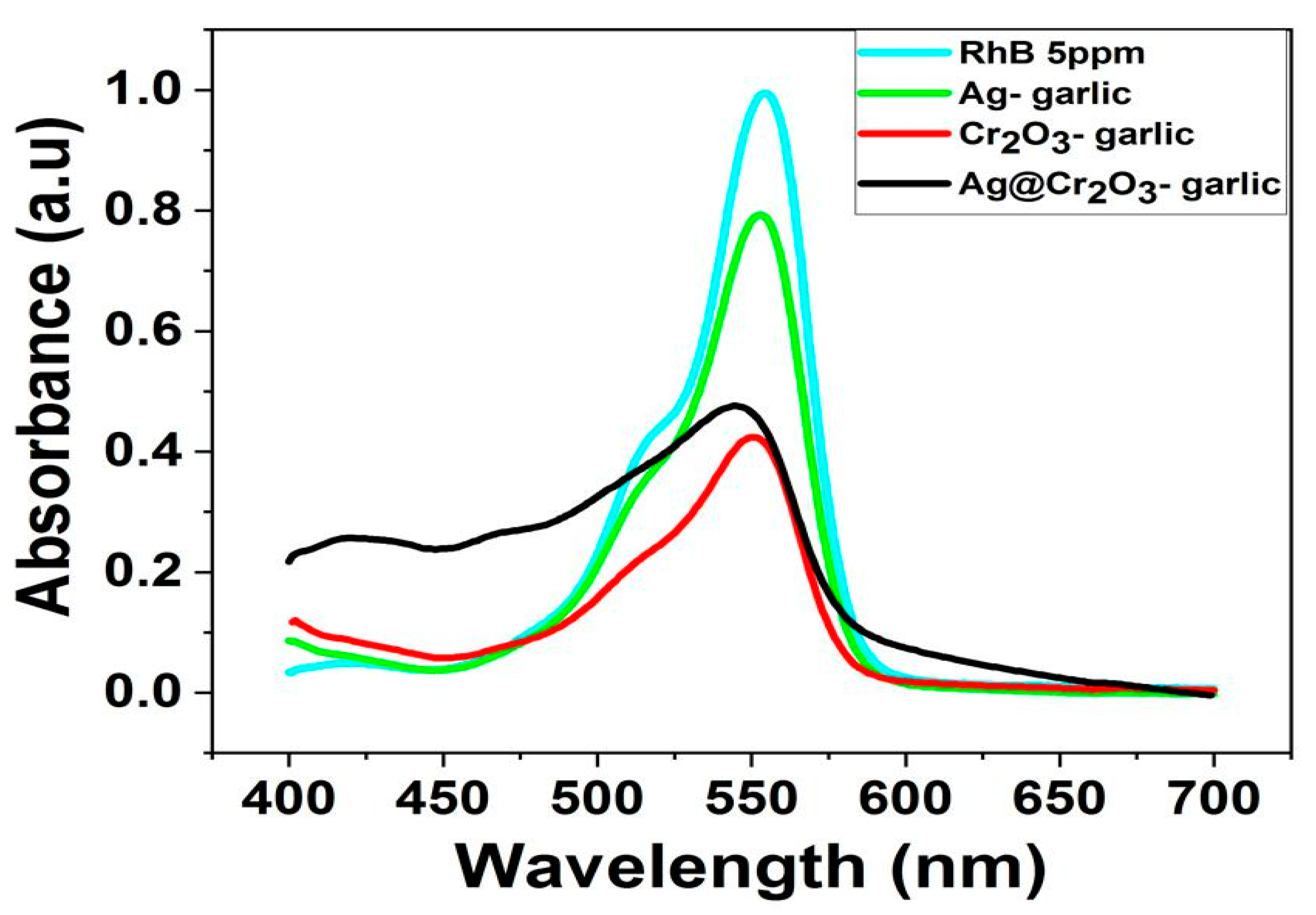

To find out the affinity of the synthesized nanoparticles as photocatalysts, 0.02 g of each material was mixed with 50 mL of RhB (5 ppm) under sunlight (40 × 103 LUX). After 30 min of treatment, 3 mL of the solution was taken, centrifuged to separate the catalyst, and subjected to a spectrophotometer to measure the RhB chromophore (λmax 555 nm) [59]. As illustrated in Figure 12, the photocatalytic activity followed the order Cr2O3-garlic > Ag@Cr2O3-garlic > Ag-garlic, with degradation efficiencies of 62%, 54%, and 19%, respectively. After that, further experiments were carried out to determine the ideal parameters of Cr2O3-garlic by investigating the effects of many factors on the photocatalytic degradation of RhB, including the influence of darkness, the catalyst dose, solution pH, and contact time. The percentages of RhB that were degraded were verified using a spectrophotometer measurement of the treated solution’s maximum absorbance at 555 nm and calculated using Equation (1) [60]:
%   RhB   degradation = A 0 − A t A 0 × 100
where A0 is the initial 5 ppm RhB absorbance (1.AU) and At is the RhB absorbance after a definite time.

3.3.1. Adsorption Experiment in Darkness

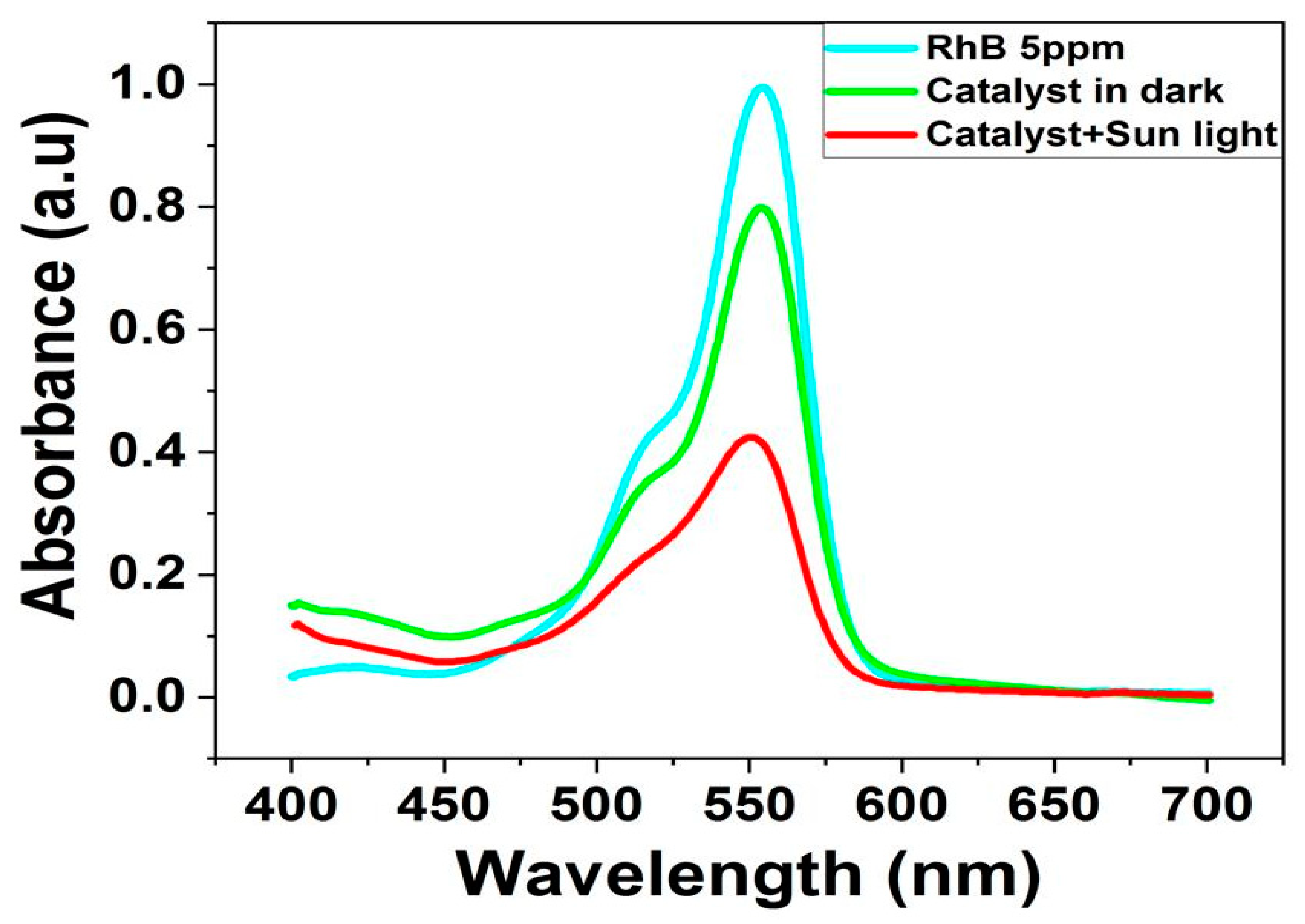

Without a catalyst, there was no RhB degradation, as investigated by the photolysis experiment conducted with only light. The findings of the adsorption experiment in the dark demonstrated a minor loss of RhB color with a degradation efficiency of only 18.5% after 30 min, suggesting that Cr2O3-garlic has a large number of active sites that enable the dye to bind to its surface, Figure 13.

3.3.2. Effect of Catalyst Mass

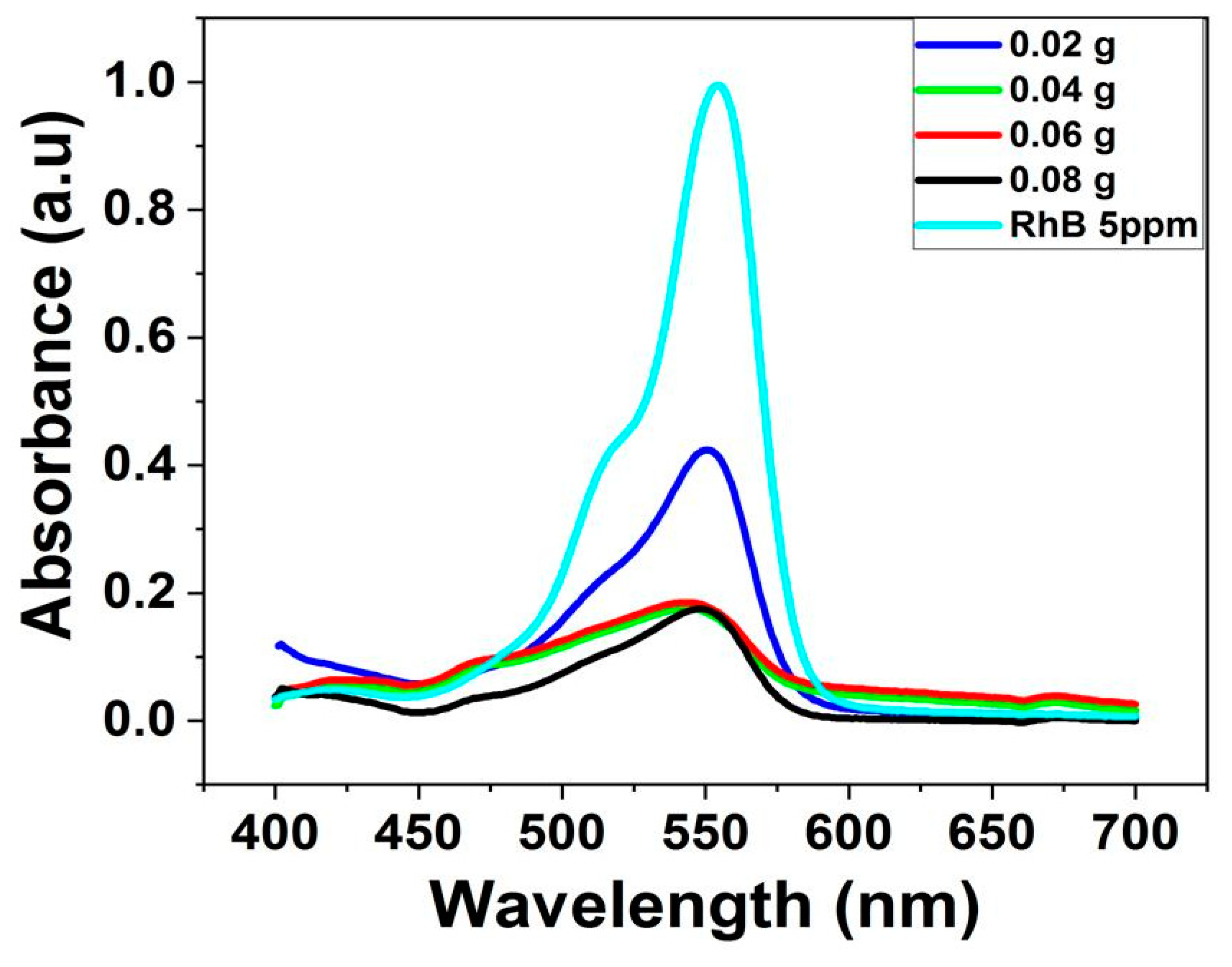

The dosage of Cr2O3-garlic varied from 0.4 to 1.6 g/L while maintaining the contact time (30 min) and RhB concentration (5 ppm) at natural pH (7.8). The absorption spectra of RhB at various catalyst doses are shown in Figure 14. The degradation percentage increased from 62% to 88% when the catalyst dosage was increased from 0.4 g/L to 0.8 g/L because there were more fitting sites available for RhB adsorption [61]. The dose varied from 0.8 g/L to 1.6 g/L, but no discernible chromophore decrease was seen. This indicates that the best dosage for RhB molecule adsorption is 0.8 g/L for further tests.

3.3.3. Effect of pH

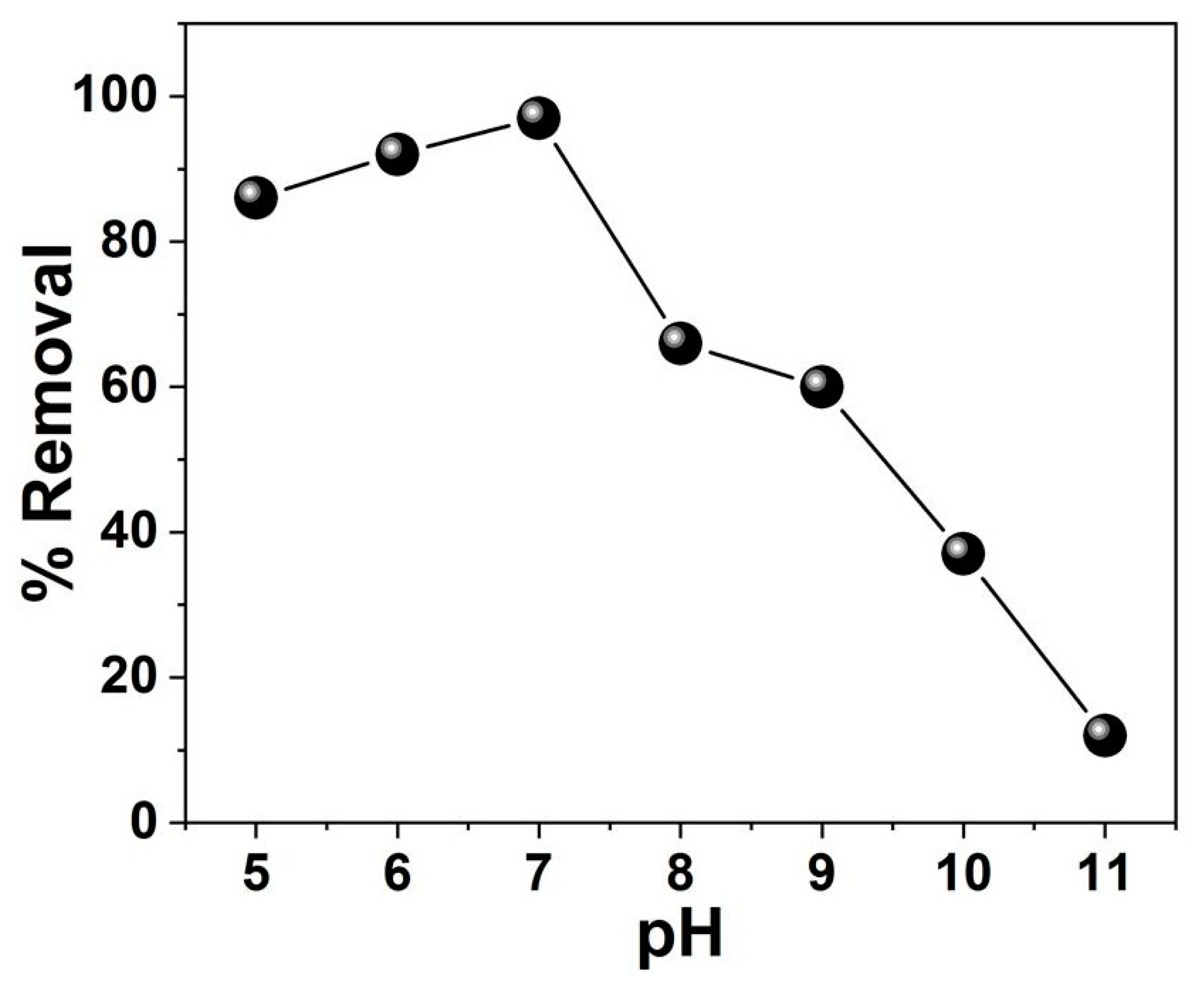

To ascertain the effects of the solution pH on photocatalytic activity, 0.04 g of Cr2O3-garlic was blended with 50 mL of RhB solution (5 ppm) for 60 min at room temperature with different pH values (5, 6, 7, 7.8 (natural), 9, 10, and 11). A solution of 0.1 N from HCl and NaOH was used to adjust the pH values of the reaction media. The greatest percentage of degradation (97.5%) occurred at pH 7, which is the ideal pH for RhB decomposition in the presence of Cr2O3-garlic as a photocatalyst (Figure 15).

3.3.4. Effect of Contact Time

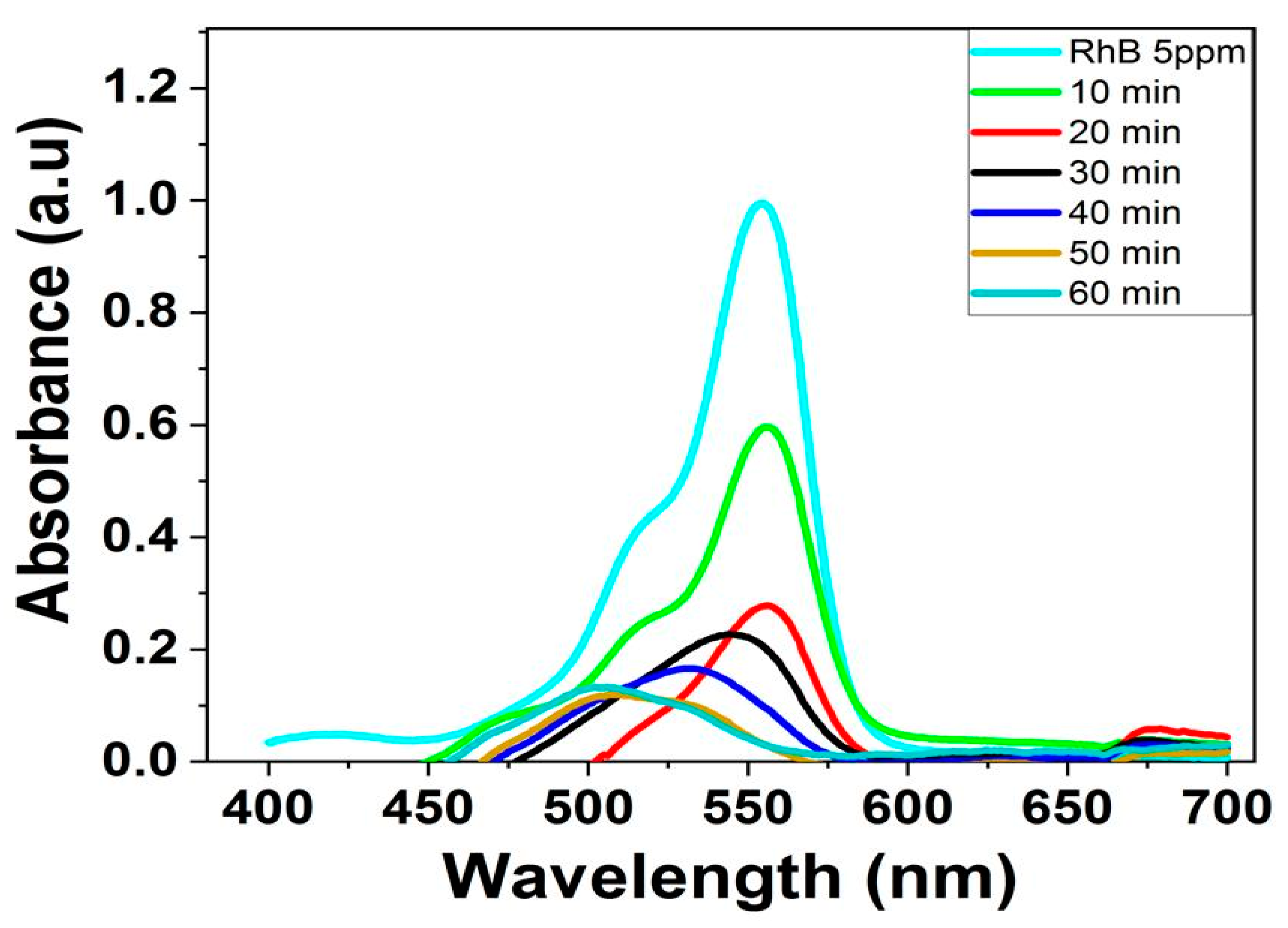

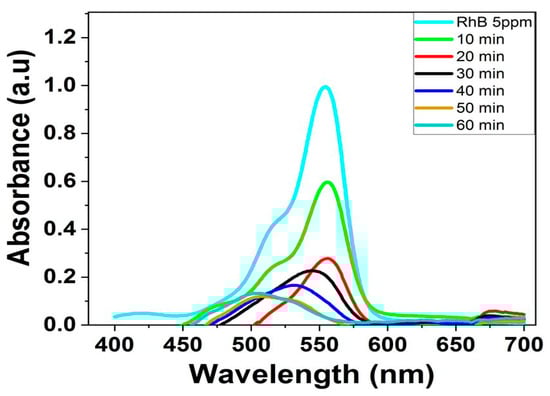

Figure 16 shows the absorption spectra of RhB dye (5 ppm) remediation using 0.8 g/L of Cr2O3 at pH 7 at different exposure times. The percentage of eradicated RhB rose from 40% to 97% as the duration extended from 10 to 50 min. After 60 min, the degradation percentage climbed slightly to 97.5%. Due to the active sites on the Cr2O3 surface filling up and the resultant slower rate of degradation, the amount of RhB degradation increased steadily [62]. After 60 min, the maximum degradation of 97.5% was achieved.
The distinctive dye molecule absorption during the photodegradation procedure occasionally exhibits a redshift or blueshift, which may be the result of organic dyes aggregating [63]. As shown in Figure 16, RhB performed a 97.5% decolorization after 60 min; however, after 30 min to 60 min of sunlight exposure, the absorption band gradually blueshifted to below 555 nm. This indicates that the four ethyl groups in RhB are gradually eliminated until all of the ethyl groups are removed and then completely transformed into rhodamine. There was a significant absorption blueshift from 555 nm to 500 nm as a result of the deethylation of RhB molecules [64].

4. Conclusions

This study focused on the biosynthesis of silver nanoparticles, chromium oxide nanoparticles, and silver-decorated chromium oxide involved in the utilization of an aqueous extract obtained from garlic peel. The confirmation of the produced nanoparticles was achieved through the utilization of various physicochemical methods. Applying Rhodamine B dye (5 ppm) under solar radiation, the photocatalytic activity of nanoparticles was evaluated. Cr2O3-garlic had the highest photocatalytic effectiveness among the investigated nanoparticles, with 97.5% decomposition. An investigation was conducted to assess the antimicrobial activity against waterborne pathogens, encompassing both bacterial and fungal strains. The antimicrobial activity of Ag@Cr2O3 was the highest among the studied materials due to the synergistic effect between both Ag-Nps and Cr2O3-Nps, which improved the inhibition of microbial growth.

Author Contributions

Conceptualization, A.A.A. and A.M.N.; Methodology, S.M.N.M., I.A.A. and A.M.N.; Software, M.D.A., N.F.A. and K.A.; Validation, L.S.A.; Formal analysis, A.A.A.; Investigation, L.S.A.; Resources, N.F.A. and S.M.N.M.; Data curation, M.D.A. and K.A.; Writing—original draft, L.S.A., M.D.A., A.A.A., S.M.N.M. and I.A.A.; Writing—review & editing, A.M.N.; Visualization, K.A.; Project administration, A.M.N.; Funding acquisition, N.F.A. All authors have read and agreed to the published version of the manuscript.

Funding

The authors extend their appreciation to the Deputyship for Research and Innovation, Ministry of Education in Saudi Arabia, for funding this research work through project number 223202.

Data Availability Statement

Data are contained within the article.

Conflicts of Interest

There are no conflicts of interest.

References

  1. Alsohaimi, I.H.; Alotaibi, N.F.; Albarkani, A.M.; Chen, Q.; Moustafa, S.M.; Alshammari, M.S.; Nassar, A.M. Photocatalytic wastewater treatment and disinfection using green ZnO-NP synthesized via cera alba extract. Alex. Eng. J. 2023, 83, 113–121. [Google Scholar] [CrossRef]
  2. Alsohaimi, I.H.; Nassar, A.M.; Elnasr, T.A.S.; Cheba, B.A. A novel composite silver nanoparticles loaded calcium oxide stemming from egg shell recycling: A potent photocatalytic and antibacterial activities. J. Clean. Prod. 2019, 248, 119274. [Google Scholar] [CrossRef]
  3. Nassar, A.M.; Alotaibi, N.F. Eggshell recycling for fabrication of Pd@CaO, characterization and high-performance solar photocatalytic activity. Environ. Sci. Pollut. Res. 2020, 28, 3515–3523. [Google Scholar] [CrossRef]
  4. Wang, W.; Chen, X.; Liu, G.; Shen, Z.; Xia, D.; Wong, P.K.; Yu, J.C. Monoclinic dibismuth tetraoxide: A new visible-light-driven photocatalyst for environmental remediation. Appl. Catal. B Environ. 2015, 176–177, 444–453. [Google Scholar] [CrossRef]
  5. Alqarni, L.S.; Alghamdi, M.D.; Alshahrani, A.A.; Nassar, A.M. Green Nanotechnology: Recent Research on Bioresource-Based Nanoparticle Synthesis and Applications. J. Chem. 2022, 2022, 1–31. [Google Scholar] [CrossRef]
  6. El-Sheekh, M.M.; Morsi, H.H.; Hassan, L.H.; Ali, S.S. The efficient role of algae as green factories for nanotechnology and their vital applications. Microbiol. Res. 2022, 263, 127111. [Google Scholar] [CrossRef]
  7. Hussein, S.; Mahmoud, A.M.; Elgebaly, H.A.; Hendawy, O.M.; Hassanein, E.H.M.; Moustafa, S.M.N.; Alotaibi, N.F.; Nassar, A.M. Green Synthesis of Trimetallic Nanocomposite (Ru/Ag/Pd)-Np and Its In Vitro Antimicrobial and Anticancer Activities. J. Chem. 2022, 2022, 4593086. [Google Scholar] [CrossRef]
  8. Munir, R.; Ali, K.; Naqvi, S.A.Z.; Maqsood, M.A.; Bashir, M.Z.; Noreen, S. Biosynthesis of Leucaena Leucocephala leaf mediated ZnO, CuO, MnO2, and MgO based nano-adsorbents for Reactive Golden Yellow-145 (RY-145) and Direct Red-31 (DR-31) dye removal from textile wastewater to reuse in agricultural purpose. Sep. Purif. Technol. 2023, 306, 122527. [Google Scholar] [CrossRef]
  9. Sadiq, H.; Sher, F.; Sehar, S.; Lima, E.C.; Zhang, S.; Iqbal, H.M.; Zafar, F.; Nuhanović, M. Green synthesis of ZnO nanoparticles from Syzygium Cumini leaves extract with robust photocatalysis applications. J. Mol. Liq. 2021, 335, 116567. [Google Scholar] [CrossRef]
  10. Alqarni, L.S. Green creation of CoFe2O4 nanosorbent for superior toxic Cd ions elimination. Z NATURFORSCH A. 2024, 79, 1–16. [Google Scholar] [CrossRef]
  11. Liu, M.; Lin, M.; Owens, G.; Chen, Z. Fenton-like oxidation mechanism for simultaneous removal of estriol and ethinyl estradiol by green synthesized Mn3O4 NPs. Sep. Purif. Technol. 2022, 301, 121978. [Google Scholar] [CrossRef]
  12. Gunalan, S.; Sivaraj, R.; Rajendran, V. Green synthesized ZnO nanoparticles against bacterial and fungal pathogens. Prog. Nat. Sci. 2012, 22, 693–700. [Google Scholar] [CrossRef]
  13. Iravani, S. Green synthesis of metal nanoparticles using plants. Green Chem. 2011, 13, 2638–2650. [Google Scholar] [CrossRef]
  14. Almaev, A.V.; Kushnarev, B.O.; Chernikov, E.V.; Novikov, V.A.; Korusenko, P.M.; Nesov, S.N. electrical and gas-sensitive properties of Cr2O3 thin films. Superlattices Microstruct. 2021, 151, 106835. [Google Scholar] [CrossRef]
  15. Mohamed, R.M.; Ismail, A.A.; Alhaddad, M. A novel design of porous Cr2O3@ZnO nanocomposites as highly efficient photocatalyst toward degradation of antibiotics: A case study of ciprofloxacin. Sep. Purif. Technol. 2021, 266, 118588. [Google Scholar] [CrossRef]
  16. Makushko, P.; Kosub, T.; Pylypovskyi, O.V.; Hedrich, N.; Li, J.; Pashkin, A.; Avdoshenko, S.; Hübner, R.; Ganss, F.; Wolf, D.; et al. Flexomagnetism and vertically graded Néel temperature of antiferromagnetic Cr2O3 thin films. Nat. Commun. 2022, 13, 1–13. [Google Scholar] [CrossRef]
  17. Gyawali, N.; Kandel, R.; Lee, I.; Shrestha, S.; Pandey, A.; Akter, J.; Hahn, J.R. Silver decoration of Cr2O3 nanoparticles: Facile preparation of Cr2O3 nanoparticles and Ag–Cr2O3 nanocomposites and characterization of their antibacterial activity and ability to photocatalytically degrade organic wastes under visible light. J. Photochem. Photobiol. A Chem. 2024, 447, 115251. [Google Scholar] [CrossRef]
  18. Tsegay, M.; Gebretinsae, H.; Welegergs, G.G.; Maaza, M.; Nuru, Z. Novel green synthesized Cr2O3 for selective solar absorber: Investigation of structural, morphological, chemical, and optical properties. Sol. Energy 2022, 236, 308–319. [Google Scholar] [CrossRef]
  19. Kafi-Ahmadi, L.; Khademinia, S.; Marjani, A.P.; Nozad, E. Microwave-assisted preparation of polysubstituted imidazoles using Zingiber extract synthesized green Cr2O3 nanoparticles. Sci. Rep. 2022, 12, 1–13. [Google Scholar] [CrossRef]
  20. Ahmad, Z.; Shamim, A.; Mahmood, S.; Mahmood, T.; Khan, F.U. Biological synthesis and characterization of chromium (iii) oxide nanoparticles. Eng. Appl. Sci. Lett. 2018, 1, 23–29. [Google Scholar] [CrossRef]
  21. Ghotekar, S.; Pansambal, S.; Bilal, M.; Pingale, S.S.; Oza, R. Environmentally friendly synthesis of Cr2O3 nanoparticles: Characterization, applications and future perspective—A review. Case Stud. Chem. Environ. Eng. 2021, 3, 100089. [Google Scholar] [CrossRef]
  22. Zaheer, Z.; Bawazir, W.A.; Basaleh, A.S.; Alhogbi, B.G.; Albukhari, S.M. Effects of anionic and cationic surfactants on the surface Plasmon resonance intensity of biogenic silver nanoparticles: Stability, and position of optical band. J. Mol. Liq. 2023, 385, 122363. [Google Scholar] [CrossRef]
  23. Demirbas, A.; Yilmaz, V.; Ildiz, N.; Baldemir, A.; Ocsoy, I. Anthocyanins-rich berry extracts directed formation of Ag NPs with the investigation of their antioxidant and antimicrobial activities. J. Mol. Liq. 2017, 248, 1044–1049. [Google Scholar] [CrossRef]
  24. Parmar, S.; Kaur, H.; Singh, J.; Matharu, A.S.; Ramakrishna, S.; Bechelany, M. Recent advances in green synthesis of Ag NPs for extenuating antimicrobial resistance. Nanomaterials 2022, 12, 1115. [Google Scholar] [CrossRef]
  25. Hashemian, M.; Jafarmadar, S.; Khalilarya, S.; Faraji, M. Energy harvesting feasibility from photovoltaic/thermal (PV/T) hybrid system with Ag/Cr2O3-glycerol nanofluid optical filter. Renew. Energy 2022, 198, 426–439. [Google Scholar] [CrossRef]
  26. Sadri, E.; Ashrafizadeh, F. Self-lubrication mechanism of plasma-sprayed Cr2O3-Ag nanocomposite coatings at room to moderate temperatures. J. Therm. Spray Technol. 2021, 30, 1595–1614. [Google Scholar] [CrossRef]
  27. Acharyya, S.S.; Ghosh, S.; Khatun, R.; Bal, R. Unravelling the role of Ag Cr interfacial synergistic effect in Ag/Cr2O3 nanostructured catalyst for the ammoxidation of toluene via low temperature activation of Csp3-H bond. Catal. Commun. 2021, 152, 106290. [Google Scholar] [CrossRef]
  28. Mansourirad, N.; Ardestani, M.; Afshar, R.M. Synthesis and characterization of Ag-8%wt Cr2O3 composites prepared by different densification processes. Sci. Sinter. 2018, 50, 323–335. [Google Scholar] [CrossRef]
  29. Cao, J.; Xu, Y.; Sui, L.; Zhang, X.; Gao, S.; Cheng, X.; Zhao, H.; Huo, L. Highly selective low-temperature triethylamine sensor based on Ag/Cr2O3 mesoporous microspheres. Sensors Actuators B Chem. 2015, 220, 910–918. [Google Scholar] [CrossRef]
  30. Ishtiaq, M.; Ali, D.; Ahmad, R.; Muneer, I.; Bashir, F.; Hanif, M.; Khan, T.M.; Abbasi, S.A. A Comparison of Antibacterial Activity in Dark-UV Light in Perspective of Surface and Structural Properties of Spray Pyrolysis Grown Cu Doped Cr2O3 Thin Films. Surf. Interfaces 2023, 37, 102741. [Google Scholar] [CrossRef]
  31. Ahmed, M.; Afridi, S.; Khalil, A.T.; Zohra, T.; Ali, M.; Alam, M.M.; Maaza, M. Phyto-fabricated Cr2O3 nanoparticle for multifunctional biomedical applications. Nanomedicine 2020, 15, 1653–1669. [Google Scholar] [CrossRef]
  32. Hassan, D.; Khalil, A.T.; Solangi, A.R.; El-Mallul, A.; Shinwari, Z.K.; Maaza, M. Physiochemical properties and novel biological applications of Callistemon viminalis-mediated α-Cr2O3 nanoparticles. Appl. Organomet. Chem. 2019, 33, e5041. [Google Scholar] [CrossRef]
  33. Shahid, H.; Arooj, I.; Zafar, S. Saba Honey-mediated synthesis of Cr2O3 nanoparticles and their potent anti-bacterial, anti-oxidant and anti-inflammatory activities. Arab. J. Chem. 2023, 16, 104544. [Google Scholar] [CrossRef]
  34. Moustafa, S.M.; Taha, R.H. Mycogenic Nano-Complex for Plant Growth Promotion and Bio-Control of Pythium aphanidermatum. Plants 2021, 10, 1858. [Google Scholar] [CrossRef]
  35. AL-Shammri, K.N.; Elkanz, N.A.A.; Arafa, W.A.A.; Althobaiti, I.O.; Moustafa, B.R.S.M. Novel indan-1,3-dione derivatives: Design, green synthesis, effect against tomato damping-off disease caused by Fusarium oxysporum and in silico molecular docking study. Arab. J. Chem. 2022, 15, 103731. [Google Scholar] [CrossRef]
  36. Nassar, A.M.; Alrowaili, Z.A.; Ahmed, A.A.M.; Cheba, B.A.; Akhtar, S. Facile synthesis of new composite, Ag-Nps-loaded core/shell CdO/Co3O4 NPs, characterization and excellent performance in antibacterial activity. Appl. Nanosci. 2020, 11, 419–428. [Google Scholar] [CrossRef]
  37. Ansari, A.R.; Ansari, S.A.; Parveen, N.; Ansari, M.O.; Osman, Z. Silver nanoparticle decorated on reduced graphene oxide-wrapped manganese oxide nanorods as electrode materials for high-performance electrochemical devices. Crystals 2022, 12, 389. [Google Scholar] [CrossRef]
  38. Khan, S.A.; Shahid, S.; Hanif, S.; Almoallim, H.S.; Alharbi, S.A.; Sellami, H. Green synthesis of chromium oxide nanoparticles for antibacterial, antioxidant anticancer, and biocompatibility activities. Int. J. Mol. Sci. 2021, 22, 502. [Google Scholar] [CrossRef]
  39. Dou, P.; Tan, F.; Wang, W.; Sarreshteh, A.; Qiao, X.; Qiu, X.; Chen, J. One-step microwave-assisted synthesis of Ag/ZnO/graphene nanocomposites with enhanced photocatalytic activity. J. Photochem. Photobiol. A Chem. 2015, 302, 17–22. [Google Scholar] [CrossRef]
  40. Wei, F.; Zhao, X.; Li, C.; Han, X. A novel strategy for water disinfection with a AgNPs/gelatin sponge filter. Environ. Sci. Pollut. Res. 2018, 25, 19480–19487. [Google Scholar] [CrossRef] [PubMed]
  41. Lin, G.; Zhao, C.; Liao, W.; Yang, J.; Zheng, Y. Eco-Friendly Green Synthesis of Rubropunctatin Functionalized Silver Nanoparticles and Evaluation of Antibacterial Activity. Nanomaterials 2022, 12, 4052. [Google Scholar] [CrossRef]
  42. Henderson, M.A.; Chambers, S.A. HREELS, TPD and XPS study of the interaction of water with the α-Cr2O3 (001) surface. Surf. Sci. 2000, 449, 135–150. [Google Scholar] [CrossRef]
  43. Raaj, E.P.; Bhuvaneshwari, K.; Lakshmipathy, R.; Devi, V.V.; Rico, I.L.R.; Barik, D. Garlic peel surface modification and fixed-bed column investigations towards crystal violet dye. Adsorp Sci Technol. 2022, 2022, 1–9. [Google Scholar] [CrossRef]
  44. Magryś, A.; Olender, A.; Tchórzewska, D. Antibacterial properties of Allium sativum L. against the most emerging multidrug-resistant bacteria and its synergy with antibiotics. Arch. Microbiol. 2021, 203, 2257–2268. [Google Scholar] [CrossRef] [PubMed]
  45. Barreto, L.S.; Tokumoto, M.S.; Guedes, I.C.; De Melo, H.G.; Amado, F.D.R.; Capelossi, V.R. Evaluation of the anticorrosion performance of peel garlic extract as corrosion inhibitor for ASTM 1020 carbon steel in acidic solution. Matéria (Rio J.) 2017, 22. [Google Scholar] [CrossRef]
  46. Botteon, C.E.A.; Silva, L.B.; Ccana-Ccapatinta, G.V.; Silva, T.S.; Ambrosio, S.R.; Veneziani, R.C.S.; Bastos, J.K.; Marcato, P.D. Biosynthesis and characterization of gold nanoparticles using Brazilian red propolis and evaluation of its antimicrobial and anticancer activities. Sci. Rep. 2021, 11, 1974. [Google Scholar] [CrossRef] [PubMed]
  47. Sone, B.T.; Manikandan, E.; Gurib-Fakim, A.; Maaza, M. Single-phase α-Cr2O3 nanoparticles’ green synthesis using Callistemon viminalis’ red flower extract. Green Chem. Lett. Rev. 2016, 9, 85–90. [Google Scholar] [CrossRef]
  48. El-Refai, A.A.; Ghoniem, G.A.; El-Khateeb, A.Y.; Hassaan, M.M. Eco-friendly synthesis of metal nanoparticles using ginger and garlic extracts as biocompatible novel antioxidant and antimicrobial agents. J. Nanostruct. Chem. 2018, 8, 71–81. [Google Scholar] [CrossRef]
  49. Nasrollahzadeh, M.; Sajadi, S.M.; Maham, M. Green synthesis of palladium nanoparticles using Hippophae rhamnoides Linn leaf extract and their catalytic activity for the Suzuki–Miyaura coupling in water. J. Mol. Catal. A Chem. 2015, 396, 297–303. [Google Scholar] [CrossRef]
  50. Vaseghi, Z.; Tavakoli, O.; Nematollahzadeh, A. Rapid biosynthesis of novel Cu/Cr/Ni trimetallic oxide nanoparticles with antimicrobial activity. J. Environ. Chem. Eng. 2018, 6, 1898–1911. [Google Scholar] [CrossRef]
  51. Devaraj, P.; Kumari, P.; Aarti, C.; Renganathan, A. Synthesis and characterization of silver nanoparticles using cannonball leaves and their cytotoxic activity against MCF-7 cell line. J. Nanotechnol. 2013, 2013, 598328. [Google Scholar] [CrossRef]
  52. Wang, L.; Hu, C.; Shao, L. The antimicrobial activity of nanoparticles: Present situation and prospects for the future. Int. J. Nanomed. 2017, 12, 1227. [Google Scholar] [CrossRef] [PubMed]
  53. Kaur, H.; Rauwel, P.; Rauwel, E. Antimicrobial nanoparticles: Synthesis, mechanism of actions. In Antimicrobial Activity of Nanoparticles; Elsevier: Amsterdam, The Netherlands, 2023; pp. 155–202. [Google Scholar]
  54. Sangwan, P.; Kumar, H. Synthesis, Characterization and Antibacterial Activities of Chromium Oxides Nanoparticles Againts Klebsiellapneumoniae. Asian J. Pharm. Clin. Res. 2017, 10, 207–209. [Google Scholar] [CrossRef]
  55. Gabriel, T.; Vestine, A.; Kim, K.D.; Kwon, S.J.; Sivanesan, I.; Chun, S.C. Antibacterial activity of nanoparticles of garlic (Allium sativum) extract against different bacteria such as Streptococcus mutans and Poryphormonas gingivalis. Appl. Sci. 2022, 12, 3491. [Google Scholar] [CrossRef]
  56. Vijayakumar, S.; Malaikozhundan, B.; Saravanakumar, K.; Durán-Lara, E.F.; Wang, M.H.; Vaseeharan, B. Garlic clove extract assisted silver nanoparticle—Antibacterial, antibiofilm, antihelminthic, anti-inflammatory, anticancer and ecotoxicity assessment. J. Photochem. Photobiol. B Biol. 2019, 198, 111558. [Google Scholar] [CrossRef] [PubMed]
  57. Nallal, V.U.M.; Razia, M.; Duru, O.A.; Ramalingam, G.; Chinnappan, S.; Chandrasekaran, M.; Gengan, R.M.; Chung, W.J.; Chang, S.W.; Ravindran, B. Eco-Friendly Synthesis of Multishaped Crystalline Silver Nanoparticles Using Hill Garlic Extract and Their Potential Application as an Antifungal Agent. J. Nanomater. 2022, 2022, 7613210. [Google Scholar] [CrossRef]
  58. Saha, M.; Bandyopadhyay, P.K. Green Biosynthesis of Silver Nanoparticle Using Garlic, Allium sativum with Reference to Its Antimicrobial Activity Against the Pathogenic Strain of Bacillus sp. and Pseudomonas sp. Infecting Goldfish, Carassius auratus. Proc. Zool. Soc. 2017, 72, 180–186. [Google Scholar] [CrossRef]
  59. Wozniak, A.B.; Wiercińska, A.N.; Yilmaz, S.; Pietrzak, R. Low-rank coals as precursors of effective carbonaceous adsorbents for the removal of Rhodamine B. J. Mol. Liq. 2023, 389, 122949. [Google Scholar] [CrossRef]
  60. Wang, X.-L.; Sun, Y.-Y.; Xiao, Y.; Chen, X.-X.; Huang, X.-C.; Zhou, H.-L. Facile solution-refluxing synthesis and photocatalytic dye degradation of a dynamic covalent organic framework. Molecules 2022, 27, 8002. [Google Scholar] [CrossRef]
  61. Rajesh, C.; Rajashekara, R.; Nagaraju, P. Response Surface Methodology (RSM) modelling for the photocatalytic optimization study of benzophenone removal using CuWO4/NiO nanocomposite. J. Environ. Health Sci. Eng. 2023, 21, 187–199. [Google Scholar] [CrossRef]
  62. Sadati, H.; Ayati, B. Using a promising biomass-based biochar in photocatalytic degradation: Highly impressive performance of RHB/SnO2/Fe3O4 for elimination of AO7. Photochem. Photobiol. Sci. 2023, 22, 1445–1462. [Google Scholar] [CrossRef]
  63. Chiu, Y.-H.; Chang, T.-F.M.; Chen, C.-Y.; Sone, M.; Hsu, Y.-J. Mechanistic insights into photodegradation of organic dyes using heterostructure photocatalysts. Catalysts 2019, 9, 430. [Google Scholar] [CrossRef]
  64. Jakimińska, A.; Pawlicki, M.; Macyk, W. Photocatalytic transformation of Rhodamine B to Rhodamine-110—The mechanism revisited. J. Photochem. Photobiol. A Chem. 2022, 433, 114176. [Google Scholar] [CrossRef]
Nanomaterials 14 00289 sch001

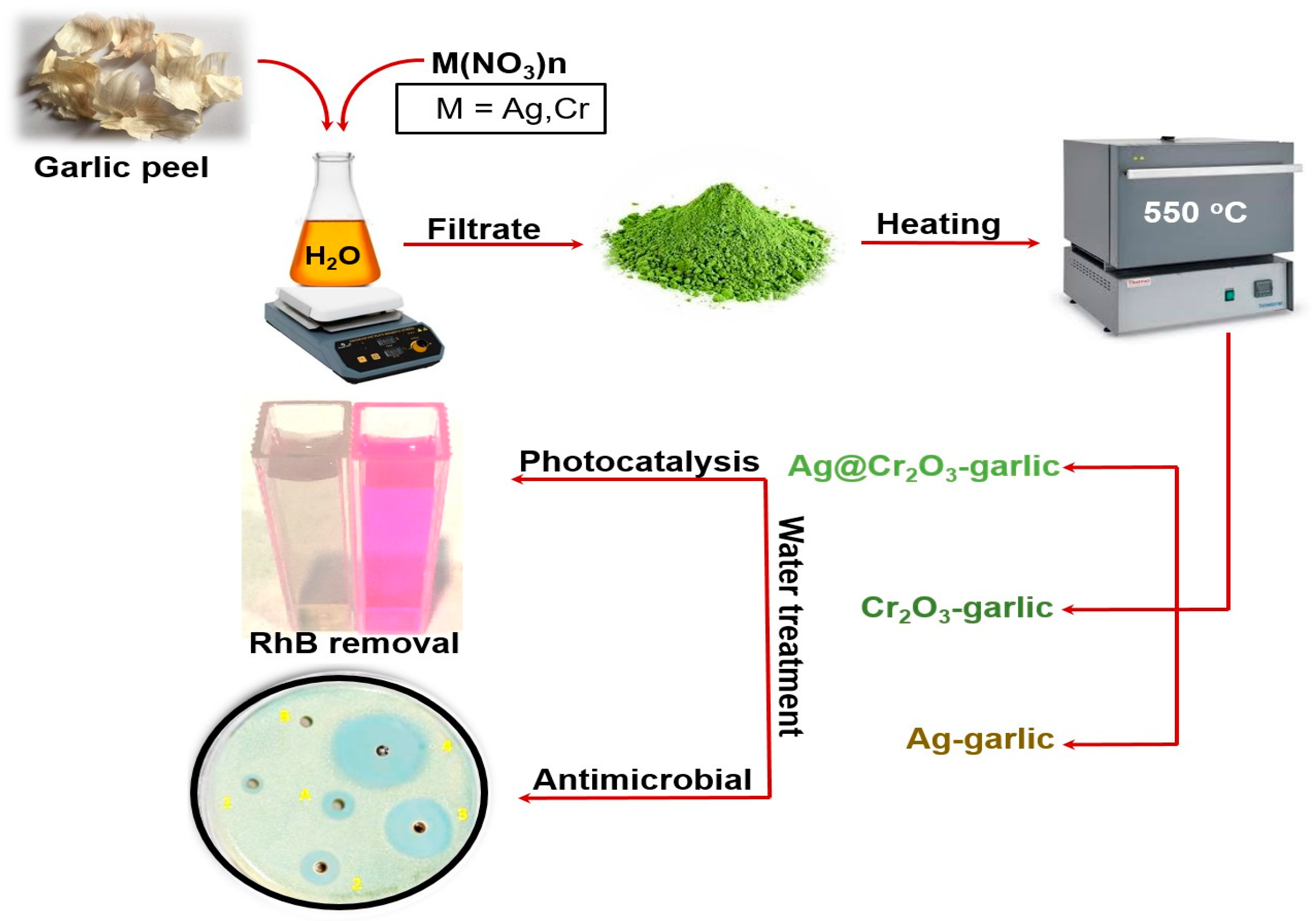

Scheme 1. Green synthesis and applications of nanoparticles.
Scheme 1. Green synthesis and applications of nanoparticles.
Nanomaterials 14 00289 sch001
Nanomaterials 14 00289 g001

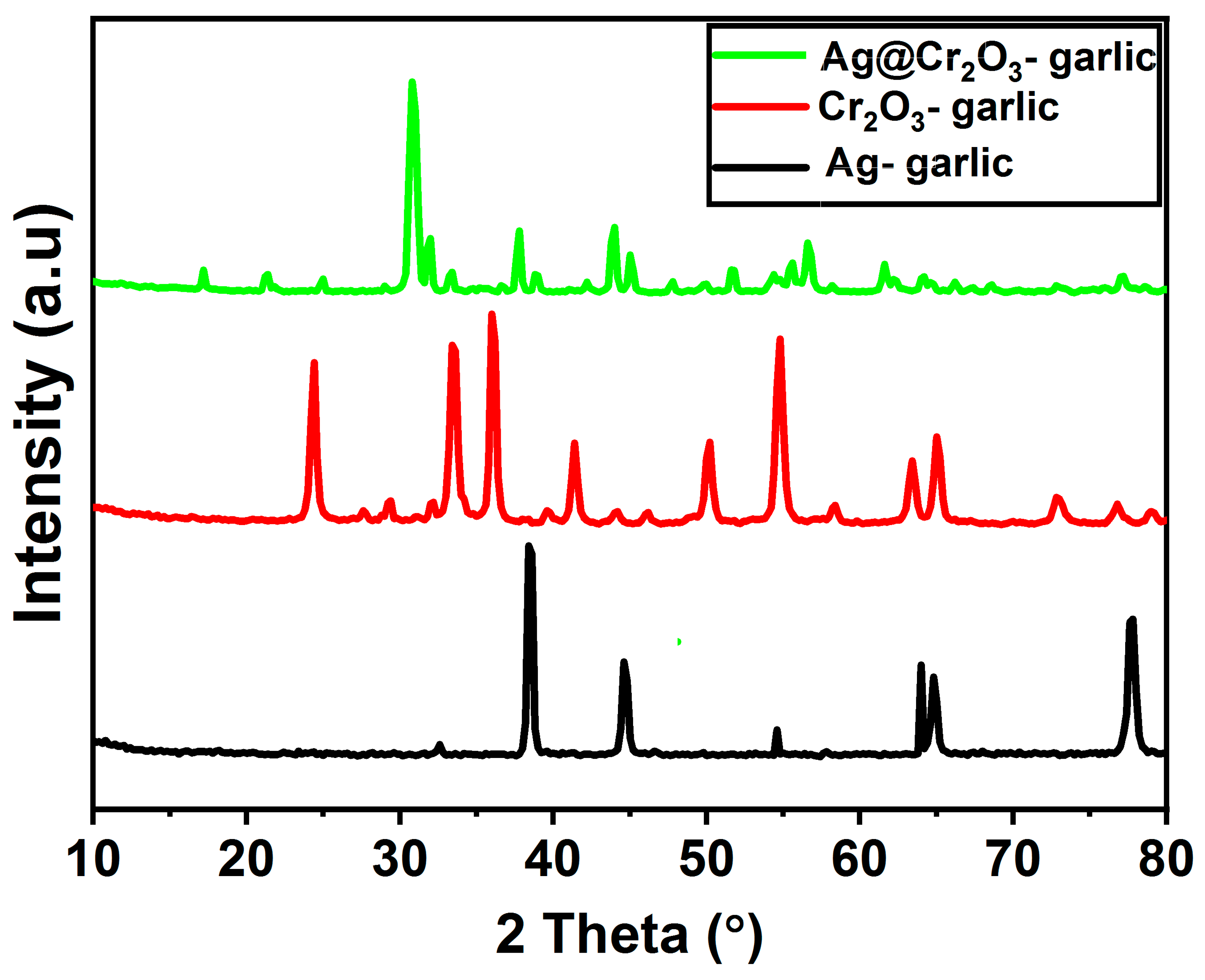

Figure 1. XRD of Ag-garlic, Cr2O3-garlic, and Ag@Cr2O3-garlic.
Figure 1. XRD of Ag-garlic, Cr2O3-garlic, and Ag@Cr2O3-garlic.
Nanomaterials 14 00289 g001
Nanomaterials 14 00289 g002

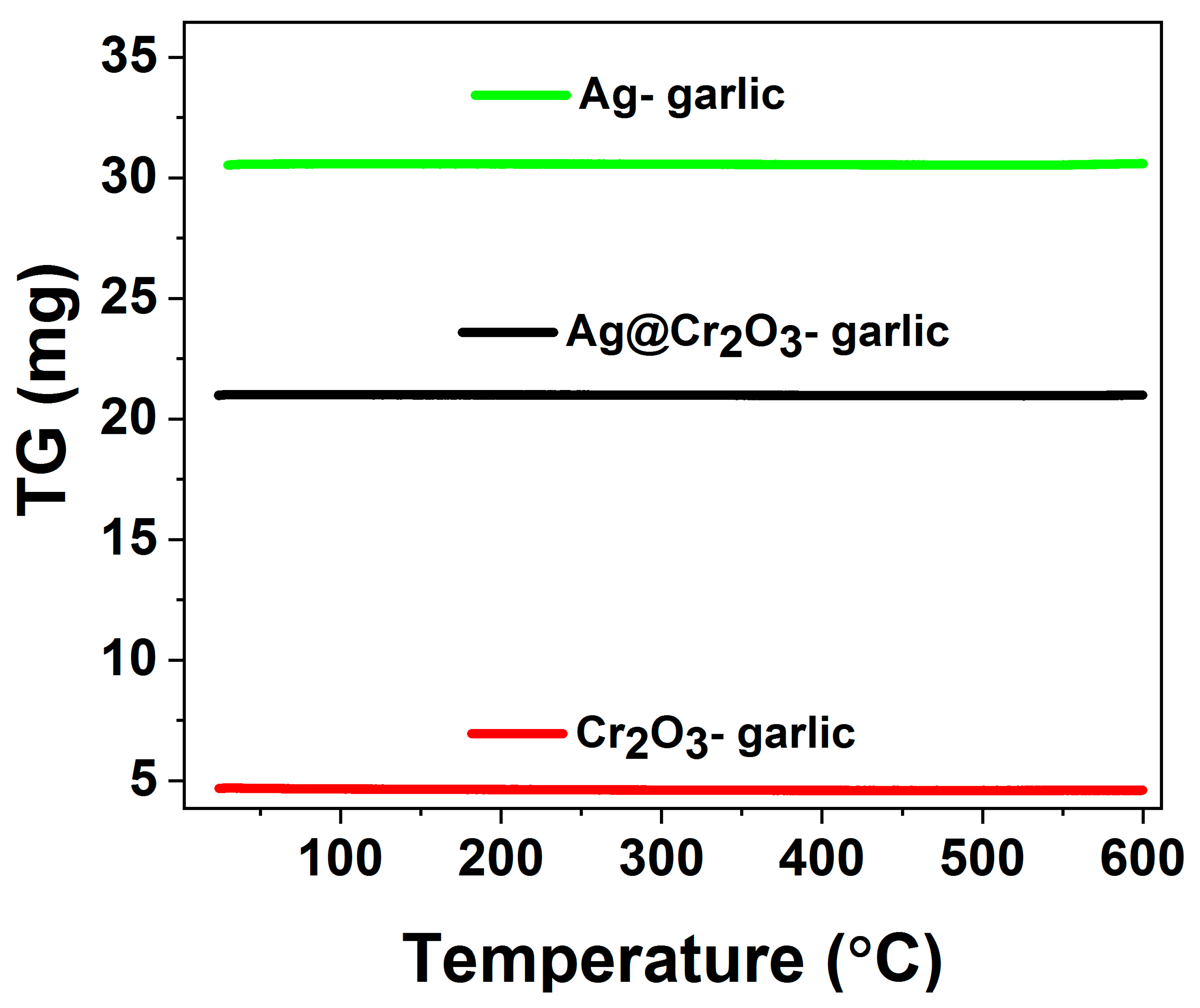

Figure 2. TGA of Ag-garlic, Cr2O3-garlic, and Ag@Cr2O3-garlic.
Figure 2. TGA of Ag-garlic, Cr2O3-garlic, and Ag@Cr2O3-garlic.
Nanomaterials 14 00289 g002
Nanomaterials 14 00289 g003

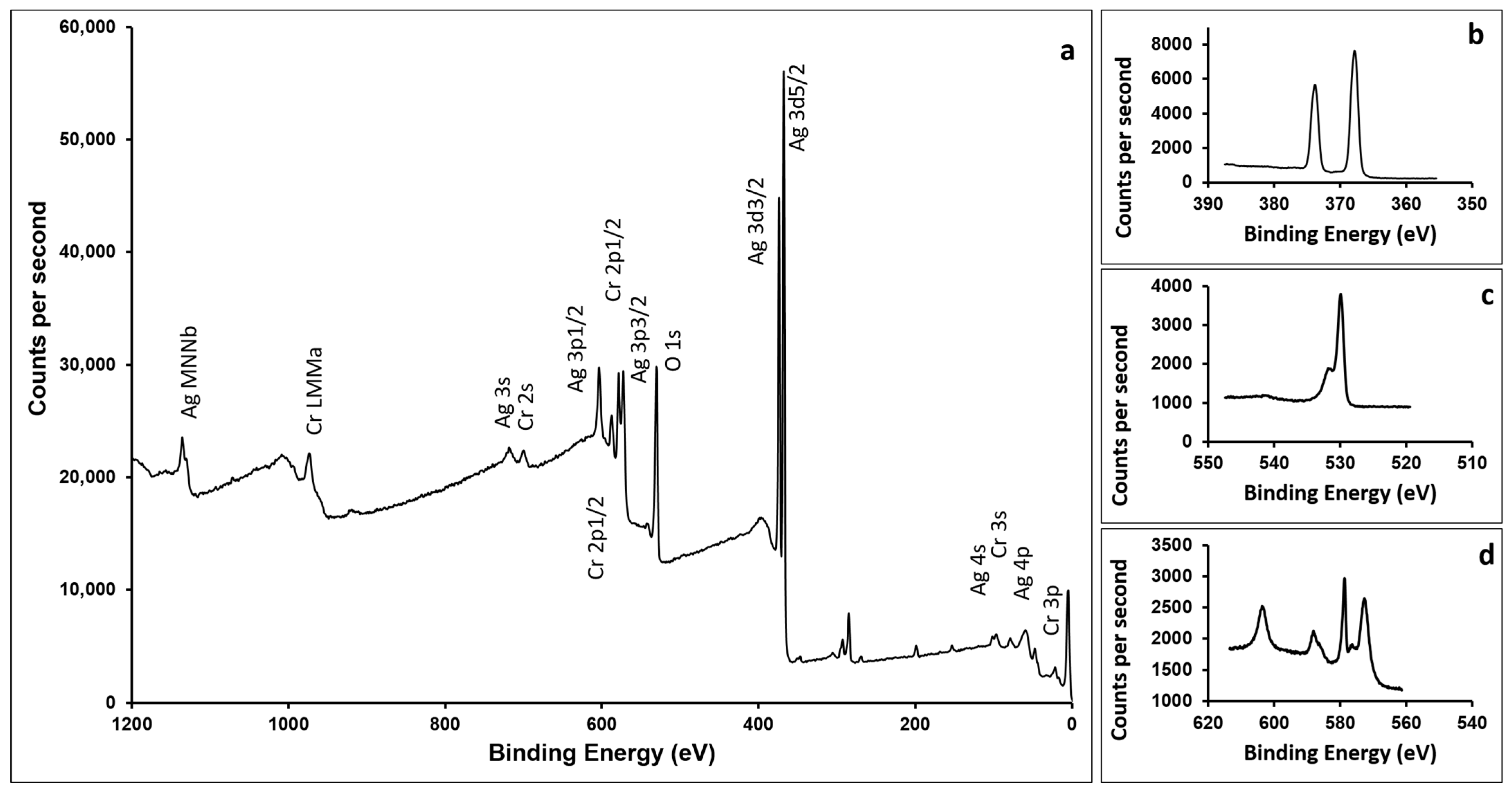

Figure 3. XPS of Ag@Cr2O3-garlic at full range (a), the corresponding expansion of Ag 3d (b), the corresponding expansion of O 1s (c), and the corresponding expansion of Cr 2p&Ag 3p (d).
Figure 3. XPS of Ag@Cr2O3-garlic at full range (a), the corresponding expansion of Ag 3d (b), the corresponding expansion of O 1s (c), and the corresponding expansion of Cr 2p&Ag 3p (d).
Nanomaterials 14 00289 g003
Nanomaterials 14 00289 g004

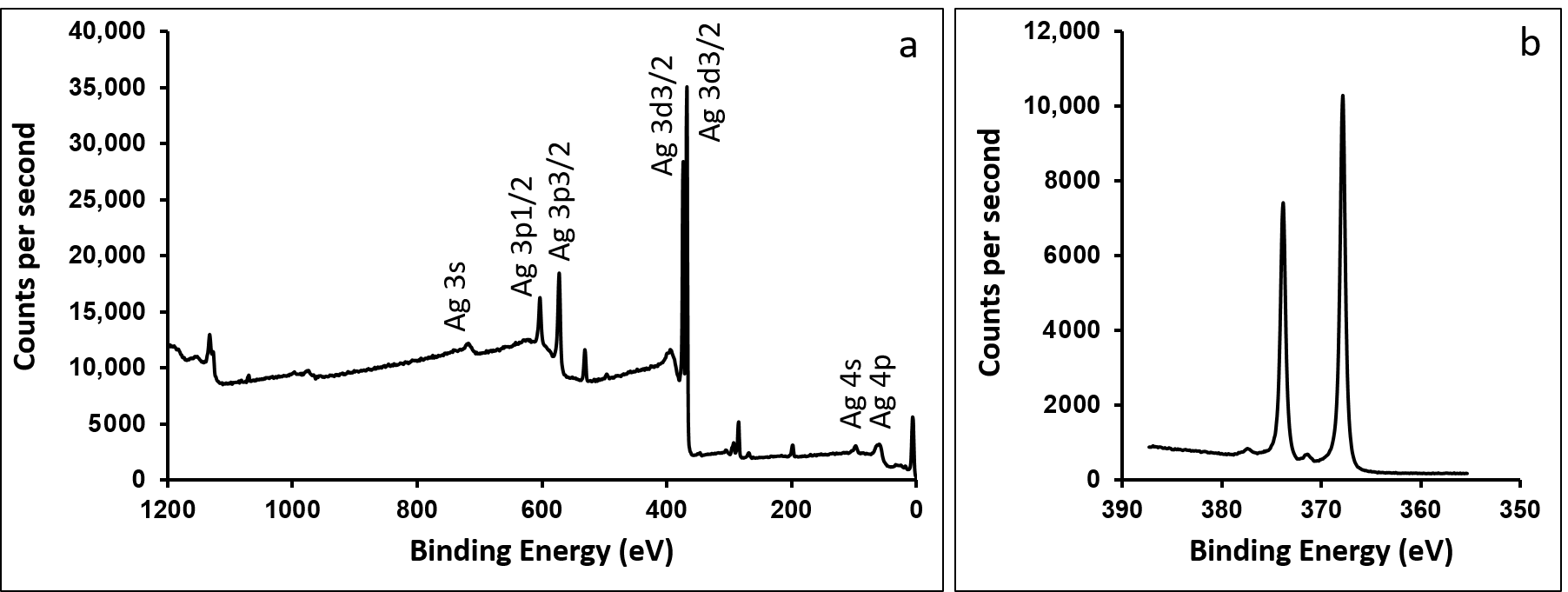

Figure 4. XPS of Ag-garlic at full range (a) and the corresponding expansion of Ag 3d (b).
Figure 4. XPS of Ag-garlic at full range (a) and the corresponding expansion of Ag 3d (b).
Nanomaterials 14 00289 g004
Nanomaterials 14 00289 g005

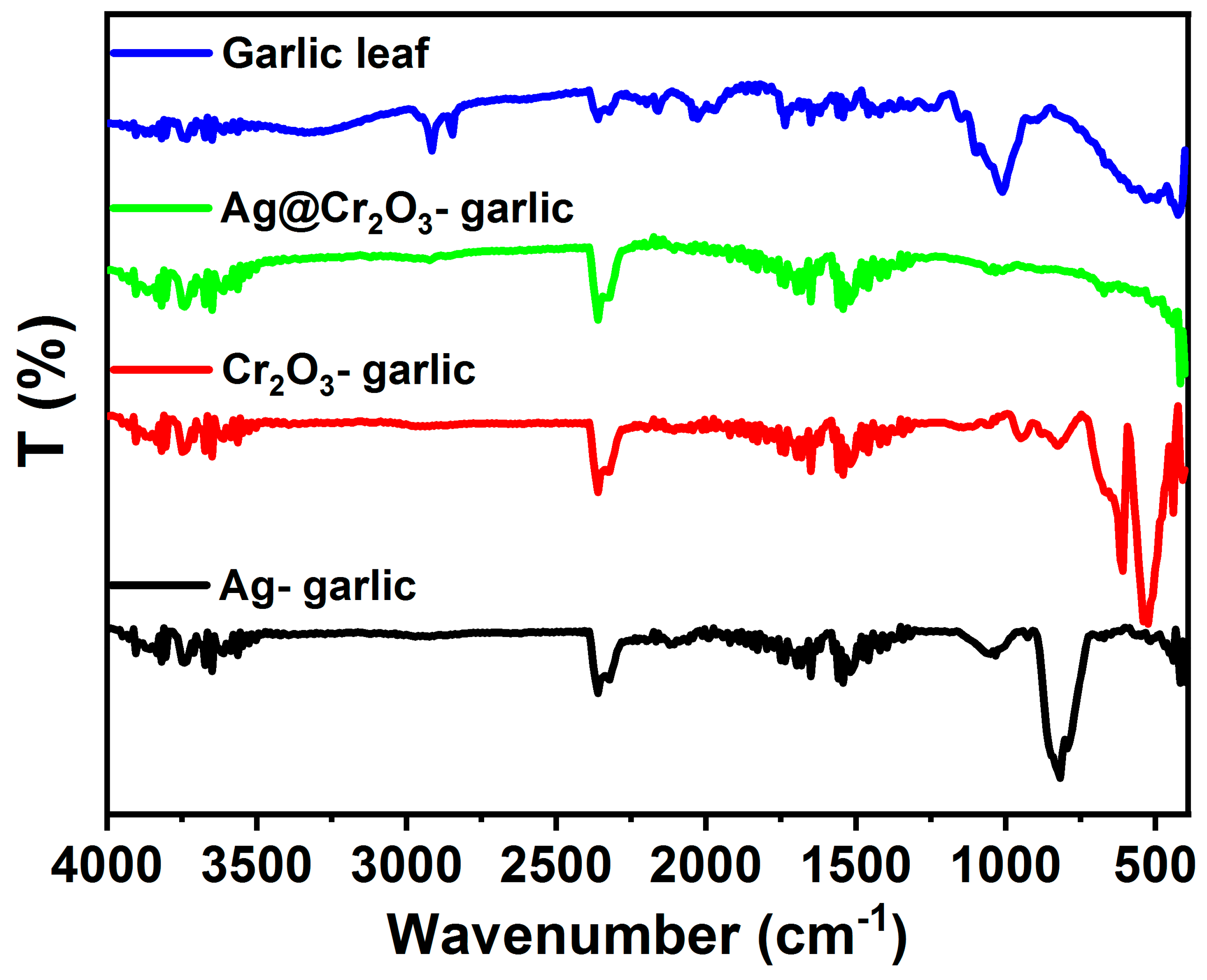

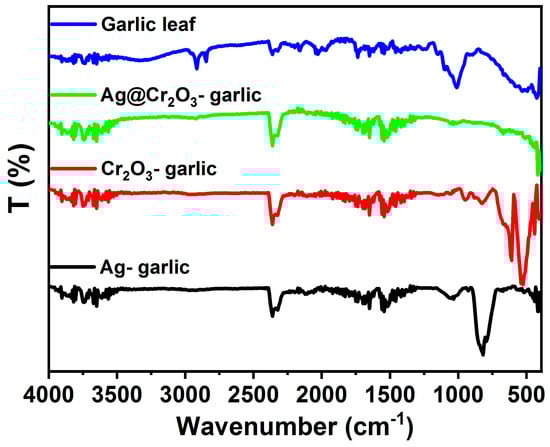

Figure 5. IR spectra of garlic peel, Ag-garlic, Cr2O3-garlic, and Ag@Cr2O3-garlic.
Figure 5. IR spectra of garlic peel, Ag-garlic, Cr2O3-garlic, and Ag@Cr2O3-garlic.
Nanomaterials 14 00289 g005
Nanomaterials 14 00289 g006
Figure 6. UV-Vis spectra of Ag-garlic, Cr2O3-garlic, and Ag@Cr2O3-garlic.
Figure 6. UV-Vis spectra of Ag-garlic, Cr2O3-garlic, and Ag@Cr2O3-garlic.
Nanomaterials 14 00289 g006
Nanomaterials 14 00289 g007
Figure 7. SEM images of Ag-garlic (a), Cr2O3-garlic (b), and Ag@Cr2O3-garlic (c).
Figure 7. SEM images of Ag-garlic (a), Cr2O3-garlic (b), and Ag@Cr2O3-garlic (c).
Nanomaterials 14 00289 g007
Nanomaterials 14 00289 g008
Figure 8. TEM images of Ag-garlic (a), Cr2O3-garlic (b), and Ag@Cr2O3-garlic (c,d).
Figure 8. TEM images of Ag-garlic (a), Cr2O3-garlic (b), and Ag@Cr2O3-garlic (c,d).
Nanomaterials 14 00289 g008
Nanomaterials 14 00289 g009
Figure 9. Effect of GPE and its synthesized nanoparticles on the mycelial growth of different pathogenic fungi. Controls: miconazole (a) and PDB broth media (b) on PDA at 26 °C for 6 days in the dark.
Figure 9. Effect of GPE and its synthesized nanoparticles on the mycelial growth of different pathogenic fungi. Controls: miconazole (a) and PDB broth media (b) on PDA at 26 °C for 6 days in the dark.
Nanomaterials 14 00289 g009
Nanomaterials 14 00289 g010
Figure 10. Effect of garlic peel extracts (1), Cr2O3-garlic (2), Ag-garlic (3), and Ag@Cr2O3-garlic (4) (40 ppm) on the growth of different bacterial strains. Controls: amoxicillin (A) and NB media (B) on NA at 30 °C for 2 days in the dark.
Figure 10. Effect of garlic peel extracts (1), Cr2O3-garlic (2), Ag-garlic (3), and Ag@Cr2O3-garlic (4) (40 ppm) on the growth of different bacterial strains. Controls: amoxicillin (A) and NB media (B) on NA at 30 °C for 2 days in the dark.
Nanomaterials 14 00289 g010
Nanomaterials 14 00289 g011
Figure 11. Suggested mechanism of nanoparticle activity.
Figure 11. Suggested mechanism of nanoparticle activity.
Nanomaterials 14 00289 g011
Nanomaterials 14 00289 g012
Figure 12. Comparison of absorption spectra of RhB without and with different catalysts.
Figure 12. Comparison of absorption spectra of RhB without and with different catalysts.
Nanomaterials 14 00289 g012
Nanomaterials 14 00289 g013
Figure 13. Effect of sun light on the degradation of RhB in the presence of Cr2O3-garlic.
Figure 13. Effect of sun light on the degradation of RhB in the presence of Cr2O3-garlic.
Nanomaterials 14 00289 g013
Nanomaterials 14 00289 g014
Figure 14. Effect of Cr2O3-garlic mass on the degradation of 5 ppm RhB (50 mL) at a natural pH.
Figure 14. Effect of Cr2O3-garlic mass on the degradation of 5 ppm RhB (50 mL) at a natural pH.
Nanomaterials 14 00289 g014
Nanomaterials 14 00289 g015
Figure 15. Effect of pH values on the degradation of 5 ppm RhB (50 mL) with 0.04 g of Cr2O3-garlic.
Figure 15. Effect of pH values on the degradation of 5 ppm RhB (50 mL) with 0.04 g of Cr2O3-garlic.
Nanomaterials 14 00289 g015
Nanomaterials 14 00289 g016
Figure 16. Effect of contact time on the degradation of 5 ppm RhB (50 mL) with 0.04 g of Cr2O3-garlic at pH 7.
Figure 16. Effect of contact time on the degradation of 5 ppm RhB (50 mL) with 0.04 g of Cr2O3-garlic at pH 7.
Nanomaterials 14 00289 g016
Table 1. The effect of different nanoparticle treatments (80 ppm) on mycelial growth and the percentage of phytopathogenic fungi was inhibited.
Table 1. The effect of different nanoparticle treatments (80 ppm) on mycelial growth and the percentage of phytopathogenic fungi was inhibited.
Diameter of Inhibition Zone (mm)
A. porriA. flavusA. nigerF. oxysporumT. longibrachiatum
Control Negative00000
Control Positive (miconizol)21.7 ± 0.124.7 ± 0.0523.4 ± 0.2338.7 ± 0.0825.4 ± 0.10
GPE13.3 ± 0.2111.3 ± 0.3218.9 ± 0.1312.3 ± 0.159 ± 0.5
Ag-garlic31.7 ± 0.331.7 ± 0.1628.2 ± 0.2119.6 ± 0.1747.6 ± 0.25
Cr2O3-garlic14.5 ± 0.2412.3 ± 0.2225.7 ± 0.0912.9 ± 0.2123.2 ± 0.22
Ag@Cr2O3-garlic75.3 ± 0.1277.6 ± 0.5477.6 ± 0.1364.7 ± 0.2477.6 ± 0.13
Table 2. Antibacterial activity of the garlic peels, Ag-garlic, Cr2O3-garlic, and Ag@Cr2O3-garlic at (40 ppm) tested against B. subtilis, E. faecium, E. coli, and P. aerogenosa.
Table 2. Antibacterial activity of the garlic peels, Ag-garlic, Cr2O3-garlic, and Ag@Cr2O3-garlic at (40 ppm) tested against B. subtilis, E. faecium, E. coli, and P. aerogenosa.
Diameter of Inhibition Zone (mm)
Control NegativeControl Positive (Amoxicillin)Garlic PeelsAg-GarlicCr2O3-GarlicAg@Cr2O3-Garlic
B. subtilis024 ± 0.2306 ± 0.1229 ± 0.2619 ± 0.2338 ± 0.31
Enterococcus faecium021 ± 0.1508 ± 0.4227 ± 0.3117 ± 0.3336 ± 0.5
E. coli025 ± 0.0908 ± 0.2528 ± 0.1218 ± 0.0539 ± 0.10
P. aerogenosa024 ± 0.5307 ± 0.1726 ± 0.2721 ± 0.1233 ± 0.21
Table 3. Comparison of studied nanoparticles with similar antimicrobial studies.
Table 3. Comparison of studied nanoparticles with similar antimicrobial studies.
NanomaterialFabrication MethodBioactivityEffectReference
Cr2O3Green method using Abutilon indicum extractAntibacterialSuperior antibacterial activity against E. coli, S. aureus, B. bronchiseptica, and B. subtilis[39]
Cr2O3Sol–gel techniqueAntibacterialAntibacterial effectiveness against K. pneumoniae.[54]
Garlic extractUltrasonicationAntibacterialPotent antibacterial activity against E. coli, S. aureus, S. mutans, and P. gingivalis[55]
Ag-NPsGreen method using garlic clove extractAntibacterial, antibiofilm, antiparasitic and anti-breast cancer activityGreat antibacterial activity against S. aureus and P. aerigunosa [56]
Ag-NPs Green method using garlic extractAntifungalStrong potential inhibition of five strains of Candida. [57]
Biosynthesis of Silver Nanoparticle.Green method using Allium sativumAntibacterialSignificant antibacterial efficacy against B. licheniformis, P. aeruginosa, and C. auratus[58]
Ag@Cr2O3Green method using garlic peel extractAntimicrobialSignificant antimicrobial activity against B. subtilis, E. faecium, E. coli, P. aeruginosa, A. porri, A. flavus, A. niger, F. oxysporum, and T. longibrachiatum.This work
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Alqarni, L.S.; Alghamdi, M.D.; Alshahrani, A.A.; Alotaibi, N.F.; Moustafa, S.M.N.; Ashammari, K.; Alruwaili, I.A.; Nassar, A.M. Photocatalytic Degradation of Rhodamine-B and Water Densification via Eco-Friendly Synthesized Cr2O3 and Ag@Cr2O3 Using Garlic Peel Aqueous Extract. Nanomaterials 2024, 14, 289. https://doi.org/10.3390/nano14030289

AMA Style

Alqarni LS, Alghamdi MD, Alshahrani AA, Alotaibi NF, Moustafa SMN, Ashammari K, Alruwaili IA, Nassar AM. Photocatalytic Degradation of Rhodamine-B and Water Densification via Eco-Friendly Synthesized Cr2O3 and Ag@Cr2O3 Using Garlic Peel Aqueous Extract. Nanomaterials. 2024; 14(3):289. https://doi.org/10.3390/nano14030289

Chicago/Turabian Style

Alqarni, Laila S., Maha D. Alghamdi, Aisha A. Alshahrani, Nasser F. Alotaibi, Shaima M. N. Moustafa, Khulaif Ashammari, Ibtihal A. Alruwaili, and Amr Mohammad Nassar. 2024. "Photocatalytic Degradation of Rhodamine-B and Water Densification via Eco-Friendly Synthesized Cr2O3 and Ag@Cr2O3 Using Garlic Peel Aqueous Extract" Nanomaterials 14, no. 3: 289. https://doi.org/10.3390/nano14030289

APA Style

Alqarni, L. S., Alghamdi, M. D., Alshahrani, A. A., Alotaibi, N. F., Moustafa, S. M. N., Ashammari, K., Alruwaili, I. A., & Nassar, A. M. (2024). Photocatalytic Degradation of Rhodamine-B and Water Densification via Eco-Friendly Synthesized Cr2O3 and Ag@Cr2O3 Using Garlic Peel Aqueous Extract. Nanomaterials, 14(3), 289. https://doi.org/10.3390/nano14030289

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
