Sub-ppb H2S Sensing with Screen-Printed Porous ZnO/SnO2 Nanocomposite

by
Mehdi Akbari-Saatlu
*,
Masoumeh Heidari
,
Claes Mattsson
,
Renyun Zhang
and
Göran Thungström
Department of Engineering, Mathematics and Science Education, Mid Sweden University, Holmgatan 10, SE-85170 Sundsvall, Sweden
*
Author to whom correspondence should be addressed.
Nanomaterials 2024, 14(21), 1725; https://doi.org/10.3390/nano14211725
Submission received: 30 September 2024 / Revised: 25 October 2024 / Accepted: 26 October 2024 / Published: 29 October 2024
(This article belongs to the Special Issue Advanced Nanomaterials in Gas and Humidity Sensors)
Browse Figures
Versions Notes

Abstract

:
Hydrogen sulfide (H2S) is a highly toxic and corrosive gas commonly found in industrial emissions and natural gas processing, posing serious risks to human health and environmental safety even at low concentrations. The early detection of H2S is therefore critical for preventing accidents and ensuring compliance with safety regulations. This study presents the development of porous ZnO/SnO2-nanocomposite gas sensors tailored for the ultrasensitive detection of H2S at sub-ppb levels. Utilizing a screen-printing method, we fabricated five different sensor compositions—ranging from pure SnO2 to pure ZnO—and characterized their structural and morphological properties through X-ray diffraction (XRD) and scanning electron microscopy (SEM). Among these, the SnO2/ZnO sensor with a composition-weight ratio of 3:4 demonstrated the highest response at 325 °C, achieving a low detection limit of 0.14 ppb. The sensor was evaluated for detecting H2S concentrations ranging from 5 ppb to 500 ppb under dry, humid air and N2 conditions. The relative concentration error was carefully calculated based on analytical sensitivity, confirming the sensor’s precision in measuring gas concentrations. Our findings underscore the significant advantages of mixture nanocomposites in enhancing gas sensitivity, offering promising applications in environmental monitoring and industrial safety. This research paves the way for the advancement of highly effective gas sensors capable of operating under diverse conditions with high accuracy.

1. Introduction

H2S is a highly toxic and flammable gas, characterized by its infamous rotten-egg odor [1,2]. Even at low concentrations, H2S poses significant health risks, including respiratory irritation and dizziness, and, at higher concentrations, it can be fatal [3]. Additionally, H2S is corrosive and can cause severe damage to equipment and infrastructure, particularly in industries such as petrochemicals, wastewater treatment, and natural gas processing [4]. The ability to accurately detect and monitor H2S levels is therefore crucial for ensuring safety in both industrial and environmental settings. This drives the motivation to develop highly sensitive and selective sensors capable of detecting H2S at very low concentrations.
Metal-oxide semiconductors have long been recognized as exceptional materials for gas-sensing applications due to their high sensitivity to trace gas concentrations, stability, low cost, and potential for miniaturization and low power consumption [5,6,7]. However, while single metal-oxide sensors offer broad gas-detection capabilities, they often lack selectivity, presenting a significant challenge in distinguishing between different gases [8,9]. To address this, recent research has focused on enhancing sensor selectivity through various methods, including doping with catalytic metals [10], surface modifications [11], and the development of multicompositional sensing films [12,13].
One particularly promising approach involves the use of heterostructures composed of dissimilar metal oxides, such as ZnO and SnO2 [14,15]. These heterostructures leverage the formation of depletion layers at the junctions between different oxides, which can be modulated by the presence of target gases, thereby altering the sensor’s conductivity [16]. Additionally, combining two different metal oxides can increase gas adsorption sites, further improving sensor performance [17,18]. Among various combinations, ZnO/SnO2 heterostructures have shown remarkable improvements in sensitivity and selectivity, particularly for detecting hazardous gases like hydrogen sulfide (H2S) [19,20,21].
In previous studies, the authors have shown that ultrasonic spray pyrolysis (USP) can be used to deposit densely packed thin films of ZnO/SnO2 heterostructures for H2S detection [22]. These densely packed thin films achieved a response approximately 95 times better than the pure-SnO2 sensor for 5 ppm H2S at an operating temperature of 450 °C, with the lowest detection concentration of 0.5 ppm. Also, in [23], Zhu et al. developed hierarchical and highly ordered nanobowl ZnO/SnO2 gas sensors, which demonstrated high sensitivity and selectivity for detecting H2S gas at concentrations as low as 1 ppm, with long-term stability and repeatability. The hierarchical sensing materials were synthesized through a sequential process that involved hard-template processing, atomic layer deposition, and hydrothermal processing. Additionally, in [24], Guo et al. conducted a study on the hydrothermal synthesis of ZnO/SnO2 for H2S detection. Their findings showed that this type of heterostructure exhibits a better H2S gas response and selectivity compared to other interfering gases such as NO, SO2, CO, CH4, and C2H5OH. The most important works concerning the gas sensing of ZnO/SnO2 heterostructures are summarized in Table 1. In addition, recent advancements in room-temperature H2S sensors have gained attention. For example, Zhu et al. [25] developed a triboelectric respiration sensor (TRS) incorporating an Fe2+-doped polypyrrole film, which selectively reacts with H2S. This sensor achieved a response of 25.21% for 10 ppm H2S with good repeatability and a detection limit of 1 ppm, highlighting the potential of TRS technology for room-temperature H2S detection.
In this study, ZnO/SnO2 porous nanocomposites were successfully fabricated for the first time using a screen-printing method with a Mayer bar to detect sub-ppb levels of H2S. Five distinct sensor compositions—ranging from pure SnO2 to pure ZnO—were produced, and the structural, morphological, and gas-sensing properties of these sensors were thoroughly investigated. The heaters, essential for achieving the optimal operational temperature, were fabricated using USP, which enabled precise and uniform deposition on the sensor substrate. The choice of USP heaters is based on their ability to produce thick films of SnO2, which serve as effective and cost-effective heating elements suitable for high-temperature operations in harsh and humid environments, overcoming the limitations of conventional materials like RuO2 and noble metals [34,35,36]. This study shows that a 3:4 SnO2/ZnO ratio (in terms of sensor composition) demonstrated the highest gas-sensing performance among the investigated samples for low concentrations of H2S (5 ppb). To quantitatively evaluate sensor performance, the concept of analytical sensitivity was employed. Analytical sensitivity provides a robust measure of the sensor’s ability to detect small changes in gas concentration. This approach, which involves selecting the sensor signal based on the most stable and sensitive parameter (Rg or Ro/Rg), allows for the optimization of sensor performance. The results of this study highlight the potential of screen-printed porous ZnO/SnO2-nanocomposite thick films in developing highly efficient gas sensors with low detection limits and high sensitivity for various applications.

2. Experimental Details

The substrates used for fabricating ZnO/SnO2 porous nanocomposite sensors were high-purity (99%) alumina plates, laser cut into small dimensions of 3 mm × 3 mm × 0.5 mm. Prior to any deposition, these substrates underwent a cleaning process involving ultrasonic baths in acetone and distilled water, followed by air drying.
For microheater formation, the cleaned alumina substrates were directly placed on the hot stage of an USP system, previously reported for various applications [37,38,39]. The precursor solution, consisting of 0.5 M stannous chloride dihydrate dissolved in 99.9% (v/v) ethanol, was prepared for USP deposition. The deposition process was carried out with a spray rate of 4 mL/min at a substrate temperature of 325 °C for 30 min [40,41]. Post-deposition, the samples were annealed at 900 °C for one hour in air to stabilize the microheater characteristics, particularly for high-temperature operations.
The screen-printing method was employed to deposit the ZnO/SnO2 sensing layers onto the substrates [42]. A homogeneous paste was prepared by grinding a mixture of SnO2 and/or ZnO powder (Sigma-Aldrich, <100 nm particle size, St. Louis, MO, USA) with 1,2-propanediol (Sigma-Aldrich, 99.5+% ACS reagent) using a mortar. The resulting paste, with an oily/honey-like consistency, was coated onto the substrates using a Mayer-bar coater equipped with a 16 µm grooved metallic bar. The bar was rolled over the alumina substrates at a speed of 20 mm/s, producing a uniform layer of the sensing material. The coated sensors were then left to settle at room temperature for 1 h and subsequently dried on a hotplate at 80 °C overnight. Finally, the sensors were annealed at 500 °C for 10 min. The fabricated sensor details are listed in Table 2.
The gas-sensing properties of the fabricated sensors were evaluated in a controlled environment. The sensors were placed on a ceramic foundation equipped with electrical feedthroughs, housed within a stainless-steel chamber of 5 cm3 volume. The chamber, maintained in a cleanroom environment, was fitted with connectors for a gas inlet and outlet.
The gas flow was controlled using mass flow controllers (MFCs), with a continuous flow of 500 ± 5 mL/min, monitored by an independent flowmeter. Precleaned and dried compressed air was used as the carrier gas. Target gas mixtures, including 100 ppm and 1 ppm H2S diluted in N2, were introduced from standard analytical-quality gas cylinders. The relative humidity (RH) during the gas-sensing tests was carefully controlled using a bubble humidifier in combination with an MFC. By adjusting the flow rates of dry and humidified gases through the MFC, different RH levels were achieved with precision. The RH of the gas mixture was continuously monitored in real time using a commercial humidity sensor (Honeywell HIH-400-004, Honeywell, Golden Valley, MN, USA) to ensure stability and accuracy throughout the testing process. This setup allowed for the controlled evaluation of sensor performance under varying humidity conditions, which is critical for assessing sensor reliability in real-world applications.
The sensors’ operating temperature was held steady at 325 °C during measurements, with temperature monitored using a small s-type thermocouple. A constant voltage of 5 V was applied, and electrical parameters were measured using Keithley 2410 electrometers (Tektronix, Bracknell, UK). The entire experiment was controlled via LabVIEW software (version 18.0 (64-bit)), with data acquisition at 0.5 s intervals.
In gas sensing, the sensor response can be defined either by the relative change in resistance (Ro/Rg) or directly by the resistance in the presence of the target gas (Rg). The choice of signal significantly affects the accuracy and reliability of the sensor readings.
Analytical sensitivity is a measure of the ability of the sensor to discriminate or detect small changes in concentration at the concentration of interest. It allows us to quantitatively compare the sensor performance with sensor responses that are different in nature and/or magnitude [43]. It is defined as the ratio of the sensor’s sensitivity (slope of the calibration curve) to the standard deviation of the sensor signal at the concentration of interest. By calculating analytical sensitivity, one can directly measure the amount of relative concentration error.
Following the approach detailed in [44], the low detection limit (LOD) was calculated by extrapolating the fitted calibration curve to its intersection with a signal level equivalent to three times the standard deviation of the noise level.

3. Results and Discussion

The SEM images of the sensors (Figure 1a–e) indicate porosity in all compositions, with a consistent film thickness of approximately 4–5 µm across the samples. The porous networks observed in the SEM micrographs are well-suited for gas diffusion. Additionally, the SEM image of the heaters (see Figure 1f) shows a uniform dense structure designed specifically by USP to provide efficient heating across the sensor surfaces.
The crystallographic phases of the fabricated ZnO/SnO2-nanocomposite sensors were analyzed by XRD, with distinct patterns observed for the pure-ZnO and -SnO2 samples as well as their composites. According to Figure 1g, for the pure-ZnO sample, the XRD pattern showed prominent diffraction peaks at 2θ values of 31.57°, 34.15°, 36.03°, 47.23°, and 56.35°, corresponding to the (100), (002), (101), (102), and (110) planes of the hexagonal wurtzite structure of ZnO (JCPDS No. 36-1451) [15,45]. These peaks confirm the successful formation of highly crystalline ZnO with no other impurity phases present (the peaks are represented by red * in the XRD pattern of ZnO). The well-defined peaks indicate a high degree of crystallinity in the ZnO layer. In contrast, the pure-SnO2 sample exhibited diffraction peaks at 2θ values of 26.31°, 33.65°, 51.5°, and 54.57° corresponding to the (110), (101), (211), and (220) planes, respectively. These reflections are characteristic of the tetragonal rutile phase of SnO2 (JCPDS No. 41-1445), confirming the high crystallinity of the SnO2 component (the peaks are represented by green ° in the XRD pattern of SnO2) [46,47].
In the composite sensors, the XRD patterns reflected a combination of the distinct ZnO and SnO2 peaks, depending on the ZnO and SnO2 ratio. For instance, in the S4 (SnO2/ZnO, ratio 3:4) sample, peaks from both the hexagonal ZnO and the tetragonal SnO2 phases were detected, indicating the coexistence of both materials without significant phase interaction or the formation of secondary compounds. The preservation of these individual crystalline phases suggests that the heterostructures (in the form of mixture nanocomposites) were formed via a simple physical mixing of the ZnO and SnO2 powders without a solid-state reaction at the temperatures used in this study. The S4 sample, which exhibited both the ZnO and SnO2 diffraction peaks, showed the highest H2S gas response, suggesting that the presence of both phases is essential for enhancing gas-sensing performance.
In order to determine the optimal operating temperature, sensor S3 was exposed to 5 ppm of H2S for 5 min at varying temperatures, ranging from 200 °C to 450 °C (at 5% RH). Due to the baseline fluctuations, the same procedure was applied at each temperature: a 20-minute waiting time before introducing the target gas, followed by a 5-minute exposure. The highest sensor response was observed at 325 °C (See Figure S2). This temperature is lower than our previous findings for ZnO/SnO2 heterostructures prepared by USP [22]. At lower operating temperatures, the gas molecules do not have enough energy to overcome the activation energy required for reacting with the oxygen species on the surface of ZnO/SnO2, resulting in a lower response. As the temperature increases, the surface-adsorbed oxygen species are more easily converted, and the reaction activity rises, leading to a higher response. However, when the temperature goes beyond the optimal level, H2S gas adsorption is too difficult to be adequately compensated for by the increased surface reactivity, which causes a low utilization rate of the sensing material [48]. Additionally, although higher temperatures result in shorter response and recovery times, the overall response decreases, and more energy is needed due to the higher temperature. The lower optimal operating temperature of 325 °C compared to [22] can be explained by the enhanced gas diffusion and interaction within the nano-porous structure of the ZnO/SnO2 film. The optimal operation temperature was determined by the reaction between the oxygen adsorbates and the target gas [49]. By using porous ZnO/SnO2 structures instead of dense ones, there are more adsorption sites available for oxygen molecules due to the increased surface area and open pathways within the porous matrix. This larger surface area enhances the interaction between the sensor material and the target gas, allowing for more efficient adsorption and reactions at lower temperatures. As a result, the optimal operating temperature is reduced because the increased number of active sites in the porous structure facilitates the reaction between the adsorbed oxygen species and the target gas more effectively. As illustrated in Figure 2a, all sensors were subsequently tested at this optimal operating temperature on 5 ppm of H2S for 5 min under dry conditions (5% RH). This time, to ensure a more stable baseline, a longer waiting time of 2 h was applied before introducing the target gas. The results indicate that sensor S4 exhibited the highest response among the investigated samples and was therefore selected for further investigation. Interestingly, in all compositions containing both ZnO and SnO2 (S2, S3, S4), the response was higher than that of the pure-SnO2 (S1) and pure-ZnO (S5) samples, highlighting the critical role of nanocomposites in enhancing the sensor’s response to the target gas.
The dynamic response (Rg) of the sensor (S4) to H2S gas is illustrated in Figure 2b. The sensor is exposed to varying concentrations of H2S (5 ppb, 10 ppb, 50 ppb, 200 ppb, and 500 ppb) at 325 °C for 30 min in 5% RH, followed by a 2-hour recovery period. The sensor (S4) exhibited changes in resistance (Ro/Rg) of approximately 10, 12, 28, 60, and 82 times upon exposure to 5 ppb, 10 ppb, 50 ppb, 200 ppb, and 500 ppb of H2S, respectively. These values (of detection levels and concentrations) are significantly lower than those reported in previous studies [19,22].
The six measured points and corresponding fitting curves (sensor signal vs. concentration) for Rg and Ro/Rg are presented in Figure 3a,b. To further investigate the sensor signal, the analytical sensitivity (sensitivity over the standard division of sensor signal) is calculated and presented in Figure 3c, indicating higher values for Rg compared to Ro/Rg at all concentrations. In this figure, both curves related to analytical sensitivity decrease gradually by increasing the concentration.
An analysis of the sensor’s performance reveals that using Ro/Rg leads to higher error bars compared to Rg. This is primarily due to variations in the baseline resistance (Ro), which can introduce significant inaccuracies, particularly at low concentrations. To be more precise, as demonstrated in Figure 3d, the relative concentration error with Ro/Rg reached up to 14% at 5 ppb, highlighting substantial measurement uncertainties. Conversely, when Rg is used as the sensor signal, the influence of baseline fluctuations is minimized, resulting in a more stable and accurate detection of the target gas. This approach yields lower relative concentration errors, generally less than 6% across all tested concentrations (5 ppb to 500 ppb), and reaching around 1% relative concentration error at 500ppb, as illustrated in Figure 3d. The improved precision with Rg underscores its advantage over Ro/Rg in reducing measurement errors and enhancing sensor performance. Thus, selecting Rg as the sensor signal is crucial for achieving a more accurate and reliable response. By mitigating baseline-related inaccuracies, Rg provides a more effective measurement of target gases, ensuring higher sensitivity and precision in gas-detection applications.
Figure 3e illustrates the sensor’s performance, highlighting its enhanced selectivity for H2S over common interfering gases like ethanol, CH4, methanol, acetone, ammonia, and humidity. The selectivity of the ZnO/SnO2 sensor for H2S detection can be attributed to several key factors. One significant reason is the relatively small molecular size of H2S compared to other gases. This smaller size results in a greater adsorption capacity on the available surface area of the sensor, enhancing its sensitivity to H2S [23]. Moreover, previous research conducted by Fu et al. [19] demonstrated that ZnO reacts with H2S, leading to the formation of ZnS. This transformation is critical because ZnS possesses higher conductivity than ZnO. As a result, the sensor exhibits a larger response when detecting H2S due to this increased conductivity. This finding confirms that the ZnO/SnO2 is particularly effective for selective H2S detection, underscoring its potential applications in environmental monitoring and safety.
To examine the effect of humidity, the same measurements were performed at 50% RH, and the results, along with the fitted curves, are shown in Figure 3a,b. The data indicate that higher humidity levels cause changes in the sensor’s resistance. However, when using the sensor’s resistance (Rg) as the sensor signal, the slope of the calibration curve, or sensitivity, in humid conditions remains almost the same as in dry conditions. On the other hand, when using Ro/Rg as the sensor signal, the sensitivity changes significantly under humid conditions compared to the dry state (5% RH). In humid environments, H2S molecules must compete with water molecules for adsorption sites on the pre-adsorbed oxygen species. This suggests that in humid conditions, fewer sites are available for H2S molecules to adsorb and contribute to the sensor’s conductivity.
The LOD for S4 (5%RH, at 325 °C, for H2S) was determined to be 0.14 ppb. In addition, detailed information regarding the response and recovery times of sensor S4 is provided in Table S1 in the Supplementary Information. These calculations demonstrate the sensitivity of the sensor and its capability to detect low concentrations of these gases with a high degree of confidence.

Sensing Mechanism

Oxygen plays an essential role in redox reactions on the surface of metal oxides [50]. When the sensor is exposed to air, oxygen molecules are absorbed on its surface, leading to the formation of reactive oxygen species such as O2−, O−, and O2− [51,52]. These species are formed as electrons and move from the metal-oxide surface to the adsorbed oxygen, causing the surface to oxidize and resulting in upward-band bending in the energy diagram. At 325 °C, O− is the main species on the surface. When the sensor comes into contact with a reducing gas like H2S, these oxygen species react with the gas, releasing electrons into the sensing material. The reaction can be written as follows:
H2S + 3o− (ads) → SO2 + H2O +3e− at 325 °C
This reaction increases the number of free electrons on the surface, thereby reducing the sensor’s resistance. In the presence of air, a depletion layer forms on the ZnO/SnO2 grains, primarily controlled by negatively charged oxygen species. Electrons must overcome the barrier between the dissimilar and similar grains (ZnO grains, SnO2 grains, and ZnO/SnO2 grains—see Figure 4a. Also, a related energy-band diagram is presented in Figure 4b) to contribute to electrical conduction. The baseline resistance of the nanocomposites (ZnO/SnO2) is significantly higher than that of the pure ZnO or SnO2, indicating the existence of an energy barrier between the dissimilar metal-oxide grains [17].
When the sensor is exposed to H2S, the adsorbed oxygen species on the surface of ZnO/SnO2 grains react with the gas molecules, releasing free electrons. In addition, thanks to the porous structures prepared by screen printing, H2S can penetrate into the sensing layer and interact with the whole sensing layer. This interaction reduces the thickness of the depletion layer (see Figure 4a) and lowers the barrier at the nanocomposite interface, allowing electrons to flow more easily across the grain boundaries. As the barrier decreases, the resistance of the sensor drops, leading to an increase in current flow. This is especially evident in ZnO/SnO2 nanocomposites, where the combination of both materials enhances the sensitivity and response to H2S due to the formation of additional higher barriers in between dissimilar grains compared to the barrier formed between similar grains. To be more precise, when ZnO and SnO2 are combined, a heterojunction is established, which modifies the distribution of surface charges and induces band bending at the surface. This effect arises from the inherent differences in work functions and band gaps of ZnO and SnO2, which leads to electron transfer between the two components upon contact.
To better understand the electronic interactions within the interface, it is essential to consider the band gaps and work functions of both materials. According to the literature, ZnO has a band gap of 3.19 eV and a work function of 5.2 eV. In contrast, SnO2 has a band gap of 3.63 eV and a work function of 4.55 eV [17]. This configuration results in the ZnO/SnO2 nanocomposite being classified as a type of n–n heterojunction. When these two materials are in contact, the energy bands become bent due to the differences in their electronic properties.
The built-in potential at the interface between ZnO and SnO2 is determined by the difference between their work functions, which is approximately 0.44 eV. This built-in potential plays a crucial role in facilitating charge-carrier movement and enhancing the overall sensitivity of the gas sensor. As H2S molecules interact with the nanocomposites, their adsorption and desorption processes alter the surface electron states and free carrier density. This results in modifications to the band bending and built-in potential, allowing for improved detection capabilities.
For ZnO/SnO2 porous structures constructed using screen printing, in the presence of N2, the number of free charge carriers involved in conduction is equal to the number of free charge carriers in the bulk material. As a result, considering this, there is no initial band bending, and the sensor’s resistance in N2 sets the threshold between conduction mechanisms controlled by the depletion layer and the accumulation layer [53,54]. For the S4 sensor, this boundary is measured at 766 kΩ (for the sensor’s resistance in N2, see Figure S1 in Supplementary Information).
In dry air, as the concentration of the target gas increases, the sensor’s resistance decreases. For H2S concentrations higher than 260 ppb (according to the calibration curve), the conduction mechanism shifts from being controlled by the depletion layer to the accumulation layer. However, in humid conditions (50% RH), across all investigated H2S concentrations (5 ppb to 500 ppb), the conduction remains controlled by the depletion layer, with no transition to the accumulation layer observed. However, according to the calibration curve (in 50% RH), for concentrations higher than 1 ppm, the conduction mechanism will shift to the region controlled by the accumulation layer.

4. Conclusions

This research successfully developed ZnO/SnO2 porous nanocomposite gas sensors for the detection of H2S, with sensor S4 (SnO2/ZnO ratio 3:4) showing the best performance among the tested compositions. The sensor demonstrated high sensitivity at 325 °C and a LOD of 0.14 ppb, with the ability to detect H2S concentrations as low as 5 ppb. The relative concentration error, calculated based on analytical sensitivity, confirmed the precision of the sensor’s response by choosing the right sensor signal. Compared to pure-SnO2 and -ZnO sensors, the nanocomposite-based sensors exhibited enhanced gas-sensing performance. The sensor’s stable performance under both dry and humid conditions makes it promising for real-world applications. These findings provide a solid basis for the development of advanced gas sensors with high accuracy and low detection limits.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/nano14211725/s1, Figure S1: Dynamic response (Rg) of the sensor S4 to different concentrations of H2S under 50%RH and in N2 conditions.; Table S1: Response and recovery time for the sensor S4 in different concentrations.; Figure S2: Response of the sensor S3 towards 5 ppm H2S at different operating temperature.

Author Contributions

Conceptualization, writing—original draft preparation: M.A.-S.; Experimental: M.H., R.Z. and M.A.-S.; Review and editing, M.A.-S., C.M. and G.T. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Data Availability Statement

Data are contained within the article and Supplementary Materials.

Conflicts of Interest

The authors declare no conflicts of interest.

Correction Statement

This article has been republished with a minor correction to the title. This change does not affect the scientific content of the article.

References

  1. Shaik, R.; Kishore, R.; Kumar, A.; Shekhar, C.; Kumar, M. Metal oxide nanofibers based chemiresistive H2S gas sensors. Coord. Chem. Rev. 2022, 471, 214752. [Google Scholar] [CrossRef]
  2. Akbari-Saatlu, M.; Procek, M.; Mattsson, C.; Thungström, G.; Nilsson, H.-E.; Xiong, W.; Xu, B.; Li, Y.; Radamson, H.H. Silicon Nanowires for Gas Sensing: A Review. Nanomaterials 2020, 10, 2215. [Google Scholar] [CrossRef] [PubMed]
  3. Hussain, M.; O’Nils, M.; Lundgren, J.; Saatlu, M.A.; Hamrin, R.; Mattsson, C. A Deep Learning Approach for Classification and Measurement of Hazardous Gases Using Multi-Sensor Data Fusion. In Proceedings of the IEEE Sensors Applications Symposium, SAS 2023, Ottawa, ON, Canada, 18–20 July 2023. [Google Scholar] [CrossRef]
  4. Hossein-Babaei, F.; Masoumi, S.; Aghili, S.; Shokrani, M. Atmospheric Dependence of Thermoelectric Generation in SnO2Thin Films with Different Intergranular Potential Barriers Utilized for Self-Powered H2S Sensor Fabrication. ACS Appl. Electron. Mater. 2021, 3, 353–361. [Google Scholar] [CrossRef]
  5. Meng, D.; Xie, Z.; Wang, M.; Xu, J.; San, X.; Qi, J.; Zhang, Y.; Wang, G.; Jin, Q. In Situ Fabrication of SnS2/SnO2 Heterostructures for Boosting Formaldehyde−Sensing Properties at Room Temperature. Nanomaterials 2023, 13, 2493. [Google Scholar] [CrossRef]
  6. Song, B.Y.; Zhang, M.; Teng, Y.; Zhang, X.F.; Deng, Z.P.; Huo, L.H.; Gao, S. Highly selective ppb-level H2S sensor for spendable detection of exhaled biomarker and pork freshness at low temperature: Mesoporous SnO2 hierarchical architectures derived from waste scallion root. Sens. Actuators B Chem. 2020, 307, 127662. [Google Scholar] [CrossRef]
  7. Akbari-Saatlu, M.; Schalk, M.; Pokhrel, S.; Mattsson, C.; Mädler, L.; Procek, M.; Radamson, H.H.; Thungström, G. Ultra-sensitive H2S and CH3SH Sensors Based on SnO2 Porous Structures Utilizing Combination of Flame and Ultrasonic Spray Pyrolysis Methods. IEEE Sens. J. 2024. [Google Scholar] [CrossRef]
  8. Li, Z.; Guo, L.; Feng, Z.; Gao, S.; Zhang, H.; Yang, X.; Liu, H.; Shao, J.; Sun, C.; Cheng, Y.; et al. Metal-organic framework-derived ZnO decorated with CuO for ultra-high response and selectivity H2S gas sensor. Sens. Actuators B Chem. 2022, 366, 131995. [Google Scholar] [CrossRef]
  9. Akbari-Saatlu, M.; Procek, M.; Thungström, G.; Mattsson, C.; Radamson, H.H. H2S gas sensing based on SnO2thin films deposited by ultrasonic spray pyrolysis on Al2O3 substrate. In Proceedings of the 2021 IEEE Sensors Applications Symposium (SAS), Sundsvall, Sweden, 23–25 August 2021. [Google Scholar] [CrossRef]
  10. Zhao, L.; Yu, C.; Xin, C.; Xing, Y.; Wei, Z.; Zhang, H.; Fei, T.; Liu, S.; Zhang, T. Increasing the Catalytic Activity of Co3O4 via Boron Doping and Chemical Reduction for Enhanced Acetone Detection. Adv. Funct. Mater. 2024, 34, 2314174. [Google Scholar] [CrossRef]
  11. Wang, C.; Zhang, B.; Zhang, B.; Zhang, Z.; Chen, M.; Zhang, S.; Bala, H.; Zhang, Z. Pt-modified nanosheet-assembled SnS2 hollow microspheres for low temperature NO2 sensors. Sens. Actuators B Chem. 2024, 417, 136118. [Google Scholar] [CrossRef]
  12. Xia, H.; Zhang, D.; Sun, Y.; Wang, J.; Tang, M. Ultrasensitive H2S Gas Sensor Based on SnO2 Nanoparticles Modified WO3 Nanocubes Heterojunction. IEEE Sens. J. 2023, 23, 27031–27037. [Google Scholar] [CrossRef]
  13. Hu, J.; Yin, G.; Chen, J.; Ge, M.; Lu, J.; Yang, Z.; He, D. An olive-shaped SnO2 nanocrystal-based low concentration H2S gas sensor with high sensitivity and selectivity. Phys. Chem. Chem. Phys. 2015, 17, 20537–20542. [Google Scholar] [CrossRef] [PubMed]
  14. Li, T.; Yin, W.; Gao, S.; Sun, Y.; Xu, P.; Wu, S.; Kong, H.; Yang, G.; Wei, G. The Combination of Two-Dimensional Nanomaterials with Metal Oxide Nanoparticles for Gas Sensors: A Review. Nanomaterials 2022, 12, 982. [Google Scholar] [CrossRef] [PubMed]
  15. Patil, S.D.; Nikam, H.A.; Sharma, Y.C.; Yadav, R.S.; Kumar, D.; Singh, A.K.; Patil, D.R. Highly selective ppm level LPG sensors based on SnO2-ZnO nanocomposites operable at low temperature. Sens. Actuators B Chem. 2023, 377, 133080. [Google Scholar] [CrossRef]
  16. Ren, X.; Xu, Z.; Zhang, Z.; Tang, Z. Enhanced NO2 Sensing Performance of ZnO-SnO2 Heterojunction Derived from Metal-Organic Frameworks. Nanomaterials 2022, 12, 3726. [Google Scholar] [CrossRef]
  17. Raza, M.H.; Di Chio, R.; Movlaee, K.; Amsalem, P.; Koch, N.; Barsan, N.; Neri, G.; Pinna, N. Role of Heterojunctions of Core−Shell Heterostructures in Gas Sensing. ACS Appl. Mater. Interfaces 2022, 14, 22041–22052. [Google Scholar] [CrossRef] [PubMed]
  18. Wang, Z.; Li, P.; Feng, B.; Feng, Y.; Cheng, D.; Wei, J. Wireless Gas Sensor Based on the Mesoporous ZnO-SnO2 Heterostructure Enables Ultrasensitive and Rapid Detection of 3-Methylbutyraldehyde. ACS Sensors 2024, 9, 2585–2595. [Google Scholar] [CrossRef] [PubMed]
  19. Fu, D.; Zhu, C.; Zhang, X.; Li, C.; Chen, Y. Two-dimensional net-like SnO2/ZnO heteronanostructures for high-performance H2S gas sensor. J. Mater. Chem. A 2016, 4, 1390–1398. [Google Scholar] [CrossRef]
  20. Hwang, B.W.; Lee, S.C.; Ahn, J.H.; Kim, S.Y.; Jung, S.Y.; Lee, D.D.; Huh, J.S.; Kim, J.C. High sensitivity and recoverable SnO2-based sensor promoted with Fe2O3 and ZnO for sub-ppm H2S detection. J. Nanoelectron. Optoelectron. 2017, 12, 617–621. [Google Scholar] [CrossRef]
  21. Lee, S.C.; Kim, S.Y.; Hwang, B.W.; Jung, S.Y.; Lee, S.U.; Lee, D.D.; Kim, J.C. New SnO2-based gas sensor promoted with ZnO and MoO3 for the detection of H2S. Sens. Lett. 2014, 12, 1181–1185. [Google Scholar] [CrossRef]
  22. Akbari-Saatlu, M.; Procek, M.; Mattsson, C.; Thungström, G.; Törndahl, T.; Li, B.; Su, J.; Xiong, W.; Radamson, H.H. Nanometer-Thick ZnO/SnO2 Heterostructures Grown on Alumina for H2S Sensing. ACS Appl. Nano Mater. 2022, 5, 6954–6963. [Google Scholar] [CrossRef]
  23. Zhu, L.-Y.; Yuan, K.-P.; Yang, J.-H.; Hang, C.-Z.; Ma, H.-P.; Ji, X.-M.; Devi, A.; Lu, H.-L.; Zhang, D.W. Hierarchical highly ordered SnO2 nanobowl branched ZnO nanowires for ultrasensitive and selective hydrogen sulfide gas sensing. Microsystems Nanoeng. 2020, 6, 1–13. [Google Scholar] [CrossRef] [PubMed]
  24. Guo, W.; Mei, L.; Wen, J.; Ma, J. High-response H2S sensor based on ZnO/SnO2 heterogeneous nanospheres. RSC Adv. 2016, 6, 15048–15053. [Google Scholar] [CrossRef]
  25. Liu, B.; Jiang, Y.; Xie, G.; Duan, Z.; Yuan, Z.; Zhang, Y.; Zhao, Q.; Cao, Z.; Dong, F.; Tai, H. Lever-inspired triboelectric respiration sensor for respiratory behavioral assessment and exhaled hydrogen sulfide detection. Chem. Eng. J. 2023, 471, 144795. [Google Scholar] [CrossRef]
  26. Hung, C.M.; Phuong, H.V.; Van Thinh, V.; Hong, L.T.; Thang, N.T.; Hanh, N.H.; Dich, N.Q.; Van Duy, N.; Van Hieu, N.; Hoa, N.D. Au doped ZnO/SnO2 composite nanofibers for enhanced H2S gas sensing performance. Sens. Actuators A Phys. 2021, 317, 112454. [Google Scholar] [CrossRef]
  27. Phuoc, P.H.; Viet, N.N.; Thong, L.V.; Hung, C.M.; Hoa, N.D.; Van Duy, N.; Hong, H.S.; Hieu, N. Van Comparative study on the gas-sensing performance of ZnO/SnO2 external and ZnO–SnO2 internal heterojunctions for ppb H2S and NO2 gases detection. Sens. Actuators B Chem. 2021, 334, 129606. [Google Scholar] [CrossRef]
  28. Hung, P.T.; Thao, D.T.H.; Hung, N.M.; Van Hoang, N.; Hoat, P.D.; Van Thin, P.; Lee, J.H.; Heo, Y.W. H2S gas sensing properties of ZnO–SnO2 branch–stem nanowires grown on a copper foil. Scr. Mater. 2025, 255, 116372. [Google Scholar] [CrossRef]
  29. Kim, J.H.; Mirzaei, A.; Bang, J.H.; Kim, H.W.; Kim, S.S. Selective H2S sensing without external heat by a synergy effect in self-heated CuO-functionalized SnO2-ZnO core-shell nanowires. Sens. Actuators B Chem. 2019, 300, 126981. [Google Scholar] [CrossRef]
  30. Thanh Le, D.T.; Trung, D.D.; Chinh, N.D.; Thanh Binh, B.T.; Hong, H.S.; Van Duy, N.; Hoa, N.D.; Van Hieu, N. Facile synthesis of SnO2–ZnO core–shell nanowires for enhanced ethanol-sensing performance. Curr. Appl. Phys. 2013, 13, 1637–1642. [Google Scholar] [CrossRef]
  31. Khoang, N.D.; Trung, D.D.; Van Duy, N.; Hoa, N.D.; Van Hieu, N. Design of SnO2/ZnO hierarchical nanostructures for enhanced ethanol gas-sensing performance. Sens. Actuators B Chem. 2012, 174, 594–601. [Google Scholar] [CrossRef]
  32. Lu, Z.; Zhou, Q.; Wang, C.; Wei, Z.; Xu, L.; Gui, Y. Electrospun ZnO–SnO2 Composite Nanofibers and Enhanced Sensing Properties to SF6 Decomposition Byproduct H2S. Front. Chem. 2018, 6, 540. [Google Scholar] [CrossRef]
  33. Hwang, I.S.; Kim, S.J.; Choi, J.K.; Choi, J.; Ji, H.; Kim, G.T.; Cao, G.; Lee, J.H. Synthesis and gas sensing characteristics of highly crystalline ZnO–SnO2 core–shell nanowires. Sens. Actuators B Chem. 2010, 148, 595–600. [Google Scholar] [CrossRef]
  34. Vasiliev, A.A.; Pisliakov, A.V.; Sokolov, A.V.; Samotaev, N.N.; Soloviev, S.A.; Oblov, K.; Guarnieri, V.; Lorenzelli, L.; Brunelli, J.; Maglione, A.; et al. Non-silicon MEMS platforms for gas sensors. Sens. Actuators B Chem. 2016, 224, 700–713. [Google Scholar] [CrossRef]
  35. Simon, I.; Bârsan, N.; Bauer, M.; Weimar, U. Micromachined metal oxide gas sensors: Opportunities to improve sensor performance. Sens. Actuators B Chem. 2001, 73, 1–26. [Google Scholar] [CrossRef]
  36. Gharesi, M.; Ansari, M.; Akbari-Saatlu, M. Transparent heaters made by ultrasonic spray pyrolysis of nanograined SnO2 layers on soda-lime glass substrates. Mater. Res. Express 2017, 4, 076303. [Google Scholar] [CrossRef]
  37. Hossein-Babaei, F.; Akbari-Saatlu, M. Growing continuous zinc oxide layers with reproducible nanostructures on the seeded alumina substrates using spray pyrolysis. Ceram. Int. 2020, 46, 8567–8574. [Google Scholar] [CrossRef]
  38. Hossein-Babaei, F.; Akbari-Saatlu, M. Growth of ZnO nanorods on the surface and edges of a multilayer graphene sheet. Scr. Mater. 2017, 139, 77–82. [Google Scholar] [CrossRef]
  39. Masoumi, S.; Shokrani, M.; Aghili, S.; Hossein-Babaei, F. Zinc oxide-based direct thermoelectric gas sensor for the detection of volatile organic compounds in air. Sens. Actuators B Chem. 2019, 294, 245–252. [Google Scholar] [CrossRef]
  40. Hossein-Babaei, F.; Gharesi, M.; Ansari, M. Ten micron-thick undoped SnO2 layers grown by spray pyrolysis for microheater fabrication. Mater. Lett. 2017, 196, 104–107. [Google Scholar] [CrossRef]
  41. Hossein-Babaei, F.; Gharesi, M. Intense thermal shock generators made of micron-thick SnO2 layers for the on-chip rapid thermal processing in air. Mater. Today Commun. 2024, 39, 108719. [Google Scholar] [CrossRef]
  42. Simion, C.E.; Junker, B.; Weimar, U.; Stanoiu, A.; Bârsan, N. Sensing mechanisms of CO and H2 with NiO material–DRIFTS investigations. Sens. Actuators B Chem. 2023, 390, 134028. [Google Scholar] [CrossRef]
  43. Demello, A.J. I’m Sensitive about Sensitivity. ACS Sens. 2022, 7, 1235–1236. [Google Scholar] [CrossRef] [PubMed]
  44. D’amico, A.; Natale, C. Di A Contribution on Some Basic Definitions of Sensors Properties. IEEE Sens. J. 2001, 1, 183. [Google Scholar] [CrossRef]
  45. Raoufi, D.; Raoufi, T. The effect of heat treatment on the physical properties of sol–gel derived ZnO thin films. Appl. Surf. Sci. 2009, 255, 5812–5817. [Google Scholar] [CrossRef]
  46. Dhage, S.B.; Patil, V.L.; Yelpale, A.M.; Malghe, Y.S. Farming of ZnO–SnO2 Nanocubes for Chemiresistive NO2 Gas Detection. ChemistrySelect 2024, 9, e202303578. [Google Scholar] [CrossRef]
  47. Hu, K.; Zhang, J.; He, Y.; Yan, R.; Li, J. Hydrogenation effect on 2D ZnO single crystal/ZnO–SnO2 two phase ceramics and its enhanced mechanism in H2 gas sensing. Ceram. Int. 2024, 50, 6441–6452. [Google Scholar] [CrossRef]
  48. Zhang, Y.; Zeng, W.; Li, Y. The hydrothermal synthesis of 3D hierarchical porous MoS2 microspheres assembled by nanosheets with excellent gas sensing properties. J. Alloys Compd. 2018, 749, 355–362. [Google Scholar] [CrossRef]
  49. Han, M.A.; Kim, H.J.; Lee, H.C.; Park, J.S.; Lee, H.N. Effects of porosity and particle size on the gas sensing properties of SnO2 films. Appl. Surf. Sci. 2019, 481, 133–137. [Google Scholar] [CrossRef]
  50. Degler, D.; Weimar, U.; Barsan, N. Current Understanding of the Fundamental Mechanisms of Doped and Loaded Semiconducting Metal-Oxide-Based Gas Sensing Materials. ACS Sens. 2019, 4, 2228–2249. [Google Scholar] [CrossRef]
  51. Ghahrizjani, R.T.; Maleki, R.M.; Ghafarkani, M.; Esmaeili, A.; Ameri, M.; Mohajerani, E.; Safari, N.; Dou, Y.; Dou, S.X. Highly sensitive H2S gas sensor containing simultaneously UV treated and self-heated Ag-SnO2 nanoparticles. Sens. Actuators B Chem. 2023, 391, 134045. [Google Scholar] [CrossRef]
  52. Mei, L.; Chen, Y.; Ma, J. Gas Sensing of SnO2 Nanocrystals Revisited: Developing Ultra-Sensitive Sensors for Detecting the H2S Leakage of Biogas. Sci. Rep. 2014, 4, srep06028. [Google Scholar] [CrossRef]
  53. Bârsan, N.; Hübner, M.; Weimar, U. Conduction mechanisms in SnO2 based polycrystalline thick film gas sensors exposed to CO and H2 in different oxygen backgrounds. Sens. Actuators B Chem. 2011, 157, 510–517. [Google Scholar] [CrossRef]
  54. Staerz, A.; Weimar, U.; Barsan, N. Current state of knowledge on the metal oxide based gas sensing mechanism. Sens. Actuators B Chem. 2022, 358, 131531. [Google Scholar] [CrossRef]
Nanomaterials 14 01725 g001

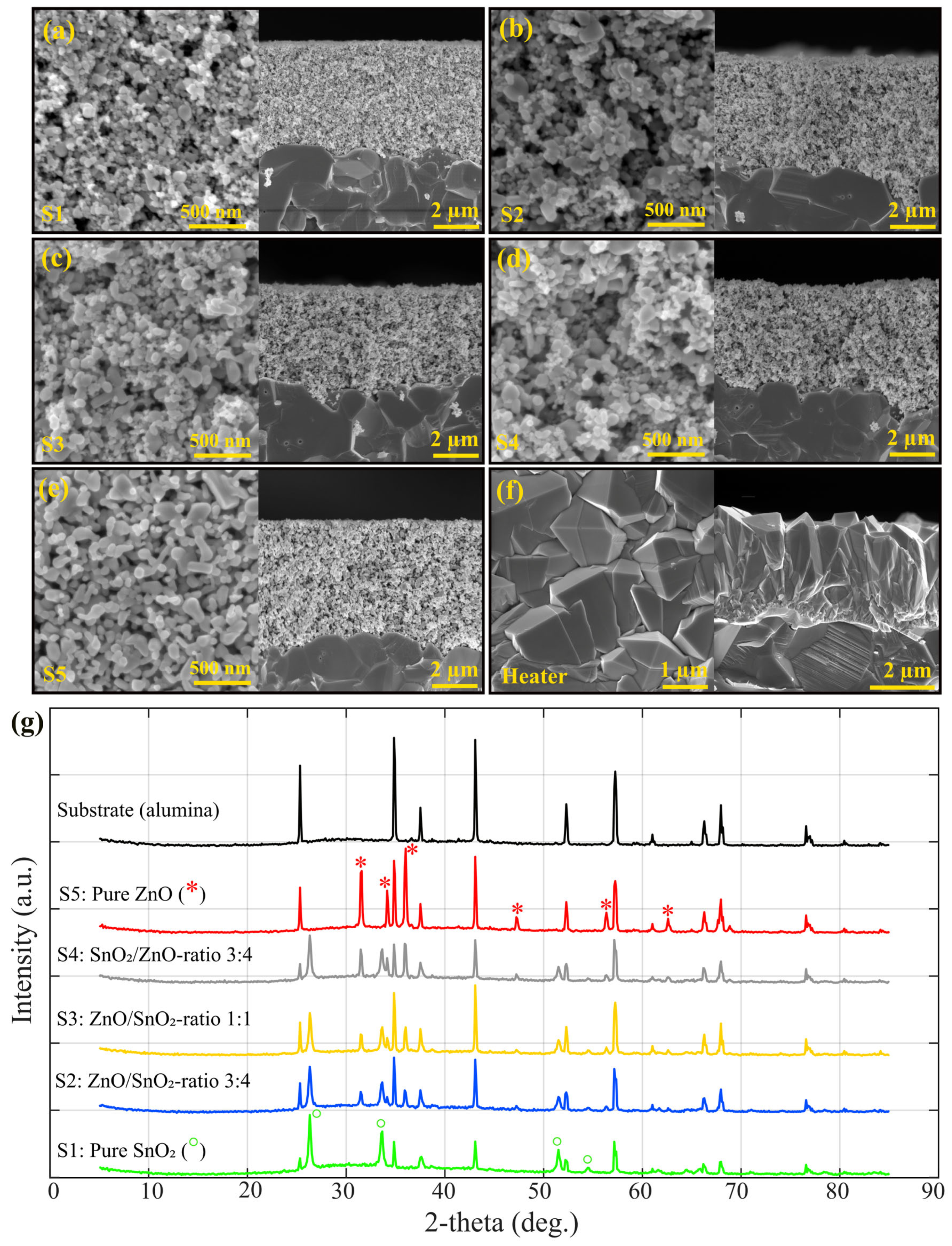

Figure 1. Plan view and the cross-sectional SEM micrographs of the porous thick film sensors prepared by Mayer-bar coater on alumina substrate: (a) S1 pure SnO2, (b) S2, (c) S3, (d) S4, (e) S5 pure ZnO, and (f) SnO2 densely packed thick films microheaters prepared by USP and (g) θ–2θ diffractograms from sensors S1 to S5 as well as alumina substrate (the peaks are represented by red * and green ° in the XRD pattern representing ZnO and SnO2 peaks respectively).
