The Combined Effects of an External Field and Novel Functional Groups on the Structural and Electronic Properties of TMDs/Ti_{3}C_{2} Heterostructures: A First-Principles Study

^{1}

^{2}

^{*}

## Abstract

**:**

_{3}C

_{2}with transition metal dihalide (TMDs) materials is an effective strategy to improve the physical properties of a single material, and the tuning of the related properties of these TMDs/Ti

_{3}C

_{2}heterostructures is also an important scientific problem. In this work, we systematically investigated the effects of an external field and novel functional groups (S, Se, Cl, Br) on the structural and electronic properties of TMDs/Ti

_{3}C

_{2}X

_{2}heterostructures. The results revealed that the lattice parameters and interlayer distance of TMDs/Ti

_{3}C

_{2}increased with the addition of functional groups. Both tensile and compressive strain obviously increased the interlayer distance of MoS

_{2}/Ti

_{3}C

_{2}X

_{2}(X = S, Se, Cl, Br) and MoSe

_{2}/Ti

_{3}C

_{2}X

_{2}(X = Se, Br). In contrast, the interlayer distance of MoSe

_{2}/Ti

_{3}C

_{2}X

_{2}(X = S, Cl) decreased with increasing compressive strain. Furthermore, the conductivity of TMDs/Ti

_{3}C

_{2}increased due to the addition of functional groups (Cl, Br). Strain caused the bandgap of TMDs to narrow, and effectively adjusted the electronic properties of TMDs/Ti

_{3}C

_{2}X

_{2}. At 9% compressive strain, the conductivity of MoSe

_{2}/Ti

_{3}C

_{2}Cl

_{2}increased significantly. Meanwhile, for TMDs/Ti

_{3}C

_{2}X

_{2}, the conduction band edge (CBE) and valence band edge (VBE) at the M and K points changed linearly under an electric field. This study provides valuable insight into the combined effects of an external field and novel functional groups on the related properties of TMDs/Ti

_{3}C

_{2}X

_{2}.

## 1. Introduction

_{2}, as a typical representative member of the most studied TMD family, is a semiconductor material with a direct band gap of 1.8 eV, and it is widely used in logic transistors and photodetector devices [5,6]. Similarly, the monolayer MoSe

_{2}, as another important member of TMDs, has many promising applications in electronics and optoelectronics due to its unique electronic, optical, mechanical, chemical, and thermal properties [7,8]. However, TMDs also have some negative properties that affect their application. For example, their carrier effective mass is relatively high, while the carrier mobility is very low [9,10], which hinders their application in high-performance nanodevices. Several studies have shown that the heterogeneous structures formed by stacking TMDs with other 2D materials can significantly modulate the structural, electronic, and mechanical properties of TMDs. For example, the studies of Biroju et al. [11] showed that MoS

_{2}stacked with a bilayer graphene heterostructure can improve electronic conductivity, electrochemical properties, and photochemical properties. Li et al. [12] systematically investigated electron density differences and band gaps of Cu

_{3}N/MoS

_{2}heterostructures, and the results showed that the charge was mainly accumulated and consumed near the atoms, with only a small amount of charge accumulating between the layers, and the bandgap of Cu

_{3}N/MoS

_{2}heterostructures can be efficiently tuned with the variation of the interlayer distance. Moreover, Cu

_{3}N/MoS

_{2}heterostructures have a stable structure and excellent photoelectric properties. Celal et al. [13] investigated the structural and electronic properties of GaN/MoSe

_{2}heterostructures with van der Waals (vdW) correction. An indirect band gap of 1.371 eV was obtained when the GaN monolayers were adsorbed on MoSe

_{2}monolayers, while when GaN was stacked on MoSe

_{2}monolayers, the indirect band gap in GaN monolayers was maintained at 0.341 eV. Based on these studies, we can conclude that combining TMDs with other two-dimensional layered materials to form heterogeneous structures may be an effective way to tune and improve the relevant properties of TMDs.

_{3}C

_{2}is a typical transition metal carbide with multilayer metal ion adsorption behavior, with ultra-high electrical conductivity and extraordinary mechanical and electronic properties [17,18]. Ti

_{3}C

_{2}is expected to be the most competitive material candidate in some fields, such as high-performance ultra-thin electronics and storage [19,20]. Mathis et al. [21] investigated the MXene nanosheets (Al-Ti

_{3}C

_{2}), and found they have higher quality, increased oxidation resistance, and electronic conductivity increased to 20,000 S/cm. Al-Ti

_{3}C

_{2}is a promising electric nanodevice. Li et al. [22] systematically investigated the interfacial properties of monolayer WS

_{2}in contact with a series of MXenes using first-principles calculations. The results showed that Ti

_{3}C

_{2}couples strongly with WS

_{2}, leading to the metallization of monolayer WS

_{2}and the formation of ideal Ohmic contacts in the vertical direction. Moreover, during the electrode fabrication process, the face-to-face stacking of 1 nm thickness MXene limits the accessibility to electrolyte ions [23,24], which hinders the electronic properties utilization of its surface. For Ti

_{3}C

_{2}, heterostructure stacking is also a valuable tool for improving the electronic properties since it can not only add the excellent properties of a single 2D material but also provide a stable gallery space [25,26,27], which could prevent face-to-face stacking of MXene. For example, Wu et al. [28] systematically investigated the energy storage and electronic properties of N-Ti

_{3}C

_{2}/NiCo

_{2}S

_{4}heterostructures. Owing to the unique heterostructure and friendly interfacial interaction, the N-Ti

_{3}C

_{2}/NiCo

_{2}S

_{4}heterostructure had a stable structure, low internal resistance, and excellent rate performance. Debow et al. [29] found that the strong electronic coupling between Ti

_{3}C

_{2}O

_{x}and TiO

_{2}is due to their proximity; the Ti

_{3}C

_{2}O

_{x}-generated electrons are transferred into the conduction band of the TiO

_{2}semiconductor over the Schottky barrier with a fast time constant of 180 fs, leading to an increase in conductivity.

_{2}/Ti

_{3}C

_{2}T

_{x}(T = OH, F and O) heterostructures, and the results showed that the MoS

_{2}/Ti

_{3}C

_{2}F

_{2}heterostructure is an n-type Schottky contact and the Schottky barrier height (SBH) is 0.73 eV, while the MoS

_{2}/Ti

_{3}C

_{2}O

_{2}heterostructure is a p-type Schottky contact with an SBH of 0.33 eV. Moreover, the tensile strain can effectively adjust the position of the conduction band edge (CBE) of MoS

_{2}, which leads to an effective reduction of the Fermi energy level pinning and SBH, thus allowing for Ohmic contact. Guan et al. [31] studied heterostructures composed of Ti

_{3}C

_{2}T

_{2}(T = O and F atoms) and metallic MoS

_{2}(1T phase) for lithium-ion battery (LIB) applications. The different surface functional groups in MXenes were found to significantly alter the redox reaction of Li atoms in the Ti

_{3}C

_{2}T

_{2}and 1T-MoS

_{2}interfaces. The diffusion curve became significantly flattened from the bared to O and F terminated Ti

_{3}C

_{2}, with the Schottky barrier height reducing dramatically from 0.80 eV to 0.22 eV and 0.29 eV, respectively. The surface functional group O or F can remove the spatial site resistance of Li embedding by disrupting the strong interaction between the two layers while providing additional adsorption sites for Li diffusion. Li et al. [32] found that MoS

_{2}/Ti

_{2}C heterostructures have good thermoelectric and transport properties, and the applied electric field or strain can significantly improve their thermoelectric and transport properties. Xu et al. [33] found that MoSe

_{2}/Ti

_{3}C

_{2}T

_{x}(T = OH, O, and F) heterostructures exhibit excellent electrochemical properties at very high currents and have a large potential for sodium ion storage, which can be applied to high-performance sodium–ion batteries. Ling et al. [34] demonstrated by a first-principles method that MoS

_{2}/Ti

_{3}C

_{2}–OH heterostructures can enhance the catalytic activity of MoS

_{2}at low sulfur vacancy concentrations. Combining the MoS

_{2}/Ti

_{3}C

_{2}-OH heterostructure with strain engineering can realize the potential of efficient hydrogen production. Based on these previous studies, TMDs/MXenes heterostructures can improve the related properties of single TMDs or MXenes, and the surface functional groups of the monolayer MXenes are an effective way to tune the properties of the TMDs/MXenes heterostructures. However, these studies have mainly focused on the surface functional groups O, F, and OH.

_{3}C

_{2}, all of which showed in-plane tensile strain, especially Ti

_{3}C

_{2}Te

_{2}, which had the maximum in-plane tension, showing in-plane lattice expansion of more than 18%. Lattice expansion promoted the appearance of Ti

_{3}C

_{2}electron mobility over 10

^{4}cm

^{2}/V·s at room temperature, as well as superconductivity. Based on the studies of Kamysbayev et al. [35], it can be concluded that these novel functional groups (S, Se, Cl, Br) obviously induce a change in the related properties of Ti

_{3}C

_{2}. Moreover, as we know, the external field can induce fancy changes in the properties of 2D materials. However, it is still unclear about the effects of these novel functional groups (S, Se, Cl, Br) and external fields on the structural and electronic properties of the TMDs/Ti

_{3}C

_{2}heterostructures. In this paper, we first systematically investigated the structural and electronic properties of these TMDs/Ti

_{3}C

_{2}X

_{2}(X = S, Se, Cl, Br) heterostructures using the density functional theory (DFT), and discussed in detail the effects of these novel surface functional groups on the related properties of these TMDs/Ti

_{3}C

_{2}heterostructures. In addition, we then further explored the effect of external biaxial strain and electric field on the structural and electronic properties of these TMDs/Ti

_{3}C

_{2}X

_{2}heterostructures.

## 2. Calculation Method

_{3}C

_{2}, a semi-empirical dispersion correction in Grimme format (DFT–D) was used [38]. The Ultrasoft pseudopotential [39] was used to describe the ion–electron interaction. The valence electrons performed as the [Ar]3p3d4s configuration for the Ti atom, the [Ne]3s3p configuration for the S and Cl atoms, the [Kr]4d5s configuration for the Mo atom, the [He]2s2p configuration for the C atom, and the [Ar]4p4s configuration for Br and Se atoms. The energy cutoff was set to 450 eV [40]. Structural optimization was performed using a 9 × 9 × 1 Monkhorst–Pack grid K-point sampling in the Brillouin zone in the unit cell, with the optimization energy convergence parameter set to 10

^{−5}eV/atom and the force convergence parameter on the atoms set to 0.03 eV/Å [41]. The K-point grid was increased to 11 × 11 × 1 for the calculation of energy bands and density of states [42]. A vertical vacuum layer thickness of more than 15 Å was set to prevent periodic boundary interactions between adjacent layers [43]. The binding energy of the TMDs/Ti

_{3}C

_{2}heterostructure was defined as:

_{3}C

_{2}, and the TMD monolayer, respectively, and A is the interface area [44]. We not only investigated the structural and electronic properties of pristine TMDs/Ti

_{3}C

_{2}and TMDs/Ti

_{3}C

_{2}X

_{2}(X = S, Se, Cl, Br) but also explored the effect of biaxial strain on the structural and electronic properties of TMDs/Ti

_{3}C

_{2}and TMDs/Ti

_{3}C

_{2}X

_{2}(X = S, Se, Cl, Br) heterostructures. The biaxial strain was defined as:

_{x}= (a − a

_{0})/a

_{0}× 100%

_{y}= (b − b

_{0})/b

_{0}× 100%

_{0}are the x-axis lattice constants in the presence and absence of strain, respectively; and b and b

_{0}are the y-axis lattice constants in the presence and absence of strain, respectively [45]. In addition, positive (negative) values indicate tensile (compressive) strain. All heterostructure structures were relaxed.

## 3. Results and Discussions

#### 3.1. Structural Properties of the TMDs/Ti_{3}C_{2} Heterostructures

_{2}, MoSe

_{2}, and Ti

_{3}C

_{2}monolayers were 3.15 Å, 3.24 Å and 3.12 Å, respectively, which were in good agreement with the previous studies [46,47]. They all have a hexagonal crystal structure with a space group of P63/mmc, and they possess a lattice mismatch rate within a reasonable range of less than 4%, allowing the construction of heterostructures [48]. According to the high-symmetry stacking mode, there are six possible TMDs/Ti

_{3}C

_{2}configurations, taking MoS

_{2}/Ti

_{3}C

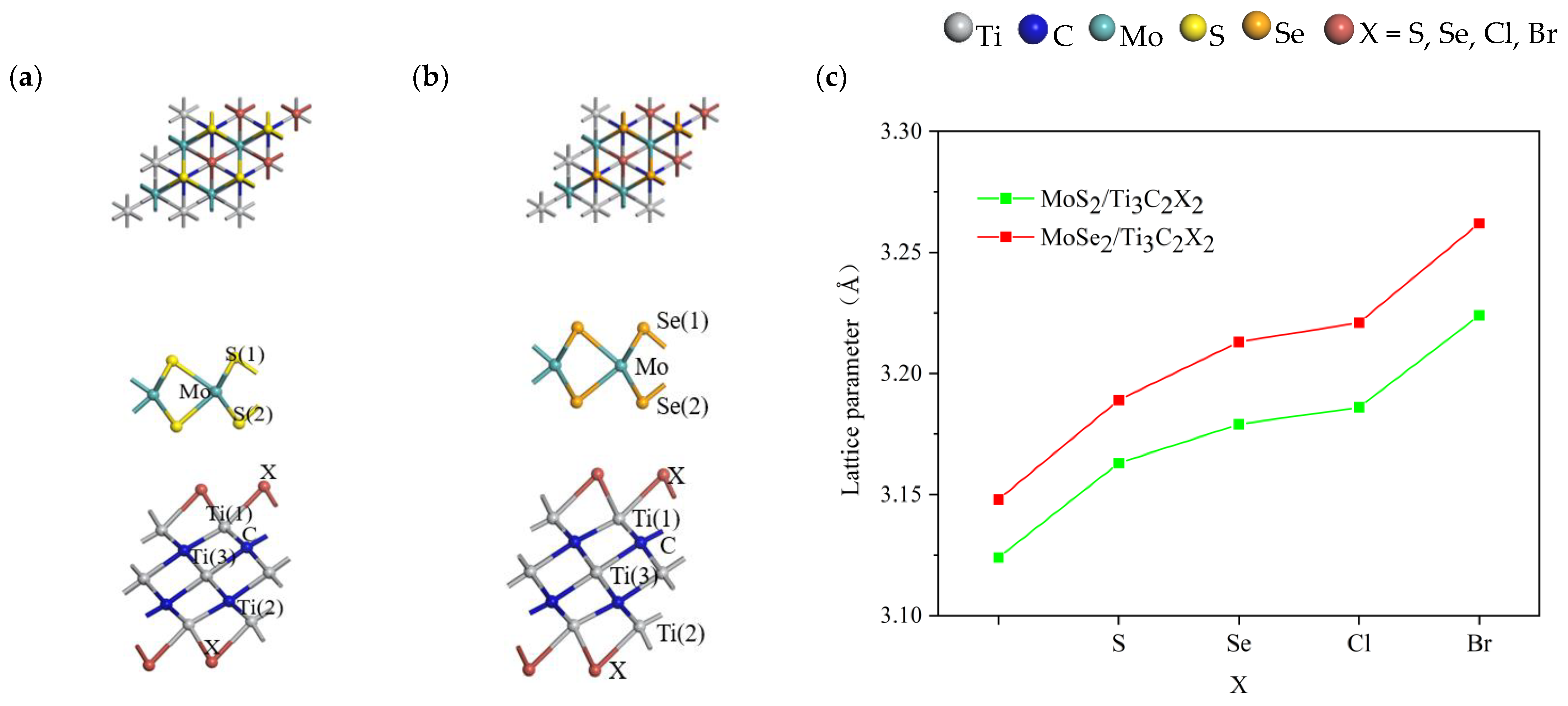

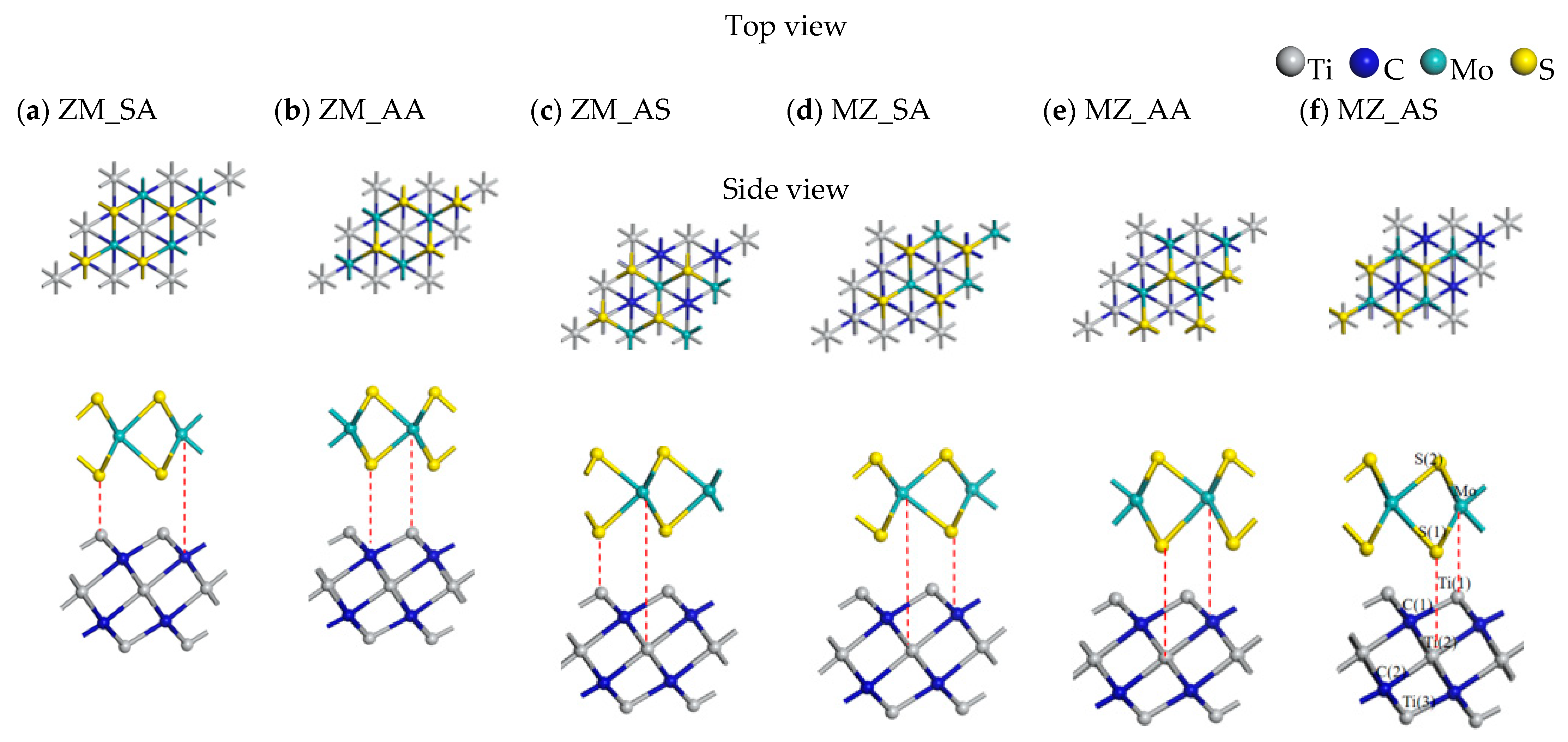

_{2}heterostructures as an example, see Figure 1 (six high-symmetry MoSe

_{2}/Ti

_{3}C

_{2}heterostructures, see Figure S1): (a) the ZM_SA Configuration: S and Mo atoms of MoS

_{2}are on top of Ti and C atoms of Ti

_{3}C

_{2}, respectively; (b) the ZM_AA Configuration: S and Mo atoms of MoS

_{2}are on top of C and Ti atoms of Ti

_{3}C

_{2}, respectively; (c) the ZM_AS Configuration: S and Mo atoms of MoS

_{2}are on top of Ti atoms and hollow sites of Ti

_{3}C

_{2}, respectively; (d) the MZ_SA Configuration: S and Mo atoms of MoS

_{2}are on top of C atoms and hollow sites of Ti

_{3}C

_{2}, respectively; (e) the MZ_AA Configuration: Mo and S atoms of MoS

_{2}are on top of C atoms and hollow sites of Ti

_{3}C

_{2}, respectively; (f) the MZ_AS Configuration: Mo and S atoms of MoS

_{2}are on top of Ti atoms and hollow sites of Ti

_{3}C

_{2}, respectively.

_{2}/Ti

_{3}C

_{2}heterostructures. It can be seen that the binding energies of these MoS

_{2}/Ti

_{3}C

_{2}heterostructures were all negative, indicating that the formation of all the heterostructures was exothermic. A lower binding energy represents a more stable heterostructure structure. The ZM_SA configuration of MoS

_{2}/Ti

_{3}C

_{2}had the lowest binding energy of −1.79 meV/Å, so it was energetically the most stable configuration among the six configurations. It is noted that the interlayer distance d of the MoS

_{2}/Ti

_{3}C

_{2}heterostructure was very small (in the range of 1.68 Å to 2.47 Å), which indirectly indicated a strong interaction between the layers [49,50]. Table 2 presents the binding energy of −1.03 meV/Å for the most stable configuration SA_ZM of the MoSe

_{2}/Ti

_{3}C

_{2}heterostructure, while the AS_ZM configuration had the maximum binding energy of −0.39 meV/Å. The binding energies of all six configurations were negative, indicating the stability of the MoSe

_{2}/Ti

_{3}C

_{2}heterostructure. The interlayer distance d of the six configurations of MoSe

_{2}/Ti

_{3}C

_{2}heterostructures ranged from 1.89 Å to 2.56 Å, which was similar to that of MoS

_{2}/Ti

_{3}C

_{2}heterostructures.

_{2}/Ti

_{3}C

_{2}heterostructures were smaller than those of the corresponding MoSe

_{2}/Ti

_{3}C

_{2}heterostructures; meanwhile, MoS

_{2}/Ti

_{3}C

_{2}had a smaller interlayer distance than the MoSe

_{2}/Ti

_{3}C

_{2}heterostructures. These findings showed that the MoS

_{2}/Ti

_{3}C

_{2}heterostructures are more stable. We calculated the Ti–C bond length in the original monolayer Ti

_{3}C

_{2}as 2.057 Å. As shown in Table 1 and Table 2, the Ti(3)–C(2) bond length d

_{Ti(3)–C(2)}showed almost no change, but the Ti(1)–C(1) bond lengths of the upper layer of Ti

_{3}C

_{2}were stretched in the TMDs/Ti

_{3}C

_{2}heterostructures. The reason for this may be that the charge transfer from Ti

_{3}C

_{2}to TMDs leads to the stretching of the Ti(1)–C(1) bond. The Mo–S(1) minus Mo–S(2) value (d

_{12}) and Mo–Se(1) minus Mo–Se(2) value (d

_{34}) are also presented in Table 1 and Table 2. d

_{12}ranged from 0.021 Å to 0.134 Å, and d

_{34}ranged from 0.013 Å to 0.107 Å, indicating that the TMDs/Ti

_{3}C

_{2}heterostructure slightly destabilizes the TMDs monolayer. Moreover, the d

_{12}values in the MoS

_{2}/Ti

_{3}C

_{2}heterostructure were all greater than the d

_{34}in the MoSe

_{2}/Ti

_{3}C

_{2}heterostructure, suggesting that the interlayer electron coupling effect of MoS

_{2}/Ti

_{3}C

_{2}is greater than that of MoSe

_{2}/Ti

_{3}C

_{2}. This conclusion was consistent with the results of our calculated interlayer distance and binding energy. We also noted that the binding energy and interlayer distance of the ZM_SA configurations were the smallest, so the ZM_SA configuration is the most stable configuration among the 12 configurations of MoS

_{2}/Ti

_{3}C

_{2}heterostructures and MoSe

_{2}/Ti

_{3}C

_{2}heterostructures considered here.

_{3}C

_{2}heterostructures. Previous experimental studies [51] have shown that the Ti

_{3}C

_{2}X

_{2}(X = S, Se, Cl, Br) are the most stable when the surface functional groups of Ti

_{3}C

_{2}are located in the cavity centers of Ti atoms and aligned perpendicularly to the Ti atoms in the middle layer because of the site-blocked repulsion reaction between the C atoms and the surface functional groups. Therefore, in this work, when the surface of Ti

_{3}C

_{2}was terminated by functional groups (S, Se, Cl, Br) in MoS

_{2}/Ti

_{3}C

_{2}X

_{2}and MoSe

_{2}/Ti

_{3}C

_{2}X

_{2}heterostructures, we focused on the case that the functional groups are located above the hole center of the Ti atom and perpendicular to the middle Ti atom, as shown in Figure 2a,b, respectively.

_{3}C

_{2}X

_{2}heterostructures changed significantly due to the addition of surface functional groups. The lattice parameter of the MoS

_{2}/Ti

_{3}C

_{2}heterostructure was 3.124 Å. With the addition of each functional group, the lattice parameter obviously increased, and MoS

_{2}/Ti

_{3}C

_{2}Br

_{2}had the maximum lattice parameter of 3.224 Å. The lattice parameter of MoS

_{2}/Ti

_{3}C

_{2}S

_{2}, MoS

_{2}/Ti

_{3}C

_{2}Se

_{2}and MoS

_{2}/Ti

_{3}C

_{2}Cl

_{2}increased to 3.163 Å, 3.179 Å and 3.186 Å, respectively. Similarly, the lattice parameters of the MoSe

_{2}/Ti

_{3}C

_{2}heterostructure increased with the addition of functional groups. The lattice parameters of the MoSe

_{2}/Ti

_{3}C

_{2}heterostructure were 3.148 Å, while MoSe

_{2}/Ti

_{3}C

_{2}S

_{2}, MoSe

_{2}/Ti

_{3}C

_{2}Se

_{2}, MoSe

_{2}/Ti

_{3}C

_{2}Cl

_{2}, and MoSe

_{2}/Ti

_{3}C

_{2}Br

_{2}were 3.189 Å, 3.213 Å, 3.221 Å, and 3.262 Å, respectively. Therefore, the surface functional groups had a significant effect on the structural properties of MoS

_{2}/Ti

_{3}C

_{2}X

_{2}and MoSe

_{2}/Ti

_{3}C

_{2}X

_{2}.

_{3}C

_{2}X

_{2}heterostructures, we calculated the binding energy, interlayer distance, and structural parameters of TMDs/Ti

_{3}C

_{2}X

_{2}(X = S, Se, Cl, Br) as shown in Table 3. We provide the coordinates of the TMDs/Ti

_{3}C

_{2}X

_{2}(X = S, Se, Cl, Br) optimized structure in the Supplementary Materials, see Table S1. The binding energies of MoS

_{2}/Ti

_{3}C

_{2}X

_{2}and MoSe

_{2}/Ti

_{3}C

_{2}X

_{2}were negative. The MoSe

_{2}/Ti

_{3}C

_{2}Cl

_{2}heterostructure possessed the highest binding energy (−3.12 meV/Å), while the MoS

_{2}/Ti

_{3}C

_{2}S

_{2}heterostructure had the lowest binding energy (−8.44 meV/Å), indicating that the MoS

_{2}/Ti

_{3}C

_{2}S

_{2}heterostructure was more stable. The interlayer distance of these heterostructures varied from 2.78 Å to 3.14 Å, which was significantly larger than that of the TMDs/Ti

_{3}C

_{2}heterostructure, and a larger interlayer distance indicated a weaker electronic coupling between the monolayer TMDs and T

_{3}C

_{2}X

_{2}. It can be concluded that MoS

_{2}/Ti

_{3}C

_{2}X

_{2}and MoSe

_{2}/Ti

_{3}C

_{2}X

_{2}are typical van der Waals heterostructures.

_{2}/Ti

_{3}C

_{2}X

_{2}and MoSe

_{2}/Ti

_{3}C

_{2}X

_{2}, the surface functional group of monolayer Ti

_{3}C

_{2}caused an increase in the Ti–C bond length (d

_{Ti–C}). Among them, the d

_{Ti–C}of the MoSe

_{2}/Ti

_{3}C

_{2}S

_{2}heterostructure reached 2.193 Å, an increase of 0.136 Å from the original 2.057 Å. The Ti–C bond length d

_{Ti–C}of the MoS

_{2}/Ti

_{3}C

_{2}Cl

_{2}heterostructure increased by 0.047 Å. The bond lengths between Ti(1) and X in the top layer of Ti

_{3}C

_{2}X

_{2}were almost the same as those between Ti(2) and X in the bottom layer of Ti

_{3}C

_{2}X

_{2}, which means that the stacking of MoS

_{2}and MoSe

_{2}in these heterostructures hardly changes the spatial structure of Ti

_{3}C

_{2}X

_{2}. The strong coupling between the Ti

_{3}C

_{2}and TMD interface was weakened by the functional group (S, Se, Cl, Br). The value of d

_{56}was defined as Mo–Se(1) minus Mo–Se(2) or Mo–S(1) minus Mo–S(2) in TMDs/Ti

_{3}C

_{2}X

_{2}(X = S, Se, Cl, Br). The MoS

_{2}/Ti

_{3}C

_{2}S

_{2}heterostructure possessed the maximum d

_{56}(0.009 Å), while d

_{56}was zero in the MoSe

_{2}/Ti

_{3}C

_{2}Se

_{2}heterostructure, indicating that the spatial structure and two-dimensional properties of the original MoSe

_{2}were well preserved. The above results show that the addition of surface functional groups can seriously weaken the electronic coupling between the monolayer TMDs and Ti

_{3}C

_{2}.

#### 3.2. Electronic Properties of the TMDs/Ti_{3}C_{2}X_{2} Heterostructures

_{3}C

_{2}heterostructures, we choose the most stable configurations of ZM_SA and SA_ZM to further study the electronic properties of MoS

_{2}/Ti

_{3}C

_{2}X

_{2}and MoSe

_{2}/Ti

_{3}C

_{2}X

_{2}, respectively. The energy band structures and density of states of the MoS

_{2}/Ti

_{3}C

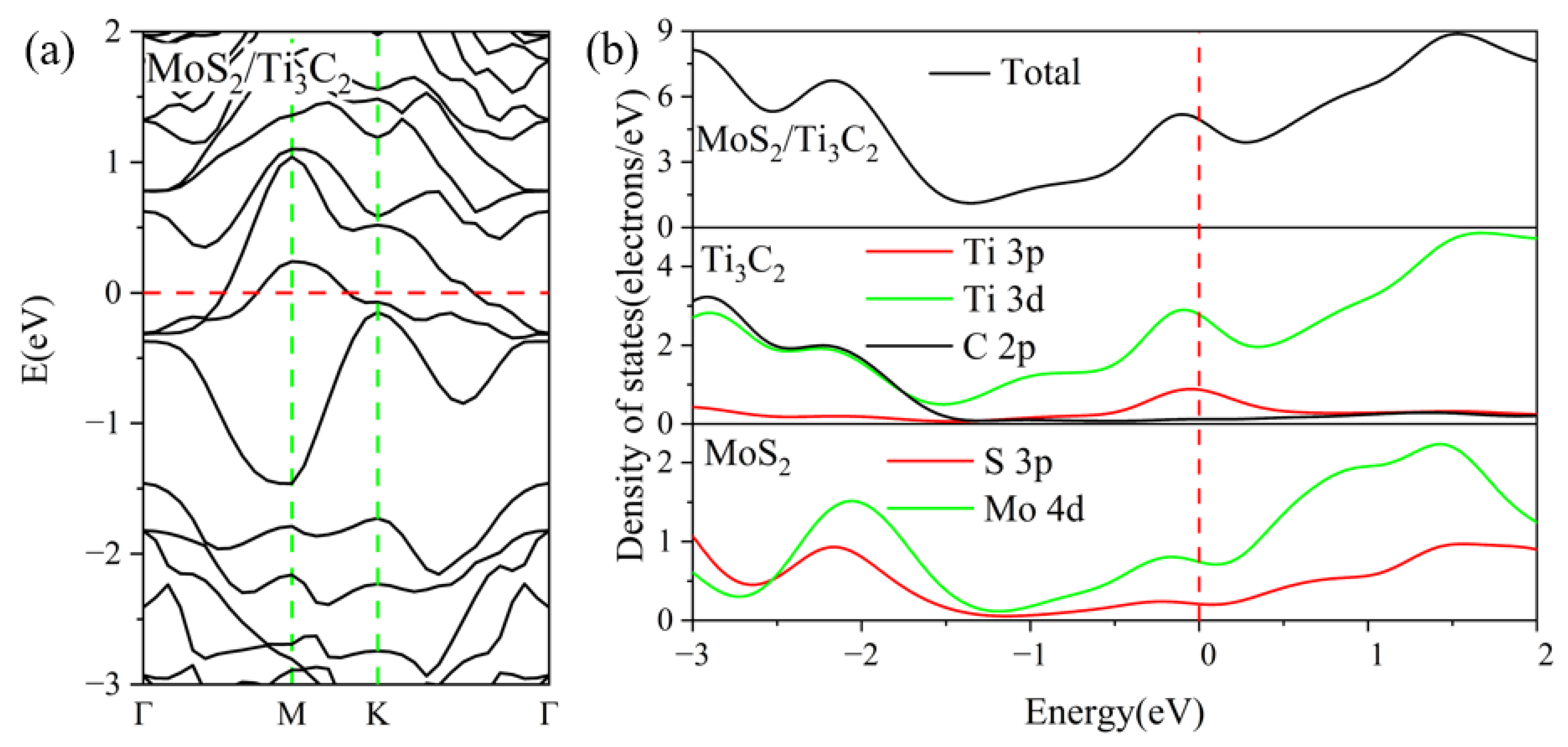

_{2}heterostructure are presented in Figure 3. The Fermi energy level is set at zero energy. From Figure 3a, it can be seen that some energy bands cross the Fermi energy level, indicating the metallic nature of the MoS

_{2}/Ti

_{3}C

_{2}heterostructure. Because of a strongly coupled interaction between the MoS

_{2}and Ti

_{3}C

_{2}monolayer, the energy bands have been hybridized severely. The total and partial density of states of the MoS

_{2}/Ti

_{3}C

_{2}heterostructure is shown in Figure 3b; it can be seen that the energy band near the Fermi level is mainly dominated by the 3d orbit of the Ti atom and the 4d orbit of the Mo atom. Remarkably, the electrons of the S 3p orbit in the conduction band are unusually more than that of the Ti 3p orbit. Therefore, the conduction band is mainly contributed by the Mo 4d, S 3p, and Ti 3d orbitals. The energy band structures and density of states of the MoSe

_{2}/Ti

_{3}C

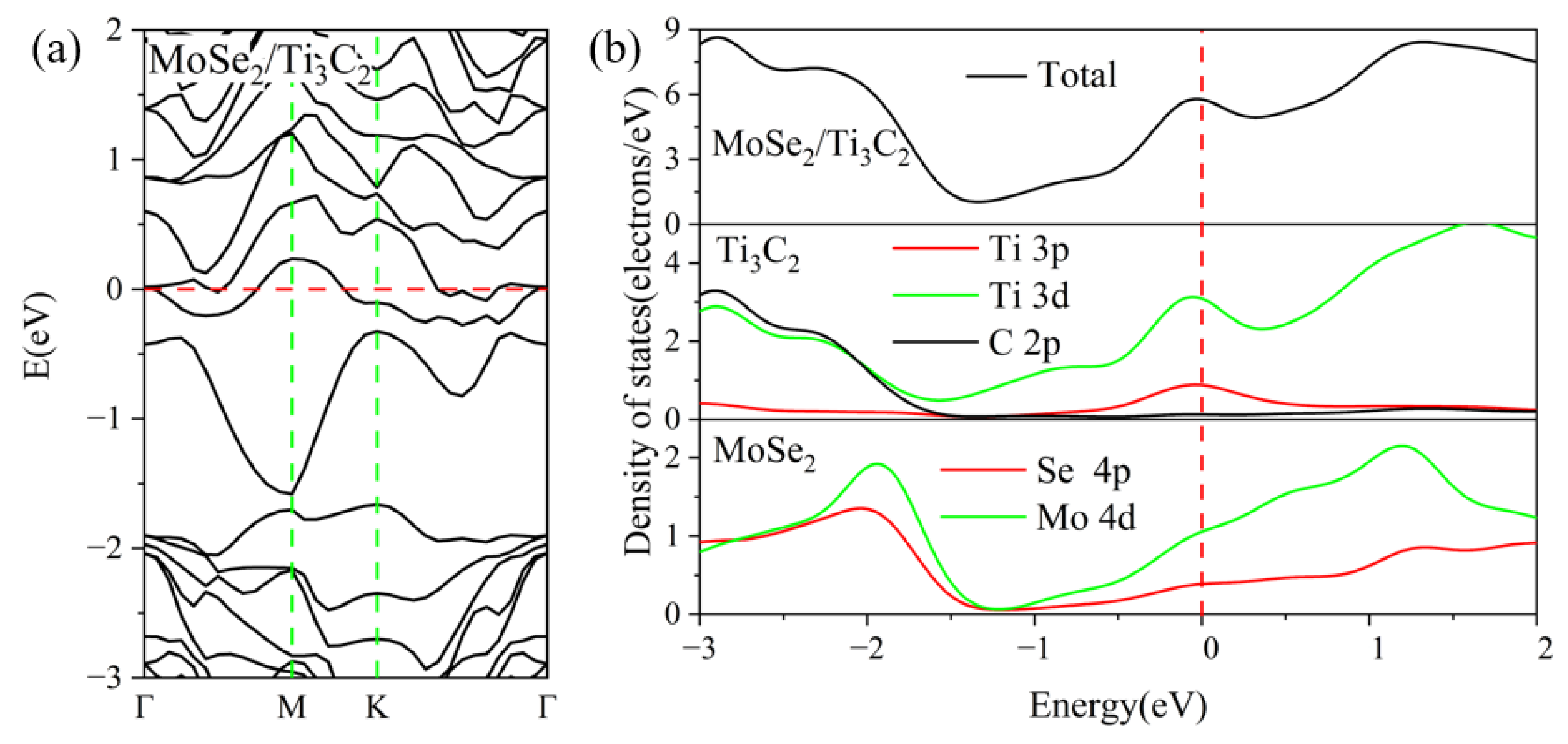

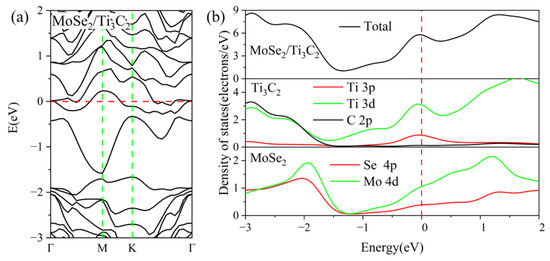

_{2}heterostructure are presented in Figure 4. We note that the energy band of the MoSe

_{2}/Ti

_{3}C

_{2}heterostructure (see Figure 4a) has no obvious hybridization around the Fermi level, which is different from the MoS

_{2}/Ti

_{3}C

_{2}heterostructure. Compared with MoS

_{2}/Ti

_{3}C

_{2}, MoSe

_{2}/Ti

_{3}C

_{2}has more concentrated energy bands, leading to a decrease in conductivity. The total and partial density of states of the MoSe

_{2}/Ti

_{3}C

_{2}heterostructure is shown in Figure 4b; we know that the energy bands near the Fermi energy level are dominated by Ti 3d and Mo 4d orbitals. The Ti 3p orbital and C 2p orbital make a slight contribution near the Fermi energy level. The conduction band is mainly formed by Ti 3d and Mo 4d orbitals, while the valence band is formed by C 2p, Ti 3d, and Mo 4d orbitals, and the C 2p orbital plays a dominant role in the MoSe

_{2}/Ti

_{3}C

_{2}heterostructure. Finally, by comparing the density of states of MoS

_{2}/Ti

_{3}C

_{2}with that of the MoSe

_{2}/Ti

_{3}C

_{2}heterostructure, we find that the peak of Ti 3d and Mo 4d in the MoS

_{2}/Ti

_{3}C

_{2}heterostructure moves towards a higher energy level.

_{2}and MoSe

_{2}are semiconductors in nature and exhibit a direct band gap at the K point in the Brillouin zone [52]. However, our calculations show that the S 3p orbitals, the Se 4p orbitals, and the Mo 4d orbitals in the TMDs/Ti

_{3}C

_{2}heterostructure have a large number of electrons crossing the Fermi energy level, which is sufficient to indicate that Ti

_{3}C

_{2}induces a significant change in the electronic properties of the TMDs monolayer.

_{3}C

_{2}were calculated; see Tables S2 and S3. The interlayer electron coupling of the MoS

_{2}/Ti

_{3}C

_{2}heterostructure is strong due to the overlap of electron clouds between MoS

_{2}and Ti

_{3}C

_{2}(the bond population of the S–Ti bond is 0.48 Å). The Ti

_{3}C

_{2}in the MoS

_{2}/Ti

_{3}C

_{2}heterostructure obtains 0.06 e from the upper MoS

_{2}layer, and the Ti atom in Ti

_{3}C

_{2}loses 1.55 e, and 1.50 e of Ti is transferred to the C atom. The bonding behavior of the MoS

_{2}/Ti

_{3}C

_{2}heterostructure is covalent in nature, as indicated by the bond populations. For MoSe

_{2}/Ti

_{3}C

_{2}, the bond population of the Se–Ti bond has a large negative value (−0.83 Å), suggesting a weak van der Waals interaction between MoSe

_{2}and Ti

_{3}C

_{2}. According to the positive and negative values of the bond population, we can conclude that the bonding behavior in the MoSe

_{2}/Ti

_{3}C

_{2}heterostructure is a combination of covalent and ionic bonds.

_{3}C

_{2}to MoS

_{2}in the MoS

_{2}/Ti

_{3}C

_{2}heterostructure. We also noted that the Mo atom in MoSe

_{2}/Ti

_{3}C

_{2}and MoS

_{2}/Ti

_{3}C

_{2}obtains 0.35e and 0.01e, respectively. Moreover, the partial density of states in Figure 3b and Figure 4b shows that the density of the electrons of the Mo 4d orbital in the MoSe

_{2}/Ti

_{3}C

_{2}heterostructure at the Fermi energy level is much higher than that in the MoS

_{2}/Ti

_{3}C

_{2}heterostructure. As a result, the Mo 4d orbital in MoSe

_{2}/Ti

_{3}C

_{2}obtains more electrons from other atoms than that in MoS

_{2}/Ti

_{3}C

_{2}.

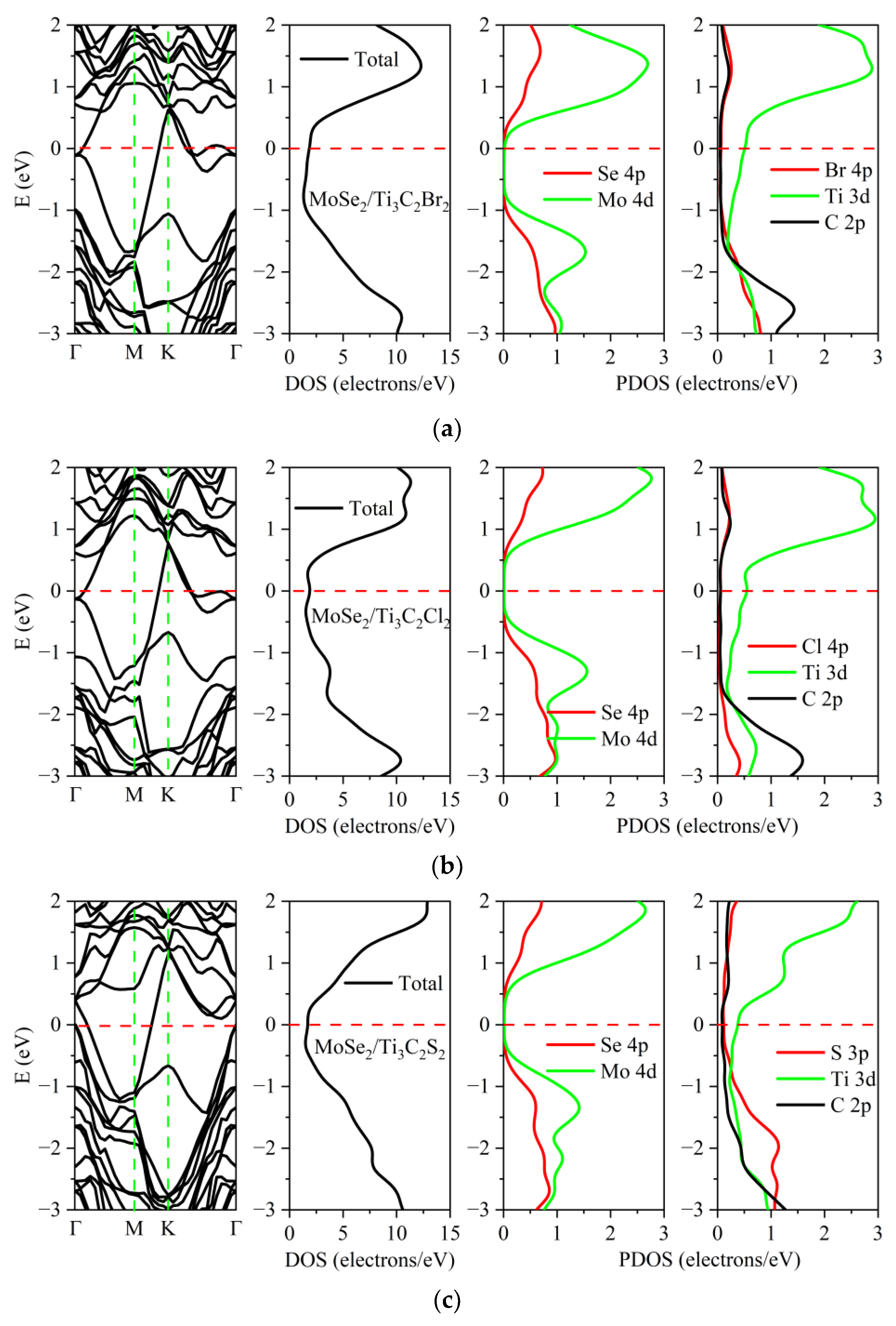

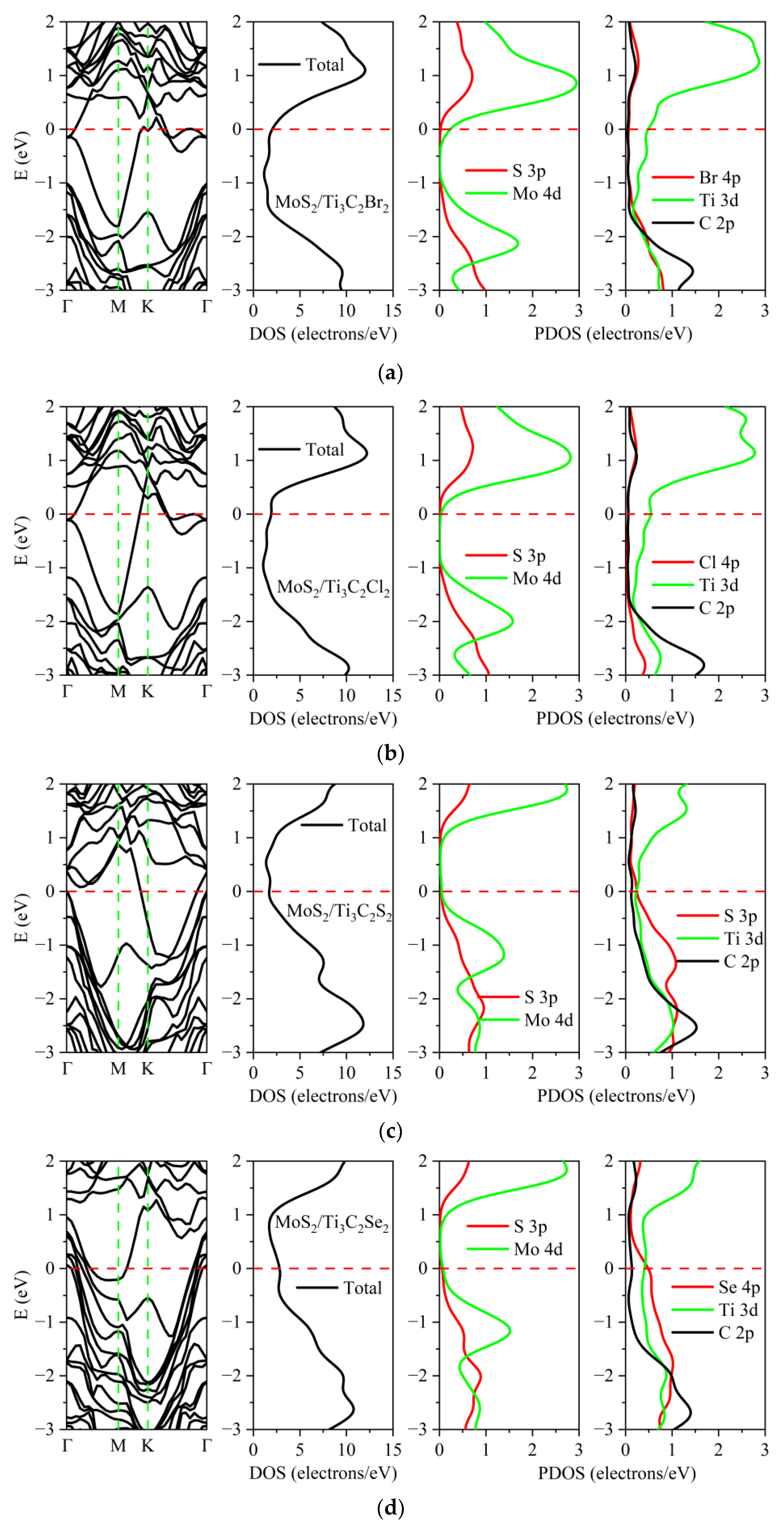

_{3}C

_{2}, as illustrated in Figure 5 and Figure 6. Compared with MoS

_{2}/Ti

_{3}C

_{2}and MoSe

_{2}/Ti

_{3}C

_{2}, the electronic properties of MoS

_{2}/Ti

_{3}C

_{2}X

_{2}and MoSe

_{2}/Ti

_{3}C

_{2}X

_{2}were obviously different. Although TMDs/Ti

_{3}C

_{2}X

_{2}heterostructures still exhibited metallic behavior, the peak values of density of states (DOS) at the Fermi level were lower than those of TMDs/Ti

_{3}C

_{2}heterostructures. Based on our calculated DOS, it is worth noting that MoS

_{2}and MoSe

_{2}retained the semiconductor nature in the TMDs/Ti

_{3}C

_{2}X

_{2}heterostructures. This means that the presence of surface functional groups (Cl, Br, S, Se) weakened the interaction strength between TMDs and Ti

_{3}C

_{2}. Compared with the DOS of the original monolayer MoS

_{2}and MoSe

_{2}, see Figures S2 and S3, that of MoS

_{2}and MoSe

_{2}in MoS

_{2}/Ti

_{3}C

_{2}Br

_{2}and MoS

_{2}/Ti

_{3}C

_{2}Cl

_{2}showed an upward shift of the Fermi energy level. From the partial density of states (PDOS) of MoS

_{2}/Ti

_{3}C

_{2}Br

_{2}and MoS

_{2}/Ti

_{3}C

_{2}Cl

_{2}, it can be seen that the energy band near the Fermi level was mainly contributed to by the Ti 3d orbit. The Mo atom 4d orbital in MoS

_{2}/Ti

_{3}C

_{2}Br

_{2}made a small charge contribution, while the Mo atom 4d orbital in MoS

_{2}/Ti

_{3}C

_{2}Cl

_{2}made almost no charge contribution to the Fermi level. In addition, the atoms of the functional groups Cl and Br made almost no contribution near the Fermi level, as shown in Figure 5a,b. When the Ti

_{3}C

_{2}surface was terminated by S and Se functional groups, the DOS of MoS

_{2}and MoSe

_{2}showed a downward shift of the Fermi level, while the S 3p and Se 4p orbitals made an obvious charge contribution near the Fermi level. The energy band near the Fermi level became flatter, and the effective mass of the electron was larger, so the conductivity decreased. It can be seen from the density of states of Ti

_{3}C

_{2}X

_{2}(X = S, Se) that the S 3p and Se 4p orbital charges and Ti 3d orbital generated strong hybridization, respectively, as shown in Figure 5c,d. The metal behavior of the MoS

_{2}/Ti

_{3}C

_{2}X

_{2}(X = Br, Cl, S, Se) heterostructure was mainly dominated by the Ti 3d orbital charge.

_{2}/Ti

_{3}C

_{2}Br

_{2}heterostructure. The bottom of the conduction band of MoSe

_{2}moved downward and coincides with the Fermi level. At the Fermi energy level, only the Ti 3d orbital charge contributed. For MoSe

_{2}/Ti

_{3}C

_{2}Cl

_{2}and MoSe

_{2}/Ti

_{3}C

_{2}S

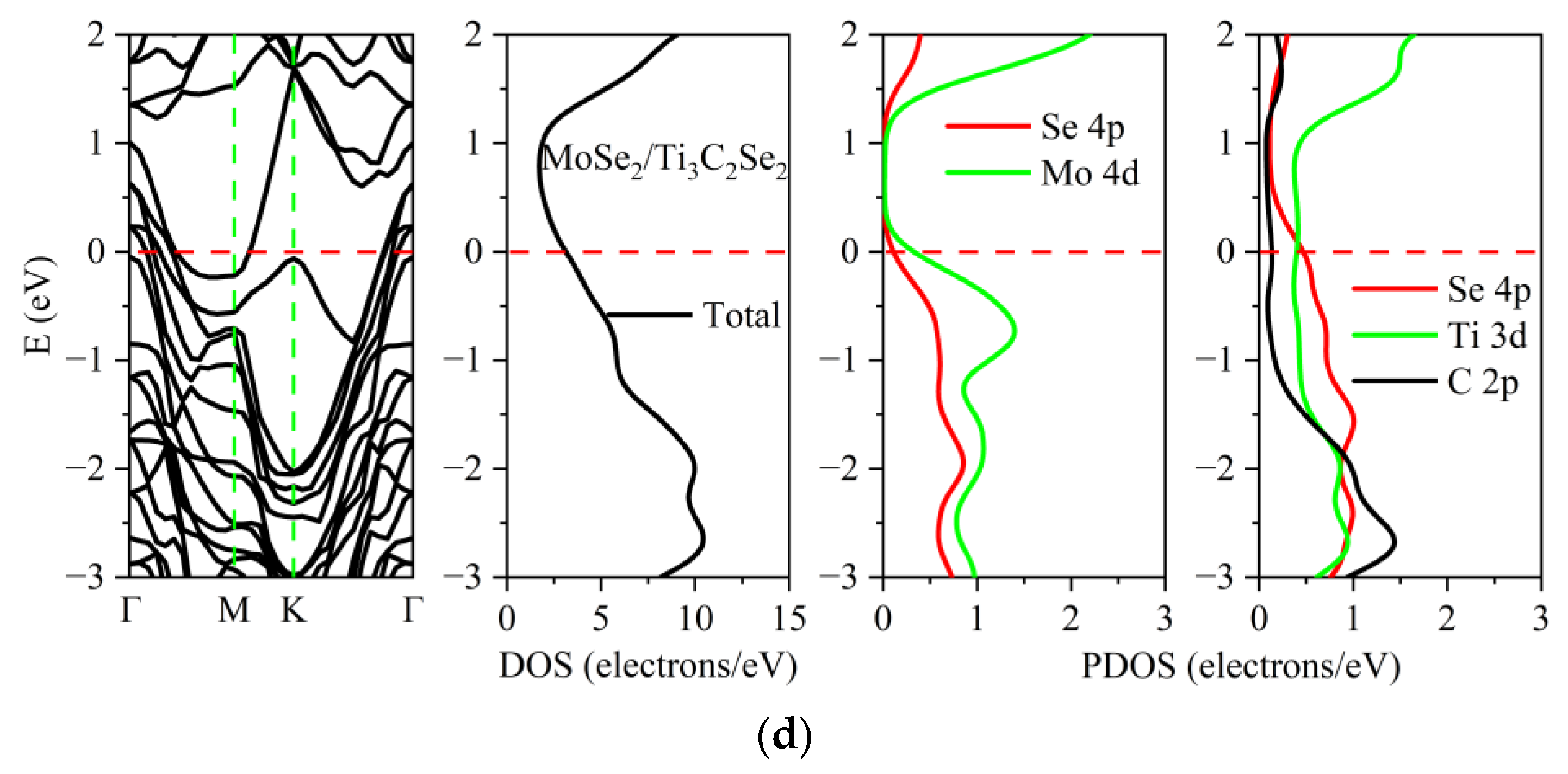

_{2}, as shown in Figure 6b,c, the Fermi energy level was located between the top of the valence band and the bottom of the conduction band. The Ti 3d orbital dominated the metal properties of MoSe

_{2}/Ti

_{3}C

_{2}Cl

_{2}and MoSe

_{2}/Ti

_{3}C

_{2}S

_{2}. For MoSe

_{2}/Ti

_{3}C

_{2}Se

_{2}, as shown in Figure 6d, the energy band structure of MoSe

_{2}remained unchanged, and the Fermi level was located at the top of the valence band. The Se 4p and Ti 3d orbitals in Ti

_{3}C

_{2}Se

_{2}generate strong hybridization, which dominated the conductivity of MoSe

_{2}/Ti

_{3}C

_{2}Se

_{2}. Moreover, the PDOS of MoSe

_{2}and MoS

_{2}showed that both S 3p orbitals in MoS

_{2}and Se 4p orbitals in MoSe

_{2}made no charge contribution at the Fermi energy level. When S and Se were used as the functional group terminal in Ti

_{3}C

_{2}, the S 3p and Se 4p orbital charges played a leading role in the Fermi energy level.

#### 3.3. Effect of Biaxial Strain on the Structural and Electronic Properties of the TMDs/Ti_{3}C_{2} Heterostructures

_{3}C

_{2}and TMDs/Ti

_{3}C

_{2}X

_{2}. Considering a series of biaxial tensile or compressive strains ε in 0.01 steps from −9% to +9%, ε > 0 and ε < 0 represented the tensile and compressive strains, respectively. Figure 7a shows the variation curve of the MoS

_{2}/Ti

_{3}C

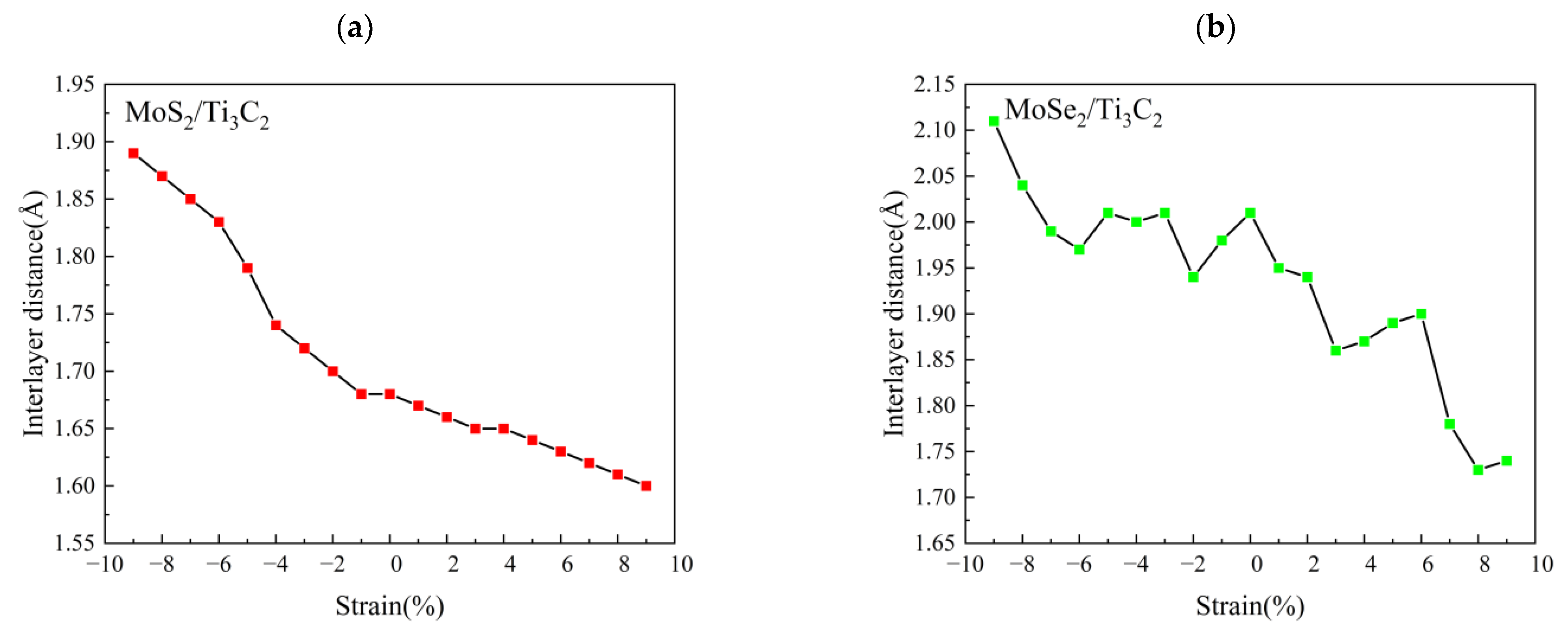

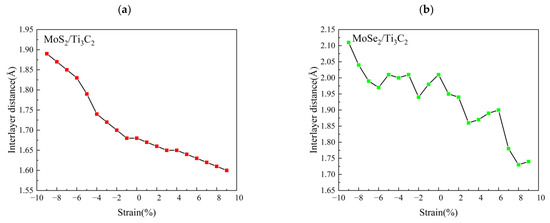

_{2}interlayer distance with biaxial tensile (compressive) strain. It can be seen that the interlayer distance d of the MoS

_{2}/Ti

_{3}C

_{2}heterostructure varies linearly with an increasing biaxial tensile or compressive strain. The interlayer distance of MoS

_{2}/Ti

_{3}C

_{2}decreases to 1.56 Å when the biaxial tensile strain reaches 9%. Therefore, the biaxial tensile strain can enhance the electronic coupling strength between the monolayer MoS

_{2}and Ti

_{3}C

_{2}. However, its interlayer distance gradually increases when subjected to biaxial compressive strain, and the interlayer distance increased to 1.89 Å at 9% compressive strain, indicating that the electron coupling strength between the monolayer MoS

_{2}and Ti

_{3}C

_{2}is severely weakened by the biaxial compressive strain. Figure 7b presents the variation curve of the MoSe

_{2}/Ti

_{3}C

_{2}interlayer distance with the biaxial tensile (compressive) strain. The result is completely different to that of the MoS

_{2}/Ti

_{3}C

_{2}heterostructure. The interlayer distance of the MoSe

_{2}/Ti

_{3}C

_{2}heterostructure shows a fluctuating change with an increasing biaxial tensile or compressive strain. Based on the above Mulliken charge and bond populations analysis of MoS

_{2}/Ti

_{3}C

_{2}and MoSe

_{2}/Ti

_{3}C

_{2}, it can be seen that the bond population of S–Ti in MoS

_{2}/Ti

_{3}C

_{2}is positive, while that of Se–Ti in MoSe

_{2}/Ti

_{3}C

_{2}is negative. Therefore, the reason may be that the MoSe

_{2}/Ti

_{3}C

_{2}heterostructure has van der Waals interactions rather than strong electron coupling interactions.

_{3}C

_{2}X

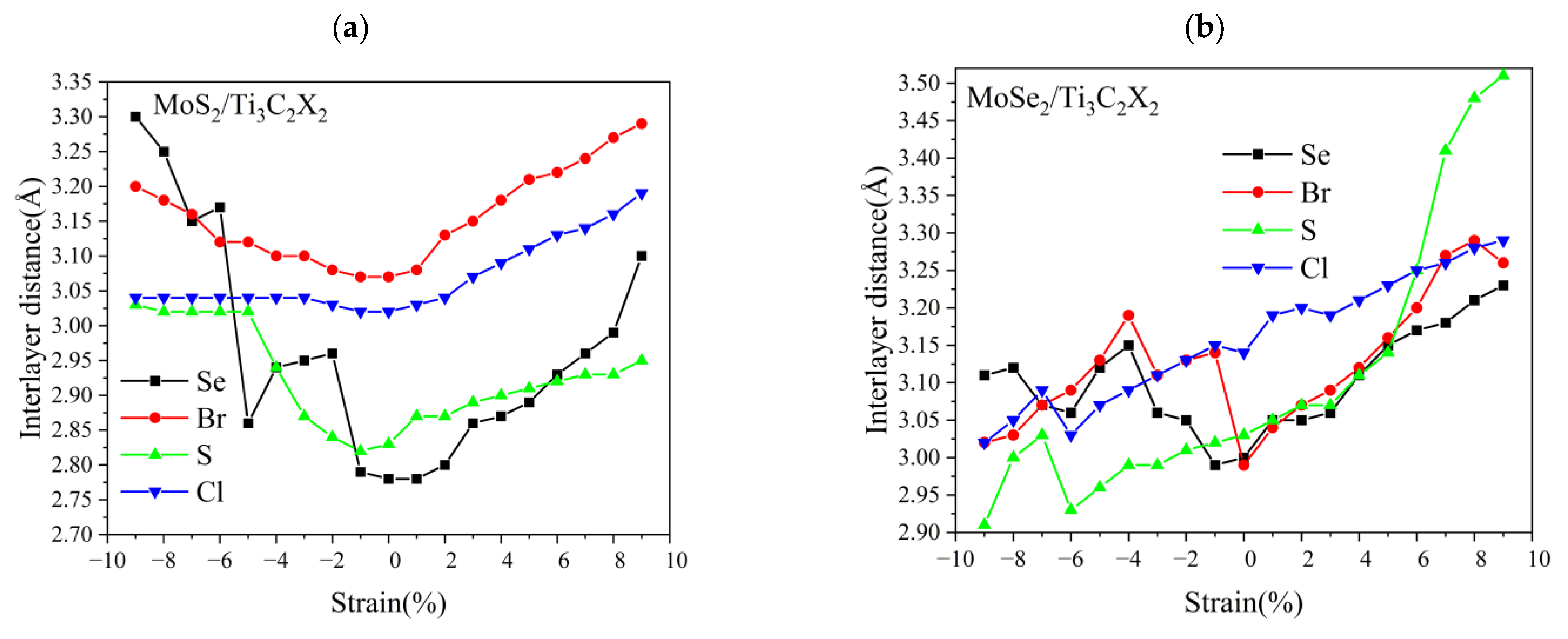

_{2}heterostructures; see Figure 8. It can be seen that under the condition of the applied strain, the interlayer distance of TMDs/Ti

_{3}C

_{2}X

_{2}heterostructures presents a completely different behavior to that of MoS

_{2}/Ti

_{3}C

_{2}. The reason is the different electronic coupling strength between the monolayer TMDs and Ti

_{3}C

_{2}X

_{2}due to the surface functional groups. The interlayer distance between MoS

_{2}and Ti

_{3}C

_{2}Cl

_{2}remains almost unchanged under the compressive strain, while it increases slightly with the increase in the tensile strain, as shown in Figure 8a. The interlayer distance of MoS

_{2}/Ti

_{3}C

_{2}S

_{2}heterostructures presents a steady increase under tensile strain. When the compressive strain is in the range from 0 to 5%, its interlayer distance rapidly increases; when the compressive strain is above 5%, its interlayer distance is almost unchanged. For the MoS

_{2}/Ti

_{3}C

_{2}Br

_{2}heterostructure, under the condition of compressive or tensile strain, the coupling strength between valence electrons of Br atoms and the 4d orbital of Mo atoms is weakened. As a result, the interlayer distance between MoS

_{2}and Ti

_{3}C

_{2}Br

_{2}increases slightly with the increase in the applied strain. Compared with MoS

_{2}/Ti

_{3}C

_{2}X

_{2}(X = S, Br, Cl), the interlayer distance of MoS

_{2}/Ti

_{3}C

_{2}Se

_{2}presents a significantly fluctuating change in the case of compressive strain. The reason may be that the Se atom induces the aberration of a crystal lattice due to its larger atomic radii [35]. When the compressive strain is applied, the lattice distortion becomes more pronounced, resulting in the fluctuation of the interlayer distance. For MoSe

_{2}/Ti

_{3}C

_{2}X

_{2}(X = S, Se, Cl, Br), we also observed a similar trend under the condition of compressive strain; see Figure 8b. Therefore, we concluded that the fluctuation in the interlayer distance in MoS

_{2}/Ti

_{3}C

_{2}X

_{2}(X = Se) and MoSe

_{2}/Ti

_{3}C

_{2}X

_{2}is mainly attributed to the existence of the Se atom, and the displacement of the Se atom affects the structural stability of these heterostructures.

_{2}/Ti

_{3}C

_{2}X

_{2}dramatically increases with the increase in the tensile strain, and the interlayer distances of MoSe

_{2}/Ti

_{3}C

_{2}Se

_{2}and MoSe

_{2}/Ti

_{3}C

_{2}Br

_{2}at 9% tensile strain increase to 3.23 Å and 3.26 Å, respectively. Under the compressive strain, their interlayer distance increases nonlinearly. Therefore, the applied strain weakened the interlayer interaction between MoSe

_{2}and Ti

_{3}C

_{2}X

_{2}(X = Se, Br). For MoSe

_{2}/Ti

_{3}C

_{2}S

_{2}and MoSe

_{2}/Ti

_{3}C

_{2}Cl

_{2}, their interlayer distance presents the same trend under the applied strain. Under the tensile strain, the interlayer distance increases, while under the compressive strain, the interlayer distance becomes increasingly smaller. Moreover, the interlayer distance of MoSe

_{2}/Ti

_{3}C

_{2}S

_{2}is more sensitive to the applied strain than that of MoSe

_{2}/Ti

_{3}C

_{2}Cl

_{2}. It is noted that the interlayer distance of MoSe

_{2}/Ti

_{3}C

_{2}S

_{2}increased to 3.52 Å at 9% tensile strain, in contrast; its interlayer distance decreased to 2.91 Å at 9% compressive strain.

_{3}C

_{2}heterostructures, we first investigated the Mulliken charge of TMD/Ti

_{3}C

_{2}heterostructure under tensile and compressive strain. Table 4 shows the Mulliken charge population of MoS

_{2}/Ti

_{3}C

_{2}heterostructures, at free strain, Ti

_{3}C

_{2}loses 0.07e, which is transferred to the monolayer MoS

_{2}. At a tensile strain of 9%, Ti

_{3}C

_{2}loses more electrons (0.11e). Moreover, Mo atoms also lose 0.05 electrons when subjected to tensile strain. At a compressive strain of 9%, Ti

_{3}C

_{2}loses fewer electrons (0.03e). Table 5 shows the Mulliken charge population of MoSe

_{2}/Ti

_{3}C

_{2}heterostructures. At a compressive strain of 9%, MoSe

_{2}loses more electrons (0.08e), which are transferred to Ti

_{3}C

_{2}. These results showed that the interlayer electron transfer in both MoS

_{2}/Ti

_{3}C

_{2}and MoSe

_{2}/Ti

_{3}C

_{2}can be well regulated by biaxial strain. The difference is that in the MoS

_{2}/Ti

_{3}C

_{2}heterostructure the electrons are transferred from Ti

_{3}C

_{2}to MoS

_{2}, while in the MoSe

_{2}/Ti

_{3}C

_{2}heterostructure, the electrons are transferred from MoSe

_{2}to Ti

_{3}C

_{2}. Moreover, in the MoS

_{2}/Ti

_{3}C

_{2}heterostructure the transferring electrons increase with increasing tensile strain, while in the MoSe

_{2}/Ti

_{3}C

_{2}heterostructure, they increase with increasing compressive strain.

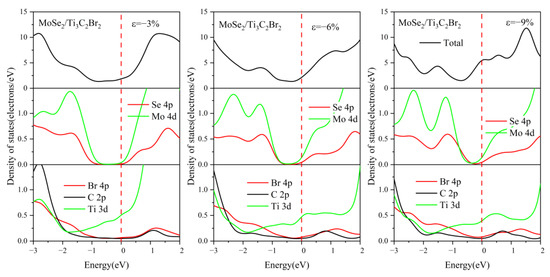

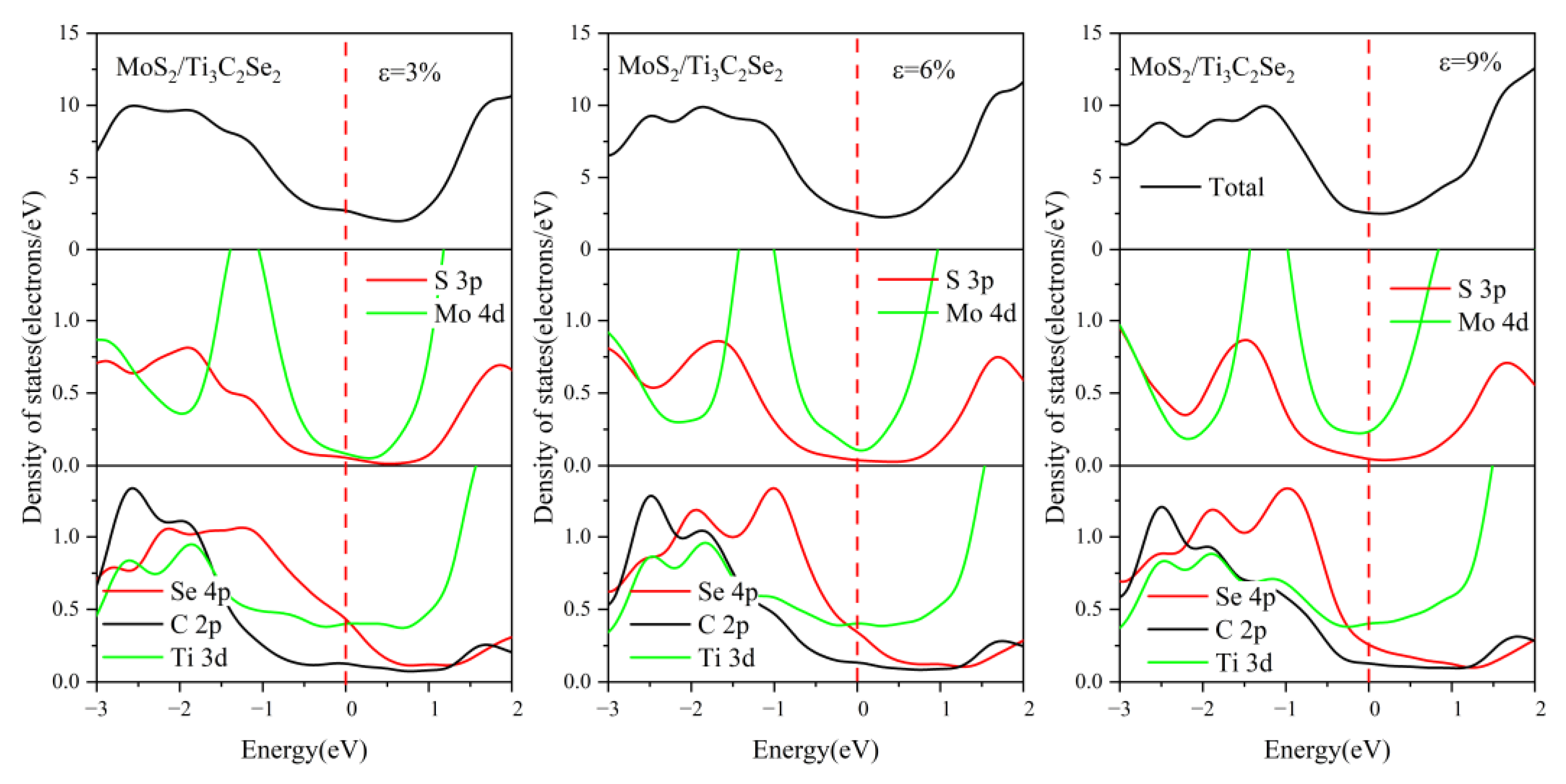

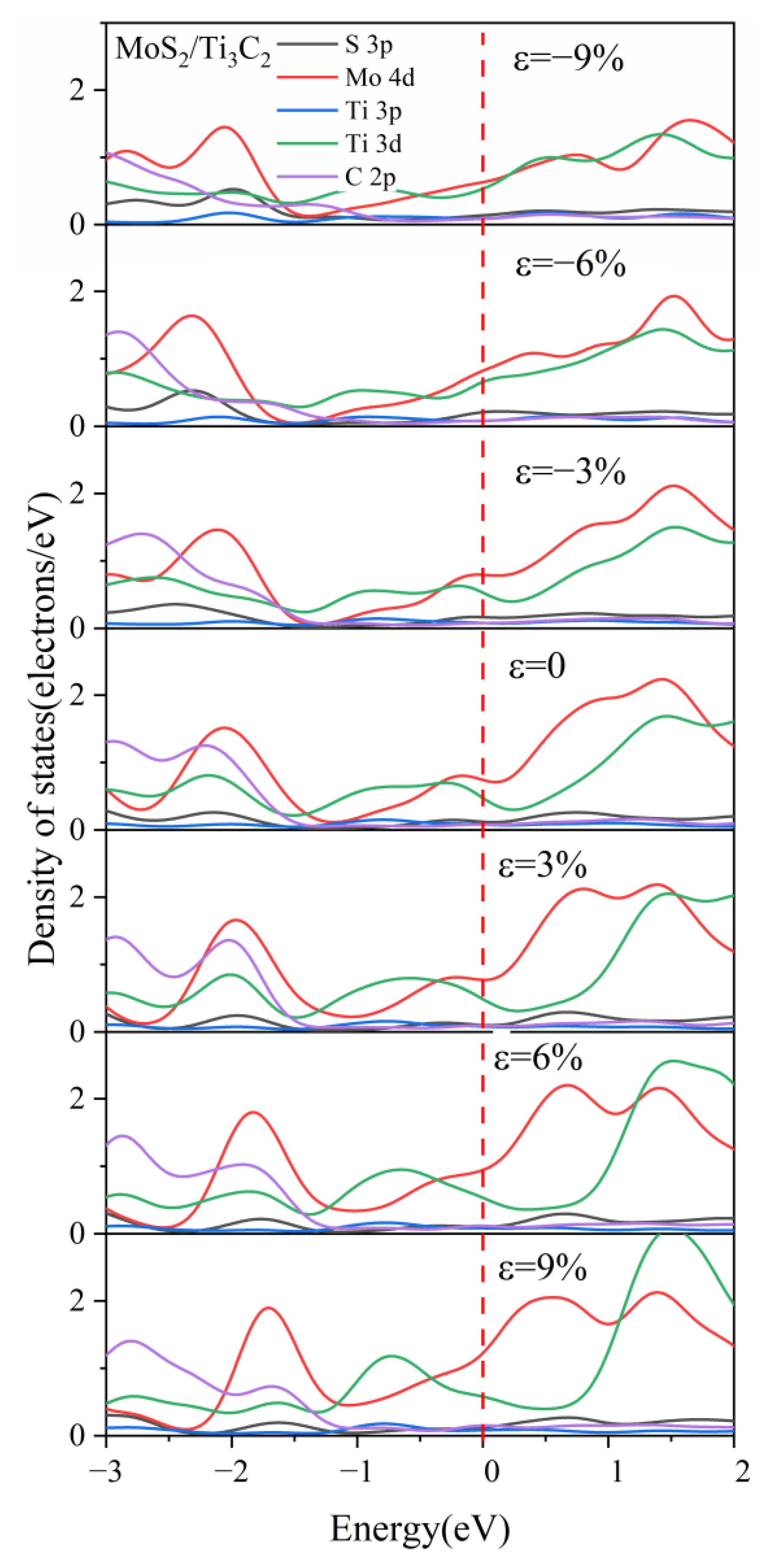

_{3}C

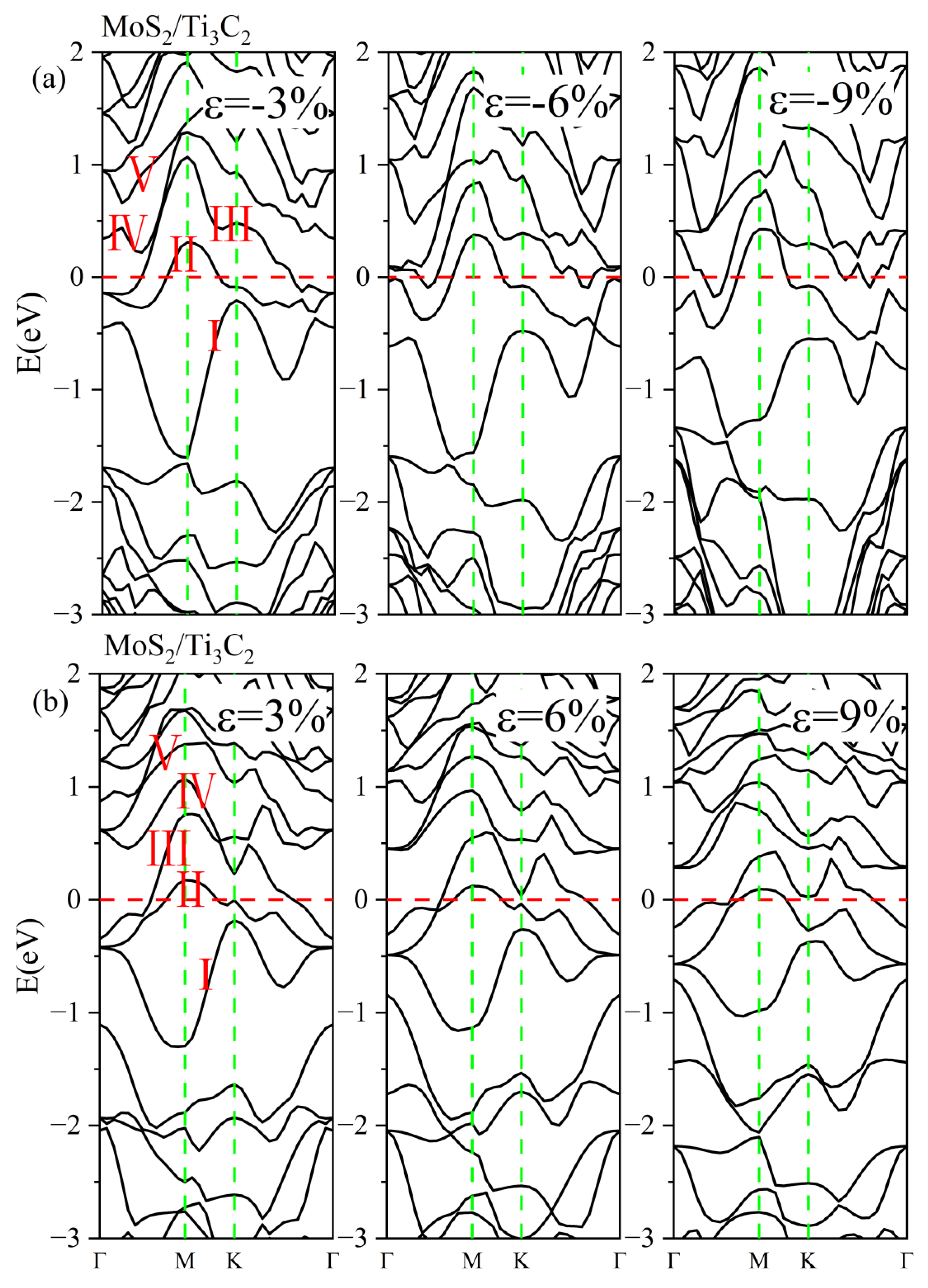

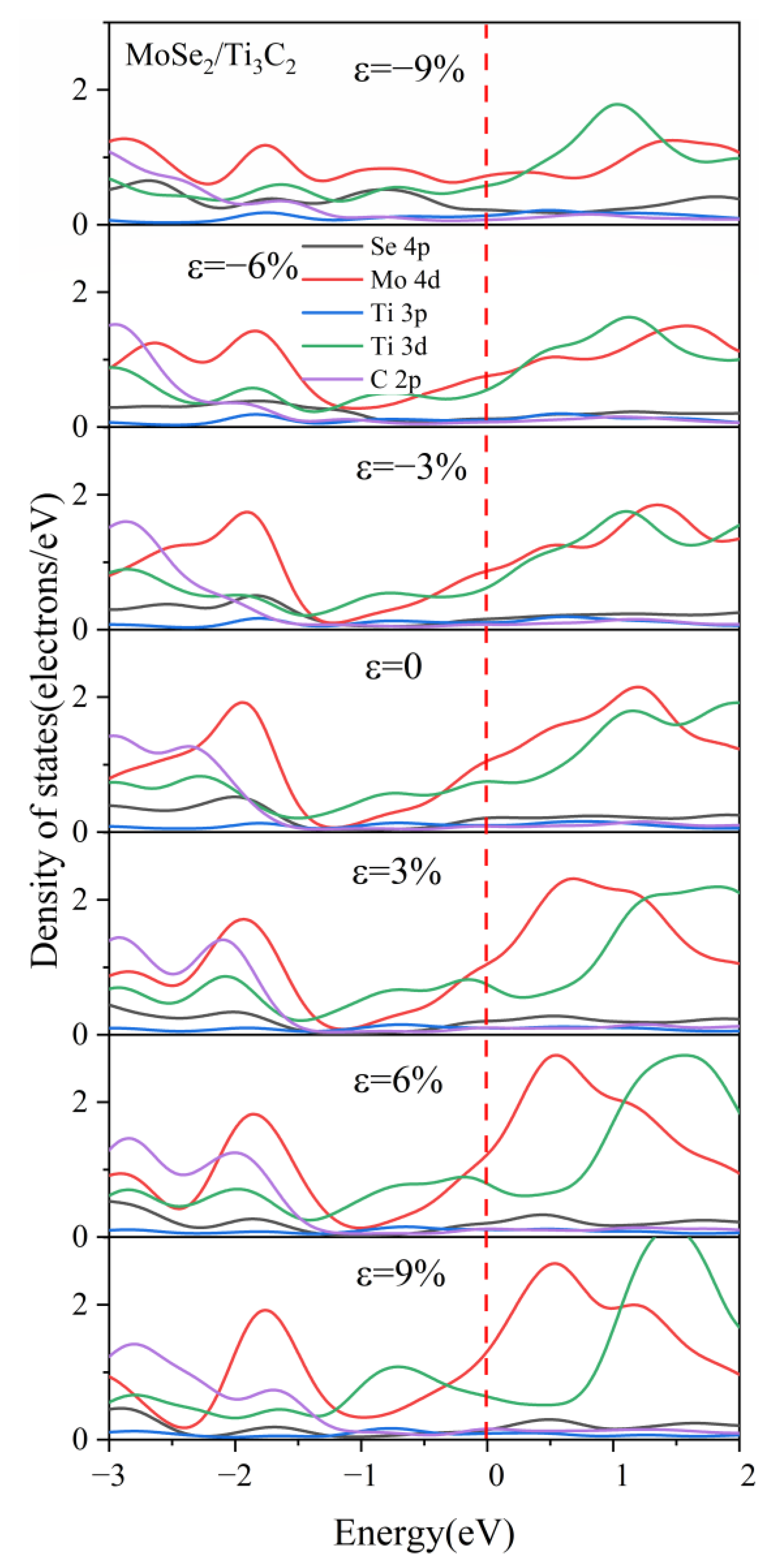

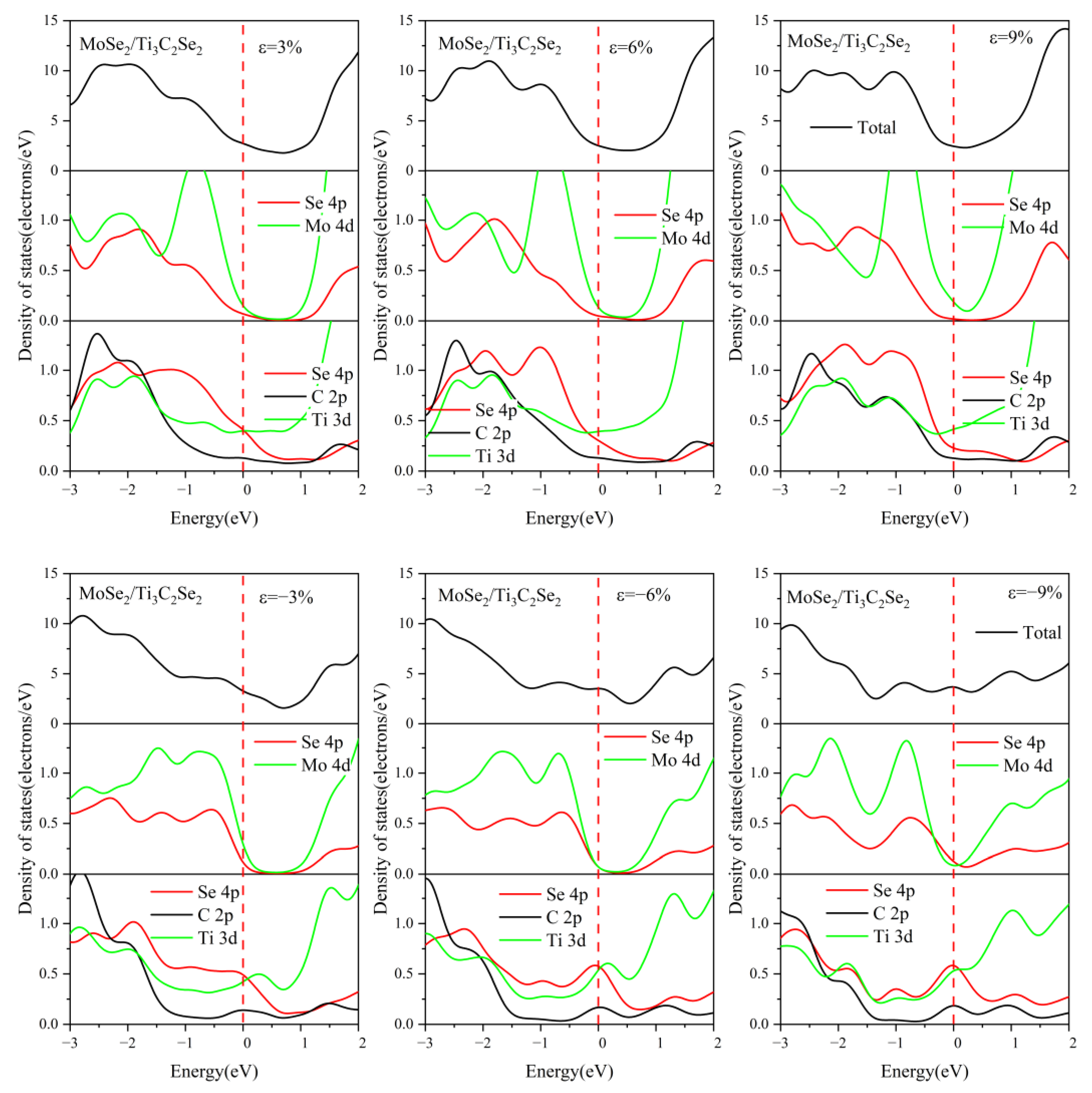

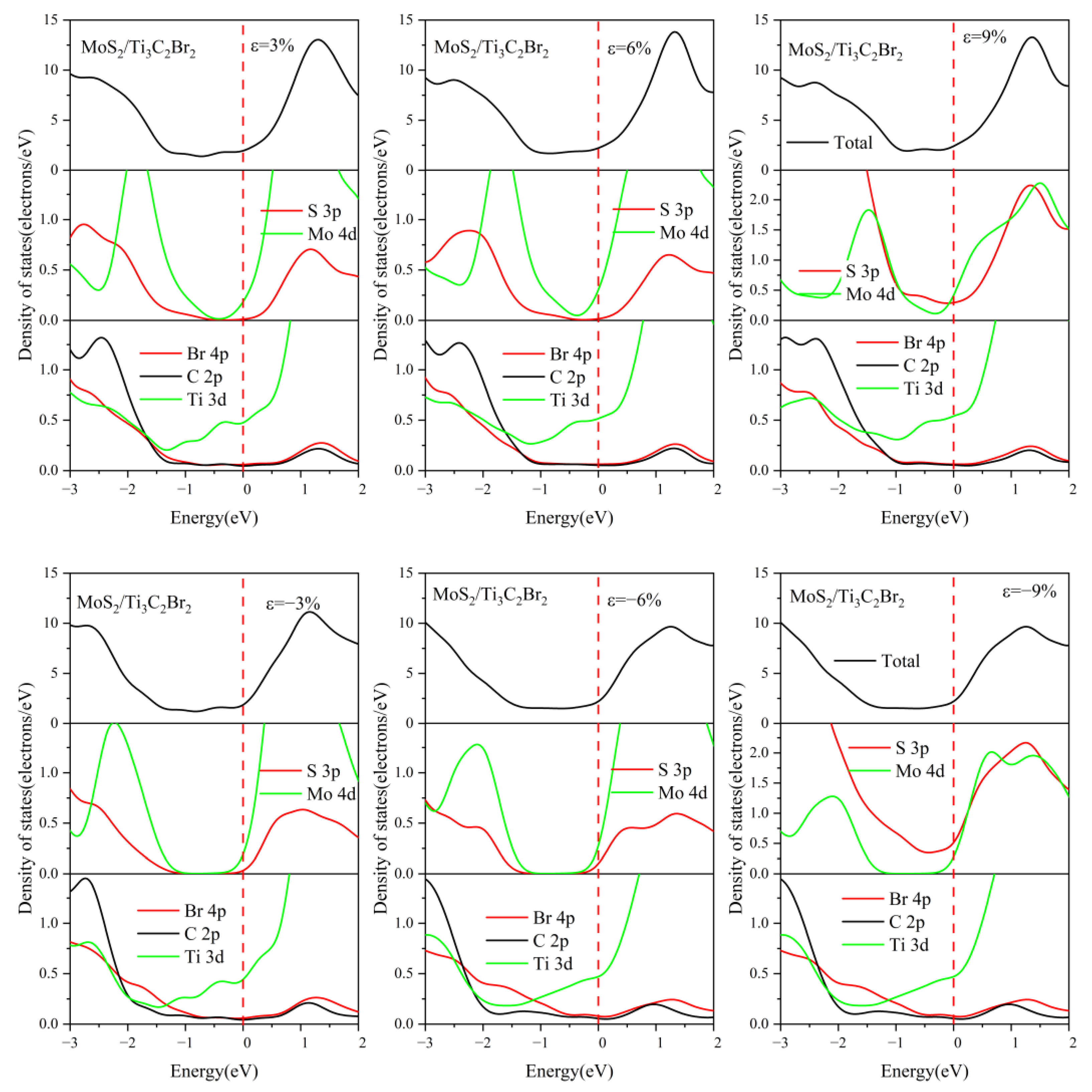

_{2}heterostructures, we calculated their energy band structures and density of states under different strains. Figure 9a presents the energy band structures of MoS

_{2}/Ti

_{3}C

_{2}heterostructures under compressive strain. As the compressive strain increased, the valence band I moved down and away from the Fermi energy level, and it became flatter and flatter. The energy bands II and III at the Γ point were split, and the energy band II became more dispersed. Moreover, the energy bands III and IV were combined, and then they moved away from the Fermi energy level with increasing compressive strain. Figure 9b shows the energy band structures of MoS

_{2}/Ti

_{3}C

_{2}heterostructures under tensile strain. It can be seen that the increase in the tensile strain caused the valence bands I, II, and III to move away from the Fermi energy level and become flatter. Moreover, the conduction bands IV and V moved toward the Fermi energy level, and they showed more hybridization, resulting in an increase in the conductivity of the MoS

_{2}/Ti

_{3}C

_{2}heterostructure [55].

_{2}/Ti

_{3}C

_{2}heterostructure under different biaxial strains. It was obvious that the Fermi energy level was dominated by Mo 4d and Ti 3d orbitals. Moreover, the contribution of the Mo 4d orbital to the conduction band lessened with increasing compressive strain, while the contribution of Mo 4d and Ti 3d orbitals to the valence band increased with the increasing tensile strain. It can also be seen that the peak value of Ti atoms in the range of the conduction band increased with increasing tensile strain, while the peak value of Mo atoms remained almost unchanged with increasing tensile strain. The peak value of Mo atoms in the range of the valence band increased with the tensile strain and moved toward the Fermi energy level. Based on our calculated DOS of the MoS

_{2}/Ti

_{3}C

_{2}heterostructure, the interlayer interaction between the monolayer MoS

_{2}and Ti

_{3}C

_{2}presented different behavior under tensile and compressive strain, and the interaction strength was strengthened under tensile strain, but weakened under compressive strain.

_{2}/Ti

_{3}C

_{2}heterostructure under different compressive strains. With increasing compressive strain, the conduction bands III and IV gradually merged at the Γ point and moved away from the Fermi level. The valence band I become flatter, while the valence band II crossing the Fermi level became more tortuous, indicating a decrease in conductivity. Figure 11b displays the energy band structures of the MoSe

_{2}/Ti

_{3}C

_{2}heterostructure under different tensile strains. As the tensile strain increased, the energy bands II and III were split at the Γ point, and the energy bands IV and V showed more hybridization. Moreover, the energy bands crossing the Fermi energy level became more dispersed under tensile strain, inducing an increase in conductivity. We also noted that the pseudogap of the MoSe

_{2}/Ti

_{3}C

_{2}heterostructure disappeared with increasing compressive or tensile strain. Therefore, the applied strain can effectively tune the electronic properties of the TMDs/Ti

_{3}C

_{2}heterostructures.

_{2}/Ti

_{3}C

_{2}heterostructure with different biaxial strains. The peak value of Mo 4d orbitals at −1.8 eV gradually decreased under compressive strain, while the peak value of Ti 3d orbitals at 0.9 eV increased with increasing compressive strain. Under tensile strain, the peak value of both the Ti 3d orbital at 0.9 eV and the Mo 4d orbital at 1.2 eV increased with increasing tensile strain. Moreover, the peak value of Ti 3d orbitals moved away from the Fermi level, while in contrast, the peak value of the Mo 4d orbitals moved toward the Fermi energy level. It can be inferred from the variation of the DOS of MoSe

_{2}/Ti

_{3}C

_{2}heterostructure with the strain that tensile strain increases the interlayer interaction, while compressive strain weakens the interlayer interaction. This result was consistent with the MoS

_{2}/Ti

_{3}C

_{2}heterostructure.

_{2}/Ti

_{3}C

_{2}X

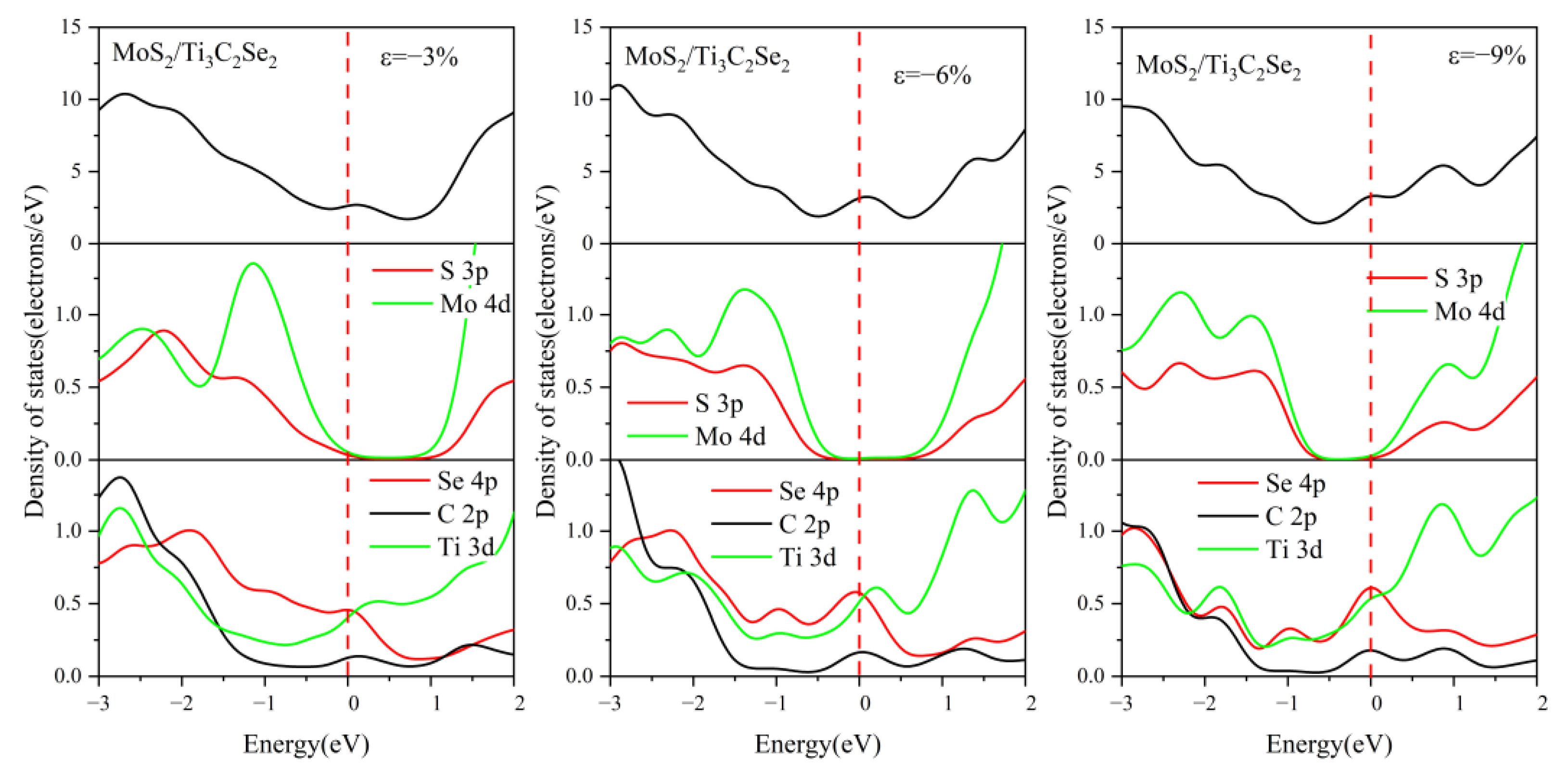

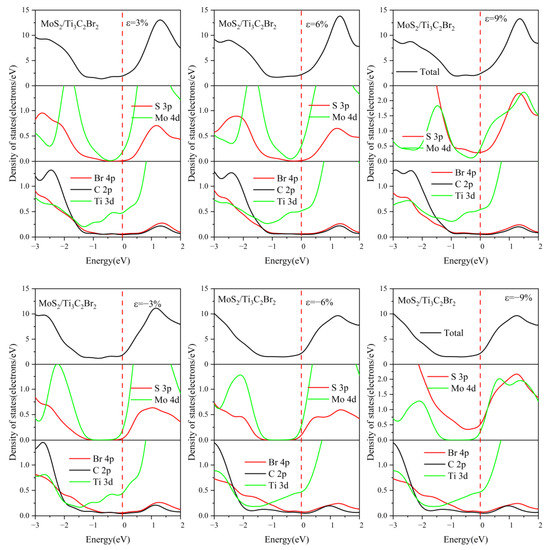

_{2}under different biaxial strains, as shown in Figure 13, Figure 14, Figures S5 and S6. Compared with MoS

_{2}/Ti

_{3}C

_{2}Se

_{2}and MoS

_{2}/Ti

_{3}C

_{2}Br

_{2}, the external strain had a slight effect on the DOS of MoS

_{2}/Ti

_{3}C

_{2}Cl

_{2}and MoS

_{2}/Ti

_{3}C

_{2}S

_{2}, see Figures S5 and S6. The monolayer MoS

_{2}remained in its band gap when a compressive strain was applied, while its band gap gradually disappeared with increasing tensile strain. This indicated that the tensile strain can improve the interaction strength between the monolayer MoS

_{2}and Ti

_{3}C

_{2}Cl

_{2}(or Ti

_{3}C

_{2}S

_{2}). For MoS

_{2}/Ti

_{3}C

_{2}Se

_{2}and MoS

_{2}/Ti

_{3}C

_{2}Br

_{2}, the tensile strain induced the Mo 4d orbital to cross the Fermi level, indicating that the semiconductor nature of the monolayer MoS

_{2}was completely destroyed. This means more electrons were transferred from the monolayer Ti

_{3}C

_{2}Br

_{2}(or Ti

_{3}C

_{2}Se

_{2}) to MoS

_{2}. We also noted that the S 3p orbital in MoS

_{2}/Ti

_{3}C

_{2}Br

_{2}obviously crossed the Fermi level when the compressive strain reached 9%. In contrast, compressive strain cannot result in the S 3p and Mo 4d orbitals crossing the Fermi level in MoS

_{2}/Ti

_{3}C

_{2}Se

_{2}, suggesting that MoS

_{2}can preserve its band gap under compressive strain, while the position of its conduction band minimum (CBM) and valence band maximum (VBM) will be obviously shifted.

_{2}/Ti

_{3}C

_{2}X

_{2}under different biaxial strains was also investigated, see Figure 15, Figure 16, Figures S7 and S8. For these four kinds of MoSe

_{2}/Ti

_{3}C

_{2}X

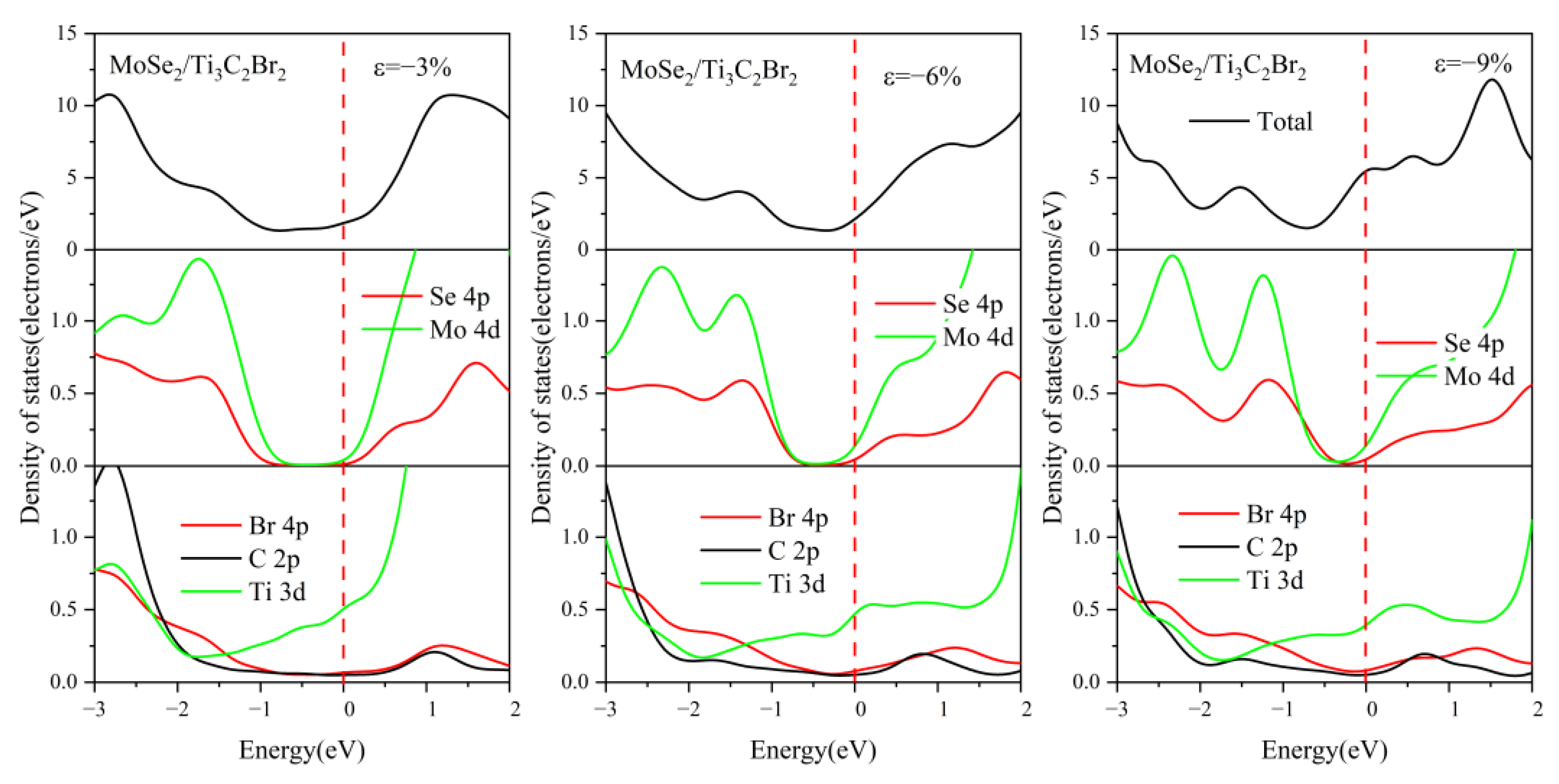

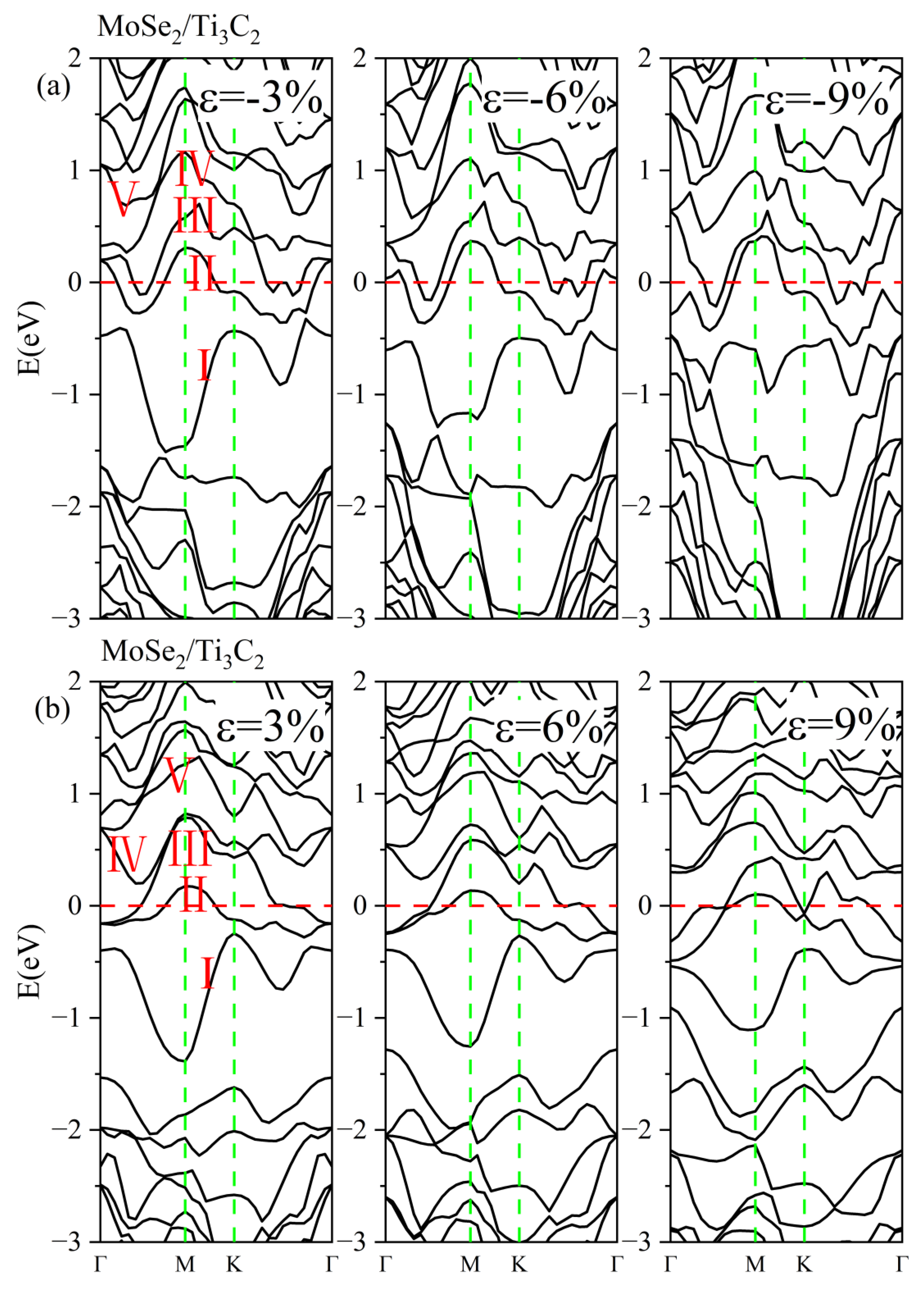

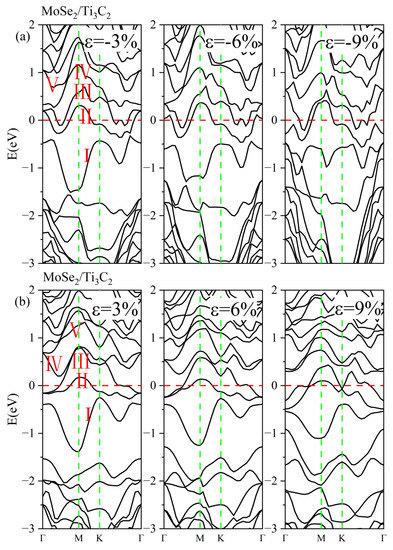

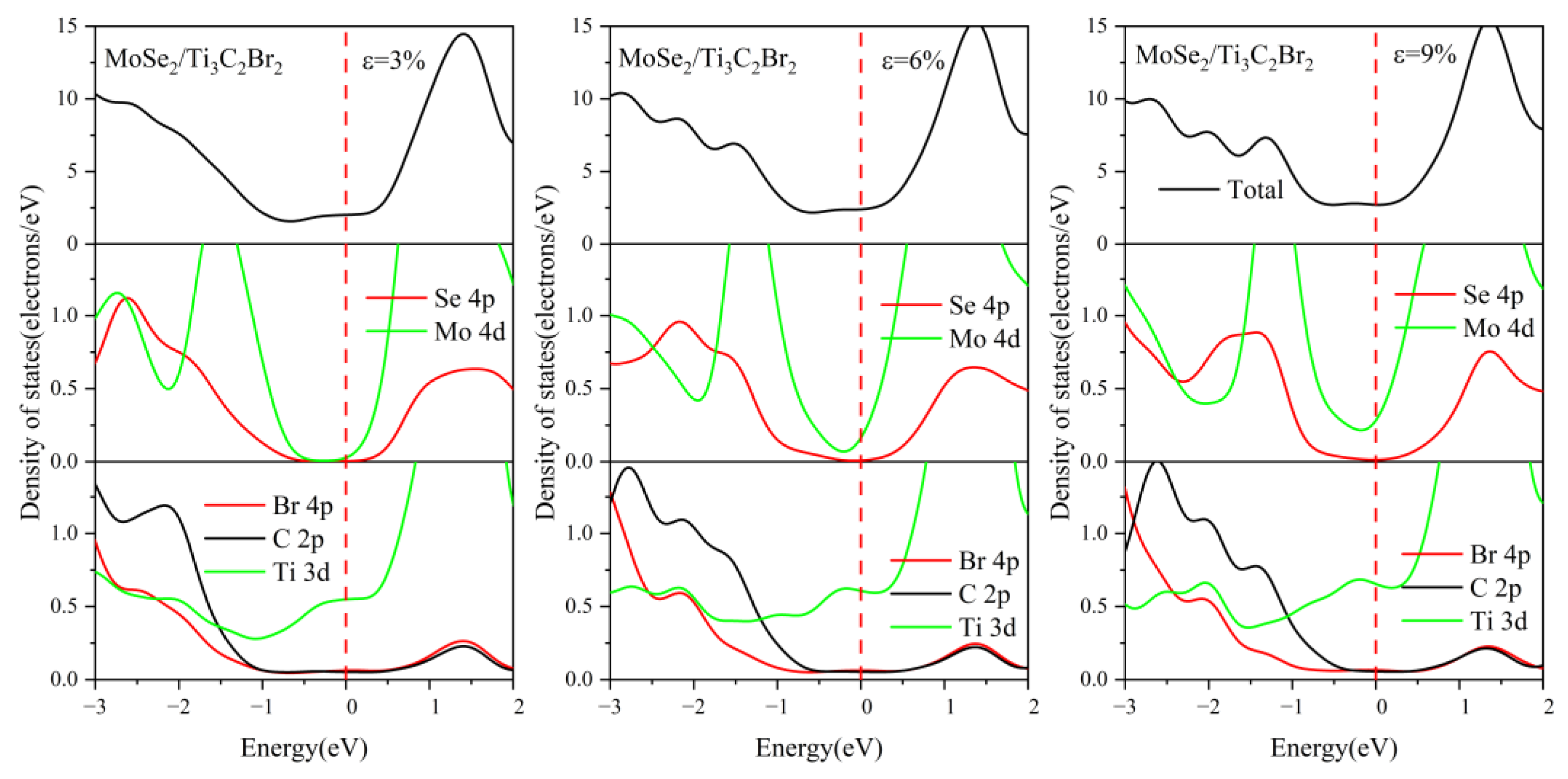

_{2}heterostructures, the band gap of monolayer MoSe

_{2}disappeared with increasing compressive or tensile strain, and the Mo 4d orbitals and Se 4p orbitals passed through the Fermi energy levels. Therefore, the MoSe

_{2}/Ti

_{3}C

_{2}X

_{2}heterostructure is more sensitive to external strain than the MoS

_{2}/Ti

_{3}C

_{2}X

_{2}heterostructure. Moreover, these MoSe

_{2}/Ti

_{3}C

_{2}X

_{2}heterostructures had a similar response to external strain. When there was no strain, the single-layer MoSe

_{2}maintained its original semiconductor properties (see Figure 6), and the Fermi energy level was at the VBM of the MoSe

_{2}. When the tensile or compressive strain was above 6%, MoSe

_{2}was transformed into a conductor. The tensile and compressive strain can obviously increase the charge contribution of Mo 4d orbitals and Se 4p orbitals at the Fermi energy level. Moreover, under compressive strain, the PDOS peak value of these MoSe

_{2}/Ti

_{3}C

_{2}X

_{2}heterostructures becomes sharper, indicating that the electron localization is strong.

#### 3.4. Effect of Electric Field on the Electronic Properties of the TMDs/Ti_{3}C_{2}X_{2} Heterostructures

_{3}C

_{2}X

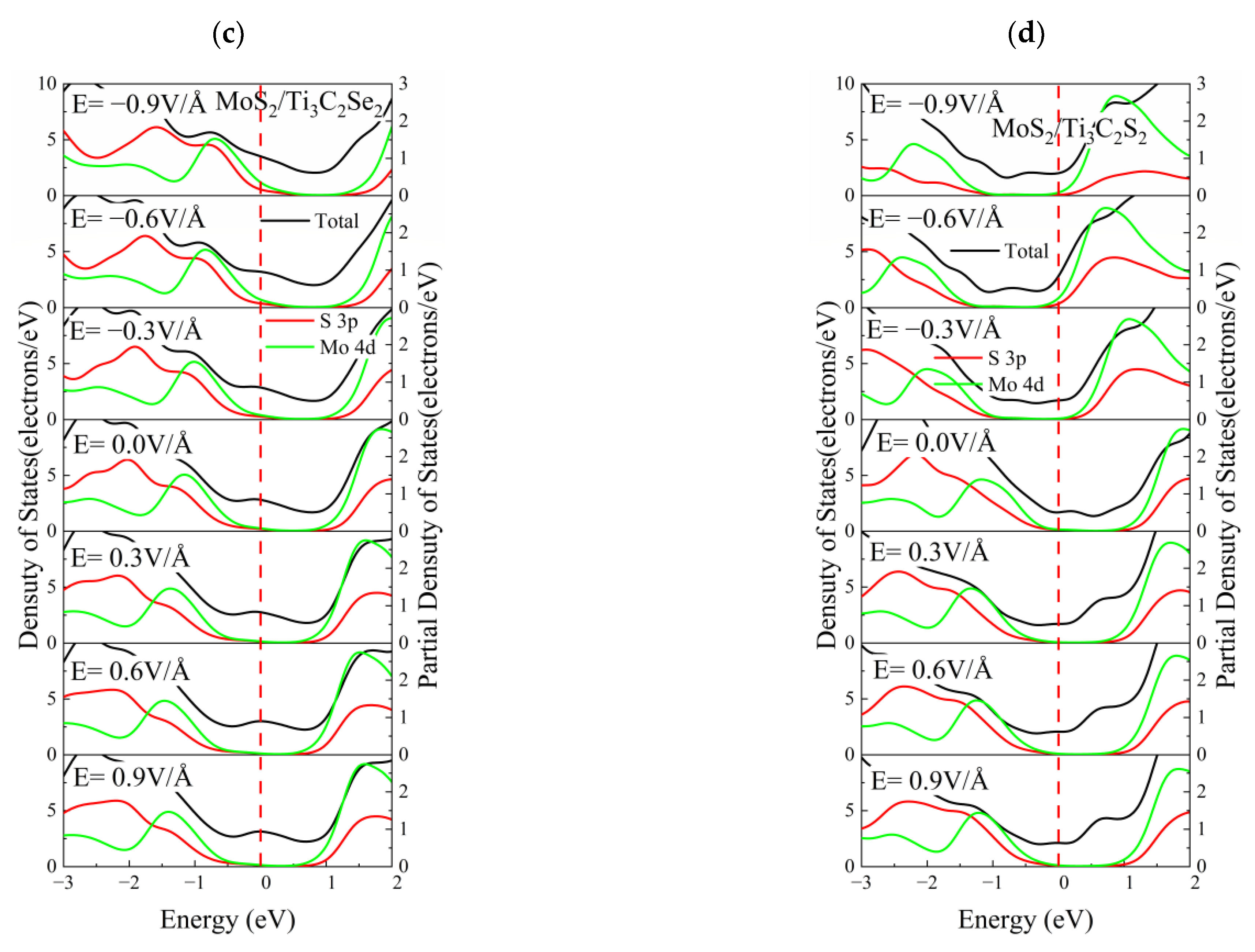

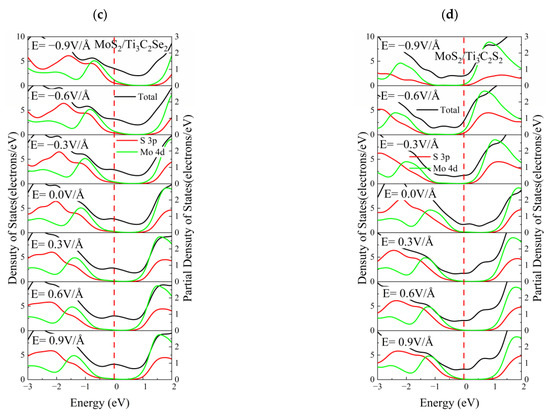

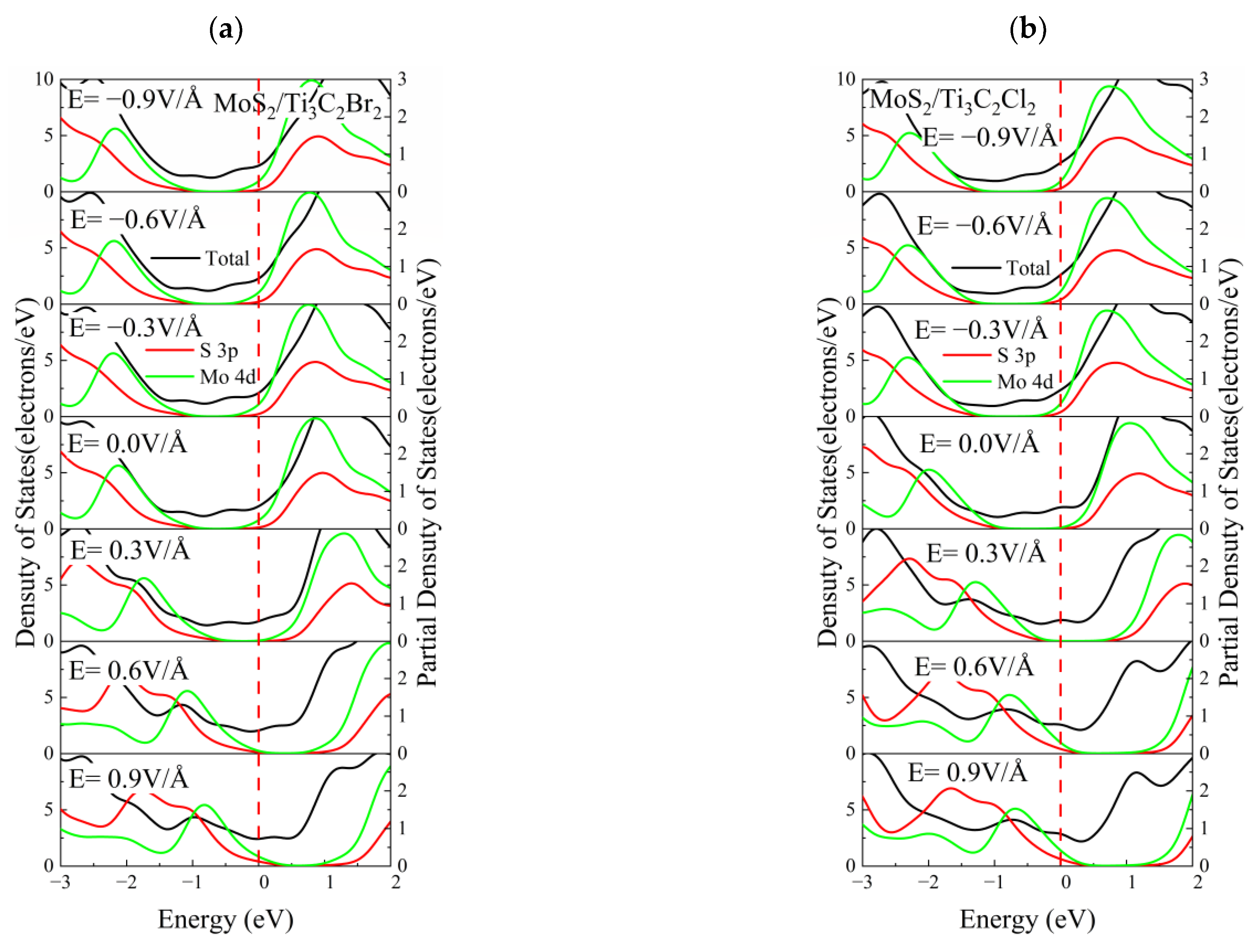

_{2}heterostructures. To determine the effect of different directions of the applied electric field on the electronic properties of these heterostructures, we defined that the direction of the TMDs pointing to Ti

_{3}C

_{2}X

_{2}was the positive direction of the applied vertical electric field, and the reverse direction was negative. The gradient from −0.9 V/Å to +0.9 V/Å for the applied electric field was taken in steps of 0.3 V/Å.

_{2}/Ti

_{3}C

_{2}X

_{2}and PDOS of MoS

_{2}in MoS

_{2}/Ti

_{3}C

_{2}X

_{2}(X = S, Se, Cl, Br) under different electric fields. The monolayer MoS

_{2}maintained its band gap under the positive and negative electric fields. The position of the valence band maximum (VBM) and conduction band minimum (CBM) of MoS

_{2}in MoS

_{2}/Ti

_{3}C

_{2}Br

_{2}and MoS

_{2}/Ti

_{3}C

_{2}Cl

_{2}remained almost unchanged under the negative electric field. In contrast, the VBM and CBM of MoS

_{2}in MoS

_{2}/Ti

_{3}C

_{2}Br

_{2}and MoS

_{2}/Ti

_{3}C

_{2}Cl

_{2}underwent a significant shift under the positive electric field, and the peak of the Mo 4d orbital moved toward a higher energy level, as shown in Figure 17a,b. Compared with MoS

_{2}/Ti

_{3}C

_{2}Br

_{2}and MoS

_{2}/Ti

_{3}C

_{2}Cl

_{2}, the effect of the electric field on the VBM and CBM of MoS

_{2}in MoS

_{2}/Ti

_{3}C

_{2}Se

_{2}and MoS

_{2}/Ti

_{3}C

_{2}S

_{2}presented a completely reverse case. The position of VBM and CBM of MoS

_{2}in MoS

_{2}/Ti

_{3}C

_{2}Se

_{2}and MoS

_{2}/Ti

_{3}C

_{2}S

_{2}remained almost unchanged under the positive electric field, while obviously moving under the negative electric field. Moreover, the peak position of the Mo 4d orbital remained almost constant, see Figure 17c,d. The DOS values of MoSe

_{2}in MoSe

_{2}/Ti

_{3}C

_{2}X

_{2}(X = S, Se, Cl, Br) under different electric fields were investigated, and the results were very similar to the MoS

_{2}/Ti

_{3}C

_{2}X

_{2}, see Figure S4. Compared with MoS

_{2}/Ti

_{3}C

_{2}Br

_{2}and MoS

_{2}/Ti

_{3}C

_{2}Se

_{2}, the total DOS of MoS

_{2}/Ti

_{3}C

_{2}S

_{2}and MoS

_{2}/Ti

_{3}C

_{2}Cl

_{2}obviously moved near the Fermi Level, suggesting the shift of VBE and CBE of MoS

_{2}. Moreover, under the condition of a positive electric field, the total DOS of MoS

_{2}/Ti

_{3}C

_{2}Cl

_{2}presented a sharp peak around 1 eV.

_{3}C

_{2}X

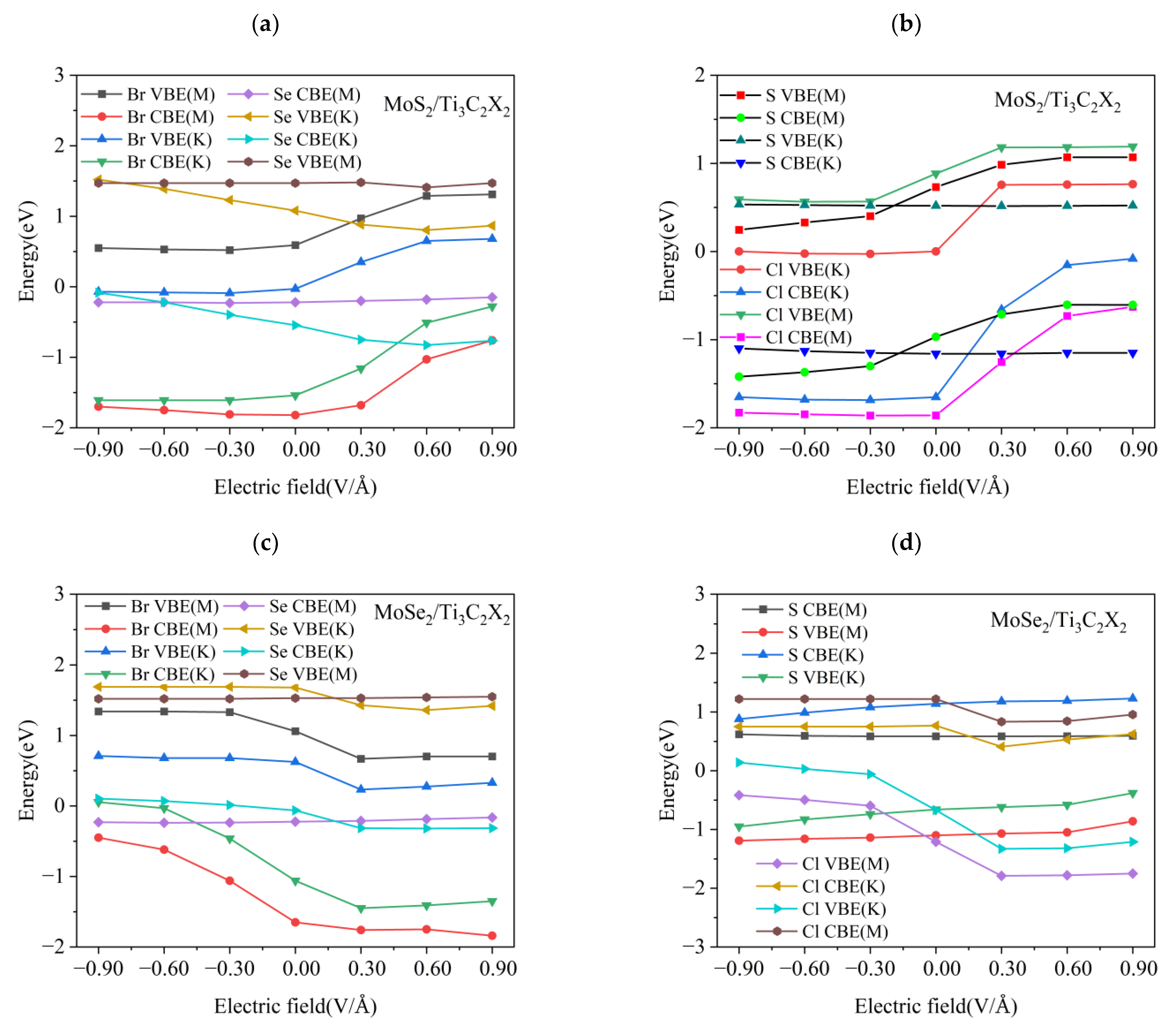

_{2}(X = S, Se, Cl, Br) heterostructures near the Fermi energy level in the electric field range from −0.9 V/Å to 0.9 V/Å, as shown in Figure 18. Figure 18a gives the variation patterns of the energy band edges at the M and K points near the Fermi energy level for MoS

_{2}/Ti

_{3}C

_{2}X

_{2}(X = Se, Br) heterostructures under different electric fields. For MoS

_{2}/Ti

_{3}C

_{2}Br

_{2}, the conduction band edge (CBE) and valence band edge (VBE) at both the M the K points moved towards a higher energy level with increasing electric field strength in the positive direction, while they were almost pinned under the negative electric field. In contrast, both the CBE and the VBE of MoS

_{2}/Ti

_{3}C

_{2}Se

_{2}at the K point moved towards a higher energy level with increasing negative electric field strength, while the CBE at the K point under the positive electric field moved towards a lower energy level. Under the positive electric field, both the CBE and VBE of MoS

_{2}/Ti

_{3}C

_{2}Se

_{2}at the M point remained unchanged. For MoS

_{2}/Ti

_{3}C

_{2}X

_{2}(X = S, Cl), see Figure 18b, the VBE and CBE of MoS

_{2}/Ti

_{3}C

_{2}Cl

_{2}at the M point and K point near the Fermi level were similar to those of the MoS

_{2}/Ti

_{3}C

_{2}Br

_{2}heterostructure. The energy level of both the CBE and VBE of MoS

_{2}/Ti

_{3}C

_{2}S

_{2}at the M point increased linearly with increasing positive electric field strength, while it decreased slightly with the negative electric field. It is worth noting that the CBE and VBE of MoS

_{2}/Ti

_{3}C

_{2}S

_{2}at the K point were almost pinned under the positive and negative electric fields. For MoSe

_{2}/Ti

_{3}C

_{2}Br

_{2}, the energy level of the CBE and VBE at the M and K points decreased linearly with an increasing positive electric field, while it increased with an increasing negative electric field, see Figure 18c. The energy band edge of MoSe

_{2}/Ti

_{3}C

_{2}Se

_{2}was almost independent of the positive and negative electric fields. From Figure 18d, we know that for MoSe

_{2}/Ti

_{3}C

_{2}S

_{2}the energy level of the CBE and VBE at the K point and M point were insensitive to the external electric field. For MoSe

_{2}/Ti

_{3}C

_{2}Cl

_{2}, the energy level of the CBE at the K point and M point showed a slight change under the condition of the positive electric field, while it could be pinned when the negative electric field was applied. The energy level of the VBE at the K point and M point remained unchanged when the electric field strength was increased to 0.3 V/Å. The energy band edges of TMDs/Ti

_{3}C

_{2}X

_{2}(X = S, Se, Cl, Br) heterostructures showed a significant change near the Fermi energy level under different directional electric fields, indicating that the combined functional group with the electric field can effectively tune the related properties of TMDs/Ti

_{3}C

_{2}X

_{2}(X = S, Se, Cl, Br) heterostructures.

## 4. Conclusions

_{3}C

_{2}heterostructures were systematically investigated based on the density functional theory method. The six possible configurations of MoS

_{2}/Ti

_{3}C

_{2}and MoSe

_{2}/Ti

_{3}C

_{2}heterostructure stacks were first designed, and then geometrically optimized. ZM_SA were identified as the most energetically stable structural types of MoS

_{2}/Ti

_{3}C

_{2}heterostructures with a binding energy of −1.79 meV/Å

^{2}. The most energetically stable structure type of MoSe

_{2}/Ti

_{3}C

_{2}heterostructures was SA_ZM, its binding energy of −1.03 meV/Å

^{2}. The surface functional groups (S, Se, Cl, Br) of the monolayer Ti

_{3}C

_{2}resulted in the lattice expansion of TMDs/Ti

_{3}C

_{2}X

_{2}heterostructures, and the MoSe

_{2}/Ti

_{3}C

_{2}Br

_{2}heterostructure possessed the maximum lattice parameters (3.262 Å). The conductivity of MoS

_{2}/Ti

_{3}C

_{2}and MoSe

_{2}/Ti

_{3}C

_{2}can be enhanced by increasing the biaxial tensile strain. When the surface of the monolayer Ti

_{3}C

_{2}was occupied by S, Se, Cl, or Br, the coupling strength between the monolayer TMDs and Ti

_{3}C

_{2}was obviously weakened, while the biaxial strain effectively improved their interaction strength. The different surface functional groups induced a different response of the electronic properties of TMDs/Ti

_{3}C

_{2}X

_{2}heterostructures to the external electric field. The energy bands around the Fermi energy level of TMDs/Ti

_{3}C

_{2}X

_{2}heterostructures obviously changed under the combined effect of surface functional groups with an electric field. These results demonstrated that TMDs/Ti

_{3}C

_{2}X

_{2}(X = S, Se, Cl, Br) heterostructures possess rich electronic properties. Moreover, both MoS

_{2}/Ti

_{3}C

_{2}X

_{2}(X = Se, Br) and MoSe

_{2}/Ti

_{3}C

_{2}X

_{2}(X = S, Se, Cl, Br) are rather sensitive to an external strain field, while only TMDs/Ti

_{3}C

_{2}X

_{2}(X = Cl, Br) strongly depends on an external positive electric field. We hope that these studies can provide a theoretical foundation for the application of TMDs/MXenes heterostructures in the field of high-performance nanoelectronic devices.

## Supplementary Materials

_{2}/Ti

_{3}C

_{2}heterostructures for different stackings; Figure S2: Band structures and densities of states of the MoS

_{2}; Figure S3: Band structures and densities of states of the MoSe

_{2}; Figure S4: The DOS of MoSe

_{2}/Ti

_{3}C

_{2}X

_{2}and PDOS of MoSe

_{2}in MoSe

_{2}/Ti

_{3}C

_{2}X

_{2}heterostructures under different electric fields. (a) X-Br, (b) X-Cl, (c) X-Se and (d) X-S; Figure S5: Density of states of the MoS

_{2}/Ti

_{3}C

_{2}Cl

_{2}heterostructure with different biaxial strains; Figure S6: Density of states of the MoS

_{2}/Ti

_{3}C

_{2}S

_{2}heterostructure with different biaxial strains; Figure S7: Density of states of the MoSe

_{2}/Ti

_{3}C

_{2}Cl

_{2}heterostructure with different biaxial strains; Figure S8: Density of states of the MoSe

_{2}/Ti

_{3}C

_{2}S

_{2}heterostructure with different biaxial strains; Table S1: Optimized structural parameters for the TMDs/Ti

_{3}C

_{2}X

_{2}(X = S, Se, Br, Cl) heterostructure; Table S2: Mulliken charge (electron), bond length (Å) and bond populations of MoS

_{2}/Ti

_{3}C

_{2}; Table S3: Mulliken charge (electron), bond length (Å) and bond populations of MoSe

_{2}/Ti

_{3}C

_{2}.

## Author Contributions

## Funding

## Data Availability Statement

## Conflicts of Interest

## References

- Chen, H.L.; Han, J.N.; Deng, X.Q.; Fan, Z.Q.; Sun, L.; Zhang, Z.H. Vertical Strain and Twist Induced Tunability on Electronic and Optical Properties of Janus HfSSe/SnC Van der Waals Heterostructure. Appl. Surf. Sci.
**2022**, 598, 153756. [Google Scholar] [CrossRef] - Wang, J.L.; Zhao, X.W.; Hu, G.C.; Ren, J.F.; Yuan, X.B. Manipulable Electronic and Optical Properties of Two-Dimensional MoSTe/MoGe
_{2}N_{4}van der Waals Heterostructures. Nanomaterials**2022**, 11, 3338. [Google Scholar] [CrossRef] [PubMed] - Zhang, W.S.; Chen, J.; Wang, X.D.; Huang, H.; Yao, M. First-Principles Study of Transition Metal Ti-Based MXenes (Ti
_{2}MC_{2}T_{x}and M_{2}TiC_{2}T_{x}) as Anode Materials for Sodium-Ion Batteries. ACS Appl. Nano Mater.**2022**, 5, 2358–2366. [Google Scholar] [CrossRef] - Huang, H.X.; Zha, J.J.; Li, S.S.; Tan, C.L. Two-dimensional alloyed transition metal dichalcogenide nanosheets: Synthesis and applications. Chin. Chem. Lett.
**2022**, 33, 163–176. [Google Scholar] [CrossRef] - Wang, Z.; Wang, P.; Wang, F.; Ye, J.F.; He, T.; Wu, F.; Peng, M.; Wu, P.; Chen, Y.; Zhong, F.; et al. A Noble Metal Dichalcogenide for High-Performance Field-Effect Transistors and Broadband Photodetectors. Adv. Funct. Mater.
**2020**, 30, 1907945. [Google Scholar] [CrossRef] - Na, J.; Park, C.; Lee, C.H.; Choi, W.R.; Choi, S.; Lee, J.U.; Yang, W.; Cheong, H.; Campbell, E.E.B.; Jhang, S.H. Indirect Band Gap in Scrolled MoS
_{2}Monolayers. Nanomaterials**2022**, 12, 3353. [Google Scholar] [CrossRef] - Cai, Z.Y.; Liu, B.L.; Zou, X.L.; Cheng, H.-M. Chemical vapor deposition growth and applications of two-dimensional materials and their heterostructures. Chem. Rev.
**2018**, 118, 6091–6133. [Google Scholar] [CrossRef] - Tan, T.; Jiang, X.T.; Wang, C.; Yao, B.C.; Zhang, H. 2D material optoelectronics for information functional device applications: Status and challenges. Adv. Sci.
**2020**, 7, 2000058. [Google Scholar] [CrossRef] - Kuzel, P.; Nemec, H. Terahertz spectroscopy of nanomaterials: A close look at charge-carrier transport. Adv. Opti. Mater.
**2020**, 8, 1900623. [Google Scholar] [CrossRef] - Bafekry, A.; Stampfl, C.; Ghergherehchi, M. Strain, electric-field and functionalization induced widely tunable electronic properties in MoS
_{2}/BC_{3}, /C_{3}N and /C_{3}N_{4}van der Waals heterostructures. Nanotechnology**2020**, 31, 295202. [Google Scholar] [CrossRef] - Biroju, R.K.; Das, D.; Sharma, R.; Pal, S.; Mawlong, L.P.L.; Bhorkar, K.; Giri, P.K.; Singh, A.K.; Narayanan, T.N. Hydrogen evolution reaction activity of graphene-MoS
_{2}van der Waals heterostructures. ACS Energy. Lett.**2017**, 2, 1355–1361. [Google Scholar] [CrossRef] - Li, J.T.; Zhou, X.L. First principles calculations of electrical and optical properties of Cu
_{3}N/MoS_{2}heterostructure with tunable bandgaps. Appl. Phys. A**2021**, 127, 693. [Google Scholar] [CrossRef] - Yelgel, C. First-principles modeling of GaN/MoSe
_{2}van der Waals heterobilayer. Turk. J. Phys.**2017**, 41, 463–468. [Google Scholar] [CrossRef] - Pogorielov, M.; Smyrnova, K.; Kyrylenko, S.; Gogotsi, O.; Zahorodna, V.; Pogrebnjak, A. MXenes-A New Class of Two-Dimensional Materials: Structure, Properties and Potential Applications. Nanomaterials
**2022**, 11, 3412. [Google Scholar] [CrossRef] - Fleischmann, S.; Mitchell, J.B.; Wang, R.; Zhan, C.; Jiang, D.-E.; Presser, V.; Augustyn, V. Pseudocapacitance: From fundamental understanding to high power energy storage materials. Chem. Rev.
**2020**, 120, 6738–6782. [Google Scholar] [CrossRef] - Hasan, M.M.; Hossain, M.M.; Chowdhury, H.K. Two-dimensional MXene-based flexible nanostructures for functional nanodevices: A review. J. Mater. Chem A
**2021**, 9, 3231–3269. [Google Scholar] [CrossRef] - Jiang, Q.; Lei, Y.J.; Liang, H.F.; Xi, K.; Xia, C.; Alshareef, H.N. Alshareef, Review of MXene electrochemical microsupercapacitors. Energy Storage Mater.
**2020**, 27, 78–95. [Google Scholar] [CrossRef] - Xiong, D.B.; Li, X.F.; Bai, Z.M.; Lu, S.G. Recent advances in layered Ti
_{3}C_{2}T_{x}MXene for electrochemical energy storage. Small**2018**, 14, 1703419. [Google Scholar] [CrossRef] [Green Version] - Li, L.; Cao, H.H.; Liang, Z.S.; Cheng, Y.F.; Yin, T.T.; Liu, Z.Y.; Yan, S.W.; Jia, S.F.; Li, L.Y.; Wang, J.B.; et al. First-principles study of Ti-deficient Ti
_{3}C_{2}MXene nanosheets as NH_{3}gas sensors. ACS Appl. Nano Mater.**2022**, 5, 2470–2475. [Google Scholar] [CrossRef] - Li, D.Q.; Chen, X.F.; Xiang, P.; Du, H.Y.; Xiao, B.B. Chalcogenated-Ti
_{3}C_{2}X_{2}MXene (X = O, S, Se and Te) as a high-performance anode material for Li-ion batteries. Appl. Surf. Sci.**2020**, 501, 144221. [Google Scholar] [CrossRef] - Mathis, T.S.; Maleski, K.; Goad, A.; Sarycheva, A.; Anayee, M.; Foucher, A.C.; Hantanasirisakul, K.; Shuck, C.E.; Stach, E.A.; Gogotsi, Y. Modified MAX phase synthesis for environmentally stable and highly conductive Ti
_{3}C_{2}MXene. ACS Nano**2021**, 15, 6420–6429. [Google Scholar] [CrossRef] [PubMed] - Li, C.L.; Guo, J.; Wang, C.Y.; Ma, D.C.; Wang, B.L. Design of MXene contacts for high-performance WS2 transistors. Appl. Surf. Sci.
**2020**, 527, 146701. [Google Scholar] [CrossRef] - Liang, P.H.; Xu, T.F.; Zhu, K.J.; Rao, Y.; Zheng, H.J.; Wu, M.; Chen, J.T.; Liu, J.S.; Yan, K.; Wang, J. Heterogeneous interface-boosted zinc storage of H
_{2}V_{3}O_{8}nanowire/Ti_{3}C_{2}T_{x}MXene composite toward high-rate and long cycle lifespan aqueous zinc-ion batteries. Energy Storage Mater.**2022**, 50, 63–74. [Google Scholar] [CrossRef] - Ariga, K. Don’t forget Langmuir-Blodgett films 2020: Interfacial nanoarchitectonics with molecules, materials, and living objects. Langmuir
**2020**, 36, 7158–7180. [Google Scholar] [CrossRef] [PubMed] - Nahirniak, S.; Ray, A.; Saruhan, B. Challenges and Future Prospects of the MXene-Based Materials for Energy Storage Applications. Batteries
**2023**, 9, 126. [Google Scholar] [CrossRef] - Yu, L.; Hu, L.F.; Anasori, B.; Liu, Y.-T.; Zhu, Q.Z.; Zhang, P.; Gogotsi, Y.; Xu, B. MXene-Bonded activated carbon as a flexible electrode for high-performance supercapacitors. ACS Energy Lett.
**2018**, 3, 1597–1603. [Google Scholar] [CrossRef] - Shen, C.J.; Wang, L.B.; Zhou, A.G.; Wang, B.; Wang, X.L.; Lian, W.W.; Hu, Q.K.; Qin, G.; Liu, X.Q. Synthesis and Electrochemical Properties of Two-Dimensional RGO/Ti
_{3}C_{2}T_{x}Nanocomposites. Nanomaterials**2018**, 8, 80. [Google Scholar] [CrossRef] [Green Version] - Wu, W.L.; Zhao, C.H.; Niu, D.J.; Zhu, J.F.; Wei, D.; Wang, C.W.; Wang, L.; Yang, L.Q. Ultrathin N-doped Ti
_{3}C_{2}-MXene decorated with NiCo_{2}S_{4}nanosheets as advanced electrodes for supercapacitors. Appl. Surf. Sci.**2021**, 539, 148272. [Google Scholar] [CrossRef] - Debow, S.; Zhang, T.; Liu, X.S.; Song, F.Z.; Qian, Y.Q.; Han, J.; Maleski, K.; Zander, Z.B.; Creasy, W.R.; Kuhn, D.L. Charge dynamics in TiO
_{2}/MXene composites. J. Phys. Chem. C**2021**, 125, 10473–10482. [Google Scholar] [CrossRef] - Jing, H.R.; Ling, F.L.; Liu, X.Q.; Chen, Y.K.; Zeng, W.; Zhang, Y.X.; Fang, L.; Zhou, M. Strain-engineered robust and Schottky-barrier-free contact in 2D metal-semiconductor heterostructure. Electron. Struct.
**2019**, 1, 015010. [Google Scholar] [CrossRef] - Guan, Q.Y.; Yan, H.J.; Cai, Y.Q. Flatten the Li-ion Activation in Perfectly Lattice-Matched MXene and 1T-MoS
_{2}Heterostructures via Chemical Functionalization. Adv. Mater. Interfaces**2022**, 9, 2101838. [Google Scholar] [CrossRef] - Li, C.L.; Wu, G.X.; Wang, C.Y.; Fu, Y.; Wang, B.L. Tuning electronic and transport properties of MoS
_{2}/Ti_{2}C heterostructure by external strain and electric field. Comput. Mater. Sci.**2018**, 153, 417–423. [Google Scholar] [CrossRef] - Xu, E.Z.; Zhang, Y.; Wang, H.; Zhu, Z.F.; Quan, J.J.; Chang, Y.J.; Li, P.C.; Yu, D.B.; Jiang, Y. Ultrafast kinetics net electrode assembled via MoSe
_{2}/MXene heterostructure for high-performance sodium-ion batteries. Chem. Eng. J.**2020**, 385, 123839. [Google Scholar] [CrossRef] - Ling, F.L.; Kang, W.; Jing, H.R.; Zeng, W.; Chen, Y.K.; Liu, X.Q.; Zhang, Y.X.; Zhou, M. Enhancing hydrogen evolution on the basal plane of transition metal dichacolgenide van der Waals heterostructures. NPJ Comput. Mater.
**2019**, 5, 20. [Google Scholar] [CrossRef] [Green Version] - Kamysbayev, V.; Filatov, A.S.; Hu, H.C.; Rui, X.; Lagunas, F.; Wang, D.; Klie, R.F.; Talapin, D.V. Covalent surface modifications and superconductivity of two-dimensional metal carbide MXenes. Science
**2020**, 369, 979–983. [Google Scholar] [CrossRef] - Clark, S.J.; Segall, M.D.; Pickard, C.J.; Hasnip, P.J.; Probert, M.I.J.; Refson, K.; Payne, M.C. First principles methods using CASTEP, Z. Krist-Cryst. Materials
**2005**, 220, 567–570. [Google Scholar] - Perdew, J.P.; Burke, K.; Ernzerhof, M. Generalized gradient approximation made simple. Phys. Rev. Lett.
**1996**, 77, 3865–3868. [Google Scholar] [CrossRef] [Green Version] - McNellis, E.R.; Meyer, J.; Reuter, K. Azobenzene at coinage metal surfaces: Role of dispersive van der Waals interactions. Phys. Rev. B
**2009**, 80, 205414. [Google Scholar] [CrossRef] [Green Version] - Ding, Y.C.; Xiao, B.; Li, J.L.; Deng, Q.; Xu, Y.H.; Wang, H.F.; Rao, D.W. Improved transport properties and novel Li diffusion dynamics in van der waals C
_{2}N/graphene heterostructure as anode materials for lithium-ion batteries: A first-principles investigation. J. Phys. Chem. C**2019**, 123, 3353–3367. [Google Scholar] [CrossRef] - Ibragimova, R.; Lv, Z.P.; Komsa, H.P. First principles study of the stability of MXenes under an electron beam. Nanoscale Adv.
**2021**, 3, 1934–1941. [Google Scholar] [CrossRef] - Yu, Y.X. Can all nitrogen-doped defects improve the performance of graphene anode materials for lithium-ion batteries? Phys. Chem. Chem. Phys.
**2013**, 15, 16819–16827. [Google Scholar] [CrossRef] [PubMed] - Froyen, S. Brillouin-zone integration by Fourier quadrature: Special points for superlattice and supercell calculations. Phys. Rev. B
**1989**, 39, 3168–3172. [Google Scholar] [CrossRef] - Zeng, L.H.; Wu, D.; Jie, J.S.; Ren, X.Y.; Hu, X.; Lau, S.P.; Chai, Y.; Tsang, Y.H. Van der Waals epitaxial growth of mosaic-like 2D platinum ditelluride layers for room-temperature mid-infrared photodetection up to 10.6 µm. Adv. Mater.
**2020**, 32, 2004412. [Google Scholar] [CrossRef] [PubMed] - Choi, D.; Kang, J.; Park, J.; Han, B. First-principles study on thermodynamic stability of the hybrid interfacial structure of LiMn
_{2}O_{4}cathode and carbonate electrolyte in Li-ion batteries. Phys. Chem. Chem. Phys.**2018**, 20, 11592–11597. [Google Scholar] [CrossRef] [PubMed] - Bandeira, N.S.; da Costa, D.R.; Chaves, A.; Farias, G.A.; Filho, R.N.C. Gap opening in graphene nanoribbons by application of simple shear strain and in-plane electric field. J. Phys. Condens. Matter
**2020**, 33, 065503. [Google Scholar] [CrossRef] - Hu, T.; Wang, J.M.; Zhang, H.; Li, Z.J.; Hu, M.M.; Wang, X.H. Vibrational properties of Ti
_{3}C_{2}and Ti_{3}C_{2}T_{2}(T = O, F, OH) monosheets by first-principles calculations: A comparative study. Phys. Chem. Chem. Phys.**2015**, 17, 9997–10003. [Google Scholar] [CrossRef] - Lindroth, D.O.; Erhart, P. Thermal transport in van der Waals solids from first-principles calculations. Phys. Rev. B
**2016**, 94, 115205. [Google Scholar] [CrossRef] [Green Version] - Frechette, L.B.; Dellago, C.; Geissler, P.L. Consequences of lattice mismatch for phase equilibrium in heterostructured solids. Phys. Rev. Lett.
**2019**, 123, 135701. [Google Scholar] [CrossRef] [Green Version] - Zhang, Z.H.; Zhang, Y.; Xie, Z.F.; Wei, X.; Guo, T.T.; Fan, J.B.; Ni, L.; Tian, Y.; Liu, J.; Duan, L. Tunable electronic properties of an Sb/InSe van der Waals heterostructure by electric field effects. Phys. Chem. Chem. Phys.
**2019**, 10, 5627–5633. [Google Scholar] [CrossRef] - Hanbicki, A.T.; Chuang, H.J.; Rosenberger, M.R.; Hellberg, C.S.; Sivaram, S.V.; McCreary, K.M.; Mazin, I.I.; Jonker, B.T. Double indirect interlayer exciton in a MoSe
_{2}/WSe_{2}van der Waals heterostructure. ACS Nano**2018**, 5, 4719–4726. [Google Scholar] [CrossRef] [Green Version] - Li, N.; Fan, J. Computational insights into modulating the performance of MXene based electrode materials for rechargeable batteries. Nanotechnology
**2021**, 32, 252001. [Google Scholar] [CrossRef] [PubMed] - Robert, C.; Han, B.; Kapuscinski, P.; Delhomme, A.; Faugeras, C.; Amand, T.; Molas, M.R.; Marie, X. Measurement of the spin-forbidden dark excitons in MoS
_{2}and MoSe_{2}monolayers. Nat. Commun.**2020**, 11, 4037. [Google Scholar] [CrossRef] [PubMed] - Ahn, G.H.; Amani, M.; Rasool, H.; Lien, D.-H.; Mastandrea, J.P.; Iii, J.W.A.; Dubey, M.; Chrzan, D.C.; Minor, A.M.; Javey, A. Strain-engineered growth of two-dimensional materials. Nat. Commun.
**2017**, 8, 608. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Yang, S.X.; Chen, Y.J.; Jiang, C.B. Strain engineering of two-dimensional materials: Methods, properties, and applications. InfoMat
**2021**, 3, 397–420. [Google Scholar] [CrossRef] - Saha, S.; Samanta, P.; Murmu, N.C.; Kuila, T. A review on the heterostructure nanomaterials for supercapacitor application. J. Energy Storage
**2018**, 17, 181–202. [Google Scholar] [CrossRef] - Ouyang, W.X.; Teng, F.; Fang, X.S. High performance BiOCl nanosheets/TiO
_{2}nanotube arrays heterojunction UV photodetector: The influences of self-induced inner electric fields in the BiOCl nanosheets. Adv. Funct. Mater.**2018**, 28, 1707178. [Google Scholar] [CrossRef] - Chen, X.J.; Wang, J.; Chai, Y.Q.; Zhang, Z.J.; Zhu, Y.F. Efficient photocatalytic overall water splitting induced by the giant internal electric field of a g-C
_{3}N_{4}/rGO/PDIP Z-scheme heterojunction. Adv. Mater.**2021**, 33, 2007479. [Google Scholar] [CrossRef]

**Figure 1.**A schematic diagram of top and side views of MoS

_{2}/Ti

_{3}C

_{2}heterostructures for different stackings. (

**a**) the ZM_SA Configuration; (

**b**) the ZM_AA Configuration; (

**c**) the ZM_AS Configuration; (

**d**) the MZ_SA Configuration; (

**e**) the MZ_AA Configuration; (

**f**) the MZ_AS Configuration.

**Figure 2.**Structural properties of TMDs/Ti

_{3}C

_{2}X

_{2}heterostructures. (

**a**) Diagram of top and side views of MoSe

_{2}/Ti

_{3}C

_{2}X

_{2}heterostructures; (

**b**) Diagram of top and side views of MoS

_{2}/Ti

_{3}C

_{2}X

_{2}heterostructures; (

**c**) The lattice parameters of TMDs/Ti

_{3}C

_{2}X

_{2}heterostructures.

**Figure 3.**(

**a**) the band structure, and (

**b**) the total and partial density of states of MoS

_{2}/Ti

_{3}C

_{2}. The Fermi level is set to 0 eV.

**Figure 4.**(

**a**) the band structure, and (

**b**) the total and partial density of states of MoSe

_{2}/Ti

_{3}C

_{2}. The Fermi level is set to 0 eV.

**Figure 5.**Band structures and densities of states of the MoS

_{2}/Ti

_{3}C

_{2}heterostructure with different terminated groups: (

**a**) -Br, (

**b**) -Cl, (

**c**) -S and (

**d**) -Se. The Fermi level is set to 0 eV. The vertical dashed line gives the location of the Fermi level. The red line represents the Fermi level. The green line represents the high symmetry point of the Brillouin zone.

**Figure 6.**Band structures and densities of states of the MoSe

_{2}/Ti

_{3}C

_{2}heterostructure with different terminated groups: (

**a**) -Br, (

**b**) -Cl, (

**c**) -S and (

**d**) -Se. The Fermi level is set to 0 eV. The vertical dashed line gives the location of the Fermi level.

**Figure 7.**(

**a**) Relationship curve between MoS

_{2}/Ti

_{3}C

_{2}interlayer distance and biaxial strain, (

**b**) Relationship curve between MoSe

_{2}/Ti

_{3}C

_{2}interlayer distance and biaxial strain.

**Figure 8.**(

**a**) Relationship curve between MoS

_{2}/Ti

_{3}C

_{2}X

_{2}(X = Se, Br, S, Cl) interlayer distance and biaxial strain, (

**b**) Relationship curve between MoSe

_{2}/Ti

_{3}C

_{2}X

_{2}(X = Se, Br, S, Cl) interlayer distance and biaxial strain.

**Figure 9.**(

**a**) Energy band structures of MoS

_{2}/Ti

_{3}C

_{2}heterostructure under different compress strains. (

**b**) Energy band structures of MoS

_{2}/Ti

_{3}C

_{2}heterostructure under different tensile strains. The Fermi level is set to 0 eV. The red line represents the Fermi level. The green line represents the high symmetry point of the Brillouin zone. I/II/III/IV/V represents different energy bands.

**Figure 10.**The partial density of states (PDOS) of MoS

_{2}and Ti

_{3}C

_{2}for the MoS

_{2}/Ti

_{3}C

_{2}heterostructure with different biaxial strains. The Fermi level is set to 0 eV.

**Figure 11.**(

**a**) Energy band structures of MoSe

_{2}/Ti

_{3}C

_{2}heterostructure under different compress strains. (

**b**) Energy band structures of MoSe

_{2}/Ti

_{3}C

_{2}heterostructure under different tensile strains. The Fermi level is set to 0 eV. The red line represents the Fermi level. The green line represents the high symmetry point of the Brillouin zone. I/II/III/IV/V represents different energy bands.

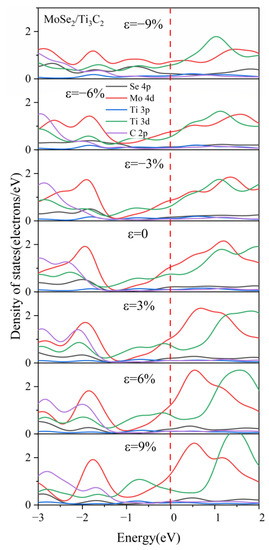

**Figure 12.**The partial density of states (PDOS) of MoSe

_{2}and Ti

_{3}C

_{2}for the MoSe

_{2}/Ti

_{3}C

_{2}heterostructure with different biaxial strains. The Fermi level is set to 0 eV. The red line represents the Fermi level.

**Figure 13.**Density of states of the MoS

_{2}/Ti

_{3}C

_{2}Br

_{2}heterostructure with different biaxial strains. The Fermi level is set to 0 eV.

**Figure 14.**Density of states of the MoS

_{2}/Ti

_{3}C

_{2}Se

_{2}heterostructure with different biaxial strains. The Fermi level is set to 0 eV.

**Figure 15.**Density of states of the MoSe

_{2}/Ti

_{3}C

_{2}Br

_{2}heterostructure with different biaxial strains. The Fermi level is set to 0 eV.

**Figure 16.**Density of states of the MoSe

_{2}/Ti

_{3}C

_{2}Se

_{2}heterostructure with different biaxial strains. The Fermi level is set to 0 eV.

**Figure 17.**The DOS of MoS

_{2}/Ti

_{3}C

_{2}X

_{2}and PDOS of MoS

_{2}in MoS

_{2}/Ti

_{3}C

_{2}X

_{2}heterostructures under different electric fields. (

**a**) X-Br, (

**b**) X-Cl, (

**c**) X-Se and (

**d**) X-S.

**Figure 18.**(

**a**) The VBE and CBE at M and K points of MoS

_{2}/Ti

_{3}C

_{2}Br

_{2}and MoS

_{2}/Ti

_{3}C

_{2}Se

_{2}under different electric fields. (

**b**) The VBE and CBE at M and K points of MoS

_{2}/Ti

_{3}C

_{2}S

_{2}and MoS

_{2}/Ti

_{3}C

_{2}Cl

_{2}under different electric fields. (

**c**) The VBE and CBE at M and K points of MoSe

_{2}/Ti

_{3}C

_{2}Se

_{2}and MoSe

_{2}/Ti

_{3}C

_{2}Br

_{2}under different electric fields. (

**d**) The VBE and CBE at M and K points of MoSe

_{2}/Ti

_{3}C

_{2}S

_{2}and MoSe

_{2}/Ti

_{3}C

_{2}Cl

_{2}under different electric fields.

**Table 1.**Binding energy (E

_{b}), interlayer distance (d), Mo–S(1) minus Mo–S(2) constant (d

_{12}), and bond lengths Ti–C (d

_{Ti–C}) for MoS

_{2}/Ti

_{3}C

_{2}heterostructures, respectively.

Configurations | E_{b} (meV/Å^{2}) | d (Å) | d_{12} (Å) | d_{Ti(3)–C(2)} (Å) | d_{Ti(1)–C(1)} (Å) |
---|---|---|---|---|---|

(a) ZM_SA | −1.79 | 1.68 | 0.069 | 2.059 | 2.125 |

(b) ZM_AA | −1.21 | 1.69 | 0.078 | 2.057 | 2.152 |

(c) ZM_AS | −1.42 | 2.47 | 0.031 | 2.058 | 2.069 |

(d) MZ_SA | −1.27 | 2.03 | 0.109 | 2.055 | 2.094 |

(e) MZ_AA | −1.48 | 1.92 | 0.134 | 2.057 | 2.081 |

(f) MZ_AS | −1.55 | 2.46 | 0.021 | 2.063 | 2.067 |

**Table 2.**Binding energy (E

_{b}), interlayer distance (d), Mo–Se(1) minus Mo–Se(2) constant (d

_{34}), and bond lengths Ti–C (d

_{Ti–C}) for MoSe

_{2}/Ti

_{3}C

_{2}heterostructures, respectively.

Configurations | E_{b} (meVÅ^{2}) | d (Å) | d_{34} (Å) | d_{Ti(3)–C(2)} (Å) | d_{Ti(1)–C(1)} (Å) |
---|---|---|---|---|---|

(g) SA_ZM | −1.03 | 1.89 | 0.051 | 2.064 | 2.119 |

(h) AA_ZM | −1.01 | 2.56 | 0.013 | 2.071 | 2.073 |

(i) AS_ZM | −0.39 | 2.51 | 0.021 | 2.067 | 2.074 |

(j) SA_MZ | −0.76 | 2.12 | 0.101 | 2.061 | 2.096 |

(k) AA_MZ | −0.96 | 2.09 | 0.107 | 2.068 | 2.083 |

(m) AS_MZ | −0.59 | 2.01 | 0.063 | 2.069 | 2.122 |

**Table 3.**Binding energy (E

_{b}), interlayer distance (d), Mo–S(1) minus Mo–S(2) or Mo–Se(1) minus Mo–Se(2) constant (d

_{56}), and bond lengths Ti–X d

_{Ti–X}and Ti–C d

_{Ti–C}for TMDs/Ti

_{3}C

_{2}X

_{2}(X = S, Se, Br, Cl) heterostructures, respectively.

Configurations | E_{b} (meVÅ^{2}) | d (Å) | d_{56} (Å) | d_{Ti(1)–C} (Å) | d_{Ti(2)–X} (Å) | d_{Ti(1)–X} (Å) |
---|---|---|---|---|---|---|

MoS_{2}/Ti_{3}C_{2}S_{2} | −8.44 | 2.83 | 0.009 | 2.182 | 2.397 | 2.389 |

MoS_{2}/Ti_{3}C_{2}Se_{2} | −3.95 | 2.78 | 0.007 | 2.146 | 2.520 | 2.496 |

MoS_{2}/Ti_{3}C_{2}Cl_{2} | −3.17 | 3.02 | 0.003 | 2.104 | 2.503 | 2.492 |

MoS_{2}/Ti_{3}C_{2}Br_{2} | −8.42 | 3.07 | 0.004 | 2.117 | 2.626 | 2.621 |

MoSe_{2}/Ti_{3}C_{2}S_{2} | −3.55 | 3.03 | 0.003 | 2.193 | 2.501 | 2.403 |

MoSe_{2}/Ti_{3}C_{2}Se_{2} | −4.82 | 3.00 | 0.000 | 2.170 | 2.628 | 2.542 |

MoSe_{2}/Ti_{3}C_{2}Cl_{2} | −3.12 | 3.14 | 0.003 | 2.120 | 2.509 | 2.506 |

MoSe_{2}/Ti_{3}C_{2}Br_{2} | −8.41 | 2.99 | 0.001 | 2.127 | 2.638 | 2.617 |

Species | Ion | Total | Charge | Total | Charge | Total | Charge |
---|---|---|---|---|---|---|---|

Compressive 9% | Strain Free | Tensile 9% | |||||

C | 1 | 4.70 | −0.70 | 4.75 | −0.75 | 4.78 | −0.78 |

C | 2 | 4.69 | −0.69 | 4.71 | −0.71 | 4.71 | −0.71 |

S | 1 | 5.94 | 0.06 | 5.98 | 0.02 | 6.05 | −0.05 |

S | 2 | 6.01 | −0.01 | 6.06 | −0.06 | 6.11 | −0.11 |

Ti | 1 | 11.24 | 0.76 | 11.25 | 0.75 | 11.34 | 0.66 |

Ti | 2 | 11.62 | 0.38 | 11.59 | 0.41 | 11.57 | 0.43 |

Ti | 3 | 11.72 | 0.28 | 11.63 | 0.37 | 11.49 | 0.51 |

Mo | 1 | 14.08 | −0.08 | 14.03 | −0.03 | 13.95 | 0.05 |

Species | Ion | Total | Charge | Total | Charge | Total | Charge |
---|---|---|---|---|---|---|---|

Compressive 9% | Strain Free | Tensile 9% | |||||

C | 1 | 4.69 | −0.69 | 4.71 | −0.71 | 4.71 | −0.71 |

C | 2 | 4.70 | −0.70 | 4.75 | −0.75 | 4.78 | −0.78 |

Se | 1 | 5.87 | 0.13 | 5.86 | 0.14 | 5.90 | 0.10 |

Se | 2 | 5.68 | 0.32 | 5.77 | 0.23 | 5.74 | 0.26 |

Ti | 1 | 11.27 | 0.73 | 11.27 | 0.73 | 11.36 | 0.64 |

Ti | 2 | 11.71 | 0.29 | 11.62 | 0.38 | 11.49 | 0.51 |

Ti | 3 | 11.71 | 0.29 | 11.67 | 0.33 | 11.69 | 0.31 |

Mo | 1 | 14.37 | −0.37 | 14.35 | −0.35 | 14.33 | −0.33 |
