Hierarchically Porous Carbon Networks Derived from Chitosan for High-Performance Electrochemical Double-Layer Capacitors

1
Division of Advanced Materials Engineering, Center for Advanced Materials and Parts of Powders, Kongju National University, Cheonan-si 31080, Republic of Korea
2
Hydrogen Convergence Materials Laboratory, Korea Institute of Energy Research (KIER), 152 Gajeong-ro, Yuseong-gu, Daejeon 34129, Republic of Korea
3
Energy Engineering, University of Science and Technology (UST), Daejeon 34113, Republic of Korea
4
Department of Chemical Engineering, Sunchon National University, 255 Jungang-ro, Suncheon-si 57922, Republic of Korea
5
Nano Hybrid Technology Research Center, Korea Electrotechnology Research Institute (KERI), Changwon 51543, Republic of Korea
6
Department of Urban, Energy, and Environmental Engineering, Chungbuk National University, Chungdae-ro 1, Seowon-gu, Cheongju 28644, Republic of Korea
*
Authors to whom correspondence should be addressed.
These authors contributed equally to this work.
Nanomaterials 2023, 13(22), 2961; https://doi.org/10.3390/nano13222961
Submission received: 23 October 2023 / Revised: 15 November 2023 / Accepted: 15 November 2023 / Published: 16 November 2023

Abstract

:
Activated carbon (AC) compounds derived from biomass precursors have garnered significant attention as electrode materials in electric double-layer capacitors (EDLCs) due to their ready availability, cost-effectiveness, and potential for mass production. However, the accessibility of their active sites in electrochemistry has not been investigated in detail. In this study, we synthesized two novel macro/micro-porous carbon structures prepared from a chitosan precursor using an acid/potassium hydroxide activation process and then examined the relationship between their textural characteristics and capacitance as EDLCs. The material characterizations showed that the ACs, prepared through different activation processes, differed in porosity, with distinctive variations in particle shape. The sample activated at 800 °C (Act-chitosan) was characterized by plate-shaped particles, a specific surface area of 4128 m2/g, and a pore volume of 1.87 cm3/g. Assessment of the electrochemical characteristics of Act-chitosan showed its remarkable capacitance of 183.5 F/g at a scan rate of 5 mV/s, and it maintained exceptional cyclic stability even after 10,000 cycles. The improved electrochemical performance of both chitosan-derived carbon structures could thus be attributed to their large, well-developed active sites within pores < 2 nm, despite the fact that interconnected macro-porous particles can enhance ion accessibility on electrodes. Our findings provide a basis for the fabrication of biomass-based materials with promising applications in electrochemical energy storage systems.

1. Introduction

With the rapid increase in demand for energy storage devices with high energy/power density, electrochemical capacitors have emerged as promising candidates for manufacturing operations, emergency power supplies, military applications, electric vehicles, and other applications [1]. Among the electrical energy storage systems of current interest are electric double-layer capacitors (EDLCs), which store electrical energy by forming a double layer of electrolyte ions on electrode surfaces. EDLCs offer significant advantages, including high power density, excellent rate capability, and stable capacitance during long-term cycling, without decay or fading, due to their reversible surface-dominant adsorption/desorption mechanism. These electrochemical characteristics are generally influenced by the textural properties of the active electrode, such as the specific surface area (SSA), pore size, pore size distribution (PSD), and oxygen functionality [2,3,4].
While the electrochemical performance of carbonaceous materials, including carbon nanotubes (CNTs), graphene, aerogels, and fibers, continues to improve [5,6], the fabrication processes for these materials are still plagued by high production costs and their inherent complexity. Biomass-based carbons hold promise as electrode materials [7,8,9] given advantages such as their abundance, non-toxic nature, and cost-effectiveness. However, their relatively low SSA and non-uniform pore distribution have hindered their performance as EDLCs. To enhance the capacitive performance of biomass-based carbons, materials with well-defined porosity within optimized pore ranges and increased SSA are required. These features are essential to the efficient migration of ions between electrolytes and the electrode surface. One promising approach involves introducing heteroatoms, such as B, N, and S, into the carbon framework using various techniques to enhance the capacitive behavior of the materials through faradaic charge-transfer reactions. Considerable research has been devoted to obtaining porous carbon materials with a high SSA and introducing heteroatoms to improve their specific capacitance. For instance, activated carbons (ACs) derived from biomaterials such as wood have been extensively studied. Efforts aimed at addressing the challenges associated with porosity and surface area, and at harnessing the potential of heteroatoms, are paving the way for the development of high-performance EDLCs using biomass-based carbons, such as [10,11], peat [12], coconut [13], and others [14].
Chitosan, a biopolysaccharide primarily composed of 2-amino-2-deoxy-D-glucose units, is the second most abundant biopolymer on Earth after cellulose. Due to its nitrogen-rich composition and distinct acid-base properties, chitosan has garnered significant attention as a carbon precursor, with numerous studies focusing on its use in the preparation of carbon materials [15,16,17,18,19]. Kucinska et al. developed a practical approach to convert chitosan into AC by utilizing a Na2CO3 solution as an activator agent, resulting in a porous carbon material with a relatively low surface area of 400 m2/g [20]. Another common method of chitosan activation involves dissolving it in dilute acetic acid followed by hydrothermal carbonization at a mild temperature [21]. The synthesis of ACs derived from chitosan through a chemical activation process using potassium hydroxide (KOH) as the activation agent has also been explored [22,23]. There have been several successful demonstrations of the fabrication of N-doped carbon materials from chitosan, whose amide and amino groups enable the incorporation of nitrogen functionalities into the carbon framework [24,25,26]. Recently, a novel approach involving the hydrothermal carbonization of chitosan with the addition of acetic acid, followed by a KOH-based chemical activation process, was described [18,19]. These methods have yielded hierarchical porous carbons with distinctive honeycomb-like frameworks and Brunauer–Emmett–Teller (BET) surface areas >3500 m2/g. The resulting carbon material demonstrated favorable electrochemical properties despite the relatively low N-doping level (~1 at%). Moreover, the presence of a limited number of active sites, attributed to randomly developed pores, irregular particle shapes, and low production yields, presents persistent challenges. Therefore, it is essential to establish a scalable synthesis method for active materials with uniformly distributed nanopores measuring less than 2 nm. This synthesis approach is pivotal for achieving enhanced performance metrics, including increased capacitance, retention of capacitance at higher scan rates, and consistent capacitance throughout extended cycles in energy storage systems.
In this study, we introduce a straightforward and accessible process for the activation of chitosan-derived carbon in the creation of highly porous carbon structures with a large SSA, a high pore volume, and different types of particle shapes. The process involves carbonization of the biomass-derived chitosan precursor followed by acid or KOH activation. Porous carbons were prepared from acid- or KOH-activated carbonized chitosan, and their electrochemical properties were then evaluated when used as active electrodes for EDLCs. A correlation between available active sites and capacitance was determined in a comprehensive analysis utilizing N2 adsorption/desorption, X-ray photoelectron spectroscopy, and cyclic voltammetry (CV) at varying scan rates. The impressive SSA (4128 m2/g) and pore volume (1.87 cm3/g) of Act-chitosan accounted for its outstanding capacitance, which reached 183.5 F/g at a scan rate of 5 mV/s, while maintaining a remarkable cyclic stability even after 10,000 cycles. The enhanced electrochemical performance of Act-chitosan resulting from its high SSA and high pore volume, particularly within optimized pores < 2 nm in size, remains significant despite the limited development of porous carbon networked particles able to facilitate ion migration and electron pathways. The successful fabrication of high-performance ACs from biomass-derived chitosan, exemplified by Act-chitosan and HNO3-Act-chitosan, opens up exciting possibilities for the development of novel biomass-based materials with applications in electrochemical energy storage systems.

2. Materials and Methods

2.1. Fabrication of Porous Activated Carbons from Chitosan Precursor

The chitosan utilized in this study (molecular mass:190,000–300,000 Da) was purchased from Sigma-Aldrich (St Louis, MO, USA). The chitosan was dried in a vacuum oven at 60 °C and then carbonized for 2 h at 400 °C. The pyrolyzed chitosan was subsequently ground into a fine powder and dried for 24 h at 60 °C. Active material with a porous structure was fabricated by subjecting one of the powdered samples to a 1-h acid treatment using 1 M HNO3. The chemically treated sample and an unaltered powdered sample were combined with KOH in a mass ratio of 1:4. These mixtures were activated in an argon (Ar) gas atmosphere for 1 h at 800 °C, thoroughly rinsed with distilled hot water to neutralize the pH, and dried in an oven at 100 °C. The resulting activated porous samples are referred to herein as HNO3-Act-chitosan and Act-chitosan.

2.2. Characterizations

The morphology of the samples was analyzed using field-emission scanning electron microscopy (FE-SEM; XL30SFEG; Philips, Amsterdam, The Netherlands). High-resolution transmission electron microscopy (HR-TEM; Tecnai G2 F30; FEI, Hillsboro, OR, USA) was performed, after grinding the powdered samples, by placing a droplet of the sample dispersed in EtOH on the TEM grid. The chemical components of the samples were determined using X-ray photoelectron spectroscopy (XPS; Sigma Probe; Thermo, Waltham, MA, USA). Raman spectroscopy (excitation at 514 nm) using an N8 NEOS and Raman AFM/SPM system (Senterra; Bruker GmbH, Bremen, Germany) and X-ray diffraction (XRD; Rigaku, Tokyo, Japan) were also performed. The textural properties of the samples were analyzed by N2 adsorption/desorption measurements at 77 K (Tristar II volumetric adsorption analyzer; Micromeritics, Norcross, GA, USA). The SSA, pore volume, and pore width were calculated by applying the BET and two-dimensional-non-local density functional theory (2D-NLDFT) adsorption models. The surface heterogeneity of the samples was investigated by applying the nitrogen adsorption energy distribution (AED) function [27,28].

2.3. Electrochemical Characterization

The electrode slurries were prepared by combining 80 wt% of the chitosan-based samples (Carb-chitosan, HNO3-Act-chitosan, Act-chitosan), 10 wt% carbon black (Super-P), and 10 wt% binder (polyvinylidene fluoride [PVDF]; Solef6020). A Ni current collector was coated with the slurries using a doctor blade coater and dried for 12 h at 100 °C in a vacuum oven. The electrode was stamped with an active area of 1 cm2 and a mass loading of 2–3 mg/cm2 and then assembled in a two-electrode cell configuration (ECC-Aqu, EL-Cell), with 6 M KOH as the electrolyte. All electrochemical analyses were conducted under ambient conditions using a potentiostat (SP-150; Bio-Logic Science Instruments, Seyssinet-Pariset, France). Electrochemical impedance spectroscopy (EIS) measurements were obtained within a frequency range of 100 kHz to 10 mHz, applying a sinusoidal wave of 10 mV at open circuit voltage. Additionally, CV curves were generated at scan rates ranging from 5 to 500 mV/s, with a potential window ranging from 0 to 1.0 V.
The gravimetric specific capacitance (Cg) was calculated from the CV or galvanostatic charge/discharge (GCD) curves according to Equation (1) [29,30,31,32]:
C g = 2 m v V I d V   or   C g = 2 I m ( d V / d t )
where m is the mass of the active electrode, ν is the scan rate, ΔV is the potential window, I is the discharge current, and t is the discharge time.
The gravimetric energy and power densities (Eg and Pg, respectively) of the samples were calculated according to Equation (2) [29,31,33]:
E g = 1 8 C g V 2 / 3600 ,   P g = I V / 2 m

3. Results and Discussion

Figure 1a provides an overview of the steps involved in creating highly porous carbon structures, starting with the carbonization of chitosan powder for 2 h at 400 °C under an Ar gas atmosphere. Act-chitosan is activated with KOH at a 1:4 mass ratio mixture while HNO3-Act-chitosan is prepared by an acid soak treatment of the carbonized material with HNO3, followed by mixing with KOH at a mass ratio of 1:4 and activation for 1 h at 800 °C. The microstructural properties of the carbonized sample (Carb-chitosan), Act-chitosan, and HNO3-Act-chitosan were evaluated using SEM; the results are presented in Figure 1b–d. Carb-chitosan had a cylindrical shape, with particles ~200 μm in length and a smooth surface without visible pores (Figure 1b). HNO3-Act-chitosan had a hierarchical porous structure with a carbon skeleton morphology and particles 100–200 μm in length. This structure, formed by carbon walls, consisted of randomly interconnected macropores, as depicted in Figure 1c. Act-chitosan consisted of smaller carbon-based platelets ~100 μm in size, but without evident macro-pores (Figure 1d). These findings demonstrate that the morphological properties of the samples can be readily altered by HNO3 treatment prior to KOH activation. The textural properties of the samples, including the SSA, pore volume, and PSD, are presented in Figure 2.
To further investigate the textural properties of Carb-chitosan carbon and its activated samples, a low-temperature nitrogen adsorption/desorption isotherm analysis was performed at 77 K. As shown in Figure 2a, while type III curves were obtained for Carb-chitosan, the two activated chitosan samples were characterized by type I curves. That is, the nitrogen adsorption isotherms showed a high adsorbed amount within a low relative pressure region (P/P0 < 0.01), and then a broad knee with a horizontal plateau in the measured relative pressure range, but no clear hysteresis pattern. These results indicated that the KOH-activated materials contained a high abundance of micropores (with some mesopores), which plays a beneficial role in electrochemical reactions. In addition, the isotherm shape can be seen to substantially depend on the pretreatment conditions. Compared to Act-chitosan, HNO3-Act-chitosan had an overall lower amount of adsorption and a gentler slope at a relative pressure (P/P0) of 0.05–0.4. The difference can be partially explained by changes in the pore structure, as the carbon skeleton is weakened by HNO3 etching, which reduces the surface area and pore volume but increases the proportion of mesopore regions. The PSDs of the three sample types, calculated using the 2D-NLDFT method, are shown in Figure 2b. Carb-chitosan had a large number of mesopores (>2 nm) without significant micropores whereas the PSD curves of both activated samples were consistent with predominantly developed ultra-micropores (pore width < 1.0 nm), micropores (pore width < 2 nm), and mesopores (>2 nm). Specifically, HNO3-Act-chitosan and Act-chitosan were dominated by ultra-micropores of 0.89 and 0.91 nm and micropores of 1.98 and 1.93 nm, respectively, with few mesopore regions. The textural property values (SSA, pore volume, and pore width) increased significantly after KOH and HNO3-KOH activation (Table 1). The effect of HNO3 treatment on pore formation in the carbonized sample was not significant compared to the effect of KOH activation. The calculated BET surface area and pore volume of Act-chitosan were 4128 (2731 for 2D-NLDFT) m2/g and 1.87 cm3/g, which are 1.60 (1.56 for 2D-NLDFT) and 1.32 times larger, respectively, than the values determined for HNO3-Act-chitosan. In addition, the ratio of the micropore volume to the total pore volume (V0.2 nm/Vtot) for Act-chitosan was 71.3%, which was 1.45 times larger than that of HNO3-Act-chitosan, implying that pretreatment with an aqueous solution of HNO3 did not effectively enhance the development of pore networks in the medium. A comparison of the calculated AED curves for Carb-chitosan, HNO3-Act-chitosan, and Act-chitosan (Figure 2c) showed that the shape of the curve was strongly dependent on the conditions used in sample preparation. The differences in peak height, peak width, and peak location indicated the presence of different energetic states on the surface of the adsorbent. The unimodal peak of Carb-chitosan, located in the range of 3.0–10.1 kJ/mol with a maximum at 6.4 kJ/mol, implied one main energetic state related to the mesoporous region. However, the bimodal peaks of different shapes determined for the two activated samples indicated two different surface energy sites, associated with micropores and mesopores. As shown in Figure 2c, the lower energy peaks related to the mesoporous region were in the same range, 3.0–9.0 kJ/mol, with the same maximum at 6.2 kJ/mol. However, the higher energy peaks, mainly related to the microporous region, were in the range of 9.3–13.5 kJ/mol (HNO3-Act-chitosan) and 9.3–14.9 kJ/mol (Act-chitosan), with the same maximum at 11.4 kJ/mol. The widths of the peaks in the high-energy region suggested greater heterogeneity of the Act-chitosan than the HNO3-Act-chitosan surface, further supporting the higher microporosity ratio of Act-chitosan.
The structural properties of the prepared porous samples were further investigated using HR-TEM (Figure 3). A comparison of Carb-chitosan (Figure 3a,b), HNO3-Act-chitosan (Figure 3c,d), and Act-chitosan (Figure 3e,f) revealed strikingly distinct morphologies and crystal qualities. Notably, Act-chitosan, synthesized solely through the activation process, exhibited a sheet-like microstructure characterized by high-quality graphene-like crystal structures whereas the HNO3-Act-chitosan displayed the typical morphology of amorphous carbon particles, featuring numerous nanopores with carbon layers arranged in parallel. The Act-chitosan samples also had a thinner layering and an interconnected structure, reflecting the sharp lattice fringes of the carbon layers. The selected area electron diffraction pattern (inset in Figure 3f) clearly demonstrated that the carbon atoms formed a hexagonal lattice, indicative of graphene formation and suggesting a reduction in the number of defects in the graphitic carbon structure. Overall, the HR-TEM observations provided compelling evidence for the distinct structural characteristics of the samples and, for Act-chitosan, the successful synthesis of graphene-like structures obtained through the activation process. Additionally, the presence of amorphous carbon particles and nanopores in HNO3-Act-chitosan highlighted the influence of the different preparation methods on the final morphology and crystal quality. Raman spectroscopy is a highly valuable method for discerning the structure, defects, and disordered nature of carbon materials. Figure S1a shows that the 1350 cm−1 peak (D band) corresponds to the A1g mode of vibration, indicative of disorder or defects, and the 1580 cm−1 peak (G band) to the E2g mode of vibration, characteristic of a graphitic structure, as well as stretching of the C–C carbon bond. The intensities of the D-band and G-band reflect the concentration of disordered and graphitized carbon, respectively. For Act-chitosan, the D to G intensity ratio was lower than that of HNO3-Act-chitosan (0.81 and 0.96, respectively). To evaluate the crystalline structure of all samples, an XRD analysis was conducted (Figure S1b). The absence of distinct characteristic peaks in the XRD patterns suggested that all samples exhibited the typical structure of disordered carbon material. Two weak broad peaks were detected, at approximately 23 and 43, corresponding to the (002) and (100) reflections of the turbostratic carbon structure, respectively. The broad (100) reflection corresponded to the honeycomb structures formed by sp2 hybridized carbons, and the broad (002) reflection to the small domains of graphene sheets with coherent and parallel stacking [34]. Raman spectroscopy and XRD analyses revealed differences in the graphitic structures and concentrations of defects of Act-chitosan and HNO3-Act-chitosan, and provided valuable insights into the structural properties and disordered nature of the carbon materials.
The chemical composition of the samples was thoroughly examined using XPS. The spectra showed three distinct peaks, attributed to carbon (C1s), oxygen (O1s), and nitrogen (N1s), and slightly higher binding energy of sp3 hybridized states above 284.5 eV. Upon closer analysis, the high-resolution C1s spectra were deconvoluted, revealing peaks at 284.5, 285.5, and 287.6 eV corresponding to C–H, C–N, and –C=O (encompassing various oxygen-containing functional groups, including –C=O and –COOH [35,36]) species, respectively (Figure 4b). Comparison of the samples showed that Carb-chitosan had a lower relative content of sp2-hybridized carbon, in contrast to the sharper shape and higher intensity of the Act-chitosan spectra. Interestingly, in the Act-chitosan sample, while the sp3 peak was weak, the strong sp2 peak indicated a high degree of graphitization and further evidence of a graphene structure. According to these observations, HNO3-Act-chitosan and Act-chitosan had a similar chemical composition with respect to the nitrogen and oxygen-containing functional groups in their structures, in line with the Raman results demonstrating a higher degree of graphitization. Further analysis of the high-resolution O1s spectra (Figure 4c) revealed two peaks, at 531.7 and 533.3 eV, corresponding to OH and C–O–C, respectively [37]. Although the spectra of HNO3-Act-chitosan and Act-chitosan did not change significantly, a slight decrease in the intensity of the two peaks was observed, as shown in Figure 4c. As shown in Figure 4d, deconvolution of the N1s peaks revealed three components indicative of the presence of N atoms at three different bonding energies at approximately at 398.6 eV, 399.9 eV, and 401.1 eV. These correspond to the pyridine-like peak (–NH2, ⅰ), the pyrrol-like peak (O=C=NH–, ⅱ), and nitrogen atoms that are either protonated or oxidized (ⅲ) [17,19,35]. After the acid/KOH activation process of Carb-chitosan, a decrease in the total content of nitrogen-related functional groups was observed, and the peaks broadened toward higher binding energies. These results suggest that the acid treatment and KOH activation at elevated temperatures induce changes in the overall composition of nitrogen-related functional groups in the activated chitosan samples.
The electrochemical properties of Carb-chitosan, HNO3-Act-chitosan, and Act-chitosan were examined using CV and GCD techniques, with a symmetrical configuration and an aqueous electrolyte solution consisting of 6 M KOH. In CV, a rectangular shape of the curves typically indicates that the energy storage mechanism of an electrode mainly originated from the formation of electrical double layers of electrolyte ions on the electrode surface [31,38,39,40]. As seen in Figure 5a, the CV curves of HNO3-Act-chitosan and Act-chitosan showed almost identical rectangular shapes. The gravimetric capacitance (Cg) values were 139.1 and 183.5 F/g, respectively, at a scan rate of 5 mV/s. Even at a high scan rate of 100 mV/s, the shapes of the CV curves of HNO3-Act-chitosan and Act-chitosan remained rectangular (Figure 5b), with Cg values of 116.7 and 160.5 F/g, respectively. GCD measurements of the specific capacitance as a function of current density yielded results identical to those of the CV measurements and showed the same trend (Figure S2). As seen in Figure S2a, the discharging time of Carb-chitosan was short, at only 16 s, even at a low current density of 0.15 A/g, whereas the discharge times of HNO3-Act-chitosan and Act-chitosan were 197 s at 0.35 A/g and 178 s at 0.46 A/g, respectively, indicating a higher Cg of activated than carbonized chitosan.
The trends in the rate properties of the samples as a function of a scan rate ranging from 5 mV/s to 500 mV/s are presented in Figure 5c. The far superior rate properties of the ACs, i.e., HNO3-Act-chitosan and Act-chitosan, compared with Carb-chitosan could be attributed to the high surface area of the ACs, based on the high degree of microporosity in their pore structure (see the BET analysis results above). This result is consistent with literature reports showing that ACs with a high SSA and high micropore volume as a proportion of the total pore volume have very high specific capacitance [38,39,41]. Unlike the AC samples, Carb-chitosan, with its inactivated carbon, had a Cg of only 13.9 F/g, even at a slow scan rate of 5 mV/s, and its CV curve was distorted (Figure 5a,b). These results reflect the fact that inactivated carbon has an insufficient SSA and small pore volume in its internal pore structure, leaving insufficient space for the adsorption of electrolyte ions and thus leading to a low Cg value. During the synthesis of ACs, however, HNO3 and/or KOH activation imparts high porosity to the interior of the electrode, resulting in optimized EDLC properties.
Next, EIS was performed to further investigate the effect of the two activation processes on the kinetics of the electrolyte ions for the AC electrodes. The series resistance (Rs) and charge transfer resistance (Rct) values were extracted from the fitting curve of the Nyquist plot using an equivalent circuit model (Figure S3). Rs, also defined as the internal resistance of the electrode in the electrolyte, is typically taken from the high-frequency region of the Nyquist plot, while Rct, measured between electrode and electrolyte, is taken from the diameter in the Nyquist plot. As seen in the Nyquist plot of Figure 5d, the Carb-chitosan sample had a low Rs value (2.694 Ω), attributed to the introduction of electrical conductivity into the obtained chitosan due to the carbonization process. However, carbonization without the activation process failed to create porosity in the chitosan, resulting in a relatively high Rct value of about 458.2 Ω. For the two ACs, the Rs and Rct values of Act-chitosan (2.807 Ω and 0.395 Ω, respectively) were lower than those of HNO3-Act-chitosan (3.667 Ω and 0.438 Ω). This difference between the ACs suggested that the electrolyte ion charge transfer reaction occurred more readily in Act-chitosan such that KOH activation is far superior to HNO3-KOH activation in terms of improving the electrochemical properties of ACs, i.e., by obtaining a very high porosity and micropore volume.
The cyclic stability of Carb-chitosan, Act-chitosan, and HNO3-Act-chitosan was examined by repeating the CV measurements at a scan rate of 100 mV/s for 10,000 cycles, as shown in Figure 5e and Figure S4. Carb-chitosan had insufficient Cg values due to its low porosity and showed an initial significant drop in capacitance as the cycle number increased, followed by a tendency toward an increased capacitance as the cycle progressed. This is a well-known property of non-porous carbon electrodes during repeated cycle testing [14,41,42,43]. By contrast, both Act-chitosan and HNO3-Act-chitosan showed stable device behavior and capacitance retention rates of 99.2% and 98.7%, respectively, confirming them as stable electrode materials for EDLCs.
The charge storage mechanism of the fabricated carbons was investigated by analyzing the capacitive contribution to the total specific capacitance, using the log(i) versus log(ν) plots obtained from the CV experiments, as a function of the scan rate; this method was employed in previous studies [44,45,46]. The CV measurements for each sample were obtained at scan rates of 5, 10, 20, 50, and 100 mV/s. The diffusion-controlled (iDiff) and capacitive-controlled contributions (iCap) of the total specific capacitance were calculated to determine the charge storage and rate-dependent kinetics, as shown in Equation (3):
i = i D i f f + i C a p = a ν b
where a and b are constants, and i is the anodic or cathodic peak current density.
If the value of b, obtained from the slope of the log(i) versus log(ν) plot, is close to 1.0, the charge storage is primarily due to surface reactions (i.e., EDLC); if it is close to 0.5, it is due to diffusion-controlled reactions, such as intercalation. The b-values for Act-chitosan and HNO3-Act-chitosan were 0.89 and 0.83, respectively, while the b-value of Carb-chitosan was 0.47. Non-activated Carb-chitosan did not have sufficient BET values (13 m2/g) and was subject to slow charge storage processes, mainly diffusion-controlled processes. The total capacitance of the AC samples, however, showed a major contribution from the capacitive-control process, with a much stronger EDLC response by Act-chitosan than HNO3-Act-chitosan. This result implied that KOH activation is more suitable than HNO3-KOH activation in AC preparation, as AC prepared by the former was much more porous and therefore had a better EDLC response.
Equation (4) was used to quantitatively analyze the capacitive contribution to the total capacitance (capacitive-controlled plus diffusion-controlled currents) (Figure S5):
i V = k 1 ν + k 2 ν 1 / 2
where i(V) is the current at a fixed potential, k1ν is the capacitive-controlled current, and k2ν1/2 is the diffusion-controlled current.
Carb-chitosan accounted for only a small fraction of the capacitive-controlled current across the whole range of scan rates due to the low porosity of the electrode, whereas the capacitive contributions of Act-chitosan and HNO3-Act-chitosan to the total capacitance were large. For example, Act-chitosan contributed 83% at a scan rate of 5 mV/s and 96% at a scan rate of 100 mV/s. For HNO3-Act-chitosan, the capacitive contributions were 76% and 93%, respectively. These results implied that Act-chitosan and HNO3-Act-chitosan are not diffusion-controlled processes, but rather surface reactions similar to those that dominate in EDLCs, and the much greater increase in the total capacitance of Act-chitosan than HNO3-Act-chitosan was due to an increase in the EDLC portion of the electrochemical reaction rather than to the diffusion-controlled portion.
The electrochemical performances of Act-chitosan and HNO3-Act-chitosan were compared by calculating their energy and power densities from the Cg data. The results are shown in the Ragone plots in Figure 5f. Act-chitosan exhibited a superior gravimetric energy density (Eg) of 6.37 Wh/kg and a high power density of 229.4 W/kg. Surprisingly, at high current densities, Act-chitosan maintained an energy density value of 4.49 Wh/kg and a power density as high as 16 kW/kg. These values are comparable to those reported in the literature for other state-of-the-art biomass-derived ACs [39,47,48,49,50,51]. For example, as seen in the Ragone plots (Figure 5f), the energy and power densities of Act-chitosan were comparable to those determined in ACs derived from chestnut or chitosan and porous microsphere carbons. However, despite the much improved energy and power densities of biomass-derived carbons, their energy densities are limited compared with the high energy density nanocarbons of N-doped porous carbon and titanium carbide-derived carbon [52]. Therefore, increasing the energy density will require the hybridization of Act-chitosan with other capacitive materials, such as metal oxides/nitrides and conductive polymers, or the design of asymmetric device configurations with different types of positive/negative electrodes.

4. Conclusions

In this study, a straightforward and efficient activation protocol for producing highly porous ACs derived from chitosan was presented. Following the pyrolysis of the chitosan precursor, both the HNO3-soaked sample and the untreated sample underwent subsequent activation through a KOH chemical activation process. This process facilitated the development of porosity, resulting in a substantial specific surface area, a high pore volume, and the formation of diverse particle shapes. The electrochemical performance of these materials in a 6 M KOH aqueous electrolyte was then evaluated. An N2 adsorption/desorption analysis showed that the BET SSA and pore volume of Act-chitosan reached 4128 m2/g and 1.87 cm3/g, respectively. To our knowledge, these are among the highest reported values for ACs. Furthermore, we conducted an evaluation of the connection between the material’s morphological and structural properties and its capacitance. The Act-chitosan-based electrode, distinguished by its larger specific surface area and increased pore volume with pores below 2 nm, demonstrated a notable enhancement in EDLC performance. The optimized activated chitosan exhibited outstanding capacitance performance, achieving approximately 183.5 F/g at a scan rate of 5 mV/s and a superior gravimetric energy density (Eg) of 6.37 Wh/kg with a high power density of 229.4 W/kg. Even after enduring 10,000 cycles, it consistently maintained stable capacitance. Moreover, from calculations about the portion of capacitive contribution in the total capacitance, the Act-chitosan-based electrode revealed a large portion in the total capacitance in terms of 83% at a scan rate of 5 mV/s and 96% even at a fast scan rate of 100 mV/s, respectively. The exceptional electrochemical performance of chitosan-induced ACs was attributed to the well-developed conductive sites present within the optimized pores. This unique attribute enhanced ion migration and charge storage capabilities, ultimately leading to the excellent capacitance performance of Act-chitosan.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/nano13222961/s1, Figure S1. Raman spectroscopy and X-ray diffraction patterns of Carb. Chitosan, HNO3-Act. Chitosan. (a) Raman spectroscopy. (b) XRD patterns. Figure S2. Galvanostatic charge/discharge (GCD) curves of (a) Carb. Chitosan, (b) HNO3-Act. Chitosan and (c) Act. Chitosan samples at a function of current densities. Figure S3. Equivalent circuit model for fitting of the Nyquist plot for various carbon samples. Rs: series resistance, Rct: charge transfer resistance, Cdl: double layer capacitance, and Zw: Warburg impedance. Figure S4. CV curves collected at the first and after 10,000 cycles. (a) Carb. Chitosan, (b) HNO3-Act. Chitosan and (c) Act. Chitosan. Figure S5. Charge storage mechanisms. (a) log(I) vs. log(ν) plots of anodic current at 1.0 V. (b) Capacitance comparisons of Carb. Chitosan, HNO3-Act. Chitosan, and Act. Chitosan samples with capacitive contribution at a scan rate from 5 to 100 mV/s. Table S1. Detailed Nyquist plot fitting results for various carbon samples.

Author Contributions

K.H.P. and S.B. contributed equally. The manuscript was written with contributions from all authors. All authors actively contributed to the data analysis and the discussion of the results. The final version of the manuscript has been approved by all authors. All authors have read and agreed to the published version of the manuscript.

Funding

This research was supported by the Basic Science Research Program through the National Research Foundation of Korea funded by the Ministry of Education (NRF-2019R1A6A1A03032988). Also, this research was supported by the Research and Development Program of the Korea Institute of Energy Research (Grant No. 2408).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data are contained within the article.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Zhang, L.L.; Zhao, X.S. Carbon-based materials as supercapacitor electrodes. Chem. Soc. Rev. 2009, 38, 2520–2531. [Google Scholar] [CrossRef]
  2. Sevilla, M.; Mokaya, R. Energy storage applications of activated carbons: Supercapacitors and hydrogen storage. Energy Environ. Sci. 2014, 7, 1250–1280. [Google Scholar] [CrossRef]
  3. Dong, S.; He, X.; Zhang, H.; Xie, X.; Yu, M.; Yu, C.; Xiao, N.; Qiu, J. Surface modification of biomass-derived hard carbon by grafting porous carbon nanosheets for high-performance supercapacitors. J. Mater. Chem. A 2018, 6, 15954–15960. [Google Scholar] [CrossRef]
  4. Wang, Q.; Yan, J.; Fan, Z. Carbon materials for high volumetric performance supercapacitors: Design, progress, challenges and opportunities. Energy Environ. Sci. 2016, 9, 729–762. [Google Scholar] [CrossRef]
  5. Stein, A.; Wang, Z.; Fierke, M.A. Functionalization of Porous Carbon Materials with Designed Pore Architecture. Adv. Mater. 2009, 21, 265–293. [Google Scholar] [CrossRef]
  6. Shi, Y.; Zhou, X.; Yu, G. Material and Structural Design of Novel Binder Systems for High-Energy, High-Power Lithium-Ion Batteries. Acc. Chem. Res. 2017, 50, 2642–2652. [Google Scholar] [CrossRef]
  7. Jiang, J.; Zhang, L.; Wang, X.; Holm, N.; Rajagopalan, K.; Chen, F.; Ma, S. Highly ordered macroporous woody biochar with ultra-high carbon content as supercapacitor electrodes. Electrochim. Acta 2013, 113, 481–489. [Google Scholar] [CrossRef]
  8. Wu, F.-C.; Tseng, R.-L.; Hu, C.-C.; Wang, C.-C. Effects of pore structure and electrolyte on the capacitive characteristics of steam- and KOH-activated carbons for supercapacitors. J. Power Sources 2005, 144, 302–309. [Google Scholar] [CrossRef]
  9. Wang, Z.; Tammela, P.; Strømme, M.; Nyholm, L. Cellulose-based Supercapacitors: Material and Performance Considerations. Adv. Energy Mater. 2017, 7, 1700130. [Google Scholar] [CrossRef]
  10. Jin, Z.; Yan, X.; Yu, Y.; Zhao, G. Sustainable activated carbon fibers from liquefied wood with controllable porosity for high-performance supercapacitors. J. Mater. Chem. A 2014, 2, 11706–11715. [Google Scholar] [CrossRef]
  11. Huang, Y.; Ma, E.; Zhao, G. Preparation of liquefied wood-based activated carbon fibers by different activation methods for methylene blue adsorption. RSC Adv. 2015, 5, 70287–70296. [Google Scholar] [CrossRef]
  12. Tsubouchi, N.; Nishio, M.; Shinohara, Y.; Bud, J.; Mochizuki, Y. Production of activated carbon from peat by with natural soda ash and effect of nitrogen addition on the development of surface area. Fuel Process. Technol. 2018, 176, 76–84. [Google Scholar] [CrossRef]
  13. Yang, K.; Peng, J.; Srinivasakannan, C.; Zhang, L.; Xia, H.; Duan, X. Preparation of high surface area activated carbon from coconut shells using microwave heating. Bioresour. Technol. 2010, 101, 6163–6169. [Google Scholar] [CrossRef]
  14. Rodríguez Correa, C.; Stollovsky, M.; Hehr, T.; Rauscher, Y.; Rolli, B.; Kruse, A. Influence of the Carbonization Process on Activated Carbon Properties from Lignin and Lignin-Rich Biomasses. ACS Sustain. Chem. Eng. 2017, 5, 8222–8233. [Google Scholar] [CrossRef]
  15. Fan, X.; Zhang, L.; Zhang, G.; Shu, Z.; Shi, J. Chitosan derived nitrogen-doped microporous carbons for high performance CO2 capture. Carbon 2013, 61, 423–430. [Google Scholar] [CrossRef]
  16. Liu, Y.; Zhao, Y.; Li, K.; Wang, Z.; Tian, P.; Liu, D.; Yang, T.; Wang, J. Activated carbon derived from chitosan as air cathode catalyst for high performance in microbial fuel cells. J. Power Sources 2018, 378, 1–9. [Google Scholar] [CrossRef]
  17. Hao, P.; Zhao, Z.; Leng, Y.; Tian, J.; Sang, Y.; Boughton, R.I.; Wong, C.P.; Liu, H.; Yang, B. Graphene-based nitrogen self-doped hierarchical porous carbon aerogels derived from chitosan for high performance supercapacitors. Nano Energy 2015, 15, 9–23. [Google Scholar] [CrossRef]
  18. Huang, J.; Liang, Y.; Hu, H.; Liu, S.; Cai, Y.; Dong, H.; Zheng, M.; Xiao, Y.; Liu, Y. Ultrahigh-surface-area hierarchical porous carbon from chitosan: Acetic acid mediated efficient synthesis and its application in superior supercapacitors. J. Mater. Chem. A 2017, 5, 24775–24781. [Google Scholar] [CrossRef]
  19. Cheng, J.; Xu, Q.; Wang, X.; Li, Z.; Wu, F.; Shao, J.; Xie, H. Ultrahigh-surface-area nitrogen-doped hierarchically porous carbon materials derived from chitosan and betaine hydrochloride sustainable precursors for high-performance supercapacitors. Sustain. Energy Fuels 2019, 3, 1215–1224. [Google Scholar] [CrossRef]
  20. Kucinska, A.; Cyganiuk, A.; Lukaszewicz, J.P. A microporous and high surface area active carbon obtained by the heat-treatment of chitosan. Carbon 2012, 50, 3098–3101. [Google Scholar] [CrossRef]
  21. Chang, B.; Guo, Y.; Li, Y.; Yin, H.; Zhang, S.; Yang, B.; Dong, X. Graphitized hierarchical porous carbon nanospheres: Simultaneous activation/graphitization and superior supercapacitance performance. J. Mater. Chem. A 2015, 3, 9565–9577. [Google Scholar] [CrossRef]
  22. Adhamash, E.; Pathak, R.; Chen, K.; Rahman, M.T.; El-Magrous, A.; Gu, Z.; Lu, S.; Qiao, Q.; Zhou, Y. High-energy plasma activation of renewable carbon for enhanced capacitive performance of supercapacitor electrode. Electrochim. Acta 2020, 362, 137148. [Google Scholar] [CrossRef]
  23. Ruiz, V.; Blanco, C.; Raymundo-Piñero, E.; Khomenko, V.; Béguin, F.; Santamaría, R. Effects of thermal treatment of activated carbon on the electrochemical behaviour in supercapacitors. Electrochim. Acta 2007, 52, 4969–4973. [Google Scholar] [CrossRef]
  24. Ling, Z.; Wang, Z.; Zhang, M.; Yu, C.; Wang, G.; Dong, Y.; Liu, S.; Wang, Y.; Qiu, J. Sustainable Synthesis and Assembly of Biomass-Derived B/N Co-Doped Carbon Nanosheets with Ultrahigh Aspect Ratio for High-Performance Supercapacitors. Adv. Funct. Mater. 2015, 26, 111–119. [Google Scholar] [CrossRef]
  25. Li, M.; Han, X.; Chang, X.; Yin, W.; Ma, J. Nitrogen/Sulfur-Codoped Carbon Materials from Chitosan for Supercapacitors. J. Electron. Mater. 2016, 45, 4331–4337. [Google Scholar] [CrossRef]
  26. Ling, Z.; Wang, G.; Zhang, M.; Fan, X.; Yu, C.; Yang, J.; Xiao, N.; Qiu, J. Boric acid-mediated B,N-codoped chitosan-derived porous carbons with a high surface area and greatly improved supercapacitor performance. Nanoscale 2015, 7, 5120–5125. [Google Scholar] [CrossRef]
  27. Hwang, K.-J.; Balathanigaimani, M.S.; Choi, Y.H.; Yoon, S.-D.; Shim, W.-G. Influence of ultra-micropore volume of activated carbons prepared from noble mung bean on the adsorption properties of CO2, CH4, and N2. New J. Chem. 2022, 46, 17577–17584. [Google Scholar] [CrossRef]
  28. Lee, S.G.; Park, K.H.; Shim, W.G.; Balathanigaimani, M.S.; Moon, H. Performance of electrochemical double layer capacitors using highly porous activated carbons prepared from beer lees. J. Ind. Eng. Chem. 2011, 17, 450–454. [Google Scholar] [CrossRef]
  29. Hwang, H.; Yang, S.; Yuk, S.; Lee, K.-S.; Byun, S.; Lee, D. Ti3C2Tx MXene as a growth template for amorphous RuOx in carbon nanofiber-based flexible electrodes for enhanced pseudocapacitive energy storage. NPG Asia Mater. 2023, 15, 29. [Google Scholar] [CrossRef]
  30. Hall, P.J.; Mirzaeian, M.; Fletcher, S.I.; Sillars, F.B.; Rennie, A.J.R.; Shitta-Bey, G.O.; Wilson, G.; Cruden, A.; Carter, R. Energy storage in electrochemical capacitors: Designing functional materials to improve performance. Energy Environ. Sci. 2010, 3, 1238–1251. [Google Scholar] [CrossRef]
  31. Byun, S.; Shin, B. Densely packed hybrid films comprising SnO2 and reduced graphite oxide for high-density electrochemical capacitors. J. Mater. Chem. A 2016, 4, 16175–16183. [Google Scholar] [CrossRef]
  32. Byun, S.; Kim, J.H.; Song, S.H.; Lee, M.; Park, J.-J.; Lee, G.; Hong, S.H.; Lee, D. Ordered, Scalable Heterostructure Comprising Boron Nitride and Graphene for High-Performance Flexible Supercapacitors. Chem. Mater. 2016, 28, 7750–7756. [Google Scholar] [CrossRef]
  33. Stoller, M.D.; Ruoff, R.S. Best practice methods for determining an electrode material’s performance for ultracapacitors. Energy Environ. Sci. 2010, 3, 1294–1301. [Google Scholar] [CrossRef]
  34. Yu, H.; Son, Y.R.; Yoo, H.; Cha, H.G.; Lee, H.; Kim, H.S. Chitosan-Derived Porous Activated Carbon for the Removal of the Chemical Warfare Agent Simulant Dimethyl Methylphosphonate. Nanomaterials 2019, 9, 1703. [Google Scholar] [CrossRef] [PubMed]
  35. Park, K.H.; Lee, D.; Kim, J.; Song, J.; Lee, Y.M.; Kim, H.T.; Park, J.K. Defect-free, size-tunable graphene for high-performance lithium ion battery. Nano Lett. 2014, 14, 4306–4313. [Google Scholar] [CrossRef]
  36. Becerril, H.A.; Mao, J.; Liu, Z.; Stoltenberg, R.M.; Bao, Z.; Chen, Y. Evaluation of Solution-Processed Reduced Graphene Oxide Films as Transparent Conductors. ACS Nano 2008, 2, 463–470. [Google Scholar] [CrossRef]
  37. Green, B.; Kovalev, S.; Asgekar, V.; Geloni, G.; Lehnert, U.; Golz, T.; Kuntzsch, M.; Bauer, C.; Hauser, J.; Voigtlaender, J.; et al. High-Field High-Repetition-Rate Sources for the Coherent THz Control of Matter. Sci. Rep. 2016, 6, 22256. [Google Scholar] [CrossRef]
  38. Shao, H.; Wu, Y.C.; Lin, Z.; Taberna, P.L.; Simon, P. Nanoporous carbon for electrochemical capacitive energy storage. Chem. Soc. Rev. 2020, 49, 3005–3039. [Google Scholar] [CrossRef]
  39. Zhu, L.; Shen, F.; Smith, R.L.; Qi, X. High-Performance Supercapacitor Electrode Materials from Chitosan via Hydrothermal Carbonization and Potassium Hydroxide Activation. Energy Technol. 2016, 5, 452–460. [Google Scholar] [CrossRef]
  40. Kim, J.; Kim, S.; Yuk, S.; Hwang, H.; Song, S.H.; Byun, S.; Lee, D. Densely Packed Fiber Electrodes Composed of Liquid Crystalline MXenes for High-Areal-Density Supercapacitors. Energy Technol. 2023, 11, 2201349. [Google Scholar] [CrossRef]
  41. Yang, N.; Yu, S.; Zhang, W.; Cheng, H.M.; Simon, P.; Jiang, X. Electrochemical Capacitors with Confined Redox Electrolytes and Porous Electrodes. Adv. Mater. 2022, 34, e2202380. [Google Scholar] [CrossRef]
  42. Jäckel, N.; Simon, P.; Gogotsi, Y.; Presser, V. Increase in Capacitance by Subnanometer Pores in Carbon. ACS Energy Lett. 2016, 1, 1262–1265. [Google Scholar] [CrossRef]
  43. Largeot, C.; Portet, C.; Chmiola, J.; Taberna, P.-L.; Gogotsi, Y.; Simon, P. Relation between the Ion Size and Pore Size for an Electric Double-Layer Capacitor. J. Am. Chem. Soc. 2008, 130, 2730–2731. [Google Scholar] [CrossRef]
  44. Augustyn, V.; Come, J.; Lowe, M.A.; Kim, J.W.; Taberna, P.-L.; Tolbert, S.H.; Abruña, H.D.; Simon, P.; Dunn, B. High-rate electrochemical energy storage through Li+ intercalation pseudocapacitance. Nat. Mater. 2013, 12, 518–522. [Google Scholar] [CrossRef] [PubMed]
  45. Zhang, B.; Liu, J.; Yu, W.; Gao, J.; Cui, X.; Jiang, L. Steering Pt surface via N-doped carbon layer to highly active CO-tolerant hydrogen oxidation reaction catalyst in alkaline media. Appl. Surf. Sci. 2023, 614, 156131. [Google Scholar] [CrossRef]
  46. Hwang, H.; Byun, S.; Yuk, S.; Kim, S.; Song, S.H.; Lee, D. High-rate electrospun Ti3C2Tx MXene/Carbon Nanofiber Electrodes for Flexible Supercapacitors. Appl. Surf. Sci. 2021, 556, 149710. [Google Scholar] [CrossRef]
  47. Luo, M.; Wang, X.; Meng, T.; Yang, P.; Zhu, Z.; Min, H.; Chen, M.; Chen, W.; Zhou, X. Rapid One-Step Preparation of Hierarchical Porous Carbon from Chitosan-Based Hydrogel for High-Rate Supercapacitors: The effect of gelling agent concentration. Int. J. Biol. Macromol. 2020, 146, 453–461. [Google Scholar] [CrossRef] [PubMed]
  48. Platek, A.; Nita, C.; Ghimbeu, C.M.; Frąckowiak, E.; Fic, K. Electrochemical Capacitors Operating in Aqueous Electrolyte with Volumetric Characteristics Improved by Sustainable Templating of Electrode Materials. Electrochim. Acta 2020, 338, 135788. [Google Scholar] [CrossRef]
  49. Li, X.; Wang, H.; Robinson, J.T.; Sanchez, H.; Diankov, G.; Dai, H. Simultaneous Nitrogen Doping and Reduction of Graphene Oxide. J. Am. Chem. Soc. 2009, 131, 15939–15944. [Google Scholar] [CrossRef] [PubMed]
  50. Wang, Y.; Dong, L.; Lai, G.; Wei, M.; Jiang, X.; Bai, L. Nitrogen-Doped Hierarchically Porous Carbons Derived from Polybenzoxazine for Enhanced Supercapacitor Performance. Nanomaterials 2019, 9, 131. [Google Scholar] [CrossRef]
  51. Park, K.H.; Park, T.; Yuk, S.; Ko, B.; Ahn, J.; Hong, S.J.; Lee, D.; Song, S.H. Engineering Nanopores in Graphene-Based Nanoplatelets Derived from Cellulose-Based Biomass for High-Performance Capacitors. ACS Mater. Lett. 2023, 5, 3263–3272. [Google Scholar] [CrossRef]
  52. Chmiola, J.; Largeot, C.; Taberna, P.-L.; Simon, P.; Gogotsi, Y. Monolithic Carbide-Derived Carbon Films for Micro-Supercapacitors. Science 2010, 328, 480–483. [Google Scholar] [CrossRef] [PubMed]

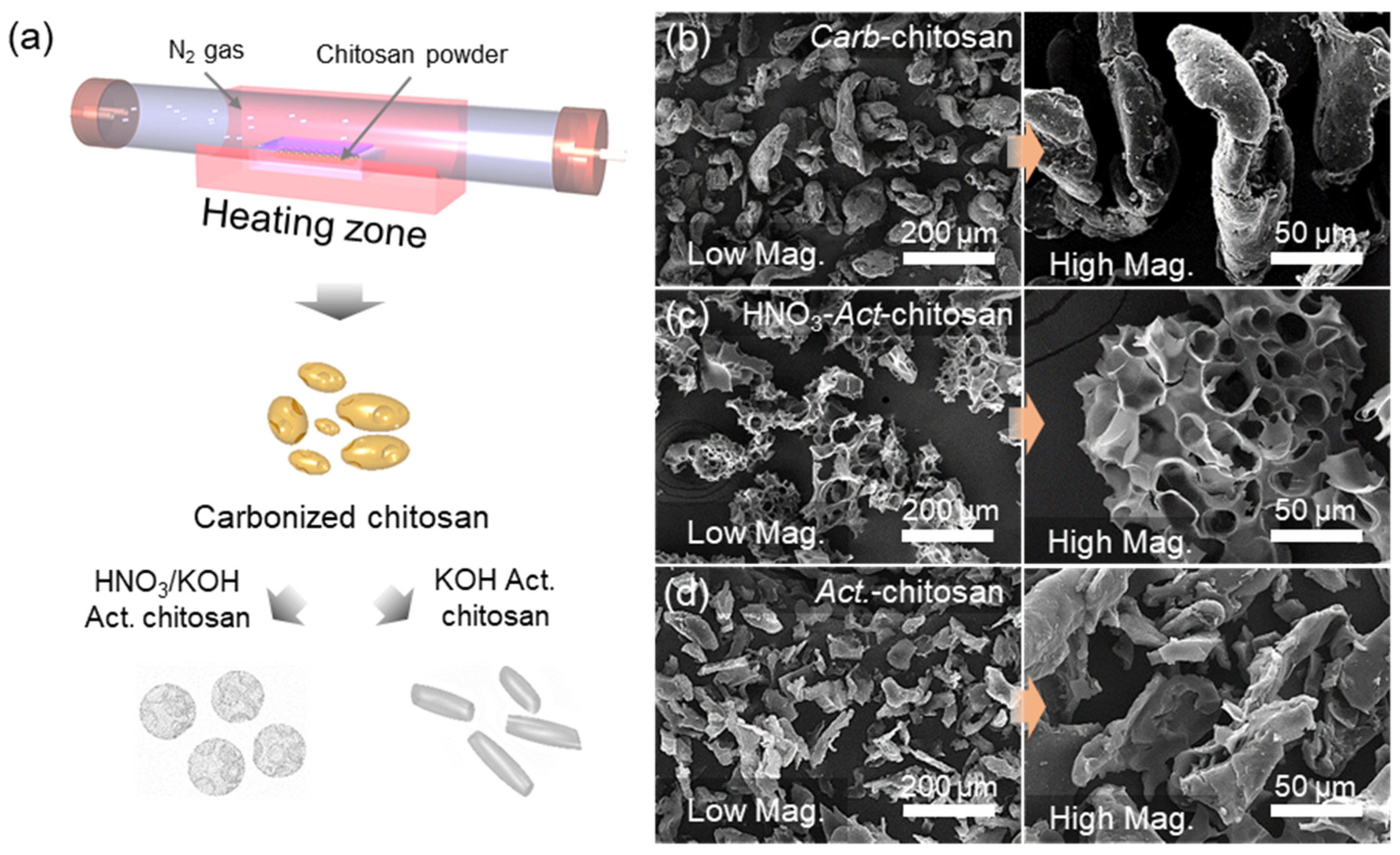

Figure 1. Schematic illustration and characterization of carbonized chitosan (Carb-chitosan) and the activated samples (HNO3-Act-chitosan and Act-chitosan). (a) Experimental steps. SEM images (low magnification [left] and high magnification [right]). (b) Carb-chitosan fabricated at 400 °C. (c) HNO3-Act-chitosan activated at 800 °C after HNO3 treatment. (d) Act-chitosan activated at 800 °C.
Figure 1. Schematic illustration and characterization of carbonized chitosan (Carb-chitosan) and the activated samples (HNO3-Act-chitosan and Act-chitosan). (a) Experimental steps. SEM images (low magnification [left] and high magnification [right]). (b) Carb-chitosan fabricated at 400 °C. (c) HNO3-Act-chitosan activated at 800 °C after HNO3 treatment. (d) Act-chitosan activated at 800 °C.
Nanomaterials 13 02961 g001

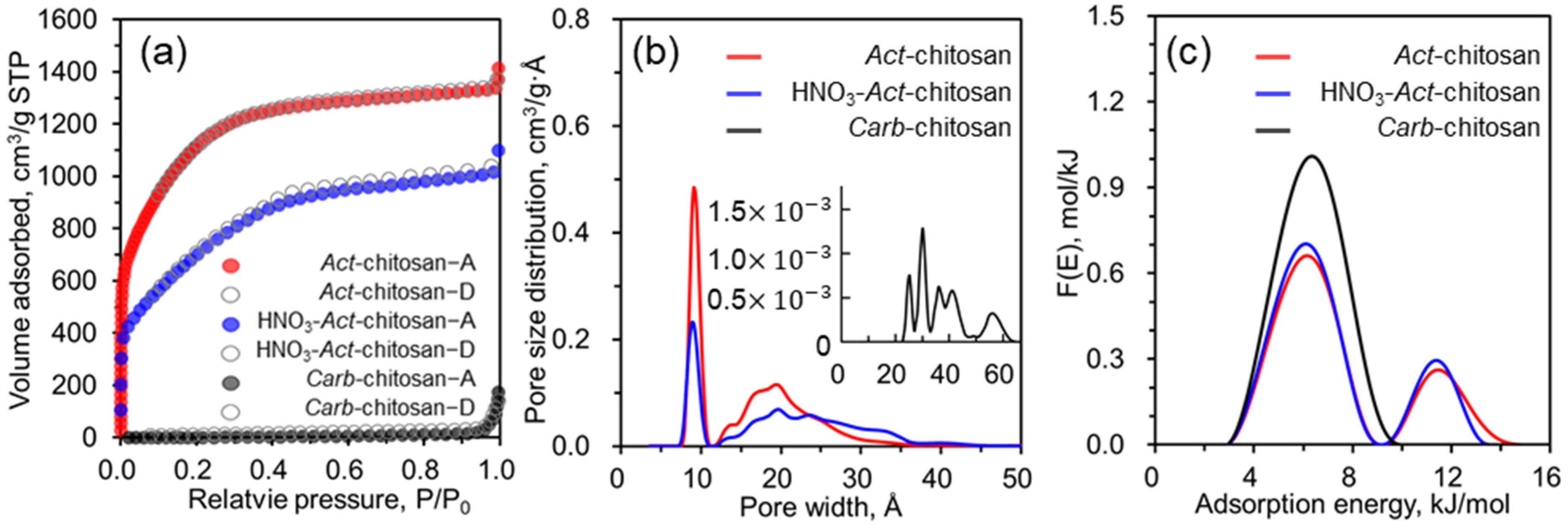

Figure 2. (a) N2 adsorption/desorption isotherm of Carb-chitosan, HNO3-Act-chitosan, and Act-chitosan measured at 77 K. (b) Pore size distribution calculated using the 2D-NLDFT equation. (c) Adsorption energy distribution.
Figure 2. (a) N2 adsorption/desorption isotherm of Carb-chitosan, HNO3-Act-chitosan, and Act-chitosan measured at 77 K. (b) Pore size distribution calculated using the 2D-NLDFT equation. (c) Adsorption energy distribution.
Nanomaterials 13 02961 g002

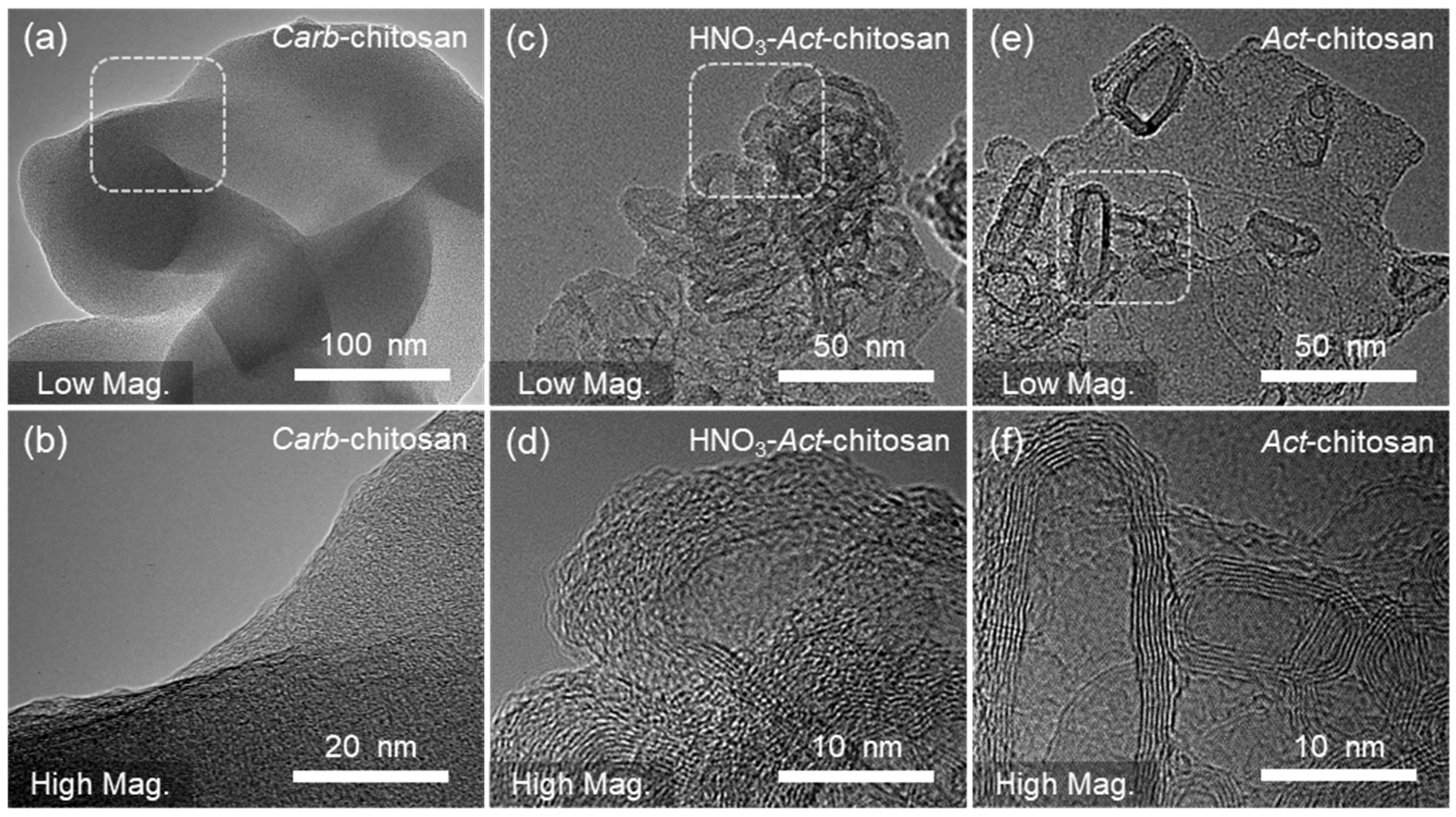

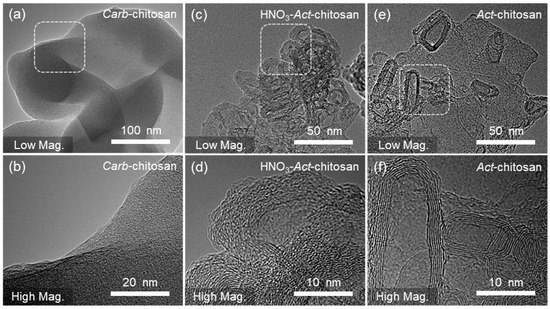

Figure 3. TEM images of Carb-chitosan, HNO3-Act-chitosan, and Act-chitosan. (a,b) Carb-chitosan (c,d) HNO3-Act-chitosan. (e,f) Act-chitosan. Low magnification (top) and high magnification (bottom).
Figure 3. TEM images of Carb-chitosan, HNO3-Act-chitosan, and Act-chitosan. (a,b) Carb-chitosan (c,d) HNO3-Act-chitosan. (e,f) Act-chitosan. Low magnification (top) and high magnification (bottom).
Nanomaterials 13 02961 g003

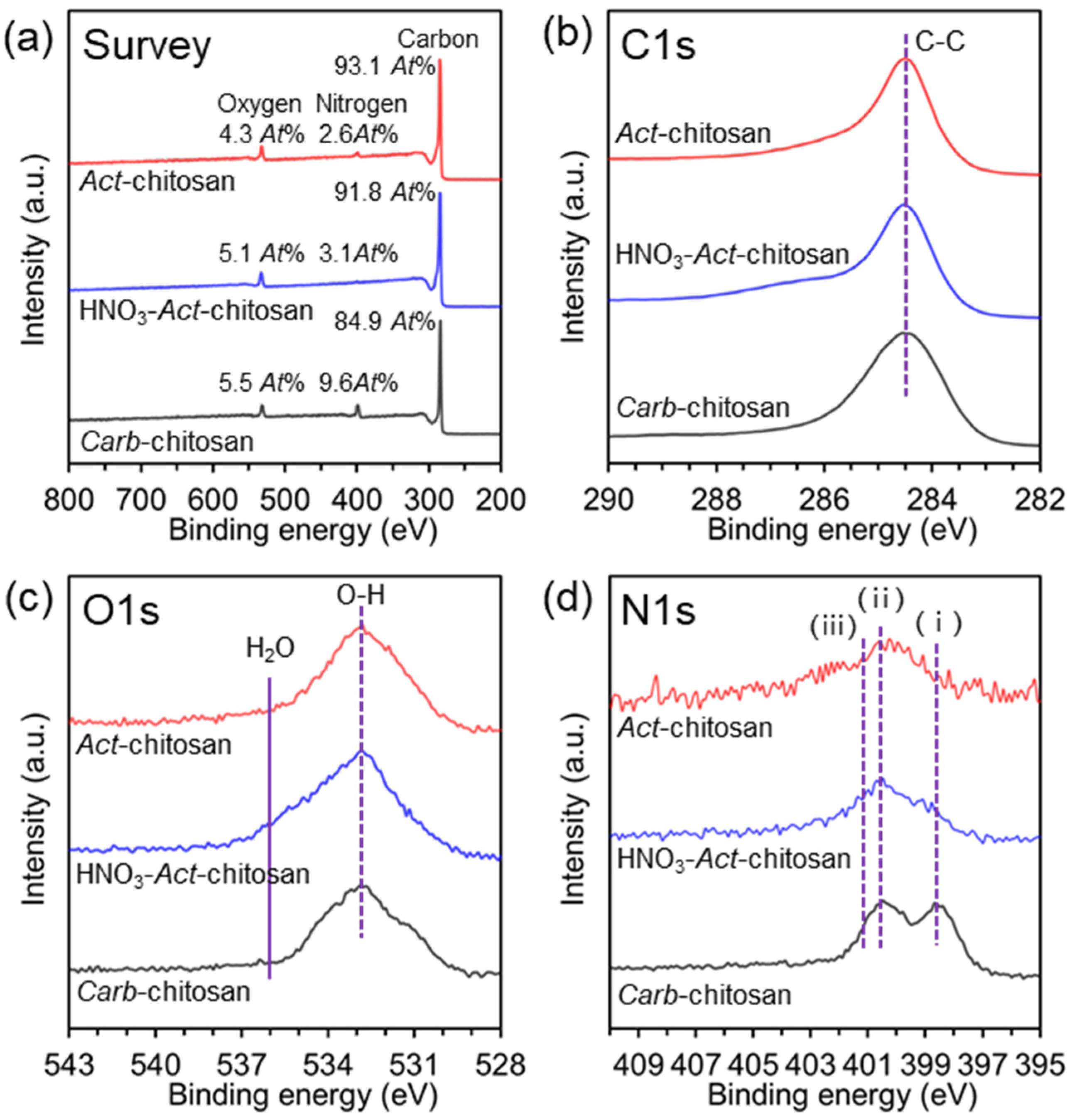

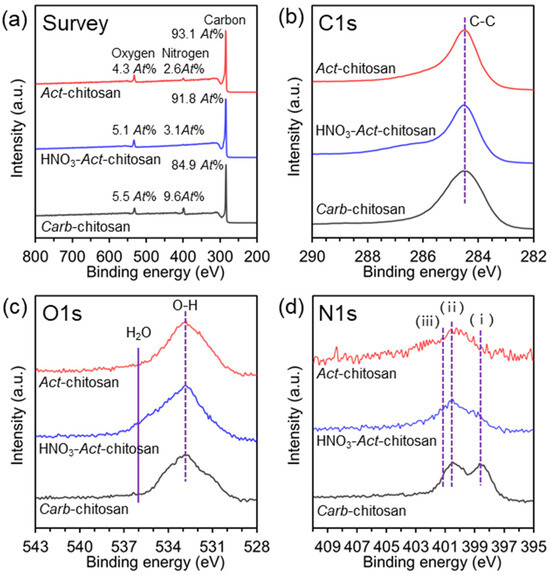

Figure 4. Chemical composition of Carb-chitosan, HNO3-Act-chitosan, and Act-chitosan as measured by XPS. (a) Survey. (b) C1s narrow-scan spectra. (c) O1s narrow-scan spectra. (d) N1s narrow-scan spectra. (i) Pyridine-like peak (–NH2), (ii) Pyrrol-like peak (O=C=NH–), (iii) nitrogen atoms that are either protonated or oxidized.
Figure 4. Chemical composition of Carb-chitosan, HNO3-Act-chitosan, and Act-chitosan as measured by XPS. (a) Survey. (b) C1s narrow-scan spectra. (c) O1s narrow-scan spectra. (d) N1s narrow-scan spectra. (i) Pyridine-like peak (–NH2), (ii) Pyrrol-like peak (O=C=NH–), (iii) nitrogen atoms that are either protonated or oxidized.
Nanomaterials 13 02961 g004

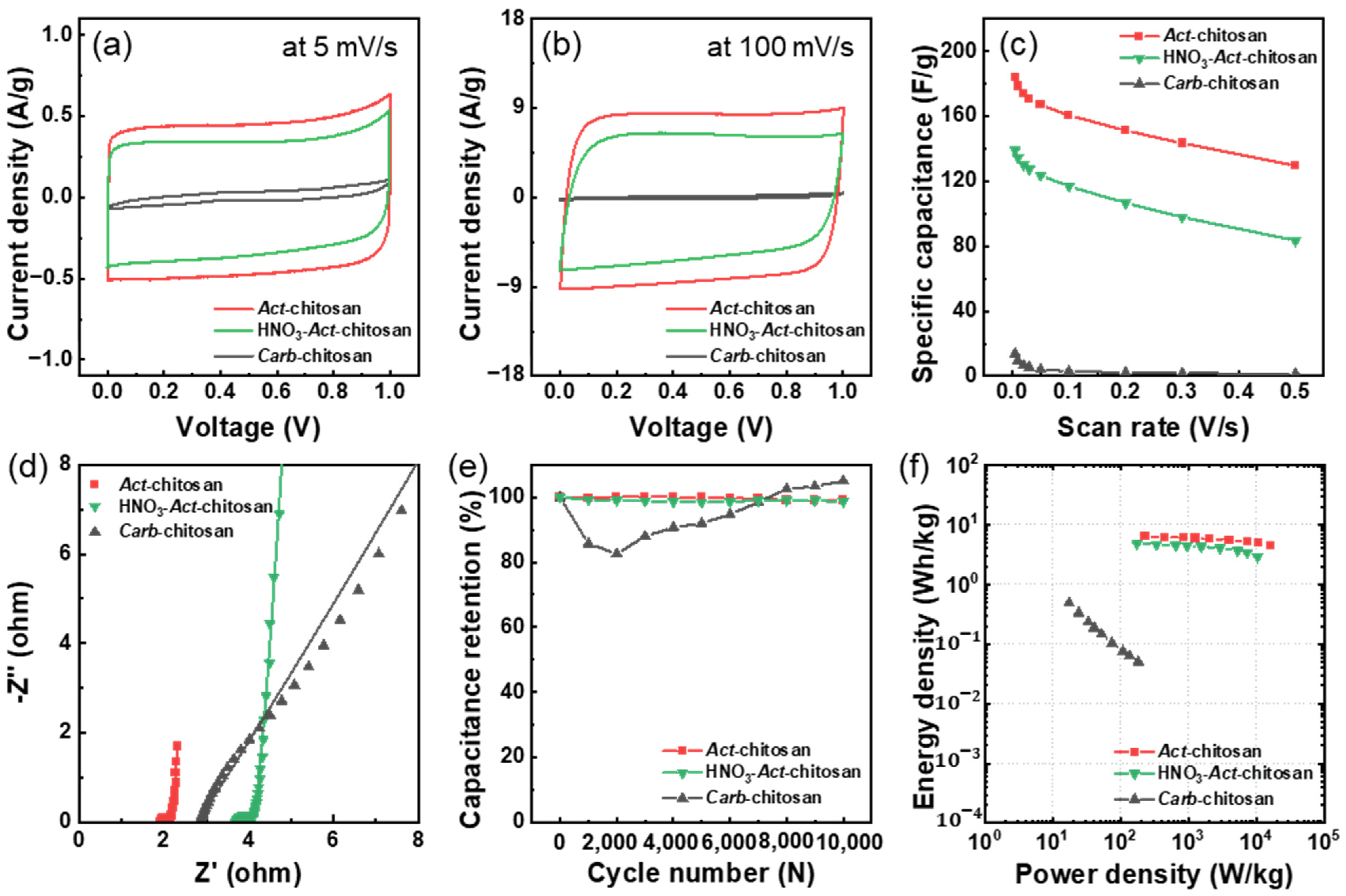

Figure 5. Cyclic voltammetry (CV) curves of Carb-chitosan, HNO3-Act-chitosan, and Act-chitosan at scan rates of (a) 5 mV/s and (b) 100 mV/s. (c) Rate performance of the samples at scan rates of 5–500 mV/s. (d) Nyquist plots of the samples. (e) Capacitance retention of the electrodes during 10,000 cycles. (f) Ragone plots of the specific energy density and power density of the supercapacitor for each electrode.
