Phase Change-Induced Magnetic Switching through Metal–Insulator Transition in VO2/TbFeCo Films

by
Chung T. Ma
1,
Salinporn Kittiwatanakul
1,2,
Apiprach Sittipongpittaya
1,
Yuhan Wang
1,
Md Golam Morshed
3,
Avik W. Ghosh
1,3 and
S. Joseph Poon
1,4,*
1
Department of Physics, University of Virginia, Charlottesville, VA 22904, USA
2
Department of Physics, Faculty of Science, Chulalongkorn University, Bangkok 10330, Thailand
3
Department of Electrical and Computer Engineering, University of Virginia, Charlottesville, VA 22904, USA
4
Department of Material Science and Engineering, University of Virginia, Charlottesville, VA 22904, USA
*
Author to whom correspondence should be addressed.
Nanomaterials 2023, 13(21), 2848; https://doi.org/10.3390/nano13212848
Submission received: 1 September 2023 / Revised: 25 October 2023 / Accepted: 25 October 2023 / Published: 27 October 2023
(This article belongs to the Section Synthesis, Interfaces and Nanostructures)
Browse Figures
Versions Notes

Abstract

:
The ability to manipulate spins in magnetic materials is essential in designing spintronics devices. One method for magnetic switching is through strain. In VO 2 on TiO 2 thin films, while VO 2 remains rutile across the metal–insulator transition, the in-plane lattice area expands going from a low-temperature insulating phase to a high-temperature conducting phase. In a VO 2 /TbFeCo bilayer, the expansion of the VO 2 lattice area exerts tension on the amorphous TbFeCo layer. Through the strain effect, magnetic properties, including the magnetic anisotropy and magnetization, of TbFeCo can be changed. In this work, the changes in magnetic properties of TbFeCo on VO 2 /TiO 2 (011) are demonstrated using anomalous Hall effect measurements. Across the metal–insulator transition, TbFeCo loses perpendicular magnetic anisotropy, and the magnetization in TbFeCo turns from out-of-plane to in-plane. Using atomistic simulations, we confirm these tunable magnetic properties originating from the metal–insulator transition of VO 2 . This study provides the groundwork for controlling magnetic properties through a phase transition.

1. Introduction

With the rapid developments of automation, the need for fast processing and compact data storage has promptly increased. Spintronic devices have the potential to serve as the building blocks of speedy data processors and high-density memory [1,2,3,4,5,6]. In spintronics, magnetic moments are the key components for reading and writing data. Being able to control magnetic moments is crucial in designing spintronic devices [3,4,5,6]. Several methods, such as current and laser pulses, can switch magnetic moments in multilayer thin films [7,8,9]. Investigating other methods to manipulate spins is critical for future developments in spintronics.
Among many mechanisms to control magnetism, straintronics, which employs strain-mediated effects for switching, presents an intriguing opportunity. It can serve as a foundation for energy-efficient devices [10,11,12]. One possibility of using strain arises from the metal–insulator transition (MIT). For example, MIT in Vanadium dioxide (VO 2 ) has drawn interest from both fundamental theories and technological applications [13,14]. Recent studies have shown possible applications in ultrafast optics and electronic devices for sensing and switching [15,16,17,18,19]. In bulk VO 2 , MIT occurs at 340 K [20] and it is accompanied by abrupt changes in structural and electronic properties. Across the MIT, bulk VO 2 undergoes a structural transition from a low-temperature monoclinic to a high-temperature rutile phase. In VO 2 thin films under uniaxial strain, recent reports reveal a complex mix of structural phases near MIT [21,22,23,24,25,26]. When VO 2 films are epitaxially grown on TiO 2 substrates, due to epitaxial bi-axial strains, the transitions are isostructural. In addition, MIT occurs at different temperatures for VO 2 films grown on different orientations of the TiO 2 substrates. In VO 2 /TiO 2 , although VO 2 films remain rutile, the lattice parameters change along in-plane and out-of-plane directions [25]. Furthermore, in a similar V 2 O 3 system, this coexistence of nanoscale phases near MIT leads to changes in magnetic properties in V 2 O 3 /Ni bilayers [27,28]. Moreover, magnetism in paramagnetic centers is found to be affected by MIT in VO 2 due to magnetoelastic anisotropy [29]. In these samples, the changes in lattice parameters of VO 2 serve as the most important mechanism for tuning magnetic properties. Because of their high magnetostrictions, ferrimagnetic rare-earth (RE) transitional-metal (TM) alloys such as TbFeCo are promising materials to study the effect on magnetism from MIT.
Amorphous ferrimagnetic RE-TM thin films have been widely studied for their applications in high-density low-current spintronics devices [30], sub-ps ultrafast magnetic switching [8,9,31,32,33], and a host for magnetic skyrmions with a tunable Dzyaloshinskii–Moriya Interaction [34,35,36,37,38]. These ferrimagnetic films exhibit strong perpendicular magnetic anisotropy (PMA) and can be synthesized at room temperature requiring no epitaxial growth [39,40]. Magnetic properties, such as magnetization and coercivity, are greatly influenced by the compensation temperature, which can be tuned by varying composition and thickness [41,42]. These properties make TbFeCo a good material to reveal the effect on magnetism from MIT.
In this work, the impact on magnetic properties from MIT is investigated in a VO 2 /TbFeCo bilayer. Amorphous TbFeCo films are grown on epitaxial VO 2 samples and Si/SiO 2 substrate. Comparison of magnetic properties reveals changes in magnetic anisotropy and magnetization in TbFeCo near MIT of VO 2 . Furthermore, atomistic simulations are employed to incorporate the strain effect induced by VO 2 on TbFeCo near MIT. These results can serve as a foundation for developing techniques to control magnetic properties through MIT for device applications. More importantly, since properties of VO 2 [15,16,17,18,19] and RE-TM [8,9,31,32,33] can be controlled through an ultrafast laser, these results open up the possibility of high-speed data processing using RE-TM on VO 2 .

2. Materials and Methods

Thin films of ∼100 nm VO 2 were grown on (011) and (100) TiO 2 substrates by reactive biased target ion beam deposition (RBTIBD). Details of growth conditions can be found in a previous publication [43]. Amorphous 15 nm thick Tb 26 Fe 64 Co 10 thin films were deposited on VO 2 /TiO 2 films as well as thermally oxidized Si substrates by RF magnetron sputtering at room temperature under a base pressure of 5 × 10 − 7 torr from co-sputtering of Tb and TbFeCo targets. The TbFeCo layers were deposited on the VO 2 /TiO 2 films and SiO 2 /Si substrates at the same time to eliminate changes in TbFeCo properties due to growth conditions. A 5 nm Ta capping layer was deposited on the samples to prevent oxidation. These samples were made in Hall bar devices for magneto-transport measurement, and Hall measurements were obtained for TbFeCo/VO 2 /TiO 2 (100), (011), and TbFeCo/SiO 2 /Si samples.
Structural characterization of the samples was performed by X-ray diffraction (XRD) using a SmartLab system (Rigaku Inc., The Woodlands, TX, USA) in the 2 θ range between 20 degrees and 80 degrees. Thin thickness measurements were performed by the X-ray reflectivity (XRR) technique in the SmartLab. The film surface morphology was characterized via atomic force microscopy (AFM) by Cypher (Asylum Research Inc., Santa Barbara, CA, USA). The magnetic properties at various temperatures were performed by the vibrating sample magnetometer (VSM) option in a VersaLab system (Quantum Design Inc., San Diego, CA, USA). The magneto-transport properties at various temperatures were performed by the electric transport option in the VersaLab system. Temperatures were varied from 250 K to 350 K and applied magnetic fields were varied from −2 T to 2 T for these measurements.
An atomistic simulation was employed to study the change in magnetic hysteresis due to strain. A handmade atomistic code was used for the atomistic simulations. Since Fe and Co atoms belong to the same TM sublattice in the RE-TM ferrimagnet, Co atoms are treated as Fe atoms. Tb and Fe atoms are distributed in a 1.6 nm × 1.6 nm × 1.6 nm RE 25 TM 75 amorphous structure. We placed replicas of this box next to each other in a 3 × 3 × 9 configuration to expand the simulation’s size to 4.8 nm × 4.8 nm × 14.4 nm, and 20,250 atoms in total. The parameters used in the simulation are listed in Table 1. The anisotropy axis for each atom is distributed randomly within a 30-degree cone, with the axis of the cone pointing along the out-of-plane direction. The exchange interactions are benchmarked based on Oslter et al. [44] and our experiments to maintain the same Curie temperature and compensation temperature for a given composition. Using the stochastic Landau–Lifshitz–Gilbert (LLG) equation [45], hysteresis loops were simulated and compared to experiments. The strain anisotropy (K s t r a i n ) is given by
K s t r a i n = − 3 2 λ E y ϵ
where λ = 100 ppm is the magnetostriction of amorphous TbFeCo, E y = 100 GPa is the Young’s Modulus of TbFeCo, and ϵ is the strain exerted on TbFeCo by MIT of VO 2 . In the case of TbFeCo thin films, a positive K s t r a i n leads to perpendicular magnetic anisotropy, while a negative K s t r a i n leads to in-plane magnetic anisotropy. The percentage of atoms that experience strain ϵ varies with the phase distribution in VO 2 as VO 2 undergoes MIT, based on the fraction of metallic phase obtained from experiments. From Laverock et al. [26], VO 2 ’s transition is not abrupt across MIT. Near the MIT, there is a mixture of a low-temperature insulating phase and a high-temperature metallic phase present in the sample. To model this behavior, we approximated the fraction of atoms experiencing strain from VO 2 ’s MIT, based on the fraction of metallic phase obtained from the experiment by Laverock et al. [26] at various temperatures. For example, in TbFeCo on VO 2 /TiO 2 (011), no atoms experience strain at 250 K, 25% of atoms experience strain at 300 K, and 75% of atoms experience strain at 320 K.

3. Results and Discussions

VO 2 films were grown on TiO 2 substrates with two different orientations. Figure 1a presents XRD patterns of VO 2 /TiO 2 (011) (green), and (100) (blue) films measured at room temperature. The 2 θ peaks are indexed using rutile VO 2 (R-VO 2 ) and TiO 2 . Different orientations of R-VO 2 are found in samples grown on different orientations of TiO 2 substrates. R-VO 2 (101) and R-VO 2 (200) peaks are observed in VO 2 /TiO 2 (101) and VO 2 /TiO 2 (100), respectively. These correspond to the epitaxial growth of VO 2 films in each TiO 2 orientation. The rutile phase in VO 2 at room temperature is consistent with the findings in a previous publication by Kittiwantanakul et al. [25]. In VO 2 thin films epitaxially grown on TiO 2 substrates, due to epitaxial bi-axial strains, VO 2 remains rutile in both the low-temperature insulating phase and the high-temperature conducting phase. Although VO 2 remains rutile, temperature-dependent XRD shows a change in relative lattice spacing across MIT. Above the MIT, the relative lattice space in VO 2 on TiO 2 (100) becomes comparable to that of bulk VO 2 [46]. Thus, in VO 2 /TiO 2 (011), the in-plane lattice area, defined as A = a × c expands from 12.66 Å 2 , where a and c are lattice contants equal to 4.41 Å and 2.87 Å, respectively, to 12.99 Å 2 , where a and c are lattice contants equal to 4.56 Å and 2.85 Å, respectively, going from the low-temperature insulating phase to the high-temperature conducting phase. On the other hand, in VO 2 /TiO 2 (100), the in-plane lattice area compresses from 13.03 Å 2 , where a and c are lattice contants equal to 4.51 Å and 2.89 Å, respectively, to 12.99 Å 2 , where a and c are lattice contants equal to 4.56 Å and 2.85 Å, respectively, across MIT.
To characterize the MIT of VO 2 /TiO 2 , resistance measurements from 240 K to 400 K are shown in Figure 1b. Across the MIT, VO 2 /TiO 2 films show several orders of magnitude decrease in resistance, confirming the transition to a metallic state from an insulating state. Different orientations of VO 2 /TiO 2 have different MIT temperatures between 310 K and 350 K. The MIT temperature is found in VO 2 /TiO 2 (011) at ∼320 K, followed by VO 2 /TiO 2 (100) at ∼350 K. Hysteresis-like behavior is present near MIT in all three orientations, where sharp changes in resistance occur at different temperatures under heating and cooling. The shift in MIT is due to different epitaxial bi-axial strains in VO 2 /TiO 2 for different orientations [25].
To study the strain effect on magnetic properties from VO 2 across MIT, we deposited 15 nm thick TbFeCo with 5 nm thick Ta capping on top of various VO 2 /TiO 2 films at the same time. Figure 2a shows a schematic diagram of the heterostructure investigated in this work. We studied the surface morphology and roughness in these films by AFM. Figure 2b–e shows the AFM images of TbFeCo/VO 2 /TiO 2 before and after the depositions of TbFeCo and Ta capping layer. Before the deposition of TbFeCo, the RMS roughnesses of the samples are 1.19 nm in VO 2 /TiO 2 (011), and 0.66 nm in VO 2 /TiO 2 (100). After the deposition of the TbFeCo and Ta capping layer, the RMS roughnesses of the samples are 1.29 nm in TbFeCo/VO 2 /TiO 2 (011), and 0.81 nm in TbFeCo/VO 2 /TiO 2 (100). This means that the changes in roughnesses after the deposition of TbFeCo are rather small. Furthermore, the AFM images show little changes to the samples’ surfaces. These indicate the TbFeCo layers with Ta capping deposited on VO 2 /TiO 2 maintained the same roughnesses and uniformity for each sample.
To investigate if there is any magnetic switching of TbFeCo due to MIT in VO 2 , we fabricated each sample into Hall bar configurations and performed the anomalous Hall effect measurements on the patterned films. The anomalous Hall effect is considered here instead of direct hysteresis loops. This is because the TbFeCo films have a low magnetization of about 1 × 10 5 A/m, resulting in a small magnetic moment signal in the M-H loops measurements. Thus, the anomalous Hall effect is considered here for clearer results from measurements. Figure 3a–c show normalized Hall resistance as a function of the out-of-plane applied magnetic field of (a) TbFeCo/SiO 2 /Si, (b) TbFeCo/VO 2 /TiO 2 (011), and (c) TbFeCo/VO 2 /TiO 2 (100). For higher temperatures, above 330 K, increases in noise are observed in both Figure 3a,c. We suspect this is due to the temperature effect in the patterned films. In Figure 3a, the Hall resistance of TbFeCo/SiO 2 /Si shows very minor changes from 300 K to 350 K, which is expected. Since SiO 2 /Si substrate has no transitions within this temperature range, the only source of strain acting on TbFeCo arises from the difference in thermal expansion between TbFeCo and SiO 2 /Si substrate. The thermal expansion coefficient of SiO 2 /Si substrate is 0.24 ppm/K. In comparison, the thermal expansion coefficient of amorphous TbFeCo near 300 K is about 10 ppm/K, estimated from amorphous TbFe alloy [47]. From 300 K to 350 K, ϵ due to thermal expansion is ∼500 ppm, which is 5 × 10 − 4 . Using Equation (1), this gives K s t r a i n of about −7.5 × 10 3 J/m 3 , much smaller than K u of 1 × 10 5 J/m 3 in TbFeCo. As shown in Figure 3a, ϵ of 5 × 10 − 4 is too small to have any effects on magnetic anisotropy in TbFeCo, and the magnetic moments of TbFeCo remain pointing in the out-of-plane directions at zero fields. These minor changes in hysteresis loops are likely due to an increase in temperature. The lack of significant changes in TbFeCo’s out-of-plane loops shows that the magnetic anisotropy of TbFeCo is near constant around room temperature.
Next, we focus on the behavior of TbFeCo on VO 2 /TiO 2 near room temperatures. From Figure 3b, the normalized Hall resistance as a function of out-of-plane applied magnetic field of TbFeCo/VO 2 /TiO 2 (011) shows a clear loss of PMA going from 250 K to 320 K. The magnetic hysteresis loops become less squared and the magnetic moments of TbFeCo switch from out-of-plane to in-plane. From Figure 1b, the MIT of VO 2 /TiO 2 (011) (green line) occurs near 320 K. This means that the loss of PMA in TbFeCo corresponds to the MIT of VO 2 near 320 K. As the temperature goes up from 250 K to 320 K, VO 2 ’s in-plane lattice area expands across the MIT of VO 2 /TiO 2 (011). From Kittiwantanakul et al. [25], the in-plane lattice area expands from 12.66 Å 2 in the low-temperature phase to 12.99 Å 2 in the high-temperature phase. This corresponds to ϵ of 2.6 × 10 − 2 and K s t r a i n of −3.9 × 10 5 J/m 3 using Equation (1), greater than K u of 1 × 10 5 J/m 3 in TbFeCo. Besides strain from VO 2 ’s in-plane lattice expansion, another source of strain arising from the difference in the thermal expansion between TbFeCo and VO 2 . As discussed earlier, the thermal expansion coefficient of amorphous TbFeCo near 300 K is about 10 ppm/K. On the other hand, the thermal expansion coefficient of VO 2 near 300 K is about 21.1 ppm/K [48]. Thus, ϵ due to thermal expansion going from 250 K to 320 K is ∼800 ppm, which is 8 × 10 − 4 . This is over an order of magnitude smaller than the ϵ of 2.6 × 10 − 2 , arises from VO 2 ’s MIT. Moreover, from Laverock et al. [26], VO 2 films are not homogeneous. The MIT of VO 2 films involves a mixture of a low-temperature insulating phase and a high-temperature conducting phase across a temperature range. The means that TbFeCo on VO 2 is experiencing a gradual change in strain across MIT. This is supported by the progressive loss of PMA in TbFeCo going from 250 K to 320 K, as seen in Figure 3b. This shows that the switching of TbFeCo from out-of-plane to in-plane is likely due to the tensile strain that arises from VO 2 ’s in-plane lattice expansion across MIT.
Figure 3c shows the normalized Hall resistance as a function out-of-plane applied magnetic field of TbFeCo/VO 2 /TiO 2 (100). The Hall effect of TbFeCo/VO 2 /TiO 2 (100) reveals the absence of PMA in TbFeCo throughout the measured temperature. This is probably due to the presence of tensile strain acting on TbFeCo by VO 2 /TiO 2 (100). The in-plane lattice area of the low-temperature insulating phase in VO 2 /TiO 2 (100) is 13.03 Å 2 [25], which is larger compared to the in-plane lattice area in VO 2 /TiO 2 (011) (12.66 Å 2 ). This means that the underlayer of VO 2 /TiO 2 (100) is most likely applying a tensile interfacial strain on the TbFeCo atoms in these multilayer thin films. Since amorphous TbFeCo has positive magnetostriction, a tensile strain will lead to an additional in-plane anisotropy contribution. In contrast, in TbFeCo/VO 2 /TiO 2 (011), the smaller in-plane lattice area at the low-temperature insulating phase in VO 2 /TiO 2 (011) is creating a compressive interfacial strain on TbFeCo, resulting in PMA in TbFeCo. Furthermore, when the in-plane lattice area of VO 2 /TiO 2 (011) expands to 12.99 Å 2 across the MIT, TbFeCo on VO 2 /TiO 2 (011) lost PMA. This shows that the in-plane lattice area of 12.99 Å 2 or larger is supplying a tensile interfacial strain on TbFeCo.
From Figure 3c, as the temperature changes from 300 K to 350 K, there are no changes in the magnetic anisotropy of TbFeCo, magnetic moments of TbFeCo remain in-plane at zero external fields throughout the measured temperatures. From Figure 1b, the MIT of VO 2 /TiO 2 (100) (blue line) occurs near 350 K. This means that across the MIT of VO 2 , magnetic properties of TbFeCo remain unaffected. This can be explained by the change in the in-plane lattice area of VO 2 /TiO 2 (100) across MIT. In VO 2 /TiO 2 (100), the in-plane lattice area shrank from 13.03 Å 2 in the low-temperature phase to 12.99 Å 2 in the high-temperature phase [25]. This corresponds to an ϵ of −3 × 10 − 3 . Note that the negative sign here corresponds to the compressive strain exerted on TbFeCo, compared to tensile strain in the other samples. The strain in VO 2 /TiO 2 (100) is almost 10 times smaller than the strain in VO 2 /TiO 2 (011), which is 2.6 × 10 − 2 . Therefore, it makes sense that the change in magnetic anisotropy of TbFeCo is only observed in TbFeCo/VO 2 /TiO 2 (011), but not in TbFeCo/VO 2 /TiO 2 (100).
To verify that the strain from VO 2 ’s MIT is the source of magnetic switching in TbFeCo, an atomistic model is employed. In this model, strain anisotropy is given by Equation (1). Figure 4a,b show the comparison of measured out-of-plane anomalous Hall effect and simulated hysteresis loops from 300 K to 350 K in TbFeCo on SiO 2 /Si substrate, respectively. In this sample, no strain anisotropy is included in the simulations because SiO 2 /Si substrate does not undergo transition across these temperatures. Results indicate the minor changes in measured anomalous Hall effect from 300 K to 350 K are due to an increase in temperature. A discrepancy in the coercivity between measurements and simulations is observed in Figure 4a,b. We suspect the discrepancy originates from the complex cone-shaped anisotropy in amorphous rare-earth transition–metal films [39]. Next, we investigated hysteresis loops of TbFeCo on VO 2 /TiO 2 (011) using atomistic simulations. Figure 4c,d show the comparison of measured out-of-plane anomalous Hall effect and simulated out-of-plane hysteresis loops from 250 K to 320 K in TbFeCo/VO 2 /TiO 2 (011), respectively. With the incorporated model of the strain anisotropy, the measured and simulated hysteresis loops are in good agreement. Both show the gradual loss of PMA in TbFeCo from 250 K to 320 K and the magnetic moments turn from out-of-plane to in-plane at zero fields going from 250 K to 320 K. This confirms that strain from VO 2 ’s MIT is the source of magnetic switching in TbFeCo.

4. Conclusions

In summary, 15 nm thick amorphous TbFeCo films were deposited on VO 2 /TiO 2 to study the strain effect of metal–insulator transition (MIT) on magnetic properties. Using TbFeCo on thermally oxidized Si substrate as a reference sample, changes in magnetic anisotropy were observed in TbFeCo/VO 2 /TiO 2 (011) film. Near the MIT of VO 2 /TiO 2 (011), a decrease in magnetic anisotropy was found in TbFeCo and the magnetization of TbFeCo switched from out-of-plane to in-plane at zero external fields. This decrease in magnetic anisotropy originated from the tensile strain arising from the transition of VO 2 /TiO 2 (011), where the in-plane lattice area of VO 2 expands. Furthermore, atomistic simulations of TbFeCo with strain anisotropy from VO 2 were in agreement with measurements, confirming that the in-plane lattice expansion in VO 2 /TiO 2 (011) across MIT is sufficient to switch magnetic moments in TbFeCo. These results offer a platform for using the phase transition to achieve magnetic switching in spintronics devices for desirable applications.

Author Contributions

Sample fabrication and measurements, C.T.M., S.K., A.S. and Y.W.; modeling, writing—review and editing, C.T.M. and M.G.M.; supervision and writing—review, A.W.G. and S.J.P. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Data Availability Statement

The data that support the findings of this study are available from the corresponding author upon reasonable request.

Acknowledgments

We thank Jiwei Lu for his thoughtful and stimulating discussions. S.K. acknowledges the support from the NSRF via the Program Management Unit for Human Resources & Institutional Development, Research and Innovation (grant number B05F650024).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Žutić, I.; Fabian, J.; Das Sarma, S. Spintronics: Fundamentals and applications. Rev. Mod. Phys. 2004, 76, 323–410. [Google Scholar] [CrossRef]
  2. Dieny, B.; Prejbeanu, I.L.; Garello, K.; Gambardella, P.; Freitas, P.; Lehndorff, R.; Raberg, W.; Ebels, U.; Demokritov, S.O.; Akerman, J.; et al. Opportunities and challenges for spintronics in the microelectronics industry. Nat. Electron. 2020, 3, 446–459. [Google Scholar] [CrossRef]
  3. Hirohata, A.; Yamada, K.; Nakatani, Y.; Prejbeanu, I.L.; Diény, B.; Pirro, P.; Hillebrands, B. Review on spintronics: Principles and device applications. J. Magn. Magn. Mater. 2020, 509, 166711. [Google Scholar] [CrossRef]
  4. Puebla, J.; Kim, J.; Kondou, K.; Otani, Y. Spintronic devices for energy-efficient data storage and energy harvesting. Commun. Mater. 2020, 1, 24. [Google Scholar] [CrossRef]
  5. Barla, P.; Joshi, V.K.; Bhat, S. Spintronic devices: A promising alternative to CMOS devices. J. Comput. Electron. 2021, 20, 805–837. [Google Scholar] [CrossRef]
  6. Zhang, Y.; Feng, X.; Zheng, Z.; Zhang, Z.; Lin, K.; Sun, X.; Wang, G.; Wang, J.; Wei, J.; Vallobra, P.; et al. Ferrimagnets for spintronic devices: From materials to applications. Appl. Phys. Rev. 2023, 10, 011301. [Google Scholar] [CrossRef]
  7. El-Ghazaly, A.; Gorchon, J.; Wilson, R.B.; Pattabi, A.; Bokor, J. Progress towards ultrafast spintronics applications. J. Magn. Magn. Mater. 2020, 502, 166478. [Google Scholar] [CrossRef]
  8. Schubert, C.; Hassdenteufel, A.; Matthes, P.; Schmidt, J.; Helm, M.; Bratschitsch, R.; Albrecht, M. All-optical helicity dependent magnetic switching in an artificial zero moment magnet. Appl. Phys. Lett. 2014, 104, 082406. [Google Scholar] [CrossRef]
  9. Mangin, S.; Gottwald, M.; Lambert, C.H.; Steil, D.; Uhlíř, V.; Pang, L.; Hehn, M.; Alebrand, S.; Cinchetti, M.; Malinowski, G.; et al. Engineered materials for all-optical helicity-dependent magnetic switching. Nat. Mater. 2014, 13, 286–292. [Google Scholar] [CrossRef]
  10. Bukharaev, A.A.; Zvezdin, A.K.; Pyatakov, A.P.; Fetisov, Y.K. Straintronics: A new trend in micro- and nanoelectronics and materials science. Phys.-Uspekhi 2018, 61, 1175. [Google Scholar] [CrossRef]
  11. D’Souza, N.; Biswas, A.; Ahmad, H.; Fashami, M.S.; Al-Rashid, M.M.; Sampath, V.; Bhattacharya, D.; Abeed, M.A.; Atulasimha, J.; Bandyopadhyay, S. Energy-efficient switching of nanomagnets for computing: Straintronics and other methodologies. Nanotechnology 2018, 29, 442001. [Google Scholar] [CrossRef]
  12. Bandyopadhyay, S.; Atulasimha, J.; Barman, A. Magnetic straintronics: Manipulating the magnetization of magnetostrictive nanomagnets with strain for energy-efficient applications. Appl. Phys. Rev. 2021, 8, 041323. [Google Scholar] [CrossRef]
  13. Mott, N.F.; Friedman, L. Metal-Insulator Transitions in VO2, Ti2O3 and Ti2-xVxO3. Philos. Mag. 1974, 30, 389–402. [Google Scholar] [CrossRef]
  14. Zylbersztejn, A.; Mott, N.F. Metal-insulator transition in vanadium dioxide. Phys. Rev. B 1975, 11, 4383–4395. [Google Scholar] [CrossRef]
  15. Rini, M.; Cavalleri, A.; Schoenlein, R.W.; López, R.; Feldman, L.C.; Haglund, R.F.; Boatner, L.A.; Haynes, T.E. Photoinduced phase transition in VO2 nanocrystals: Ultrafast control of surface-plasmon resonance. Opt. Lett. 2005, 30, 558–560. [Google Scholar] [CrossRef] [PubMed]
  16. Dragoman, M.; Cismaru, A.; Hartnagel, H.; Plana, R. Reversible metal-semiconductor transitions for microwave switching applications. Appl. Phys. Lett. 2006, 88, 073503. [Google Scholar] [CrossRef]
  17. Kim, H.T.; Chae, B.G.; Youn, D.H.; Maeng, S.L.; Kim, G.; Kang, K.Y.; Lim, Y.S. Mechanism and observation of Mott transition in VO2-based two- and three-terminal devices. New J. Phys. 2004, 6, 52. [Google Scholar] [CrossRef]
  18. Kim, H.T.; Chae, B.G.; Youn, D.H.; Kim, G.; Kang, K.Y.; Lee, S.J.; Kim, K.; Lim, Y.S. Raman study of electric-field-induced first-order metal–insulator transition in VO2-based devices. Appl. Phys. Lett. 2005, 86, 242101. [Google Scholar] [CrossRef]
  19. Strelcov, E.; Lilach, Y.; Kolmakov, A. Gas Sensor Based on Metal-Insulator Transition in VO2 Nanowire Thermistor. Nano Lett. 2009, 9, 2322–2326. [Google Scholar] [CrossRef]
  20. Morin, F.J. Oxides Which Show a Metal-to-Insulator Transition at the Neel Temperature. Phys. Rev. Lett. 1959, 3, 34–36. [Google Scholar] [CrossRef]
  21. Atkin, J.M.; Berweger, S.; Chavez, E.K.; Raschke, M.B.; Cao, J.; Fan, W.; Wu, J. Strain and temperature dependence of the insulating phases of VO2 near the metal–insulator transition. Phys. Rev. B 2012, 85, 020101. [Google Scholar] [CrossRef]
  22. Park, J.H.; Coy, J.M.; Kasirga, T.S.; Huang, C.; Fei, Z.; Hunter, S.; Cobden, D.H. Measurement of a solid-state triple point at the metal—insulator transition in VO2. Nature 2013, 500, 431–434. [Google Scholar] [CrossRef] [PubMed]
  23. Abreu, E.; Liu, M.; Lu, J.; West, K.G.; Kittiwatanakul, S.; Yin, W.; Wolf, S.A.; Averitt, R.D. THz spectroscopy of VO2 epitaxial films: Controlling the anisotropic properties through strain engineering. New J. Phys. 2012, 14, 083026. [Google Scholar] [CrossRef]
  24. Liu, M.; Hwang, H.Y.; Tao, H.; Strikwerda, A.C.; Fan, K.; Keiser, G.R.; Sternbach, A.J.; West, K.G.; Kittiwatanakul, S.; Lu, J.; et al. Terahertz-field-induced insulator-to-metal transition in vanadium dioxide metamaterial. Nature 2012, 487, 345–348. [Google Scholar] [CrossRef] [PubMed]
  25. Kittiwatanakul, S.; Wolf, S.A.; Lu, J. Large epitaxial bi-axial strain induces a Mott-like phase transition in VO2. Appl. Phys. Lett. 2014, 105, 073112. [Google Scholar] [CrossRef]
  26. Laverock, J.; Kittiwatanakul, S.; Zakharov, A.A.; Niu, Y.R.; Chen, B.; Wolf, S.A.; Lu, J.W.; Smith, K.E. Direct Observation of Decoupled Structural and Electronic Transitions and an Ambient Pressure Monocliniclike Metallic Phase of VO2. Phys. Rev. Lett. 2014, 113, 216402. [Google Scholar] [CrossRef] [PubMed]
  27. de la Venta, J.; Wang, S.; Ramirez, J.G.; Schuller, I.K. Control of magnetism across metal to insulator transitions. Appl. Phys. Lett. 2013, 102, 122404. [Google Scholar] [CrossRef]
  28. de la Venta, J.; Wang, S.; Saerbeck, T.; Ramírez, J.G.; Valmianski, I.; Schuller, I.K. Coercivity enhancement in V2O3/Ni bilayers driven by nanoscale phase coexistence. Appl. Phys. Lett. 2014, 104, 062410. [Google Scholar] [CrossRef]
  29. Nkosi, S.; Lafane, S.; Masina, B.; Ndwandwe, O. The control of magnetism near metal-to-insulator transitions of VO2 nano-belts. J. Alloys Compd. 2016, 689, 313–317. [Google Scholar] [CrossRef]
  30. Nakayama, M.; Kai, T.; Shimomura, N.; Amano, M.; Kitagawa, E.; Nagase, T.; Yoshikawa, M.; Kishi, T.; Ikegawa, S.; Yoda, H. Spin transfer switching in TbCoFe\CoFeB\MgO\CoFeB\TbCoFe magnetic tunnel junctions with perpendicular magnetic anisotropy. J. Appl. Phys. 2008, 103, 07A710. [Google Scholar] [CrossRef]
  31. Stanciu, C.D.; Kimel, A.V.; Hansteen, F.; Tsukamoto, A.; Itoh, A.; Kirilyuk, A.; Rasing, T. Ultrafast spin dynamics across compensation points in ferrimagnetic GdFeCo: The role of angular momentum compensation. Phys. Rev. B 2006, 73, 220402. [Google Scholar] [CrossRef]
  32. Radu, I.; Vahaplar, K.; Stamm, C.; Kachel, T.; Pontius, N.; Dürr, H.A.; Ostler, T.A.; Barker, J.; Evans, R.F.L.; Chantrell, R.W.; et al. Transient ferromagnetic-like state mediating ultrafast reversal of antiferromagnetically coupled spins. Nature 2011, 472, 205–208. [Google Scholar] [CrossRef] [PubMed]
  33. Hassdenteufel, A.; Hebler, B.; Schubert, C.; Liebig, A.; Teich, M.; Helm, M.; Aeschlimann, M.; Albrecht, M.; Bratschitsch, R. Thermally Assisted All-Optical Helicity Dependent Magnetic Switching in Amorphous Fe100-xTbx Alloy Films. Adv. Mater. 2013, 25, 3122–3128. [Google Scholar] [CrossRef] [PubMed]
  34. Woo, S.; Song, K.M.; Zhang, X.; Zhou, Y.; Ezawa, M.; Liu, X.; Finizio, S.; Raabe, J.; Lee, N.J.; Kim, S.I.; et al. Current-driven dynamics and inhibition of the skyrmion Hall effect of ferrimagnetic skyrmions in GdFeCo films. Nat. Commun. 2018, 9, 959. [Google Scholar] [CrossRef]
  35. Caretta, L.; Mann, M.; Büttner, F.; Ueda, K.; Pfau, B.; Günther, C.M.; Hessing, P.; Churikova, A.; Klose, C.; Schneider, M.; et al. Fast current-driven domain walls and small skyrmions in a compensated ferrimagnet. Nat. Nanotechnol. 2018, 13, 1154–1160. [Google Scholar] [CrossRef] [PubMed]
  36. Quessab, Y.; Xu, J.W.; Ma, C.T.; Zhou, W.; Riley, G.A.; Shaw, J.M.; Nembach, H.T.; Poon, S.J.; Kent, A.D. Tuning interfacial Dzyaloshinskii-Moriya interactions in thin amorphous ferrimagnetic alloys. Sci. Rep. 2020, 10, 7447. [Google Scholar] [CrossRef]
  37. Morshed, M.G.; Khoo, K.H.; Quessab, Y.; Xu, J.W.; Laskowski, R.; Balachandran, P.V.; Kent, A.D.; Ghosh, A.W. Tuning Dzyaloshinskii-Moriya interaction in ferrimagnetic GdCo: A first-principles approach. Phys. Rev. B 2021, 103, 174414. [Google Scholar] [CrossRef]
  38. Morshed, M.G.; Vakili, H.; Ghosh, A.W. Positional Stability of Skyrmions in a Racetrack Memory with Notched Geometry. Phys. Rev. Appl. 2022, 17, 064019. [Google Scholar] [CrossRef]
  39. Ding, M.; Poon, S.J. Tunable perpendicular magnetic anisotropy in GdFeCo amorphous films. J. Magn. Magn. Mater. 2013, 339, 51–55. [Google Scholar] [CrossRef]
  40. Anuniwat, N.; Ding, M.; Poon, S.J.; Wolf, S.A.; Lu, J. Strain-induced enhancement of coercivity in amorphous TbFeCo films. J. Appl. Phys. 2013, 113, 043905. [Google Scholar] [CrossRef]
  41. Hansen, P.; Clausen, C.; Much, G.; Rosenkranz, M.; Witter, K. Magnetic and magneto-optical properties of rare-earth transition-metal alloys containing Gd, Tb, Fe, Co. J. Appl. Phys. 1989, 66, 756–767. [Google Scholar] [CrossRef]
  42. Hebler, B.; Hassdenteufel, A.; Reinhardt, P.; Karl, H.; Albrecht, M. Ferrimagnetic Tb–Fe Alloy Thin Films: Composition and Thickness Dependence of Magnetic Properties and All-Optical Switching. Front. Mater. 2016, 3, 8. [Google Scholar] [CrossRef]
  43. West, K.G.; Lu, J.; Yu, J.; Kirkwood, D.; Chen, W.; Pei, Y.; Claassen, J.; Wolf, S.A. Growth and characterization of vanadium dioxide thin films prepared by reactive-biased target ion beam deposition. J. Vac. Sci. Technol. A 2008, 26, 133–139. [Google Scholar] [CrossRef]
  44. Ostler, T.A.; Evans, R.F.L.; Chantrell, R.W.; Atxitia, U.; Chubykalo-Fesenko, O.; Radu, I.; Abrudan, R.; Radu, F.; Tsukamoto, A.; Itoh, A.; et al. Crystallographically amorphous ferrimagnetic alloys: Comparing a localized atomistic spin model with experiments. Phys. Rev. B 2011, 84, 024407. [Google Scholar] [CrossRef]
  45. Gilbert, T. A Lagrangian Formulation of the Gyromagnetic Equation of the Magnetization Field. Phys. Rev. 1955, 100, 1243. [Google Scholar]
  46. Kittiwatanakul, S. Study of Metal-Insulator Transition in Strongly Correlated Vanadium Dioxide Thin Films. Ph.D. Thesis, University of Virginia, Charlottesville, VA, USA, 2014. [Google Scholar]
  47. Satoh, T.; Fukamichi, K.; Satoh, Y. Magnetic Properties and Thermal Expansion of Fe-Tb Amorphous Alloys. IEEE Transl. J. Magn. Jpn. 1985, 1, 796–797. [Google Scholar] [CrossRef]
  48. Lopez, R.; Boatner, L.A.; Haynes, T.E.; Haglund, R.F.J.; Feldman, L.C. Enhanced hysteresis in the semiconductor-to-metal phase transition of VO2 precipitates formed in SiO2 by ion implantation. Appl. Phys. Lett. 2001, 79, 3161–3163. [Google Scholar] [CrossRef]
Nanomaterials 13 02848 g001

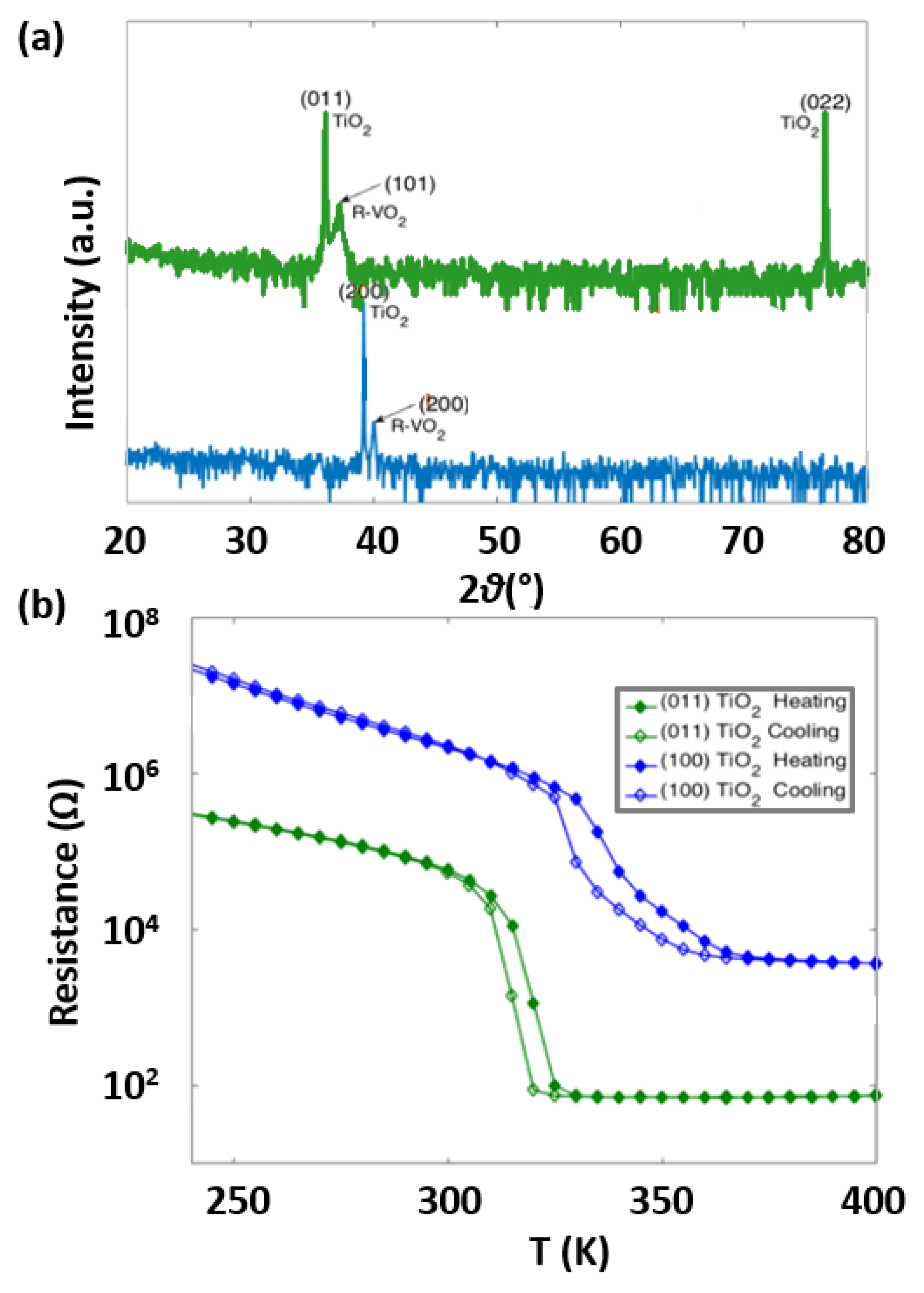

Figure 1. (a) Room temperature X-ray diffraction (XRD) pattern of VO 2 /TiO 2 (011) (green), and VO 2 /TiO 2 (100) (blue) films. The 2 θ peaks are indexed with rutile VO 2 (R-VO 2 ) and TiO 2 . (b) Resistance obtained from 240 K to 400 K in VO 2 /TiO 2 (011) (green), and VO 2 /TiO 2 (100) (blue). MIT of different orientations is observed at different temperatures between 310 K and 350 K.
Figure 1. (a) Room temperature X-ray diffraction (XRD) pattern of VO 2 /TiO 2 (011) (green), and VO 2 /TiO 2 (100) (blue) films. The 2 θ peaks are indexed with rutile VO 2 (R-VO 2 ) and TiO 2 . (b) Resistance obtained from 240 K to 400 K in VO 2 /TiO 2 (011) (green), and VO 2 /TiO 2 (100) (blue). MIT of different orientations is observed at different temperatures between 310 K and 350 K.
Nanomaterials 13 02848 g001
Nanomaterials 13 02848 g002

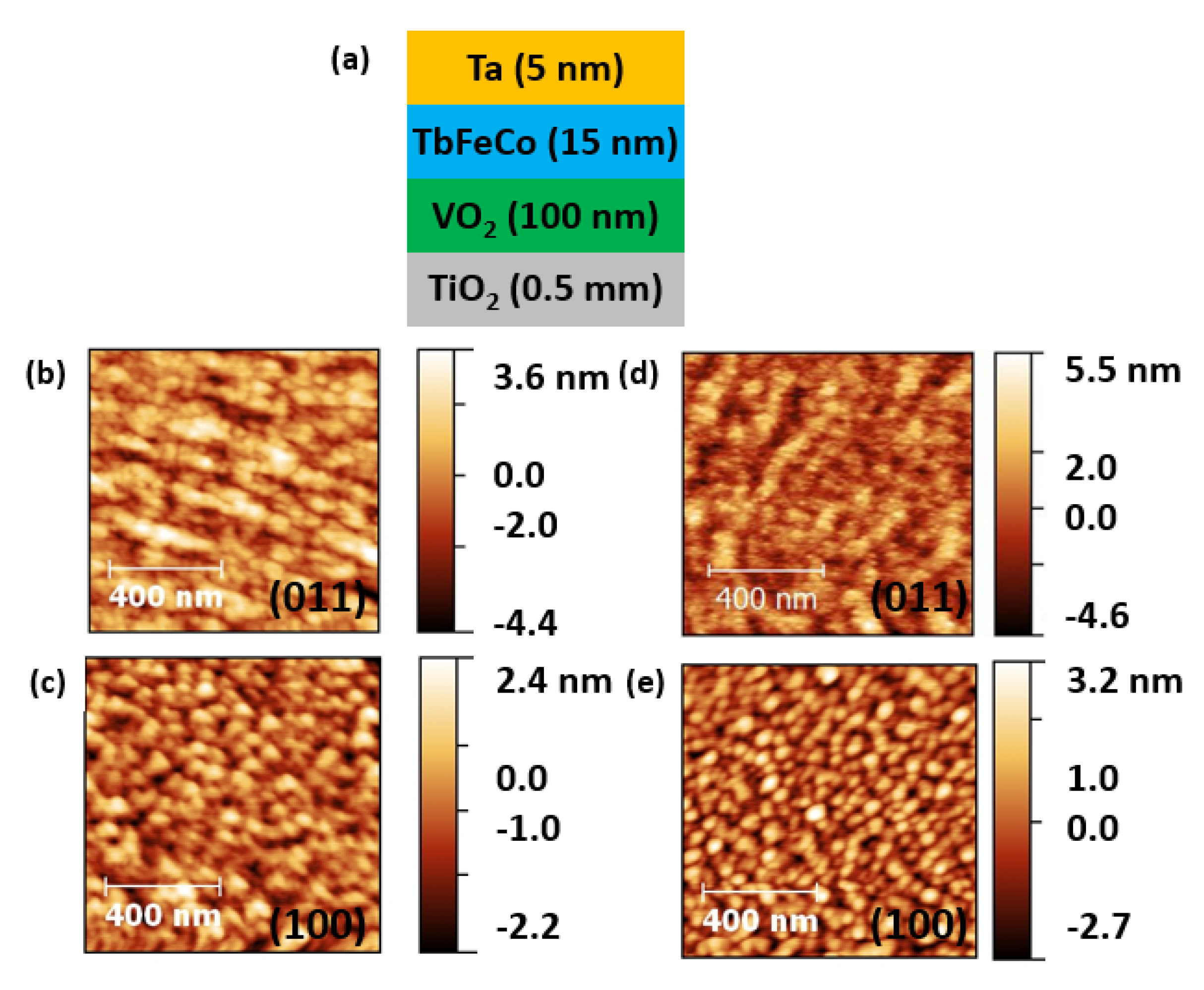

Figure 2. (a) An illustration of the TbFeCo/VO 2 heterostructure (not to scale). (b–e) Atomic force microscopy (AFM) images of TbFeCo/VO 2 /TiO 2 (b,c) before and (d,e) after the deposition of TbFeCo layer with Ta capping layer, (b) VO 2 /TiO 2 (011); (c) VO 2 /TiO 2 (100); (d) TbFeCo/VO 2 /TiO 2 (011); (e) TbFeCo/VO 2 /TiO 2 (100).
Figure 2. (a) An illustration of the TbFeCo/VO 2 heterostructure (not to scale). (b–e) Atomic force microscopy (AFM) images of TbFeCo/VO 2 /TiO 2 (b,c) before and (d,e) after the deposition of TbFeCo layer with Ta capping layer, (b) VO 2 /TiO 2 (011); (c) VO 2 /TiO 2 (100); (d) TbFeCo/VO 2 /TiO 2 (011); (e) TbFeCo/VO 2 /TiO 2 (100).
Nanomaterials 13 02848 g002
Nanomaterials 13 02848 g003

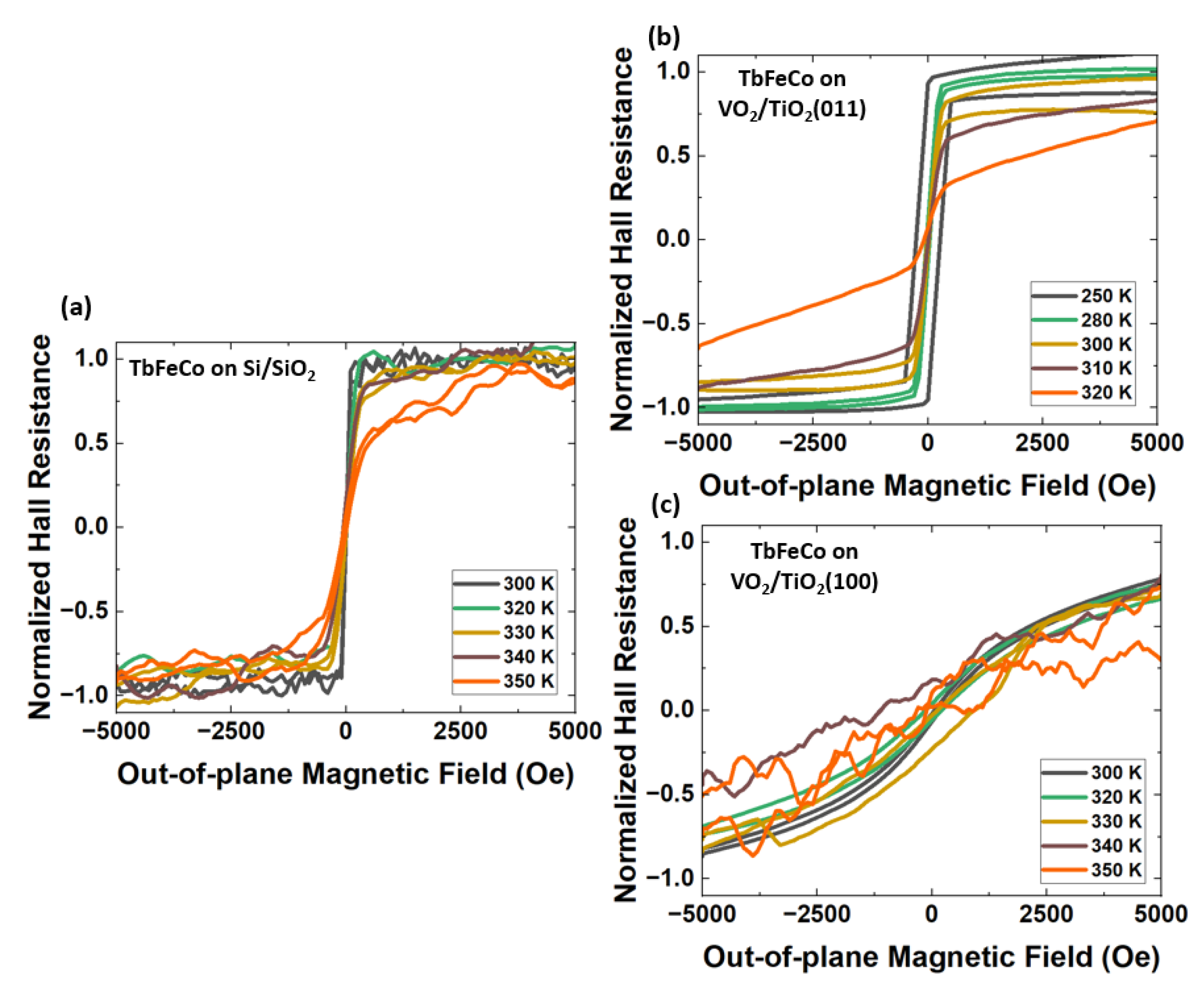

Figure 3. Anomalous Hall effect of TbFeCo measured at various temperatures under an out-of-plane external field. (a) TbFeCo/SiO 2 /Si; (b) TbFeCo/VO 2 /TiO 2 (011); (c) TbFeCo/VO 2 /TiO 2 (100).
Figure 3. Anomalous Hall effect of TbFeCo measured at various temperatures under an out-of-plane external field. (a) TbFeCo/SiO 2 /Si; (b) TbFeCo/VO 2 /TiO 2 (011); (c) TbFeCo/VO 2 /TiO 2 (100).
Nanomaterials 13 02848 g003
Nanomaterials 13 02848 g004

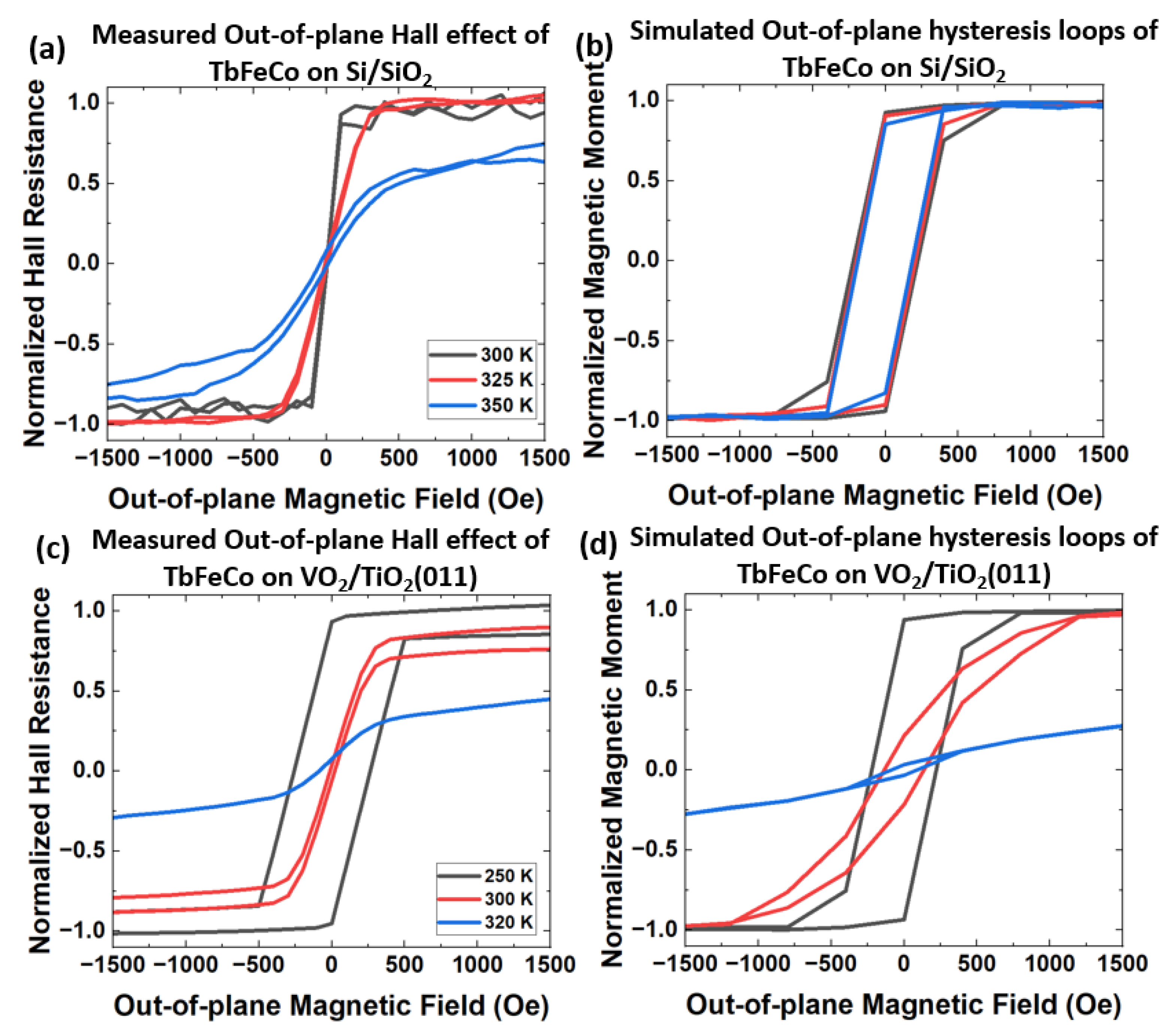

Figure 4. Comparison of (a) measured out-of-plane anomalous Hall effect (extracted from Figure 3a) and (b) simulated out-of-plane hysteresis loops at various temperatures in TbFeCo/SiO 2 /Si by atomistc simulations. Comparison of (c) measured out-of-plane anomalous Hall effect (extracted from Figure 3b), and (d) simulated out-of-plane hysteresis loops at various temperatures with strain anisotropy in TbFeCo/VO 2 /TiO 2 (011) by atomistc simulations.
Figure 4. Comparison of (a) measured out-of-plane anomalous Hall effect (extracted from Figure 3a) and (b) simulated out-of-plane hysteresis loops at various temperatures in TbFeCo/SiO 2 /Si by atomistc simulations. Comparison of (c) measured out-of-plane anomalous Hall effect (extracted from Figure 3b), and (d) simulated out-of-plane hysteresis loops at various temperatures with strain anisotropy in TbFeCo/VO 2 /TiO 2 (011) by atomistc simulations.
Nanomaterials 13 02848 g004
Table 1. Values of parameters used in the atomistic simulations of TbFeCo.
Table 1. Values of parameters used in the atomistic simulations of TbFeCo.
ParameterValue
Fe Magnetic moment ( μ F e )2.22 μ B
Tb Magnetic moment ( μ T b )9.34 μ B
Fe-Fe Exchange Interaction (J F e − F e )2.83 × 10 − 21 J
Tb-Tb Exchange Interaction (J T b − T b )0.99 × 10 − 21 J
Fe-Tb Exchange Interaction (J F e − T b )−1.09 × 10 − 21 J
Anisotropy (K u )1 × 10 5 J/m 3
Damping ( α )0.05
