# Tuning Intrinsic Spin Hall Effect in Platinum/Ferrimagnetic Insulator Heterostructure in Moderately Dirty Regime

^{1}

^{2}

^{3}

^{*}

^{†}

## Abstract

**:**

## 1. Introduction

## 2. Materials and Methods

## 3. Results and Discussion

## 4. Conclusions

## Author Contributions

## Funding

## Data Availability Statement

## Conflicts of Interest

## References

- Kato, Y.K.; Myers, R.C.; Gossard, A.C.; Awschalom, D.D. Observation of the spin Hall effect in semiconductors. Science
**2004**, 306, 1910–1913. [Google Scholar] [CrossRef] [PubMed] - Wunderlich, J.; Kaestner, B.; Sinova, J.; Jungwirth, T. Experimental observation of the spin-Hall effect in a two-dimensional spin-orbit coupled semiconductor system. Phys. Rev. Lett.
**2005**, 94, 047204. [Google Scholar] [CrossRef] - Sinova, J.; Valenzuela, S.O.; Wunderlich, J.; Back, C.; Jungwirth, T. Spin Hall effects. Rev. Mod. Phys.
**2015**, 87, 1213. [Google Scholar] [CrossRef] - Liu, L.; Pai, C.F.; Li, Y.; Tseng, H.; Ralph, D.; Buhrman, R. Spin-torque switching with the giant spin Hall effect of tantalum. Science
**2012**, 336, 555–558. [Google Scholar] [CrossRef] [PubMed] - Yu, G.; Chang, L.T.; Akyol, M.; Upadhyaya, P.; He, C.; Li, X.; Wong, K.L.; Amiri, P.K.; Wang, K.L. Current-driven perpendicular magnetization switching in Ta/CoFeB/[TaO
_{x}or MgO/TaO_{x}] films with lateral structural asymmetry. Appl. Phys. Lett.**2014**, 105, 102411. [Google Scholar] [CrossRef] - Hao, Q.; Xiao, G. Giant spin Hall effect and magnetotransport in a Ta/CoFeB/MgO layered structure: A temperature dependence study. Phys. Rev. B
**2015**, 91, 224413. [Google Scholar] [CrossRef] - Garello, K.; Miron, I.M.; Avci, C.O.; Freimuth, F.; Mokrousov, Y.; Blügel, S.; Auffret, S.; Boulle, O.; Gaudin, G.; Gambardella, P. Symmetry and magnitude of spin-orbit torques in ferromagnetic heterostructures. Nat. Nanotechnol.
**2013**, 8, 587–593. [Google Scholar] [CrossRef] - Avci, C.O.; Garello, K.; Miron, I.M.; Gaudin, G.; Auffret, S.; Boulle, O.; Gambardella, P. Magnetization switching of an MgO/Co/Pt layer by in-plane current injection. Appl. Phys. Lett.
**2012**, 100, 212404. [Google Scholar] [CrossRef] - Kim, J.; Sinha, J.; Mitani, S.; Hayashi, M.; Takahashi, S.; Maekawa, S.; Yamanouchi, M.; Ohno, H. Anomalous temperature dependence of current-induced torques in CoFeB/MgO heterostructures with Ta-based underlayers. Phys. Rev. B
**2014**, 89, 174424. [Google Scholar] [CrossRef] - Zhang, C.; Fukami, S.; Sato, H.; Matsukura, F.; Ohno, H. Spin-orbit torque induced magnetization switching in nano-scale Ta/CoFeB/MgO. Appl. Phys. Lett.
**2015**, 107, 012401. [Google Scholar] [CrossRef] - Hayashi, M.; Kim, J.; Yamanouchi, M.; Ohno, H. Quantitative characterization of the spin-orbit torque using harmonic Hall voltage measurements. Phys. Rev. B
**2014**, 89, 144425. [Google Scholar] [CrossRef] - Sagasta, E.; Omori, Y.; Isasa, M.; Gradhand, M.; Hueso, L.E.; Niimi, Y.; Otani, Y.; Casanova, F. Tuning the spin Hall effect of Pt from the moderately dirty to the superclean regime. Phys. Rev. B
**2016**, 94, 060412. [Google Scholar] [CrossRef] - Musha, A.; Kanno, Y.; Ando, K. Extrinsic-intrinsic crossover of the spin Hall effect induced by alloying. Phys. Rev. Mater.
**2019**, 3, 054411. [Google Scholar] [CrossRef] - Haku, S.; Moriya, H.; An, H.; Musha, A.; Ando, K. Coherent-incoherent crossover of the intrinsic spin Hall effect in Pd. Phys. Rev. B
**2021**, 104, 174403. [Google Scholar] [CrossRef] - Soya, N.; Hayashi, H.; Harumoto, T.; Gao, T.; Haku, S.; Ando, K. Crossover of the intrinsic spin Hall effect in the presence of lattice expansion. Phys. Rev. B
**2021**, 103, 174427. [Google Scholar] [CrossRef] - Moriya, H.; Musha, A.; Haku, S.; Ando, K. Observation of the crossover between metallic and insulating regimes of the spin Hall effect. Commun. Phys.
**2022**, 5, 1–7. [Google Scholar] [CrossRef] - Guo, G.Y.; Murakami, S.; Chen, T.W.; Nagaosa, N. Intrinsic spin Hall effect in platinum: First-principles calculations. Phys. Rev. Lett.
**2008**, 100, 096401. [Google Scholar] [CrossRef] - Tanaka, T.; Kontani, H.; Naito, M.; Naito, T.; Hirashima, D.S.; Yamada, K.; Inoue, J. Intrinsic spin Hall effect and orbital Hall effect in 4 d and 5 d transition metals. Phys. Rev. B
**2008**, 77, 165117. [Google Scholar] [CrossRef] - Zhu, L.; Zhu, L.; Sui, M.; Ralph, D.C.; Buhrman, R.A. Variation of the giant intrinsic spin Hall conductivity of Pt with carrier lifetime. Sci. Adv.
**2019**, 5, eaav8025. [Google Scholar] [CrossRef] - Zhang, W.; Han, W.; Jiang, X.; Yang, S.H.; Parkin, S.S. Role of transparency of platinum-ferromagnet interfaces in determining the intrinsic magnitude of the spin Hall effect. Nat. Phys.
**2015**, 11, 496–502. [Google Scholar] [CrossRef] - Obstbaum, M.; Decker, M.; Greitner, A.; Haertinger, M.; Meier, T.; Kronseder, M.; Chadova, K.; Wimmer, S.; Ködderitzsch, D.; Ebert, H.; et al. Tuning spin Hall angles by alloying. Phys. Rev. Lett.
**2016**, 117, 167204. [Google Scholar] [CrossRef] [PubMed] - Zhu, L.; Ralph, D.C.; Buhrman, R.A. Highly efficient spin-current generation by the spin Hall effect in Au
_{1−x}Pt_{x}. Phys. Rev. Appl.**2018**, 10, 031001. [Google Scholar] [CrossRef] - Nguyen, M.H.; Zhao, M.; Ralph, D.; Buhrman, R. Enhanced spin Hall torque efficiency in Pt
_{100−x}Al_{x}and Pt_{100−x}Hf_{x}alloys arising from the intrinsic spin Hall effect. Appl. Phys. Lett.**2016**, 108. [Google Scholar] [CrossRef] - Chumak, A.V.; Vasyuchka, V.I.; Serga, A.A.; Hillebrands, B. Magnon spintronics. Nat. Phys.
**2015**, 11, 453–461. [Google Scholar] [CrossRef] - Wesenberg, D.; Liu, T.; Balzar, D.; Wu, M.; Zink, B.L. Long-distance spin transport in a disordered magnetic insulator. Nat. Phys.
**2017**, 13, 987–993. [Google Scholar] [CrossRef] - Avci, C.O.; Quindeau, A.; Pai, C.F.; Mann, M.; Caretta, L.; Tang, A.S.; Onbasli, M.C.; Ross, C.A.; Beach, G.S. Current-induced switching in a magnetic insulator. Nat. Mater.
**2017**, 16, 309–314. [Google Scholar] [CrossRef] - Avci, C.O.; Rosenberg, E.; Baumgartner, M.; Beran, L.; Quindeau, A.; Gambardella, P.; Ross, C.A.; Beach, G.S. Fast switching and signature of efficient domain wall motion driven by spin-orbit torques in a perpendicular anisotropy magnetic insulator/Pt bilayer. Appl. Phys. Lett.
**2017**, 111, 072406. [Google Scholar] [CrossRef] - Soumah, L.; Beaulieu, N.; Qassym, L.; Carrétéro, C.; Jacquet, E.; Lebourgeois, R.; Youssef, J.B.; Bortolotti, P.; Cros, V.; Anane, A. Ultra-low damping insulating magnetic thin films get perpendicular. Nat. Commun.
**2018**, 9, 3355. [Google Scholar] [CrossRef] - Quindeau, A.; Avci, C.O.; Liu, W.; Sun, C.; Mann, M.; Tang, A.S.; Onbasli, M.C.; Bono, D.; Voyles, P.M.; Xu, Y.; et al. Tm
_{3}Fe_{5}O_{12}/Pt heterostructures with perpendicular magnetic anisotropy for spintronic applications. Adv. Electron. Mater.**2017**, 3, 1600376. [Google Scholar] [CrossRef] - Oliveira, A.; Rodríguez-Suárez, R.; Vilela-Leão, L.; Vilela, G.; Gamino, M.; Silva, E.; Bohn, F.; Correa, M.; Moodera, J.; Chesman, C. Spin pumping contribution to the magnetization damping in Tm
_{3}Fe_{5}O_{12}/W bilayers. J. Magn. Magn. Mater.**2022**, 543, 168630. [Google Scholar] [CrossRef] - Jungfleisch, M.; Chumak, A.; Kehlberger, A.; Lauer, V.; Kim, D.; Onbasli, M.; Ross, C.; Kläui, M.; Hillebrands, B. Thickness and power dependence of the spin-pumping effect in Y
_{3}Fe_{5}O_{12}/Pt heterostructures measured by the inverse spin Hall effect. Phys. Rev. B**2015**, 91, 134407. [Google Scholar] [CrossRef] - Ye, Z.; Chen, Z.; Chen, Z.; Jia, W.; Gao, T.; Liu, L.; Zheng, H.; Zeng, Q.; Wang, Q.; Wang, N.; et al. Spin-orbit torque and interfacial Dzyaloshinskii–Moriya interaction in heavy metal/ferrimagnetic insulator deposited by magnetron sputtering. Adv. Electron. Mater.
**2022**, 8, 2100590. [Google Scholar] [CrossRef] - Pai, C.F.; Mann, M.; Tan, A.J.; Beach, G.S. Determination of spin torque efficiencies in heterostructures with perpendicular magnetic anisotropy. Phys. Rev. B
**2016**, 93, 144409. [Google Scholar] [CrossRef] - Finley, J.; Liu, L. Spin-orbit-torque efficiency in compensated ferrimagnetic cobalt-terbium alloys. Phys. Rev. Appl.
**2016**, 6, 054001. [Google Scholar] [CrossRef] - Nguyen, M.H.; Ralph, D.C.; Buhrman, R.A. Spin torque study of the spin Hall conductivity and spin diffusion length in platinum thin films with varying resistivity. Phys. Rev. Lett.
**2016**, 116, 126601. [Google Scholar] [CrossRef] - Dushenko, S.; Hokazono, M.; Nakamura, K.; Ando, Y.; Shinjo, T.; Shiraishi, M. Tunable inverse spin Hall effect in nanometer-thick platinum films by ionic gating. Nat. Commun.
**2018**, 9, 3118. [Google Scholar] [CrossRef] - Rojas-Sánchez, J.C.; Reyren, N.; Laczkowski, P.; Savero, W.; Attané, J.P.; Deranlot, C.; Jamet, M.; George, J.M.; Vila, L.; Jaffrès, H. Spin pumping and inverse spin Hall effect in platinum: The essential role of spin-memory loss at metallic interfaces. Phys. Rev. Lett.
**2014**, 112, 106602. [Google Scholar] [CrossRef] - Li, T.; Jia, W.; Gao, T.; Haku, S.; Ye, Z.; Qiu, M.; An, H. Intrinsic spin Hall effect in oxidized platinum/magnetic oxide heterostructure. Appl. Phys. Lett.
**2022**, 121, 132403. [Google Scholar] [CrossRef] - Nagaosa, N.; Sinova, J.; Onoda, S.; MacDonald, A.H.; Ong, N.P. Anomalous Hall effect. Rev. Mod. Phys.
**2010**, 82, 1539. [Google Scholar] [CrossRef]

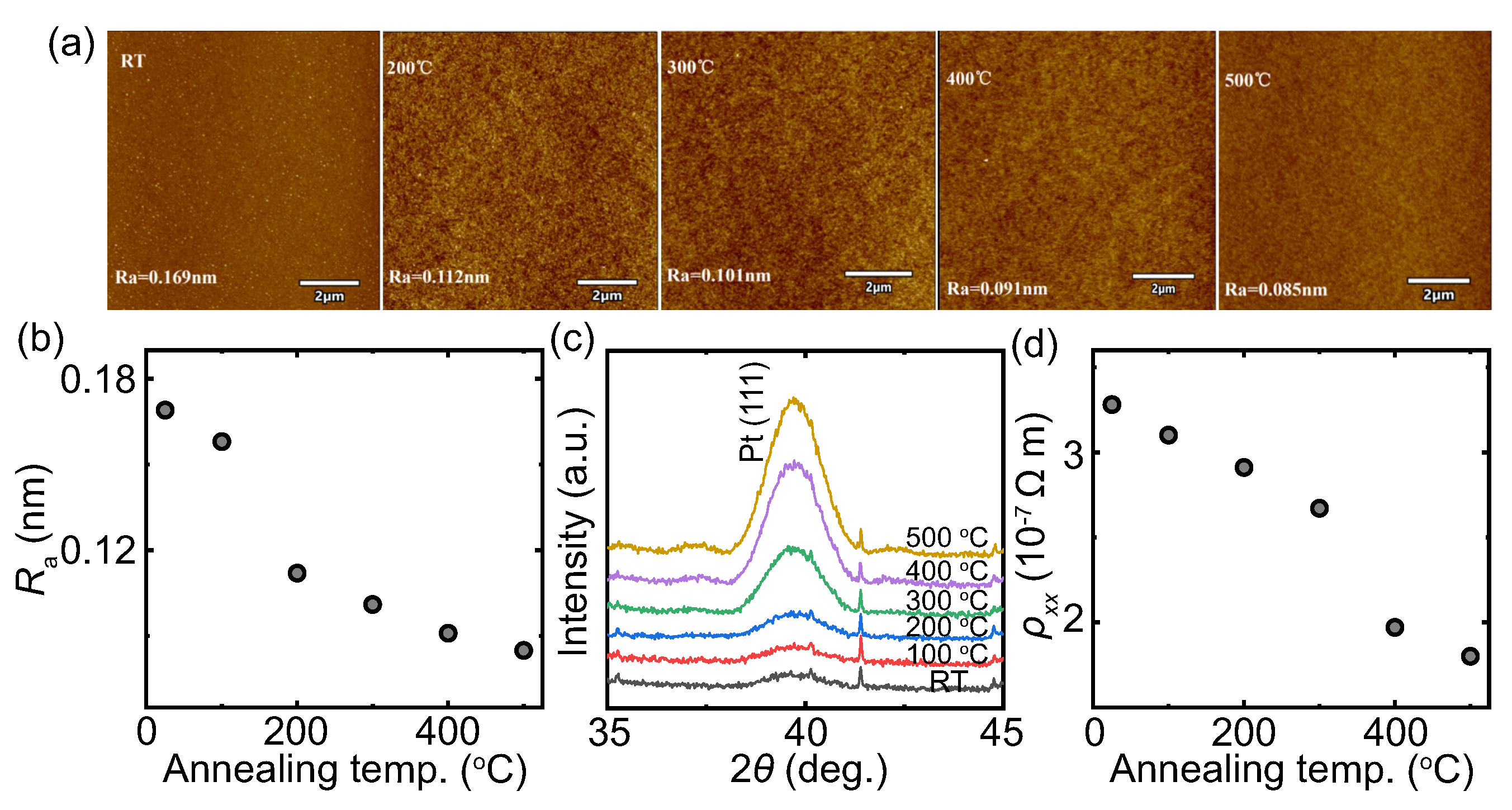

**Figure 1.**(

**a**) AFM images of the surface morphology, (

**b**) surface roughness, (

**c**) XRD profiles and (

**d**) resistivity for the Pt (4 nm)/TmIG (4 nm) bilayers annealed at different temperatures. The Hall bar devices were used for the resistivity measurement by conventional four-probe method.

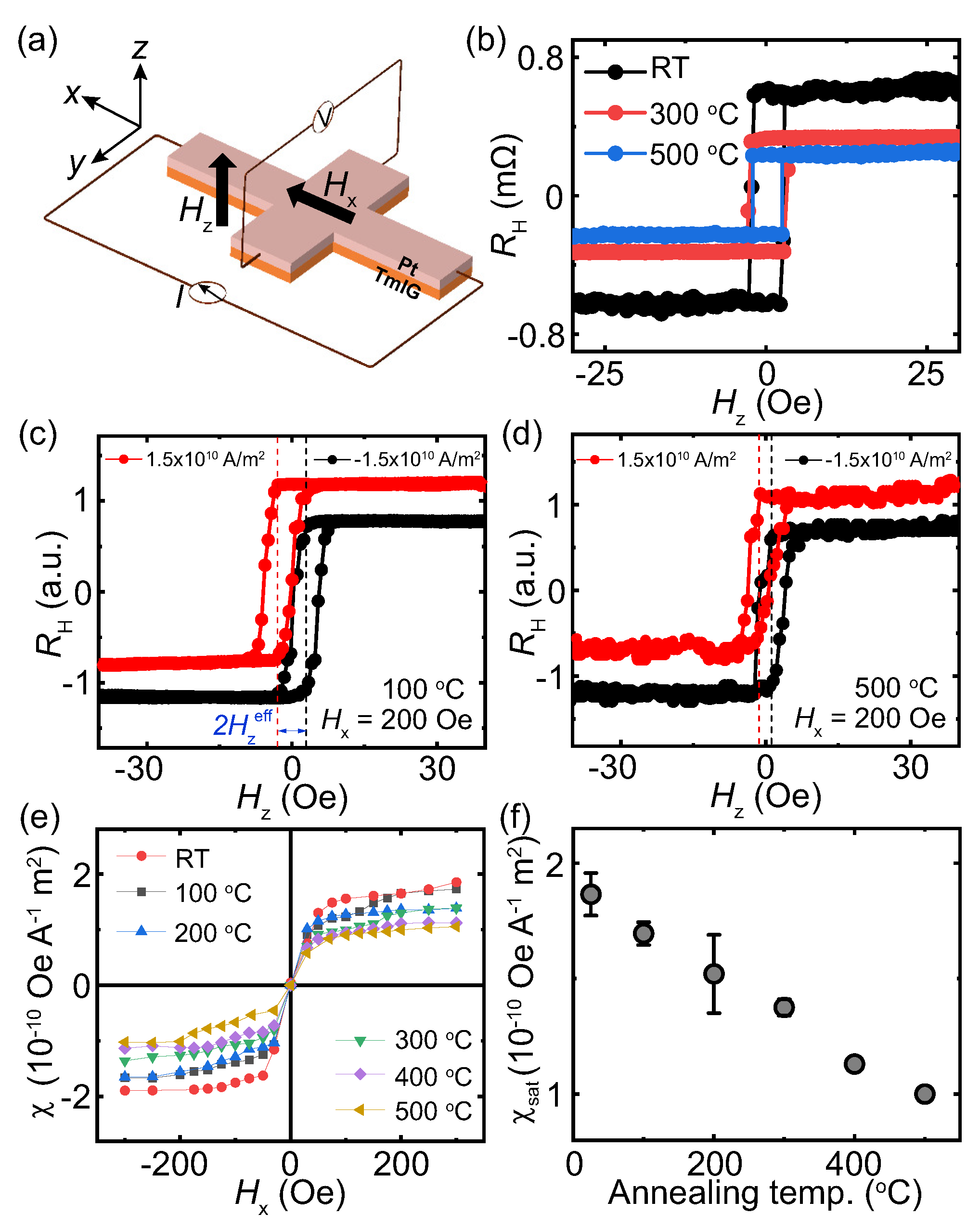

**Figure 2.**(

**a**) Schematic of the setup for the AHE resistance measurement. (

**b**) The typical AHE resistance curves of the Pt (4 nm)/TmIG (4 nm) devices. The SOT measurements for the devices (

**c**) annealed at 100 ${}^{\circ}$C and (

**d**) 500 ${}^{\circ}$C by sweeping ${H}_{\mathrm{z}}$ with ${H}_{\mathrm{x}}$ = 200 Oe. Slight vertical offsets for both AHE loops are introduced for clarity. (

**e**) ${H}_{\mathrm{x}}$ dependence of the SOT efficiency $\chi $ for different devices. (

**f**) The maximum SOT efficiency ${\chi}_{\mathrm{sat}}$ as a function of the annealing temperature.

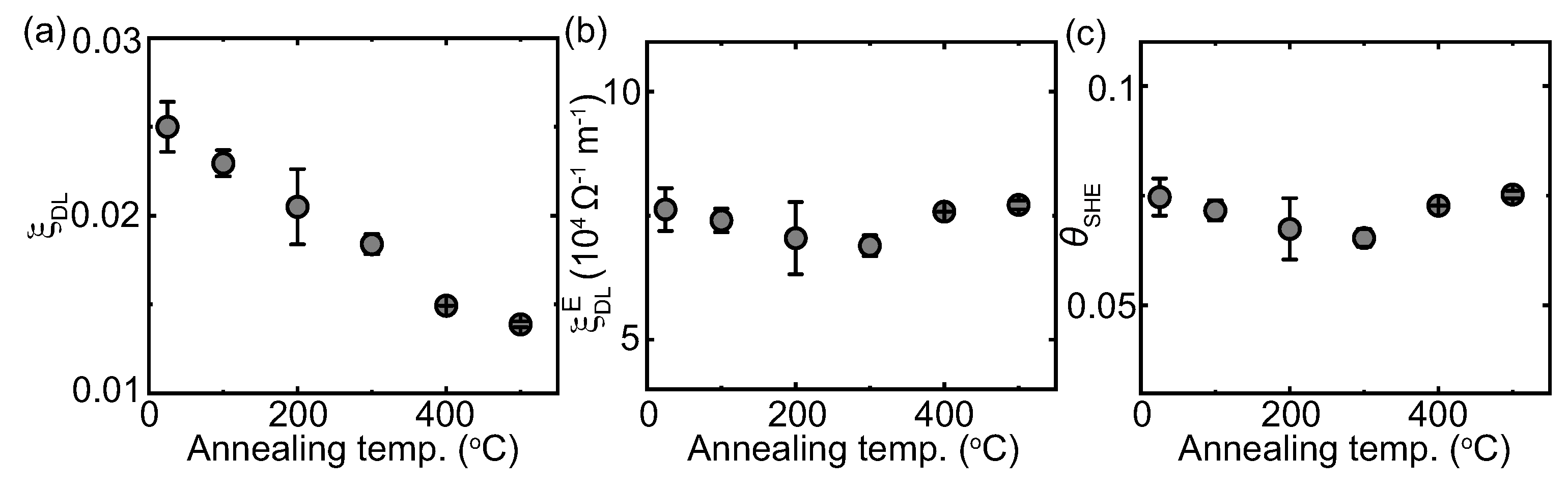

**Figure 3.**(

**a**) The effective spin Hall angle ${\xi}_{\mathrm{DL}}$ by varying the annealing temperature, (

**b**) the effective spin Hall angle per unit electric field ${\xi}_{\mathrm{DL}}^{\mathrm{E}}$ = ${\xi}_{\mathrm{DL}}$/${\rho}_{\mathrm{xx}}$ by varying the annealing temperature and (

**c**) the spin Hall angle ${\theta}_{\mathrm{SHE}}$ = ${\xi}_{\mathrm{DL}}$/${T}_{\mathrm{int}}$ by varying the annealing temperature. The error bars denote the propagated error from $\chi $.

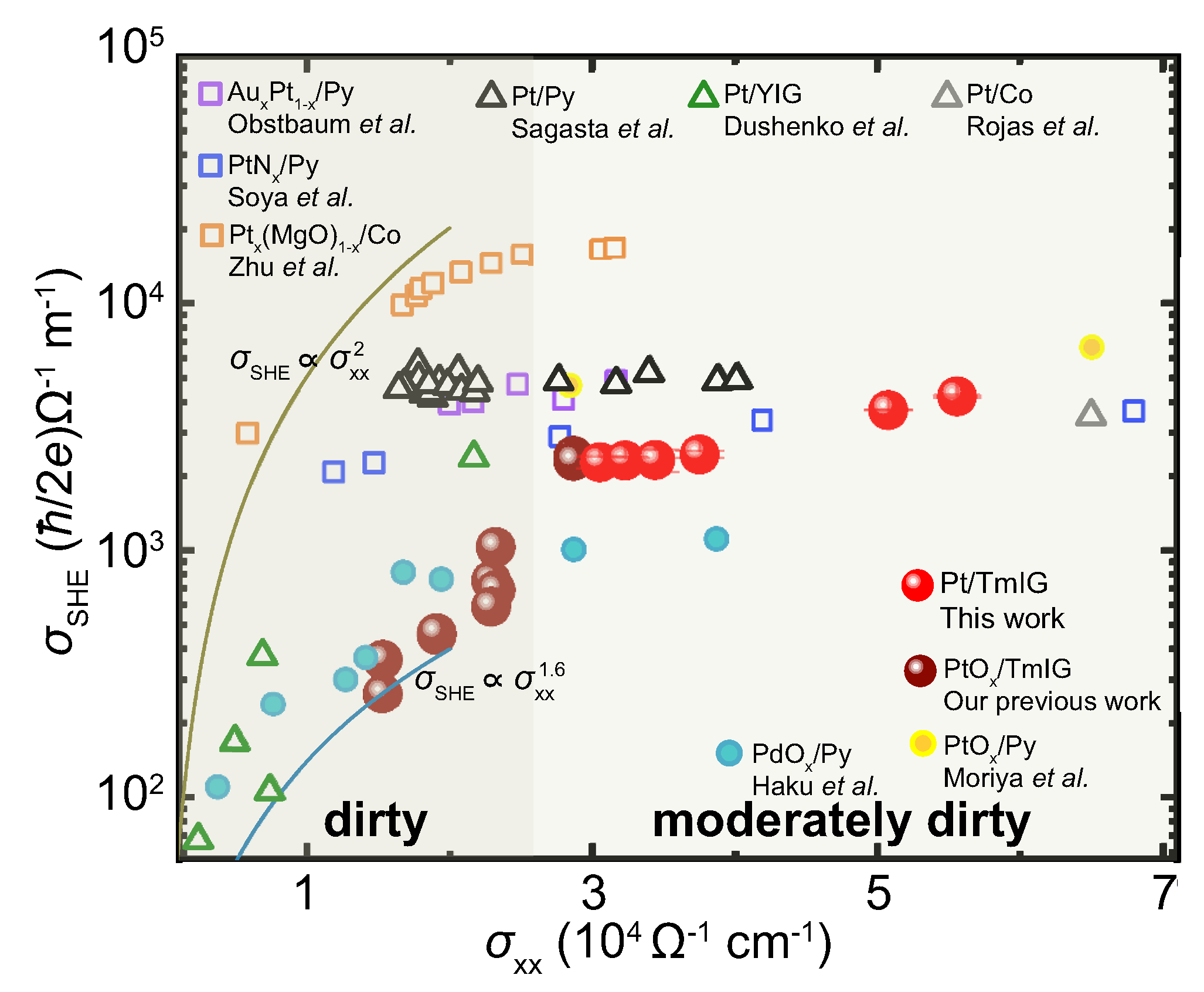

**Figure 4.**The spin Hall conductivity ${\sigma}_{\mathrm{SHE}}$ as a function of the electric conductivity ${\sigma}_{\mathrm{xx}}$. For comparison, the data in previous reports on Au${}_{\mathrm{x}}$Pt${}_{1-\mathrm{x}}$/Py [21], PtN${}_{\mathrm{x}}$/Py [15], Pt${}_{\mathrm{x}}$(MgO)${}_{1-\mathrm{x}}$/Co [19], Pt/Py [12], Pt/YIG [36], Pt/Co [37], PdO${}_{\mathrm{x}}$/Py [14], PtO${}_{\mathrm{x}}$/Py [16] and PtO${}_{\mathrm{x}}$/TmIG [38] were plotted. ${\sigma}_{\mathrm{SHE}}$∝${\sigma}_{\mathrm{xx}}$${}^{1.6}$ and ${\sigma}_{\mathrm{SHE}}$∝${\sigma}_{\mathrm{xx}}$${}^{2}$ are suggested by the AHE and SHE theories [3,39].

Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content. |

© 2023 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).

## Share and Cite

**MDPI and ACS Style**

Li, T.; Liu, L.; Chen, Z.; Jia, W.; Ye, J.; Cai, X.; Huang, D.; Li, W.; Chen, F.; Li, X.;
et al. Tuning Intrinsic Spin Hall Effect in Platinum/Ferrimagnetic Insulator Heterostructure in Moderately Dirty Regime. *Nanomaterials* **2023**, *13*, 2721.
https://doi.org/10.3390/nano13192721

**AMA Style**

Li T, Liu L, Chen Z, Jia W, Ye J, Cai X, Huang D, Li W, Chen F, Li X,
et al. Tuning Intrinsic Spin Hall Effect in Platinum/Ferrimagnetic Insulator Heterostructure in Moderately Dirty Regime. *Nanomaterials*. 2023; 13(19):2721.
https://doi.org/10.3390/nano13192721

**Chicago/Turabian Style**

Li, Tianhui, Lin Liu, Zehan Chen, Wei Jia, Jianxin Ye, Xudong Cai, Doudou Huang, Wanshan Li, Fukang Chen, Xinjun Li,
and et al. 2023. "Tuning Intrinsic Spin Hall Effect in Platinum/Ferrimagnetic Insulator Heterostructure in Moderately Dirty Regime" *Nanomaterials* 13, no. 19: 2721.
https://doi.org/10.3390/nano13192721
