Synthesis of NiMoO4/NiMo@NiS Nanorods for Efficient Hydrogen Evolution Reactions in Electrocatalysts

by
Sen Hu
1,
Cuili Xiang
2,
Yongjin Zou
1,2,*,
Fen Xu
2 and
Lixian Sun
1,2,*
1
School of Material Science & Engineering, Guangxi Key Laboratory of Information Materials and Guangxi Collaborative Innovation Center of Structure and Property for New Energy and Materials, Guilin University of Electronic Technology, Guilin 541004, China
2
School of Mechanical & Electrical Engineering, Guilin University of Electronic Technology, Guilin 541004, China
*
Authors to whom correspondence should be addressed.
Nanomaterials 2023, 13(12), 1871; https://doi.org/10.3390/nano13121871
Submission received: 25 May 2023 / Revised: 9 June 2023 / Accepted: 13 June 2023 / Published: 16 June 2023
(This article belongs to the Special Issue State-of-the-Art Nanomaterials for Energy Storage/Conversion and Electrocatalysis in Asia)
Browse Figures
Review Reports Versions Notes

Abstract

:
As traditional energy structures transition to new sources, hydrogen is receiving significant research attention owing to its potential as a clean energy source. The most significant problem with electrochemical hydrogen evolution is the need for highly efficient catalysts to drive the overpotential required to generate hydrogen gas by electrolyzing water. Experiments have shown that the addition of appropriate materials can reduce the energy required for hydrogen production by electrolysis of water and enable it to play a greater catalytic role in these evolution reactions. Therefore, more complex material compositions are required to obtain these high-performance materials. This study investigates the preparation of hydrogen production catalysts for cathodes. First, rod-like NiMoO4/NiMo is grown on NF (Nickel Foam) using a hydrothermal method. This is used as a core framework, and it provides a higher specific surface area and electron transfer channels. Next, spherical NiS is generated on the NF/NiMo4/NiMo, thus ultimately achieving efficient electrochemical hydrogen evolution. The NF/NiMo4/NiMo@NiS material exhibits a remarkably low overpotential of only 36 mV for the hydrogen evolution reaction (HER) at a current density of 10 mA·cm−2 in a potassium hydroxide solution, indicating its potential use in energy-related applications for HER processes.

1. Introduction

As the global economy continues to develop, countries are accelerating the research and development of clean energy to address increasingly severe environmental problems [1,2,3,4,5,6]. Hydrogen, as an ideal clean energy source, has received widespread attention. Hydrogen energy produces less pollution compared with traditional fossil fuels; further, hydrogen has more flexible storage and conversion methods and can thus meet the energy consumption requirements for different levels of demand [7,8,9,10]. However, certain technical challenges need to be overcome before hydrogen can be used on an industrial scale for energy generation. Among them, the high energy consumption and cost involved in the hydrogen production process represent significant bottlenecks [11,12,13,14]. To overcome these problems, numerous researchers have begun exploring efficient catalysts for the evolution of hydrogen that are cost-effective for electrical transport. Electrochemical hydrogen evolution is an important method for hydrogen production, and it relies on efficient catalysts to reduce energy consumption and increase the hydrogen production rate [15,16,17,18,19]. Although precious metal catalysts, such as platinum, have high electrochemical activity and stability, their high cost and limited resource reserves limit their widespread application. Therefore, low-cost and efficient nonprecious metal catalysts must be developed [20,21,22].
The excellent overpotential exhibited by transition metal sulfide (TMS) materials has received significant attention [23,24,25,26]. TMS catalysts exhibit good electrochemical catalytic performance and stability [27,28]. The introduction of transition metal elements increases the electrochemically active surface area of the catalyst. Transition metals have unique electronic properties that allow them to form complexes and coordinate with other molecules. This creates more active sites on the catalyst surface for the reactants to interact with, which can lead to a faster and more efficient reaction [29,30]. Moreover, the structure and performance of TMS materials can be optimized by adjusting their preparation methods and conditions, thereby achieving higher catalytic activity and stability [31,32,33]. This provides greater potential for their application in the field of electrochemical hydrogen production. In addition, TMS materials are sustainable and environmentally friendly; thus, they are highly regarded in the field of electrochemical hydrogen production [34]. TMS materials have good prospects for large-scale production owing to their simple preparation process and low cost of raw materials [35,36]. Moreover, their abundant resources, environmental friendliness, and sustainability characteristics meet current requirements for environmental sustainability; thus, they offer significant potential in the field of electrochemical hydrogen production [37]. Franceschini et al. [38]. reported a nanotube catalyst based on nickel-molybdenum sulfide, which has excellent electrochemical hydrogen evolution performance and can achieve efficient hydrogen production at low potentials. Karuppasamy et al. [39] reported that a sulfide catalyst based on molybdenum and cobalt doped, which has high electrochemical hydrogen evolution activity and stability, can achieve efficient hydrogen production under neutral conditions and has a simple preparation method with low cost. These studies indicate that catalysts based on TMS materials have significant potential in the field of electrochemical hydrogen production and also provide novel ideas and methods for future research.
NiS is another material currently being considered for electrochemical hydrogen production [40]. NF was selected as the substrate for the study due to its high porosity and electrical conductivity; however, its bare framework structure may result in an uneven dispersion of active species [41,42]. To enhance rapid electron transport, the incorporation of NiMoO4/NiMo onto the NF not only elevates the specific surface area but also preserves the structure.
In this study, a novel electrocatalyst was developed by designing and synthesizing NiMoO4/NiMo@NiS-modified NF substrates employing hydrothermal and chemical electroplating methods. Characterization techniques, along with a comprehensive synthesis process, were employed to assess the electrochemical properties and microscopic morphology of the materials both before and after the formation of the composite. A hydrothermal technique was used for the growth of NiMoO4 and NiMo layers on the electroplated nanofibers, followed by the deposition of NiS nanoparticles onto the surface. The proposed synthesis method and characterization techniques provide valuable insights into the microscopic morphology and electrochemical properties of the NiMoO4/NiMo@NiS-modified NF substrates.

2. Materials and Methods

2.1. Synthesis of NF/NiMoO4/NiMo

The NF surfaces were purified using a sequence of cleaning agents, including a solvent, an acid, a dehydrated alcohol, and distilled water to remove any impurities like oil or oxide layers. The substrates were then dehydrated in a vacuum oven at 60 °C. To synthesize NF/NiMoO4/NiMo, nickel nitrate and ammonium molybdate were dissolved in ultrapure water, and the solution was heated in an autoclave at 150 °C for 6 h with the dried NF substrates. After cooling to room temperature, the resulting samples were rinsed with dehydrated alcohol and distilled water multiple times and dried at 60 °C for 12 h, leading to the formation of the NiMoO4/NiMo precursor on the NF surfaces.

2.2. Synthesis of NF/NiMoO4/NiMo@NiS

To prepare the NF/NiMoO4/NiMo@NiS sample, the NF was cut into four 1 cm × 2 cm pieces and placed in a clean petri dish for later use. During the electrochemical deposition process, the CHI 760E workstation, comprising a three-electrode system, was utilized. The working, reference, and counter electrodes were composed of NF/NiMoO4/NiMo, a saturated silver/silver chloride electrode, and a platinum wire, respectively. The electrolyte solution consisted of approximately 50 mL of 5 mM Ni(NO3)2·6H2O, 5 mM CH4N2S, and 7.5 mM Na3C6H5O7·2H2O. To achieve the desired deposition quality, the deposition voltage, time, and stirring speed were optimized to be −0.8 V, 600 s, and 300 rpm, respectively. The method for preparing NF/NiS, chemicals and reagents used in this work, as well as instrument details, can be found in the Supporting Information.

3. Results and Discussion

3.1. Physical Characterization

The preparation process of the NF/NiMoO4/NiMo@NiS material with rod and spherical structures is depicted in Figure 1. To explore the composition of the material, the prepared sample was analyzed using XRD (Diffraction of X-Rays). In accordance with the results illustrated by Figure 2a,b, the (1 1 1), (2 0 0), and (2 2 0) crystal planes of Ni were observed as high-intensity peaks at 44.4°, 51.8°, and 76.3°, respectively, in the sample. These can be attributed primarily to the NF substrate (PDF#04-0850) [43]. The crystal plane of NiMoO4 was identified as (2 4 1) based on the peak observed at 45.74°. (PDF#45-0142) [43,44]. The characteristic peak for the (2 2 0) crystal plane of NiS (PDF#48-1745) appeared at a diffraction angle of 38.29°. In addition, NiMo was found to have diffraction peaks at 65.47° and 78.02° corresponding to the (5 4 0) and (2 5 5) crystal planes [44], owing to the formation of a NiMo phase during the hydrothermal process. Additionally, the formation of NiMo is also beneficial for electron transfer. Our findings show that the composite material made of NF/NiMoO4/NiMo@NiS was successfully prepared.
To demonstrate the relevant microstructure, the generated product was characterized using a scanning electron microscope. Figure 3 exhibits the microscopic morphology of all the samples. Figure 3a–c show the process of directly electroplating a layer of NiS on NF. Figure 3a shows the multi-channel pore structure of NF, which is typical of a 3D material and provides a good skeletal structure for the electroplating of NiS and the growth of NiMoO4/NiMo. Figure 3b shows the microscopic image of NiS electroplated on foam nickel, and Figure 3c is an enlargement of Figure 3b, which clearly illustrates that the NiS layer on the NF is formed by small NiS spheres stacked together, with a diameter of approximately 20 nm. The dense NiS layer formed on the NF effectively blocks the contact between NF and oxygen in the air, thereby preventing NF from being oxidized. Figure 3d,e display the microscopic images of a layer of NiMoO4/NiMo nanoflowers growing on foam nickel using a hydrothermal method. Compared with foam nickel, NF/NiMoO4/NiMo significantly increased the specific surface area and the number of active sites on the material; this provides an increased number of active sites for the subsequent growth of NiS. The optimal conditions for the growing NiMoO4/NiMo on the surface of NF are a reaction temperature of 150 °C and a time of 6 h [43]. The NiMoO4/NiMo structure prepared by this method was stable and uniformly distributed. Figure 3f shows the SEM image of electroplating NiS on NF/NiMoO4/NiMo; evidently, some NiS small spheres were homogeneously grown on the surface of NF/NiMoO4/NiMo, thus further increasing the contact area between the material and medium, providing more electron transfer channels, and providing good conditions for subsequent electrochemical performance testing. Thus, in conclusion, the NF/NiMoO4/NiMo@NiS material was prepared successfully.
TEM was used to further explore the structural properties of the as-prepared NF/NiMoO4/NiMo@NiS composite. The TEM image in Figure 4a demonstrated a rod−like structure of the NiMoO4/NiMo composite, with a diameter of approximately 100–200 nm, which is consistent with the SEM results. The HRTEM image in Figure 4b revealed lattice stripe spacings of 0.252 nm, corresponding to the (−2 4 1) crystal planes of NiMoO4, and 0.214 nm, confirming the presence of (2 2 0) NiS crystallographic planes in the composite. Furthermore, lattice stripe spacings of 0.408 nm and 0.351 nm, matching the (2 5 5) and (5 4 0) crystal planes of NiMo, respectively, were also observed in the same image.
Evidently, the NiMoO4/NiMo nanorods were formed of Ni, Mo, and O, and NiS nanoparticles consisting of Ni and S were consistently distributed on the rod−like NiMoO4/NiMo materials in Figure 4c, which depicts the EDS elemental mapping of the composites. EDS plots of NF/NiMoO4/NiMo and NF@NiS are shown in Figures S1 and S2.
To more precisely ascertain the valence states of the elements within the prepared material, these samples underwent XPS analysis to understand their electronic structure. Figure 5a displays the complete spectrum indicating the locations of the C, Ni, Mo, O, and S elements, which corroborates with the EDS testing outcomes. In Figure 5b, the three peaks were positioned at 284.7, 285.7, and 288.9 eV, with the binding energies in accordance with the C-C/C=C, C-O, and O-C=O bonds [43], respectively, which were produced by the growth of NiMoO4/NiMo@NiS on NF. The source of these peaks is caused by the addition of disodium citrate dihydrate in electrochemical deposition. The Ni element exhibited six binding energy peaks, as shown in Figure 5c; of these, the energy peaks at 853, 855.8, 873.5, and 877.8 eV belonged to Ni0, Ni2+, Ni 2p3/2, Ni 2p1/2, respectively. The remaining two broad peaks at 861.2 and 882.4 eV were designated as Ni2+ satellite peaks [44], respectively. Likewise, the observed results obviously indicate that NiMoO4 /NiMo is composed of different valence states, including Ni2+, Mo6+, Ni0 and Mo0 [43,44,45,46], and these groups are tightly linked to create the alloys NiMoO4 and NiMo. The Mo peak values in the Mo 3d spectrum were found at 232.2 and 235.3 eV. In addition, corresponding low−valence Mo0 and Mo4+ were generated within the sample, with respective binding energies of 237.4 eV and 226.8 eV. The binding energy at 237.4 eV increased, possibly because the electrons lost energy during the synthesis process, thus resulting in the kinetic energy of the electrons detected by the instrument being less than the intrinsic energy; consequently, this led to an increase in the binding energy. The binding energies of the oxygen elements were analyzed, with O 1 (530 eV), O 2 (530.9 eV), and O 3 (532.2 eV). The O2− forming oxide with metal elements was affiliated with O 1. The O 2 component can be attributed to the defect sites, and the O 3 component can be summarized as the physi- and chemisorbed water [47,48] component to the physical and chemical adsorption of water. Ni−S bonds are evident because the spectra of S 2p reveal peaks at 162.6 and 163.75 eV that can be ascribed to S 2p3/2 and S 2p1/2 [49], respectively. Due to the oxidized valence state of the NiS surface, the peaks at 168.5 and 169.5 eV can also be attributed to S−O bonds. The XPS analysis results indicate that the NiMoO4/NiMo catalysts activate the O−H bonds in the reactant molecules through the strong coupling between Ni and Mo species, whereas the existence of S and O on the surface of the catalysts enhances the durability and catalytic action by facilitating the formation of active sites and keeping the catalysts from losing their effectiveness. The additive effects of Ni, Mo, S, and O in the prepared catalysts play an important part in the catalytic reaction, which is essential for the design and optimization of catalysts in various chemical reactions. These findings can contribute to the evolution of high−performance catalysts for sustainable chemical processes and energy conversion applications. Further studies are required to elucidate the detailed mechanism of the catalytic reaction and optimize the catalyst design for enhanced performance and stability.

3.2. Electrochemical Characterization

The electrocatalytic performance of NF, NF@NiS, NF/NiMoO4/NiMo, and NF/NiMoO4/NiMo@NiS samples was evaluated for the hydrogen evolution reaction (HER). LSV (Linear Sweep Voltammetry) curves obtained from evaluating these samples in a 1.0 M KOH solution are displayed in Figure 6a. Evidently, the HER activity of all the samples was surpassed by the NF/NiMoO4/NiMo@NiS samples. The application of a current density of 10 mA·cm−2 necessitated an overpotential of 36 mV; it was second only to Pt/C (24 mV) in terms of the magnitude of the overpotential required. The properties of other materials are shown in Table S1. Meanwhile, NF, NF/NiMoO4/NiMo, and NF@NiS required overpotentials of 287, 322, and 120 mV, respectively, to achieve the same current densities, and the required overpotentials for each sample were compared. These findings suggest that NF/NiMoO4/NiMo@NiS exhibited superior activity compared to all other samples.
The Tafel slopes for each sample were calculated from their respective LSV curves, as demonstrated in Figure 6b, following analysis. The Tafel slope of NF/NiMoO4/NiMo@NiS, which was 40.16 mV·dec−1, was notably flatter than that of the other samples, including NF, NF/NiMoO4/NiMo, NF@NiS, and NF/NiMoO4/NiMo@NiS, which displayed Tafel slopes of 117.43, 152.30, and 81.79 mV·dec−1, respectively. These findings suggest that NF/NiMoO4/NiMo@NiS exhibited faster reaction kinetics during HER compared to the other samples. We think that the Volmer-Heyrovsky reaction may be occurring here.
In order to gain a deeper understanding of the kinetic mechanisms occurring at the electrode surfaces, the Nyquist plots for NF, NF/NiMoO4/NiMo, and NF@NiS were obtained using EIS with an open-circuit voltage. Figure 6c shows that NF/NiMoO4/NiMo@NiS had a quicker rate of interfacial charge transfer compared to the other samples, as indicated by the Nyquist plots. Through impedance fitting, we obtained the electrical resistance value of NF is 4.56 Ω, and the electrical resistance value of NF/NiMoO4/NiMo@NiS is 0.1042 Ω.
The catalytic activity of a material is a crucial factor that determines its effectiveness in various applications. The electrochemically active surface area (ECSA) of a material is a key parameter that affects its catalytic activity, as it directly correlates with the number of available active sites for the catalytic reaction. The ECSA is closely related with respect to the electrochemical of material double-layer capacitance (Cdl), which is a measure of its ability to store electrical charge at the interface between the solid and liquid phases. The higher the Cdl value, the greater the available surface area for catalytic reactions. Therefore, the ECSA and Cdl values must be determined to understand and optimize the catalytic performance of materials in several electrochemical applications, for instance, storage and conversion, electrochemical sensing, and wastewater treatment. Further, the reasons behind the improved electrocatalytic activity of the proposed material must be investigated. To determine the value of Cdl, CV scans were performed within the nonredox potential range. The current density at the CV scan interval’s midpoint was determined from the positive and negative scans and utilized to estimate Δj. The slope of the plot of Δj against the scan rate was found to be a factor of two of Cdl. Thus, a higher Cdl value indicates a greater ECSA and enhanced catalytic activity. Hence, the proposed material’s higher Cdl value explains its improved electrocatalytic activity. This characteristic makes it a potential candidate for diverse electrochemical applications. As demonstrated in Figure 7a, The Cdl value of NF/NiMoO4/NiMo@NiS was determined to be 6.52 mF·cm−2. The CV plots for the other pairs of samples are shown in Figure S3. Thus, the proposed rod-shaped morphology of NF/NiMoO4/NiMo@NiS exhibited an exceptionally high ECSA value, suggesting that it could offer a significant number of HER catalytic active sites for the electrocatalytic process.
Stability is a crucial factor in assessing electrocatalysts with high efficiency as it determines performance longevity. To provide a more comprehensive understanding of the stability of NF/NiMoO4/NiMo@NiS as an electrocatalyst for HER, several tests were conducted. The current-time plots recorded at a bias voltage of η = 36 mV revealed that the current density of NF/NiMoO4/NiMo@NiS exhibited a slight decay after a durability test of up to 10 h. This observation indicates that the proposed material is highly stable even after prolonged exposure to harsh electrochemical conditions. Moreover, to further evaluate the stability of NF/NiMoO4/NiMo@NiS, 1000 cycles of CV testing were performed, and at 10 mA cm−2, the overpotential barely rose by 9 mV. The stabilized form is shown in Figure S4. This result indicates that the proposed material exhibits remarkable stability under cycling conditions, even at high current densities. Thus, the combined results of both the durability and CV tests clearly demonstrate the superior stability and durability of NF/NiMoO4/NiMo@NiS, which is a highly desirable property for electrocatalysts used in HER. These findings suggest that NF/NiMoO4/NiMo@NiS is a promising candidate for the practical utilization of various renewable devices for converting and storing energy.

4. Conclusions

This study introduced a simple hydrothermal and electrochemical deposition method to grow rod-like NiMoO4/NiMo on NF substrate, followed by electroplating NiS nanospheres to prepare NF/NiMoO4/NiMo@NiS. The presence of numerous pore structures in the NF significantly enhances the reaction area, thereby providing favorable conditions for the subsequent growth of NiMoO4/NiMo, whereas the modification of rod-like NiMoO4/NiMo not only improved the electrical conductivity of NF but also provided a larger surface area and excellent surface functional properties. Finally, the deposition of a layer of NiS particles on top of the precursor further enhances the material’s electrical conductivity and exposes more active sites, leading to a decrease in the overpotential required for the hydrogen evolution reaction. The NF/NiMoO4/NiMo@NiS catalyst provides a certain amount of defects, which allows H+ and e− to easily aggregate on the catalyst, promoting the reduction of H+ ions, thus reducing the energy required for the HER reaction. This results in excellent electrocatalytic performance, with an overpotential of only 36 mV at 10 mA·cm−2, a low Tafel slope of 40.16 mV·dec−1, and excellent cycling stability in a 1.0 M potassium hydroxide solution.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/nano13121871/s1. Figure S1. The EDS images of NF/NiMoO4/NiMo. Figure S2. The EDS images of NF@NiS. Figure S3. (a–c) Electrochemical CVs of contrast samples measured at different scan rates. (d) Electric double-layer capacitance for each sample. Table S1. HER electrocatalysis performance of some typical catalysts reported previously. Figure S4 SEM images after reaction. References [50,51,52,53,54,55,56,57] are cited in the Supplementary Materials.

Author Contributions

Conceptualization, S.H.; methodology, S.H.; software, S.H.; formal analysis, S.H., L.S. and F.X.; investigation, S.H., L.S. and F.X.; resources, Y.Z. and C.X.; data curation, S.H.; writing-original draft preparation, S.H.; writing-review and editing, L.S., F.X., Y.Z. and C.X.; visualization, Y.Z.; supervision, L.S., F.X. and Y.Z.; project administration, L.S. and F.X.; funding acquisition, L.S. and F.X. All authors have read and agreed to the published version of the manuscript.

Funding

This work was financially supported by the Guangxi Natural Science Foundation (Grants no. 2020GXNSFGA297004, 2021GXNSFFA196002), the National Natural Science Foundation of China (NSFC) (Grants no. 52161036, 52071092), the Guangxi Bagui Scholar Foundation.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Vijayan, A.; Nair, L.V.; Sandhyarani, N. Gold cluster incorporated Rhenium disulfide: An efficient catalyst towards electrochemical and photoelectrochemical hydrogen evolution reaction. Electrochim. Acta 2023, 446, 142073. [Google Scholar] [CrossRef]
  2. Solomon, G.; Lecca, M.; Bisetto, M.; Gilzad Kohan, M.; Concina, I.; Natile, M.M.; Vomiero, A. Engineering Cu2O Nanowire Surfaces for Photoelectrochemical Hydrogen Evolution Reaction. ACS Appl. Energy Mater. 2023, 6, 832–840. [Google Scholar] [CrossRef]
  3. Ghosh, R.; Papnai, B.; Chen, Y.S.; Yadav, K.; Sankar, R.; Hsieh, Y.P.; Chen, Y.F. Exciton Manipulation for Enhancing Photo-electrochemical Hydrogen Evolution Reaction in Wrinkled 2D Heterostructures. Adv. Mater. 2023, 327, 122431. [Google Scholar]
  4. Poudel, M.B.; Kim, A.R.; Ramakrishan, S.; Logeshwaran, N.; Ramasamy, S.K.; Kim, H.J.; Yoo, D.J. Integrating the essence of metal organic framework-derived ZnCoTe-N-C/MoS2 cathode and ZnCo-NPS-N-CNT as anode for high-energy density hybrid supercapacitors. Compos. B Eng. 2022, 247, 110339. [Google Scholar] [CrossRef]
  5. Poudel, M.B.; Kim, A.A.; Lohani, P.C.; Yoo, D.J.; Kim, H.J. Assembling zinc cobalt hydroxide/ternary sulfides heterostructure and iron oxide nanorods on three-dimensional hollow porous carbon nanofiber as high energy density hybrid supercapacitor. J. Energy Storage 2023, 60, 106713. [Google Scholar] [CrossRef]
  6. Poudel, M.B.; Logeshwaran, N.; Kim, A.R.; Karthikeyan, S.C.; Vijayapradeep, S.; Yoo, D.J. Integrated core-shell assembly of Ni3S2 nanowires and CoMoP nanosheets as highly efficient bifunctional electrocatalysts for overall water splitting. J. Alloys Compd. 2023, 960, 170678. [Google Scholar] [CrossRef]
  7. Thangasamy, P.; He, R.; Randriamahazaka, H. Collectively exhaustive electrochemical hydrogen evolution reaction of polymorphic cobalt selenides derived from organic surfactants modified Co-MOFs. Appl. Catal. B 2023, 325, 122367. [Google Scholar] [CrossRef]
  8. Asgari, M.; Barati Darband, G.; Monirvaghefi, M. Electroless deposition of Ni-W-Mo-Co-P films as a binder-free, efficient and durable electrode for electrochemical hydrogen evolution. Electrochim. Acta 2023, 446, 142001. [Google Scholar] [CrossRef]
  9. Yu, S.; Zou, Y.; Wang, Q. Self-supported Co-Mo sulfide in electrospun carbon nanofibers as electrocatalysts for hydrogen evolution reaction in alkaline medium. J. Alloys Compd. 2022, 911, 165094. [Google Scholar] [CrossRef]
  10. Yu, S.; Liu, M.; Wang, Q. Three-dimensional carbon nanofiber networks encapsulated in cobalt-molybdenum metal clusters on nitrogen-doped carbon as ultra-efficient electrocatalysts for hydrogen evolution reactions. J. Alloys Compd. 2023, 937, 168316. [Google Scholar] [CrossRef]
  11. Fang, Y.; Li, M.; Guo, X. Pulse-reverse electrodeposition of Ni-Mo-S nanosheets for energy saving electrochemical hydrogen production assisted by urea oxidation. Int. J. Hydrogen Energy 2023, 48, 19087–19102. [Google Scholar] [CrossRef]
  12. Hu, M.; Cai, Z.; Yang, S. Direct Growth of Uniform Bimetallic Core-Shell or Intermetallic Nanoparticles on Carbon via a Surface-Confinement Strategy for Electrochemical Hydrogen Evolution Reaction. Adv. Funct. Mater. 2023, 33, 2212097. [Google Scholar] [CrossRef]
  13. Raveendran, A.; Chandran, M.; Dhanusuraman, R. A comprehensive review on the electrochemical parameters and recent material development of electrochemical water splitting electrocatalysts. RSC Adv. 2023, 13, 3843–3876. [Google Scholar] [CrossRef]
  14. Joshi, K.; Mistry, K.; Tripathi, B. MoS2 Nanostructures for Solar Hydrogen Generation via Membraneless Electrochemical Water Splitting. ACS Appl. Elect. Mater. 2023, 5, 1461–1470. [Google Scholar] [CrossRef]
  15. Dong, S.; Li, Q.; Hu, H. Application of rare-earth high entropy boride in electrocatalytic hydrogen evolution reaction. Appl. Surf. Sci. 2023, 615, 156413. [Google Scholar] [CrossRef]
  16. Kim, G.H.; Kim, J.; Yesuraj, J. Electrostatic spray catalytic particle coating on carbon electrode for enhancing electrochemical reaction. Int. J. Hydrogen Energy 2023, 48, 15796–15808. [Google Scholar] [CrossRef]
  17. Zhang, L.; Liang, J.; He, X. Integrating RuO2@TiO2 catalyzed electrochemical chlorine evolution with NO oxidation reaction for nitrate synthesis. Inorg. Chem. Front. 2023, 10, 2100–2106. [Google Scholar] [CrossRef]
  18. Zhao, Y.; Li, T.; Gu, J. Covalent triazine frameworks based on different stacking model as electrocatalyst for hydrogen evolution. Appl. Surf. Sci. 2023, 618, 156697. [Google Scholar] [CrossRef]
  19. Cheng, C.; Ao, W.; Ren, H. Amorphous versus crystalline CoSx anchored on CNTs as heterostructured electrocatalysts toward hydrogen evolution reaction. Sci. China Mater. 2023, 66, 1383–1388. [Google Scholar] [CrossRef]
  20. Yu, X.; Chen, L.; Jia, L. Ion exchange synthesis of Fe-doped clustered CoP nanowires as superior electrocatalyst for hydrogen evolution reaction. Int. J. Hydrogen Energy 2023, 48, 16715–16724. [Google Scholar] [CrossRef]
  21. Deng, H.; Wang, J.; Ouyang, Y. Multiple roles of 2D conductive metal-organic framework enable noble metal-free photocatalytic hydrogen evolution. Appl. Surf. Sci. 2023, 622, 156853. [Google Scholar] [CrossRef]
  22. Ni, J.; Ruan, Z.; Xu, J. Regulating surface wettability and electronic state of molybdenum carbide for improved hydrogen evolution reaction. Int. J. Hydrogen Energy 2023, 245, 360–3199. [Google Scholar] [CrossRef]
  23. Wang, D.; Liu, Y.; Liu, L. Biomimetic three-dimensional multilevel nanoarray electrodes with superaerophobicity as efficient bifunctional catalysts for electrochemical water splitting. Nano Res. 2023, 16, 6584–6592. [Google Scholar] [CrossRef]
  24. Bentley, C.L.; Gaudin, L.F.; Kang, M. Direct electrochemical identification of rare microscopic catalytic active sites. Chem. Commun. 2023, 59, 2287. [Google Scholar] [CrossRef] [PubMed]
  25. Guan, W.; Zhang, L.; Wang, P. Highly Efficient Photocatalytic Hydrogen Evolution over Mo-Doped ZnIn2S4 with Sulfur Vacancies. Nanomaterials 2022, 12, 3980. [Google Scholar] [CrossRef] [PubMed]
  26. Dai, X.; Feng, S.; Wu, W. Photocatalytic hydrogen evolution and antibiotic degradation by S-scheme ZnCo2S4/TiO2. Int. J. Hydrogen Energy 2022, 47, 25104–25116. [Google Scholar] [CrossRef]
  27. Mao, D.; Zhang, J.; Wu, Y. The electronic structures of non-metal (N, S) doped cobalt phosphide catalysts and the catalytic mechanism for the hydrogen evolution reaction of ammonia borane: A theoretical study. New J. Chem. 2023, 47, 1724. [Google Scholar] [CrossRef]
  28. Yan, J.; Wang, Y.; Shi, L. The highly improved hydrogen evolution performance of a 0D/0D MoP-modified P-doped Mn0.5Cd0.5S photocatalyst. Dalton Trans. 2022, 51, 10279–10289. [Google Scholar] [CrossRef]
  29. Wang, Y.; Chen, X.; Chen, C. Microwave synthesis of Zn, Cd binary metal sulfides with superior photocatalytic H2 evolution performance. Inorg. Chem. Commun. 2021, 134, 108993. [Google Scholar] [CrossRef]
  30. Alharbi, T.M.D.; Elmas, S.; Alotabi, A.S. Continuous Flow Fabrication of MoS2 Scrolls for Electrocatalytic Hydrogen Evolution. ACS Sustain. Chem. Eng. 2022, 10, 9325–9333. [Google Scholar] [CrossRef]
  31. Sarilmaz, A.; Yanalak, G.; Aslan, E. Shape-controlled synthesis of copper based multinary sulfide catalysts for enhanced photocatalytic hydrogen evolution. Renew. Energy 2021, 164, 254–259. [Google Scholar] [CrossRef]
  32. Kapuria, A.; Mondal, T.K.; Shaw, B.K. Polysulfide functionalized reduced graphene oxide for electrocatalytic hydrogen evolution reaction and supercapacitor applications. Int. J. Hydrogen Energy 2023, 48, 17014–17025. [Google Scholar] [CrossRef]
  33. Ali, M.; Wahid, M.; Majid, K. Mixed NiCo-phosphate/sulphide heterostructure as an efficient electrocatalyst for hydrogen evolution reaction. J. Appl. Electrochem. 2022, 53, 95–108. [Google Scholar] [CrossRef]
  34. Yuan, S.; Pang, S.-Y.; Hao, J. 2D transition metal dichalcogenides, carbides, nitrides, and their applications in supercapacitors and electrocatalytic hydrogen evolution reaction. Appl. Phy. Rev. 2020, 7, 021304. [Google Scholar] [CrossRef] [Green Version]
  35. Zhang, J.; Li, J.; Huang, H. Spatial Relation Controllable Di-Defects Synergy Boosts Electrocatalytic Hydrogen Evolution Reaction over VSe2 Nanoflakes in All pH Electrolytes. Small 2022, 18, 2204557. [Google Scholar] [CrossRef] [PubMed]
  36. Su, H.; Pan, X.; Li, S. Defect-engineered two-dimensional transition metal dichalcogenides towards electrocatalytic hydrogen evolution reaction. Carbon. Energy 2023, e296. [Google Scholar] [CrossRef]
  37. Yang, Y.; Zhang, L.; Guo, F. A robust octahedral NiCoOxSy core-shell structure decorated with NiWO4 nanoparticles for enhanced electrocatalytic hydrogen evolution reaction. Electrochim. Acta 2023, 439, 141618. [Google Scholar] [CrossRef]
  38. Franceschini, E.A.; Benavente Llorente, V.; Lanterna, A.E. Ni composite electrodes for hydrogen generation: Activation of Nb-based semiconductors. Int. J. Hydrogen Energy 2022, 47, 15992–16004. [Google Scholar] [CrossRef]
  39. Karuppasamy, K.; Bose, R.; Jothi, V.R. High performance, 3D-hierarchical CoS2/CoSe@C nanohybrid as an efficient electrocatalyst for hydrogen evolution reaction. J. Alloys. Compd. 2020, 838, 155537. [Google Scholar] [CrossRef]
  40. Liao, W.; Pang, S.; Wang, S. vs-NiS2/NiS Heterostructures Achieving Ultralow Overpotential in Alkaline Hydrogen Evolution. Langmuir 2022, 38, 13916–13922. [Google Scholar] [CrossRef]
  41. Sun, K.; Qiao, F.; Yang, J. Fluff spherical Co-Ni3S2/NF for enhanced hydrogen evolution. Int. J. Hydrogen Energy 2022, 47, 27986–27995. [Google Scholar] [CrossRef]
  42. Yan, H.; Li, P.; Liu, X. 2D Bismuth nanosheet arrays as efficient alkaline hydrogen evolution electrocatalysts. New J. Chem. 2021, 45, 22758–22766. [Google Scholar] [CrossRef]
  43. Jiang, M.; Hu, Z.; Wang, Y. NiMoO4@Co3S4 nanorods with core-shell structure for efficient hydrogen evolution reactions in electrocatalysts. J. Alloys Compd. 2022, 927, 166824. [Google Scholar] [CrossRef]
  44. Karuppasamy, K.; Jothi, V.R.; Vikraman, D. Metal-organic framework derived NiMo polyhedron as an efficient hydrogen evolution reaction electrocatalyst. Appl. Surf. Sci. 2019, 478, 916–923. [Google Scholar] [CrossRef]
  45. Zhang, J.; Wang, T.; Liu, P. Efficient hydrogen production on MoNi4 electrocatalysts with fast water dissociation kinetics. Nat. Commun. 2017, 8, 15437. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  46. Guo, J.; Zhang, X.; Sun, Y. NiMoS3 Nanorods as pH-Tolerant Electrocatalyst for Efficient Hydrogen Evolution. ACS Sustain. Chem. Eng. 2017, 5, 9006–9013. [Google Scholar] [CrossRef]
  47. He, W.; Jiang, S.; Pang, M.; Li, J.; Pang, M.; Mao, M.; Zhao, J. A free-standing NiMoO4@ Mg-Co (OH) F core-shell nanocomposites supported on Ni foam for asymmetric supercapacitor applications. Colloids Surf. A Physicochem. Eng. Asp. 2023, 660, 130883. [Google Scholar] [CrossRef]
  48. Wang, C.; Tian, Y.; Gu, Y. Plasma-induced moieties impart super-efficient activity to hydrogen evolution electrocatalysts. Nano Energy 2021, 85, 106030. [Google Scholar] [CrossRef]
  49. Mingli, F.; Xue, L.; Dandan, W. Fabrication of Te@NiTe2/NiS heterostructures for electrocatalytic hydrogen evolution reaction. Electrochim. Acta. 2019, 328, 135075. [Google Scholar] [CrossRef]
  50. Chen, M.; Su, Q.; Kitiphatpiboon, N.; Zhang, J.; Feng, C.; Li, S.; Zhao, Q.; Abudula, A.; Ma, Y.; Guan, G. Heterojunction engineering of Ni3S2/NiS nanowire for electrochemical hydrogen evolution. Fuel 2023, 331, 125794. [Google Scholar] [CrossRef]
  51. Wu, Y.; Su, L.; Wang, Q.; Ren, S. In situ preparation of Ni(OH)2/CoNi2S4/NF composite as efficient electrocatalyst for hydrogen evolution reaction. Ionics 2023, 29, 675–683. [Google Scholar] [CrossRef]
  52. He, N.; Chen, X.; Fang, B.; Li, Y.; Lu, T.; Pan, L. Zr-MOF/NiS2 hybrids on nickel foam as advanced electrocatalysts for efficient hydrogen evolution. J. Colloid Interface Sci. 2023, 640, 820–828. [Google Scholar] [CrossRef] [PubMed]
  53. Gong, Y.; Lin, Y.; Yang, Z.; Jiao, F.; Li, J.; Wang, W. High-performance bifunctional flower-like Mn-doped Cu7.2S4@NiS2@NiS/NF catalyst for overall water splitting. Appl. Surface Sci. 2019, 476, 840–849. [Google Scholar] [CrossRef]
  54. Sun, M.; Wang, Z.; Gao, B.; Wang, S.; Wang, C.; Song, X.; Lin, D. Electrocatalytic hydrogen evolution properties of anionic NiS2-Ni(OH)2 nanosheets produced on the surface of nickel foam. Int. J. Energy Res. 2020, 44, 4827–4836. [Google Scholar] [CrossRef]
  55. Wu, Y.; Lian, J.; Wang, Y.; Sun, J.; He, Z.; Gu, Z. Potentiostatic electrodeposition of self-supported NiS electrocatalyst supported on Ni foam for efficient hydrogen evolution. Mater. Des. 2021, 198, 109316. [Google Scholar] [CrossRef]
  56. Peng, Y.; He, H. Novel heterostructure Cu2S/Ni3S2 coral-like nanoarrays on Ni foam to enhance hydrogen evolution reaction in alkaline media. RSC Adv. 2021, 11, 39493–39502. [Google Scholar] [CrossRef]
  57. Xu, X.; Liu, Q.; Zhong, W.; Zhang, L.; Lu, Y.; Du, Y. Construction of NiCo2S4/Ni3S2 nanoarrays on Ni foam substrate as an enhanced electrode for hydrogen evolution reaction and supercapacitors. Int. J. Hydrog. Energy 2021, 46, 39226–39235. [Google Scholar] [CrossRef]
Nanomaterials 13 01871 g001 550

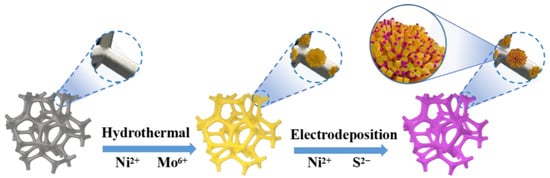

Figure 1. Schematic depicting the synthetic process of the NF/NiMoO4/NiMo@NiS spherical−coated rod structure material.
Figure 1. Schematic depicting the synthetic process of the NF/NiMoO4/NiMo@NiS spherical−coated rod structure material.
Nanomaterials 13 01871 g001
Nanomaterials 13 01871 g002 550

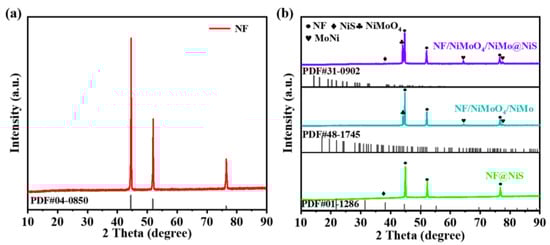

Figure 2. XRD patterns for (a) NF and (b) NF@NiS, NF/NiMoO4/NiMo, and NF/NiMoO4/NiMo@NiS samples.
Figure 2. XRD patterns for (a) NF and (b) NF@NiS, NF/NiMoO4/NiMo, and NF/NiMoO4/NiMo@NiS samples.
Nanomaterials 13 01871 g002
Nanomaterials 13 01871 g003 550

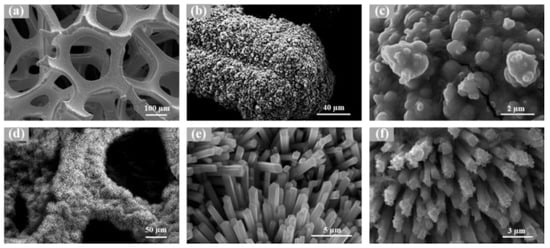

Figure 3. SEM images of (a) NF; (b,c) NF@NiS; (d,e) NF/NiMoO4/NiMo; and (f) NF/NiMoO4/NiMo@NiS.
Figure 3. SEM images of (a) NF; (b,c) NF@NiS; (d,e) NF/NiMoO4/NiMo; and (f) NF/NiMoO4/NiMo@NiS.
Nanomaterials 13 01871 g003
Nanomaterials 13 01871 g004 550

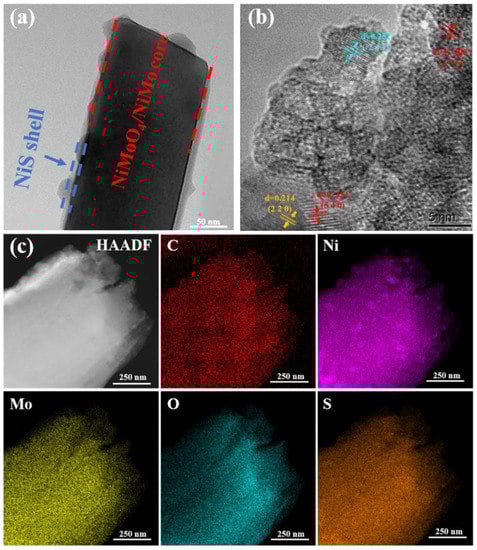

Figure 4. (a) TEM images of NF/NiMoO4/NiMo@NiS. (b) HRTEM pattern and (c) EDS spectrum of NF/NiMoO4/NiMo@NiS.
Figure 4. (a) TEM images of NF/NiMoO4/NiMo@NiS. (b) HRTEM pattern and (c) EDS spectrum of NF/NiMoO4/NiMo@NiS.
Nanomaterials 13 01871 g004
Nanomaterials 13 01871 g005 550

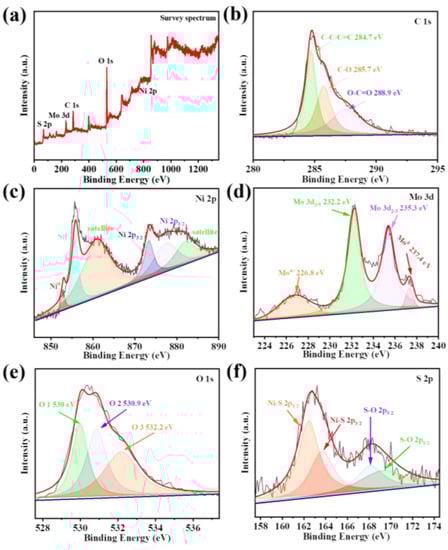

Figure 5. (a) For the NF/NiMoO4/NiMo@NiS material, the XPS survey spectrum. Spectra of: (b) C 1s, (c) Ni 2p, (d) Mo 3d, (e) O 1s, and (f) S 2p, in the NF/NiMoO4/NiMo@NiS material.
Figure 5. (a) For the NF/NiMoO4/NiMo@NiS material, the XPS survey spectrum. Spectra of: (b) C 1s, (c) Ni 2p, (d) Mo 3d, (e) O 1s, and (f) S 2p, in the NF/NiMoO4/NiMo@NiS material.
Nanomaterials 13 01871 g005
Nanomaterials 13 01871 g006 550

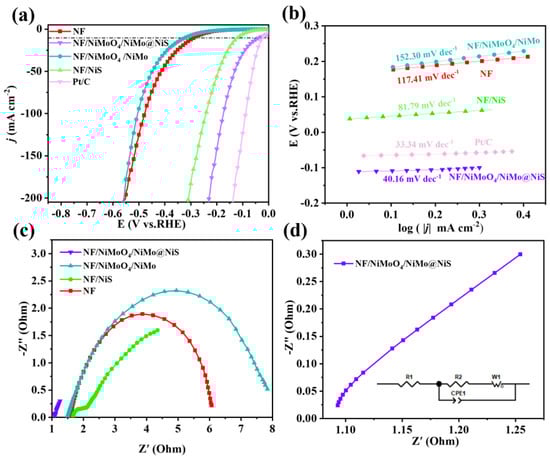

Figure 6. (a) Polarization LSV curves for the HER at a scan rate of 5 mV·s−1. (b) Tafel plots of NF, NF@NiS, NF/NiMoO4/NiMo, and NF/NiMoO4/NiMo@NiS. (c) EIS of NF, NF@NiS, NF/NiMoO4/NiMo, and NF/NiMoO4/NiMo@NiS in the frequency range between 100 kHz and 10 MHz. (d) NF/NiMoO4/NiMo@NiS in the frequency range between 100 kHz and 10 MHz. Be aware that 1.0 M KOH solution is used for all electrochemical measurements of the HER performance for the catalysts.
Figure 6. (a) Polarization LSV curves for the HER at a scan rate of 5 mV·s−1. (b) Tafel plots of NF, NF@NiS, NF/NiMoO4/NiMo, and NF/NiMoO4/NiMo@NiS. (c) EIS of NF, NF@NiS, NF/NiMoO4/NiMo, and NF/NiMoO4/NiMo@NiS in the frequency range between 100 kHz and 10 MHz. (d) NF/NiMoO4/NiMo@NiS in the frequency range between 100 kHz and 10 MHz. Be aware that 1.0 M KOH solution is used for all electrochemical measurements of the HER performance for the catalysts.
Nanomaterials 13 01871 g006
Nanomaterials 13 01871 g007 550

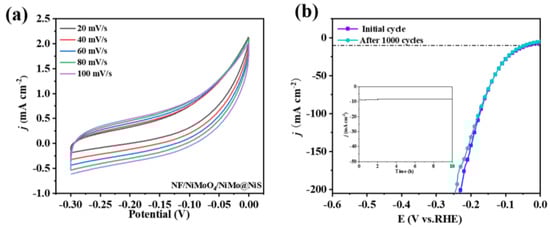

Figure 7. CVs of (a) NF/NiMoO4/NiMo@NiS measured at different scan rates. (b) Initial overpotential and overpotential after 1000 cycles and the 10 h chronopotentiometric curve obtained for NF/NiMoO4/NiMo@NiS at a constant current density of 10 mA·cm−2.
Figure 7. CVs of (a) NF/NiMoO4/NiMo@NiS measured at different scan rates. (b) Initial overpotential and overpotential after 1000 cycles and the 10 h chronopotentiometric curve obtained for NF/NiMoO4/NiMo@NiS at a constant current density of 10 mA·cm−2.
Nanomaterials 13 01871 g007
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Hu, S.; Xiang, C.; Zou, Y.; Xu, F.; Sun, L. Synthesis of NiMoO4/NiMo@NiS Nanorods for Efficient Hydrogen Evolution Reactions in Electrocatalysts. Nanomaterials 2023, 13, 1871. https://doi.org/10.3390/nano13121871
