Article

SiC@FeZnZiF as a Bifunctional Catalyst with Catalytic Activating PMS and Photoreducing Carbon Dioxide

by
Zhiqi Zhu
1,
Liaoliao Yang
1,
Zhaodong Xiong
1,
Daohan Liu
1,
Binbin Hu
1,
Nannan Wang
1,*,
Oluwafunmilola Ola
2,* and
Yanqiu Zhu
3,*
1
Key Laboratory of Disaster Prevention and Structural Safety of Ministry of Education, Guangxi Key Laboratory of Disaster Prevention and Engineering Safety, College of Chemistry and Chemical Engineering, School of Resources, Environment and Materials, Guangxi University, Nanning 530004, China
2
Advanced Materials Group, Faculty of Engineering, The University of Nottingham, Nottingham NG7 2RD, UK
3
College of Engineering, Mathematics and Physical Sciences, University of Exeter, Exeter EX4 4QF, UK
*
Authors to whom correspondence should be addressed.
Nanomaterials 2023, 13(10), 1664; https://doi.org/10.3390/nano13101664
Submission received: 14 April 2023 / Revised: 4 May 2023 / Accepted: 12 May 2023 / Published: 18 May 2023
(This article belongs to the Special Issue Advanced Photocatalytic Nanomaterials for Environmental and Energy Applications)
Browse Figures
Review Reports Versions Notes

Abstract

:
Herein, we encapsulated modified silicon carbide nanoparticles utilizing a metal–organic backbone. E-SiC-FeZnZIF composites were successfully prepared via Fe doping. The catalysis activity of this bifunctional composite material was evaluated by the degradation of tetracycline (THC) and carbamazepine (CBZ) and the reduction of carbon dioxide (CO2). Nano SiC has received widespread attention in advanced oxidation applications, especially in the catalytic activation of peroxymonosulfate (PMS). However, the inferior activity of SiC has severely restricted its practical use. In this study of dual functional composite materials, nano SiC was firstly etched under aqueous alkali. Then, zeolite imidazolate frame-8 (ZIF-8) was used for immobilization. The filling of the etched nano SiC with FeZnZiF was confirmed by SEM, XRD, FTIR, BET, and XPS analyses. In addition, E-SiC-FeZnZIF exhibited excellent catalytic activation of peroxymonosulfate (PMS) to oxidize water pollutants, which can degrade tetracycline hydrochloride (THC), achieving a removal rate of 72% within 60 min. Moreover, E-SiC-FeZnZIF exhibited a relatively high CO2 reduction rate with H2O. The yields of CO and CH4 were 0.085 and 0.509 μmol g−1, respectively, after 2 h, which are higher than that of 50 nm of commercial SiC (CO: 0.084 μmol g−1; CH4: 0.209 μmol g−1). This work provides a relatively convenient synthesis path for constructing metal skeleton composites for advanced oxidation and photocatalytic applications. This will have practical significance in protecting water bodies and reducing CO2, which are vital not only for maintaining the natural ecological balance and negative feedback regulation, but also for creating a new application carrier based on nano silicon carbide.

Graphical Abstract

1. Introduction

While human development has brought about radical changes in human life, it has also caused unprecedented damage to the natural world [1,2]. In particular, the pollution of marine waters and the discharge of various heavy metals, organic pollutants, and medical waste water are growing concerns [3,4]. As a result of the large consumption of antibiotics brought about by the postepidemic era, trace antibiotics have been found in the global ecological environment, raising concerns about the survival status of environmental micro-organisms [5]. This has put a severe strain both on the ecosystem and on human beings themselves, affecting reproduction and the sustainability of future generations [6]. Combined with peak CO2 emissions and increased global warming [7], energy and environmental issues are becoming increasingly prominent [7,8].
In recent years, third-generation semiconductors have emerged, including those using silicon carbide, and their applications are flourishing in various areas. With the development of 5G communications, the defense industry, new energy vehicles, and new energy photovoltaics, the demand for silicon carbide is growing at an impressive rate. Silicon carbide is a corrosion- and radiation-resistant material that can withstand high pressures and temperatures. Bedoya-Pinto et al. manufactured an impressive robust ferromagnetic ordered graphene/6H-SiC planar system. They successfully achieved a restricted size Berezinskii–Kosterlitz–Touless phase transition [9]. Alekseev et al. obtained nanoparticles with different surface properties, such as hydroxyl groups and C-C bonds on the surface of a silicon carbide matrix, through KOH and HF treatments [10,11]. This is highly promising for applications related to the degradation of pollutants and reducing carbon dioxide. When utilized as a catalyst, silicon carbide is an ideal substrate and interface for photocatalytic reactions [11]. Therefore, it has shown great potential in environmentally friendly sustainable development applications and new technologies related to energy conversion and storage.
The photocatalytic degradation of water pollutants is an environmentally friendly process because it can effectively convert solar energy into other types of chemical energy. In the past few years, photocatalysts based on metal–organic frameworks (MOFs) have come to prominence. As a result of their polyhedral morphology, large specific surface area, excellent chemical stability, and simple preparation process, they have received significant attention from the scientific community [12,13]. A recent scientific study refined the thermal activation process by developing carbon host ZIF-8 to adsorb Co2+ ions [14]. Madsen et al. found short-range disturbances in ZIF glass and applied them to enhance the screening ability of MOF membranes [15]. In addition, current studies show that ligand chemistry in ZIFs has no control over short-range disorder, and the findings reveal structure–property relations that could help to design metal–organic framework glasses [16]. As an expandable porous spider web structure, MOFs have been cleverly combined with metals and organic substances in a bottom-up research approach, which can be used to protect enzymes [17]. Recently, MOFs have been successfully developed and applied in preparing highly active electrochemical water decomposition catalysts due to their tunable nanostructures and excellent porosity [18]. MOFs are also used to store alternatives to traditional fossil fuels, such as hydrogen and methane on ships, which is a considerable challenge as a balance between maintaining ultra-high porosity and the weight- and volume-level surface areas must be established [13,19]. Here, Chen et al. reported a simulated synthesis based on trinuclear metal clusters, proposing a mechanism for converting ZIF-8 into a structure with a polycrystalline form [20]. Erdosy et al. prepared stable dispersions in water by adjusting the internal and external structures of MOF nanocrystals [21]. Li et al. explored the structural evolution and thermal activation process using nitrogen-doped carbon catalysts, and designed a high-performance single Ni site catalyst [22]. As a result, these aqueous fluids can store highly concentrated gases such as oxygen (O2−) and carbon dioxide (CO2) [23].
Herein, we encapsulated modified silicon carbide nanoparticles by employing a metal–organic backbone. The E-SiC-FeZnZiF composites with a core–shell structure were successfully prepared. The resulting materials exhibit excellent catalytic activation capabilities, which can efficiently separate photogenerated charge carriers, rapidly reduce CO2 under light, and catalyze the degradation of potassium persulfate oxidants. The degradation performances of tetracycline hydrochloride (THC) and carbamazepine (CBZ) were explored under various catalytic conditions (catalyst and PMS dosage, THC concentration, and inorganic anion).

2. Experimental

2.1. Chemicals and Materials

In total, 50 nm β silicon carbide (99.9%), sodium hydroxide (chemical form flake (96%)), ethanol (99% ASC reagent grade), Fe(NO3)3·9H2O (99.9%), 2-methylimidazole (99%), methanol (99.5%), tetracycline hydrochloride (C22H25ClN2O8 (USP)), and other conventional reagents, sodium bicarbonate (NaHCO3 > 99.5%), sodium hydroxide (NaOH (96%)), sodium thiosulfate (Na2S2O3·5H2O (99%)), tetracycline hydrochloride (USP), carbamazepine (99%), and potassium monopersulfate (K5H3S4O18 (42~46%)) were purchased from Shanghai McLean Biochemical Technology Co., Ltd. (Shanghai, China).

2.2. Preparation of Etched Nano Silicon Carbide

Ten grams of commercially available 50 nm β SiC powder and twenty grams of sodium hydroxide were dissolved in 150 mL DI water. The above prepared solution was heated in water at 90 °C for 2 h. At the same time, the auxiliary magnet was stirred at 400 rpm. The etched nano SiC was collected by centrifugation at 2000 rpm for 10 min. The obtained nano products were washed many times with DI water and ethanol. Lastly, all of the etched nano SiC was dried at 50 °C for 6 h. The principle of the reaction based on the liquid phase can be depicted as in Equation (1).
O2 + SiC + 2NaOH + H2O→Na2SiO3 + CO2

2.3. Preparation of ZnZiF

First, 3.0 mmol of Zn(NO3)2·6H2O was dissolved in 90 mL of methanol in a beaker [24]. In another beaker, 48 mmol of 2-methylimidazole (2-MI) slowly and uniformly was dissolved in 90 mL of methanol. Then, the solution was slowly dripped from the first beaker into the second beaker. The resulting solution was magnetically stirred at 500 rpm for 15 min and allowed to stand for 24 h. White flocculent gel analogues could be observed at the bottom of the beaker, which were then washed with methanol by centrifugation. The obtained white crystals were dried at 60 °C.

2.4. Preparation of E-SiC-ZnFeZiF

Firstly, Fe (NO3)3 · 9H2O was dispersed in 90 mL of methanol, and the solution was continuously stirred with a magnet for 15 min. At the same time, 0.2 g of etched nano SiC was added to the solution. In another beaker, 3.0 mmol of Zn (NO3) 2·6H2O and 4 g of 2-MeIm were added to the solution and stirred for 2 h. Furthermore, this was then dissolved in 90 mL of methanol. Thereafter, the contents of the first beaker were poured into the second beaker. The resulting solution was magnetically stirred at 500 rpm for 15 min and allowed to stand for 24 h under natural gravity. E-SiC-ZnFeZiF crystals were obtained, which were then washed with methanol by centrifugation. The obtained black crystals were dried at 60 °C.

2.5. Instrumentations

We used a Rigaku D/MAX 2500 V type X-ray diffractometer produced by the Japanese Science Corporation (Tokyo, Japan). The radiation source was Cu target K α X-ray, and the test conditions for all samples were 40 kV and 100 mA. The scanning range was 5° to 80°, and the scanning speed was 5°/min. The FSEM equipment used was a Sigma 300 field emission scanning electron microscope produced by Zeiss AG in Oberkochen, Germany. The prepared catalyst was observed using SE2 and InLens lenses, with a test voltage range of 8 kV. An X-ray photoelectron spectrometer (ESCALAB 250Xi) from the Thermo Fisher Scientific Company in Waltham, MA, USA. the United States was used to characterize the sample’s elemental composition, content, and chemical status. A PLS-SXE 300D (power 300 W, 15 A) xenon lamp light source made by Beijing Porphyry Technology Co. (Beijing, China). was utilized. Advanced oxidation of TC was conducted in a 150 mL glass reactor. In total, 5 mg of commercial SiC and 5 mg of commercial E-SiC-FeZnZiF were dispersed in 100 mL of 10 mg/L of TC solution with ultrasonic treatment for 10 min. The suspension was irradiated under continuous mild stirring using a xenon lamp (Perfectlight PLS-SXE300) with a full spectrum (320–780 nm) at an intensity of 200 mW/cm2. In total, 5 mL of the suspension was extracted every 10 min, which was passed through centrifugation at 8000 rpm to reduce the interference of the catalyst. According to the absorbance, the degradation efficiency of THC could be calculated. The catalytic properties of the E-SiC-FeZnZiF were estimated compared with 50 nm of C-SiC according to tetracycline hydrochloride and CBZ degradation. The multi-angle particle size and highly sensitive zeta potential analyzer as manufactured by Brookhaven (model number NanoBrook Omni, manufactured in New York, NY, USA). The fully automatic specific surface area analyzer was manufactured by McMurray-Tick Instruments Ltd. in New York, NY, USA (model TriStar II 3020). The total organic carbon analyzer (model TOC-L CPH) was manufactured by Shimadzu (Kyoto City, Japan).

2.6. Organic Pollutant Degradation Measurement

The experiment to assess the catalytic activation degradation of water pollutants was conducted in a beaker at room temperature. The white THC powder particles were ultrasonically dissolved in DI water and stirred for 6 h to prepare a THC solution with a concentration of 20 mg/L and an initial pH of 6.5 (in the contaminant solution, we adjusted the reaction system to neutral by adding dilute hydrochloric acid or sodium hydroxide solution dropwise). A certain amount of catalyst was added to the THC solution and stirred for 5 min to completely disperse the catalyst. Subsequently, a predetermined dose of PMS was added. The reaction solution (1 mL) was sucked out and periodically injected into the Na2S2O3 solution (50 μL) to remove free radicals and prevent further reactions. In total, 5 mL of the suspension was extracted every 10 min, which passed through centrifugation at 8000 rpm to reduce the interference of the catalyst. The overall catalytic degradation efficiency was Ct/C0 (Ct: concentration of THC at a certain moment of reaction; C0: concentration at the beginning of the THC reaction), and the concentration of THC was measured at 350 nm using a UV spectrophotometer.

2.7. Photocatalytic Reduction of CO2

In total, 10 mg of matrix composites was mixed with 20 mL (0.1 M/L) of sodium bicarbonate solution and put into a 50 mL photocatalytic cell. The resultant solution underwent ultrasonic treatment for 15 min to obtain a colloidal slurry with uniformly dispersed particles. While stirring the ultrasonic sample at a speed of 200 rpm, carbon dioxide gas was introduced. This took 20 min. After the gas had been passed through, the inlet and outlet of the gas were blocked to form a closed space in the tank. Finally, a 300 W, 15 A xenon lamp, with set parameters, irradiated the suspension in a closed glass chamber. At the same time, the illuminated solution in the tank was filtered and collected. The gaseous products extracted from the gas outlet were assessed using a gas chromatograph (Techcomp GC 7900).

3. Results and Discussion

3.1. Characterization of E-SiC-FeZnZiF

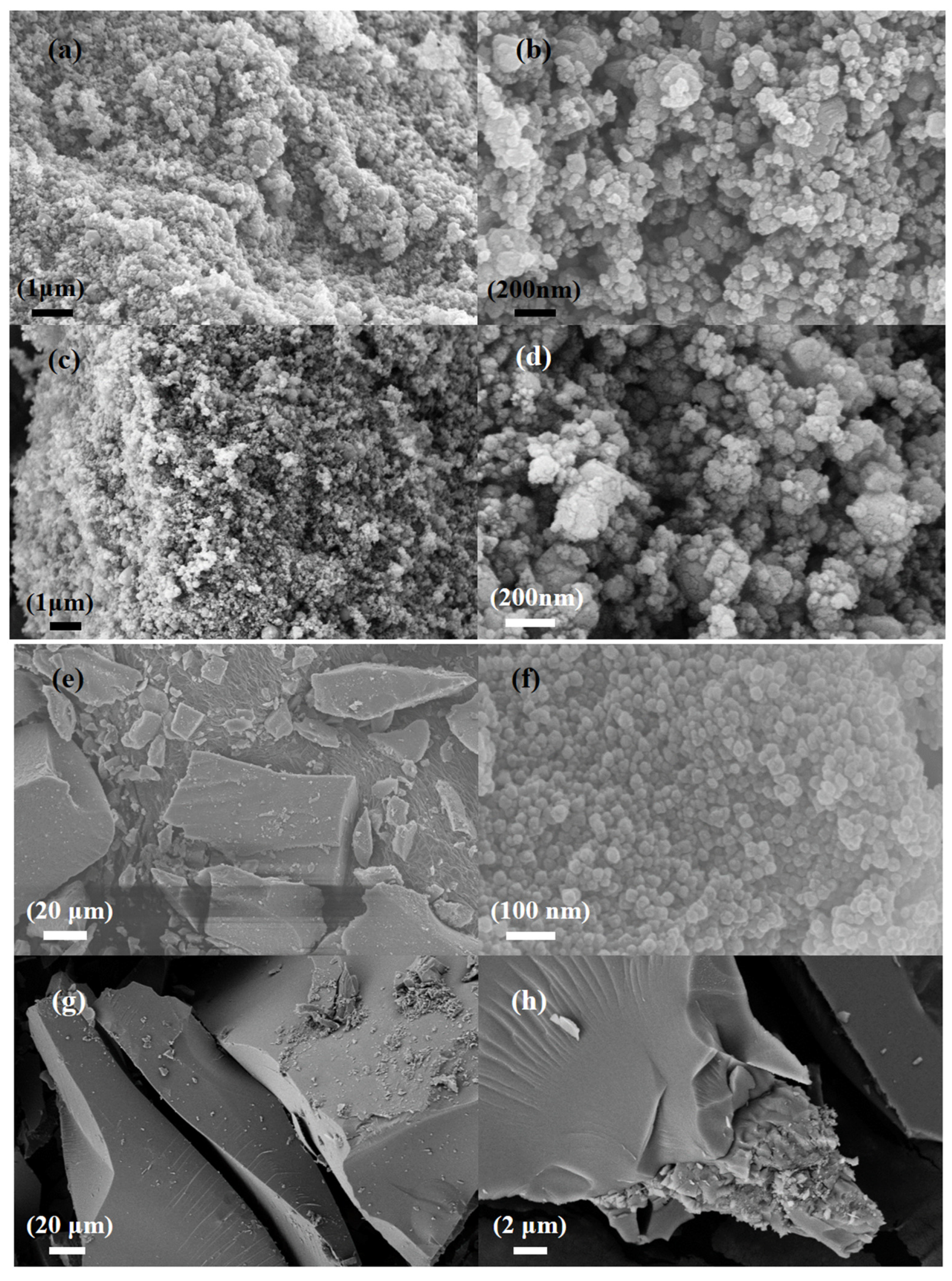

Figure 1a,b show scanning electron microscope images of commercial silicon carbide. The average size of the spherical particles was 50–100 nm. Figure 1c,d show the morphology changes of silicon carbide after etching. They demonstrate that, with the significant decrease in particle size after alkali etching, the nano silicon carbide had a larger specific surface area. Figure 1e,f indicate that the pure ZnZIF bulk particles consist of tiny particles, i.e., below 100 nm. Figure 1g,h indicate that ZnFeZIF forms large crystals with smooth surfaces.
Figure 2a,b show scanning electron microscope images of SiCZnZIF. The average size of the sheets was approximately 1 μm. The SiC in the middle of the interlayer can be clearly observed. According to the EDS diagram of Zn, N, C, and Si, the elements were uniformly distributed, which indicates the successful doping of Zn. The diagrams in Figure 2c,d show that the SiCZnZIF material shrank from a sheet shape to a spherical shape under a 400 °C argon atmosphere. Figure S2 shows that the percentage of Zn increased after being burned in the Ar atmosphere. As shown in Figure 2e,f, it was observed that E-SiC was attached to the FeZIF surface. It can be ascertained from the images in Figure 2g,h that SiC-ZnFeZIF bulk crystals were stacked as spherical particles layer by layer. We further studied the E-SiC-ZnFeZIF element composition of the metal matrix composites via EDS element analyses. The results are shown in the color images in Figure 2i. The distribution of N, C, Zn, and Fe in the entire metal matrix composite was uniform, which confirms that E-SiC-Zn-FeZIF successfully doped Zn and Fe. In Table S4, we measured the particle sizes of C-SiC and E-SiC-ZnFeZIF by zeta potential (pH = 7). The particle sizes of C-SiC, E-SiC, E-SiC-FeZIF, and E-SiC-ZnFeZIF were 6178, 2457, 287, and 322 nm (the average of the three measurements was taken), respectively. In the methanol-as-solvent system, the combined electron micrographs showed that C-SiC and E-SiC agglomerates were evident. In contrast, E-SiC-FeZIF and E-SiC-ZnFeZIF were consistent with the particle sizes observed by SEM. E-SiC had the lowest zeta potential, indicating a greater tendency for agglomeration. E-SiC-ZnFeZIF, on the other hand, had the highest zeta potential, indicating that it was stably dispersed in the methanol system.
Figure 3a shows the XRD patterns of C-SiC and E-SiC. The three sharp peaks are located at 35.73, 60.15, and 71.97°. On the basis of the previously studied ICDD data (JCPDS card (no. 29-1131)), this SiC crystal type appears to be 6-H [25]. In addition, the XRD patterns of E-SiC-FeZIF and E-SiC-ZnFeZIF showed three prominent sharp peaks at 35.50, 59.72, and 71.44°. The corresponding characteristic peaks of ZIF-8 (ZnZIF) were clearly observed in the XRD patterns of the ZIF-8 and E-SiC-ZnFeZIF metal matrix composites, indicating that the introduction of E-SiC nanoparticles into ZnFeZIF did not damage its structure and crystallinity [26]. Figure 3b shows a new intense broad band centered at 861 cm−1 for E-SiC [27], which correspond to the Si–C fundamental stretching vibration [28]. For E-SiCFeZIF and E-SiCZnFeZIF, there are corresponding SiC characteristic peaks (861 cm−1). This peak does not appear for pure FeZIF, which again demonstrates that the composite composed of etched nano SiC and ZnFeZIF does not destroy the structure of ZnZIF. FeZIF, E-SiC-FeZIF, and E-SiC-ZnFeZIF have peaks at 1383 and 1056 cm−1, which obviously correspond to the peaks of nitrate ions and are solid evidence for the construction of a metal–organic framework [29]. C-SiC and E-SiC have similar weak Raman patterns in the peaks in Figure 3c at 1342 and 1602 cm−1, respectively. There is no obvious Raman peak for FeZIF. However, four significantly enhanced Raman peaks in the two complexes were observed at 796, 1342, 1602, and 2682 cm−1 [30]. In the E-SiCFeZIF and E-SiCZnFeZIF composites in particular, the characteristic peaks of silicon carbide, i.e., 1342 and 1602 cm−1, were significantly enhanced, demonstrating a strong interaction between E-SiC and ZnFeZIF [31].

3.2. Organic Pollutant Degradation Performance

3.2.1. Catalytic Performance in Degradation of Tetracycline Hydrochloride and CBZ

The catalytic performance of E-SiC-ZnFeZIF was evaluated in detail by changing the conditions that affect various parameters during the catalytic degradation of CBZ and THC. As shown in Figure 4a–c, CBZ and THC degradation (3–8%) with the SiC and PMS catalysts was negligible. We supplemented the experiments with degradation of various catalysts by sonication for 3 min, followed by no stirring, in Figure S7c. In the degradation experiments without stirring, C-SiC and E-SiC were degraded (including adsorption) by 7% and 9%, respectively, within 60 min. The degradation efficiencies of E-SiC-FeZIF and E-SiC-ZnFeZIF were 38% and 54%. In contrast, degradation efficiencies of 18%, 18%, 50%, and 72% were observed for C-SiC, E-SiC, E-SiC-FeZIF, and E-SiC-ZnFeZIF, respectively, in the degradation experiments with stirring. Significantly lower degradation efficiencies were observed without stirring. This indicates that stirring accelerates the contact between the catalyst surface and the organic contaminants, promoting both free radical and non-free radical pathways. The effect of stirring increases the contact area and interaction between the components in the solution, facilitating the chemical reaction and speeding up the reaction rate. It allows the reactants to mix uniformly and facilitates the reaction and heat dissipation. This promotes the degradation of organic pollutants (THC). In addition, the adsorption ability of E-SiC-ZnFeZIF to CBZ and THC molecules is poor. However, almost 72% of the THC and 18% of the CBZ were degraded after 60 min when the E-SiC-ZnFeZIF (metal matrix composite) was used as a catalyst for a wastewater solution in the presence of PMS. The highest total organic carbon removal by degradation of THC (20 ppm 100 mL) was 65%. With THC concentrations of 10, 20, and 40 ppm, the degradation efficiency was 57%, 48%, and 38%, respectively. E-SiC-ZnFeZIF is composed of SiC and ZnFeZIF, which is essential to study the catalytic activities of these substances. Almost no CBZ and THC were degraded when C-SiC and E-SiC were used as a catalyst in the presence of PMS. By comparing the degradation efficiency of E-SiC and E-SiC-ZnFeZIF, with the analysis of specific surface area in the previous section, it is seen that the composite material has a higher catalytic degradation performance than either material alone, which indicates a clear interaction between the two materials. Therefore, the high catalytic activity is mainly due to the activation of ZnFeZIF. However, there must be relevant synergies between the E-SiC and ZnFeZIF, because E-SiC-ZnFeZIF exhibited a higher degradation activity than pure ZnFeZIF. As E-SiC-ZnFeZIF is composed of Fe2+ and Fe3+ based on ZnFeZIF, the above substances can react with PMS to generate sulfate and persulfate radicals, as shown below (Equations (2)–(4)).
Fe(III) + HSO5− → Fe(II) + SO5•− + H+
Fe(II) + HSO5− → Fe(III) + SO4•− + OH−
2SO5•− → 2SO4•− + O2
The experimental results show that the E-SiC-ZnFeZIF/PMS integrated system is fast and efficient in the mineralization of THC, confirming that E-SiC-Zn-FeZIF has high catalytic degradation activity. According to the experimental results, most of the tetracycline hydrochloride can be degraded and removed in the E-SiC-ZnFeZIF system. Therefore, we continued to explore the effects of various environmental and internal factors on the degradation of tetracycline hydrochloride. As shown in Figure 4d, when the PMS was increased to 1 mM, the degradation efficiency reached the maximum value (52% is the same as 0.5 mM). When the concentration of PMS in the degradation environment was 2 mM, the degradation efficiency slightly decreased compared to the aforementioned example. A high concentration of PMS increases the yield of reactive species in the system. On the one hand, a large number of reactive species will undergo radical annihilation reactions, reducing the efficiency of THC removal. On the other hand, an increase in the yield of reactive species also increases the chance of reaction with SiCZnFeZIF in the system and reduces the conversion efficiency between Fe3+ and Fe2+ ions. The activation process is inhibited, thereby indirectly affecting the degradation of the pollutants. When the amount of catalyst (E-SiC-ZnFeZIF) was increased from a lower quantity (from 5 mg/mL to 50 mg/mL), the overall degradation efficiency decreased from 72% to 25% (Figure 4e). This suggests that in a high-concentration catalyst environment, the free radicals used for degradation may undergo self-quenching (Equations (5) and (6)), which becomes the main factor limiting the increase in the reaction rate [32].
SO•4− + SO•4− → S2O2 8−
SO4−•+ OH• → HSO5−
As organic wastewater is discharged into the natural ecological environment, over time and under the influence of external factors, the inorganic anions generated in the water body will compete with organic substances, or even react with active substances, resulting in the loss of their activity. This seriously interferes with the catalytic degradation process [33]. However, when phosphate ions and bicarbonate ions exist, as in Figure 4f, where their concentration is 10.0 mmol/L, they significantly reduce the degradation efficiency. For example, when 10.0 mmol/L of phosphate ions or bicarbonate ions is present, the THC degradation efficiency is 17% and 15%, respectively. Through the simultaneous monitoring of the pH change in the solution, it can be seen that the introduction of phosphate ions or bicarbonate ions can increase the pH of the solution, i.e., to 10.1 and 8.5, respectively. Phosphate and bicarbonate ions added to the system make the solution alkaline, weakening the interaction between E-SiC-ZnFeZIF and PMS, thus reducing the production of active species. By the analysis of the BET specific surface area (Figure 4g,h), the adsorption–desorption curves in the nitrogen environment, the adsorption of the composite E-SiC-ZnFeZIF is 47 cm³/g STP (relative pressure (P/Po)), which is much smaller than the 180 cm³/g STP (relative pressure (P/Po)) of E-SiC. The specific surface area of the composite E-SiC-ZnFeZIF is 17.22 m²/g, with a minimum pore volume of 0.079 cm³/g (<1. 663.1 Å diameter at P/Po = 0.988) and 0.075 cm3/g for pore widths in the range 60–100 nm, which is smaller than the 0.25 cm3/g of E-SiC. The percentage of pore widths in the range 0–60 nm is much smaller than in the region of E-SiC (based on a comparison of the triangular regions), so its adsorption capacity can be ignored. Furthermore, the maximum pore volume and specific surface area of E-SiC has a less than 10% adsorption degradation capacity over 60 min, which proves that the adsorption capacity of the composite is the weakest. The smaller the grain size of the catalyst, the larger the specific surface area and the rougher the surface, both of which are more conducive to the adsorption of organic pollutants. However, if the composite grain size becomes larger, the crystal shape is more complete. Then, the adsorption performance decreases, however the degradation performance increases. This point proves that the catalytic activity is dominated by the complex which formed from the two factors (E-SiC and ZnFeZIF) and the interaction of the composites is more significant. Adsorption performance is a secondary factor for degradation. However, some chloride ion salts that can produce Cl also have a weaker oxidation ability. For example, (E (Cl/Cl−) = 2.43 V, E (Cl2−/Cl−) = 2.13 V) (Equations (7) and (8)) [34]. Therefore, in the water model of the catalytic activation degradation of THC, chloride ions weakened the E-SiC-ZnFeZIF/PMS system to a certain extent [33,35].
SO4− + Cl− → SO42− + ∙Cl
Cl− + Cl− → 2∙Cl2−
Previous research reports found that low concentrations of NO3− had a significant inhibitory effect on THC degradation. The corresponding research mechanism can be described as the reaction of NO3 with SO4• and OH•, resulting in a low activity of NO3• and NO2• in water (Equations (9)–(11)) [36]. There is also a mechanism to explain the inhibition of THC degradation by Cl−. The Cl− present in water pollutants can combine with free radicals to form chlorine free radicals with a low catalytic activity, such as Cl• and Cl2•− (Equations (12) and (13)) [37]. Therefore, before applying the composite material for degradation, the phosphate ion, bicarbonate ion, and chloride ion values in the wastewater should be detected, and the addition of pretreatment measures should be considered. In a single PMS or E-SiCZnFeZIF degradation solution system, the degradation efficiency is only 46.67 and 7.23%, respectively, as shown in Figure 5a. The synergistic effect of PMS and E-SiCZnFeZIF was demonstrated. In the subsequent mechanism analysis, we proposed the relevant reaction process. Then, we tested the stability of the composite. After three cycles, the degradation performance of the composite decreased to 40.59%. Using the dissolution data of the leaching solution for 1 h, it was shown that the stability of ZIF materials in water and the crystal structure were negatively affected, leading to the precipitation of Fe3+. According to the integrated wastewater discharge standard (GB8978-1996), the water quality standard for sewage discharged into urban sewers is 10 mg/L. On the basis of the ICP measurements from Figure 5c, the Fe content in the leaching solutions for 0.5 h, 1 h, and 20 h is 2.001, 4.165, and 10.898 mg/L, respectively. These values are lower than the national standard within 1 h and are suitable for use in widely degrading water pollutants. The decrease in degradation properties indicates the instability of this ZIF composite in aqueous solution, combined with leaching experiments. We know that the structure of the metal–organic skeleton is damaged by immersion in aqueous solutions for longer than 20 h. The leaching of Fe3+ ions within 1 h is less. Therefore, we should filter the catalyst out of the solution in time. In Figure 5d, we conducted free radical capture experiments with 10 mM of p-benzoquinone, tert-butyraldehyde, and EDTA-2Na. The three types of capture agents have inhibitory effects on the degradation of tetracycline hydrochloride by composite-material-catalyzed activated PMS. O2•− and photogenerated holes (h+) play a leading role, while SO4•− and OH• are both involved in the degradation of tetracycline hydrochloride. SiC and Fe-ZIFs are the main active centers. The doping of Fe elements makes the catalyst’s ability to transfer electrons more stable while accelerating the redox cycle of Fe3+ and Fe2+, enabling the catalyst to efficiently catalyze the decomposition of PMS to produce active species (SO4•−, OH•).
NO3— + SO4•− → SO42− + NO3
NO3— +OH• → OH— + NO3
NO3— + H2O + e− → 2OH— + NO2
Cl— + SO4•− → SO42− + ∙Cl
Cl— + Cl• → 2Cl—

3.2.2. Organic Pollutant Degradation Mechanism

According to the summary and the description above, the mechanism and acquisition method for the degradation of THC by SO4− are shown in Equations (1)–(3). Then, SO4− becomes OH− under a certain action (Equation (14)) [38].
SO42− + H2O → SO42− + OH• + H+
On the basis of the previous analysis and discussion, this study proposes a corresponding E-SiC-ZnFeZIF activation mechanism, as shown in Figure 5. First, HSO5− ions present on the surface of E-SiC-ZnFeZIF can be coupled to Fe (II) species to produce SO4 free radicals (Equations (2) and (3)). SO4− free radicals are oxidized to OH• by water molecules. Moreover, the electrons transferred from HSO5− to Fe (III) ensure the production of SO5 through Equations (3) and (4). In addition, SO4− can also be produced by subsequent SO5− conversion (Equation (6)). Therefore, the charge balance of the entire system is maintained. The free radicals generated in the cycle can mineralize and degrade THC into small molecules, and even inorganic substances.
In order to compare the performance of different composites for the photodegradation of pollutants in detail, the advantages and disadvantages of E-SiCZnFeZIF, along with silicate composites and silica-based composites, are listed in Table S1. This shows that the E-SiCZnFeZIF-catalyzed activation of potassium persulfate for pollutant degradation has a broad range of applications, without the need for light and with a low catalyst dosage. In Table S2, we compare the performance of composite catalytically activated PMS systems in Fenton-like systems for the degradation of pollutants. It was found that relatively good degradation can be achieved with minor SiC input. The modified silicon carbide and ZnFeZIF have strong interactions, which can be inferred by comparing different catalyst degradation experiments, free radical trapping experiments, specific surface area analysis, and zeta potential analysis. The composites have the smallest specific surface area and the smallest pore volume. However, their catalytic degradation performance and photocatalytic reduction performance are the best. We propose a possible mechanism: the interaction of the silicon carbide and ZIF materials enhances the cycling of Fe2+ and Fe3+, enhancing the generation of free radicals (Figure 6). In contrast, silicon carbide nanoparticles, as an inert semiconductor material, are ideal as an additive phase and carrier. In combination with ZnFeZIF, the zeta potential values become larger and more stable in systems where methanol is used as a solvent compared to C-SiC. It can therefore be applied in aqueous environments with a high proportion of organic systems for the degradation of pollutants.

3.3. CO2 Reduction Performance

As demonstrated in Figure 7a,b, this experiment was carried out using the liquid-phase method, and the gas in the volumetric flask was collected for testing. In 0.5 h, the carbon dioxide reduction capacity of the E-SiC was stronger than that of the original sample. The yields of CH4 and CO were 1.69 and 1.3 times as much as before. Therefore, in this section, we discuss the selectivity of the reduction products. The selectivity of the etched silicon carbide for methane increased by 6% (to 76.0%) compared to C-SiC. Moreover, after 1 h, the selectivity to methane decreased to 67.3%, and the CH4 and CO yields of the E-SiC were 0.249 and 0.121 μ mmolg−1 h−1, respectively. However, after 1 h, the sample yields of CH4 and CO after etching were higher than that of the original sample. Figure 7c,d show that the CH4 and CO production of FeZIF doped with E-SiC was significantly higher than that of C-SiC within half an hour. After E-SiC was doped with FeZIF and FeZnZIF, the selectivity of the composite sample to CO improved. This shows that the sample had a higher selectivity for CO after being combined with E-SiC. Overall, the addition of Zn reduced the production of CH4 and CO over half an hour, as shown in Figure 7d.
When tested in the dark, no products were detected, which indicates that the CO2 reduction reaction was photoexcited (Figure S4). As Figure 8a,b show, after 1 h of xenon lamp irradiation, the CO and CH4 yields obtained for E-SiC-ZnFeZIF were 0.085 and 0.509 μmolg−1, respectively, which were higher than the production of the original C-SiC (CO: 0.084 μmolg−1, CH4: 0.209 μmolg−1). Interestingly, as Figure 8c,d show, the E-SiC-FeZIF (CO: 0.043 μmol g−1, CH4: 0.294 μmol g−1) also exhibited higher CO and CH4 yields than C-SiC under 1 h of xenon lamp irradiation, which indicates that Fe-doped SiC composites play a key role in promoting CO2 reduction. The highest CO2 reduction rate was obtained in the presence of E-SiC-ZnFeZIF, and the corresponding yields of CO and CH4 were 0.085μ mol g−1 and 0.509 μ mol g−1, respectively, for 1 h of irradiation. The CH4 yield was 2.43 times that of the original C-SiC. Compared with C-SiC, the selectivity of etched silicon carbide for CH4 increased by 15% (to 85.7%). The yield of carbon monoxide was 24.3%. As shown in Figure S11, the total yield of the composite is more than twice as high as that of C-SiC. The conversion to methane increased from 71.4% to 85.7%. The conversion to CO increased from 28.6% to 14.3%. This again demonstrates the strong synergy between SiC and ZnFeZIF. E-SiC-ZnFeZIF produces more reactive intermediates in the photocatalytic reduction of CO2 (such as monodentate, bidentate, and acetate follow-on reactive intermediates) than the single C-SiC. Finally, in Table S3, we list the performance of silicon carbide and its composites for the photocatalytic reduction of CO2 as reported in other research literature. It shows a twofold improvement in the CH4 performance of E-SiCZnFeZIF compared to 50 nm of C-SiC. Figure S6e shows the leaching concentration of Fe3+ ions in the carbon dioxide reduction experiment. The leaching concentrations were 3.022, 7.053, and 13.578 ppm at 0.5, 1, and 20 h, respectively. The increase in the leaching concentration of metal ions demonstrates the destruction of the metal–organic skeleton’s structure under the xenon lamp irradiation. Therefore, we should further reduce the leaching of Fe3+ ions by stabilizing the structure of the composite. The leaching of Fe3+ ions within 1 h is less. This may be able to be reduced by filtering the catalyst out of the solution after 1 h.

3.4. Optical Property and Energy Band Structures

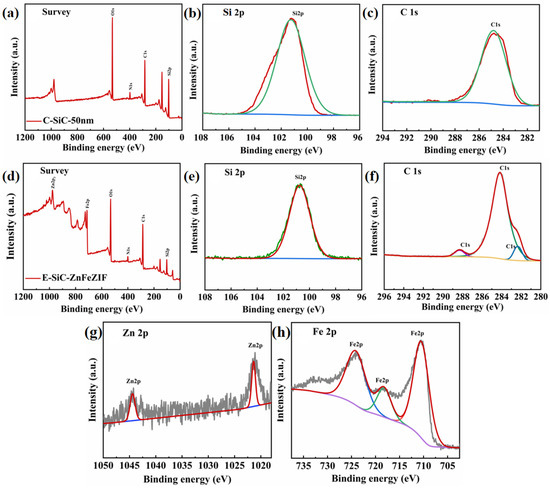

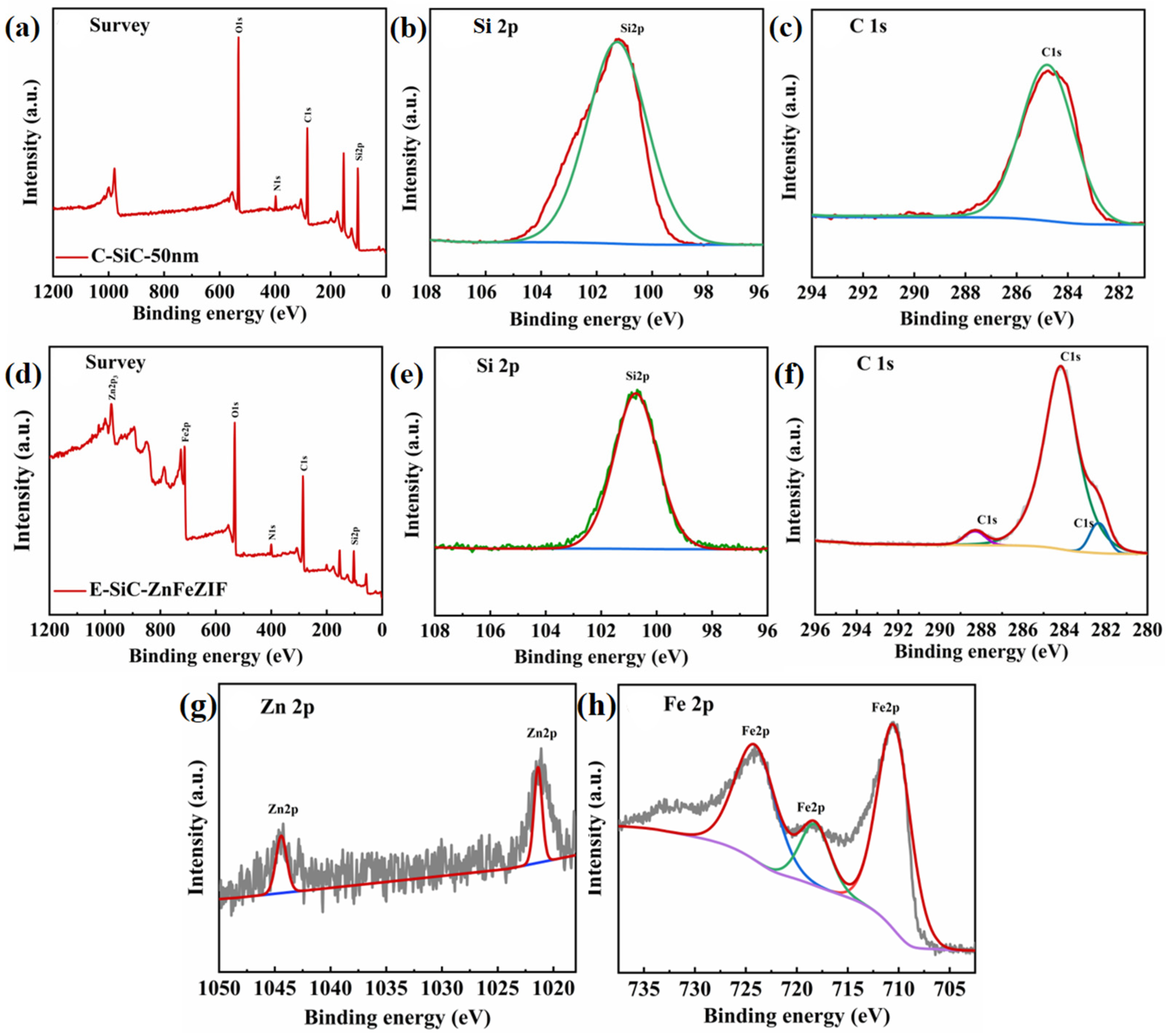

The XPS survey spectrum of Si2p and the C1s XPS exemplary spectrum of C-SiC and E-SiC-ZnFeZIF are shown in Figure 9a–h. From the whole XPS spectrum (Figure 9a–c), it is found that the main elements are C, Si, and O. The peak positions of Si2p and C1s are 101.23 and 284.85 ev, respectively [39]. Figure 9d–f show the XPS survey spectrum of E-SiC-ZnFeZIF and the XPS fine spectra of Si2p, C1s, Zn2p, and Fe2p. The peak positions of Si2p and C1s are 100.70 and 284.20 ev, respectively [40]. In addition, two new, relatively weak peaks appear in C1s, with binding energies of 288.35 and 282.35 ev [41]. In addition, BE decreases for these peaks by 0.53 and 0.65 ev, respectively. This blue shift shows that the relative interaction between Fe, Zn, and S and C was enhanced. The doping of Fe was successfully verified. In addition, two relatively new weak peaks appear in C1s, with binding energies of 288.35 and 282.35 ev. They represent a C=O bond and Si=C bond. In the Zn 2p core-level spectrum of E-SiC-ZnFeZIF (Figure 9g), two significant peaks at 1044.5 and 1021.9 eV are observed, corresponding to the binding energies of Zn 2p1/2 and Zn 2p3/2 derived from ZIF-8, respectively. The spectrum of Fe2p is broken down into three distinct peaks. Three major peaks are detected at 711.6 (Fe2+), 718.2 (Fe3+), and 723.3 eV (Fe3+), in agreement with previous reports [42]. This also indicates the successful preparation of the E-SiC-ZnFeZIF composite. The binding energy of the C1s of E-SiC-ZnFeZIF was transferred to a lower binding energy, which shows that the E-SiC was closely decorated on the surface of ZnFeZIF via a strong interaction [31,43]. On the basis of the above analysis, we can conclude that the E-SiC tightly covers the surface of FeZnZIF without changing the phase structure, which verifies the successful manufacturing of E-SiC-ZnFeZIF.

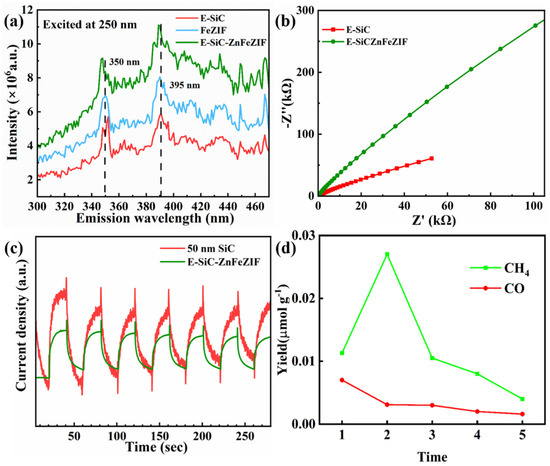

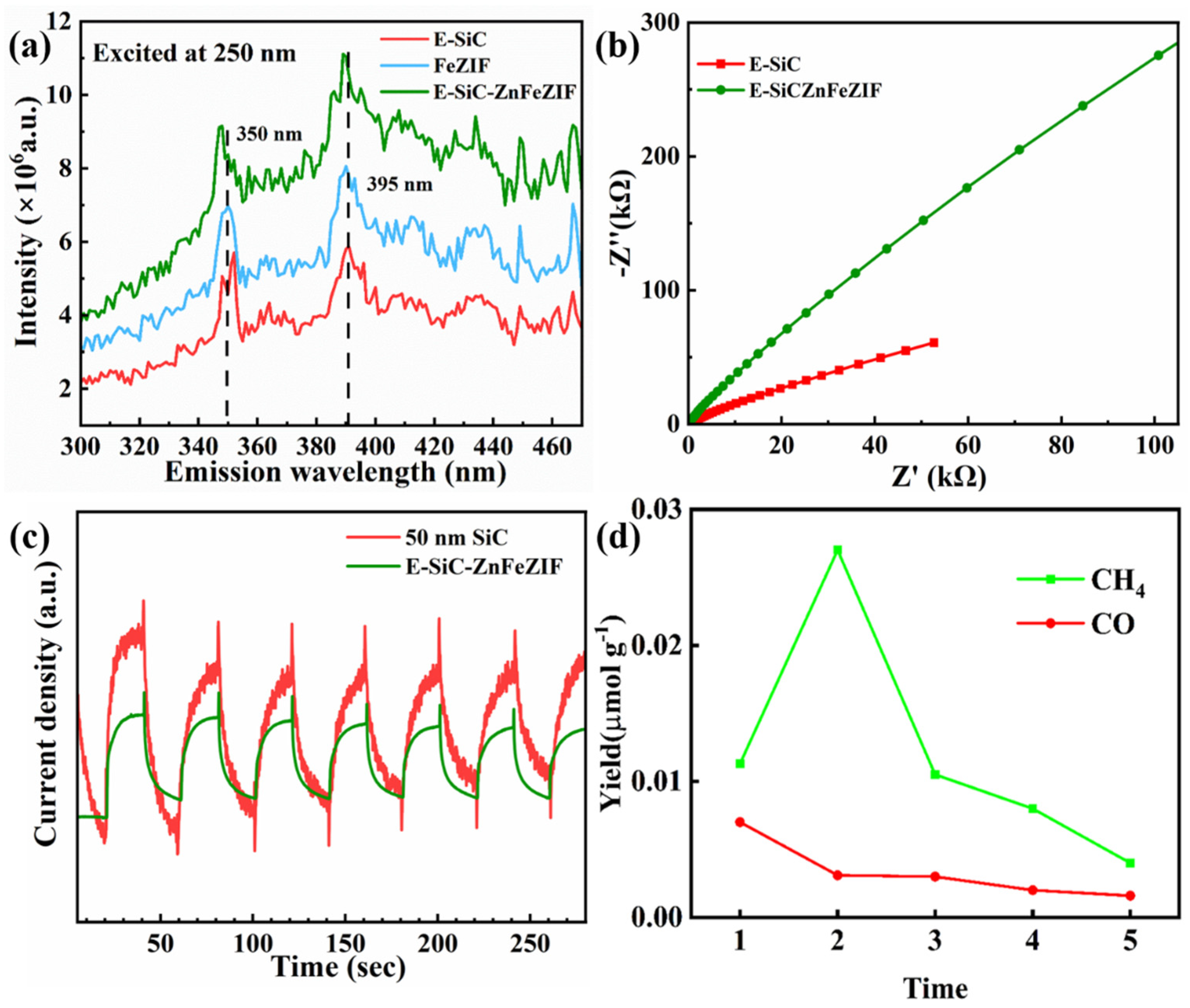

In PL testing, the excitation luminescence is 250 nm. There are two obvious emission peak positions at 350 and 395 nm in Figure 10a. The order of luminescence intensity of the samples is E-SiC-ZnFeZIF > FeZIF > E-SiC. The combination of photogenerated electrons and holes in E-SiC-ZnFeZIF generates the most photons, resulting in the strongest intensity of photoluminescence. As displayed in Figure 10b, E-SiC-ZnFeZIF has a higher charge transfer resistance at the interface with the electrolyte. Figure 10c shows that the relative photocurrent density of the SiC sample compounded with Zn and Fe is lower than the original sample. This may be because the outer layer of silicon carbide is wrapped with a thicker ZnFeZIF material [44]. The thicker organic skeleton shell will prevent the transfer of photogenerated electrons, thereby reducing its overall photocurrent response value [45]. Figure 10d shows the cycling yield for CH4 and CO production of E-SiC-ZnFeZIF. The CO2 reduction tests were repeated five times. After the second cycle, subsequent cycles have increasingly lower yields. In conjunction with the previous leaching experiments, we can infer that the cyclic stability of the composite is less. This is attributed to the destruction of the ZIF material by the aqueous system. Based on the reproducible conditions of the two experiments, previous literature research, and related leaching experiments, we know that ZIF materials are unstable in aqueous environments [46]. Some literature studies indicate that the stability of ZIF materials in water can be improved by compounding with Zn elements. Therefore, we have made E-SiC-ZnFeZIF in our experiments, and we hypothesize that by changing the ZnFe ratio, we can enhance the stability of the composite and reduce the leaching of Fe3+ ions [47]. The results show that ZIF-8 crystallites are not stable in water under ambient conditions [48]. The amount of ZIF-8 crystallites that are dissolved depends on the ZIF-8/water ratio and contact time. Solid samples collected by filtration may contain residual ZIF-8, which is responsible for the confusion in the literature about the water stability of ZIF-8 [49].

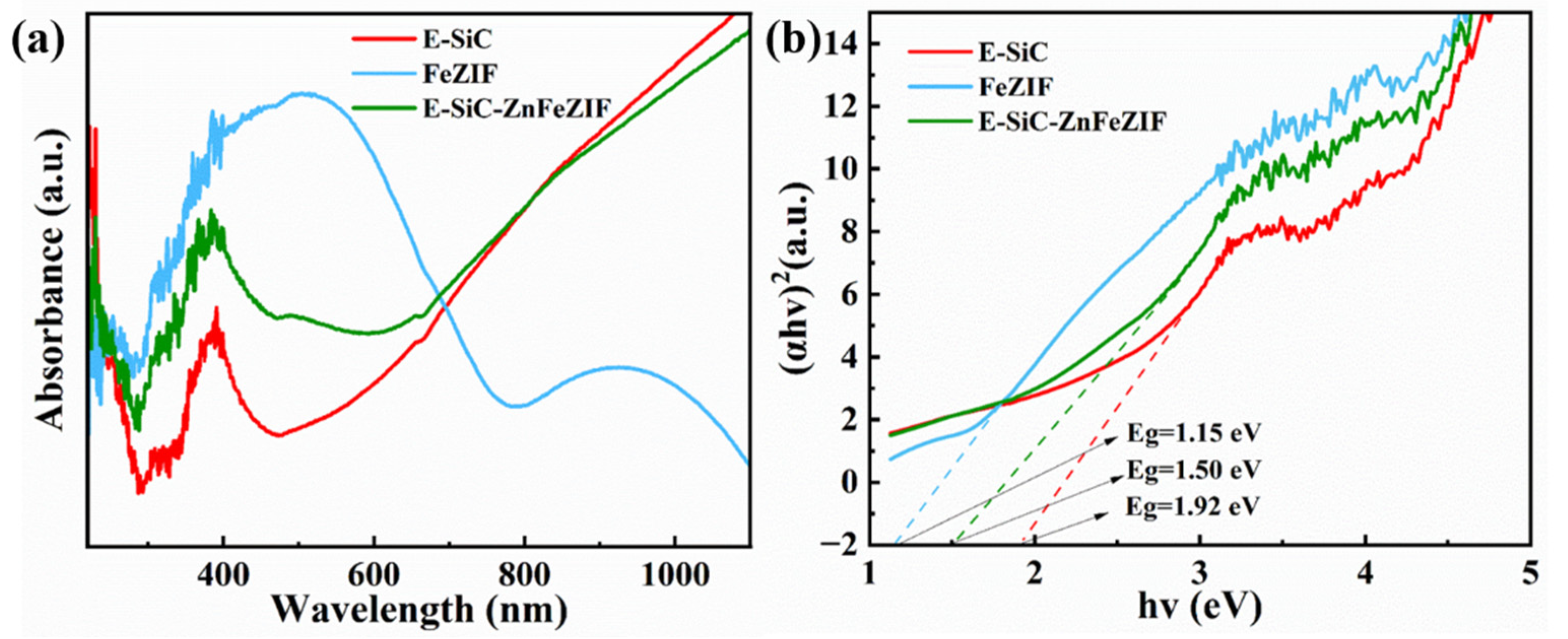

The light trapping ability of each material was investigated by UV–vis–NIR diffuse reflectance spectroscopy (Figure 11a). E-SiC nanoparticles and E-SiC-ZnFeZIF have similar absorption properties. The latter has a higher absorption peak at 400–600 nm, which further confirms the existence of FeZIF in the composite material. The main absorption edges of both materials are at 400 nm and the absorption region is 400–1100 nm. In particular, the absorption is strong in the near infrared region. This is due to the presence of abundant oxygen vacancies on the surface of both materials, which produce a metal-like LSPR effect [50]. FeZIF, on the other hand, absorbs more strongly in the 400–700 nm region. The absorption of FeZIF is weaker in the near infrared region. Figure 11b shows the band gaps for SiC, FeZIF, and E-SiC-ZnFeZIF at 1.92, 1.50, and 1.15 eV, respectively.

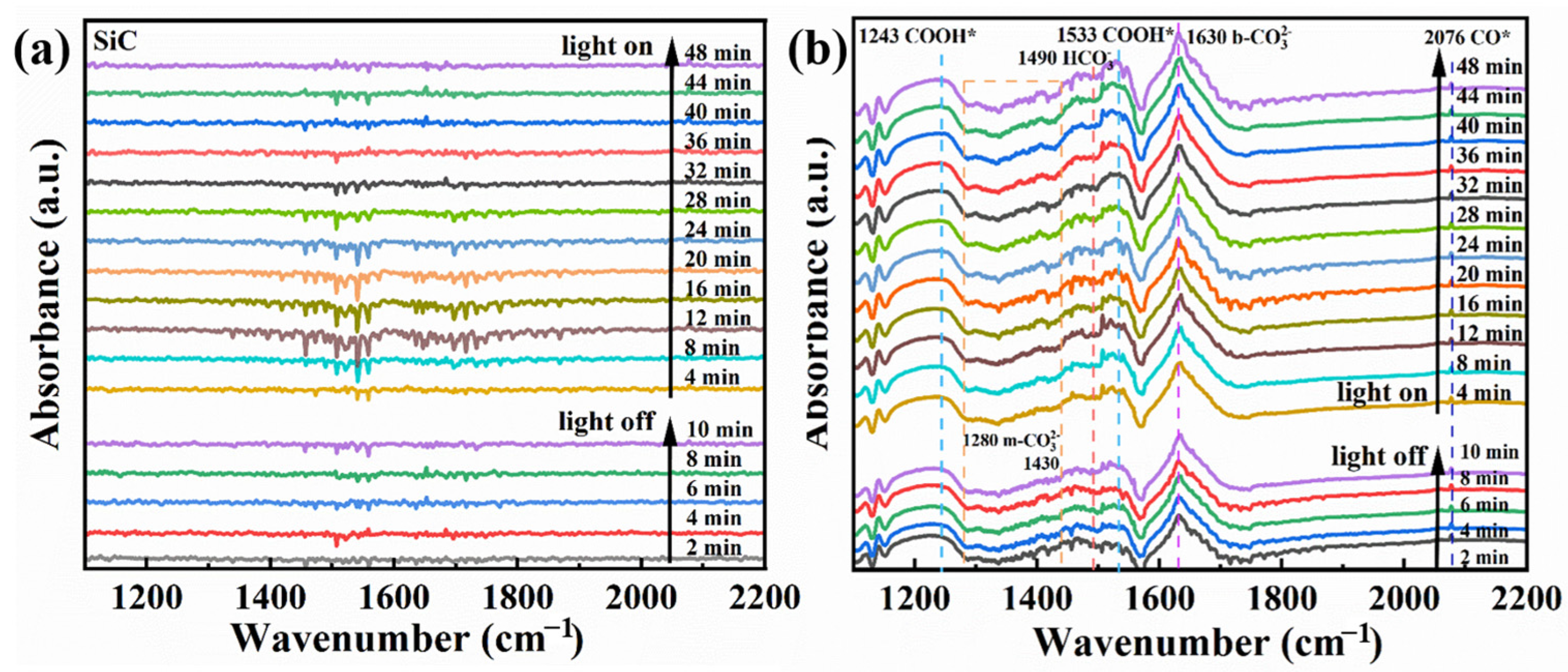

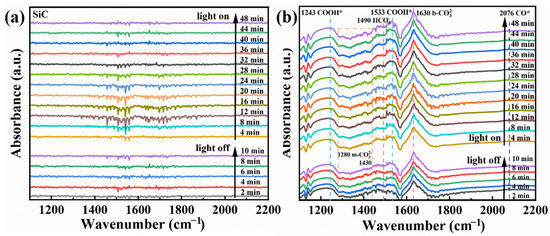

In situ FTIR was performed to study the groups formed on the surface of the E-SiC-ZnFeZIF. This was used to determine the intermediates formed in the CO2 reduction. As shown in Figure 12a,b, in the presence of CO2 and water there are no obvious peaks at 10 min with the light off and 50 min with the light on. This indicates that no obvious intermediates were formed. In the tests of E-SiC-ZnFeZIF, bicarbonate (HCO3*, 1490 cm−1) [51], a CO* active substance (2076 cm−1) [52], carboxylate (COOH*, 1243 and 1533 cm−1) [53], monodentate (m-CO3, 1280 cm−1 and 1430 cm−1) [54], and bidentate carbonate (b-CO3 1630 cm−1) [55] were identified. The peaks of the corresponding intermediates also appear without the xenon lamp on, indicating that E-SiC-ZnFeZIF is sensitive to infrared light sources and can absorb energy from near-infrared light sources, leading to the onset of the CO2 reduction process and the production of the corresponding intermediates.
In CO2 reduction, there are three main types of free radicals that play a role: the hydroxyl radical (•OH), superoxide radical (O2•−), and electrons (e−). •OH is one of the strongest oxidants and can be generated by the photolysis of water [56]. In the photocatalytic CO2 reduction process, •OH can react with CO2 to produce carbonyl compounds, formic acid, methanol, and other reduced products. O2−• usually works in coordination with •OH to exert synergistic oxidation effects. O2−• can be generated by the photolysis of oxygen and can cooperate with •OH to produce oxidized products such as hydrogen peroxide (H2O2) [57]. The electron (e−) is an intermediate in the reduction reaction. Electrons can be directly transferred to CO2 to produce reduced products such as formaldehyde and alcohols. In addition, electrons can also react with O2−• and •OH to eliminate these free radicals, preventing unnecessary oxidation reactions caused by them. This study provides a comprehensive understanding of the mechanisms involved in the photocatalytic CO2 reduction process and highlights the importance of free radicals in this reaction. The nano-polyaniline electrode in this solution shows low resistance and low charge transfer impedance (R-ct), which leads to a rather high reduction current density (−16.8 mA cm−2) and low overpotential (−0.44 V vs. Ag/AgCl) [58]. This solution is environment-friendly and mimics that in photosynthesis.
In the literature, the majority of related studies calculate the process of carbon dioxide intermediates in detail through a DFT simulation and in situ infrared spectroscopy. We based our approach on the research of Li et al. and Ramis et al. The reaction intermediates in the CO2 reduction process were detected by Fourier transform infrared spectroscopy (FTIR). Peaks at 1619 and 1620 cm−1 were detected, and these peak intensities gradually increased with the prolongation of the irradiation time. Both peaks belong to the COOH * group, which is usually considered a key intermediate in the process of CO2 reduction to CO or CH4. The proposed mechanism is based on the free radical capture experiments, and possible reaction paths are depicted in Figure 13a,b. This test was carried out with the Bruker A300 to capture the signal of hydroxyl radicals. There was no signal at 0 min and a strong hydroxyl peak signal appeared at 10 min (Figure 13a). This indicates that the radiation generated by an electron leaps to the surface under light, which leads to the production of hydroxyl radicals. Thus, it is involved in the process of carbon dioxide reduction. Detailed experimental parameters are given in Figure S8. The second mechanism denotes reducing the carbonate in further continuous steps to generate formaldehyde and possibly methanol. It has been proved that hydroxyl radicals, photogenerated holes, and superoxide radicals are the main reactive active substances. In Figure 10c, the first reaction is the photoreduction of molecular carbon dioxide to formic acid, which can be further reduced to formaldehyde and methanol in a strictly continuous path, or can be evolved into gaseous products through photoreforming, i.e., the accumulated organic molecules (HCOOH, HCHO, and CH3OH) are oxidized through photogenerated pores to generate H2 + CO/CO2. In Figure 14, we propose the mechanism of photocatalytic reduction of CO2 into CO and CH4 by the E-SiC-ZnFeZIF.
∗ + CO2 + e− + H+ → COOH∗
COOH∗ + e− + H+ → CO∗ + H2O
CO∗ + e− + H+ → CHO∗ or CO∗ → CO↑ + ∗
CHO∗ + e− + H+ → CH2O∗
CH2O∗ + e− + H+ → CH3O∗
CH3O∗ + e− + H+ → CH4↑ + O∗
O∗ + e− + H+ → OH∗
OH∗ + e− + H+ → H2O + ∗

4. Conclusions

In summary, the E-SiC-ZnFe material supported by ZIF was successfully prepared by doping with Fe, which was first well characterized. Paralleled with C-SiC and ZnZIF, the E-SiC-ZnFeZIF metal matrix composites showed excellent catalytic activity when activating PMS to degrade THC. The catalytic degradation capability of THC is obviously related to the dose of different species (E-SiC-ZnFeZIF, PMS, phosphate ion compound, bicarbonate ion compound, and chloride). SO4− free radicals obviously play a major role in attacking THC. In summary, this study provides a silicon carbide-doped metal matrix composite catalyst for degrading organic compounds in wastewater. In addition, under irradiation from a xenon lamp, the semiconductor photocatalysis material has the ability to reduce carbon dioxide and has a higher yield of methane and carbon monoxide. This material has great potential in addressing energy shortage problems and environmental pollution. Moreover, it sets a precedent for applying third-generation semiconductors (SiC) in advanced oxidation and carbon dioxide reduction.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/nano13101664/s1, Figure S1. EDS image and element mapping of E-SiC-ZnZIF; Figure S2. EDS image and element mapping of E-SiCZnZIF-400Ar; Figure S3. EDS image and element mapping of FeZnZIF; Figure S4. Photocatalytic CO2 reduction performance under different conditions; Figure S5. Photocatalytic CO2 reduction performance by solid-gas measurement; Figure S6. Light source devices and catalytic reactors; Figure. S7. The light absorption-wavelength diagram (a) and corresponding standard curve (b) of tetracycline hydrochloride at different concentrations. (c) shows the degradation of THC by various materials without agitation. (d) shows the degradation of THC by various materials under stirring at 400 rpm/min.(e) Leaching of Fe3+ ions in carbon dioxide reduction experiments; Figure S8. TEM image of ESiC-ZnZIF and corresponding enlarged view; Figure S9. Bruker A300; Figure S10. Tire ER 4103 DR double-cavi- resonator f left; Figure S11. Conversion rates and yields of CO and CH4 for 1 hour of material before and after compounding; Table S1. Comparison of the prepared material with other materials from the degradation literature; Table S2. Comparison of the prepared material with other materials from the degradation literature. (Containing PMS); Table S3. Comparison of the prepared materials with other materials in carbon dioxide reduction literature; Table S4. The particle size dimensions at zeta potential (pH = 7); Table S5. The zeta potential for each type of material (pH = 7); Table S6. The BET data for each type of material.

Author Contributions

Conceptualization, Z.Z. and D.L.; methodology, L.Y.; software, L.Y.; validation, L.Y., Z.X. and B.H.; formal analysis, Z.Z.; investigation, N.W.; resources, N.W.; data curation, Z.Z.; writing—original draft preparation, Z.Z.; writing—review and editing, Z.Z.; visualization, O.O.; supervision, Y.Z.; project administration, Y.Z.; funding acquisition, Y.Z. All authors have read and agreed to the published version of the manuscript.

Funding

National Natural Science Foundation (12205056). The APC was funded by Nannan Wang.

Data Availability Statement

Not applicable.

Acknowledgments

This work was supported by the National Natural Science Foundation (51972068), the Natural Science Foundation of Guangxi Province (2021GXNSFBA076003), Guangxi Key Laboratory of Manufacturing Systems and Advanced Manufacturing Technology (20-065-40S007), and the Interdisciplinary Scientific Research Foundation of Guangxi University (Grant No. 2022JCA002).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Otoni, C.G.; Azeredo, H.M.C.; Mattos, B.D.; Beaumont, M.; Correa, D.S.; Rojas, O.J. The Food-Materials Nexus: Next Generation Bioplastics and Advanced Materials from Agri-Food Residues. Adv. Mater. 2021, 33, 2102520. [Google Scholar] [CrossRef]
  2. van Marle, M.J.E.; van Wees, D.; Houghton, R.A.; Field, R.D.; Verbesselt, J.; van der Werf, G.R. New land-use-change emissions indicate a declining CO2 airborne fraction. Nature 2022, 603, 450–454. [Google Scholar] [CrossRef]
  3. Lau, W.W.Y.; Shiran, Y.; Bailey, R.M.; Cook, E.; Stuchtey, M.R.; Koskella, J.; Velis, C.A.; Godfrey, L.; Boucher, J.; Murphy, M.B.; et al. Evaluating scenarios toward zero plastic pollution. Science 2020, 369, 1455–1461. [Google Scholar] [CrossRef]
  4. Vermeulen, R.; Schymanski, E.L.; Barabasi, A.L.; Miller, G.W. The exposome and health: Where chemistry meets biology. Science 2020, 367, 392–396. [Google Scholar] [CrossRef]
  5. Valitalo, P.; Kruglova, A.; Mikola, A.; Vahala, R. Toxicological impacts of antibiotics on aquatic micro-organisms: A mini-review. Int. J. Hyg. Environ. Health 2017, 220, 558–569. [Google Scholar] [CrossRef]
  6. MacLeo, M.; Arp, H.P.H.; Tekman, M.B.; Jahnke, A. The global threat from plastic pollution. Science 2021, 373, 61–65. [Google Scholar] [CrossRef]
  7. Singh, G.; Lee, J.; Karakoti, A.; Bahadur, R.; Yi, J.B.; Zhao, D.Y.; AlBahily, K.; Vinu, A. Emerging trends in porous materials for CO2 capture and conversion. Chem. Soc. Rev. 2020, 49, 4360–4404. [Google Scholar] [CrossRef]
  8. Raven, M.R.; Keil, R.G.; Webb, S.M. Microbial sulfate reduction and organic sulfur formation in sinking marine particles. Science 2021, 371, 178–181. [Google Scholar] [CrossRef]
  9. Bedoya-Pinto, A.; Ji, J.R.; Pandeya, A.K.; Gargiani, P.; Valvidares, M.; Sessi, P.; Taylor, J.M.; Radu, F.; Chang, K.; Parkin, S.S.P. Intrinsic 2D-XY ferromagnetism in a van der Waals monolayer. Science 2021, 374, 616–620. [Google Scholar] [CrossRef]
  10. Yan, X.X.; Liu, C.Y.; Gadre, C.A.; Gu, L.; Aoki, T.; Lovejoy, T.C.; Dellby, N.; Krivanek, O.L.; Schlom, D.G.; Wu, R.Q.; et al. Single-defect phonons imaged by electron microscopy. Nature 2021, 589, 65–69. [Google Scholar] [CrossRef]
  11. Wang, Y.Y.; Dong, S.; Li, X.T.; Hong, C.Q.; Zhang, X.H. Synthesis, properties, and multifarious applications of SiC nanoparticles: A review. Ceram. Int. 2022, 48, 8882–8913. [Google Scholar] [CrossRef]
  12. Qian, Y.T.; Zhang, F.F.; Pang, H. A Review of MOFs and Their Composites-Based Photocatalysts: Synthesis and Applications. Adv. Funct. Mater. 2021, 31, 2104231. [Google Scholar] [CrossRef]
  13. Hanikel, N.; Pei, X.K.; Chheda, S.; Lyu, H.; Jeong, W.; Sauer, J.; Gagliardi, L.; Yaghi, O.M. Evolution of water structures in metal-organic frameworks for improved atmospheric water harvesting. Science 2021, 374, 454–459. [Google Scholar] [CrossRef]
  14. He, Y.H.; Shi, Q.R.; Shan, W.T.; Li, X.; Kropf, A.J.; Wegener, E.C.; Wright, J.; Karakalos, S.; Su, D.; Cullen, D.A.; et al. Dynamically Unveiling Metal-Nitrogen Coordination during Thermal Activation to Design High-Efficient Atomically Dispersed CoN4 Active Sites. Angew. Chem. Int. Ed. 2021, 60, 9516–9526. [Google Scholar] [CrossRef]
  15. Wang, Y.H.; Fin, H.; Ma, Q.; Mo, K.; Mao, H.Z.; Feldhoff, A.; Cao, X.Z.; Li, Y.S.; Pan, F.S.; Jiang, Z.Y. A MOF Glass Membrane for Gas Separation. Angew. Chem. Int. Ed. 2020, 59, 4365–4369. [Google Scholar] [CrossRef]
  16. Madsen, R.S.K.; Qiao, A.; Sen, J.N.; Hung, I.; Chen, K.Z.; Gan, Z.H.; Sen, S.; Yue, Y.Z. Ultrahigh-field Zn-67 NMR reveals short-range disorder in zeolitic imidazolate framework glasses. Science 2020, 367, 1473–1476. [Google Scholar] [CrossRef]
  17. Liang, W.B.; Wied, P.; Carraro, F.; Sumby, C.J.; Nidetzky, B.; Tsung, C.K.; Falcaro, P.; Doonan, C.J. Metal-Organic Framework-Based Enzyme Biocomposites. Chem. Rev. 2021, 121, 1077–1129. [Google Scholar] [CrossRef]
  18. Zhang, B.; Zheng, Y.J.; Ma, T.; Yang, C.D.; Peng, Y.F.; Zhou, Z.H.; Zhou, M.; Li, S.; Wang, Y.H.; Cheng, C. Designing MOF Nanoarchitectures for Electrochemical Water Splitting. Adv. Mater. 2021, 33, 2006042. [Google Scholar] [CrossRef]
  19. Lin, J.B.; Nguyen, T.T.T.; Vaidhyanathan, R.; Burner, J.; Taylor, J.M.; Durekova, H.; Akhtar, F.; Mah, R.K.; Ghaffari-Nik, O.; Marx, S.; et al. A scalable metal-organic framework as a durable physisorbent for carbon dioxide capture. Science 2021, 374, 1464–1469. [Google Scholar] [CrossRef]
  20. Chen, Z.J.; Li, P.H.; Anderson, R.; Wang, X.J.; Zhang, X.; Robison, L.; Redfern, L.R.; Moribe, S.; Islamoglu, T.; Gomez-Gualdron, D.A.; et al. Balancing volumetric and gravimetric uptake in highly porous materials for clean energy. Science 2020, 368, 297–303. [Google Scholar] [CrossRef]
  21. Ma, X.L.; Kumar, P.; Mittal, N.; Khlyustova, A.; Daoutidis, P.; Mkhoyan, K.A.; Tsapatsis, M. Zeolitic imidazolate framework membranes made by ligand-induced permselectivation. Science 2018, 361, 1008–1011. [Google Scholar] [CrossRef]
  22. Li, Y.; Adli, N.M.; Shan, W.T.; Wang, M.Y.; Zachman, M.J.; Hwang, S.; Tabassum, H.; Karakalos, S.; Feng, Z.X.; Wang, G.F.; et al. Atomically dispersed single Ni site catalysts for high-efficiency CO2 electroreduction at industrial-level current densities. Energy Environ. Sci. 2022, 15, 2108–2119. [Google Scholar] [CrossRef]
  23. Erdosy, D.P.; Wenny, M.B.; Cho, J.; DelRe, C.; Walter, M.V.; Jimenez-Angeles, F.; Qiao, B.F.; Sanchez, R.; Peng, Y.F.; Polizzotti, B.D.; et al. Microporous water with high gas solubilities. Nature 2022, 608, 712–718. [Google Scholar] [CrossRef]
  24. Pokhrel, J.; Bhoria, N.; Anastasiou, S.; Tsoufis, T.; Gournis, D.; Romanos, G.; Karanikolos, G.N. CO2 adsorption behavior of amine-functionalized ZIF-8, graphene oxide, and ZIF-8/graphene oxide composites under dry and wet conditions. Microporous Mesoporous Mater. 2018, 267, 53–67. [Google Scholar] [CrossRef]
  25. Song, N.; Liu, H.; Yuan, Y.T.; Li, X.; Fang, J.Z. Fabrication and Corrosion Resistance of SiC-coated Multi-walled Carbon Nanotubes. J. Mater. Sci. Technol. 2013, 29, 1146–1150. [Google Scholar] [CrossRef]
  26. Liu, X.; Zhang, J.; Dong, Y.M.; Li, H.X.; Xia, Y.M.; Wang, H.J. A facile approach for the synthesis of Z-scheme photocatalyst ZIF-8/g-C3N4 with highly enhanced photocatalytic activity under simulated sunlight. New J. Chem. 2018, 42, 12180–12187. [Google Scholar] [CrossRef]
  27. Wang, W.; Jin, Z.; Xue, T.; Yang, G.; Qiao, G. Preparation and characterization of SiC nanowires and nanoparticles from filter paper by sol-gel and carbothermal reduction processing. J. Mater. Sci. 2007, 42, 6439–6445. [Google Scholar] [CrossRef]
  28. Rufangura, P.; Khodasevych, I.; Agrawal, A.; Bosi, M.; Folland, T.G.; Caldwell, J.D.; Iacopi, F. Enhanced Absorption with Graphene-Coated Silicon Carbide Nanowires for Mid-Infrared Nanophotonics. Nanomaterials 2021, 11, 2339. [Google Scholar] [CrossRef]
  29. Zhang, Y.Q.; Sun, Y.M.; Man, Y.; Yuan, H.; Zhao, R.Y.; Xiang, G.Q.; Jiang, X.M.; He, L.J.; Zhang, S.S. Highly efficient adsorption and catalytic degradation of aflatoxin B-1 by a novel porous carbon material derived from Fe-doped ZIF-8. Chem. Eng. J. 2022, 440, 135723. [Google Scholar] [CrossRef]
  30. Li, G.N.; Zheng, K.T.; Xu, C.J. An ingenious approach for ZIFs derived N-doped hierarchical porous carbon hybrids with FeCo alloy nanoparticles as efficient bifunctional oxygen electrocatalysts. Appl. Surf. Sci. 2019, 487, 496–502. [Google Scholar] [CrossRef]
  31. Yang, H.; Hu, S.; Zhao, H.; Luo, X.F.; Liu, Y.; Deng, C.F.; Yu, Y.L.; Hu, T.D.; Shan, S.Y.; Zhi, Y.F.; et al. High-performance Fe-doped ZIF-8 adsorbent for capturing tetracycline from aqueous solution. J. Hazard. Mater. 2021, 416, 126046. [Google Scholar] [CrossRef]
  32. Wang, Y.; Liu, C.; Zhang, Y.; Meng, W.; Yu, B.; Pu, S.; Yuan, D.; Qi, F.; Xu, B.; Chu, W. Sulfate radical-based photo-Fenton reaction derived by CuBi2O4 and its composites with α-Bi2O3 under visible light irradiation: Catalyst fabrication, performance and reaction mechanism. Appl. Catal. B Environ. 2018, 235, 264–273. [Google Scholar] [CrossRef]
  33. El Asmar, R.; Baalbaki, A.; Abou Khalil, Z.; Naim, S.; Bejjani, A.; Ghauch, A. Iron-based metal organic framework MIL-88-A for the degradation of naproxen in water through persulfate activation. Chem. Eng. J. 2021, 405, 126701. [Google Scholar] [CrossRef]
  34. Lin, K.Y.A.; Chen, B.J. Magnetic carbon-supported cobalt derived from a Prussian blue analogue as a heterogeneous catalyst to activate peroxymonosulfate for efficient degradation of caffeine in water. J. Colloid Interface Sci. 2017, 486, 255–264. [Google Scholar] [CrossRef]
  35. Yi, X.H.; Ji, H.D.; Wang, C.C.; Li, Y.; Li, Y.H.; Zhao, C.; Wang, A.O.; Fu, H.F.; Wang, P.; Zhao, X.; et al. Photocatalysis-activated SR-AOP over PDINH/MIL-88A(Fe) composites for boosted chloroquine phosphate degradation: Performance, mechanism, pathway and DFT calculations. Appl. Catal. B Environ. 2021, 293, 120229. [Google Scholar] [CrossRef]
  36. Ma, Y.Y.; Xiong, D.B.; Lv, X.F.; Zhao, X.S.; Meng, C.C.; Xie, H.J.; Zhang, Z.H. Rapid and long-lasting acceleration of zero-valent iron nanoparticles@Ti3C2-based MXene/peroxymonosulfate oxidation with bi-active centers toward ranitidine removal. J. Mater. Chem. A 2021, 9, 19817–19833. [Google Scholar] [CrossRef]
  37. Sun, D.P.; Li, C.; Lu, S.S.; Yang, Q.F.; He, C.Q. Magnetic Fe3O4@CoFe-LDH nanocomposite heterogeneously activated peroxymonosulfate for degradation of azo-dye AO7. RSC Adv. 2021, 11, 20258–20267. [Google Scholar] [CrossRef]
  38. Hou, L.W.; Zhang, H.; Xue, X.F. Ultrasound enhanced heterogeneous activation of peroxydisulfate by magnetite catalyst for the degradation of tetracycline in water. Sep. Purif. Technol. 2012, 84, 147–152. [Google Scholar] [CrossRef]
  39. Maruyama, T.; Bang, H.; Fujita, N.; Kawamura, Y.; Naritsuka, S.; Kusunoki, M. STM and XPS studies of early stages of carbon nanotube growth by surface decomposition of 6H-SiC(000-1) under various oxygen pressures. Diam. Relat. Mater. 2007, 16, 1078–1081. [Google Scholar] [CrossRef]
  40. Yagyu, K.; Takahashi, K.; Tochihara, H.; Tomokage, H.; Suzuki, T. Neutralization of an epitaxial graphene grown on a SiC(0001) by means of palladium intercalation. Appl. Phys. Lett. 2017, 110, 131602. [Google Scholar] [CrossRef]
  41. Liu, X.C.; Cheng, L.F.; Zhang, L.T.; Yin, X.W.; Dong, N.; Zhao, D.L.; Hong, Z.L.; Li, Z.H. Erosion Behavior of C/SiC Composites in Atomic Oxygen. Int. J. Appl. Ceram. Technol. 2013, 10, 168–174. [Google Scholar] [CrossRef]
  42. Pi, Y.Q.; Ma, L.H.; Zhao, P.; Cao, Y.D.; Gao, H.Q.; Wang, C.F.; Li, Q.L.; Dong, S.Y.; Sun, J.H. Facile green synthetic graphene-based Co-Fe Prussian blue analogues as an activator of peroxymonosulfate for the degradation of levofloxacin hydrochloride. J. Colloid Interface Sci. 2018, 526, 18–27. [Google Scholar] [CrossRef]
  43. Zeng, H.X.; Deng, L.; Shi, Z.; Luo, J.M.; Crittenden, J. Heterogeneous degradation of carbamazepine by Prussian blue analogues in the interlayers of layered double hydroxides: Performance, mechanism and toxicity evaluation. J. Mater. Chem. A 2019, 7, 342–352. [Google Scholar] [CrossRef]
  44. Li, D.K.; Guo, Z.G. Metal-organic framework superhydrophobic coating on Kevlar fabric with efficient drag reduction and wear resistance. Appl. Surf. Sci. 2018, 443, 548–557. [Google Scholar] [CrossRef]
  45. Wang, N.; Cheng, G.; Guo, L.P.; Tan, B.E.; Jin, S.B. Hollow Covalent Triazine Frameworks with Variable Shell Thickness and Morphology. Adv. Funct. Mater. 2019, 29, 1904781. [Google Scholar] [CrossRef]
  46. Zeng, Z.X.S.; Ge, C.H.; Braun, K.; Eberle, M.; Wang, Y.F.; Zheng, B.Y.; Zhu, C.G.; Sun, X.X.; Huang, L.Y.; Luo, Z.Y.; et al. Manipulating Picosecond Photoresponse in van der Waals Heterostructure Photodetectors. Adv. Funct. Mater. 2022, 32, 2200973. [Google Scholar] [CrossRef]
  47. Zhang, H.F.; James, J.; Zhao, M.; Yao, Y.; Zhang, Y.S.; Zhang, B.Q.; Lin, Y.S. Improving hydrostability of ZIF-8 membranes via surface ligand exchange. J. Membr. Sci. 2017, 532, 1–8. [Google Scholar] [CrossRef]
  48. Taheri, M.; Enge, T.G.; Tsuzuki, T. Water stability of cobalt doped ZIF-8: A quantitative study using optical analyses. Mater. Today Chem. 2020, 16, 100231. [Google Scholar] [CrossRef]
  49. Zhang, H.F.; Liu, D.F.; Yao, Y.; Zhang, B.Q.; Lin, Y.S. Stability of ZIF-8 membranes and crystalline powders in water at room temperature. J. Membr. Sci. 2015, 485, 103–111. [Google Scholar] [CrossRef]
  50. Zhang, H.F.; Zhao, M.; Lin, Y.S. Stability of ZIF-8 in water under ambient conditions. Microporous Mesoporous Mater. 2019, 279, 201–210. [Google Scholar] [CrossRef]
  51. Peng, J.J.; Shen, J.; Yu, X.H.; Tang, H.; Zulfiqar; Liu, Q.Q. Construction of LSPR-enhanced 0D/2D CdS/MoO3-x S-scheme heterojunctions for visible-light-driven photocatalytic H2 evolution. Chin. J. Catal. 2021, 42, 87–96. [Google Scholar] [CrossRef]
  52. Wang, Y.H.; Kattel, S.; Gao, W.G.; Li, K.Z.; Liu, P.; Chen, J.G.G.; Wang, H. Exploring the ternary interactions in Cu-ZnO-ZrO2 catalysts for efficient CO2 hydrogenation to methanol. Nat. Commun. 2019, 10, 1166. [Google Scholar] [CrossRef]
  53. Zu, X.L.; Zhao, Y.; Li, X.D.; Chen, R.H.; Shao, W.W.; Wang, Z.Q.; Hu, J.; Zhu, J.F.; Pan, Y.; Sun, Y.F.; et al. Ultrastable and Efficient Visible-light-driven CO2 Reduction Triggered by Regenerative Oxygen-Vacancies in Bi2O2CO3 Nanosheets. Angew. Chem. Int. Ed. 2021, 60, 13840–13846. [Google Scholar] [CrossRef]
  54. Kou, M.P.; Liu, W.; Wang, Y.Y.; Huang, J.D.; Chen, Y.L.; Zhou, Y.; Chen, Y.; Ma, M.Z.; Lei, K.; Xie, H.Q.; et al. Photocatalytic CO2 conversion over single-atom MoN2 sites of covalent organic framework. Appl. Catal. B Environ. 2021, 291, 120146. [Google Scholar] [CrossRef]
  55. He, Y.Q.; Rao, H.; Song, K.P.; Li, J.X.; Yu, Y.; Lou, Y.; Li, C.G.; Han, Y.; Shi, Z.; Feng, S.H. 3D Hierarchical ZnIn2S4 Nanosheets with Rich Zn Vacancies Boosting Photocatalytic CO2 Reduction. Adv. Funct. Mater. 2019, 29, 1905153. [Google Scholar] [CrossRef]
  56. Wei, J.W.; Zhang, S.M.; Sun, J.L.; Liang, T.; Li, Z.J.; Li, Z.H.; Yi, X.L.; Xiong, R.T.; Deng, J.Y.; Yu, Z.B.; et al. Z-scheme CoAl-layered double hydroxide/indium vanadate heterojunction for enhanced and highly selective photocatalytic reduction of carbon dioxide to carbon monoxide. J. Colloid Interface Sci. 2023, 629, 92–102. [Google Scholar] [CrossRef]
  57. Selli, E.; Chiarello, G.L.; Quartarone, E.; Mustarelli, P.; Rossetti, I.; Forni, L. A photocatalytic water splitting device for separate hydrogen and oxygen evolution. Chem. Commun. 2007, 47, 5022–5024. [Google Scholar] [CrossRef]
  58. Compagnoni, M.; Lasso, F.J.; Di Michele, A.; Rossetti, I. Flame-pyrolysis-prepared catalysts for the steam reforming of ethanol. Catal. Sci. Technol. 2016, 6, 6247–6256. [Google Scholar] [CrossRef]
Nanomaterials 13 01664 g001 550
Figure 1. SEM images of (a,b) the commercial SiC (C-SiC), (c,d) the etched SiC (E-SiC), (e,f) the ZnZIF, and (g,h) the ZnFeZIF.
Figure 1. SEM images of (a,b) the commercial SiC (C-SiC), (c,d) the etched SiC (E-SiC), (e,f) the ZnZIF, and (g,h) the ZnFeZIF.
Nanomaterials 13 01664 g001
Nanomaterials 13 01664 g002a 550Nanomaterials 13 01664 g002b 550

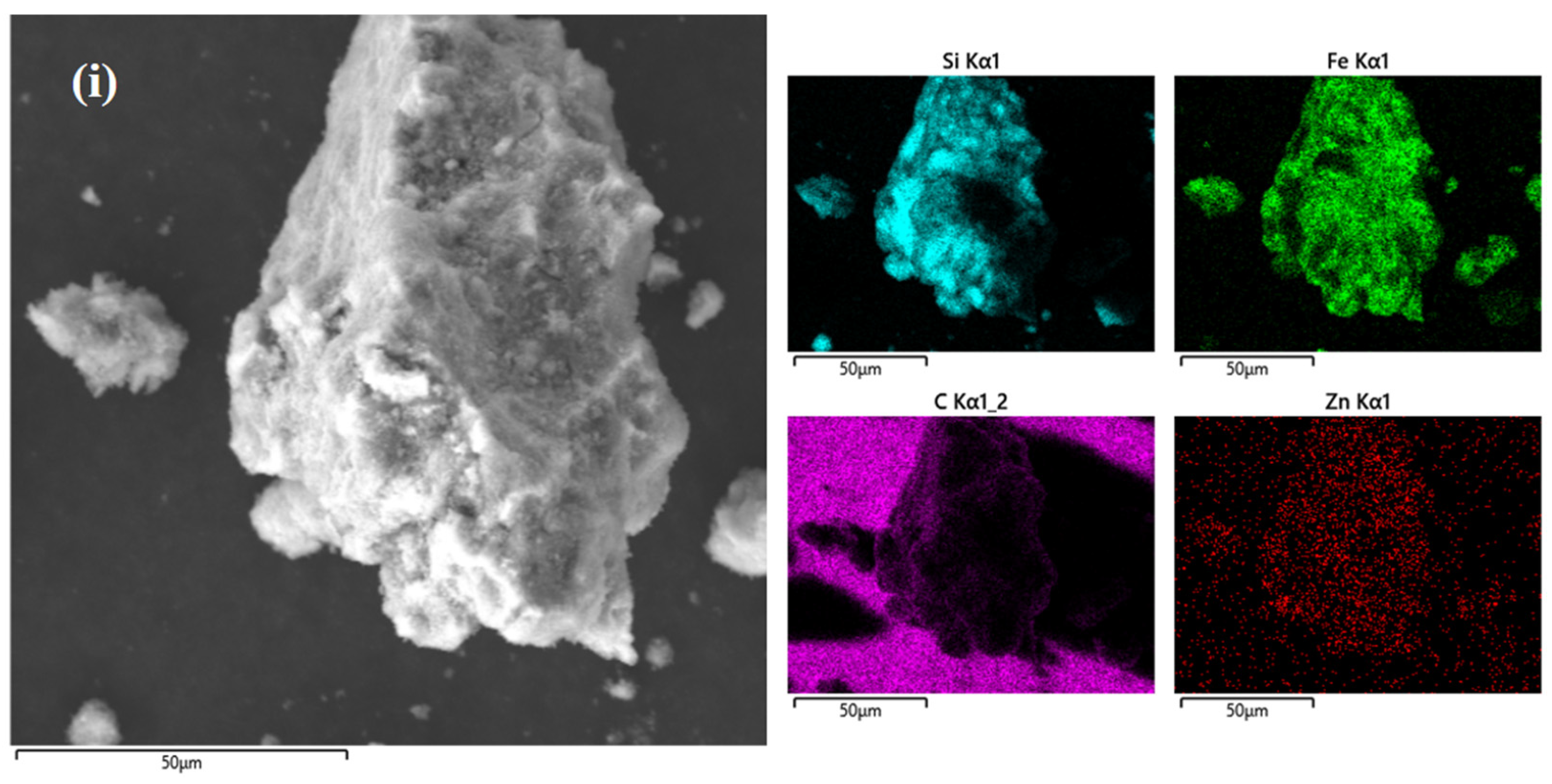

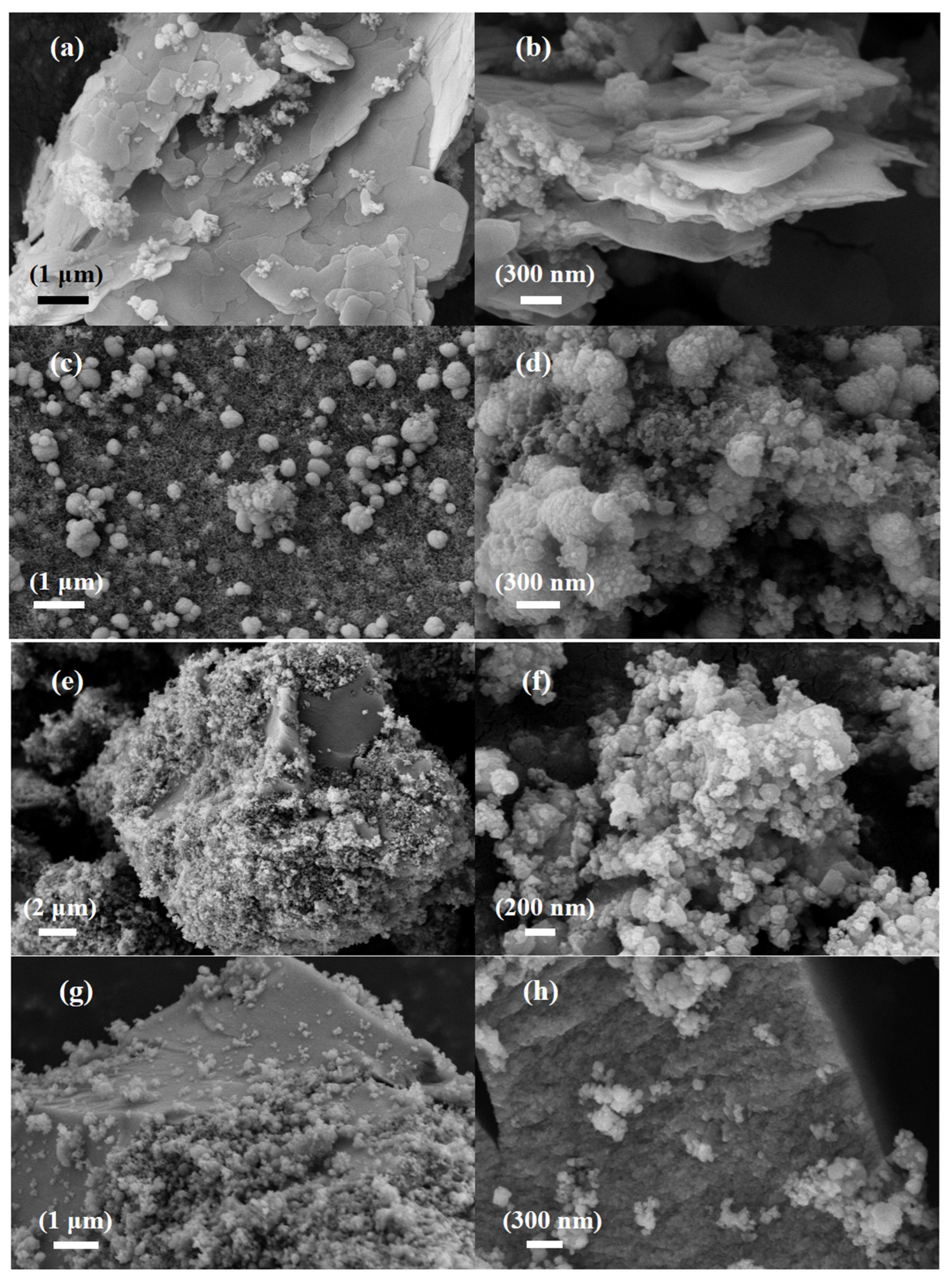

Figure 2. SEM images of (a,b) the E-SiC-ZnZIF, (c,d) the SiC-ZnZIF400Ar, (e,f) the E-SiC-FeZIF, and (g,h) the E-SiC-ZnFeZIF. (i) EDS image and element mapping of E-SiC-ZnFeZIF.
Figure 2. SEM images of (a,b) the E-SiC-ZnZIF, (c,d) the SiC-ZnZIF400Ar, (e,f) the E-SiC-FeZIF, and (g,h) the E-SiC-ZnFeZIF. (i) EDS image and element mapping of E-SiC-ZnFeZIF.
Nanomaterials 13 01664 g002aNanomaterials 13 01664 g002b
Nanomaterials 13 01664 g003 550

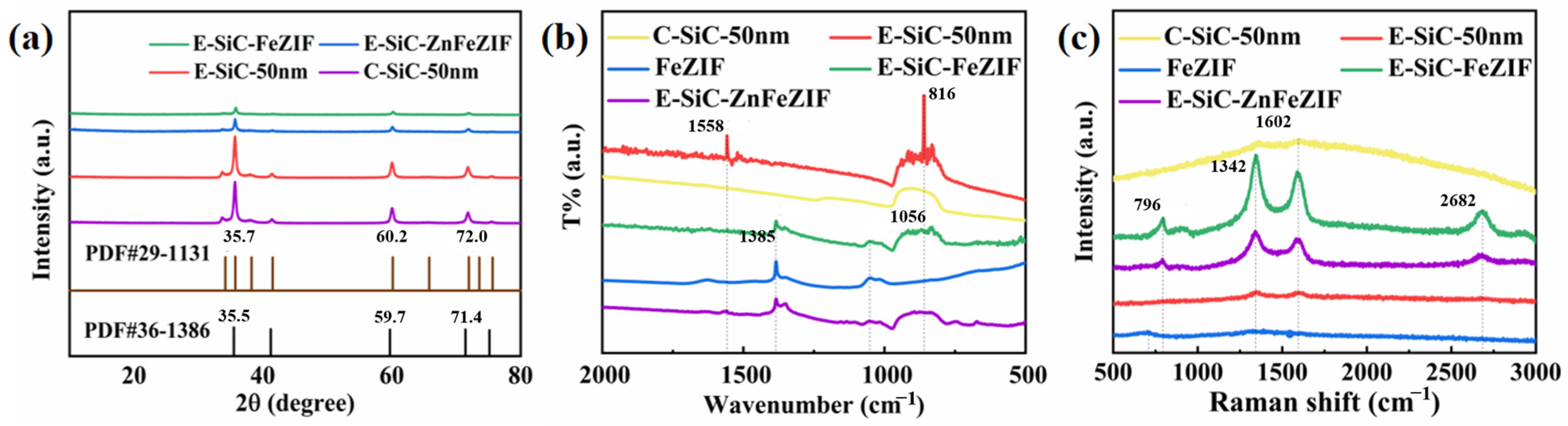

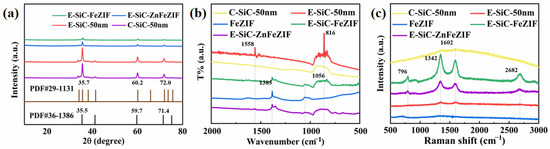

Figure 3. (a) XRD, (b) FTIR, and (c) Raman patterns of the obtained samples, including C-SiC, E-SiC, E-SiC-FeZIF, and E-SiC-ZnFeZIF.
Figure 3. (a) XRD, (b) FTIR, and (c) Raman patterns of the obtained samples, including C-SiC, E-SiC, E-SiC-FeZIF, and E-SiC-ZnFeZIF.
Nanomaterials 13 01664 g003
Nanomaterials 13 01664 g004a 550Nanomaterials 13 01664 g004b 550

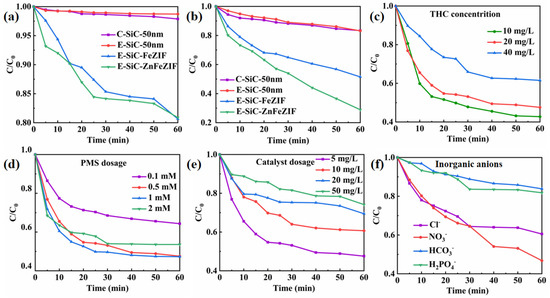

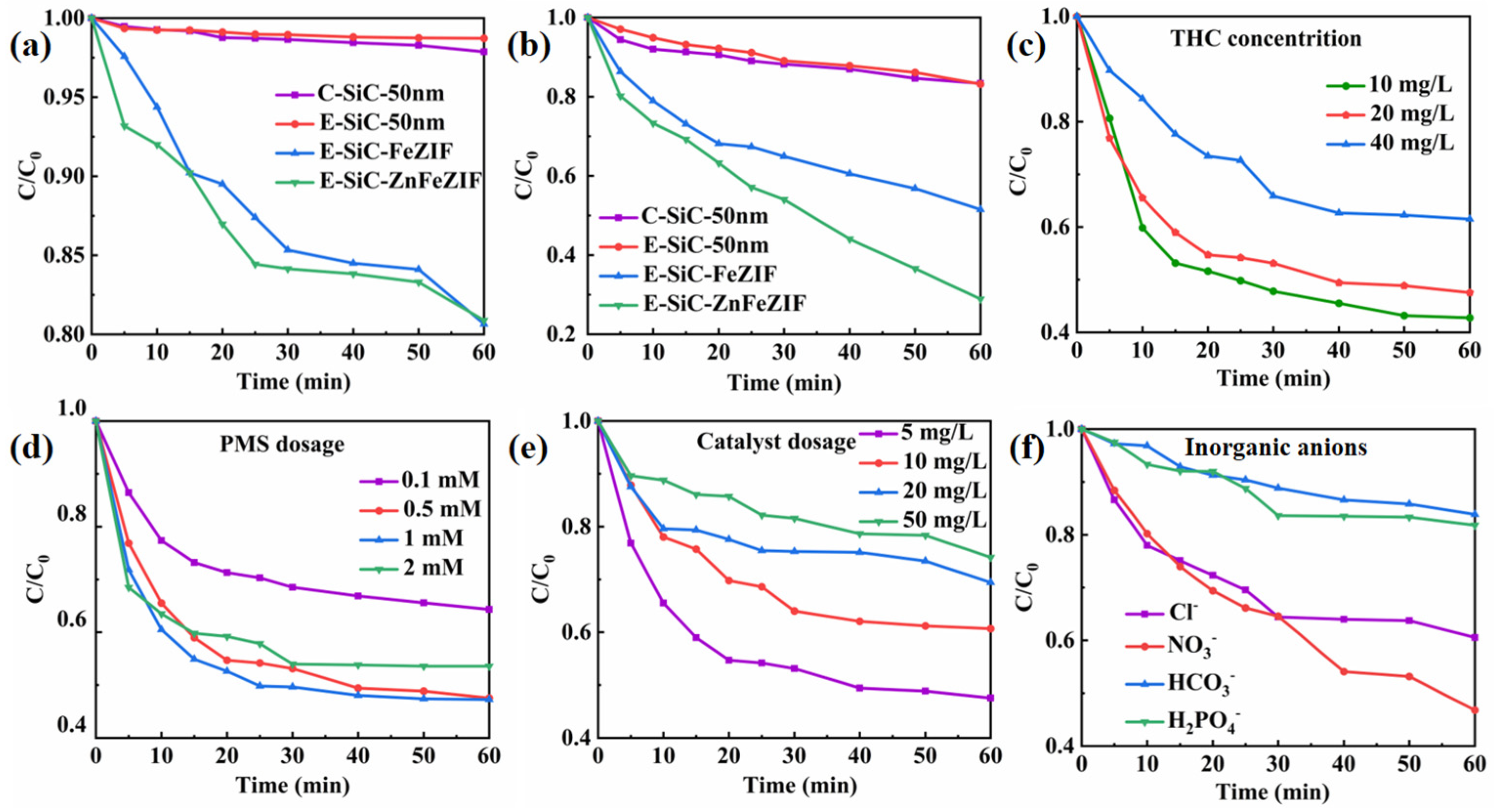

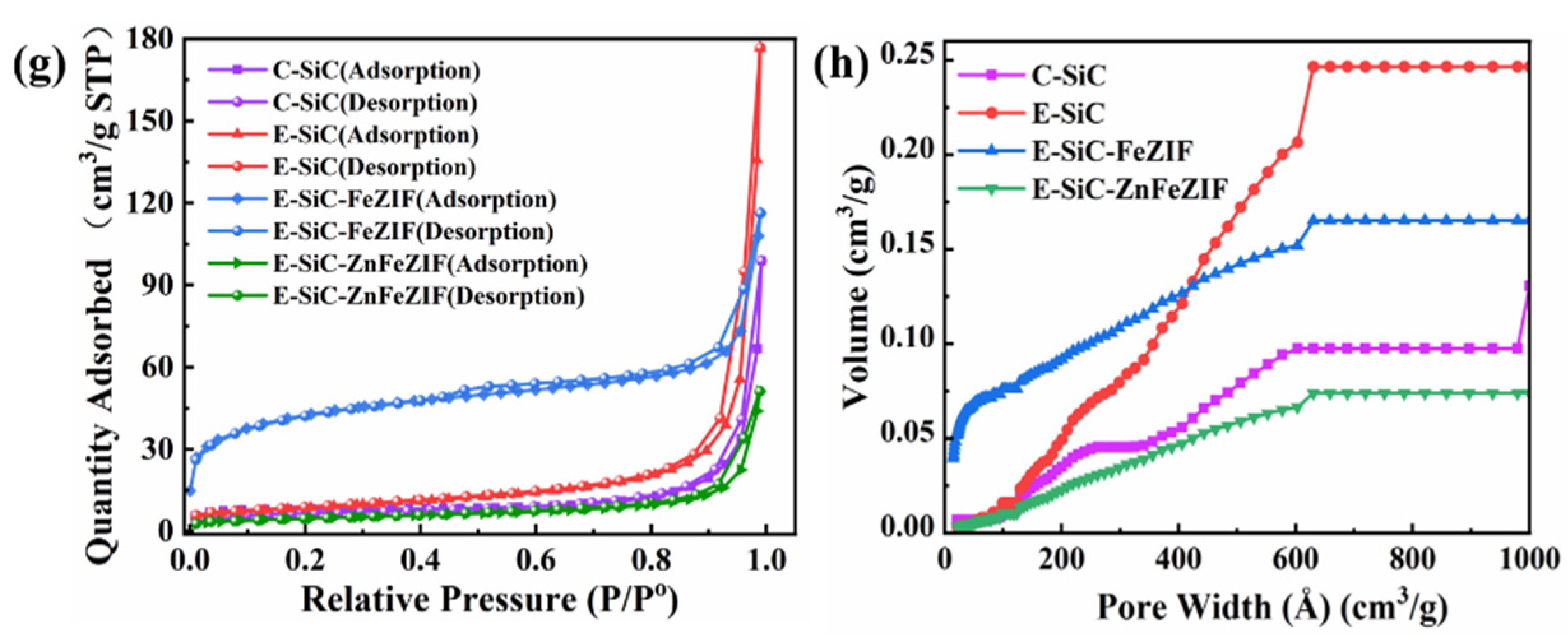

Figure 4. (a,b) Show the degradation performance of C-SiC, E-SiC, E-SiC-FeZIF, and E-SiC-ZnFeZIF for CBZ and THC in the PMS system. The effect of various conditions on the THC removal rate: (c) initial concentration of THC; (d) PMS concentration; (e) catalyst dosage; (f) effect of inorganic anions (experimental conditions: [CBZ] = 20 mg/L, [PMS] = 0.5 mM, [E-SiC-ZnFeZIF] = 50 mg/L, pH = 6.5, T = 25 °C, when an experimental environment parameter was changed, the remaining influencing parameters remained unchanged, ensuring a single experimental variable). (g) Plot of the adsorption–desorption curve of the photocatalyst. (h) Porosity distribution by NLDFT.
Figure 4. (a,b) Show the degradation performance of C-SiC, E-SiC, E-SiC-FeZIF, and E-SiC-ZnFeZIF for CBZ and THC in the PMS system. The effect of various conditions on the THC removal rate: (c) initial concentration of THC; (d) PMS concentration; (e) catalyst dosage; (f) effect of inorganic anions (experimental conditions: [CBZ] = 20 mg/L, [PMS] = 0.5 mM, [E-SiC-ZnFeZIF] = 50 mg/L, pH = 6.5, T = 25 °C, when an experimental environment parameter was changed, the remaining influencing parameters remained unchanged, ensuring a single experimental variable). (g) Plot of the adsorption–desorption curve of the photocatalyst. (h) Porosity distribution by NLDFT.
Nanomaterials 13 01664 g004aNanomaterials 13 01664 g004b
Nanomaterials 13 01664 g005 550

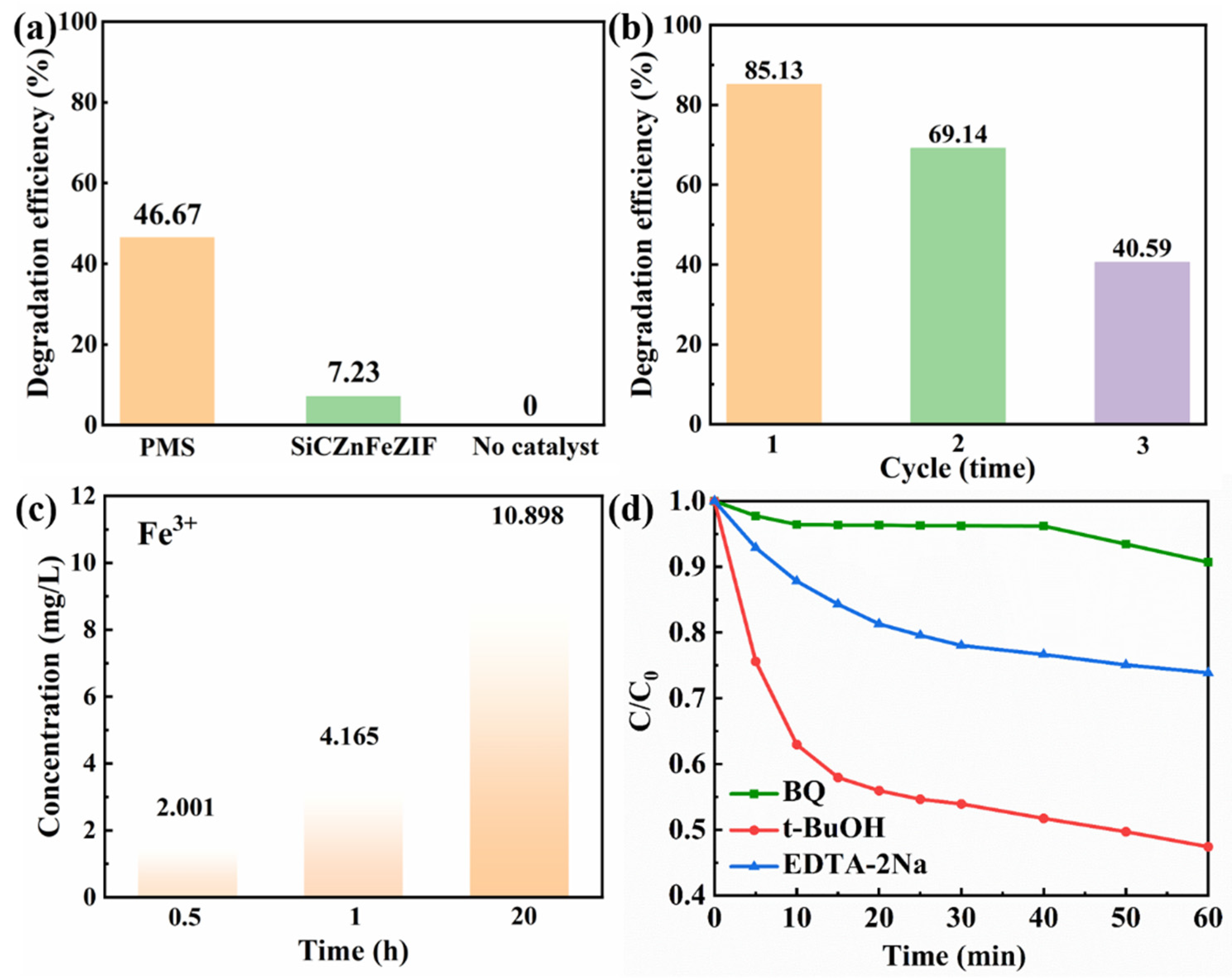

Figure 5. (a) Pharmaceutical removal in the absence of a catalyst and in the absence of PMS or E-SiCZnFeZIF; (b) degradation cycle experiment; (c) metal (Fe3+) leaching in the liquid phase after degradation; (d) free radical trapping experiments conducted with 10 mM of p-benzoquinone, tert-butyraldehyde, and EDTA-2Na (experimental conditions: [THC] = 10 mg/L, [PMS] = 0.5 mM, [E-SiC-ZnFeZIF] = 50 mg/L, pH = 6.5, T = 25 °C, when an experimental environment parameter was changed, the remaining influencing parameters remained unchanged, ensuring a single experimental variable).
Figure 5. (a) Pharmaceutical removal in the absence of a catalyst and in the absence of PMS or E-SiCZnFeZIF; (b) degradation cycle experiment; (c) metal (Fe3+) leaching in the liquid phase after degradation; (d) free radical trapping experiments conducted with 10 mM of p-benzoquinone, tert-butyraldehyde, and EDTA-2Na (experimental conditions: [THC] = 10 mg/L, [PMS] = 0.5 mM, [E-SiC-ZnFeZIF] = 50 mg/L, pH = 6.5, T = 25 °C, when an experimental environment parameter was changed, the remaining influencing parameters remained unchanged, ensuring a single experimental variable).
Nanomaterials 13 01664 g005
Nanomaterials 13 01664 g006 550

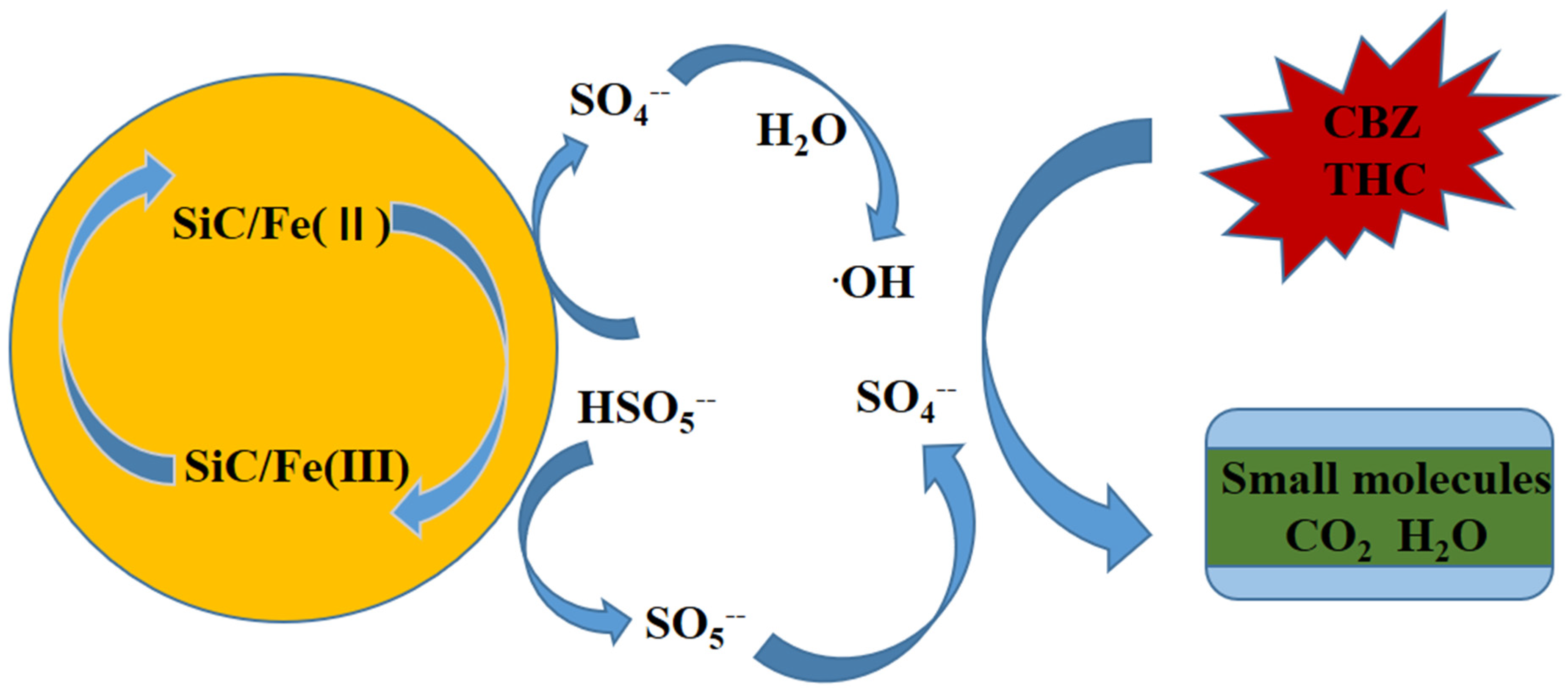

Figure 6. The reaction mechanism of the catalytic activation of the ESiC-ZnFeZIF/PMS system.
Figure 6. The reaction mechanism of the catalytic activation of the ESiC-ZnFeZIF/PMS system.
Nanomaterials 13 01664 g006
Nanomaterials 13 01664 g007 550

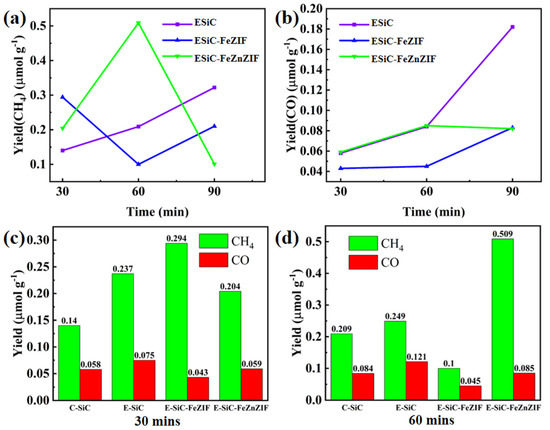

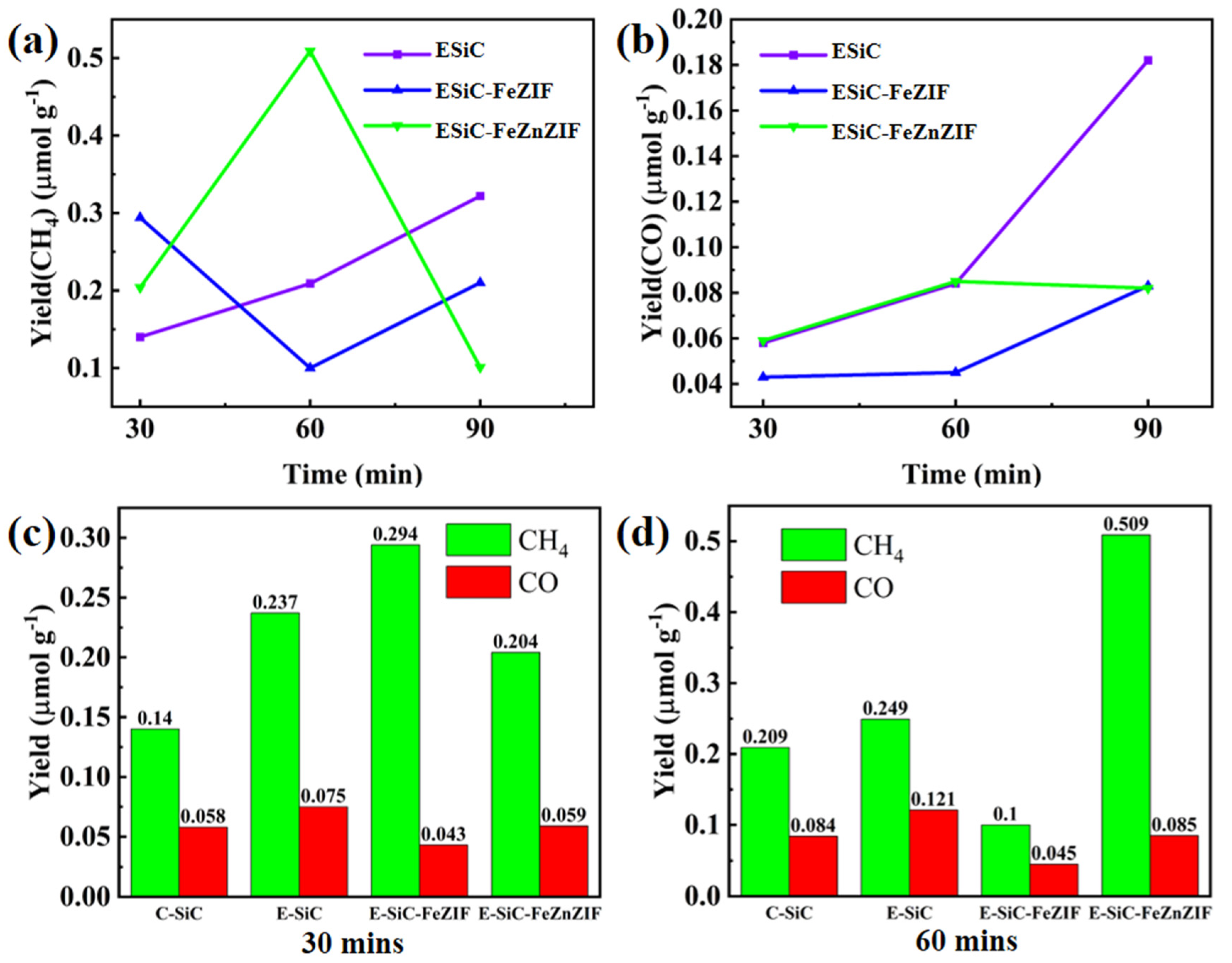

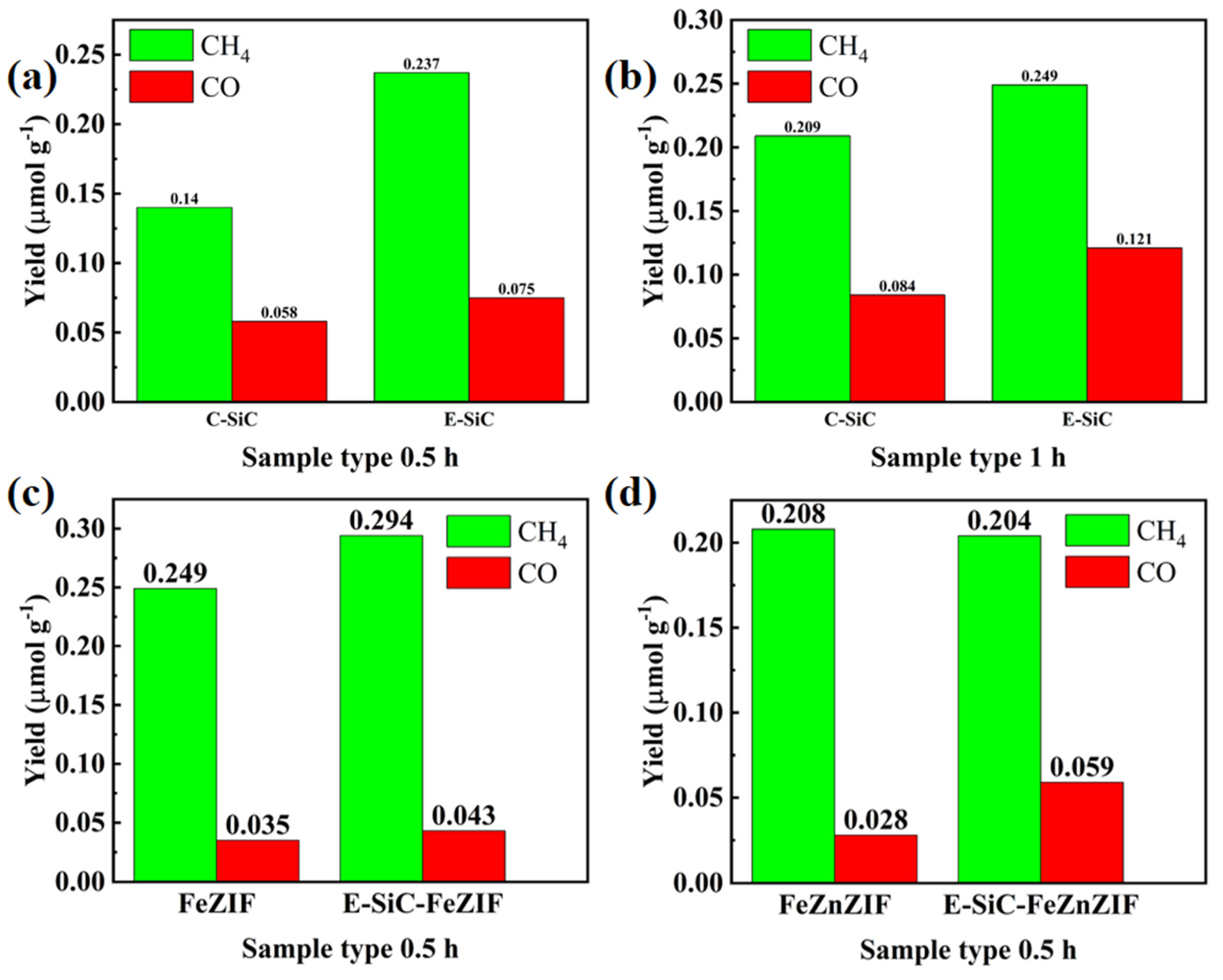

Figure 7. Photocatalytic CO2 reduction performances. (a–d) Show the CO and CH4 production rates of the obtained samples under the xenon light for 0.5 and 1 h.
Figure 7. Photocatalytic CO2 reduction performances. (a–d) Show the CO and CH4 production rates of the obtained samples under the xenon light for 0.5 and 1 h.
Nanomaterials 13 01664 g007
Nanomaterials 13 01664 g008 550
Figure 8. The photocatalytic CO2 reduction production. (a,b) Show the CO and CH4 production rates of E-SiC, E-SiC-FeZIF, and E-SiC-FeZnZIF under the xenon light for 30 min to 90 min. (c,d) Show the CO and CH4 production rates of all samples under the xenon light for 0.5 and 1 h.
Figure 8. The photocatalytic CO2 reduction production. (a,b) Show the CO and CH4 production rates of E-SiC, E-SiC-FeZIF, and E-SiC-FeZnZIF under the xenon light for 30 min to 90 min. (c,d) Show the CO and CH4 production rates of all samples under the xenon light for 0.5 and 1 h.
Nanomaterials 13 01664 g008
Nanomaterials 13 01664 g009 550
Figure 9. (a) XPS spectra of C-SiC’s survey, (b) Si 2p XPS spectra, (c) C 1s XPS spectra, (d) XPS spectra of E-SiC-ZnFeZIF’s survey, (e) Si 2p signals of E-SiC-ZnFeZIF, (f) C 1s XPS spectra of E-SiC-ZnFeZIF, (g) Zn 2p signals of E-SiC-ZnFeZIF, and (h) Fe 2p signals of E-SiC-ZnFeZIF.
Figure 9. (a) XPS spectra of C-SiC’s survey, (b) Si 2p XPS spectra, (c) C 1s XPS spectra, (d) XPS spectra of E-SiC-ZnFeZIF’s survey, (e) Si 2p signals of E-SiC-ZnFeZIF, (f) C 1s XPS spectra of E-SiC-ZnFeZIF, (g) Zn 2p signals of E-SiC-ZnFeZIF, and (h) Fe 2p signals of E-SiC-ZnFeZIF.
Nanomaterials 13 01664 g009
Nanomaterials 13 01664 g010 550
Figure 10. (a) PL spectroscopy, (b) electrochemical impedance spectroscopy, (c) photocurrent responses spectroscopy, (d) cycling yield for CH4 and CO production of E-SiC-ZnFeZIF. The CO2 reduction tests were repeated 5 times.
Figure 10. (a) PL spectroscopy, (b) electrochemical impedance spectroscopy, (c) photocurrent responses spectroscopy, (d) cycling yield for CH4 and CO production of E-SiC-ZnFeZIF. The CO2 reduction tests were repeated 5 times.
Nanomaterials 13 01664 g010
Nanomaterials 13 01664 g011 550
Figure 11. (a) UV–vis–NIR diffuse reflectance spectra of the prepared E-SiC, FeZIF, and E-SiC-ZnFeZIF; (b) the band gap energy of the prepared E-SiC, FeZIF, and E-SiC-ZnFeZIF.
Figure 11. (a) UV–vis–NIR diffuse reflectance spectra of the prepared E-SiC, FeZIF, and E-SiC-ZnFeZIF; (b) the band gap energy of the prepared E-SiC, FeZIF, and E-SiC-ZnFeZIF.
Nanomaterials 13 01664 g011
Nanomaterials 13 01664 g012 550
Figure 12. (a,b) In situ FTIR spectra of the E-SiC and E-SiC-ZnFeZIF after exposure to a mixture gas of CO2 and H2O in the dark for 10 min, and subsequent light illumination for 50 min.
Figure 12. (a,b) In situ FTIR spectra of the E-SiC and E-SiC-ZnFeZIF after exposure to a mixture gas of CO2 and H2O in the dark for 10 min, and subsequent light illumination for 50 min.
Nanomaterials 13 01664 g012
Nanomaterials 13 01664 g013a 550Nanomaterials 13 01664 g013b 550

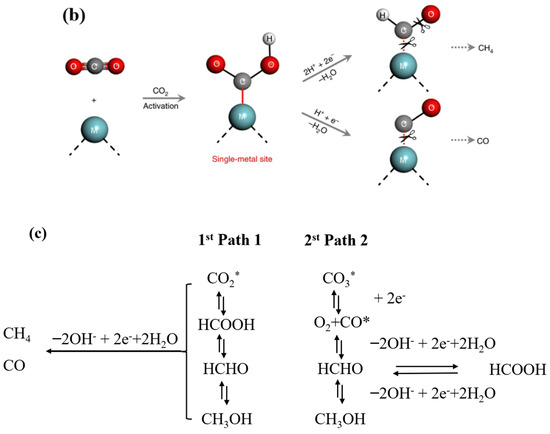

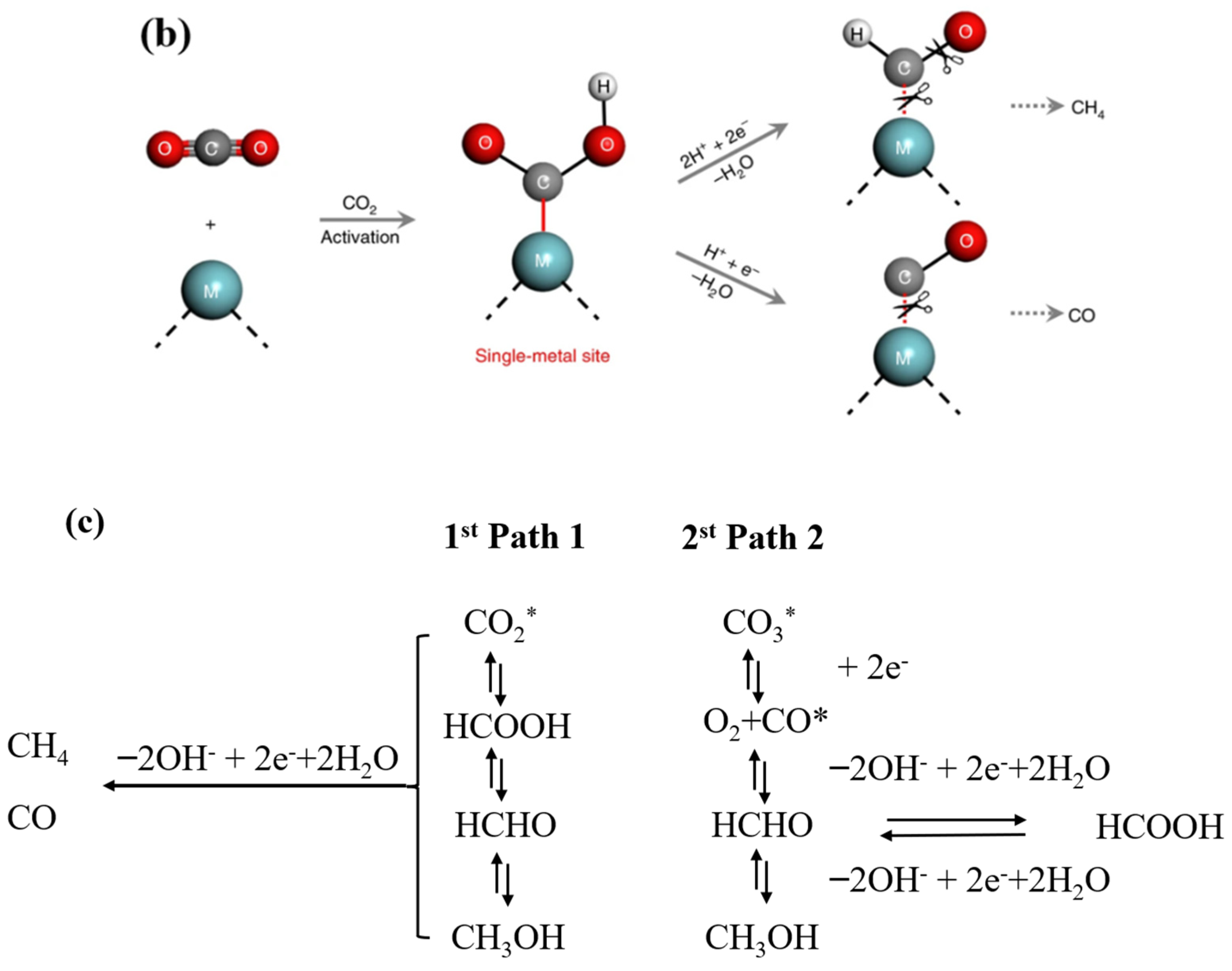

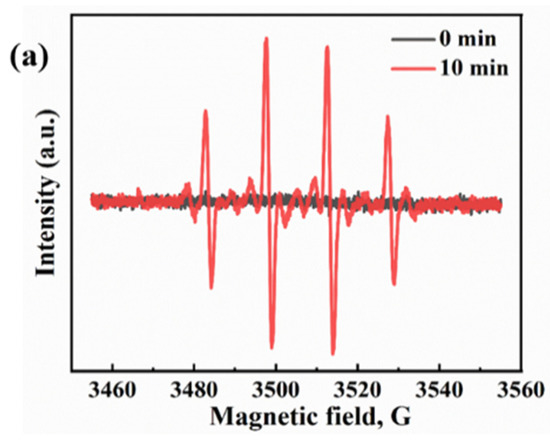

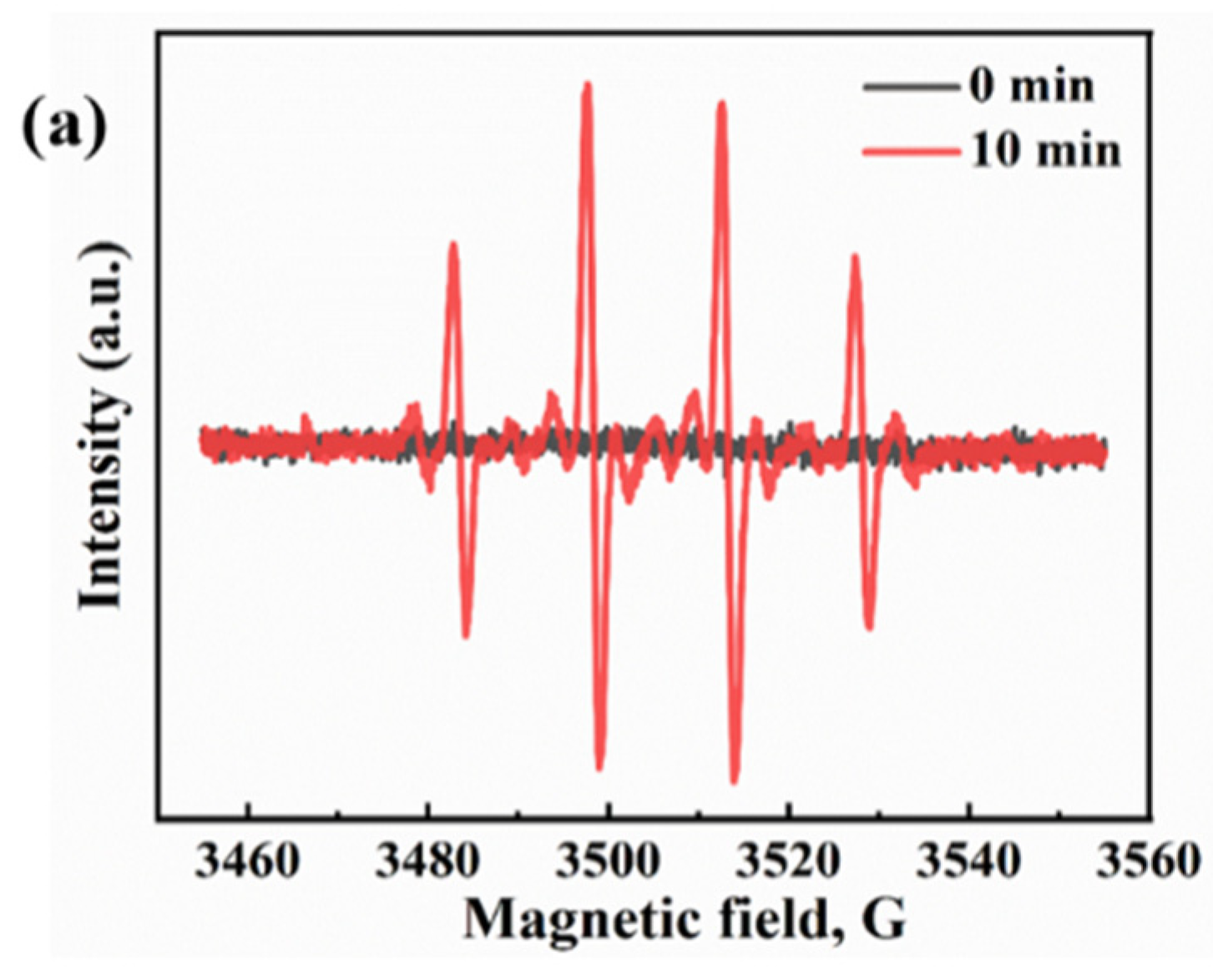

Figure 13. (a) •OH spectra of E-SiC-ZnFeZIF. (b) The mechanism of single metal reduction of carbon dioxide. (c) Scheme of the two possible paths for molecular CO2 and carbonate photoreduction. The symbol * indicates the species adsorbed on the photocatalyst surface. The same routes to the gas phase products (CH4, H2, and CO) also occur for the second path.
Figure 13. (a) •OH spectra of E-SiC-ZnFeZIF. (b) The mechanism of single metal reduction of carbon dioxide. (c) Scheme of the two possible paths for molecular CO2 and carbonate photoreduction. The symbol * indicates the species adsorbed on the photocatalyst surface. The same routes to the gas phase products (CH4, H2, and CO) also occur for the second path.
Nanomaterials 13 01664 g013aNanomaterials 13 01664 g013b
Nanomaterials 13 01664 g014 550

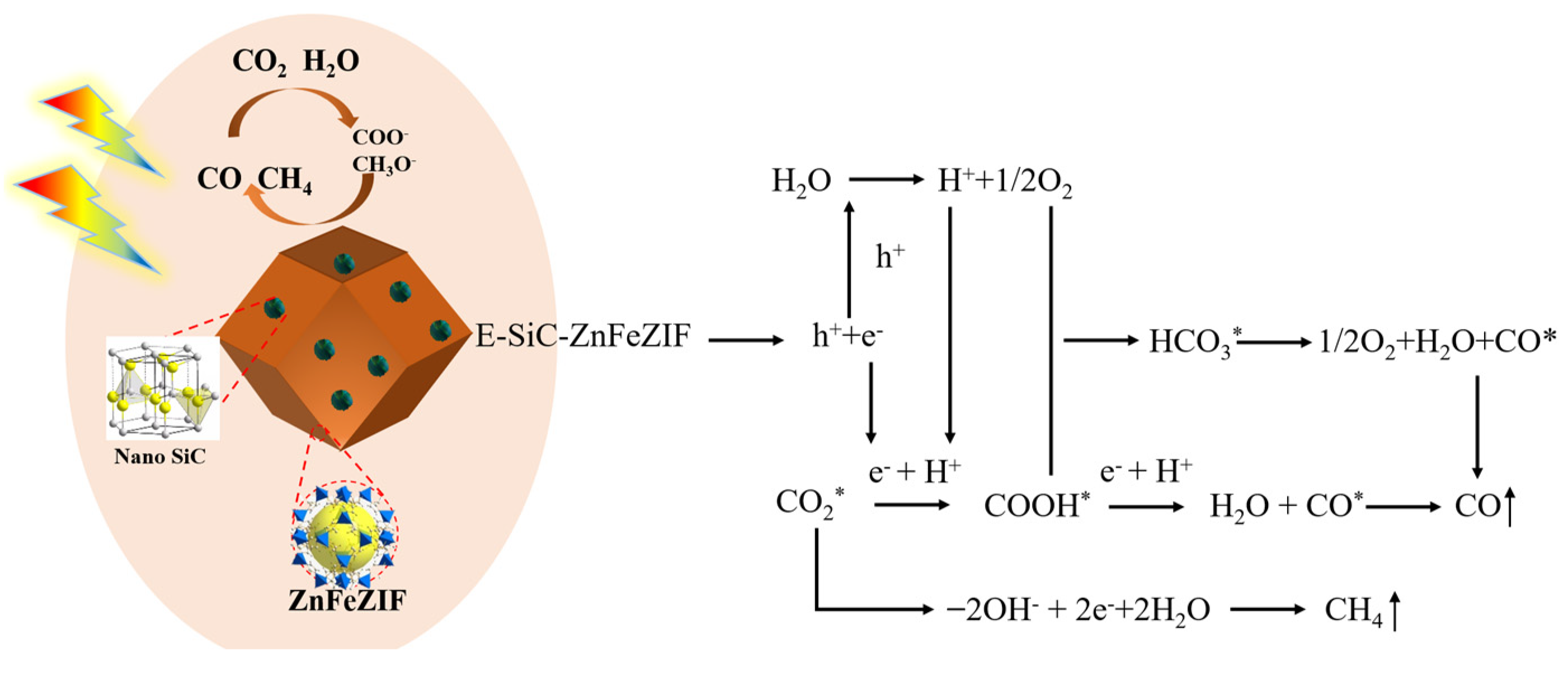

Figure 14. The proposed mechanism of photocatalytic reduction of CO2 into CO and CH4 by the E-SiC-ZnFeZIF.
Figure 14. The proposed mechanism of photocatalytic reduction of CO2 into CO and CH4 by the E-SiC-ZnFeZIF.
Nanomaterials 13 01664 g014
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Zhu, Z.; Yang, L.; Xiong, Z.; Liu, D.; Hu, B.; Wang, N.; Ola, O.; Zhu, Y. SiC@FeZnZiF as a Bifunctional Catalyst with Catalytic Activating PMS and Photoreducing Carbon Dioxide. Nanomaterials 2023, 13, 1664. https://doi.org/10.3390/nano13101664

AMA Style

Zhu Z, Yang L, Xiong Z, Liu D, Hu B, Wang N, Ola O, Zhu Y. SiC@FeZnZiF as a Bifunctional Catalyst with Catalytic Activating PMS and Photoreducing Carbon Dioxide. Nanomaterials. 2023; 13(10):1664. https://doi.org/10.3390/nano13101664

Chicago/Turabian Style

Zhu, Zhiqi, Liaoliao Yang, Zhaodong Xiong, Daohan Liu, Binbin Hu, Nannan Wang, Oluwafunmilola Ola, and Yanqiu Zhu. 2023. "SiC@FeZnZiF as a Bifunctional Catalyst with Catalytic Activating PMS and Photoreducing Carbon Dioxide" Nanomaterials 13, no. 10: 1664. https://doi.org/10.3390/nano13101664

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
