Article

Black 3D-TiO2 Nanotube Arrays on Ti Meshes for Boosted Photoelectrochemical Water Splitting

by
Ming Meng
1,*,
Yamin Feng
1,
Chunyang Li
1,
Zhixing Gan
2,*,
Honglei Yuan
1 and
Honghui Zhang
1
1
School of Physics and Telecommunication Engineering, Zhoukou Normal University, Zhoukou 466001, China
2
Key Laboratory of Optoelectronic Technology of Jiangsu Province, School of Physical Science and Technology, Nanjing Normal University, Nanjing 210023, China
*
Authors to whom correspondence should be addressed.
Nanomaterials 2022, 12(9), 1447; https://doi.org/10.3390/nano12091447
Submission received: 28 February 2022 / Revised: 14 April 2022 / Accepted: 21 April 2022 / Published: 24 April 2022
(This article belongs to the Special Issue Advance in Photoactive Nanomaterials)
Browse Figures
Versions Notes

Abstract

:
Black 3D-TiO2 nanotube arrays are successfully fabricated on the Ti meshes through a facile electrochemical reduction method. The optimized black 3D-TiO2 nanotubes arrays yield a maximal photocurrent density of 1.6 mA/cm2 at 0.22 V vs. Ag/AgCl with Faradic efficiency of 100%, which is about four times larger than that of the pristine 3D-TiO2 NTAs (0.4 mA/cm2). Such boosted PEC water splitting activity primarily originates from the introduction of the oxygen vacancies, which results in the bandgap shrinkage of the 3D-TiO2 NTAs, boosting the utilization efficiency of visible light including the incident, reflected and/or refracted visible light captured by the 3D configuration. Moreover, the oxygen vacancies (Ti3+) can work as electron donors, which leads to the enhanced electronic conductivity and upward shift of the Fermi energy level, and thereby facilitating the transfer and separation of the photogenerated charge carrier at the semiconductor-electrolyte interface. This work offers a new opportunity to promote the PEC water splitting activity of TiO2-based photoelectrodes.

Graphical Abstract

1. Introduction

Photoelectrochemical (PEC) water splitting technology capable of directly converting and storing the abundant solar energy into energy-dense hydrogen fuel has emerged as a promising strategy to alleviate the worsening energy crisis and environmental issues [1,2,3,4,5,6,7,8,9]. To achieve the practical application of this technology, the fabrication of stable and efficient photoelectrodes are desperately needed [10,11,12,13,14,15,16,17]. Three-dimensional TiO2 nanotube arrays (3D-TiO2 NTAs) formed on Ti mesh have been recognized as a competitive candidate in the design and fabrication of a photoanode for PEC water splitting owing to its larger internal and external surface areas, efficient charge separation and transportation features, and optimal adhesion with Ti mesh [18,19,20,21,22,23,24,25,26,27,28]. More importantly, the 3D-TiO2 NTAs on Ti mesh exhibits significant improvement in the utilization efficiency of Ti source compared to the 2D-TiO2 nanotube arrays formed on Ti foil [18,20,28]. Besides, the radial nature of 3D-TiO2 NTAs endows it with capability of harvesting the incident, reflected and/or refracted ultraviolet and visible light from any direction surrounding the Ti wire, rendering a higher PEC water splitting activity to be achieved [18,20,29]. However, its PEC performances are still inhibited by the large bandgap (3.2 eV), which results in the photoexcited electron and hole not being produced by the visible light harvested by the 3D NTAs [30,31,32,33,34,35,36,37]. In addition, 3D-TiO2 NTAs also suffer from poor electrical conductivity, and the bulk and surface recombination of photogenerated charge carriers, both of which are detrimental to the PEC water splitting activity [37,38,39,40,41]. Consequently, seeking an efficient strategy to boost the utilization of visible light and the electrical conductivity is vitally crucial.
Lately, the introduction of the oxygen vacancies (O-vacancies) has been demonstrated as an effective tactic to steer the optical and electronic characteristics of the metal oxide [41,42,43,44]. As illustrated by many research groups, the introduction of the O-vacancies can enable the Fermi energy level to shift toward the conduction band, which leads to the shrinkage of the bandgap, thus promoting the utilization efficiency of the visible light [31,41,42,43,44]. In addition, the presence of O-vacancies can also increase the electrical conductivity due to the high donor density, which facilitates the separation and transport of photogenerated charge carriers [31,38,39,44]. Accordingly, it is anticipated that rational introduction of the O-vacancies in 3D-TiO2 NTAs may be a promising route to tackle the two abovementioned drawbacks. Unfortunately, the reported available strategies to produce O-vacancies generally involve the harsh experimental conditions or high-cost facilities, which are not suitable for the largescale practical application [31,38,39,44]. Hence, exploiting a simple and economical method to introduce O-vacancies into metal oxide still requires more endeavors.
Recently, an electrochemical reductive doping process has proved to be a simple and cost-effective route to introduce O-vacancies into the TiO2 NTAs [44,45,46,47,48]. Under an external electric field, the Ti4+ is reduced to Ti3+, which leads to the generation of O-vacancies. Three different reduction electrolytes have been utilized, including acidic (H2SO4), neutral (Na2SO4), and alkaline (KOH) aqueous solution [44,45,46,47,48,49]. It is found that the alkaline electrolytes are more favorable to the introduction of O-vacancies because of the occurrence of a gas-forming side reaction during reduction in acidic solution [47,49]. Nevertheless, the existing research mainly focused on electrochemical reduction in acidic and neutral aqueous solution. As such, electrochemical reduction in alkaline aqueous solution have not been comprehensively understood. For example, the fundamental questions are whether alkaline aqueous solution is general or just for KOH, which remains unclear so far.
Herein, black 3D-TiO2 NTAs with substantial O-vacancies were prepared via a simple electrochemical reduction in NaOH solution, where the 3D-TiO2 NTAs were reduced by cathodic polarization for 15 min. As expected, the optimally reduced 3D-TiO2 NTAs generated a photocurrent density of 1.6 mA/cm2 at 0.22 V vs. Ag/AgCl with Faradic efficiency of 100%, nearly four times higher than that of the pristine 3D-TiO2 NTAs. Such boosted PEC water splitting activity primarily originates from the introduction of the O-vacancies, which results in bandgap shrinkage of the 3D-TiO2 NTAs, boosting the utilization efficiency of visible light including the incident, reflected and/or refracted visible light captured by the 3D configuration. Moreover, the O-vacancies (Ti3+) can work as electron donors, which leads to enhanced electronic conductivity and upward shift of the Fermi level, thereby facilitating the transfer and separation of the photogenerated charge carrier at the semiconductor-electrolyte interface. This work offers a new opportunity to promote the PEC water splitting activity of TiO2-based photoelectrodes.

2. Materials and Methods

2.1. Preparation of the 3D-TiO2 NTAs

The 3D-TiO2 NTAs were fabricated by the electrochemical anodization of Ti meshes. Briefly, anodization was performed via a conventional two-electrode system, with clean Ti mesh (Alfa Aesar (China) Chemical Co. Ltd, Shanghang, China, 80-mesh) with size of 1.5 cm × 1 cm as the anode and Pt mesh as the cathode, respectively. The electrolytes solution was prepared by dissolving 0.3 wt% NH4F and 2 vol% DI H2O in ethylene glycol. The Ti mesh was anodized by 60 V for 1 h. After anodization, the as-prepared 3D-TiO2 NTAs were thoroughly rinsed with ethanol and DI H2O, respectively, and then were annealed in air at 400 °C for 2 h (denoted as pristine 3D-TiO2 NTAs).

2.2. Electrochemical Reduction of the 3D-TiO2 NTAs

The electrochemical reduction was conducted in a conventional three-electrode system. The as-prepared 3D-TiO2 NTAs, Ag/AgCl (3 mol L-1 KCl-filled) and Pt mesh were employed as the working, reference, and counter electrode, respectively. NaOH aqueous solution (1 M, pH = 13.6) was utilized as electrolyte. The electrochemical reduction bias of −1.2, −1.3 and −1.4 (vs. Ag/AgCl) were used, and the corresponding photoelectrodes are denoted as ECR-3D-TiO2 NTAs−x, where x = 1.2, 1.3 and 1.4 V. The time of the electrochemical reduction was 15 min.

2.3. Characterization

Morphologies, microstructures and crystal structures of the as-prepared samples were characterized by field-emission scanning electron microscopy (FE-SEM, S4800, Hitachi Ltd., Tokyo, Japan), field-emission transmission electron microscopy (FE-TEM, JEM-2100, JEOL Ltd., Tokyo, Japan) and X-ray powder diffractometry (XRD, Xpert, Philips, Amsterdam, The Netherlands). The diffuse reflectance spectra were measured by a VARIAN Cary5000 spectrophotometer (Varian, CA, USA). The X-ray photoelectron spectroscopy (XPS) data were collected by the PHI 5000 Versaprobe (Ulvac-Phi, Kanagawa, Japan).

2.4. Photoelectrochemical Measurements

The PEC tests were conducted in a three-electrode configuration connected to a CHI 660E electrochemical workstation (CH Instrument, Chenhua Ltd., Shanghai, China), with the pristine and ECR-3D-TiO2 NTAs with an exposed area of 1 cm2, Ag/AgCl (3 mol L−1 KCl-filled), and Pt mesh as the working, reference, and counter electrode, respectively. The supporting electrolyte was 1 M NaOH (pH = 13.6). The irradiation source was a 500 W Xe lamp (Solar 500, NBet Group Corp., Beijing, China) with calibrated intensity of 100 mWcm–2. Moreover, a water filter was used between the lamp and electrochemical cell to remove solution heating from infrared light. An Ocean Optics oxygen sensor system equipped with a FOXY probe (NeoFox Phase Measurement System, Ocean optics, Orlando, FL, USA) was applied to determine the amount of evolved O2. The experiment was carried out together with the stability tests. Before the O2 measurement, the headspace of the anodic compartment was purged with high purity N2 (99.9995%) for 1 h under vigorous stirring. PEC water splitting with O2 sensing continued for 180 min at 0.22 V vs. Ag/AgCl, and the O2 yield was quantified to calculate the Faradic efficiency. Electrochemical impedance spectroscopy was carried out to understand the charge transfer process between photoelectrodes/electrolyte interfaces. All the measurements were performed under the open circuit condition with the frequency ranging from 0.01 Hz to 100 kHz. Mott-Schottky plots were derived from impedance potential tests conducted at a frequency of 1 kHz in dark conditions.

3. Results

3.1. Morphological Characterization of the Pristine and ECR-3D-TiO2 NTAs

The morphologies of the 3D-TiO2 NTAs before and after electrochemical reduction were investigated by FE-SEM. The low-magnification overall FE-SEM image of the ECR-3D-TiO2 NTAs−1.3 V displays that the diameter of a single Ti wires is about 0.12 mm and the percentage of the open area of Ti mesh is calculated to approximately 30%, suggesting the higher utilization efficiency of the Ti source (Figure 1a). Figure 1c,d are the magnified FE-SEM images of the area marked by the red ellipse in Figure 1b, which clearly exhibits that TiO2 NTAs are radially grown outward around the Ti wires, leading to the formation of 3D-TiO2 NTAs. This highly ordered structure can be described by the 3D representation in Figure S1. The top and cross-sectional view FE-SEM images show such ECR-3D-TiO2 NTAs with an average diameter of approximately 150 nm, a wall thickness of about 10 nm, and a similar length of 6 μm (Figure 1c,d and Figure S2), which are identical to those of the pristine 3D-TiO2 NTAs.
The effect of the electrochemical reduction on the morphologies and microstructures of 3D-TiO2 NTAs were further investigated by FE-TEM. From the low-magnification FE-SEM images, all the products possess a tightly packed tubular nanostructures with a mean external diameter of 150 mm, which is consistent with the FE-SEM results (Figure 1e and Figure S3a,d,g). The selected electron diffraction patterns display very similar diffraction patterns, which demonstrate the polycrystalline structures of the 3D-TiO2 NTAs before and after electrochemical reduction (Figure 1f and Figure S3b,e,h). In addition, the well-resolved lattice spacing of 0.305 nm are observed in all the products (Figure 1g and Figure S3c,f,i), which corresponds to the {101} plane of anatase TiO2 [38,39]. The phase transition of the 3D-TiO2 NTAs induced by electrochemical reduction were analyzed by XRD. As shown in Figure S4, all the diffraction peaks match well with crystal structure of the anatase TiO2 (JCPDS 21-1272) and metal Ti [38,39]. No other phase is detected, suggesting no change in the lattice structures after electrochemical reduction. The above FE-SEM, FE-TEM and XRD results imply that electrochemical reduction does not destroy the morphology, microstructures or phase of the 3D-TiO2 NTAs.

3.2. Optical Absorption Properties of the Pristine and ECR-3D-TiO2 NTAs

We have investigated the UV-vis reflectance spectra of the ECR-3D-TiO2 NTAs as a function of external bias applied in the electrochemical reduction and then compared with that of the pristine 3D-TiO2 NTAs. Clearly, the pronounced absorption can be clearly observed in the UV region (<390 nm) of all the products, which can be attributed to the intrinsic band-to-band absorption of TiO2 [38,39,44]. Compared with the pristine 3D-TiO2 NTAs, the visible light absorption (400–800 nm) is significantly enhanced after electrochemical reduction. As the applied bias changes from −1.2 to −1.4 V, the visible light absorption increases gradually, which are further verified by the color variation of the ECR-3D-TiO2 NTAs. This implies that the ECR-3D-TiO2 NTAs may respond to the visible light region (Figure 2a). Moreover, the bandgaps of the pristine 3D-TiO2 NTAs and ECR-3D-TiO2 NTAs−1.2, −1.3 and −1.4 V, estimated from the intercept of the tangents to the curves of (αhυ)2 vs. photon energy by assuming TiO2 as a direct semiconductor, are about 3.09, 2.95, 2.65 and 2.63, respectively (Figure 2b). These results suggest that the electrochemical reduction not only promote the visible light absorption, but also reduce the bandgap of the 3D-TiO2 NTAs, which can be ascribed to the presence of the defect state in the bandgap of TiO2 created by the O-vacancies. The boosted visible light absorption and bandgap shrinkage means that visible light trapped by the 3D configuration can excite electron-hole pairs and thus effectively improve the PEC water splitting activity of the 3D-TiO2 NTAs.

3.3. Surface Oxidation State of the Pristine and ECR-3D-TiO2 NTAs

To solidify the presence of O-vacancies in the ECR-3D-TiO2 NTAs, the chemical composition and surface oxidation states of the pristine 3D-TiO2 NTAs and ECR-3D-TiO2 NTAs were further examined by XPS. Only Ti, O and C signals are observed in the survey spectra of all the products, which reveals that electrochemical reduction does not introduce other impurities (Figure S5a). For the pristine 3D-TiO2 NTAs, the Ti 2p core level spectrum has two peaks centered at 458.3 and 464.1 eV, which are typical for the Ti 2p3/2 and 2p1/2 peaks of Ti4+ in TiO2 (Figure 3a) [39,43,50]. After the electrochemical reduction, the Ti 2p3/2 and 2p1/2 peaks shift to the low binding energy of 457.9 and 463.7 eV, illustrating the different bonding environment of the Ti atom. By subtracting the normalized Ti 2p spectra of the ECR-3D-TiO2 NTAs−1.3 V with that of the pristine 3D-TiO2 NTAs, two extra peaks at 457.7 and 463.3 eV were observed, which were indexed to the Ti 2p3/2 and 2p1/2 peaks of Ti3+ [39,43,50]. This indicates that O-vacancies are introduced in the ECR-3D-TiO2 NTAs−1.3 V. In addition, the O1s spectra of the ECR-3D-TiO2 NTAs−1.3 V was also different from that of that of the pristine 3D-TiO2 NTAs. In the O1s spectra, the main peak located 529.7 eV is the characteristic peak reported for lattice oxygen of TiO2, while other peaks centered at 531.4 eV can be associated with oxygen species absorbed at O-vacancies [39]. As displayed in Figure 3b and Figure S5b, the peaks of area of 531.4 eV of ECR-3D-TiO2 NTAs increase gradually with electrochemical reduction bias reducing from −1.2 V to −1.4 V, which suggests that the amount of the O-vacancies increases with the deceasing electrochemical reduction bias. This is why the visible light absorption increases gradually with the electrochemical reduction bias reducing from −1.2 to −1.4 V.

3.4. PEC Water Splitting Activity of the Pristine and ECR-3D-TiO2 NTAs

The influence of the electrochemical reduction bias on the PEC water splitting activity of 3D-TiO2 NTAs were also studied, and the results are shown in Figure 4. All the 3D-TiO2 NTAs-based photoelectrodes display negligible dark currents in comparison with their respective photocurrents, suggesting no occurrence of the electrocatalytic water splitting. Under irradiation, the photocurrent densities of the ECR-3D-TiO2 NTAs increase steeply and are distinctly larger than that of the pristine 3D-TiO2 NTAs in the whole potential window from −0.9 to 0.6 V vs. Ag/AgCl, which reveals that the electrochemical reduction can significantly promote the PEC performance of the 3D-TiO2 NTAs. Figure 4b compares the transient photocurrent responses of the pristine and ECR-3D-TiO2 NTAs measured at 0.22 V vs. Ag/AgCl. It can be seen that all the 3D-TiO2 NTAs-based photoelectrodes show excellent sensitivity to the light irradiation. There is a steep rise in current density from almost zero in dark conditions to a stable value upon illumination. In addition, the ECR-3D-TiO2 NTAs−1.3 V generate a maximal photocurrent density of 1.6 mA/cm2, which is about four times larger than that of the pristine 3D-TiO2 NTAs (0.4 mA/cm2). This photocurrent density value is superior or comparable to the previously reported values on self-doping TiO2 NTAs formed on Ti foil (Table S1) [39,43,46,47,48,51]. This means that the optimal electrochemical reduction bias is −1.3 V, which can be attributed to the two-faced effect of the O-vacancies on the PEC water splitting performance, and will be discussed thoroughly in the following text.
The structural and chemical stability is a critical parameter for a photoelectrode during the PEC water splitting. To assess this property, the photocurrent density vs. time (J-t) curves of the pristine and ECR-3D-TiO2 NTAs−1.3 V are obtained at 0.22 V vs. Ag/AgCl under continuous illumination (Figure 4c). No sign of decrease in photocurrent densities for the pristine and ECR-3D-TiO2 NTAs-1.3 V are detected during the entirely measured 180 min. To further identify whether the observed photocurrents derive from the water splitting reaction, the amount of oxygen evolved from the ECR-3D-TiO2 NTAs−1.3 V was determined by a fluorescence sensor. The amount of evolved oxygen increases linearly with test time with unity Faradic efficiency. Figure S6 presents the FE-SEM image and XRD pattern of the ECR-3D-TiO2 NTAs−1.3 V after continuous PEC water splitting for 180 min, which prove that the surface morphology and crystal phase of the ECR-3D-TiO2 NTAs-1.3 V remains intact. These results sufficiently confirm that excellent stability of the ECR-3D-TiO2 NTAs−1.3 V, which is suitable for the potential long-term PEC water splitting application.
To investigate the effect of the electrochemical reduction on the electronic characteristics of 3D-TiO2 NTAs, electrochemical impedance spectra (EIS) measurements were performed and the Nyquist plots are shown in Figure 5a, where the scatter points are the original experimental data, and the solid lines are the fitted curves utilizing the equivalent circuit mode in the inset of Figure 5a. It can be clearly seen that the equivalent circuit model fits well with the two samples. In this equivalent circuit model, Rs corresponds to the overall series resistance of the circuit, and Rct represents the charge transfer resistance [47,52]. As depicted in Figure 5a, the ECR-3D-TiO2 NTAs−1.3 V has a smaller semicircle diameter than the pristine 3D-TiO2 NTAs under illumination, suggesting the smaller charge transfer resistance of the ECR-3D-TiO2 NTAs−1.3 V. The charge transfer resistance can be obtained by fitting the Nyquist plots with the equivalent circuit model. As expected, the charge transfer resistance Rct of the ECR-3D-TiO2 NTAs−1.3 V is reduced from 440.45 to 133.08 Ω, which indicates a more effective separation of the photogenerated electron and hole and/or a faster interfacial charge transfer of the ECR-3D-TiO2 NTAs−1.3 V. Moreover, the electrochemical active surface areas of the pristine 3D-TiO2 NTAs and ECR-3D-TiO2 NTAs−1.3 V are estimated from the capacitive region of cyclic voltammograms (CV). The data shown in Figure S7 reveal that the electrochemically active area of the ECR-3D-TiO2 NTAs−1.3 V is only 1.05 times than that of the pristine -3D-TiO2 NTAs, indicating that both samples have comparable electrochemically active areas. In addition, the slope of the Mott–Schottky plot collected from the ECR-3D-TiO2 NTAs−1.3 V is much smaller than that of the pristine 3D-TiO2 NTAs, which suggest an improvement of donor densities (Figure 5b). The donor densities were estimated from the slopes of Mott–Schottky plots using the following equation:
N D = − ( 2 e 0 ε ε 0 ) [ d ( 1 / C 2 ) d ( U s ) ] − 1
where e 0 = − 1.6 × 10 − 19 , ε 0 = 8.86 × 10 − 12 and ε = 48 for the anatase TiO2. The calculated donor densities of the pristine and ECR-3D-TiO2 NTAs−1.3 V are about 1.03 × 1019 and 1.46 × 1021 cm−3, respectively. The increased the donor density can be attributed to the generation of the O-vacancies that works as electron donors. The increased donor density can effectively boost the transport property of the photogenerated charge carrier, which are of benefit to enhance the PEC water splitting activity. Moreover, the increased donor densities can also shift the Fermi level of the TiO2 toward the conduction band, which facilitate the charge separation at the semiconductor–electrolyte interface.

4. Discussion

Based on the above experimental results, the boosted photoelectrochemical water splitting performance of ECR-3D-TiO2 NTAs can be ascribed to the introduction of the O-vacancies. Firstly, PEC water splitting performance of the photoelectrode largely depend on its capability of effectively absorbing visible light. In the present case, the presence of O-vacancies results in the generation of a new defect energy level near the conduction band, which lead to the bandgap shrinkage, hence being favorable for the visible light harvesting. More importantly, the incident, reflected and/or refracted visible light captured by the 3D configuration is also absorbed by defect energy level near CB created by oxygen vacancy. Secondly, the introduction of the O-vacancies (Ti3+) in ECR-3D-TiO2 NTAs generally work as electron donors, which leads to the enhanced electronic conductivity and upward shift of the Fermi energy level, thereby facilitating the transfer and separation of photogenerated charge carrier at the semiconductor–electrolyte interface. Nevertheless, the excess O-vacancies may be the recombination centers for photogenerated carriers, hence limiting the generation of photocurrent [53,54]. Therefore, the optimized amount of the O-vacancies is essential to the PEC water splitting performance. The XPS result illustrates that the amount of the O-vacancies increases with deceasing electrochemical reduction bias (Figure 3 and Figure S5). Consequently, it can be included that the ECR-3D-TiO2 NTAs−1.4 V may possess excess amount of the O-vacancies (Ti3+), which lead to the recombination of photogenerated carriers before reaching the TiO2/electrolyte interface. Accordingly, the optimal electrochemical reduction bias is −1.3 V from the perspective of PEC water splitting activity.

5. Conclusions

In conclusion, black 3D-TiO2 NTAs have been successfully fabricated via an electrochemical reduction and employed as a photoanode for PEC water splitting. The introduction of the O-vacancies results in bandgap shrinkage, which can effectively boost the utilization efficiency of visible light including the incident, reflected and/or refracted visible light captured by the 3D configuration. Moreover, the O-vacancies (Ti3+) can work as electron donors, which leads to the enhanced electronic conductivity and upward shift of the Fermi energy level, thereby facilitating the transfer and separation of photogenerated charge carrier at the semiconductor–electrolyte interface. Benefiting from the oxygen vacancy, the optimized photocurrent density of ECR-3D-TiO2 NTAs under white light illumination generated the photocurrent density of 1.6 mA/cm2 at 0.22 V vs. Ag/AgCl, which is superior or comparable to the previously reported values on self-doping TiO2 NTAs formed on Ti foil.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/nano12091447/s1, Figure S1: 3D schematic diagram of the 3D-TiO2 NTAs, which clearly exhibits the growth of TiO2 NTAs on Ti mesh in a radially outward direction.; Figure S2: FE-SEM image of the pristine 3D-TiO2 NTAs, ECR-3D-TiO2 NTAs−1.2 V and ECR-3D-TiO2 NTAs−1.4 V; Figure S3: FE-TEM image of the pristine 3D-TiO2 NTAs, ECR-3D-TiO2 NTAs−1.2 V and ECR-3D-TiO2 NTAs-1.4 V; Figure S4: XRD patterns of the pristine 3D-TiO2 NTAs and ECR-3D-TiO2 NTAs electrochemically reduced under different applied bias −1.2, −1.3 and −1.4 V; Figure S5: (a) Survey spectrum of the pristine and ECR-3D-TiO2 NTAs electrochemically reduced under the different applied bias −1.2, −1.3 and −1.4 V. (b) O1s XPS spectra of pristine and ECR-3D-TiO2 NTAs electrochemically reduced under the different applied bias −1.2, −1.3 and −1.4 V; Figure S6: (a) FE-SEM image and (b) XRD pattern of the ECR-3D-TiO2 NTAs−1.3 V after undergoing the PEC water splitting reaction for 180 min. The results obviously show that the morphology of the ECR-3D-TiO2 NTAs−1.3 V maintained intact and without observed structural degradation. Figure S7: Cyclic voltammetry (CV) for (a) ECR-3D-TiO2 NTAs-1.3 V (b) Pristine-3D-TiO2 NTAs under different scan rates. (c) Relative electrochemical surface areas of the ECR-3D-TiO2 NTAs−1.3 V and Pristine-3D-TiO2 NTAs photoanodes: linear relationship between the capacitive current and scan rate. Table S1: Comparison of the PEC performance for the self-doping TiO2 NTAs on formed on Ti foil [39,43,46,47,48,51].

Author Contributions

Conceptualization, M.M. and Z.G.; methodology, Y.F.; investigation, C.L.; data curation, H.Y. writing—original draft preparation, H.Z. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Natural Science Foundation of Henan Province (222300420597), the National Natural Science Foundation of China (51702379, 12104523), the Science and Technology Project of Henan Province (222102240100, 212102210536, 222102230006, 222102230029, 22B120006), and the Taishan Scholars Program of Shandong Province (tsqn201909117).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data are available from the authors on request.

Acknowledgments

We would like to thank Lei Wang (Nanjing Normal University) for carrying out the FE-SEM and FE-TEM measurements.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Fu, H.C.; Varadhan, P.; Lin, C.H.; He, J.H. Spontaneous solar water splitting with decoupling of light absorption and electrocatalysis using silicon back-buried junction. Nat. Commun. 2020, 11, 3930. [Google Scholar] [CrossRef] [PubMed]
  2. Huang, D.W.; Li, L.T.; Wang, K.; Li, Y.; Feng, K.; Jiang, F. Wittichenite semiconductor of Cu3BiS3 films for efficient hydrogen evolution from solar driven photoelectrochemical water splitting. Nat. Commun. 2021, 12, 3795. [Google Scholar] [CrossRef]
  3. Nandal, V.; Pihosh, Y.; Higashi, T.; Minegishi, T.; Yamada, T.; Seki, K.; Sugiyama, M.; Domen, K. Probing fundamental losses in nanostructured Ta3N5 photoanodes: Design principles for efficient water oxidation. Energy Environ. Sci. 2021, 14, 4038–4047. [Google Scholar] [CrossRef]
  4. Lu, Y.; Yang, Y.L.; Fan, X.Y.; Li, Y.Q.; Zhou, D.H.; Cai, B.; Wang, L.Y.; Fan, K.; Zhang, K. Boosting charge transport in BiVO4 photoanode for solar water oxidation. Adv. Mater. 2022, 34, 2108178. [Google Scholar] [CrossRef] [PubMed]
  5. Nellist, M.R.; Laskowski, F.A.L.; Qiu, J.J.; Hajibabaei, H.; Sivula, K.; Hamann, T.W.; Boettcher, S.W. Potential-sensing electrochemical atomic force microscopy for in operando analysis of water splitting catalysts and interfaces. Nat. Mater. 2020, 19, 69–76. [Google Scholar] [CrossRef]
  6. Li, Y.; Mei, Q.; Liu, Z.J.; Hu, X.S.; Zhou, Z.H.; Huang, J.W.; Bai, B.; Liu, H.; Ding, F.; Wang, Q.Z. Fluorine-doped iron oxyhydroxide cocatalyst: Promotion on the WO3 photoanode conducted photoelectrochemical water splitting. Appl. Catal. B Environ. 2022, 304, 120995. [Google Scholar] [CrossRef]
  7. Narangari, P.R.; Narangari, R.; Butson, J.D.; Tan, H.H.; Jagadish, C.; Karuturi, S. Surface-tailored InP nanowires via self-assembled Au nanodots for efficient and stable photoelectrochemical hydrogen evolution. Nano Lett. 2021, 21, 6967–6974. [Google Scholar] [CrossRef]
  8. Zhang, B.B.; Huang, X.J.; Zhang, Y.; Lu, G.X.; Chou, L.J.; Bi, Y.P. Unveiling the activity and stability origin of BiVO4 photoanodes with FeNi oxyhydroxides for oxygen evolution. Angew. Chem. Int. Ed. 2020, 59, 18990–18995. [Google Scholar] [CrossRef]
  9. Ye, S.; Shi, W.W.; Liu, Y.; Li, D.F.; Yin, H.; Chi, H.B.; Luo, Y.L.; Ta, N.; Fan, F.T.; Wang, X.L.; et al. Unassisted photoelectrochemical cell with multimediator modulation for solar water splitting exceeding 4% solar-to-hydrogen efficiency. J. Am. Chem. Soc. 2021, 143, 12499–12508. [Google Scholar] [CrossRef]
  10. Yang, Y.; Niu, S.W.; Han, D.D.; Liu, T.Y.; Wang, G.M.; Li, Y. Progress in developing metal oxide nanomaterials for photoelectrochemical water splitting. Adv. Energy Mater. 2017, 7, 1700555. [Google Scholar] [CrossRef]
  11. Wang, W.R.; Guo, B.D.; Dai, H.T.; Zhao, C.; Xie, G.C.; Ma, R.P.; Akram, M.Z.; Shan, H.Y.; Cai, C.Z.; Fang, Z.Y.; et al. Improving the water oxidation efficiency with a light-induced electric field in nanograting photoanodes. Nano Lett. 2019, 19, 6133–6139. [Google Scholar] [CrossRef] [PubMed]
  12. Wei, T.C.; Zhu, Y.N.; Gu, Z.N.; An, X.Q.; Liu, L.M.; Wu, Y.X.; Liu, H.J.; Tang, J.W.; Qu, J.H. Multi-electric field modulation for photocatalytic oxygen evolution: Enhanced charge separation by coupling O-vacancies with faceted heterostructures. Nano Energy 2018, 51, 764–773. [Google Scholar] [CrossRef]
  13. Samuel, E.; Joshi, B.; Kim, M.W.; Swihart, M.T.; Yoon, S.S. Morphology engineering of photoelectrodes for efficient photoelectrochemical water splitting. Nano Energy 2020, 72, 104648. [Google Scholar] [CrossRef]
  14. Zhang, X.M.; Zhai, P.L.; Zhang, Y.X.; Wu, Y.Z.; Wang, C.; Ran, L.; Gao, J.F.; Li, Z.W.; Zhang, B.; Fan, Z.Z.; et al. Engineering single-atomic NiN4O sites on semiconductor photoanodes for high-performance photoelectrochemical water splitting. J. Am. Chem. Soc. 2021, 143, 20657–20669. [Google Scholar] [CrossRef]
  15. Qiu, Y.C.; Liu, W.; Chen, W.; Chen, W.; Zhou, G.M.; Hsu, P.C.; Zhang, R.F.; Liang, Z.; Fan, S.S.; Zhang, Y.G.; et al. Efficient solar-driven water splitting by nanocone BiVO4-perovskite tandem cells. Sci. Adv. 2016, 2, e1501764. [Google Scholar] [CrossRef] [Green Version]
  16. Yang, Q.; Du, J.Y.; Nie, X.Q.; Yang, D.M.; Bian, L.; Yang, L.; Dong, F.Q.; He, H.C.; Zhou, Y.; Yang, H.M. Magnetic field-assisted photoelectrochemical water splitting: The photoelectrodes gave weaker nonradiative recombination of carrier. ACS Catal. 2021, 11, 1242–1247. [Google Scholar] [CrossRef]
  17. Hu, Y.X.; Pan, Y.Y.; Wang, Z.L.; Lin, T.G.; Gao, Y.Y.; Luo, B.; Hu, H.; Fan, F.T.; Liu, G.; Wang, L.Z. Lattice distortion induced internal electric field in TiO2 photoelectrode for efficient charge separation and transfer. Nat. Commun. 2020, 11, 2129. [Google Scholar] [CrossRef]
  18. Liu, Z.Y.; Zhang, Q.Q.; Zhao, T.Y.; Zhai, J.; Jiang, L. 3D vertical arrays of TiO2 nanotubes on Ti meshes: Efficient photoanodes for water photoelectrolysis. J. Mater. Chem. 2011, 21, 10354–10358. [Google Scholar] [CrossRef]
  19. Kołodziej, J.K.; Chudecka, A.; Sulka, G.D. 3D nanoporous titania formed by anodization as a promising photoelectrode material. J. Electroanal. Chem. 2018, 823, 221–233. [Google Scholar] [CrossRef]
  20. Liao, J.J.; Lin, S.W.; Zhang, L.; Pan, N.Q.; Cao, X.K.; Li, J.B. Photocatalytic degradation of methyl orange using a TiO2/Ti mesh electrode with 3D nanotube arrays. ACS Appl. Mater. Interfaces 2012, 4, 171–177. [Google Scholar] [CrossRef]
  21. Bao, R.Y.; Zhao, Y.; Ma, F.F.; Wu, J.H.; Xia, J.X.; Li, H. 3D-TNAs composite electrodes with enhanced visible-light photoelectrocatalytic performance and stability. J. Phys. Chem. Solids 2022, 161, 110435. [Google Scholar] [CrossRef]
  22. Liu, Z.Y.; Wang, Q.Y.; Cao, D.D.; Wang, Y.J.; Jin, R.C.; Gao, S.M. Vertical grown BiOI nanosheets on TiO2 NTs/Ti meshes toward enhanced photocatalytic performances. J. Alloys Compd. 2020, 820, 153109. [Google Scholar] [CrossRef]
  23. Liu, Z.Y.; Song, Y.D.; Wang, Q.Y.; Jia, Y.; Tan, X.Y.; Du, X.X.; Gao, S.M. Solvothermal fabrication and construction of highly photoelectrocatalytic TiO2 NTs/Bi2MoO6 heterojunction based on titanium mesh. J. Colloid. Interf. Sci. 2019, 556, 92–101. [Google Scholar] [CrossRef] [PubMed]
  24. Li, T.T.; Wang, Z.H.; Liu, C.C.; Tang, C.M.; Wang, X.K.; Ding, G.S.; Ding, Y.C.; Yang, L.X. TiO2 nanotubes/Ag/MoS2 meshy photoelectrode with excellent photoelectrocatalytic degradation activity for tetracycline hydrochloride. Nanomaterials 2018, 8, 666. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. Jia, Y.; Liu, P.B.; Wang, Q.Y.; Wu, Y.; Cao, D.D.; Qiao, Q.A. Construction of Bi2S3-BiOBr nanosheets on TiO2 NTA as the effective photocatalysts: Pollutant removal, photoelectric conversion and hydrogen generation. J. Colloid Interf. Sci. 2021, 585, 459–469. [Google Scholar] [CrossRef] [PubMed]
  26. Bao, R.Y.; Chen, C.; Xia, J.X.; Chen, H.Y.; Li, H. Controlled synthesis and enhanced photoelectrocatalytic activity of a 3D-TiO2 nanotube array/TiO2 nanoparticle heterojunction using a combined dielectrophoresis/sol-gel method. J. Mater. Chem. C 2019, 7, 4981–4987. [Google Scholar] [CrossRef]
  27. Yang, X.C.; Chen, C. Cu2O sensitized flexible 3D-TiO2 nanotube arrays for enhancing visible photo-electrochemical performance. RSC Adv. 2016, 6, 70978–70983. [Google Scholar] [CrossRef]
  28. Smith, Y.R.; Subramanian, V. Heterostructural composites of TiO2 mesh-TiO2 nanoparticles photosensitized with CdS: A new flexible photoanode for solar cells. J. Phys. Chem. C 2011, 115, 8376–8385. [Google Scholar] [CrossRef]
  29. Kar, A.; Smith, Y.R.; Subramanian, V. Improved photocatalytic degradation of textile dye using titanium dioxide nanotubes formed over titanium wires. Environ. Sci. Technol. 2009, 43, 3260–3265. [Google Scholar] [CrossRef]
  30. Foo, C.; Li, Y.Y.; Lebedev, K.; Chen, T.Y.; Day, S.; Tang, C.; Tsang, S.C.E. Characterisation of oxygen defects and nitrogen impurities in TiO2 photocatalysts using variable-temperature X-ray powder diffraction. Nat. Commun. 2021, 12, 661. [Google Scholar] [CrossRef]
  31. Gao, J.Q.; Xue, J.B.; Jia, S.F.; Shen, Q.Q.; Zhang, X.C.; Jia, H.S.; Liu, X.G.; Li, Q.; Wu, Y.C. Self-doping surface oxygen vacancy-induced lattice strains for enhancing visible light-driven photocatalytic H2 evolution over black TiO2. ACS Appl. Mater. Interfaces 2021, 13, 18758–18771. [Google Scholar] [CrossRef] [PubMed]
  32. Cheng, X.; Dong, G.J.; Zhang, Y.J.; Feng, C.C.; Bi, Y.P. Dual-bonding interactions between MnO2 cocatalyst and TiO2 photoanodes for efficient solar water splitting. Appl. Catal. B Environ. 2020, 267, 118723. [Google Scholar] [CrossRef]
  33. Paidi, V.K.; Lee, B.H.; Ahn, D.; Kim, K.J.; Kim, Y.; Hyeon, T.; Hyeon, T.; Lee, K.S. Oxygen-vacancy-driven orbital reconstruction at the surface of TiO2 core-shell Nanostructures. Nano Lett. 2021, 21, 7953–7959. [Google Scholar] [CrossRef] [PubMed]
  34. Meng, M.; Qin, W.; Li, C.Y.; Xu, K.; Xu, L.Y.; Li, J.; Ma, L.; Liu, K.L.; Li, J.T.; Qin, N.; et al. Synergistic effect of photonic crystals and oxygen vacancies on photoelectrochemical water splitting of TiO2 nanotube. J. Nanoelectron. Optoelectron. 2020, 15, 226–230. [Google Scholar] [CrossRef]
  35. Liu, Q.H.; He, J.F.; Yao, T.; Sun, Z.H.; Cheng, W.R.; He, S.; Xie, Y.; Peng, Y.H.; Cheng, H.; Sun, Y.F.; et al. Aligned Fe2TiO5-containing nanotube arrays with low onset potential for visible-light water oxidation. Nat. Commun. 2014, 5, 5122. [Google Scholar] [CrossRef] [PubMed]
  36. Liu, X.Y.; Zhu, G.L.; Wang, X.; Yuan, X.T.; Lin, T.Q.; Huang, F.Q. Progress in black titania: A new material for advanced photocatalysis. Adv. Energy Mater. 2016, 6, 1600452. [Google Scholar] [CrossRef]
  37. Wei, N.; Liu, Y.; Feng, M.; Lia, Z.X.; Chen, S.G.; Zheng, Y.B.; Wang, D.A. Controllable TiO2 core-shell phase heterojunction for efficient photoelectrochemical water splitting under solar light. Appl. Catal. B Environ. 2019, 244, 519–528. [Google Scholar] [CrossRef]
  38. Cui, H.L.; Zhao, W.; Yang, C.Y.; Yin, H.; Lin, T.Q.; Shan, Y.F.; Xie, Y.; Gua, H.; Huang, F.Q. Black TiO2 nanotube arrays for high-efficiency photoelectrochemical water-splitting. J. Mater. Chem. A 2014, 2, 8612–8616. [Google Scholar] [CrossRef]
  39. Meng, M.; Zhou, S.H.; Yang, L.; Gan, Z.X.; Liu, K.L.; Tian, F.S.; Zhu, Y.; Li, C.Y.; Liu, W.F.; Yuan, H.L.; et al. Hydrogenated TiO2 nanotube photonic crystals for enhanced photoelectrochemical water splitting. Nanotechnology 2018, 29, 155401. [Google Scholar] [CrossRef]
  40. Li, Z.H.; Zhou, C.; Hua, J.H.; Hong, X.F.; Sun, C.L.; Li, H.W.; Xu, X.; Mai, L.Q. Engineering O-vacancies in a polysulfde-blocking layer with enhanced catalytic ability. Adv. Mater. 2020, 32, 1907444. [Google Scholar] [CrossRef]
  41. Lei, F.C.; Sun, Y.F.; Liu, K.T.; Gao, S.; Liang, L.; Pan, B.C.; Xie, Y. O-vacancies confined in ultrathin indium oxide porous sheets for promoted visible-light water splitting. J. Am. Chem. Soc. 2014, 136, 6826–6829. [Google Scholar] [CrossRef] [PubMed]
  42. Lin, T.Q.; Yang, C.Y.; Wang, Z.; Yin, H.; Lu, X.J.; Huang, F.Q.; Lin, J.H.; Xie, X.M.; Jiang, M.H. Effective nonmetal incorporation in black titania with enhanced solar energy utilization. Energy Environ. Sci. 2014, 7, 967–972. [Google Scholar] [CrossRef]
  43. Kang, Q.; Cao, J.Y.; Zhang, Y.J.; Liu, L.Q.; Xu, H.; Ye, J.H. Reduced TiO2 nanotube arrays for photoelectrochemical water splitting. J. Mater. Chem. A 2013, 1, 5766–5774. [Google Scholar] [CrossRef]
  44. Wang, G.M.; Yang, Y.; Ling, Y.C.; Wang, H.Y.; Lu, X.H.; Pu, Y.C.; Zhang, J.Z.; Tong, Y.X.; Li, Y. An electrochemical method to enhance the performance of metal oxides for photoelectrochemical water oxidation. J. Mater. Chem. 2016, 4, 2849–2855. [Google Scholar] [CrossRef]
  45. Chang, X.; Thind, S.S.; Chen, A.C. Electrocatalytic enhancement of salicylic acid oxidation at electrochemically reduced TiO2 nanotubes. ACS Catal. 2014, 4, 2616–2622. [Google Scholar] [CrossRef]
  46. Zhang, Z.H.; Hedhili, M.N.; Zhu, H.B.; Wang, P. Electrochemical reduction induced self-doping of Ti3+ for efficient water splitting performance on TiO2 based photoelectrodes. Phys. Chem. Chem. Phys. 2013, 15, 15637–15644. [Google Scholar] [CrossRef] [PubMed]
  47. Song, J.N.; Zheng, M.J.; Yuan, X.L.; Li, Q.; Wang, F.Z.; Ma, L.G.; You, Y.X.; Liu, S.H.; Liu, P.J.; Jiang, D.K.; et al. Electrochemically induced Ti3+ self-doping of TiO2 nanotube arrays for improved photoelectrochemical water splitting. J. Mater. Sci. 2017, 52, 6976–6986. [Google Scholar] [CrossRef]
  48. Xu, C.; Song, Y.; Lu, L.F.; Cheng, C.W.; Liu, D.F.; Fang, X.H.; Chen, X.Y.; Zhu, X.F.; Li, D.D. Electrochemically hydrogenated TiO2 nanotubes with improved photoelectrochemical water splitting performance. Nanoscale Res. Lett. 2013, 8, 391. [Google Scholar] [CrossRef] [Green Version]
  49. Close, T.; Tulsyan, G.; Diaz, C.A.; Weinstein, S.J.; Richter, C. Reversible oxygen scavenging at room temperature using electrochemically reduced titanium oxide nanotubes. Nat. Nanotechnol. 2015, 10, 418–422. [Google Scholar] [CrossRef]
  50. Lu, X.H.; Wang, G.M.; Zhai, T.; Yu, M.H.; Gan, J.Y.; Tong, Y.X.; Li, Y. Hydrogenated TiO2 nanotube arrays for supercapacitors. Nano Lett. 2012, 12, 1690–1696. [Google Scholar] [CrossRef]
  51. Li, Z.Z.; Xin, Y.M.; Wu, W.L.; Fu, B.H.; Zhang, Z.H. Phosphorus cation doping: A new strategy for boosting photoelec trochemical performance on TiO2 nanotube photonic crystals. ACS Appl. Mater. Interfaces 2016, 8, 30972–30979. [Google Scholar] [CrossRef] [PubMed]
  52. Cheng, X.; Zhang, Y.J.; Bi, Y. Spatial dual-electric fields for highly enhanced the solar water splitting of TiO2 nanotube arrays. Nano Energy 2019, 57, 542–548. [Google Scholar] [CrossRef]
  53. Gan, J.Y.; Lu, X.H.; Wu, J.S.; Xie, S.L.; Zhai, T.; Yu, M.H.; Zhang, Z.S.; Mao, Y.C.; Wang, S.C.; Shen, Y.; et al. O-vacancies promoting photoelectrochemical performance of In2O3 nanocubes. Sci. Rep. 2013, 3, 1021. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  54. Meng, M.; Yang, L.; Wu, X.L.; Gan, Z.X.; Pan, W.Y.; Liu, K.L.; Li, C.Y.; Qin, N.; Li, J. Boosted photoelectrochemical performance of In2O3 nanowires via modulating O-vacancies on crystal facets. J. Alloys Compd. 2020, 845, 156311. [Google Scholar] [CrossRef]
Nanomaterials 12 01447 g001 550

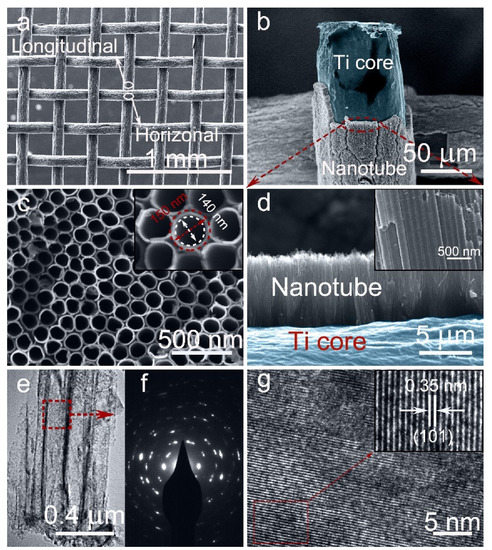

Figure 1. (a,b) Low-magnification FE-SEM images of the ECR-3D-TiO2 NTAs−1.3 V. (c,d) Corresponding top and cross-sectional view FE-SEM images; Insets: magnified FE-SEM images. (e) Low-magnification FE-TEM of the ECR-3D-TiO2 NTAs−1.3 V. (f,g) Selected area electron diffraction (SAED) pattern and HR-TEM image of the area highlighted by the red dashed box in (e). Insets: Inverse fast Fourier transform filtered TEM image recorded from the area bounded by the red dashed box in (g).
Figure 1. (a,b) Low-magnification FE-SEM images of the ECR-3D-TiO2 NTAs−1.3 V. (c,d) Corresponding top and cross-sectional view FE-SEM images; Insets: magnified FE-SEM images. (e) Low-magnification FE-TEM of the ECR-3D-TiO2 NTAs−1.3 V. (f,g) Selected area electron diffraction (SAED) pattern and HR-TEM image of the area highlighted by the red dashed box in (e). Insets: Inverse fast Fourier transform filtered TEM image recorded from the area bounded by the red dashed box in (g).
Nanomaterials 12 01447 g001
Nanomaterials 12 01447 g002 550

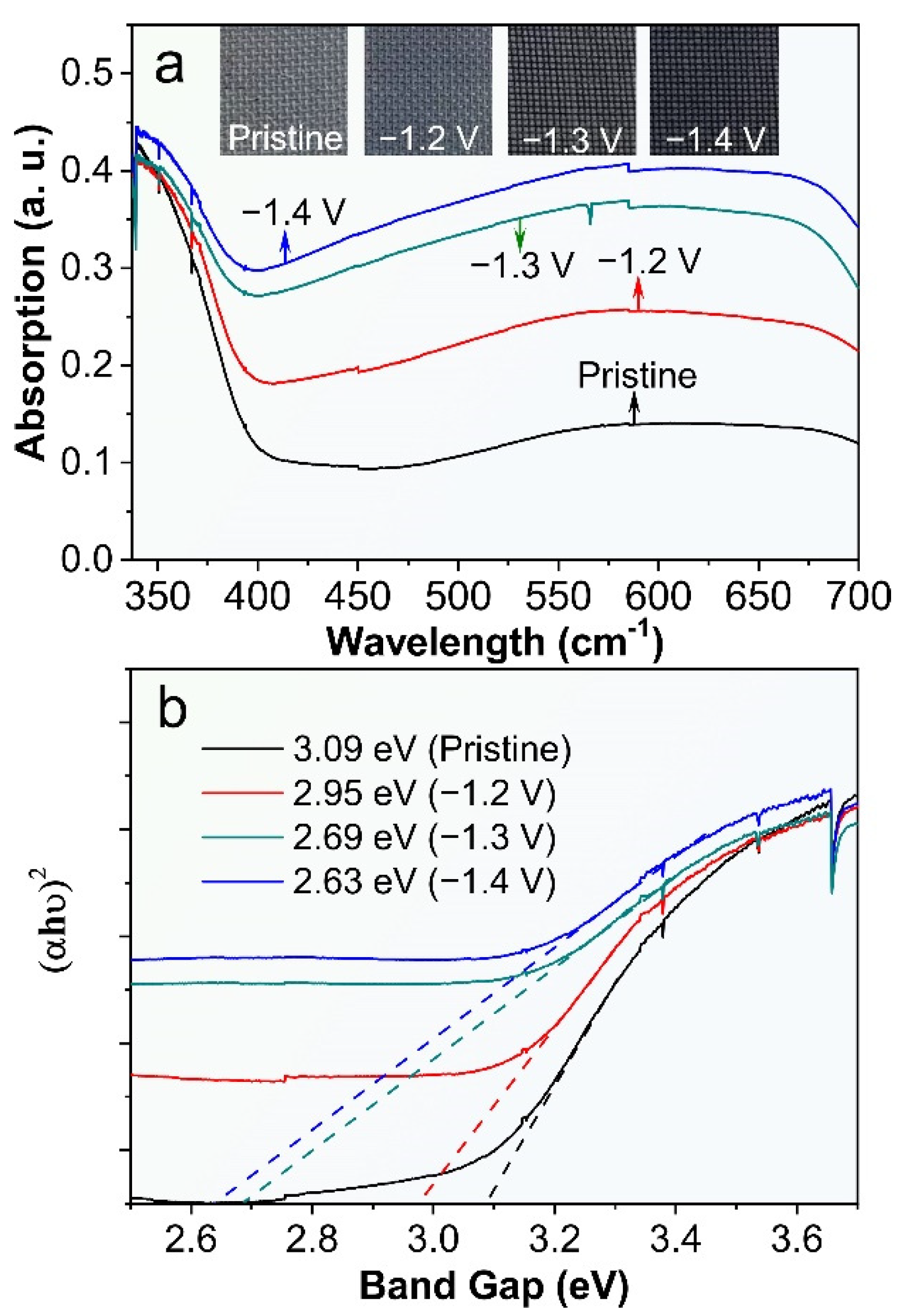

Figure 2. (a) UV-vis reflectance spectra and photographs (inset) of the pristine 3D-TiO2 NTAs and ECR-3D-TiO2 NTAs electrochemically reduced under the different applied bias −1.2, −1.3 and −1.4 V. (b) Corresponding curves of the transformed Kubelka–Munk function vs. the energy of light.
Figure 2. (a) UV-vis reflectance spectra and photographs (inset) of the pristine 3D-TiO2 NTAs and ECR-3D-TiO2 NTAs electrochemically reduced under the different applied bias −1.2, −1.3 and −1.4 V. (b) Corresponding curves of the transformed Kubelka–Munk function vs. the energy of light.
Nanomaterials 12 01447 g002
Nanomaterials 12 01447 g003 550

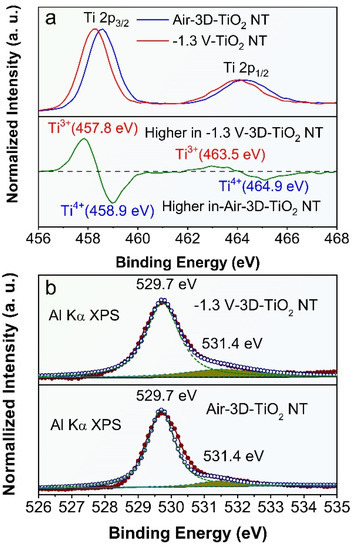

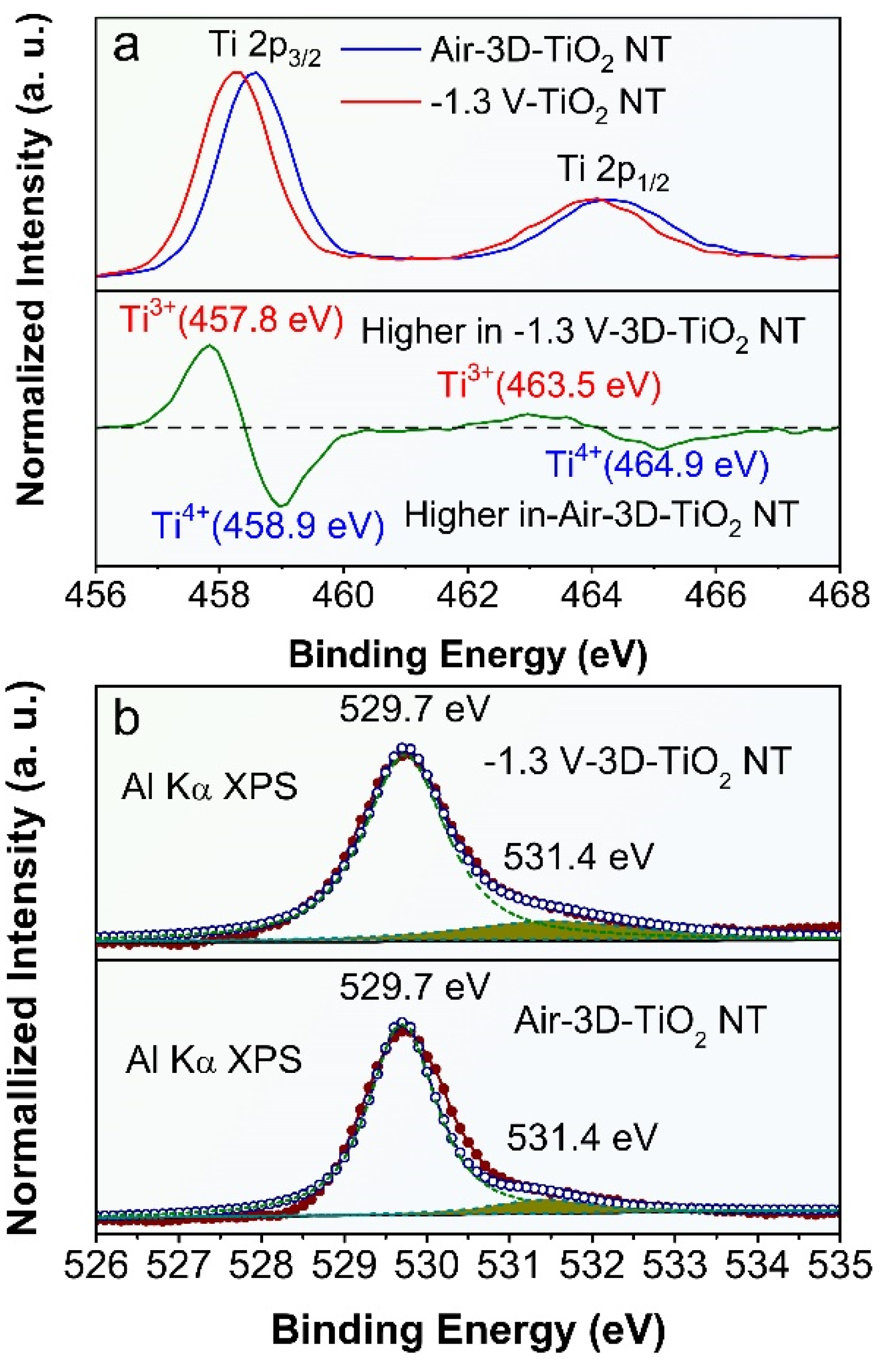

Figure 3. (a) Normalized Ti 2p XPS spectra of the pristine 3D-TiO2 NTAs and ECR-3D-TiO2 NTAs−1.3 V, and their difference spectrum (ECR-3D-TiO2 NTAs−1.3 V minus pristine 3D-TiO2 NTAs). (b) Normalized O1s XPS spectra of the pristine 3D-TiO2 NTAs and ECR-3D-TiO2 NTAs−1.3 V. The red circles represent the experimental XPS data. The blue circles are the fitting of the experimental data and can be divided into two peaks displayed by the green dashed lines.
Figure 3. (a) Normalized Ti 2p XPS spectra of the pristine 3D-TiO2 NTAs and ECR-3D-TiO2 NTAs−1.3 V, and their difference spectrum (ECR-3D-TiO2 NTAs−1.3 V minus pristine 3D-TiO2 NTAs). (b) Normalized O1s XPS spectra of the pristine 3D-TiO2 NTAs and ECR-3D-TiO2 NTAs−1.3 V. The red circles represent the experimental XPS data. The blue circles are the fitting of the experimental data and can be divided into two peaks displayed by the green dashed lines.
Nanomaterials 12 01447 g003
Nanomaterials 12 01447 g004 550

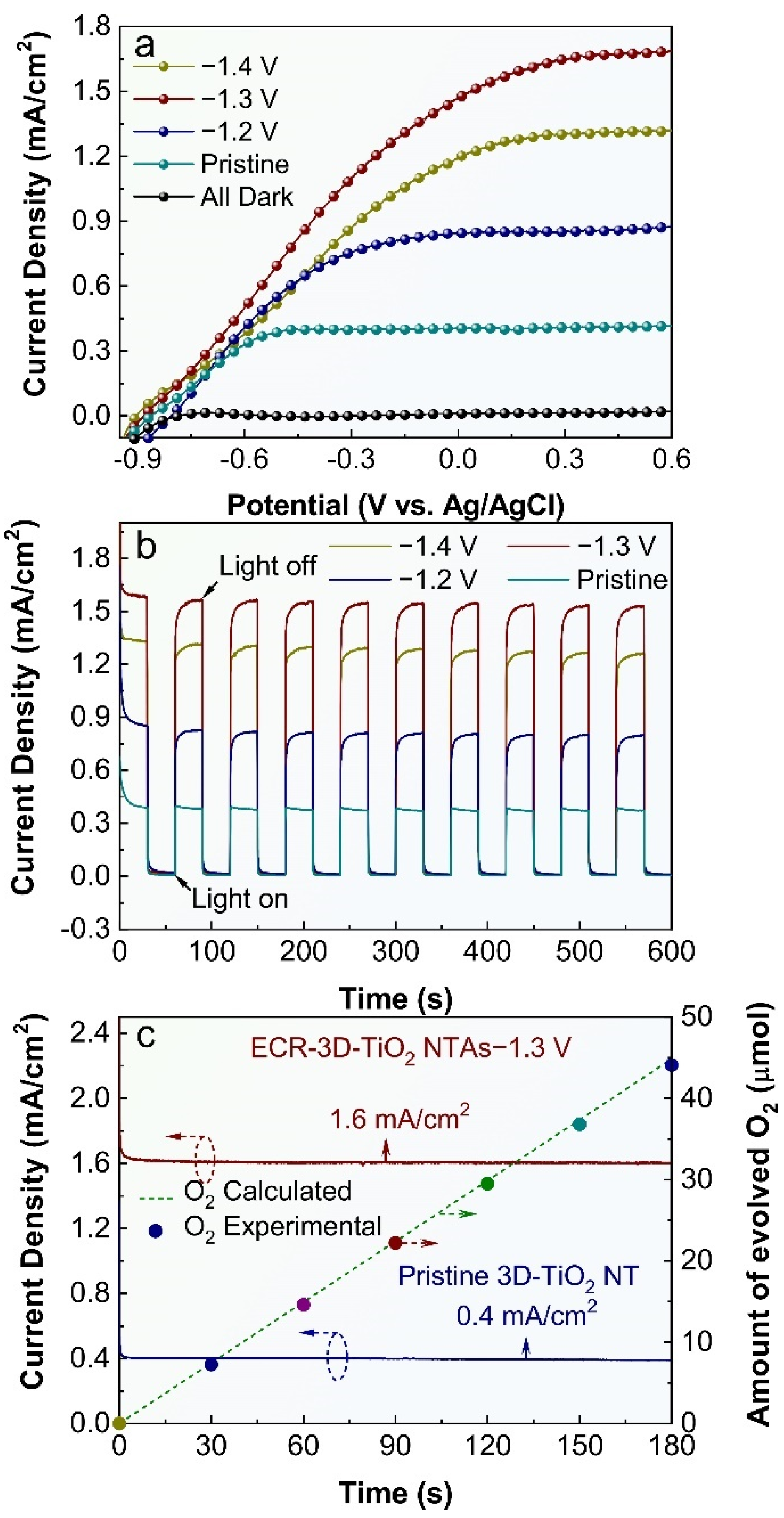

Figure 4. (a) Current density vs. voltage (J-V) plots of the pristine 3D-TiO2 NTAs and ECR-3D-TiO2 NTAs electrochemically reduced under the different applied bias −1.2, −1.3 and −1.4 V. (b) Corresponding transient photocurrent responses measured at 0.22 V vs. Ag/AgCl. (c) Photocurrent vs. time (J-t) curves of the pristine and ECR-3D-TiO2 NTAs−1.3 V obtained at 0.22 V vs. Ag/AgCl. The dashed line and colorful circles are the amount of the evolved O2 calculated theoretically and detected experimentally of the ECR-3D-TiO2 NTAs−1.3 V, respectively.
Figure 4. (a) Current density vs. voltage (J-V) plots of the pristine 3D-TiO2 NTAs and ECR-3D-TiO2 NTAs electrochemically reduced under the different applied bias −1.2, −1.3 and −1.4 V. (b) Corresponding transient photocurrent responses measured at 0.22 V vs. Ag/AgCl. (c) Photocurrent vs. time (J-t) curves of the pristine and ECR-3D-TiO2 NTAs−1.3 V obtained at 0.22 V vs. Ag/AgCl. The dashed line and colorful circles are the amount of the evolved O2 calculated theoretically and detected experimentally of the ECR-3D-TiO2 NTAs−1.3 V, respectively.
Nanomaterials 12 01447 g004
Nanomaterials 12 01447 g005 550

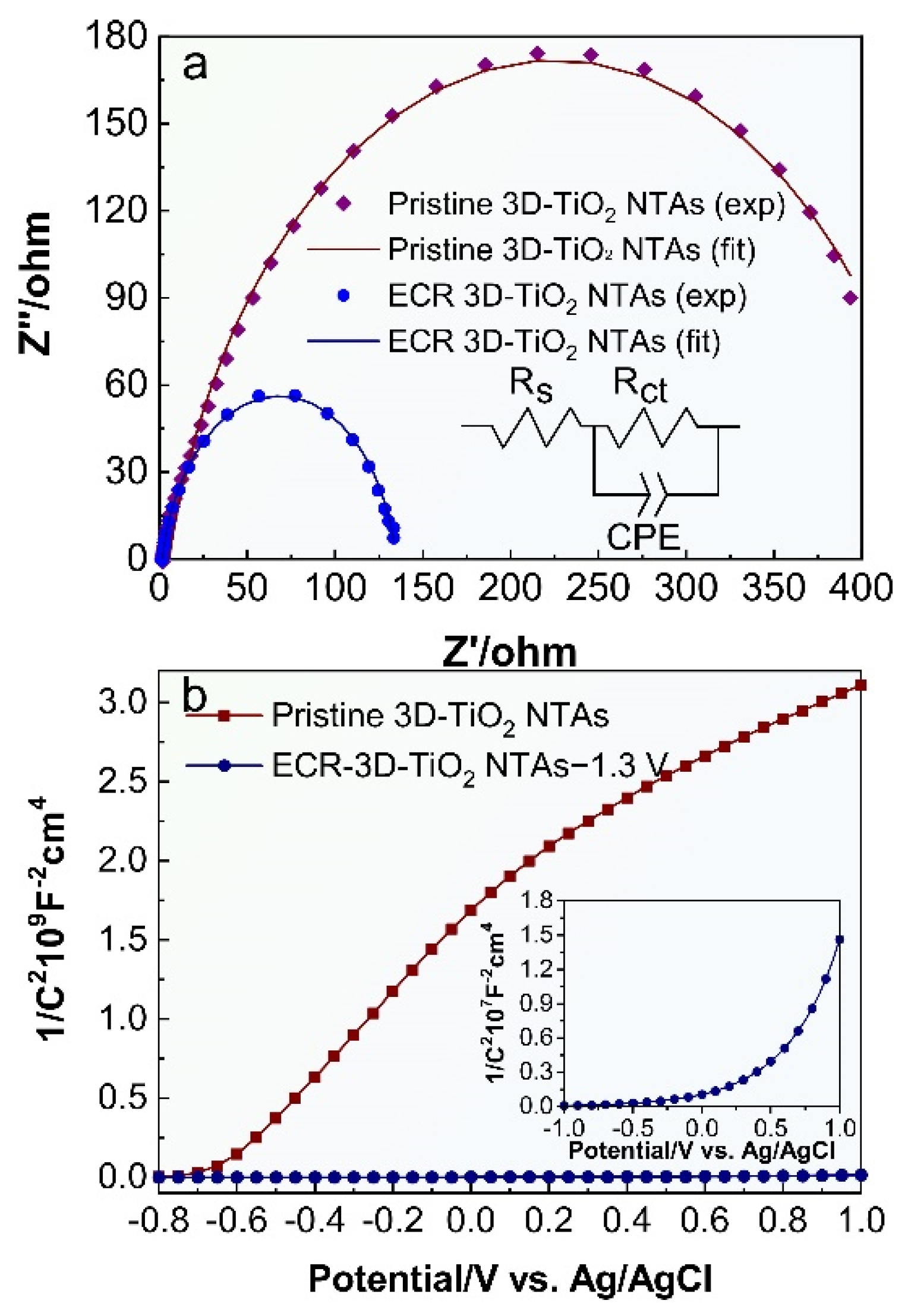

Figure 5. (a) Electrochemical impedance spectra of the pristine 3D-TiO2 NTAs and ECR- 3D-TiO2 NTAs−1.3 V under illumination, and (b) Mott–Schottky curves of the pristine 3D-TiO2 NTAs and ECR- 3D-TiO2 NTAs−1.3 V tested at a frequency of 1 kHz in dark conditions.
Figure 5. (a) Electrochemical impedance spectra of the pristine 3D-TiO2 NTAs and ECR- 3D-TiO2 NTAs−1.3 V under illumination, and (b) Mott–Schottky curves of the pristine 3D-TiO2 NTAs and ECR- 3D-TiO2 NTAs−1.3 V tested at a frequency of 1 kHz in dark conditions.
Nanomaterials 12 01447 g005
