Hydrothermal Unzipping of Multiwalled Carbon Nanotubes and Cutting of Graphene by Potassium Superoxide

by
Apostolos Koutsioukis
1,
Konstantinos Spyrou
2,
Nikolaos Chalmpes
2,
Dimitrios Gournis
2,* and
Vasilios Georgakilas
1,*
1
Department of Materials Science, University of Patras, 26504 Rio, Greece
2
Department of Materials Science and Engineering, University of Ioannina, 45110 Ioannina, Greece
*
Authors to whom correspondence should be addressed.
Nanomaterials 2022, 12(3), 447; https://doi.org/10.3390/nano12030447
Submission received: 23 December 2021 / Revised: 24 January 2022 / Accepted: 27 January 2022 / Published: 28 January 2022
(This article belongs to the Section Synthesis, Interfaces and Nanostructures)
Browse Figures
Versions Notes

Abstract

:
The dual use of potassium superoxide (KO2) to unzip multiwalled carbon nanotubes (MWCNTs) and cut graphene under hydrothermal conditions is described in this work. The KO2-assisted hydrothermal treatment was proven to be a high-yield method for forming graphene nanoribbons and dots or sub-micro-sized graphene nanosheets. Starting with functionalized MWCNTs, the method produces water-dispersible graphene nanoribbons with characteristic photoluminescence depending on their width. Using pristine graphene, the hydrothermal treatment with KO2 produces nanosized graphene sheets and graphene quantum dots with diameters of less than 10 nm. The latter showed a bright white photoluminescence. The effective hydrothermal unzipping of MWNTs and the cutting of large graphene nanosheets is a valuable top-down approach for the preparation of graphene nanoribbons and small nanographenes. Both products with limited dimensions have interesting applications in nanoelectronics and bionanotechnology.

Graphical Abstract

1. Introduction

Graphene and carbon nanotubes (CNTs) are the two most well-studied carbon nano allotropes [1]. They are both structured with a hexagonal carbon lattice, which is extended in two dimensions in graphene and wrapped cylindrically in CNTs. Graphene nanosheets and CNTs have been widely studied the last decades in several applications that are related to their properties, such as electrical and thermal conductivity, optical transparency, chemical reactivity, and mechanical strength [2,3,4,5]. Thanks to their nanosized thickness, they have been often used as substrates in bioapplications and nanoelectronics [6,7,8,9,10,11,12]. One of the most challenging demands with regard to their application is the control of their size and dimensions. Therefore, their electrical and optical properties depend, among other things, on the size and the thickness of the graphene or CNTs. Bioapplications, such as drug or gene delivery, usually also need much smaller graphene nanosheets than those usually isolated from graphite [13,14]. On the other hand, a new graphenic nanostructure has been developed over the last few years called graphene nanoribbons (GNRs), and it is considered to be an attractive material, since it combines planar graphenic structures, including graphene nanosheets, and CNTs with narrow widths and very high aspect ratios [15]. Their electrical properties are strongly related to their width. Narrow GNRs appear to have a nonzero bandgap and can be used in field-effect transistors, while broad GNRs are conductive like graphene. Several studies have appeared in the literature describing their applications in quantum electronics, and in bionanotechnology with GNRs [15,16,17,18].
GNRs can be made, among other ways, by the unzipping of CNTs, which means making a cut in the longitudinal direction. Usually, their width ranges between 10 and 100 nm, and their lengths are related to that of the starting CNTs [19,20,21]. The oxidative treatments of CNTs with a sulfuric acid solution of potassium permanganate [19,20,22], potassium vapors [19], and palladium chloride ions (PdCl4−2) [23] are characteristic procedures for the top-down approaches of nanoribbon formation. Several researchers have proposed, as a mechanism, the formation of manganate ester in lines, which is followed by the dissociation of carbon–carbon bonds through an oxidative or a reductive reaction [19]. Bottom-up methods have been also developed, combining aromatic molecules and specific organic reactions. In this way, narrow nanoribbons are constructed with widths of less than 10 nm [24,25,26,27].
Similar cutting methods have been also developed recently for graphene, leading to small-sized graphenic pieces with interesting optical properties: the so-called graphene quantum dots (GQDs) [28,29,30]. Their size ranges between 2 and 10 nm and they appear to exhibit a characteristic fluorescence emission upon excitation. Although the cutting of graphene or CNTs leads to different nanostructures, the proposed mechanism of cutting the common hexagonal carbon lattice is similar in both cases [31,32]. Hydrothermal treatment is a relatively new, very promising procedure that has been often used with graphene and CNTs and their derivatives. The limitation of water dispersibility is a disadvantage for the use of pristine graphene or carbon nanotubes; however, graphene oxide (GO), which is easily dispersible in water, is very often used [29,31,32,33]. Hydrothermal heating with potassium superoxide (KO2) has been proven to be an effective method to produce GQDs from GO [34].
In this article, we explore the ability of KO2 to unzip functionalized water-dispersible multiwalled carbon nanotubes (MWCNTs) under hydrothermal conditions to create GNRs. Furthermore, we show that the same reaction is highly effective, as well, at cutting pristine graphene nanosheets to produce nanographenes and GQDs. The method is simple and eco-friendly, and can be performed at a large scale with good yield.

2. Materials and Methods

Potassium superoxide purchased from Sigma-Aldrich, MWNT-f-OH, were prepared according to [35]. Graphene was purchased from XG Science.

2.1. Instrumentation

FTIR spectra were obtained with an ATR technique on a Fourier transform spectrometer (IRTracer-100, Shimadzu Europa GmbH, Duisburg, Germany). Raman spectra were collected both with a Raman System T-64000 and a LabRam-HR Mirco Raman spectrometer (Horiba, NJ, USA) using a laser excitation line at 514nm. The laser power was 1.082 mV. XRD was conducted with a D8 Advance Bruker diffractometer (Bruker AXS, Karlsruhe, Germany) using a CuKa (lD 1.5418) radiation source (40 kV, 40 mA) and a secondary beam graphite monochromator. Diffraction patterns were recorded in the 2-theta (2′) scale from 2° to 80°, in steps of 0.02° and with a counting time of 2 s per step. The optical absorption spectra were obtained with a Hitachi Digilab, Model U2800-Double Beam-UV/Vis (Tokyo, Japan).
Surface roughness was measured by using AFM atomic force microscopy (AFM) images that were collected in tapping mode with a Bruker Multimode 3D Nanoscope (Ted Pella Inc., Redding, CA, USA) using a microfabricated silicon cantilever type TAP-300G, with a tip radius of <10 nm and a force constant of approximately 20–75 N m−1. The Si wafers (P/Bor, single-side polished, Si-Mat) used in the AFM imaging were cleaned before use for 20 min in an ultrasonic bath (160 W) with water, acetone (≥99.5% Sigma-Aldrich, St. Louis, MO, USA), and ethanol (≥99.5% Sigma-Aldrich, St. Louis, MO, USA).
X-ray photoelectron spectroscopy (XPS) measurements were performed in an ultra-high vacuum at a base pressure of 6 × 10−9 mbar with a SPECS GmbH spectrometer equipped with a monochromatic Mg Kα source (hv = 1253.6 eV) and a Phoibos-100 hemispherical analyzer (Berlin, Germany). Spectral analysis included a Shirley background subtraction and peak separation using Gaussian–Lorentzian functions in a least squares fitting software package (Winspec) developed at the LISE laboratory, University of Namur, Belgium.
The sheet resistance of the samples was measured on circular spots made from the samples after being compressed at 2 tn by a 4-point probe system (Pro4 Resistivity System, Lucas Labs, Gilroy, CA, USA) and Keithley 2400 Source Meter. The thickness was estimated to be 5 μm [35].

2.2. Sample Preparation

For this step, 5 mg of catechol-functionalized MWCNTs [35] or pure graphene (XG Science) were dispersed in 6 mL H2O by sonication for 30′, and then 50 mg of KO2 was added, followed by stirring for another 30′. After that, the mixture was heated hydrothermally overnight at 185 °C in an autoclave Teflon.
Carbon nanotubes: The product of the hydrothermal reaction was separated in two parts by precipitation: the supernatant (NR1) and the precipitate (NR2). The brown-to-yellow-colored supernatant was purified with dialysis membrane, while the precipitate was washed and isolated by centrifugation (15,000 rpm/15′) and redispersed in water. The supernatant was left for a week on a filtration membrane to remove by-products.
Graphene nanosheets: The unreacted material or large graphene nanosheets were separated by precipitation. The liquid phase was left overnight and the precipitate that formed was separated by centrifugation (15,000 rpm/15′) (NG). The final brown-to-yellow supernatant was purified with a dialysis membrane (GQDs).

3. Results

3.1. Unzipping of MWNTs

Functionalized MWCNTs (MWCNT-f-OH) dispersed in water were mixed with an excess of KO2 in water and heated hydrothermally overnight at 185 °C. The mixture of the hydrothermal heating after sedimentation was separated in two parts: the supernatant (NR1) and the precipitate (NR2) (see Figure 1a). The brown-to-yellow-colored supernatant was purified using a dialysis membrane, while the precipitate was washed several times with water and isolated by centrifugation. The first evidence that indicated that different products were dispersed in the separated parts, apart from the color, was the photoluminescence of the NR1 sample, as shown in Figure 1b, upon excitation with a violet laser lamp (405 nm). The sample NR2 (diluted in water) showed no fluorescence under the same excitation (Figure 1c).
AFM images. The AFM images of the sample NR1 reveal that it contains elongated single-layered nanoribbons with a thickness of 0.86 nm or some thicker few layers nanoribbons (~4 nm) and a mean width close to 40 (see Figure 2a,b and Figure S1). The lower thickness indicates the formation of the thinnest one-layer nanoribbons. The precipitate sample, NR2, was also dispersible in water, creating a gray-to-black-colored dispersion, and it also contains elongated nanoribbons, with a larger width between 100 and 150 nm and a thickness between 2 and 3 nm, as revealed by the AFM images (see Figure 2c and Figure S2). Considering that a nanoribbon is formed by the unzipping of a MWCNT, it can be reasonably supposed that, here, the starting MWCNTs had an external layer with diameter between 30 and 50 nm that was unzipped, leading to the larger GNRs of sample NR2, while the internal layers that formed the narrower GNRs of sample NR1 behaved similarly (see Figure 3). The fact that the NR2 samples were less dispersible than the starting MWCNT-f-OH and precipitate in the reaction mixture (see Figure 1a) could be attributed to their different structure. MWCNT-f-OH is cylindrical, and the external surface is enriched by hydrophilic catechol groups that remarkably improve their dispersibility in water (see Figure 3). On the other hand, NR2 are plain structures with two hydrophobic aromatic surfaces, where only a part of them is decorated with catechols. The lower hydrophilic character of NR2 is due to the oxygen groups that formed at the edges after the hydrothermal scissoring.
Photoluminescence. The photoluminescence (PL) of the samples NR1 and NR2 was evaluated using PL spectroscopy, as shown in Figure 4. The UV–Vis spectra of samples NR1 and NR2 were similar and show a broad absorption with a maximum at 263 nm, which corresponds to the π,π* transition and a very broad, and weak absorption around 350 nm that corresponds to the n,π* transition (see Figure 4a). A similar absorption curve was recorded by the MWCNT-f-OH sample. Although both NR1 and NR2 samples have similar UV–Vis absorption curves, only the sample NR1 showed photoluminescence. Under excitation with 250 to 450 nm, sample NR1 showed an excitation that depended on luminescence, with the maximum ranged between 430 and 500 nm. The most intense luminescence band has a λmax at 446 nm under excitation with 350 nm. The sample NR2 showed no photoluminescence, nor did the starting ΜWCNT-f-OHs.
Considering the AFM images, the main difference between the two samples was the width of the nanoribbons. Hence, it is reasonably supposed that photoluminescence was determined by the width of the carbon nanoribbons [25]. In the literature, nanoribbons that have been detected with photoemission were mostly produced by bottom-up methods and their width was limited to 10 nm [24,25,26,27].
XRD and Raman. The XRD pattern of the MWCNT-f-OHs showed a characteristic peak at 26° that corresponds to the 0.34 nm interlayer distance, which is characteristic between the graphenic walls of MWCNTs (see Figure 5). A similar peak did not appear in the XRD pattern of the product NR2, indicating the effective unzipping of MWCNTs. A new peak that appeared at 7° corresponds to an interlayer distance of 1.26 nm, and could be attributed to the catechol pyrrolidine groups and the introduction of oxygen-containing groups on the edge of each layer, similar to GO [36].
The Raman spectra of products NR1 and NR2 were like that of MWCNT-f-OH (see Figure 6). The characteristic D and G bands of MWCNT-f-OH and sample NR1 are located at 1359 and 1567 cm−1, respectively, where the same bands for the sample NR2 are blue shifted to 1350 and 1563 cm−1, respectively. The 2D band was located at 2724 cm−1 in the spectra of both the products and the MWCNT-f-OH. The relatively high value of the ID/IG ratio of MWCNT-f-OH (0.77) is attributed to the added functional groups. Comparing the values for the ID/IG ratio, which is 0.36 and 0.64 for the spectra of products NR2 and NR1, respectively, the much lower value recorded for NR2 reflects the increased ratio between the sp2 carbon atoms at the core and the sp3 carbon atoms at the edges, due to the much larger width of the NR2 product [22].
The XPS analysis of the sample NR2 showed the different functional chemical groups (see Figure 7). The main fitted peak at 284.6 eV is due to the basic carbon frame created by sp2 and sp3 hybridization. A second intense peak at 285.9 is attributed to the C-OH groups, representing 23.1% of the whole carbon area. The remaining peaks are associated with the epoxy (13.6%), carbonyl (4.1%), and carboxyl (3.2%) groups. The pi–pi* interactions may derive from the few layers nanoribbons while interacting together via aromatic systems.
The electrical conductivity of large nanoribbons NR2 was estimated to be 1075 S m−1 (sheet resistance: 186 Ohm sq−1) and increased to 1835 S m−1 (sheet resistance: 109 Ohm sq−1) after the reduction of the product with NaBH4. The conductivity of the nanoribbons was lower than that of the starting MWCNT-f-OH, which was measured to be 2940 S m−1 (sheet resistance: 68 Ohm sq−1); however, it was remarkably higher compared with similar nanoribbons in the literature and suitable for applications in nanoelectronics. In the literature, several procedures for the unzipping of MWCNTs have been described. Unfortunately, few reports presented a common description of the nanoribbon product, which usually contains the dimensions, dispersibility, conductivity or sheet resistance, yield, etc. In Table 1, the most important characteristics of some common methods for the preparation of carbon nanoribbons—mainly by unzipping MWNTs—are presented. The KO2-assisted hydrothermal treatment is one of the most eco-friendly, low-cost, and high-yield methods. Apparently, it is the only one that can produce simultaneously narrow nanoribbons with intense photoluminescence and wide nanoribbons with an electrical conductivity between the highest points, especially after reduction.

3.2. Cutting of Graphene Nanosheets

The same reaction was then applied to pristine graphene nanosheets. Graphene nanosheets were dispersed in water, and their hydrothermal treatment with KO2 was also performed successfully. The products of the reaction, after the removal of the unreacted material or the large graphene nanosheets, were also divided by the material that was dispersed in the supernatant and the precipitate. As revealed by TEM analysis (see Figure 8), the precipitate mainly consisted of large nanographenes (NG) with diameters between 50 and 100 nm, and the supernatant created by graphene quantum dots (GQD) had a diameter that ranged between 2 and 6 nm. GQDs were easily dispersible in water and had a characteristic photoluminescence, in contrast with the larger NGs, which are less dispersible in water and without photoluminescence.
The UV–Vis absorption spectrum of GQDs showed a wide band that starts from 800 nm and is continuously increased until the end of the spectrum measurement at 250 nm. Two broad shoulders can be also observed at 280–300 nm (the π,π* transition) and between 450 and 550 nm (the n,π* transition). The photoluminescence spectra of the GQD sample at several excitation wavelengths showed two different luminescence bands. The first with λmax around 440 nm was recorded after excitation under 300 and 350 nm, and the second was an excitation that depended on luminescence, with a maximum emission between 500 and 550 nm after excitation under 400 to 500 nm (see Figure 9). Interestingly, after the excitation with 300–350 nm, GNDs emitted a broad-band white light that extended from 400 to 600 nm because of the co-existence of the two different bands (see Figure 9b). The different emission bands here could be related to the size of the GNDs. According to Ajayan et al., the energy gap of the GNDs decreases with the increasing size [39]. Thus, the broad emission band is a result of the co-existence of GNDs with sizes between 2 and 6 nm, as revealed also by the TEM image (see Figure 8c).
The Raman spectra of the two products showed the characteristic peaks of the D, G, and 2D bands at 1360, 1570, and 2737 cm−1, respectively. Both products have an increased ID/IG ratio compared to that of pristine graphene nanosheets, due to the increased number of sp3 carbon atoms at the edges of the much smaller GQDs and NGs. The difference between the ID/IG ratio of the two products, as shown in Figure 10, can be reasonably attributed to the fact that NGs have more sp3 carbon atoms due to the existence of defects at the core apart from the edges.
The XPS analysis of nanographene showed different types of oxygen functional groups (see Figure 11). The main peak at 284.6 eV is due to C–C and C=C bonds, while the peak at 286.1 is ascribed to the C–OH bonds, representing 18.3% of the carbon area. The less intense peaks at 287.2 eV (7.0%), 288.2 eV (7.0%), and 289.6 eV (2.8%) represent the C–O–C, C=O, and COOH groups, respectively. Finally, the contribution of pi–pi* interactions was observed; this is characteristic for carbon in aromatic compounds between π electron systems, such as aromatic rings.
The effectiveness of the KO2-assisted hydrothermal treatment for both substrates was indicated by the relatively high yield from unzipping MWCNT-f-OH or cutting graphene nanosheets. For the first procedure, the yield was above 90%, as indicated by the limited number of unreacted MWCNT-f-OH that was observed in the TEM images. As regards the hydrothermal cutting of graphene, the KO2 assistance resulted in a remarkable yield that reached 50%. The KO2-assisted hydrothermal treatment has proven to be an effective top-down method for the preparation of nanosized carbon structures from different graphenic precursors, such as carbon nanotubes, pristine graphene, or graphene oxide [34]. Preliminary results showed that carbon black could be also a precursor. Although the emissive NR1 and GQDs are very interesting nanomaterials, which potentially could be used in optoelectronic applications, the main products here are the wide, highly conductive nanoribbons NR2 and nanographenes NG (50–100 nm). The first could be used for the preparation of transparent conductive films in several applications, such as photovoltaics, smart screens, etc. Finally, nanographenes seems to have the suitable size to be used in bioapplications, such as drug delivery, biosensing, etc.
The mechanism. The mechanism of this effective cutting of graphenic layers or unzipping carbon nanotubes has been already proposed by Zhao et al., who showed that KO2 hydrothermally cut GO into very small pieces, thus producing GQDs with yellow PL emission [34]. It is known that KO2 in water produces an intermediate superoxide anion O2−, and finally OH− and O2. The mechanism proposed by Zhao et al. is based on the existence of epoxy groups along lines on the GO surface or the formation of new lines of epoxy groups by the strongly oxidative superoxide anion O2−, and the dissociation of the underlying C-C bonds by OH− during the hydrothermal heating. In our work, functionalized MWCNTs and pristine graphene—without epoxy groups—were used, which means that epoxy lines should be formed exclusively during the KO2 treatment of the starting material (see Figure 12).
To support this hypothesis, pristine graphene and MWCNT-f-OH were mixed with an excess of KO2 in water under sonication for a few minutes, and the product was separated and washed repeatedly to remove by-products. The KO2-treated graphene and MWCNT-f-OH were characterized by FTIR spectroscopy, which showed in both cases the formation of a strong band at 1350 cm−1 and a broad band at 3150–3200 cm−1 (see Figure 13).
The latter can be attributed to OH stretching vibrations and the former to C-O bending vibrations or epoxy groups. The lack of any other characteristic peak in the FT-IR spectra of both samples indicates the formation of epoxy groups, which probably was partly hydrolyzed to C-OH during the KO2 treatment of graphene or MWCNT-f-OH, and before the hydrothermal heating in the presence of OH−, which favors the cutting or unzipping of the epoxy or hydroxy functionalized graphene or MWCNT-f-OH surface.

4. Conclusions

The hydrothermal treatment of hydrophilic-functionalized MWCNTs with KO2 leads to the effective unzipping and production of GNR. The same reaction was successfully applied to pristine graphene, creating nanographenes and GQDs. In both cases, there is a hydrophilic emissive nanostructure that was isolated by the water phase—narrow GNRs or GQDs—and a less hydrophilic, non-emissive part that isolated a precipitate that contains larger GNRs or nanographenes. Interestingly, narrow GNRs and GQDs are emissive nanostructures and, significantly, GQDs emit white light after excitation at 350 nm.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/nano12030447/s1, Figure S1: AFM images of GNR from sample NR1; Figure S2. AFM images of GNR from the sample NR2.

Author Contributions

Conceptualization, A.K. and V.G.; methodology, K.S., N.C. and A.K.; writing—original draft preparation, K.S., N.C., A.K. and V.G.; writing—review and editing, V.G. and D.G.; supervision, V.G. and D.G. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Data Availability Statement

Not applicable.

Acknowledgments

The authors gratefully acknowledge M. Kollia and the Laboratory of Electron Microscopy and Microanalysis, School of Natural Sciences, University of Patras for the TEM measurements.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Georgakilas, V.; Perman, J.A.; Tucek, J.; Zboril, R. Broad family of carbon nanoallotropes: Classification, chemistry, and applications of fullerenes, carbon dots, nanotubes, graphene, nanodiamonds, and combined superstructures. Chem. Rev. 2015, 115, 4744–4822. [Google Scholar] [CrossRef]
  2. Kim, S.D.; Sarkar, A.; Ahn, J.H. Graphene-based nanomaterials for flexible and stretchable batteries. Small 2021, 17, 2006262. [Google Scholar] [CrossRef]
  3. Anichini, C.; Samorì, P. Graphene-based hybrid functional materials. Small 2021, 17, 2100514. [Google Scholar] [CrossRef]
  4. Zhu, J.; Yang, D.; Yin, Z.; Yan, Q.; Zhang, H. Graphene and graphene-based materials for energy storage applications. Small 2014, 10, 3480–3498. [Google Scholar] [CrossRef]
  5. Yu, L.P.; Shearer, C.; Shapter, J. Recent development of carbon nanotube transparent conductive films. Chem. Rev. 2016, 116, 13413–13453. [Google Scholar] [CrossRef]
  6. Clancy, A.J.; Bayazit, M.K.; Hodge, S.A.; Skipper, N.T.; Howard, C.A.; Shaffer, M.S.P. Charged carbon nanomaterials: Redox chemistries of fullerenes, carbon nanotubes, and graphenes. Chem. Rev. 2018, 118, 7363–7408. [Google Scholar] [CrossRef] [Green Version]
  7. Schroeder, V.; Savagatrup, S.; He, M.; Lin, S.; Swager, T.M. Carbon nanotube chemical sensors. Chem. Rev. 2019, 119, 599–663. [Google Scholar] [CrossRef]
  8. Peng, Z.; Zhao, T.; Zhou, Y.; Li, S.; Li, J.; Leblanc, R.M. Bone tissue engineering via carbon-based nanomaterials. Adv. Healthc. Mater. 2020, 9, 1901495. [Google Scholar] [CrossRef]
  9. Feng, L.; Wu, L.; Qu, X. New horizons for diagnostics and therapeutic applications of graphene and graphene oxide. Adv. Mater. 2012, 25, 168–186. [Google Scholar] [CrossRef]
  10. Song, S.; Shen, H.; Wang, Y.; Chu, X.; Xie, J.; Zhou, N.; Shen, J. Biomedical application of graphene: From drug delivery, tumor therapy, to theranostics. Colloids Surf. B Biointerfaces 2020, 185, 110596. [Google Scholar] [CrossRef]
  11. Chen, H.-J.; Zhang, Z.-H.; Xie, D.; Cai, R.; Chen, X.; Liu, Y.-N.; Yao, S.-Z. Surface-imprinting sensor based on carbon nanotubes/graphene composite for determination of bovine serum albumin. Electroanalysis 2012, 24, 2109–2116. [Google Scholar] [CrossRef]
  12. Tang, F.; Gao, J.; Ruan, Q.; Wu, X.; Wu, X.; Zhang, T.; Liu, Z.; Xiang, Y.; He, Z.; Wu, X. Graphene-wrapped MnO/C composites by MOFs-derived as cathode material for aqueous zinc ion batteries. Electrochim. Acta 2020, 353, 136570. [Google Scholar] [CrossRef]
  13. Mendes, R.G.; Mandarino, A.; Koch, B.; Meyer, A.K.; Bachmatiuk, A.; Hirsch, C.; Gemming, T.; Schmidt, O.G.; Liu, Z.; Rümmeli, M.H. Size and time dependent internalization of label-free nano-graphene oxide in human macrophages. Nano Res. 2017, 10, 1980–1995. [Google Scholar] [CrossRef]
  14. Kim, J.; Kim, S.W.; Yun, H.; Kim, B.J. Impact of size control of graphene oxide nanosheets for enhancing electrical and mechanical properties of carbon nanotube–polymer composites. RSC Adv. 2017, 7, 30221–30228. [Google Scholar] [CrossRef] [Green Version]
  15. Wang, H.; Wang, H.S.; Ma, C.; Chen, L.; Jiang, C.; Chen, C.; Xie, X.; Li, A.-P.; Wang, X. Graphene nanoribbons for quantum electronics. Nat. Rev. Phys. 2021, 3, 791–802. [Google Scholar] [CrossRef]
  16. Johnson, A.P.; Gangadharappa, H.V.; Pramod, K. Graphene nanoribbons: A promising nanomaterial for biomedical applications. J. Control. Release 2020, 325, 141–162. [Google Scholar] [CrossRef]
  17. Zakharova, O.V.; Mastalygina, E.E.; Golokhvast, K.S.; Gusev, A.A. Graphene nanoribbons: Prospects of application in biomedicine and toxicity. Nanomaterials 2021, 11, 2425. [Google Scholar] [CrossRef]
  18. Chen, Z.; Narita, A.; Müllen, K. Graphene nanoribbons: On-surface synthesis and integration into electronic devices. Adv. Mater. 2020, 32, 2091893. [Google Scholar] [CrossRef]
  19. Kosynkin, D.V.; Higginbotham, A.L.; Sinitskii, A.; Lomeda, J.R.; Dimiev, A.B.; Price, K.; Tour, J.M. Longitudinal unzipping of carbon nanotubes to form graphene nanoribbons. Nature 2009, 458, 872–876. [Google Scholar] [CrossRef] [Green Version]
  20. Higginbotham, A.L.; Kosynkin, D.V.; Sinitskii, A.; Sun, Z.; Tour, J.M. Lower-defect graphene oxide nanoribbons from multiwalled carbon nanotubes. ACS Nano 2010, 4, 2059–2069. [Google Scholar] [CrossRef]
  21. Jiao, L.; Wang, X.; Diankov, G.; Wang, H.; Dai, H. Facile synthesis of high-quality graphene nanoribbons. Nat. Nanotechnol. 2010, 5, 321–325. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  22. Castillo-Martinez, E.; Carretero-Gonzalez, J.; Sovicha, J.; Lima, M.D. High temperature structural transformations of few layer graphene nanoribbons obtained by unzipping carbon nanotubes. J. Mater. Chem. A 2014, 2, 221. [Google Scholar] [CrossRef]
  23. Mondal, S.; Ghosh, S.; Raj, C.R. Unzipping of single-walled carbon nanotube for the development of electrocatalytically active hybrid catalyst of graphitic carbon and pd nanoparticles. ACS Omega 2018, 3, 622–630. [Google Scholar] [CrossRef] [PubMed]
  24. Vo, T.H.; Shekhirev, M.; Kunkel, D.A.; Morton, M.D.; Berglund, E.; Kong, L.; Wilson, P.M.; Dowben, P.; Enders, A.; Sinitskii, A. Large-scale solution synthesis of narrow graphene nanoribbons. Nat. Commun. 2014, 5, 3189. [Google Scholar] [CrossRef] [Green Version]
  25. Zhao, S.; Rondin, L.; Delport, G.; Voisin, C.; Beser, U.; Hu, Y.; Feng, X.; Müllen, K.; Narita, A.; Campidelli, S.; et al. Fluorescence from graphene nanoribbons of well-defined structure. Carbon 2017, 119, 235–240. [Google Scholar] [CrossRef]
  26. Li, G.; Yoon, K.Y.; Zhong, X.; Zhu, X.; Dong, G. Efficient bottom-up preparation of graphene nanoribbons by mild Suzuki–Miyaura polymerization of simple triaryl monomers. Chem. Eur. J. 2016, 22, 9116–9120. [Google Scholar] [CrossRef]
  27. Denk, R.; Hohage, M.; Zeppenfeld, P.; Cai, J.; Pignedoli, C.A.; Sode, H.; Fasel, R.; Feng, X.; Mullen, K.; Wang, S.; et al. Exciton-dominated optical response of ultra-narrow graphene nanoribbons. Nat. Commun. 2014, 5, 4253. [Google Scholar] [CrossRef] [Green Version]
  28. Xie, M.; Su, Y.; Lu, X.; Zhang, Y.; Yang, Z.; Zhang, Y. Blue and green photoluminescence graphene quantum dots synthesized from carbon fibers. Mater. Lett. 2013, 93, 161–164. [Google Scholar] [CrossRef]
  29. Xue, Q.; Huang, H.; Wang, L.; Chen, Z.; Wu, M.; Li, Z.; Pan, D. Nearly monodisperse graphene quantum dots fabricated by amine-assisted cutting and ultrafiltration. Nanoscale 2013, 5, 12098–12103. [Google Scholar] [CrossRef]
  30. Zhang, M.; Bai, L.; Shang, W.; Xie, W.; Ma, H.; Fu, Y.; Fang, D.; Sun, H.; Fan, L.; Han, M.; et al. Facile synthesis of water-soluble, highly fluorescent graphene quantum dots as a robust biological label for stem cells. J. Mater. Chem. 2012, 22, 7461. [Google Scholar] [CrossRef]
  31. Pan, D.; Zhang, J.; Li, Z.; Wu, M. Hydrothermal route for cutting graphene sheets into blue-luminescent graphene quantum dots. Adv. Mater. 2010, 22, 734–738. [Google Scholar] [CrossRef]
  32. Yang, F.; Zhao, M.; Zheng, B.; Xiao, D.; Wu, L.; Guo, Y. Influence of pH on the fluorescence properties of graphene quantum dots using ozonation pre-oxide hydrothermal synthesis. J. Mater. Chem. 2012, 22, 25471. [Google Scholar] [CrossRef]
  33. Shen, J.; Zhu, Y.; Yang, X.; Zong, J.; Zhang, J.; Li, C. One-pot hydrothermal synthesis of graphene quantum dots surface-passivated by polyethylene glycol and their photoelectric conversion under near-infrared light. New J. Chem. 2012, 36, 97–101. [Google Scholar] [CrossRef]
  34. Zhao, Y.; Wu, X.; Sun, S.; Ma, L.; Zhang, L.; Lin, H. A facile and high-efficient approach to yellow emissive graphene quantum dots from graphene oxide. Carbon 2017, 124, 342–347. [Google Scholar] [CrossRef]
  35. Koutsioukis, A.; Belessi, V.; Georgakilas, V. Solid phase functionalization of MWNTs: An eco-friendly approach for carbon-based conductive ink. Green Chem. 2021, 23, 5442–5448. [Google Scholar] [CrossRef]
  36. Belessi, V.; Petridis, D.; Steriotis, T.; Spyrou, K.; Manolis, G.K.; Psycharis, V.; Georgakilas, V. Simultaneous reduction and surface functionalization of graphene oxide for highly conductive and water dispersible graphene derivatives. SN Appl. Sci. 2019, 1, 77. [Google Scholar] [CrossRef] [Green Version]
  37. Khodabakhshi, S.; Fulvio, F.P.; Sousaraei, A.; Kiani, S.; Niu, Y.; Palmer, R.E.; Kuo, C.H.W.; Rudd, J.; Barron, R.A.; Andreoli, E. Oxidative synthesis of yellow photoluminescent carbon nanoribbons from carbon black. Carbon 2021, 183, 495–503. [Google Scholar] [CrossRef]
  38. Han, J.; Kim, W.; Kim, H.K.; Youn, H.C.; Han, J.T.; Kim, W.; Roh, K.C. Longitudinal unzipped carbon nanotubes with high specific surface area and trimodal pore structure. RSC Adv. 2016, 6, 8661. [Google Scholar] [CrossRef]
  39. Peng, J.; Gao, W.; Gupta, B.K.; Liu, Z.; Romero-Aburto, R.; Ge, L.; Song, L.; Alemany, L.B.; Zhan, X.; Gao, G.; et al. Graphene quantum dots derived from carbon fibers. Nano Lett. 2012, 12, 844–849. [Google Scholar] [CrossRef]
Nanomaterials 12 00447 g001 550

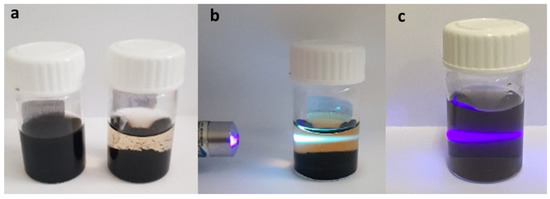

Figure 1. (a) MWCNT-f-OH in water before (left) and after (right) the hydrothermal treatment. (b,c) Excitation with violet laser lamp (405 nm) of the supernatant sample NR1 showing blue emission (b), and the precipitate sample NR2 redispersed in water (c) showing no emission. The violet light is due to the Tyndall effect of the dispersed NR2.
Figure 1. (a) MWCNT-f-OH in water before (left) and after (right) the hydrothermal treatment. (b,c) Excitation with violet laser lamp (405 nm) of the supernatant sample NR1 showing blue emission (b), and the precipitate sample NR2 redispersed in water (c) showing no emission. The violet light is due to the Tyndall effect of the dispersed NR2.
Nanomaterials 12 00447 g001
Nanomaterials 12 00447 g002 550

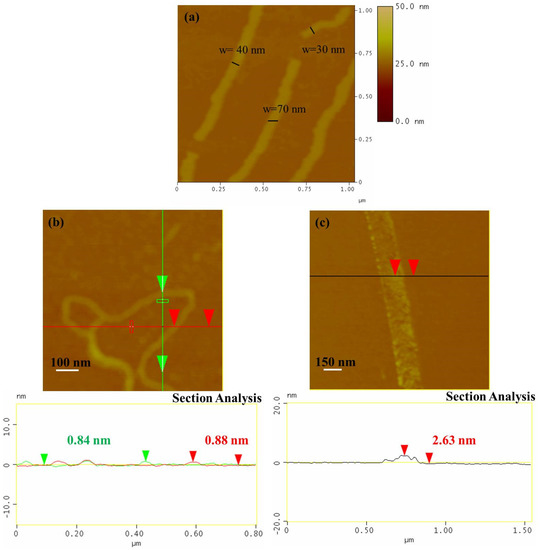

Figure 2. AFM images from the sample NR1 (a) and the sample NR2 (b,c).
Figure 2. AFM images from the sample NR1 (a) and the sample NR2 (b,c).
Nanomaterials 12 00447 g002
Nanomaterials 12 00447 g003 550

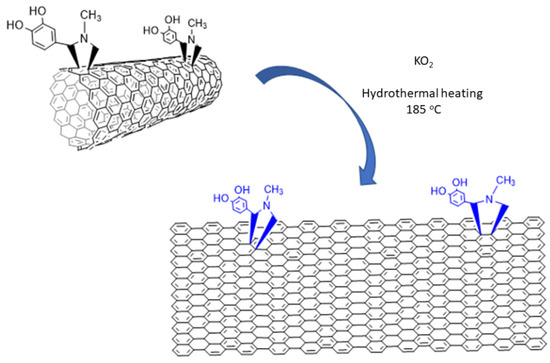

Figure 3. Unzipping of MWCNT-f-OH by KO2.
Figure 3. Unzipping of MWCNT-f-OH by KO2.
Nanomaterials 12 00447 g003
Nanomaterials 12 00447 g004 550

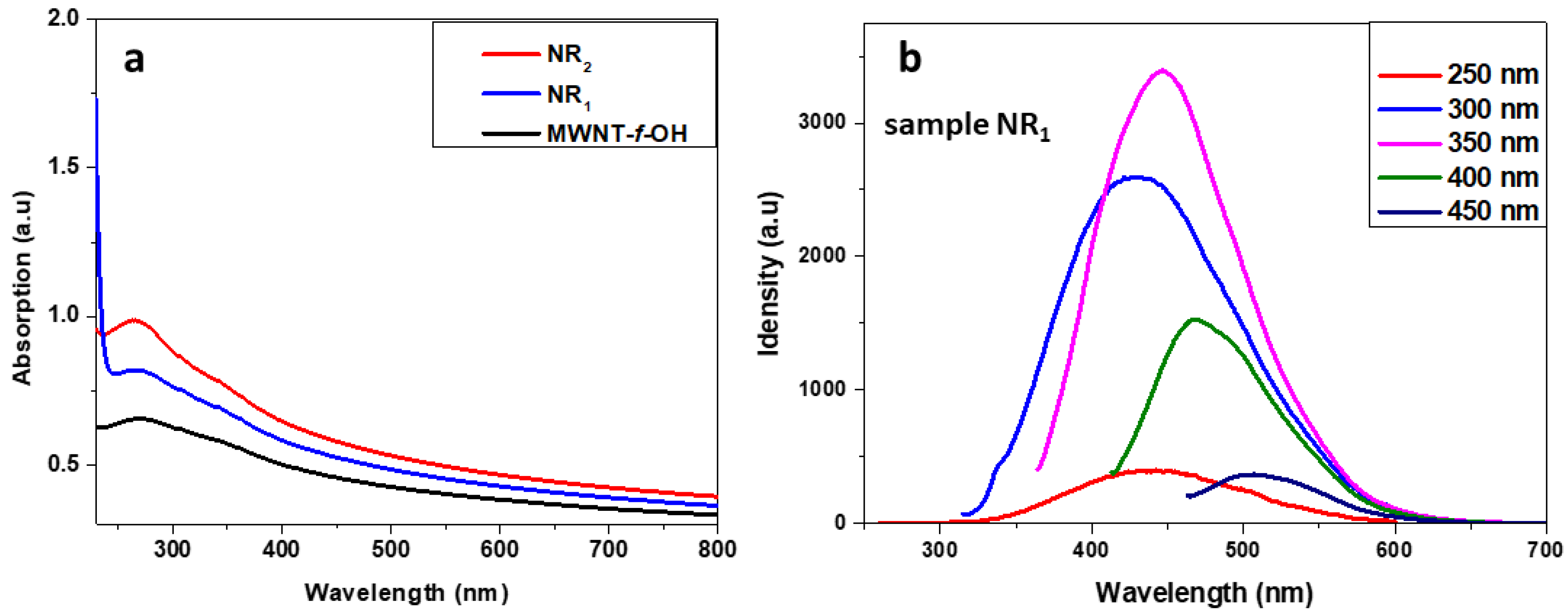

Figure 4. (a) UV–Vis spectra of samples NR1, NR2, and MWCNT-f-OH; (b) PL spectra of sample NR1 at several excitation wavelengths.
Figure 4. (a) UV–Vis spectra of samples NR1, NR2, and MWCNT-f-OH; (b) PL spectra of sample NR1 at several excitation wavelengths.
Nanomaterials 12 00447 g004
Nanomaterials 12 00447 g005 550
Figure 5. XRD diffraction pattern of MWCNT-f-OH and carbon nanoribbons NR2.
Figure 5. XRD diffraction pattern of MWCNT-f-OH and carbon nanoribbons NR2.
Nanomaterials 12 00447 g005
Nanomaterials 12 00447 g006 550

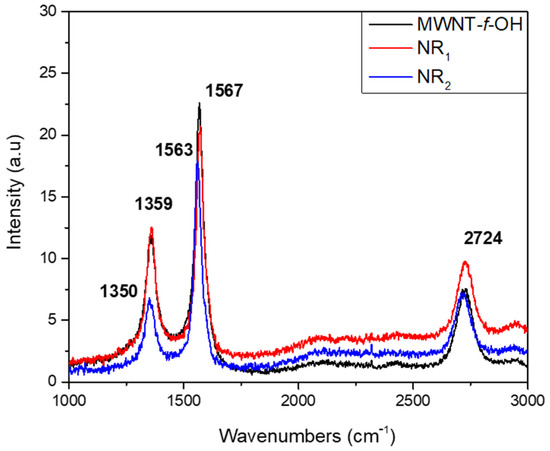

Figure 6. Raman spectra of MWCNT-f-OH and products NR1 and NR2 of carbon nanoribbons.
Figure 6. Raman spectra of MWCNT-f-OH and products NR1 and NR2 of carbon nanoribbons.
Nanomaterials 12 00447 g006
Nanomaterials 12 00447 g007 550

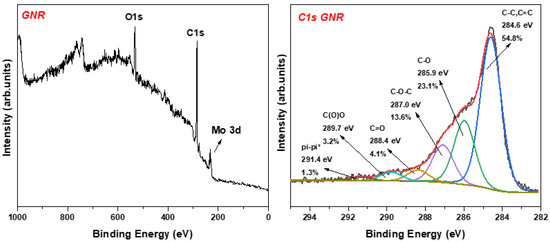

Figure 7. (Left) XPS survey of NR2, where the Mo peak is attributed to the substrate at which the sample was drop casted; (Right) C1s photoelectron peak of NR2.
Figure 7. (Left) XPS survey of NR2, where the Mo peak is attributed to the substrate at which the sample was drop casted; (Right) C1s photoelectron peak of NR2.
Nanomaterials 12 00447 g007
Nanomaterials 12 00447 g008 550

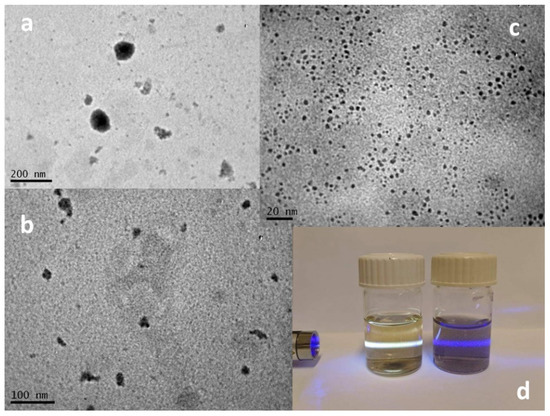

Figure 8. TEM images of (a,b) nanographenes (NGs) and (c) GQDs. (d) Photo of GQDs and NGs dispersed in water. GQDs emit white light after excitation with violet laser light, while NGs do not emit light.
Figure 8. TEM images of (a,b) nanographenes (NGs) and (c) GQDs. (d) Photo of GQDs and NGs dispersed in water. GQDs emit white light after excitation with violet laser light, while NGs do not emit light.
Nanomaterials 12 00447 g008
Nanomaterials 12 00447 g009 550

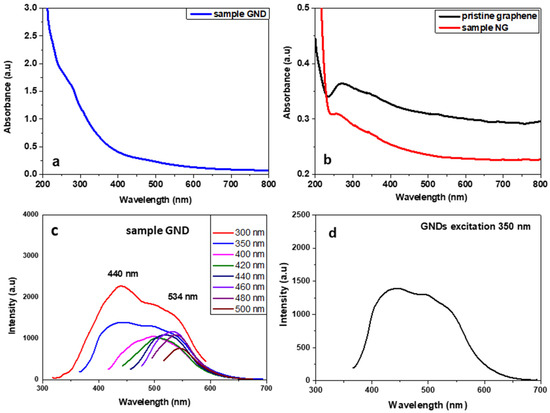

Figure 9. UV–Vis spectra of product GND (a), product NGs and pristine graphene (b), and PL spectra of GQD sample after excitation at several wavelengths (c). Broadband emission after excitation of GNDs with 350 nm (d).
Figure 9. UV–Vis spectra of product GND (a), product NGs and pristine graphene (b), and PL spectra of GQD sample after excitation at several wavelengths (c). Broadband emission after excitation of GNDs with 350 nm (d).
Nanomaterials 12 00447 g009
Nanomaterials 12 00447 g010 550
Figure 10. Raman spectra of (a) NG and GQDs; (b) pristine graphene.
Figure 10. Raman spectra of (a) NG and GQDs; (b) pristine graphene.
Nanomaterials 12 00447 g010
Nanomaterials 12 00447 g011 550

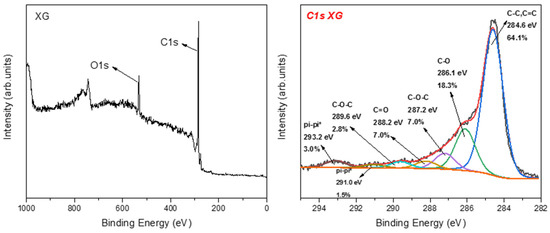

Figure 11. (Left) XPS survey of NG and (right) C1s photoelectron peak of Ng.
Figure 11. (Left) XPS survey of NG and (right) C1s photoelectron peak of Ng.
Nanomaterials 12 00447 g011
Nanomaterials 12 00447 g012 550

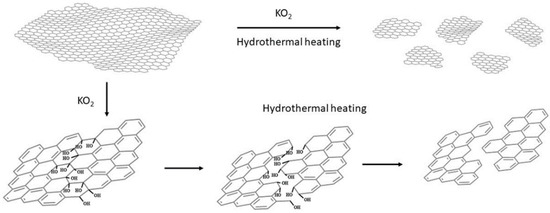

Figure 12. The proposed mechanism of the cutting of graphene nanosheets.
Figure 12. The proposed mechanism of the cutting of graphene nanosheets.
Nanomaterials 12 00447 g012
Nanomaterials 12 00447 g013 550

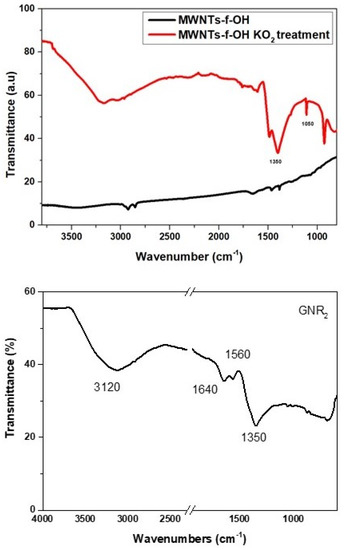

Figure 13. IR spectra of the graphene or MWCNT-f-OH after the treatment with KO2 in water.
Figure 13. IR spectra of the graphene or MWCNT-f-OH after the treatment with KO2 in water.
Nanomaterials 12 00447 g013
Table
Table 1. Comparison of various method for the formation of nanoribbon.
Table 1. Comparison of various method for the formation of nanoribbon.
MethodWidth of NanoribbonsConductivityYieldRef
MWNTH2SO4–KMnO4>100 nmpoornearly 100%[19]
MWNTAir at 500 °C/sonication10–30 nmgood2%[21]
Carbon blackHNO3/90 °C30 nm 66%[37] *
MWNTKOH/900 °C 628 S m−153%[38]
MWNT-f-OHKO2 120 °C hydrothermal30–150 nm1730 S m−1>90%**
* Nanoribbons with photoluminescence. ** This work.
